1 1 Static Analysis Methods CSSE 376 Software Quality Assurance Rose-Hulman Institute of Technology March 20, 2007

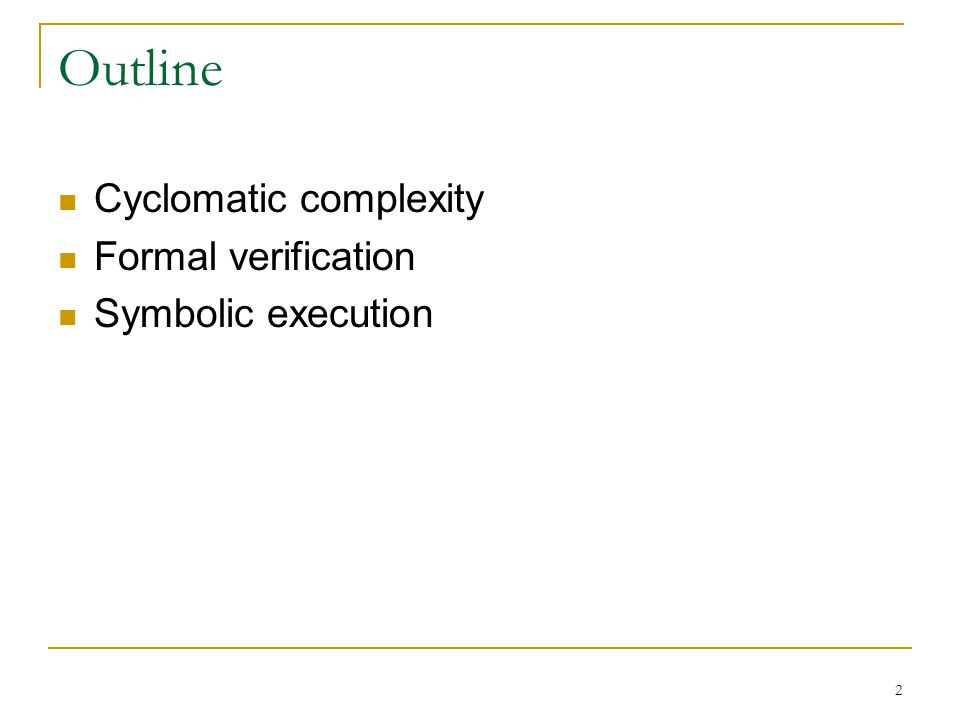

2 2 Outline Cyclomatic complexity Formal verification Symbolic execution

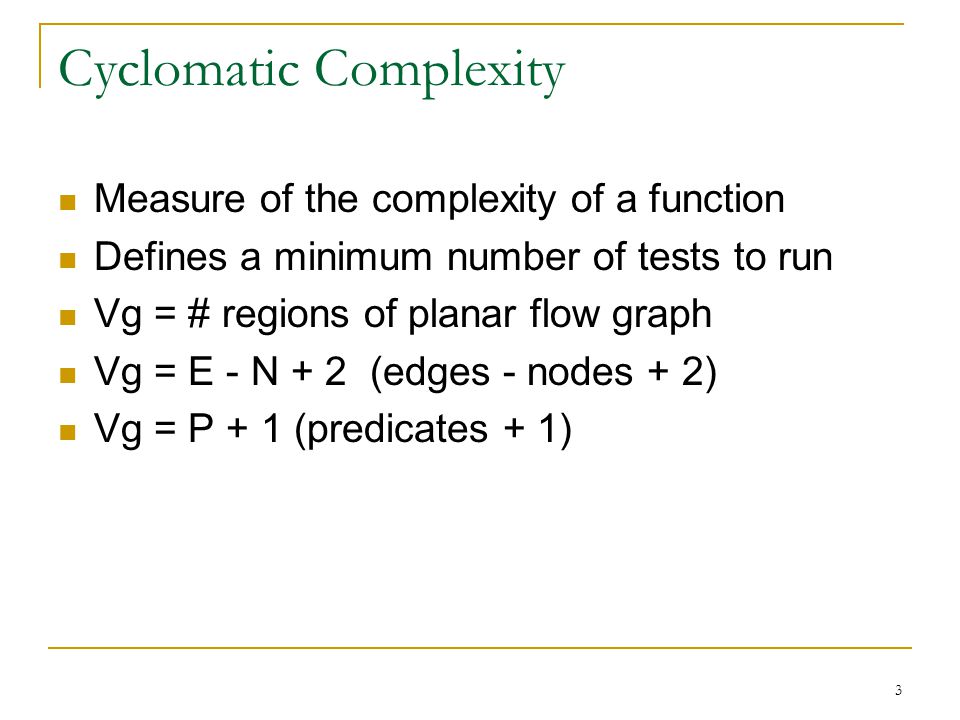

3 3 Cyclomatic Complexity Measure of the complexity of a function Defines a minimum number of tests to run Vg = # regions of planar flow graph Vg = E - N + 2 (edges - nodes + 2) Vg = P + 1 (predicates + 1)

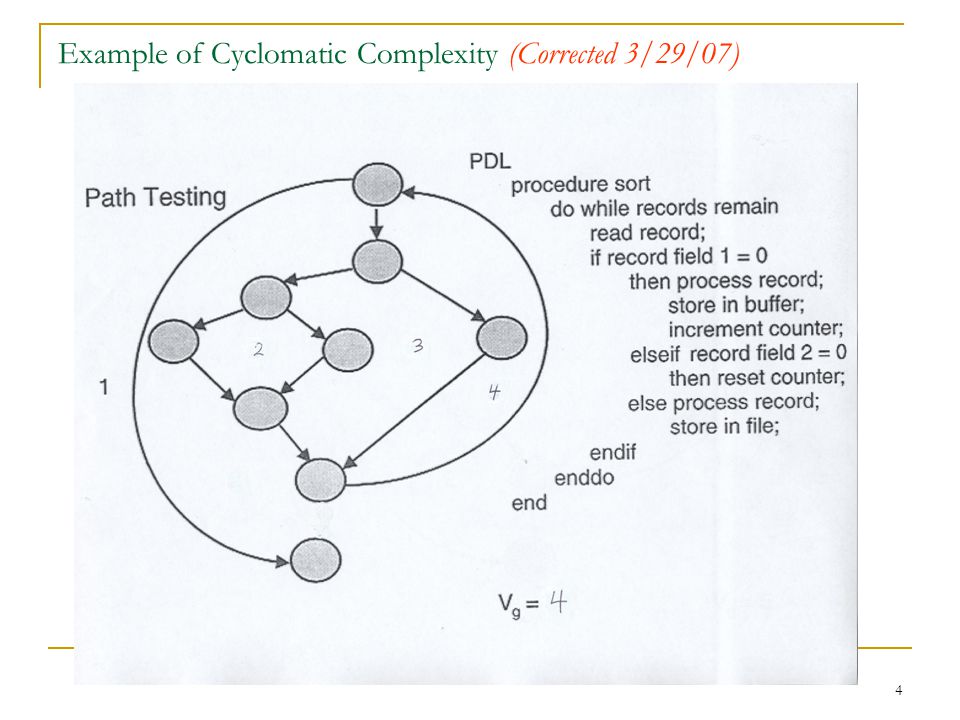

4 4 Example of Cyclomatic Complexity (Corrected 3/29/07)

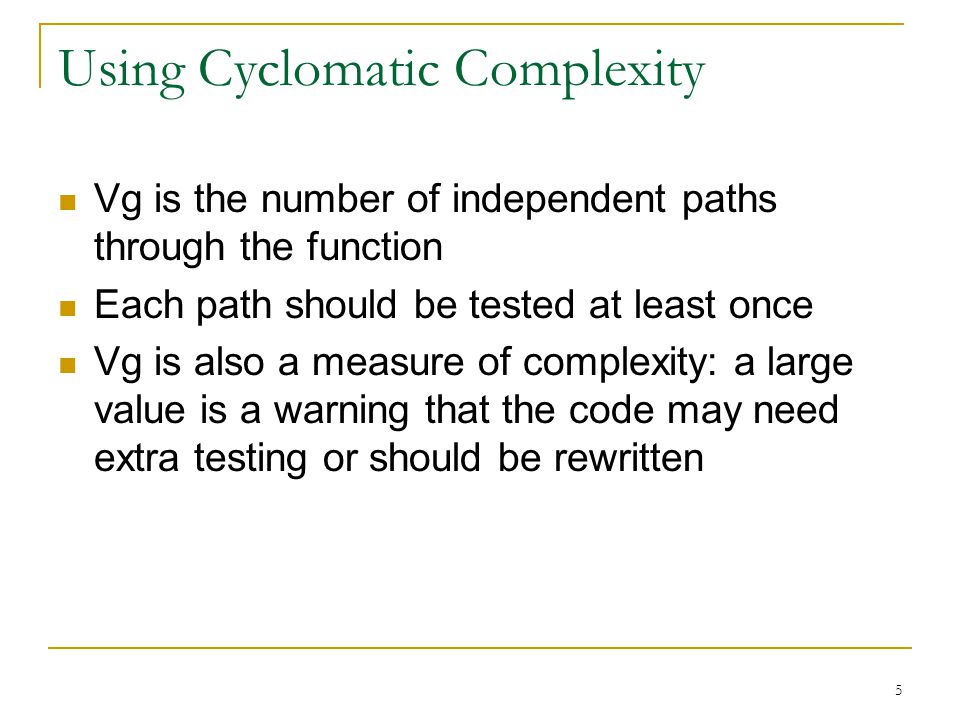

5 5 Using Cyclomatic Complexity Vg is the number of independent paths through the function Each path should be tested at least once Vg is also a measure of complexity: a large value is a warning that the code may need extra testing or should be rewritten

6 6 Cartoon of the Day

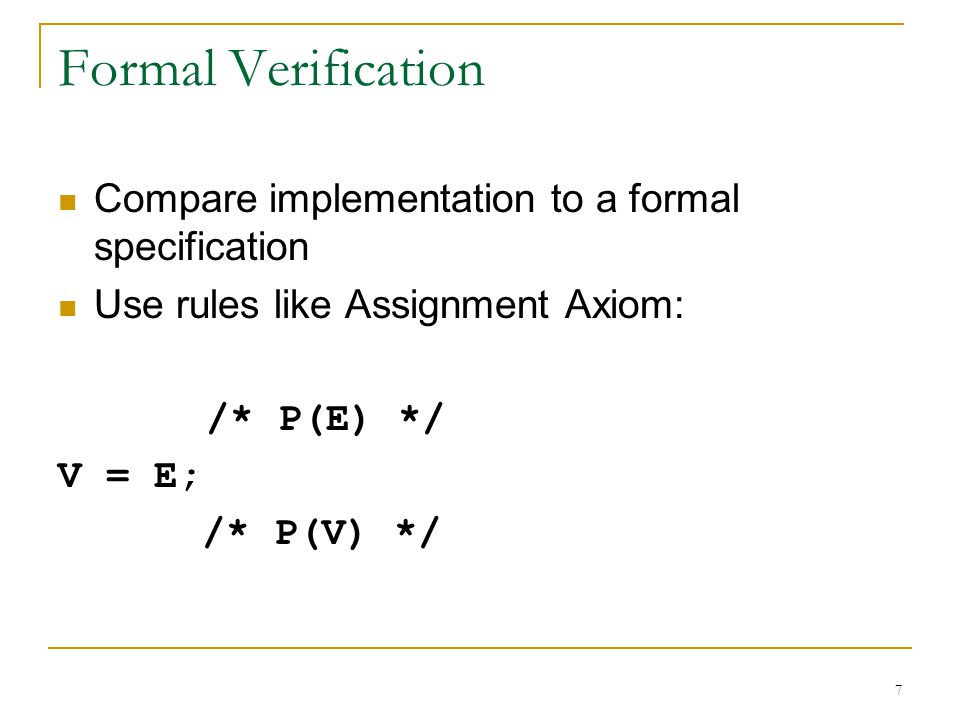

7 7 Formal Verification Compare implementation to a formal specification Use rules like Assignment Axiom: /* P(E) */ V = E; /* P(V) */

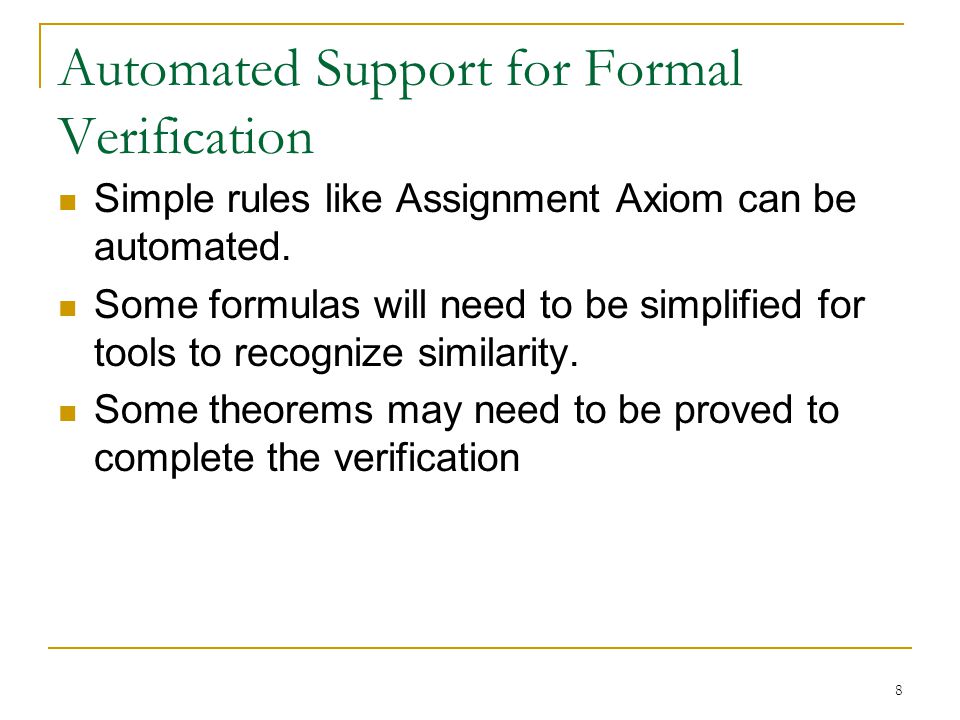

8 8 Automated Support for Formal Verification Simple rules like Assignment Axiom can be automated. Some formulas will need to be simplified for tools to recognize similarity. Some theorems may need to be proved to complete the verification

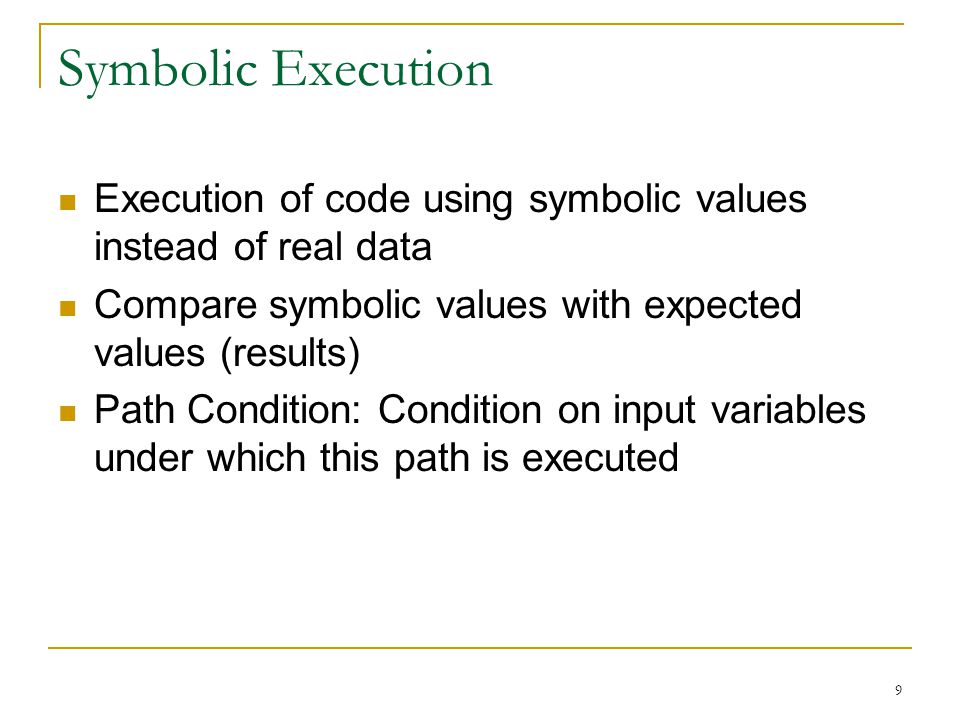

9 9 Symbolic Execution Execution of code using symbolic values instead of real data Compare symbolic values with expected values (results) Path Condition: Condition on input variables under which this path is executed

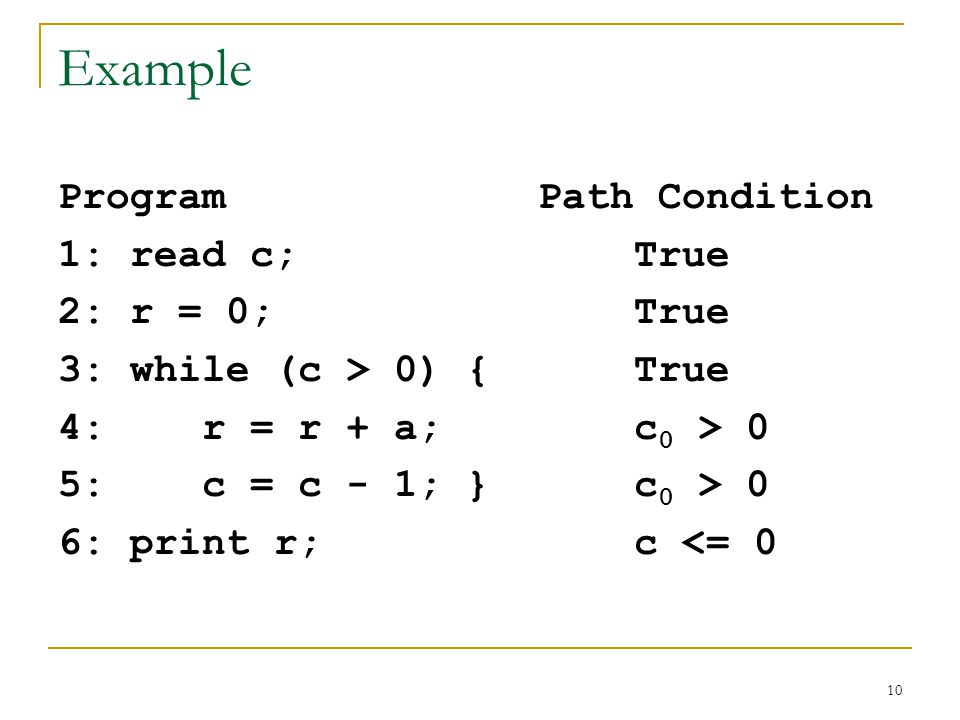

10 10 Example ProgramPath Condition 1: read c;True 2: r = 0;True 3: while (c > 0) {True 4: r = r + a;c 0 > 0 5: c = c - 1; }c 0 > 0 6: print r;c <= 0
