1 Last Time Pinhole camera model, projection
A taste of projective geometry Two view geometry: Homography Epipolar geometry, the essential matrix Camera calibration, the fundamental matrix

2 Epipolar Lines epipolar plane epipolar lines epipolar lines O O’
Baseline

3 Stereo Vision Objective: 3D reconstruction
Input: 2 (or more) images taken with calibrated cameras Output: 3D structure of scene Steps: Rectification Matching Depth estimation

4 Rectification We will assume images have been rectified so that epipolar lines correspond to scan lines Image planes of cameras are parallel. Focal points are at same height. Focal lengths same. Then, epipolar lines fall along the horizontal scan lines of the images Any stereo pair can be rectified by rotating and scaling the two image planes (=homography) so that they become parallel to baseline

5 Rectification Image Reprojection
reproject image planes onto common plane parallel to baseline Notice, only focal point of camera really matters (Seitz)

6 Cyclopean Coordinates
Origin at midpoint between camera centers Axes parallel to those of the two (rectified) cameras

7 Disparity The difference is called “disparity”
d is inversely related to Z: greater sensitivity to nearby points d is directly related to b: sensitivity to small baseline

8 Main Step: Correspondence Search
What to match? Objects? More identifiable, but difficult to compute Pixels? Easier to handle, but maybe ambiguous Edges? Collections of pixels (regions)?

9 Matching objects vs. Pixels
Left Right scanline

10 Random Dot Stereogram Using random dot pairs Julesz showed that recognition is not needed for stereo

11 Random Dot in Motion

12 Finding Matches Under what conditions pixels can be matched?
Ignoring specularities, we can assume that matching pixels have the same brightness (constant brightness assumption) Still, changes in gain and sensitivity may change the values of pixels Common solution: Use larger windows Normalized correlation Pros and cons: Small window: accurate match is more likely Large window: fewer candidates We need a method to eliminate false matches

13 Window Size W = 3 W = 20 Small window: accurate match is more likely
Large window: less false positives W = 3 W = 20

14 Constraining the Search
Restrict search to epipolar lines (1D search) Use larger elements (larger windows, edges, regions) Problem: large elements may be distorted Enforce smoothness Problem: discontinuities at object boundaries Enforce ordering Problem: not always true

15 1D Search

16 1D Search More efficient Fewer false matches SSD error disparity

17 Ordering

18 Ordering

19 Correspondence as Optimization
Most stereo algorithms attempt to minimize a functional that usually consists of two terms: where - penalizes for quality of a match (unary) - penalizes non smooth (or even non fronto-parallel) reconstructions (binary) Many different optimization approaches were proposed

20 Comparison of Stereo Algorithms
Scene Ground truth D. Scharstein and R. Szeliski. "A Taxonomy and Evaluation of Dense Two-Frame Stereo Correspondence Algorithms," International Journal of Computer Vision, 47 (2002), pp

21 Scharstein and Szeliski

22 Results with window correlation
Window-based matching (best window size) Ground truth

23 Graph Cuts Graph cuts Ground truth

24 Stereo Algorithms We’ll briefly review several algorithms:
Dynamic programming Minimal cut/Max flow Space carving Graph cut optimization

25 ?

26 1D Methods: Dynamic Programming
Discretize the 3-D space Find the correct curve at every slice (A slice = epipolar plane)

27 Dynamic programming Find correspondences of each epipolar
line separately

28 Dynamic programming

29 Dynamic programming How do we find the best curve?
Assign weight of all edges insertion match deletion

30 Dynamic programming How do we find the best curve?
Assign weight of all edges Find shortest path Dijkstra insertion match deletion

31 Results

32 Dynamic programming Advantages Simple, efficient Globally optimal
Disadvantages Each slice computed independently (smoothness is not enforced between slices) Problems due to discretization (tilted planes)

33 Min Cut/Max Flow

34 Min Cut/Max Flow

35 Min Cut/Max Flow

36 Min Cut/Max Flow

37 Min Cut/Max Flow Objective: find the optimal cut using all the slices simultaneously.

38 Min Cut/Max Flow Construct a graph:
Every voxel (3-D point in space) is a node Every node is connected to its 6 neighbors

39 Min Cut/Max Flow Weights on the edges:
Data cost: change in pixel value data data

40 Min Cut/Max Flow Weights on the edges:
Data cost: change in pixel value Smoothness cost: change in depth smooth smooth smooth smooth

41 Min Cut/Max Flow Weights on the edges:
Data cost: change in pixel value Smoothness cost: change in depth

42 Min Cut/Max Flow Source Add source and sink Find min cut Sink

43 Min Cut/Max Flow Data penalty Smoothness penalty

44 Results Input Min cut Dynamic programming

45 Min Cut/Max Flow Advantages All slices are optimized simultaneously
Efficient Disadvantages Extension to multi-camera is difficult Discretization

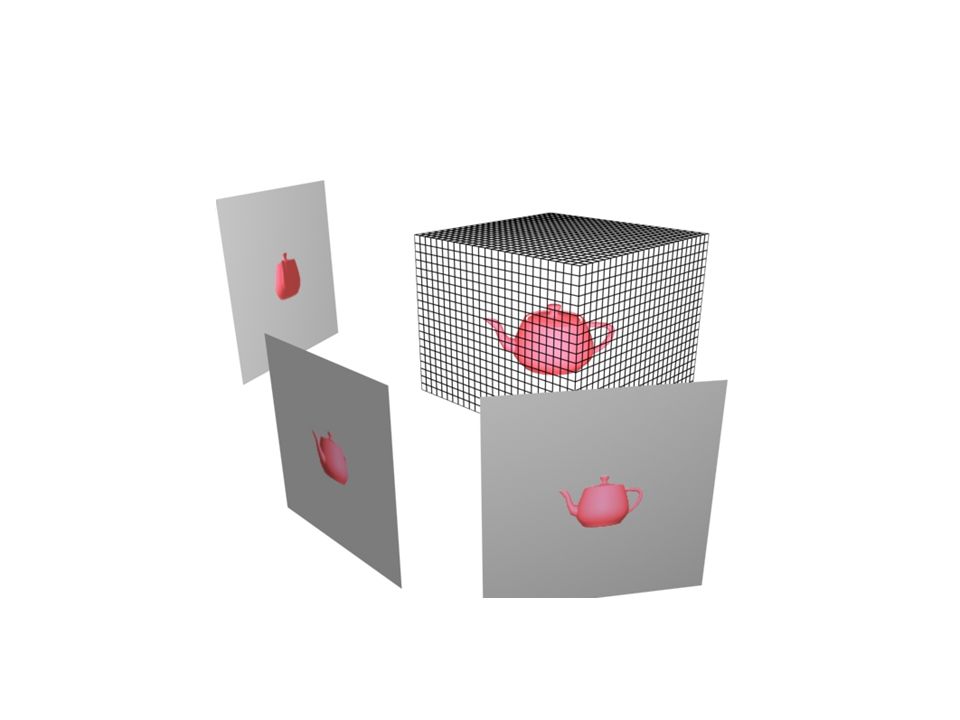

46 Space Carving Multi-view stereo
Every point in space corresponds to a match in the images Compute data term for each match

47 Space Carving Multi-view stereo
Every point in space corresponds to a match in the images Compute data term for each match (“photo-consistency”) 0.2 0.3 0.9 0.8 0.4 0.5

48 Space Carving Dynamic data term (taking occlusion into account)
Order of sweep is important

49 Space Carving

50 Space Carving Done for all slices simultaneously

51 Space Carving Done for all slices simultaneously

52 Space Carving Done for all slices simultaneously

53 Space Carving Computes a bound on the object, the visual hull
More camera views: better result

54 Space Carving: Results

55 Space Carving: Results

56 Space Carving Advantages True multi-views stereo Handles occlusion
Disadvantages Limited to visual hull Lacks smoothness term Noise may introduce holes, allowing for noise may thicken shape Discretization

57 Graph Cut Optimization
Stereo is a minimization problem Possible solution: local search (gradient descent) Problem: inefficient, local minima Instead, search larger areas at every iteration

58 Graph Cut Optimization
2 1 k Construct a graph to represent the problem: Nodes: Pixels (in first image) k discrete depth values Edges: From every pixel node to a depth node (data term) Neighboring nodes (smoothness) Assign weights corresponding to pixel intensities to get a global cost function depths pixels

59 Graph Cut Optimization
Objective: Multiway cut Edges: Every pixel remains connected to one depth node Edges between neighboring nodes only if they are connected to same depth node Nodes are assigned the depth that they are connected to Multiway cut is NP-complete, solve iteratively 1 2 3 k depths pixels

60 Graph Cut Optimization
α-β swap Nodes labeled α or β, (i.e., connected to or ) can change their labeling to α or β Edges between neighbors are updated according to the new labeling Other edges are not changed Finding best swap = min cut! 1 2 3 k α β pixels depths

61 Graph Cut Optimization
Example: 1-2 swap 1 2 k 1 2 3 3 k

62 Graph Cut Optimization
Example: 1-2 swap 1 2 3 k 1 2 3 k Connect the nodes labeled 1 or 2 to both labels

63 Graph Cut Optimization
Example: 1-2 swap 1 1 3 k 3 k Mark 1 as source and 2 as sink Find minimal cut 2 2

64 Graph Cut Optimization
Example: 1-2 swap 1 3 k 1 2 3 k Erase edges that were on the cut Result: a new labeling of the 1,2 nodes 2

65 Graph Cut Optimization
Start with an arbitrary labeling For every pair {α, β} є {1,…,k} Find the best α-β swap (minimizing the function) Update the graph (add and erase edges) Quit when no pair improves the cost function Induce pixel labels

66 Graph Cuts: Results

67 Graph Cut Optimization
1 2 3 k Advantages State of the art results Efficient Bound on approximation quality Same technique can be applied to other problems (e.g., image restoration) Disadvantages Discretization Occlusion Still room for improvement

68 Summary Stereo vision: shape reconstruction from two or more images
Steps: Rectification Correspondence search Depth estimation Algorithms: Dynamic programming Min cut/max flow Space carving Graph cuts
