1 Extensible Processors

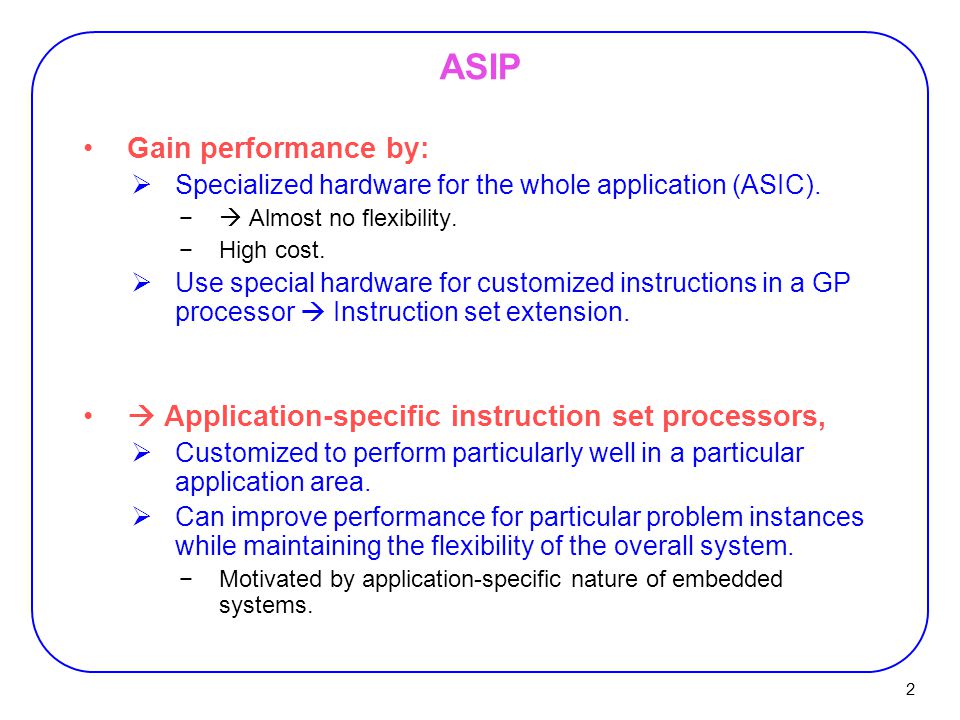

2 2 ASIP Gain performance by:  Specialized hardware for the whole application (ASIC). −  Almost no flexibility. −High cost.  Use special hardware for customized instructions in a GP processor  Instruction set extension.  Application-specific instruction set processors,  Customized to perform particularly well in a particular application area.  Can improve performance for particular problem instances while maintaining the flexibility of the overall system. −Motivated by application-specific nature of embedded systems.

3 3 ASIP Problems:  Substantial non-recurring engineering costs −Each new ASIP must be verified both from the functionality and timing perspectives. −A new mask set must be created to fabricate the chip. −Software side: the compiler must be retargeted to each new processor −Any hand-written libraries must be migrated to the new platform.  Automation of some of these tasks may be possible; −however, the majority of this work is still a manual process.   Difficult to adopt a new ASIP despite the potential advantages.

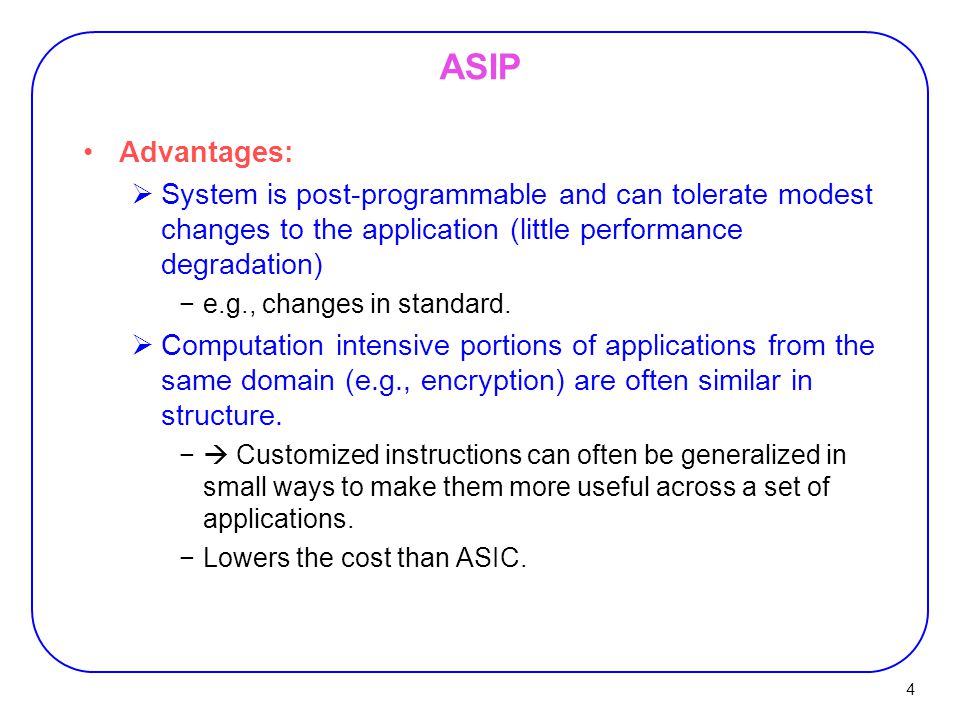

4 4 ASIP Advantages:  System is post-programmable and can tolerate modest changes to the application (little performance degradation) −e.g., changes in standard.  Computation intensive portions of applications from the same domain (e.g., encryption) are often similar in structure. −  Customized instructions can often be generalized in small ways to make them more useful across a set of applications. −Lowers the cost than ASIC.

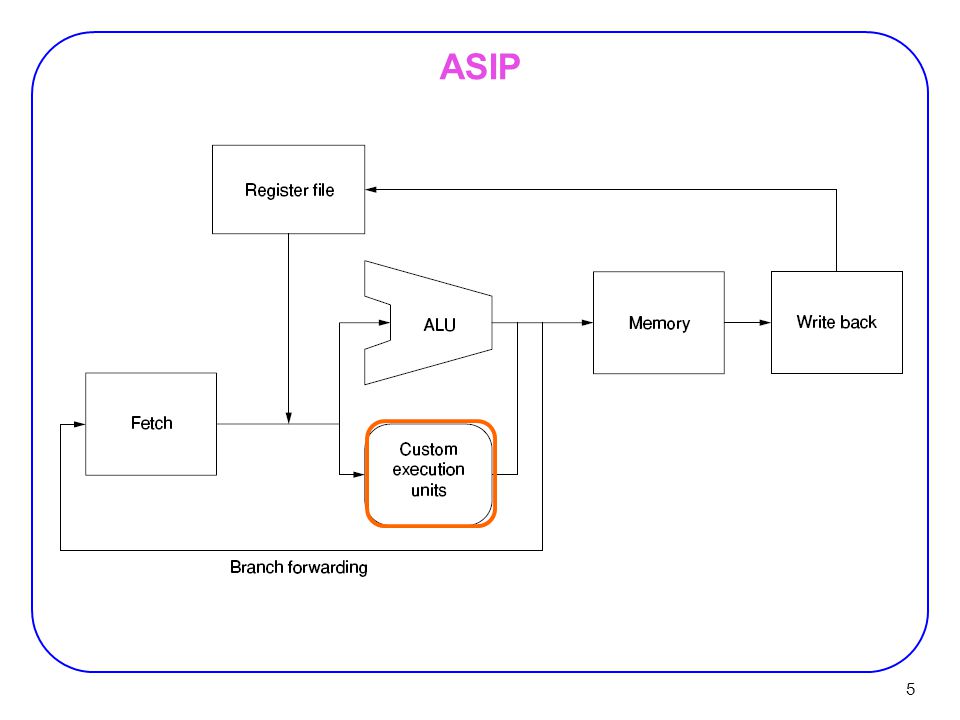

5 5 ASIP

6 6 Xtensa Processor Xtensa from Tensilica [Gonzales00]  A processor core which lets the system designer: −select and size features for a given application, −define new instructions.  Designer can use standard ASIC design flow and tools to synthesize the processor. −Xtensa is fully synthesizable.  Tensilica processor generator adds the application- specific functionality at the time the hardware is designed. −  Extensions are implemented in the same logic family as the rest of the processor. −  Cannot modify the extensions for other applications.

7 7 Xtensa Processor Designer  specifies the characteristics in TIE (Tensilica Instruction Extension) language and/or menus. −Number of physical registers, −Instruction cache size, −Data cache size, −Data RAM size, −External bus width, −Number of interrupts, −Extended instructions (functional units). Tools  generate synthesizable RTL code for the processor,  generate software development tools: −ANSI C//C++ compiler, −Linker, −Assembler, −Code profiler, −Instruction set simulator.

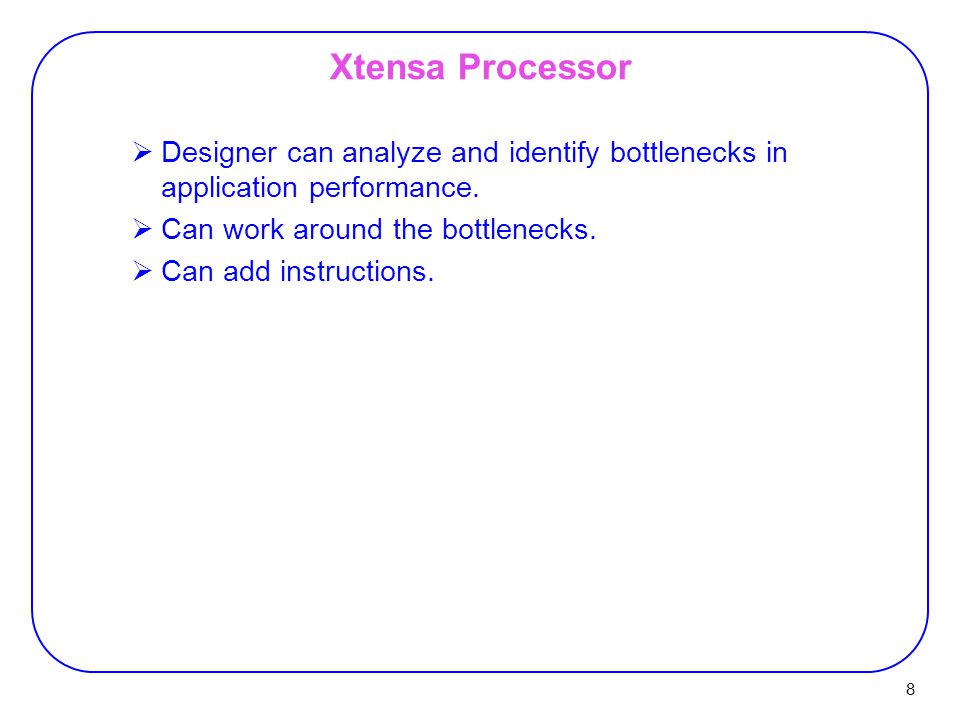

8 8 Xtensa Processor  Designer can analyze and identify bottlenecks in application performance.  Can work around the bottlenecks.  Can add instructions.

9 9 Xtensa Example Example: DES algorithm

10 10 Xtensa Example Characteristics:  Extensive bit permutations: −inefficient in software −efficient in hardware: simple renaming of wires  Rotation on 28-bit boundaries: −in software: rotation instruction on 32-bit boundaries  Table look-ups Added 4 instructions

11 11 Xtensa Speed-Up for DES

12 12 Xtensa Speed-Ups Speed-ups for some applications

13 13 Altera Nios, Xilinx MicroBlaze Soft extensible processor  Can define custom instructions  Can configure the processor  Uses Altera FPGA resources −Lower performance −Higher power consumption

14 14 Extensible Processors Major problems with ASIPs:  Not flexible −For a new application: new masks, other NRE costs.  Large human effort required to identify and implement an efficient set of instruction set extensions. Major problem with soft processors:  Low performance Solution:  A GP processor with reconfigurable FU.

15 15 Extensible Processors Custom Instruction (CI):  Instructions in the extended Instruction Set Architecture (ISA)  Can be implemented in the processor's datapath itself or as a separate co-processor. −Usually in the processor datapath.  A fragment of the program's dataflow graph mapped onto a hardware Custom Functional Unit (CFU). Basic block:  A code fragment with single entry and exit points.  Load/Store cannot be in the BB −Cannot predict after how many clocks, the results are available to next instructions

16 16 Custom Instructions Limitations 1.Number of Operands:  Imposed by base architecture of the core processor. −Length of a custom instruction increases with increasing number of operands. −Number of input and output ports to the register file  the number of input and output operands −cost and energy consumption of a processor increase significantly with increasing number of register file ports. 2.Number of custom instructions:  Imposed by the format of the base ISA. −If base ISA supports 26 instructions with fixed-length opcode  6 more CIs.

17 17 Custom Instructions Limitations 3.Area  Important especially in embedded systems. 4.Control Flow:  Custom instruction identification is typically performed within basic block boundaries. −Assumption: compiler cannot exploit instructions that cross basic block boundaries.

18 18 Instruction Set Extension (ISE) Automatic ISA extension generation consists of:  Custom Instruction Identification −Identifies patterns meeting certain topology requirements  Custom Instruction Selection −Selects the most important patterns under resource and other constraints.

19 19 Automatic ISE To mimic the choices of an expert designer New concept of “Compiler”:  Retargetable compiler: −Maintaining a single piece of code for compiling to different machine targets: −Reads underlying machine description, then produces code for it.  More automation: −Tuning the machine’s instruction set: −Compiler: defines the machine and then produces code for it.

20 20

21 21 References  [Gonzalez00] R. Gonzalez, “Xtensa: a configurable and extensible processpr,” IEEE Micro, 2000.
