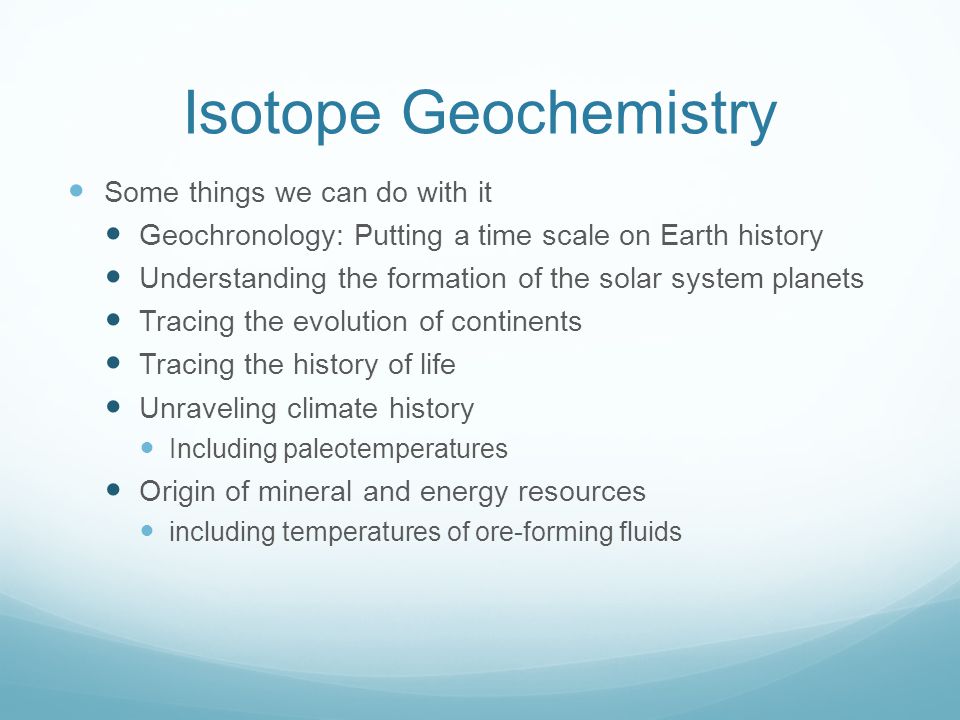

2. Isotope Geochemistry Some things we can do with it Geochronology: Putting a time scale on Earth history Understanding the formation of the solar system planets Tracing the evolution of continents Tracing the history of life Unraveling climate history Including paleotemperatures Origin of mineral and energy resources including temperatures of ore-forming fluids

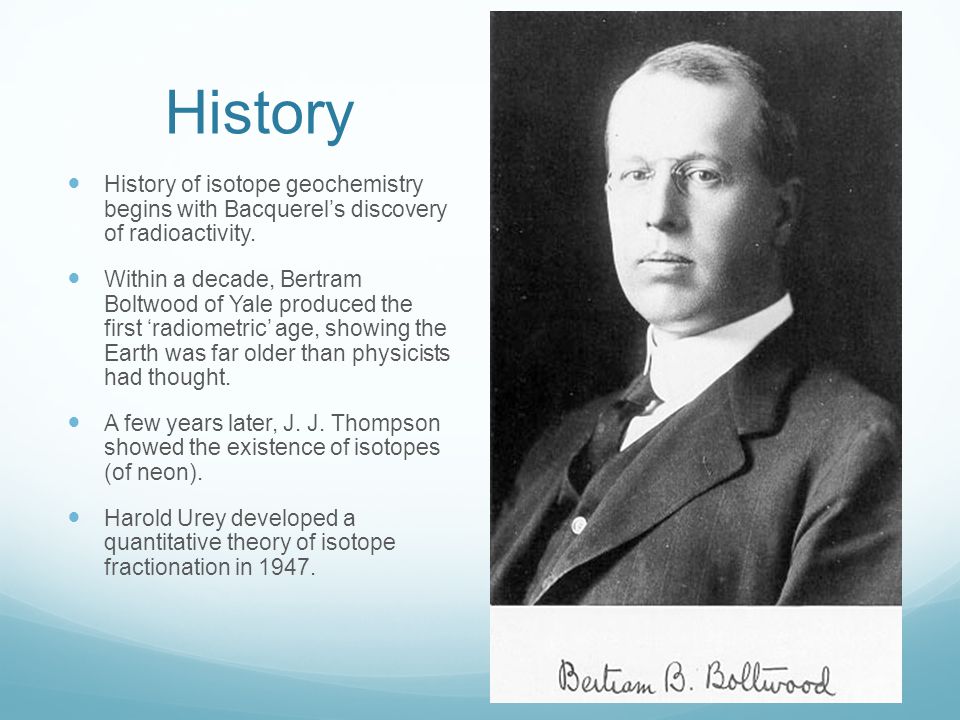

3. History History of isotope geochemistry begins with Bacquerel’s discovery of radioactivity. Within a decade, Bertram Boltwood of Yale produced the first ‘radiometric’ age, showing the Earth was far older than physicists had thought. A few years later, J. J. Thompson showed the existence of isotopes (of neon). Harold Urey developed a quantitative theory of isotope fractionation in 1947. Henri Bacquerel

4. Protons, Neutrons, and Nuclei Constituents of Atoms: proton: 1.007276467 u = 1.67262178 × 10 -27 kg = 938.2720 MeV/c 2 neutron 1.008664916 u electron 0.0005485799 u = 9.10938291 x 10 -31 kg = 0.5109989 MeV/c 2 Definitions N: the number of neutrons Z: the number of protons (same as atomic number since the num­ber of protons dictates the chemical properties of the atom) A: Mass number (­N + Z) M: Atomic Mass, I: Neutron excess number (I = N – Z) Isotopes have the same number of protons but different numbers of neutrons Isobars have the same mass number (N + Z), but N and Z are different Isotones have the same number of neutrons but different number of protons.

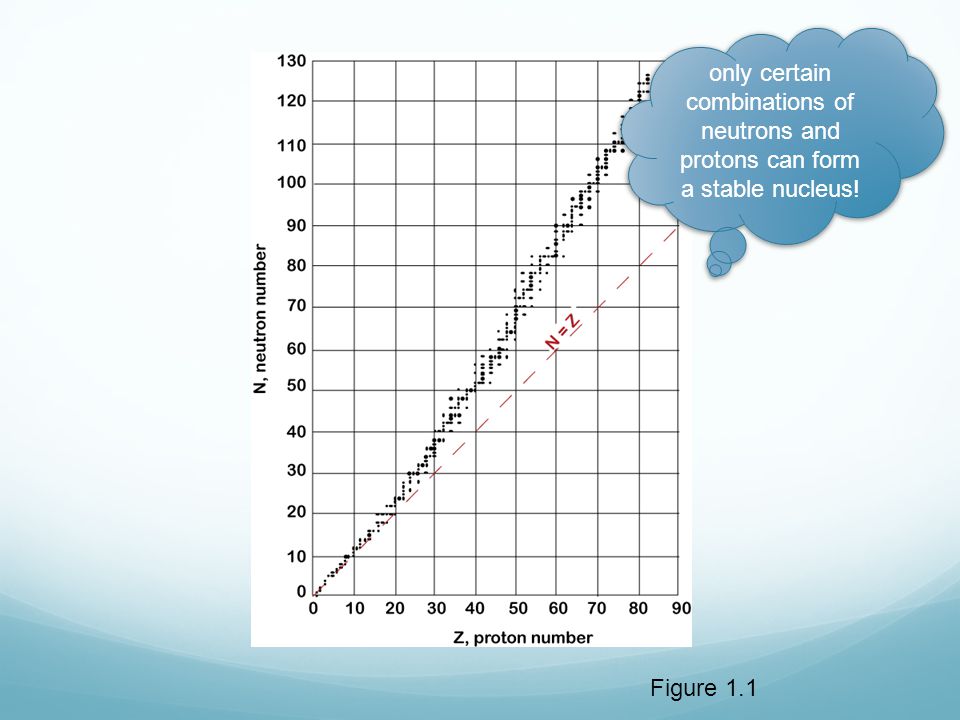

5. Figure 1.1 only certain combinations of neutrons and protons can form a stable nucleus!

6. Forces of Nature Strong nuclear force: 1 Electromagnetic 10 −2 Weak nuclear force 10 −5 gravity 10 −39. Why doesn’t the universe collapse into a single nucleus?

7. Figure 1.2 Comparing Nuclear & Electromagnetic Forces V ∝ 1/r V ∝ exp(-r)/r Nuclear Force, while strong, is short-ranged.

8. Binding Energy Masses of atoms are less than the sum of the masses of their constituents. The missing mass is the energy binding them together, as predicted by Einstein’s mass-energy equivalence: E = mc 2 Binding energy per nucleon:

9. Figure 1.3 Binding energy per nucleon as a function of mass number

10. Bohr’s Liquid Drop Model According to the liquid-drop model, the total binding energy of nucleons is influenced by four effects a volume energy (the strong nuclear force) a surface energy (similar to surface tension) an excess neutron energy a coulomb energy (proton repulsion). B(A,I) = a 1 A – a 2 A 2/3 – a 3 I 2 /4A – a 4 Z 2 /A 1/3 + δ A: nuclear mass number, I: neutron excess number (N-Z), a 1 etc., constants, δ: odd-even fudge-factor

11. Figure 1.4 Contributions to Nuclear Energy as a function of mass number

12. Odd-Even Effects, Magic Numbers, and Shells Even combinations of nuclides are much more likely to be stable than odd ones. This is the first indication that the liquid-drop model does not provide a complete description of nuclear stability. Another observation not explained by the liquid-drop model are the so-called Magic Numbers. The Magic Numbers are 2, 8, 20, 28, 50, 82, and 126.

13. Numbers of stable nuclei for odd and even Z and N

14. The Shell Model of the Nucleus The nucleus has shells, separate ones for protons and neutrons. Consequently, much of nuclear stability is governed by ‘the last nucleon in’, much as in the electron shell model of the atom. As in electron shells, shells accept neutrons and protons in pairs with opposing spin, explaining odd-even effects. Pairing – having two nucleons of opposite spin in an orbit – increases binding energy. Magic numbers reflect filling of shells. These in turn reflect solutions to the Schrödinger equation for a three-dimensional harmonic oscillator.

15. Figure 1.5 Binding energy of isobars as a function of neutron excess number

16. Figure 1.6 Binding energy of isobars as a function of neutron excess number

17. Radioactive Decay Some combinations of protons and neutrons result in only a metastable nucleus – one that eventually transmutes into an other through loss (or more rarely gain) of a particle from the nucleus. Beta decay (emission of electron or positron) a neutrino is also given off Electron capture (Some nuclei can decay in more than 1 possible way, e.g., 40 K, 238 U) Alpha decay (emission of a 4 He nucleus) Fission All of these may be accompanied by emission of a high-energy photon (a gamma ray) as the nucleus decays from an excited state.

18. Rate of Decay Radioactive decay follows a first order rate law: (first order since it depends linearly on N, number of parent atoms) This is the basic equation of radioactive decay. λis the decay constant, unique to each unstable nuclide, and is truly a constant, independent of everything (almost). Values vary of >20 orders of magnitude. The parent is said to be radioactive, the daughter radiogenic.

19. Figure 1.8 Beta-decay

20. Beta decay and the neutrino The beta particle can have a range of energies, but with a well-defined maximum. Seems to violate mass-energy conservation Beta decay involves a change in nuclear spin seems to violate momentum conservation To solve these problems, Fermi hypothesized the existence of an essentially undetectable additional particle, the neutrino (ν), that carried away the excess energy and missing spin. The neutrino was eventually detected some 30 years later. Measuring ‘geoneutrinos’ is helping us define the composition and energy production of the Earth.

21. Figure 1.7 alpha- and gamma-decay

22. Fission Yet another model of the nucleus – the collective model –is intermediate between the liquid drop and shell models and emphasizes collective motion of nucleons. These motions can result in nuclear shape becoming so distorted it cannot recover and breaks into (fissions) instead. This occurs only in the heaviest nuclei, Th, U, and Pu. Among naturally occurring nuclei, it is almost exclusively 238 U that fissions. Reactors and bombs, however, utilized ‘induced’ fission.

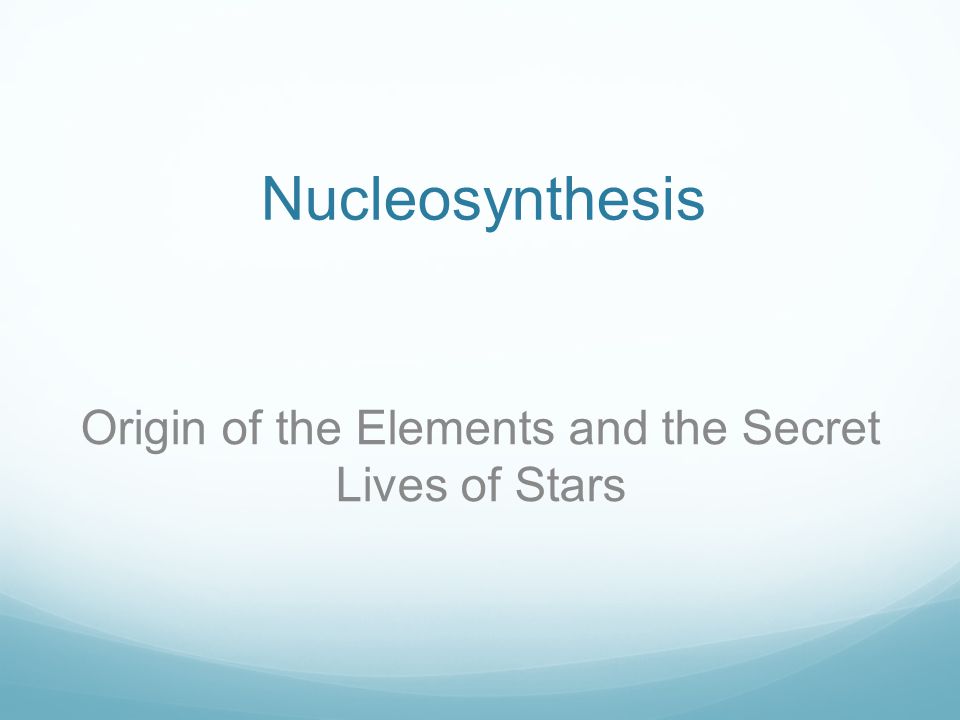

23. Nucleosynthesis Origin of the Elements and the Secret Lives of Stars

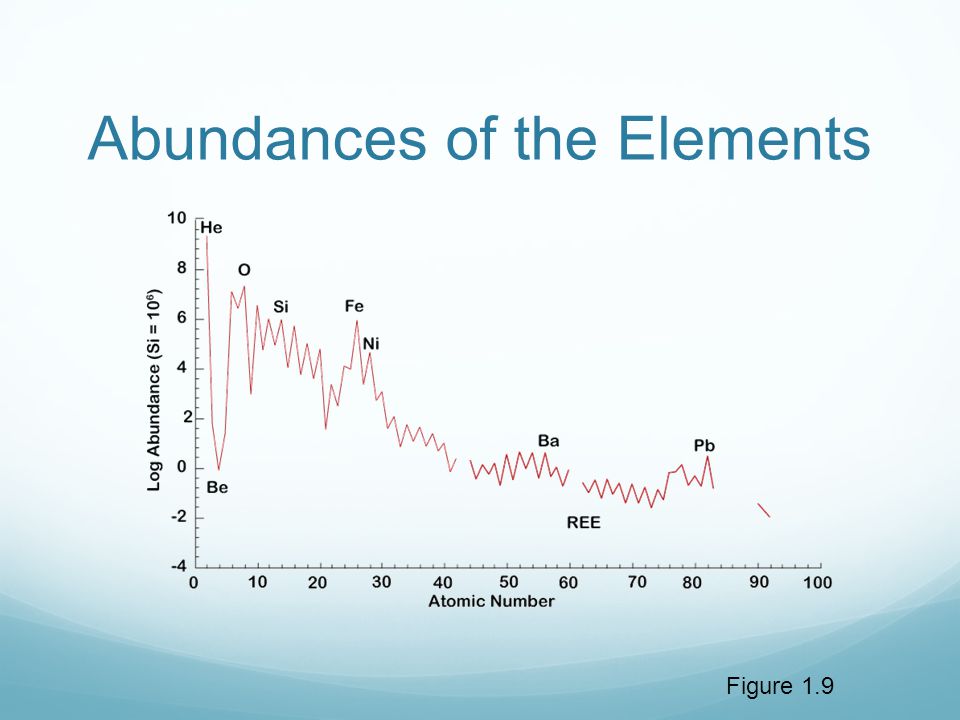

24. Figure 1.9 Abundances of the Elements

25. Questions How were the elements created? Were they created at the same time as the universe (in the Big Bang)? created subsequently? What accounts for the observed (in meteorites and the Sun) abundance of the elements? Abundance declines with atomic number Odd-even effects Some elements anomalously abundant

26. B 2 FH and Nucleosynthesis Physicists sought a single mechanism for creation of the elements but failed to find a suitable one. Burbidge, Burbidge, Fowler and Hoyle (1957) proposed the elements were created in 4 ways/environments: Cosmological nucleosynthesis: creation in the Big Bang Stellar nucleosynthesis: synthesis of elements by fusion in stars Explosive nucleosynthesis: synthesis of elements by neutron and proton capture reactions in supernovae Galactic nucleosynthesis: synthesis of elements by cosmic ray spallation reactions Margaret Burbidge

27. Cosmological Nucleosynthesis Immediately after the Big Bang, the universe was too hot for any matter to exist. But within a microsecond or so, it had cooled to 10 11 K so that matter began to condense. At first electrons, positrons, and neutrinos dominated, but as the universe cooled and expanded, protons and neutrons became more abundant. These existed in an equilibrium dictated by the following reactions: 1 H + e – ⇄ n + ν n + e + ⇄ 1 H + ν As temperatures cooled through 10 10 K, the reactions above progressively favored protons ( 1 H). In less than two seconds things had cooled enough so that these reactions ceased, freezing in a 6 to 1 ratio of protons to neutrons. It took another 100 seconds for the universe to cool to 10 9 K, which is cool enough for 2 H to form: 1 H + 1 n ⇋ 2 H + γ Subsequent reactions produced 3 He, 4 He and a wee bit of Li. Within 20 minutes or so, the universe cooled below 3 x 10 8 K and nuclear reactions were no longer possible. Some 380,000 years later, the universe had cooled to about 3000 K, cool enough for electrons to be bound to nuclei, forming atoms.

28. Figure 1.10 Hertzsprung-Russell Diagram

29. Stellar Nucleosynthesis When density of a forming star reaches 6 g/cm and T reached 10 to 20 million K, hydrogen burning, or the pp process, can begin which involves reactions such as: 1 H + 1 H → 2 H + β + + ν 2 H + 1 H → 3 He + γ 3 He + 3 He → 4 He + 2 1 H + γ CNO cycle: carbon acts a nuclear catalyst to also synthesize 4 He from 1 H 12 C(p,γ) 13 N(β + +,γ) 13 C(p, γ) 14 N(p, γ) 15 O(β +,ν) 15 N(p,α) 12 C limited to larger Pop. I stars These are the sources of energy sustaining main sequence stars. Little synthesis beyond He; some minor production/consumption of light nuclides, particularly in the CNO cycle.

30. CNO Cycle Figure 1.11

31. Stellar Nucleosynthesis in Red Giants Once the H is exhausted in the stellar core the interior collapses, raising T and P. The exterior expands and cools. This is the red giant phase. When T reaches 10 8 K and density reaches 10 4 g/cc in the He core), He burning begins: 4 He + 4 He → 8 Be + γ 8 Be + 4 He → 12 C + γ Because the t 1/2 of 8 Be is only 10 -16 sec, 3 He must collide effectively simultaneously, which is why pressure must be so high. He burning also produces some O, 20 Ne and 24 Mg but Li, Be, and B are skipped: they are not synthesized, rather they are consumed in stars. Once He is consumed in the core, low mass stars such as the Sun cannot reach T and P for heavier fusion reactions and they end their lives as white dwarfs. Stars bigger than about 4 M ☼ undergo further collapse and the initiation of carbon burning when temperatures reach 600 million K and densities 5 x 10 5 g/cc. For stars more massive than 11 M ☼, about 1% of all stars, evolution now proceeds at an exponentially increasing pace as successive fusion reactions at higher T and P. Evolution of a 25 solar mass star.

32. s-process Red giant nucleosynthesis also produces some free neutrons in reactions such as: 13 C + 4 He –> 16 O + n 22 Ne + 4 He –> 25 Mg + n These neutrons can then be captured by other nuclei in the slow neutron capture (s) process. Because the neutron flux is low, a capture will occur only every few decades, so that gaps in nuclear stability cannot be bridged as the newly created unstable isotope will decay before a second neutron is captured. Wikipedia

33. The e-process As the finale approaches, the star has become a cosmic onion of sorts, with layers of heavier and heavier elements. A new core consisting mainly of 28 Si has been created. At temperatures near 10 9 K and densities above 10 7 g/cc a process known as silicon burning, or the e-process (for equilibrium). This process is really a variety of reactions that can be summarized as the photonuclear rearrangement of a gas originally consisting of 28 Si nuclei into one which consists mainly of 56 Ni, which then decays with a half-life of 6 days to 56 Fe, the most stable of all nuclei. The e-process includes reactions such as: 28 Si + γ ⇄ 24 Ne + 4 He 28 Si + 4 He ⇄ 32 S + γ 32 S + 4 He ⇄ 36 Ar + γ While these reactions can proceed in either direction, there is a tendency for the build-up of heavier nuclei with masses 32, 36, 40, 44, 48, 52, and 56, Partly as a result of the e- process, these nuclei are unusually abundant in nature. A variety of minor nuclei are produced as well. This continues for a few days at most. Finally, the inner core has been converted completely to 56 Ni and 56 Fe, the latter the most stable of all nuclei. Exogenic fusion reactions are no longer po ssible. Figure 1.13

34. Supernovae Once the star’s core is converted to Fe, it can no longer resist gravitational collapse and does so at velocities of 25% of the speed of light. Matter is consequently compressed into neutrons. There is a nearly instant rebound that blows the star apart. The enormous flux of neutrons created are rapidly captured by surviving nuclei in the rapid neutron capture (r) process. The extreme pressures and energies also result in proton capture (p-process), but it is nonetheless less important than neutron capture. Chandra X-ray image of the supernova remnant Cassiopeia A

35. Fun Facts about Supernovae Supernovae can have several causes. We are mainly interested in Type II. Most of the energy released in a supernova is carried away by neutrinos. Something like 10% of the star’s mass is converted to energy. A supernova produces enough light to outshine an entire galaxy for weeks or months. Galaxy NGC 2770 NASA image

36. R-Process Nucleosynthesis Figure 1.15

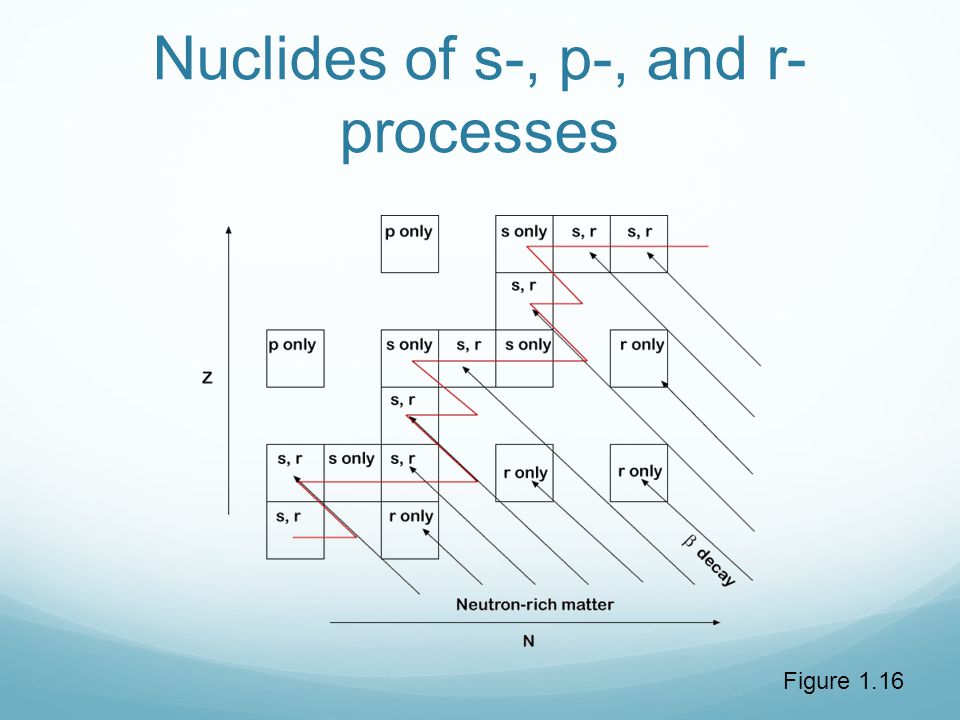

37. Nuclides of s-, p-, and r- processes Figure 1.16

38. SN1987A in 2004 Figure 1.17

39. Galactic Nucleosynthesis Except for production of 7 Li in the Big Bang, Li, Be, and B are not produced in any of the above situations. One clue to the creation of these elements is their abundance in galactic cosmic rays: they are overabundant by a factor of 10 6. They are believed to be formed by interactions of cosmic rays with interstellar gas and dust, primarily reactions of 1 H and 4 He with carbon, nitrogen, and oxygen nuclei. These reactions occur at high energies (higher than the Big Bang and stellar interiors), but at low temperatures where the Li, B and Be can survive.

40. Sample of Chart of the Nuclides Figure 1.19
