1. Spectral Clustering 指導教授 : 王聖智 S. J. Wang 學生 : 羅介暐 Jie-Wei Luo

2. Outline Motivation Graph overview Spectral Clustering Another point of view Conclusion

3. Motivation  K-means performs very poorly in this space due Dataset exhibits complex cluster shapes cluster shapes

4. K-means

5. Spectral Clustering Scatter plot of a 2D data set K-means ClusteringSpectral Clustering U. von Luxburg. A tutorial on spectral clustering. Technical report, Max Planck Institute for Biological Cybernetics, Germany, 2007.

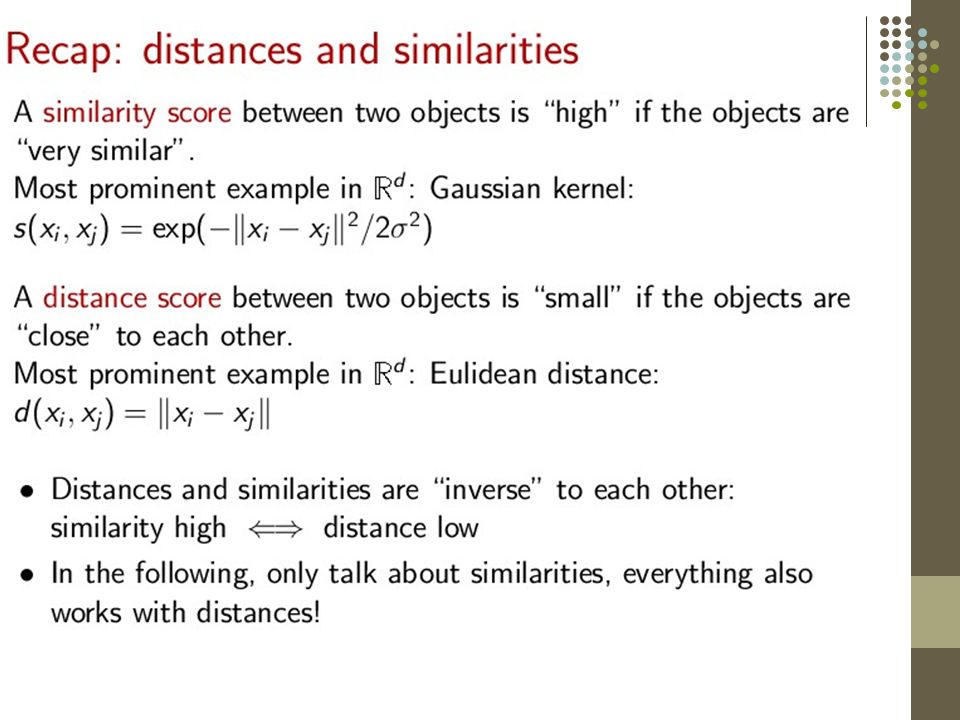

6. Graph overview Graph Partitioning Graph notation Graph Cut Distance and Similarity

7. Graph partitioning First-graph representation of data Then-graph partitioning In this talk–mainly how to find a good partitioning of a given graph using spectral properties of that graph

8. Graph notation Always assume that similarities s ij are symmetric, non-negative Then graph is undirected, can be weighted

9. Graph notation Degree of vertex v i є V v i

10. Graph Cuts Mincut : min Cut(A 1,A 2 ) However, mincut simply seperates one individual vertex from the rest of the graph Balanced cut Problem: finding an optimal graph (normalized) cut is NP-hard Approximation: spectral graph partitioning

12. 12

13. 13

14. 14

16. Spectral Clustering Unnormalized graph Laplacian Normalized graph Laplacian Other explanation Example

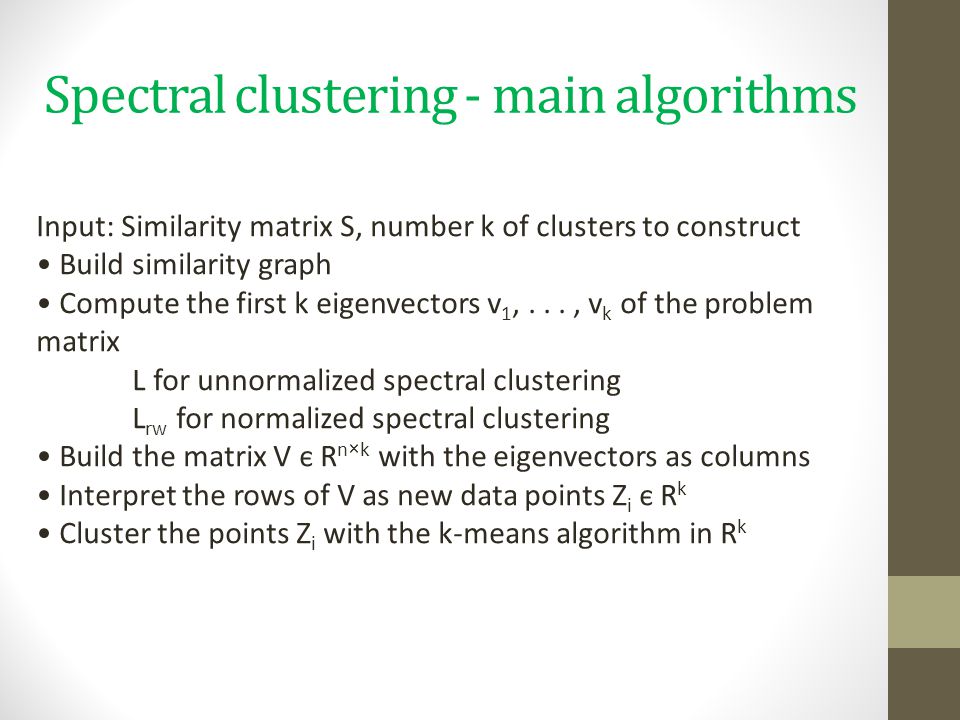

17. Spectral clustering - main algorithms Input: Similarity matrix S, number k of clusters to construct Build similarity graph Compute the first k eigenvectors v 1,..., v k of the problem matrix L for unnormalized spectral clustering L rw for normalized spectral clustering Build the matrix V є R n×k with the eigenvectors as columns Interpret the rows of V as new data points Z i є R k Cluster the points Z i with the k-means algorithm in R k

18. Example-1 2 3 1 4 01100 10100 11000 00001 00010 5 20000 02000 00200 00010 00001 L: Laplacian matrix 2 00 2 00 200 0001 000 1 Similarity Graph W: adjacency matrixD: degree matrix

19. Example-1 2 3 1 4 5 Similarity Graph 10 10 10 01 01 L: Laplacian matrix 2 00 2 00 200 0001 000 1 Double Zero Eigenvalue  Two Connected Components First Two Eigenvectors v1v1 v2v2

20. Example-1 2 3 1 4 5 Similarity Graph First k Eigenvectors  New Clustering Space 10 10 10 01 01 y1 y2 y3 y4 y5 v1v2 Use k-means clustering in the new space v2v2 v1v1

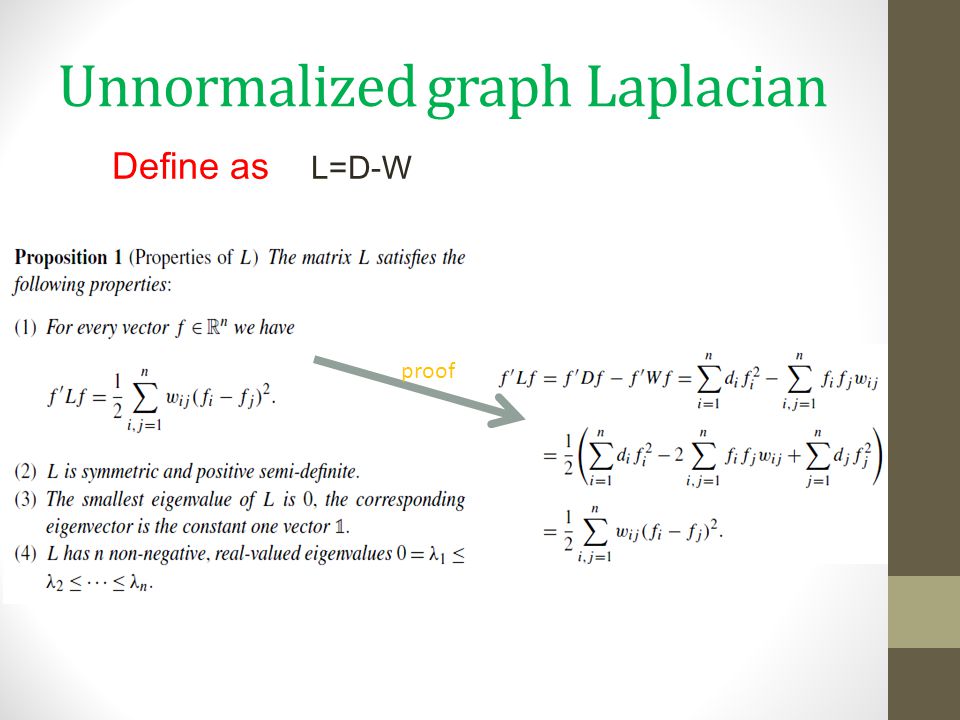

21. Unnormalized graph Laplacian Define as L=D-W proof

22. Unnormalized graph Laplacian proof Relation between spectrum and clusters: Multiplicity of k eigenvalue 0 = number k of connected components A 1,..., A k of the graph. eigenspace is spanned by the characteristic functions 1 A1,..., 1 Ak of those components (so all eigenvecotrs are piecewise constant).

23. Unnormalized graph Laplacian Interpret s ij = 1 / d(X i, X j ) 2 looks like a discrete version of the standard Laplace operator

24. Normalized graph Laplacian Define Relation between L sym & L rw L sym L rw Eigenvalueλλ EigenvectorD1/2uD1/2uu

25. Normalized graph Laplacian Spectral properties similar to L: Positive semi-definite, smallest eigenvalue is 0 Attention: For L rw, eigenspace spanned by 1A i (piecewise const.) but for Lsym, eigenspace spanned by D 1/2 1A i (not piecewise const).

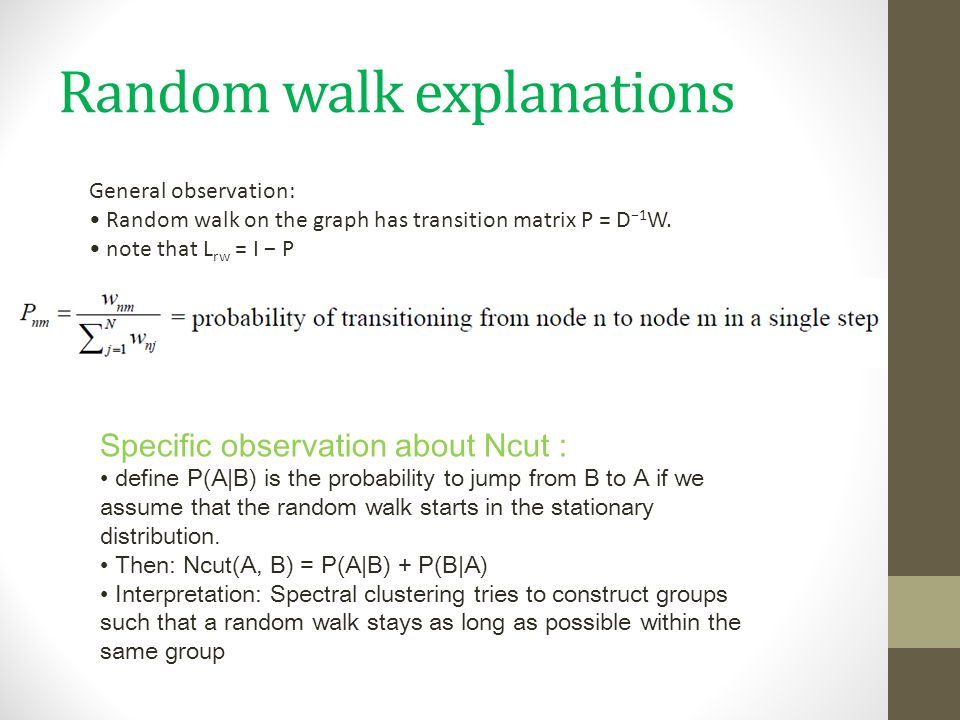

26. Random walk explanations General observation: Random walk on the graph has transition matrix P = D −1 W. note that L rw = I − P Specific observation about Ncut : define P(A|B) is the probability to jump from B to A if we assume that the random walk starts in the stationary distribution. Then: Ncut(A, B) = P(A|B) + P(B|A) Interpretation: Spectral clustering tries to construct groups such that a random walk stays as long as possible within the same group

27. Possible Explanations

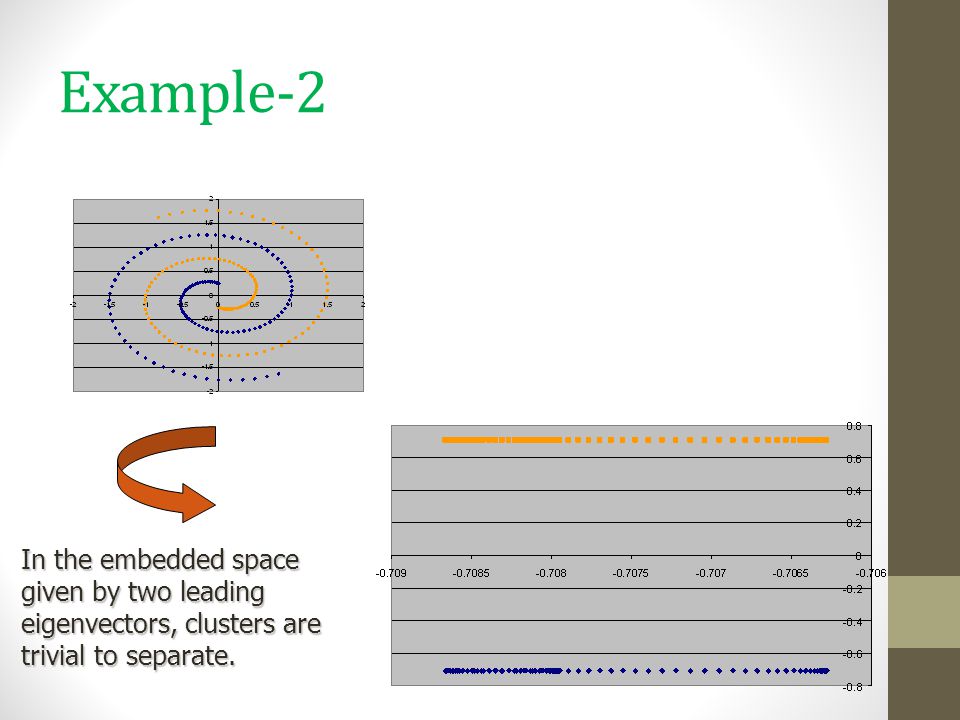

28. Example-2 In the embedded space given by two leading eigenvectors, clusters are trivial to separate.

29. Example-3 In the embedded space given by three leading eigenvectors, clusters are trivial to separate.

30. Another point of view

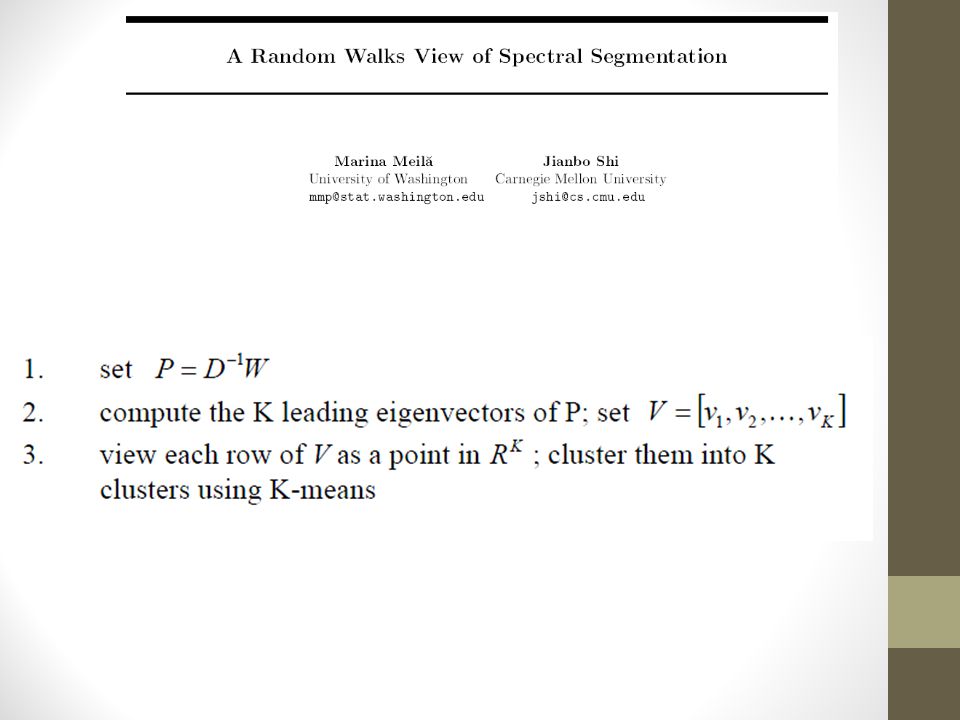

33. Connections

34. PCA Linear combination the original data X i to now variable Z i

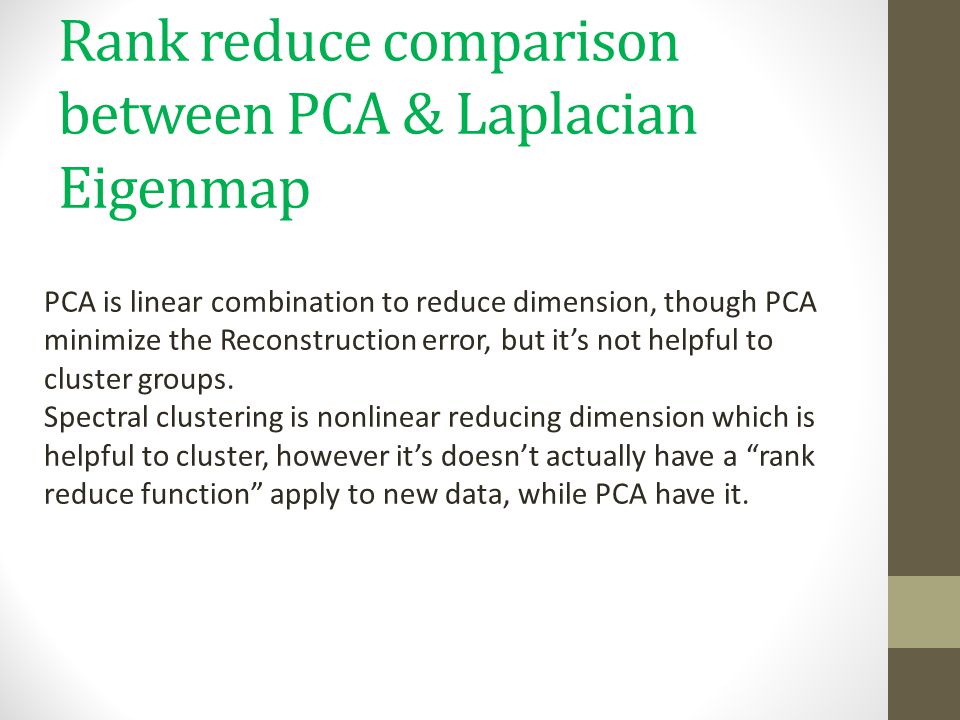

35. Rank reduce comparison between PCA & Laplacian Eigenmap PCA is linear combination to reduce dimension, though PCA minimize the Reconstruction error, but it’s not helpful to cluster groups. Spectral clustering is nonlinear reducing dimension which is helpful to cluster, however it’s doesn’t actually have a “rank reduce function” apply to new data, while PCA have it.
