1. Test Specification Sabesan

2. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Why test? Improve quality  Find bugs (no crashes, erroneous calc)  Verify the requirements? To put it another way:  Testing is a verification process to improve the confidence that the system conforms to a specification Your job is to “prove” that the specification is implemented correct

3. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Fulfill requirements Think of how to test each requirement Some requirements should be considered in all test cases (e.g. write to output file) Others have specific tests Nothing unexpected (if spec. is not open)

4. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Writing a test case Numbered Refers to requirement(s)  Prove valid test case (against spec)  Shows that all requirements are addressed (Suite)  Tip: A requirement that would have generated an error earlier does not need to be mentioned over and over again Explains HOW to execute the test  For dummies, include all required info  Explains the in-parameters and the expected output. User (or script) able to determine the verdict PASS or FAIL

5. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Reference The purpose of the Test Specification is to verify a system according to a referenced Requirement Specification, i.e., add VERSION number of the specification Most of the formalism as RS

6. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Test Specification A. Part 2 Test case A.1 Tested requirements: - Req. A.3.10 *) (boundary testing: value inside the range) - Req. A.3.14 *) (boundary testing: value inside the range) - Req. A.3.15 *) (boundary testing: value inside the range) - Req. A.1.27 *) mainly targeted requirements for this test case Test data: - Change to a directory where you have write permissions. For example: cd ~/ - Create a simple XML-Input file containing a camera (location:[0,0,0] sky:[0,1,0] look_at:[0,0,1]) and a red sphere (radius: 1.2 location:[0,0,12] surface:pigment:color[1,0,0]) and name the file “simple_scene1.xml”. - Write the following command to the shell: tracer -z 500 -x 500 -y 500 -w 1 -h 1 test_a1.ppm <simple_scene1.xml - Write the following command to the shell to view the output picture: xview test_a1.ppm Expected result: - The program should terminate without error message.

7. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Tests for Non-Functional Req How to “test” a req. “Code should be written in a nice and structured way”?  Refer to code review  Verdict PASS if code review PASS  If code not available write N/A “not applicable”  This should be in the Test Plan (not in TS) How to “test” a req. “Use getopt lib”  Query supplier e.g. ask developer/manager  This is a simple YES/NO question

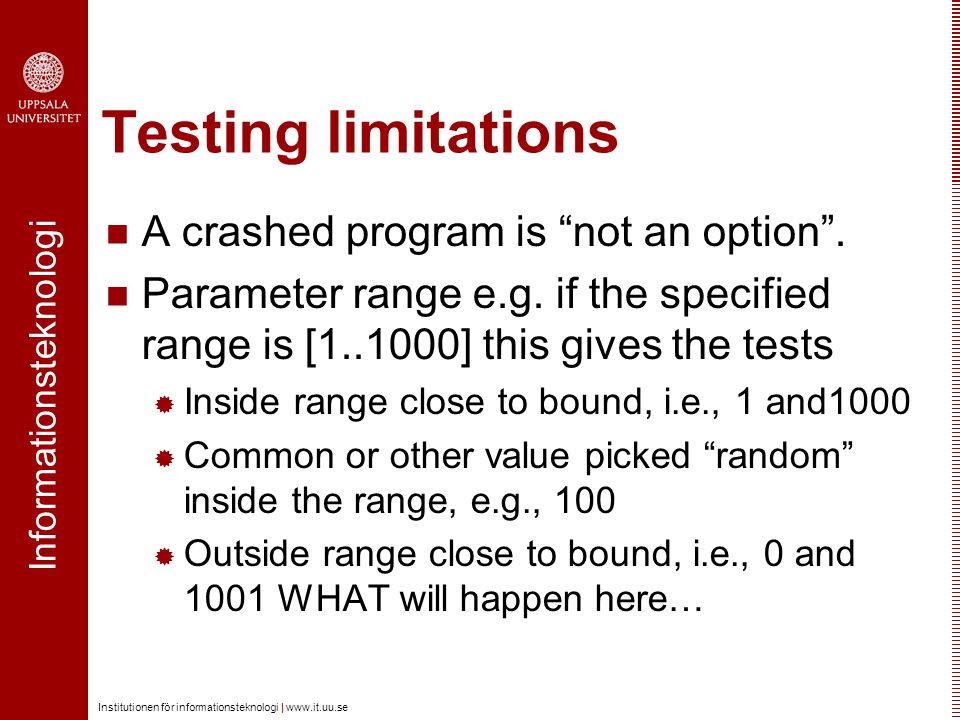

8. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Testing limitations A crashed program is “not an option”. Parameter range e.g. if the specified range is [1..1000] this gives the tests  Inside range close to bound, i.e., 1 and1000  Common or other value picked “random” inside the range, e.g., 100  Outside range close to bound, i.e., 0 and 1001 WHAT will happen here…

9. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Combinations You cannot test all cases, e.g., 1000*1000*1000 values Vary upper and lower bound Vary object hidden each other (partly or fully) Vary object not in view of the camera You can discuss functionality with you MP2 group, e.g., how the camera works or how the XML file works, but NOT the test cases

10. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Discussion Is it good to slim the test suite?

11. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Equivalent tests For function “f(x)”  Test f=(0 if x=0),(x if 0<x<10), and (0 if x=10)  If range for x is [0..10]  f(0) f(some in [1..9]) f(10) must be tested  Classes {0} {1,...,9}{10} Is f() affected by something else? Can we suspect problems if something else changes?

12. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Report TestVerdictComment 1PASS 2FAILNo error mess

13. Informationsteknologi Institutionen för informationsteknologi | www.it.uu.se Report Which system is tested (code version) Who has tested Which test specification used (version) RS
