1. Grounding in Conversational Systems Dan Bohus January 2003 Dialogs on Dialogs Reading Group Carnegie Mellon University

2. Overview Early grounding theories  Discourse Contributions - Clark & Schaefer  Conversational acts – Traum A Computational Framework (Horvitz, Paek)  Principles  Systems Grounding in RavenClaw

3. Clark & Schaefer In discourse, humans collaborate to establish/maintain mutual ground Discourse is structured in contributions  Contribution : Presentation + Acceptance Grounding criterion: “A and B mutually believe that the partners have understood what A said to a criterion sufficient for the current purposes”

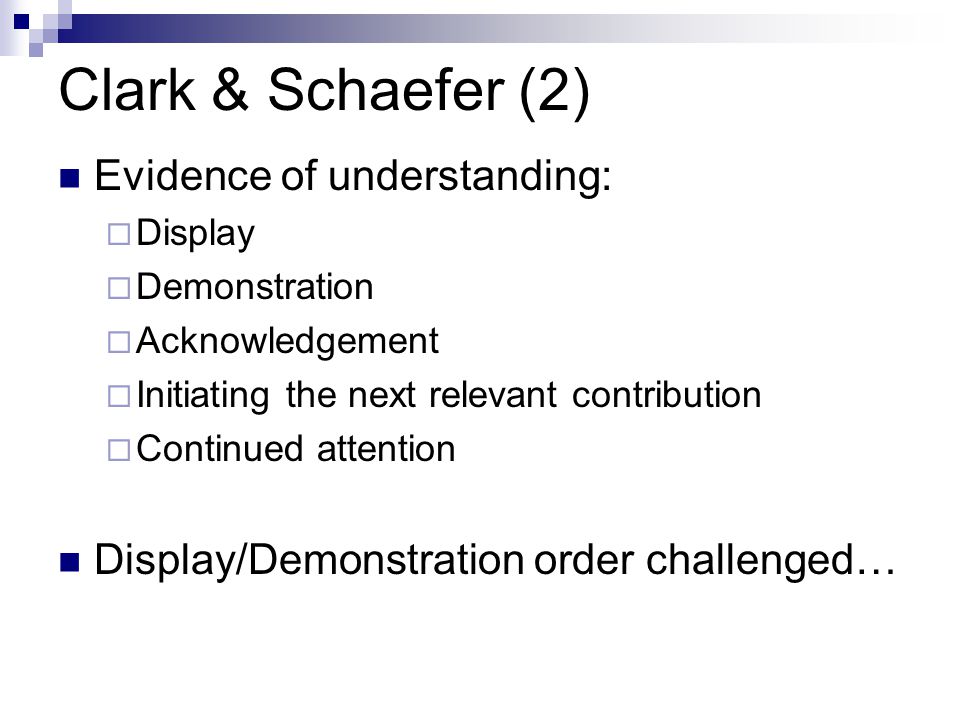

4. Clark & Schaefer (2) Evidence of understanding:  Display  Demonstration  Acknowledgement  Initiating the next relevant contribution  Continued attention Display/Demonstration order challenged…

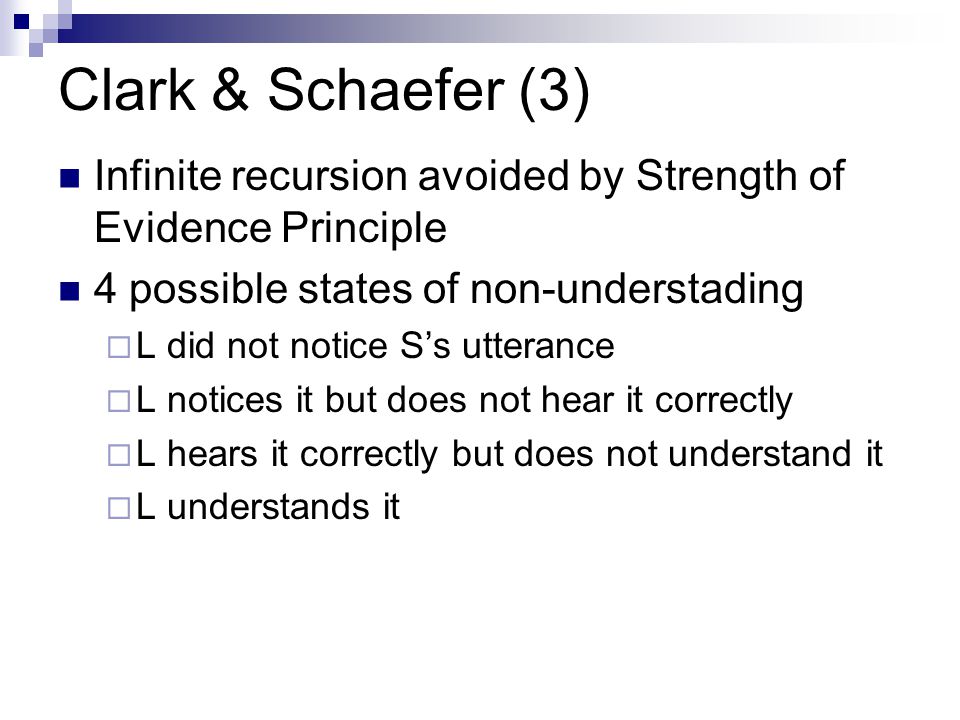

5. Clark & Schaefer (3) Infinite recursion avoided by Strength of Evidence Principle 4 possible states of non-understading  L did not notice S’s utterance  L notices it but does not hear it correctly  L hears it correctly but does not understand it  L understands it

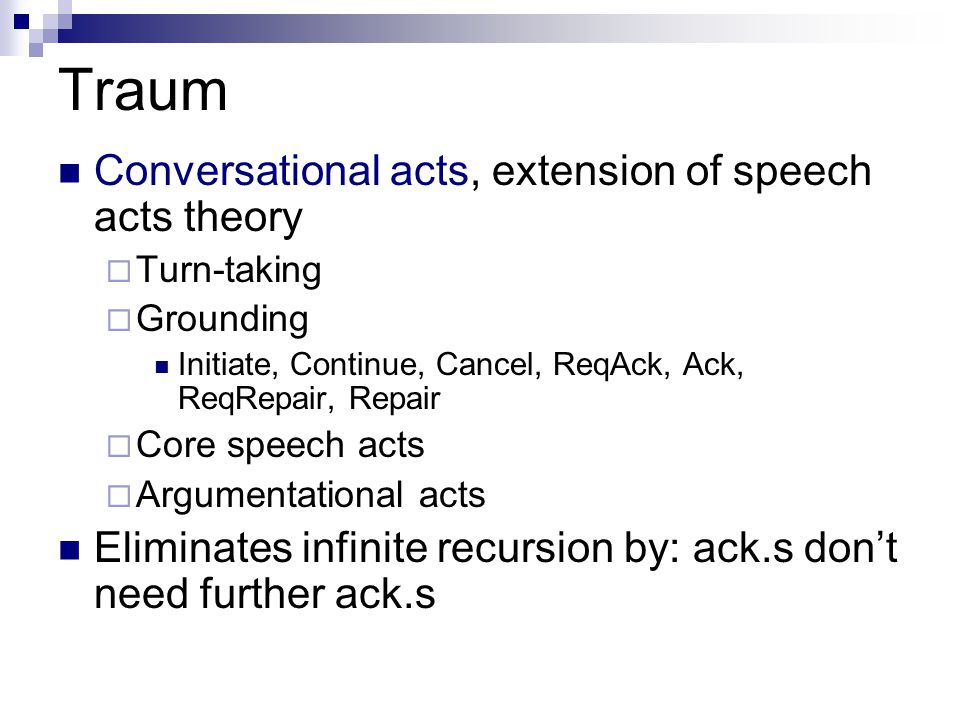

6. Traum Conversational acts, extension of speech acts theory  Turn-taking  Grounding Initiate, Continue, Cancel, ReqAck, Ack, ReqRepair, Repair  Core speech acts  Argumentational acts Eliminates infinite recursion by: ack.s don’t need further ack.s

7. Traum (2) Later work, the following computational model is introduced: Finally, Brennan (& Clark)  another computational formulation;  studies the different types of grounding behaviors in different media

8. Criticisms These models are by-and-large descriptive.  Can’t be used to determine what’s the next best thing to do to achieve the grounding criterion. Moreover, they don’t describe quantitatively/make use of the uncertainty in contributions Are insensitive to differences in channels, content, populations, etc… Cannot be used for guidance Decision Theory to the rescue ! ! !

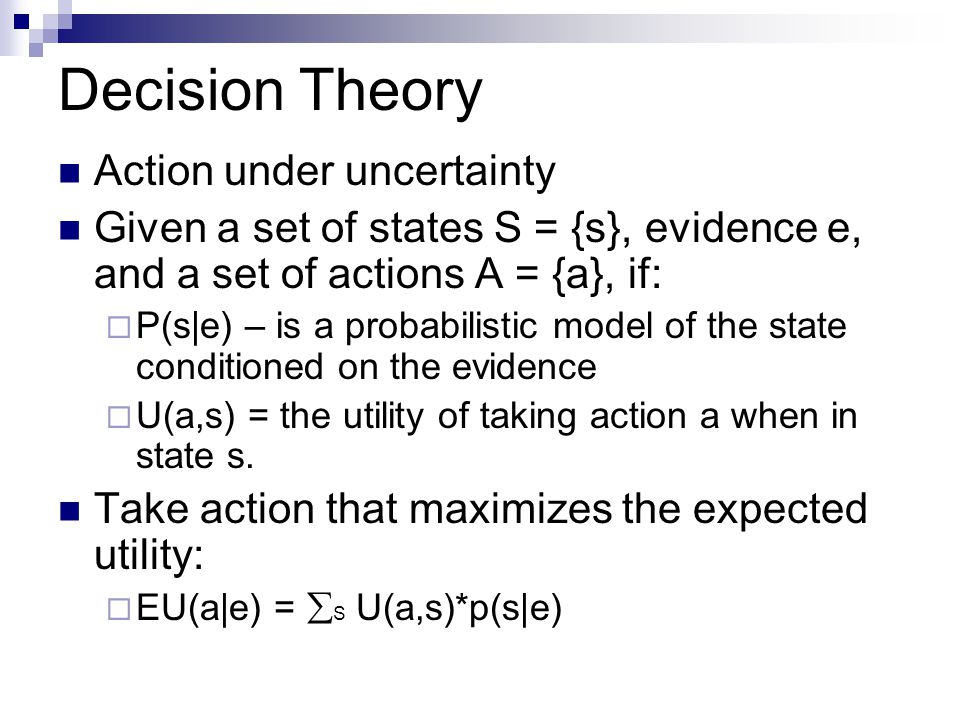

9. Decision Theory Action under uncertainty Given a set of states S = {s}, evidence e, and a set of actions A = {a}, if:  P(s|e) – is a probabilistic model of the state conditioned on the evidence  U(a,s) = the utility of taking action a when in state s. Take action that maximizes the expected utility:  EU(a|e) =  S U(a,s)*p(s|e)

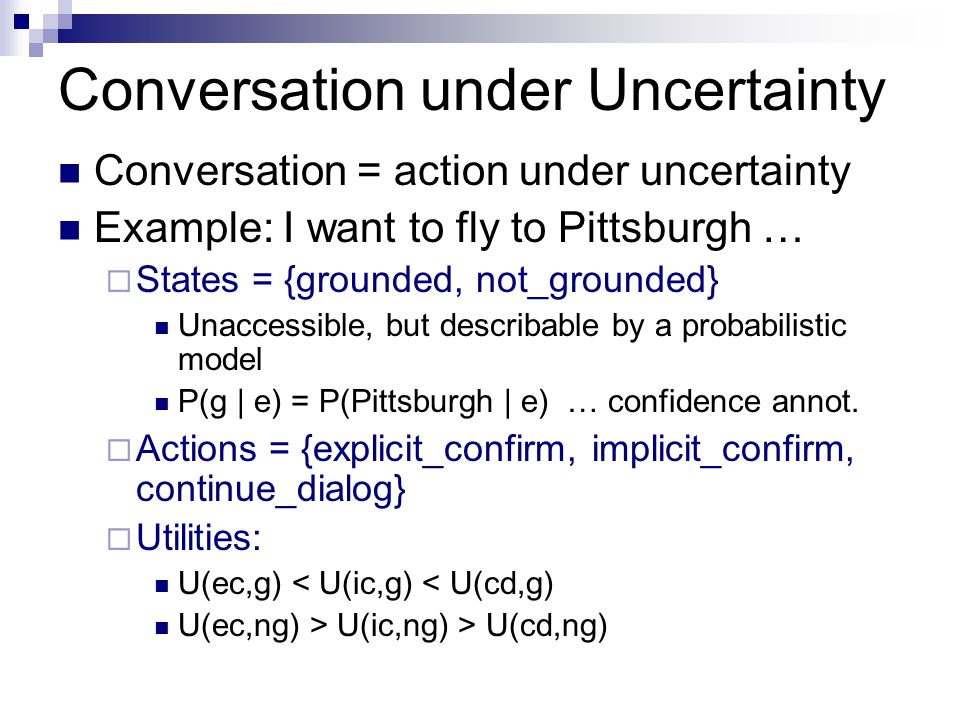

10. Conversation under Uncertainty Conversation = action under uncertainty Example: I want to fly to Pittsburgh …  States = {grounded, not_grounded} Unaccessible, but describable by a probabilistic model P(g | e) = P(Pittsburgh | e) … confidence annot.  Actions = {explicit_confirm, implicit_confirm, continue_dialog}  Utilities: U(ec,g) < U(ic,g) < U(cd,g) U(ec,ng) > U(ic,ng) > U(cd,ng)

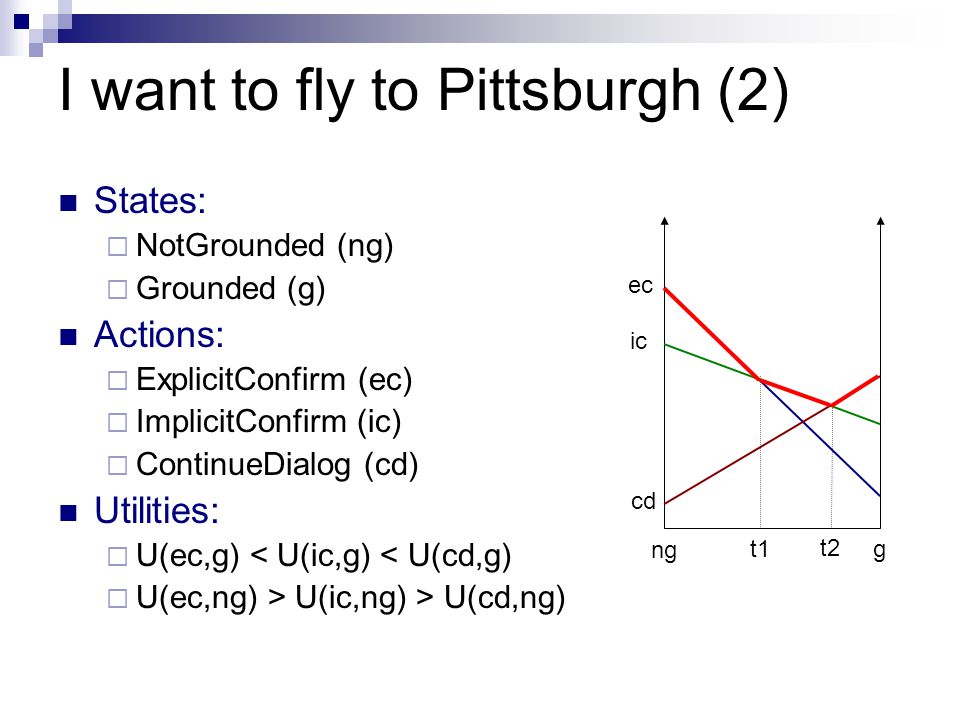

11. I want to fly to Pittsburgh (2) States:  NotGrounded (ng)  Grounded (g) Actions:  ExplicitConfirm (ec)  ImplicitConfirm (ic)  ContinueDialog (cd) Utilities:  U(ec,g) < U(ic,g) < U(cd,g)  U(ec,ng) > U(ic,ng) > U(cd,ng) ng g ec ic cd t1 t2

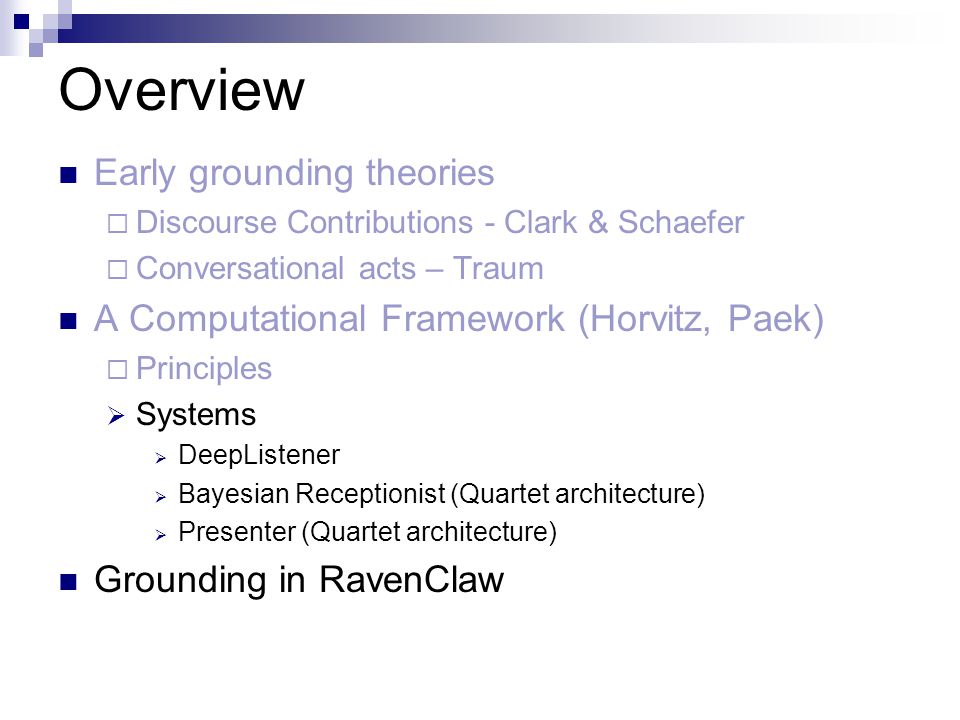

12. Overview Early grounding theories  Discourse Contributions - Clark & Schaefer  Conversational acts – Traum A Computational Framework (Horvitz, Paek)  Principles  Systems  DeepListener  Bayesian Receptionist (Quartet architecture)  Presenter (Quartet architecture) Grounding in RavenClaw

13. DeepListener - Domain Domain  Provides spoken command-and-control functionality for LookOut  Respond to offers of assistance (Yes/No) Small domain, but illustrates the core ideas very well

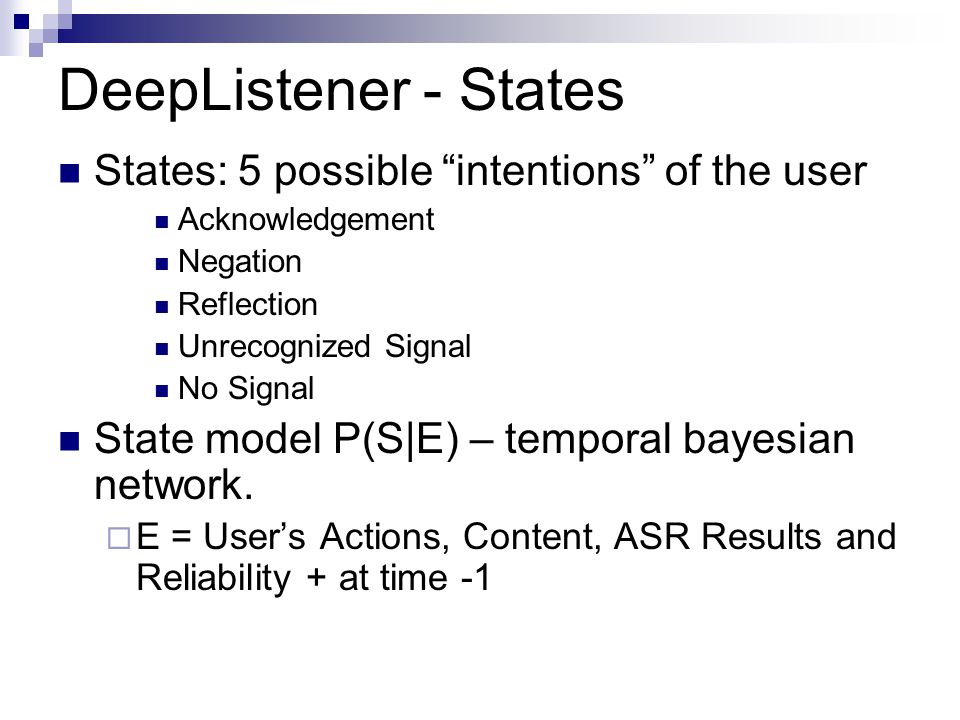

14. DeepListener - States States: 5 possible “intentions” of the user Acknowledgement Negation Reflection Unrecognized Signal No Signal State model P(S|E) – temporal bayesian network.  E = User’s Actions, Content, ASR Results and Reliability + at time -1

15. DeepListener - Actions Actions:  Execute the service  Repeat  Note a hesitation and try again  Was that meant for me?  Try to get the user’s attention  Apologize for the interruption and forego the service  Troubleshoot the overall dialog

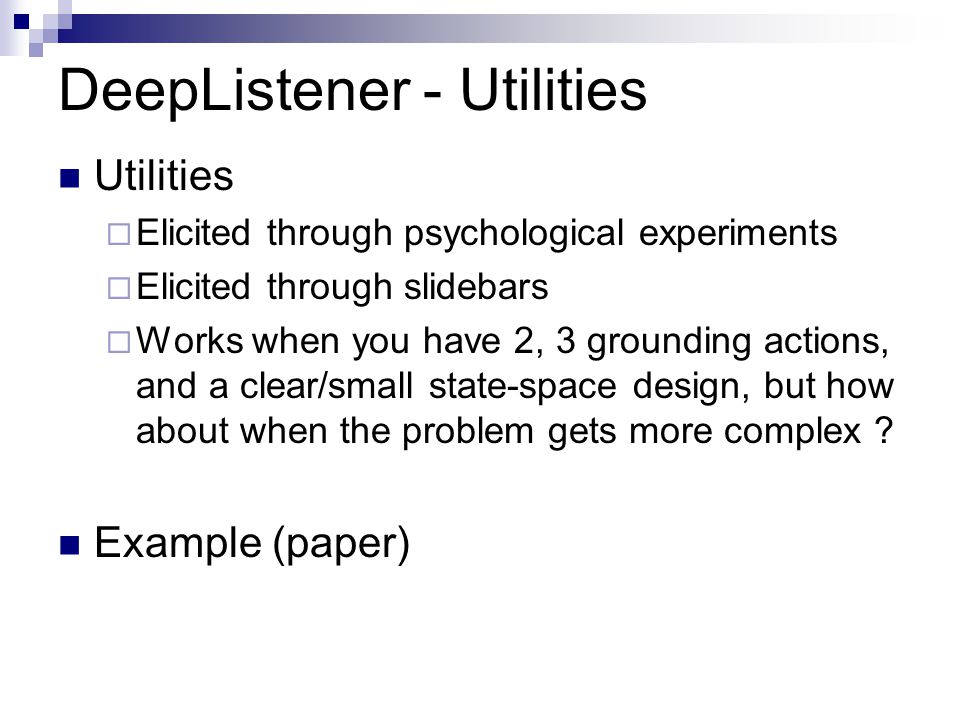

16. DeepListener - Utilities Utilities  Elicited through psychological experiments  Elicited through slidebars  Works when you have 2, 3 grounding actions, and a clear/small state-space design, but how about when the problem gets more complex ? Example (paper)

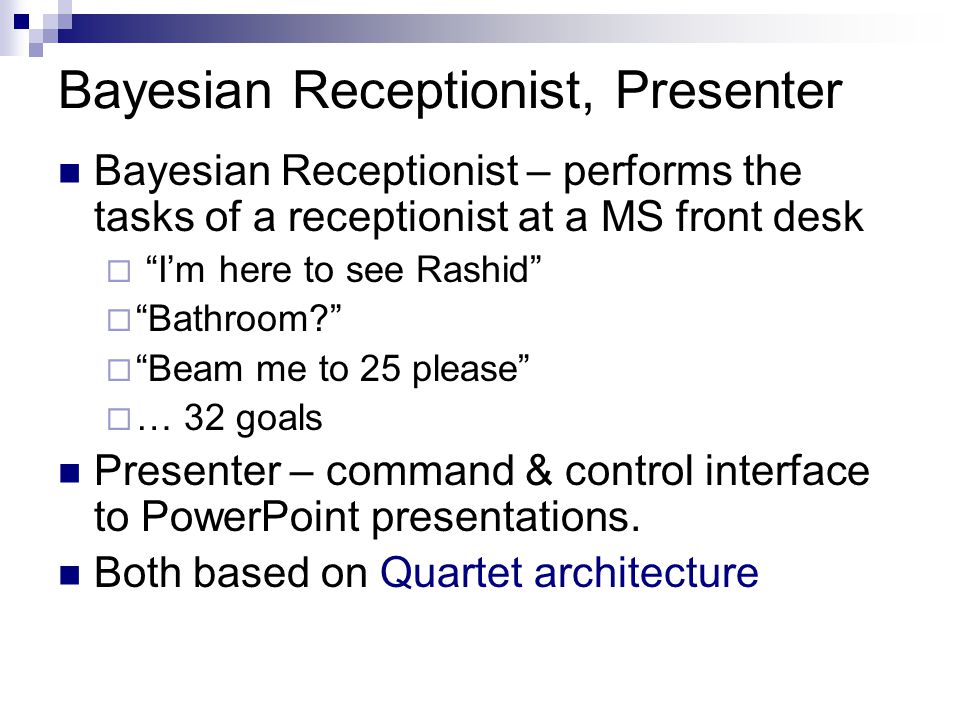

17. Bayesian Receptionist, Presenter Bayesian Receptionist – performs the tasks of a receptionist at a MS front desk  “I’m here to see Rashid”  “Bathroom?”  “Beam me to 25 please”  … 32 goals Presenter – command & control interface to PowerPoint presentations. Both based on Quartet architecture

18. Quartet Uses DT and BN to ensure grounding at 4 different levels:  Signal  Channel  Intention  Conversation The actual DM task is encapsulated in the same framework at the Intention level  Different domains = different intention levels

19. Quartet – Signal & Channel At each level infer a distribution over possible states. Key variables:  Signal level – signal identified (low/med/hi)  Channel level –user’s focus of attention Maintenance module integrates Signal & Channel levels -> Maintenance Status:  Channel x Signal: NoChannel, NoSignal, ChannelButNoSignal, SignalButNoChannel, Signal

20. Quartet – Intention Level Domain is mostly goal inference Hierarchical decomposition on levels, where lower levels refine the goals into more specific needs Use BN to model p(goal | e) at leach level  Psychological studies to identify key variables and utilities Visual cues Linguistic variables; both syntactic and semantic

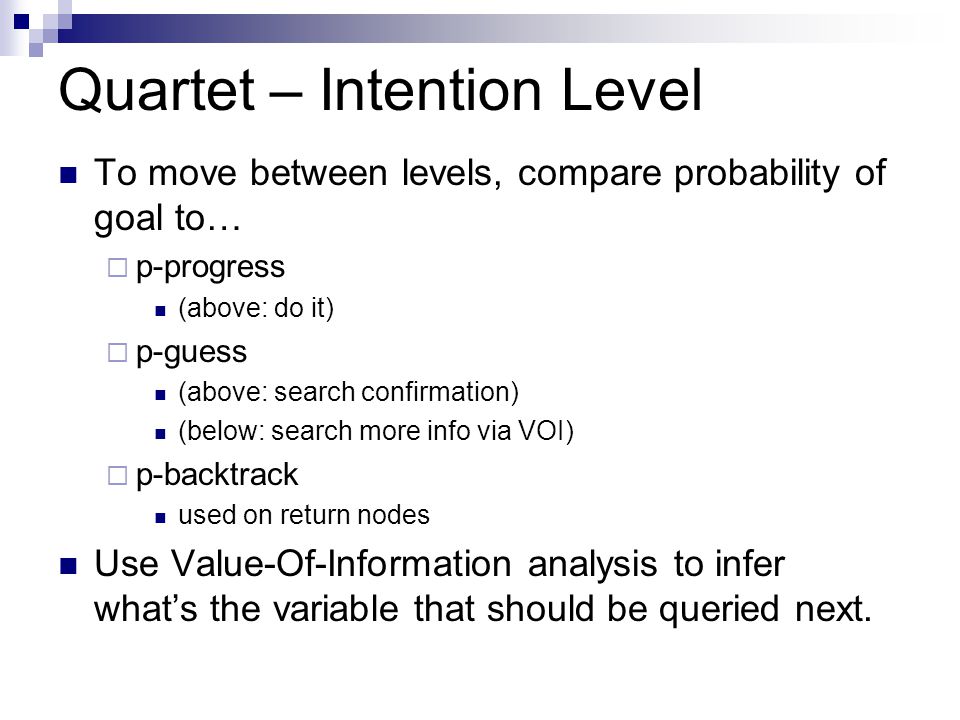

21. Quartet – Intention Level To move between levels, compare probability of goal to…  p-progress (above: do it)  p-guess (above: search confirmation) (below: search more info via VOI)  p-backtrack used on return nodes Use Value-Of-Information analysis to infer what’s the variable that should be queried next.

22. Comments on Intention level What is the size of the learning problem? (How many BN needed?) How much data needed for training? Not very clear :  how to deal with attribute/value, with rich ranges (e.g. which bus station ?)  how to deal with basically richer dialog mechanisms (beyond C&C applications) focus shifts, mixed initiative providing help

23. Quartet – Conversation Level See image. Use Intention and Maintenance Status to infer:  Grounding: diagnoses mutual understanding Okay, ChannelFailure, IntentionFailure, ConversationFailure  Activity goal: measures if the user is engaged or not in an activity with the system Compute expected utility for each action (utilities elicited through psychological studies)

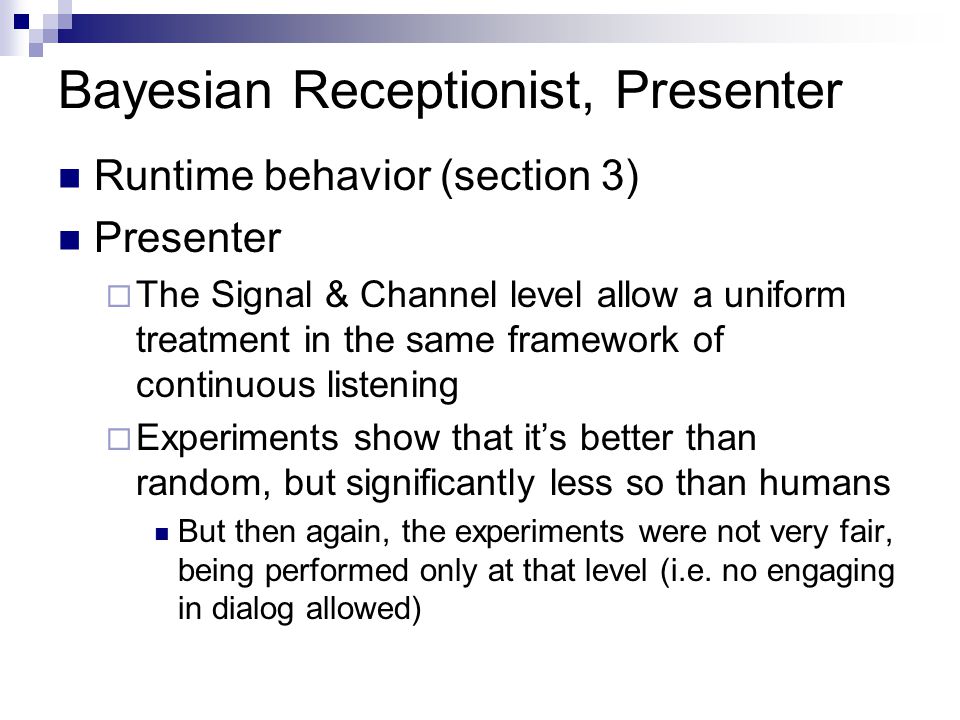

24. Bayesian Receptionist, Presenter Runtime behavior (section 3) Presenter  The Signal & Channel level allow a uniform treatment in the same framework of continuous listening  Experiments show that it’s better than random, but significantly less so than humans But then again, the experiments were not very fair, being performed only at that level (i.e. no engaging in dialog allowed)

25. My Research … Deal with misunderstandings Use probabilistic modeling and decision theory to make grounding decisions (but not task decisions) I want a room tomorrow morning (0.73)  States: time correctly understood/not  Grounding Actions: no_action, expl_conf, impl_conf, reject  Utilities: try to learn them by relating the actions to an overall dialog/grounding metric

26. RavenClaw: Dialog Task / Grounding RoomLine LoginRoomLine GetQuery Bye ExecuteQueryDiscussResults Dialog Task Grounding Model Grounding Level Strategies/Grounding Actions Optimal action State/how well are things going

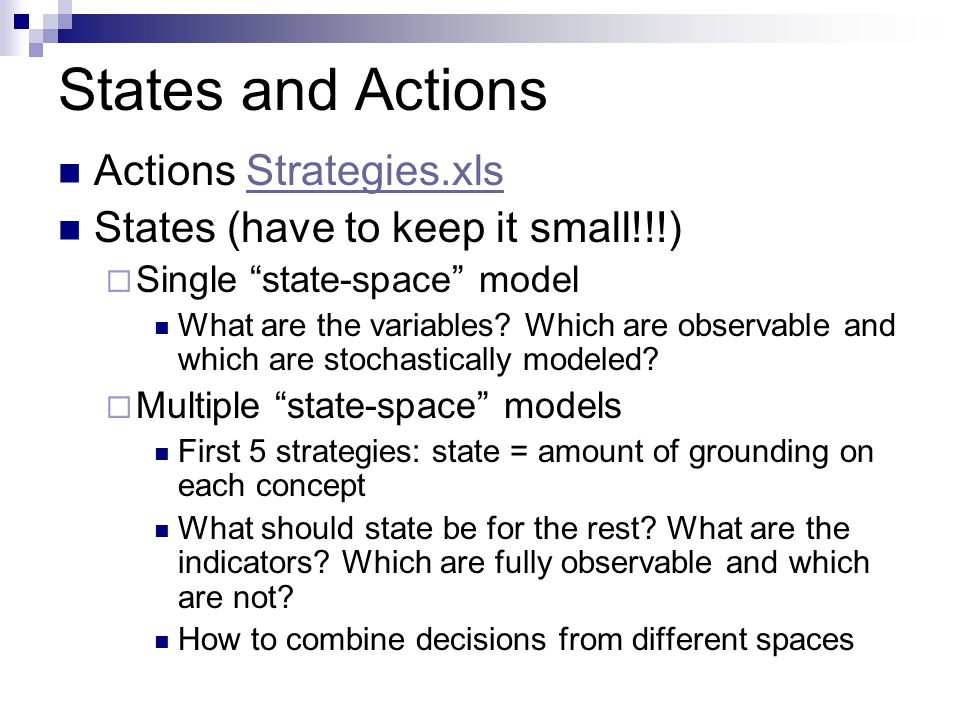

27. States and Actions Actions Strategies.xlsStrategies.xls States (have to keep it small!!!)  Single “state-space” model What are the variables? Which are observable and which are stochastically modeled?  Multiple “state-space” models First 5 strategies: state = amount of grounding on each concept What should state be for the rest? What are the indicators? Which are fully observable and which are not? How to combine decisions from different spaces

28. Utilities Learn them! How ?  Idea 1: POMDPs, maybe this small they are tractable  Idea 2: Regression to some overall dialog metric What should that be?  (hmm) amount of non-null grounding actions taken  …
