Software Engineering Lecture 1 ASPI8-4 Anders P. Ravn, Feb 4, 2004

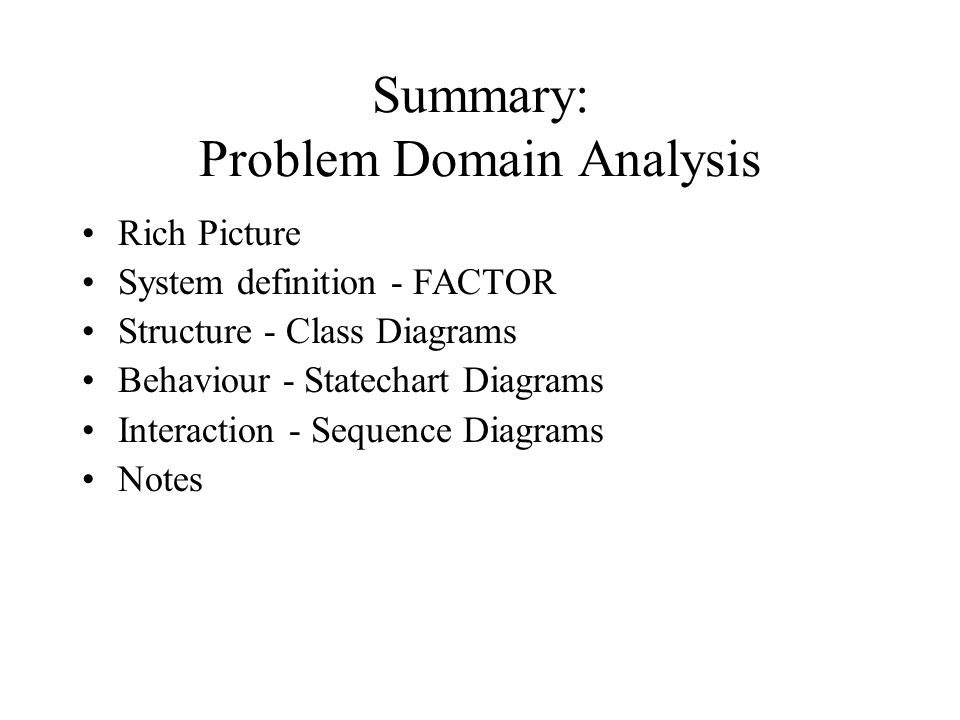

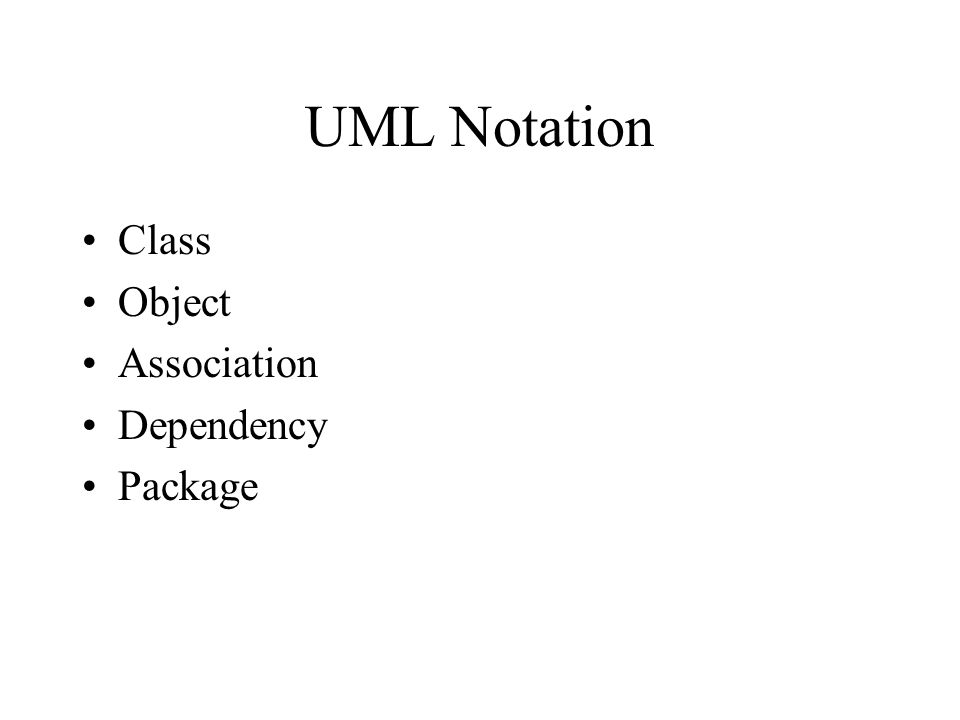

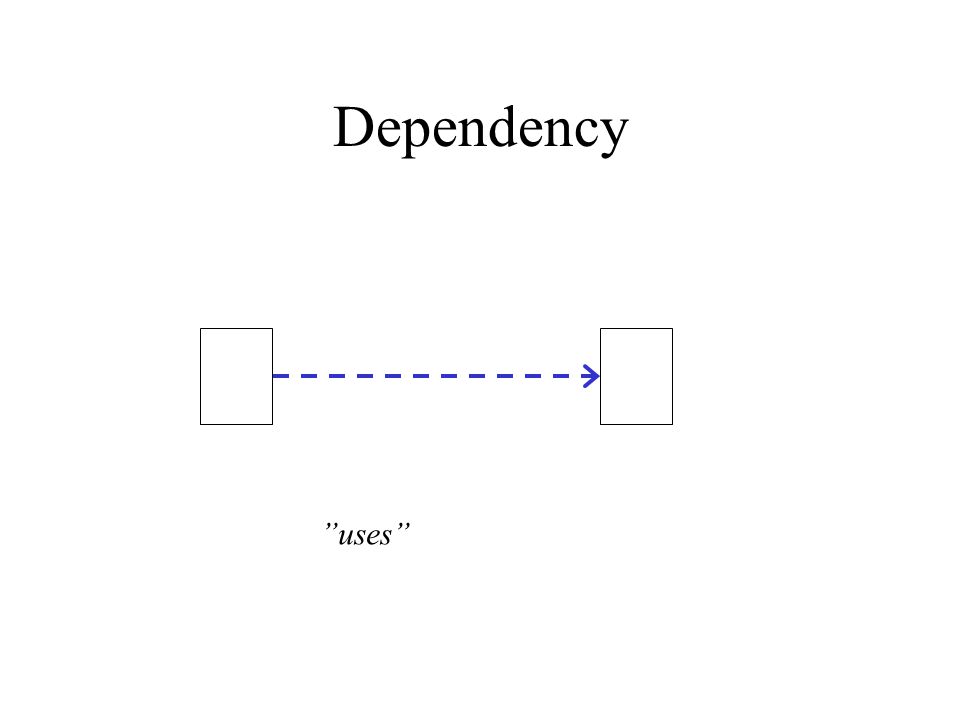

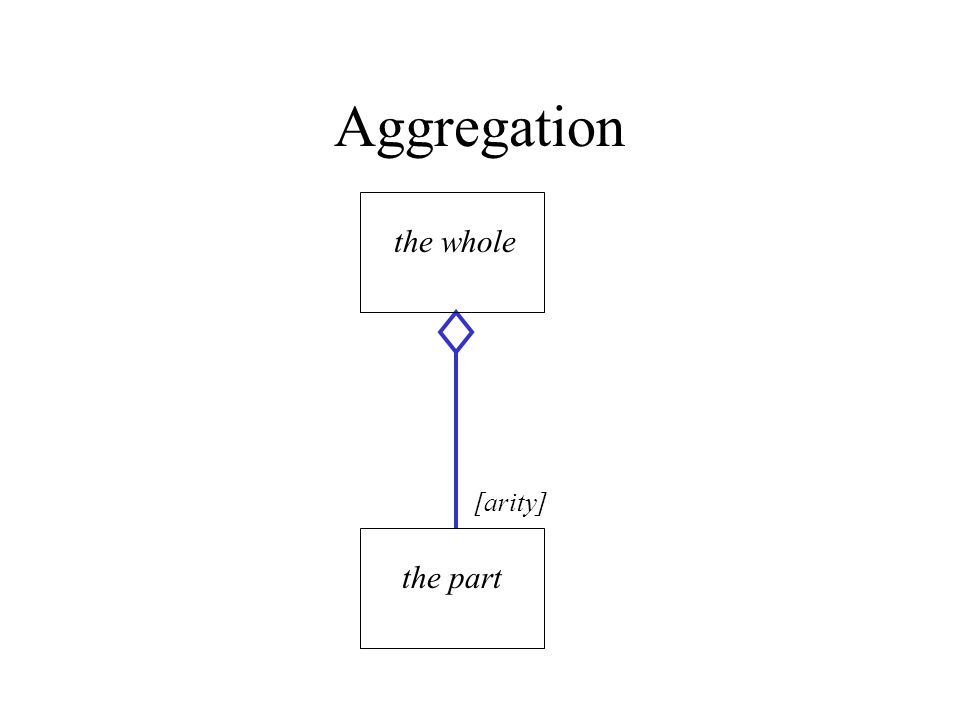

Overview The development process Documents OAD in Requirements Analysis 1.Problem Domain Analysis 2.System Definition 3.Class, Association, Dependency 4.Behaviour, Event

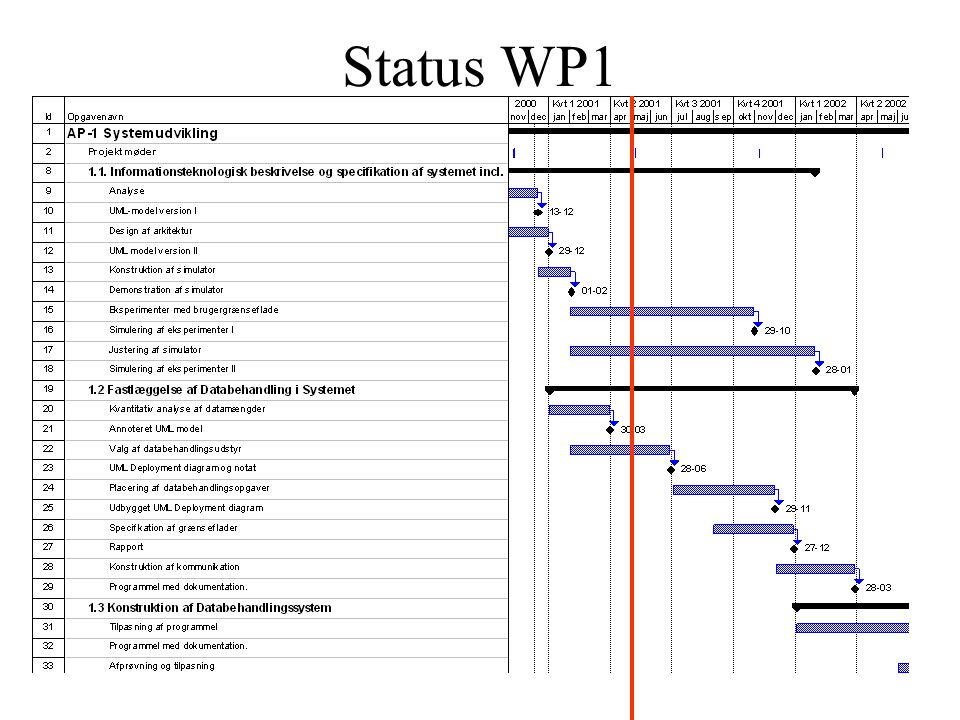

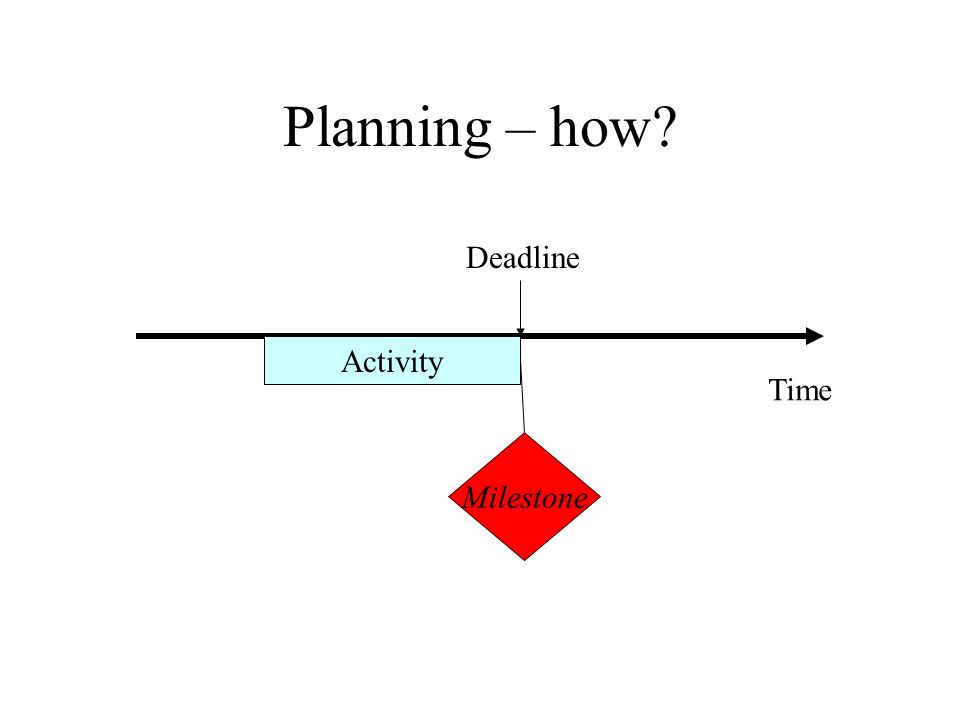

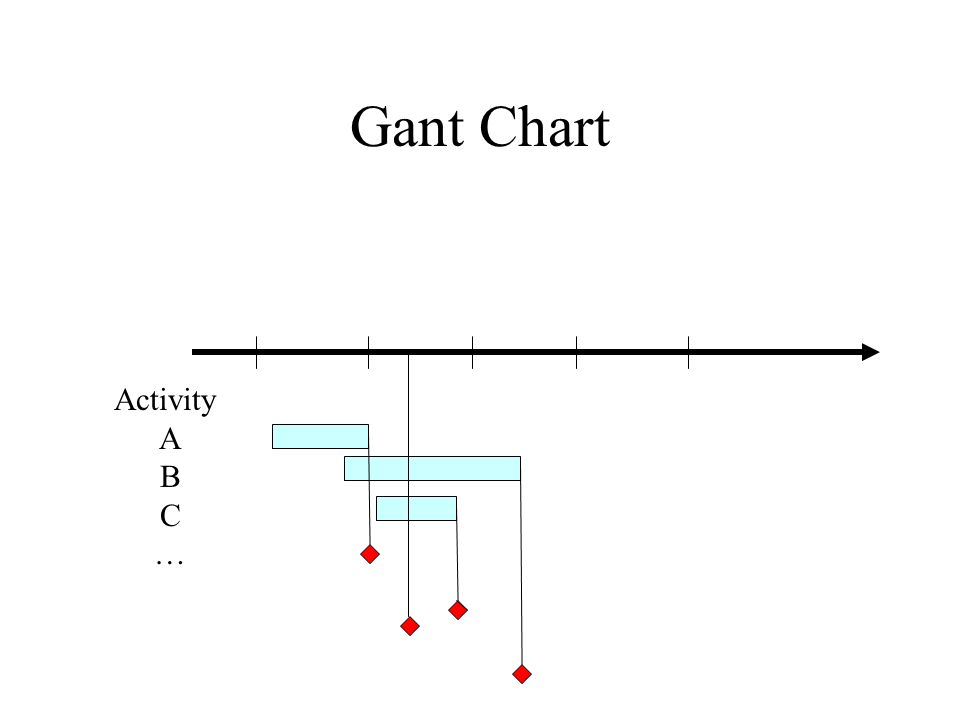

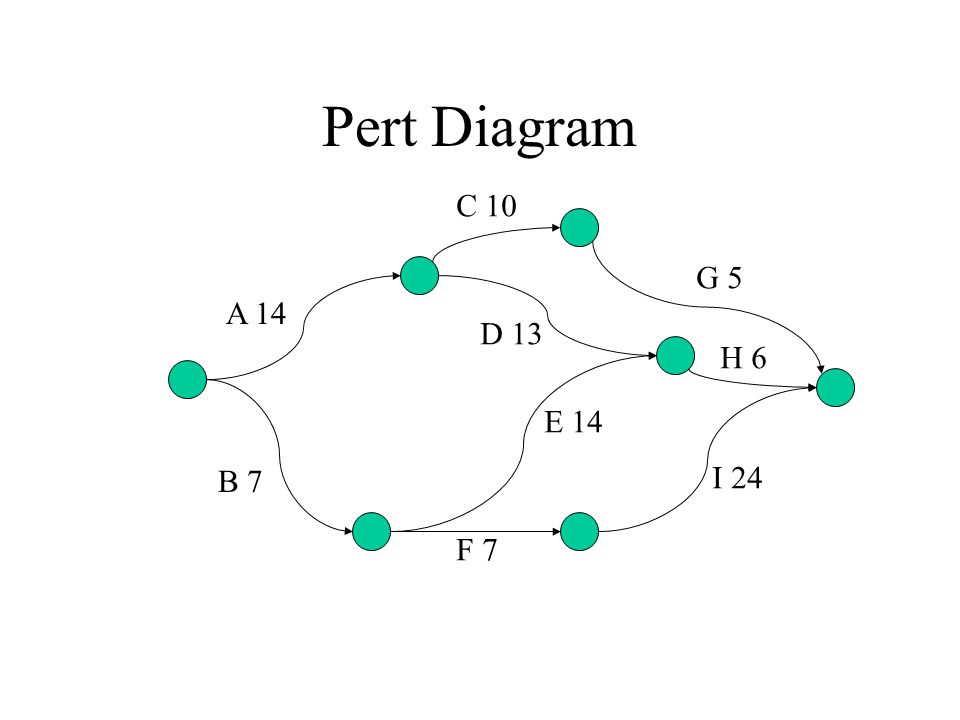

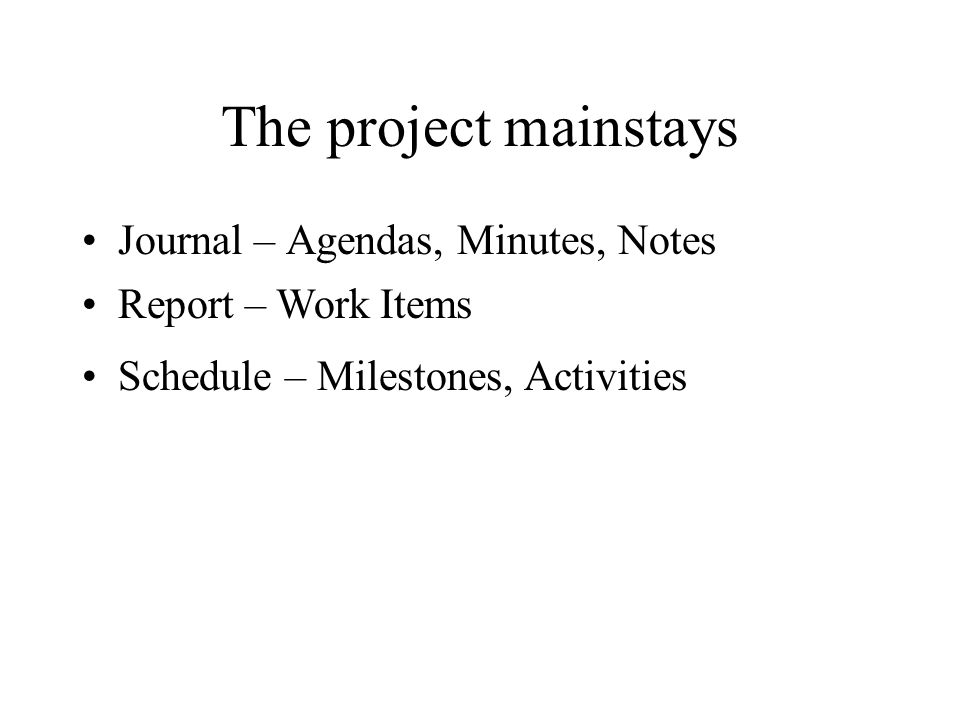

The project mainstays Journal – Agendas, Minutes, Notes Report – Work Items Schedule – Milestones, Activities

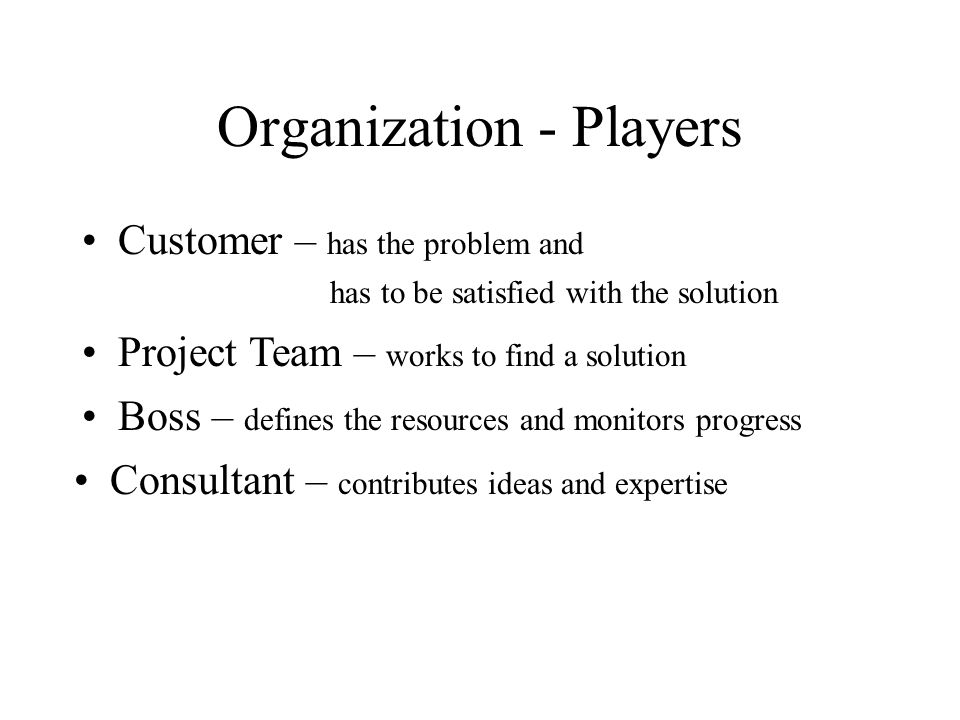

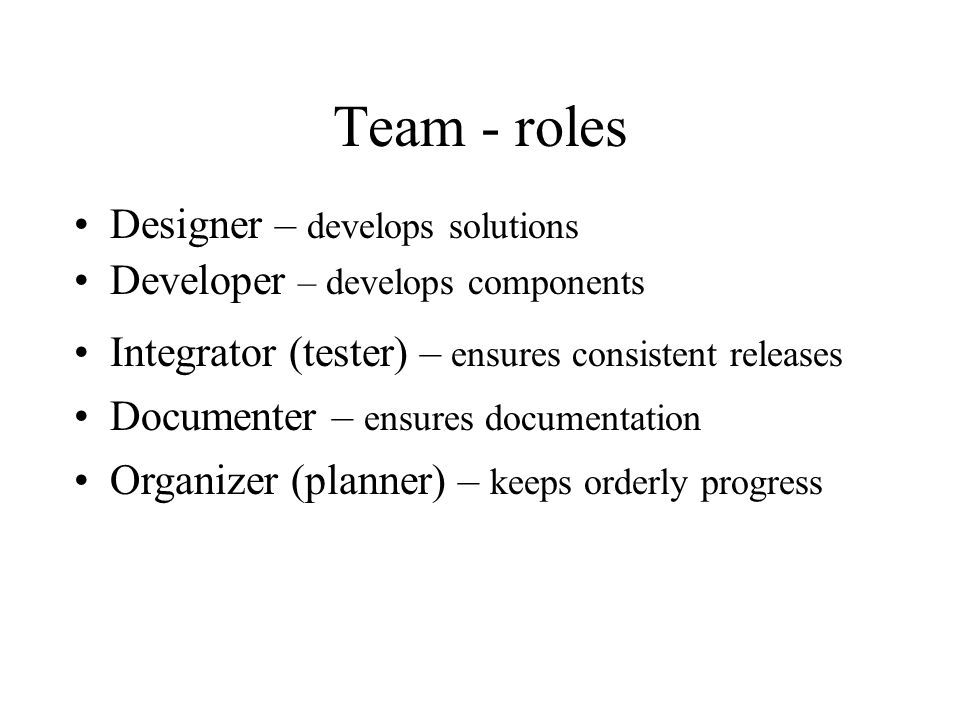

Organization - Players Customer – has the problem and has to be satisfied with the solution Project Team – works to find a solution Boss – defines the resources and monitors progress Consultant – contributes ideas and expertise
Literature (incomplete) Fred. P. Brooks: The Mythical Man-month G. Weinberg: The Psychology of Programming N.E. Andersen, et al.: Professionel Systemudvikling H. Mills: Chief Programmer Teams D. Gibbs: Extreme Programming
A Development Process (V-model) Requirements Spec --------------------------- Accpt. Test Report Acceptance Test Spec Architectural Spec ------------------------ Integr. Test Report Integration Test Spec Module Interface Spec Module Spec ------------------- Module Test Report Module Test Spec Program Source text A rational Design Process – or how to fake it Heninger & Parnas, 1979

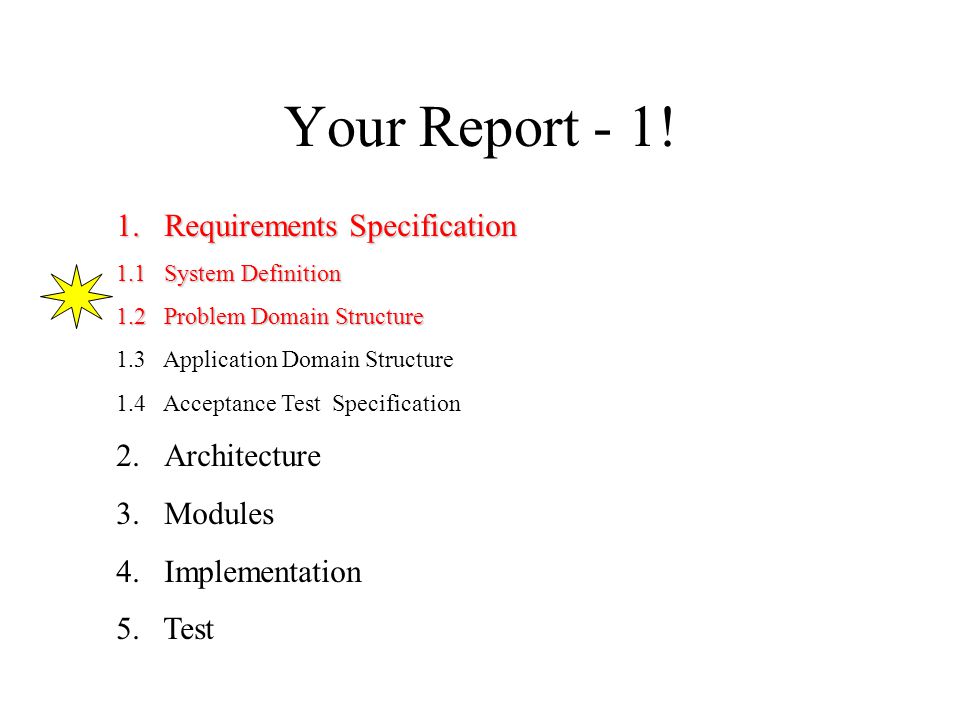

Your Report! 1.Requirements Specification 1.1 System Definition 1.2 Problem Domain Structure 1.3 Application Domain Structure 1.4 Acceptance Test Specification 2.Architecture 3.Modules 4.Implementation 5. Test

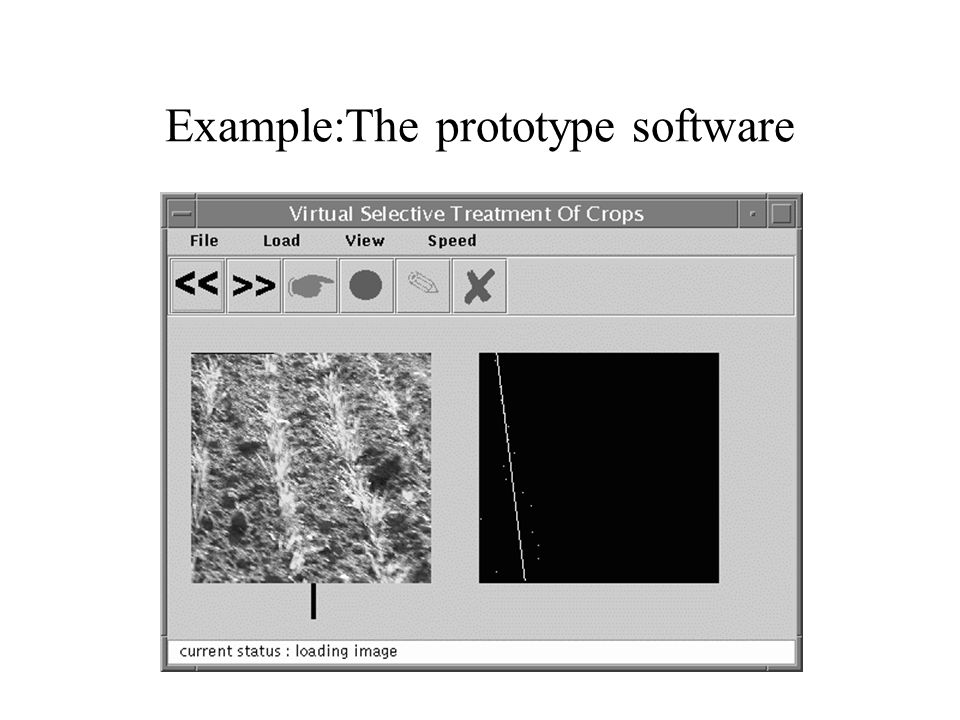

Example: Computer Vison based implement guidance in row crops A rich picture
System Definition A concise description of a computerized system expressed in natural language Example: A computer system which guides an implement through crops in rows. The system must not be slower than the traditional guidance methods, and must relieve human operators of local monitoring and control tasks.
FACTOR A concise description of a computerized system expressed in natural language FACTOR: Functionality for end use Application Domain of end use Conditions for success Technology to be used Object System Realization conditions

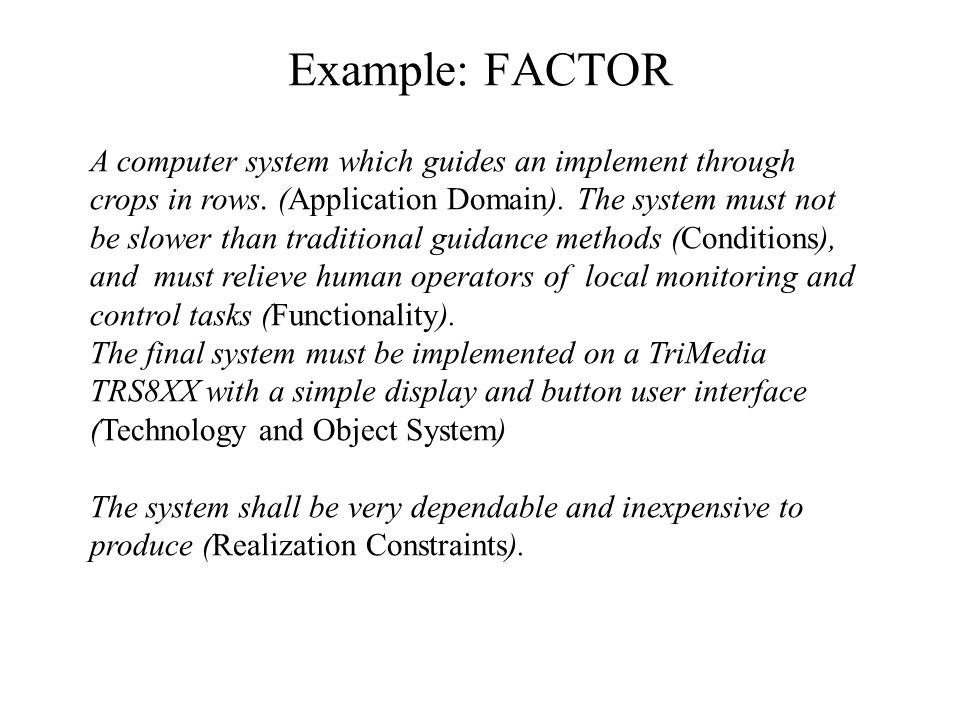

Example: FACTOR A computer system which guides an implement through crops in rows. (Application Domain). The system must not be slower than traditional guidance methods (Conditions), and must relieve human operators of local monitoring and control tasks (Functionality). The final system must be implemented on a TriMedia TRS8XX with a simple display and button user interface (Technology and Object System) The system shall be very dependable and inexpensive to produce (Realization Constraints).

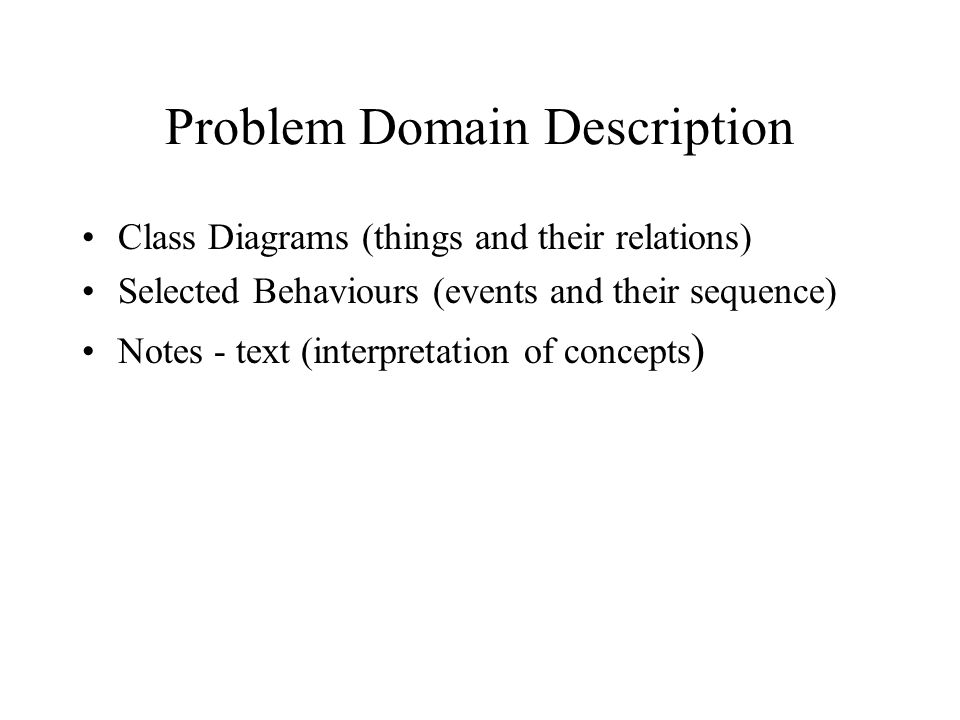

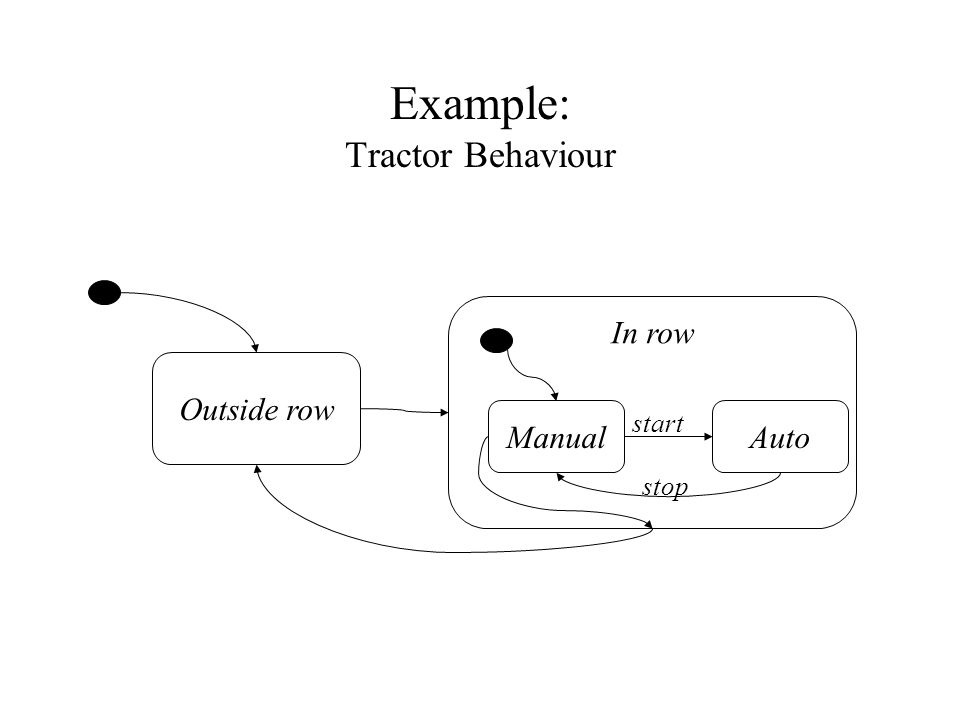

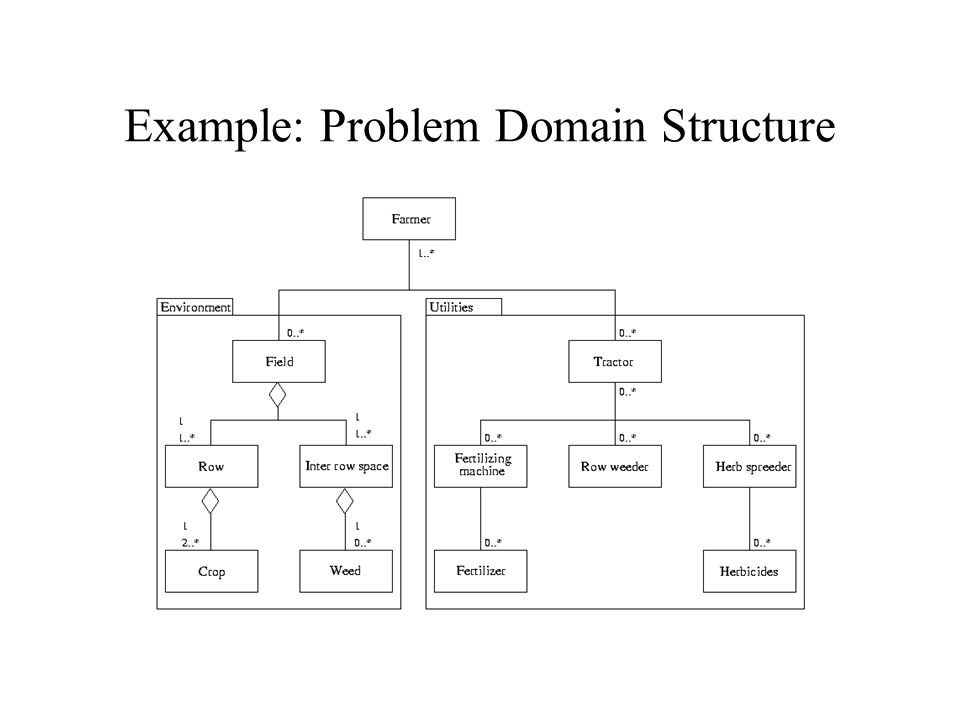

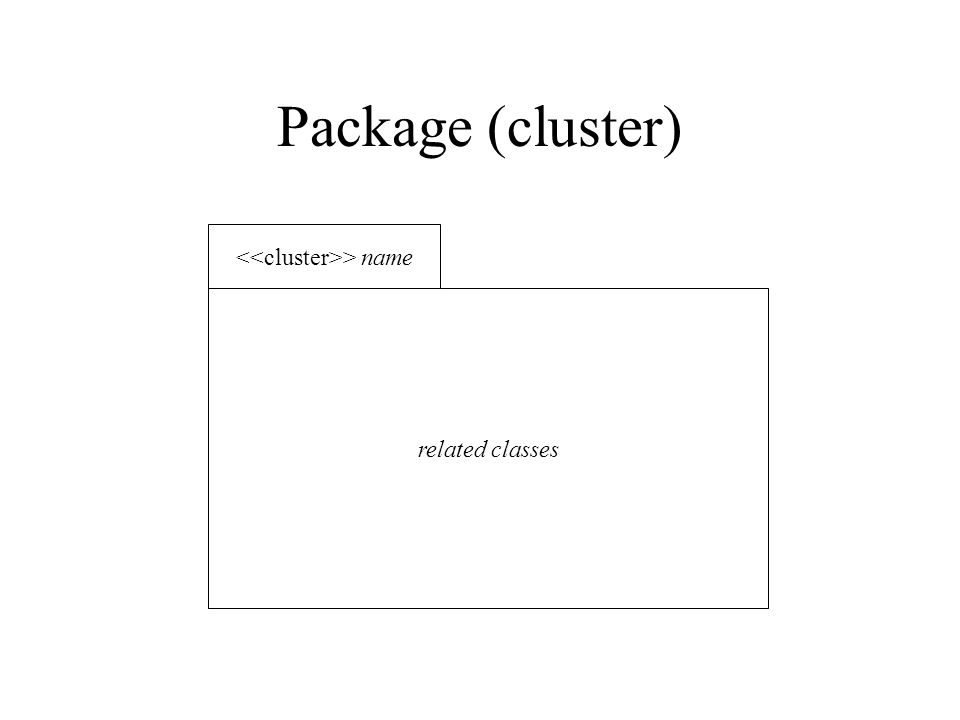

Problem Domain Description Class Diagrams (things and their relations) Selected Behaviours (events and their sequence) Notes - text (interpretation of concepts )
