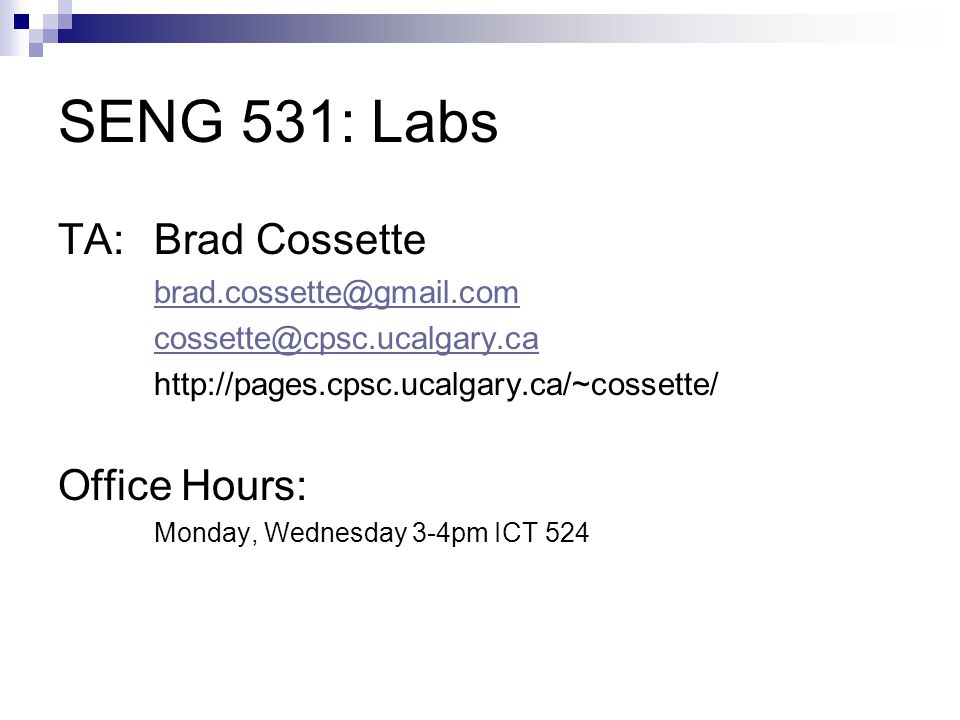

1. SENG 531: Labs TA: Brad Cossette brad.cossette@gmail.com cossette@cpsc.ucalgary.ca http://pages.cpsc.ucalgary.ca/~cossette/ Office Hours: Monday, Wednesday 3-4pm ICT 524

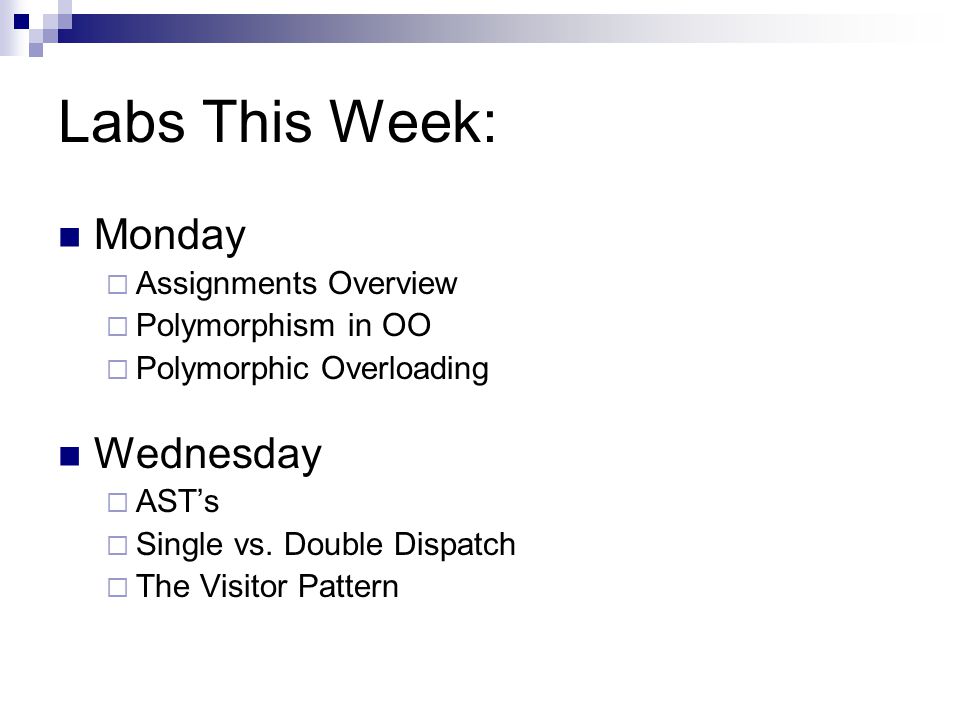

2. Labs This Week: Monday  Assignments Overview  Polymorphism in OO  Polymorphic Overloading Wednesday  AST’s  Single vs. Double Dispatch  The Visitor Pattern

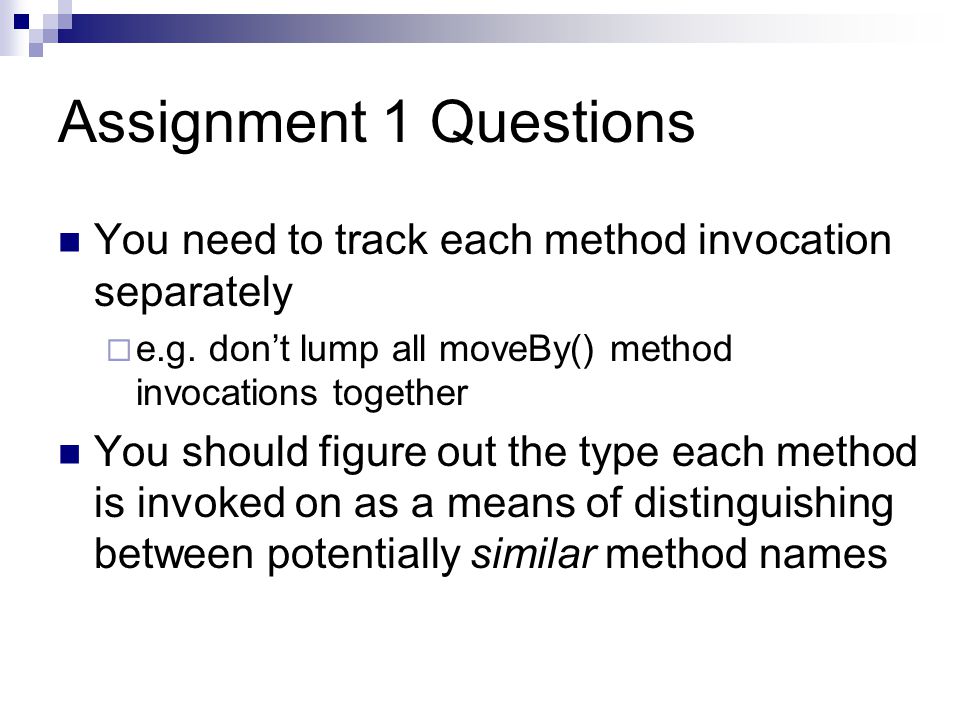

3. Assignment 1 Questions You need to track each method invocation separately  e.g. don’t lump all moveBy() method invocations together You should figure out the type each method is invoked on as a means of distinguishing between potentially similar method names

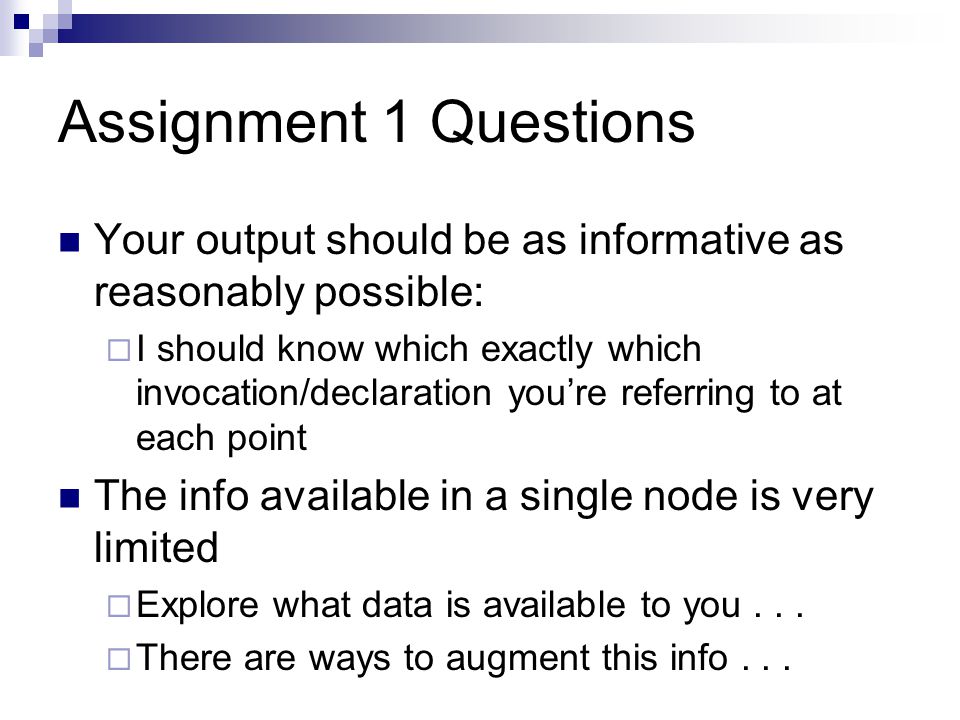

4. Assignment 1 Questions Your output should be as informative as reasonably possible:  I should know which exactly which invocation/declaration you’re referring to at each point The info available in a single node is very limited  Explore what data is available to you...  There are ways to augment this info...

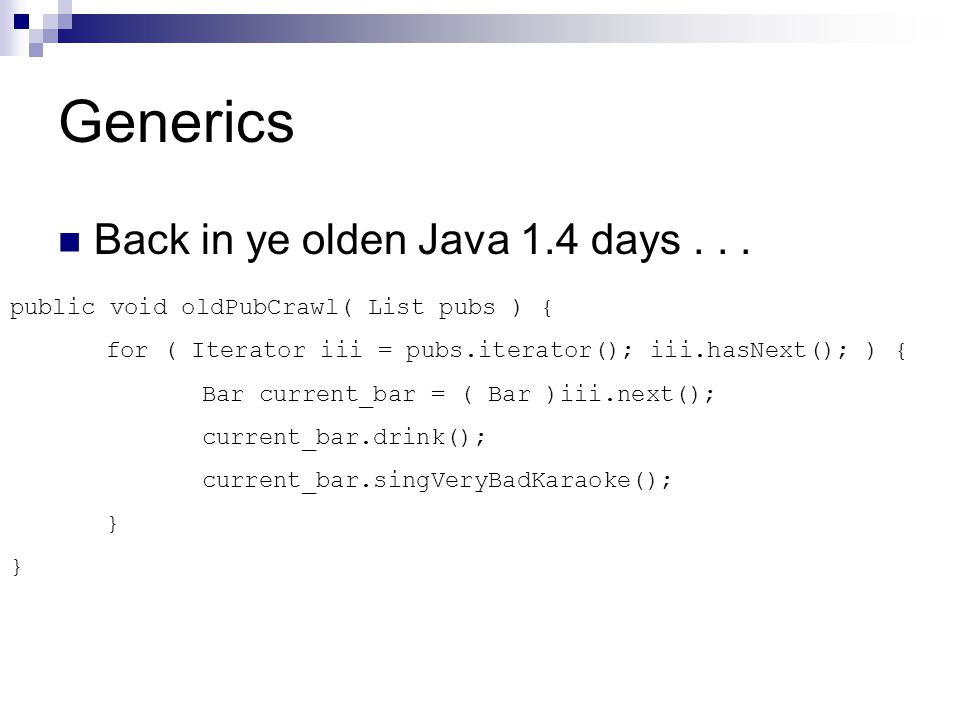

5. Generics Back in ye olden Java 1.4 days... public void oldPubCrawl( List pubs ) { for ( Iterator iii = pubs.iterator(); iii.hasNext(); ) { Bar current_bar = ( Bar )iii.next(); current_bar.drink(); current_bar.singVeryBadKaraoke(); }

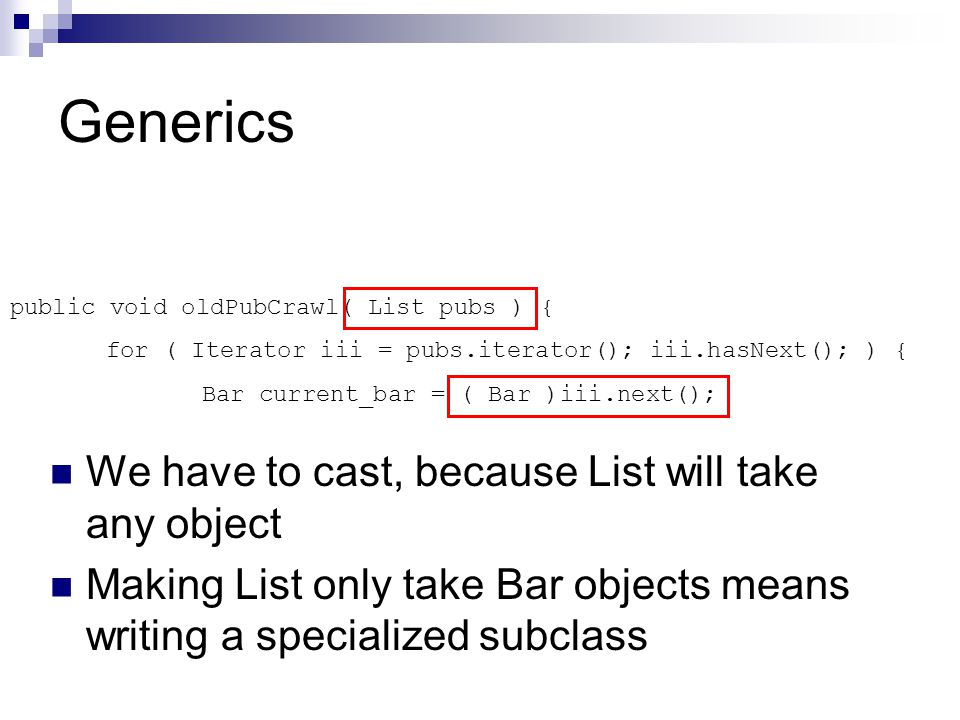

6. Generics public void oldPubCrawl( List pubs ) { for ( Iterator iii = pubs.iterator(); iii.hasNext(); ) { Bar current_bar = ( Bar )iii.next(); We have to cast, because List will take any object Making List only take Bar objects means writing a specialized subclass

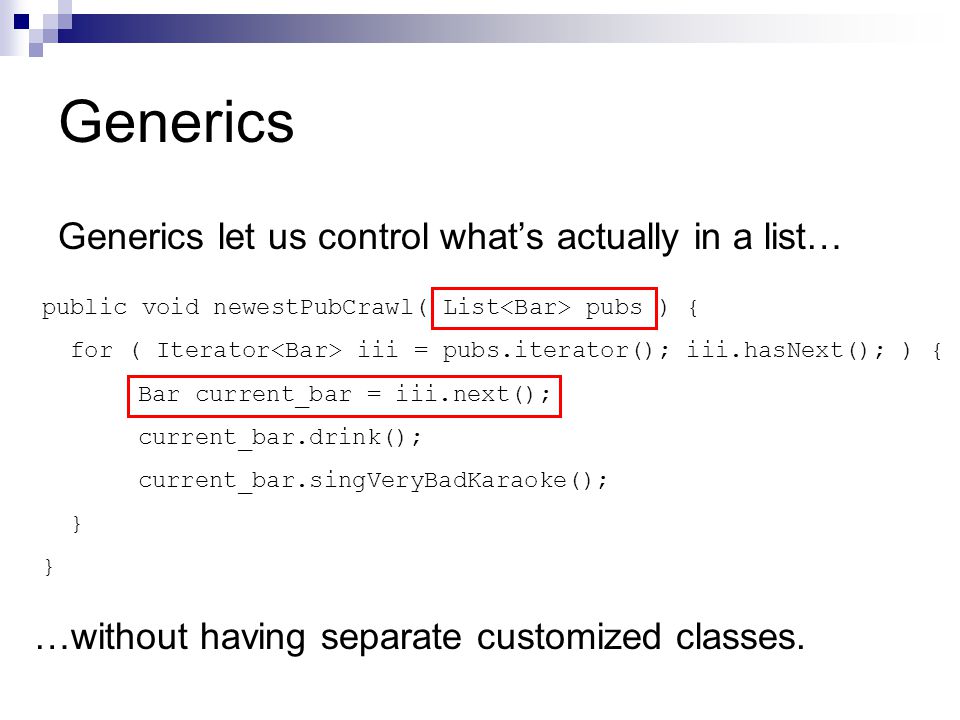

7. Generics Generics let us control what’s actually in a list… public void newestPubCrawl( List pubs ) { for ( Iterator iii = pubs.iterator(); iii.hasNext(); ) { Bar current_bar = iii.next(); current_bar.drink(); current_bar.singVeryBadKaraoke(); } …without having separate customized classes.

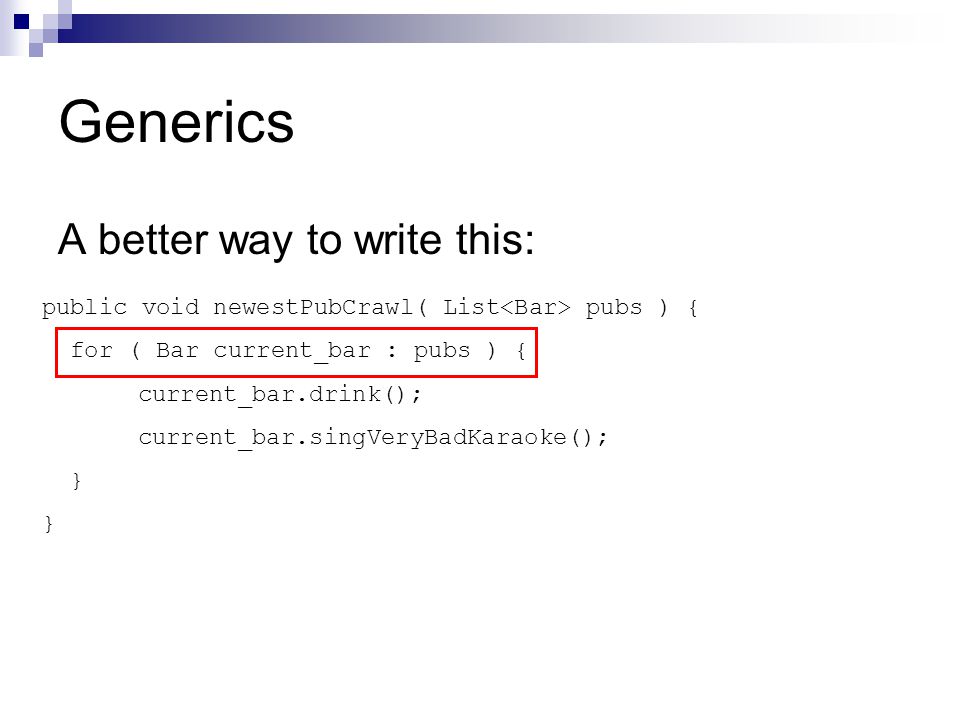

8. Generics A better way to write this: public void newestPubCrawl( List pubs ) { for ( Bar current_bar : pubs ) { current_bar.drink(); current_bar.singVeryBadKaraoke(); }

9. Abstract Syntax Trees (AST) Some compiler/language theory stuff:  Remember EBNF * form of context-free grammars? When parsing a grammar, the rules when applied to some inputs can create a tree If we ignore some syntactic symbols e.g. { }; etc. we can create an abstracted syntax tree... * Backus–Naur Form

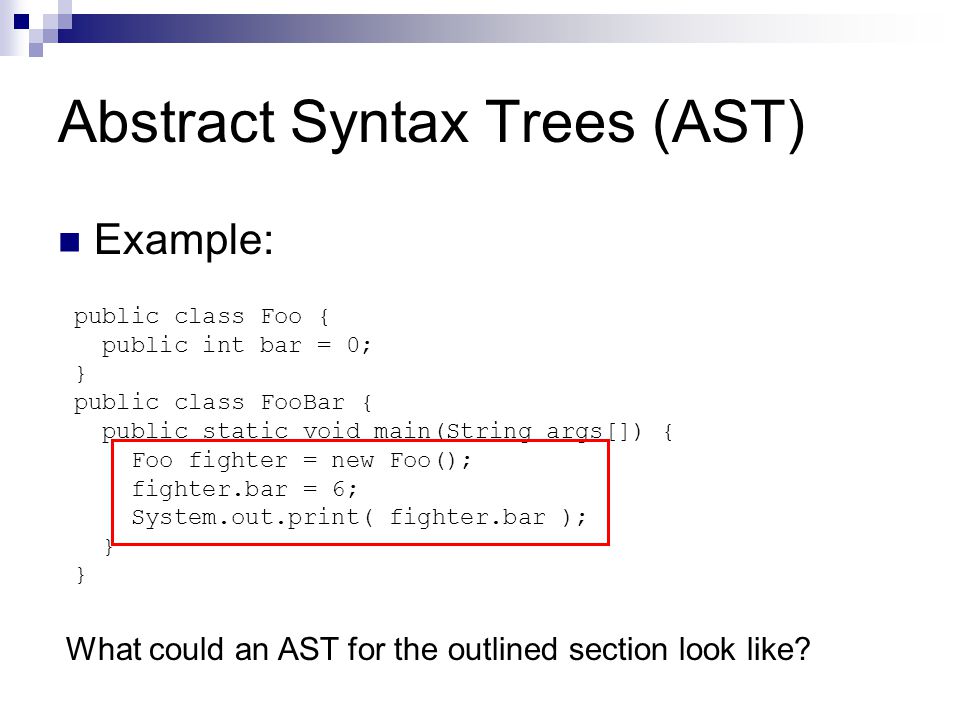

10. Abstract Syntax Trees (AST) Example: public class Foo { public int bar = 0; } public class FooBar { public static void main(String args[]) { Foo fighter = new Foo(); fighter.bar = 6; System.out.print( fighter.bar ); } What could an AST for the outlined section look like?

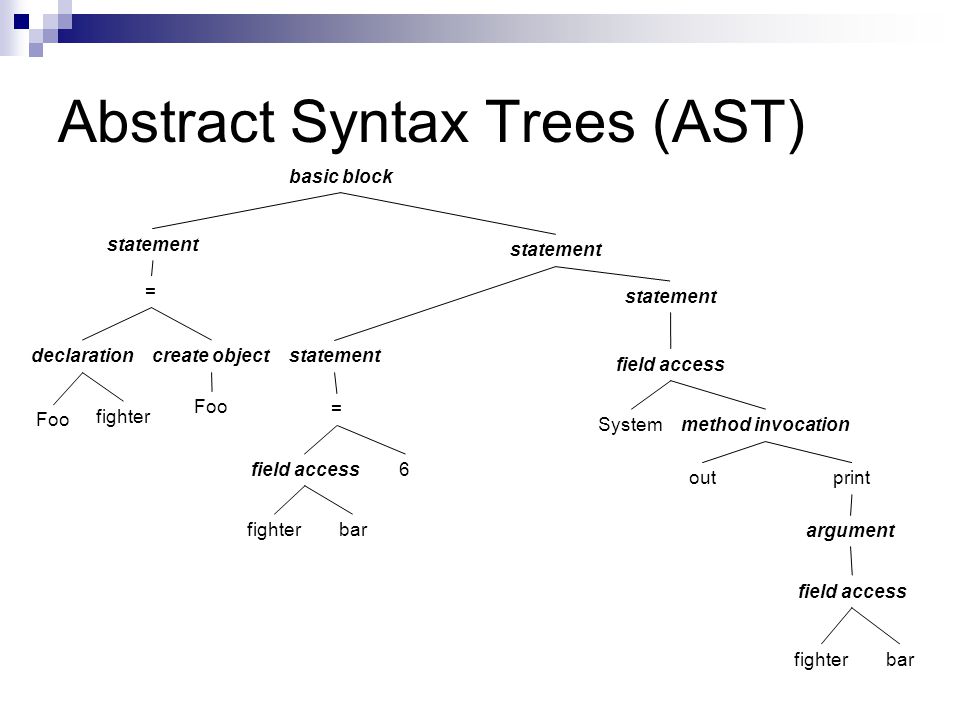

11. Abstract Syntax Trees (AST) = fighterbar field access Foo basic block = declaration fighter 6 create object Foo Systemmethod invocation field access outprint argument fighterbar field access statement

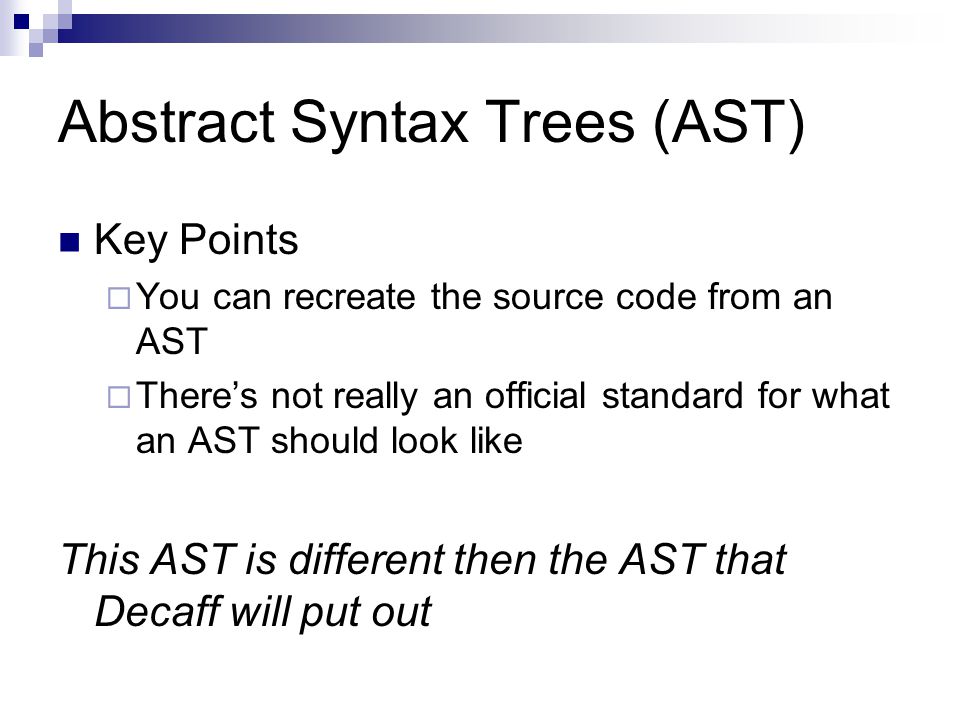

12. Abstract Syntax Trees (AST) Key Points  You can recreate the source code from an AST  There’s not really an official standard for what an AST should look like This AST is different then the AST that Decaff will put out

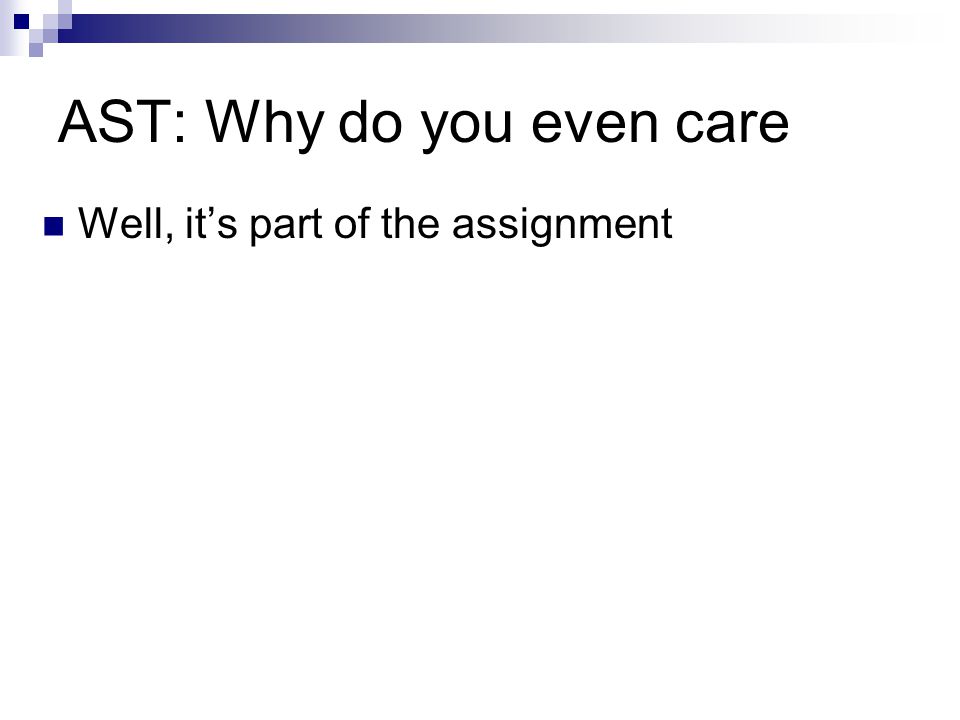

13. AST: Why do you even care Well, it’s part of the assignment

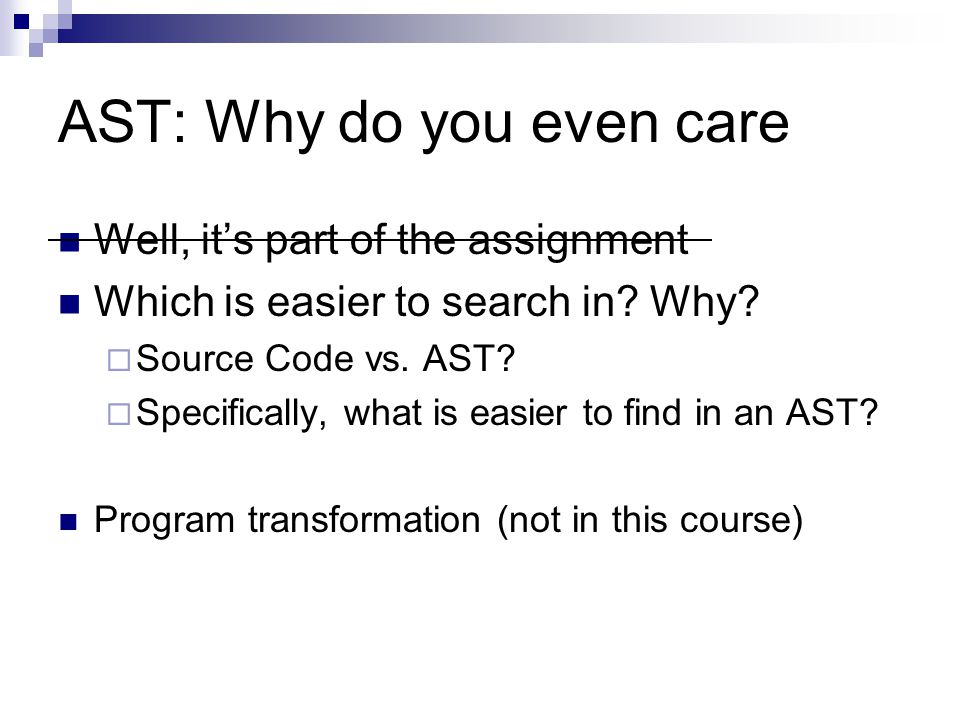

14. AST: Why do you even care Well, it’s part of the assignment Which is easier to search in? Why?  Source Code vs. AST?  Specifically, what is easier to find in an AST? Program transformation (not in this course)

15. The Segueway: AST + Single Dispatch Suppose we have a tree of some sort: CPSC 331 – basic tree representation argument fighterbar field access TreeNode

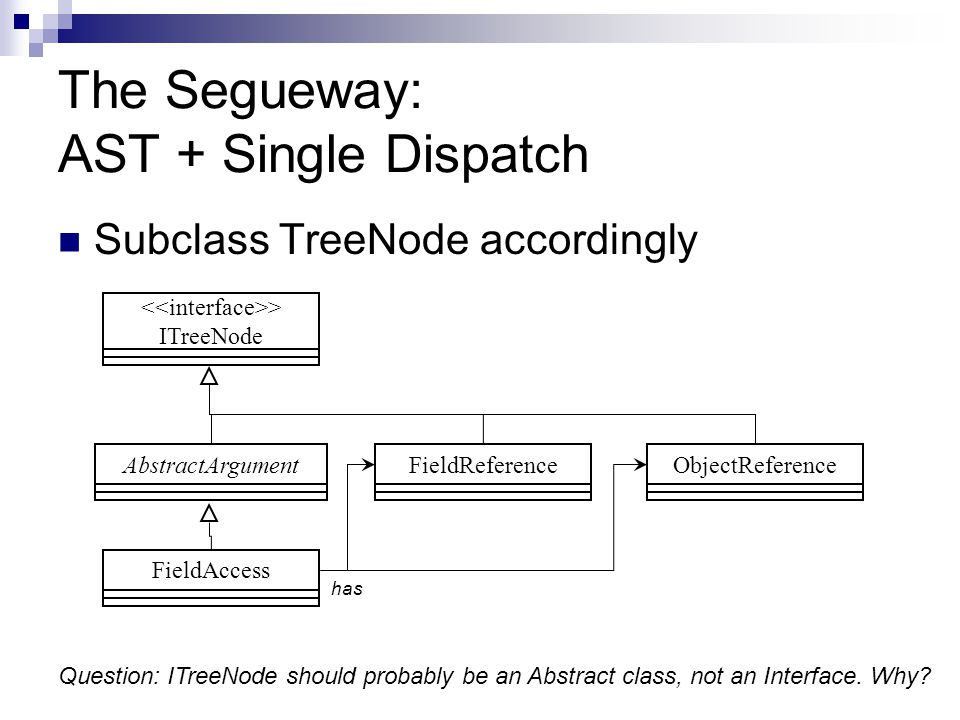

16. The Segueway: AST + Single Dispatch Subclass TreeNode accordingly FieldReferenceObjectReference > ITreeNode FieldAccessAbstractArgument has Question: ITreeNode should probably be an Abstract class, not an Interface. Why?

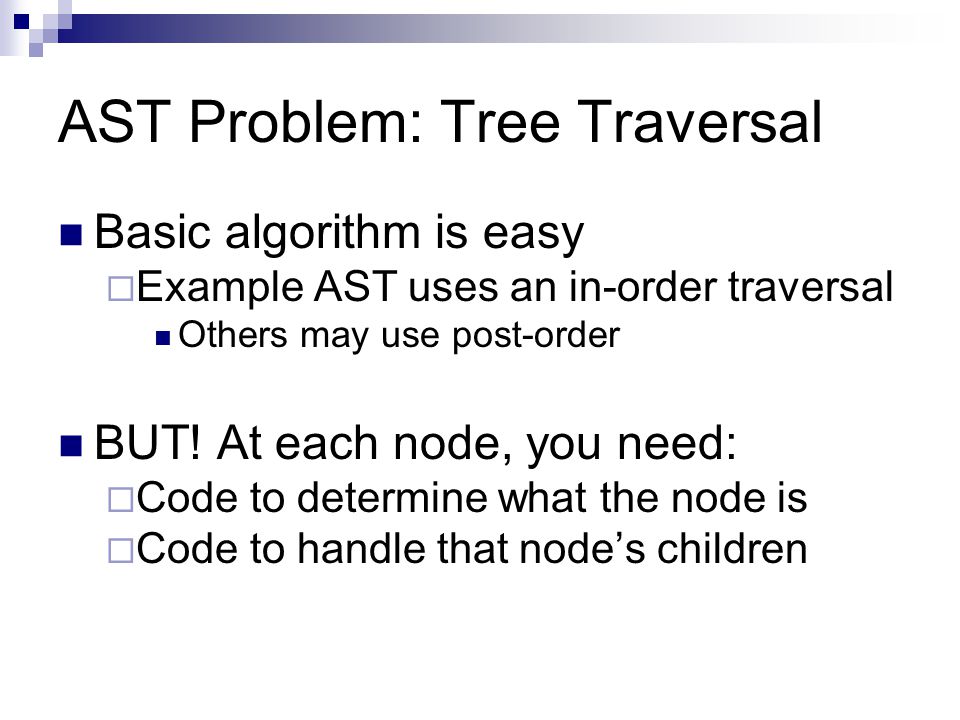

17. AST Problem: Tree Traversal Basic algorithm is easy  Example AST uses an in-order traversal Others may use post-order BUT! At each node, you need:  Code to determine what the node is  Code to handle that node’s children

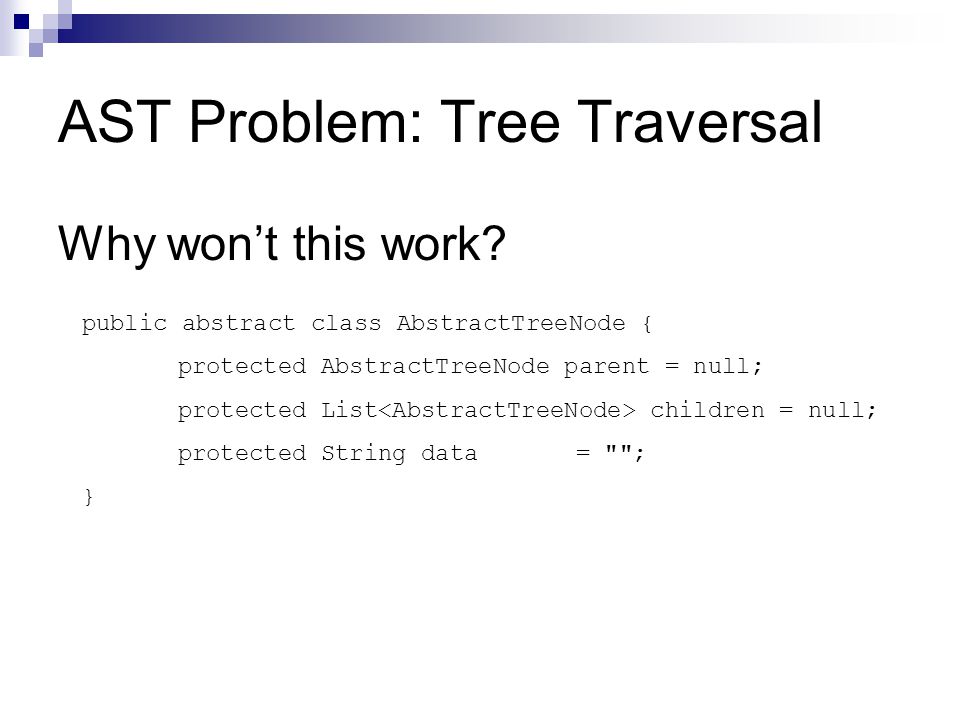

18. AST Problem: Tree Traversal Why won’t this work? public abstract class AbstractTreeNode { protected AbstractTreeNode parent = null; protected List children = null; protected String data = ""; }

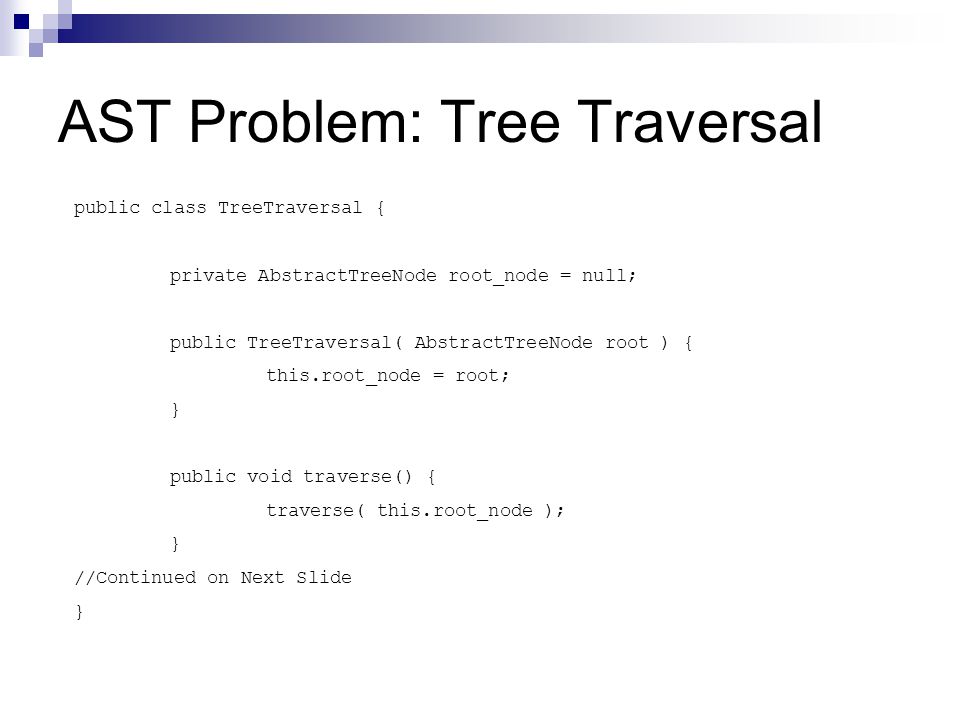

19. AST Problem: Tree Traversal public class TreeTraversal { private AbstractTreeNode root_node = null; public TreeTraversal( AbstractTreeNode root ) { this.root_node = root; } public void traverse() { traverse( this.root_node ); } //Continued on Next Slide }

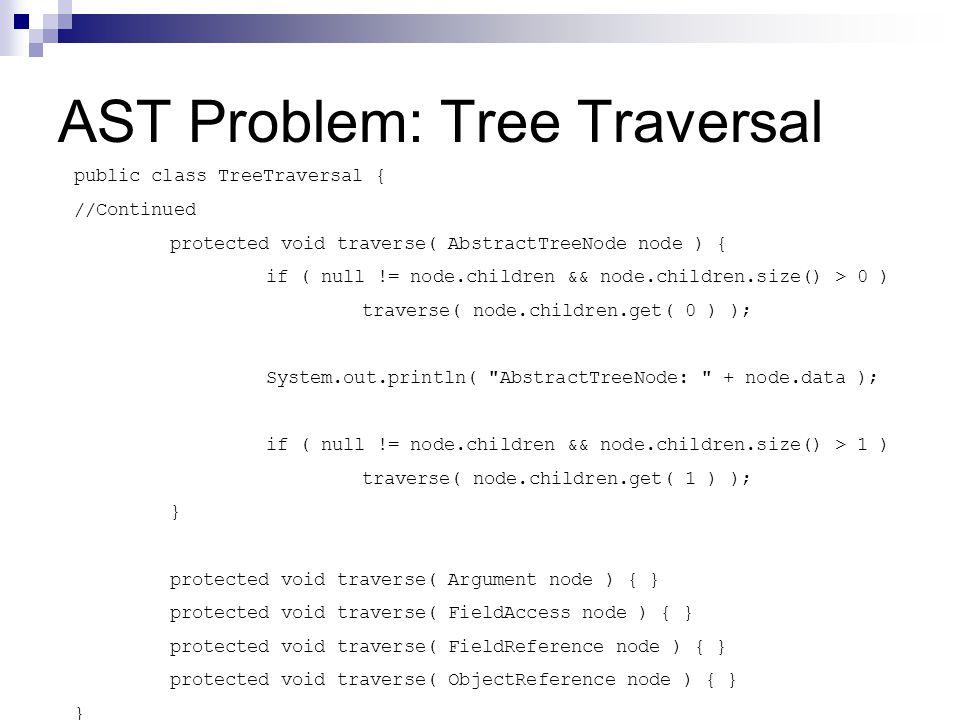

20. AST Problem: Tree Traversal public class TreeTraversal { //Continued protected void traverse( AbstractTreeNode node ) { if ( null != node.children && node.children.size() > 0 ) traverse( node.children.get( 0 ) ); System.out.println( "AbstractTreeNode: " + node.data ); if ( null != node.children && node.children.size() > 1 ) traverse( node.children.get( 1 ) ); } protected void traverse( Argument node ) { } protected void traverse( FieldAccess node ) { } protected void traverse( FieldReference node ) { } protected void traverse( ObjectReference node ) { } }

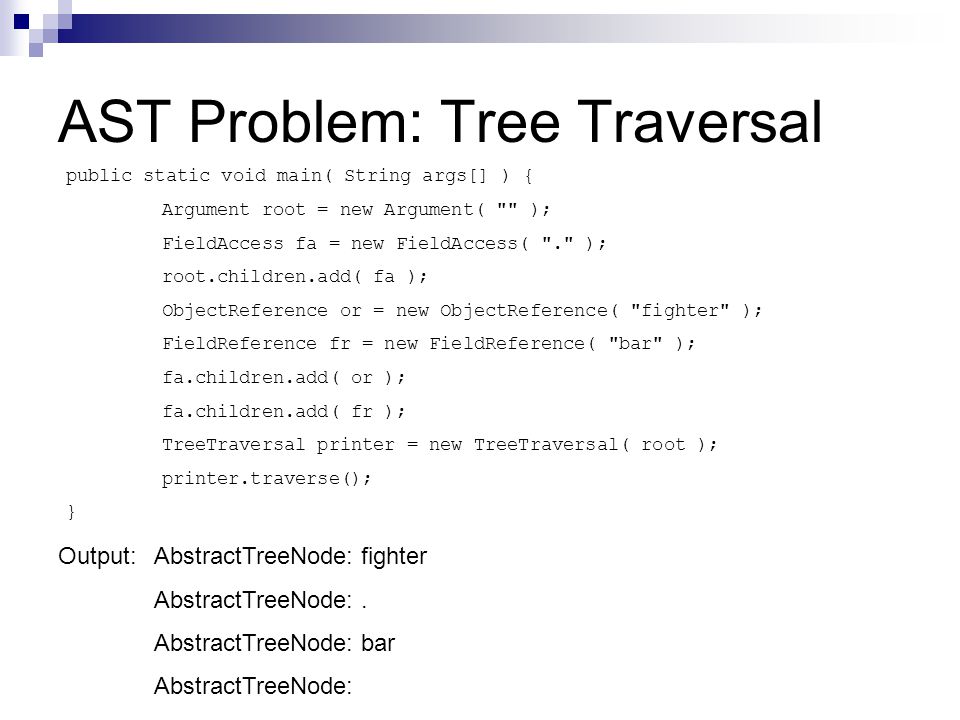

21. AST Problem: Tree Traversal Output:AbstractTreeNode: fighter AbstractTreeNode:. AbstractTreeNode: bar AbstractTreeNode: public static void main( String args[] ) { Argument root = new Argument( "" ); FieldAccess fa = new FieldAccess( "." ); root.children.add( fa ); ObjectReference or = new ObjectReference( "fighter" ); FieldReference fr = new FieldReference( "bar" ); fa.children.add( or ); fa.children.add( fr ); TreeTraversal printer = new TreeTraversal( root ); printer.traverse(); }

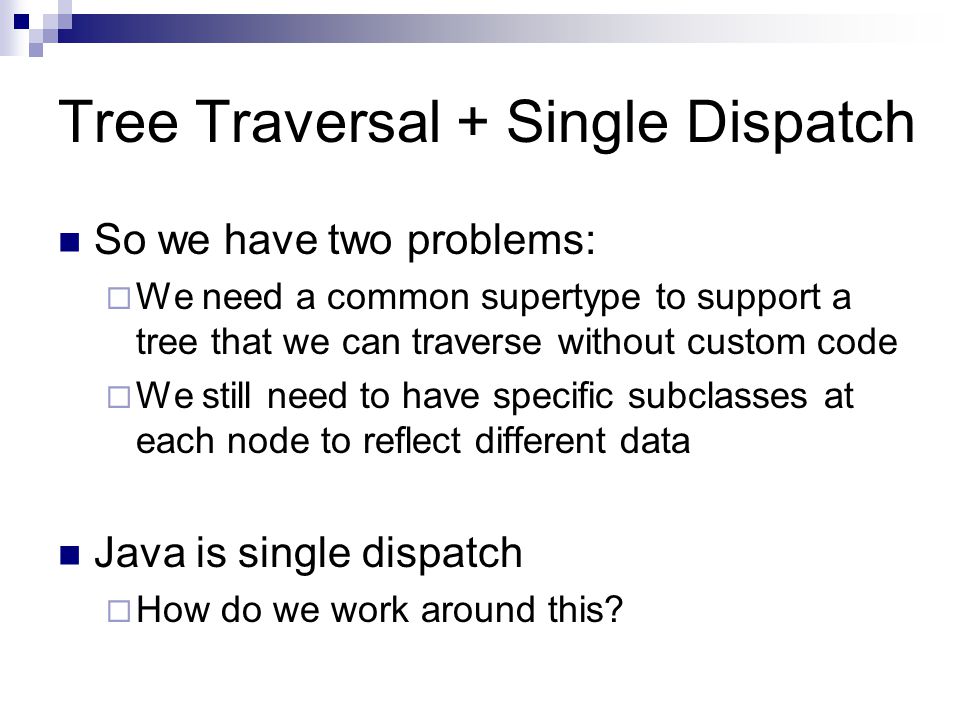

22. Tree Traversal + Single Dispatch So we have two problems:  We need a common supertype to support a tree that we can traverse without custom code  We still need to have specific subclasses at each node to reflect different data Java is single dispatch  How do we work around this?

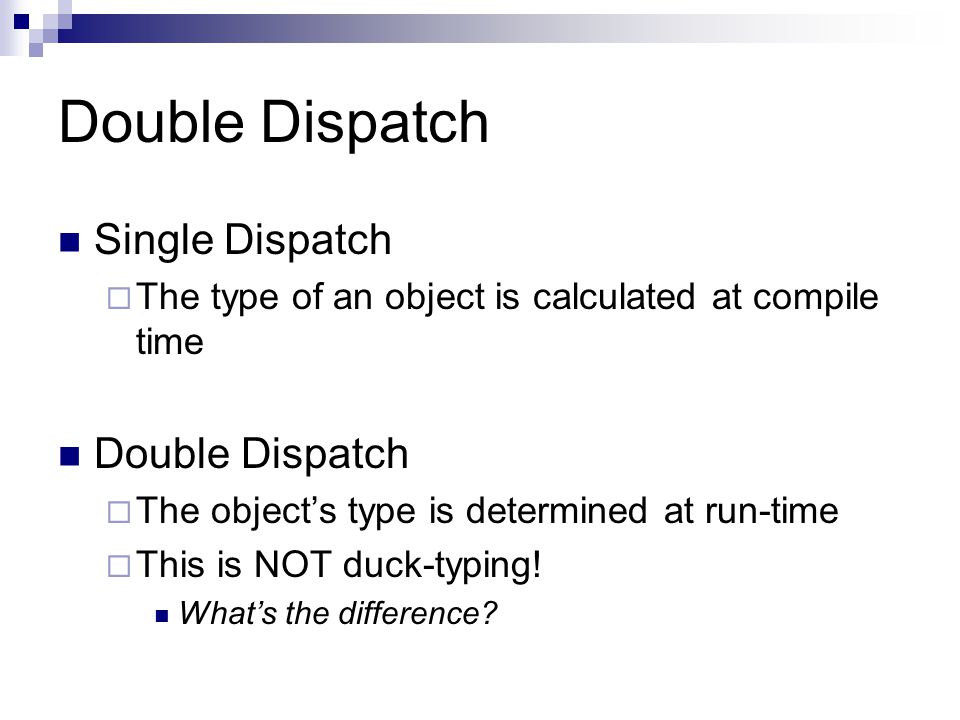

23. Double Dispatch Single Dispatch  The type of an object is calculated at compile time Double Dispatch  The object’s type is determined at run-time  This is NOT duck-typing! What’s the difference?

24. Double Dispatch How do you simulated Double Dispatch?  Reflection object instanceof X Object.getClass() Are there problems with this?  The Visitor design pattern Simulate double dispatch by splitting responsibility

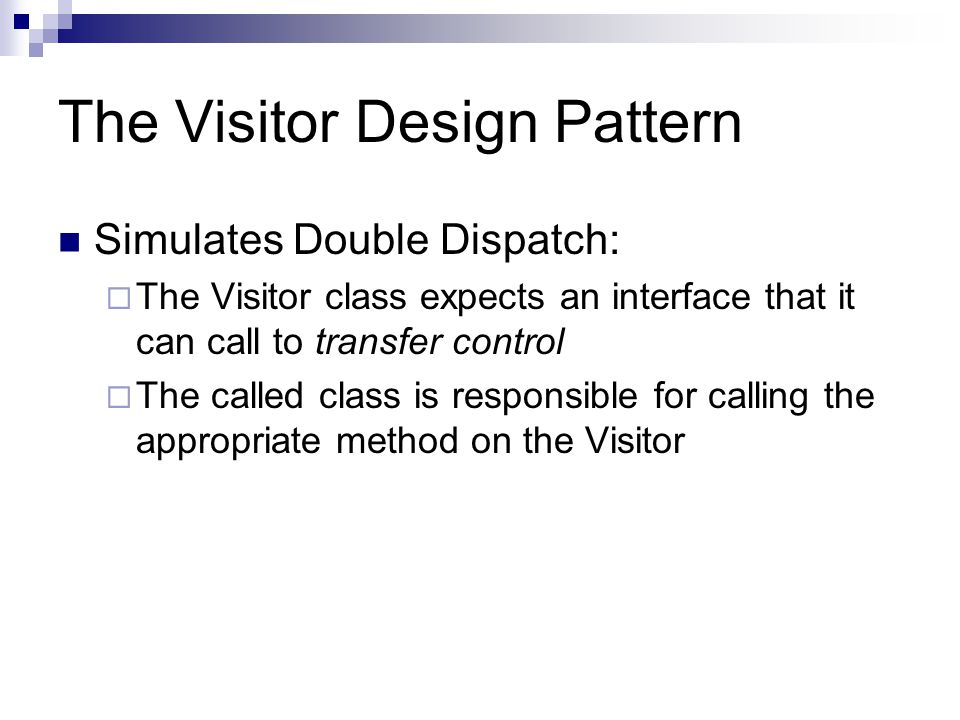

25. The Visitor Design Pattern Simulates Double Dispatch:  The Visitor class expects an interface that it can call to transfer control  The called class is responsible for calling the appropriate method on the Visitor

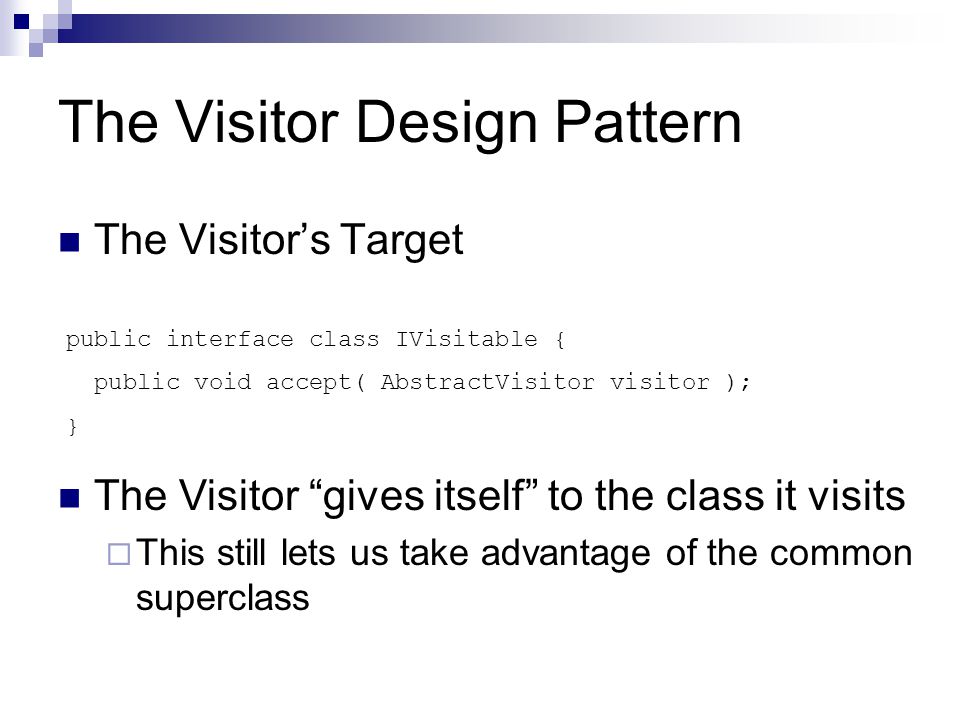

26. The Visitor Design Pattern The Visitor’s Target public interface class IVisitable { public void accept( AbstractVisitor visitor ); } The Visitor “gives itself” to the class it visits  This still lets us take advantage of the common superclass

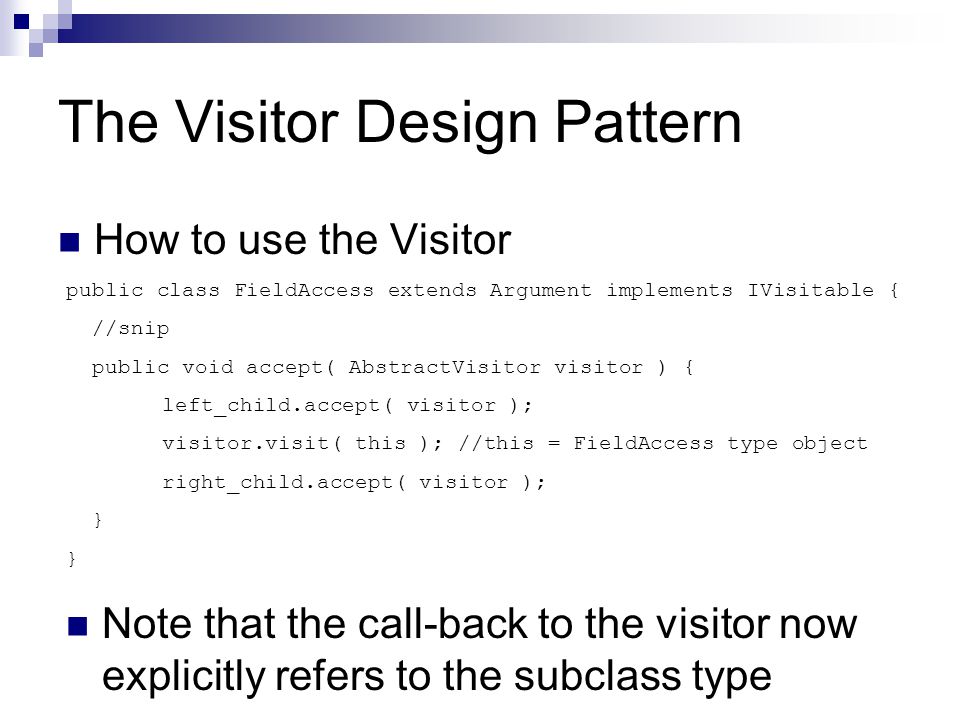

27. The Visitor Design Pattern How to use the Visitor public class FieldAccess extends Argument implements IVisitable { //snip public void accept( AbstractVisitor visitor ) { left_child.accept( visitor ); visitor.visit( this ); //this = FieldAccess type object right_child.accept( visitor ); } Note that the call-back to the visitor now explicitly refers to the subclass type

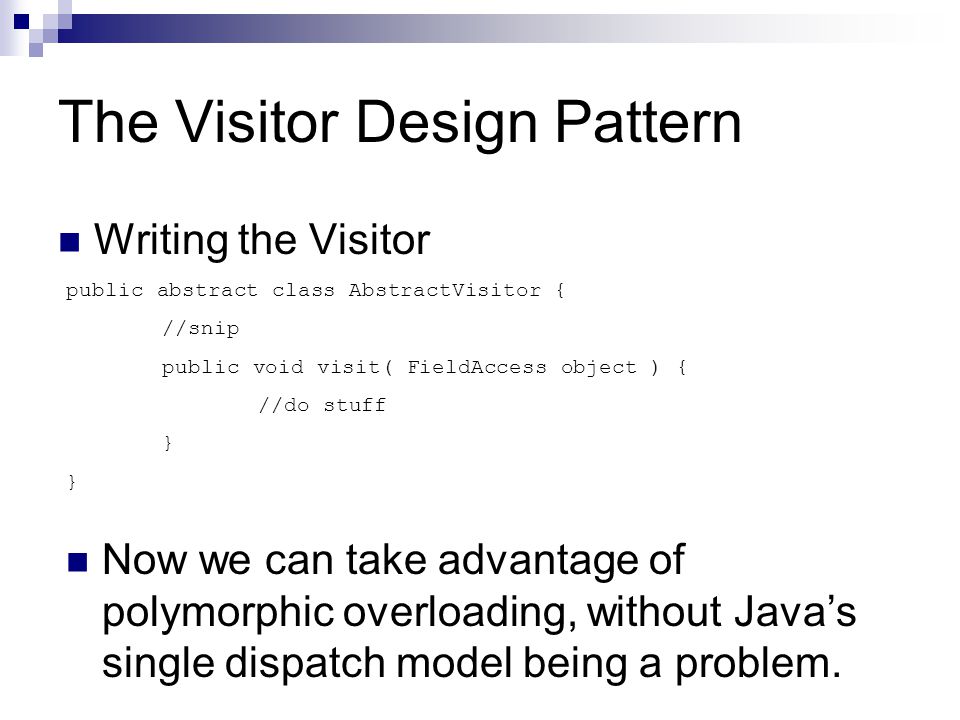

28. The Visitor Design Pattern Writing the Visitor public abstract class AbstractVisitor { //snip public void visit( FieldAccess object ) { //do stuff } Now we can take advantage of polymorphic overloading, without Java’s single dispatch model being a problem.

29. Labs Next Week: Monday  Help with Assignment #1 Wednesday  Help with Assignment #1
