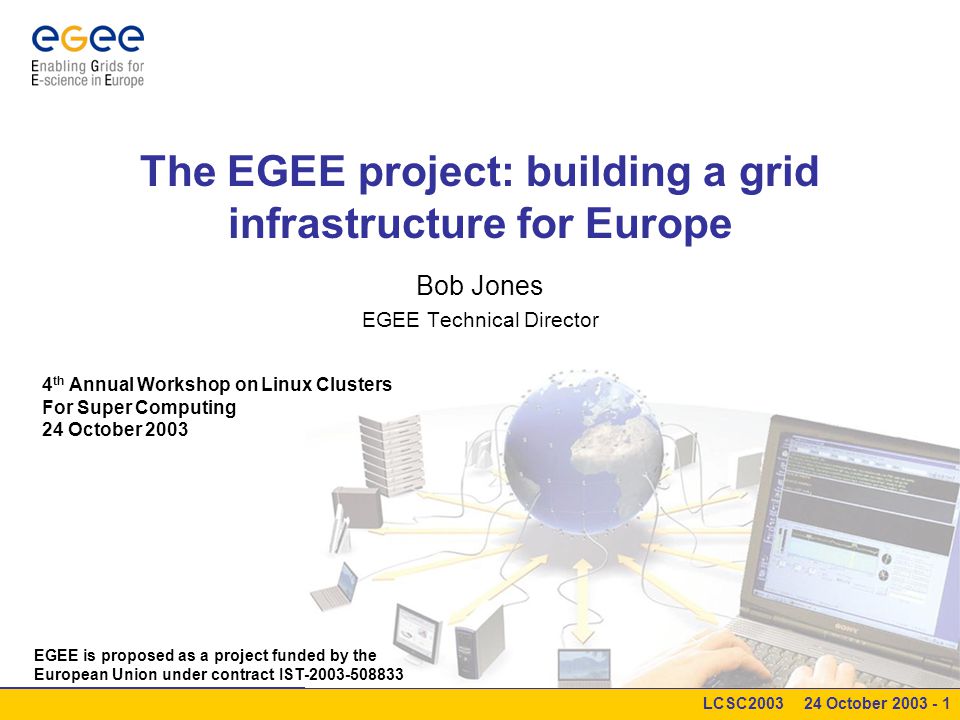

1. LCSC2003 24 October 2003 - 1 The EGEE project: building a grid infrastructure for Europe Bob Jones EGEE Technical Director 4 th Annual Workshop on Linux Clusters For Super Computing 24 October 2003 EGEE is proposed as a project funded by the European Union under contract IST-2003-508833

2. LCSC2003 24 October 2003 - 2 EGEE: Goals Create a wide European Grid production quality infrastructure on top of present and future EU RN infrastructure Provide distributed European research communities with “round-the-clock” access to major computing resources, independent of geographic location Change of emphasis from grid development to grid deployment Support many application domains with one large-scale infrastructure that will attract new resources over time Provide training and support for end-users

3. LCSC2003 24 October 2003 - 3 EGEE: Strategy Leverage current and planned national and regional Grid programmes, building on the results of existing projects such as DataGrid and others the EU Research Network Geant and work closely with relevant industrial Grid developers and NRENs Support Grid computing needs common to the different communities integrate the computing infrastructures and agree on common access policies Exploit International connections (US and AP) Provide interoperability with other major Grid initiatives such as the US NSF Cyberinfrastructure, establishing a worldwide Grid infrastructure

4. LCSC2003 24 October 2003 - 4 EGEE: Partners Leverage national resources in a more effective way for broader European benefit 70 leading institutions in 27 countries organised into regional federations

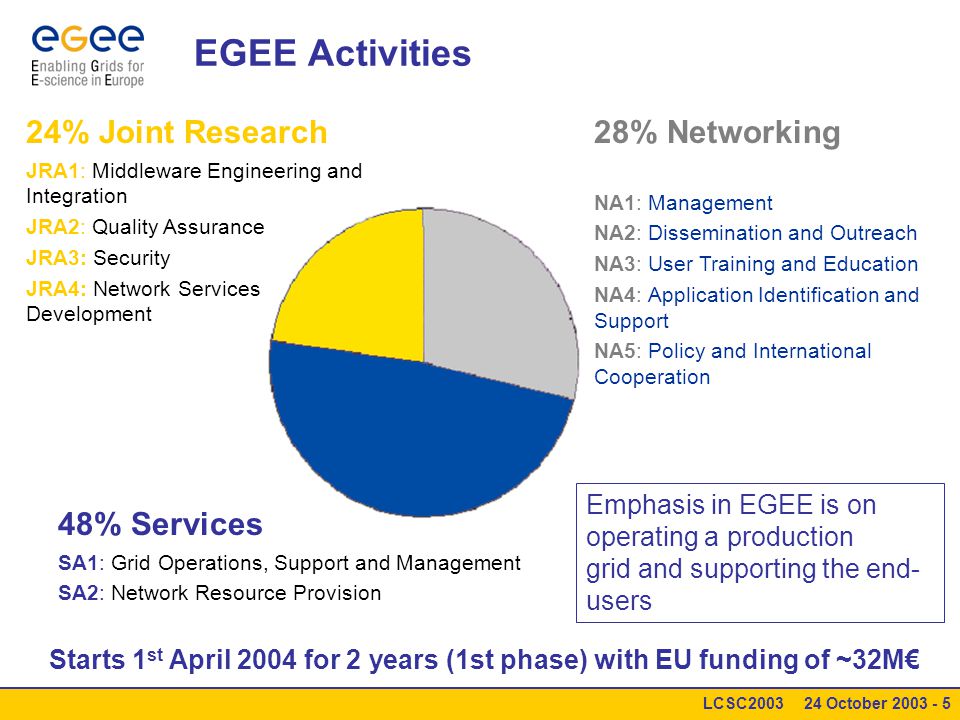

5. LCSC2003 24 October 2003 - 5 EGEE Activities JRA1: Middleware Engineering and Integration JRA2: Quality Assurance JRA3: Security JRA4: Network Services Development SA1: Grid Operations, Support and Management SA2: Network Resource Provision NA1: Management NA2: Dissemination and Outreach NA3: User Training and Education NA4: Application Identification and Support NA5: Policy and International Cooperation 24% Joint Research28% Networking 48% Services Emphasis in EGEE is on operating a production grid and supporting the end- users Starts 1 st April 2004 for 2 years (1st phase) with EU funding of ~32M€

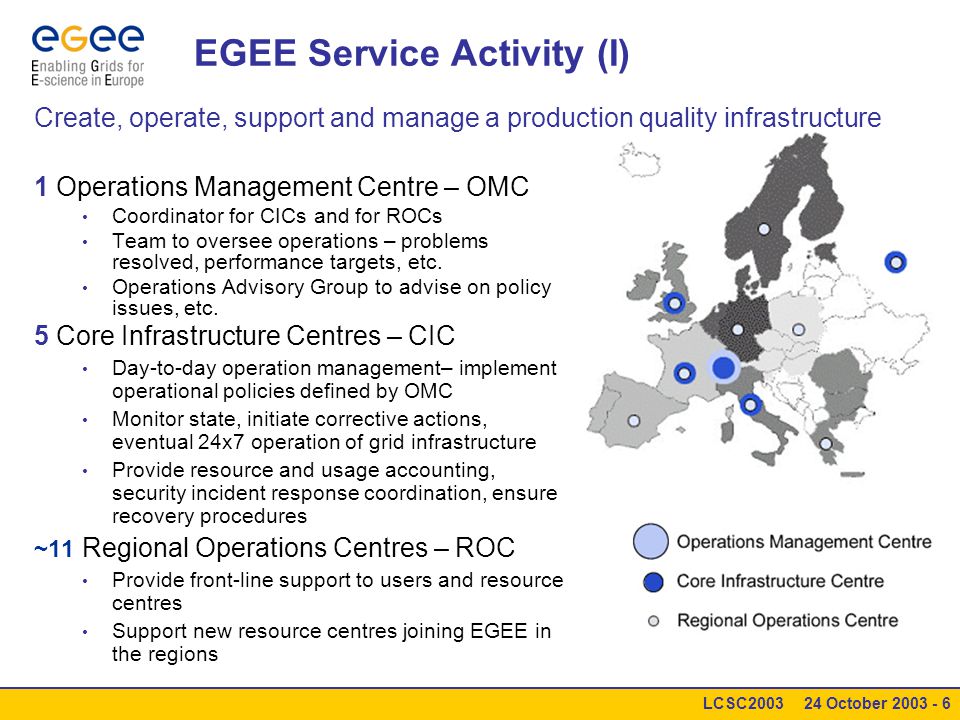

6. LCSC2003 24 October 2003 - 6 EGEE Service Activity (I) 1 Operations Management Centre – OMC Coordinator for CICs and for ROCs Team to oversee operations – problems resolved, performance targets, etc. Operations Advisory Group to advise on policy issues, etc. 5 Core Infrastructure Centres – CIC Day-to-day operation management– implement operational policies defined by OMC Monitor state, initiate corrective actions, eventual 24x7 operation of grid infrastructure Provide resource and usage accounting, security incident response coordination, ensure recovery procedures ~11 Regional Operations Centres – ROC Provide front-line support to users and resource centres Support new resource centres joining EGEE in the regions Create, operate, support and manage a production quality infrastructure

7. LCSC2003 24 October 2003 - 7 EGEE Service Activity (II) Resource Centers RegionCPU nodesDisk (TB)CPU Nodes Month 15 Disk (TB) Month 15 CERN9001401800310 UK + Ireland100252200300 France4001589550 Italy55360.667967.2 North20020200050 South West2501025010 Germany + Switzerland100240067 South East146732214 Central Europe3851573032 Russia50715236 Totals30843028768936 Month 1: 10 RCsMonth 15: 20 RCs RCs are not funded via the project Expect to attract many more RCs

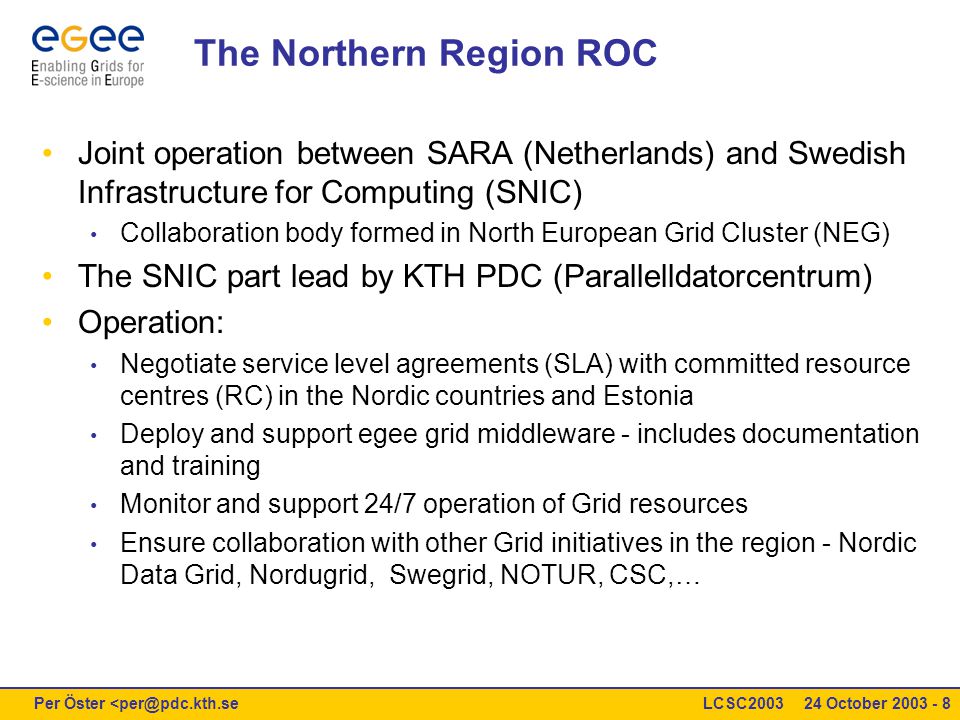

8. LCSC2003 24 October 2003 - 8 The Northern Region ROC Joint operation between SARA (Netherlands) and Swedish Infrastructure for Computing (SNIC) Collaboration body formed in North European Grid Cluster (NEG) The SNIC part lead by KTH PDC (Parallelldatorcentrum) Operation: Negotiate service level agreements (SLA) with committed resource centres (RC) in the Nordic countries and Estonia Deploy and support egee grid middleware - includes documentation and training Monitor and support 24/7 operation of Grid resources Ensure collaboration with other Grid initiatives in the region - Nordic Data Grid, Nordugrid, Swegrid, NOTUR, CSC,… Per Öster <per@pdc.kth.se

9. LCSC2003 24 October 2003 - 9 The Northern Region ROC Organisation and tasks (in short) ROC manager Coordinate and lead activity Coordinate activity with the other 8 ROCs Interact with the CIC Deployment team Validate software releases Deploy software and aid the RCs in resolving implementation issues Aid support team in middleware support issues Support team Monitor Grid resources Support RCs in operation of Grid middleware Operate call centre for user and RC support Per Öster <per@pdc.kth.se

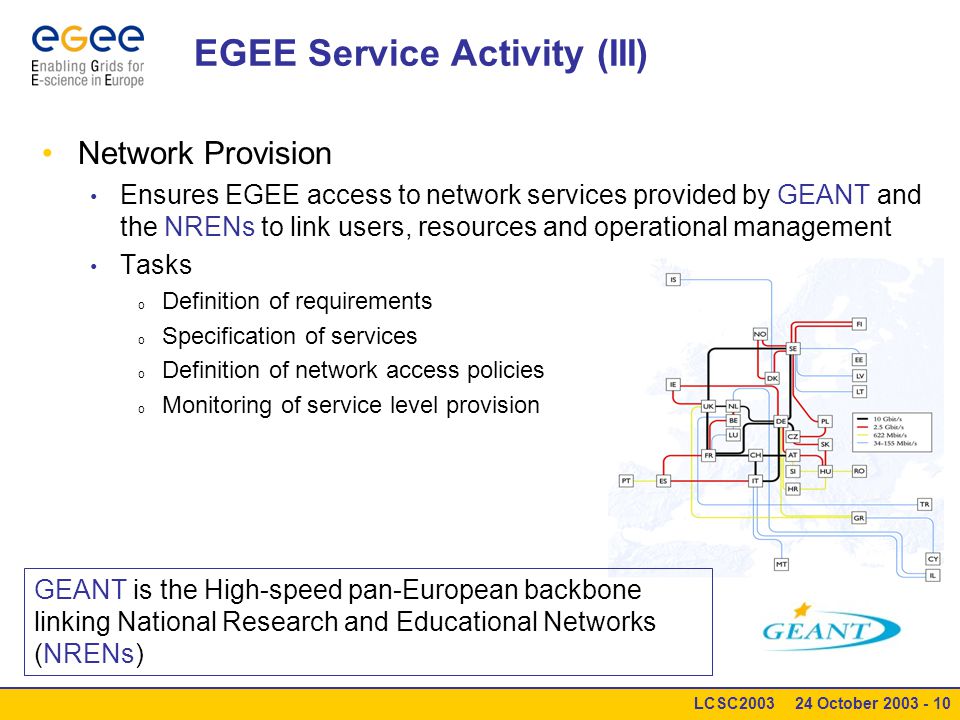

10. LCSC2003 24 October 2003 - 10 EGEE Service Activity (III) Network Provision Ensures EGEE access to network services provided by GEANT and the NRENs to link users, resources and operational management Tasks o Definition of requirements o Specification of services o Definition of network access policies o Monitoring of service level provision GEANT is the High-speed pan-European backbone linking National Research and Educational Networks (NRENs)

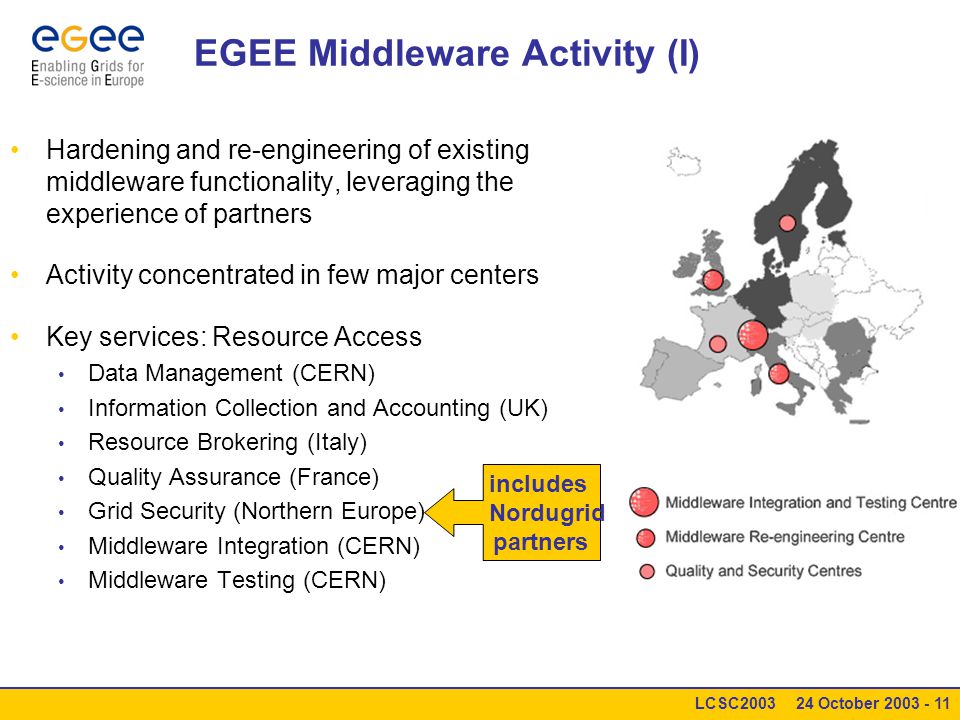

11. LCSC2003 24 October 2003 - 11 EGEE Middleware Activity (I) Hardening and re-engineering of existing middleware functionality, leveraging the experience of partners Activity concentrated in few major centers Key services: Resource Access Data Management (CERN) Information Collection and Accounting (UK) Resource Brokering (Italy) Quality Assurance (France) Grid Security (Northern Europe) Middleware Integration (CERN) Middleware Testing (CERN) includes Nordugrid partners

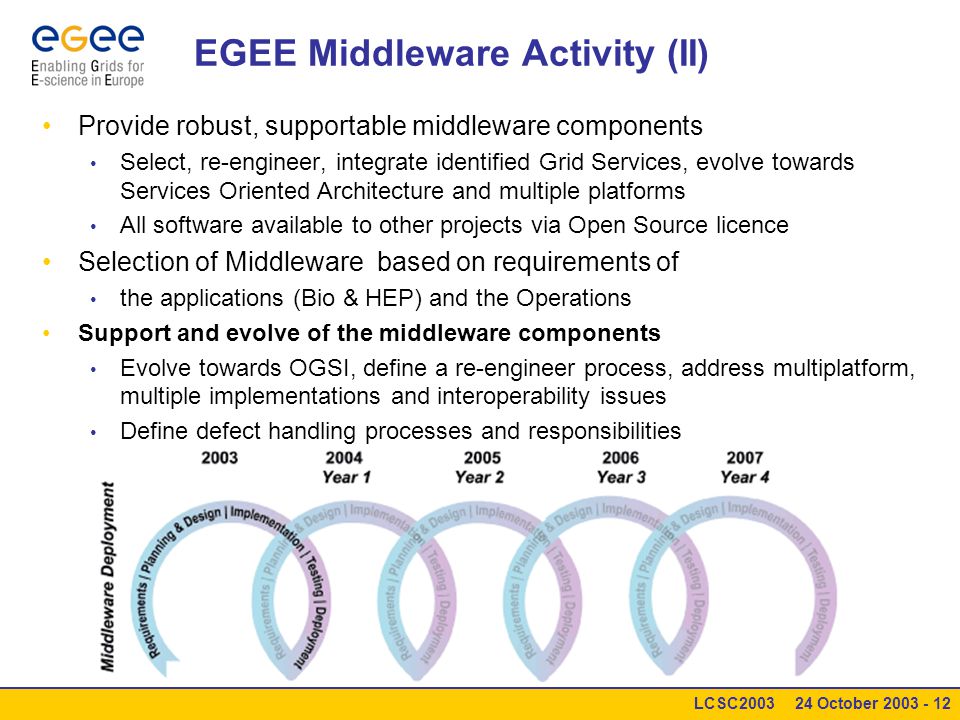

12. LCSC2003 24 October 2003 - 12 EGEE Middleware Activity (II) Provide robust, supportable middleware components Select, re-engineer, integrate identified Grid Services, evolve towards Services Oriented Architecture and multiple platforms All software available to other projects via Open Source licence Selection of Middleware based on requirements of the applications (Bio & HEP) and the Operations Support and evolve of the middleware components Evolve towards OGSI, define a re-engineer process, address multiplatform, multiple implementations and interoperability issues Define defect handling processes and responsibilities

13. LCSC2003 24 October 2003 - 13 Quality Assurance

14. LCSC2003 24 October 2003 - 14 EGEE and LCG (I) Strong links already established between EDG and LCG and this approach will continue in the scope of EGEE The core infrastructure of the LCG and EGEE grids will be operated as a single service, and will grow out of LCG service LCG includes US and Asia EGEE includes other sciences Substantial part of infrastructure common to both The ROCs provide local support for Resource Centres and users Similar to LCG primary sites Some ROCs and LCG primary sites will be merged

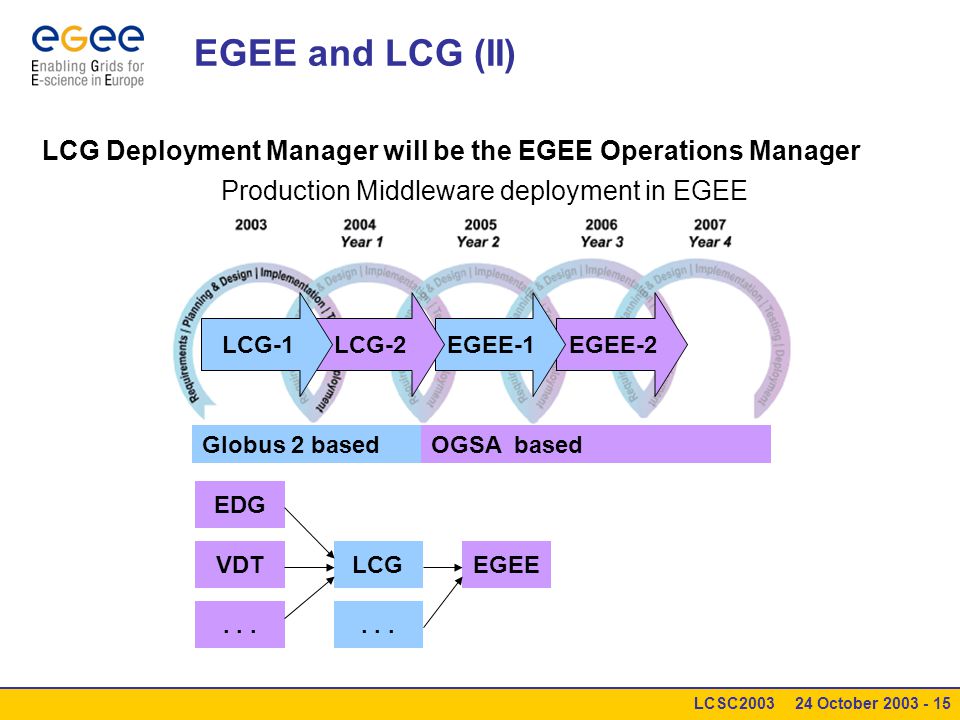

15. LCSC2003 24 October 2003 - 15 EGEE and LCG (II) LCG Deployment Manager will be the EGEE Operations Manager Production Middleware deployment in EGEE Globus 2 basedOGSA based EGEE-2EGEE-1LCG-2LCG-1 EDG VDT... LCGEGEE...

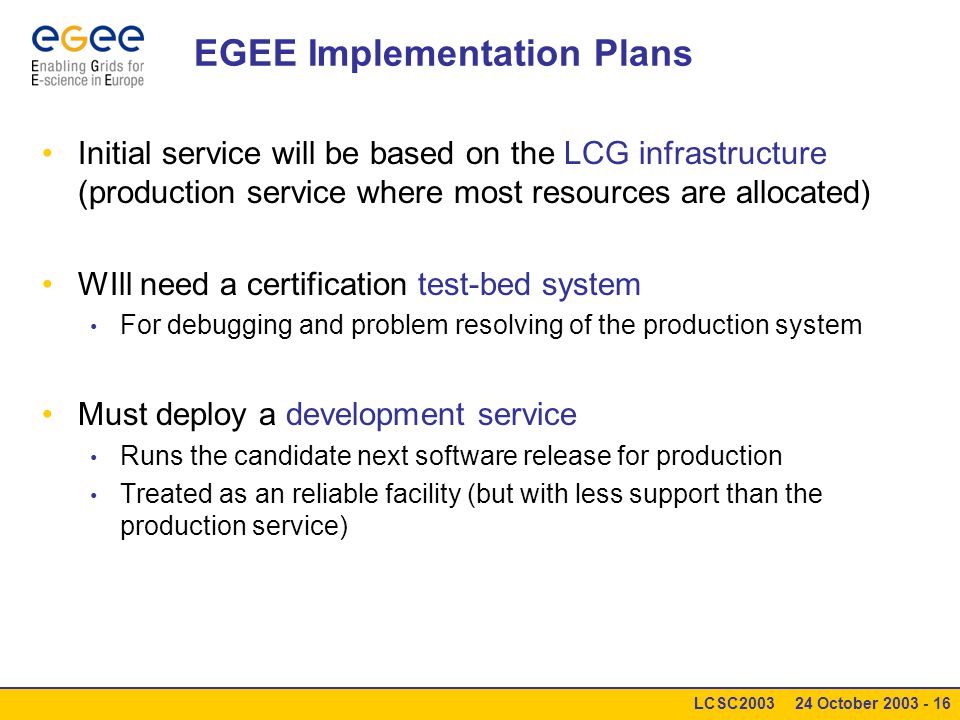

16. LCSC2003 24 October 2003 - 16 EGEE Implementation Plans Initial service will be based on the LCG infrastructure (production service where most resources are allocated) WIll need a certification test-bed system For debugging and problem resolving of the production system Must deploy a development service Runs the candidate next software release for production Treated as an reliable facility (but with less support than the production service)

17. LCSC2003 24 October 2003 - 17 EGEE Networking Activity (I) Dissemination and outreach Lead by TERENA User training and induction Lead by Unv Edin. (NeSC) Application identification and support Two pilot application centers (for high energy physics and biomedical grids) One more generic component dealing with longer term recruitment and support of other communities Policy and International cooperation Establish Grid policy forum Guide work with international standards bodies (GGF etc.) Coordinate relations with other projects (EU and beyond) map points indicate federations and are not geographically precise

18. LCSC2003 24 October 2003 - 18 EGEE Networking Activity (II) User training and Induction Over 25 courses for more than 1000 people in the first 2 years Induction & advanced user courses Application developer training and middleware retreat

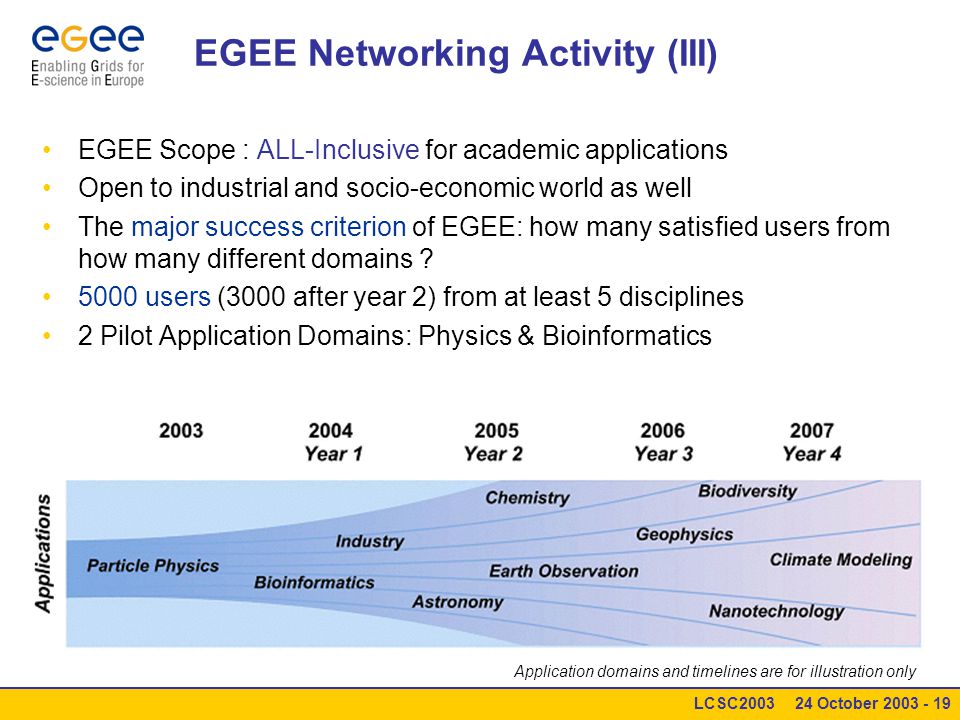

19. LCSC2003 24 October 2003 - 19 EGEE Networking Activity (III) EGEE Scope : ALL-Inclusive for academic applications Open to industrial and socio-economic world as well The major success criterion of EGEE: how many satisfied users from how many different domains ? 5000 users (3000 after year 2) from at least 5 disciplines 2 Pilot Application Domains: Physics & Bioinformatics Application domains and timelines are for illustration only

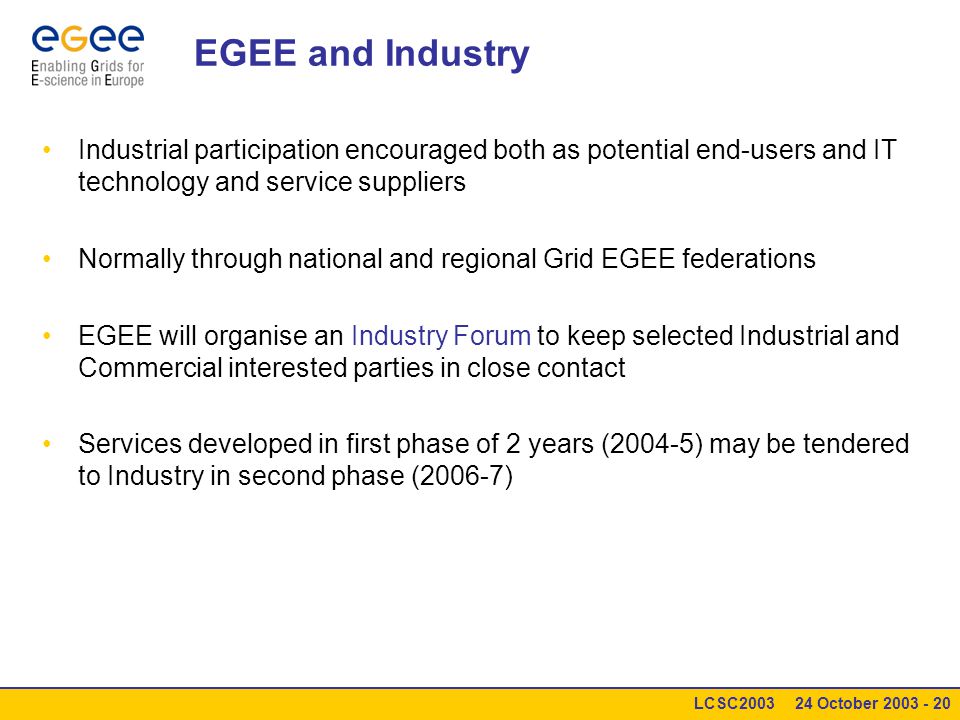

20. LCSC2003 24 October 2003 - 20 EGEE and Industry Industrial participation encouraged both as potential end-users and IT technology and service suppliers Normally through national and regional Grid EGEE federations EGEE will organise an Industry Forum to keep selected Industrial and Commercial interested parties in close contact Services developed in first phase of 2 years (2004-5) may be tendered to Industry in second phase (2006-7)

21. LCSC2003 24 October 2003 - 21 Summary EGEE represents the change from grid development to large-scale deployment build on the results of existing projects such as DataGrid, NorduGrid, LCG and others The goal is to support many application domains with one large-scale infrastructure that will attract new resources over time Training and support for end-users is an important activity of the project A path for providing a continuously available grid service is established (EDG, LCG, EGEE) Grid middleware will be re-engineered to produce a OGSI based implementation addressing the needs of the applications The project will start in April 2004 - first phase will last 2 years. Negotiations have been successfully completed with the European Commission and planning for the transition to EGEE is underway
