CE 230-Engineering Fluid Mechanics Lecture # 20-21 BERNOULLI EQUATION

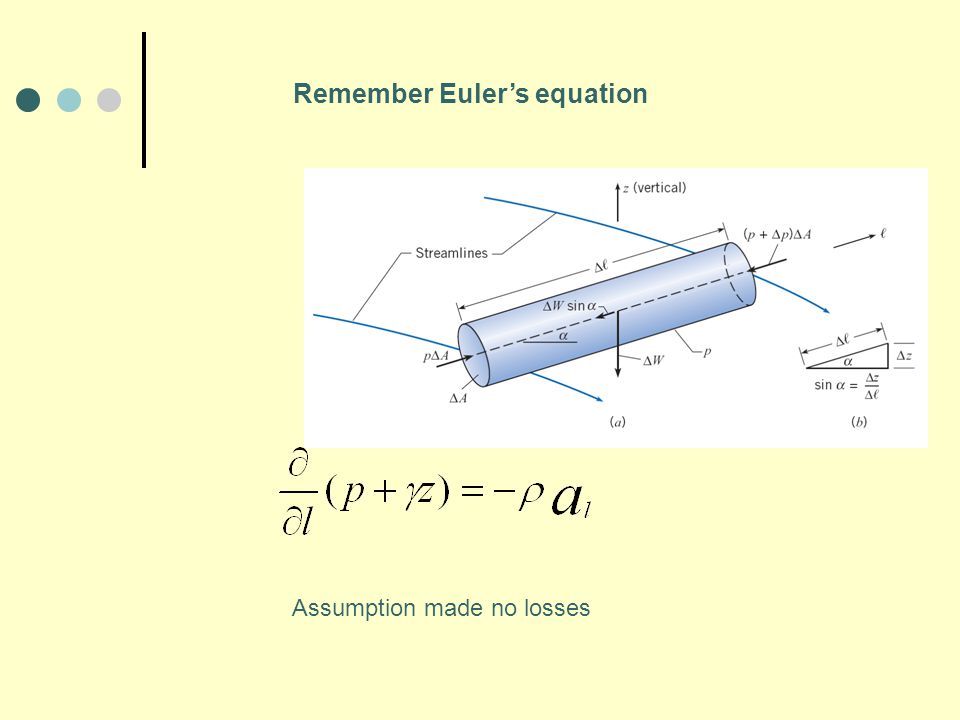

Remember Euler’s equation Assumption made no losses

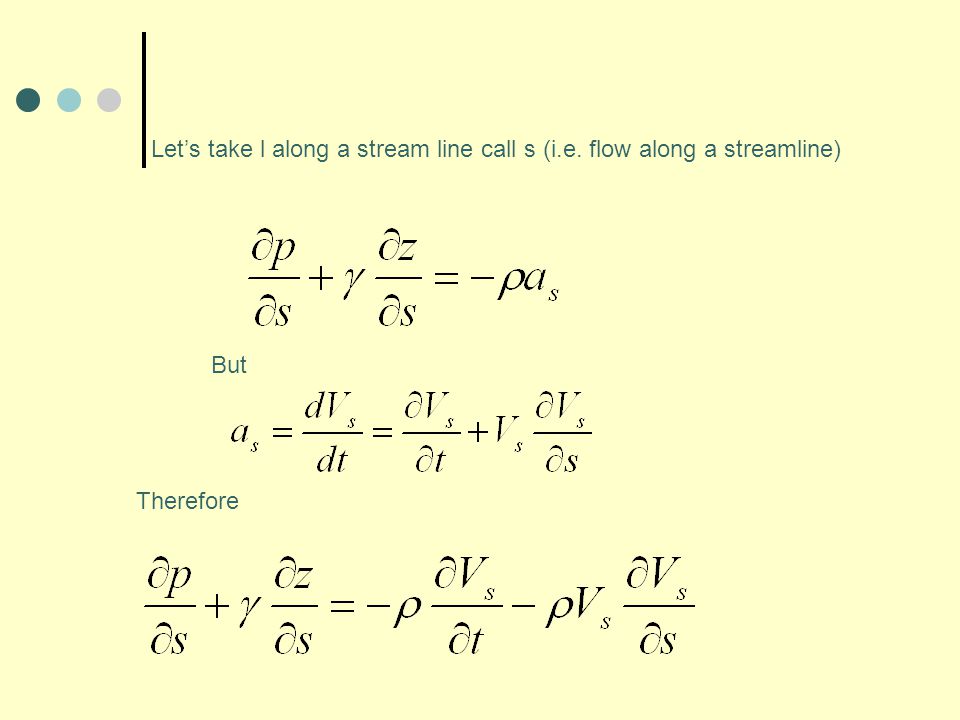

Let’s take l along a stream line call s (i.e. flow along a streamline) But Therefore
Assume steady flow and drop subscript But last term is Substituting back, dividing by γ (assuing incompressible fluid) and integrating wrt s we get
Bernoulli equation One form of BE is Note assumptions made No losses Flow along streamline Steady flow incompressible

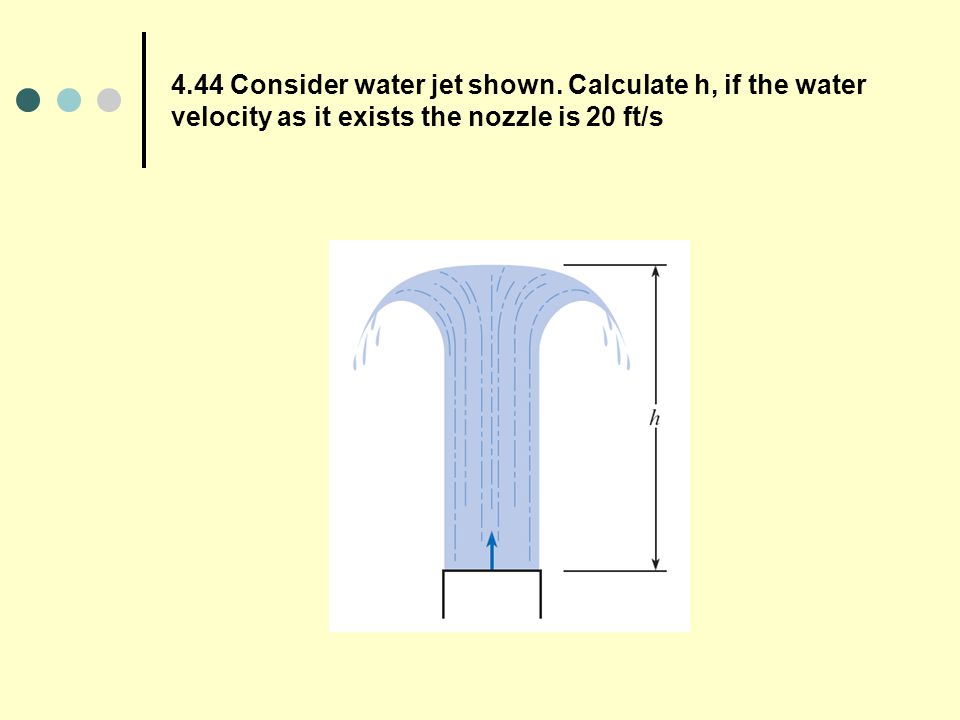

4.44 Consider water jet shown. Calculate h, if the water velocity as it exists the nozzle is 20 ft/s
4.103 Find pressure at A if h=15 m and V=6 m/s

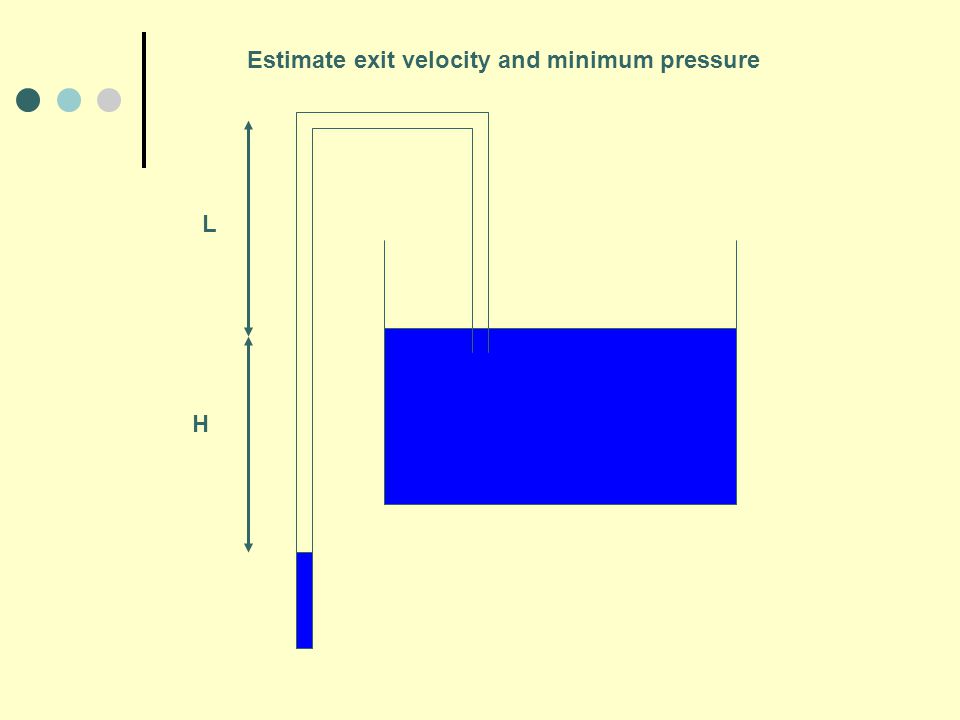

L H Estimate exit velocity and minimum pressure

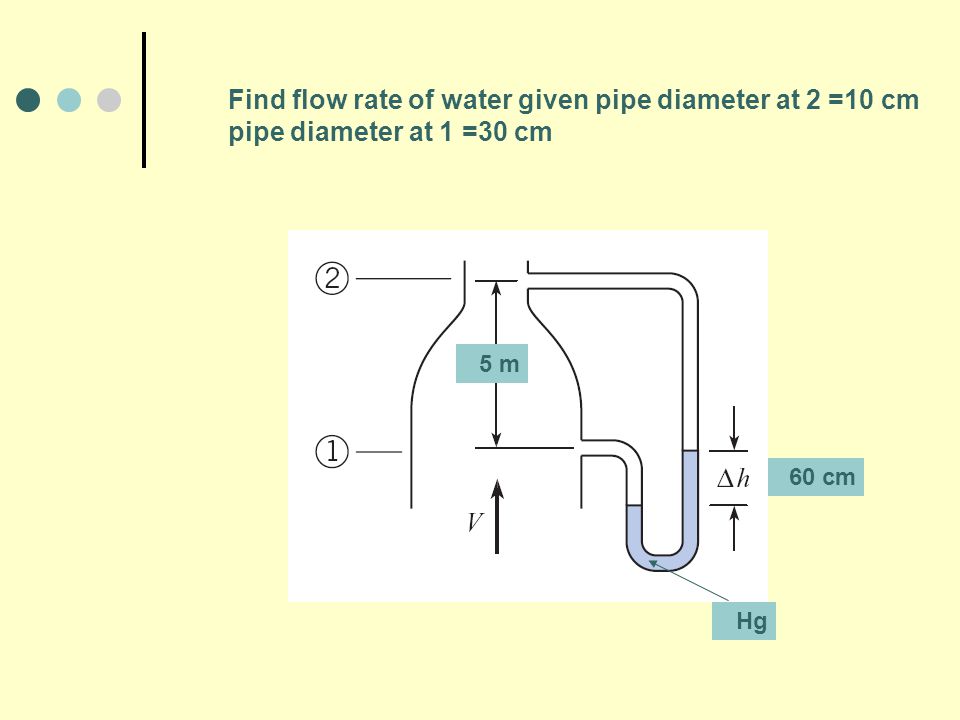

5 m 60 cm Hg Find flow rate of water given pipe diameter at 2 =10 cm pipe diameter at 1 =30 cm

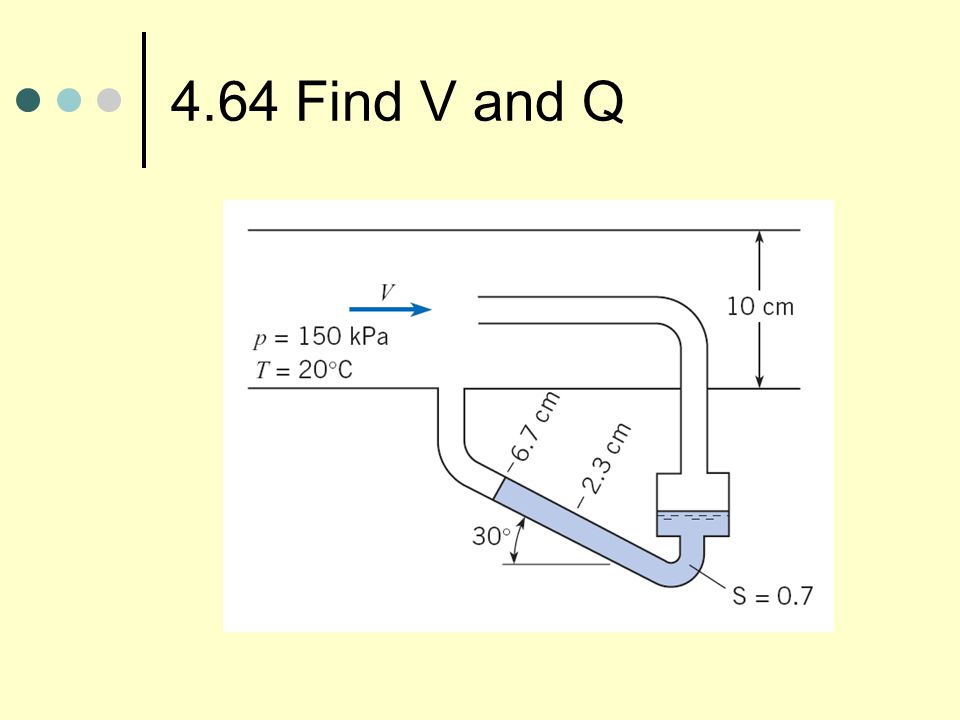

4.64 Find V and Q
5.76 Find manometer deflection
