1. Level-3 trigger for ALICE Bergen Frankfurt Heidelberg Oslo

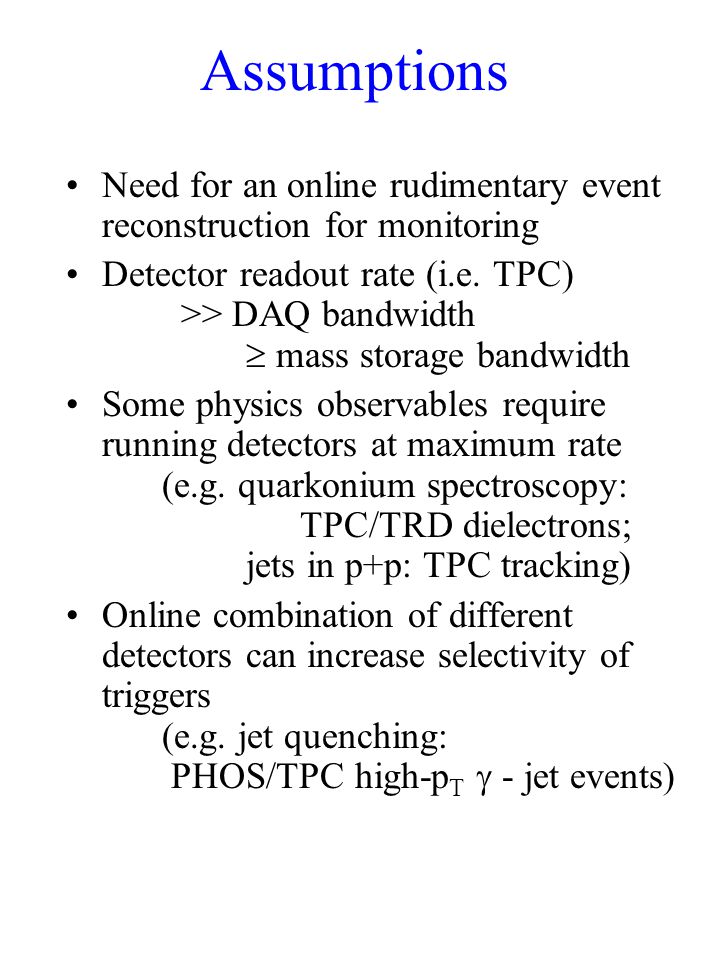

2. Assumptions Need for an online rudimentary event reconstruction for monitoring Detector readout rate (i.e. TPC) >> DAQ bandwidth  mass storage bandwidth Some physics observables require running detectors at maximum rate (e.g. quarkonium spectroscopy: TPC/TRD dielectrons; jets in p+p: TPC tracking) Online combination of different detectors can increase selectivity of triggers (e.g. jet quenching: PHOS/TPC high-p T  - jet events)

3. Data volume and event rate TPC detector data volume = 300 Mbyte/event data rate = 200 Hz front-end electronics DAQ – event building Level-3 system permanent storage system bandwidth 60 Gbyte/sec 15 Gbyte/sec < 1.2 Gbyte/sec < 2 Gbyte/sec

4. Readout in ALICE for heavy ion running ALICE Trigger and readout scenarios for HI running. Pb+Pb central trigger is 180 Hz, highly central 55 Hz Data Rates produced by ALICE Detectors The data size here is based on zero suppressed raw data readout. One ALICE HI year is 10 6 seconds beam Min.bias sizes are assumed as about 25% of central. The TPC dominates everything, followed by the TRD Need to reduce data volume on tape

5. Dielectrons Dielectron measurement in TRD/TPC/ITS –quarkonium spectroscopy needs high rates –TPC must operate at >100 Hz –TPC data rate has to be significantly reduced TRD pre-trigger for TPC level-3 trigger system for TPC –partial readout –e + e — verification: event rejection TRD @ 2kHzTPC @ 200 Hz Online track reconstruction: 1) selection of e + e — pairs (ROI) 2) analysis of e + e — pairs (event rejection) level-3 trigger system

6. Event flow Event sizes and number of links TPC only

7. Level-3 tasks Online (sub)-event reconstruction: –optimization and monitoring of detector performance –monitoring of trigger selectivity –fast check of physics program Data rate reduction –data volume reduction regions-of-interest and partial readout data compression –event rate reduction (sub)-event reconstruction and event rejection p+p program –pile-up removal –charged particle jet trigger

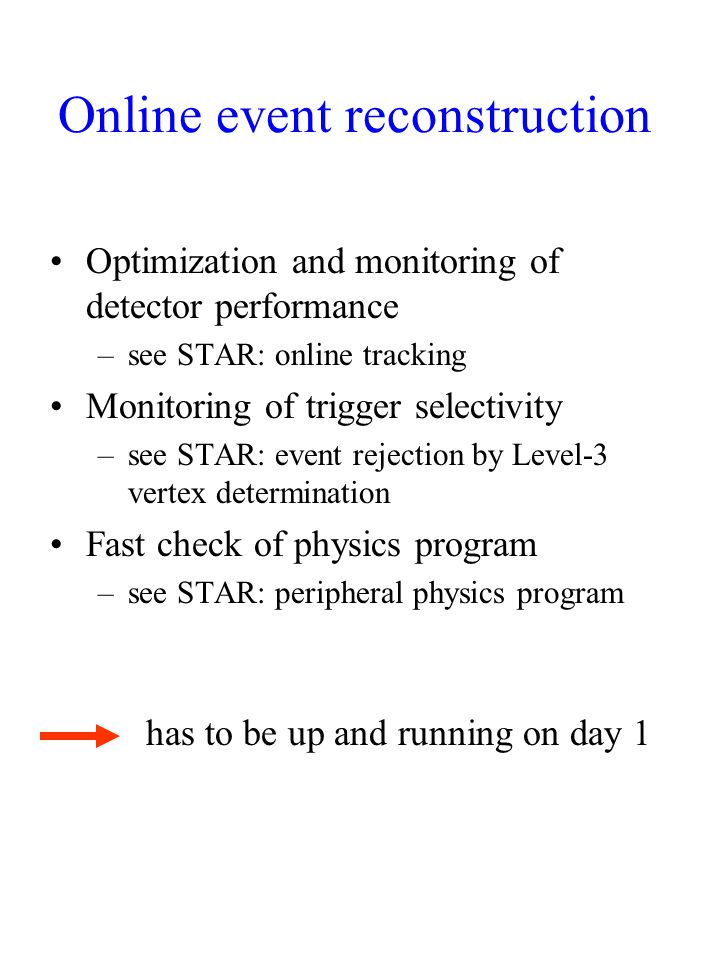

8. Online event reconstruction Optimization and monitoring of detector performance –see STAR: online tracking Monitoring of trigger selectivity –see STAR: event rejection by Level-3 vertex determination Fast check of physics program –see STAR: peripheral physics program has to be up and running on day 1

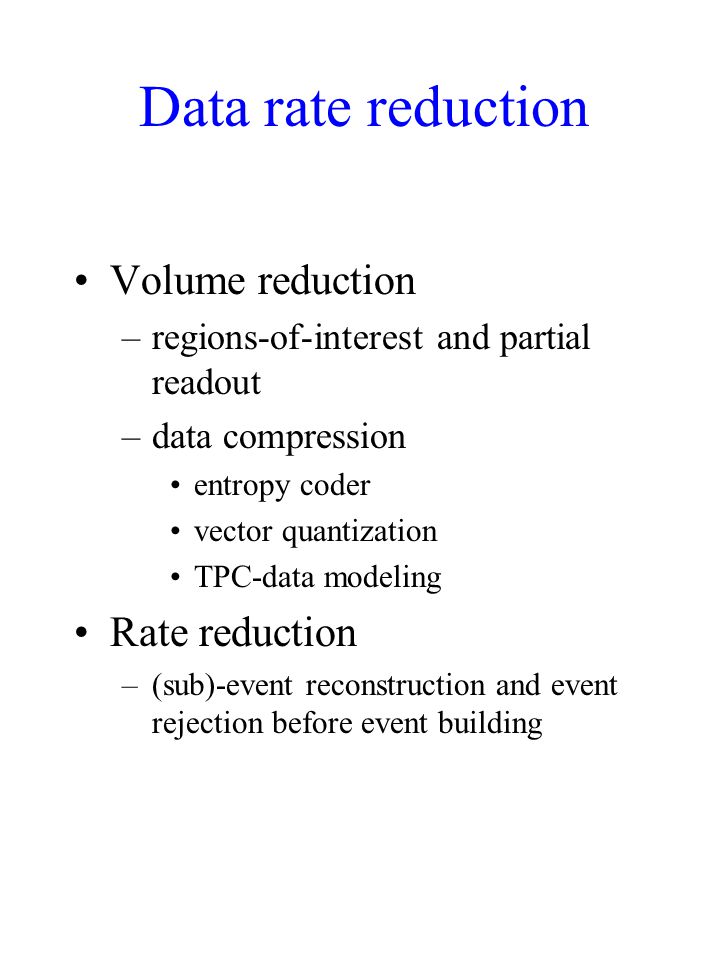

9. Data rate reduction Volume reduction –regions-of-interest and partial readout –data compression entropy coder vector quantization TPC-data modeling Rate reduction –(sub)-event reconstruction and event rejection before event building

10. TPC event (only about 1% is shown)

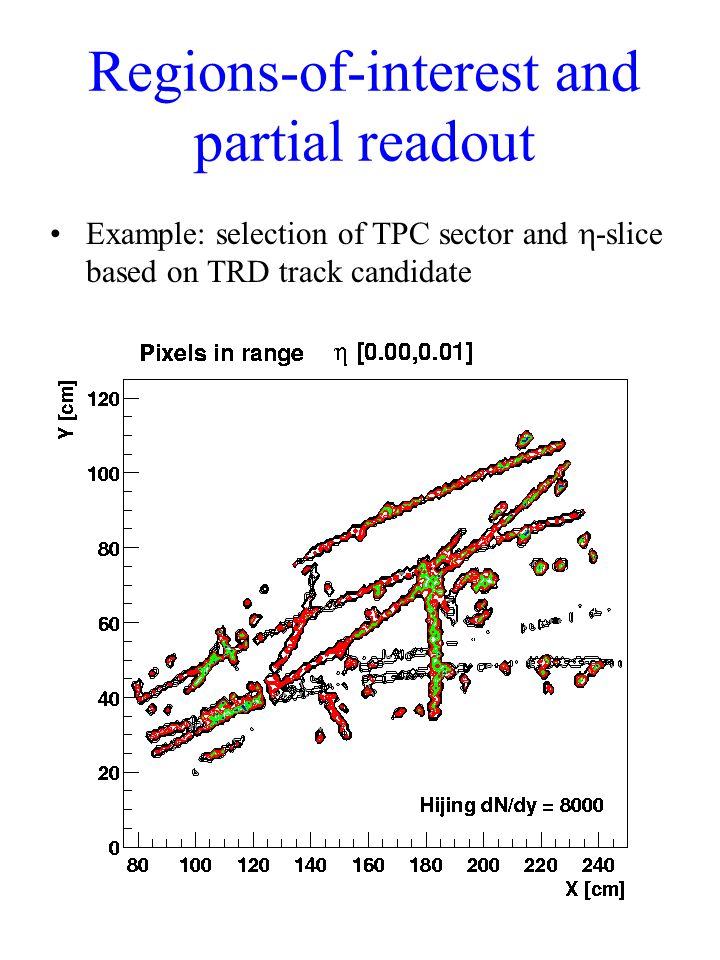

11. Regions-of-interest and partial readout Example: selection of TPC sector and  -slice based on TRD track candidate

12. Data compression: Entropy coder Variable Length Coding short codes for long codes for frequent values infrequent values Results: NA49: compressed event size = 72% ALICE: = 65% ( Arne Wiebalck, diploma thesis, Heidelberg) Probability distribution of 8-bit TPC data

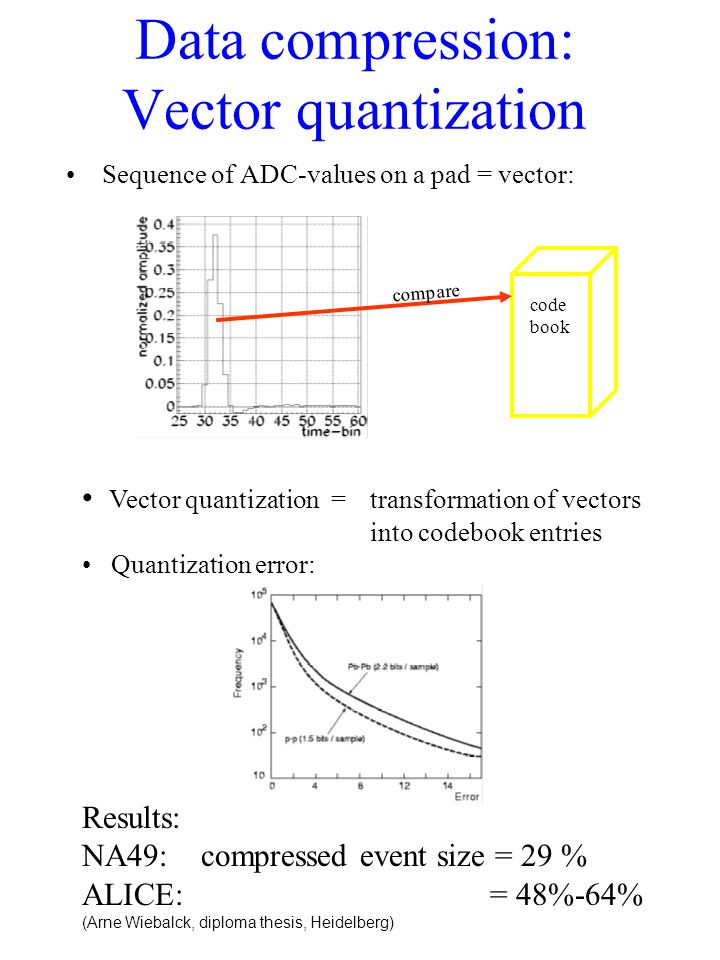

13. Data compression: Vector quantization Sequence of ADC-values on a pad = vector: Vector quantization = transformation of vectors into codebook entries Quantization error: Results: NA49: compressed event size = 29 % ALICE: = 48%-64% (Arne Wiebalck, diploma thesis, Heidelberg) code book compare

14. Data compression: TPC-data modeling Fast local pattern recognition: Result: NA49: compressed event size = 7 % analytical cluster model quantization of deviations from track and cluster model local track parameters comparison to raw data simple local track model (e.g. helix)track parameters Track and cluster modeling:

15. Fast pattern recognition Essential part of Level-3 system –crude complete event reconstruction  monitoring –redundant local tracklet finder for cluster evaluation  efficient data compression –selection of ( , ,p T )-slices  ROI –high precision tracking for selected track candidates  jets, dielectrons,...

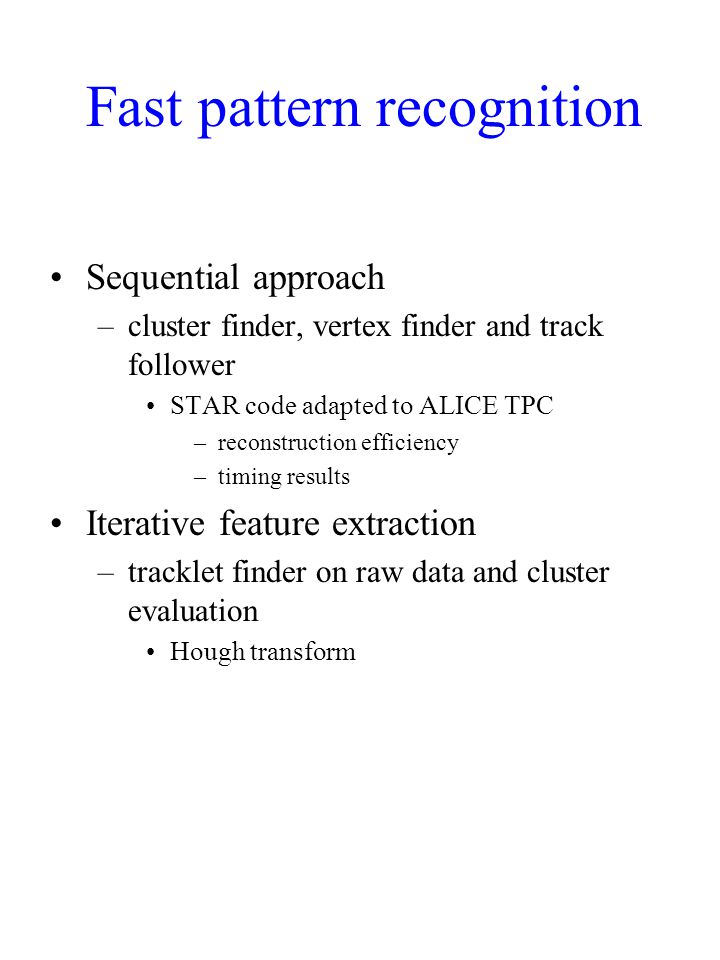

16. Fast pattern recognition Sequential approach –cluster finder, vertex finder and track follower STAR code adapted to ALICE TPC –reconstruction efficiency –timing results Iterative feature extraction –tracklet finder on raw data and cluster evaluation Hough transform

17. Fast cluster finder (1) timing: 5ms per padrow

18. Fast cluster finder (2)

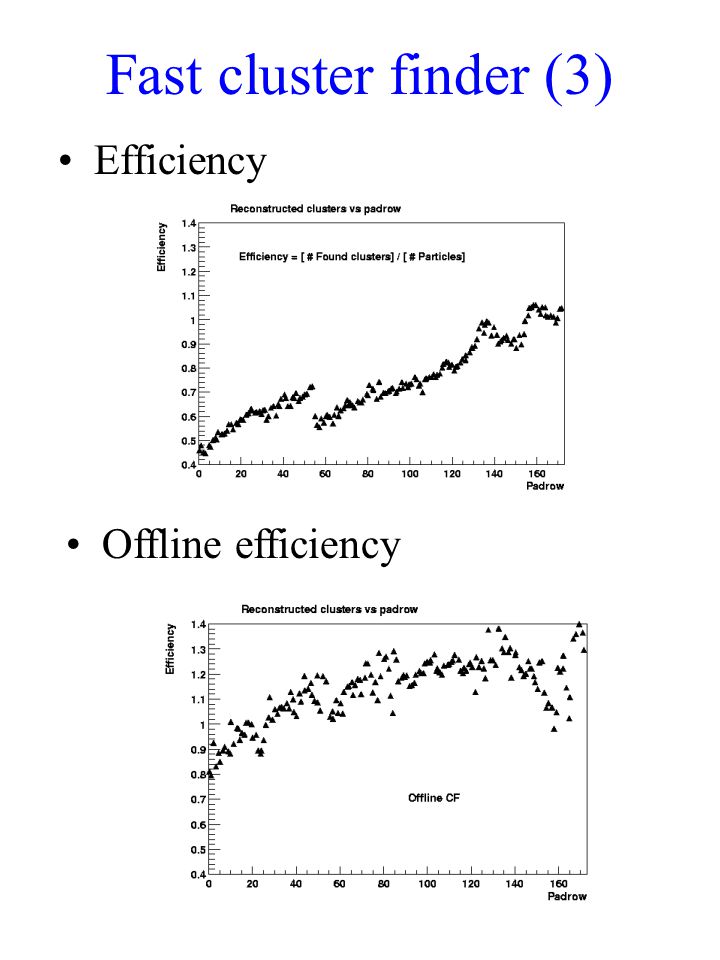

19. Fast cluster finder (3) Efficiency Offline efficiency

20. Fast vertex finder Resolution Timing result: 19 msec on ALPHA (667 MHz)

21. Fast track finder Tracking efficiency

22. Fast track finder Timing results

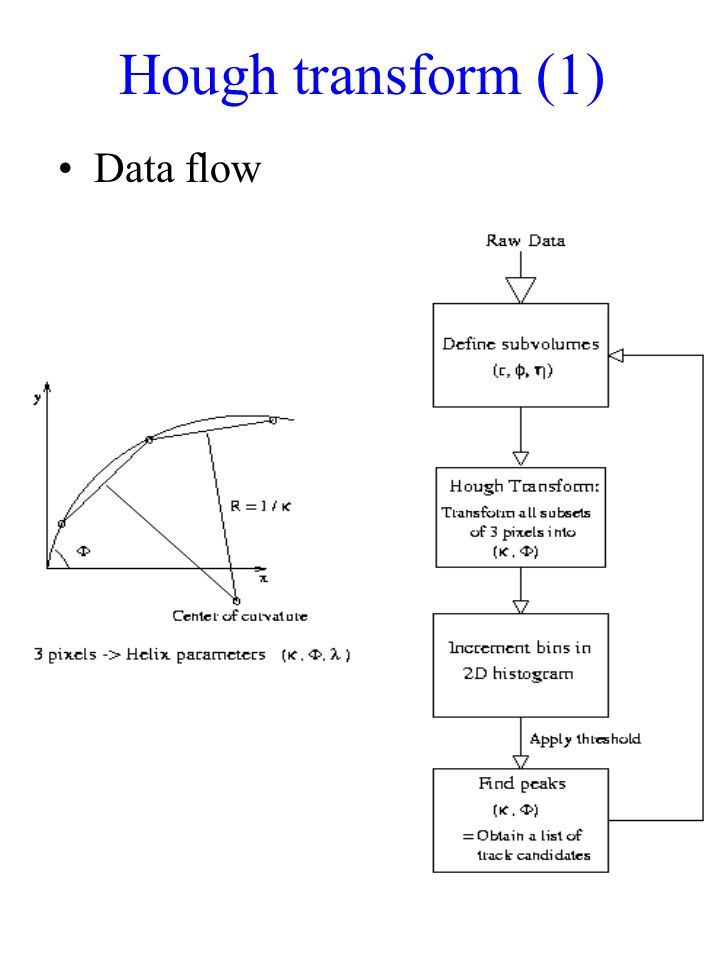

23. Hough transform (1) Data flow

24. Hough transform (2)  -slices

25. Hough transform (3) Transformation and maxima search

26. TPC on-line tracking Assumptions: Bergen fast tracker DEC Alpha 667 MHz Fast cluster finder excluding cluster deconvolution Note: This cluster finder is sub optimal for the inner sectors and additional work is required here. However in order to get some estimate the computation requirements were based on the outer pad rows. It should be noted that the possibly necessary deconvolution in the inner padrows may require comparably more CPU cycles. TPC L3 Tracking estimate: Cluster finder on pad row of the outer sector 5 ms tracking of all (monte carlo) space points for one TPC sector 600 ms Note- this data may not include realistic noise - tracking to first order is linear with the number of tracks provided there are few overlaps - assuming one ideal processor below Cluster finder on one sector (145 padrows) 725 ms Process complete sector 1,325 s Process complete TPC 47,7 s Running at maximum TPC rate (200 Hz), January 2000 9540 CPUs Assuming 20% overhead 11500 CPUs (parallel computation, network transfer, inner sector additional overhead, sector merging etc.) Moores Law (60%/a)  @ 2006 – 1a commission x10,5 1095 CPUs

27. Level-3 system architecture TP C sect or #1 TP C sect or #36 TR D ITSXY Z local processing (subsector/sector) global processing I (2x18 sectors) global processing II (detector merging) global processing III (event reconstruction) ROI data compres sion jets dielectro n verificati on – event rejection monitoring Level-3 trigger

28. Level-3 implementation scenarios A B simple architecture trivial parallel processing throughput always limited to 10-20 Hz due to bandwidth limitation cannot fulfill all Level-3 requirements minimized data transfer scalable distributed computing farm (500- 1000 nodes + network) would do the job Detectors DAQ- EVB Level-3 event # 1 2 n Detectors Leve l-3 (sub)detector # 1 2 n DAQ- EVB

29. Conclusion Need for online (crude/partial/sub) event reconstruction and event rejection Essential task: fast pattern recognition (TPC) Distributed computing farm (500- 1000 nodes) close to the detector readout would do the job

30. raw data, 10bit dynamic range, zero suppressed Huffman coding and vector quantization fast cluster finder: simple unfolding, flagging of overlapping clusters RCU RORC cluster list raw data fast vertex finder fast track finder initialization (e.g. Hough transform) Hough histograms receiver node Preprocessing per sector global node vertex position detector front-end electronics

31. TPC - RCU TPC front-end electronics system architecture and readout controller unit. Pipelined Huffman Encoding Unit, implemented in a Xilinx Virtex 50 chip * * T. Jahnke, S. Schoessel and K. Sulimma, EDA group, Department of Computer Science, University of Frankfurt

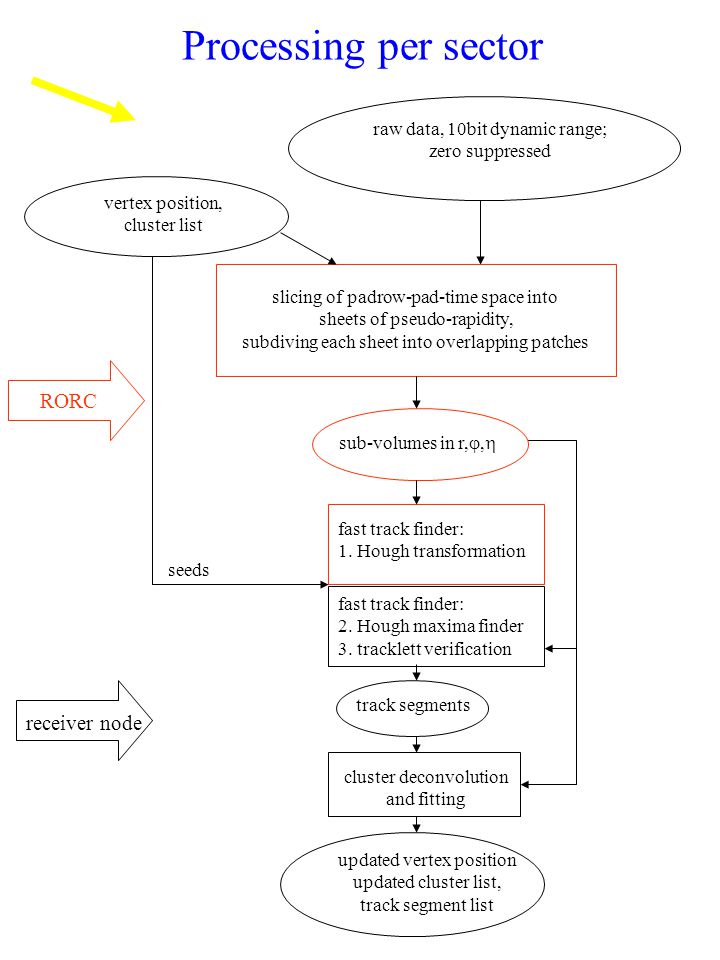

32. raw data, 10bit dynamic range; zero suppressed slicing of padrow-pad-time space into sheets of pseudo-rapidity, subdiving each sheet into overlapping patches track segments fast track finder: 1. Hough transformation receiver node Processing per sector vertex position, cluster list sub-volumes in r, ,  seeds cluster deconvolution and fitting updated vertex position updated cluster list, track segment list fast track finder: 2. Hough maxima finder 3. tracklett verification RORC

33. TPC PCI-RORC Simple PCI-RORC PCI bridgeGlue logic DIU interface DIU card PCI bus FPGA Coprocessor SRAM

34. TPC PCI-RORC: FPGA co-processor Fast cluster finder (outer padrows) –pad: internal 512x10 RAM –2 external and 2 internal read accesses per hit –timing (in clock cycles, e.g. 5 nsec) 1 : #(cluster-pixels per pad) / 2 + #hits –centroid calculation: pipelined array multiplier Fast vertex finder –histograms of cluster centroids –maxima finding and centroid calculation Fast track finder: Hough transformations 2 –(row,pad,time)-to-(r, ,  ) transformation –(n-pixel)-to-(circle-parameter) transformation –10-60 M transforms/sec (limited by memory access) 1  msecs for a central Pb+Pb event FPGA PCI 66/64 PCI FPGA (S)RAM 1. Timing estimates by K. Sulimma, EDA group, Department of Computer Science, University of Frankfurt 2. E.g. see Pattern Recognition Algorithms on FPGAs and CPUs for the ATLAS LVL2 Trigger, C. Hinkelbein et at., IEEE Trans. Nucl. Sci. 47 (2000) 362.

35. TPC PCI-RORC: FPGA co-processor

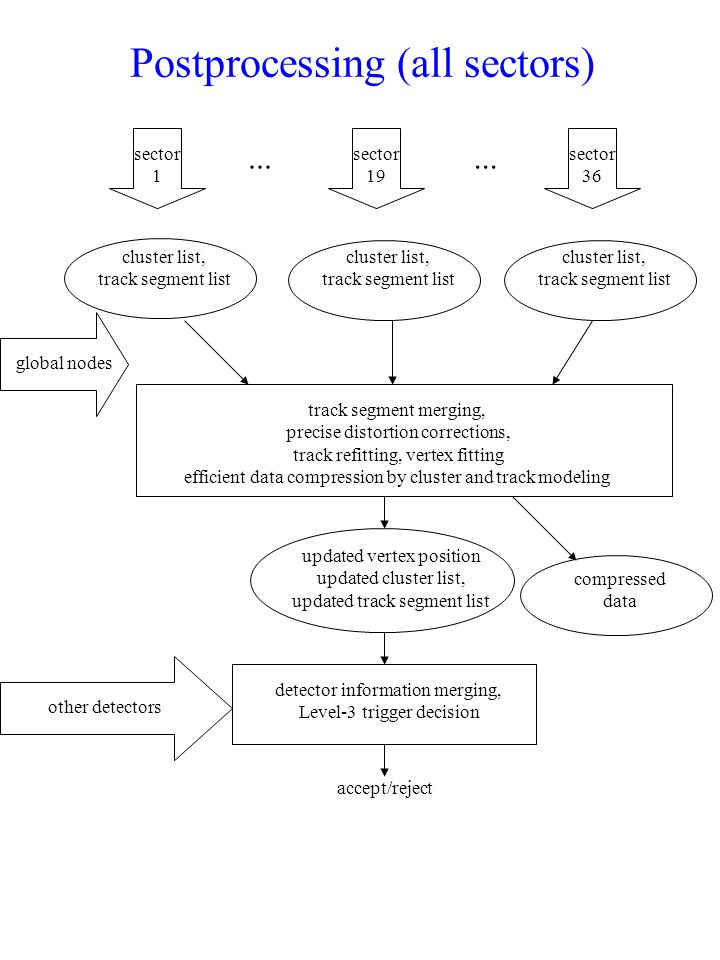

36. Postprocessing (all sectors) cluster list, track segment list cluster list, track segment list cluster list, track segment list sector 1 sector 19 sector 36... global nodes track segment merging, precise distortion corrections, track refitting, vertex fitting efficient data compression by cluster and track modeling updated vertex position updated cluster list, updated track segment list detector information merging, Level-3 trigger decision other detectors accept/reject compressed data

37. Level-3 TPC task Efficient data formatting, Huffman coding and Vector quanitization: –TPC Readout Controller Unit Fast cluster finder, fast vertex finder and Hough transformation: –FPGA implementation on PCI Receiver Card Pattern recognition: Hough maxima and track segment finder, cluster evaluation: –Level-3 farm, local level Cluster and tracklett modelling – data compression: –Level-3 farm, local level (Sub)-event reconstruction: event rejection or sub-event selection: –Level-3 farm, global level

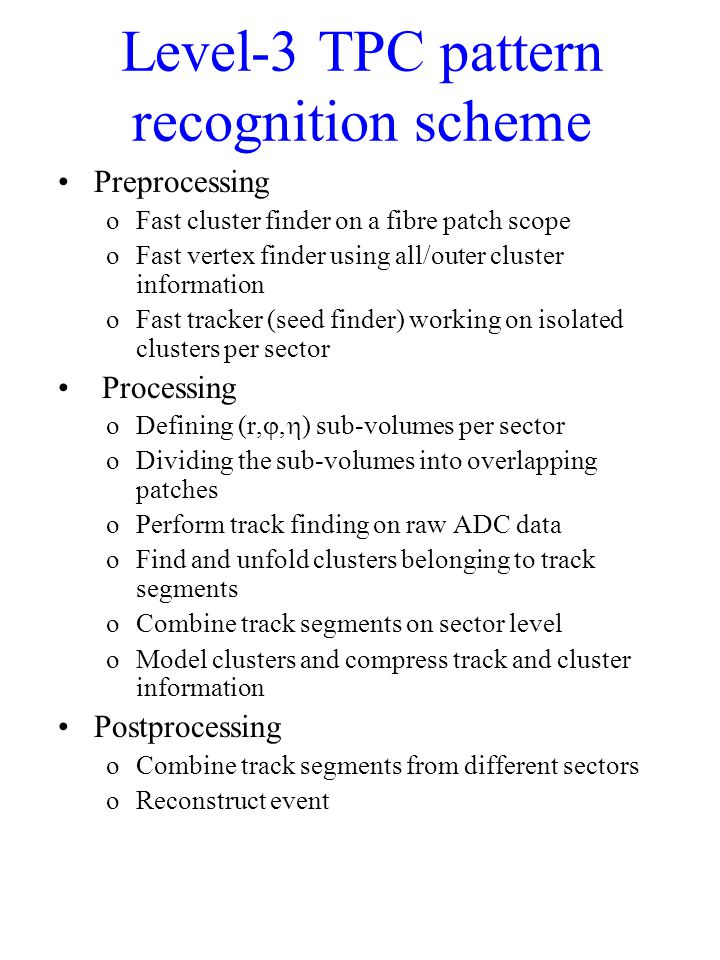

38. Level-3 TPC pattern recognition scheme Preprocessing oFast cluster finder on a fibre patch scope oFast vertex finder using all/outer cluster information oFast tracker (seed finder) working on isolated clusters per sector Processing oDefining (r, ,  ) sub-volumes per sector oDividing the sub-volumes into overlapping patches oPerform track finding on raw ADC data oFind and unfold clusters belonging to track segments oCombine track segments on sector level oModel clusters and compress track and cluster information Postprocessing oCombine track segments from different sectors oReconstruct event

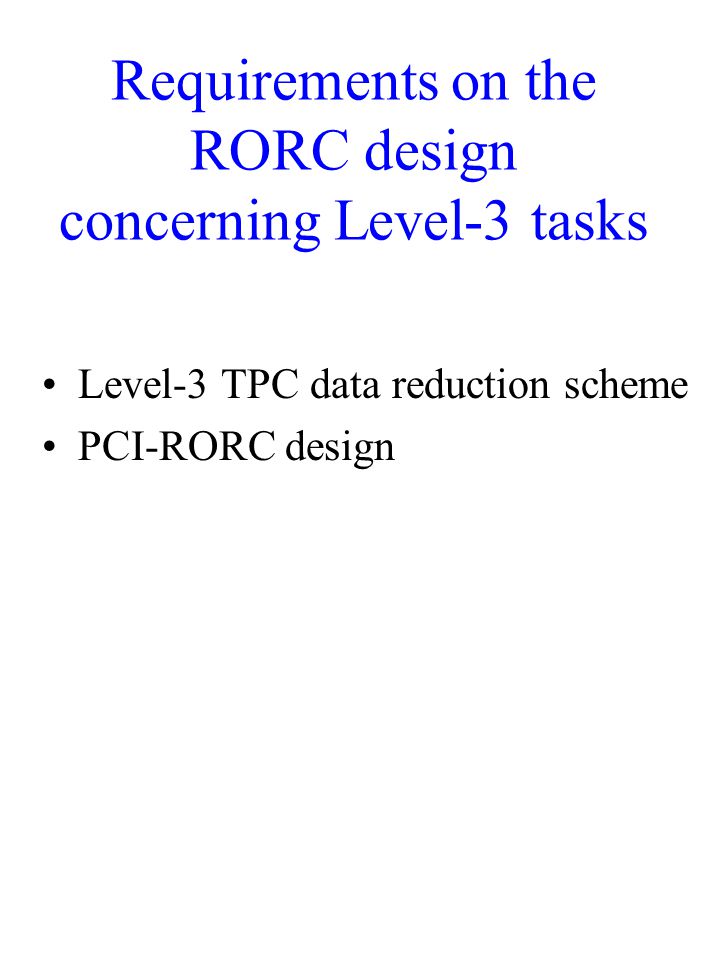

39. Requirements on the RORC design concerning Level-3 tasks Level-3 TPC data reduction scheme PCI-RORC design

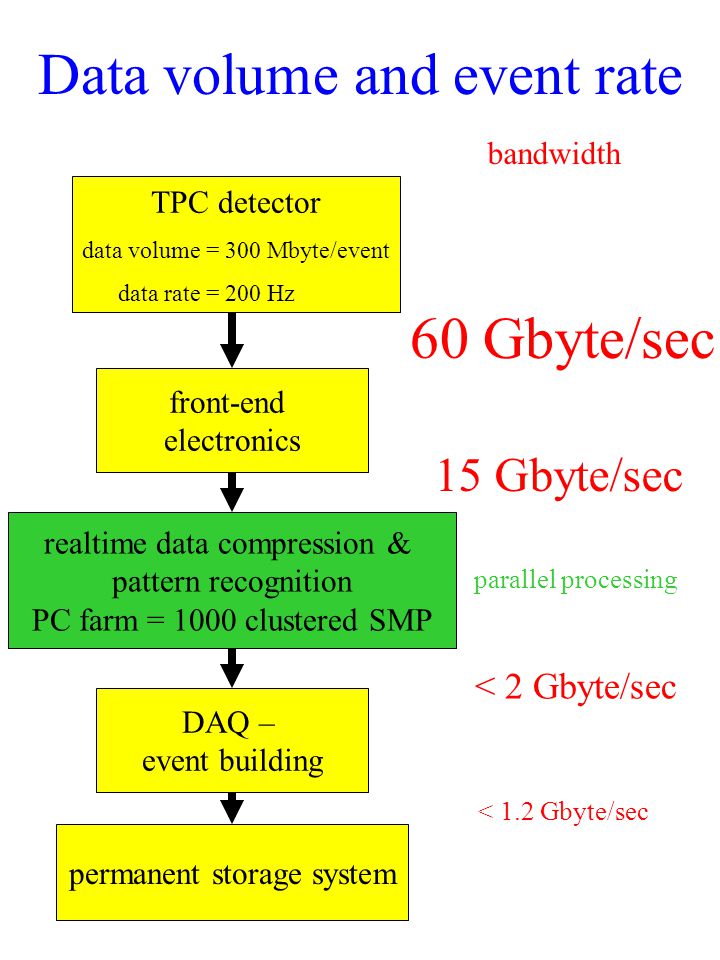

40. Data volume and event rate TPC detector data volume = 300 Mbyte/event data rate = 200 Hz front-end electronics DAQ – event building realtime data compression & pattern recognition PC farm = 1000 clustered SMP permanent storage system bandwidth 60 Gbyte/sec 15 Gbyte/sec < 1.2 Gbyte/sec < 2 Gbyte/sec parallel processing

41. Data flow Efficient data formatting, Huffman coding and Vector quanitization: –TPC Readout Controller Unit Fast cluster finder, fast vertex finder and tracker initalization (e.g. Hough transform): –FPGA implementation on PCI Receiver Card Pattern recognition: (Hough maxima and) track segment finder, cluster evaluation: –Level-3 farm, local level Cluster and tracklett modelling – data compression: –Level-3 farm, local level (Sub)-event reconstruction: event rejection or sub-event selection: –Level-3 farm, global level

42. Typical Level-3 applications
