1. Introduction1-1 1DT014/1TT821 Computer Networks I Chapter 5 Link Layer and LANs

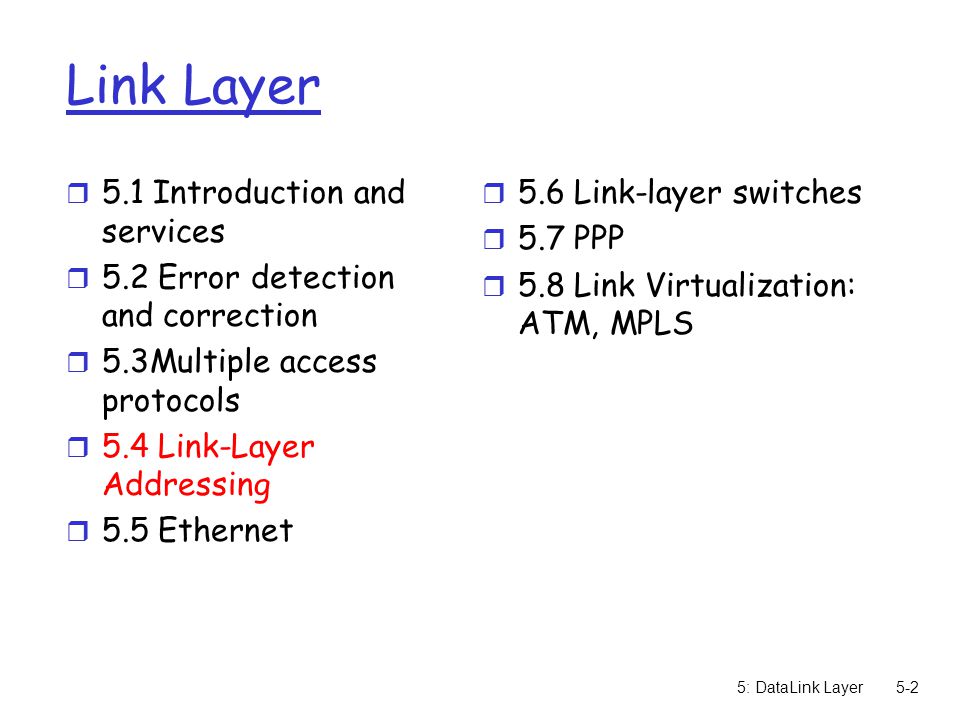

2. 5: DataLink Layer5-2 Link Layer r 5.1 Introduction and services r 5.2 Error detection and correction r 5.3Multiple access protocols r 5.4 Link-Layer Addressing r 5.5 Ethernet r 5.6 Link-layer switches r 5.7 PPP r 5.8 Link Virtualization: ATM, MPLS

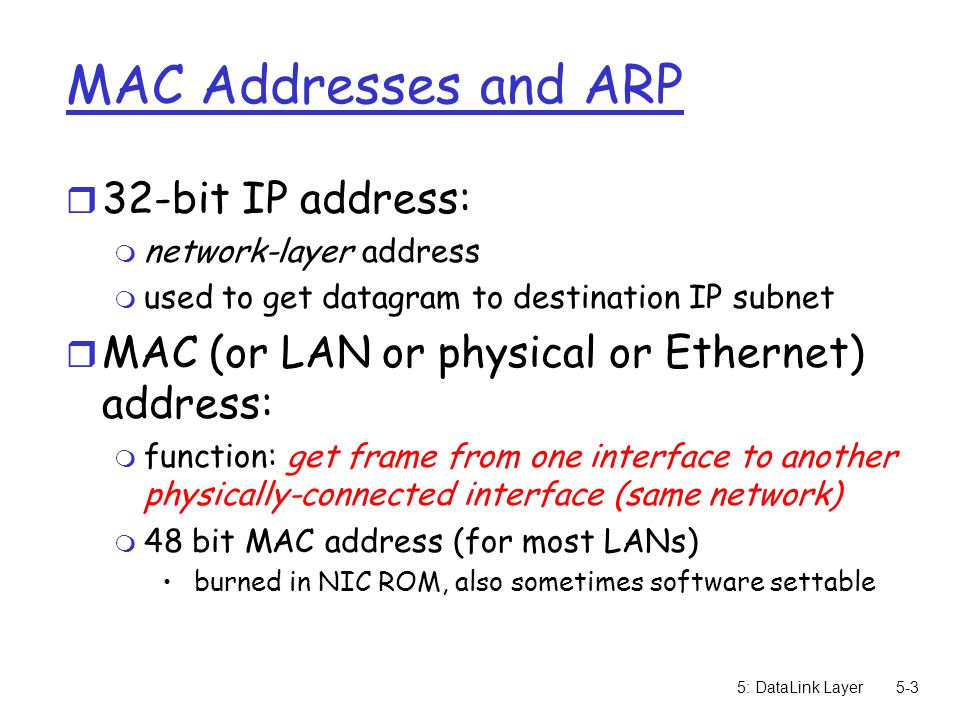

3. 5: DataLink Layer5-3 MAC Addresses and ARP r 32-bit IP address: m network-layer address m used to get datagram to destination IP subnet r MAC (or LAN or physical or Ethernet) address: m function: get frame from one interface to another physically-connected interface (same network) m 48 bit MAC address (for most LANs) burned in NIC ROM, also sometimes software settable

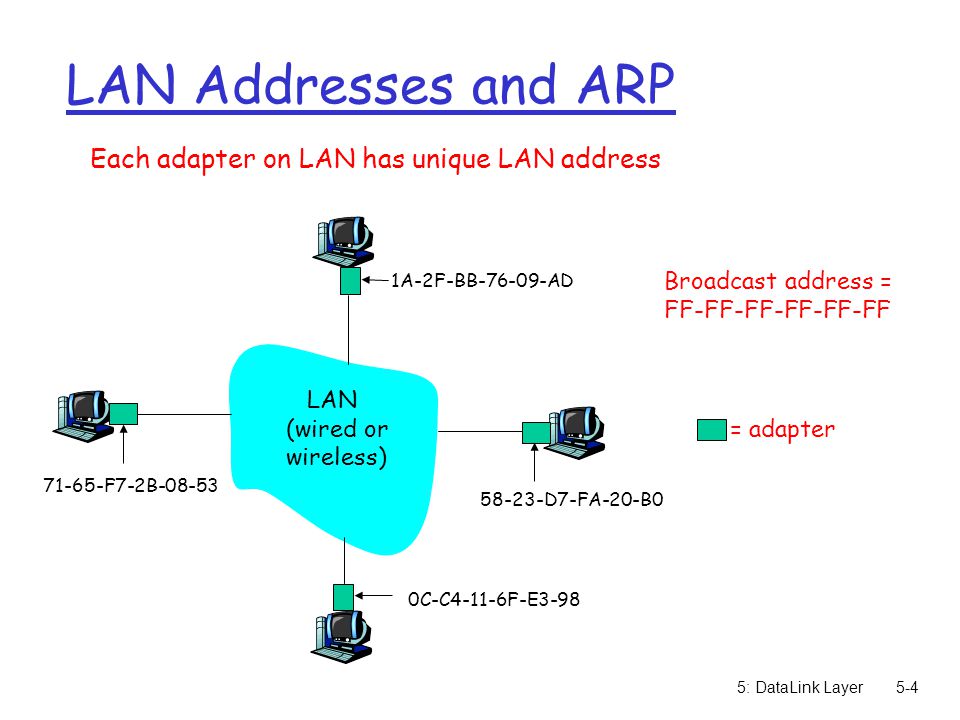

4. 5: DataLink Layer5-4 LAN Addresses and ARP Each adapter on LAN has unique LAN address Broadcast address = FF-FF-FF-FF-FF-FF = adapter 1A-2F-BB-76-09-AD 58-23-D7-FA-20-B0 0C-C4-11-6F-E3-98 71-65-F7-2B-08-53 LAN (wired or wireless)

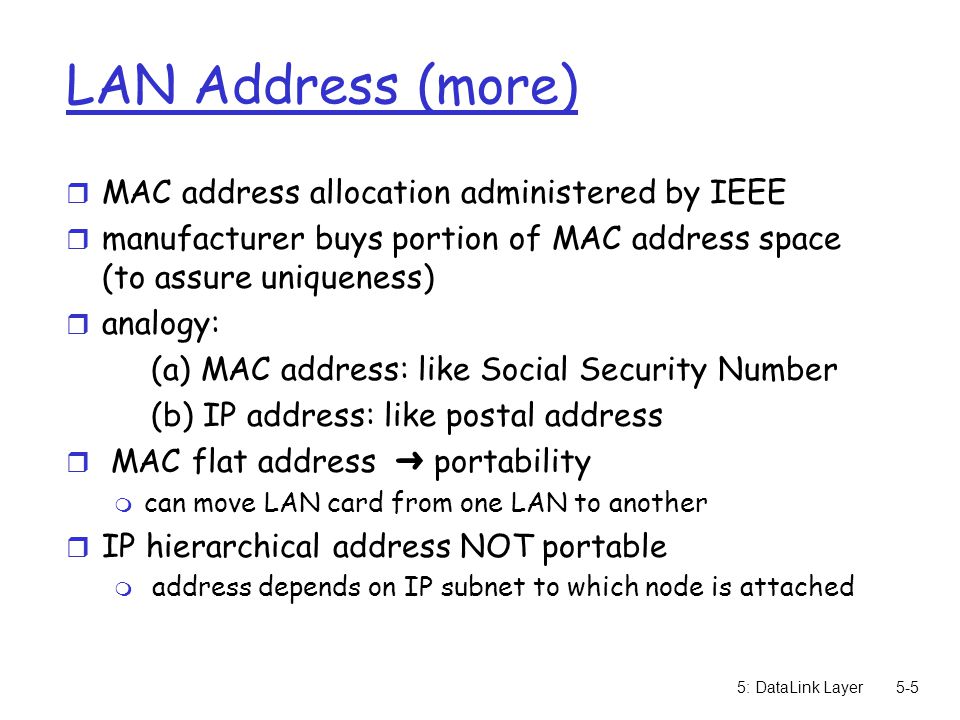

5. 5: DataLink Layer5-5 LAN Address (more) r MAC address allocation administered by IEEE r manufacturer buys portion of MAC address space (to assure uniqueness) r analogy: (a) MAC address: like Social Security Number (b) IP address: like postal address  MAC flat address ➜ portability m can move LAN card from one LAN to another r IP hierarchical address NOT portable m address depends on IP subnet to which node is attached

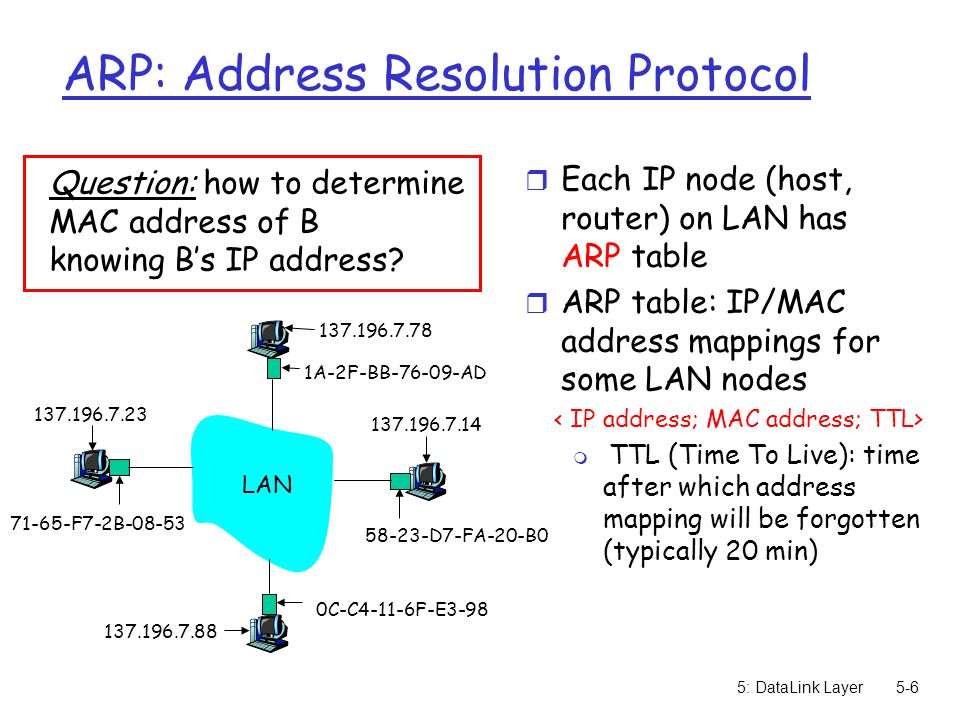

6. 5: DataLink Layer5-6 ARP: Address Resolution Protocol r Each IP node (host, router) on LAN has ARP table r ARP table: IP/MAC address mappings for some LAN nodes m TTL (Time To Live): time after which address mapping will be forgotten (typically 20 min) Question: how to determine MAC address of B knowing B’s IP address? 1A-2F-BB-76-09-AD 58-23-D7-FA-20-B0 0C-C4-11-6F-E3-98 71-65-F7-2B-08-53 LAN 137.196.7.23 137.196.7.78 137.196.7.14 137.196.7.88

7. 5: DataLink Layer5-7 ARP protocol: Same LAN (network) r A wants to send datagram to B, and B’s MAC address not in A’s ARP table. r A broadcasts ARP query packet, containing B's IP address m dest MAC address = FF- FF-FF-FF-FF-FF m all machines on LAN receive ARP query r B receives ARP packet, replies to A with its (B's) MAC address m frame sent to A’s MAC address (unicast) r A caches (saves) IP-to- MAC address pair in its ARP table until information becomes old (times out) m soft state: information that times out (goes away) unless refreshed r ARP is “plug-and-play”: m nodes create their ARP tables without intervention from net administrator

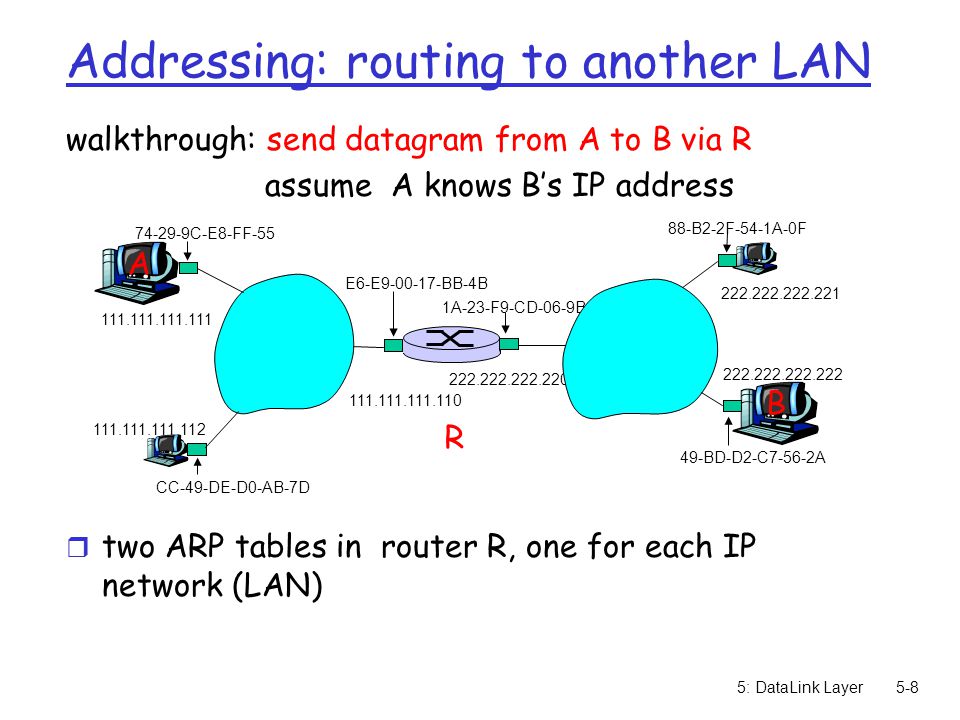

8. 5: DataLink Layer5-8 Addressing: routing to another LAN R 1A-23-F9-CD-06-9B 222.222.222.220 111.111.111.110 E6-E9-00-17-BB-4B CC-49-DE-D0-AB-7D 111.111.111.112 111.111.111.111 A 74-29-9C-E8-FF-55 222.222.222.221 88-B2-2F-54-1A-0F B 222.222.222.222 49-BD-D2-C7-56-2A walkthrough: send datagram from A to B via R assume A knows B’s IP address r two ARP tables in router R, one for each IP network (LAN)

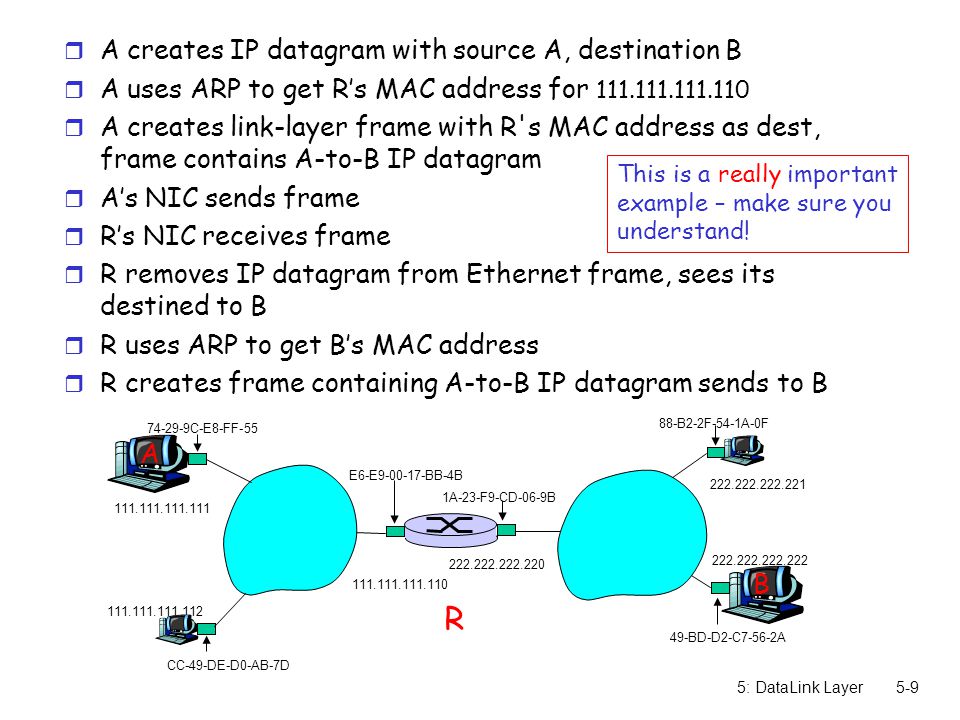

9. 5: DataLink Layer5-9 r A creates IP datagram with source A, destination B r A uses ARP to get R’s MAC address for 111.111.111.110 r A creates link-layer frame with R's MAC address as dest, frame contains A-to-B IP datagram r A’s NIC sends frame r R’s NIC receives frame r R removes IP datagram from Ethernet frame, sees its destined to B r R uses ARP to get B’s MAC address r R creates frame containing A-to-B IP datagram sends to B R 1A-23-F9-CD-06-9B 222.222.222.220 111.111.111.110 E6-E9-00-17-BB-4B CC-49-DE-D0-AB-7D 111.111.111.112 111.111.111.111 A 74-29-9C-E8-FF-55 222.222.222.221 88-B2-2F-54-1A-0F B 222.222.222.222 49-BD-D2-C7-56-2A This is a really important example – make sure you understand!

10. 5: DataLink Layer5-10 Link Layer r 5.1 Introduction and services r 5.2 Error detection and correction r 5.3Multiple access protocols r 5.4 Link-Layer Addressing r 5.5 Ethernet r 5.6 Link-layer switches r 5.7 PPP r 5.8 Link Virtualization: ATM and MPLS

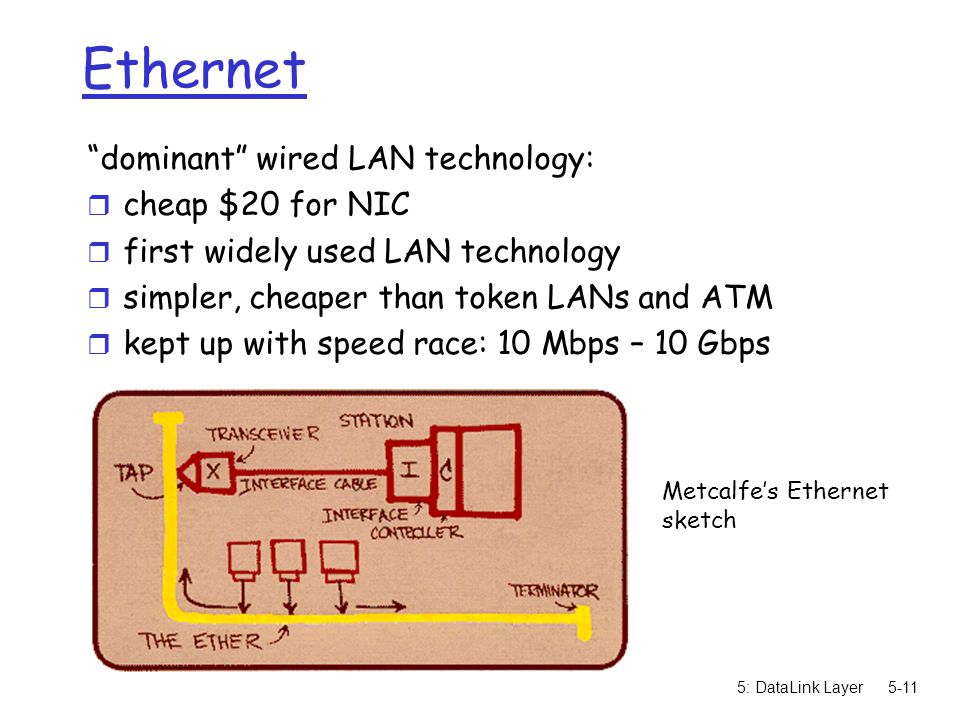

11. 5: DataLink Layer5-11 Ethernet “dominant” wired LAN technology: r cheap $20 for NIC r first widely used LAN technology r simpler, cheaper than token LANs and ATM r kept up with speed race: 10 Mbps – 10 Gbps Metcalfe’s Ethernet sketch

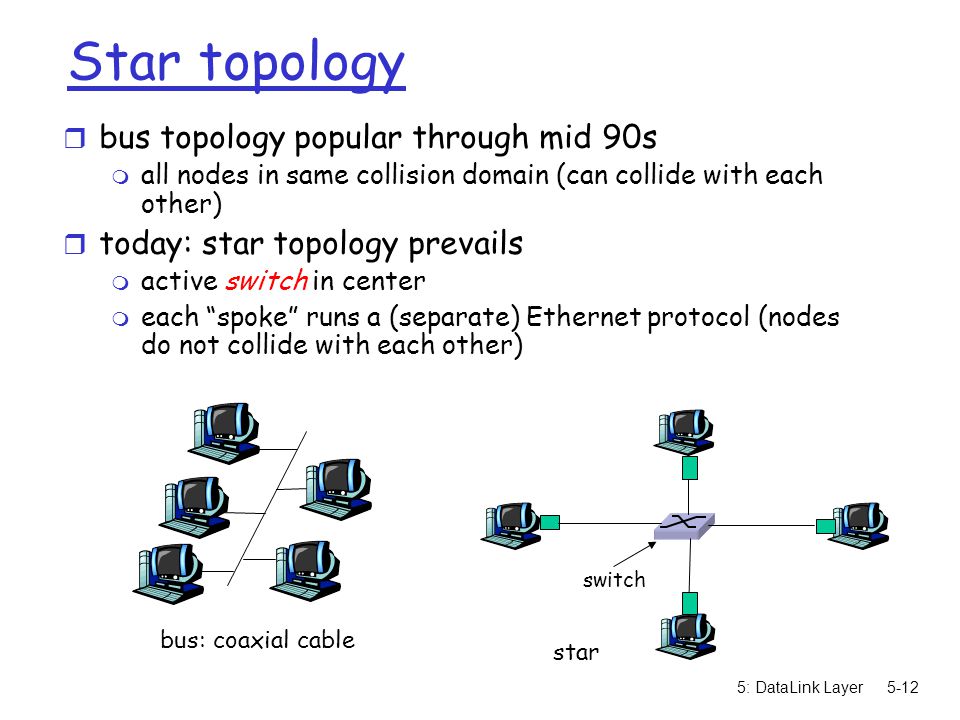

12. 5: DataLink Layer5-12 Star topology r bus topology popular through mid 90s m all nodes in same collision domain (can collide with each other) r today: star topology prevails m active switch in center m each “spoke” runs a (separate) Ethernet protocol (nodes do not collide with each other) switch bus: coaxial cable star

13. 5: DataLink Layer5-13 Ethernet Frame Structure Sending adapter encapsulates IP datagram (or other network layer protocol packet) in Ethernet frame Preamble: r 7 bytes with pattern 10101010 followed by one byte with pattern 10101011 r used to synchronize receiver, sender clock rates

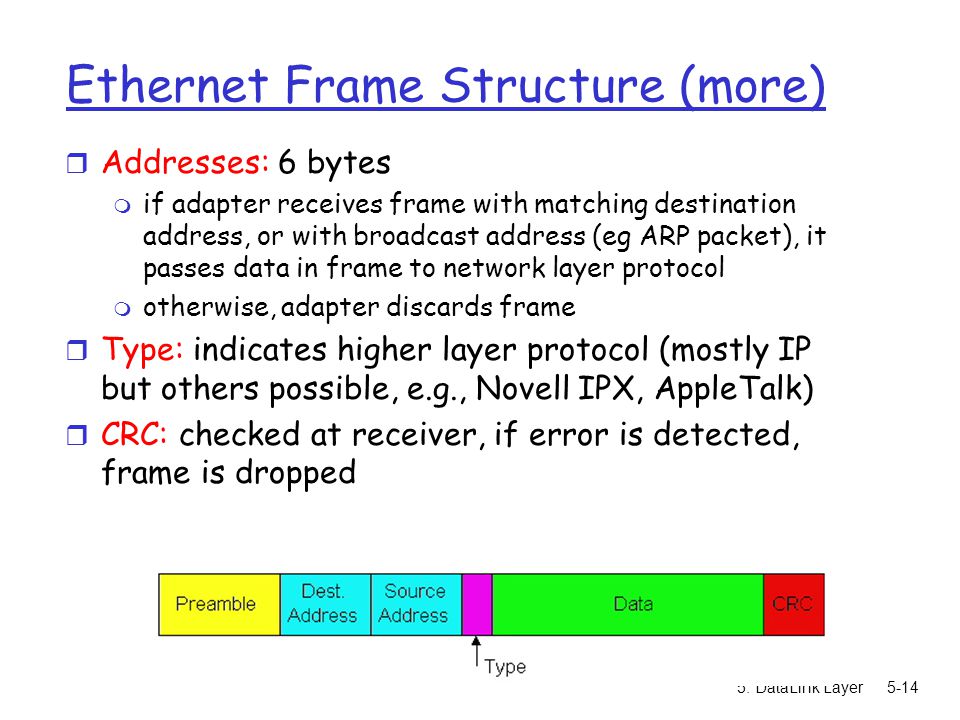

14. 5: DataLink Layer5-14 Ethernet Frame Structure (more) r Addresses: 6 bytes m if adapter receives frame with matching destination address, or with broadcast address (eg ARP packet), it passes data in frame to network layer protocol m otherwise, adapter discards frame r Type: indicates higher layer protocol (mostly IP but others possible, e.g., Novell IPX, AppleTalk) r CRC: checked at receiver, if error is detected, frame is dropped

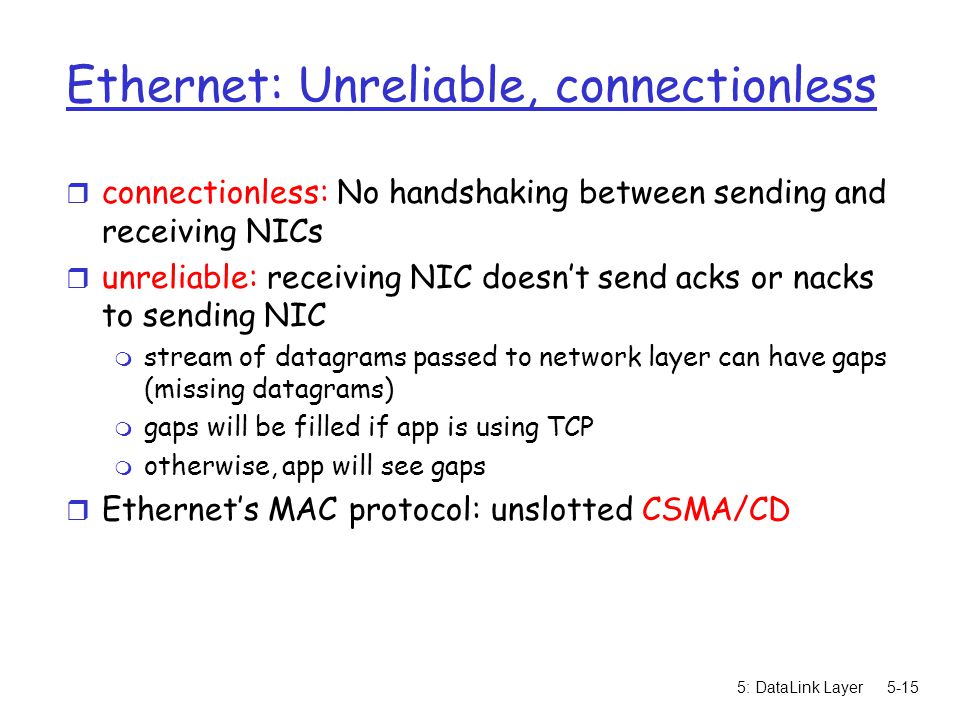

15. 5: DataLink Layer5-15 Ethernet: Unreliable, connectionless r connectionless: No handshaking between sending and receiving NICs r unreliable: receiving NIC doesn’t send acks or nacks to sending NIC m stream of datagrams passed to network layer can have gaps (missing datagrams) m gaps will be filled if app is using TCP m otherwise, app will see gaps r Ethernet’s MAC protocol: unslotted CSMA/CD

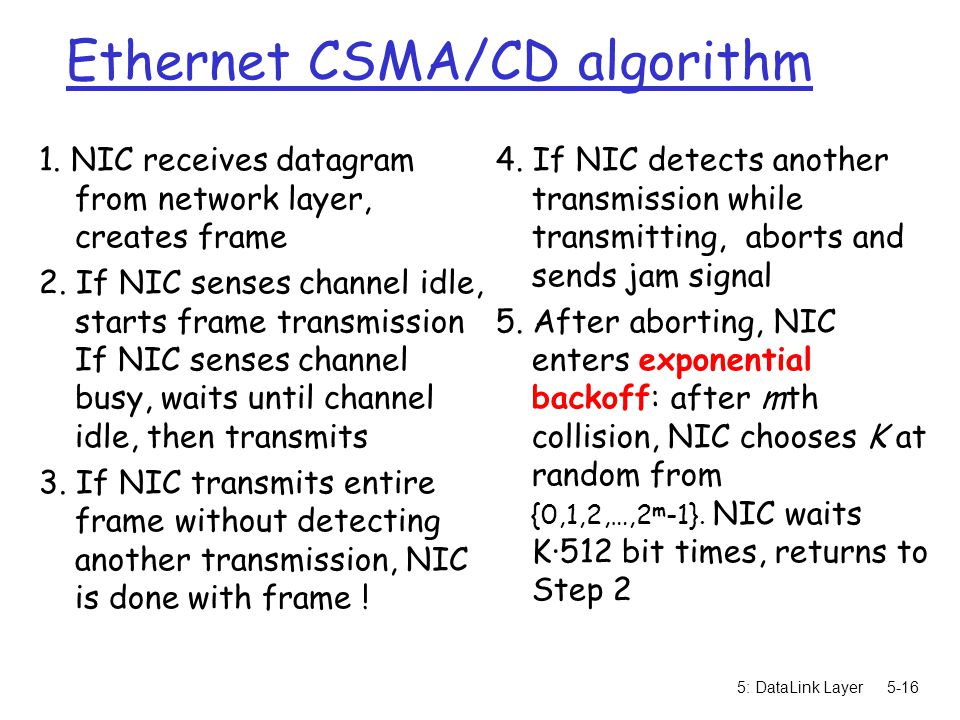

16. 5: DataLink Layer5-16 Ethernet CSMA/CD algorithm 1. NIC receives datagram from network layer, creates frame 2. If NIC senses channel idle, starts frame transmission If NIC senses channel busy, waits until channel idle, then transmits 3. If NIC transmits entire frame without detecting another transmission, NIC is done with frame ! 4. If NIC detects another transmission while transmitting, aborts and sends jam signal 5. After aborting, NIC enters exponential backoff: after mth collision, NIC chooses K at random from {0,1,2,…,2 m -1}. NIC waits K·512 bit times, returns to Step 2

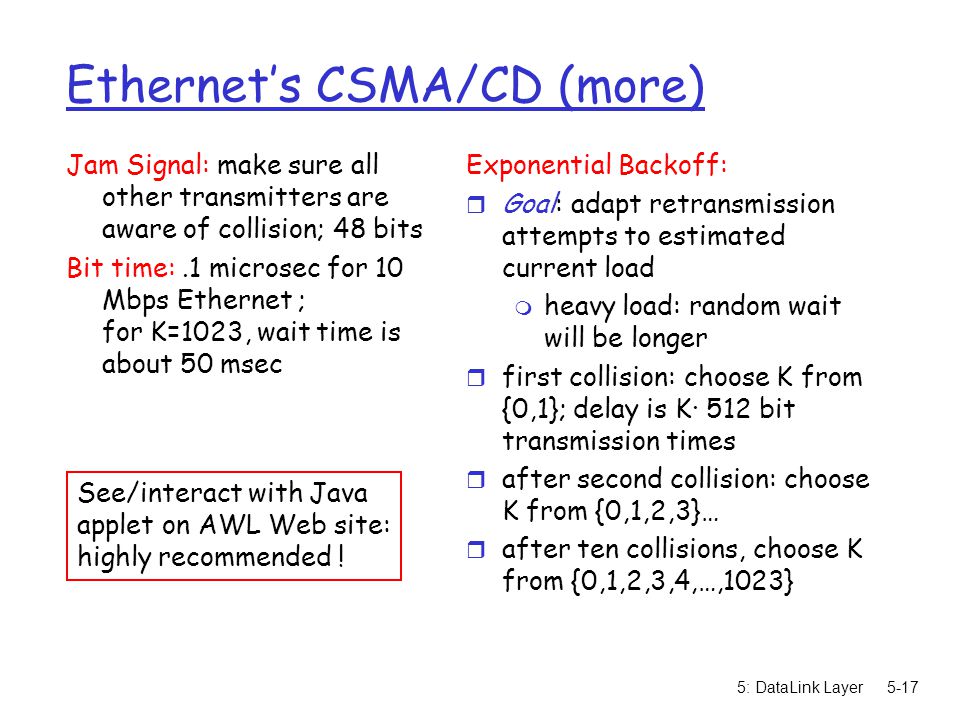

17. 5: DataLink Layer5-17 Ethernet’s CSMA/CD (more) Jam Signal: make sure all other transmitters are aware of collision; 48 bits Bit time:.1 microsec for 10 Mbps Ethernet ; for K=1023, wait time is about 50 msec Exponential Backoff: r Goal: adapt retransmission attempts to estimated current load m heavy load: random wait will be longer r first collision: choose K from {0,1}; delay is K· 512 bit transmission times r after second collision: choose K from {0,1,2,3}… r after ten collisions, choose K from {0,1,2,3,4,…,1023} See/interact with Java applet on AWL Web site: highly recommended !

18. 5: DataLink Layer5-18 CSMA/CD efficiency r T prop = max prop delay between 2 nodes in LAN r t trans = time to transmit max-size frame r efficiency goes to 1 m as t prop goes to 0 m as t trans goes to infinity r better performance than ALOHA: and simple, cheap, decentralized !

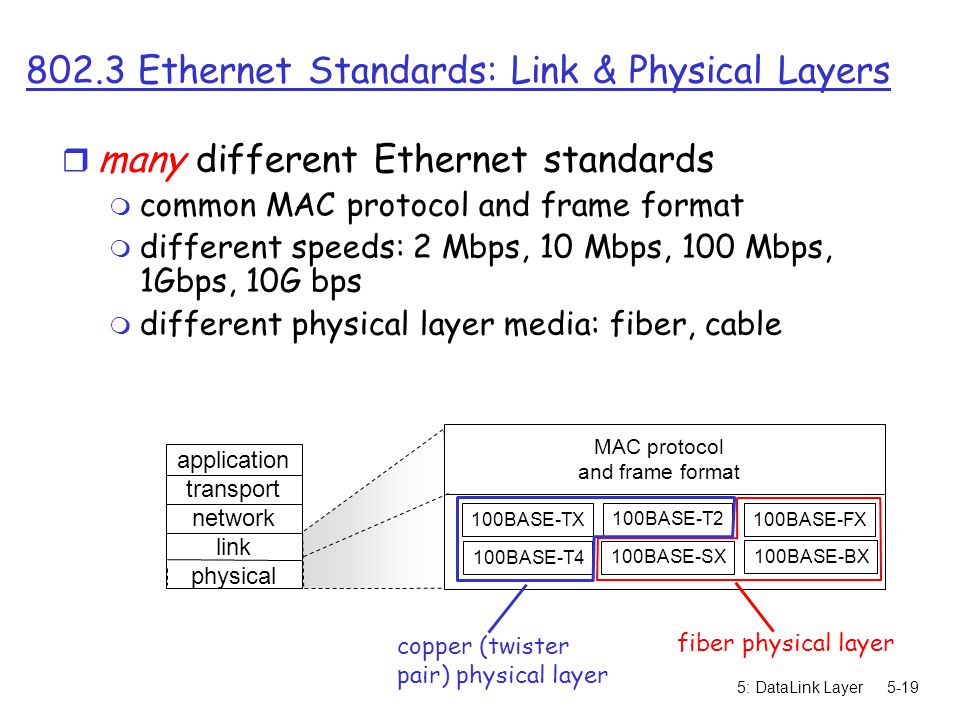

19. 5: DataLink Layer5-19 802.3 Ethernet Standards: Link & Physical Layers r many different Ethernet standards m common MAC protocol and frame format m different speeds: 2 Mbps, 10 Mbps, 100 Mbps, 1Gbps, 10G bps m different physical layer media: fiber, cable application transport network link physical MAC protocol and frame format 100BASE-TX 100BASE-T4 100BASE-FX 100BASE-T2 100BASE-SX 100BASE-BX fiber physical layer copper (twister pair) physical layer

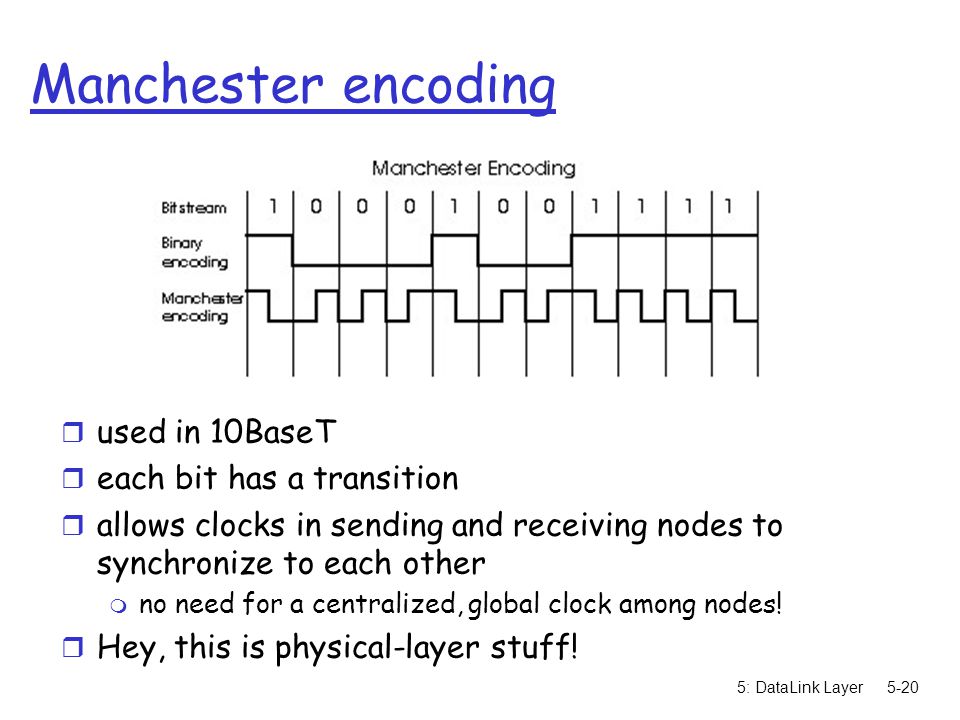

20. 5: DataLink Layer5-20 Manchester encoding r used in 10BaseT r each bit has a transition r allows clocks in sending and receiving nodes to synchronize to each other m no need for a centralized, global clock among nodes! r Hey, this is physical-layer stuff!

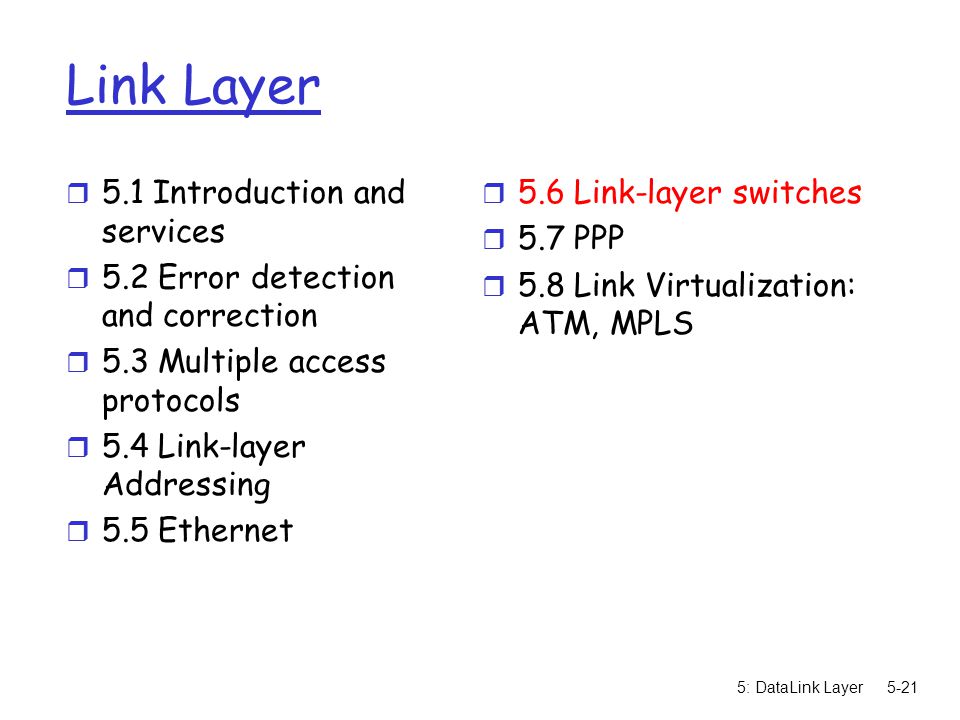

21. 5: DataLink Layer5-21 Link Layer r 5.1 Introduction and services r 5.2 Error detection and correction r 5.3 Multiple access protocols r 5.4 Link-layer Addressing r 5.5 Ethernet r 5.6 Link-layer switches r 5.7 PPP r 5.8 Link Virtualization: ATM, MPLS

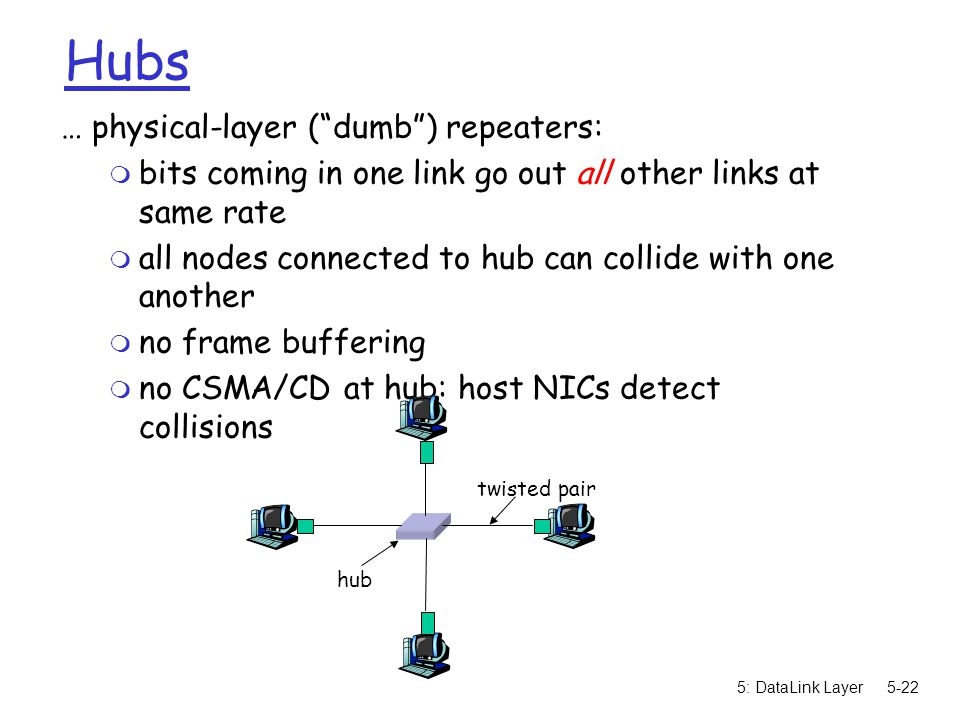

22. 5: DataLink Layer5-22 Hubs … physical-layer (“dumb”) repeaters: m bits coming in one link go out all other links at same rate m all nodes connected to hub can collide with one another m no frame buffering m no CSMA/CD at hub: host NICs detect collisions twisted pair hub

23. 5: DataLink Layer5-23 Switch r link-layer device: smarter than hubs, take active role m store, forward Ethernet frames m examine incoming frame’s MAC address, selectively forward frame to one-or-more outgoing links when frame is to be forwarded on segment, uses CSMA/CD to access segment r transparent m hosts are unaware of presence of switches r plug-and-play, self-learning m switches do not need to be configured

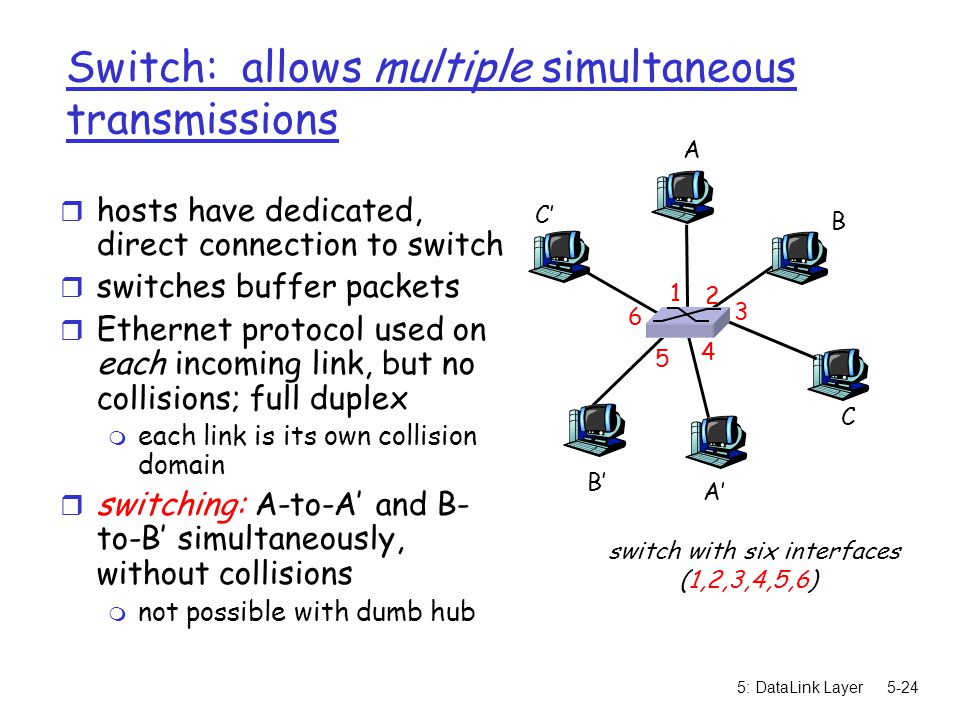

24. 5: DataLink Layer5-24 Switch: allows multiple simultaneous transmissions r hosts have dedicated, direct connection to switch r switches buffer packets r Ethernet protocol used on each incoming link, but no collisions; full duplex m each link is its own collision domain r switching: A-to-A’ and B- to-B’ simultaneously, without collisions m not possible with dumb hub A A’ B B’ C C’ switch with six interfaces (1,2,3,4,5,6) 1 2 3 4 5 6

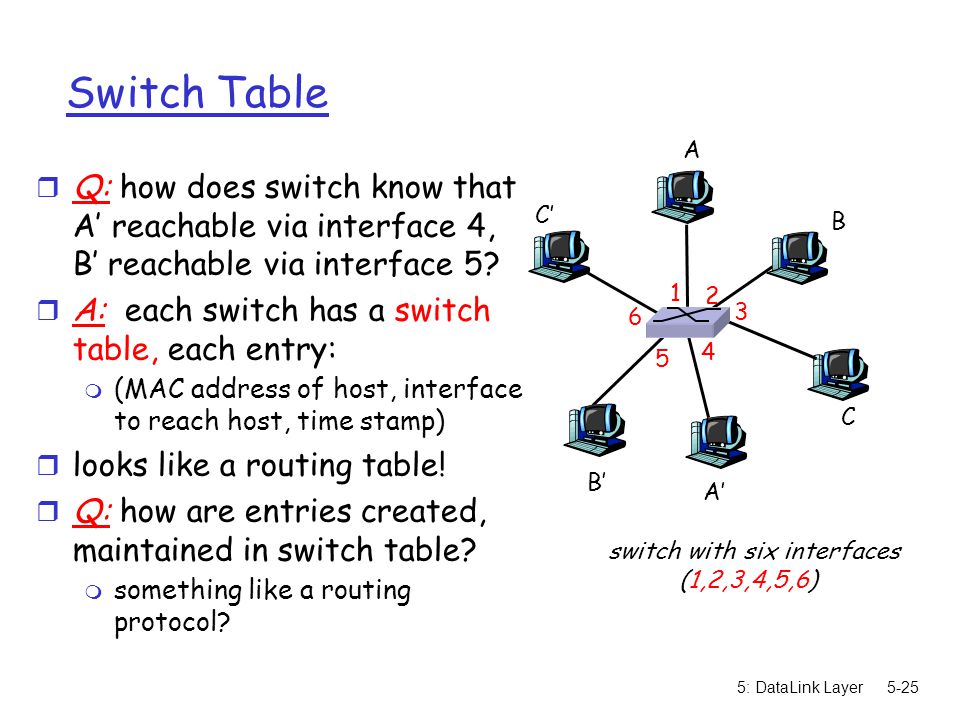

25. 5: DataLink Layer5-25 Switch Table r Q: how does switch know that A’ reachable via interface 4, B’ reachable via interface 5? r A: each switch has a switch table, each entry: m (MAC address of host, interface to reach host, time stamp) r looks like a routing table! r Q: how are entries created, maintained in switch table? m something like a routing protocol? A A’ B B’ C C’ switch with six interfaces (1,2,3,4,5,6) 1 2 3 4 5 6

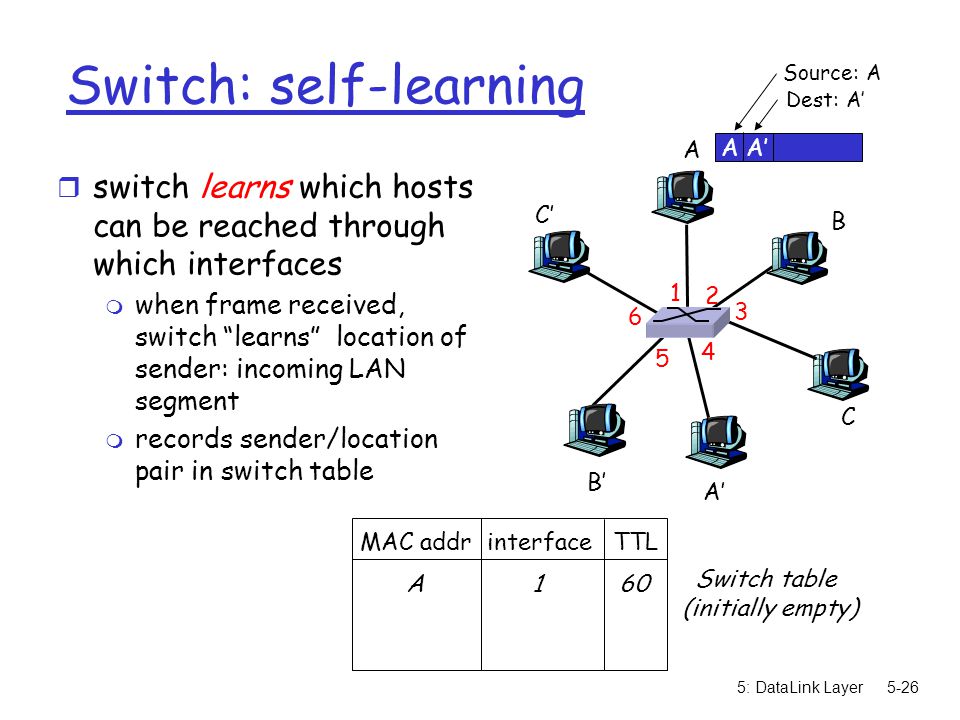

26. 5: DataLink Layer5-26 Switch: self-learning r switch learns which hosts can be reached through which interfaces m when frame received, switch “learns” location of sender: incoming LAN segment m records sender/location pair in switch table A A’ B B’ C C’ 1 2 3 4 5 6 A A’ Source: A Dest: A’ MAC addr interface TTL Switch table (initially empty) A 1 60

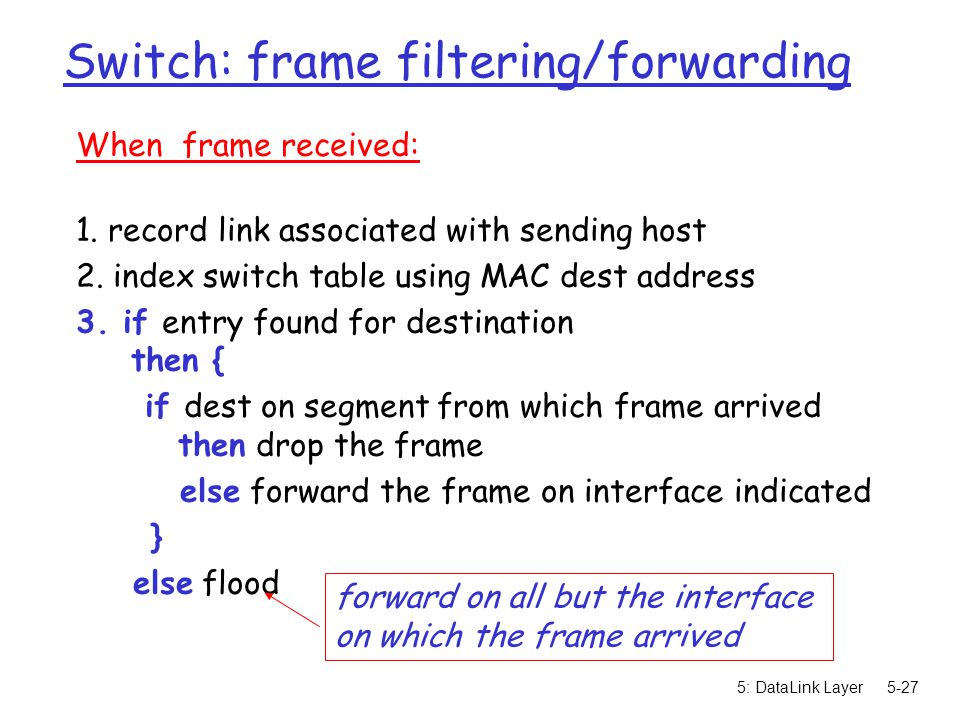

27. 5: DataLink Layer5-27 Switch: frame filtering/forwarding When frame received: 1. record link associated with sending host 2. index switch table using MAC dest address 3. if entry found for destination then { if dest on segment from which frame arrived then drop the frame else forward the frame on interface indicated } else flood forward on all but the interface on which the frame arrived

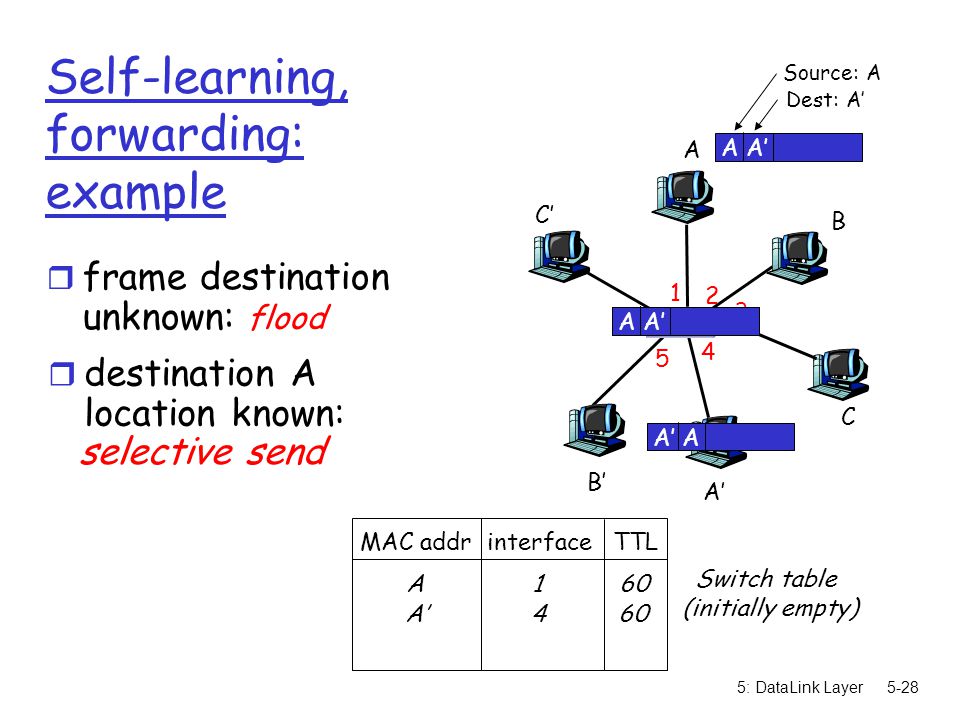

28. 5: DataLink Layer5-28 Self-learning, forwarding: example A A’ B B’ C C’ 1 2 3 4 5 6 A A’ Source: A Dest: A’ MAC addr interface TTL Switch table (initially empty) A 1 60 A A’ r frame destination unknown: flood A’ A r destination A location known: A’ 4 60 selective send

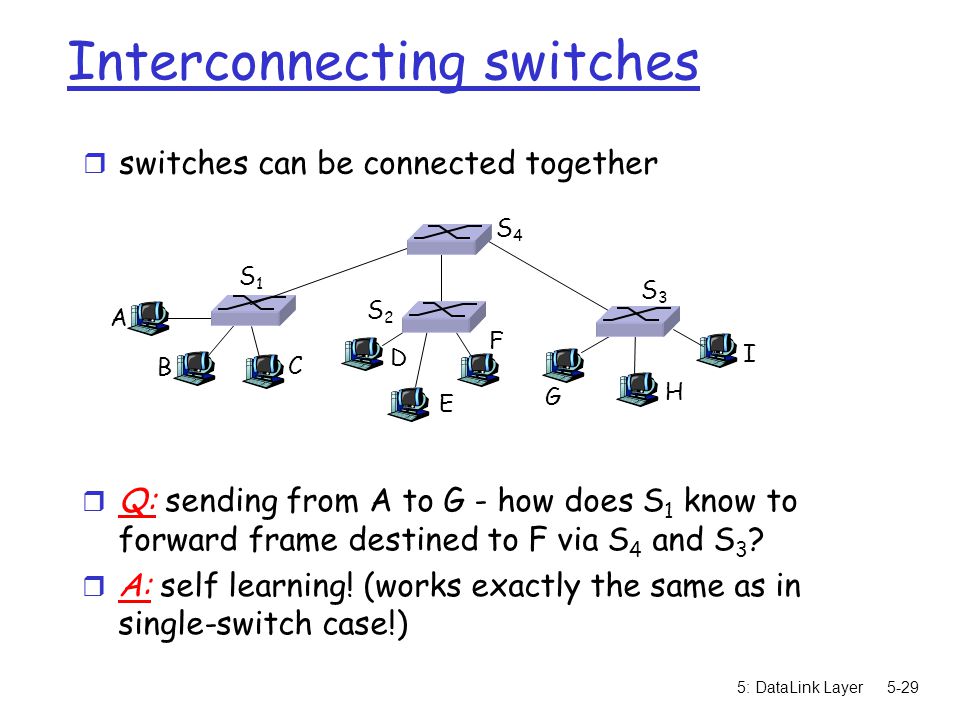

29. 5: DataLink Layer5-29 Interconnecting switches r switches can be connected together A B r Q: sending from A to G - how does S 1 know to forward frame destined to F via S 4 and S 3 ? r A: self learning! (works exactly the same as in single-switch case!) S1S1 C D E F S2S2 S4S4 S3S3 H I G

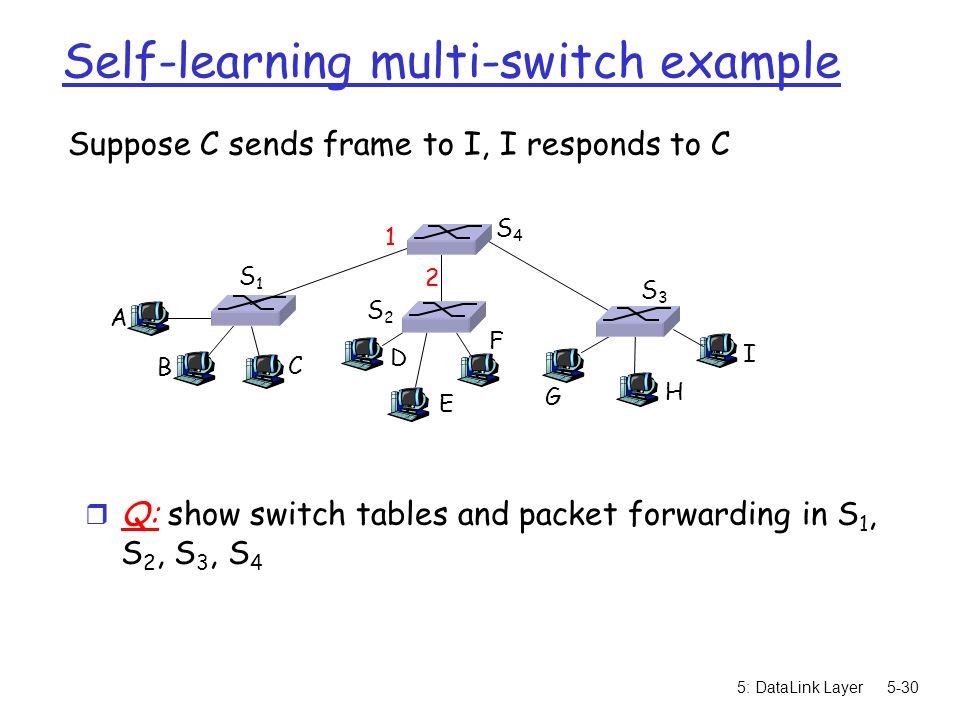

30. 5: DataLink Layer5-30 Self-learning multi-switch example Suppose C sends frame to I, I responds to C r Q: show switch tables and packet forwarding in S 1, S 2, S 3, S 4 A B S1S1 C D E F S2S2 S4S4 S3S3 H I G 1 2

31. 5: DataLink Layer5-31 Institutional network to external network router IP subnet mail server web server

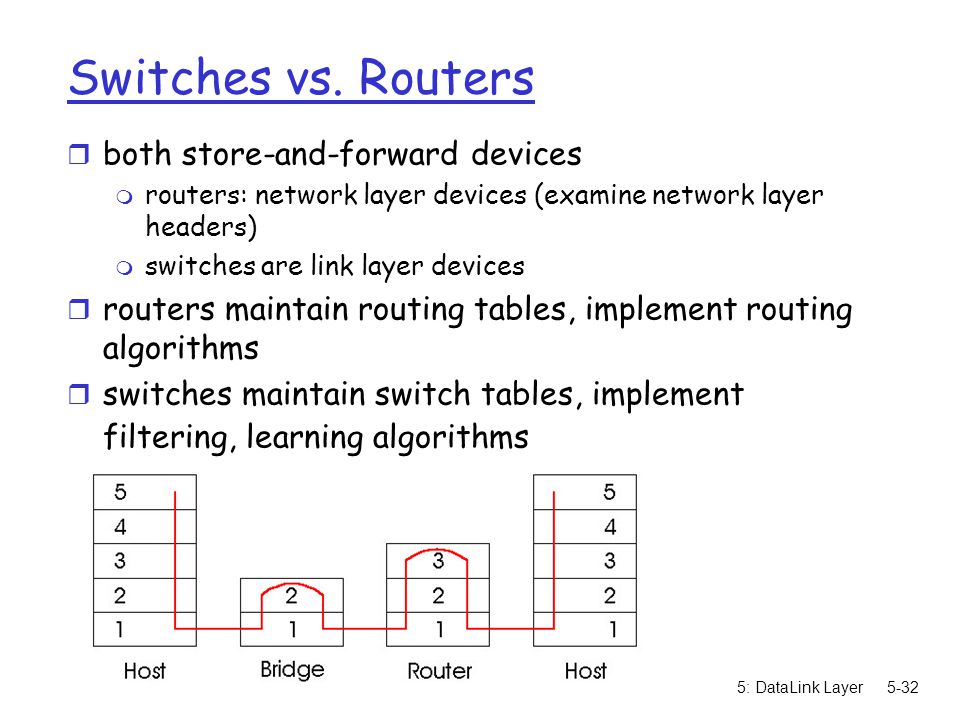

32. 5: DataLink Layer5-32 Switches vs. Routers r both store-and-forward devices m routers: network layer devices (examine network layer headers) m switches are link layer devices r routers maintain routing tables, implement routing algorithms r switches maintain switch tables, implement filtering, learning algorithms

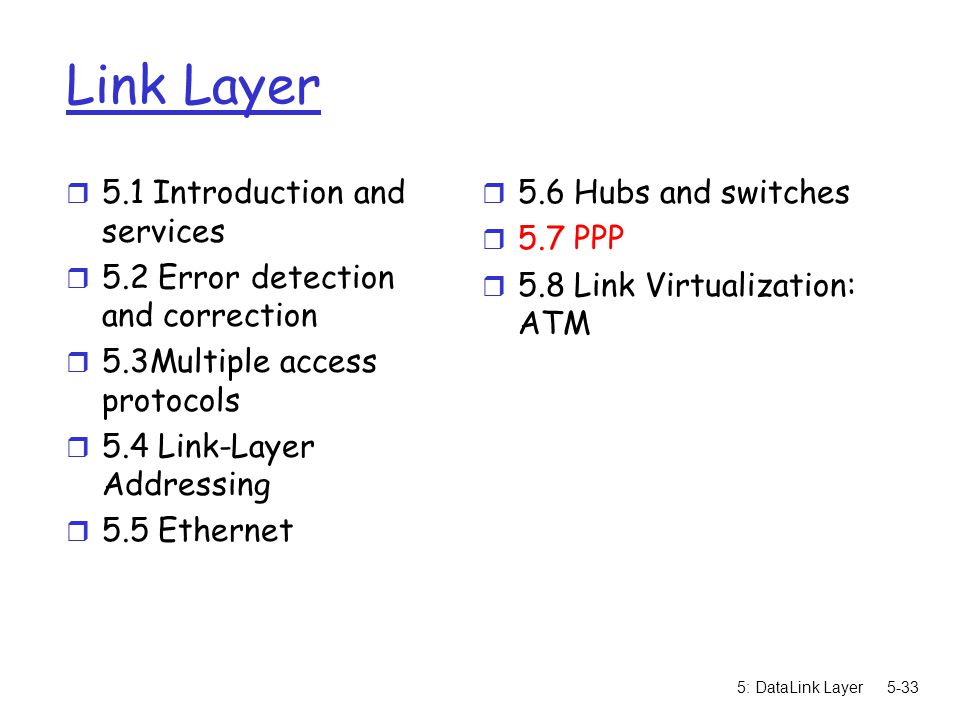

33. 5: DataLink Layer5-33 Link Layer r 5.1 Introduction and services r 5.2 Error detection and correction r 5.3Multiple access protocols r 5.4 Link-Layer Addressing r 5.5 Ethernet r 5.6 Hubs and switches r 5.7 PPP r 5.8 Link Virtualization: ATM

34. 5: DataLink Layer5-34 Point to Point Data Link Control r one sender, one receiver, one link: easier than broadcast link: m no Media Access Control m no need for explicit MAC addressing m e.g., dialup link, ISDN line r popular point-to-point DLC protocols: m PPP (point-to-point protocol) m HDLC: High level data link control (Data link used to be considered “high layer” in protocol stack!

35. 5: DataLink Layer5-35 PPP Design Requirements [RFC 1557] r packet framing: encapsulation of network-layer datagram in data link frame m carry network layer data of any network layer protocol (not just IP) at same time m ability to demultiplex upwards r bit transparency: must carry any bit pattern in the data field r error detection (no correction) r connection liveness: detect, signal link failure to network layer r network layer address negotiation: endpoint can learn/configure each other’s network address

36. 5: DataLink Layer5-36 PPP non-requirements r no error correction/recovery r no flow control r out of order delivery OK r no need to support multipoint links (e.g., polling) Error recovery, flow control, data re-ordering all relegated to higher layers!

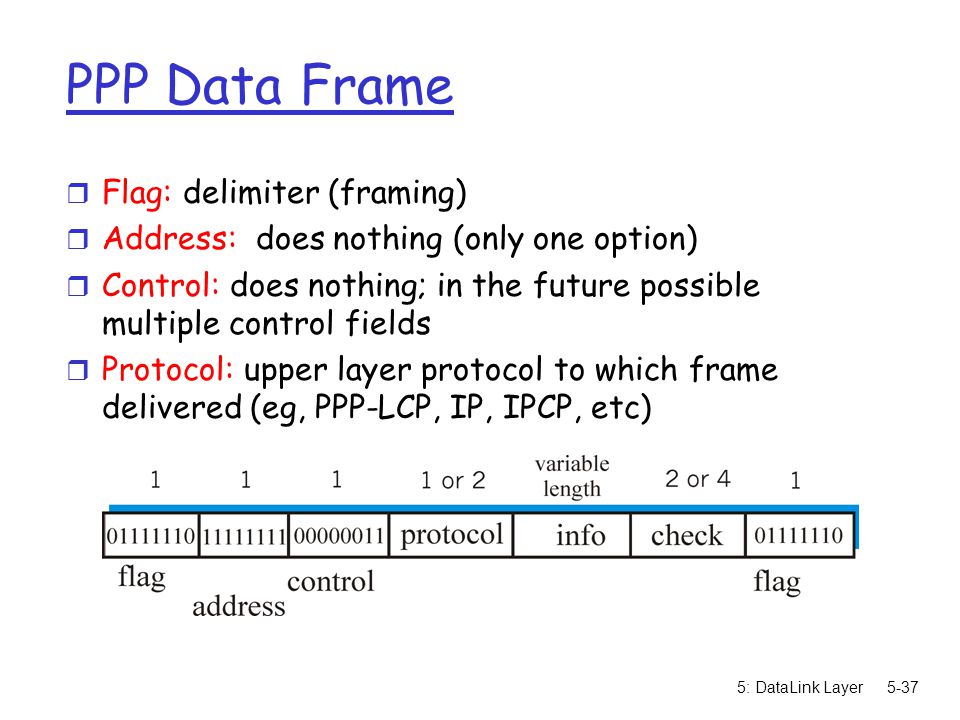

37. 5: DataLink Layer5-37 PPP Data Frame r Flag: delimiter (framing) r Address: does nothing (only one option) r Control: does nothing; in the future possible multiple control fields r Protocol: upper layer protocol to which frame delivered (eg, PPP-LCP, IP, IPCP, etc)

38. 5: DataLink Layer5-38 PPP Data Frame r info: upper layer data being carried r check: cyclic redundancy check for error detection

39. 5: DataLink Layer5-39 Byte Stuffing r “data transparency” requirement: data field must be allowed to include flag pattern m Q: is received data or flag? r Sender: adds (“stuffs”) extra byte after each data byte r Receiver: m two 01111110 bytes in a row: discard first byte, continue data reception m single 01111110: flag byte

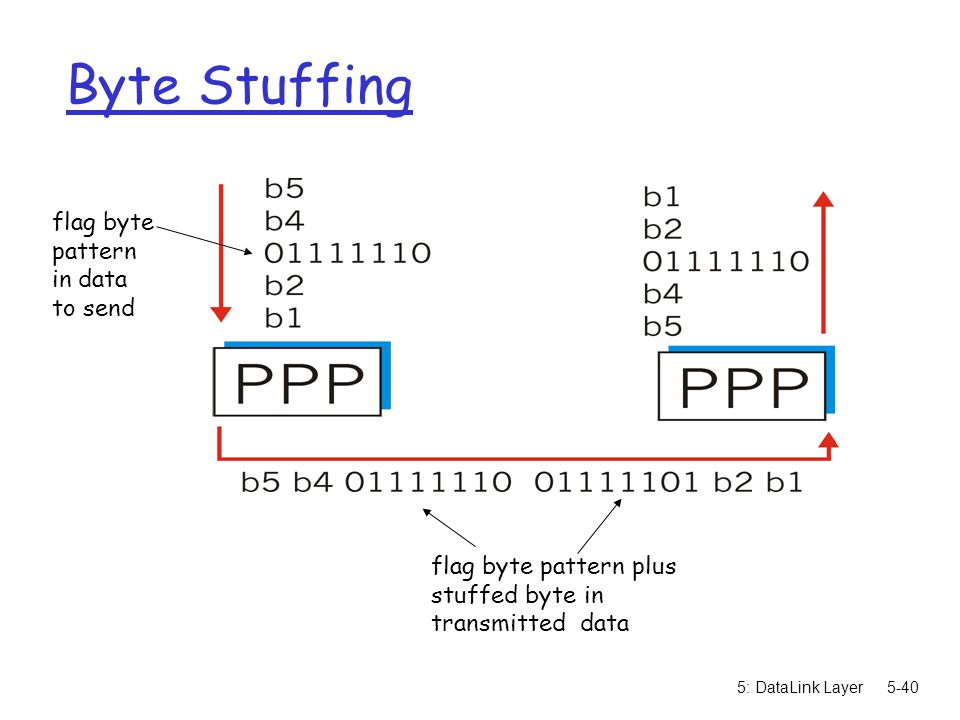

40. 5: DataLink Layer5-40 Byte Stuffing flag byte pattern in data to send flag byte pattern plus stuffed byte in transmitted data

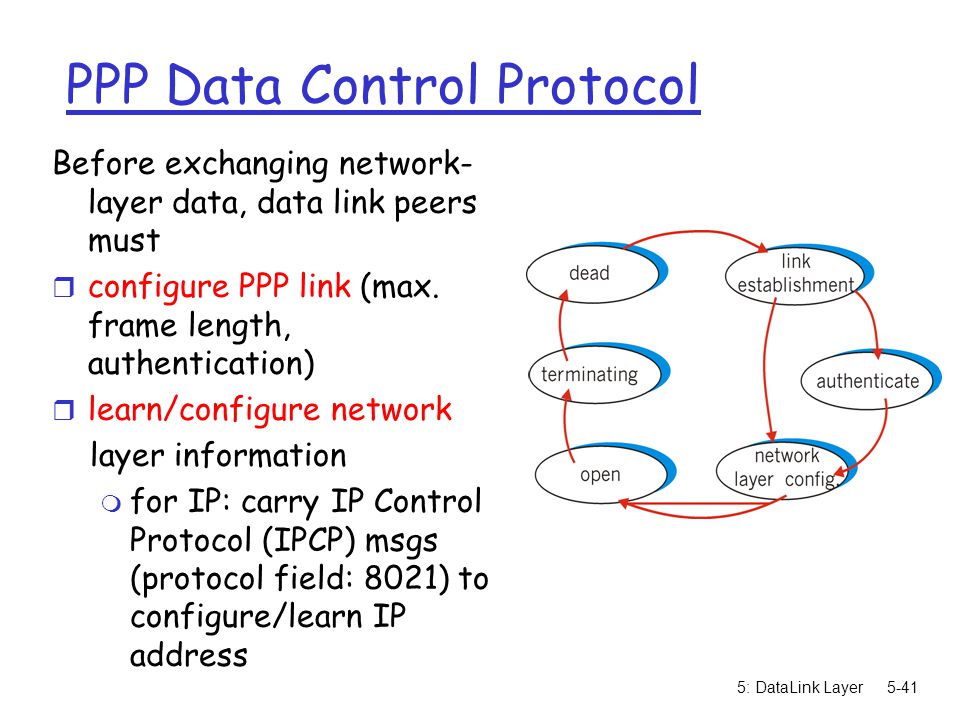

41. 5: DataLink Layer5-41 PPP Data Control Protocol Before exchanging network- layer data, data link peers must r configure PPP link (max. frame length, authentication) r learn/configure network layer information m for IP: carry IP Control Protocol (IPCP) msgs (protocol field: 8021) to configure/learn IP address

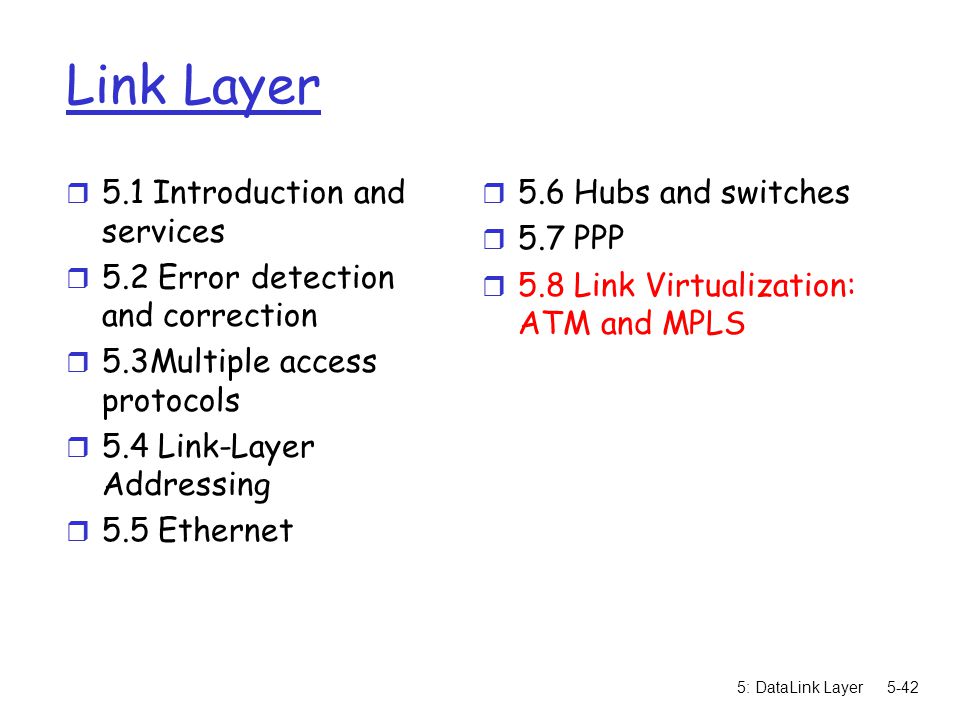

42. 5: DataLink Layer5-42 Link Layer r 5.1 Introduction and services r 5.2 Error detection and correction r 5.3Multiple access protocols r 5.4 Link-Layer Addressing r 5.5 Ethernet r 5.6 Hubs and switches r 5.7 PPP r 5.8 Link Virtualization: ATM and MPLS

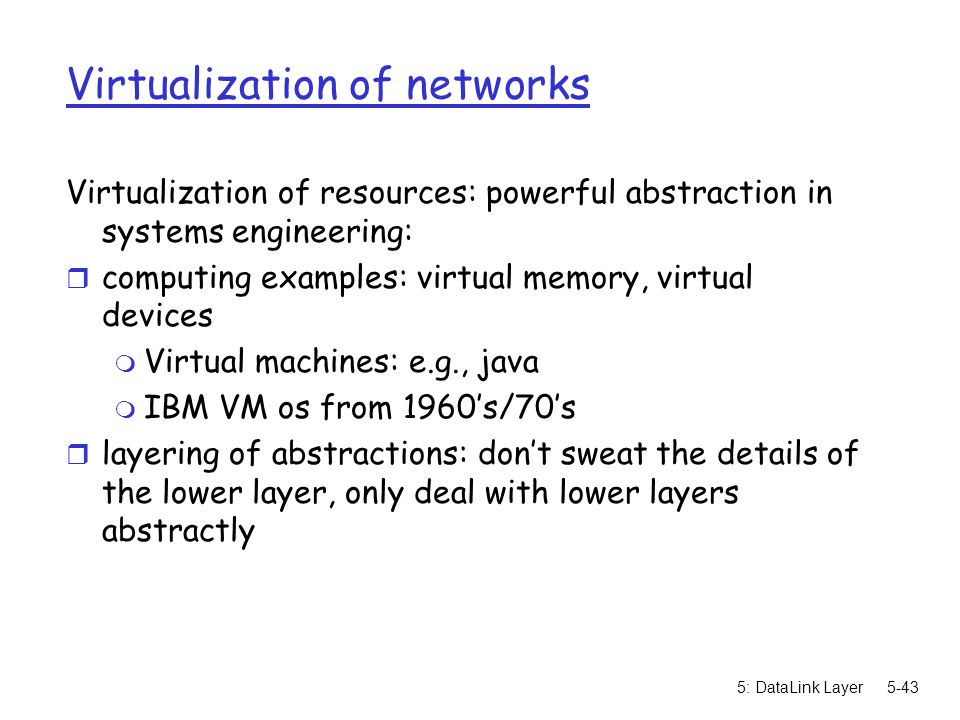

43. 5: DataLink Layer5-43 Virtualization of networks Virtualization of resources: powerful abstraction in systems engineering: r computing examples: virtual memory, virtual devices m Virtual machines: e.g., java m IBM VM os from 1960’s/70’s r layering of abstractions: don’t sweat the details of the lower layer, only deal with lower layers abstractly

44. 5: DataLink Layer5-44 The Internet: virtualizing networks 1974: multiple unconnected nets m ARPAnet m data-over-cable networks m packet satellite network (Aloha) m packet radio network … differing in: m addressing conventions m packet formats m error recovery m routing ARPAnet satellite net "A Protocol for Packet Network Intercommunication", V. Cerf, R. Kahn, IEEE Transactions on Communications, May, 1974, pp. 637-648.

45. 5: DataLink Layer5-45 The Internet: virtualizing networks ARPAnet satellite net gateway Internetwork layer (IP): r addressing: internetwork appears as single, uniform entity, despite underlying local network heterogeneity r network of networks Gateway: r “embed internetwork packets in local packet format or extract them” r route (at internetwork level) to next gateway

46. 5: DataLink Layer5-46 Cerf & Kahn’s Internetwork Architecture What is virtualized? r two layers of addressing: internetwork and local network r new layer (IP) makes everything homogeneous at internetwork layer r underlying local network technology m cable m satellite m 56K telephone modem m today: ATM, MPLS … “invisible” at internetwork layer. Looks like a link layer technology to IP!

47. 5: DataLink Layer5-47 ATM and MPLS r ATM, MPLS separate networks in their own right m different service models, addressing, routing from Internet r viewed by Internet as logical link connecting IP routers m just like dialup link is really part of separate network (telephone network) r ATM, MPLS: of technical interest in their own right

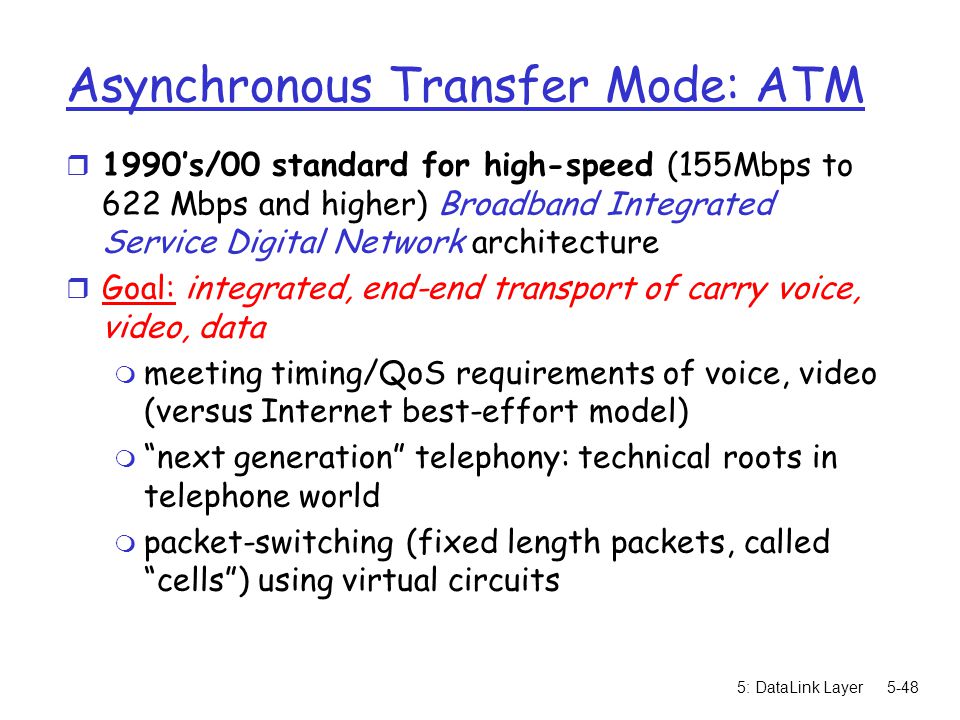

48. 5: DataLink Layer5-48 Asynchronous Transfer Mode: ATM r 1990’s/00 standard for high-speed (155Mbps to 622 Mbps and higher) Broadband Integrated Service Digital Network architecture r Goal: integrated, end-end transport of carry voice, video, data m meeting timing/QoS requirements of voice, video (versus Internet best-effort model) m “next generation” telephony: technical roots in telephone world m packet-switching (fixed length packets, called “cells”) using virtual circuits

49. 5: DataLink Layer5-49 ATM architecture r adaptation layer: only at edge of ATM network m data segmentation/reassembly m roughly analagous to Internet transport layer r ATM layer: “network” layer m cell switching, routing r physical layer physical ATM AAL physical ATM AAL physical ATM physical ATM end system switch

50. 5: DataLink Layer5-50 ATM: network or link layer? Vision: end-to-end transport: “ATM from desktop to desktop” m ATM is a network technology Reality: used to connect IP backbone routers m “IP over ATM” m ATM as switched link layer, connecting IP routers ATM network IP network

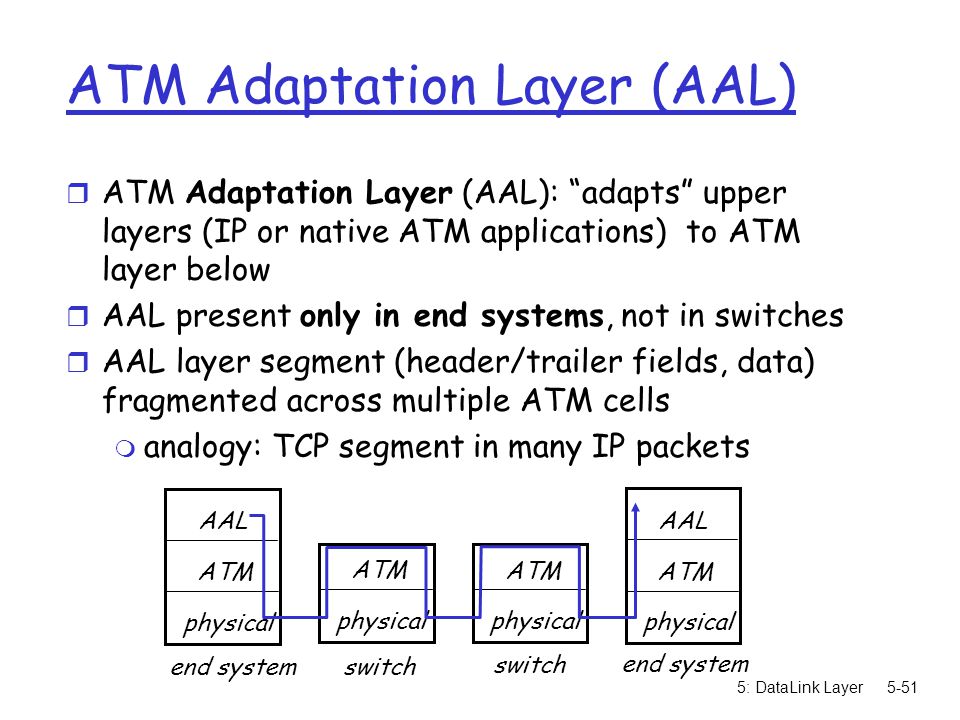

51. 5: DataLink Layer5-51 ATM Adaptation Layer (AAL) r ATM Adaptation Layer (AAL): “adapts” upper layers (IP or native ATM applications) to ATM layer below r AAL present only in end systems, not in switches r AAL layer segment (header/trailer fields, data) fragmented across multiple ATM cells m analogy: TCP segment in many IP packets physical ATM AAL physical ATM AAL physical ATM physical ATM end system switch

52. 5: DataLink Layer5-52 ATM Adaptation Layer (AAL) [more] Different versions of AAL layers, depending on ATM service class: r AAL1: for CBR (Constant Bit Rate) services, e.g. circuit emulation r AAL2: for VBR (Variable Bit Rate) services, e.g., MPEG video r AAL5: for data (eg, IP datagrams) AAL PDU ATM cell User data

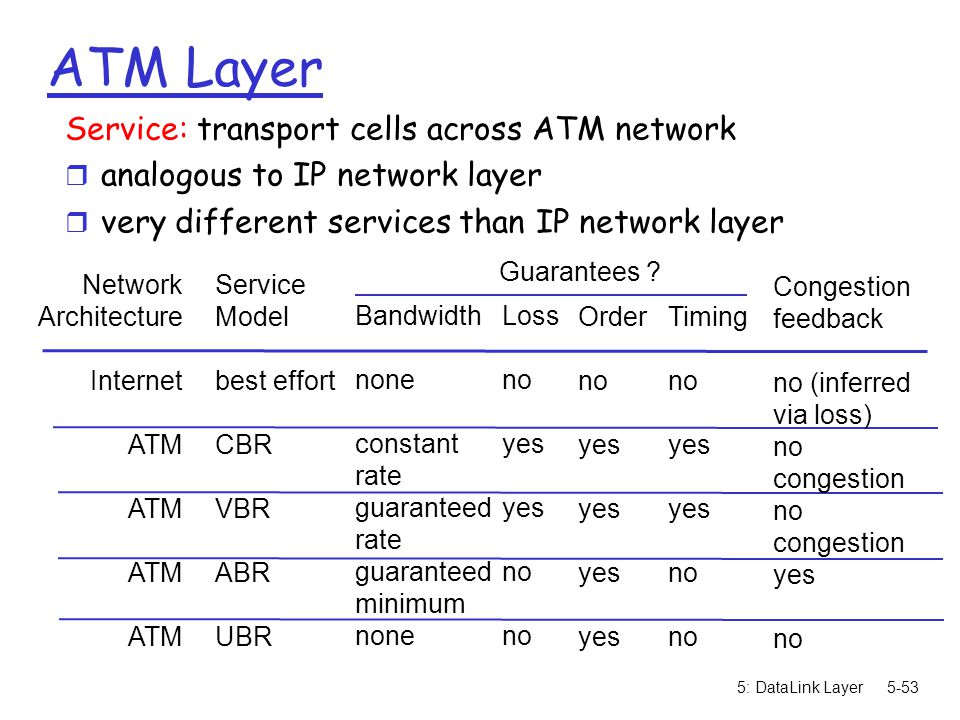

53. 5: DataLink Layer5-53 ATM Layer Service: transport cells across ATM network r analogous to IP network layer r very different services than IP network layer Network Architecture Internet ATM Service Model best effort CBR VBR ABR UBR Bandwidth none constant rate guaranteed rate guaranteed minimum none Loss no yes no Order no yes Timing no yes no Congestion feedback no (inferred via loss) no congestion no congestion yes no Guarantees ?

54. 5: DataLink Layer5-54 ATM Layer: Virtual Circuits r VC transport: cells carried on VC from source to dest m call setup, teardown for each call before data can flow m each packet carries VC identifier (not destination ID) m every switch on source-dest path maintain “state” for each passing connection m link,switch resources (bandwidth, buffers) may be allocated to VC: to get circuit-like perf. r Permanent VCs (PVCs) m long lasting connections m typically: “permanent” route between to IP routers r Switched VCs (SVC): m dynamically set up on per-call basis

55. 5: DataLink Layer5-55 ATM VCs r Advantages of ATM VC approach: m QoS performance guarantee for connection mapped to VC (bandwidth, delay, delay jitter) r Drawbacks of ATM VC approach: m Inefficient support of datagram traffic m one PVC between each source/dest pair) does not scale (N*2 connections needed) m SVC introduces call setup latency, processing overhead for short lived connections

56. 5: DataLink Layer5-56 ATM Layer: ATM cell r 5-byte ATM cell header r 48-byte payload m Why?: small payload -> short cell-creation delay for digitized voice m halfway between 32 and 64 (compromise!) Cell header Cell format

57. 5: DataLink Layer5-57 ATM cell header r VCI: virtual channel ID m will change from link to link thru net r PT: Payload type (e.g. RM cell versus data cell) r CLP: Cell Loss Priority bit m CLP = 1 implies low priority cell, can be discarded if congestion r HEC: Header Error Checksum m cyclic redundancy check

58. 5: DataLink Layer5-58 IP-Over-ATM Classic IP only r 3 “networks” (e.g., LAN segments) r MAC (802.3) and IP addresses IP over ATM r replace “network” (e.g., LAN segment) with ATM network r ATM addresses, IP addresses ATM network Ethernet LANs Ethernet LANs

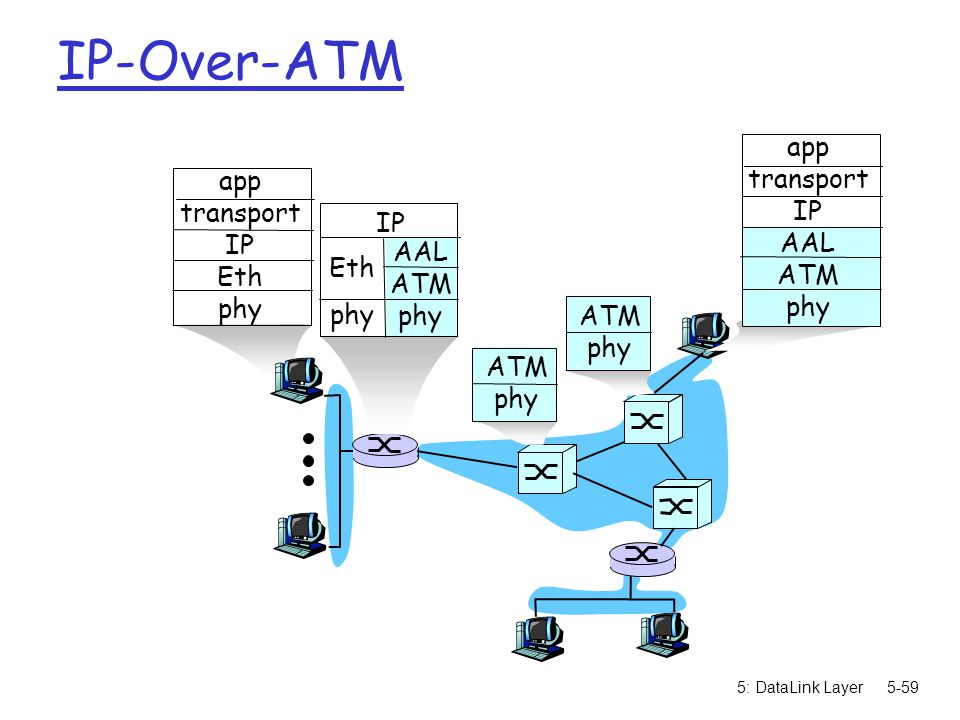

59. 5: DataLink Layer5-59 IP-Over-ATM AAL ATM phy Eth IP ATM phy ATM phy app transport IP AAL ATM phy app transport IP Eth phy

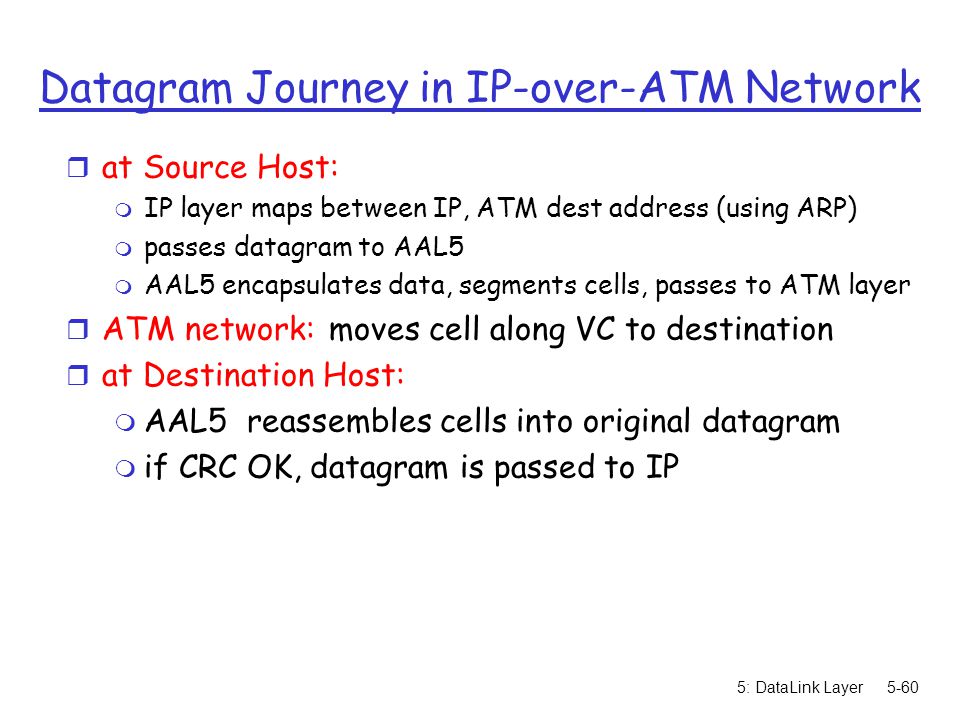

60. 5: DataLink Layer5-60 Datagram Journey in IP-over-ATM Network r at Source Host: m IP layer maps between IP, ATM dest address (using ARP) m passes datagram to AAL5 m AAL5 encapsulates data, segments cells, passes to ATM layer r ATM network: moves cell along VC to destination r at Destination Host: m AAL5 reassembles cells into original datagram m if CRC OK, datagram is passed to IP

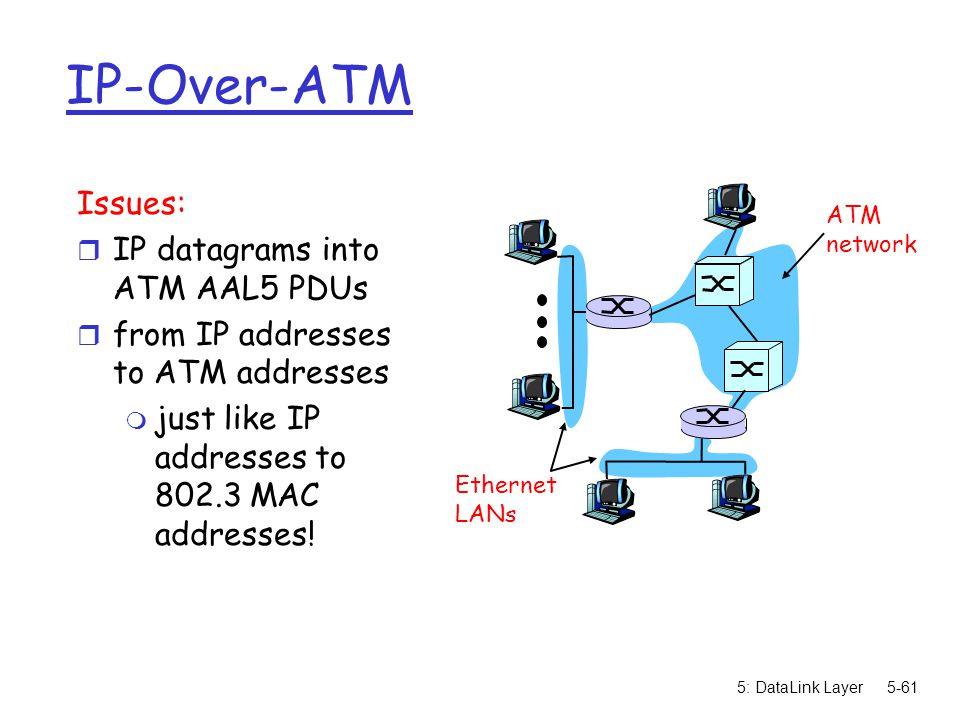

61. 5: DataLink Layer5-61 IP-Over-ATM Issues: r IP datagrams into ATM AAL5 PDUs r from IP addresses to ATM addresses m just like IP addresses to 802.3 MAC addresses! ATM network Ethernet LANs

62. 5: DataLink Layer5-62 Multiprotocol label switching (MPLS) r initial goal: speed up IP forwarding by using fixed length label (instead of IP address) to do forwarding m borrowing ideas from Virtual Circuit (VC) approach m but IP datagram still keeps IP address! PPP or Ethernet header IP header remainder of link-layer frame MPLS header label Exp S TTL 20 3 1 5

63. 5: DataLink Layer5-63 MPLS capable routers r a.k.a. label-switched router r forwards packets to outgoing interface based only on label value (don’t inspect IP address) m MPLS forwarding table distinct from IP forwarding tables r signaling protocol needed to set up forwarding m RSVP-TE m forwarding possible along paths that IP alone would not allow (e.g., source-specific routing) !! m use MPLS for traffic engineering r must co-exist with IP-only routers

64. 5: DataLink Layer5-64 R1 R2 D R3 R4 R5 0 1 0 0 A R6 in out out label label dest interface 6 - A 0 in out out label label dest interface 10 6 A 1 12 9 D 0 in out out label label dest interface 10 A 0 12 D 0 1 in out out label label dest interface 8 6 A 0 0 8 A 1 MPLS forwarding tables

65. 5: DataLink Layer5-65 Chapter 5: Summary r principles behind data link layer services: m error detection, correction m sharing a broadcast channel: multiple access m link layer addressing r instantiation and implementation of various link layer technologies m Ethernet m switched LANS m PPP m virtualized networks as a link layer: ATM, MPLS

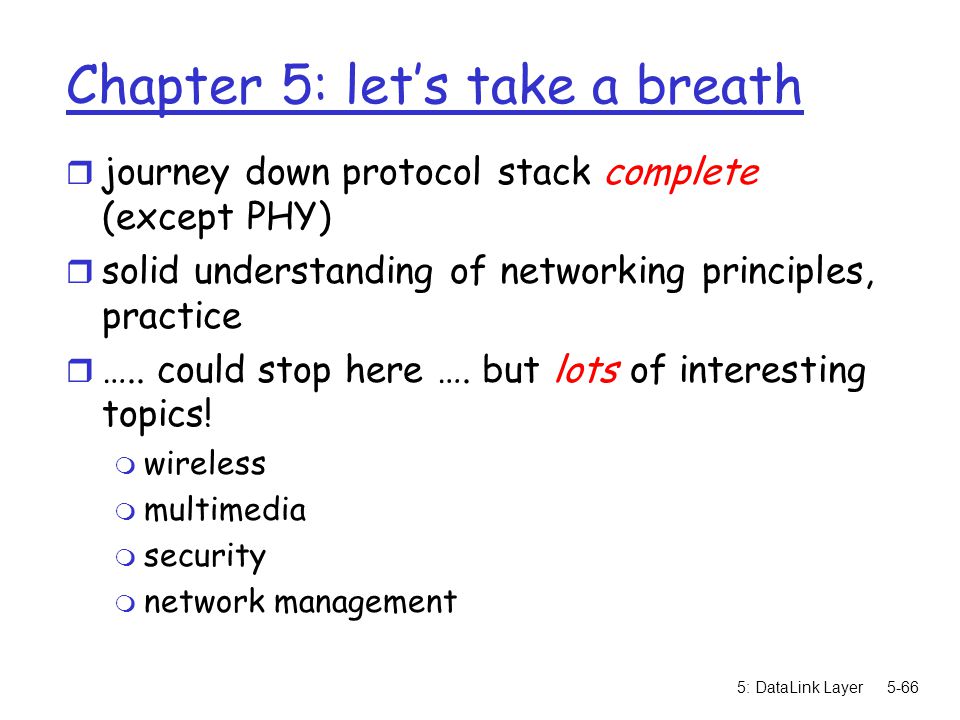

66. 5: DataLink Layer5-66 Chapter 5: let’s take a breath r journey down protocol stack complete (except PHY) r solid understanding of networking principles, practice r ….. could stop here …. but lots of interesting topics! m wireless m multimedia m security m network management
