1. How to Cha-Cha Looking under the hood of the Cha-Cha Intranet Search Engine Marti Hearst SIMS SIMposium, April 21, 1999

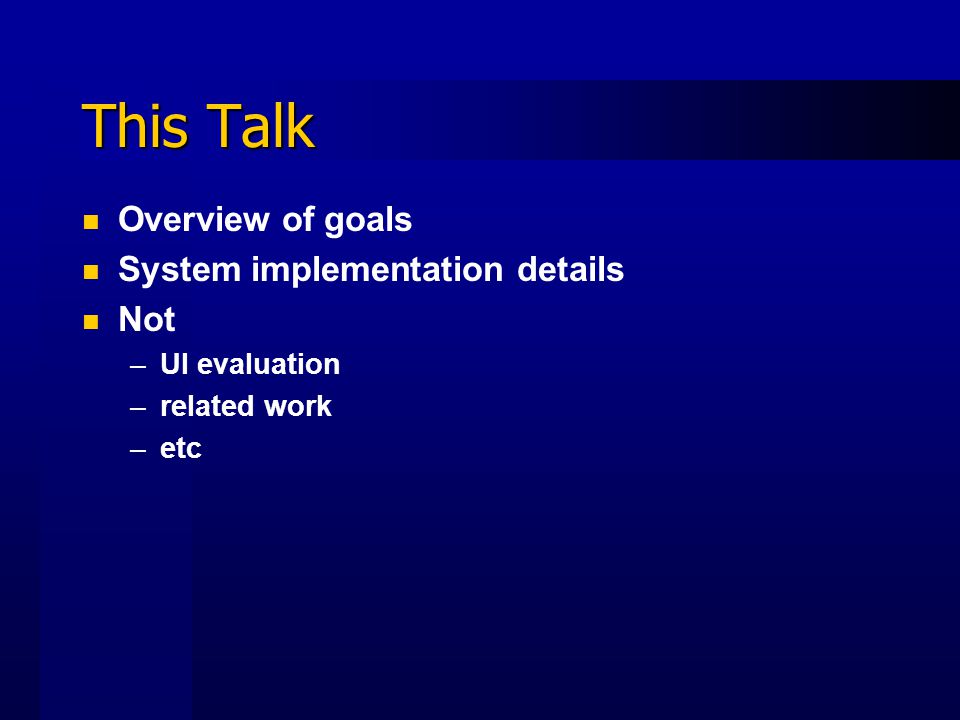

2. This Talk Overview of goals System implementation details Not –UI evaluation –related work –etc

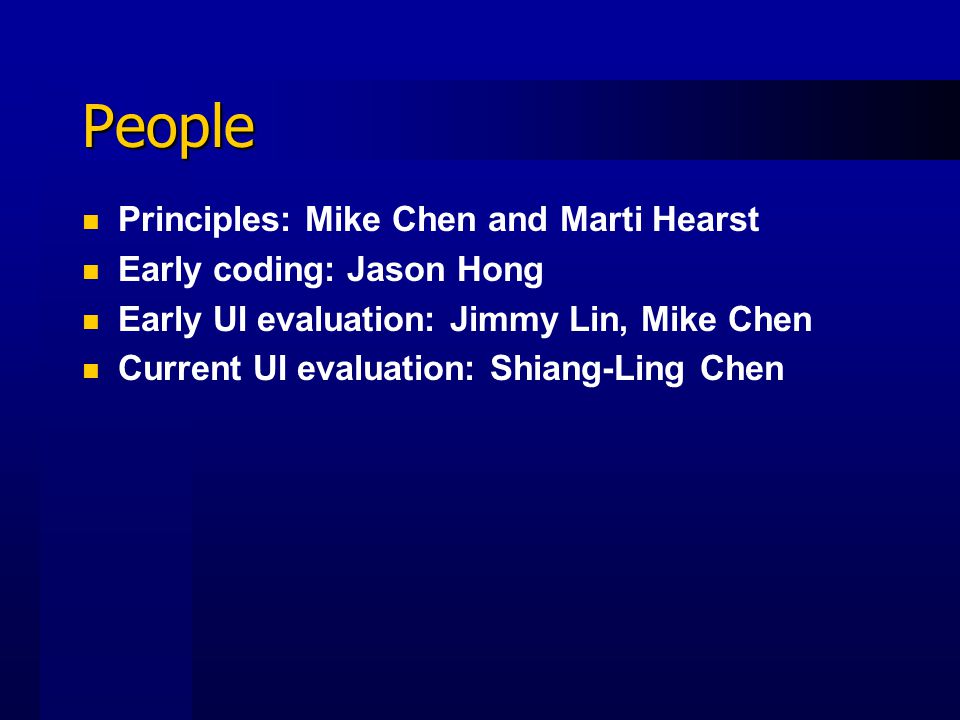

3. People Principles: Mike Chen and Marti Hearst Early coding: Jason Hong Early UI evaluation: Jimmy Lin, Mike Chen Current UI evaluation: Shiang-Ling Chen

4. Cha-Cha Goals Better Intranet search –integrate searching and browsing –provide context for search results –familiarize users with the site structure UI –minimal browser requirement widely usable HTML interface –build on user familiarity with existing systems

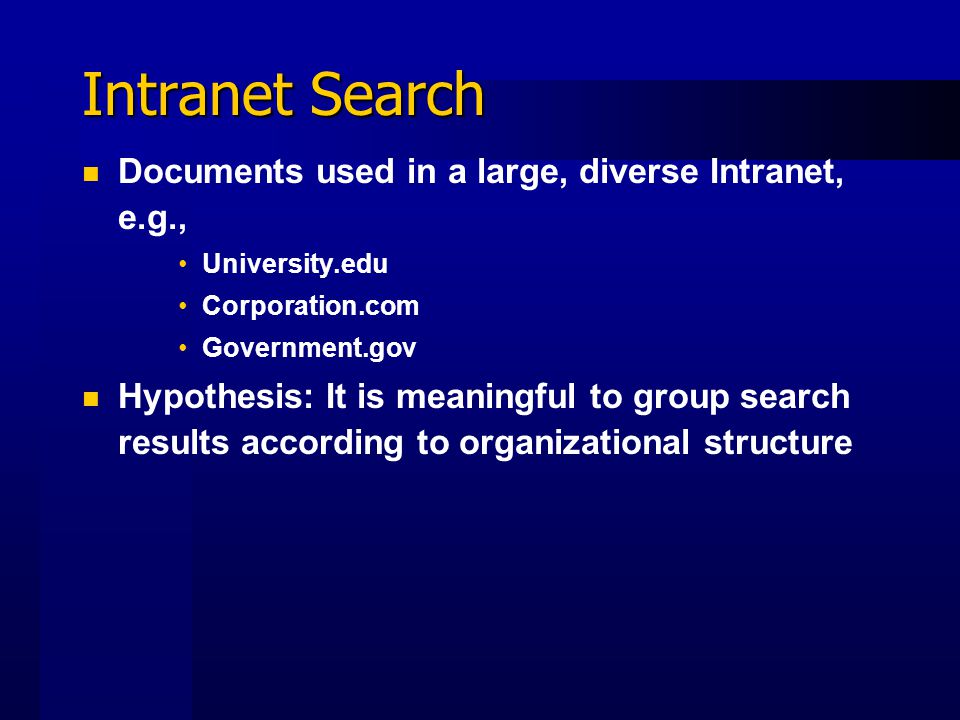

5. Intranet Search Documents used in a large, diverse Intranet, e.g., University.edu Corporation.com Government.gov Hypothesis: It is meaningful to group search results according to organizational structure

6. Searching Earthquakes at UCB: Standard Way

7. Searching Earthquakes at UCB with Cha-Cha

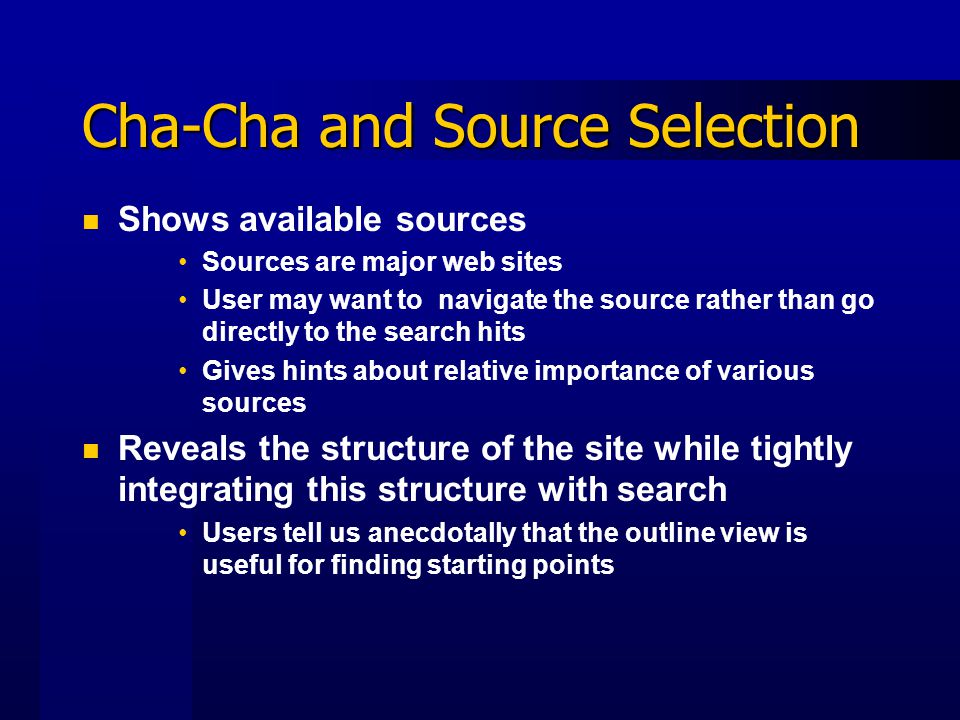

8. Cha-Cha and Source Selection Shows available sources Sources are major web sites User may want to navigate the source rather than go directly to the search hits Gives hints about relative importance of various sources Reveals the structure of the site while tightly integrating this structure with search Users tell us anecdotally that the outline view is useful for finding starting points

9. System Overview Collect shortest paths for each page. –Global paths: from root of the domain –Local paths: from root of the server –Select “the best” path based on the query User interaction with the system: Cha-ChaCheshire 1. query2. query 3. hits 4. select paths & generate HTML 5. HTML

10. Current Status Over 200,000 pages indexed About 2500 queries/weekday Less than 3 sec/query on average Five subdomains using it as site search engine –eecs millennium project –sims –law –career center

11. Cha-Cha Preprocessing

12. Overview of Cha-Cha Preprocessing Crawl entire Intranet –Store copies of pages locally –200,000 pages on the UCB Intranet Revisit all the pages again (on disk) –Create metadata for each page –Compute the shortest hyperlink path from a certain root page to every web page both global and local paths Index all the pages –Using Cheshire II (Ray Larson, SIMS) –Index full text, titles, shortest paths separately

13. Web Crawling Algorithm Start with a list of servers to crawl –for UCB, simply start with www.berkeley.edu Restrict crawl to certain domain(s) –*.berkeley.edu Obey No Robots standard Follow hyperlinks only –do not read local filesystems links are placed on a queue traversal is breadth-first

14. Web Crawling Algorithm (cont.) Interpret the HTML on each web page Record the text of the page in a file on disk. –Make a list of all the pages that this page links to (outlinks) –Follow those links one at a time, repeating this procedure for each page found, until no unexplored pages are left. links are placed on a queue traversal is breadth-first urls that have been crawled are stored in a hash table in memory, to avoid repeats

15. Custom Web Crawler Special considerations –full coverage web search engines don’t go very deep web search engines skip problematic sites –search on “Berdahl” at snap: 430 hits –search on “Berdahl” on Cha-Cha: XXX hits –solution tag each URL with a retry counter if server is down, put URL at the end of the queue and decrement the retry counter if the counter is 0, give up on the URL

16. Custom Web Crawler Special considerations –servers with multiple names info.berkeley.edu == www.sims.berkeley.edu –solution: hash the home page of the server into a table whenever a new server is found, compare its homepage to those in the table if a duplicate, record the new server’s name as being the same as the original server’s

17. Cha-Cha Metadata Information about web pages –Title –Length –Inlinks –Outlinks –Shortest paths from a root home page

18. Metafile Generator Main task: find shortest path information –Two passes: global and local Global pass: –start with main home page H (www.berkeley.edu) –find shortest path from H to every page in the system for each page, keep track of how far it is from H also keep track of the path that got you there store this information in a disk-based storage manager (we use sleepycat, based on Berkeley db) if a page is re-encountered using a path with a shorter distance, record that distance and the new path –when this is done, write out a metafile for each page

19. Metafile Generator (cont.) Local pass: –start with a list of all the servers found during the crawl –for each server S find shortest path from S to every page in the system do this the same way as in the global pass but store the results in a different database when done, write out a metafile for each page, in a different directory than for the global pass

20. Metafile Generator (cont.) Combine local and global path information Purpose: –locality should “trump” global paths, but not all local pages are reachable locally –example: the shortest path from www.berkeley.edu to www.sims.berkeley.edu/~hearst is: www.berkeley.edu -> search.berkeley.edu -> cha- cha.berkeley.edu -> www.sims.berkeley.edu/~hearst but we want my home page to be under the SIMS faculty listing solution: let local trump global –example:

21. Metafile Generator (cont.) Combine local and global path information How to do it: –go through the metafiles in the global directory –for each metafile if there already is a metafile for that url in the local directory, skip this metafile otherwise (there is not metafile for this url locally) copy the metafile into the local directory Why not just use local metafiles? –some pages are not linked to within their own domain e.g., student association hosted within a particular student’s domain

22. Sample Cha-Cha Metadata file http://www.sims.berkeley.edu/ Welcome to SIMS null 4865 1 http://www-resources.berkeley.edu/nhpteaching/ 21 http://www.sims.berkeley.edu/about.html http://www.sims.berkeley.edu/search.html http://www.sims.berkeley.edu/events/conferences/ http://www.sims.berkeley.edu/resources/sites.html http://www.sims.berkeley.edu/people/masters.html

23. Cha-Cha Metadata File, cont. 2 1 Welcome to UC Berkeley http://www.berkeley.edu/ UC Berkeley Teaching Units http://www-resources.berkeley.edu/nhpteaching/ 0 /projects/cha-cha/development/data/done/text/ www.sims.berkeley.edu/index.html

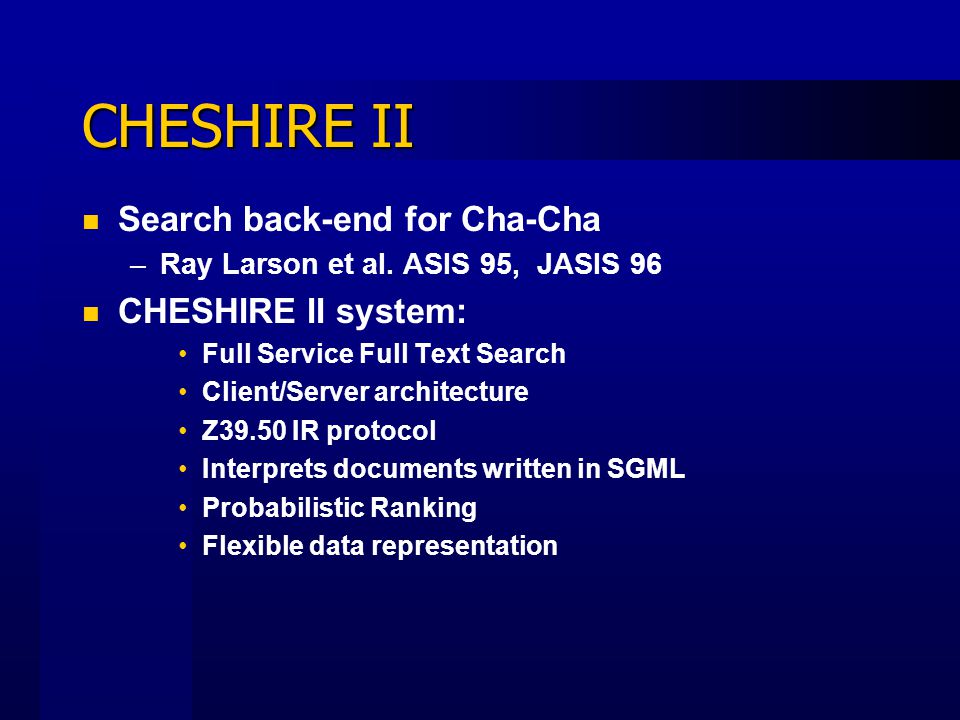

24. CHESHIRE II Search back-end for Cha-Cha –Ray Larson et al. ASIS 95, JASIS 96 CHESHIRE II system: Full Service Full Text Search Client/Server architecture Z39.50 IR protocol Interprets documents written in SGML Probabilistic Ranking Flexible data representation

25. CHESHIRE II (cont.) A big advantage of Cheshire: –don’t have to write a special parser for special document types –instead, simply create one DTD and the system takes care of parsing the metafiles for us A related advantage: –can create indexes on individual components of the document allows efficient title search, home page search, domain-based search, without extra programming

26. Cha-Cha Document Type Definition <!SGML "ISO 8879:1986" -- CHARSET BASESET "ISO 646:1983//CHARSET International Reference Version (IRV)//ESC 2/5 4/0" DESCSET 0 9 UNUSED 9 2 9 11 2 UNUSED 13 1 13 14 18 UNUSED 32 95 32 127 1 UNUSED BASESET "ISO Registration Number 100//CHARSET ECMA-94 Right Part of Latin Alphabet Nr. 1//ESC 2/13 4/1" DESCSET 128 32 UNUSED 160 95 32 255 1 UNUSED

27. Cha-Cha DTD, cont. (parts omitted) <!doctype METADATA [ <!-- This is a DTD for metadata records extracted from the HTML files in the cha-cha system. The tagging is simple with nothing particular about it. The structure has been kept flat within the individual records. The only somewhat interesting thing is the TEXT-REF tag which is used to contain a reference to the full text of entry stored in the raw HTML form. -->

28. <!ELEMENT METAFILE - - (URL, TITLE, DATE, SIZE, INLINKCOUNT, INLINKS, OUTLINKCOUNT, OUTLINKS, DEPTH?, SHORTESTPATHSCOUNT?, SHORTESTPATHS?, MIRRORCOUNT?, MIRRORURLS?, TYPE?, DOMAIN?, FILE?)> Cha-Cha DTD, cont. (parts omitted)

29. Cha-Cha Online Processing

30. Responding to the User Query User searches on “pam samuelson” Search Engine looks up documents indexed with one or both terms in its inverted index Search Engine looks up titles and shortest paths in the metadata index User Interface combines the information and presents the results as HTML

31. Building the Outline View Main issue: how to combine shortest paths –There are approximately three shortest paths per web page –We assume users do not want to see the page multiple times Strategy: –Group hits together within the hierarchy –Try to avoid showing subhierarchies with singleton hits This assumption is based on part on evidence from our earlier clustering research that relevant documents tend to cluster near one another

32. Building the Outline View (cont.) Goals of the algorithm: –(I) Group (recursively) as many pages together within a subhierarchy as possible Avoid (recursively) branches that terminate in only one hit (leaf) –(II) Remove as many internal nodes as possible while while stil retaining at least one valid path to every leaf –(iii) Remove as many edges as possible while retaining at lesat one path to every leaf

33. Building the Outline View (cont.) To achieve these goals we need a non- standard graph algorithm –To do it properly, every possible subset of nodes at depth D should be considered to determine the minimal subset which covers all nodes at depth D+1 –This is inefficient -- would require 2^k checks for k nodes at depth D Instead, we use a heuristic approach which approximates the optimal results

34. Building the Outline View (cont.) First, a top-down pass –record depth of each node and the number of children it links to directly Second, a bottom-up pass –identify the deepest nodes (the leaves) –D <- the set of nodes that are parents of leaves –Sort D ascending according to how many active children they link to at depth D+1 –A node is active if it has not been eliminated

35. Building the Outline View (cont.) Bottom-up pass, continued –every node is a candidate to be eliminated –those nodes with the least number of children are eliminated first because of goal (I) –for each candidate C, if C links to one or more active nodes at depth D+1 that are not covered by any active nodes, then C cannot be eliminated. Otherwise, C is removed from the active list After a level D is complete, there are no active nodes at depth D that cover exclusively nodes that are also covered by another node at depth D

36. Building the Outline View (cont.) Retaining rank ordering –Build up the tree by first placing in the tree the hit (leaf) that is highest ranked –As more leaves are added, more parts of the hierarchy are added, but the order in which the parts of the hierarchy are added is retained When the hierarchy has been built, it is traversed to create the HTML listing

37. Summary Better user interfaces for search should: –Help users understand starting points/sources –Places results of search into an organizing context One (of many) approaches –Cha-Cha: simultaneously browse and search intranet site context Future work –Special handling for short queries –Spelling corrections suggestions –Smarter paths
