1. Time Series Analysis using SAS prepared by John Fahey (former Load Forecaster at NSPI) and Voytek Grus (former Sales and Revenue Forecaster at BC Gas Inc.) for SAS user group, Halifax February 6, 2009

2. Overview A little bit about Times Series Analysis in general. Statistical tools available in SAS to conduct Analysis. Empirical example using SAS

3. What is Time Series Analysis? Time Series - a sequence of data points, measured typically at successive times. Times Series Analysis is a collection of statistical techniques used to understand time series by trying to find an internal mechanism that explains their behavior. –Series decomposition; trend, cyclicality, seasonality, irregularity (random effect) –A central idea to Time series analysis is that it is a statistical (stochastic) process but it has not always been this way… Time series analysis ≠ Forecasting Applications

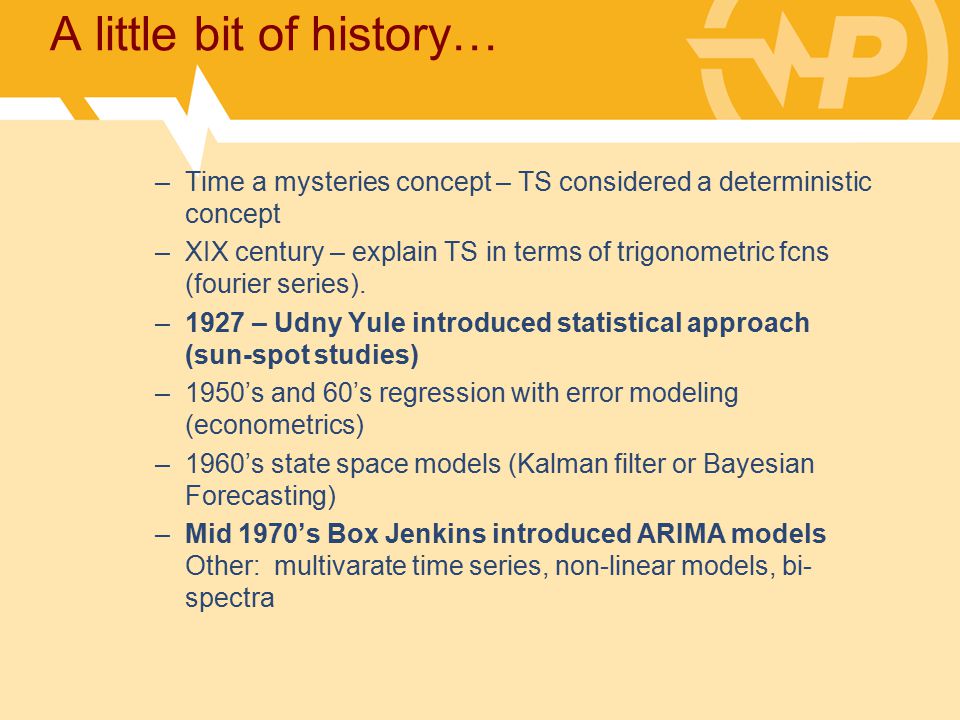

4. A little bit of history… –Time a mysteries concept – TS considered a deterministic concept –XIX century – explain TS in terms of trigonometric fcns (fourier series). –1927 – Udny Yule introduced statistical approach (sun-spot studies) –1950’s and 60’s regression with error modeling (econometrics) –1960’s state space models (Kalman filter or Bayesian Forecasting) –Mid 1970’s Box Jenkins introduced ARIMA models Other: multivarate time series, non-linear models, bi- spectra

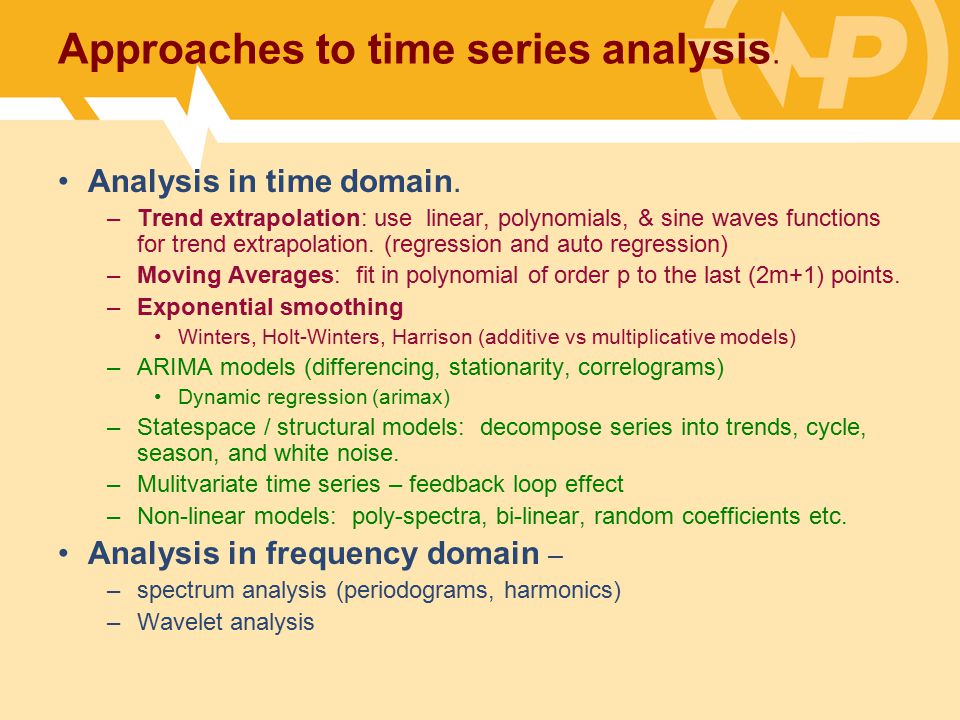

5. Approaches to time series analysis. Analysis in time domain. –Trend extrapolation: use linear, polynomials, & sine waves functions for trend extrapolation. (regression and auto regression) –Moving Averages: fit in polynomial of order p to the last (2m+1) points. –Exponential smoothing Winters, Holt-Winters, Harrison (additive vs multiplicative models) –ARIMA models (differencing, stationarity, correlograms) Dynamic regression (arimax) –Statespace / structural models: decompose series into trends, cycle, season, and white noise. –Mulitvariate time series – feedback loop effect –Non-linear models: poly-spectra, bi-linear, random coefficients etc. Analysis in frequency domain – –spectrum analysis (periodograms, harmonics) –Wavelet analysis

6. Introduction: TS 3 stage process with 6 Analytical Steps Data Screening Trends, seasonal effect, outliers Adjustments Transformations, Trend removal, etc Identifications Examine serial correlation structure Estimation Estimate parameters Model Checking Goodness of fit, residuals Forecasting

7. Identification: Correlogram of SACF (non-stationary series)

8. Identification: Correlogram of SACF (stationary series)

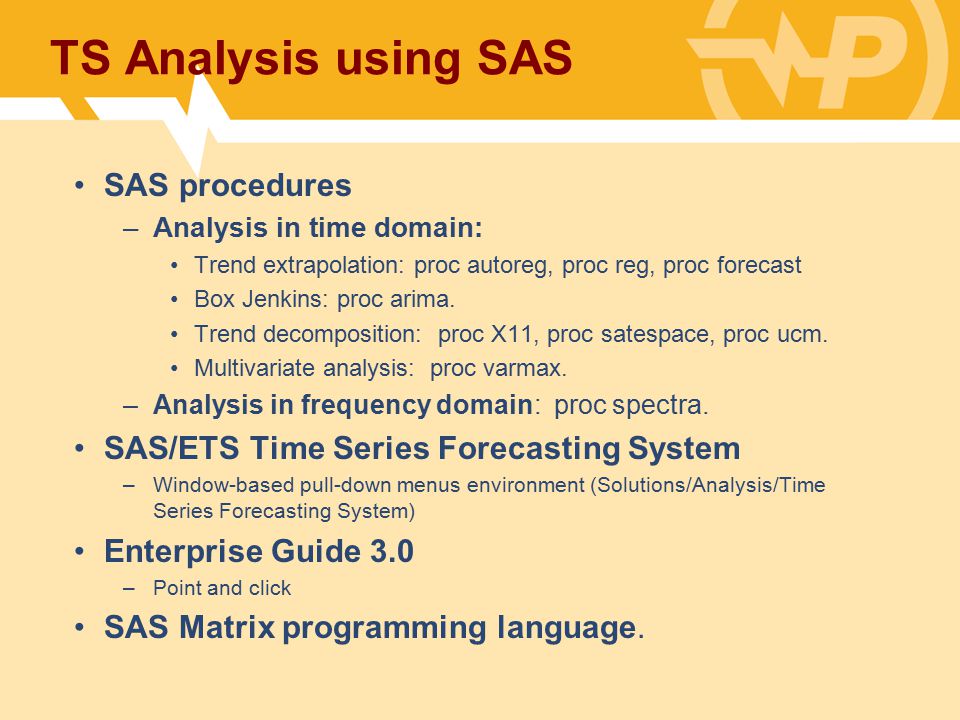

9. TS Analysis using SAS SAS procedures –Analysis in time domain: Trend extrapolation: proc autoreg, proc reg, proc forecast Box Jenkins: proc arima. Trend decomposition: proc X11, proc satespace, proc ucm. Multivariate analysis: proc varmax. –Analysis in frequency domain: proc spectra. SAS/ETS Time Series Forecasting System –Window-based pull-down menus environment (Solutions/Analysis/Time Series Forecasting System) Enterprise Guide 3.0 –Point and click SAS Matrix programming language.

10. How to get started? -SAS help -Chapter 34 of “Getting started with time series forecasting” gives a good overview of TS forecasting system using drop down windows. -Provides outline of the forecasting process -Specify data inputs -Provide a valid time ID -Select and Fit a forecasting model for each series -Produce the forecasts -Save your work -Concept of time and date measurement in SAS.

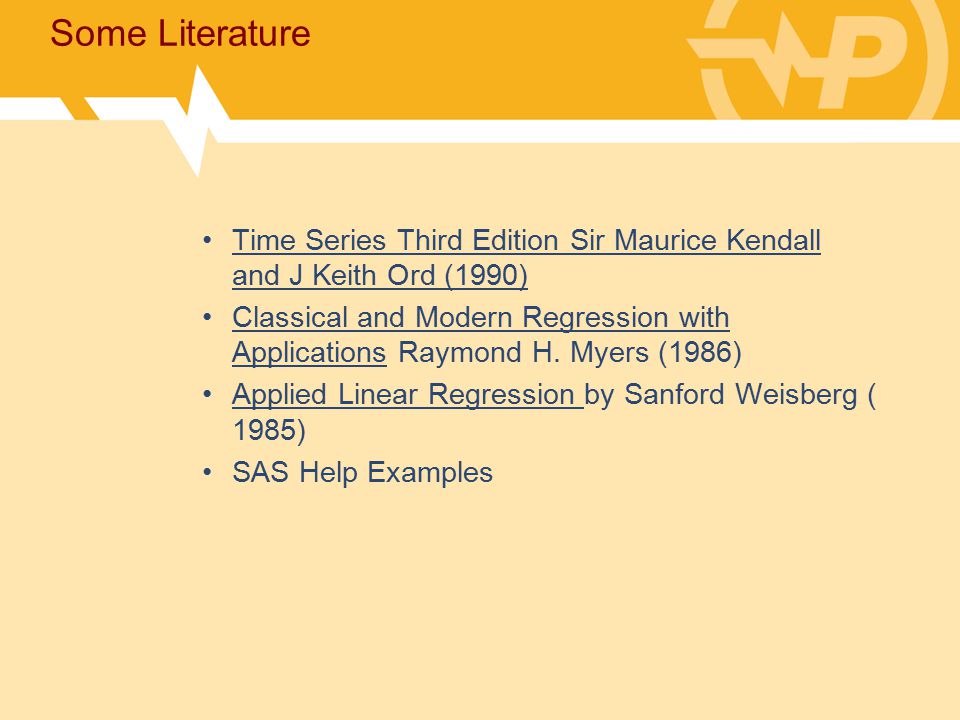

11. Some Literature Time Series Third Edition Sir Maurice Kendall and J Keith Ord (1990) Classical and Modern Regression with Applications Raymond H. Myers (1986) Applied Linear Regression by Sanford Weisberg ( 1985) SAS Help Examples

12. Questions?
