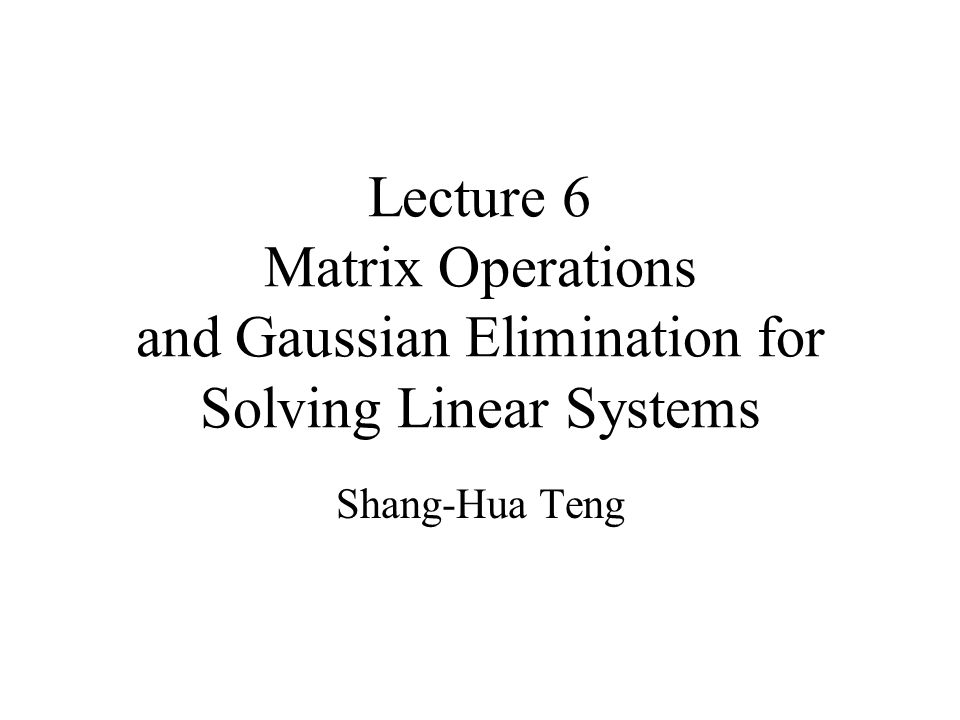

Lecture 6 Matrix Operations and Gaussian Elimination for Solving Linear Systems Shang-Hua Teng

2

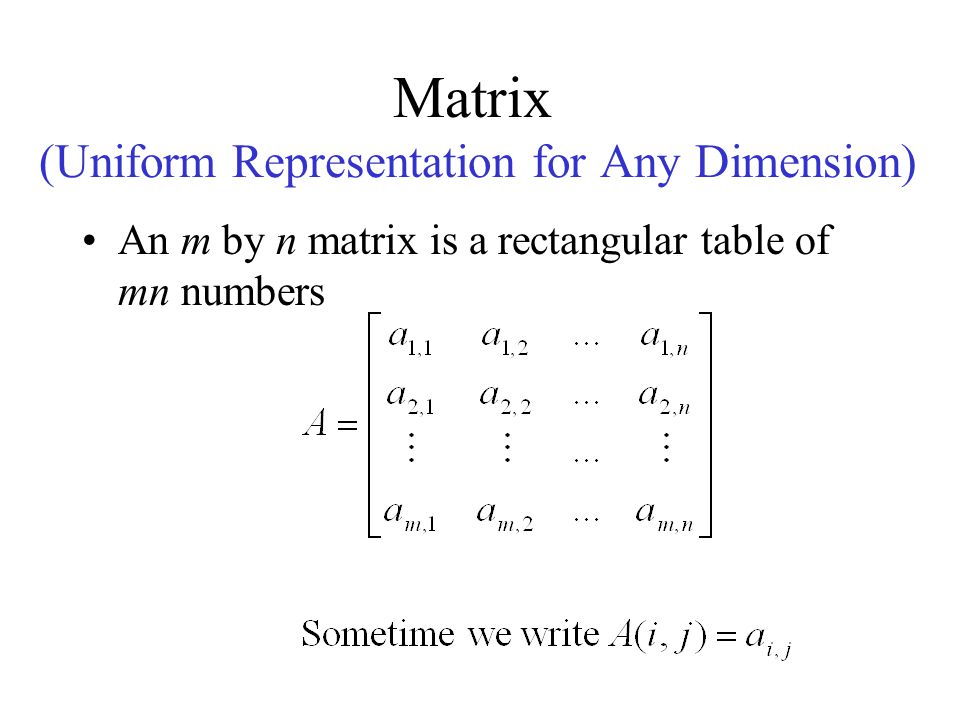

Matrix (Uniform Representation for Any Dimension) An m by n matrix is a rectangular table of mn numbers

3

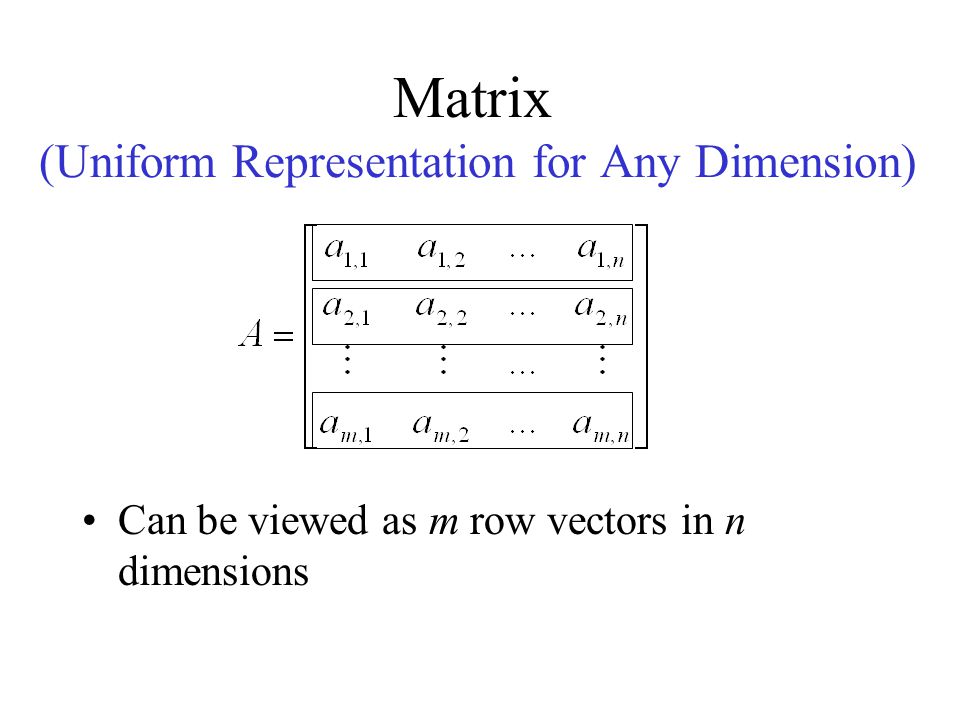

Matrix (Uniform Representation for Any Dimension) Can be viewed as m row vectors in n dimensions

4
Matrix (Uniform Representation for Any Dimension) Or can be viewed as n column vectors in m dimensions

5

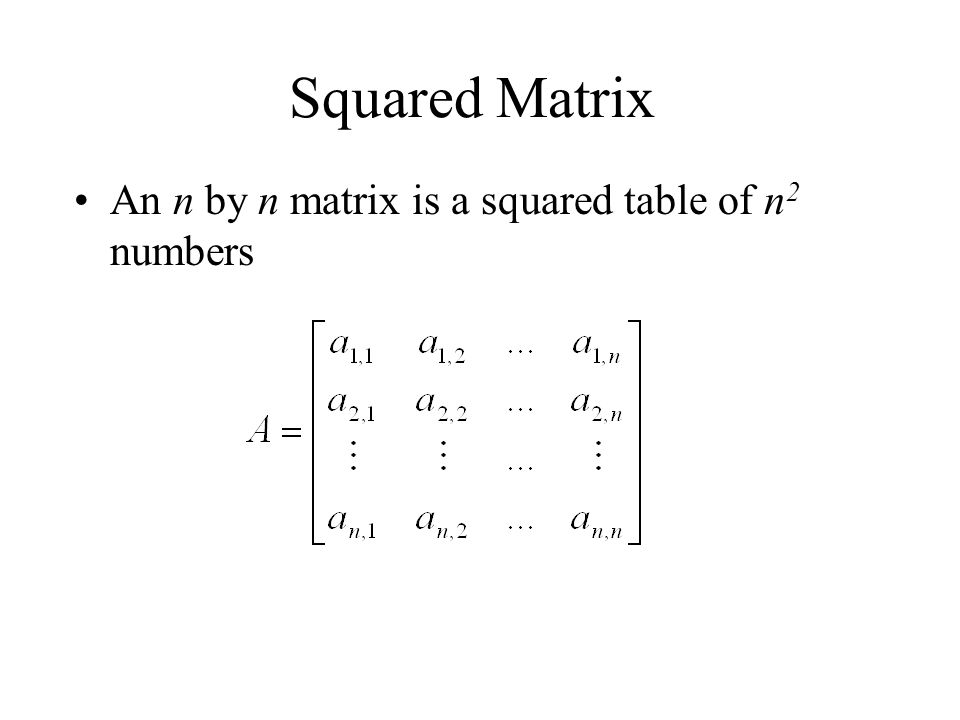

Squared Matrix An n by n matrix is a squared table of n 2 numbers

6

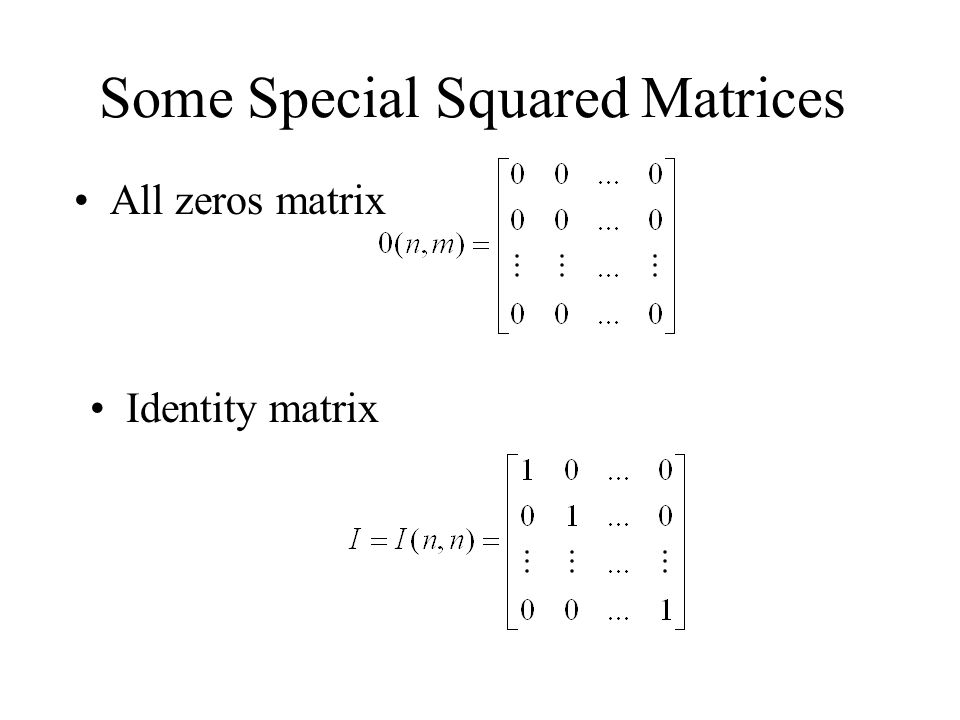

Some Special Squared Matrices All zeros matrix Identity matrix

7
Matrix Operations Addition Scalar multiplication Multiplication

8
1. Matrix Addition: Matrices have to have the same dimensions What is the complexity?

9

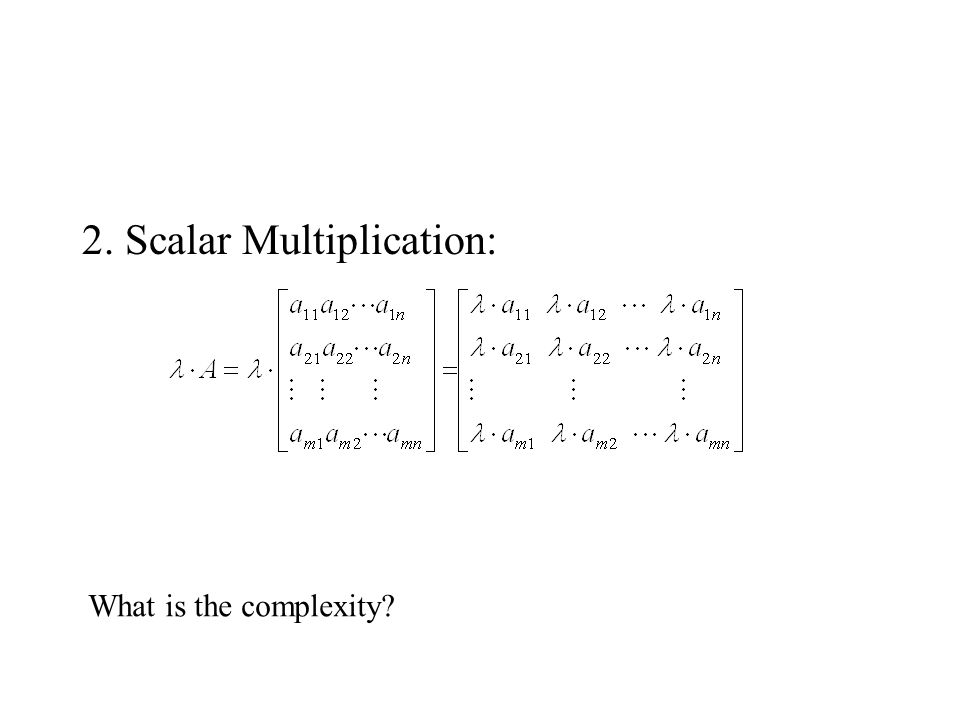

2. Scalar Multiplication: What is the complexity?

10
3. Matrix Multiplication Two matrices have to be conformal What is the complexity?

11
Matrix Multiplication Two matrices have to be conformal

12
The Laws of Matrix Operations A + B = B + A (commutative) c(A+B) = cA + c+B (distributive) A + (B + C) = (A + B) + C (associative) C(A+B) = CA + CB (distributive from left) (A+B)C = AC+BC (distributive from right) A(BC) = (AB)C (associative) But in general:

13
Counter Example

14
Special Matrices Identity matrix I –IA = AI = A Square Matrix A

15
Elimination: Method for Solving Linear Systems Linear Systems == System of Linear Equations Elimination: –Multiply the LHS and RHS of an equation by a nonzero constant results the same equations –Adding the LHSs and RHSs of two equations does not change the solution

16
Elimination in 2D Multiply the first equation by 3 and subtracts from the second equation (to eliminate x) The two systems have the same solution The second system is easy to solve

17

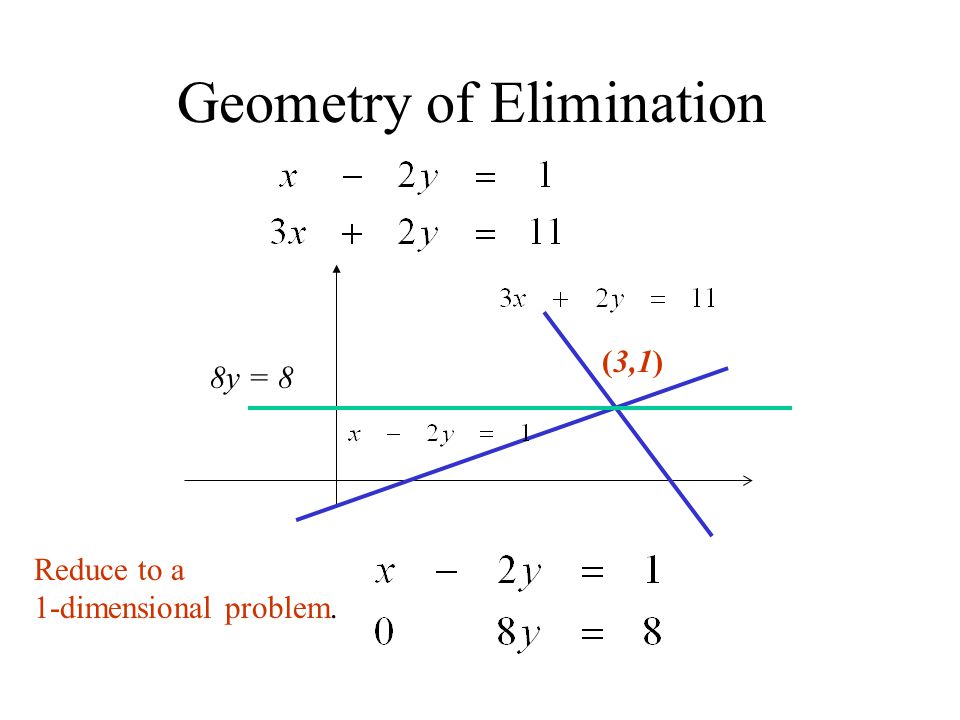

Geometry of Elimination (3,1) 8y = 8 Reduce to a 1-dimensional problem.

18

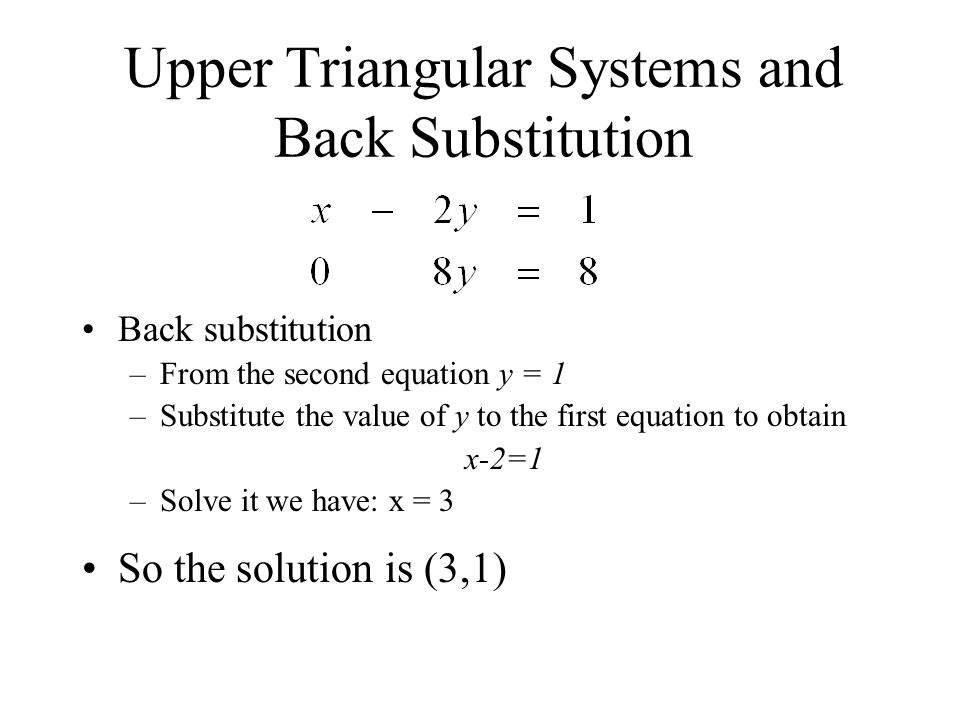

Upper Triangular Systems and Back Substitution Back substitution –From the second equation y = 1 –Substitute the value of y to the first equation to obtain x-2=1 –Solve it we have: x = 3 So the solution is (3,1)

19
How Much to Multiply before Subtracting Pivot: first nonzero in the row that does the elimination Multiplier: (entry to eliminate) divided by (pivot) Multiply: = 3/1

20
How Much to Multiply before Subtracting Pivot: first nonzero in the row that does the elimination Multiplier: (entry to eliminate) divided by (pivot) Multiply: = 3/2 The pivots are on the diagonal of the triangle after the elimination

21

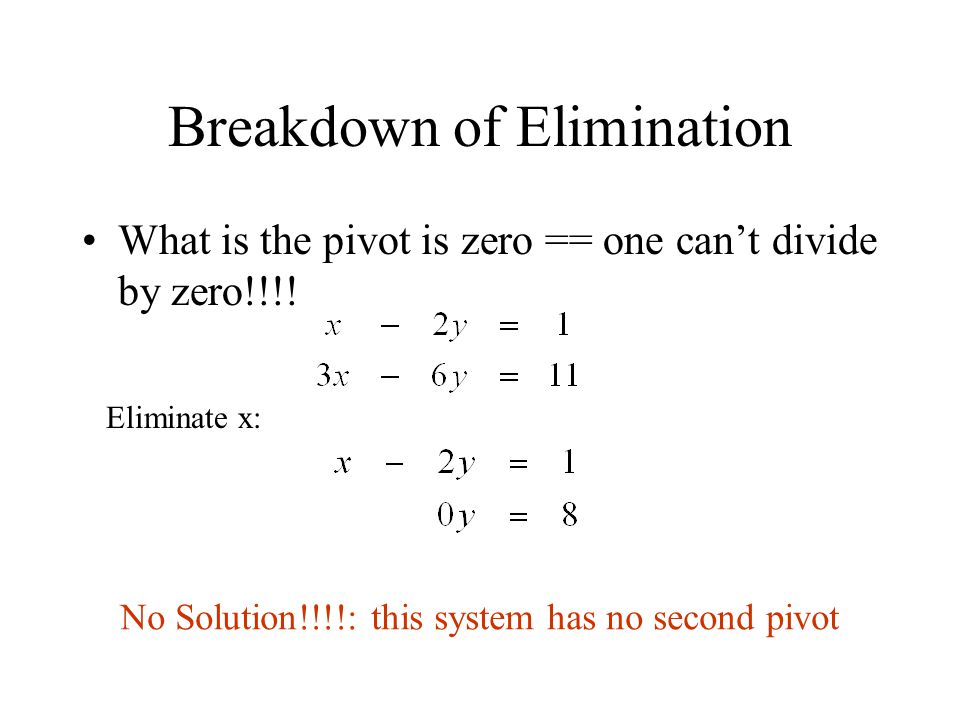

Breakdown of Elimination What is the pivot is zero == one can’t divide by zero!!!! Eliminate x: No Solution!!!!: this system has no second pivot

22
Geometric Intuition (Row Pictures) Two parallel lines never intersect (3,1) 8y = 8

23
Geometric Intuition (Column Picture) Two column vectors are co-linear!!!!

24

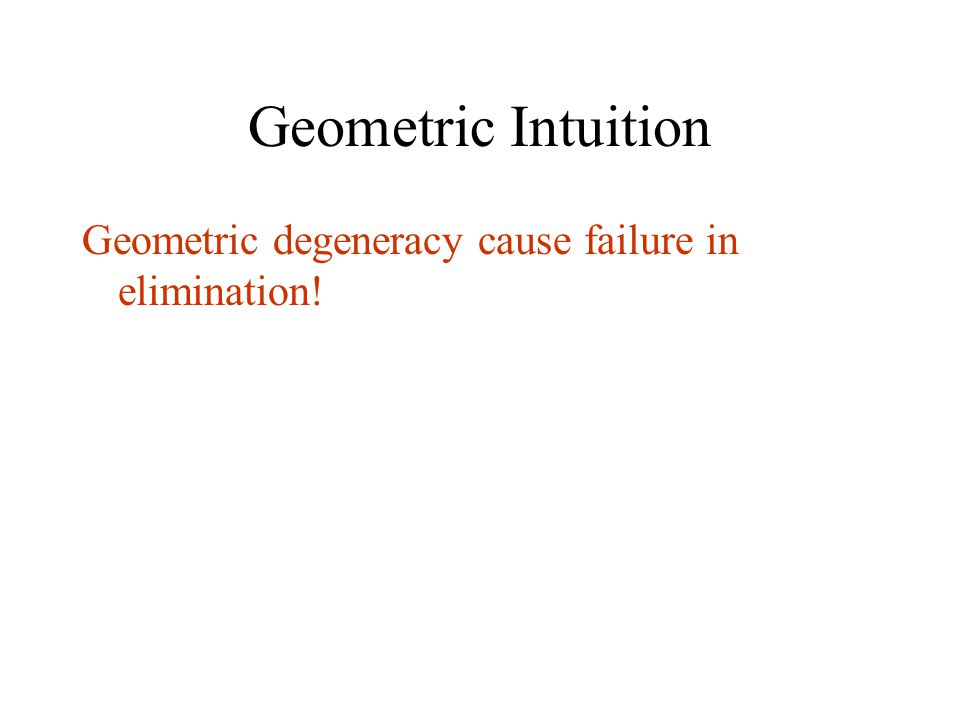

Geometric Intuition Geometric degeneracy cause failure in elimination!

25

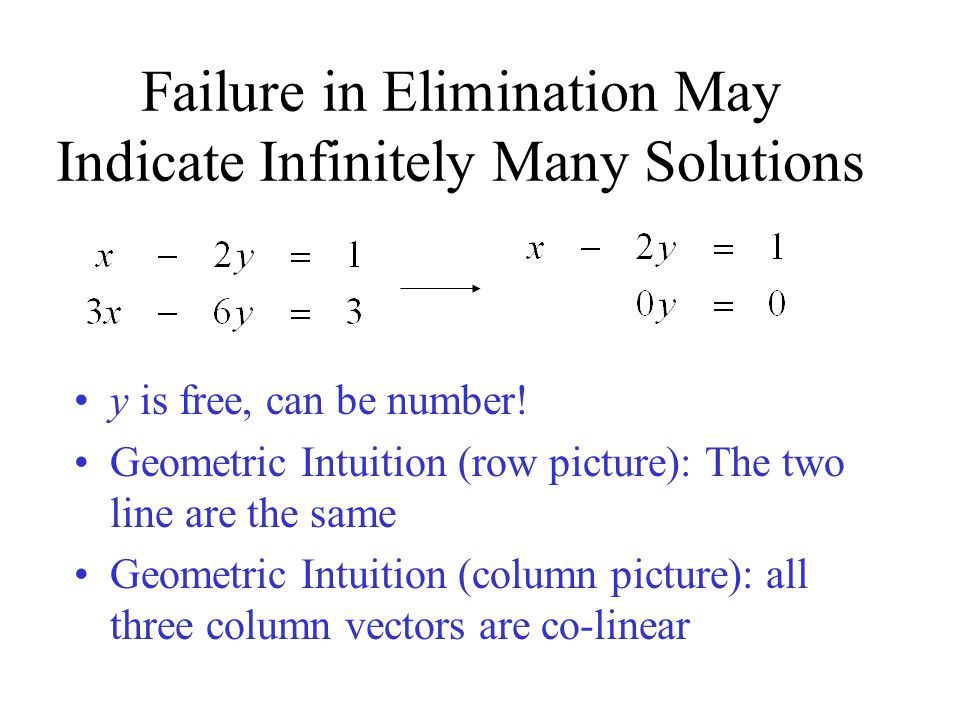

Failure in Elimination May Indicate Infinitely Many Solutions y is free, can be number! Geometric Intuition (row picture): The two line are the same Geometric Intuition (column picture): all three column vectors are co-linear

26

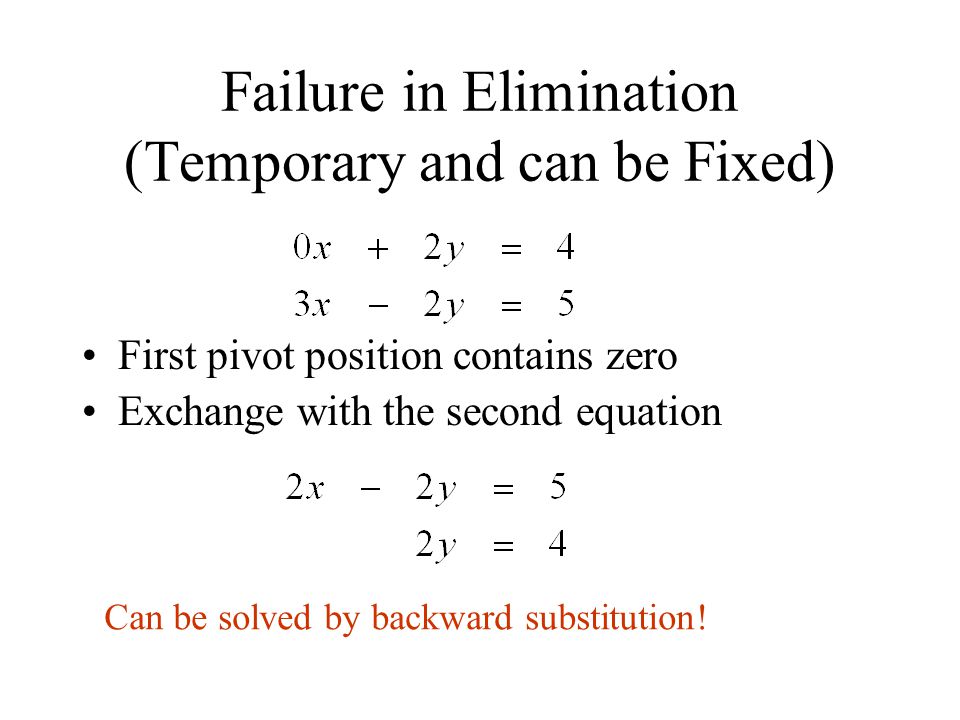

Failure in Elimination (Temporary and can be Fixed) First pivot position contains zero Exchange with the second equation Can be solved by backward substitution!

27
Singular Systems versus Non-Singular Systems A singular system has no solution or infinitely many solution –Row Picture: two line are parallel or the same –Column Picture: Two column vectors are co- linear A non-singular system has a unique solution –Row Picture: two non-parallel lines –Column Picture: two non-colinear column vectors

28
Gaussian Elimination in 3D Using the first pivot to eliminate x from the next two equations

29

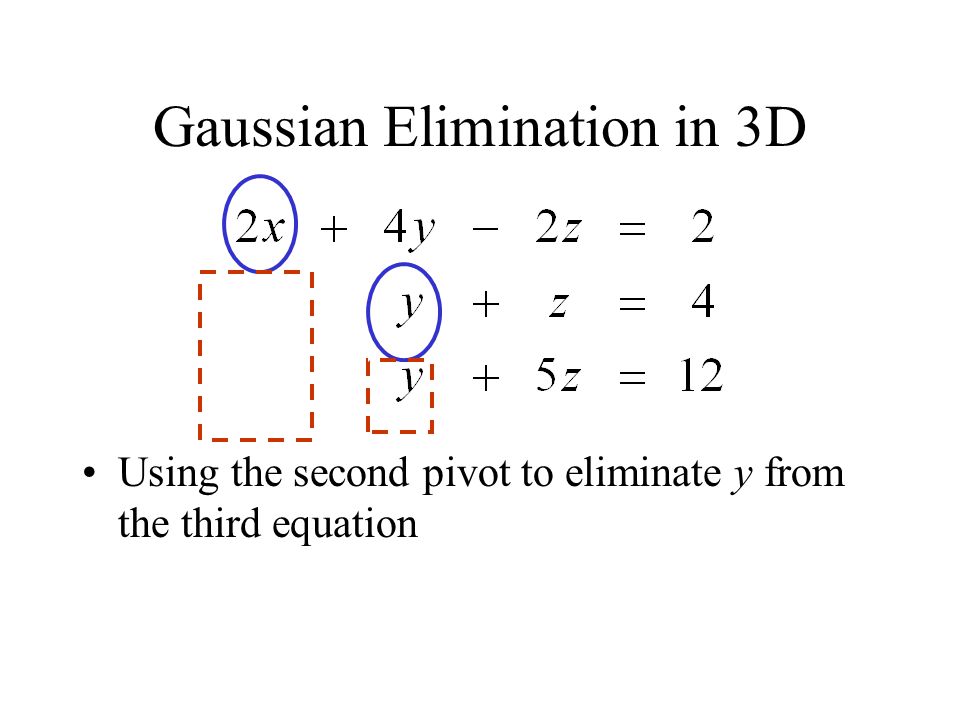

Gaussian Elimination in 3D Using the second pivot to eliminate y from the third equation

30
Gaussian Elimination in 3D Using the second pivot to eliminate y from the third equation

31

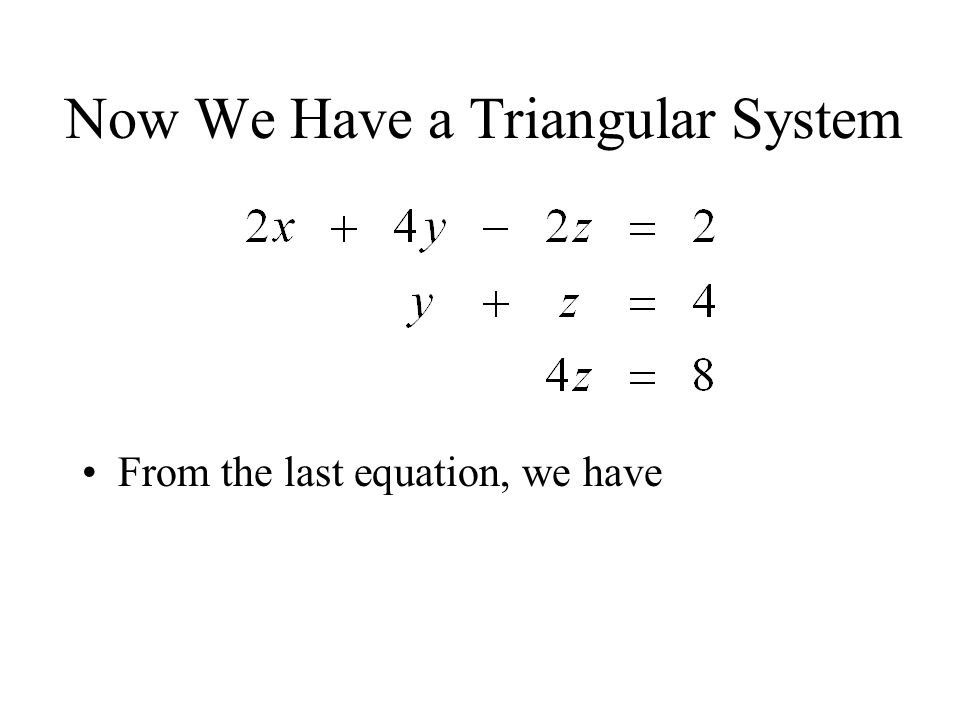

Now We Have a Triangular System From the last equation, we have

32
Backward Substitution And substitute z to the first two equations

33
Backward Substitution We can solve y

34
Backward Substitution Substitute to the first equation

35
Backward Substitution We can solve the first equation

36
Backward Substitution We can solve the first equation

37

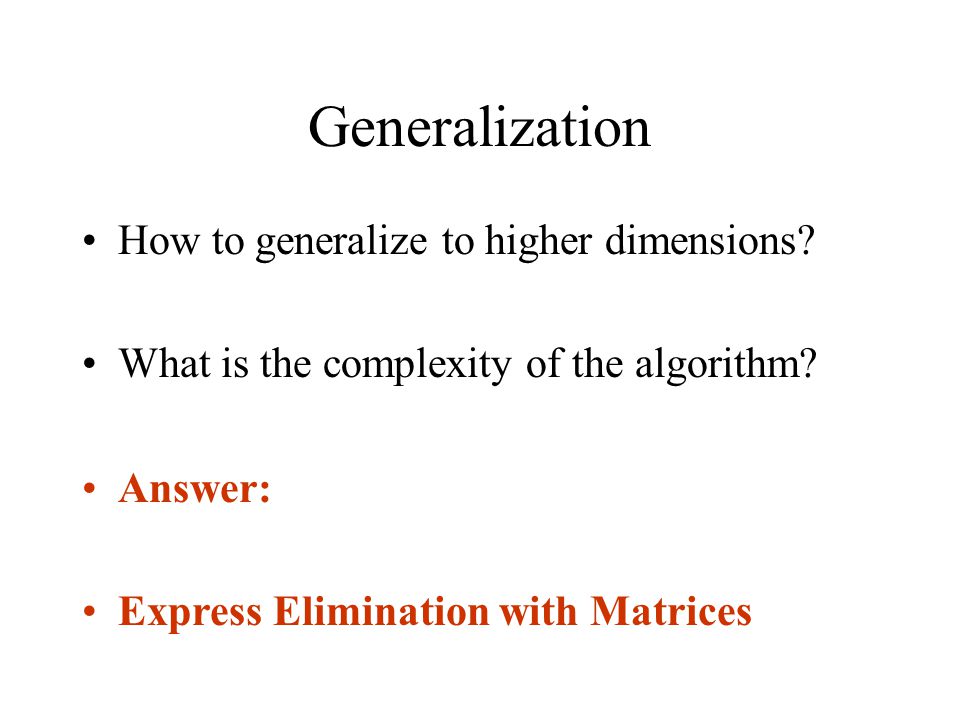

Generalization How to generalize to higher dimensions? What is the complexity of the algorithm? Answer: Express Elimination with Matrices

38
Step 1 Build Augmented Matrix Ax = b [A b]

39
Pivot 1: The elimination of column 1

40
Pivot 2: The elimination of column 2 Upper triangular matrix

41
Backward Substitution 1: from the last column to the first Upper triangular matrix

42

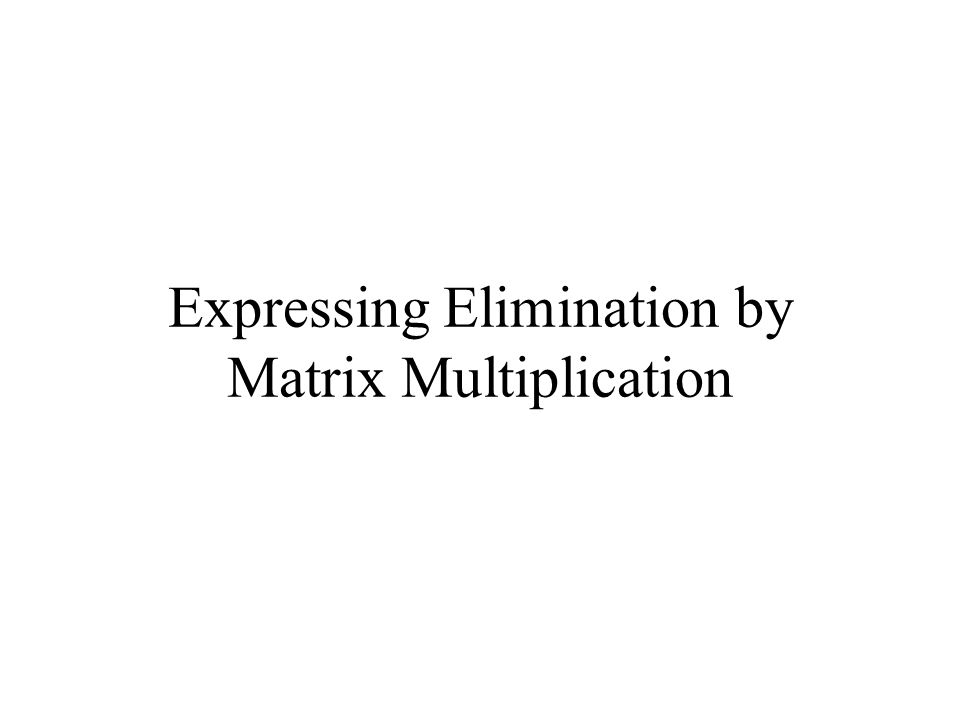

Expressing Elimination by Matrix Multiplication

43

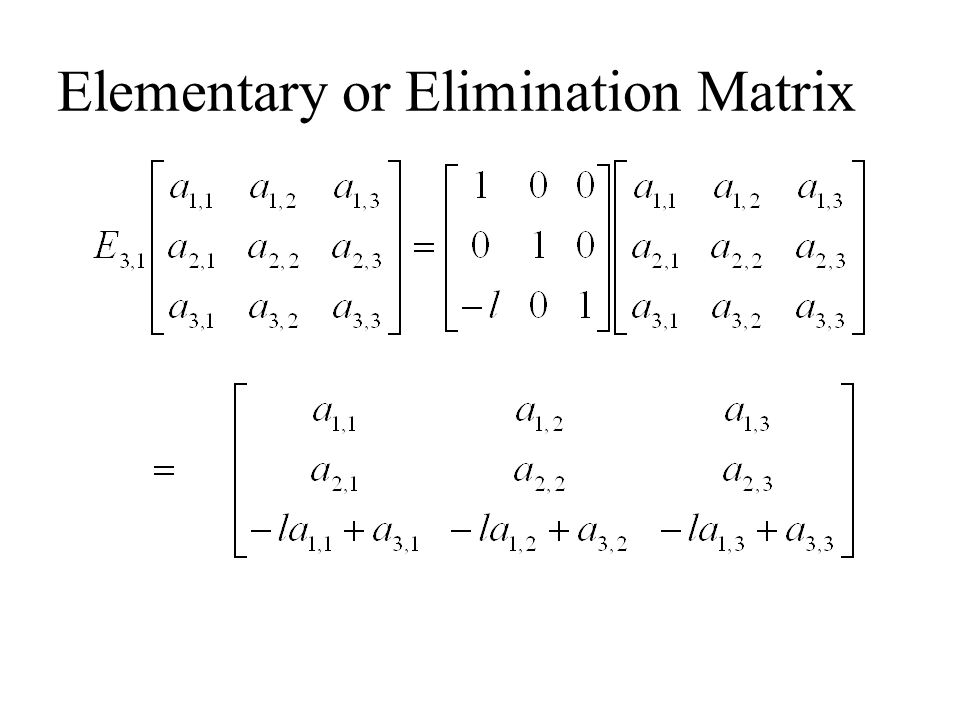

Elementary or Elimination Matrix The elementary or elimination matrix That subtracts a multiple l of row j from row i can be obtained from the identity entry by adding (-l) in the i,j position

44
Elementary or Elimination Matrix

45
Pivot 1: The elimination of column 1 Elimination matrix

46

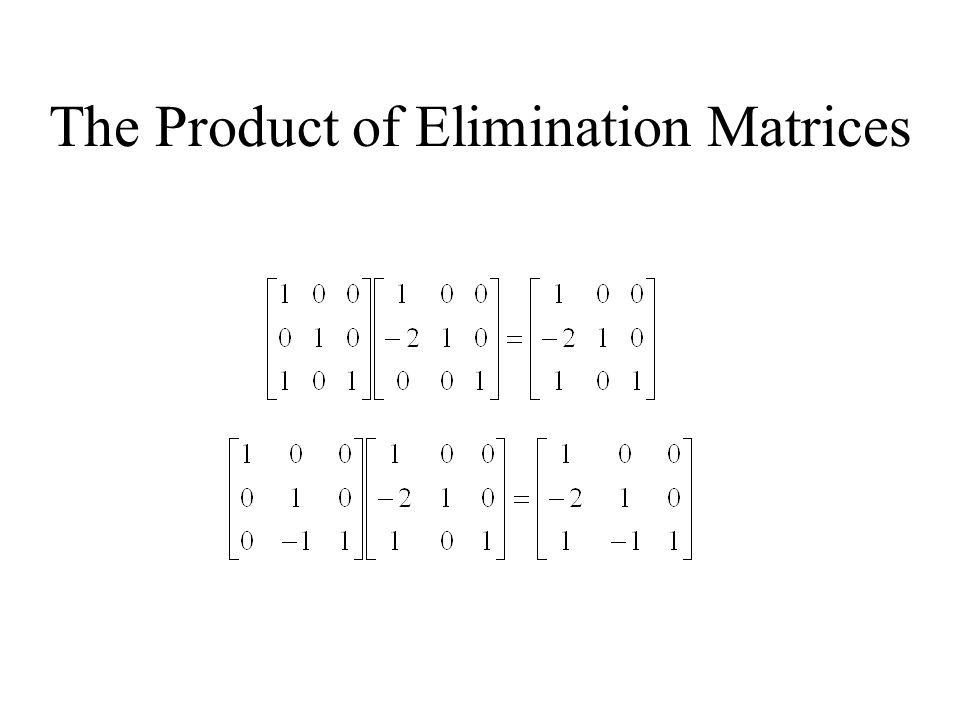

The Product of Elimination Matrices
