1. Introducing Shooting Scene Investigations

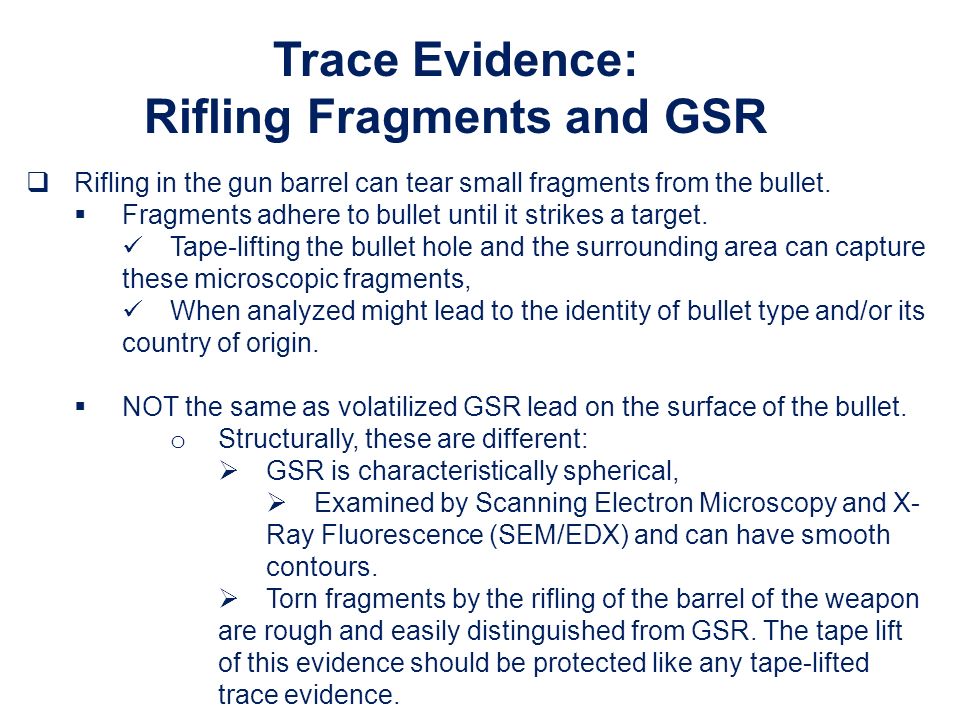

2.  Rifling in the gun barrel can tear small fragments from the bullet.  Fragments adhere to bullet until it strikes a target. Tape-lifting the bullet hole and the surrounding area can capture these microscopic fragments, When analyzed might lead to the identity of bullet type and/or its country of origin.  NOT the same as volatilized GSR lead on the surface of the bullet. o Structurally, these are different:  GSR is characteristically spherical,  Examined by Scanning Electron Microscopy and X- Ray Fluorescence (SEM/EDX) and can have smooth contours.  Torn fragments by the rifling of the barrel of the weapon are rough and easily distinguished from GSR. The tape lift of this evidence should be protected like any tape-lifted trace evidence. Trace Evidence: Rifling Fragments and GSR

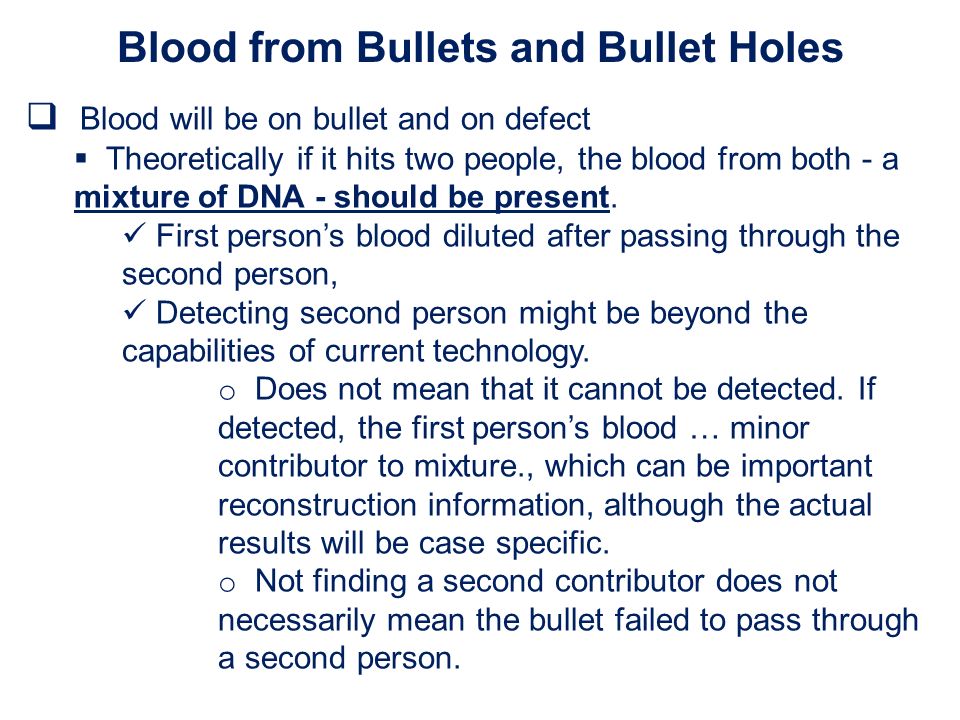

3.  Blood will be on bullet and on defect  Theoretically if it hits two people, the blood from both - a mixture of DNA - should be present. First person’s blood diluted after passing through the second person, Detecting second person might be beyond the capabilities of current technology. o Does not mean that it cannot be detected. If detected, the first person’s blood … minor contributor to mixture., which can be important reconstruction information, although the actual results will be case specific. o Not finding a second contributor does not necessarily mean the bullet failed to pass through a second person. Blood from Bullets and Bullet Holes

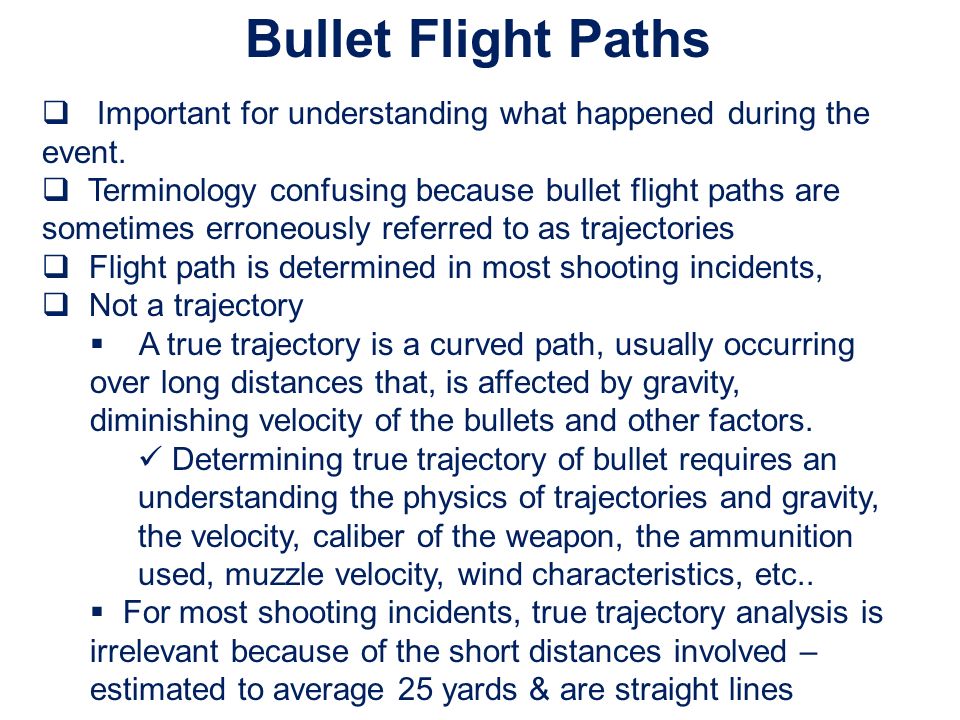

4.  Important for understanding what happened during the event.  Terminology confusing because bullet flight paths are sometimes erroneously referred to as trajectories  Flight path is determined in most shooting incidents,  Not a trajectory  A true trajectory is a curved path, usually occurring over long distances that, is affected by gravity, diminishing velocity of the bullets and other factors. Determining true trajectory of bullet requires an understanding the physics of trajectories and gravity, the velocity, caliber of the weapon, the ammunition used, muzzle velocity, wind characteristics, etc..  For most shooting incidents, true trajectory analysis is irrelevant because of the short distances involved – estimated to average 25 yards & are straight lines Bullet Flight Paths

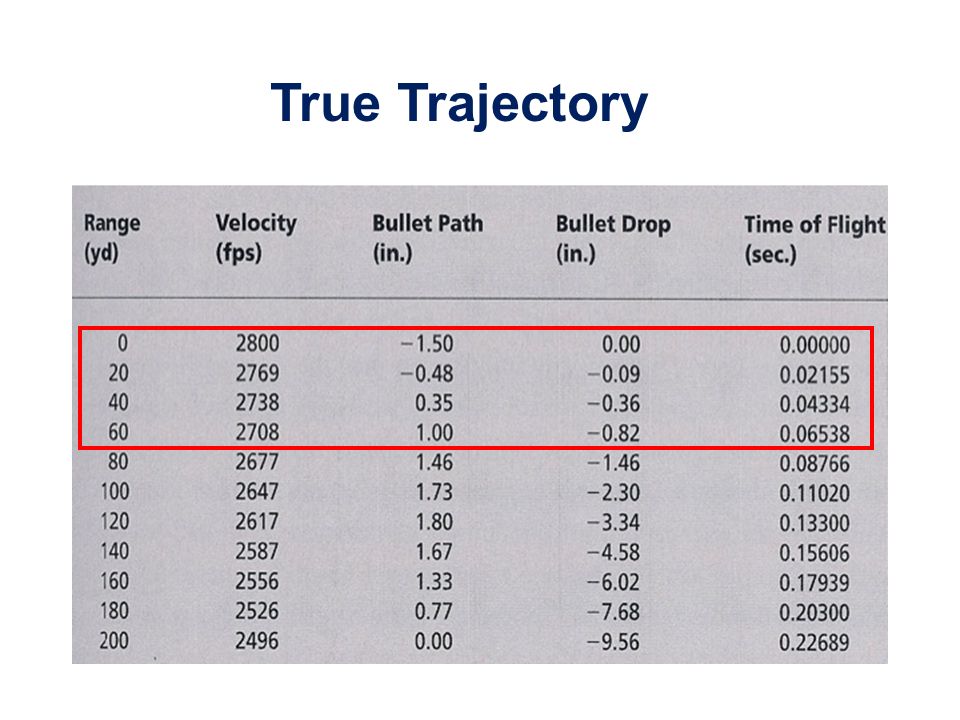

5. Trajectory for.308 Diameter 168 gr. JHP-BT @ 2800fps Muzzle Velocity True Trajectory

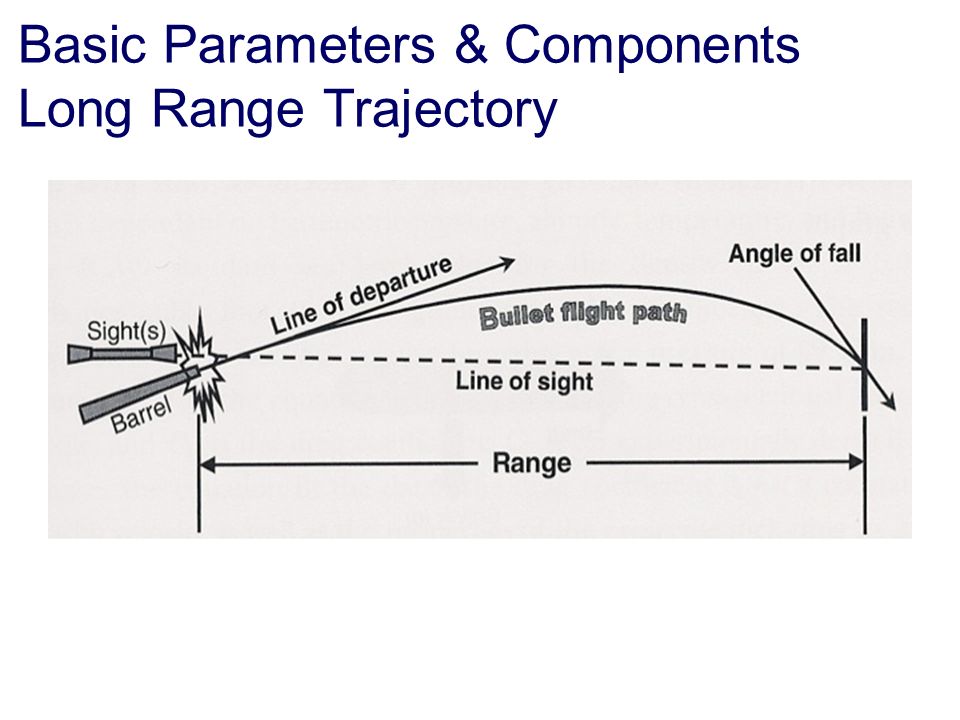

6. Basic Parameters & Components Long Range Trajectory

7. Bullet Flight Paths

8.  Intermediate targets  Requires investigation to determine what was hit.  Recovered bullets help identify intermediate targets Trace evidence present. Secondarily, packaging it properly to preserve trace evidence for laboratory analysis.  Fatal Bullets  Some fatal bullets found & identified during the autopsy.  Bloody bullets @ scene not necessarily fatal projectile Might have passed through someone’s arm or other soft tissue.  Only the ME can determine which bullets were fatal.  On-scene bullet path angular component (coordinates) measurements.  If measurements erroneous, the bullet path determination will be incorrect Positioning shooter positions incorrect. Identifying Bullet Flight Paths

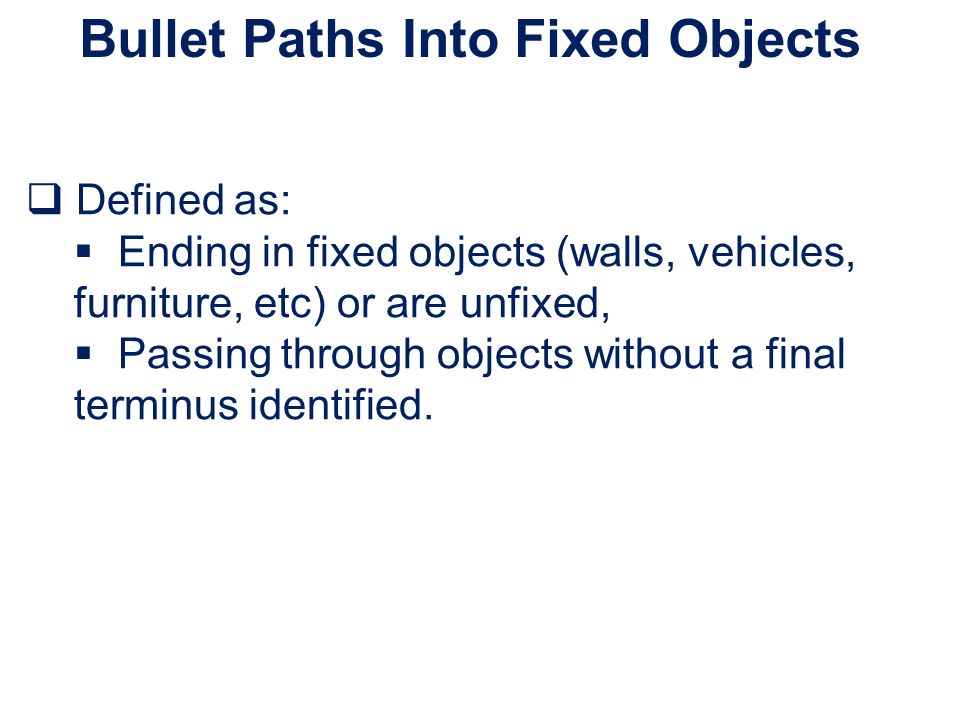

9.  Defined as:  Ending in fixed objects (walls, vehicles, furniture, etc) or are unfixed,  Passing through objects without a final terminus identified. Bullet Paths Into Fixed Objects

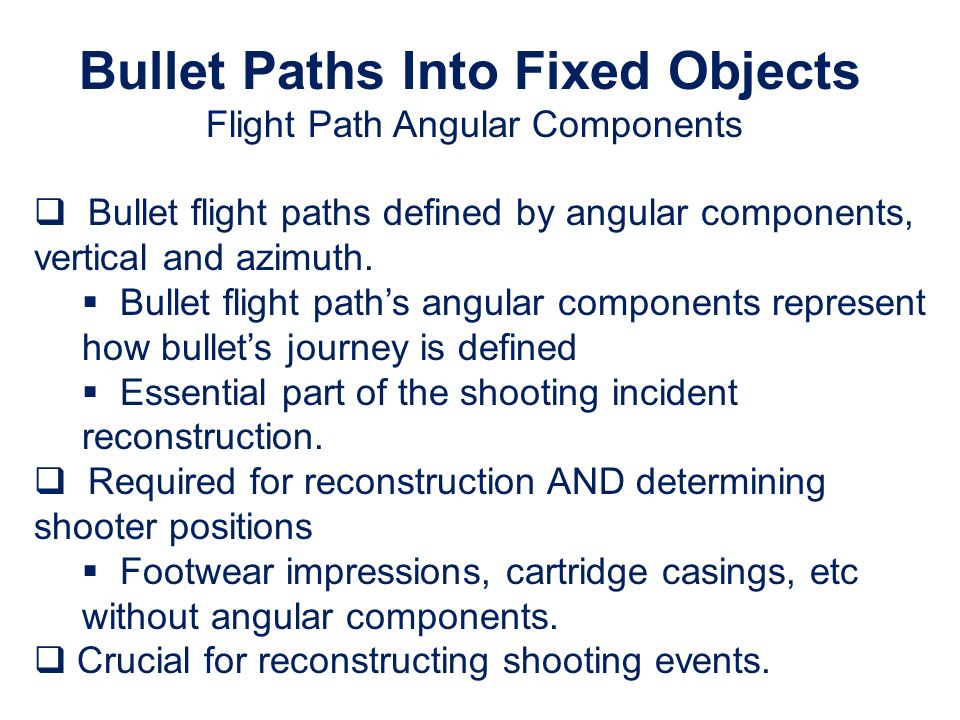

10.  Bullet flight paths defined by angular components, vertical and azimuth.  Bullet flight path’s angular components represent how bullet’s journey is defined  Essential part of the shooting incident reconstruction.  Required for reconstruction AND determining shooter positions  Footwear impressions, cartridge casings, etc without angular components.  Crucial for reconstructing shooting events. Flight Path Angular Components

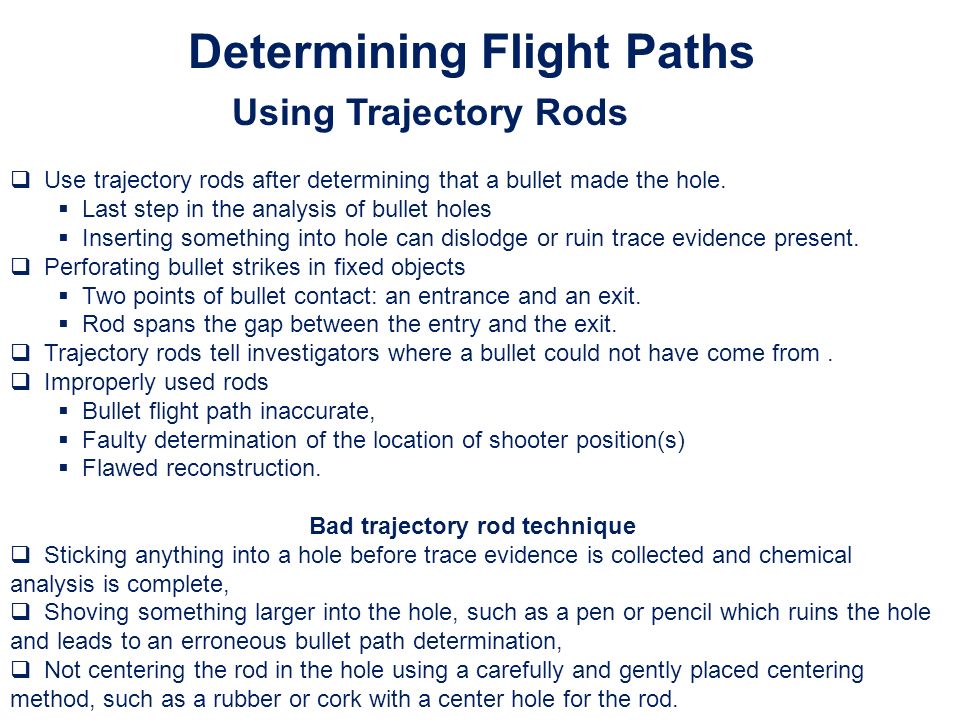

11.  Use trajectory rods after determining that a bullet made the hole.  Last step in the analysis of bullet holes  Inserting something into hole can dislodge or ruin trace evidence present.  Perforating bullet strikes in fixed objects  Two points of bullet contact: an entrance and an exit.  Rod spans the gap between the entry and the exit.  Trajectory rods tell investigators where a bullet could not have come from.  Improperly used rods  Bullet flight path inaccurate,  Faulty determination of the location of shooter position(s)  Flawed reconstruction. Bad trajectory rod technique  Sticking anything into a hole before trace evidence is collected and chemical analysis is complete,  Shoving something larger into the hole, such as a pen or pencil which ruins the hole and leads to an erroneous bullet path determination,  Not centering the rod in the hole using a carefully and gently placed centering method, such as a rubber or cork with a center hole for the rod. Determining Flight Paths Using Trajectory Rods

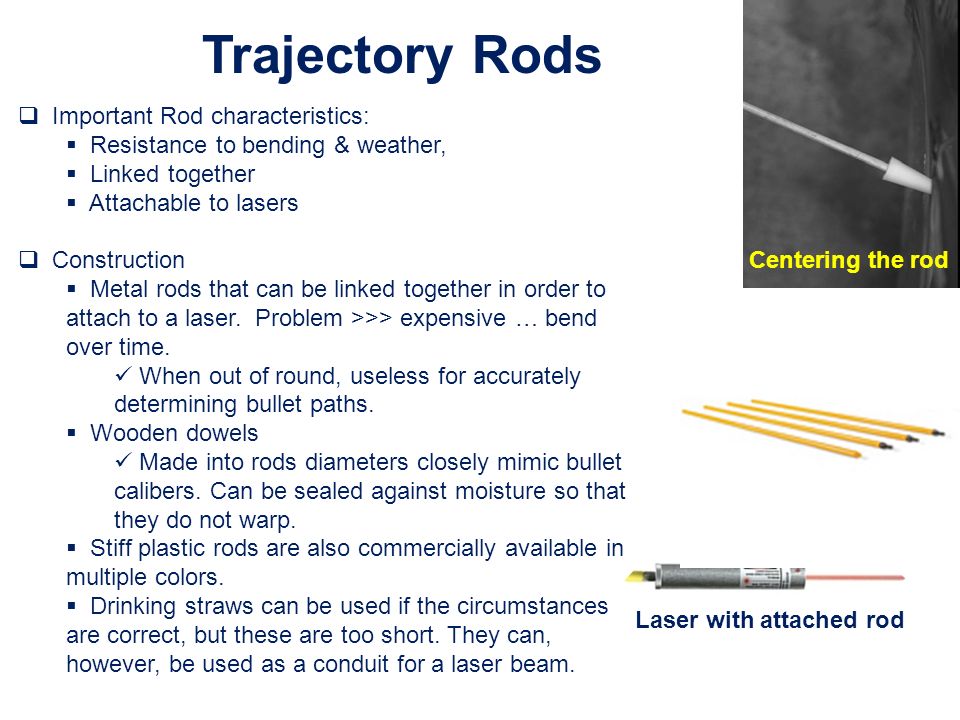

12.  Important Rod characteristics:  Resistance to bending & weather,  Linked together  Attachable to lasers  Construction  Metal rods that can be linked together in order to attach to a laser. Problem >>> expensive … bend over time. When out of round, useless for accurately determining bullet paths.  Wooden dowels Made into rods diameters closely mimic bullet calibers. Can be sealed against moisture so that they do not warp.  Stiff plastic rods are also commercially available in multiple colors.  Drinking straws can be used if the circumstances are correct, but these are too short. They can, however, be used as a conduit for a laser beam. Trajectory Rods Laser with attached rod Centering the rod

13. Angular Components of the Bullet Flight Path  Defined with respect to two important angular components … sometimes be @ scene:  For vehicular shooting incidents, these are best determined off-site.  The angular components are vertical and horizontal (azimuth): up-down and side-to-side.  The vertical component is the North/South (up or down) path,  The azimuth is the horizontal East/West (left or right) path.  Describing each is critical because bullets travel in three dimensional planes - up or down and left-to-right or right-to-left.  If path is neither an up or down nor left-to-right nor right-to- left, they have no angular component.

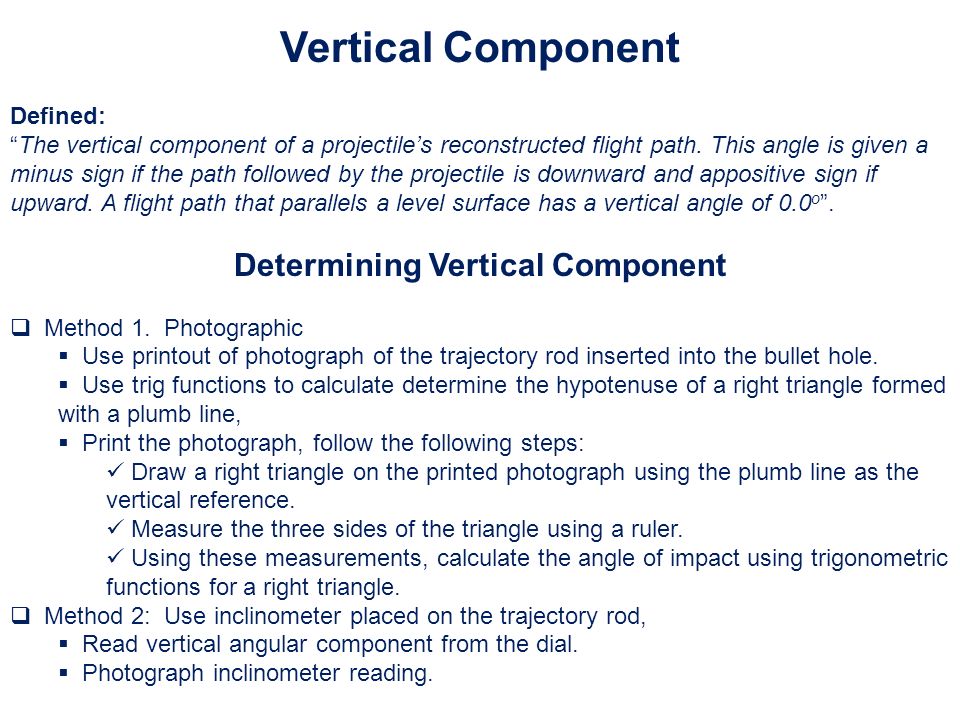

14. Vertical Component Defined: “The vertical component of a projectile’s reconstructed flight path. This angle is given a minus sign if the path followed by the projectile is downward and appositive sign if upward. A flight path that parallels a level surface has a vertical angle of 0.0 o ”. Determining Vertical Component  Method 1. Photographic  Use printout of photograph of the trajectory rod inserted into the bullet hole.  Use trig functions to calculate determine the hypotenuse of a right triangle formed with a plumb line,  Print the photograph, follow the following steps: Draw a right triangle on the printed photograph using the plumb line as the vertical reference. Measure the three sides of the triangle using a ruler. Using these measurements, calculate the angle of impact using trigonometric functions for a right triangle.  Method 2: Use inclinometer placed on the trajectory rod,  Read vertical angular component from the dial.  Photograph inclinometer reading.

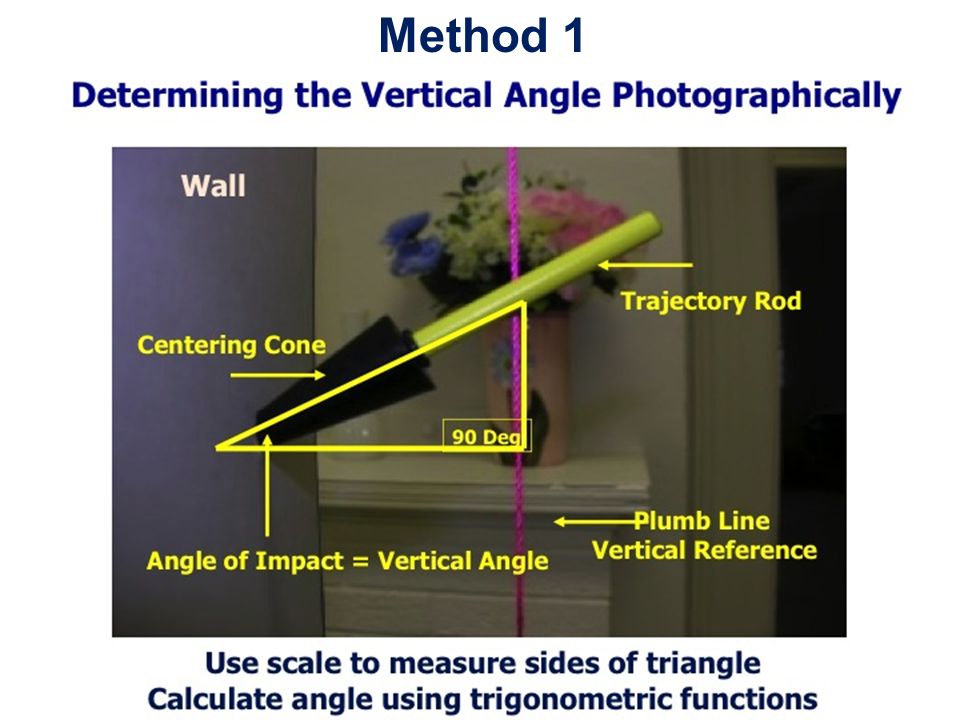

15. Method 1

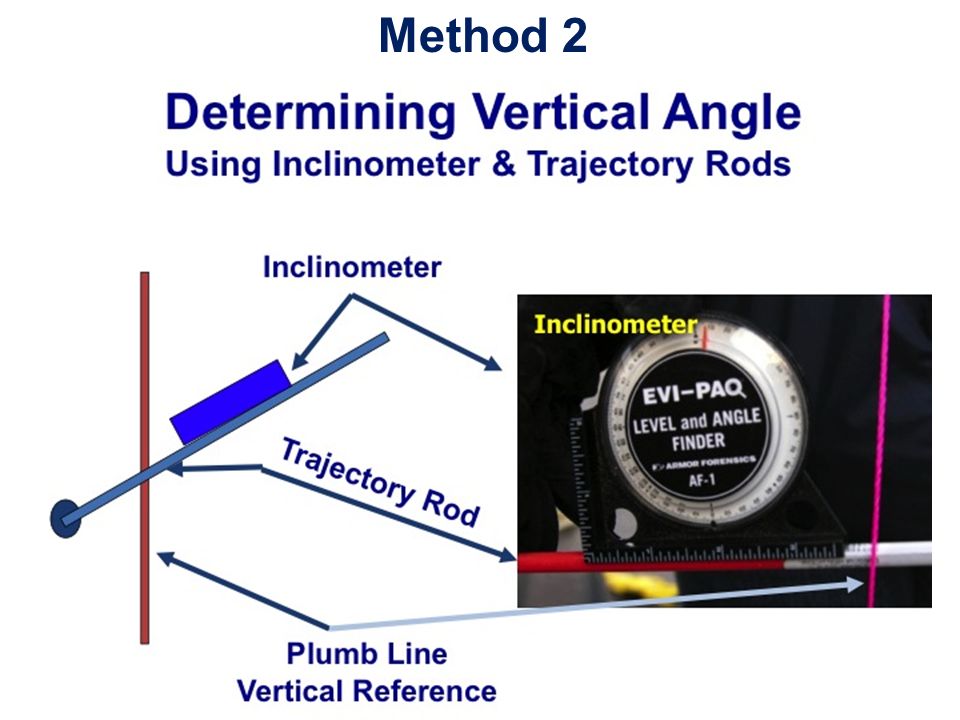

16. Method 2

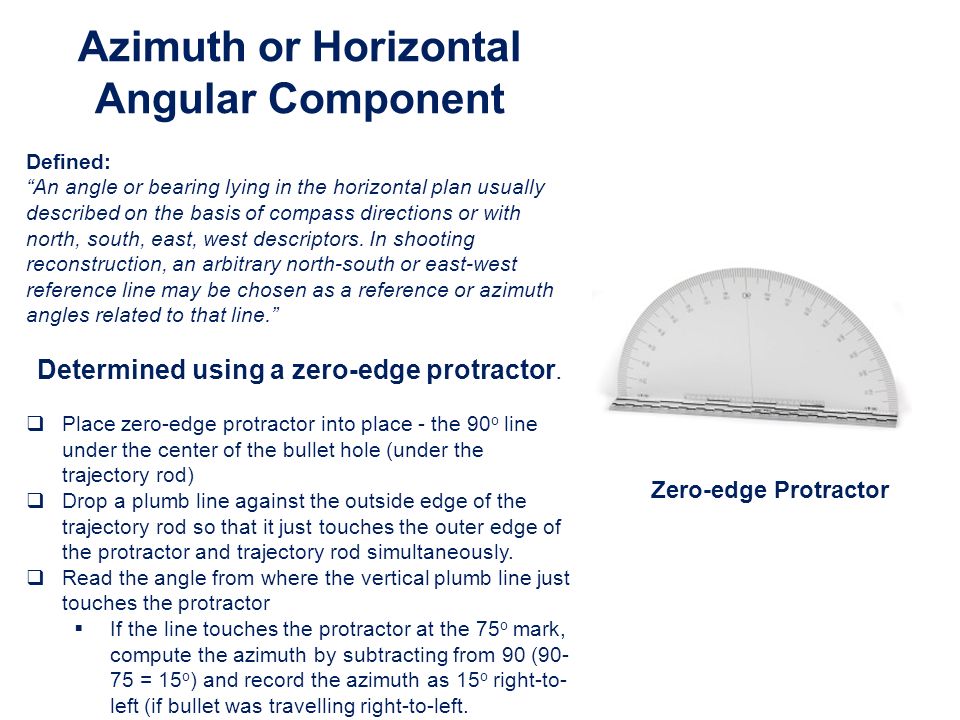

17. Azimuth or Horizontal Angular Component Defined: “An angle or bearing lying in the horizontal plan usually described on the basis of compass directions or with north, south, east, west descriptors. In shooting reconstruction, an arbitrary north-south or east-west reference line may be chosen as a reference or azimuth angles related to that line.” Determined using a zero-edge protractor.  Place zero-edge protractor into place - the 90 o line under the center of the bullet hole (under the trajectory rod)  Drop a plumb line against the outside edge of the trajectory rod so that it just touches the outer edge of the protractor and trajectory rod simultaneously.  Read the angle from where the vertical plumb line just touches the protractor  If the line touches the protractor at the 75 o mark, compute the azimuth by subtracting from 90 (90- 75 = 15 o ) and record the azimuth as 15 o right-to- left (if bullet was travelling right-to-left. Zero-edge Protractor

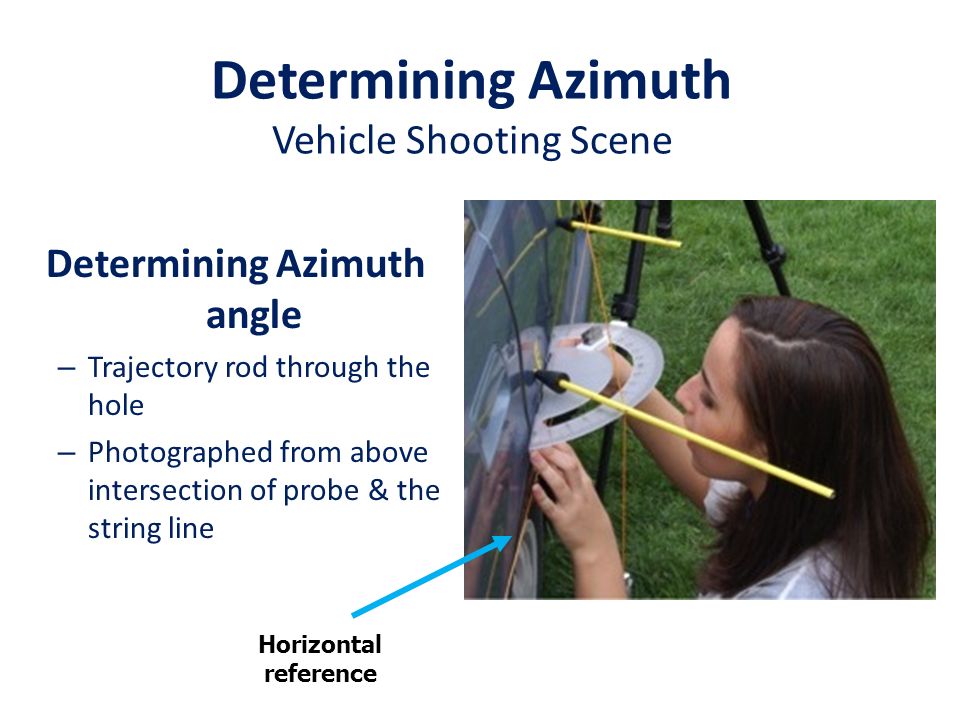

19. Determining Azimuth Vehicle Shooting Scene Determining Azimuth angle – Trajectory rod through the hole – Photographed from above intersection of probe & the string line Horizontal reference

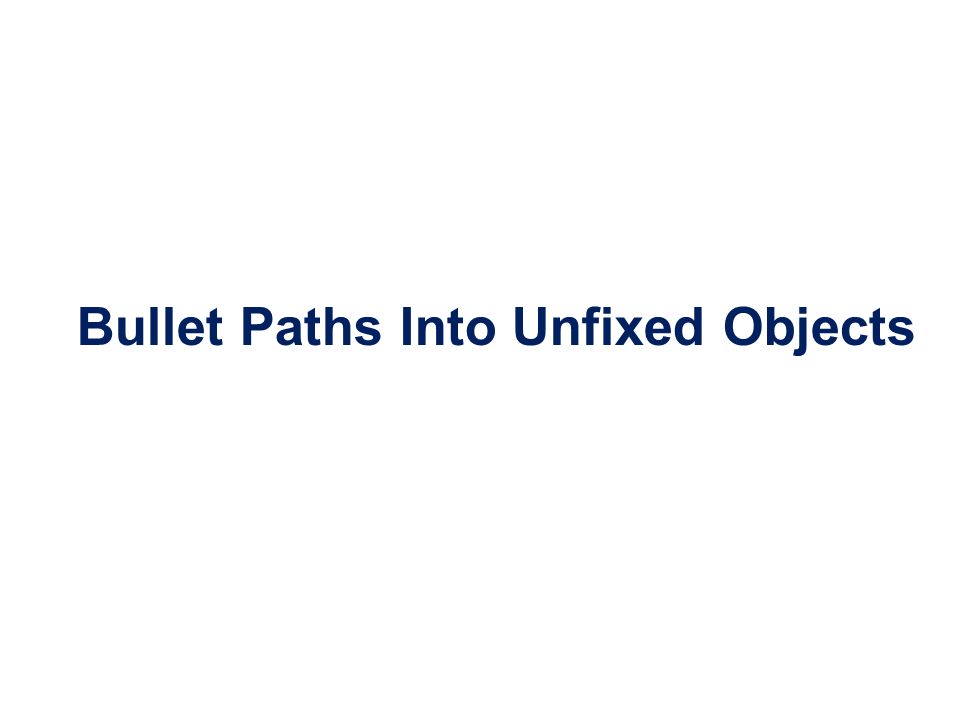

20. Bullet Paths Into Unfixed Objects

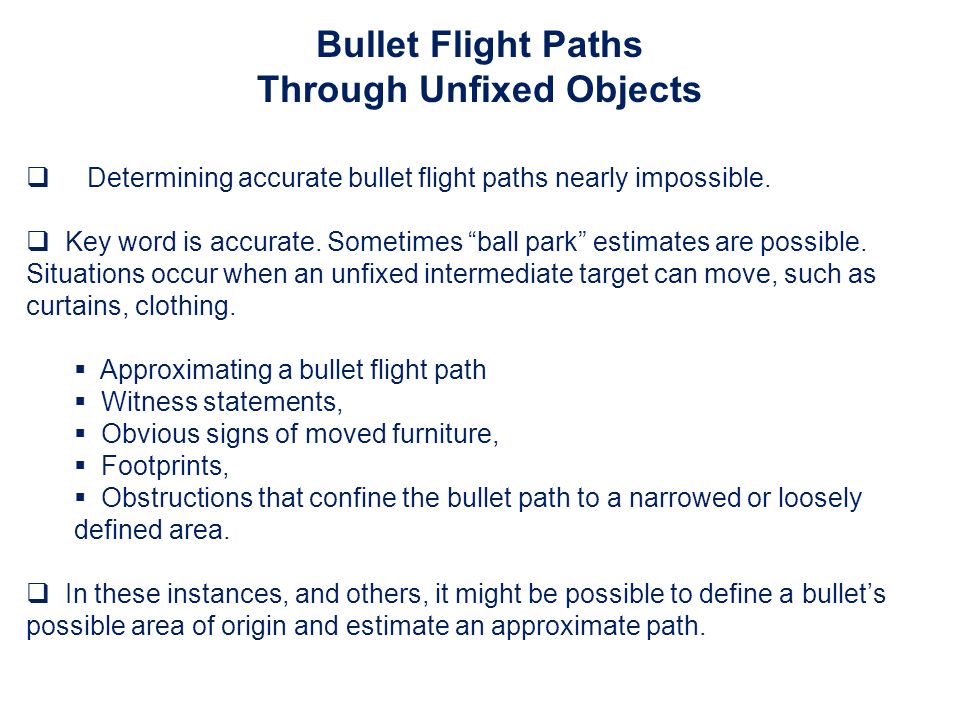

21.  Determining accurate bullet flight paths nearly impossible.  Key word is accurate. Sometimes “ball park” estimates are possible. Situations occur when an unfixed intermediate target can move, such as curtains, clothing.  Approximating a bullet flight path  Witness statements,  Obvious signs of moved furniture,  Footprints,  Obstructions that confine the bullet path to a narrowed or loosely defined area.  In these instances, and others, it might be possible to define a bullet’s possible area of origin and estimate an approximate path. Bullet Flight Paths Through Unfixed Objects

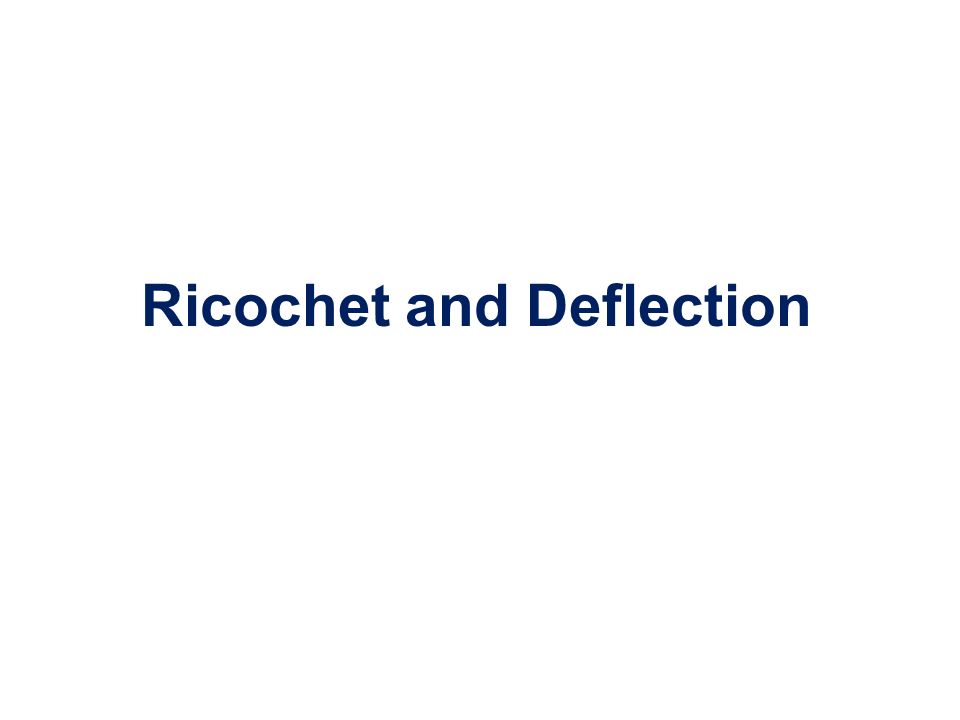

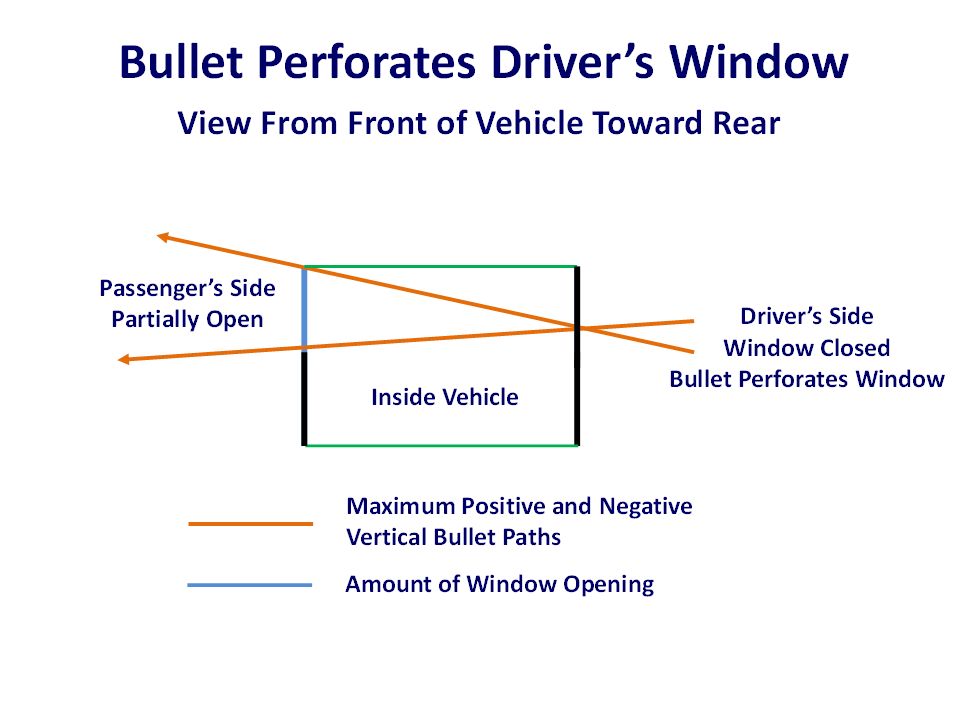

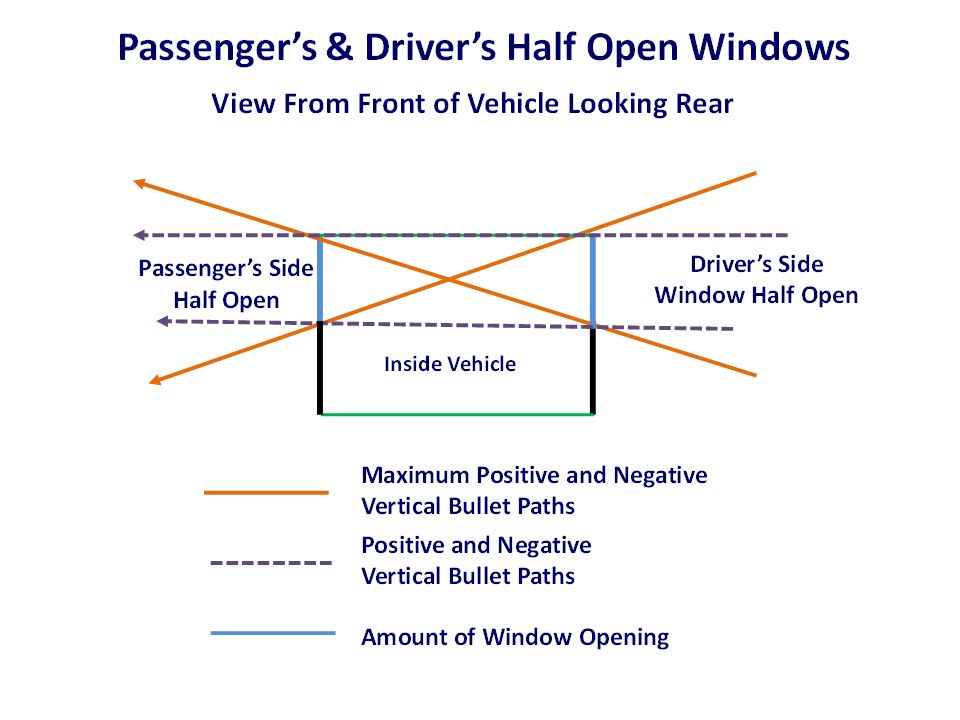

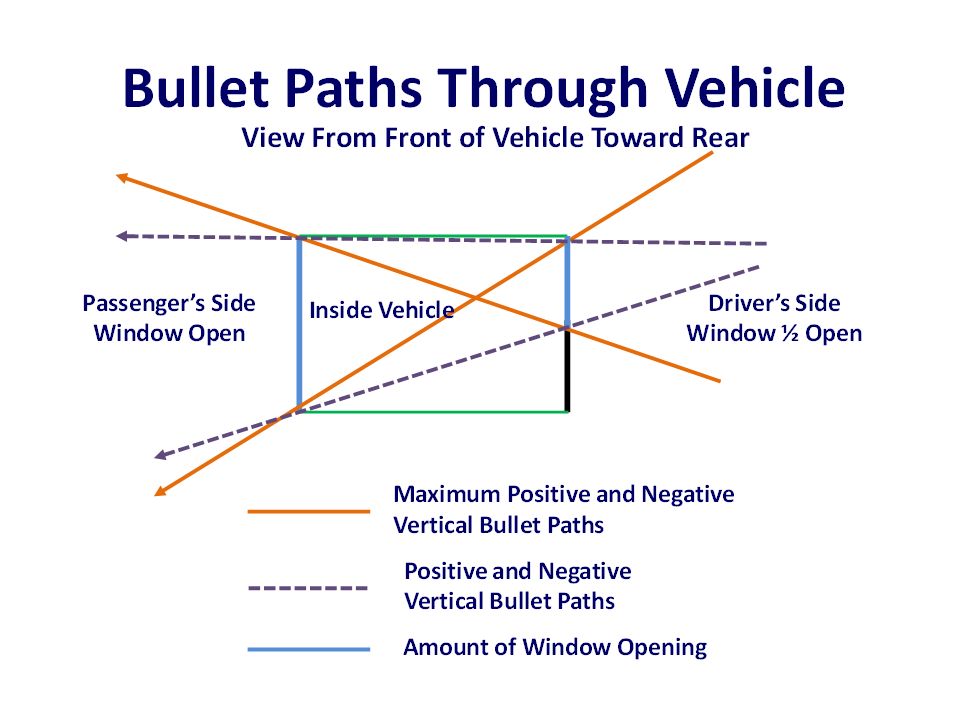

25. Ricochet and Deflection

26.  Travel in straight lines until they hit something. When that happens, several things might take place before the bullet finds its terminus.  The bullet can enter the object,  It can go through the object,  It can bounce or ricochet off the object  The point at which the bullet ricochets off an object is determined by several factors:  The structure and velocity of the bullet  The physical characteristics of the surface  The angle at which the bullet strikes the surface.  Generally, ricochet occurs at shallow angles of impact.  As the impact angle becomes more acute, a point will be reached when the bullet no longer ricochets and will enter the object.  That angle is called the critical angle Ricochet

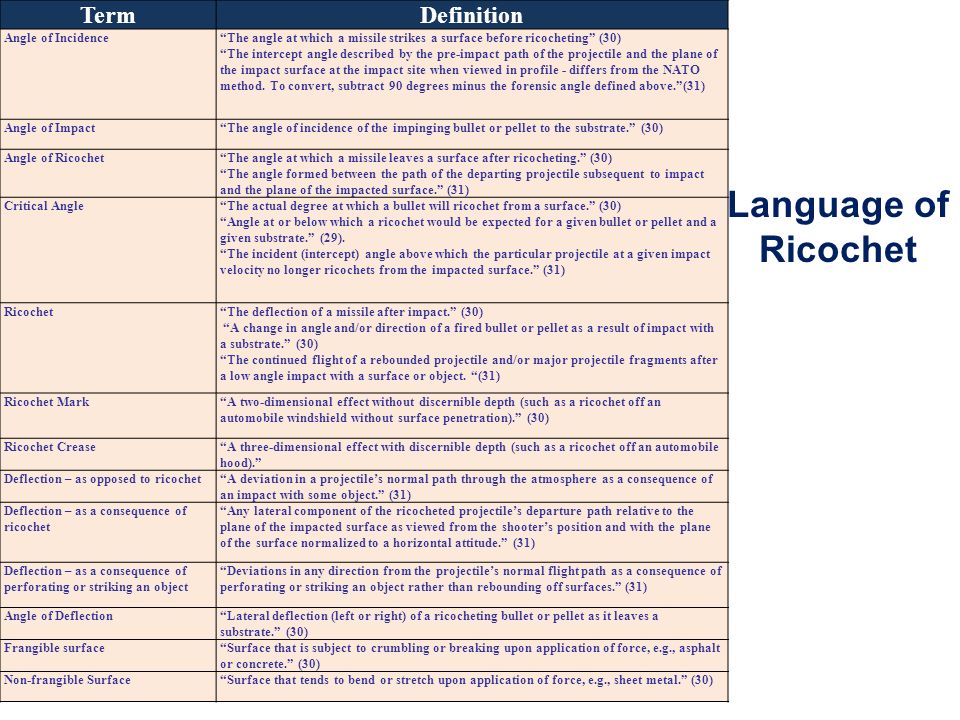

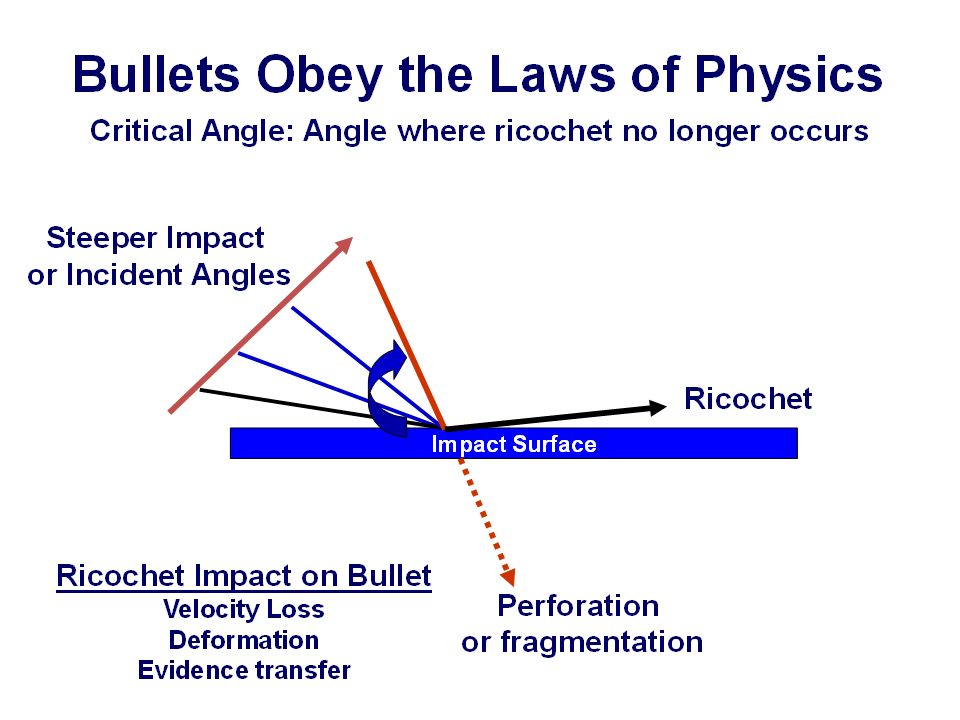

28. TermDefinition Angle of Incidence“The angle at which a missile strikes a surface before ricocheting” (30) “The intercept angle described by the pre-impact path of the projectile and the plane of the impact surface at the impact site when viewed in profile - differs from the NATO method. To convert, subtract 90 degrees minus the forensic angle defined above.”(31) Angle of Impact“The angle of incidence of the impinging bullet or pellet to the substrate.” (30) Angle of Ricochet“The angle at which a missile leaves a surface after ricocheting.” (30) “The angle formed between the path of the departing projectile subsequent to impact and the plane of the impacted surface.” (31) Critical Angle“The actual degree at which a bullet will ricochet from a surface.” (30) “Angle at or below which a ricochet would be expected for a given bullet or pellet and a given substrate.” (29). “The incident (intercept) angle above which the particular projectile at a given impact velocity no longer ricochets from the impacted surface.” (31) Ricochet“The deflection of a missile after impact.” (30) “A change in angle and/or direction of a fired bullet or pellet as a result of impact with a substrate.” (30) “The continued flight of a rebounded projectile and/or major projectile fragments after a low angle impact with a surface or object. “(31) Ricochet Mark“A two-dimensional effect without discernible depth (such as a ricochet off an automobile windshield without surface penetration).” (30) Ricochet Crease“A three-dimensional effect with discernible depth (such as a ricochet off an automobile hood).” Deflection – as opposed to ricochet“A deviation in a projectile’s normal path through the atmosphere as a consequence of an impact with some object.” (31) Deflection – as a consequence of ricochet “Any lateral component of the ricocheted projectile’s departure path relative to the plane of the impacted surface as viewed from the shooter’s position and with the plane of the surface normalized to a horizontal attitude.” (31) Deflection – as a consequence of perforating or striking an object “Deviations in any direction from the projectile’s normal flight path as a consequence of perforating or striking an object rather than rebounding off surfaces.” (31) Angle of Deflection“Lateral deflection (left or right) of a ricocheting bullet or pellet as it leaves a substrate.” (30) Frangible surface“Surface that is subject to crumbling or breaking upon application of force, e.g., asphalt or concrete.” (30) Non-frangible Surface“Surface that tends to bend or stretch upon application of force, e.g., sheet metal.” (30) Language of Ricochet

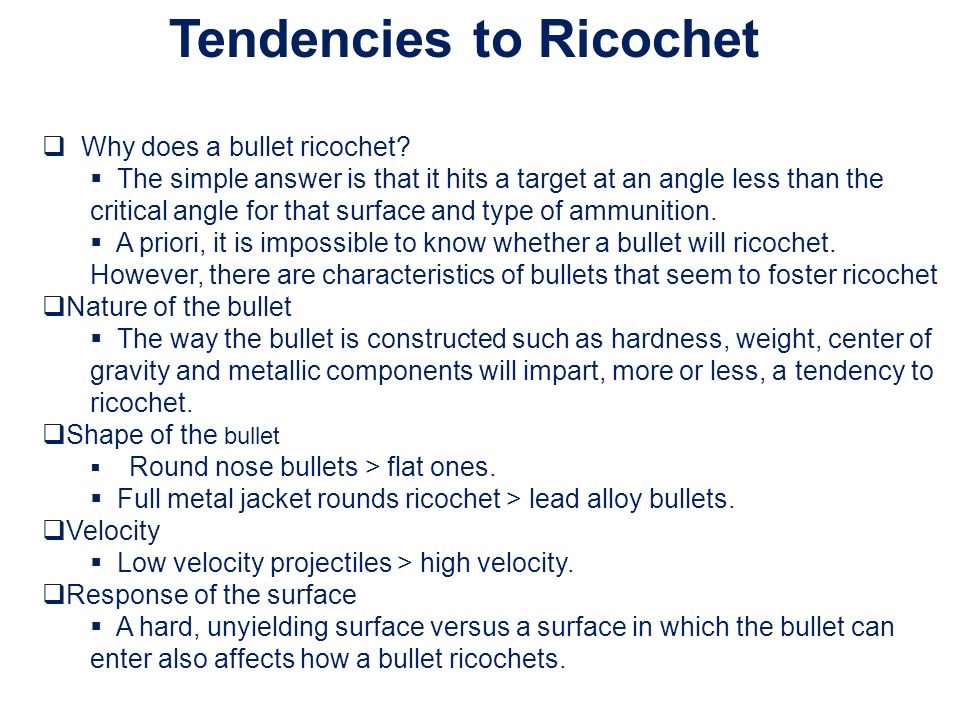

29.  Why does a bullet ricochet?  The simple answer is that it hits a target at an angle less than the critical angle for that surface and type of ammunition.  A priori, it is impossible to know whether a bullet will ricochet. However, there are characteristics of bullets that seem to foster ricochet  Nature of the bullet  The way the bullet is constructed such as hardness, weight, center of gravity and metallic components will impart, more or less, a tendency to ricochet.  Shape of the bullet  Round nose bullets > flat ones.  Full metal jacket rounds ricochet > lead alloy bullets.  Velocity  Low velocity projectiles > high velocity.  Response of the surface  A hard, unyielding surface versus a surface in which the bullet can enter also affects how a bullet ricochets. Tendencies to Ricochet

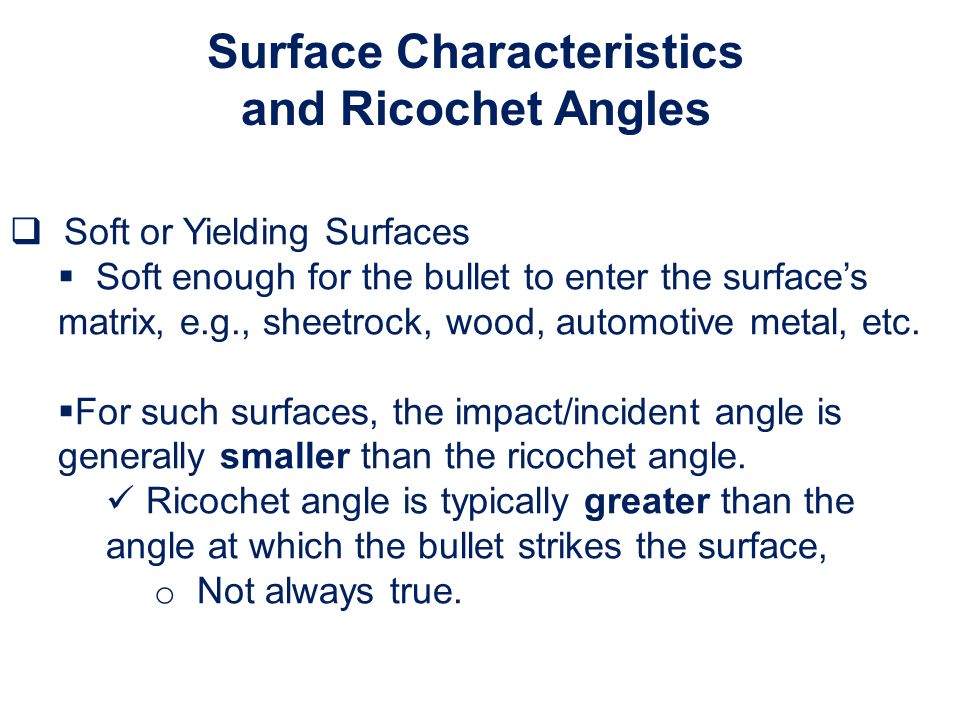

30.  Soft or Yielding Surfaces  Soft enough for the bullet to enter the surface’s matrix, e.g., sheetrock, wood, automotive metal, etc.  For such surfaces, the impact/incident angle is generally smaller than the ricochet angle. Ricochet angle is typically greater than the angle at which the bullet strikes the surface, o Not always true. Surface Characteristics and Ricochet Angles

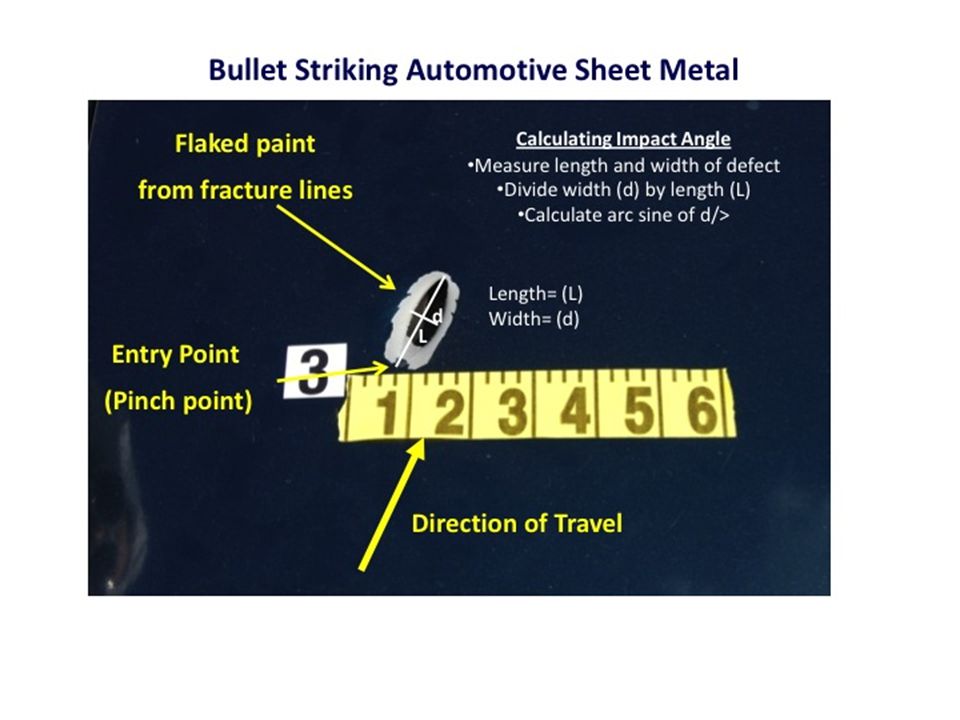

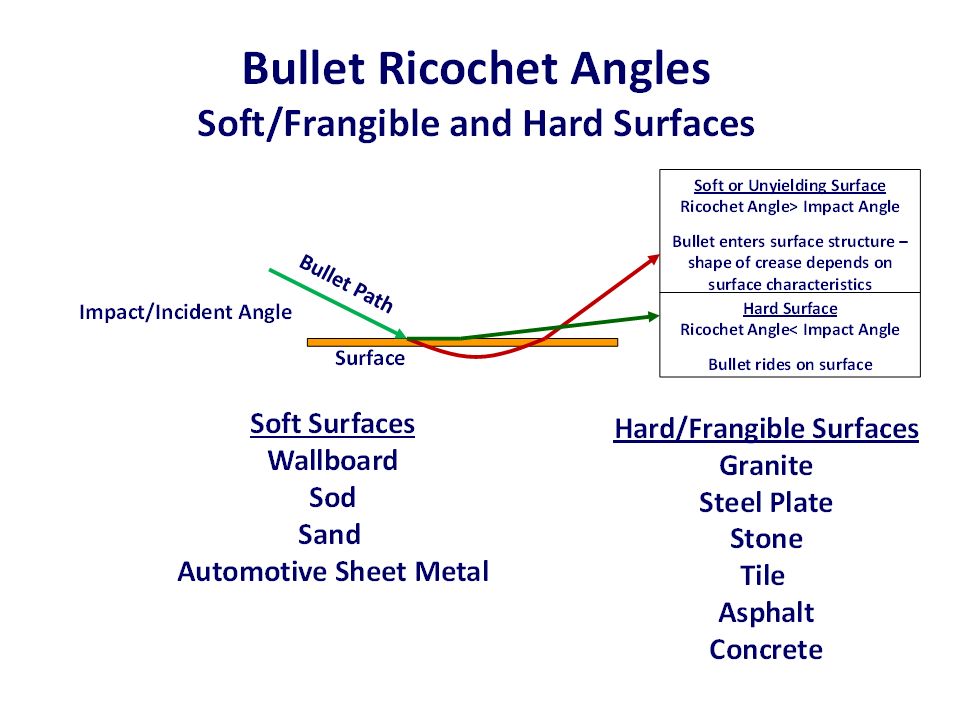

32.  Understanding characteristics of a particular surface can help locate bullet if not immediately obvious.  Theoretically, angle of impact can be approximated for some surfaces … dividing the width of the defect by length (w/l) and taking the arc sine of the fraction  Same as calculating impact angle of bloodstains  Bullet impact angle and path can be inferred.  Bullet/projectile striking a soft or yielding surface loses velocity quickly and might not be as deformed as the same bullet/projectile striking a hard or unyielding surface. Why are Surface Characteristics Important?

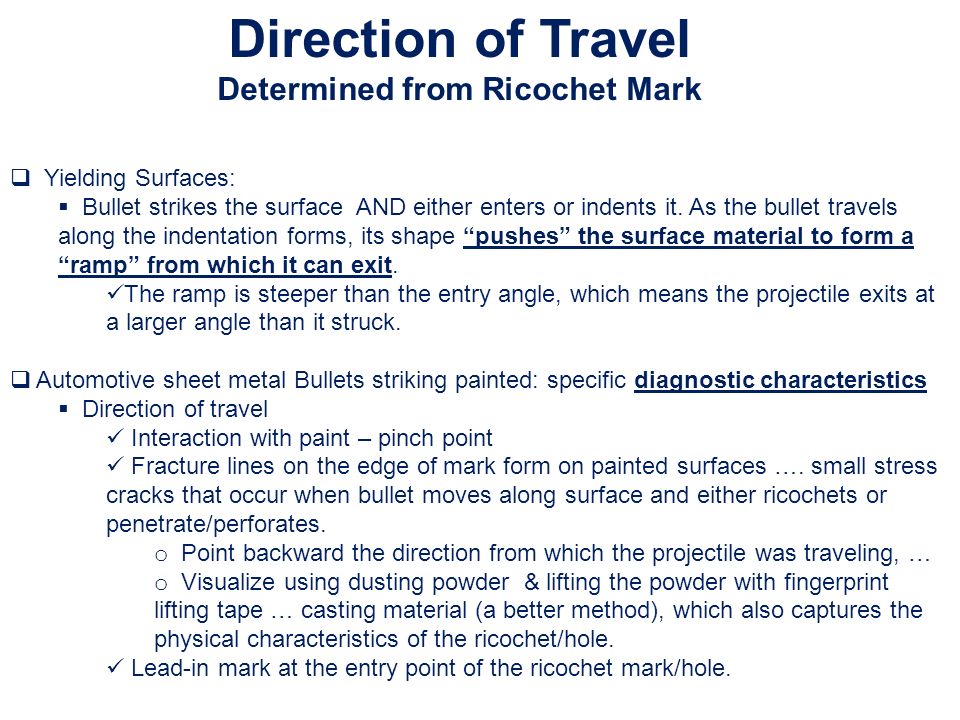

33.  Yielding Surfaces:  Bullet strikes the surface AND either enters or indents it. As the bullet travels along the indentation forms, its shape “pushes” the surface material to form a “ramp” from which it can exit. The ramp is steeper than the entry angle, which means the projectile exits at a larger angle than it struck.  Automotive sheet metal Bullets striking painted: specific diagnostic characteristics  Direction of travel Interaction with paint – pinch point Fracture lines on the edge of mark form on painted surfaces …. small stress cracks that occur when bullet moves along surface and either ricochets or penetrate/perforates. o Point backward the direction from which the projectile was traveling, … o Visualize using dusting powder & lifting the powder with fingerprint lifting tape … casting material (a better method), which also captures the physical characteristics of the ricochet/hole. Lead-in mark at the entry point of the ricochet mark/hole. Direction of Travel Determined from Ricochet Mark

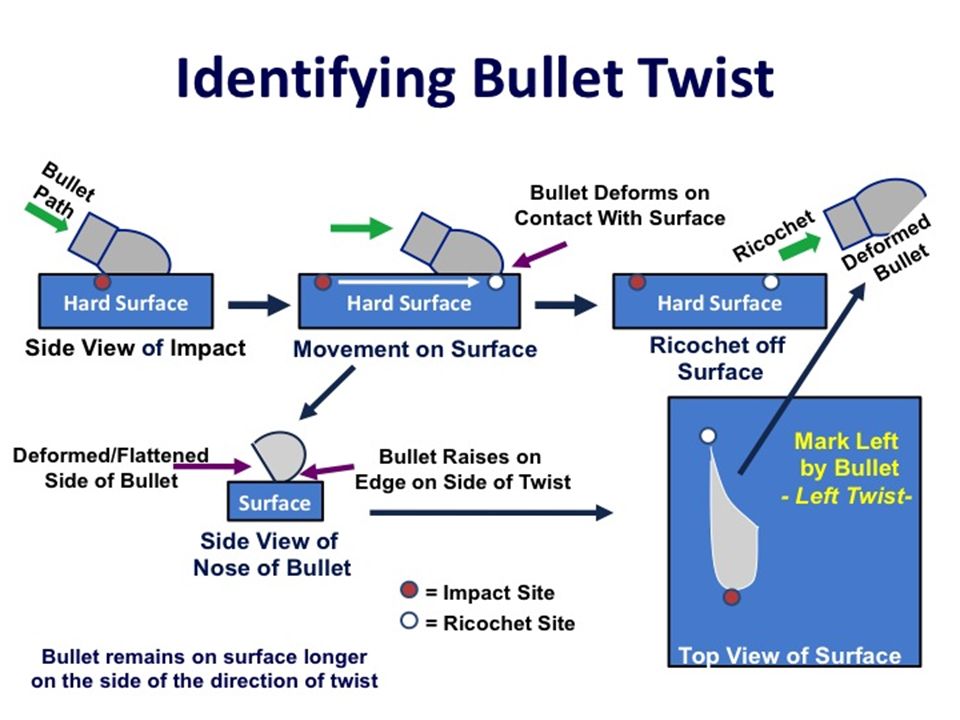

35.  Refers to spin imparted to the bullet by the lands and grooves of the barrel of the gun, right or left as it heads to a target.  For hard, unyielding surface … rides along the surface longer tilted on its twisting side. If it has a right twist, spinning to right … leaves a mark visibly elongated on the right side.  The twist of the bullet causes it to rise up on its twisting side.  When bullet exits, mark is longer on the side of the twist,  Certain marks have an elongation because the bullet stays on the surface for a relatively long time. This elongated is known as a “Chisum Trail” after criminalist Jerry Chisum.  Important … provides information about the bullet, even if never recovered.  If, in a shooting incident, two bullets were recovered, one with a right twist and the other a left, and both ricocheted off of a hard surface, The twist information from the ricochet mark will tell investigators which struck which surface Twist Determination from Unyielding Surfaces Rifling of a 105 mm Royal Ordinance L7 Tank Gun.

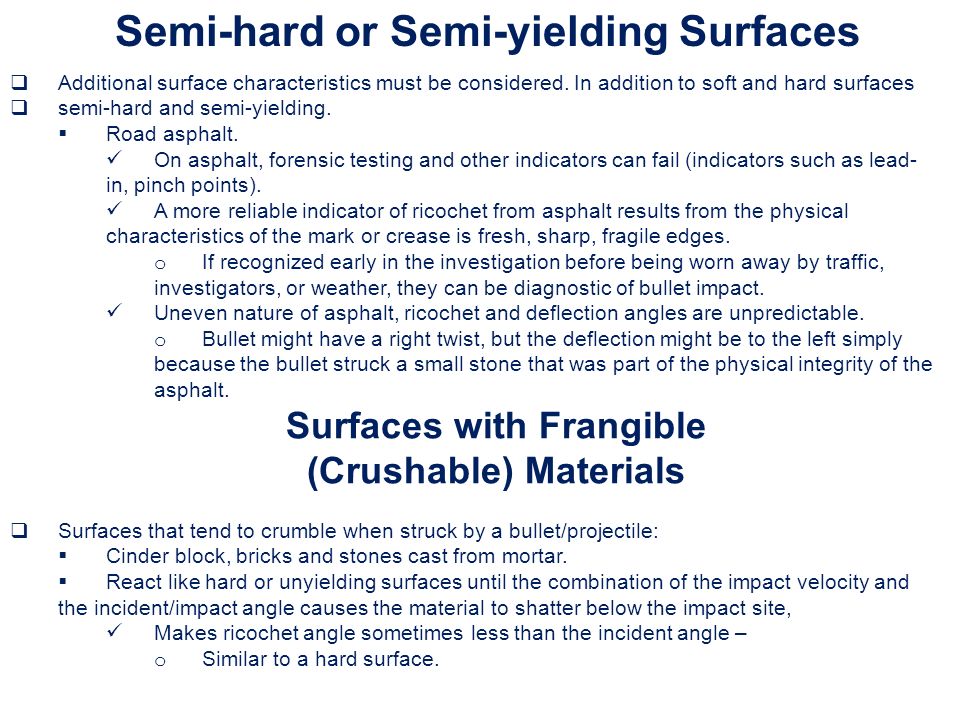

37.  Additional surface characteristics must be considered. In addition to soft and hard surfaces  semi-hard and semi-yielding.  Road asphalt. On asphalt, forensic testing and other indicators can fail (indicators such as lead- in, pinch points). A more reliable indicator of ricochet from asphalt results from the physical characteristics of the mark or crease is fresh, sharp, fragile edges. o If recognized early in the investigation before being worn away by traffic, investigators, or weather, they can be diagnostic of bullet impact. Uneven nature of asphalt, ricochet and deflection angles are unpredictable. o Bullet might have a right twist, but the deflection might be to the left simply because the bullet struck a small stone that was part of the physical integrity of the asphalt. Surfaces with Frangible (Crushable) Materials  Surfaces that tend to crumble when struck by a bullet/projectile:  Cinder block, bricks and stones cast from mortar.  React like hard or unyielding surfaces until the combination of the impact velocity and the incident/impact angle causes the material to shatter below the impact site, Makes ricochet angle sometimes less than the incident angle – o Similar to a hard surface. Semi-hard or Semi-yielding Surfaces

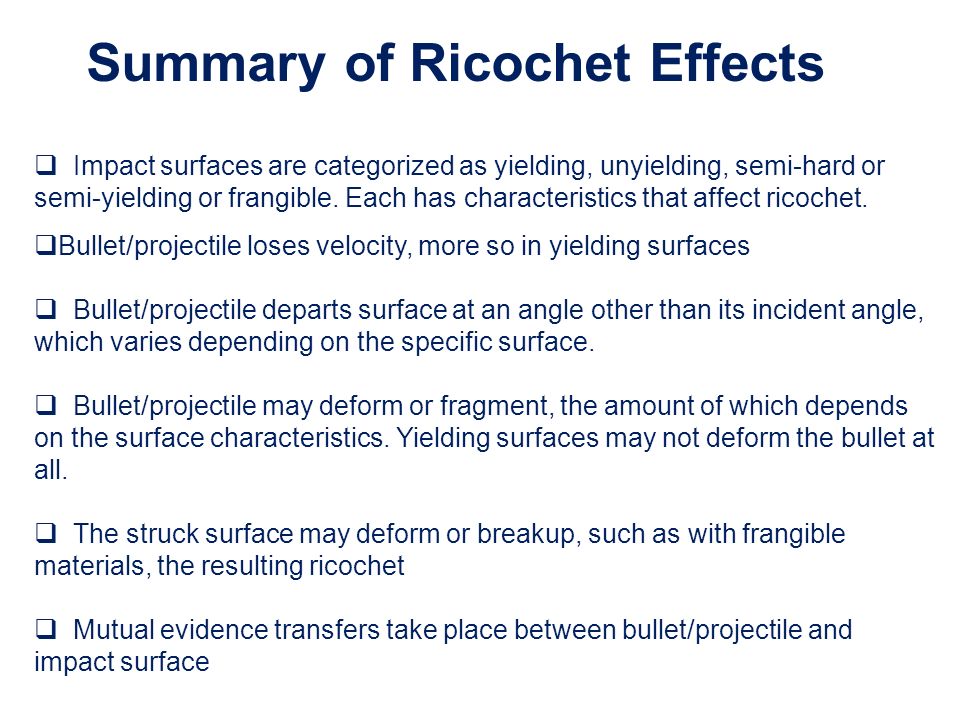

38.  Impact surfaces are categorized as yielding, unyielding, semi-hard or semi-yielding or frangible. Each has characteristics that affect ricochet.  Bullet/projectile loses velocity, more so in yielding surfaces  Bullet/projectile departs surface at an angle other than its incident angle, which varies depending on the specific surface.  Bullet/projectile may deform or fragment, the amount of which depends on the surface characteristics. Yielding surfaces may not deform the bullet at all.  The struck surface may deform or breakup, such as with frangible materials, the resulting ricochet  Mutual evidence transfers take place between bullet/projectile and impact surface Summary of Ricochet Effects

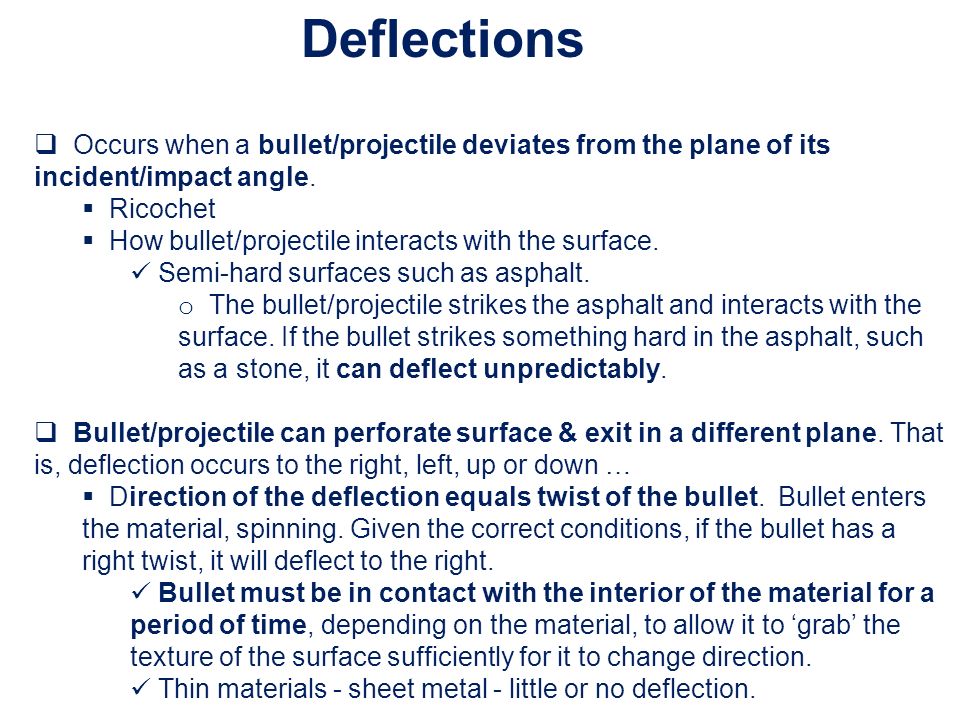

39.  Occurs when a bullet/projectile deviates from the plane of its incident/impact angle.  Ricochet  How bullet/projectile interacts with the surface. Semi-hard surfaces such as asphalt. o The bullet/projectile strikes the asphalt and interacts with the surface. If the bullet strikes something hard in the asphalt, such as a stone, it can deflect unpredictably.  Bullet/projectile can perforate surface & exit in a different plane. That is, deflection occurs to the right, left, up or down …  Direction of the deflection equals twist of the bullet. Bullet enters the material, spinning. Given the correct conditions, if the bullet has a right twist, it will deflect to the right. Bullet must be in contact with the interior of the material for a period of time, depending on the material, to allow it to ‘grab’ the texture of the surface sufficiently for it to change direction. Thin materials - sheet metal - little or no deflection. Deflections

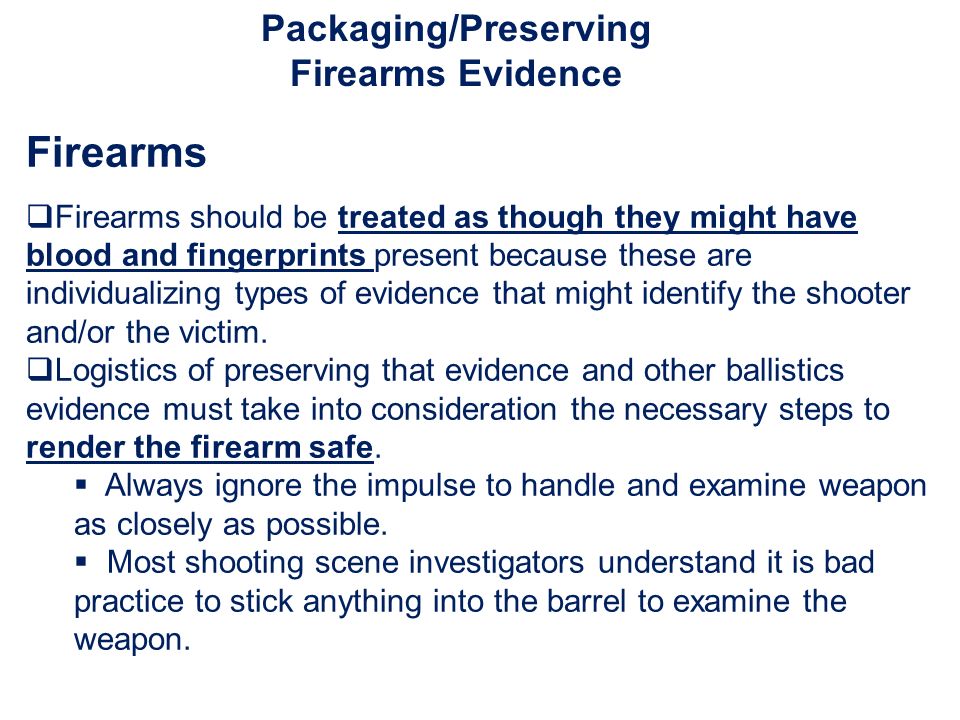

40. Firearms  Firearms should be treated as though they might have blood and fingerprints present because these are individualizing types of evidence that might identify the shooter and/or the victim.  Logistics of preserving that evidence and other ballistics evidence must take into consideration the necessary steps to render the firearm safe.  Always ignore the impulse to handle and examine weapon as closely as possible.  Most shooting scene investigators understand it is bad practice to stick anything into the barrel to examine the weapon. Packaging/Preserving Firearms Evidence

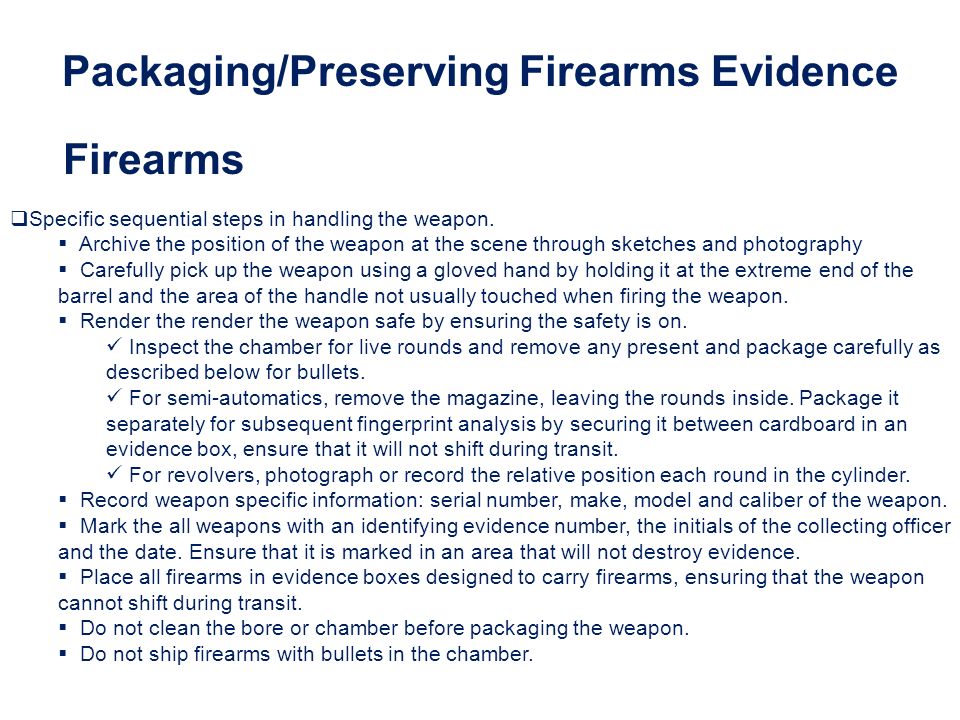

41.  Specific sequential steps in handling the weapon.  Archive the position of the weapon at the scene through sketches and photography  Carefully pick up the weapon using a gloved hand by holding it at the extreme end of the barrel and the area of the handle not usually touched when firing the weapon.  Render the render the weapon safe by ensuring the safety is on. Inspect the chamber for live rounds and remove any present and package carefully as described below for bullets. For semi-automatics, remove the magazine, leaving the rounds inside. Package it separately for subsequent fingerprint analysis by securing it between cardboard in an evidence box, ensure that it will not shift during transit. For revolvers, photograph or record the relative position each round in the cylinder.  Record weapon specific information: serial number, make, model and caliber of the weapon.  Mark the all weapons with an identifying evidence number, the initials of the collecting officer and the date. Ensure that it is marked in an area that will not destroy evidence.  Place all firearms in evidence boxes designed to carry firearms, ensuring that the weapon cannot shift during transit.  Do not clean the bore or chamber before packaging the weapon.  Do not ship firearms with bullets in the chamber. Packaging/Preserving Firearms Evidence Firearms

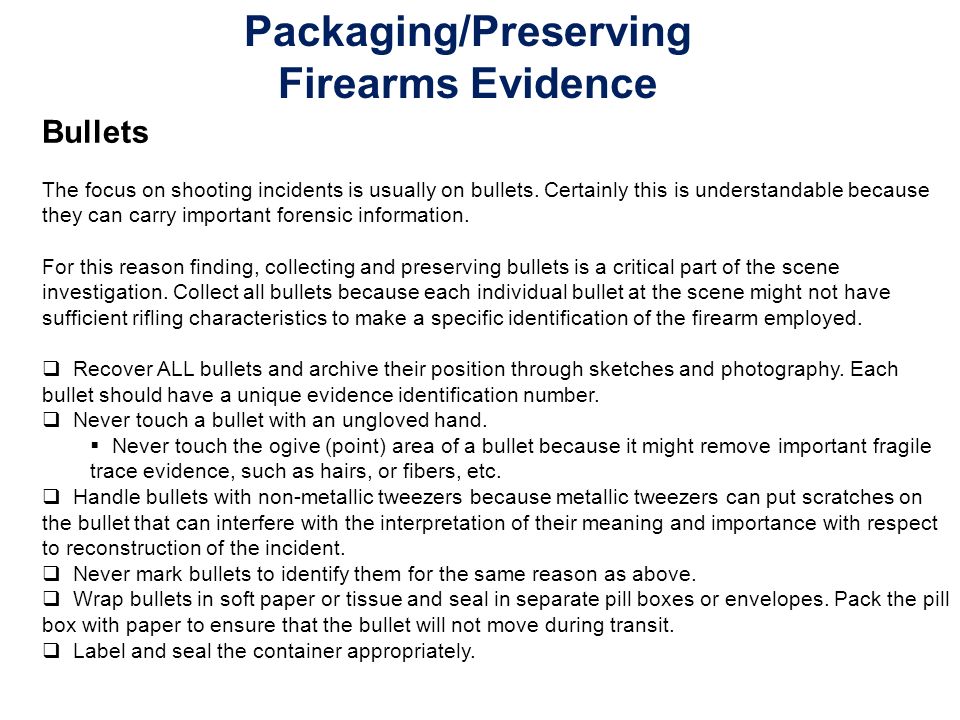

42. Bullets The focus on shooting incidents is usually on bullets. Certainly this is understandable because they can carry important forensic information. For this reason finding, collecting and preserving bullets is a critical part of the scene investigation. Collect all bullets because each individual bullet at the scene might not have sufficient rifling characteristics to make a specific identification of the firearm employed.  Recover ALL bullets and archive their position through sketches and photography. Each bullet should have a unique evidence identification number.  Never touch a bullet with an ungloved hand.  Never touch the ogive (point) area of a bullet because it might remove important fragile trace evidence, such as hairs, or fibers, etc.  Handle bullets with non-metallic tweezers because metallic tweezers can put scratches on the bullet that can interfere with the interpretation of their meaning and importance with respect to reconstruction of the incident.  Never mark bullets to identify them for the same reason as above.  Wrap bullets in soft paper or tissue and seal in separate pill boxes or envelopes. Pack the pill box with paper to ensure that the bullet will not move during transit.  Label and seal the container appropriately. Packaging/Preserving Firearms Evidence

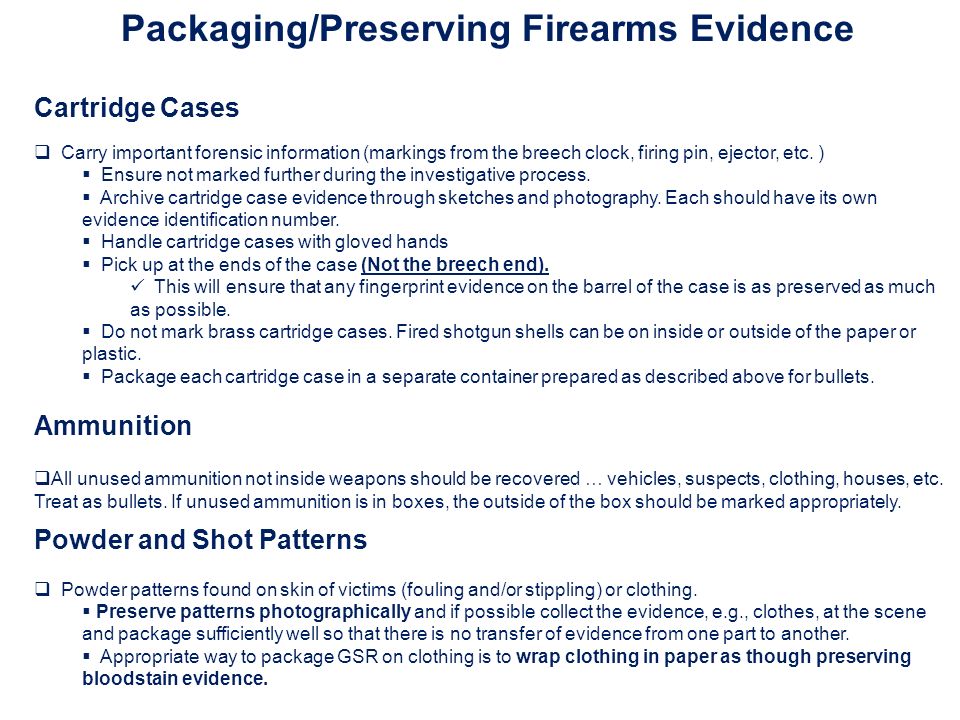

43. Cartridge Cases  Carry important forensic information (markings from the breech clock, firing pin, ejector, etc. )  Ensure not marked further during the investigative process.  Archive cartridge case evidence through sketches and photography. Each should have its own evidence identification number.  Handle cartridge cases with gloved hands  Pick up at the ends of the case (Not the breech end). This will ensure that any fingerprint evidence on the barrel of the case is as preserved as much as possible.  Do not mark brass cartridge cases. Fired shotgun shells can be on inside or outside of the paper or plastic.  Package each cartridge case in a separate container prepared as described above for bullets. Ammunition  All unused ammunition not inside weapons should be recovered … vehicles, suspects, clothing, houses, etc. Treat as bullets. If unused ammunition is in boxes, the outside of the box should be marked appropriately. Powder and Shot Patterns  Powder patterns found on skin of victims (fouling and/or stippling) or clothing.  Preserve patterns photographically and if possible collect the evidence, e.g., clothes, at the scene and package sufficiently well so that there is no transfer of evidence from one part to another.  Appropriate way to package GSR on clothing is to wrap clothing in paper as though preserving bloodstain evidence. Packaging/Preserving Firearms Evidence

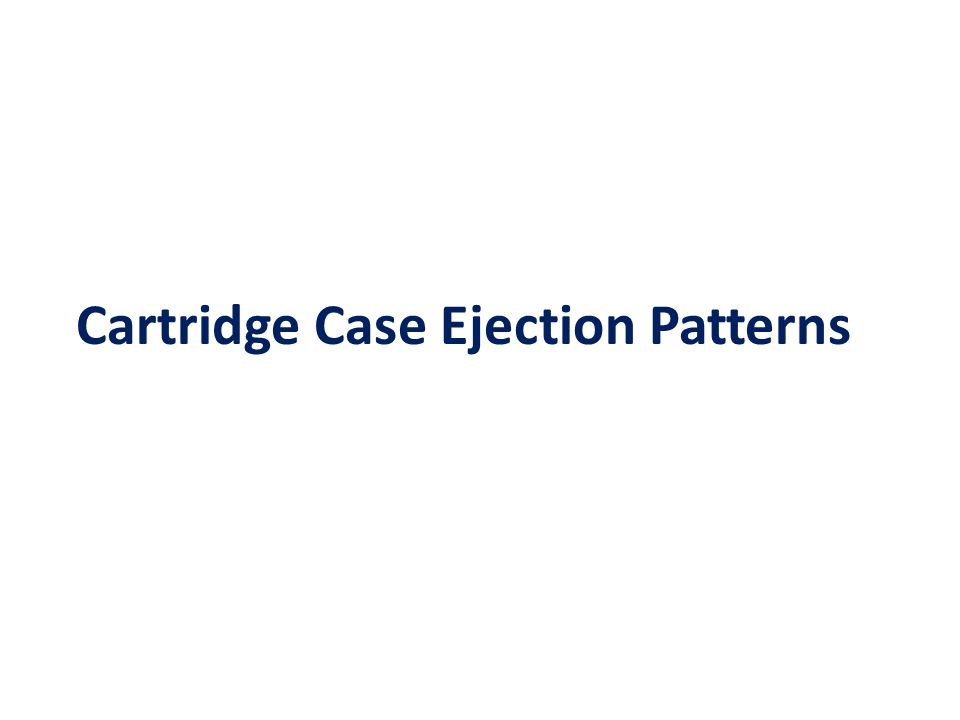

44. Cartridge Case Ejection Patterns

45. Cartridge Case Ejection Patterns Factors affecting Factors that affect ejection patterns – Type of ammunition – Shooter’s hand-hold – Body position – Shooter’s movement (walking/standing) – Ground surface – Environmental factors Caution in reaching conclusions – Nothing is absolute Movement @ scene by investigators Movement @ scene by vehicles

46. Determining Cartridge Case Ejection Patterns

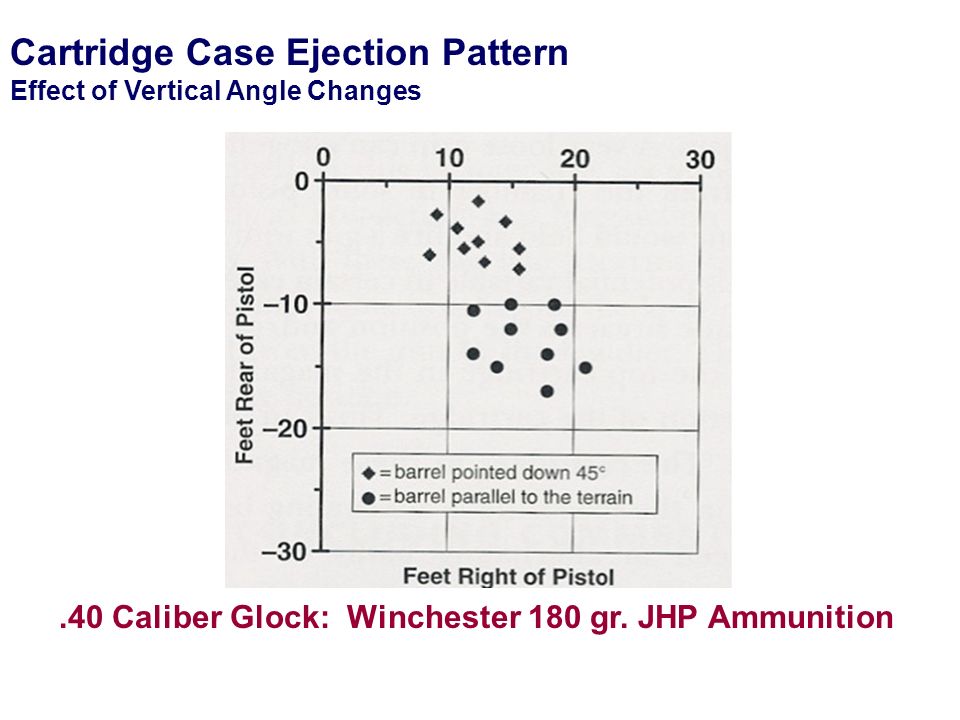

47. Cartridge Case Ejection Pattern Effect of Vertical Angle Changes.40 Caliber Glock: Winchester 180 gr. JHP Ammunition

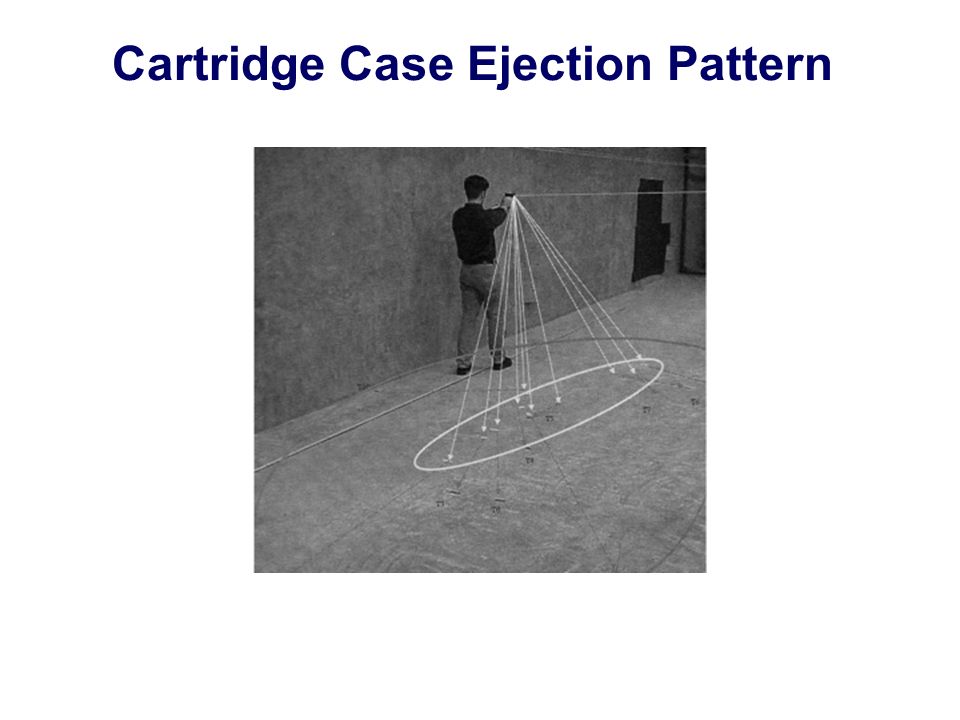

48. Cartridge Case Ejection Pattern

49. Sketching Shooting Scenes

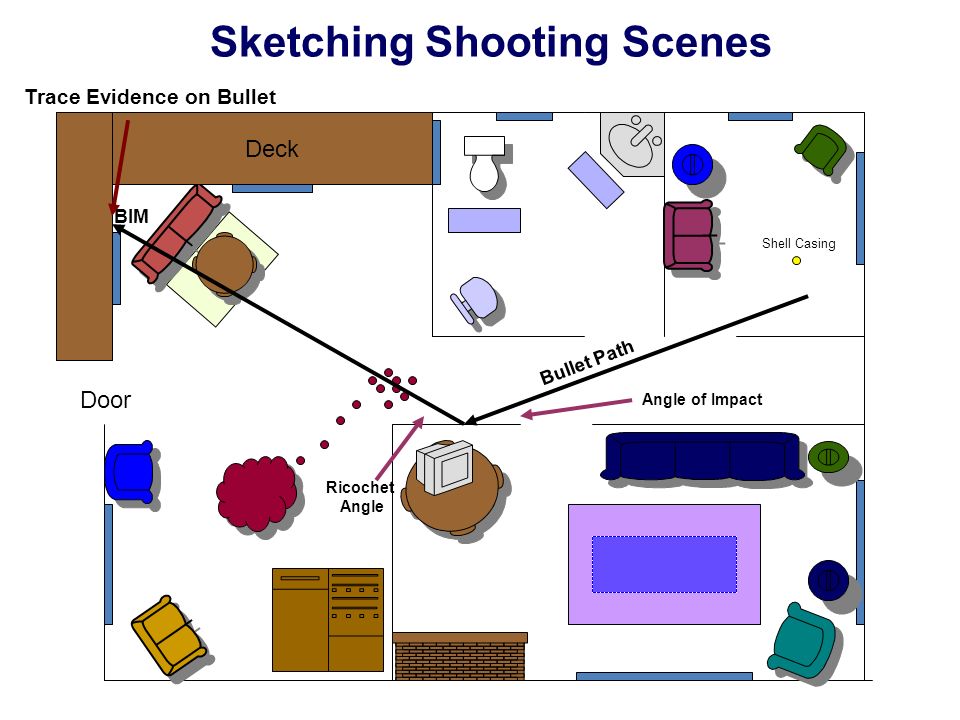

50. Deck Shell Casing Bullet Path Angle of Impact Ricochet Angle Sketching Shooting Scenes Deck Door BIM Trace Evidence on Bullet

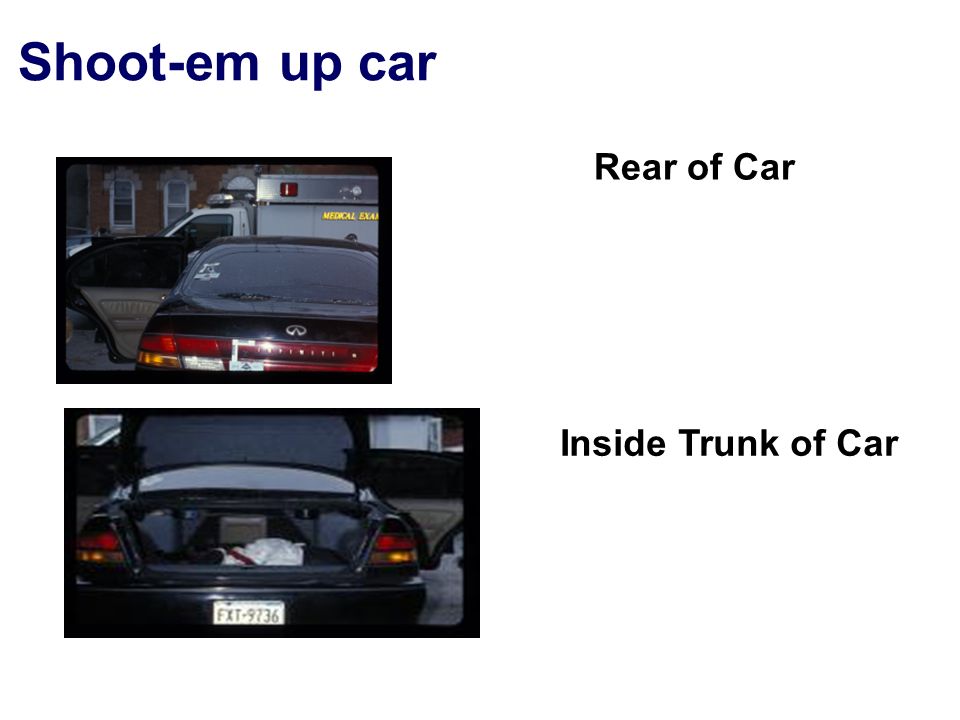

51. Rear of Car Inside Trunk of Car Shoot-em up car

52. Bullet Hole In Rear Window Bullet Ricochet On Speaker Bullet Hole in Rear Tail Light Hole in Window

53. Bullet Hole in Rear Seat Headrest Bullet Hole in Rear Seat Speaker

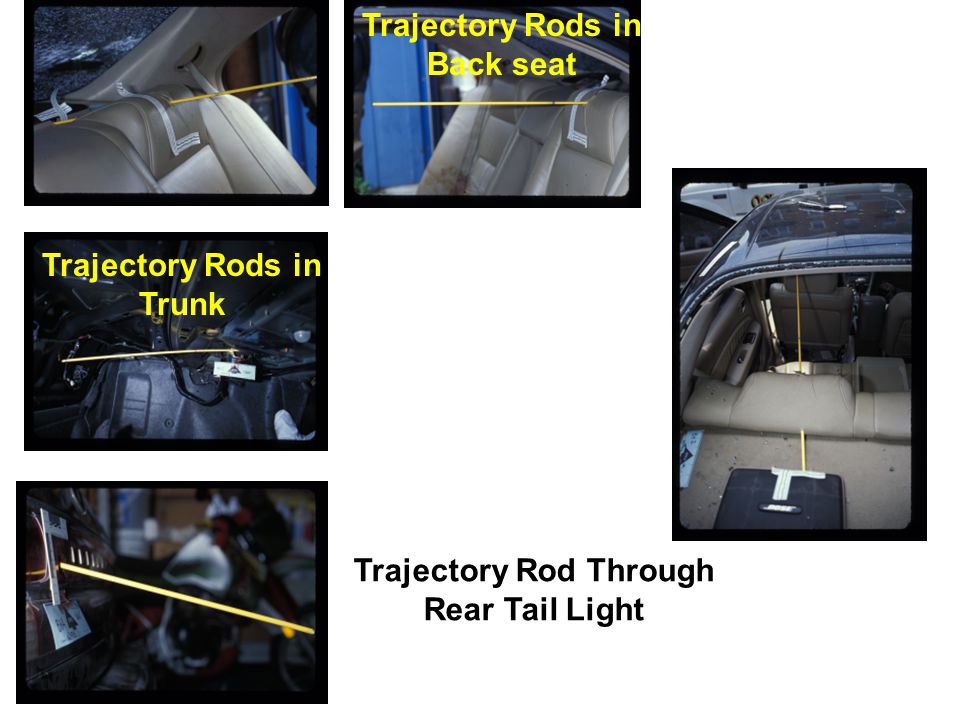

54. Trajectory Rods in Back seat Trajectory Rods in Trunk Trajectory Rod Through Rear Tail Light

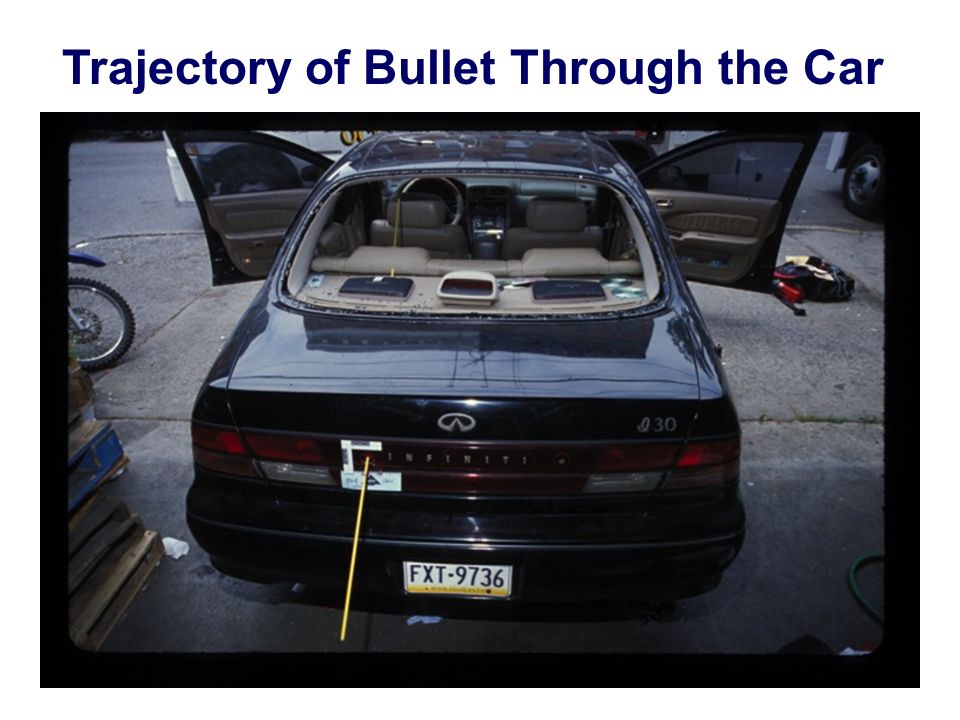

55. Trajectory of Bullet Through the Car

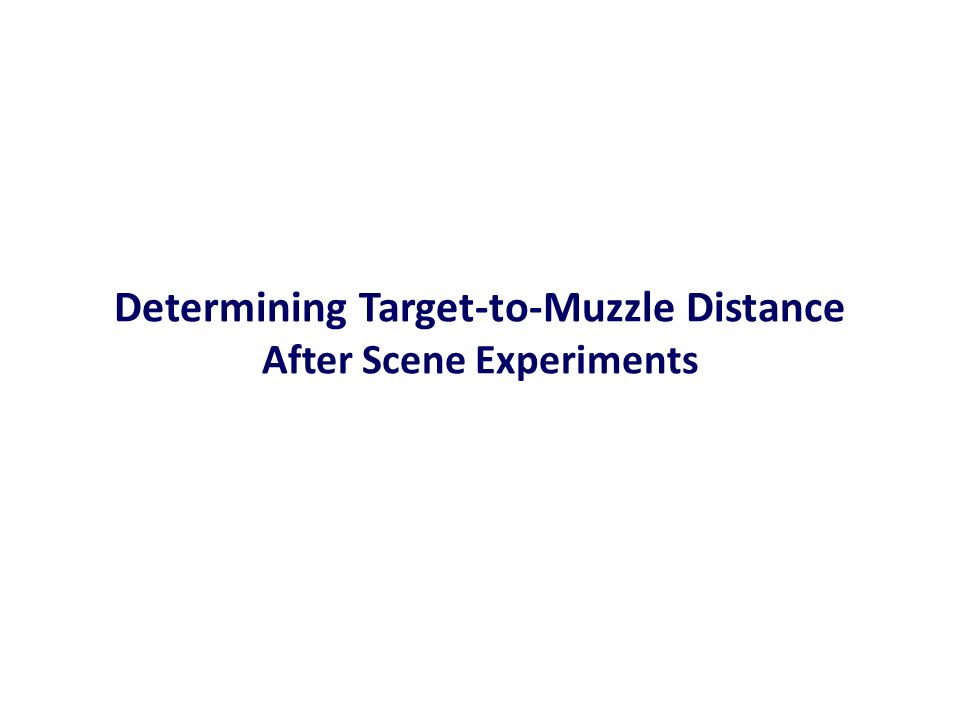

56. Determining Target-to-Muzzle Distance After Scene Experiments

57. Muzzle-to-Distance Determination Automatic Pistol or Revolver

58. Muzzle-to-Distance Measurements Shotgun
