Week 5 DC-to-DC Converters 1

2
Functional Block Diagram of DC-DC Converter System Unregulated dc voltage obtained by rectifying the line voltage, and therefore will fluctuate with line voltage magnitude Controlled dc output at a desired voltage level

3
Control of DC-DC Converters In a dc-dc converter: Average output dc voltage must be controlled to equal a desired level. Utilizes one or more switches to transform dc from one level to another. The average output voltage is controlled by controlling the switch on and off durations (t on and t off ). Let’s consider the following switch-mode dc-dc converter: Average output dc voltage V o depends on t on and t off. Switching is done at a constant frequency with switching time period T s. This method is called pulse-width modulation (PWM) in which the duty ratio D is varied to control V o, where D=t on /T s

4
Control of DC-DC Converters (cont’d) The switch control signal, which controls the on and off states of the switch, is generated by comparing a signal level control voltage v control with a repetitive waveform. The switching frequency is the frequency of the sawtooth waveform with a constant peak. The duty ratio D can be expressed as

5
Static dc switch based on a fully controlled semiconductor power switch 5

6
Voltage and current waveforms in a static dc switch 6

7
SCR-based static dc switch with a resonant commutating circuit 7

8

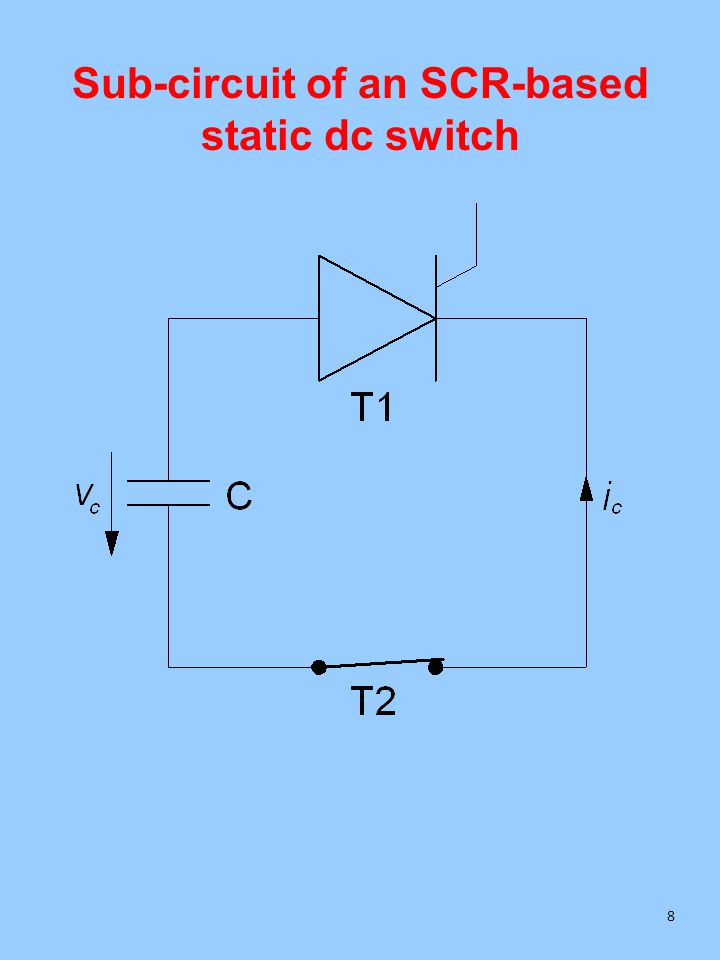

Sub-circuit of an SCR-based static dc switch 8

9
Voltage and current waveforms in an SCR-based static dc switch 9

10
Step-down chopper: (a) block diagram, (b) equivalent circuit for the dc output voltage and current 10

11
Equivalent circuits of the first- quadrant chopper: (a) state 1 (b) state 0 11

12
First-quadrant chopper 12

13
Example waveforms of output voltage and current in a first- quadrant chopper 13

14
Single cycle of the output voltage and current in a first- quadrant chopper 14

15
Current ripple in a chopper as a function of the magnitude control ratio and switching frequency 15

16
Second-quadrant chopper 16

17
Equivalent circuits of a second- quadrant chopper: (a) state 1 (b) state 0 17

18
Waveforms of output voltage and current in a second- quadrant chopper 18

19
First-and-second-quadrant chopper 19

20
Waveforms of output voltage and current in a first-and- second-quadrant chopper 20

21

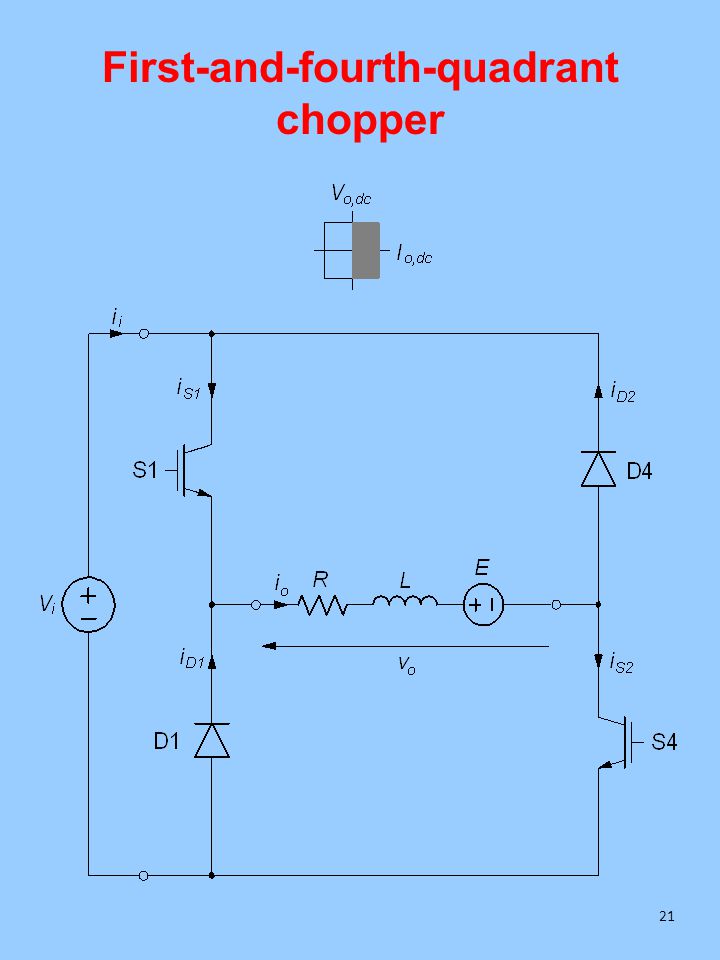

First-and-fourth-quadrant chopper 21

22
Equivalent circuits of a first-and- fourth-quadrant chopper operating in the fourth-quadrant: (a) state 2 (b) state 0 22

23
Waveforms of output voltage and current in a first-and- fourth-quadrant chopper 23

24
Four-quadrant chopper 24

25
25

26
Allowable ranges of the magnitude control ratio in step-down choppers 26

27
Waveforms of the output voltage and input current in a step-up chopper (d = 0.75) 27

28
Typical supply system of a chopper 28

29
dc drive with a chopper with a braking resistor 29

30
Chapter 630
