1. 776 Computer Vision Jan-Michael Frahm, Enrique Dunn Spring 2012

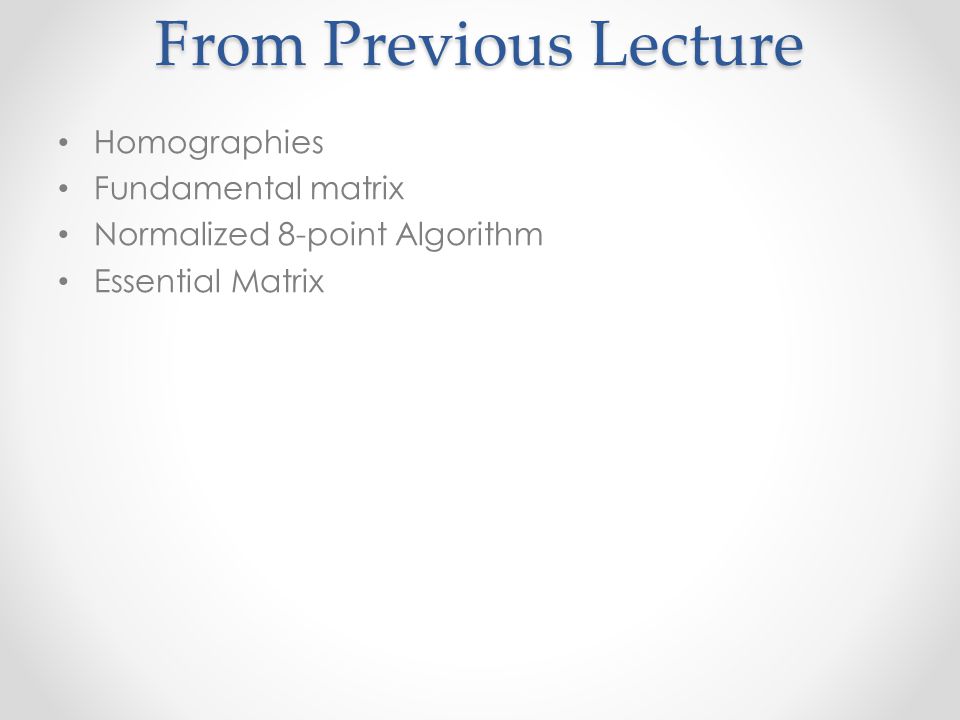

2. From Previous Lecture Homographies Fundamental matrix Normalized 8-point Algorithm Essential Matrix

3. Plane Homography for Calibrated Cameras In the calibrated case o Two cameras P=K[I |0] and P’ = K’[R | t] o A plane π=(n T,d) T The homography is given by x’=Hx H = K’(R – tn T /d)K -1 For the plane at infinity H = K’RK -1

4. The Fundamental Matrix F P0P0 m0m0 L l1l1 M m1m1 M P1P1 Hm0Hm0 Epipole e1e1 F = [e] x H = Fundamental Matrix

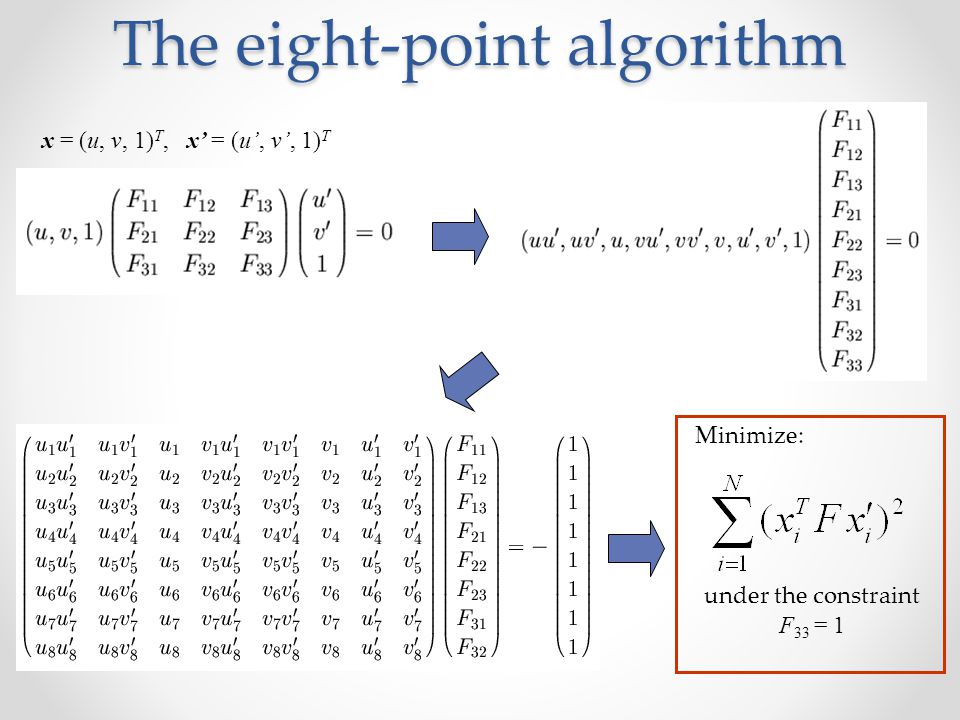

5. The eight-point algorithm x = (u, v, 1) T, x’ = (u’, v’, 1) T Minimize: under the constraint F 33 = 1

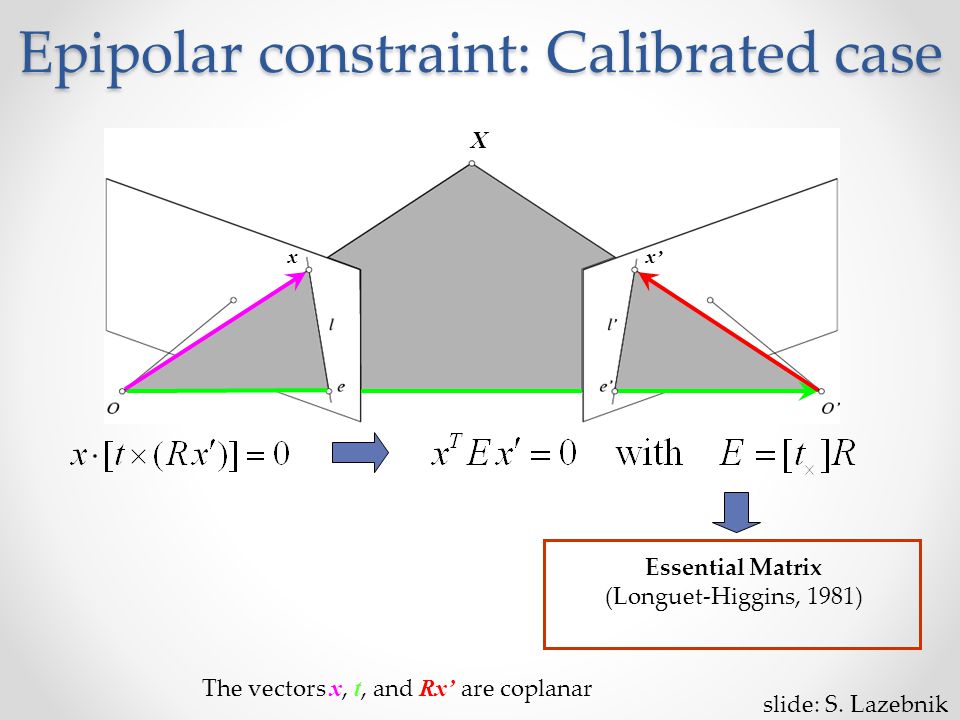

6. Essential Matrix (Longuet-Higgins, 1981) Epipolar constraint: Calibrated case X xx’ The vectors x, t, and Rx’ are coplanar slide: S. Lazebnik

7. Essential Matrix Epipolar constraint: Calibrated case X xx’ The vectors x, t, and Rx’ are coplanar slide: S. Lazebnik Cubic constraint

8. Today: Binocular stereo Given a calibrated binocular stereo pair, fuse it to produce a depth image Where does the depth information come from?

9. Binocular stereo Given a calibrated binocular stereo pair, fuse it to produce a depth image o Humans can do it Stereograms: Invented by Sir Charles Wheatstone, 1838

10. Binocular stereo Given a calibrated binocular stereo pair, fuse it to produce a depth image o Humans can do it Autostereograms: www.magiceye.com

11. Binocular stereo Given a calibrated binocular stereo pair, fuse it to produce a depth image o Humans can do it Autostereograms: www.magiceye.com

12. Real-time stereo Used for robot navigation (and other tasks) o Software-based real-time stereo techniques Nomad robot Nomad robot searches for meteorites in Antartica http://www.frc.ri.cmu.edu/projects/meteorobot/index.html slide: R. Szeliski

13. Stereo image pair slide: R. Szeliski

14. Public Library, Stereoscopic Looking Room, Chicago, by Phillips, 1923Anaglyphs http://www.rainbowsymph ony.com/freestuff.html (Wikipedia for images) slide: R. Szeliski

15. Stereo: epipolar geometry Match features along epipolar lines viewing ray epipolar plane epipolar line slide: R. Szeliski

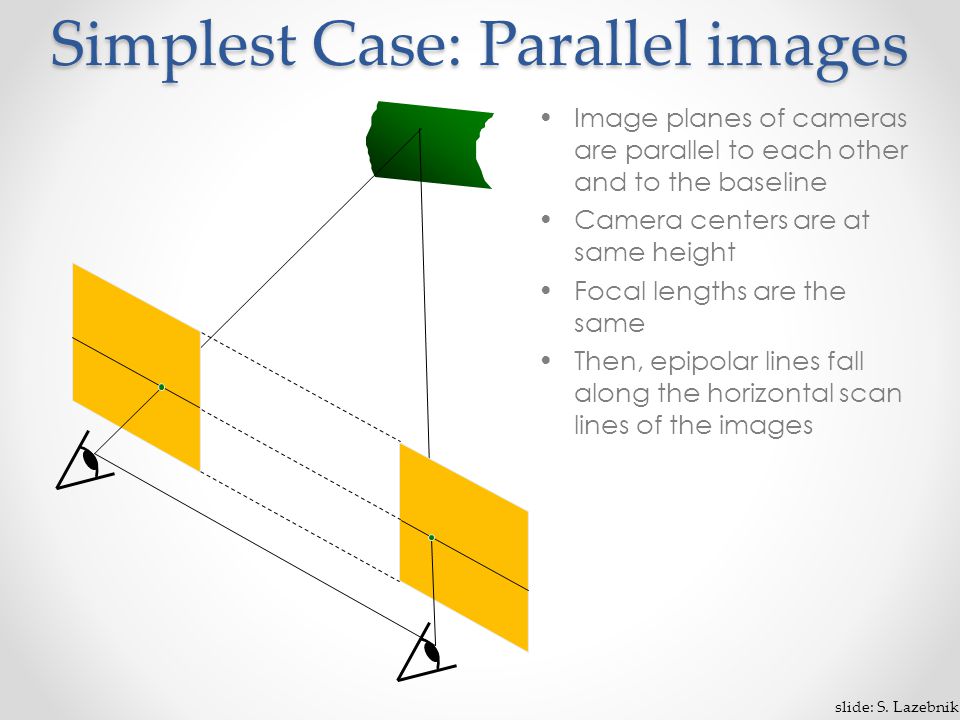

16. Simplest Case: Parallel images Image planes of cameras are parallel to each other and to the baseline Camera centers are at same height Focal lengths are the same slide: S. Lazebnik

17. Simplest Case: Parallel images Image planes of cameras are parallel to each other and to the baseline Camera centers are at same height Focal lengths are the same Then, epipolar lines fall along the horizontal scan lines of the images slide: S. Lazebnik

18. Essential matrix for parallel images R = I t = (T, 0, 0) Epipolar constraint: t x x’

19. Essential matrix for parallel images Epipolar constraint: R = I t = (T, 0, 0) The y-coordinates of corresponding points are the same! t x x’

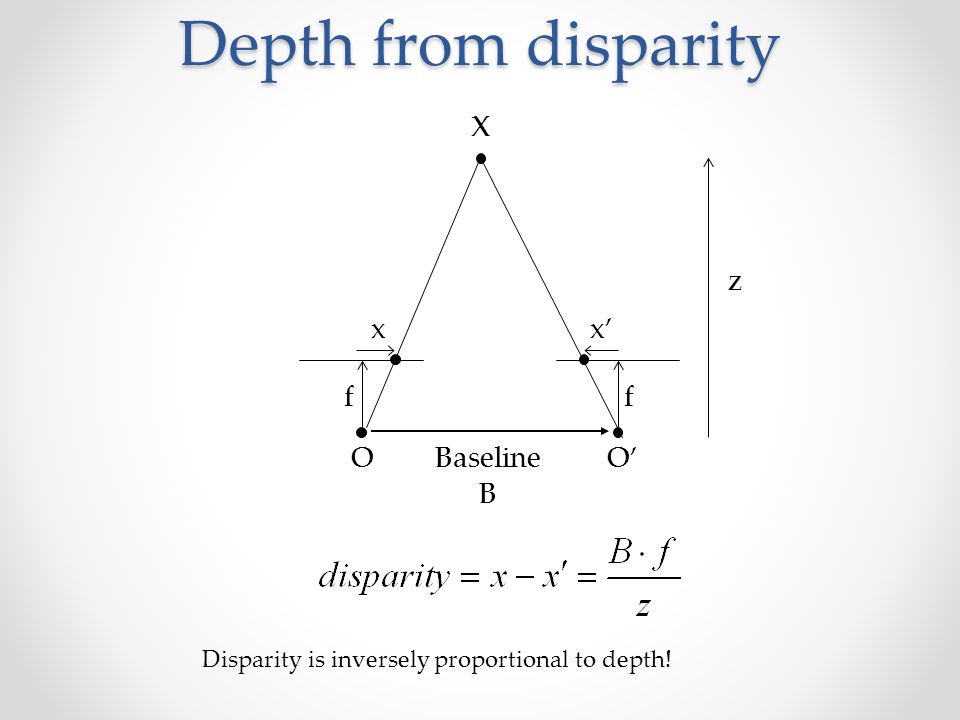

20. Depth from disparity f xx’ Baseline B z OO’ X f Disparity is inversely proportional to depth!

21. Depth Sampling Depth sampling for integer pixel disparity Quadratic precision loss with depth!

22. Depth Sampling Depth sampling for wider baseline

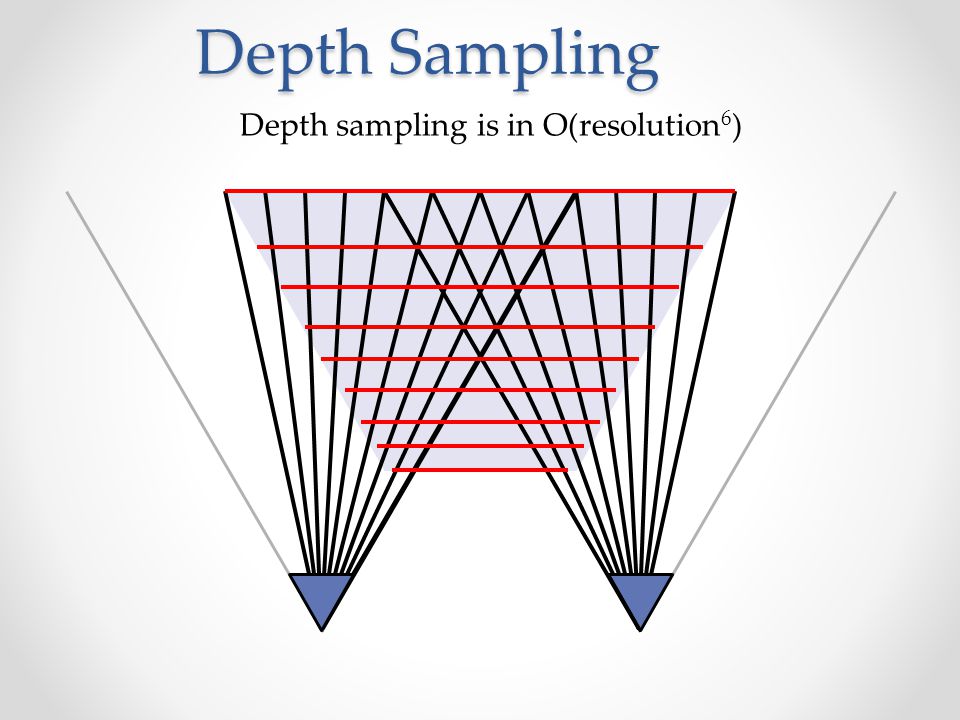

23. Depth Sampling Depth sampling is in O(resolution 6 )

24. Stereo: epipolar geometry for two images (or images with collinear camera centers), can find epipolar lines epipolar lines are the projection of the pencil of planes passing through the centers Rectification: warping the input images (perspective transformation) so that epipolar lines are horizontal slide: R. Szeliski

25. Rectification Project each image onto same plane, which is parallel to the epipole Resample lines (and shear/stretch) to place lines in correspondence, and minimize distortion [Loop and Zhang, CVPR ’ 99] slide: R. Szeliski

26. Rectification BAD! slide: R. Szeliski

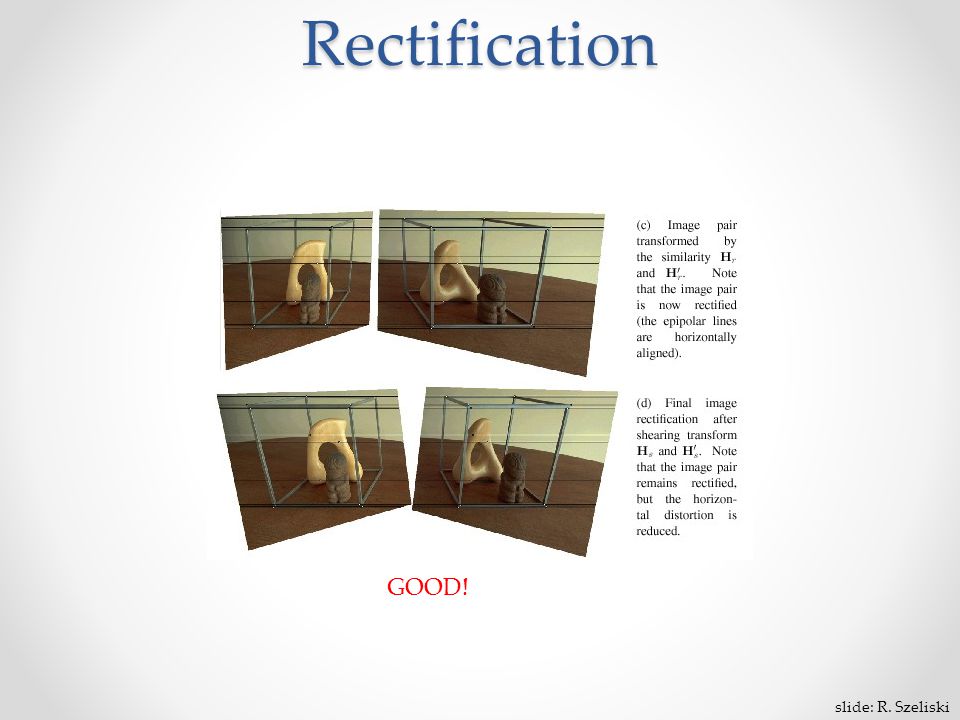

27. Rectification GOOD! slide: R. Szeliski

28. Problem: Rectification for forward moving cameras Required image can become very large (infinitely large) when the epipole is in the image Alternative rectifications are available using epipolar lines directly in the images o Pollefeys et al. 1999, “A simple and efficient method for general motion”, ICCV

29. Your basic stereo algorithm For each epipolar line For each pixel in the left image compare with every pixel on same epipolar line in right image pick pixel with minimum match cost Improvement: match windows This should look familar... slide: R. Szeliski

30. Image registration (revisited) How do we determine correspondences? o block matching or SSD (sum squared differences) d is the disparity (horizontal motion) How big should the neighborhood be? slide: R. Szeliski

31. Finding correspondences apply feature matching criterion (e.g., correlation or Lucas-Kanade) at all pixels simultaneously search only over epipolar lines (many fewer candidate positions) slide: R. Szeliski

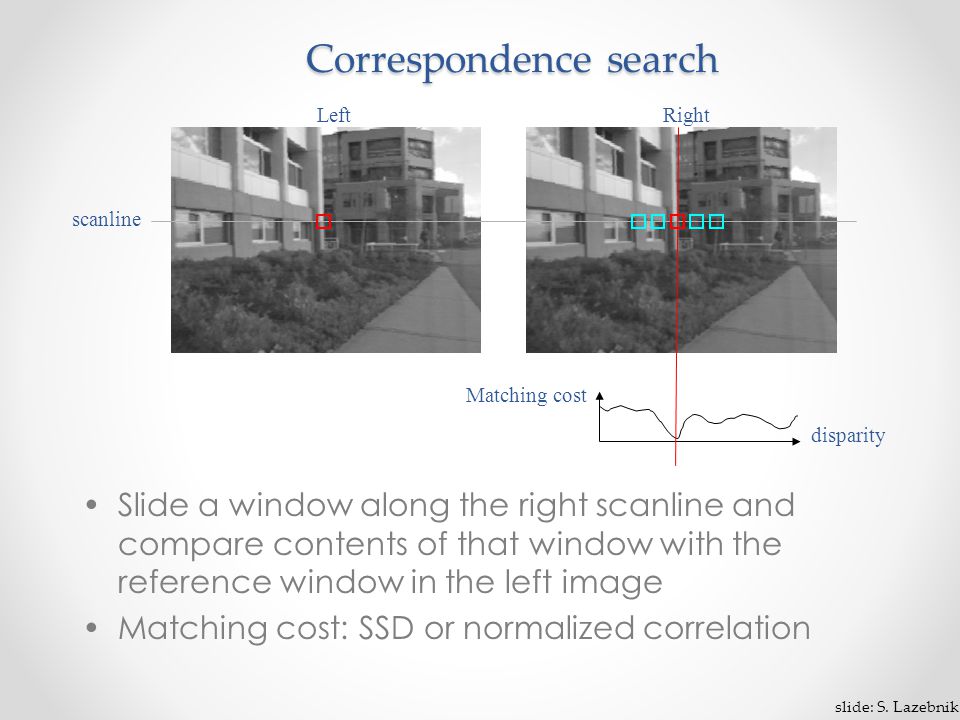

32. Matching cost disparity LeftRight scanline Correspondence search Slide a window along the right scanline and compare contents of that window with the reference window in the left image Matching cost: SSD or normalized correlation slide: S. Lazebnik

33. LeftRight scanline Correspondence search SSD slide: S. Lazebnik

34. LeftRight scanline Correspondence search Norm. corr slide: S. Lazebnik

35. Neighborhood size Smaller neighborhood: more details Larger neighborhood: fewer isolated mistakes w = 3w = 20 slide: R. Szeliski

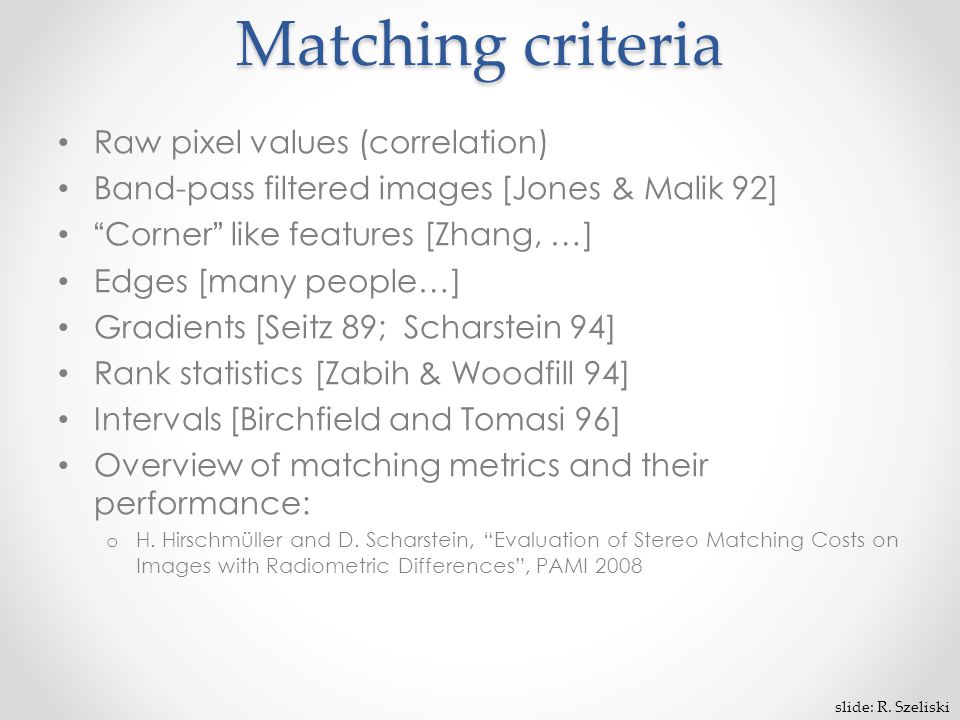

36. Matching criteria Raw pixel values (correlation) Band-pass filtered images [Jones & Malik 92] “ Corner ” like features [Zhang, …] Edges [many people…] Gradients [Seitz 89; Scharstein 94] Rank statistics [Zabih & Woodfill 94] Intervals [Birchfield and Tomasi 96] Overview of matching metrics and their performance: o H. Hirschmüller and D. Scharstein, “Evaluation of Stereo Matching Costs on Images with Radiometric Differences”, PAMI 2008 slide: R. Szeliski

37. Adaptive Weighting Boundary Preserving More Costly

38. Failures of correspondence search Textureless surfaces Occlusions, repetition Non-Lambertian surfaces, specularities slide: S. Lazebnik

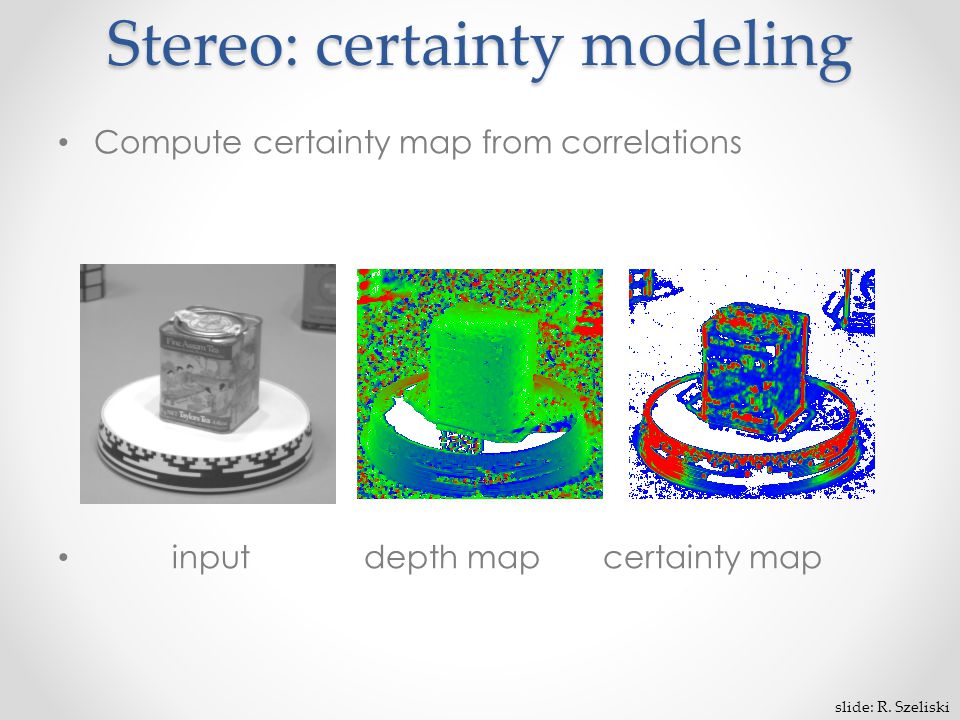

39. Stereo: certainty modeling Compute certainty map from correlations input depth map certainty map slide: R. Szeliski

40. Results with window search Window-based matchingGround truth Data slide: S. Lazebnik

41. Better methods exist... Graph cuts Ground truth For the latest and greatest: http://www.middlebury.edu/stereo/http://www.middlebury.edu/stereo/ Y. Boykov, O. Veksler, and R. Zabih, Fast Approximate Energy Minimization via Graph Cuts, PAMI 2001Fast Approximate Energy Minimization via Graph Cuts slide: S. Lazebnik

42. How can we improve window-based matching? The similarity constraint is local (each reference window is matched independently) Need to enforce non-local correspondence constraints slide: S. Lazebnik

43. Non-local constraints Uniqueness o For any point in one image, there should be at most one matching point in the other image slide: S. Lazebnik

44. Non-local constraints Uniqueness o For any point in one image, there should be at most one matching point in the other image Ordering o Corresponding points should be in the same order in both views slide: S. Lazebnik

45. Non-local constraints Uniqueness o For any point in one image, there should be at most one matching point in the other image Ordering o Corresponding points should be in the same order in both views Ordering constraint doesn’t hold slide: S. Lazebnik

46. Non-local constraints Uniqueness o For any point in one image, there should be at most one matching point in the other image Ordering o Corresponding points should be in the same order in both views Smoothness o We expect disparity values to change slowly (for the most part) slide: S. Lazebnik

47. Scanline stereo Try to coherently match pixels on the entire scanline Different scanlines are still optimized independently Left imageRight image slide: S. Lazebnik

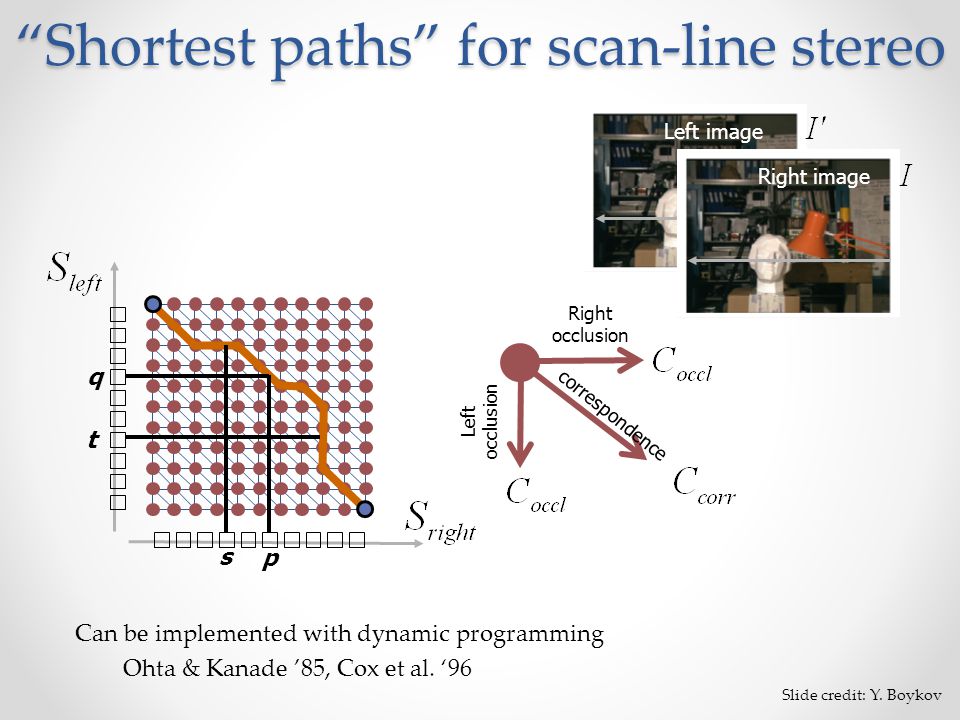

48. “Shortest paths” for scan-line stereo Left imageRight image Can be implemented with dynamic programming Ohta & Kanade ’85, Cox et al. ‘96 correspondence q p Left occlusion t Right occlusion s Slide credit: Y. Boykov

49. Coherent stereo on 2D grid Scanline stereo generates streaking artifacts Can’t use dynamic programming to find spatially coherent disparities/ correspondences on a 2D grid slide: S. Lazebnik

50. Stereo matching as energy minimization I1I1 I2I2 D Energy functions of this form can be minimized using graph cuts Y. Boykov, O. Veksler, and R. Zabih, Fast Approximate Energy Minimization via Graph Cuts, PAMI 2001Fast Approximate Energy Minimization via Graph Cuts W1(i )W1(i )W 2 (i+D(i )) D(i )D(i ) data term smoothness term slide: S. Lazebnik

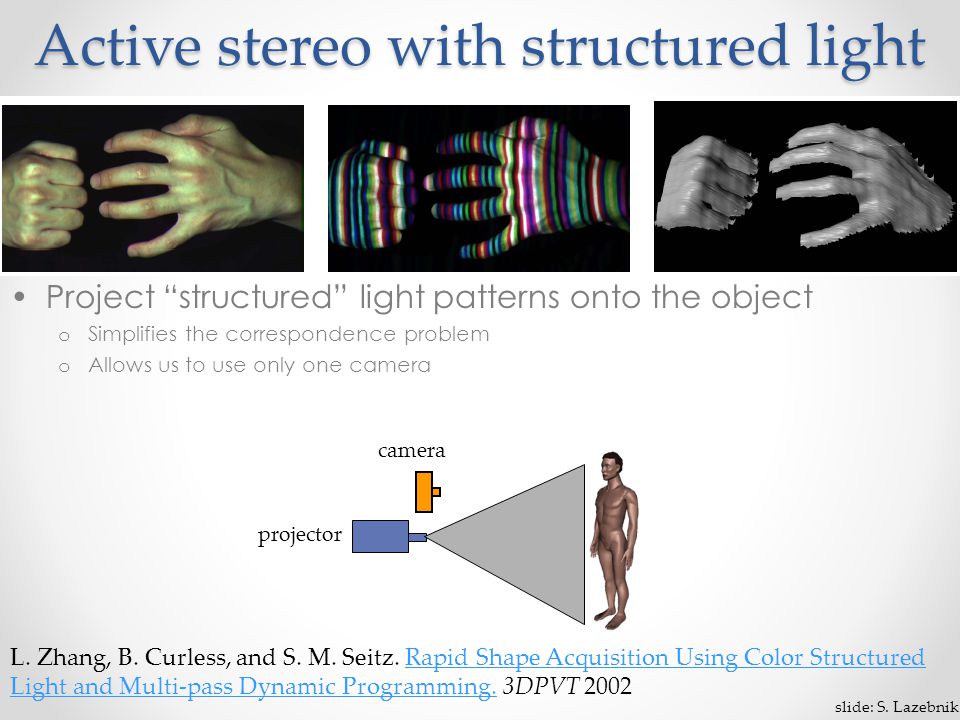

51. Active stereo with structured light Project “structured” light patterns onto the object o Simplifies the correspondence problem o Allows us to use only one camera camera projector L. Zhang, B. Curless, and S. M. Seitz. Rapid Shape Acquisition Using Color Structured Light and Multi-pass Dynamic Programming. 3DPVT 2002Rapid Shape Acquisition Using Color Structured Light and Multi-pass Dynamic Programming. slide: S. Lazebnik

52. Active stereo with structured light L. Zhang, B. Curless, and S. M. Seitz. Rapid Shape Acquisition Using Color Structured Light and Multi-pass Dynamic Programming. 3DPVT 2002Rapid Shape Acquisition Using Color Structured Light and Multi-pass Dynamic Programming. slide: S. Lazebnik

53. Active stereo with structured light http://en.wikipedia.org/wiki/Structured-light_3D_scanner slide: S. Lazebnik

54. Kinect: Structured infrared light http://bbzippo.wordpress.com/2010/11/28/kinect-in-infrared/ slide: S. Lazebnik

55. Laser scanning Optical triangulation o Project a single stripe of laser light o Scan it across the surface of the object o This is a very precise version of structured light scanning Digital Michelangelo Project Levoy et al. http://graphics.stanford.edu/projects/mich/ Source: S. Seitz

56. Laser scanned models The Digital Michelangelo Project, Levoy et al. Source: S. Seitz

57. Laser scanned models The Digital Michelangelo Project, Levoy et al. Source: S. Seitz

58. Laser scanned models The Digital Michelangelo Project, Levoy et al. Source: S. Seitz

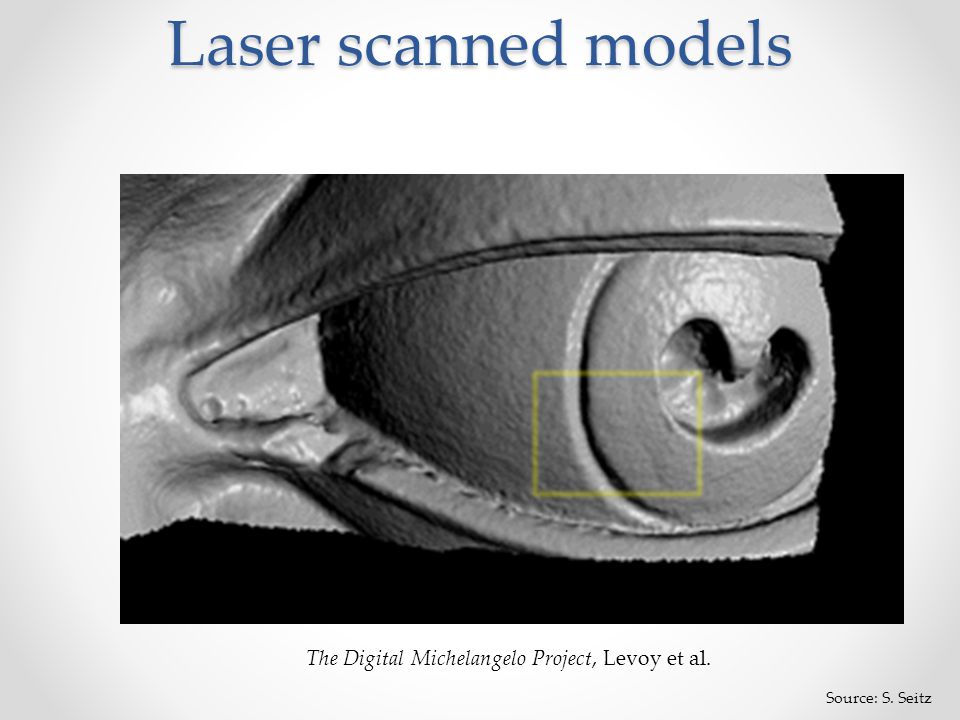

59. Laser scanned models The Digital Michelangelo Project, Levoy et al. Source: S. Seitz

60. Laser scanned models The Digital Michelangelo Project, Levoy et al. Source: S. Seitz 1.0 mm resolution (56 million triangles)

61. Aligning range images A single range scan is not sufficient to describe a complex surface Need techniques to register multiple range images B. Curless and M. Levoy, A Volumetric Method for Building Complex Models from Range Images, SIGGRAPH 1996A Volumetric Method for Building Complex Models from Range Images

62. Aligning range images A single range scan is not sufficient to describe a complex surface Need techniques to register multiple range images … which brings us to multi-view stereo
