CS 6961: Structured Prediction Fall 2014 Introduction Lecture 1 What is structured prediction?

Similar presentations


Presentation on theme: "CS 6961: Structured Prediction Fall 2014 Introduction Lecture 1 What is structured prediction?"— Presentation transcript:

1 CS 6961: Structured Prediction Fall 2014 Introduction Lecture 1 What is structured prediction?

2 Our goal today To define a Structure and Structured Prediction 2

3 What are structures? 3

4 What are some examples of structured data? Database tables and spreadsheets HTML documents JSON objects Wikipedia info-boxes Computer programs … we will see more examples 4

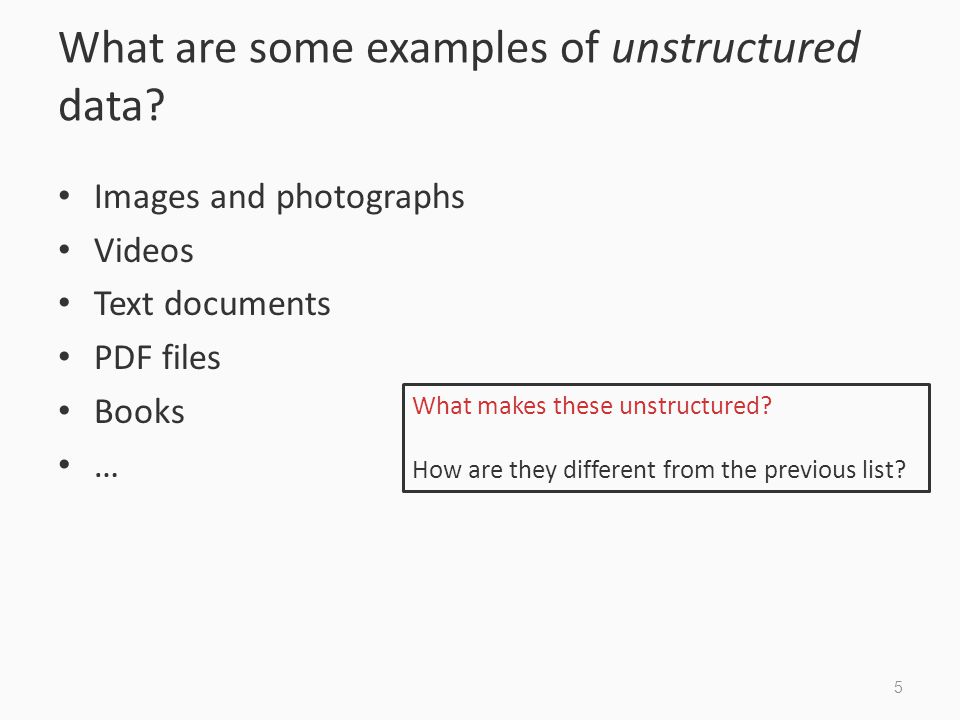

5 What are some examples of unstructured data? Images and photographs Videos Text documents PDF files Books … 5 What makes these unstructured? How are they different from the previous list?

6 Structured representations are useful because …. We know how to process them – Algorithms for managing symbolic data – Computational complexity well understood They abstract away unnecessary complexities – Why deal with text/images/etc when you can process a database with the same information? 6

7 Have we made the problem easier? 7 What does the splitting of water lead to? A: Light absorption B: Transfer of ions Water is split, providing a source of electrons and protons (hydrogen ions, H + ) and giving off O 2 as a by-product. Light absorbed by chlorophyll drives a transfer of the electrons and hydrogen ions from water to an acceptor called NADP +.

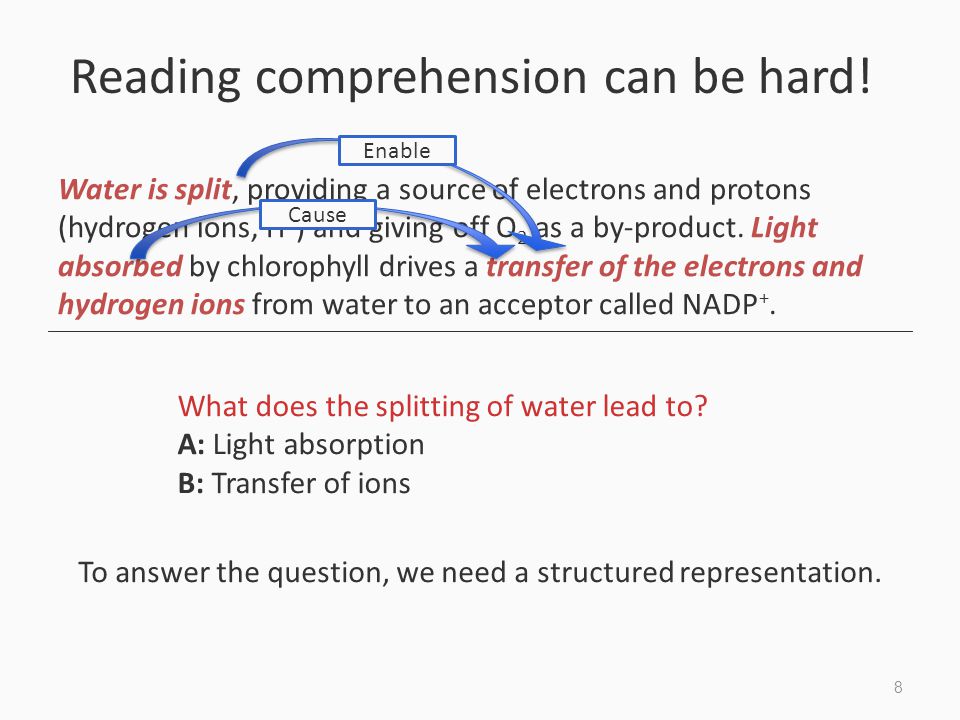

8 Reading comprehension can be hard! 8 Water is split, providing a source of electrons and protons (hydrogen ions, H + ) and giving off O 2 as a by-product. Light absorbed by chlorophyll drives a transfer of the electrons and hydrogen ions from water to an acceptor called NADP +. Enable Cause What does the splitting of water lead to? A: Light absorption B: Transfer of ions To answer the question, we need a structured representation.

9 Machine learning to the rescue Techniques from statistical learning can help build these representations In fact, machine learning is necessary to scale up and generalize this process 9

10 A detour about classification 10

11 Classification We know how to train classifiers – Given an email, spam or not spam? – Is a review positive or negative? – Which folder should an email be automatically be placed into? – “Predict if a car purchased at an auction is a lemon” And other such questions from kaggle 11

12 Standard classification setting Notation – X: A feature representation of input – Y: One of a set of labels ( spam, not-spam ) The goal: To learn a function X ! Y that maps examples into a category The standard recipe 1.Collect labeled examples {(x 1,y 1 ), (x 2, y 2 ),  } 2.Train a function f: X ! Y that a.Is consistent with the observed examples, and b.Can hopefully be correct on new unseen examples 12 Based on slides of Dan Roth

13 Classification is generally well understood Theoretically: generalization bounds – We know how many examples one needs to see to guarantee good behavior on unseen examples Algorithmically: good learning algorithms for linear representations – Efficient and can deal with high dimensionality (millions of features) Some open questions – What is a good feature representation? – Learning protocols: how to minimize supervision, efficient semi-supervised learning, active learning 13 Based on slides of Dan Roth Is this sufficient for solving problems like the reading comprehension one? No!

14 Examples where standard classification is not enough 14

15 Semantic Role Labeling X: John saw the dog chasing the ball. Y: 15 Predicatesee ViewerJohn Thing viewedThe dog chasing the ball PredicateChase ChaserThe dog Thing chasedthe ball See( Viewer : John, Viewed : the dog chasing the ball) Chase( Chaser : the dog, Chased : the ball) Or equivalently, predicate-argument representations

16 Semantic Parsing X: “A python function that takes a name and prints the string Hello followed by the name and exits.” Y: X: “Find the largest state in the US.” Y: 16 SELECT name FROM us_states WHERE size = (SELECT MAX(size) FROM us_states) In all these cases, the output Y is a structure

17 What is a structure? One definition By … linguistic structure, we refer to symbolic representations of language posited by some theory of language. 17 From the book Linguistic Structure Prediction, by Noah Smith, 2011.

18 What is in this picture? 18 Photo by Andrew Dressel - Own work. Licensed under Creative Commons Attribution-Share Alike 3.0

19 Object detection 19 Photo by Andrew Dressel - Own work. Licensed under Creative Commons Attribution-Share Alike 3.0 Right facing bicycle Right facing bicycle left wheel right wheel handle bar saddle/seat

20 The output: A schematic showing the parts and their relative layout 20 left wheel right wheel handle bar saddle/seat Right facing bicycle Right facing bicycle Once again, a structure

21 A working definition of a structure A structure is a concept that can be applied to any complex thing, whether it be a bicycle, a commercial company, or a carbon molecule. By complex, we mean: 1.It is divisible into parts, 2.There are different kinds of parts, 3.The parts are arranged in a specifiable way, and, 4.Each part has a specifiable function in the structure of the thing as a whole 21 From the book Analysing Sentences: An Introduction to English Syntax by Noel Burton-Roberts, 1986.

22 What is structured prediction? 22

23 Standard classification tools can’t predict structures X: “Find the largest state in the US.” Y: Classification is about making one decision – Spam or not spam, or predict one label, etc We need to make multiple decisions – Each part needs a label Should “US” be mapped to us_states or utah_counties? Should “Find” be mapped to SELECT or FROM or WHERE? – The decisions interact with each other If the outer FROM clause talks about the table us_states, then the inner FROM clause should not talk about utah_counties – How to compose the fragments together to create the whole structure? Should the output consist of a WHERE clause? What should go in it? 23 SELECT name FROM us_states WHERE size = (SELECT MAX(size) FROM us_states)

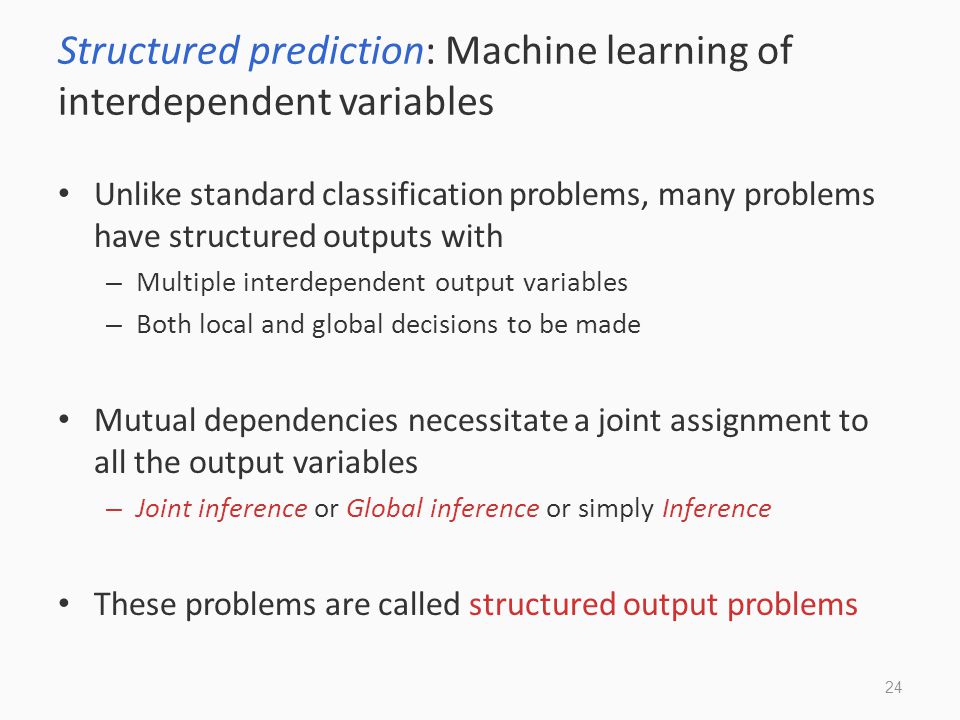

24 Structured prediction: Machine learning of interdependent variables Unlike standard classification problems, many problems have structured outputs with – Multiple interdependent output variables – Both local and global decisions to be made Mutual dependencies necessitate a joint assignment to all the output variables – Joint inference or Global inference or simply Inference These problems are called structured output problems 24

25 Computational issues 25 Model definition What are the parts of the output? What are the inter-dependencies? How to train the model? How to do inference? Data annotation difficulty Background knowledge about domain Semi- supervised/indirectly supervised?

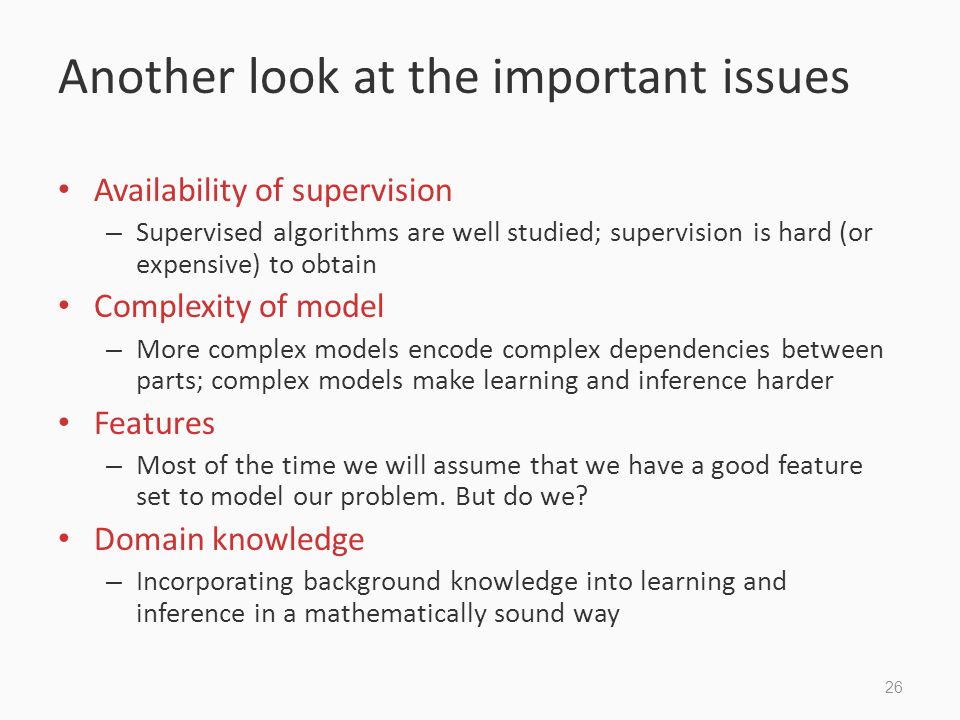

26 Another look at the important issues Availability of supervision – Supervised algorithms are well studied; supervision is hard (or expensive) to obtain Complexity of model – More complex models encode complex dependencies between parts; complex models make learning and inference harder Features – Most of the time we will assume that we have a good feature set to model our problem. But do we? Domain knowledge – Incorporating background knowledge into learning and inference in a mathematically sound way 26
