1. Simplicial structures on train tracks Fedor Duzhin, Nanyang Technological University, Singapore

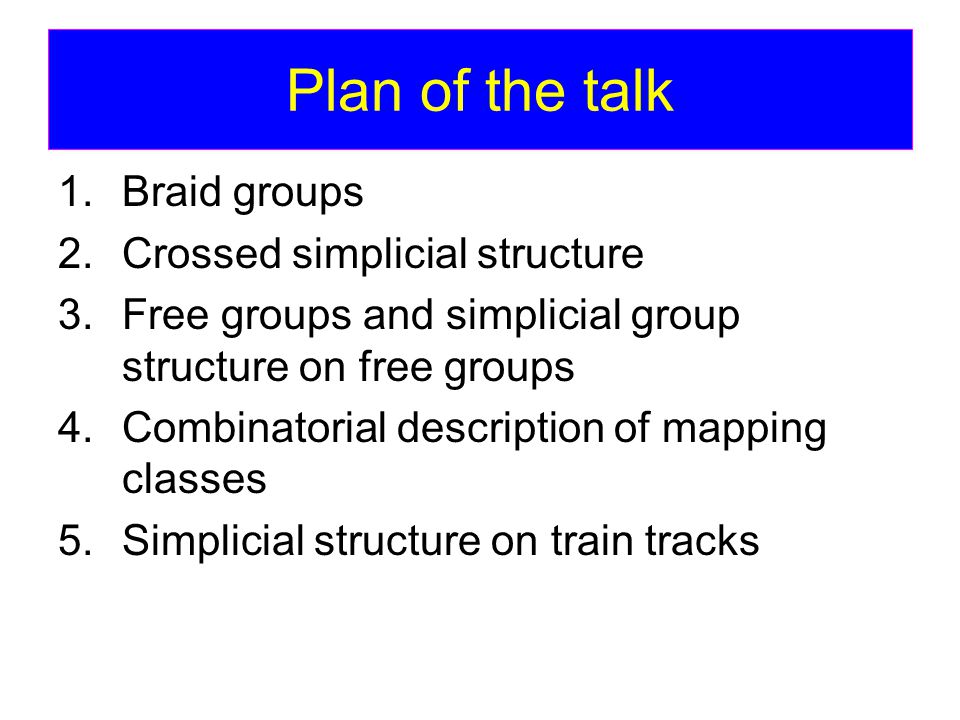

2. Plan of the talk 1.Braid groups 2.Crossed simplicial structure 3.Free groups and simplicial group structure on free groups 4.Combinatorial description of mapping classes 5.Simplicial structure on train tracks

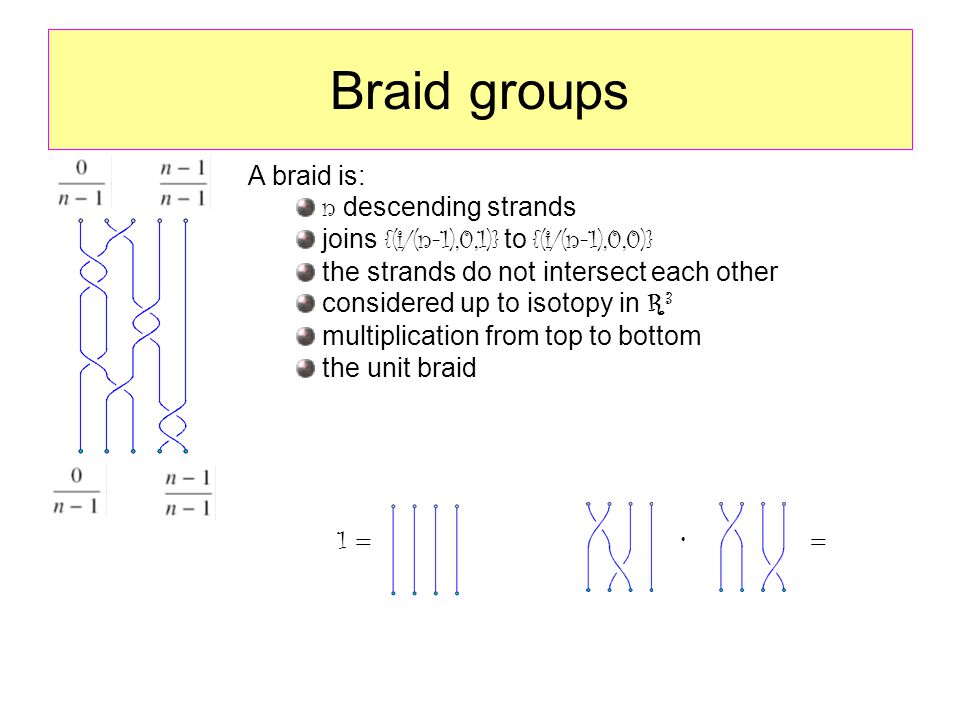

3. Braid groups A braid is: n descending strands joins {(i/(n-1),0,1)} to {(i/(n-1),0,0)} the strands do not intersect each other considered up to isotopy in R 3 multiplication from top to bottom the unit braid =1 =

4. Artin’s presentation The braid group on n strands B n has the following presentation: ===

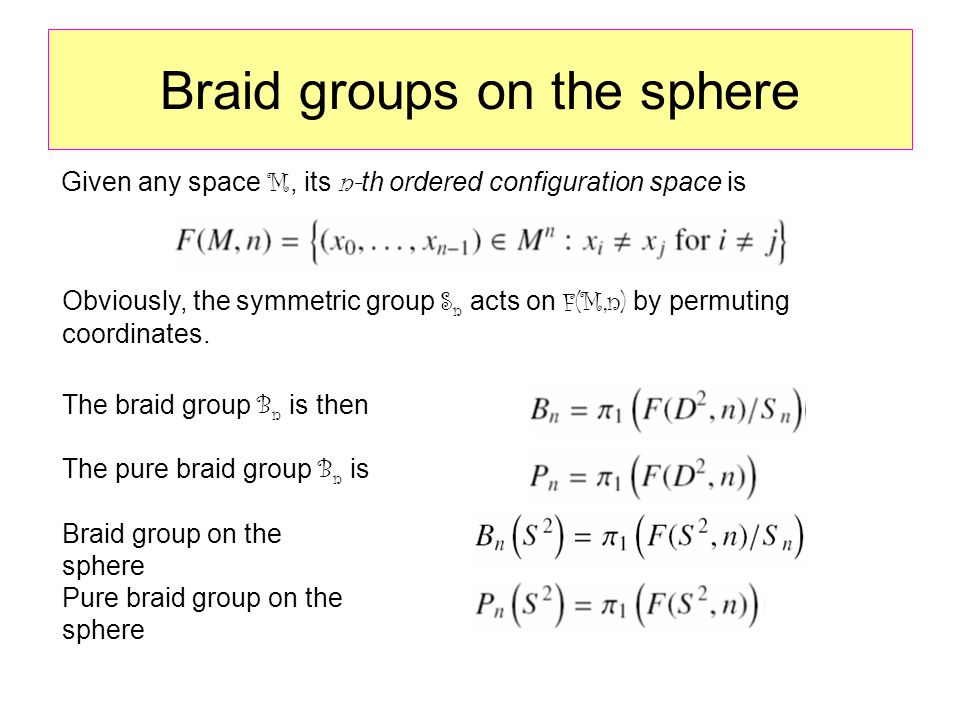

5. Braid groups on the sphere The braid group B n is then Given any space M, its n- th ordered configuration space is Obviously, the symmetric group S n acts on F(M,n) by permuting coordinates. The pure braid group B n is Braid group on the sphere Pure braid group on the sphere

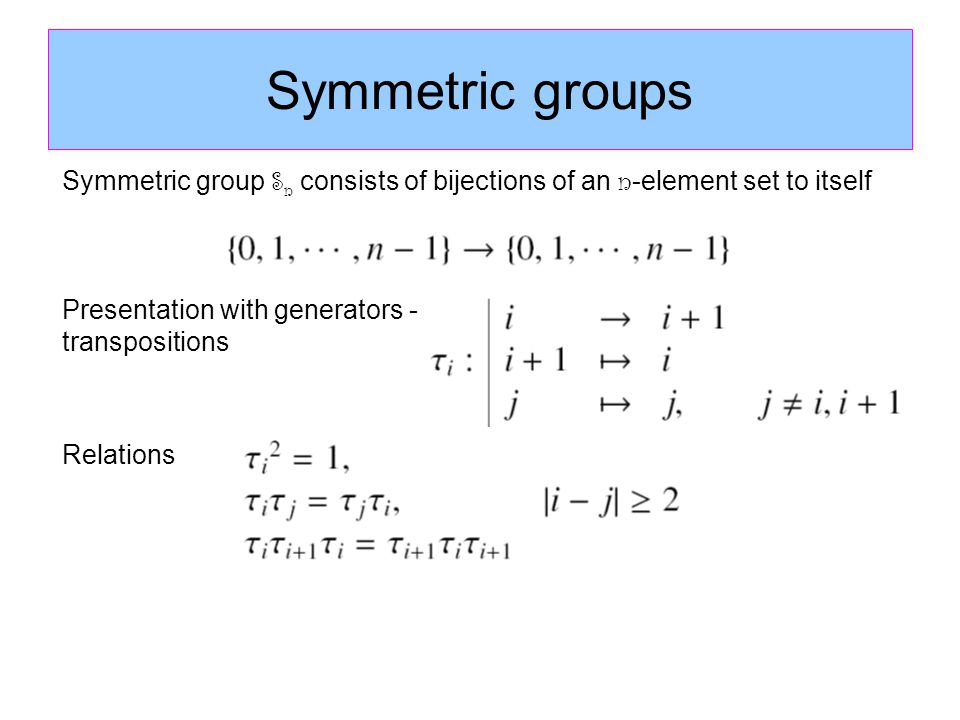

6. Symmetric groups Symmetric group S n consists of bijections of an n -element set to itself Presentation with generators - transpositions Relations

7. Crossed simplicial structure The braid group is a crossed simplicial group, that is, Homomorphism to the permutation group Face-operators Degeneracy-operators Simplicial identitiesCrossed simplicial relation

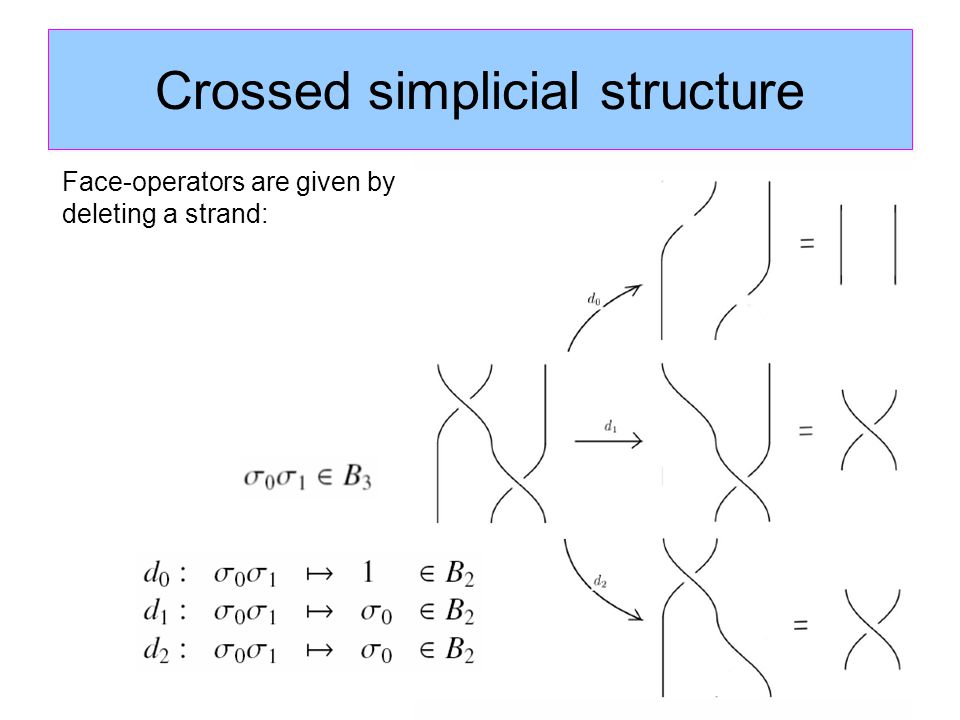

8. Crossed simplicial structure Face-operators are given by deleting a strand:

9. Crossed simplicial structure Degeneracy-operators are given by doubling a strand:

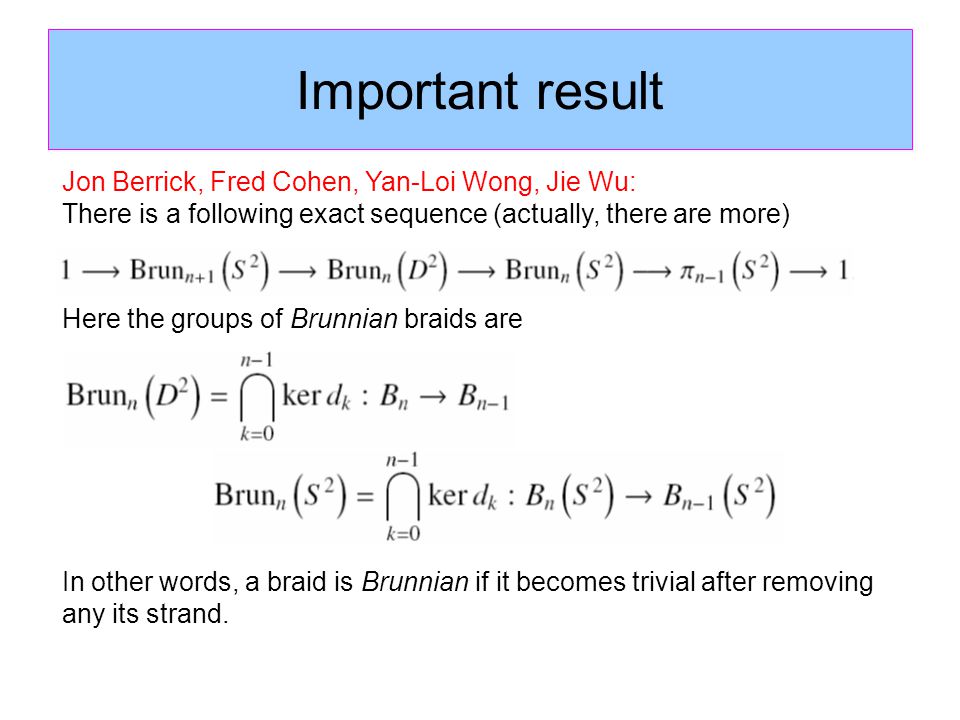

10. Important result Jon Berrick, Fred Cohen, Yan-Loi Wong, Jie Wu: There is a following exact sequence (actually, there are more) Here the groups of Brunnian braids are In other words, a braid is Brunnian if it becomes trivial after removing any its strand.

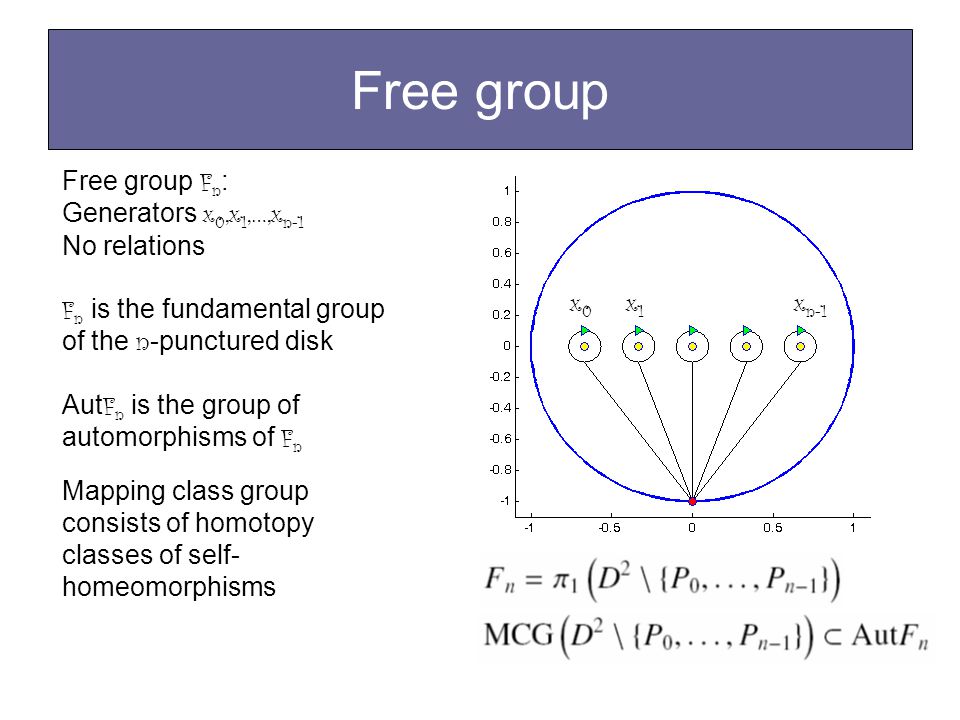

11. Free group F n : Generators x 0,x 1,…,x n-1 No relations F n is the fundamental group of the n -punctured disk Aut F n is the group of automorphisms of F n Mapping class group consists of homotopy classes of self- homeomorphisms x0x0 x1x1 x n-1 Free group

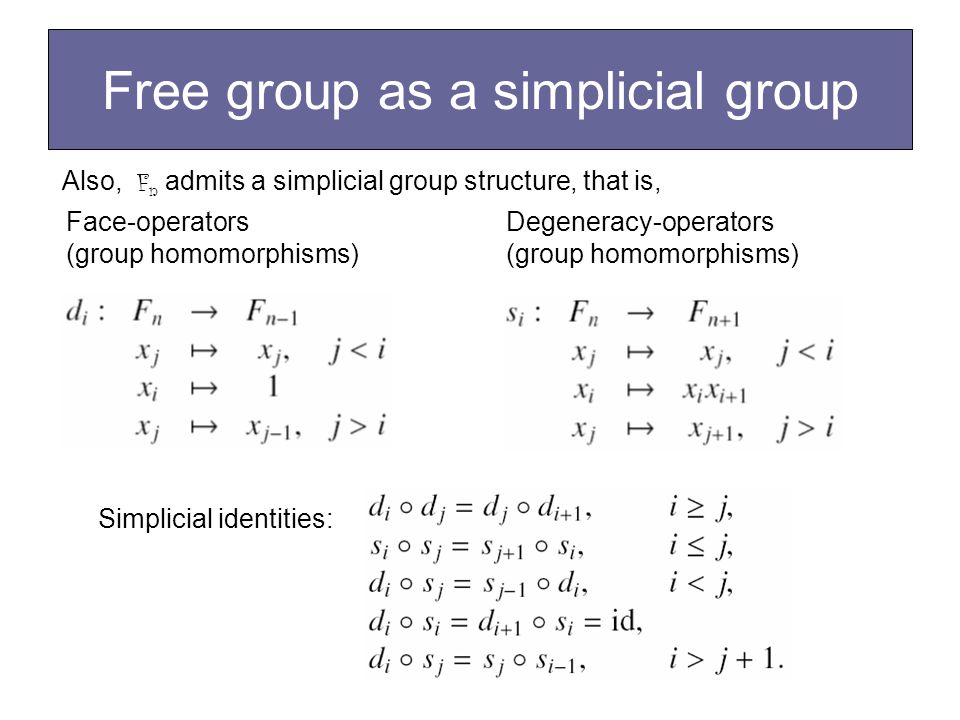

12. Also, F n admits a simplicial group structure, that is, Free group as a simplicial group Face-operators (group homomorphisms) Degeneracy-operators (group homomorphisms) Simplicial identities:

13. Artin’s representation Artin’s representation is obtained from considering braids as mapping classes The disk is made of rubber Punctures are holes The braid is made of wire The disk is being pushed down along the braid Theorem The braid group is isomorphic to the mapping class group of the punctured disk

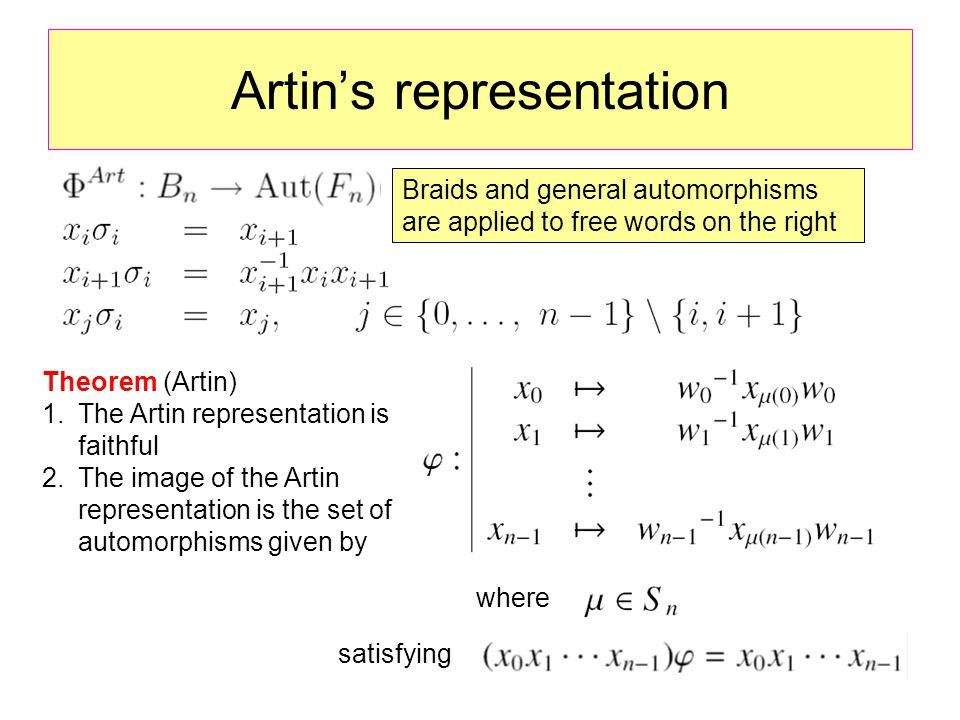

14. Artin’s representation Braids and general automorphisms are applied to free words on the right Theorem (Artin) 1.The Artin representation is faithful 2.The image of the Artin representation is the set of automorphisms given by where satisfying

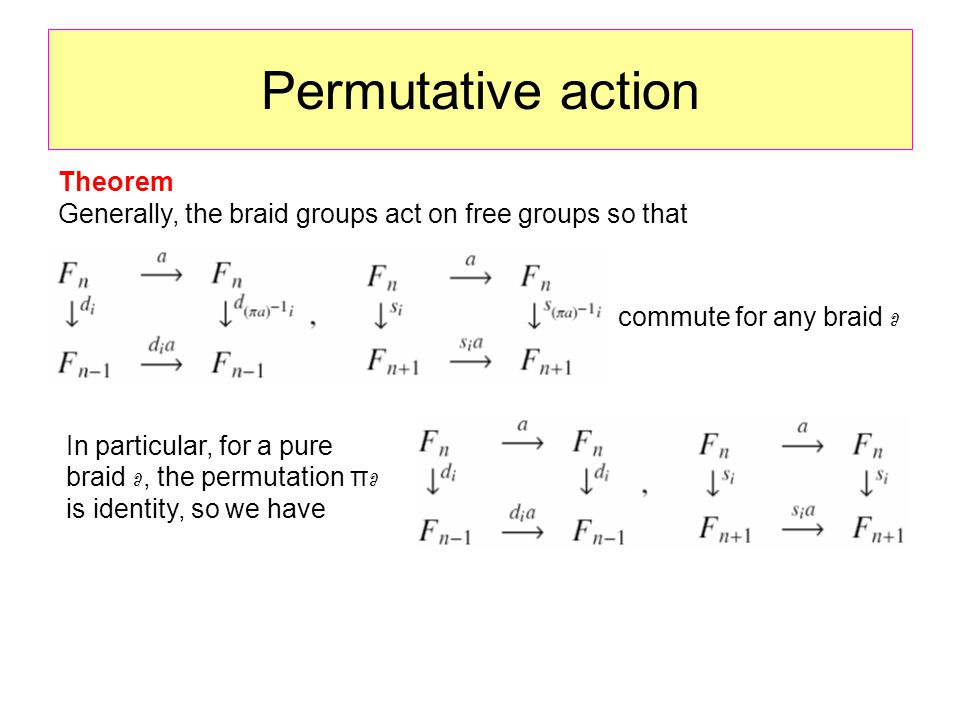

15. Permutative action Theorem Generally, the braid groups act on free groups so that commute for any braid a In particular, for a pure braid a, the permutation π a is identity, so we have

16. Skeleton graphs Let S be an n -punctured disk (or, generally, a surface with n punctures and k boundary components) In order to give a combinatorial description to a mapping class (that is a self-homeomorphism of the surface S considered up to homotopy fixing the boundary of the disk pointwise and the set of punctures), one first defines a skeleton graph. A skeleton graph is homotopy equivalent to the entire surface. It consists of n closed edges encircling punctures and a tree. Also, there are some natural equivalence relations. For example, one can remove a vertex of valence 1 or 2

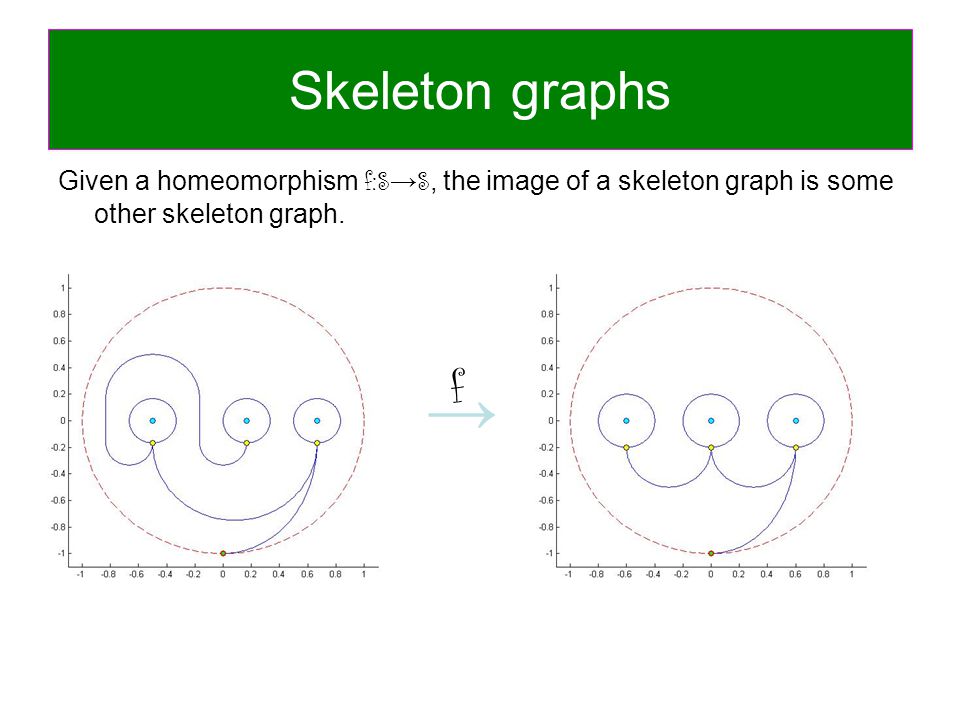

17. Skeleton graphs Given a homeomorphism f:S → S, the image of a skeleton graph is some other skeleton graph. → f

18. Skeleton graphs A map of a skeleton graph G to itself occurs as follows inclusion f retraction

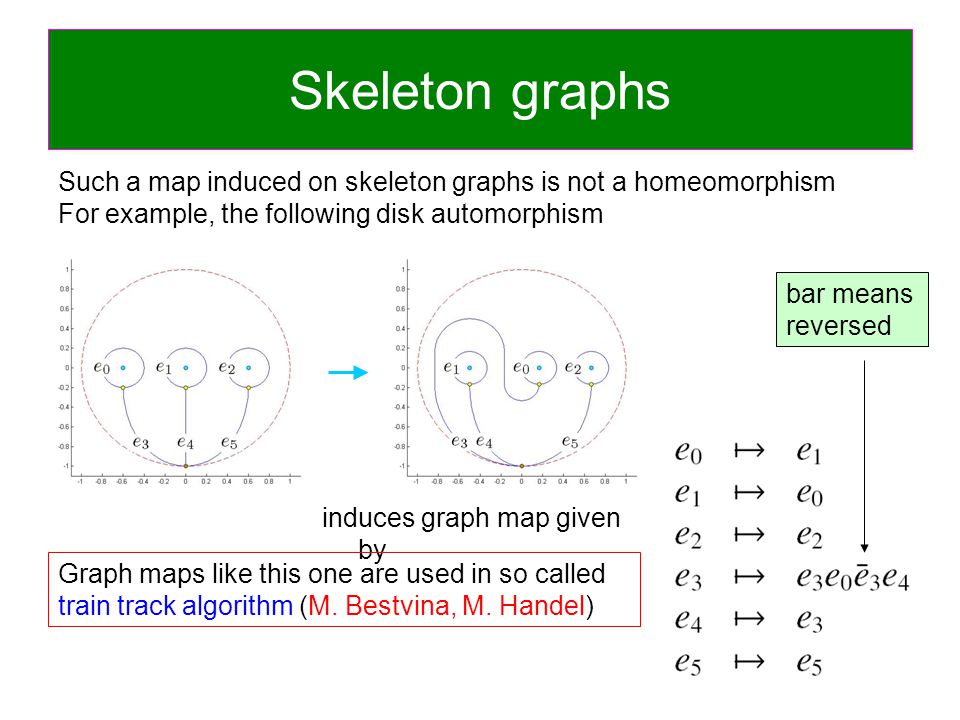

19. Skeleton graphs Such a map induced on skeleton graphs is not a homeomorphism For example, the following disk automorphism induces graph map given by bar means reversed Graph maps like this one are used in so called train track algorithm (M. Bestvina, M. Handel)

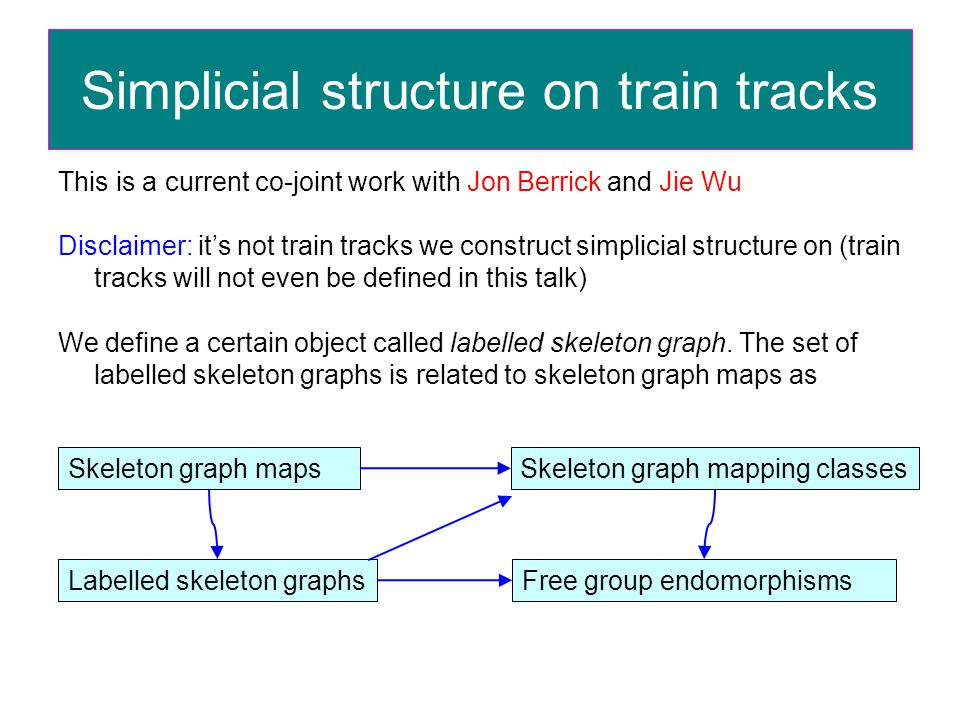

20. Simplicial structure on train tracks This is a current co-joint work with Jon Berrick and Jie Wu Disclaimer: it’s not train tracks we construct simplicial structure on (train tracks will not even be defined in this talk) We define a certain object called labelled skeleton graph. The set of labelled skeleton graphs is related to skeleton graph maps as Skeleton graph mapsSkeleton graph mapping classes Labelled skeleton graphsFree group endomorphisms

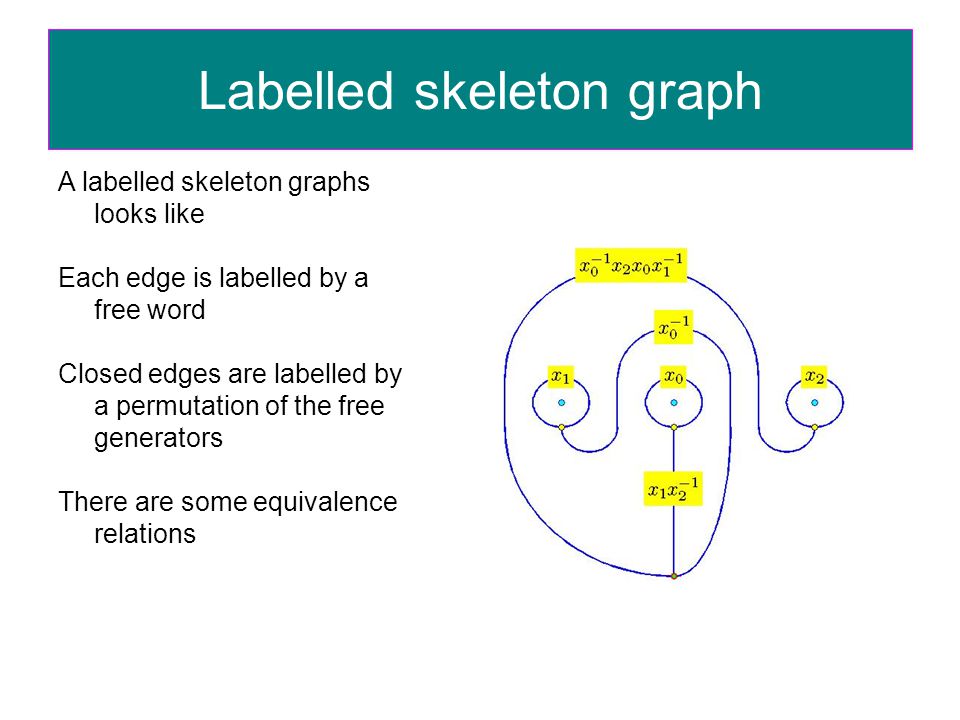

21. Labelled skeleton graph A labelled skeleton graphs looks like Each edge is labelled by a free word Closed edges are labelled by a permutation of the free generators There are some equivalence relations

22. Simplicial structure on labelled skeleton graphs Face-operator kills a closed edge (and applies the free group face operator to all labels) face Degeneracy-operator inserts two new edges degeneracy Thanks for your attention
