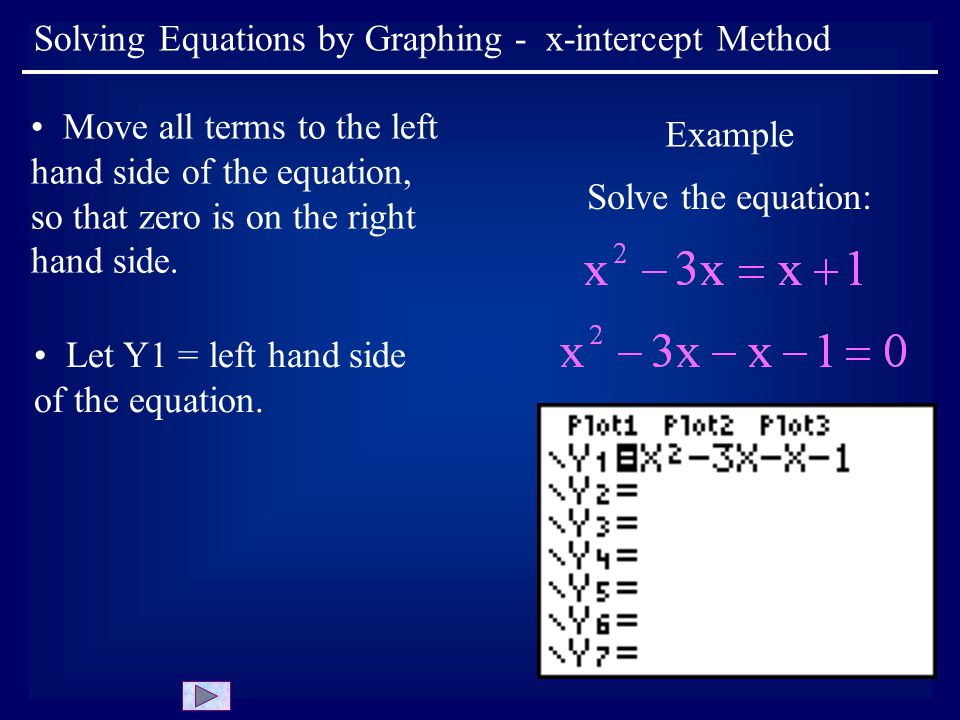

1. Solving Equations by Graphing - x-intercept Method Move all terms to the left hand side of the equation, so that zero is on the right hand side. Example Solve the equation: Let Y1 = left hand side of the equation.

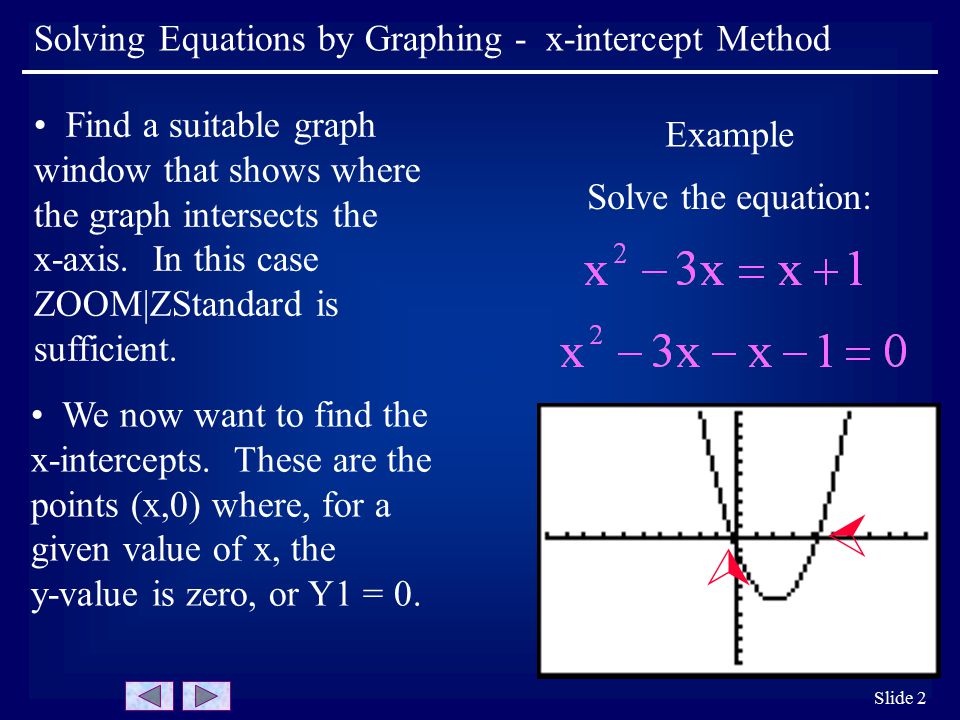

2. Slide 2 Find a suitable graph window that shows where the graph intersects the x-axis. In this case ZOOM|ZStandard is sufficient. Example Solve the equation: Solving Equations by Graphing - x-intercept Method We now want to find the x-intercepts. These are the points (x,0) where, for a given value of x, the y-value is zero, or Y1 = 0.  

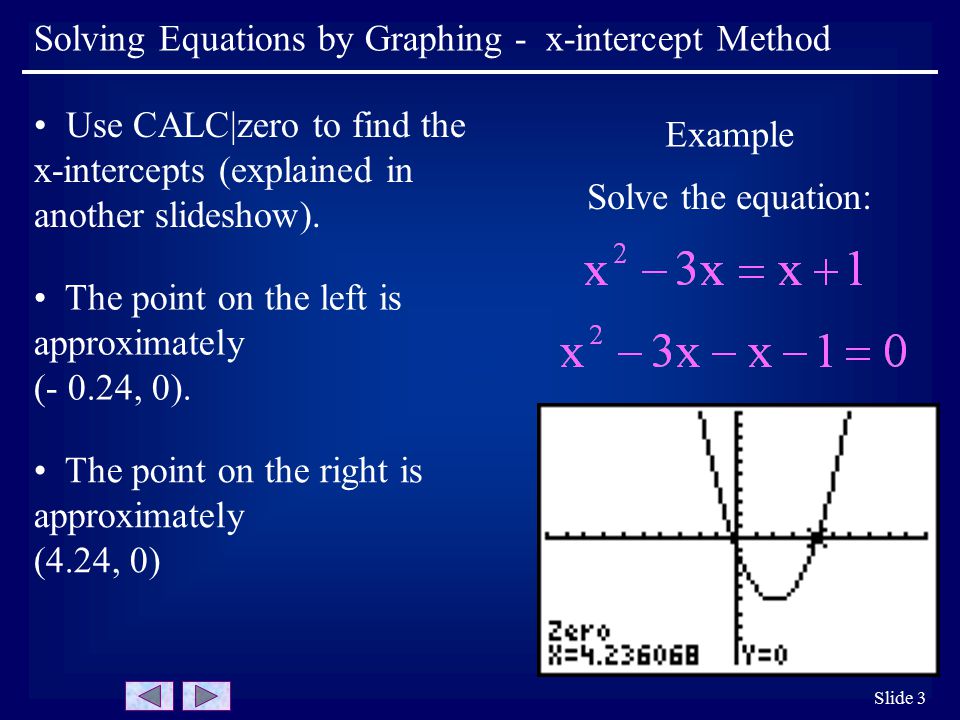

3. Slide 3 Example Solve the equation: Use CALC|zero to find the x-intercepts (explained in another slideshow). The point on the left is approximately (- 0.24, 0). The point on the right is approximately (4.24, 0) Solving Equations by Graphing - x-intercept Method

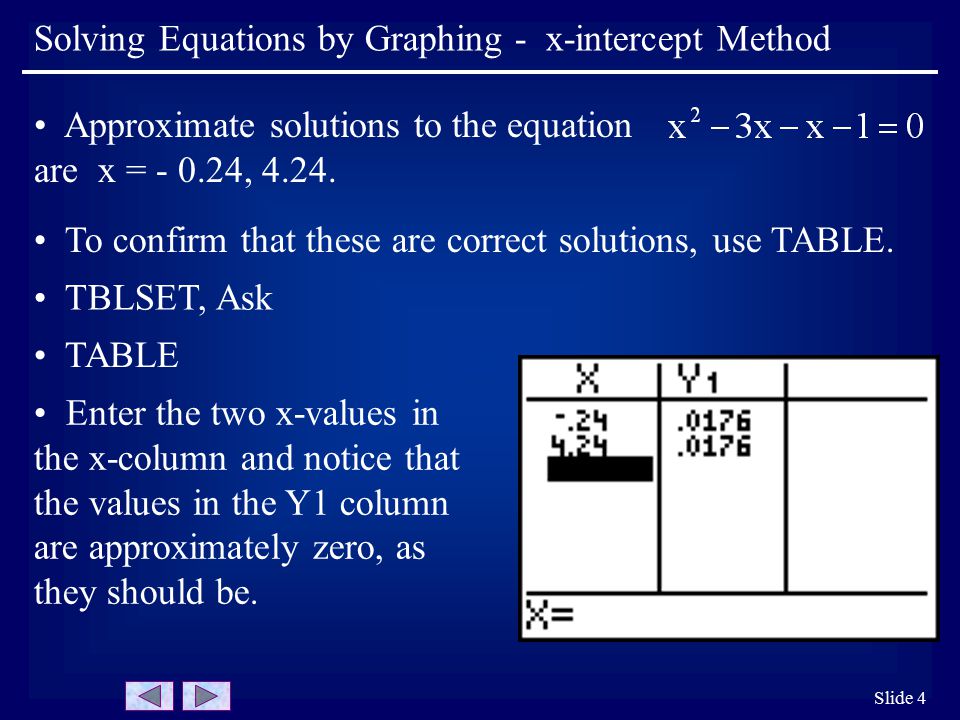

4. Approximate solutions to the equation are x = - 0.24, 4.24. Slide 4 To confirm that these are correct solutions, use TABLE. TBLSET, Ask TABLE Enter the two x-values in the x-column and notice that the values in the Y1 column are approximately zero, as they should be. Solving Equations by Graphing - x-intercept Method

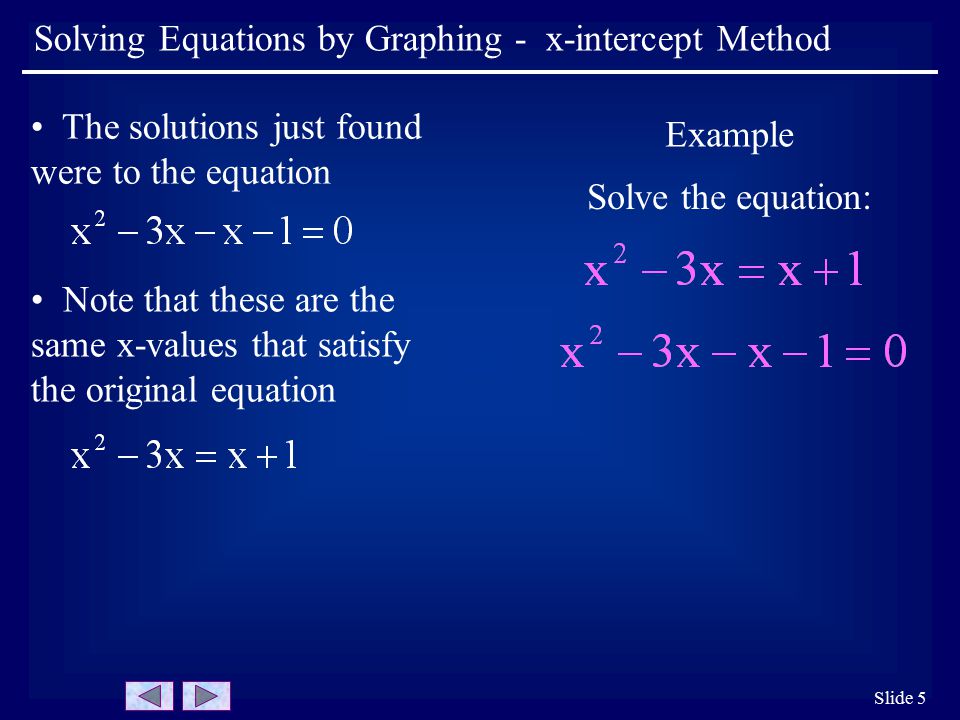

5. Slide 5 Solving Equations by Graphing - x-intercept Method The solutions just found were to the equation Example Solve the equation: Note that these are the same x-values that satisfy the original equation
