1. Basic concepts of Metabolism
Metabolism and metabolic pathway
Metabolic Map
Catabolism
Anabolism
Regulation of Metabolism
Signals from within the cell (Intracellular)
Communication between cells.
- Biosignaling: Signal transduction
* Transduction by Intracellular receptors
* Transduction by Cell-surface receptors
a. Ligand-Gated Ion channels
b. Receptor enzyme
c. Receptors involving second messenger molecules
i. Adenylate cyclase system
ii. Phosphatidylinositol system
iii. Ca+ as second messenger
* Other messenger systems
a. cGMPs
b. Nitric oxide
References:
chapter 8 of Lippincots
chapter 13 of Lehningers

2. * Enzymes catalyze different reactions that don't occur in isolation but organized into multi step sequence called pathway.
* The product of one reaction will be the substrate of the subsequent reaction
* Different pathways intersect forming an integrated reactions collectively called Metabolism

3. * Metabolic Map
A picture containing the central pathways of energy metabolism. Each pathway is composed of multienzyme sequence and each enzyme has catalytic or regulatory features
The Metabolic Map
Shows the links between pathways, indicates the intermediates between different cycles (pathways) and shows the effect on different intermediates if one pathway is blocked

4. * Metabolic Map
It is a picture containing the central pathways of energy metabolism. Each pathway is composed of multienzyme sequence and each enzyme has catalytic or regulatory features
The Metabolic Map
Shows the links between pathways, indicates the intermediates between different cycles (pathways) and shows the effect on different intermediates if one pathway is blocked

5. Catabolic and Anabolic Pathways
Pathways can be classified as either catabolic (degradative) or anabolic (synthetic)
Catabolic: degradation of complex molecules (polysaccharides, proteins) into simple molecules like CO2, NH3 and water.
Catabolism is convergent process: a wide variety of molecules are transformed into a few common end products
Anabolic reactions are the synthesis of complex molecules from simple precursor.
Anabolic is divergent process in which few biosynthetic precursors form a wide variety of polymeric or complex products.
Catabolism
- catabolic reactions provide chemical energy in the form of the ATP from the degradation of the energy-rich fuel compound. The catabolism is essential for providing energy necessary for building up the complex compound

6. Energy generation occur in three steps
Stage I
Stage II
Stage III
Energy is librated from the transfer of electrons from NADH and FADH2 to O2 through the electron transport chain

7. Anabolism
- Anabolic reactions combine small molecules as amino acids to form large complexes as proteins. These processes require energy which is provided by the break down of ATP to ADP
- The biosynthetic pathway usually is different from degredative pathway of the same compound so the two processes respond to different regulatory
- Anabolic reactions involve chemical reduction in which the reducing power is NADPH

8. Regulation of Metabolism
Pathways of the metabolism must be coordinated so that the catabolism and the anabolism must meet the needs of the cell.
The cell is not present in isolation it present in a tissue, in which all the cells communicate together with regulatory signals.
Regulatory signals including hormones, nervous system and availability of nutrients which affect the signals generated within the cell itself.
*Signals from within the cell (Intracellular)
the rate of a metabolic pathway may respond to regulatory signals from the cell, e.g. the rate of the pathway may be influenced by the availability of the substrate, product inhibition or alterations in the level of allosteric activators or inhibitors. These intracellular signals provide rapid responses and are important for the moment to moment regulation metabolism

9. Biosignaling: Signal transduction
*Communication between cells.
Signals between cells provide for long-range integration of metabolism and show slower response. Cell communication involves surface interactions. For metabolism the chemical signaling is involved like hormones and neurotransmitters released by nervous system
Biosignaling: Signal transduction
Signal transduction is specific and very sensitive
* Specificity is achieved by precise molecular complementary between signal and receptor molecule.
Epinephrine affect glycogen metabolism in hepatocyet and not in erythrocyte because of the absence of the receptors.
The affinity of the signal to the receptor is very high  highly sensitive
Two Basic mechanisms of Signal transduction
Intracellular receptors
Cell-surface receptors

10. Transduction by intracellular receptors
steroid
Vit D, steroidal hormones, retinoic acid and thyroxine act through intracellular receptors located in the cytosol or the nucleus. The receptor-ligand complex inter the nucleus and bind to specific regions of the DNA (enhancer region) causing increasing the expression of the specified gene. These hormones should penetrate the cell membrane and bind to specific region. Their effect are not immediate because time is required for gene transcription and then mRNA translation. But the duration of action will be longer.

11. c

12. Transduction by cell-surface receptors.
Signals transduction by hormones and neurotransmitters is initiated by ligand binding to receptors located in the plasma membrane.
This transduction dose not regulate the gene expression directly. Simply signal interact with receptors  activated receptors interact with cellular machinery producing a second signal or change in the activity of a cellular protein  metabolic change in target
Three general classes of cell-surface receptors based on their mechanism of signal transduction.
Ligand-Gated Ion channels (Neurotransmitter receptors linked to ion channels).
Receptor enzyme (Catalytic receptors)
Receptors involving second messenger molecules.

13. Three general classes of cell-surface receptors based on their mechanism of signal transduction

14. Ligand-Gated Ion channels
Commonly called transmitter-gated ion channels or ionotropic receptors
Involved in rapid synaptic signaling
Best example for this type is Nicotinic acetylcholine receptors
Acetylcholine receptors are allosteric protein with two binding sites for Ach.
Classically defined by acetylcholine (ACh) receptor at neuromuscular junction
Nerve impulse depolarize axon, signal travels to nerve terminal leading to opening of voltage-gated Ca+ channels, Ca+ flows in and Ach is released to post synaptic neuron or myocyte.
Ach binds receptors on muscle cells leading to opening of cation (Ca+, Na+) channel and Na+ flows in and thus depolarization of the receiving cell initiates another action potential (neuron) or contraction of the muscle cell (if myocyte)
Voltage-Gated Ion channels open and close as response to electrical change
Voltage-gated Na+ channel
Voltage-gated K+ channel
Voltage-gated Ca+ channel

15. figure 13-5
Role of voltage-gated and ligand-gated ion channels in neural transmission. Initially, the plasma membrane of the presynaptic neuron IS polarized (inside negative) through the action of the electrogenic Na+-K+ ATPase. which pumps 3 Na+ out for every 2 K+ pumped Into the neuron , (1) A stimulus to this neuron causes an action potential to move along the axon (white arrow), away from the cell body. The opening of one voltage-gated Na+ channel allows Na+ entry and the resulting local depolarization causes the adjacent Na+ channel to open, and so on. The directionality of movement of the action potential is ensured by the brief refractory period that follows the opening of each voltage-gated Na+ channel. (2) When the wave of depolarization reaches the axon tip, voltage-gated Ca+2 channels open, allowing Ca+2 entry into the presynaptic neuron. (3) The resulting increase in internal [Ca+2] triggers exocytic release of the neurotransmitter acetyleholme into the
synaptic cleft. (4) Acetylcholine binds to a receptor on the postsynaptic neuron, causing its ligand-gated Ion channel to open. (5) Extracellular Na+ and Ca++ enter through this channel, depolarizing the postsynaptic cell. The electrical signal has thus passed to the cell body of the postsynaptic neuron and will move along its axon to a third neuron by the same sequence of events.

16. Ach binds receptors on muscle cells leading to opening of cation (Ca+, Na+)
channel and Na+ flows in and thus depolarization of the receiving cell initiates
another action potential (neuron) or contraction of the muscle cell (if myocyte)

17. Neural transmission

18. Receptor Enzyme
These Transmembrane catalytic receptors have an inherent enzymatic activity as part of their structure.
have ligand binding domain on the extracellular surface of the plasma membrane and enzyme active site on the cytosolic side.
Commonly they are a protein kinase that phosphorlate Tyr residues in the specific target proteins
Insulin receptor is prototype for this type
The binding of the a ligand (insulin) to its receptor activates the tyrosine kinase activity which transfer the phosphate group from ATP to the –OH group of the Tyr residues of target proteins and of the receptor itself

19. figure 13-6 Insulin receptor. The insulin receptor consists of two
α chains on the outer face of the plasma membrane and two  chains that traverse tile membrane and protrude from the cytosolic face. Binding of insulin to the α chains triggers a conformational change that allows the autophosphorylation of Tyr residues in the carboxyl-terminal domain of the  subunits. Autopllosphorylation further activates the tyrosine kinase domain, which then catalvzes phosphorvlation of other target proteins.

20. Receptors involving second messenger molecules.
Many signals when bind to their receptors initiate a series of reactions in form of cascade reactions that at the end result in a specific intracellular response. The intracellular messenger systems function as signal amplification.

21. signal amplification.

22. Receptors involving second messenger molecules
I. Adenylate cyclase system
Typical example is the adrenergic receptors β-receptors that bind to epinephrine and then trigger either an increase or decrease in the activity of the adenylate cyclase.
Adenylate cyclase convert the ATP into cAMP which act as second messenger and activate other enzymes to produce the activity.
Many signals (hormones) act through activating the cAMP like glucagon
the effect of signals on the second messenger is not direct but mediated through G-proteins. GTP-dependent regulatory proteins. The inactive form of G-protein binds to GDP while the active form bind to GTP.
The binding of hormone to its receptor activate the G-protein which affect the activity of adenylate cyclase
The activity of signal depends one the type of G-proteins. Gs stimulates the adenylate cyclase while Gi inhibits it.
The actions of G-protein _GTP complex are short lived because G-protein has an inherent GTPase activity, resulting in rapid hydrolysis of GTP to GDP and this causes the inactivation of G-protein.

23. Adenylate cyclase convert the ATP into cAMP which act as second messenger

25. Receptors involving second messenger molecules
Adenylate cyclase system

26. Role of G-Proteins in Signal Transduction

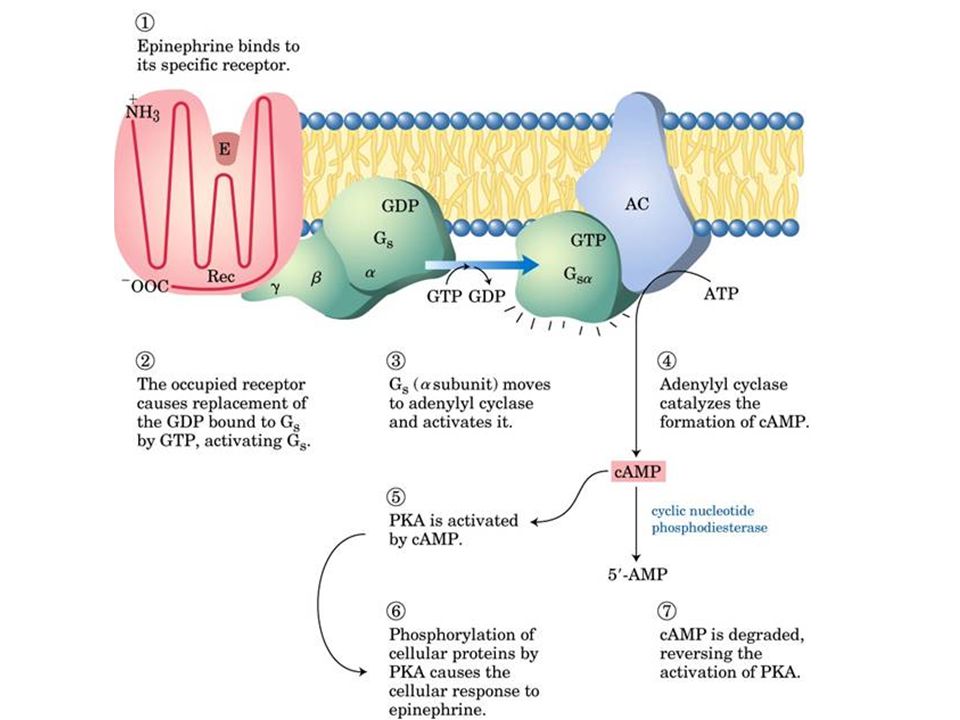

27. Activation Adenylate cyclase system via G-Proteins

28. cAMP activates Protein Kinases A.

29. The next link in the cAMP second messenger system is the activation of Protein Kinases by cAMP.
Family of enzymes called cAMP-dependent protein kinases.
Protein Kinase A is the typical example, consists of 4 monomers. 2 catlytics and 2 regulatory.
The active subunits catalyze the transfer of phosphate from ATP to specific serine or threonine residues of protein substrate.
the phosphorylated protein can act directly or can activate or inhibit other enzymes to produce the effect.
Not all protein kinases respond to cAMP, other types are cAMP-independent protein kinase like proetin kinase C.
The phosphate group can be removed by proetin phosphatases.
cAMP is rapidly hydrolyzed to 5-AMP by phosphodiesterase.

30. Activation of cAMP-dependent protein kinase, PKA

31. Activation of cAMP-dependent protein kinase (PKA)

32. Phosphatidylinositol 4,5 bisphosphate

34. Two second messengers derived from Phosphatidylinositol

35. IP3

36. Second messengers derived from Phosphatidylinositol

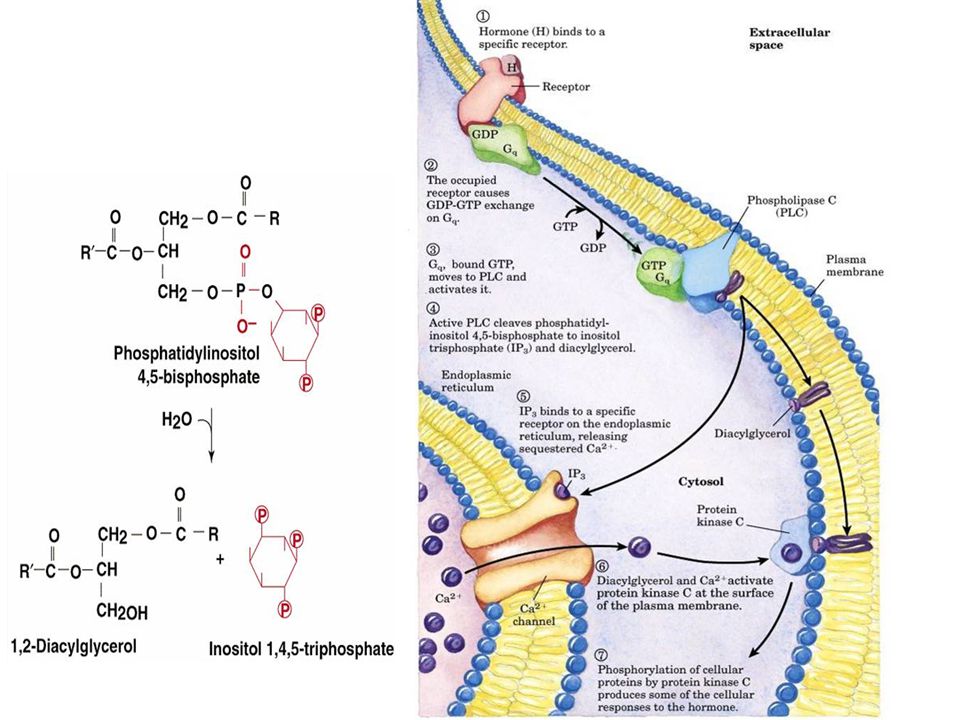

37. Role of Phosphatidylinositol 4,5 bisphosphate in Signal transduction

38. IP3 activates the release of Ca+

39. Ca+ is a second messenger in many signal transductions
Ca+ serves as a second messenger that triggers intracellular responses as exocytosis in neurons and endocrine cells, contraction in muscle and others
Ca+ is released from endoplasmic reticulum in response to signals (hormones, neurotransmitters)
Ca+ bind to Ca-binding proteins that called calmodulin
Calmodulin-ca complex binds and activates protein molecules usually enzymes,
Calmodulin is regulatory subunit of phosphorylase b kinase of muscle that activated by Ca  activating the break down of glycogen.
Many enzymes are know to be modulated by Ca+ through calmodulin.

40. Ca+ is a second messenger in many signal transductions

41. * Cyclic guanosine monophosphate
Other messenger systems
a. cGMP
b. Nitric oxide
* Cyclic guanosine monophosphate
It is analogous to cAMP pathway
Synthesized from GTP by guanylate cyclase, it an integral part of the receptor (not separated like Adenylate cyclase), it contains heme as prosthetic group and stimulated by nitric oxide.
Activate a spcific form of protein kinase called cGMP-dependent protein kinase also called protein kinase G
cGMP is hydrolyzed by phosphodiesterase
cGMP is a specialized messenger being involved in smooth muscle relaxation, platelet aggregation and the visual system. cAMP affects a wide variety of processes.

42. Nitric Oxide
NO act as endothelium relaxing factor, causes vasodilatation by relaxing vascular smooth muscle and also acts as neurotransmitters, prevents platelet aggregation and has a role in macrophage function.
It is highly toxic. Nitrous oxide ( NO2) the “ laughing gas” that used as anesthetic.
NO is very short lived and unstable converted into oxygen and nitrate and nitrite.
Synthesis of NO
NO synthase catalyzes the formation of NO from amino acid Arginine, FMN, FAD, and tetrahydrobiopterin are coenzymes for the enzymes
NO is synthesized in endothelial cells and diffuses to vascular smooth muscle activate the guanylate cyclase  rise in cGMP which causes muscle relaxation.
Synthesis of NO is stimulated in the macrophages by bacterial liopolysaccharides  activated macrophages form oxygen free radical that combine with NO to form compounds that are more bactericidal than NO itself

43. Nitric Oxide act as endothelium relaxing factor, causes vasodilatation by relaxing vascular smooth muscle and also acts as neurotransmitters, prevents platelet aggregation and many functions
