February 16, 2010 Potential Difference and Electric Potential.

Similar presentations

Presentation on theme: "February 16, 2010 Potential Difference and Electric Potential."— Presentation transcript:


2 February 16, 2010 Potential Difference and Electric Potential

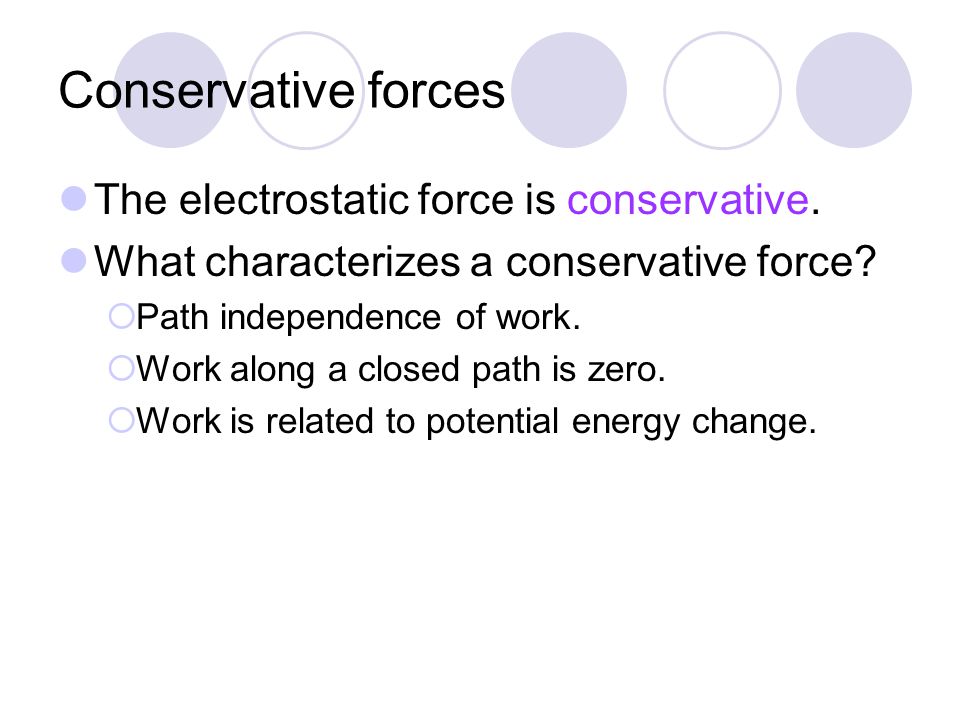

3 Conservative forces The electrostatic force is conservative. What characterizes a conservative force?  Path independence of work.  Work along a closed path is zero.  Work is related to potential energy change.

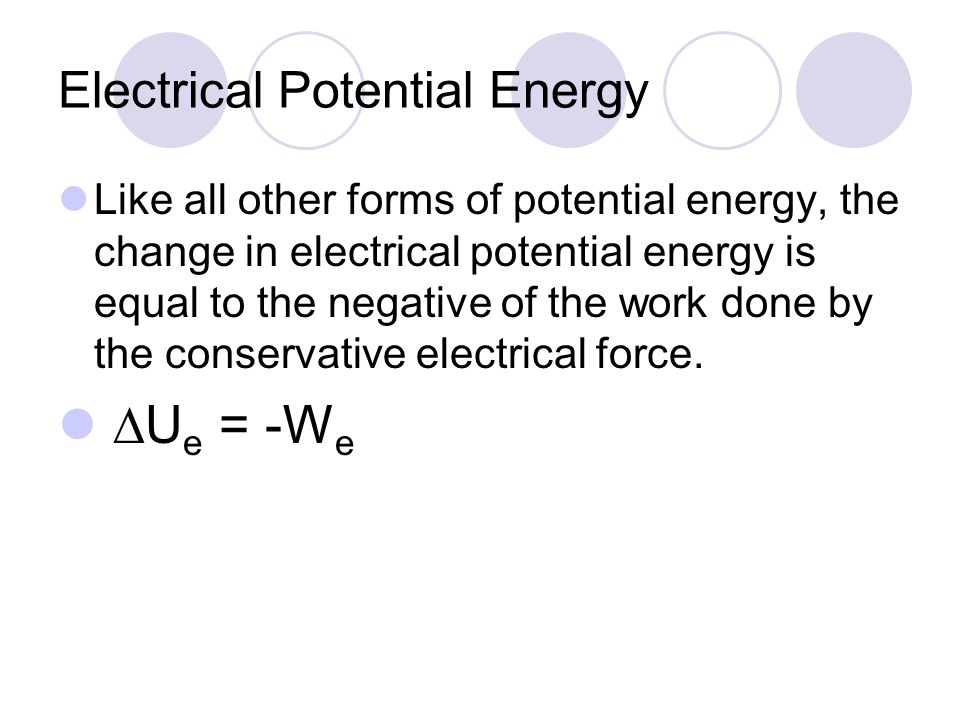

4 Electrical Potential Energy Like all other forms of potential energy, the change in electrical potential energy is equal to the negative of the work done by the conservative electrical force.  U e = -W e

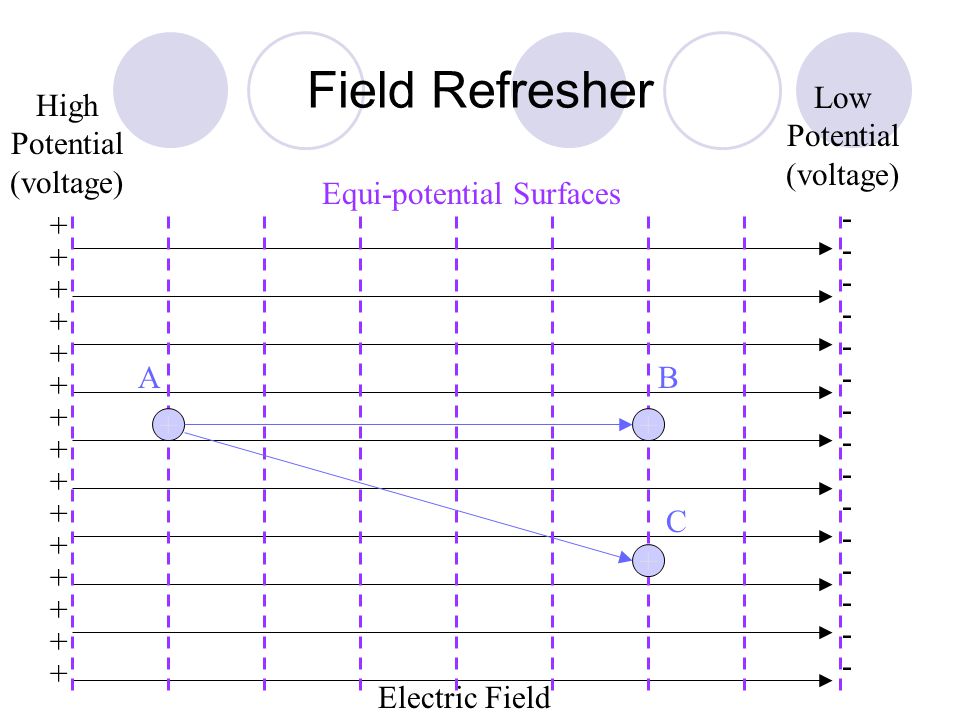

5 Field Refresher + + + + + + + + + + + + + + + - - - - - - - - - - - - - - - High Potential (voltage) Low Potential (voltage) Electric Field Equi-potential Surfaces + A + B + C

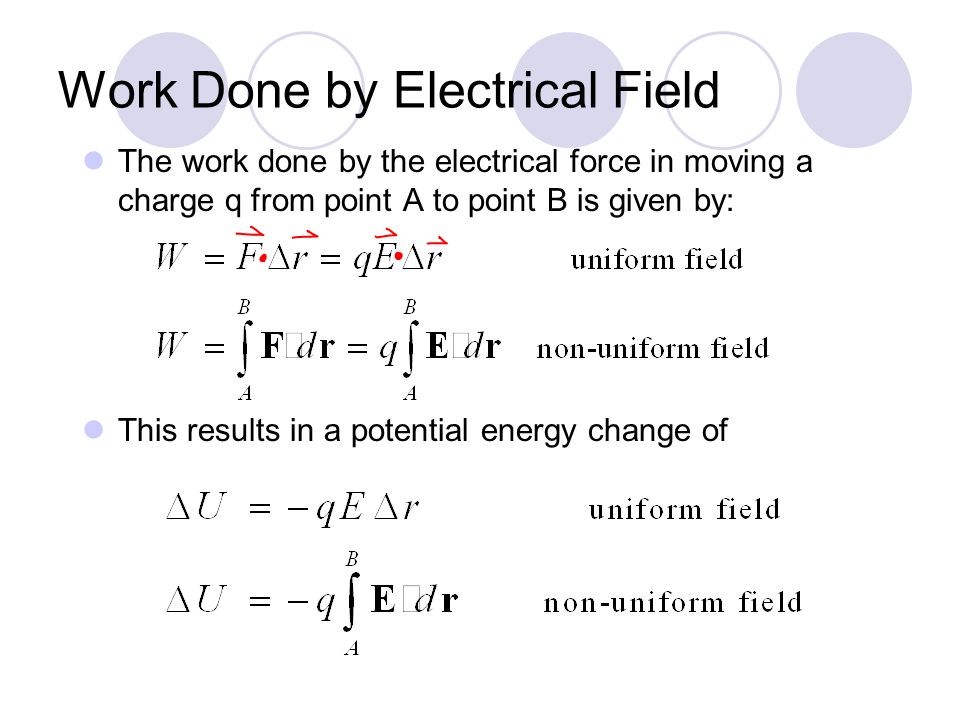

6 Work Done by Electrical Field The work done by the electrical force in moving a charge q from point A to point B is given by: This results in a potential energy change of

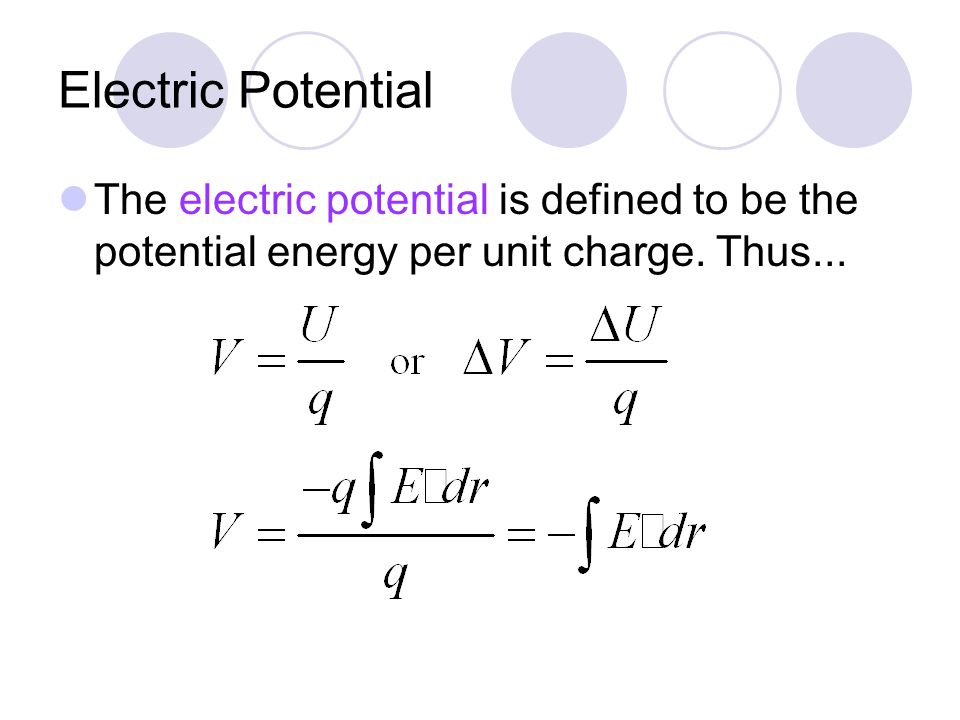

7 Electric Potential The electric potential is defined to be the potential energy per unit charge. Thus...

8 Sample Problem A proton is accelerated through a potential difference of -20,000 V. What is the potential and kinetic energy change of the proton? How much work did the electric field do on the proton?

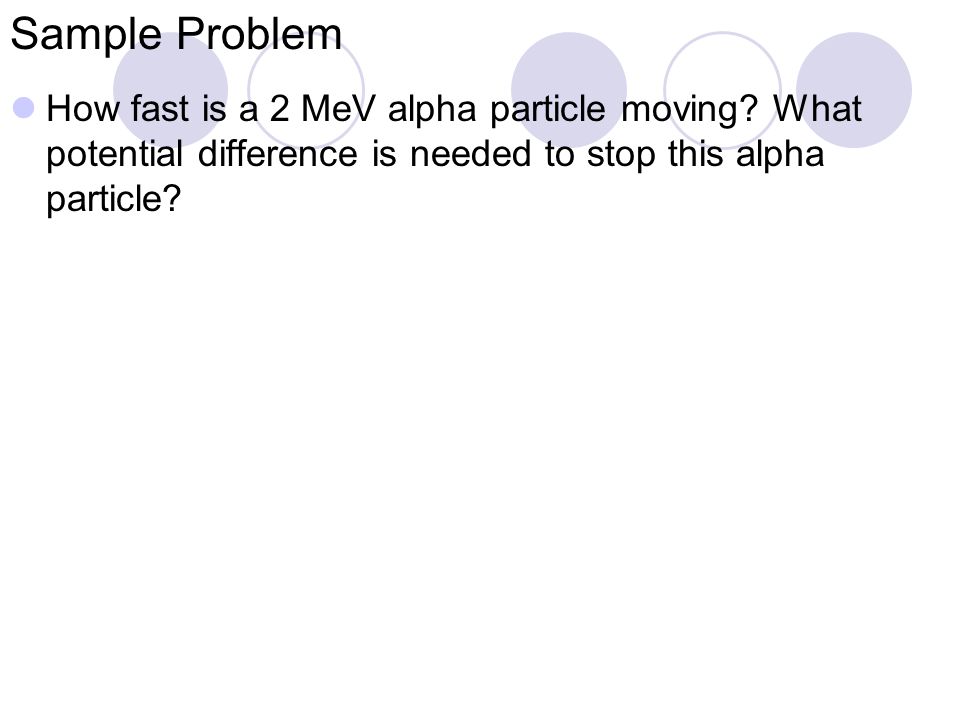

9 Sample Problem How fast is a 2 MeV alpha particle moving? What potential difference is needed to stop this alpha particle?

10 January 20, 2009 Potential Differences in a Uniform Electric Field

11 How electrostatic concepts are related Field and Force are closely related  Both are vectors  F = qE Potential and Potential Energy are closely related  Both are scalars  U = qV

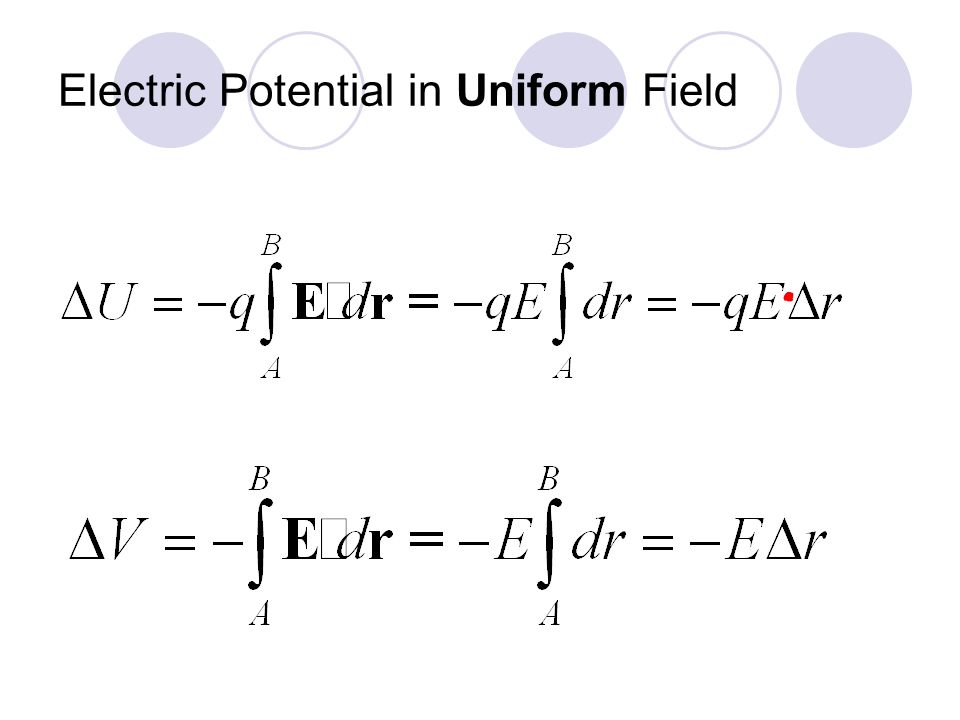

12 Electric Potential in Uniform Field

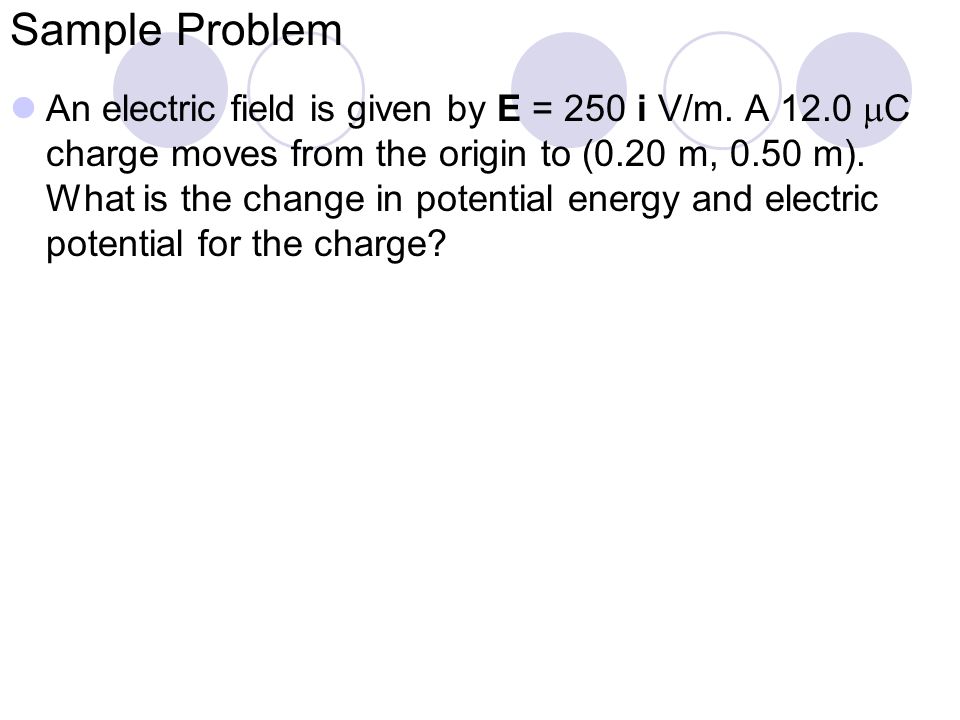

13 Sample Problem An electric field is given by E = 250 i V/m. A 12.0  C charge moves from the origin to (0.20 m, 0.50 m). What is the change in potential energy and electric potential for the charge?

14 Sample Problem An electron is released from rest in an electric field of magnitude by 5900 V/m. Through what potential difference will it have passed after moving 1.00 cm? How fast will it be moving at this time?

15 January 21, 2009 Electric Potential and Potential Energy due to Point Charges

16 Point Charge Concept Map (turn to back page of packet) Force FieldPotential Potential Energy

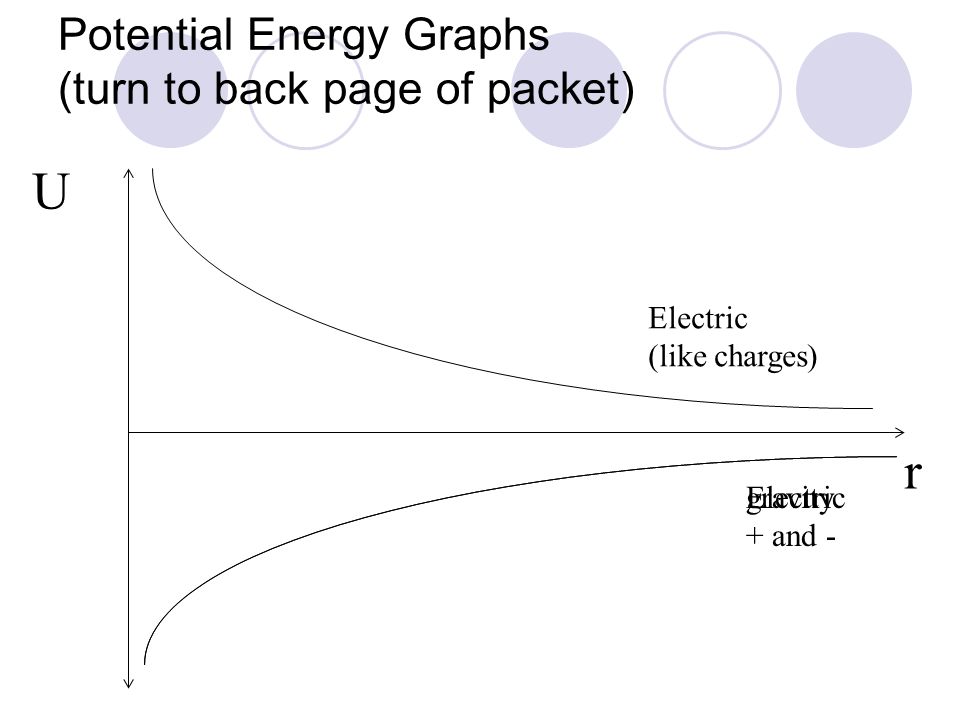

17 Potential Energy Graphs (turn to back page of packet) r U gravityElectric + and - Electric (like charges)

18 Thursday, January 22, 2009 Obtaining the Electric Field due to the Electric Potential

19 Equi-potential or Iso-potential surfaces Definition: Characteristics of equi-potential surfaces:

20 Equipotential Surfaces: + charge +

21 Sample Problem Find the potential at a distance of 1.00 cm from a proton. Repeat for an electron.

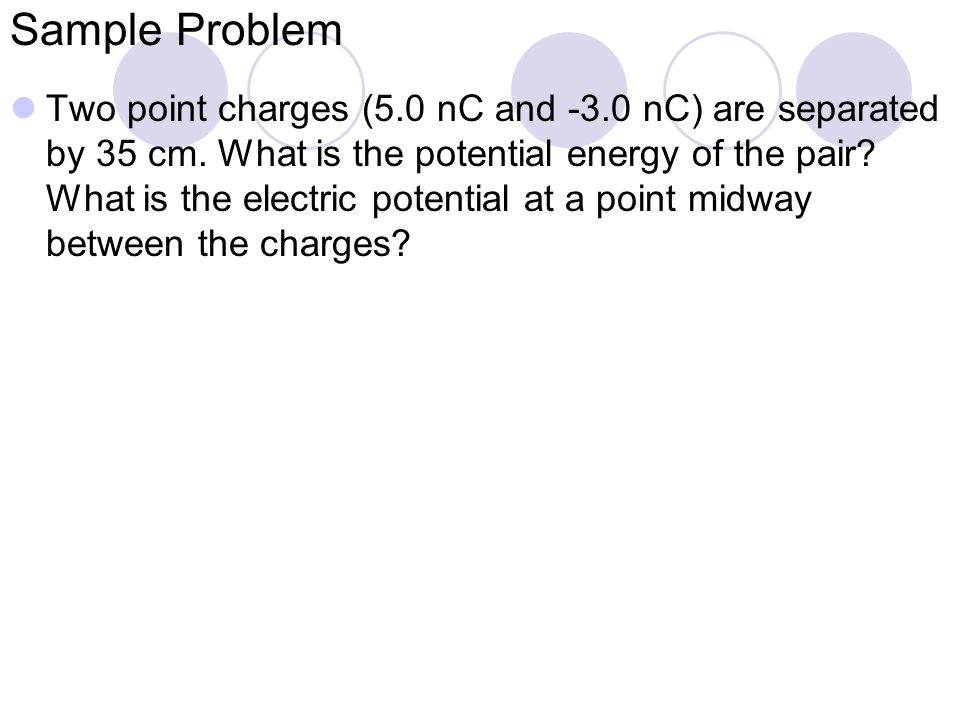

22 Sample Problem Two point charges (5.0 nC and -3.0 nC) are separated by 35 cm. What is the potential energy of the pair? What is the electric potential at a point midway between the charges?

23 Obtaining the Field from Potential The field is strongest where the potential is changing most rapidly.

24 Sample Problem The electric potential in a region is given by the function V = -9.0 x V/m – 3.0 x 2 V/m 2. What is the magnitude and direction of the electric field at x = 2.0 m?

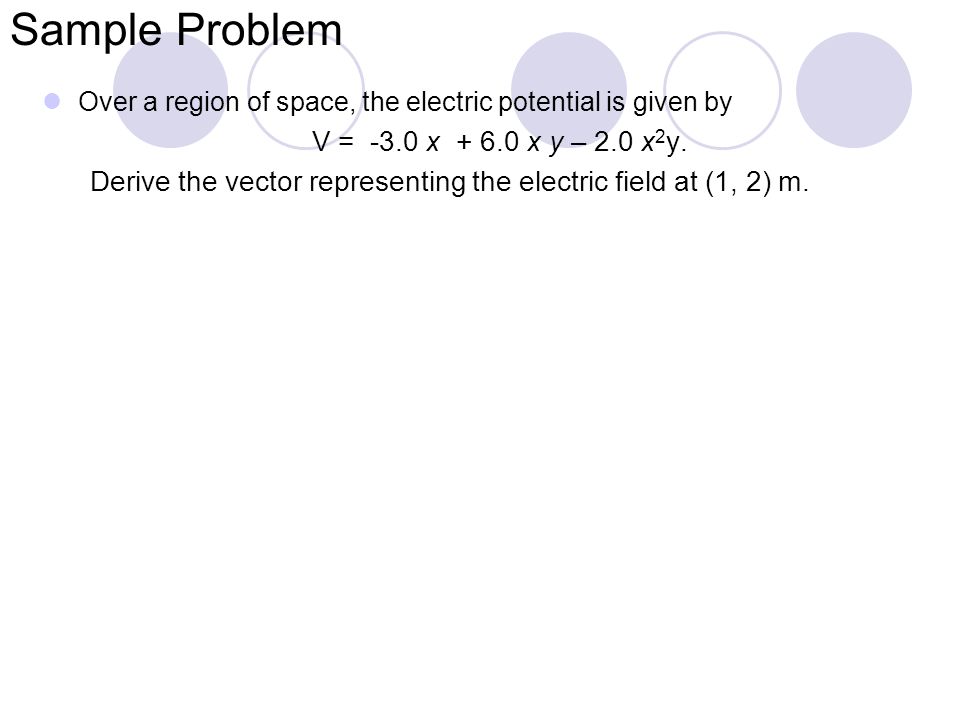

25 Sample Problem Over a region of space, the electric potential is given by V = -3.0 x + 6.0 x y – 2.0 x 2 y. Derive the vector representing the electric field at (1, 2) m.

26 January 26, 2009 Potential Due To Continuous Charge Distribution I

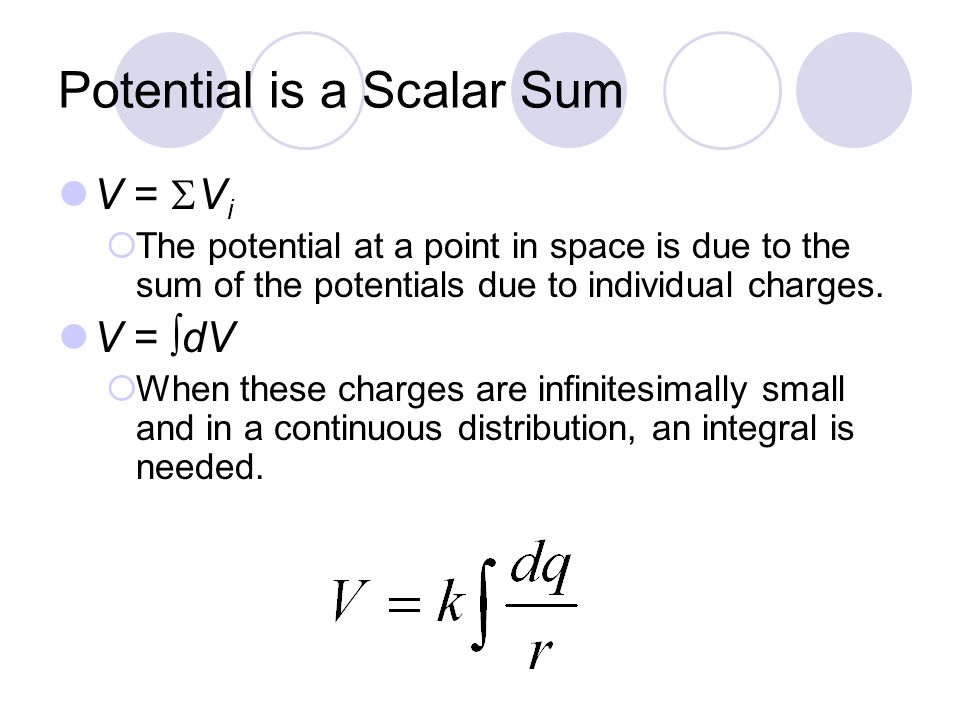

27 Potential is a Scalar Sum V =  V i  The potential at a point in space is due to the sum of the potentials due to individual charges. V =  dV  When these charges are infinitesimally small and in a continuous distribution, an integral is needed.

28 Sample Problem: Determine the electric potential at a point P located on the perpendicular axis of a uniformly charged ring of radius R and total charge Q.

29 Tuesday, January 26, 2009 Electric Potential Due to Charged Conductors

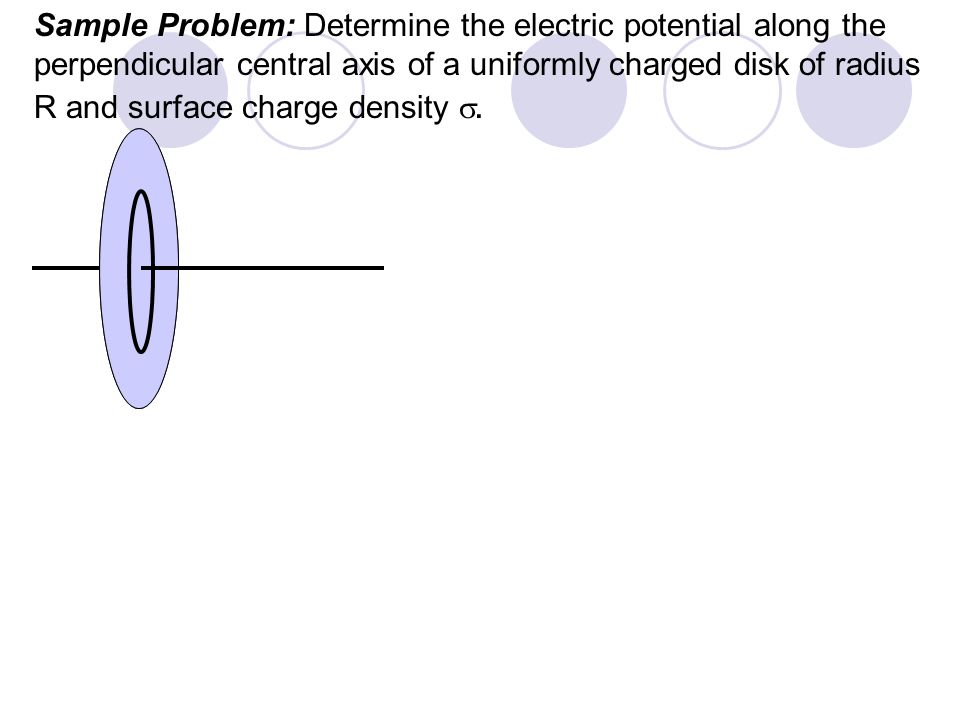

30 Sample Problem: Determine the electric potential along the perpendicular central axis of a uniformly charged disk of radius R and surface charge density .

31 Sample Problem: Find the potential at a point inside a charged non-conducting solid sphere of radius R as a function of its distance from the center of the sphere. Assume charge Q is distributed uniformly.

32 Conductors Charged conductors store all excess charge on the exterior of the conductor, whether the conductor is hollow or solid. Charge will rearrange itself on a neutral conductor immersed in an external electric field in order to nullify the field.

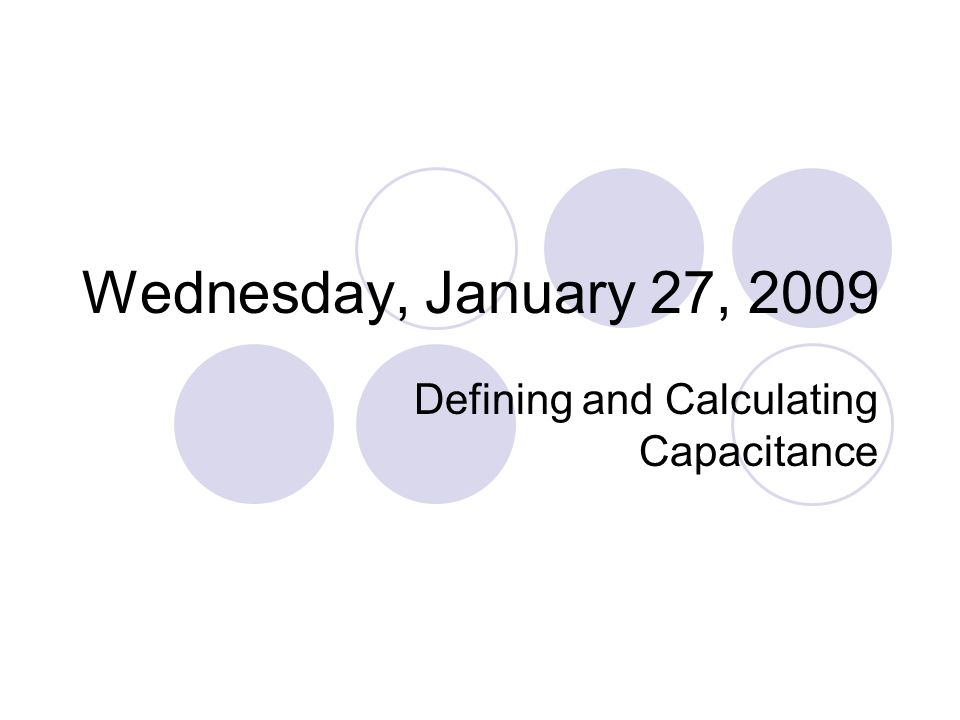

33 Wednesday, January 27, 2009 Defining and Calculating Capacitance

34 Sample Problem Two charged conductors are connected by a long conducting wire, and a charge of 10 nC is placed on the combination. Sphere A has a diameter of 10 mm, and sphere B has a diameter of 5 mm. How much charge is on each sphere? What is the electric potential of each sphere?

35 What is a Capacitor? A capacitor is a device designed to store electrical energy. It consists of two conducting “plates” in close proximity. When “charged”, there is a voltage across the plates, and they bear equal and opposite charges.

36 dielectric Parallel Plate Capacitor E +Q -Q V1V1 V2V2 V3V3 V4V4 V5V5

37 Cylindrical Capacitor -Q +Q

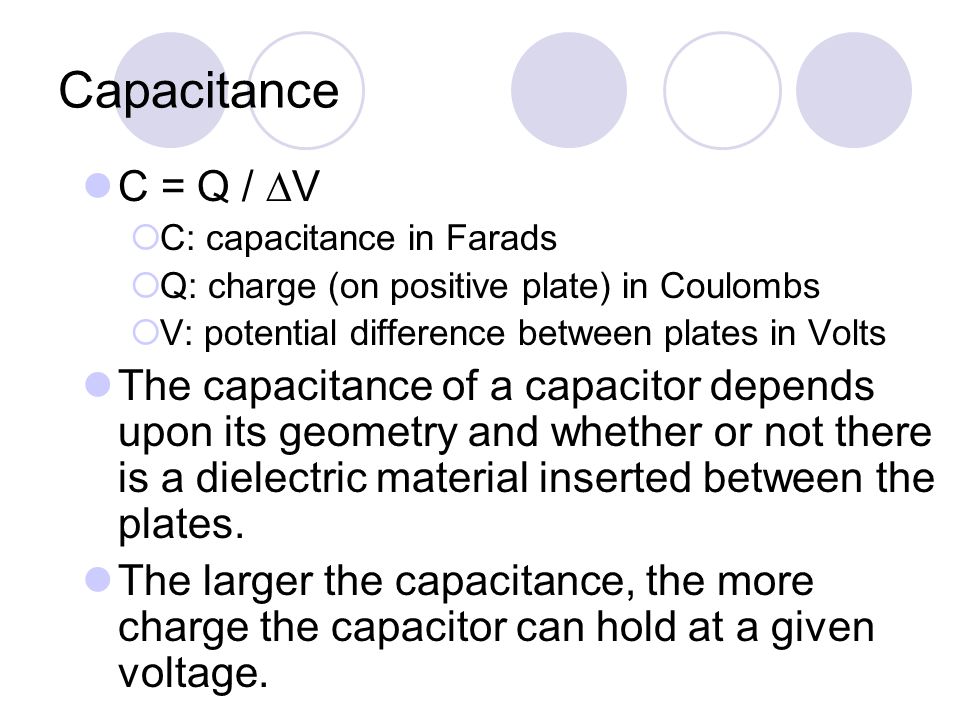

38 Capacitance C = Q /  V  C: capacitance in Farads  Q: charge (on positive plate) in Coulombs  V: potential difference between plates in Volts The capacitance of a capacitor depends upon its geometry and whether or not there is a dielectric material inserted between the plates. The larger the capacitance, the more charge the capacitor can hold at a given voltage.

39 Thursday, January 29, 2009 Deriving Capacitance Equivalent Capacitance Energy in Capacitors

40 Sample Problem How much charge is on each plate of a 4.00  F capacitor when connected to a 12-V battery?

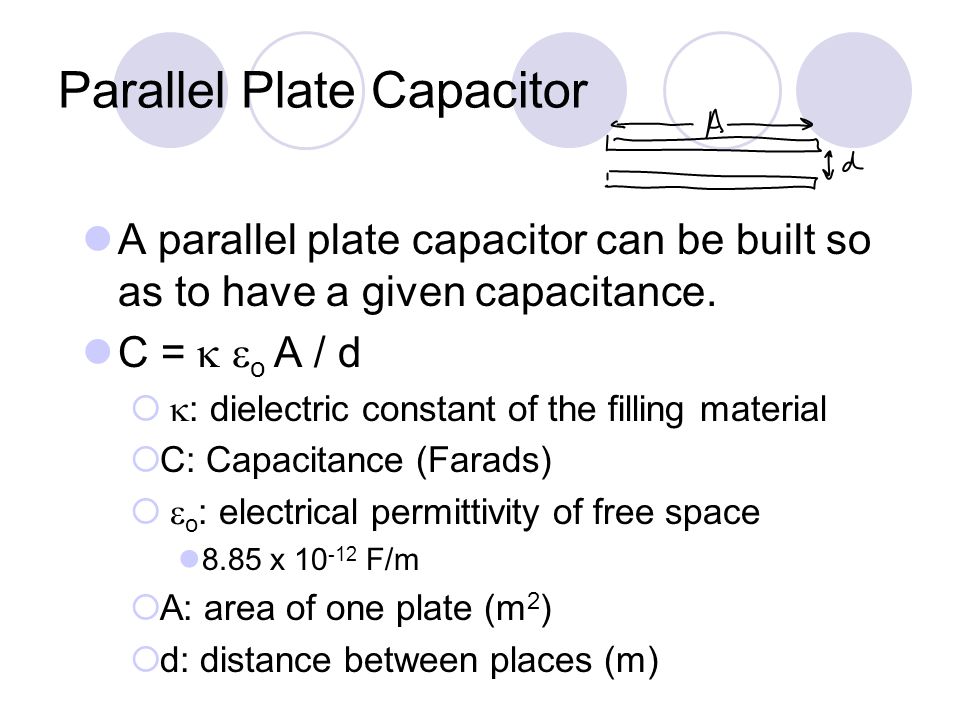

41 Parallel Plate Capacitor A parallel plate capacitor can be built so as to have a given capacitance. C =  o A / d   : dielectric constant of the filling material  C: Capacitance (Farads)   o : electrical permittivity of free space 8.85 x 10 -12 F/m  A: area of one plate (m 2 )  d: distance between places (m)

42 Deriving Capacitance -- Steps 1. Draw the capacitor; identify symmetry 2. Draw Gaussian surface 3. Write Gauss’ Law 4. Solve Gauss’ Law for E 5. Develop function for V from E 6. Develop function for C from V

43 Derive C for Parallel Plate Capacitor

44 Derive C for Charged Sphere

45 Derive C for a Spherical Capacitor


47 Derive C for a Cylindrical Capacitor

48 Capacitors in Circuits +Q-Q +Q-Q

49 Equivalent Capacitance - Series C1C1 C2C2 C3C3 1/C eq = 1/C 1 + 1/C 2 + 1/C 3 Series circuit

50 Capacitors in Series Capacitors in series all have the same charge. If the capacitor combination has charge Q, then each capacitor in the series also has charge Q. This is because capacitors must obtain charge from adjacent capacitors. The voltage difference across the combination varies inversely with the capacitance according to  V = Q/C

51 Equivalent Capacitance - parallel C eq = C 1 + C 2 + C 3 Parallel circuit C2C2 C1C1 C3C3

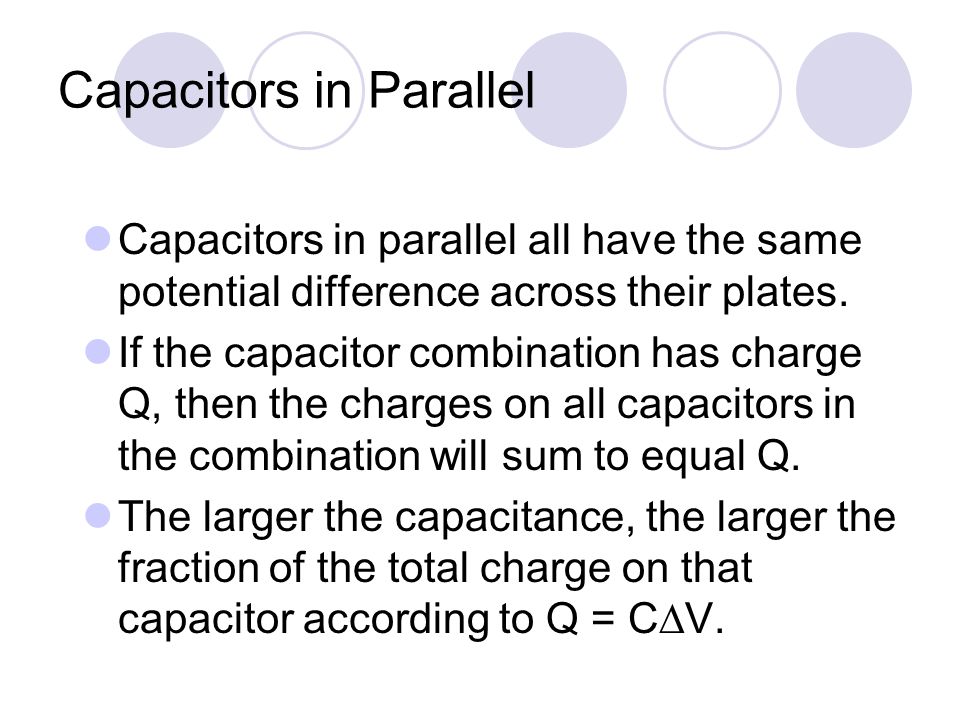

52 Capacitors in Parallel Capacitors in parallel all have the same potential difference across their plates. If the capacitor combination has charge Q, then the charges on all capacitors in the combination will sum to equal Q. The larger the capacitance, the larger the fraction of the total charge on that capacitor according to Q = C  V.

53 Sample problem: Determine equivalent capacitance of the configuration shown CC C CCC

54 Sample problem: Determine equivalent capacitance between a and b. If the potential difference between a and b is 10V, what charge is stored on C3? (C1=5  F, C2=10  F, C3=2  F) a b C1 C2 C3

55 Announcements Chapter 26, problems 23, 25, 27

56 Energy in Capacitors Capacitors “store” electrical energy by creating an electric field between their plates. This is a type of potential energy.  C: capacitance   V: voltage  U E : electric potential energy

57 Sample Problem A 3.00 mF capacitor is connected to a 12.0 V battery. How much energy is stored in the capacitor?

58 Dielectrics in Capacitors Dielectrics are “fillings” that are inserted between the plates of a capacitor and increase its capacitance, or ability to separate charge. C =  C o Dielectrics are polar non-conductors that work by decreasing the field strength between the plates. The non-conducing molecules orient themselves such that their electric dipoles subtract from the field produced by the charged plates. Since the field is reduced, the voltage between the plates is reduced.

59 Sample Problem Find the capacitance of a parallel plate capacitor that uses Bakelite as a dielectric, if each of the plates has an area of 5.0 cm 2 and the plate separation is 2.00 mm.
