Presentation on theme: "Steerable Interfaces for Interactive Environments Stanislaw Borkowski thesis director: James L. Crowley Jury: Institut National de Recherche en Informatique."— Presentation transcript:

1 Steerable Interfaces for Interactive Environments Stanislaw Borkowski thesis director: James L. Crowley Jury: Institut National de Recherche en Informatique et Automatique INRIA Rhône-Alpes June 26, 2006 Andreas Butz (UM), Joëlle Coutaz (UJF), Alex Pentland (MIT), Pierre Wellner (IDIAP)

2 2 User Interface (UI): aggregate of physical entities or information bound to these entities What is a user interface? A

3 3 Steerable UI: can be relocated in space position is mediated by the computer system Portable UI: can be relocated position is directly controlled through physical contact Mobile UIs Portable UIs Steerable UIs A

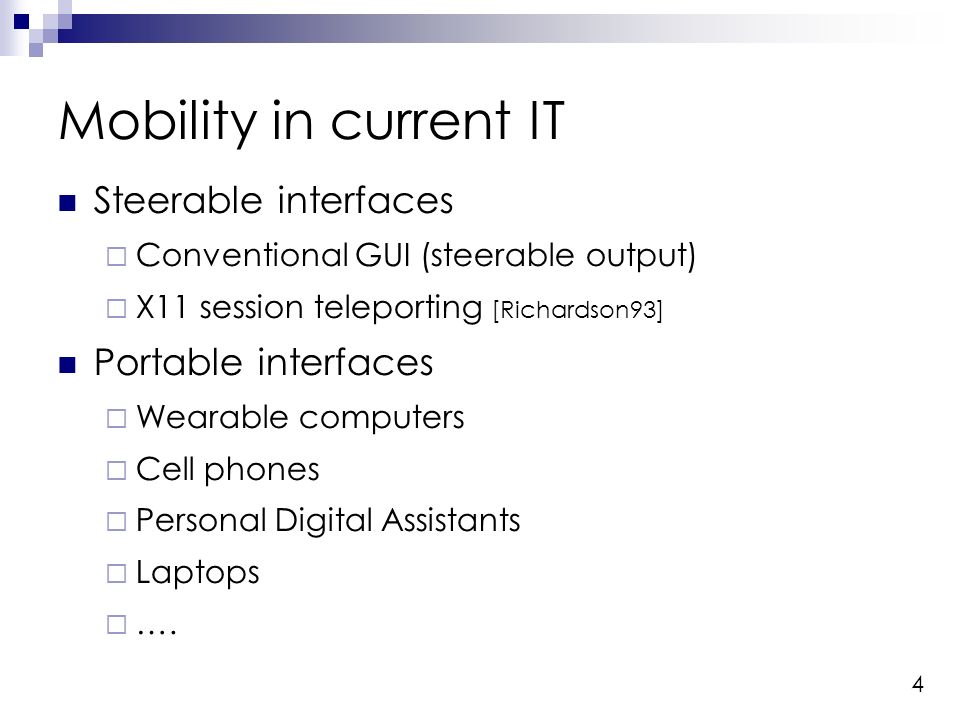

4 4 Mobility in current IT Steerable interfaces Conventional GUI (steerable output) X11 session teleporting [Richardson93] Portable interfaces Wearable computers Cell phones Personal Digital Assistants Laptops ….

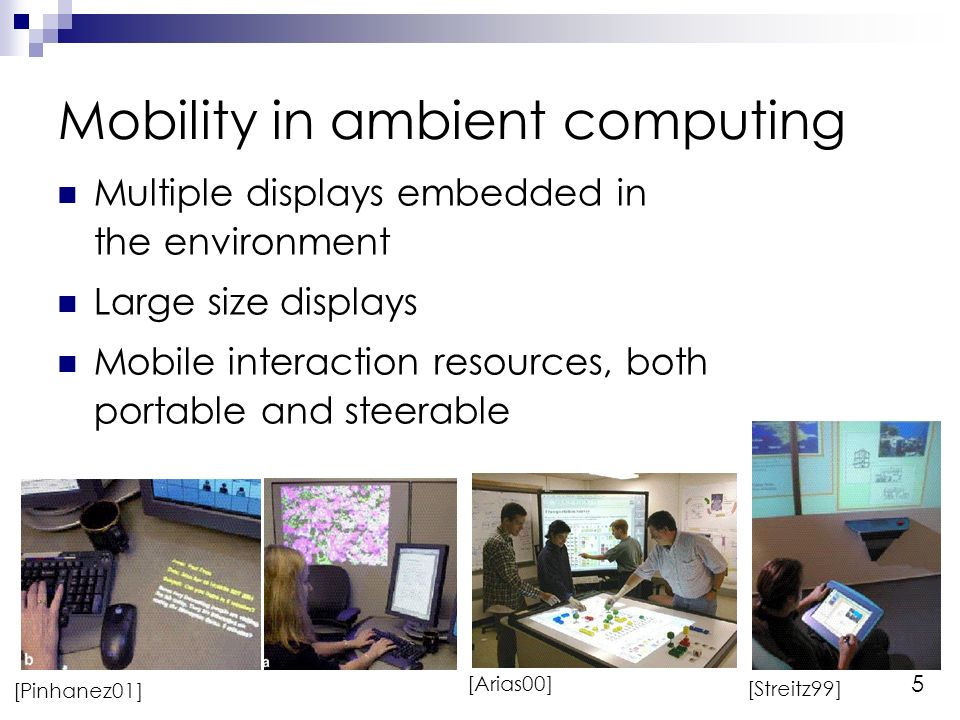

5 5 Mobility in ambient computing Multiple displays embedded in the environment Large size displays Mobile interaction resources, both portable and steerable [Pinhanez01] [Streitz99] [Arias00]

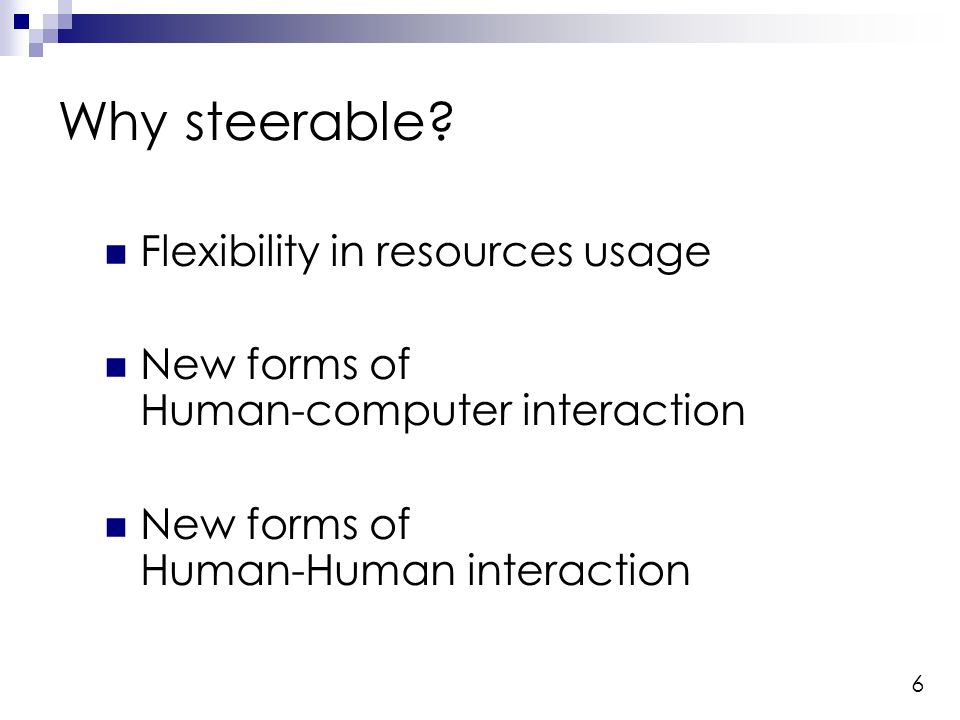

6 6 Why steerable? Flexibility in resources usage New forms of Human-computer interaction New forms of Human-Human interaction

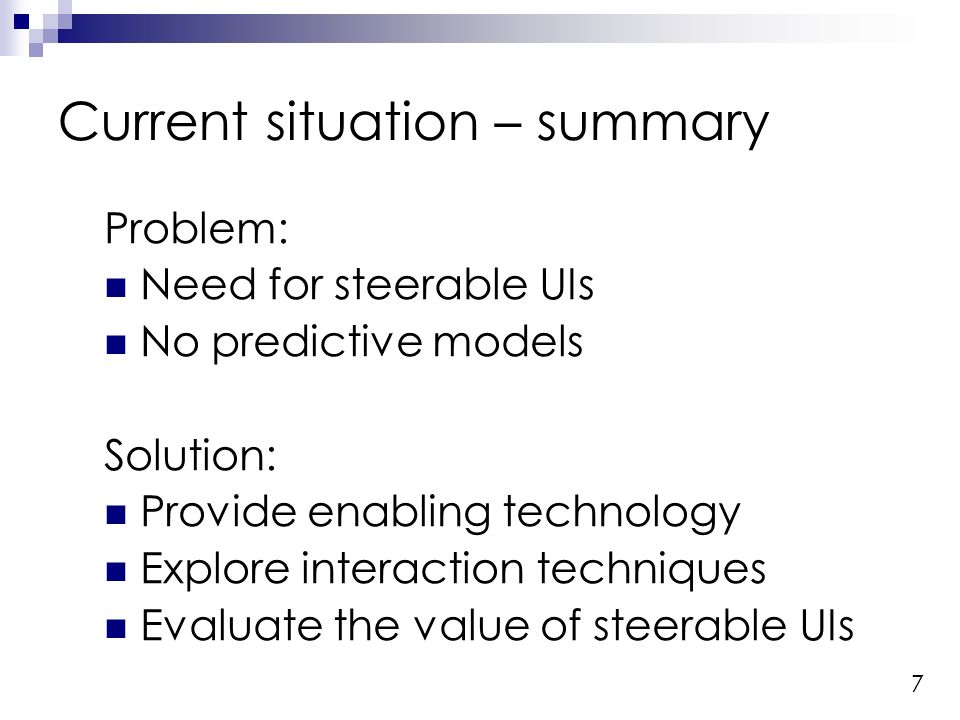

7 7 Current situation – summary Problem: Need for steerable UIs No predictive models Solution: Provide enabling technology Explore interaction techniques Evaluate the value of steerable UIs

8 8 Outline Mobility in IT Steerable UIs Mobile projected UI Mobile UIs for collaborative work Conclusions

9 9 State of the art EasyLiving [Brumitt00] Tic-Tac-Toe [Pinhanez05]

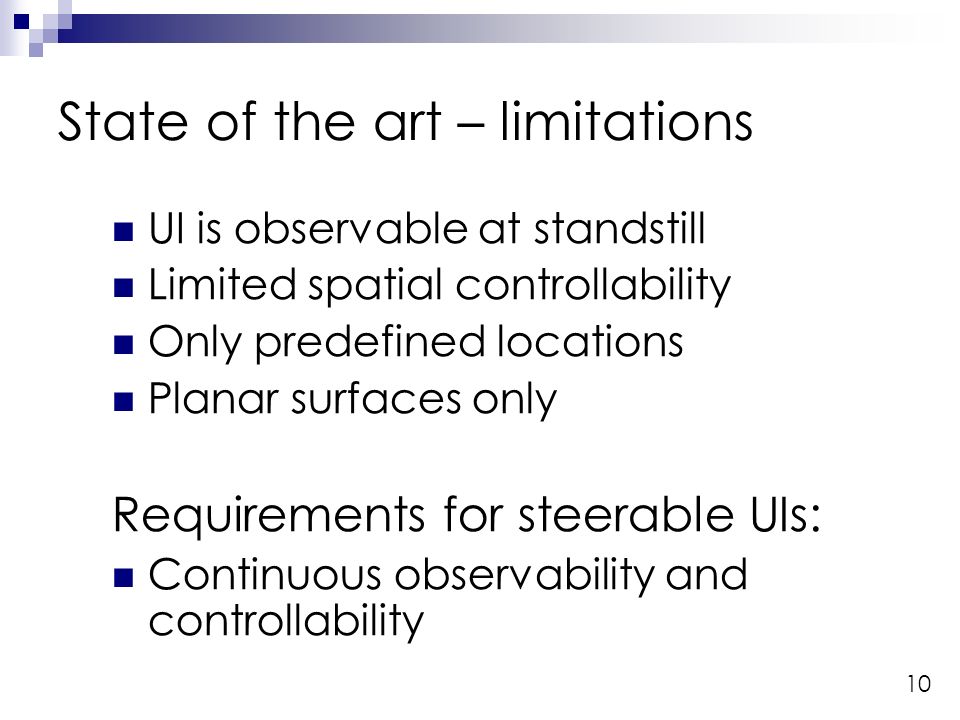

10 10 State of the art – limitations UI is observable at standstill Limited spatial controllability Only predefined locations Planar surfaces only Requirements for steerable UIs: Continuous observability and controllability

11 11 Outline Mobility in IT Steerable UIs Mobile projected UI Prototype implementation [in collaboration with J. Letessier] Evaluation – latency estimation Mobile UIs for collaborative work Conclusions

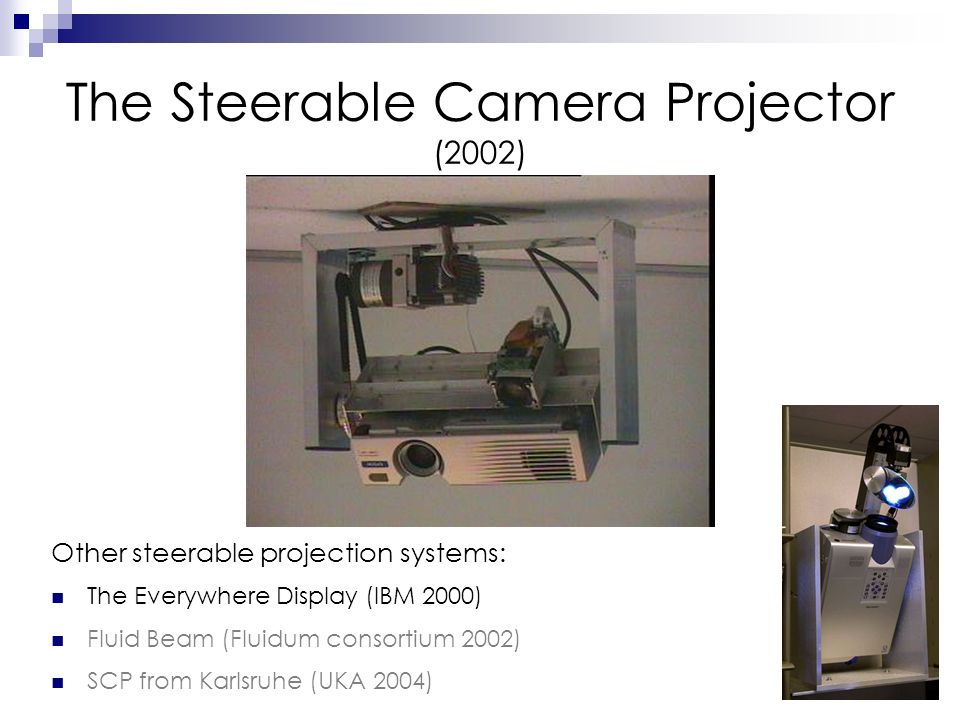

12 12 The Steerable Camera Projector (2002) Other steerable projection systems: The Everywhere Display (IBM 2000) Fluid Beam (Fluidum consortium 2002) SCP from Karlsruhe (UKA 2004)

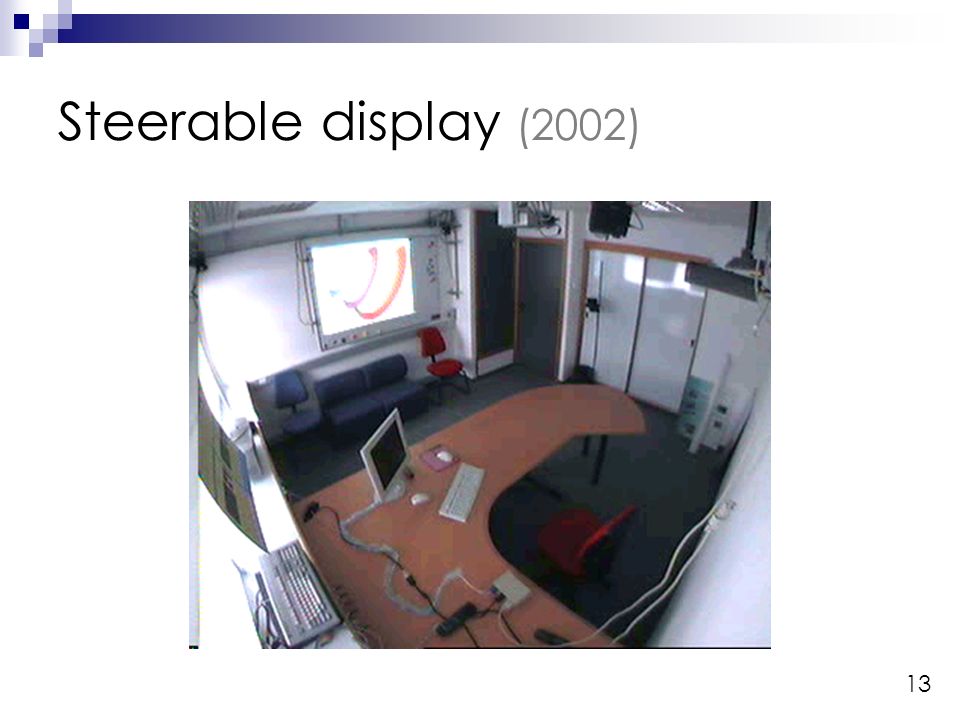

13 13 Steerable display (2002)

14 14 User-centric approach End-users: Latency limits < 50ms Easy setup, no maintenance Reliability / predictability Developers: Abstraction: be relevant Isolation: allow integration Contract: offer quality of service

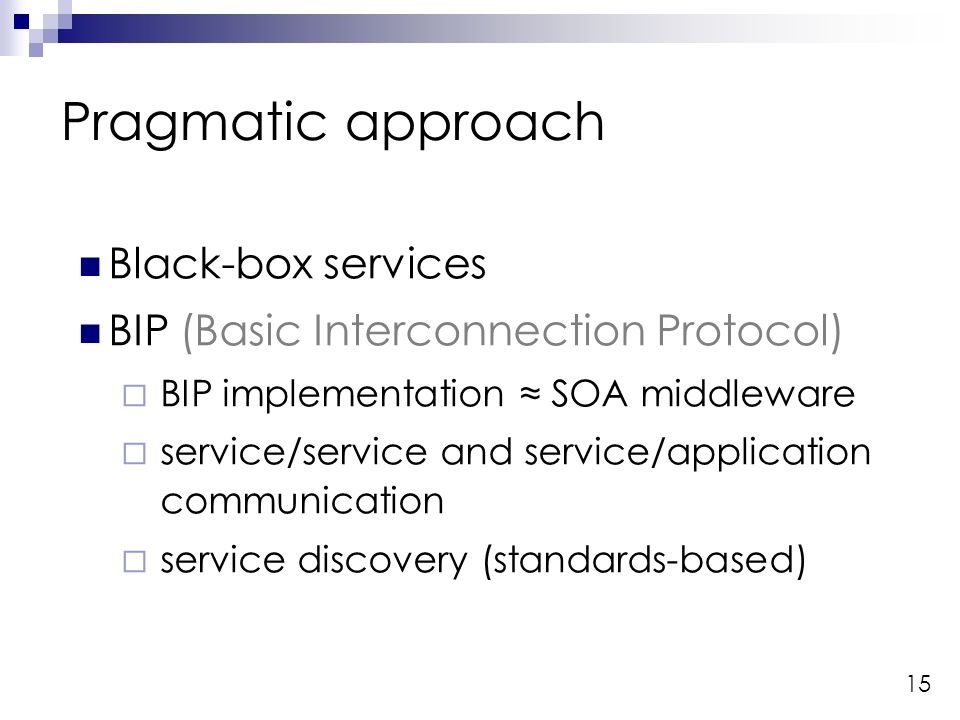

15 15 Pragmatic approach Black-box services BIP (Basic Interconnection Protocol) BIP implementation SOA middleware service/service and service/application communication service discovery (standards-based)

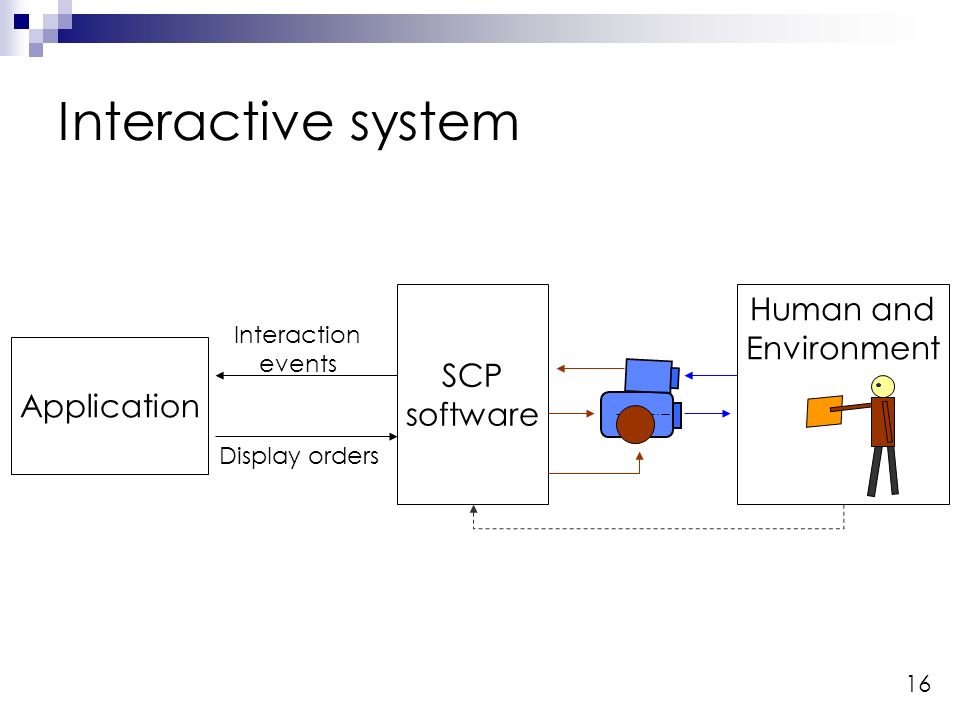

16 16 Interactive system Application SCP software Human and Environment Interaction events Display orders

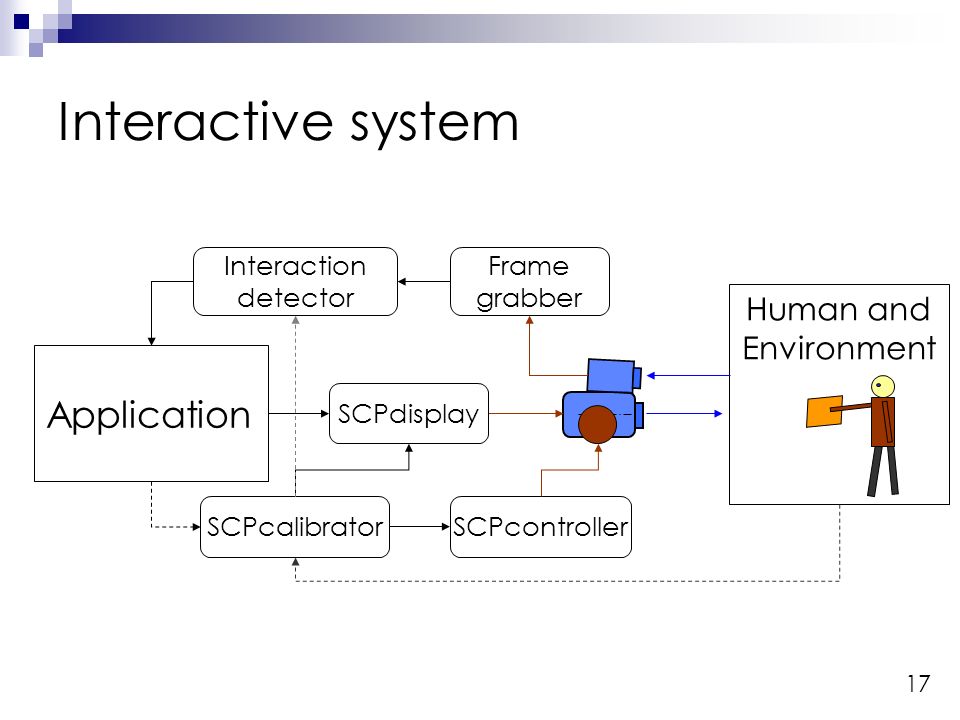

17 17 Interactive system Application Human and Environment SCPdisplay SCPcontroller Frame grabber Interaction detector SCPcalibrator A

18 18 Interactive system Application Human and Environment SCPdisplay SCPcontroller Frame grabber Interaction detector SCPcalibrator

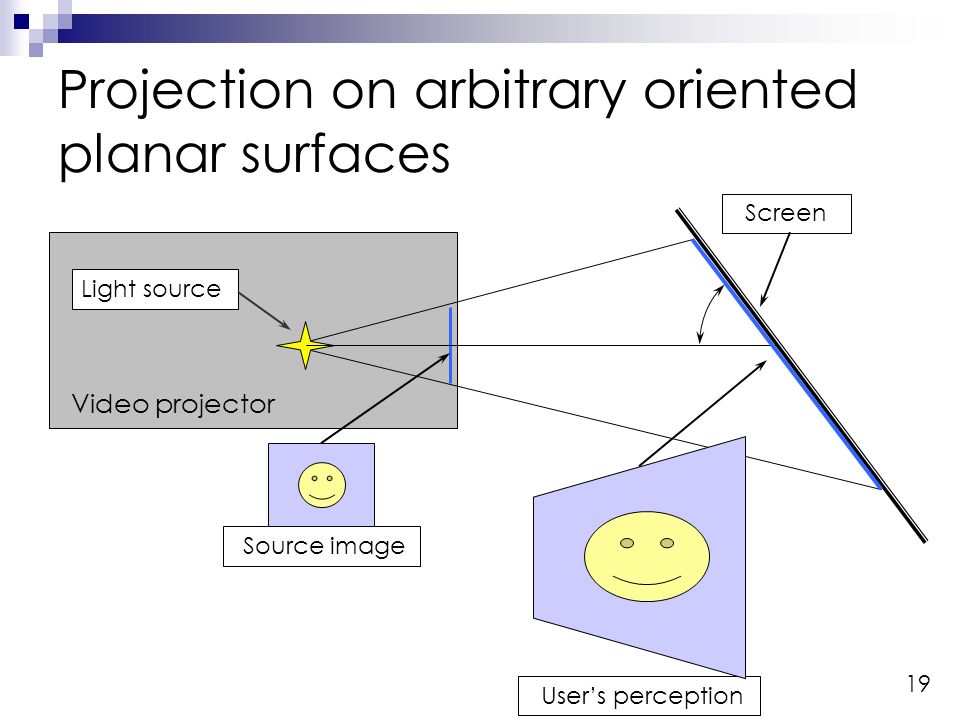

19 19 Video projector Light source Screen Source image Projection on arbitrary oriented planar surfaces Users perception

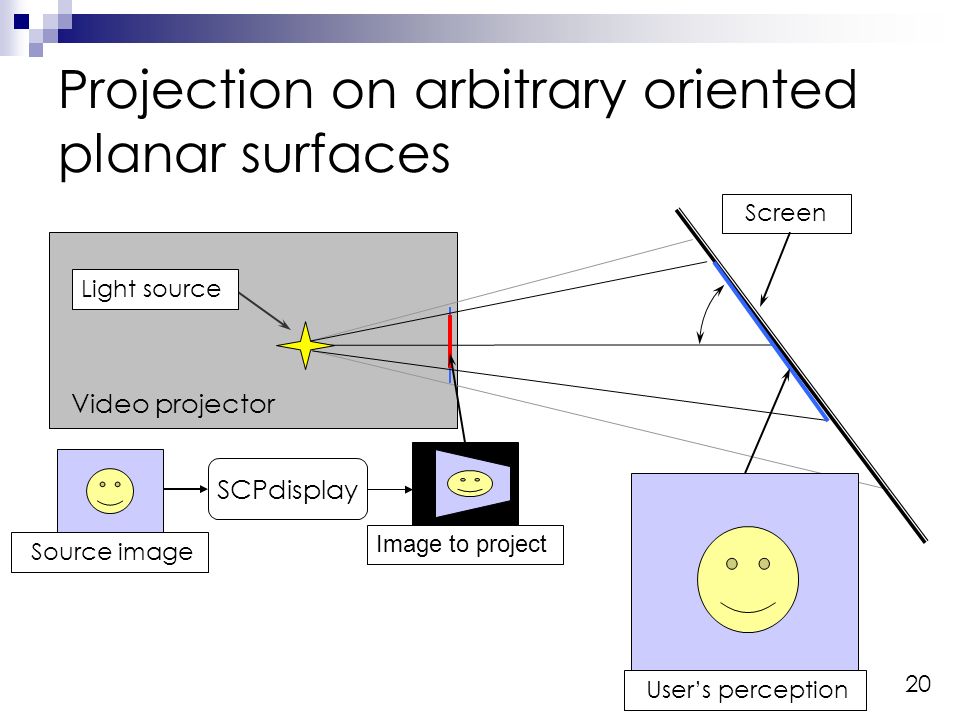

20 20 Video projector Screen Projection on arbitrary oriented planar surfaces Light source Image to project Users perception Source image SCPdisplay

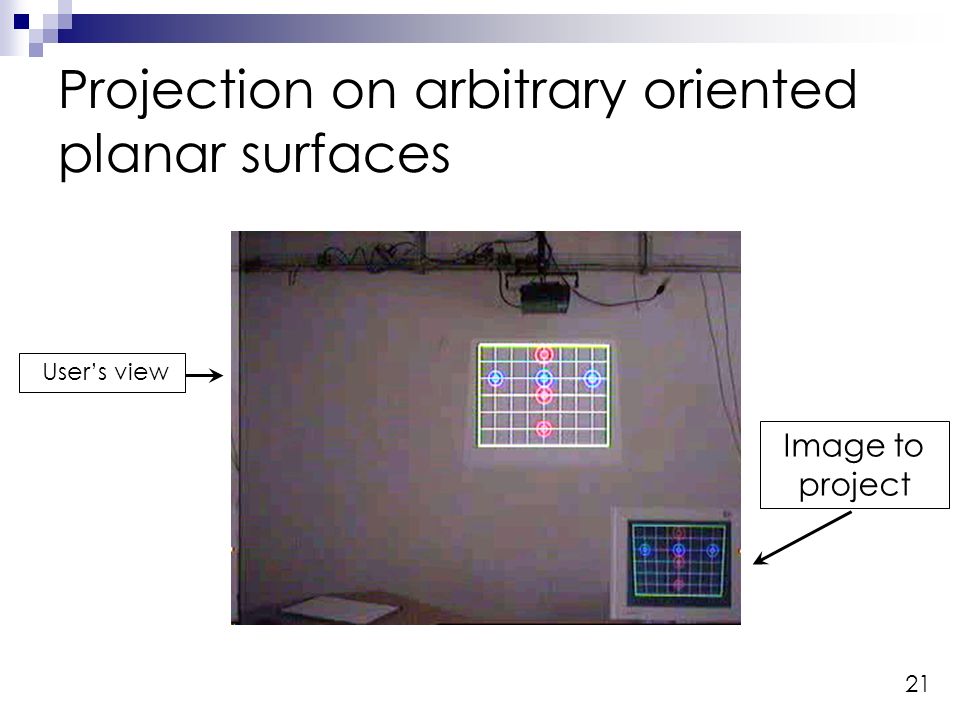

21 21 Projection on arbitrary oriented planar surfaces Image to project Users view

22 22 Interactive system Application Human and Environment SCPdisplay SCPcontroller Frame grabber Interaction detector SCPcalibrator

23 23 Sensor-centric environment model

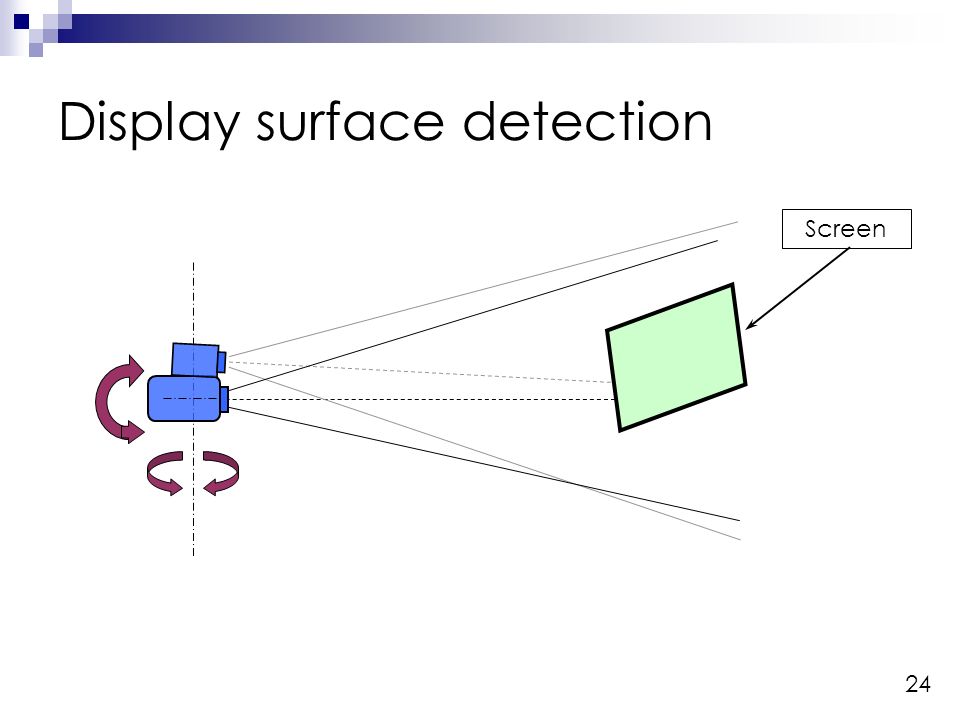

24 24 Display surface detection Screen

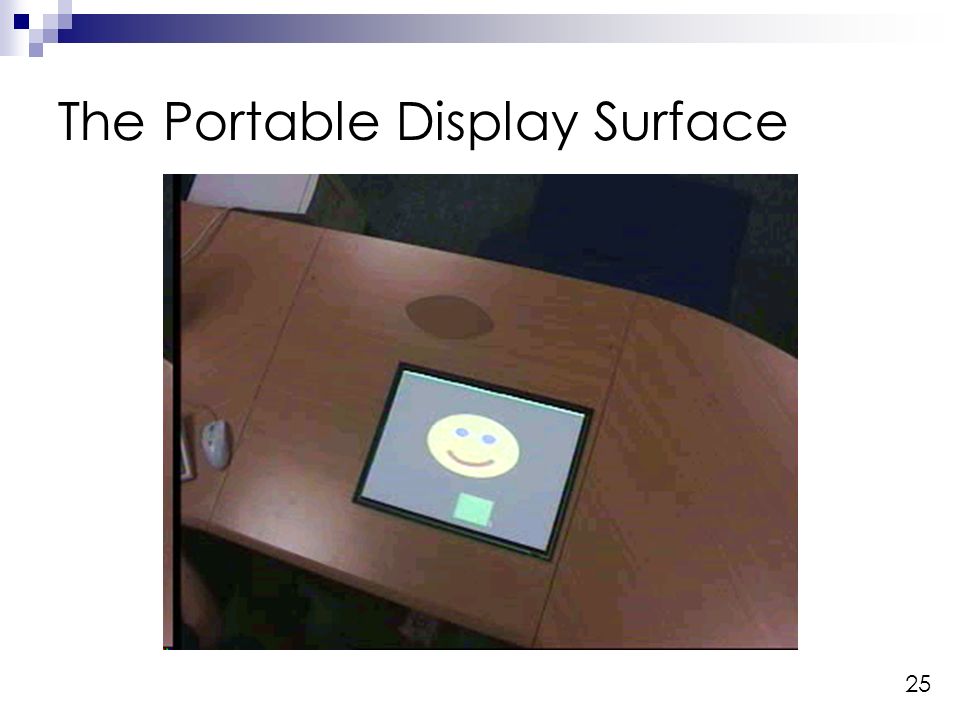

25 25 The Portable Display Surface

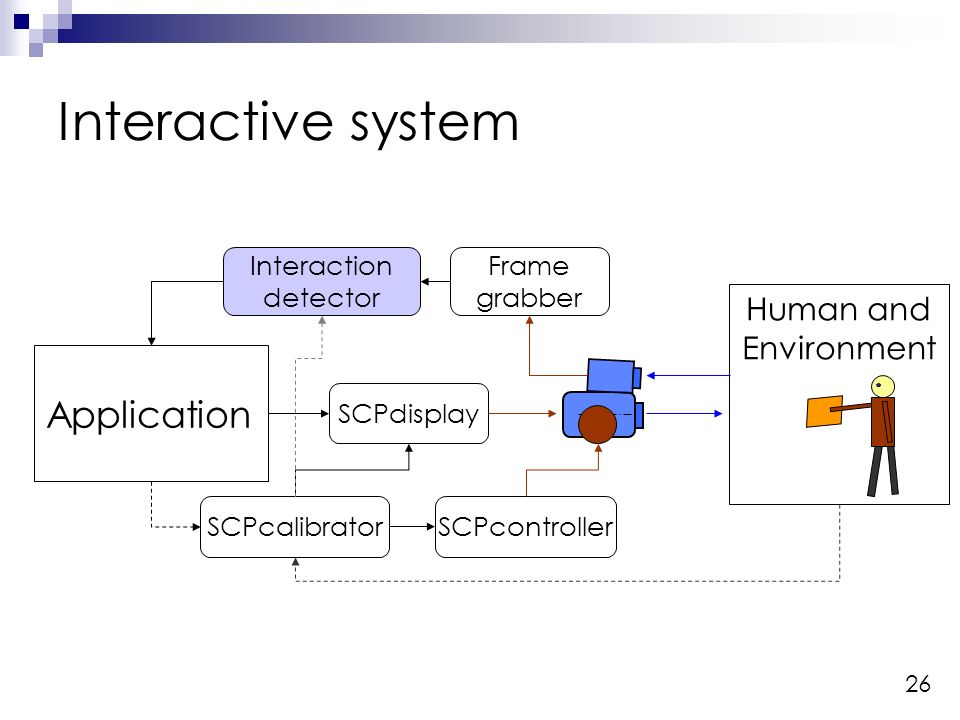

26 26 Interactive system Application Human and Environment SCPdisplay SCPcontroller Frame grabber Interaction detector SCPcalibrator

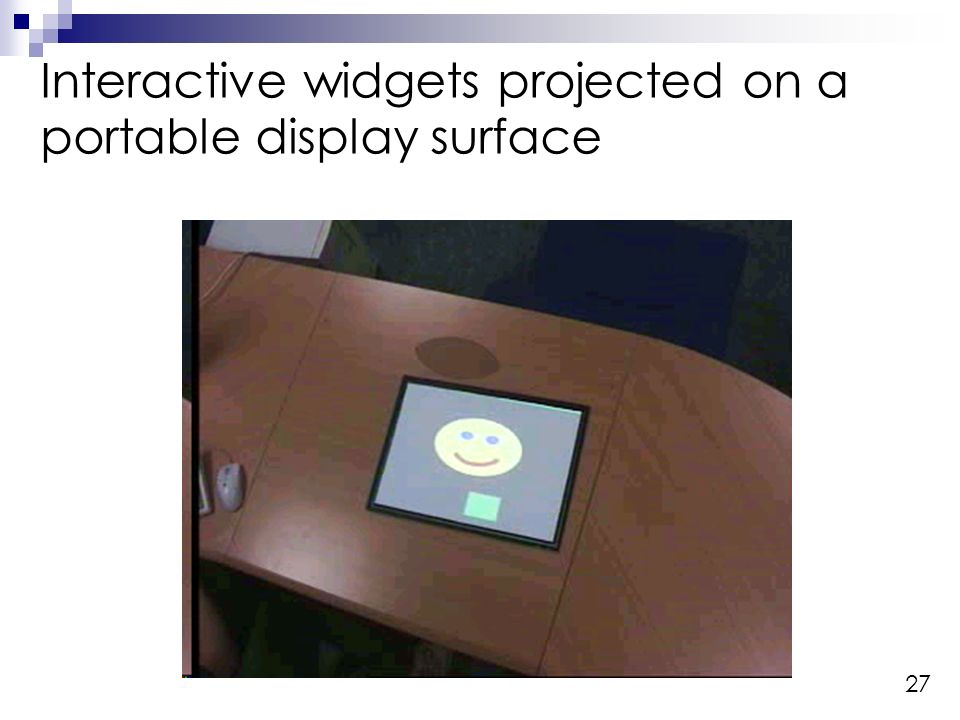

27 27 Interactive widgets projected on a portable display surface

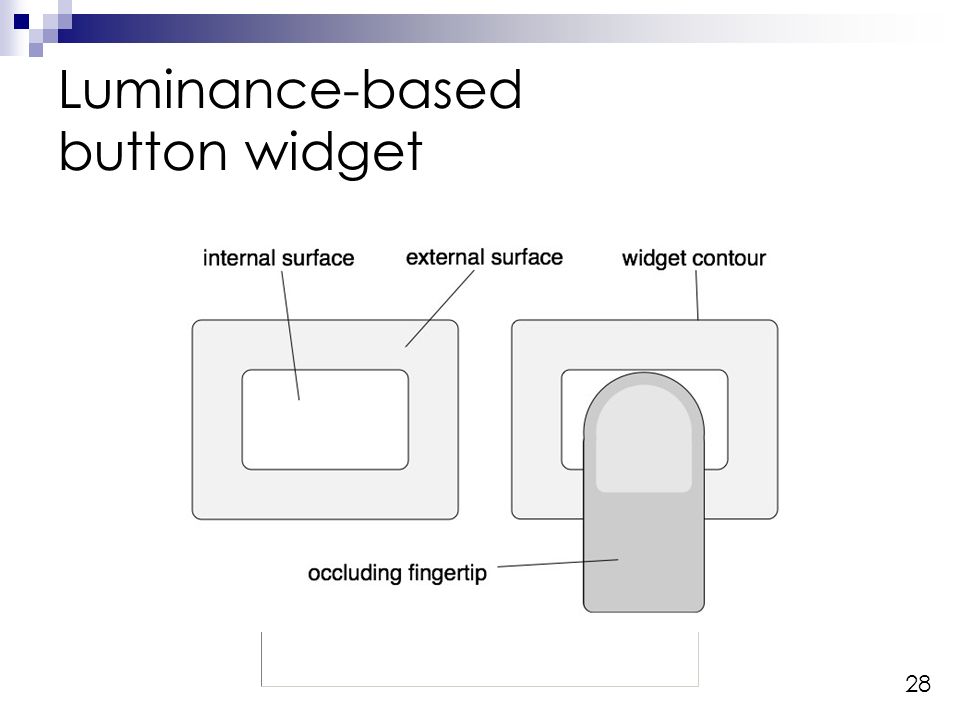

28 28 Luminance-based button widget

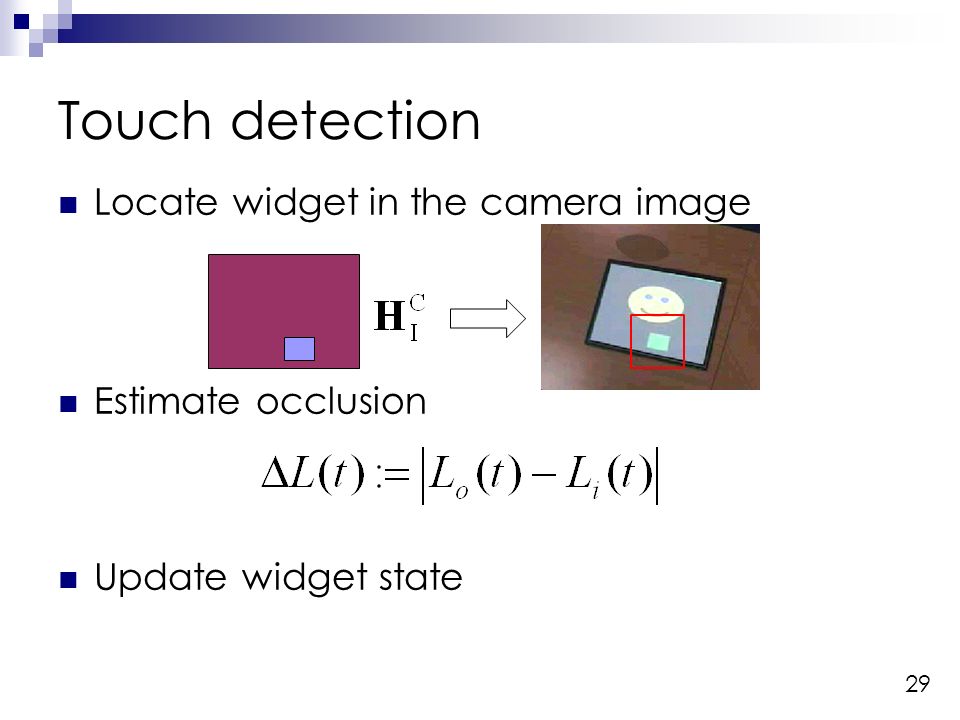

29 29 Locate widget in the camera image Estimate occlusion Update widget state Touch detection

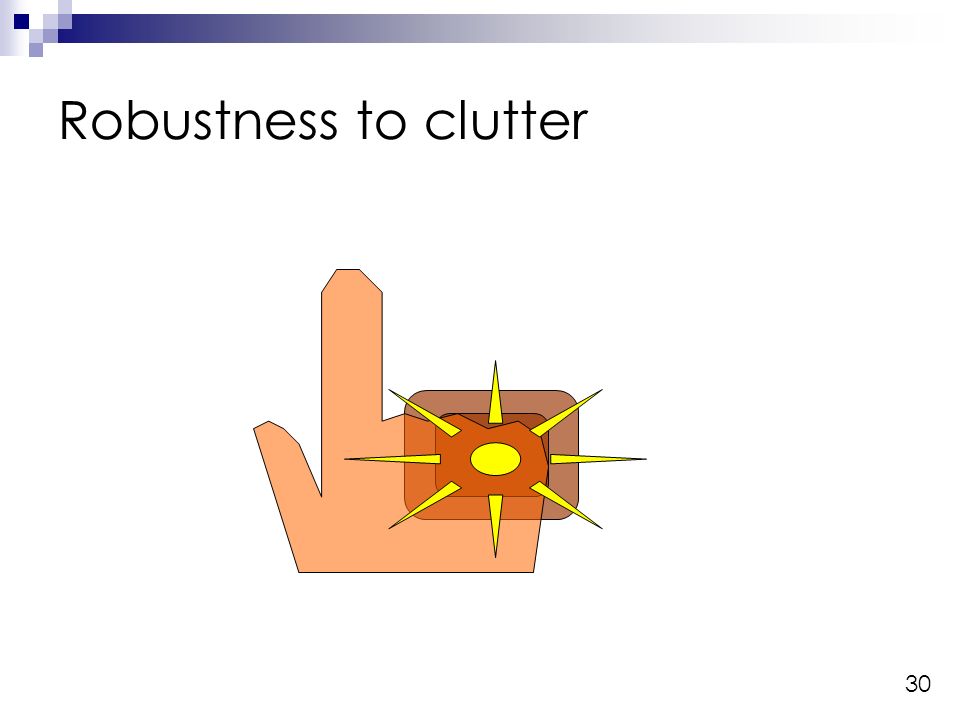

30 30 Robustness to clutter

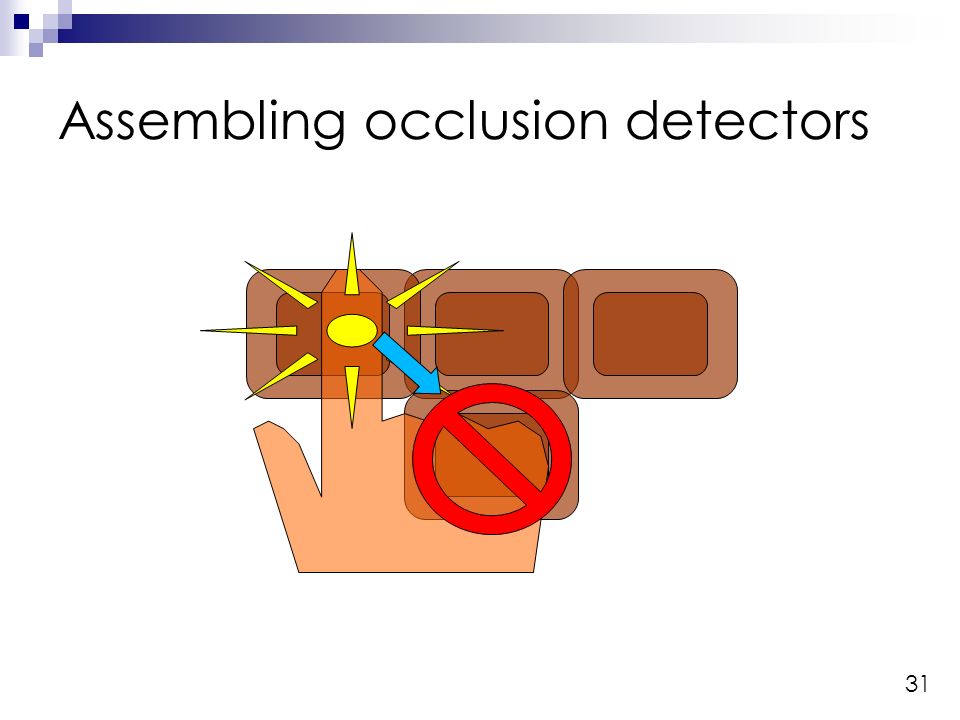

31 31 Assembling occlusion detectors

32 32 Striplet – the occlusion detector x y

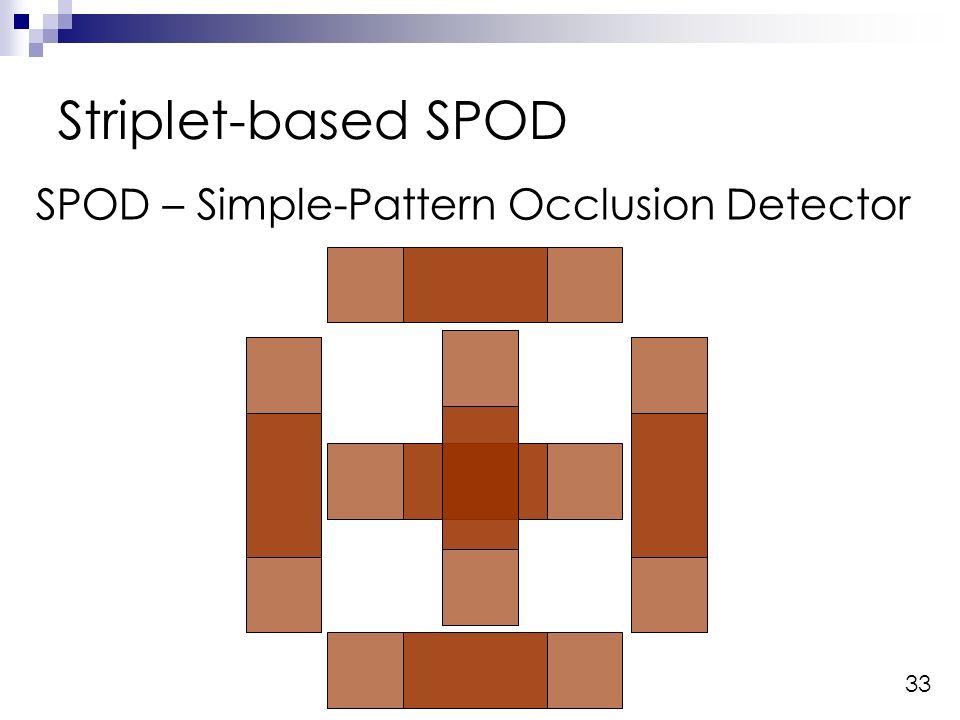

33 33 Striplet-based SPOD SPOD – Simple-Pattern Occlusion Detector

34 34 Striplet-based button

35 35 SPOD-based calculator Accelerated video

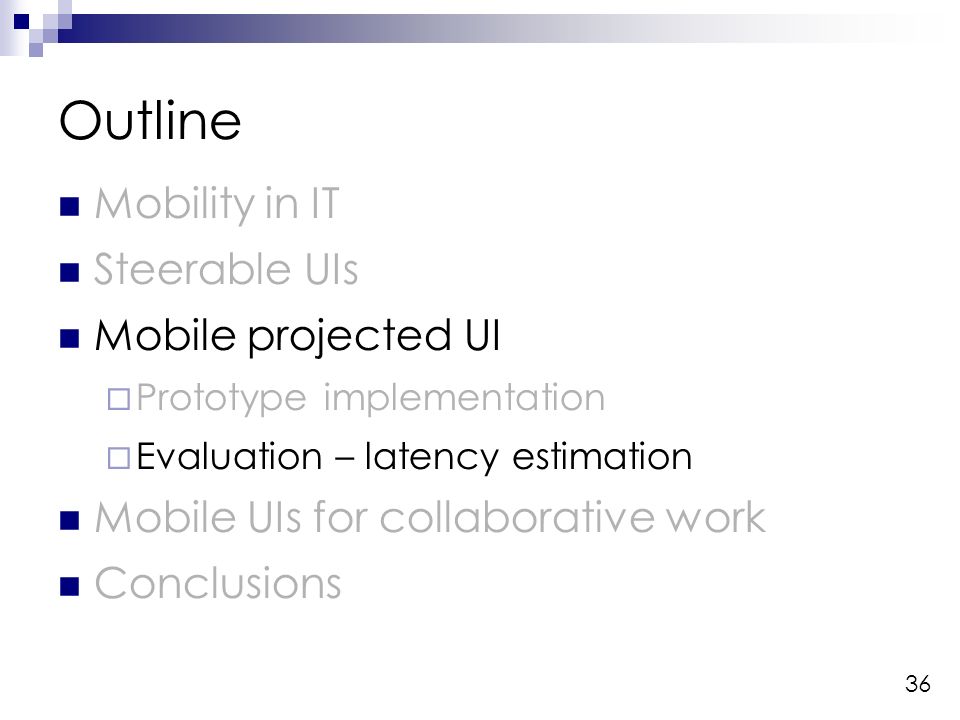

36 36 Outline Mobility in IT Steerable UIs Mobile projected UI Prototype implementation Evaluation – latency estimation Mobile UIs for collaborative work Conclusions

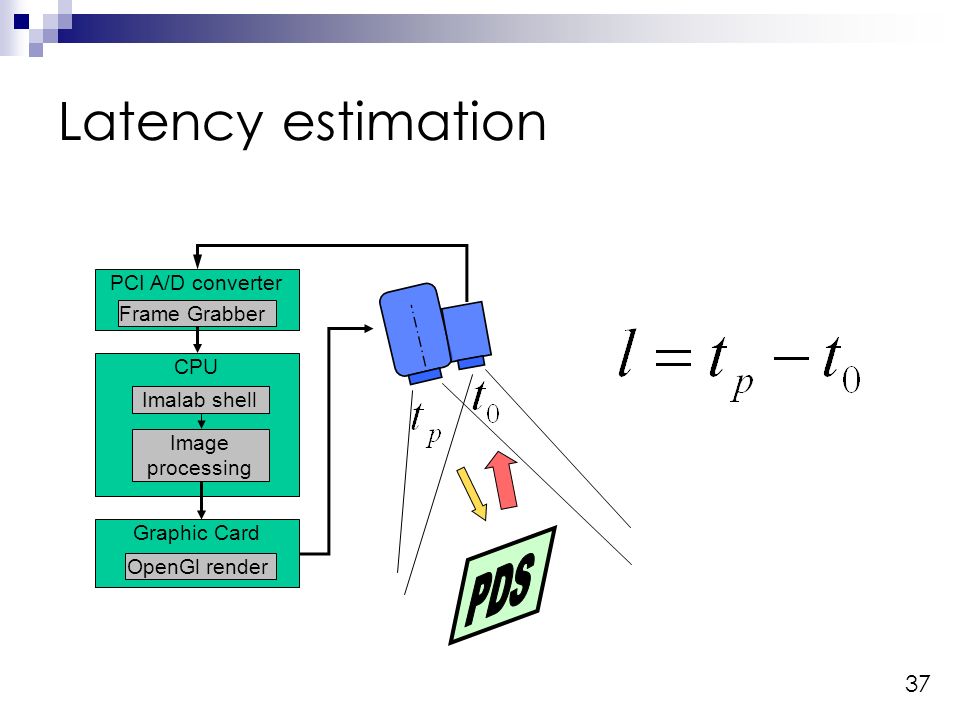

37 37 Latency estimation PCI A/D converter Frame Grabber CPU Imalab shell Image processing Graphic Card OpenGl render

38 38 Latency estimation Fan PCI A/D converter Frame Grabber CPU Imalab shell Image processing Graphic Card OpenGl render Regulated power supply Video sequence capture Plastic bar Projection of the bar

39 39 Latency estimation – results + up to 51ms!!! A ~17ms PCI A/D converter Frame Grabber CPU Imalab shell Image processing Graphic Card OpenGl render ~70ms PCI A/D converter Frame Grabber CPU Imalab shell Graphic Card ~32ms

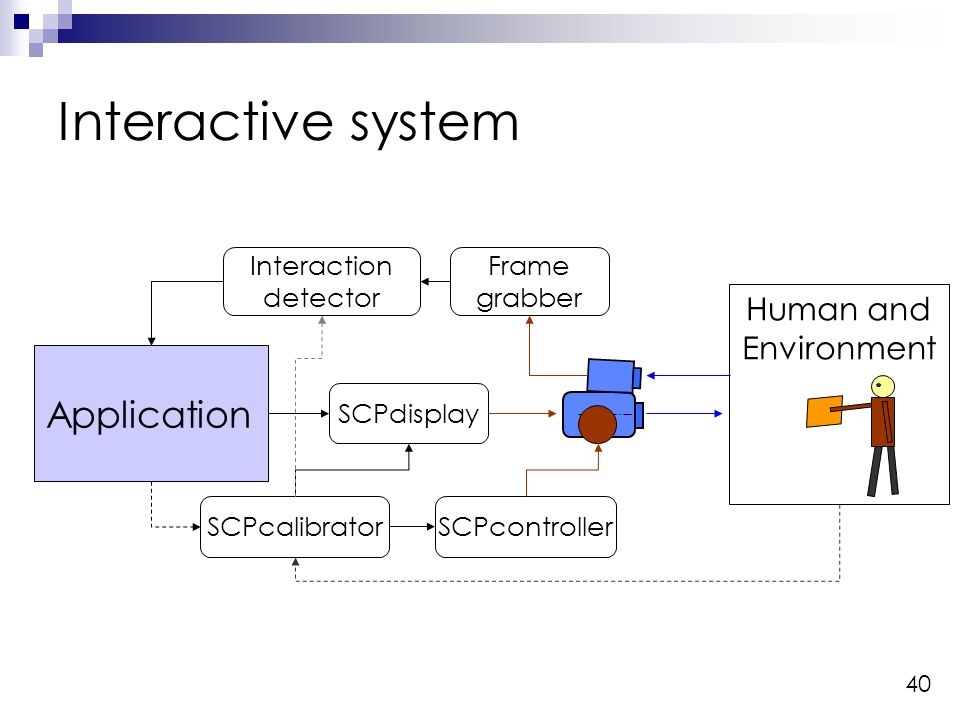

40 40 Interactive system Application Human and Environment SCPdisplay SCPcontroller Frame grabber Interaction detector SCPcalibrator

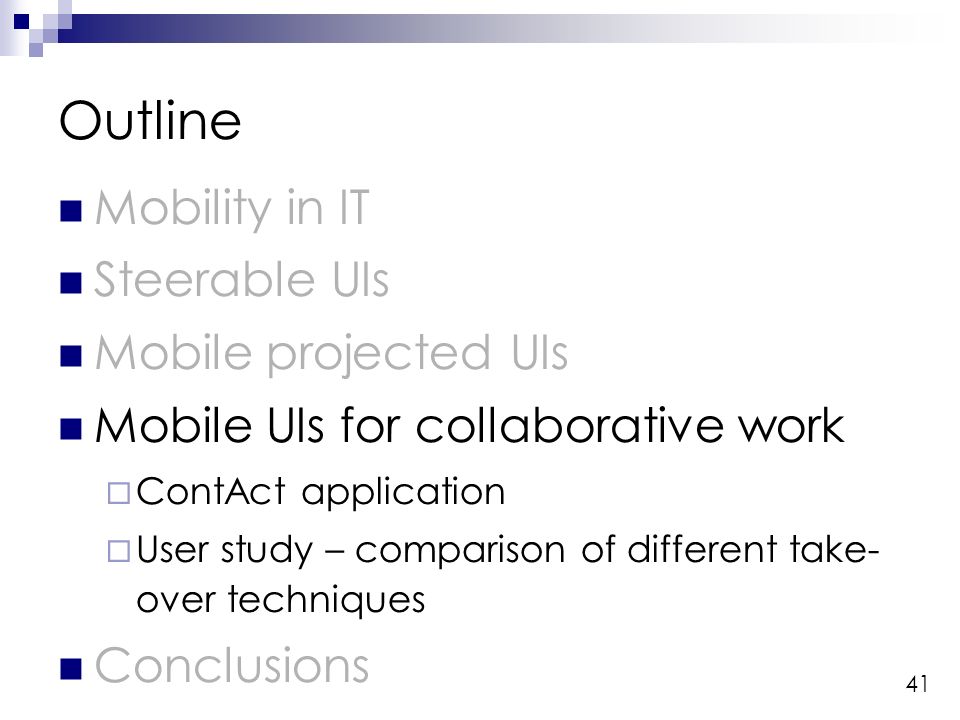

41 41 Outline Mobility in IT Steerable UIs Mobile projected UIs Mobile UIs for collaborative work ContAct application User study – comparison of different take- over techniques Conclusions

42 42 ContAct – a system for authoring presentations Collaboration through interface mobility

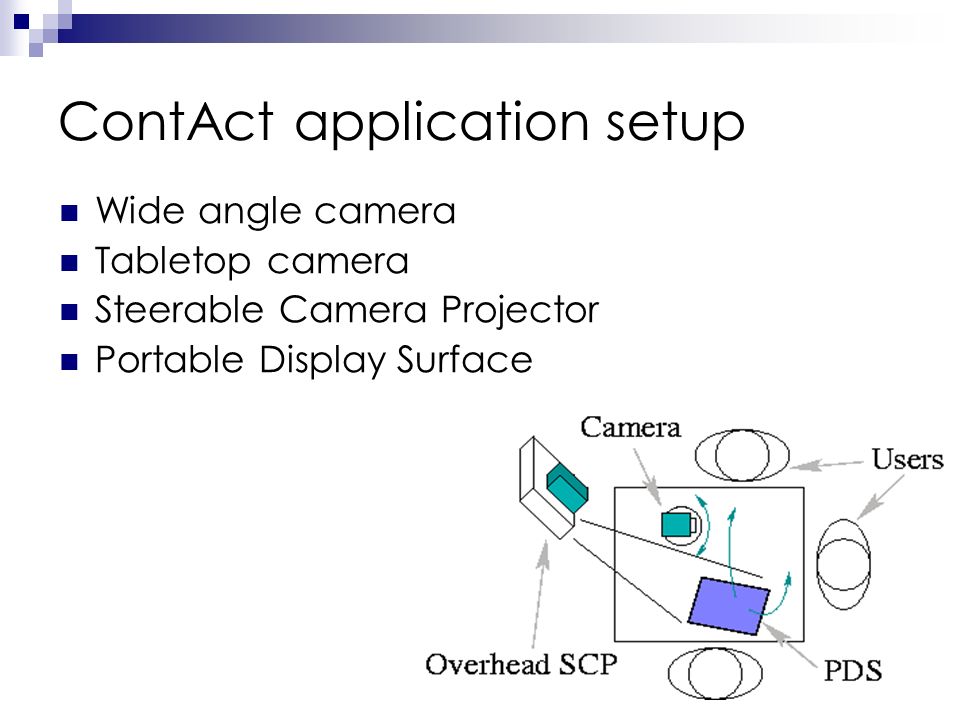

43 43 ContAct application setup Wide angle camera Tabletop camera Steerable Camera Projector Portable Display Surface

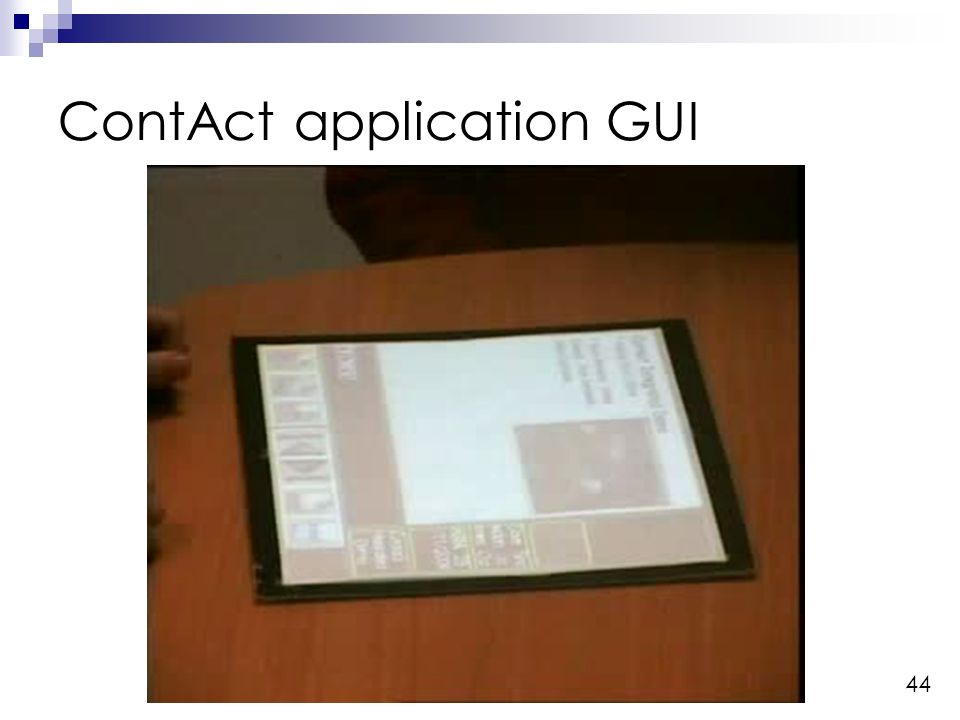

44 44 ContAct application GUI

45 45 Outline Mobility in IT Steerable interface prototype Mobile UIs for collaborative work ContAct application Taking control: a comparative user study [in collaboration with J. Maisonnasse and J. Letessier] Conclusions

46 46 Evaluation of techniques for taking control Objectives: Determine the preferred control taking technique Evaluate the impact on the task completion performance Evaluate user acceptance of steerable interfaces

47 47 Experimental setup GUI Users Hardware: Steerable Camera Projector Microphone headsets Portable Display Surface Software: Speech detector [D. Vaufreydaz] Conversation modeling [J. Maisonnaisse] Finger tracking [J. Letessier] PDS tracking Drawing application

48 48 The User Interface

49 49 The task Collaborative reconstruction of a graph

50 50 The task Collaborative reconstruction of a graph User 2 User 3User 1

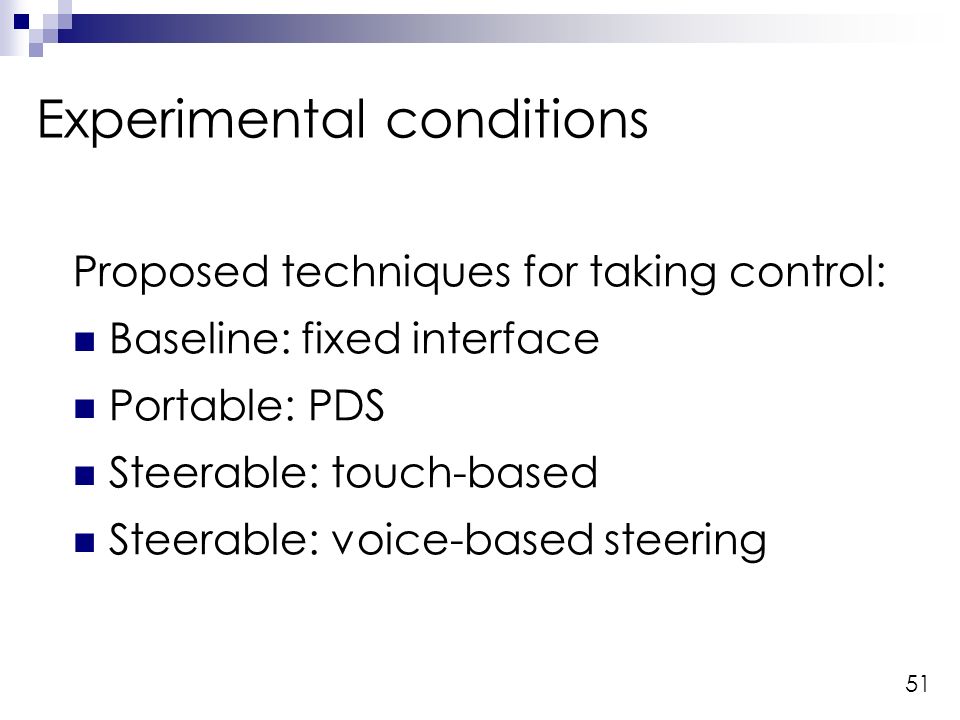

51 51 Experimental conditions Proposed techniques for taking control: Baseline: fixed interface Portable: PDS Steerable: touch-based Steerable: voice-based steering

52 52 Fixed interface GUI Users

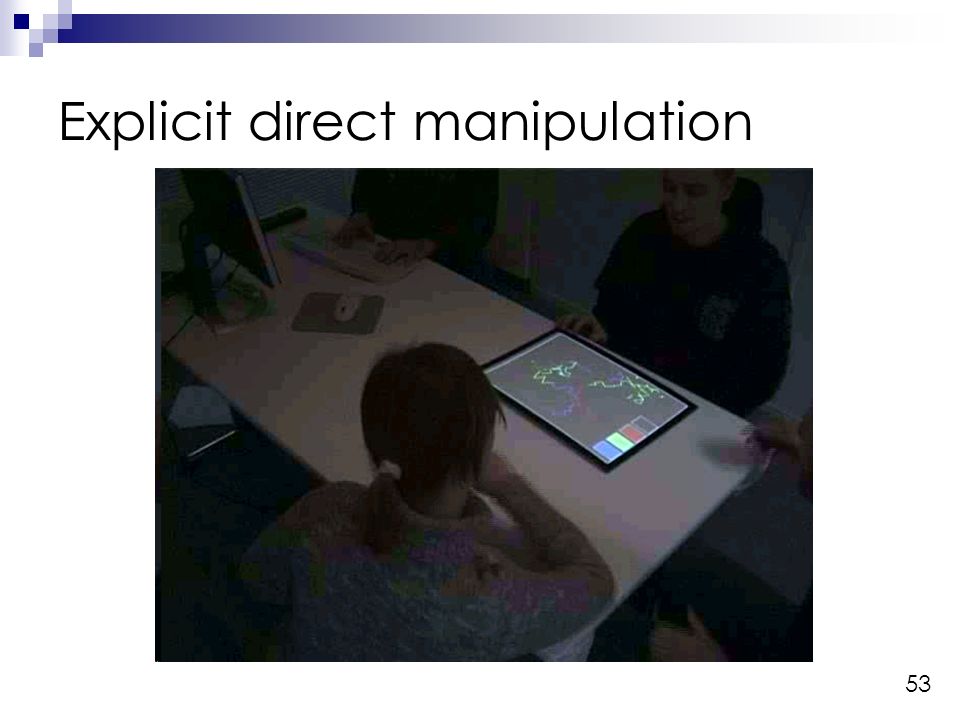

53 53 Explicit direct manipulation

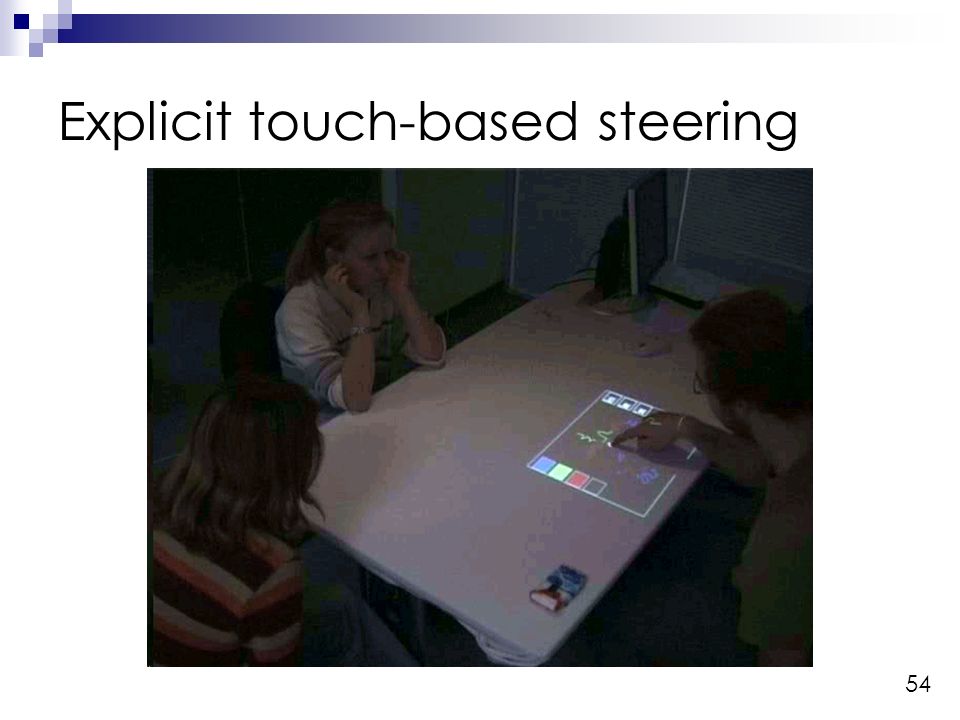

54 54 Explicit touch-based steering

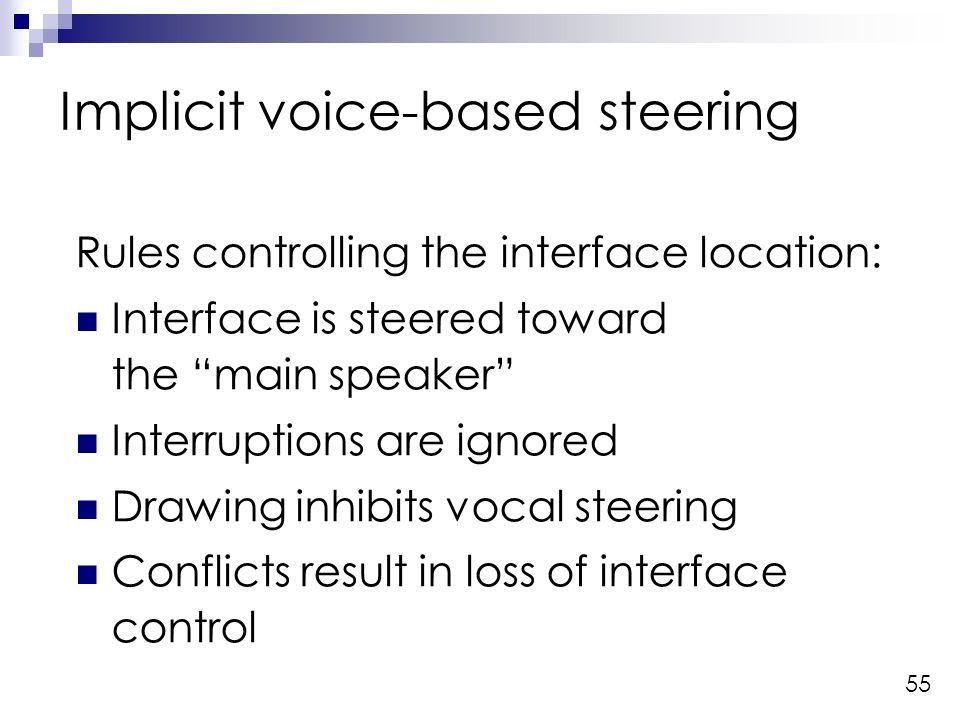

55 55 Implicit voice-based steering Rules controlling the interface location: Interface is steered toward the main speaker Interruptions are ignored Drawing inhibits vocal steering Conflicts result in loss of interface control

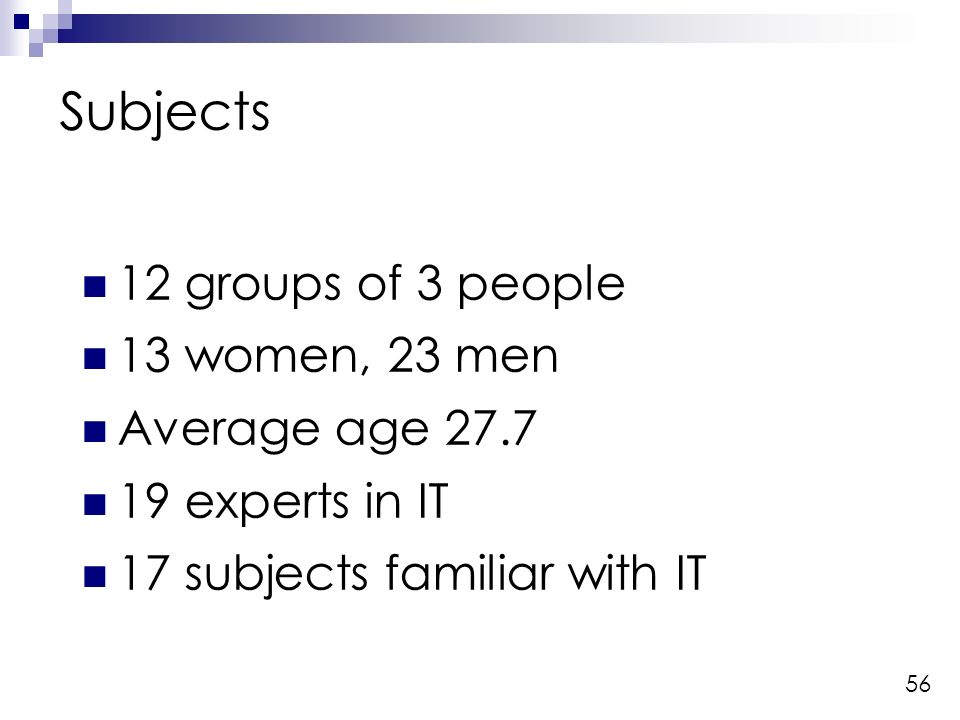

56 56 Subjects 12 groups of 3 people 13 women, 23 men Average age experts in IT 17 subjects familiar with IT

57 57 Results – user preference rank Rank scale: 1 = most liked 4 = least liked

58 58 Results – PDS Fun to use Predictable Less intuitive Less reactive Not well suited for the task ExpertsNon-experts

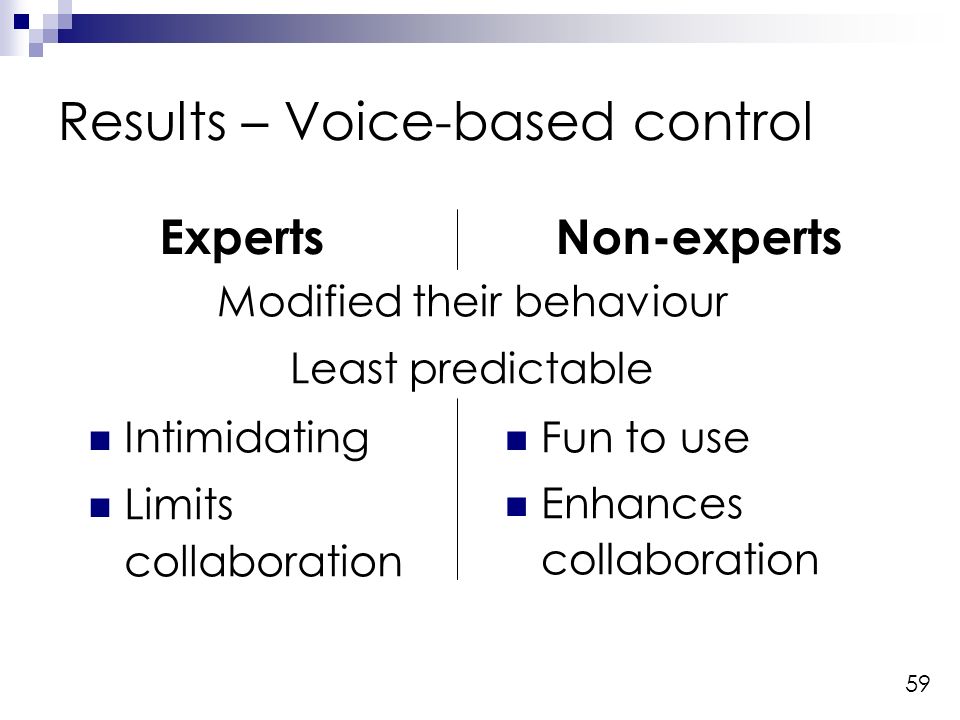

59 59 Results – Voice-based control Intimidating Limits collaboration Fun to use Enhances collaboration ExpertsNon-experts Modified their behaviour Least predictable

60 60 Example result

61 61 User performance – ability to duplicate % of remembered elements

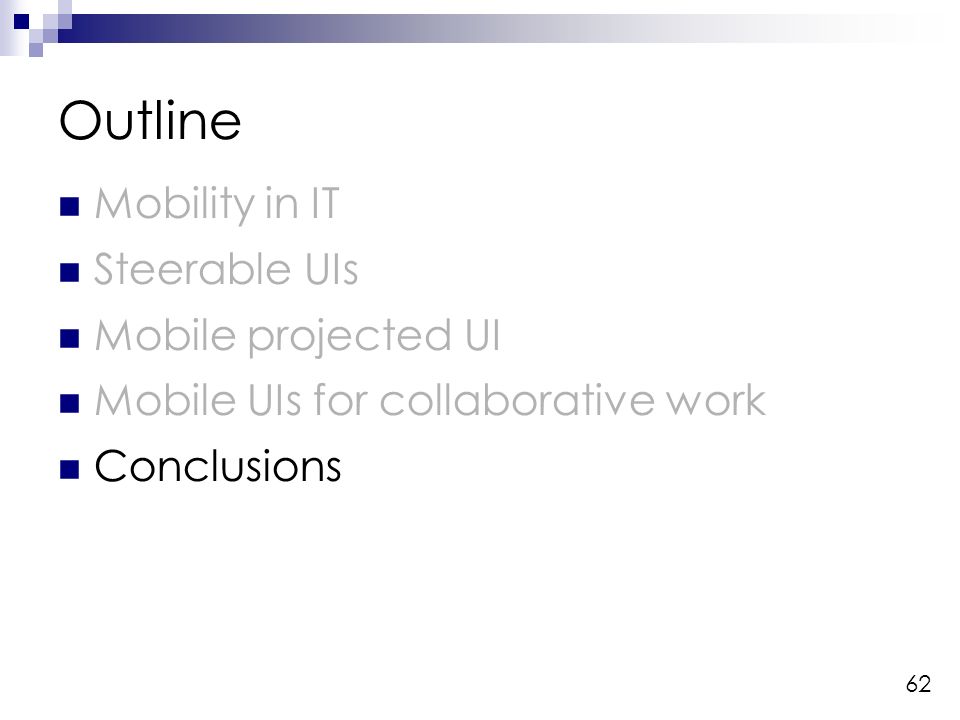

62 62 Outline Mobility in IT Steerable UIs Mobile projected UI Mobile UIs for collaborative work Conclusions

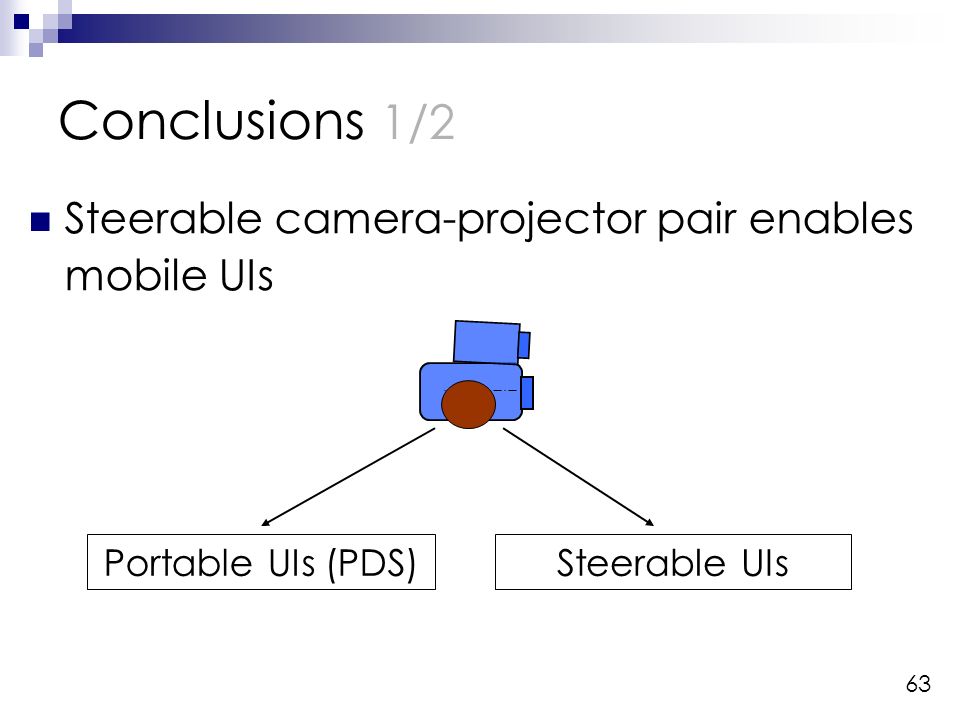

63 63 Conclusions 1/2 Steerable camera-projector pair enables mobile UIs Portable UIs (PDS)Steerable UIs

64 64 Conclusions 2/2 UI mobility can enhance the collaborative experience Explicit control is preferred over implicit control

65 65 Future directions 1/2 The SCP: Adapting to display surface texture The PDS: Tracking and interaction with multiple PDS High frame-rate tracking Vision-based projected widgets: Integration of multiple occlusion detectors

66 66 Steerable interfaces: Other applications for steerable interfaces Alternative methods for controlling the location Exploring links with plastic interfaces – dynamic interface adaptation Creation of a space manager Future directions 2/2

67 67 Thank you for your attention

68 68

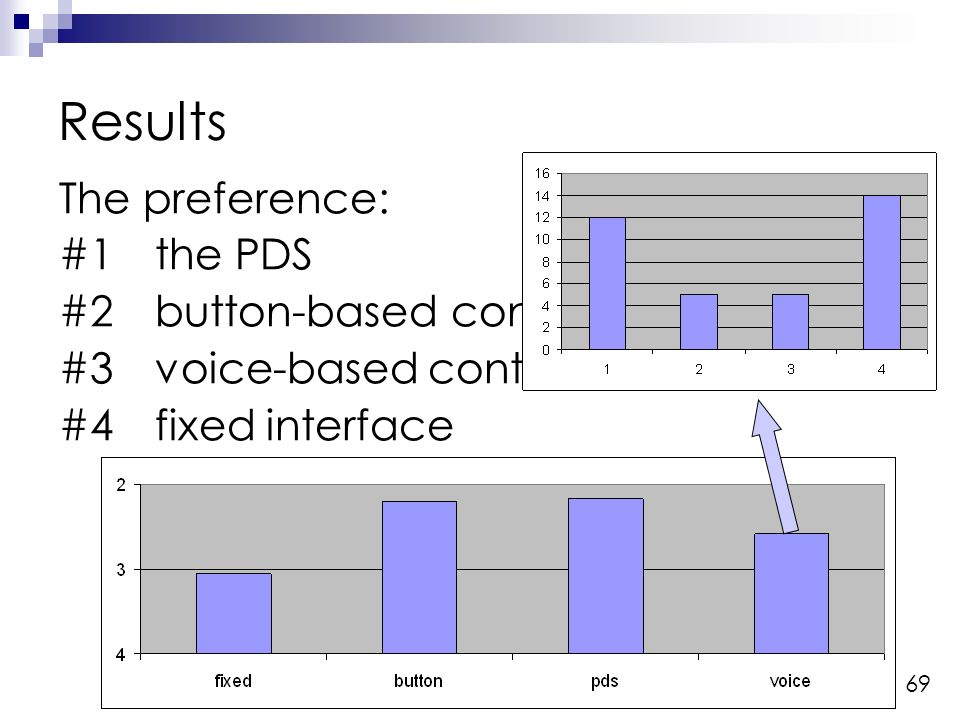

69 69 Results The preference: #1the PDS #2button-based control #3voice-based control #4fixed interface

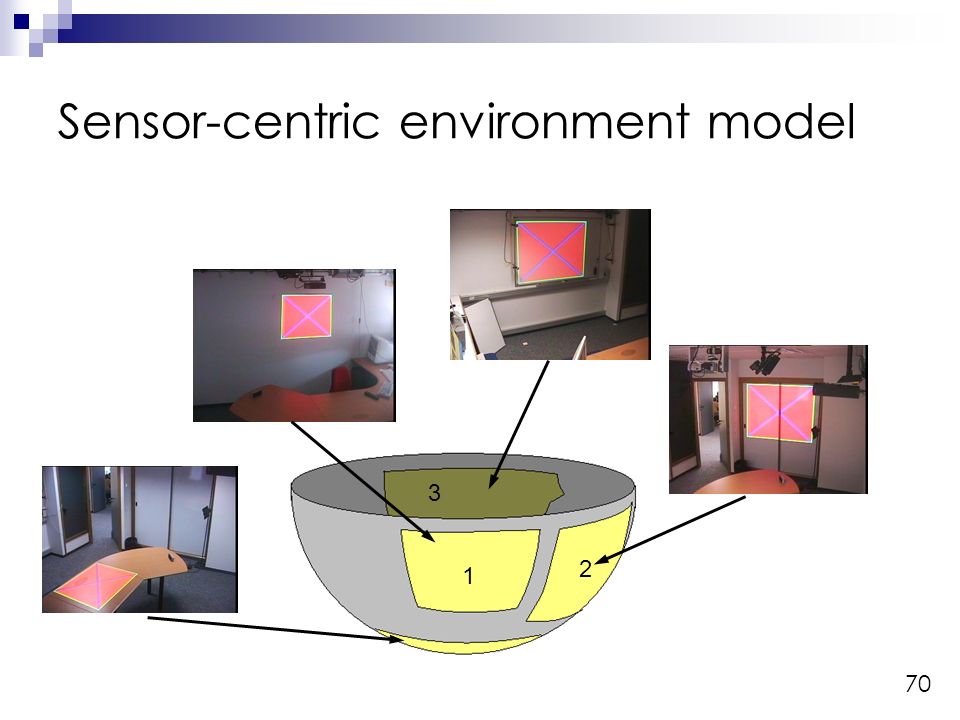

70 Sensor-centric environment model

71 71 SPOD software components Frame Grabber Client Application Calibration GUI rendering GUI Striplets Engine VEIL SPODSPOD

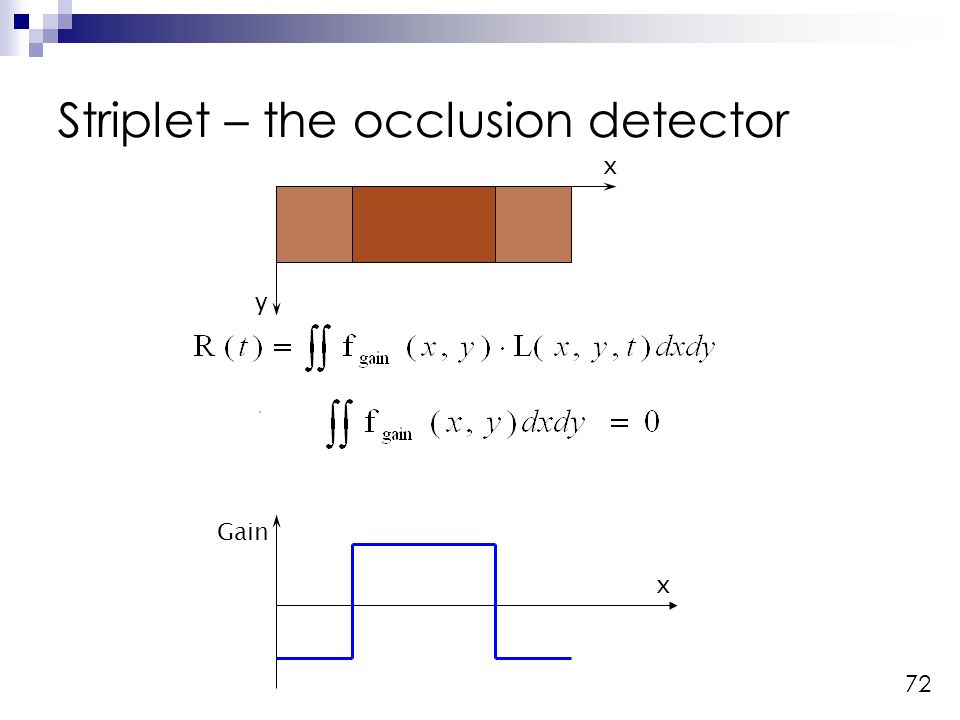

72 72 Striplet – the occlusion detector Gain x x y

73 73 VEIL – Vision Events Interpretation Layer Striplets Engine VEIL SPODSPOD Inputs Widgets coordinates Scale and UI to camera mapping matrix Striplets occlusion events Outputs Interaction events Striplets coordinates

74 74 VEIL – Vision Events Interpretation Layer Striplets Engine VEIL SPODSPOD Inputs Widgets coordinates Scale and UI to camera mapping matrix Striplets occlusion events Outputs Interaction events Striplets coordinates

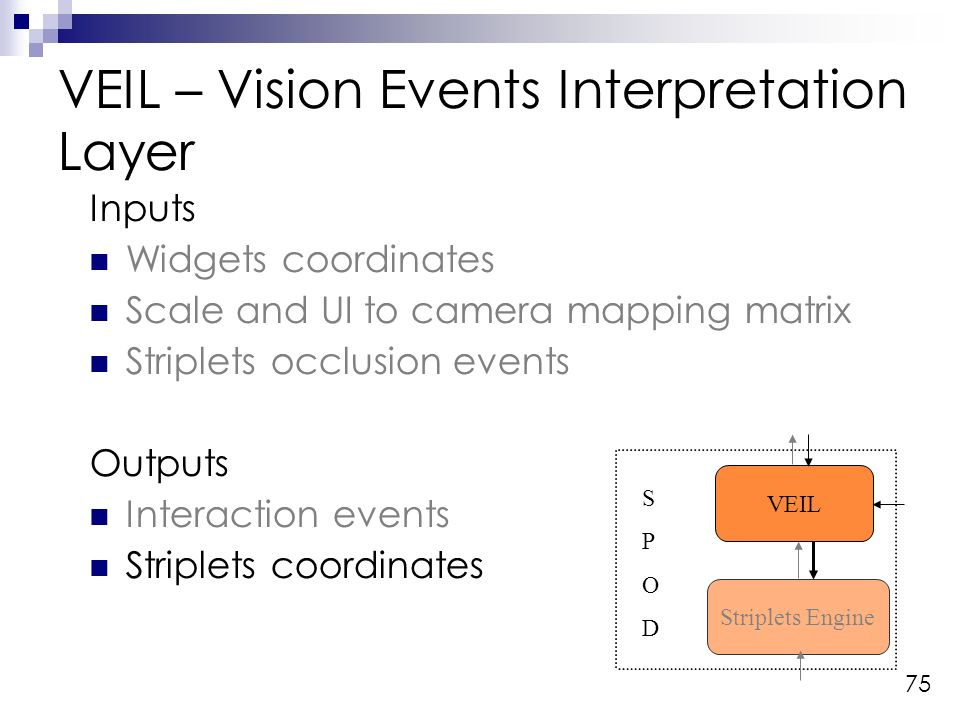

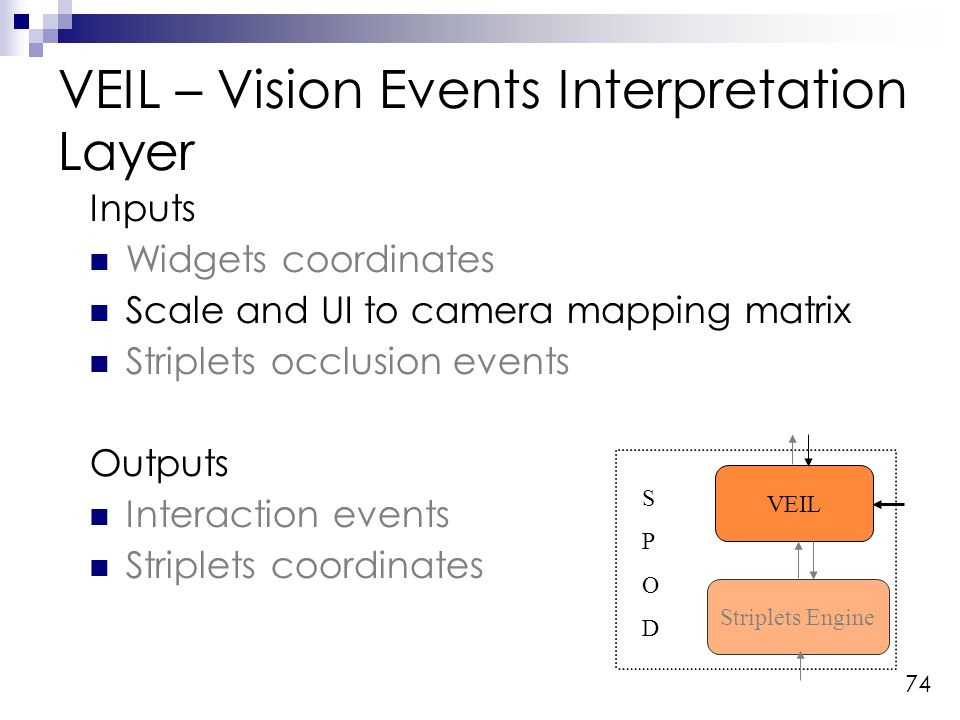

75 75 VEIL – Vision Events Interpretation Layer Striplets Engine VEIL SPODSPOD Inputs Widgets coordinates Scale and UI to camera mapping matrix Striplets occlusion events Outputs Interaction events Striplets coordinates

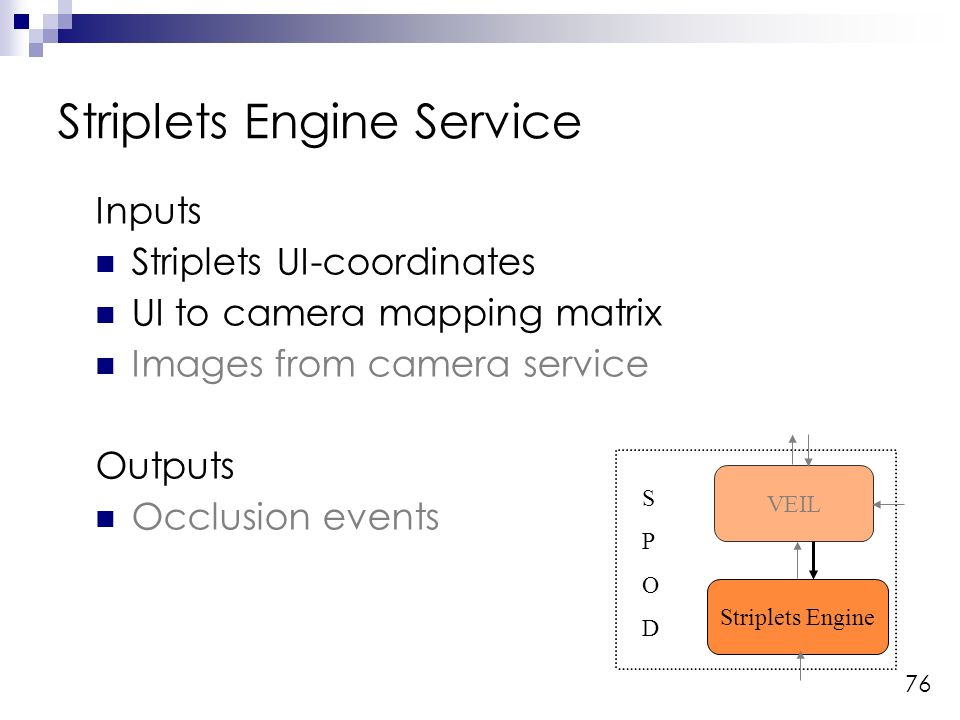

76 76 Inputs Striplets UI-coordinates UI to camera mapping matrix Images from camera service Outputs Occlusion events Striplets Engine Service Striplets Engine VEIL SPODSPOD

77 77 Inputs Striplets UI-coordinates UI to camera mapping matrix Images from camera service Outputs Occlusion events Striplets Engine Service Striplets Engine VEIL SPODSPOD

78 78 Inputs Striplets UI-coordinates UI to camera mapping matrix Images from camera service Outputs Occlusion events Striplets Engine Service Striplets Engine VEIL SPODSPOD

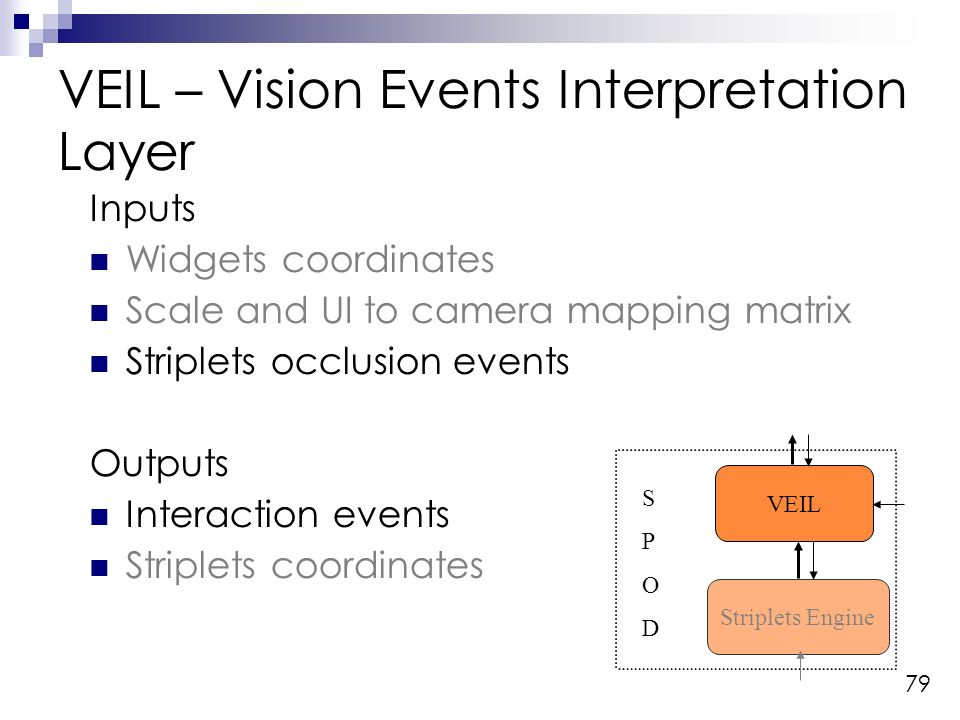

79 79 VEIL – Vision Events Interpretation Layer Striplets Engine VEIL SPODSPOD Inputs Widgets coordinates Scale and UI to camera mapping matrix Striplets occlusion events Outputs Interaction events Striplets coordinates

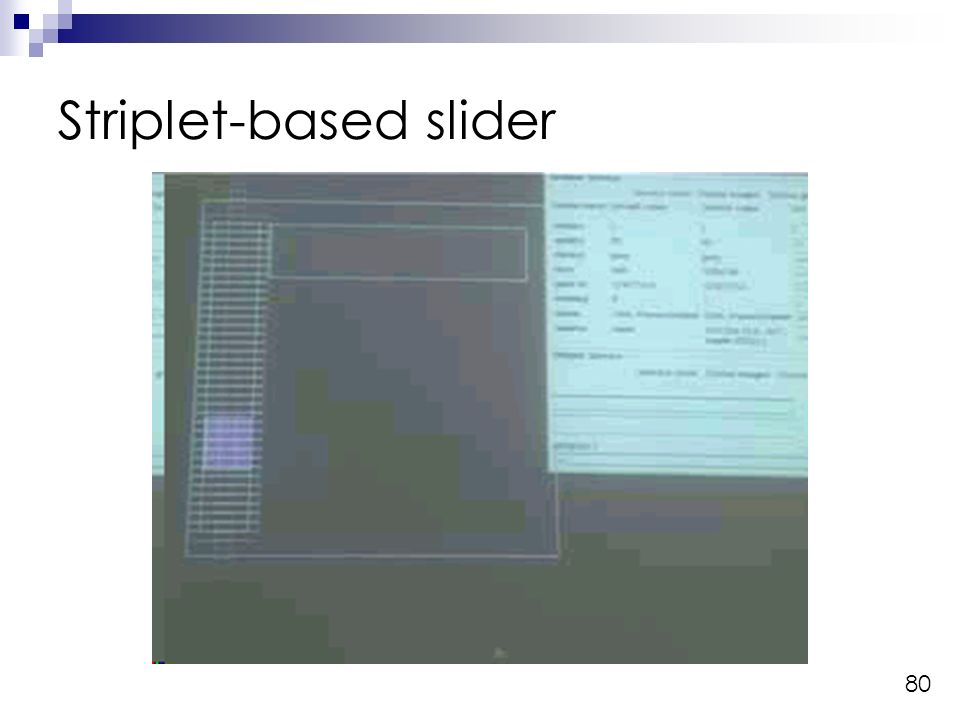

80 80 Striplet-based slider

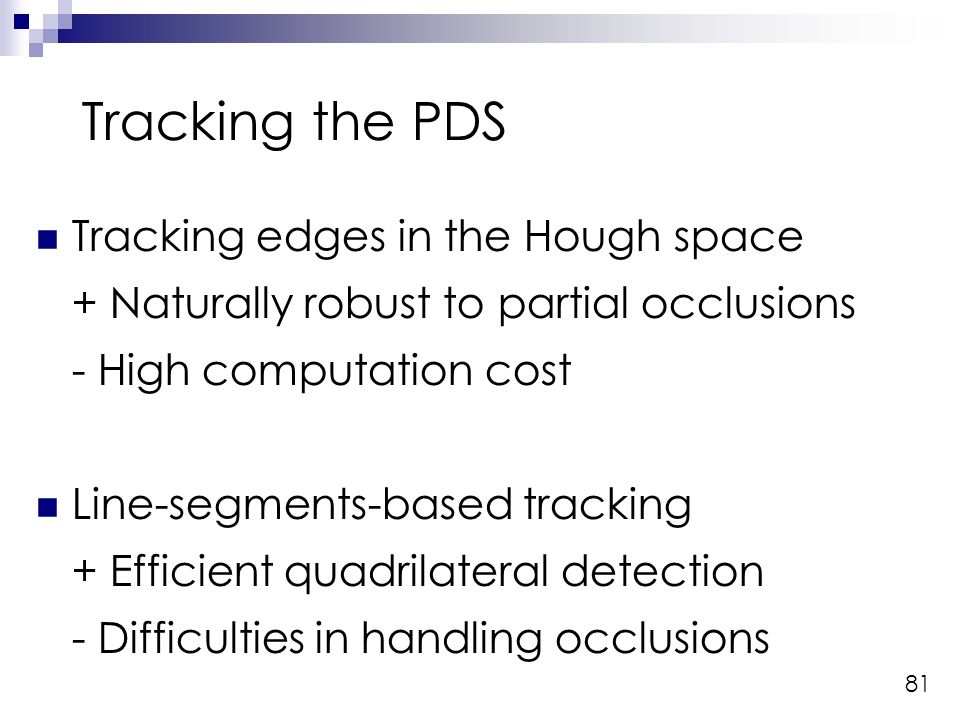

81 81 Tracking the PDS Tracking edges in the Hough space + Naturally robust to partial occlusions - High computation cost Line-segments-based tracking + Efficient quadrilateral detection - Difficulties in handling occlusions

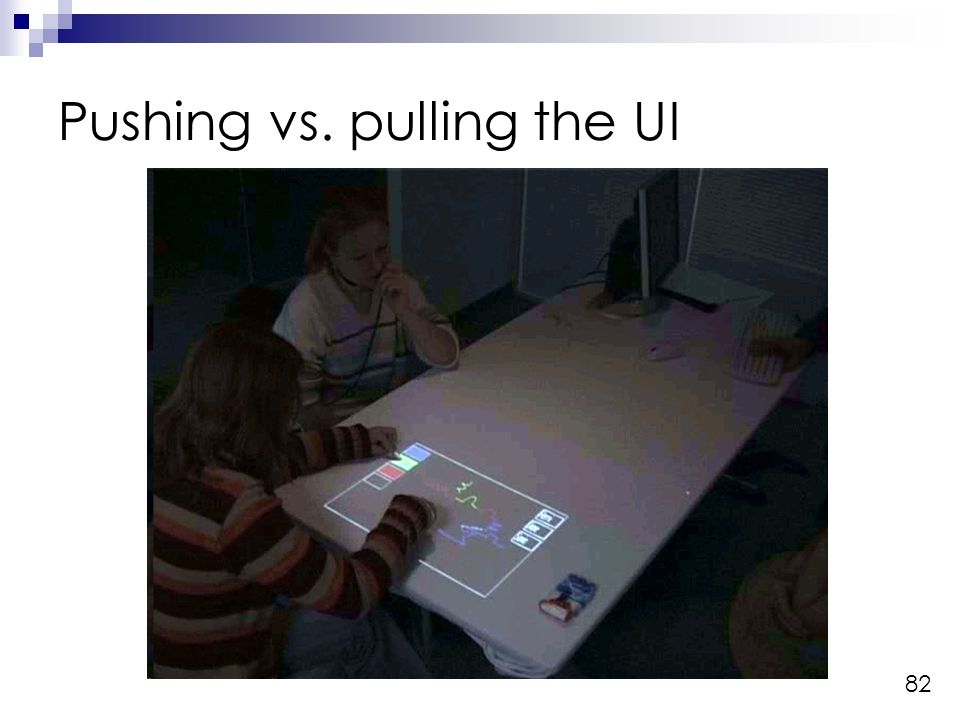

82 82 Pushing vs. pulling the UI

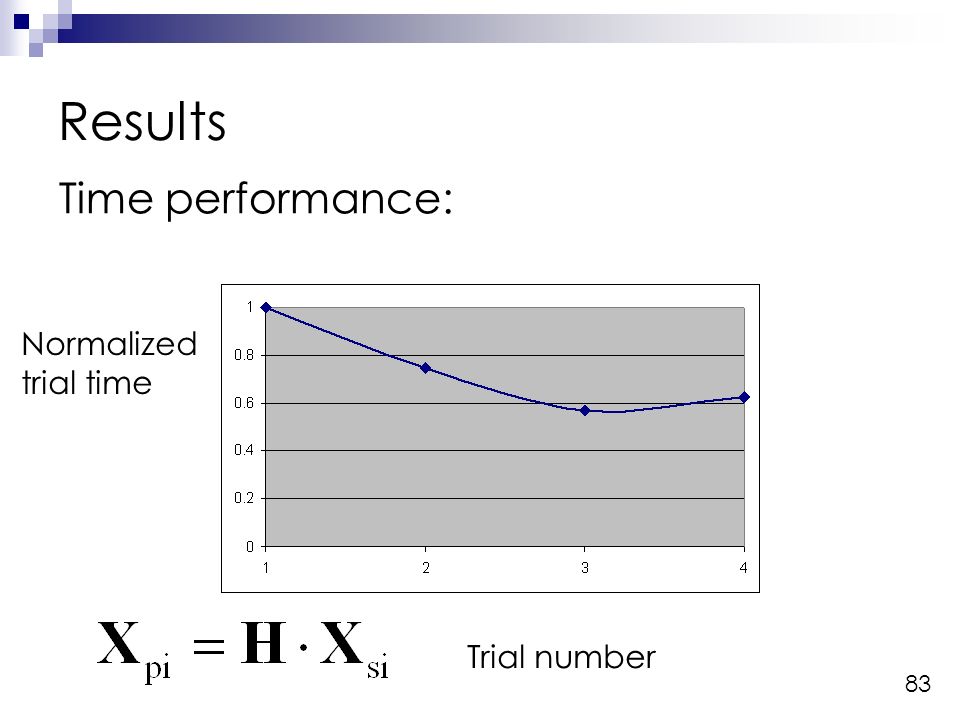

83 83 Results Time performance: Trial number Normalized trial time

84 84 Performance deg of pan 1600 discrete positions (resolution) 90 deg/s max pan speed reached in 0.75 s 90 deg of tilt 500 discrete positions 80 deg/s max tilt speed reached in 0.60s Video Projector Camera Pan Stepper- motor Tilt Stepper- motor Control and power supply
