BIO2093 – Phylogenetics Darren Soanes Phylogeny I
2
Phylogenetics The study of evolutionary relationships among groups of organisms. Phylogenetic tree: a hypothesis of the order in which evolutionary events are assumed to have occurred.
3

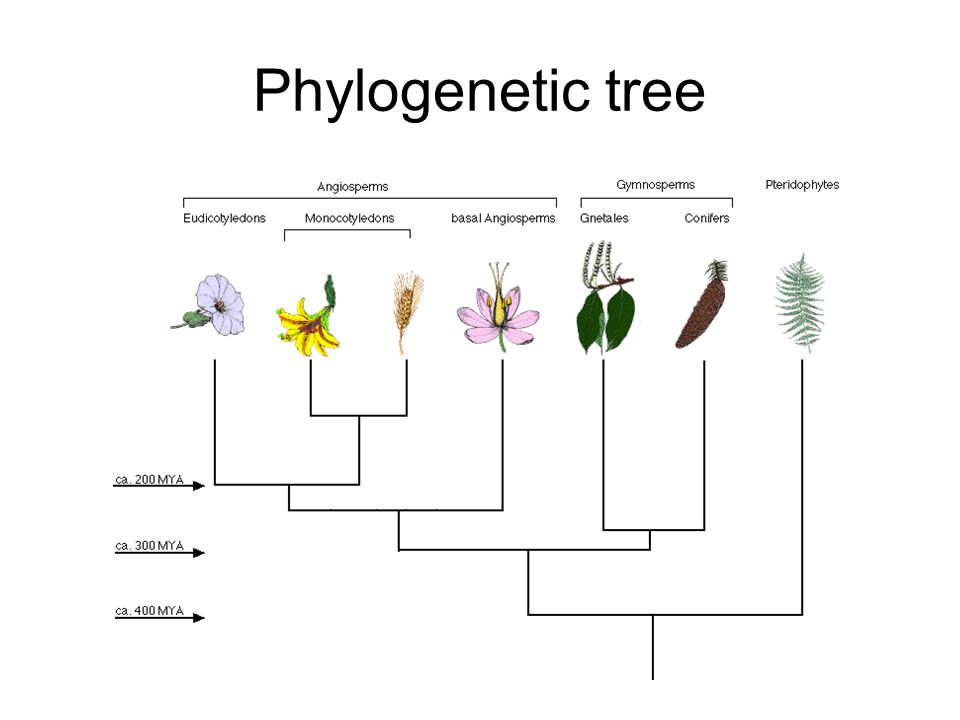

Phylogenetic tree
4
Parts of a tree plural of taxon = taxa
5
Phylogenetic tree: evolutionary family tree Nodes in the tree represent speciation events, where an ancestral lineage gives rise to daughter lineages.
6

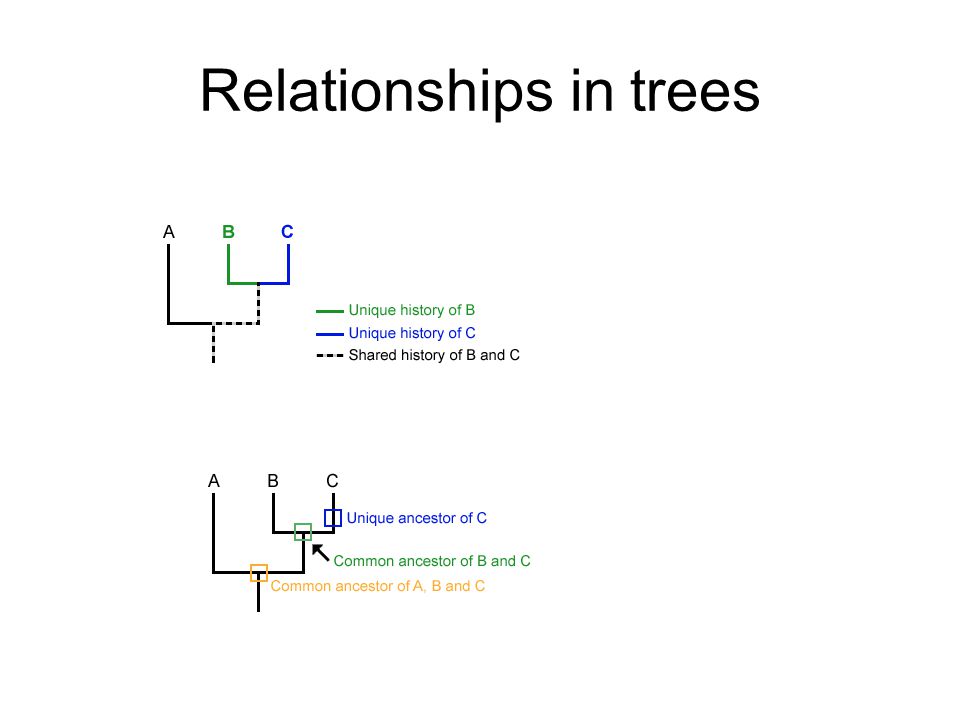

Relationships in trees
7
Rooting a tree outgroup Root - most recent common ancestor of all the taxa in a tree outgroup — a taxon outside the group of interest. All the members of the group of interest are more closely related to each other than they are to the outgroup. Used to root the tree.
8
Outgroup
9
Rooted and unrooted trees rooted tree unrooted tree
10
Types of trees A cladogram is a phylogenetic tree formed using cladistic methods. It shows branching pattern only. A phylogram is a phylogenetic tree that has branch lengths proportional to the amount of character change. A chronogram is a phylogenetic tree that explicitly represents evolutionary time through its branch lengths.
11
Cladistics Classification into clades based on shared derived characters (synapomorphies). A synapomorphy is a trait shared among species because the common ancestor of those species also had the trait.
13
Analogy
14
Homoplasy: homoplastic character state is a trait that is shared by two or more taxa because of convergence, parallelism or reversal e.g modified nostrils on top of head in cetaceans and dinosaur group Macronaria.
15
Convergent evolution
16
Plant kingdom
17
Clades A clade consists of an ancestor organism and all its descendants. Clade = monophyletic group Each monophyletic group can be identified by one or more synapomorphies.
18
Phylogenetic classification system Phylogenetic groups are based on clades (monophyletic groups)
19
Phylogenetic classification system Reptile is not a legitimate phylogenetic grouping (unless we include birds as reptiles) – paraphyletic group Birds are part of the clade Dinosauria.
20
Phylogenetic classification system
21
Mono, poly and paraphyly
22

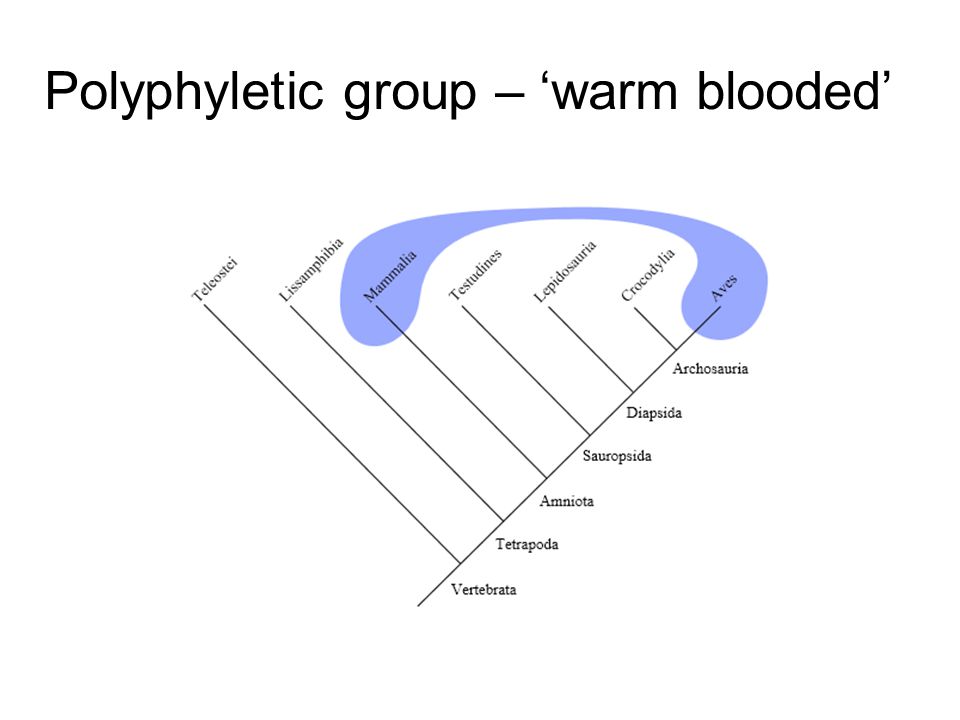

Polyphyletic group – ‘warm blooded’
23
Types of trees A cladogram is a phylogenetic tree formed using cladistic methods. It shows branching pattern only. A phylogram is a phylogenetic tree that has branch lengths proportional to the amount of character change. A chronogram is a phylogenetic tree that explicitly represents evolutionary time through its branch lengths.
24
Phylogram
25
Cladogram Phylogram
26
Types of trees A cladogram is a phylogenetic tree formed using cladistic methods. It shows branching pattern only. A phylogram is a phylogenetic tree that has branch lengths proportional to the amount of character change. A chronogram is a phylogenetic tree that explicitly represents evolutionary time through its branch lengths.
27
Chronogram Phylogram calibrated based on fossil record
28

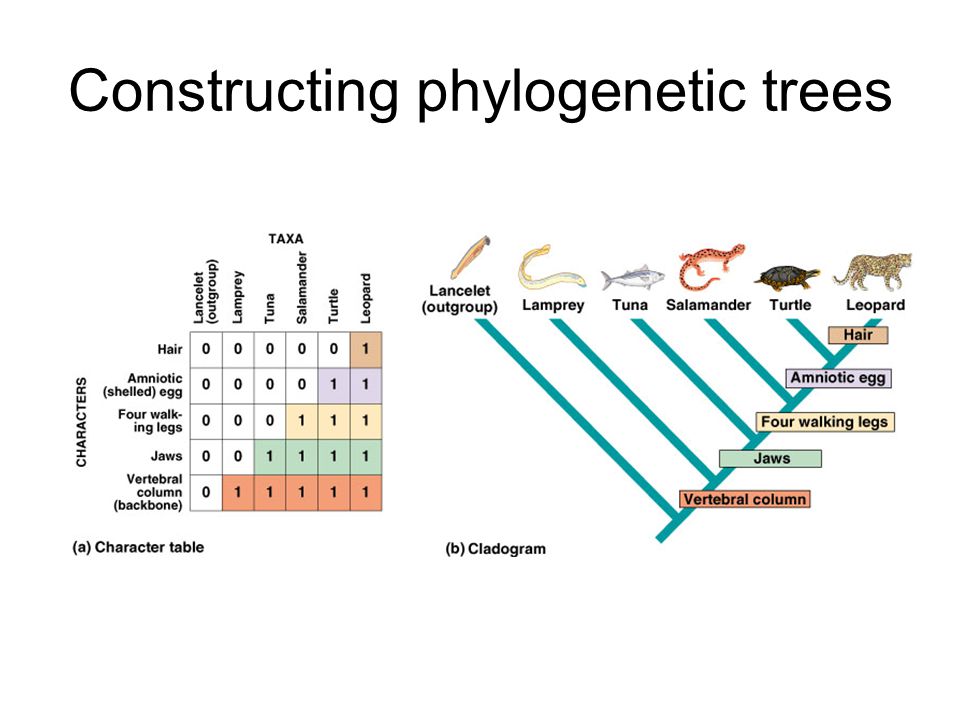

Constructing phylogenetic trees
29
From studying fossils and lineages closely related to the vertebrate clade, we hypothesise that the ancestor of vertebrates had none of these features
30
Constructing phylogenetic trees
32
Parsimony All other things being equal, the best hypothesis is the one that requires the fewest evolutionary changes
33
Reading Freeman and Herron – Evolutionary Analysis (4 th Edition): Chapter 4 (Estimating Evolutionary Trees).
34
Summary Phylogenetic tree: a hypothesis of the order in which evolutionary events are assumed to have occurred. Constructed using shared derived characters (synapomorphies). Parsimony: All other things being equal, the best hypothesis is the one that requires the fewest evolutionary changes.
