C. Papadimitriou 1,2,G. Balasis 1, I. A. Daglis 2,1 R. Haagmans 3 1 Institute for Astronomy, Astrophysics, Space Applications and Remote Sensing, National.

Published byEdward Sanders Modified over 9 years ago

Similar presentations

Presentation on theme: "C. Papadimitriou 1,2,G. Balasis 1, I. A. Daglis 2,1 R. Haagmans 3 1 Institute for Astronomy, Astrophysics, Space Applications and Remote Sensing, National."— Presentation transcript:

1 C. Papadimitriou 1,2,G. Balasis 1, I. A. Daglis 2,1 R. Haagmans 3 1 Institute for Astronomy, Astrophysics, Space Applications and Remote Sensing, National Observatory of Athens, Athens, Greece 2 Department of Physics, University of Athens, Athens, Greece SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

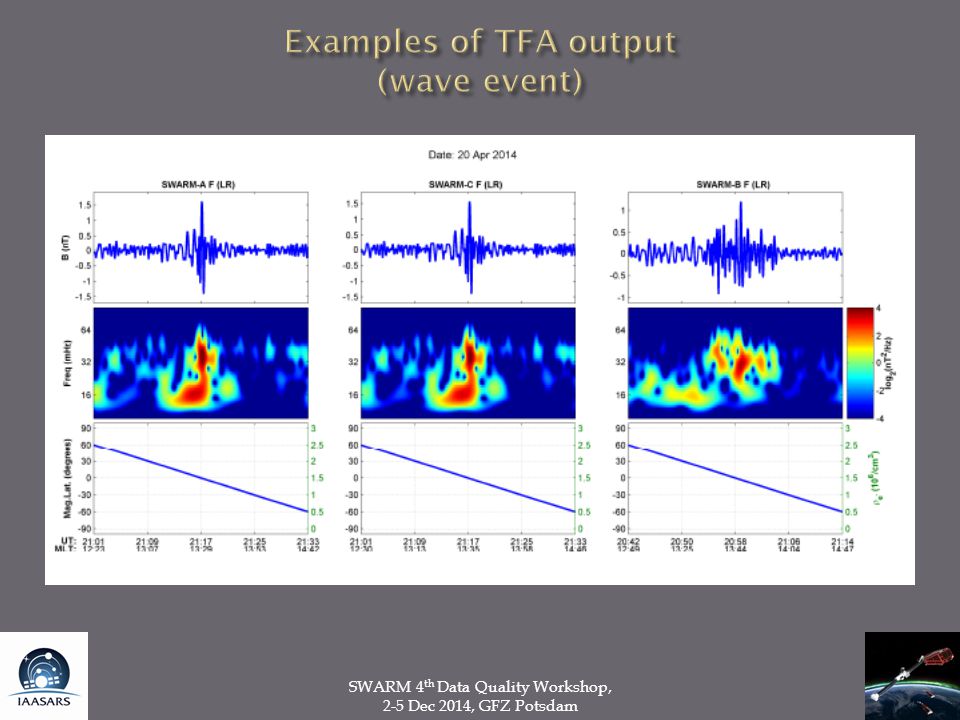

2  ULF Waves (Pc3)  TFA Tool Examples  FTP Server & Products  Methodology  Validation Statistics SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

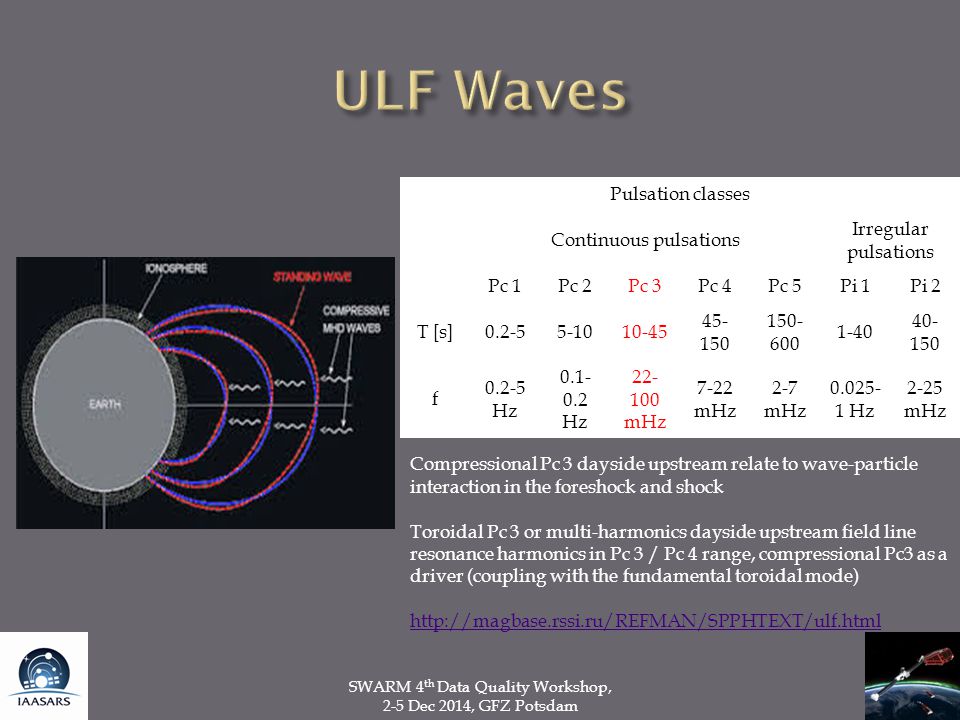

3 Pulsation classes Continuous pulsations Irregular pulsations Pc 1Pc 2Pc 3Pc 4Pc 5Pi 1Pi 2 T [s]0.2-55-1010-45 45- 150 150- 600 1-40 40- 150 f 0.2-5 Hz 0.1- 0.2 Hz 22- 100 mHz 7-22 mHz 2-7 mHz 0.025- 1 Hz 2-25 mHz Compressional Pc 3 dayside upstream relate to wave-particle interaction in the foreshock and shock Toroidal Pc 3 or multi-harmonics dayside upstream field line resonance harmonics in Pc 3 / Pc 4 range, compressional Pc3 as a driver (coupling with the fundamental toroidal mode) http://magbase.rssi.ru/REFMAN/SPPHTEXT/ulf.html SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

4 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

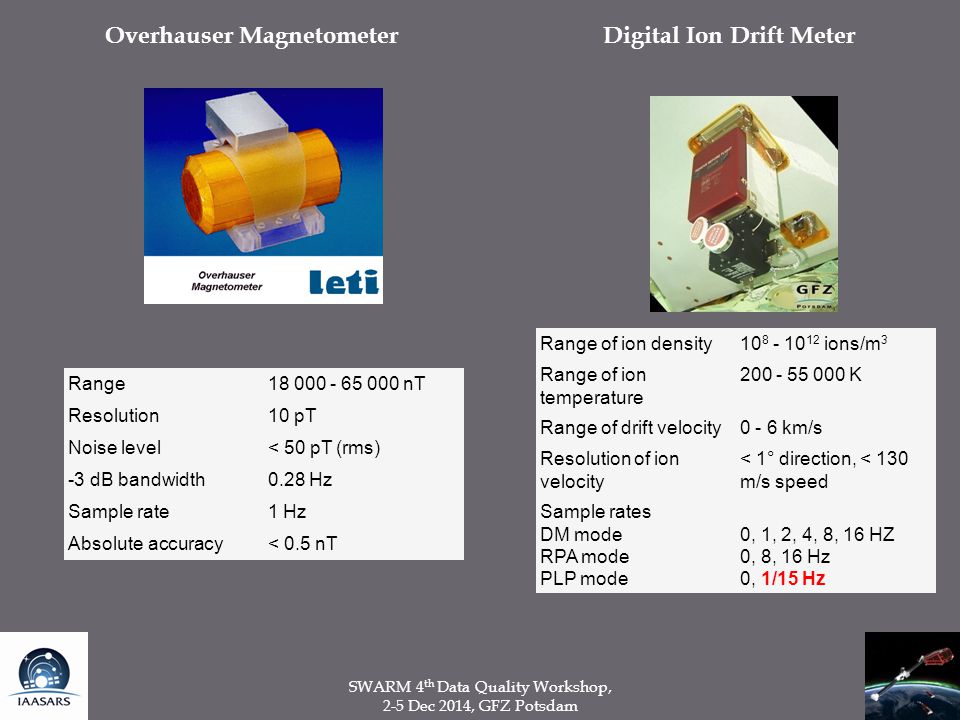

5 Range18 000 - 65 000 nT Resolution10 pT Noise level< 50 pT (rms) -3 dB bandwidth0.28 Hz Sample rate1 Hz Absolute accuracy< 0.5 nT Range of ion density10 8 - 10 12 ions/m 3 Range of ion temperature 200 - 55 000 K Range of drift velocity0 - 6 km/s Resolution of ion velocity < 1° direction, < 130 m/s speed Sample rates DM mode RPA mode PLP mode 0, 1, 2, 4, 8, 16 HZ 0, 8, 16 Hz 0, 1/15 Hz Overhauser Magnetometer Digital Ion Drift Meter SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

6 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

7 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

8 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

9 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

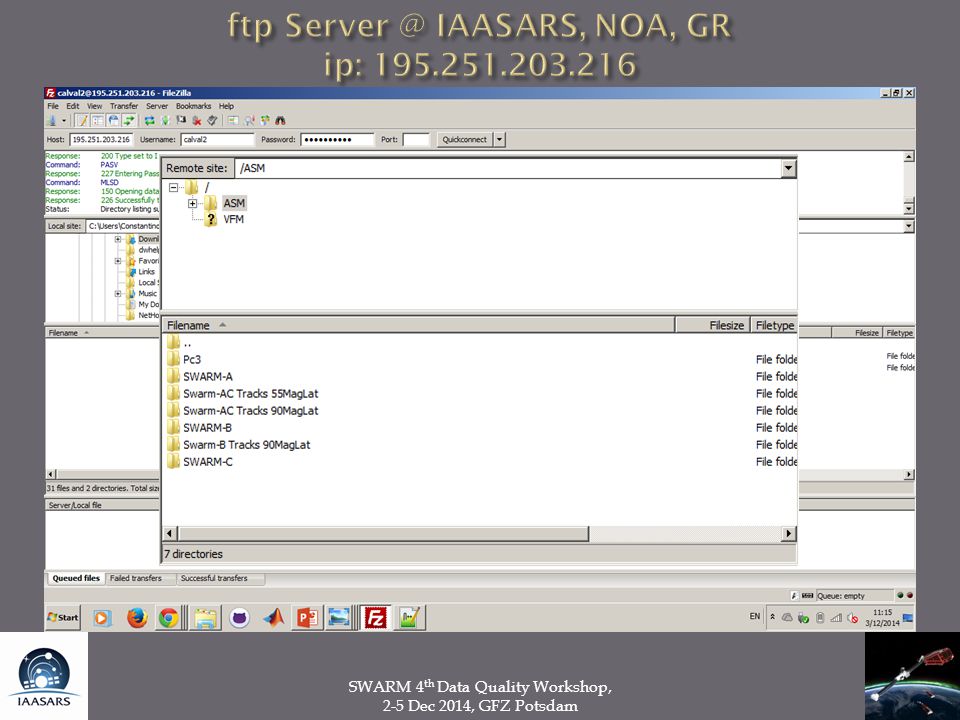

10 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

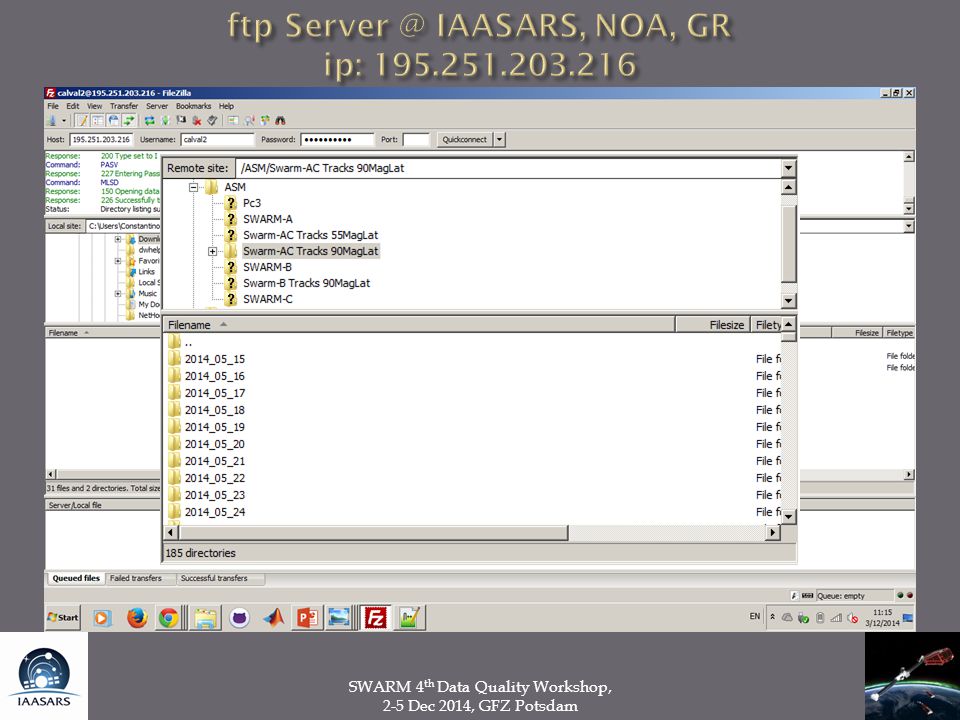

11 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

12 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

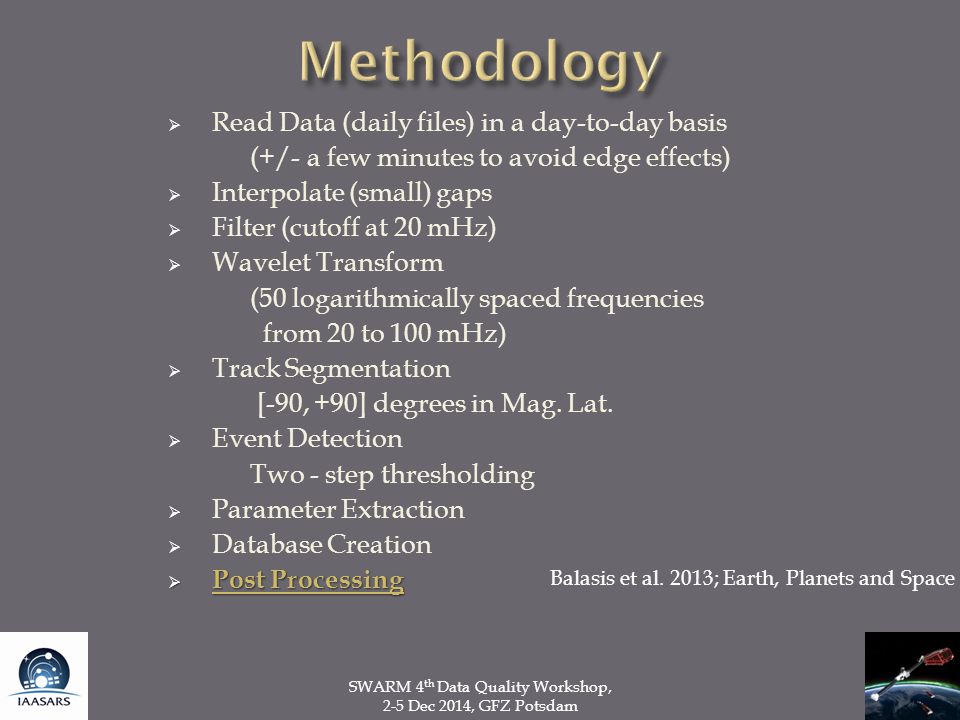

13  Read Data (daily files) in a day-to-day basis (+/- a few minutes to avoid edge effects)  Interpolate (small) gaps  Filter (cutoff at 20 mHz)  Wavelet Transform (50 logarithmically spaced frequencies from 20 to 100 mHz)  Track Segmentation [-90, +90] degrees in Mag. Lat.  Event Detection Two - step thresholding  Parameter Extraction  Database Creation  Post Processing Balasis et al. 2013; Earth, Planets and Space SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

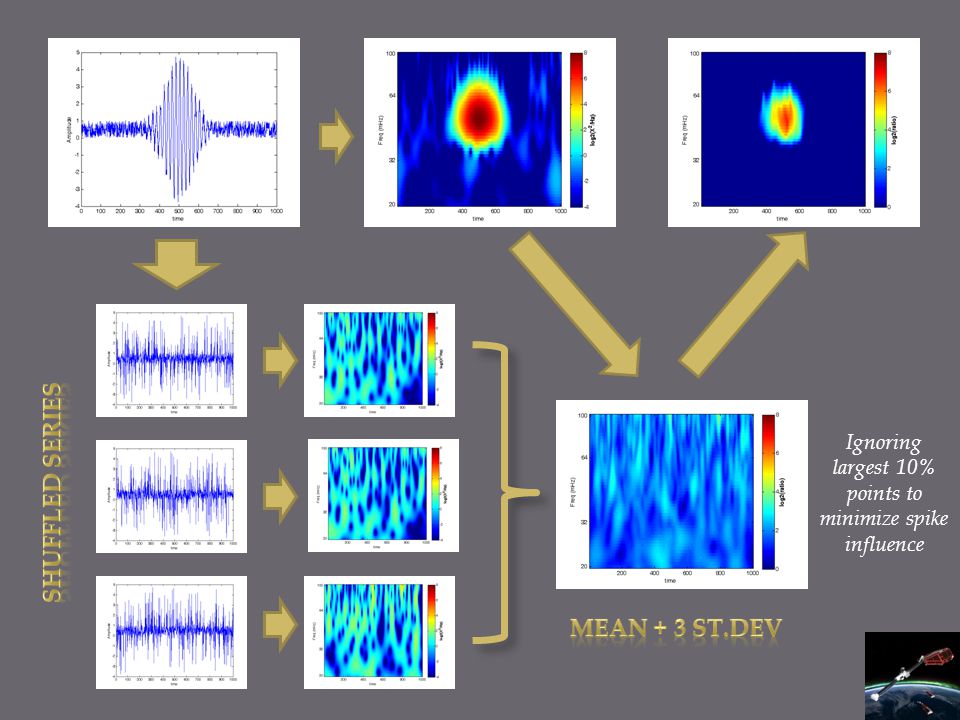

14 Ignoring largest 10% points to minimize spike influence

15 Balasis et al. ULFwave activity during the 2003 Halloween superstorm: multipoint observations fromCHAMP, Cluster and Geotail missions,Ann. Geophys., 30, 1751-1768, doi:10.5194/angeo-30-1751-2012 t peak = 14:42 f peak = 79 mHz Δ t ~ 23’ Power peak = 2 8 nT 2 /Hz Max(|B|) = 5.45 nT Max(| ΔΒ |) = 2.73 nT/sec roughness(n) ~ 5 10 3 cm -3 r MAG = (-7 o, 40 o, 401 km) MLT = 13:06, Lshell (ONERA IRBEM LIB) SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

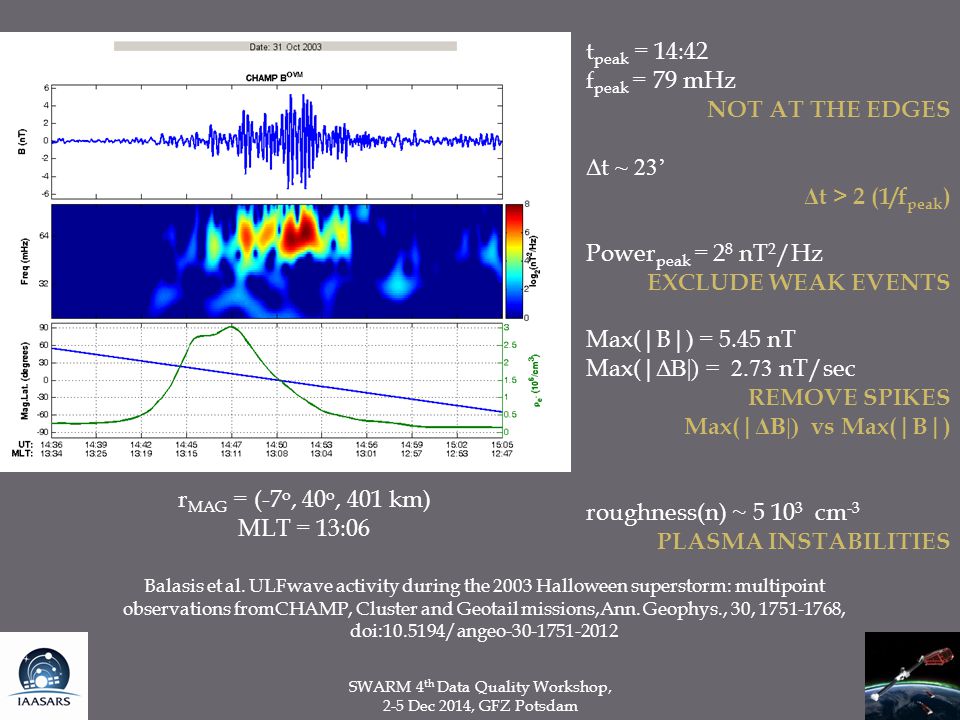

16 t peak = 14:42 f peak = 79 mHz NOT AT THE EDGES Δ t ~ 23’ Δ t > 2 (1/f peak ) Power peak = 2 8 nT 2 /Hz EXCLUDE WEAK EVENTS Max(|B|) = 5.45 nT Max(| ΔΒ |) = 2.73 nT/sec REMOVE SPIKES Max(| ΔΒ |) vs Max(|B|) roughness(n) ~ 5 10 3 cm -3 PLASMA INSTABILITIES r MAG = (-7 o, 40 o, 401 km) MLT = 13:06 Balasis et al. ULFwave activity during the 2003 Halloween superstorm: multipoint observations fromCHAMP, Cluster and Geotail missions,Ann. Geophys., 30, 1751-1768, doi:10.5194/angeo-30-1751-2012 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

17 t peak = 14:42 f peak = 79 mHz NOT AT THE EDGES Δ t ~ 23’ Δ t > 2 (1/f peak ) Power peak = 2 8 nT 2 /Hz EXCLUDE WEAK EVENTS Max(|B|) = 5.45 nT Max(| ΔΒ |) = 2.73 nT/sec REMOVE SPIKES Max(| ΔΒ |) vs Max(|B|) roughness(n) ~ 5 10 3 cm -3 PLASMA INSTABILITIES r MAG = (-7 o, 40 o, 401 km) MLT = 13:06 Balasis et al. ULFwave activity during the 2003 Halloween superstorm: multipoint observations fromCHAMP, Cluster and Geotail missions,Ann. Geophys., 30, 1751-1768, doi:10.5194/angeo-30-1751-2012 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

18  1 Hz magnetic field data (ASM scalar & magnitude of VFM vector)  2 Hz electron density data (from LP instrument)  Time span: 15 th May 2014 – 15 th Nov 2014  > 5,000 Tracks [-90, +90] degrees  ~ 1,500 Wave Events per satellite Selected  Additional Data: OmniWeb Service http://omniweb.gsfc.nasa.gov/ SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

19 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

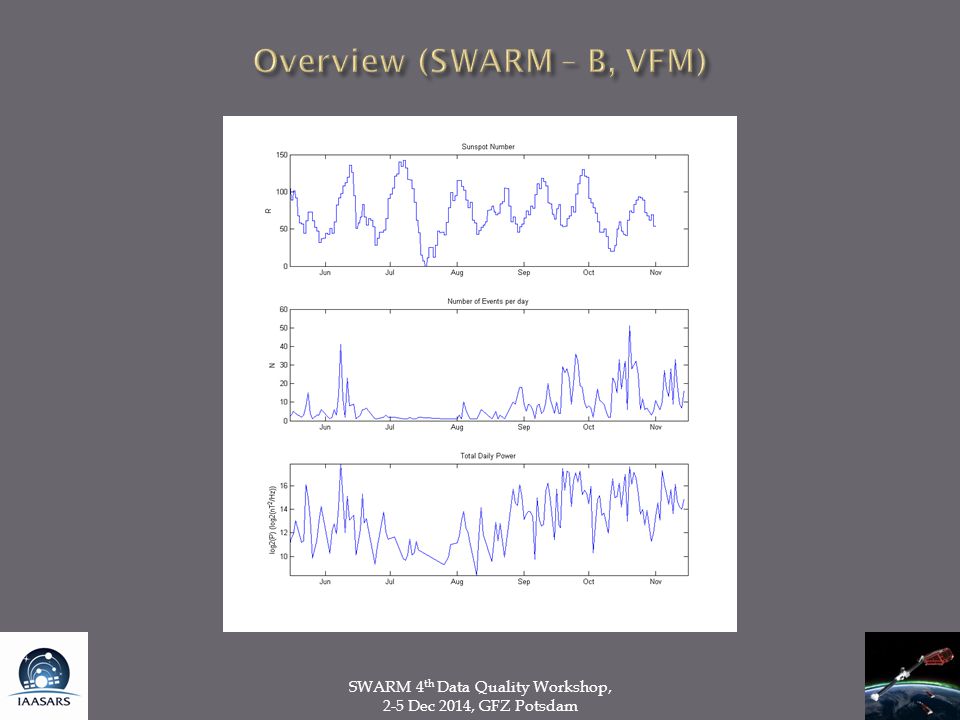

20 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

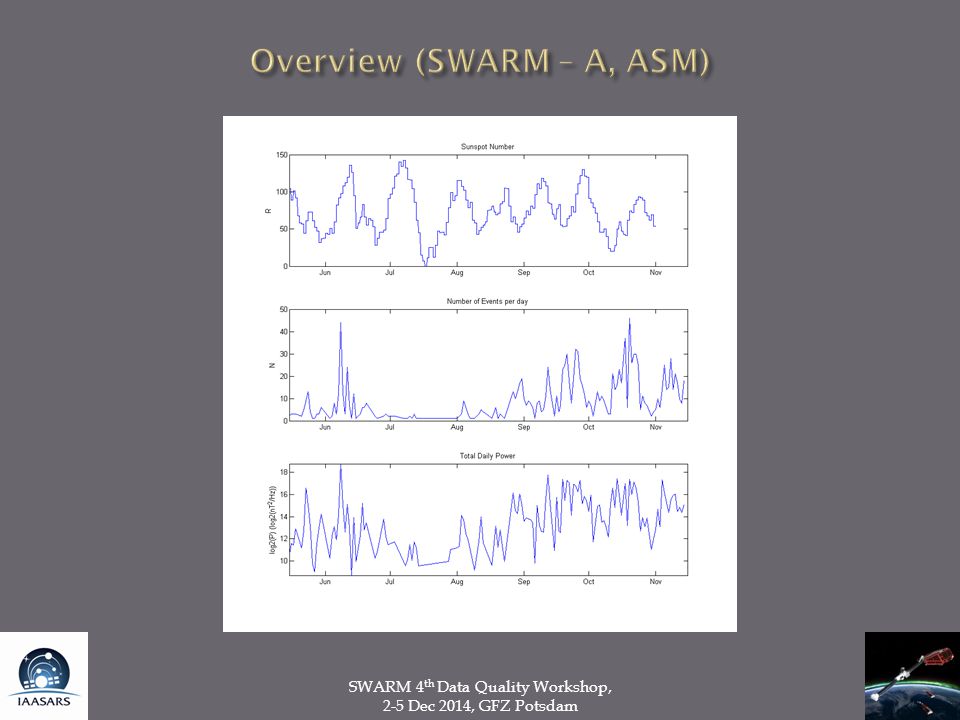

21 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

22 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

23 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

24 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

25 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

26 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

27 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

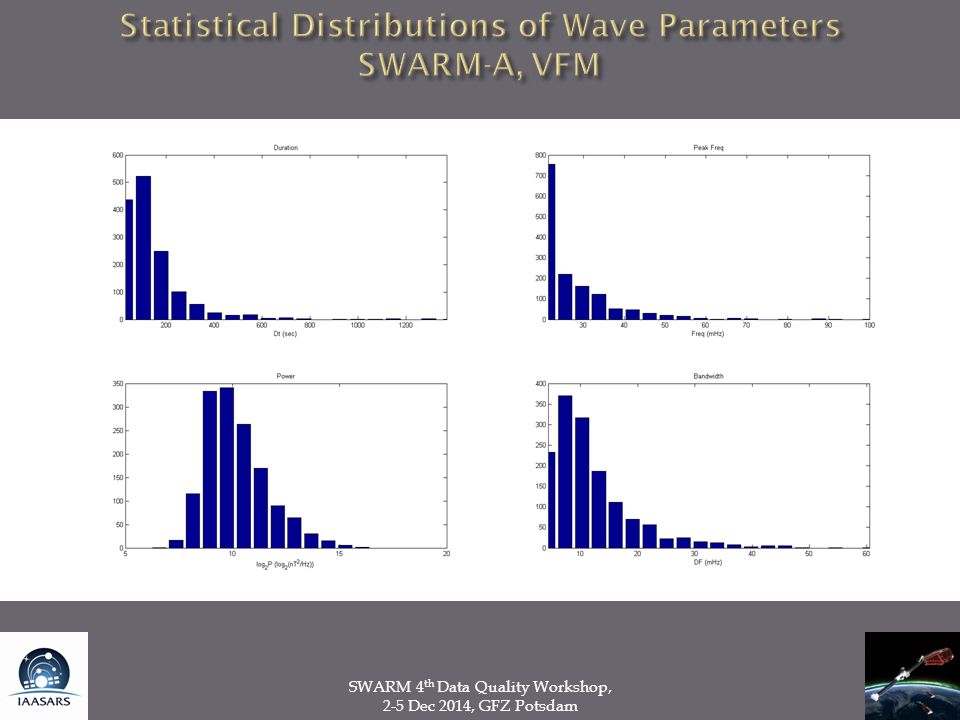

28 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

29 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

30 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

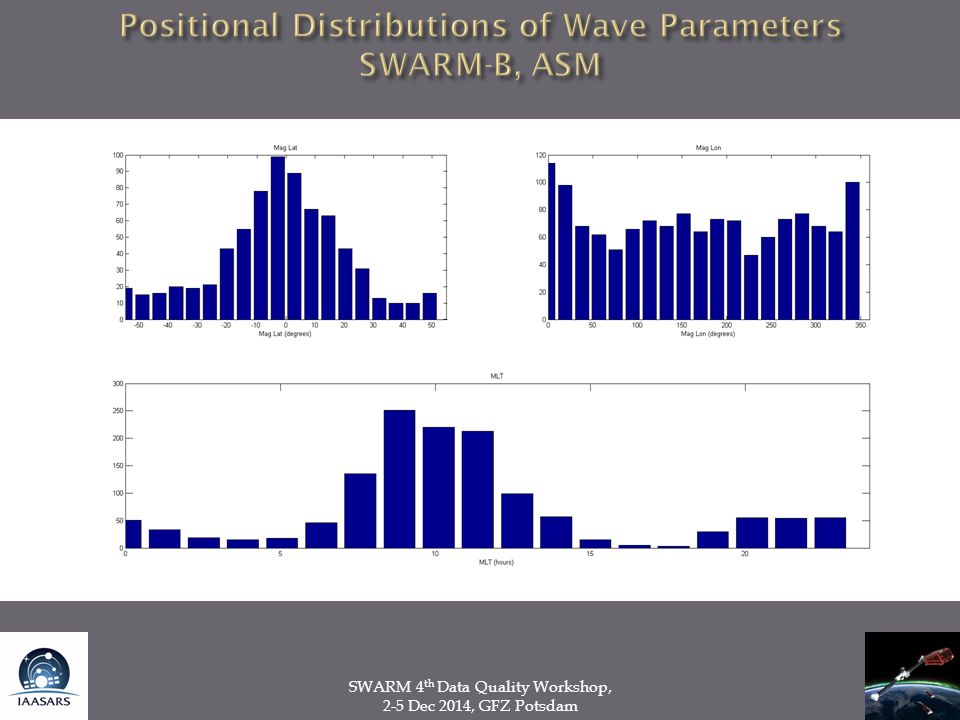

31 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

32 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

33 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

34 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

35 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

36 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

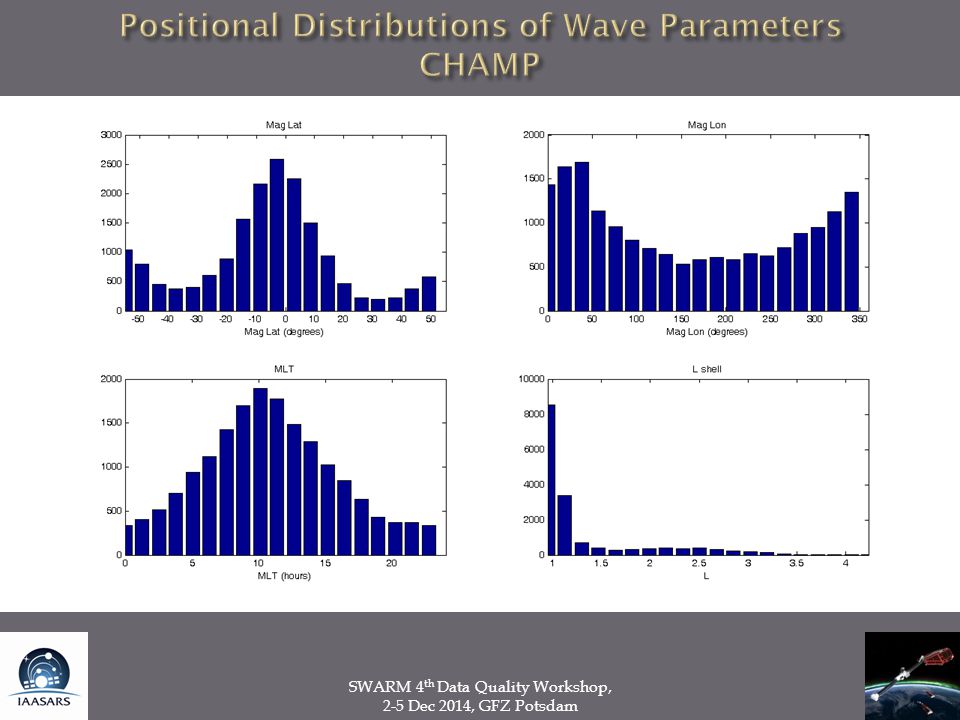

37 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

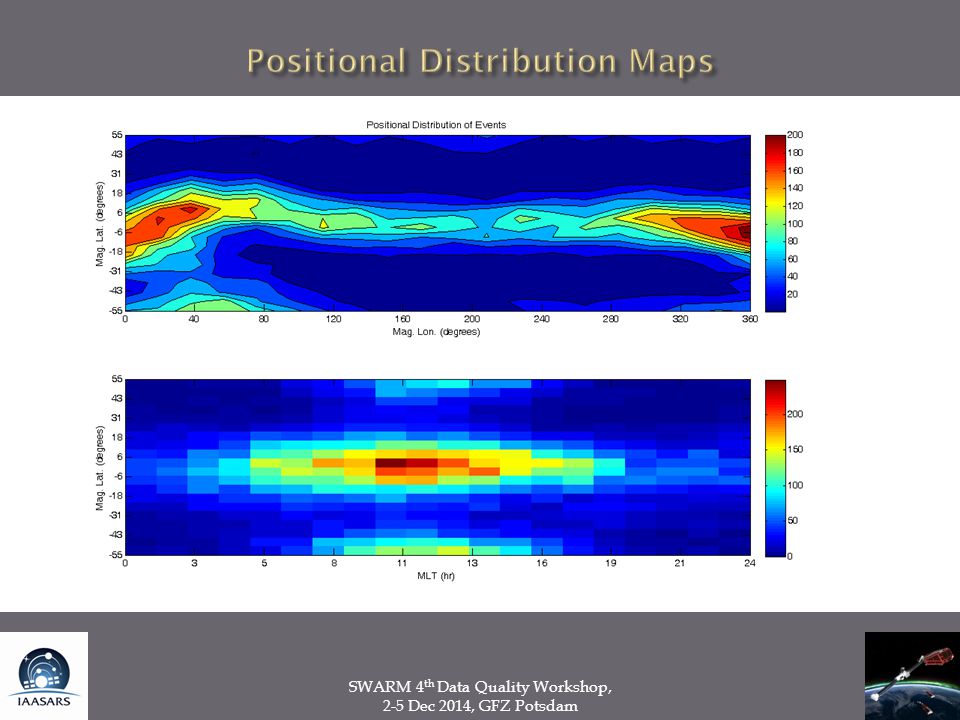

38 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

39 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

40 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

41 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

42 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

43 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

44 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

45 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

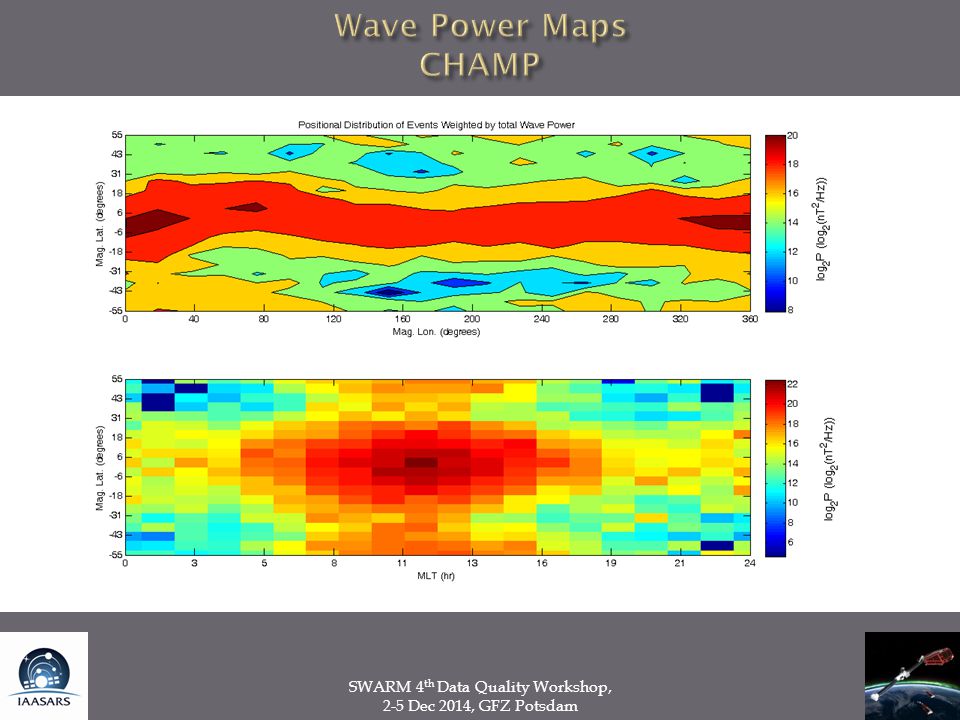

46 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

47 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

48 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

49 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

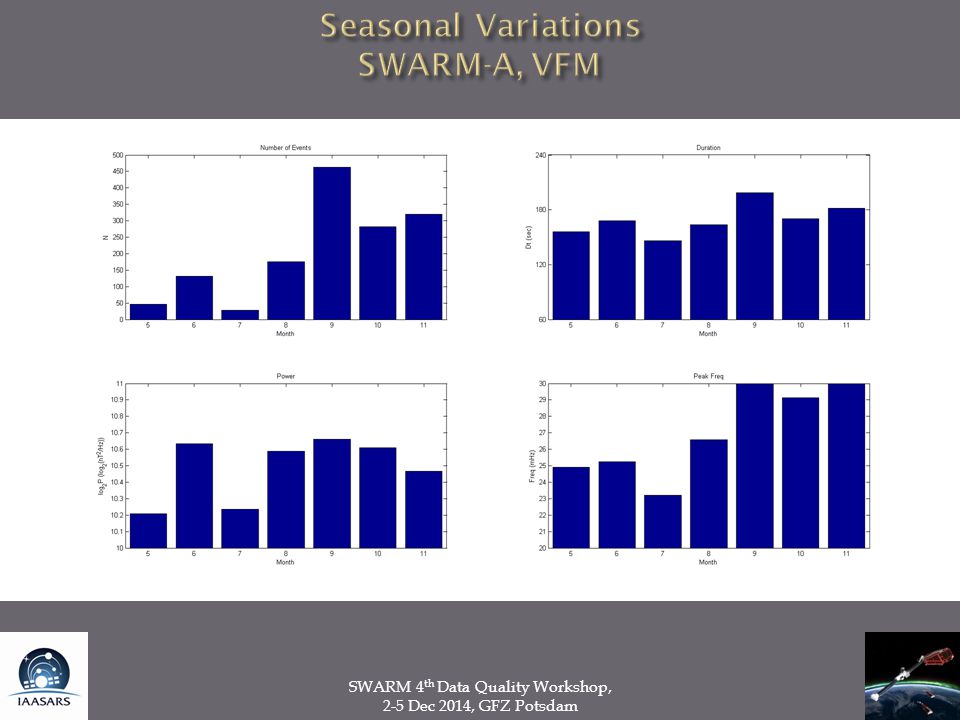

50 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

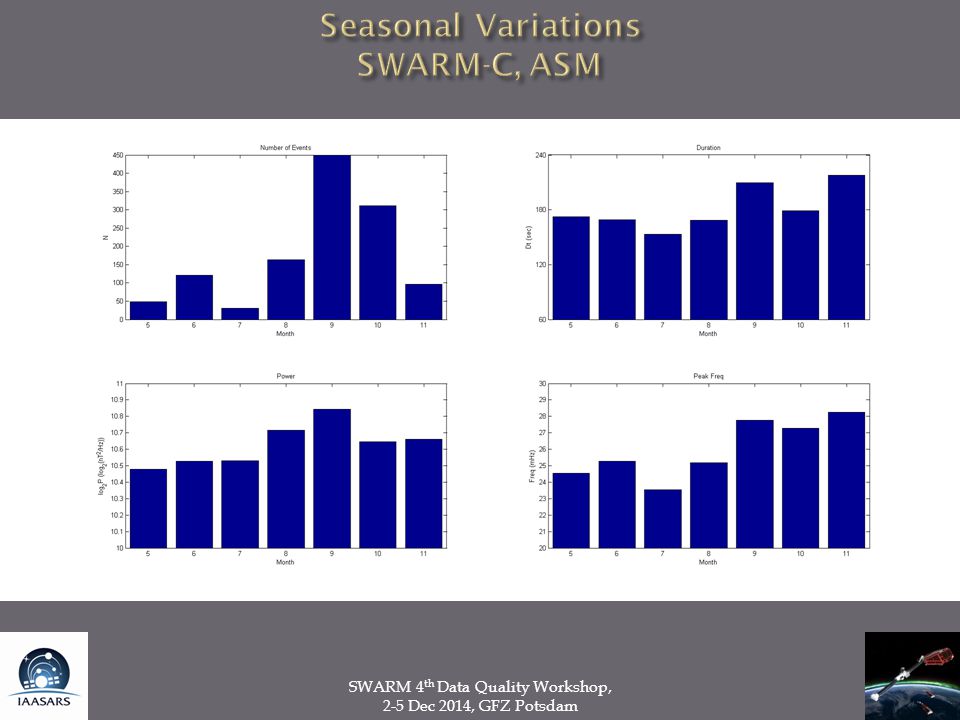

51 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

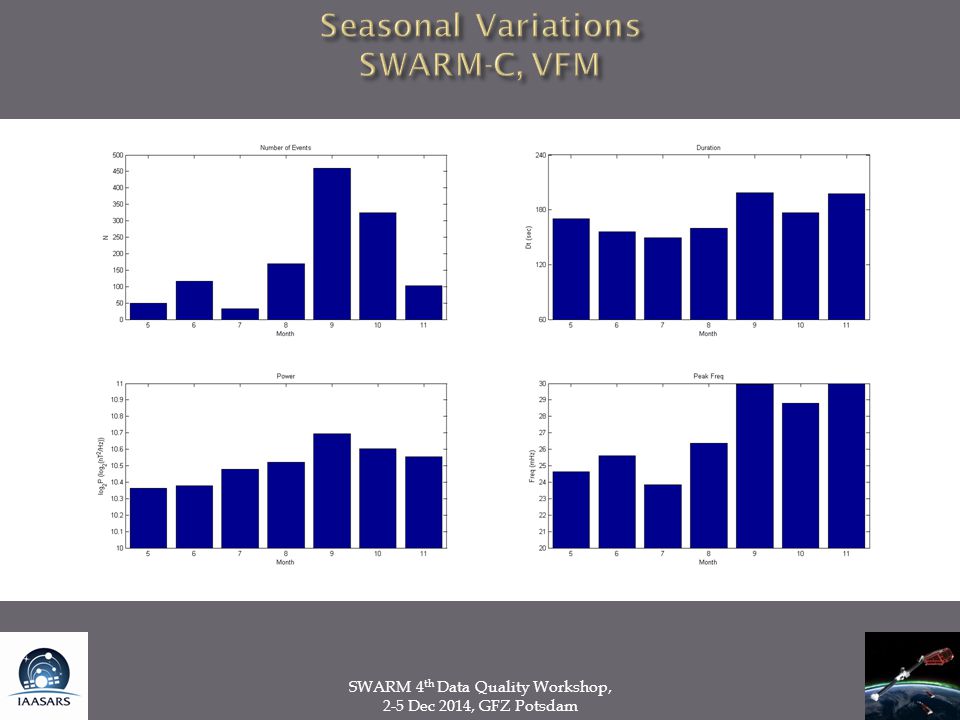

52 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

53 SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam

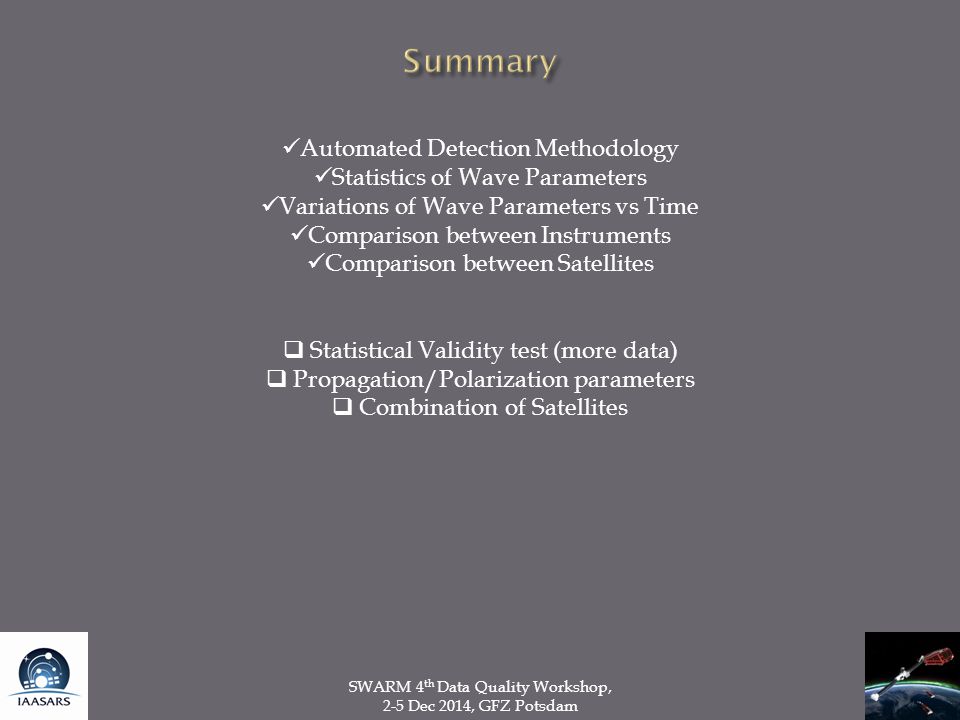

54 Automated Detection Methodology Statistics of Wave Parameters Variations of Wave Parameters vs Time Comparison between Instruments Comparison between Satellites  Statistical Validity test (more data)  Propagation/Polarization parameters  Combination of Satellites SWARM 4 th Data Quality Workshop, 2-5 Dec 2014, GFZ Potsdam
