1. Validation of the Ensemble Tropical Rainfall Potential (eTRaP) for Landfalling Tropical Cyclones Elizabeth E. Ebert Centre for Australian Weather and Climate Research (CAWCR), Melbourne, Australia A. E. Salemi*, M. Turk†, and M. Spampata* † - NOAA/NESDIS Satellite Services Division * - Riverside Technology, inc

2. TRaP - Tropical Rainfall Potential Satellite-based prediction of rain in TCs Three basic assumptions: Satellite rain rate estimates accurate Forecast tracks accurate Rain rates over 24 h period in steady state V DR TRaP avg  Diameter (distance along line in direction of TC motion) Average rain rate through a line in direction of TC motion V D Hurricane Georges DMSP SSM/I rain rates 1436 UTC Sept 27 1998 Velocity of TC taken from official forecasts

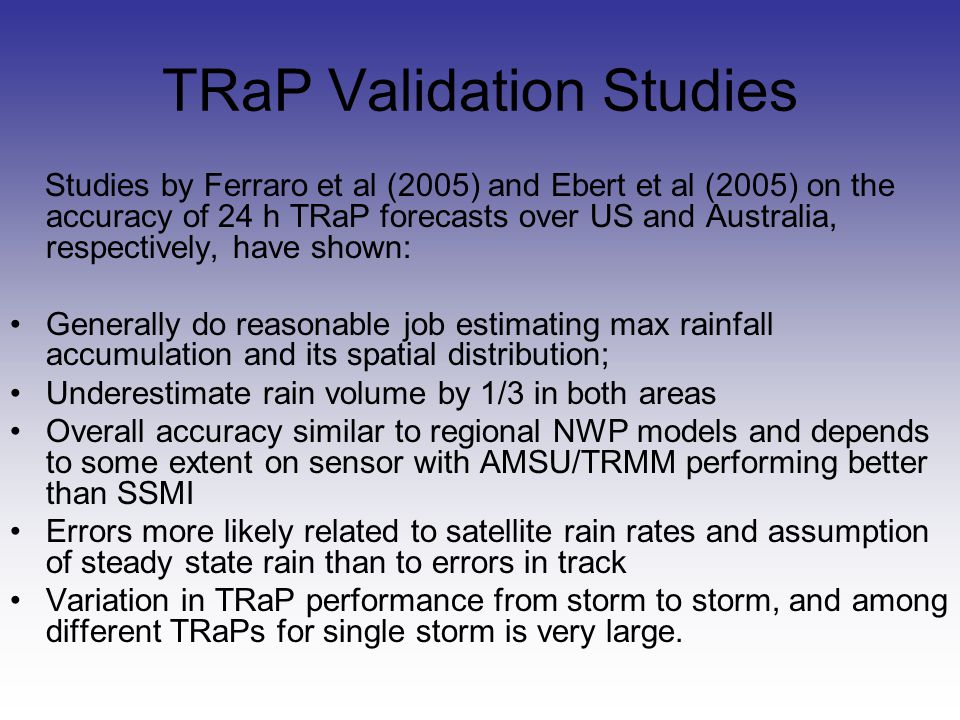

3. TRaP Validation Studies Studies by Ferraro et al (2005) and Ebert et al (2005) on the accuracy of 24 h TRaP forecasts over US and Australia, respectively, have shown: Generally do reasonable job estimating max rainfall accumulation and its spatial distribution; Underestimate rain volume by 1/3 in both areas Overall accuracy similar to regional NWP models and depends to some extent on sensor with AMSU/TRMM performing better than SSMI Errors more likely related to satellite rain rates and assumption of steady state rain than to errors in track Variation in TRaP performance from storm to storm, and among different TRaPs for single storm is very large.

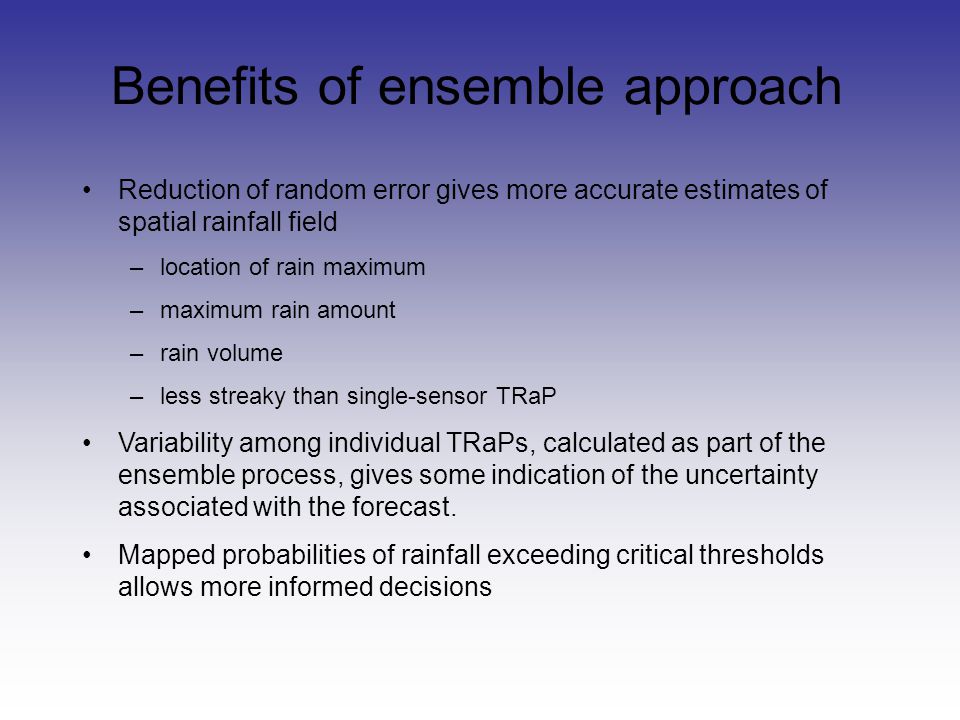

4. Reduction of random error gives more accurate estimates of spatial rainfall field –location of rain maximum –maximum rain amount –rain volume –less streaky than single-sensor TRaP Variability among individual TRaPs, calculated as part of the ensemble process, gives some indication of the uncertainty associated with the forecast. Mapped probabilities of rainfall exceeding critical thresholds allows more informed decisions Benefits of ensemble approach

5. First 6 h Valid 0600 UTC Third 6 h Valid 1800 UTC Fourth 6 h Valid 0000 UTC Combination approach for Ensemble TRaP Ingredients for Rita eTRaP 24 h forecast valid at 00 UTC 25 Sept 2005 # ensemble members = 7 x 9 x 6 x 3 = 1134 Culled to 1000 members

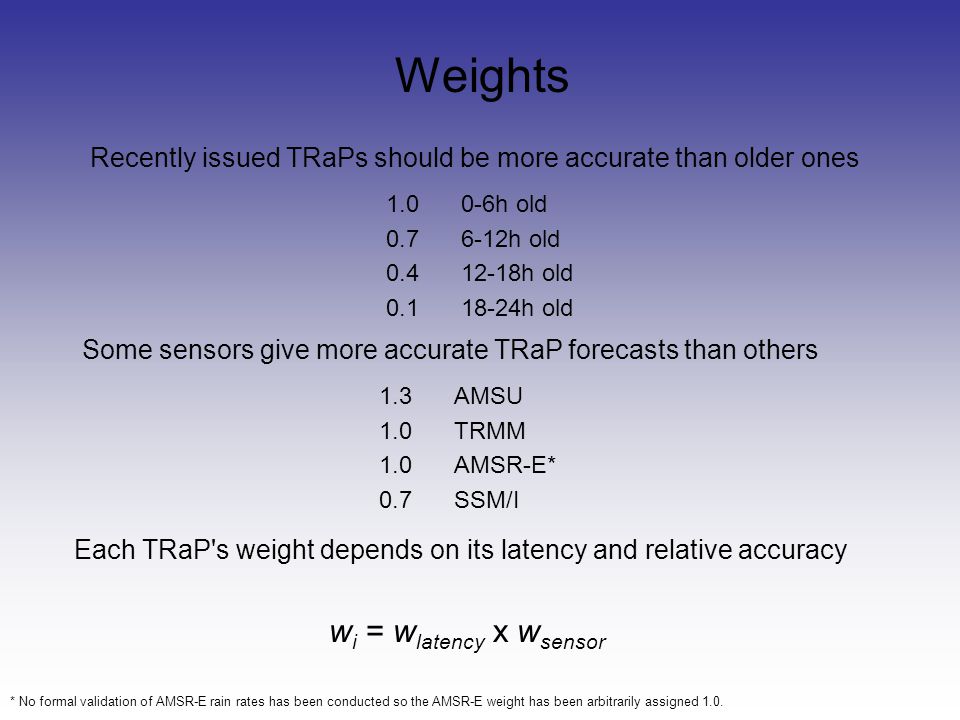

6. Weights Recently issued TRaPs should be more accurate than older ones 1.00-6h old 0.7 6-12h old 0.4 12-18h old 0.1 18-24h old Some sensors give more accurate TRaP forecasts than others 1.3AMSU 1.0TRMM 1.0AMSR-E* 0.7SSM/I Each TRaP's weight depends on its latency and relative accuracy w i = w latency x w sensor * No formal validation of AMSR-E rain rates has been conducted so the AMSR-E weight has been arbitrarily assigned 1.0.

7. 24 h eTRaP forecast for Rita valid 0000 UTC 25 Sept 2005 AVG QPFPM QPFP => 50 mm P => 100 mmP => 150 mmP => 200 mm

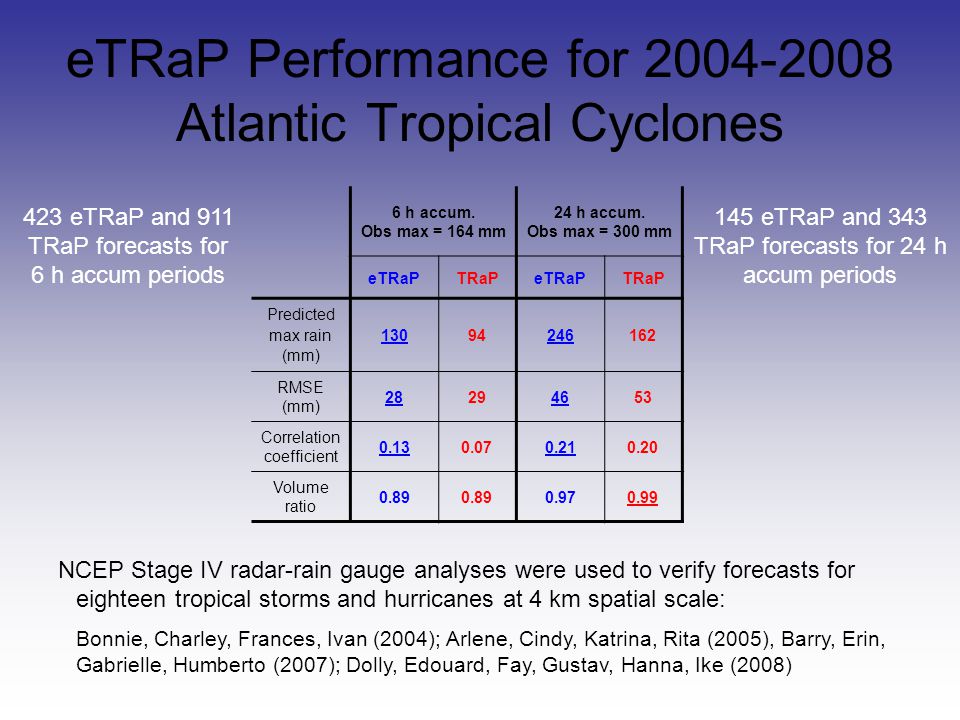

8. eTRaP Performance for 2004-2008 Atlantic Tropical Cyclones NCEP Stage IV radar-rain gauge analyses were used to verify forecasts for eighteen tropical storms and hurricanes at 4 km spatial scale: Bonnie, Charley, Frances, Ivan (2004); Arlene, Cindy, Katrina, Rita (2005), Barry, Erin, Gabrielle, Humberto (2007); Dolly, Edouard, Fay, Gustav, Hanna, Ike (2008) 423 eTRaP and 911 TRaP forecasts for 6 h accum periods 145 eTRaP and 343 TRaP forecasts for 24 h accum periods 6 h accum. Obs max = 164 mm 24 h accum. Obs max = 300 mm eTRaPTRaPeTRaPTRaP Predicted max rain (mm) 13094246162 RMSE (mm) 28294653 Correlation coefficient 0.130.070.210.20 Volume ratio 0.89 0.970.99

9. Verification of 6 h accumulated precipitation (top row) and 24 h accumulated precipitation (bottom row) 6 h 24 h

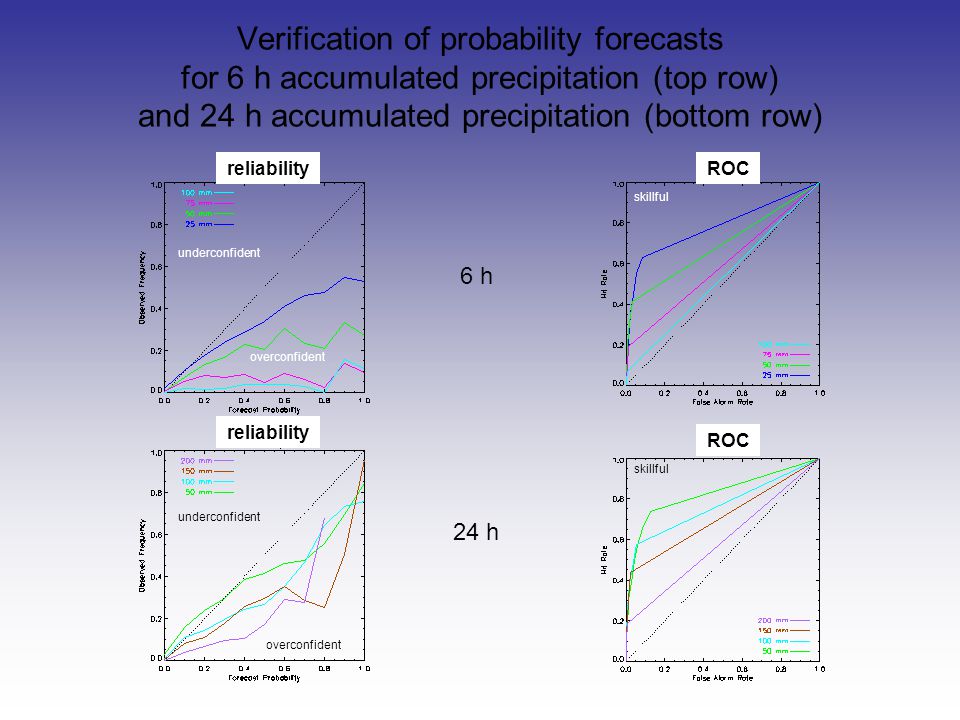

10. Verification of probability forecasts for 6 h accumulated precipitation (top row) and 24 h accumulated precipitation (bottom row) 6 h 24 h underconfident overconfident skillful reliabilityROC reliability

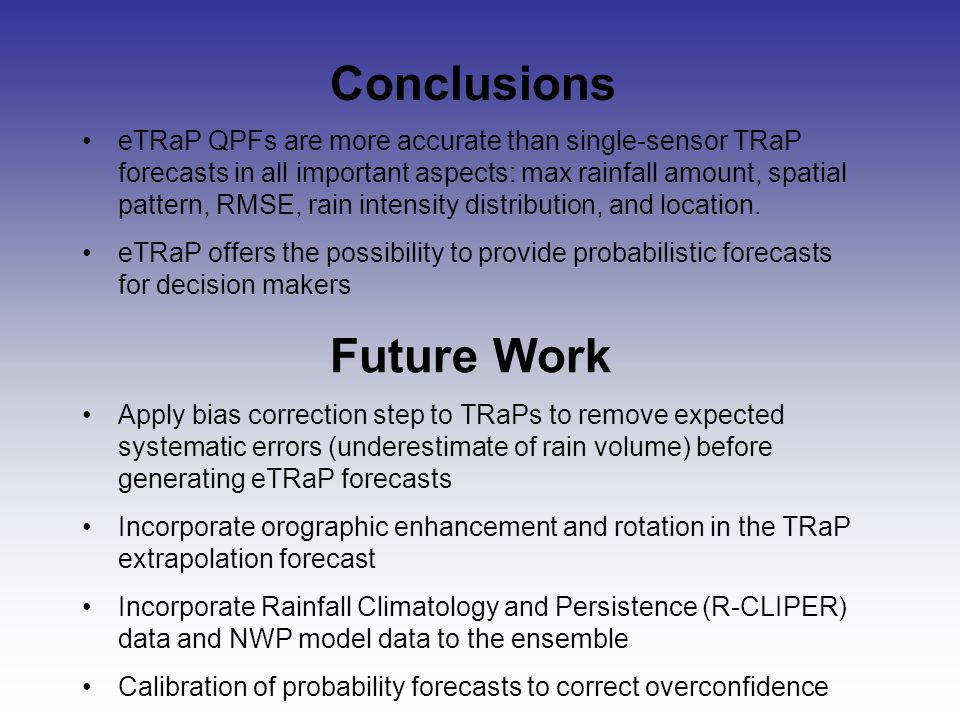

11. eTRaP QPFs are more accurate than single-sensor TRaP forecasts in all important aspects: max rainfall amount, spatial pattern, RMSE, rain intensity distribution, and location. eTRaP offers the possibility to provide probabilistic forecasts for decision makers Conclusions Future Work Apply bias correction step to TRaPs to remove expected systematic errors (underestimate of rain volume) before generating eTRaP forecasts Incorporate orographic enhancement and rotation in the TRaP extrapolation forecast Incorporate Rainfall Climatology and Persistence (R-CLIPER) data and NWP model data to the ensemble Calibration of probability forecasts to correct overconfidence
