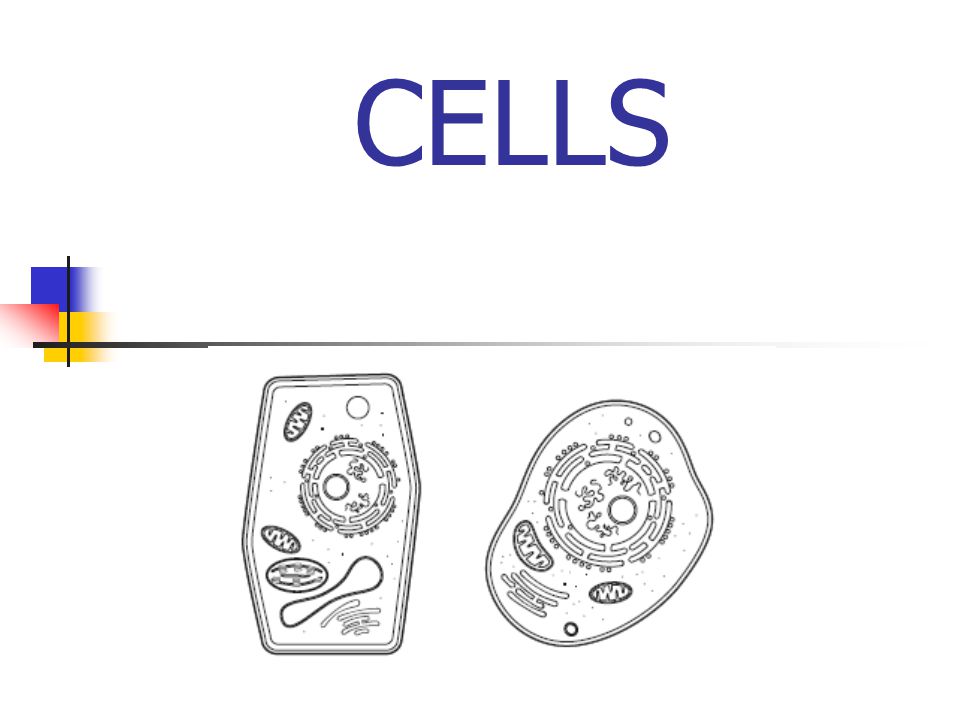

CELLS. Caption: Euglena gracilis cell pellicle (blue) and internal cytoplasmic organelles: chloroplasts (green), golgi apparatus (pink), mitochondria.

Similar presentations

Presentation on theme: "CELLS. Caption: Euglena gracilis cell pellicle (blue) and internal cytoplasmic organelles: chloroplasts (green), golgi apparatus (pink), mitochondria."— Presentation transcript:


2 Caption: Euglena gracilis cell pellicle (blue) and internal cytoplasmic organelles: chloroplasts (green), golgi apparatus (pink), mitochondria (purple), lipid bodies (orange), pyrenoid bodies (yellow), ribosomes (olive green), gullet (light blue), flagellum (light orange in gullet). Euglena gracilis is a fresh water flagellated green alga / protozoan often classified in a group called euglenoids. Euglena spp. normally contain chloroplasts but in prolonged darkness they become heterotrophic and engulf other small organisms

3 Parenchyma cell from a plant (arum or voodoo lily, Sauromatum guttatum). Note the cell wall, nucleus with nucleolus, amyloplast with starch grains and mitochondria.

4 Golgi apparatus, stacks of cisternae, and vesicles near the nucleus of a nerve cell. The nuclear membrane has pores in it.

5 CELL STRUCTURE A. Common Cell Structures The outer covering is called the cell membrane. The internal gelatin like structure is called cytoplasm.

6 1. When comparing cells, size and shape relate to function. 2. There are two types of cells: a. Prokaryotic cells lack membrane bound internal structures. b. Eukaryotic cells contain membrane bound structures.

7 B.Cell Organization 1. Composed of cellulose, a cell wall grows, changes shape, and protects the cells of plants, algae, fungi, and most bacteria.

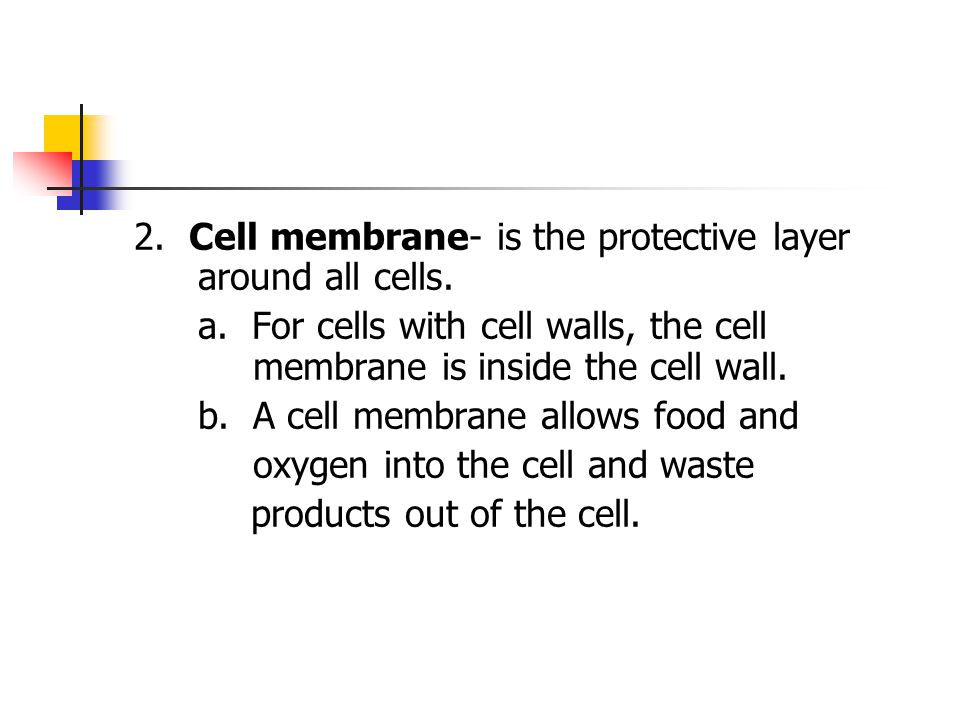

10 2. Cell membrane- is the protective layer around all cells. a. For cells with cell walls, the cell membrane is inside the cell wall. b. A cell membrane allows food and oxygen into the cell and waste products out of the cell.

11 3. Cytoplasm-gelatinlike substance inside cell membrane. a. Cytoskeleton-scaffolding-like structure in cytoplasm which helps the cell keep its shape. b. In the cytoplasm, eukaryotic cells have organelles which help with life processes.

12 4. Nucleus- contains instructions for everything the cell does. The nucleus includes DNA. 5. Energy-processing organelles help cells do their work. a. Green organelles in plant cells contain chloroplasts to make food. b. Organelles which release energy from food are called mitochondria.

13 6. Manufacturing organelles a. Ribosomes- make proteins for cell activities. b. Some ribosomes attach to the rough part of the endoplasmic reticulum, a series of smooth or rough membranes that move materials around in the cell.

14 7. Transporting and storing organelles a. Golgi Bodies- move substances out of a cell or to other parts of a cell. b. Vacuoles- membrane bound temporary storage structures.

15 8. Recycling organelles-lysosomes break down food molecules and cell wastes.

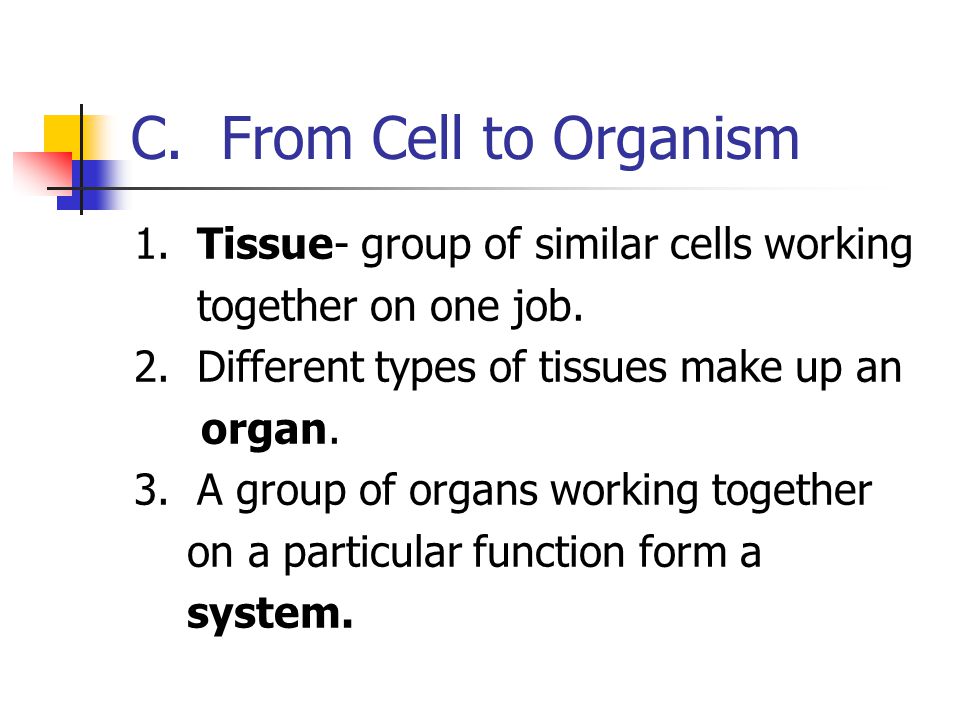

16 C. From Cell to Organism 1. Tissue- group of similar cells working together on one job. 2. Different types of tissues make up an organ. 3. A group of organs working together on a particular function form a system.

17 Viewing Cells Chapter 2 Lesson 2


19 A. Magnifying Cells 1. Early microscopes had lenses that made images larger but not always clear.

20 2. Modern Microscopes that use lenses to bend light: a. A simple microscope has one lens while a compound microscope has multiple lenses. b. A stereomicroscope, which has two eyepieces, creates a three- dimensional image. c. Powers of the eyepiece multiplied by objective lens determine total magnification.

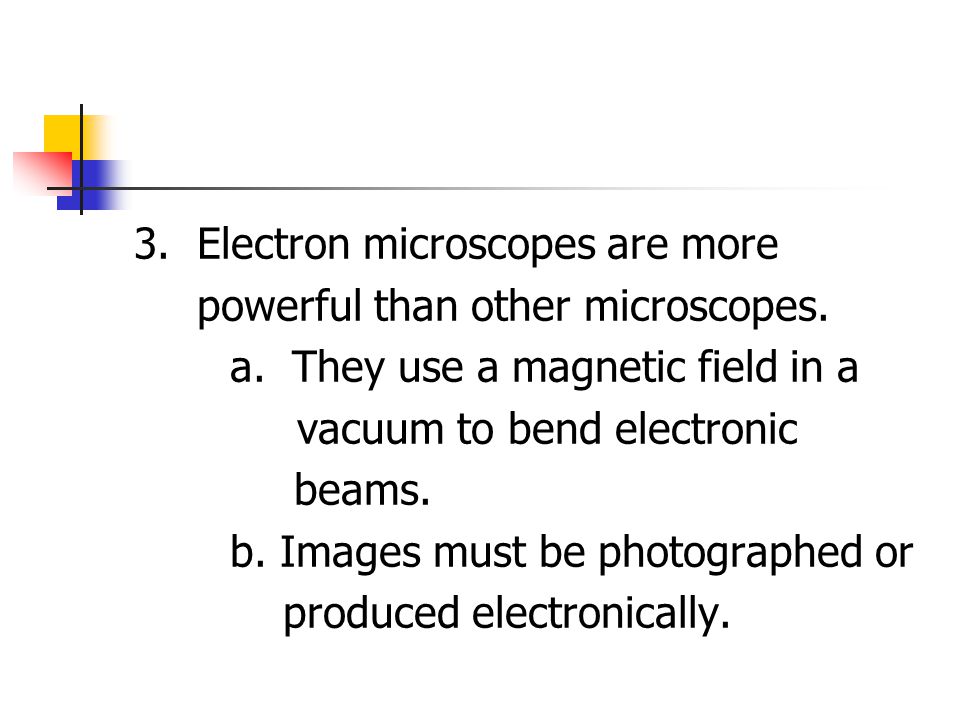

21 3. Electron microscopes are more powerful than other microscopes. a. They use a magnetic field in a vacuum to bend electronic beams. b. Images must be photographed or produced electronically.

22 Development of Cell Theory The cell theory resulted from many scientists’ observations and conclusions. THE CELL THEORY STATES: 1. The basic unit of organization is the cell. 2. All organisms are composed of one or more cells. 3. New cells come from old cells through cell division.

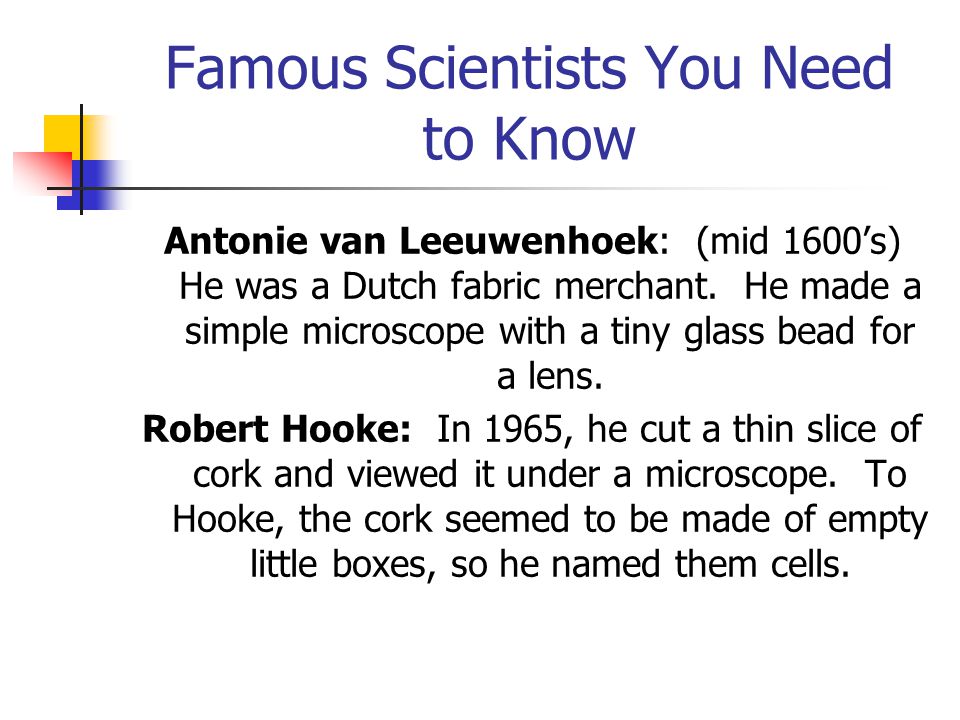

23 Famous Scientists You Need to Know Antonie van Leeuwenhoek: (mid 1600’s) He was a Dutch fabric merchant. He made a simple microscope with a tiny glass bead for a lens. Robert Hooke: In 1965, he cut a thin slice of cork and viewed it under a microscope. To Hooke, the cork seemed to be made of empty little boxes, so he named them cells.

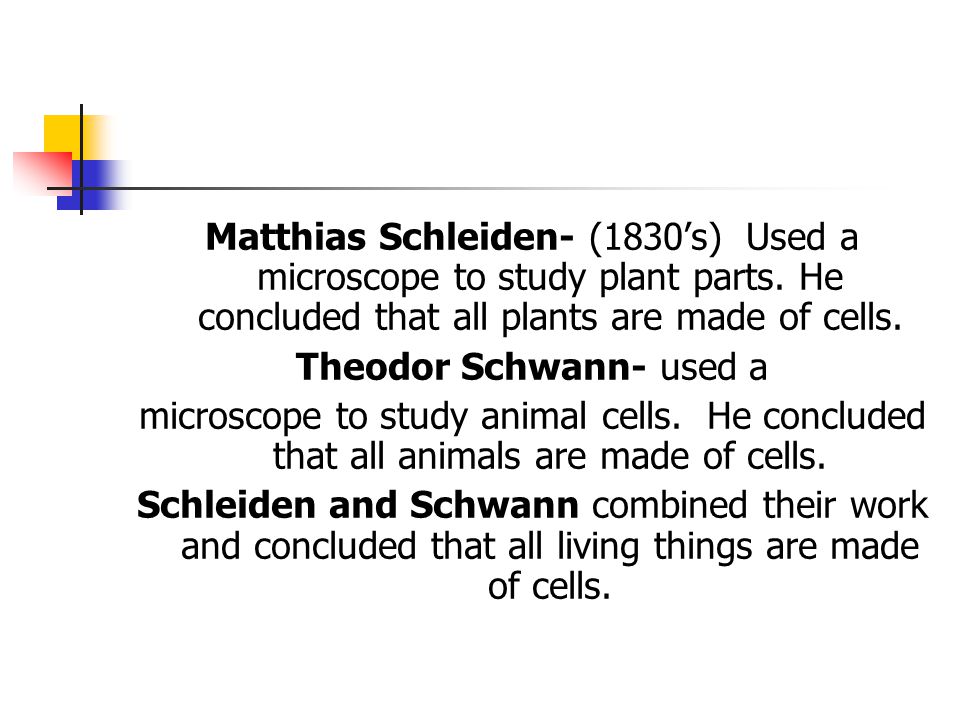

24 Matthias Schleiden- (1830’s) Used a microscope to study plant parts. He concluded that all plants are made of cells. Theodor Schwann- used a microscope to study animal cells. He concluded that all animals are made of cells. Schleiden and Schwann combined their work and concluded that all living things are made of cells.

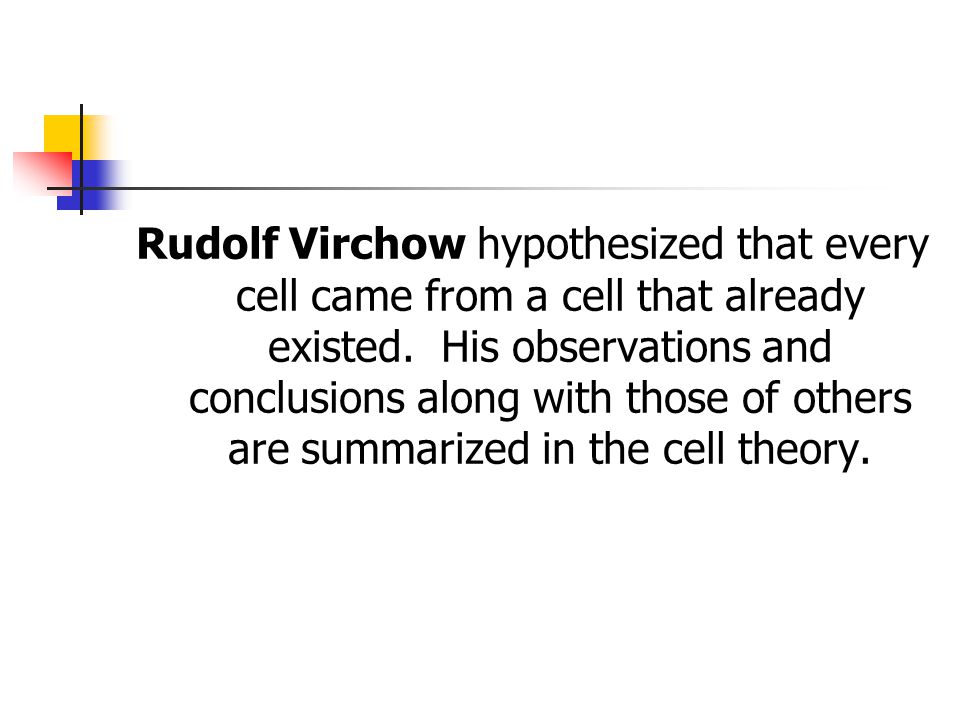

25 Rudolf Virchow hypothesized that every cell came from a cell that already existed. His observations and conclusions along with those of others are summarized in the cell theory.

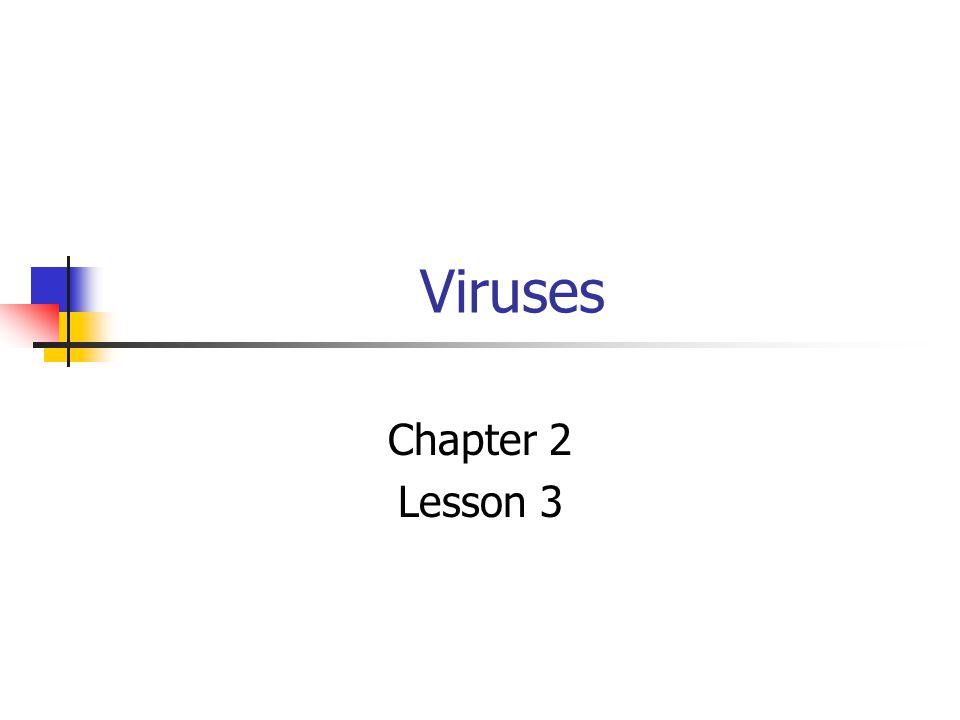

26 Viruses Chapter 2 Lesson 3

27 A. A virus is a nonliving strand of hereditary material surrounded by a protein coating.

28 B.Virus multiplication- viruses can make copies of themselves only inside a living host cell. 1.Active viruses make the host cell create new viruses, which kills the host cell.

29 2.Latent viruses hide in the host cell without destroying it. a. Virus hereditary material becomes part of the host cell hereditary material. b. Latent viruses can become active and then destroy the host cells.

30 C. Virus effects on organisms 1. Most viruses infect only special kinds of cells. 2. Viruses are often carried to the host through the air. 3. The virus and host cell must fit together exactly to begin a viral infection. 4. Bacteriophages attach to bacteria and inject their hereditary material.

31 c. Antiviral drugs often have adverse side effects, limiting their use. d. Public health measures can prevent or slow disease spread. E. Research with viruses—gene therapy uses viruses to replace defective cell hereditary material with normal cell hereditary material.

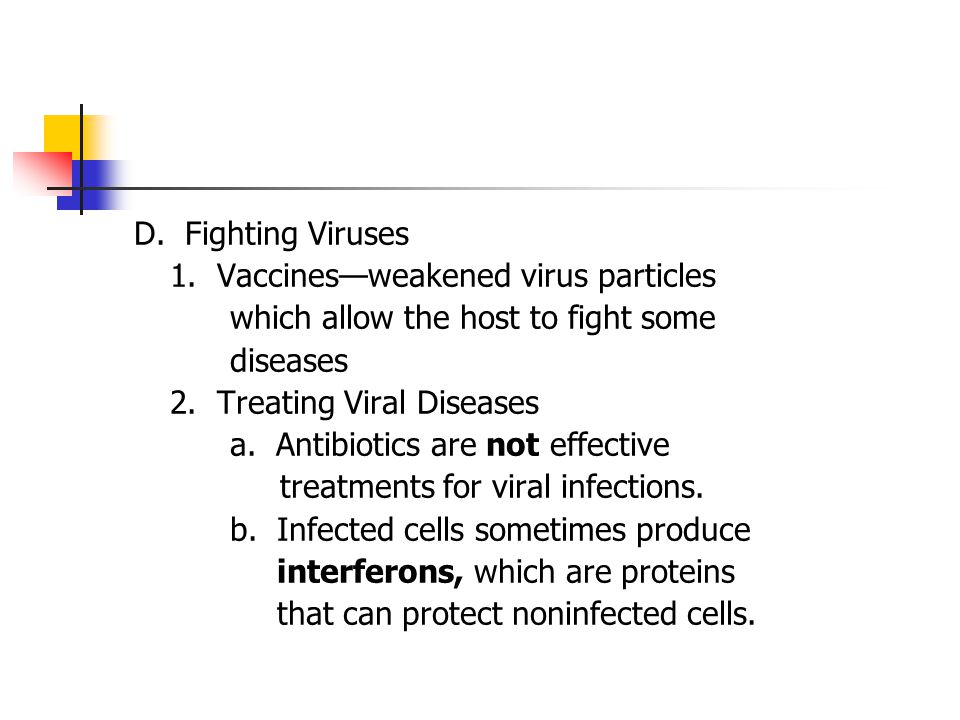

32 D. Fighting Viruses 1. Vaccines—weakened virus particles which allow the host to fight some diseases 2. Treating Viral Diseases a. Antibiotics are not effective treatments for viral infections. b. Infected cells sometimes produce interferons, which are proteins that can protect noninfected cells.
