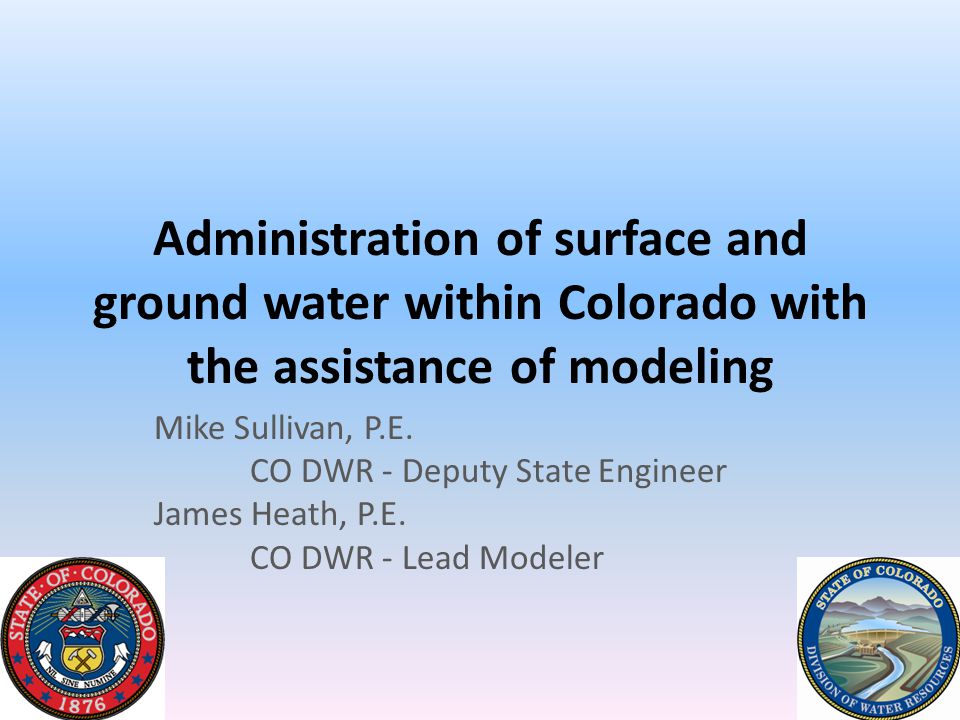

1. Administration of surface and ground water within Colorado with the assistance of modeling Mike Sullivan, P.E. CO DWR - Deputy State Engineer James Heath, P.E. CO DWR - Lead Modeler

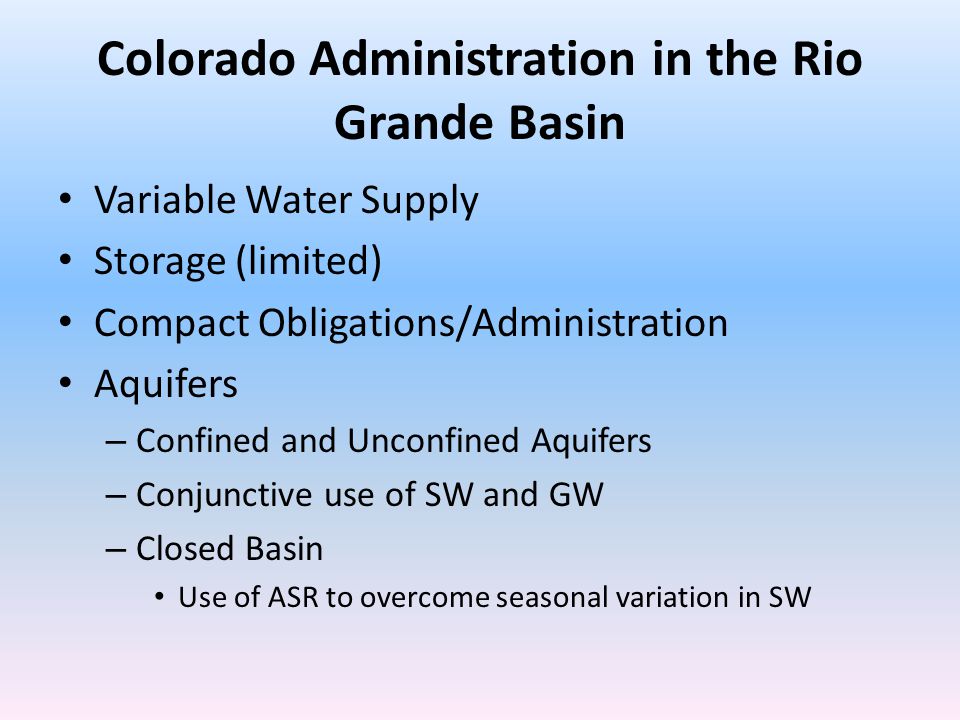

2. Colorado Administration in the Rio Grande Basin Variable Water Supply Storage (limited) Compact Obligations/Administration Aquifers – Confined and Unconfined Aquifers – Conjunctive use of SW and GW – Closed Basin Use of ASR to overcome seasonal variation in SW

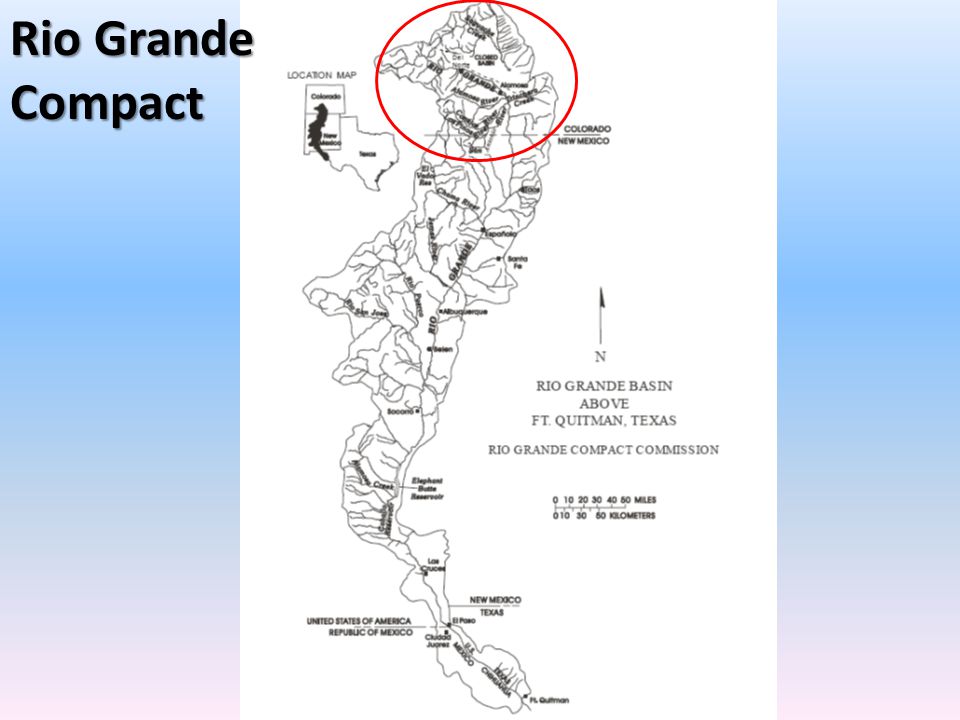

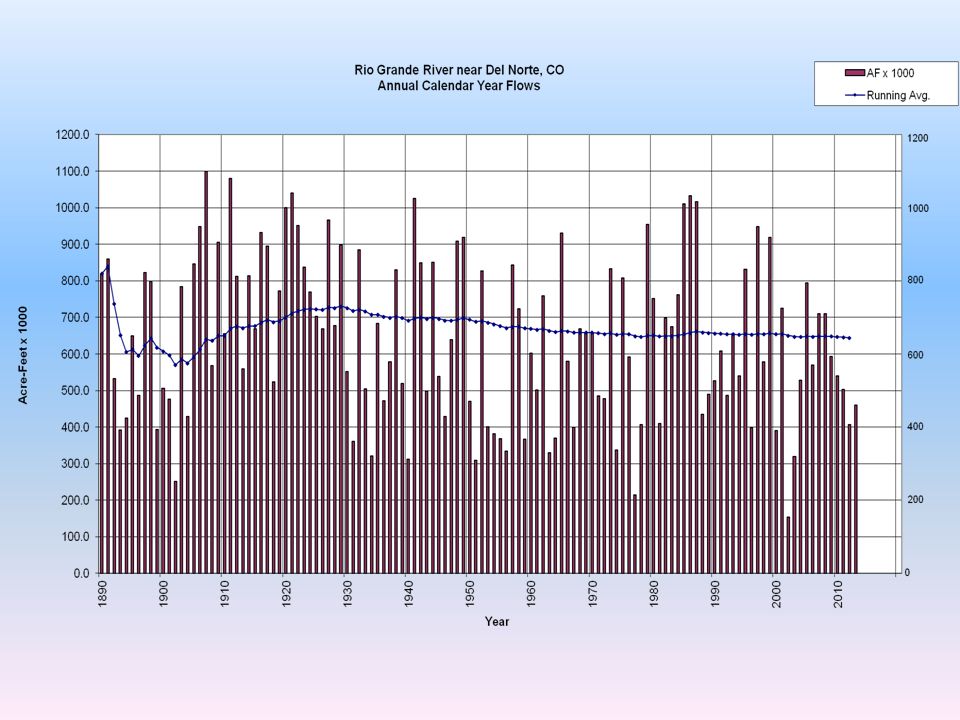

4. Rio Grande Compact

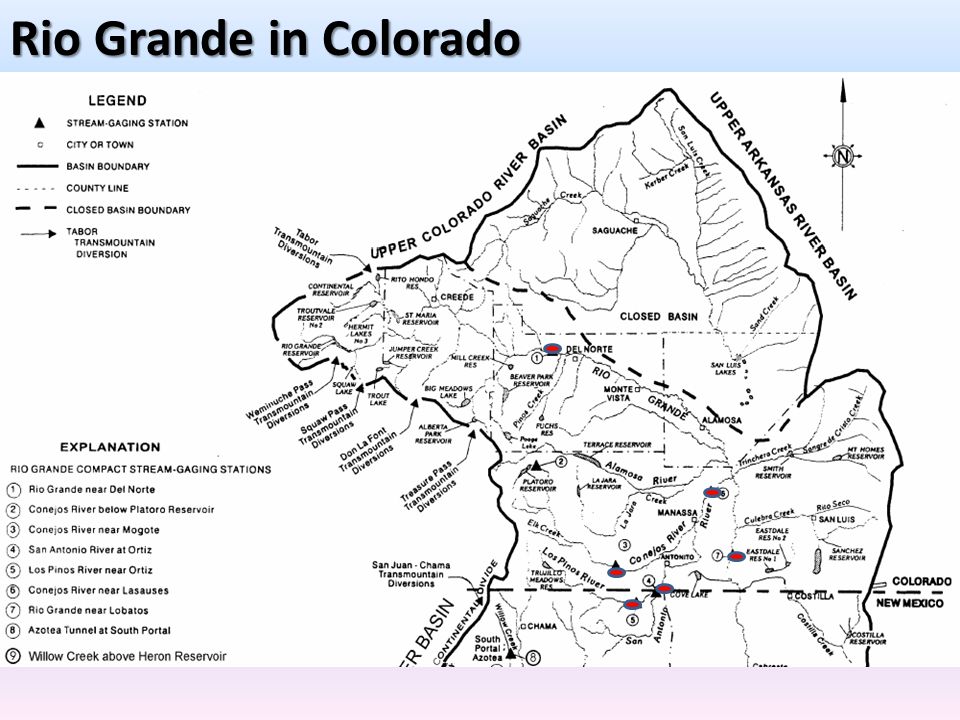

5. Rio Grande in Colorado

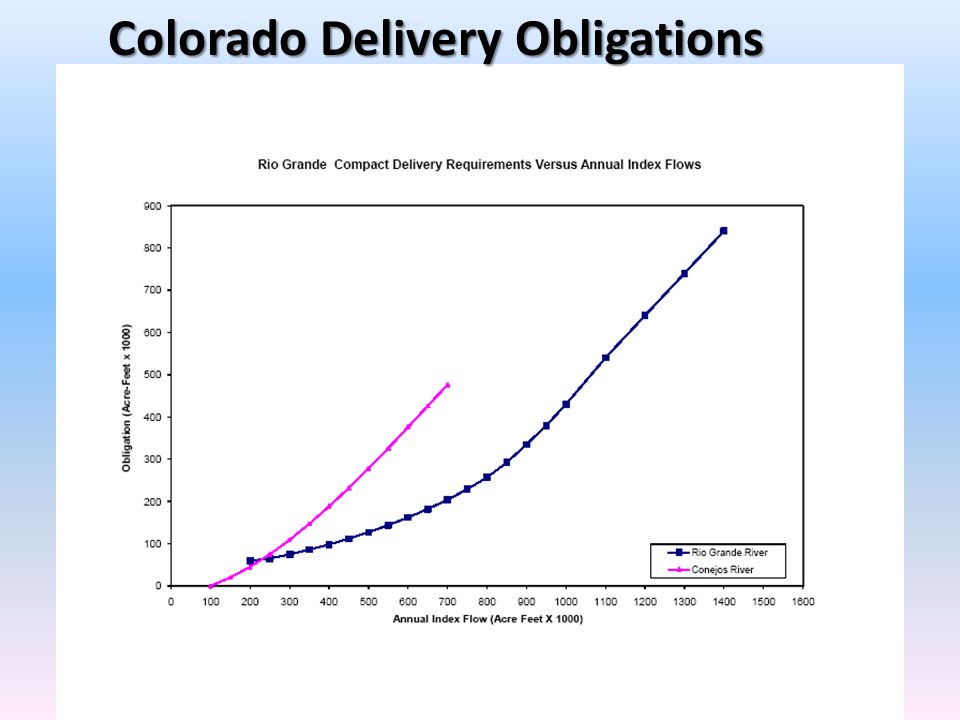

6. Colorado Delivery Obligations

8. Compact Curtailment of SW rights Daily administration – 10 day analysis – Daily curtailment calculation – Surface Water Users curtailed to meet daily compact need Example: – If have 100 cfs at Del Norte and need 20 cfs at state line then there is 80 cfs available for diversion in Colorado.

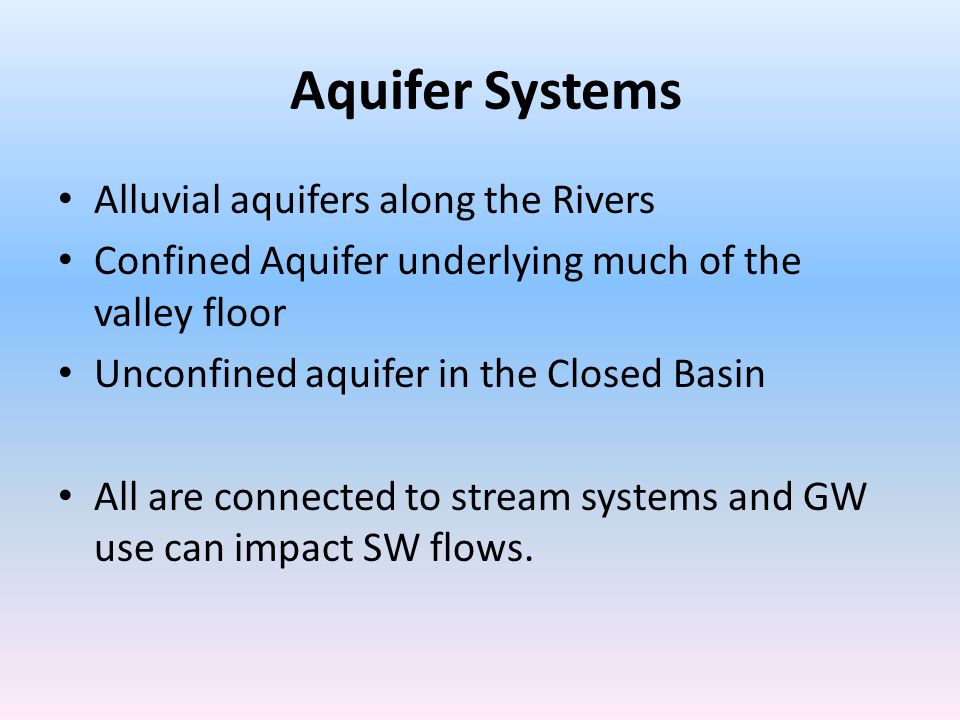

9. Aquifer Systems Alluvial aquifers along the Rivers Confined Aquifer underlying much of the valley floor Unconfined aquifer in the Closed Basin All are connected to stream systems and GW use can impact SW flows.

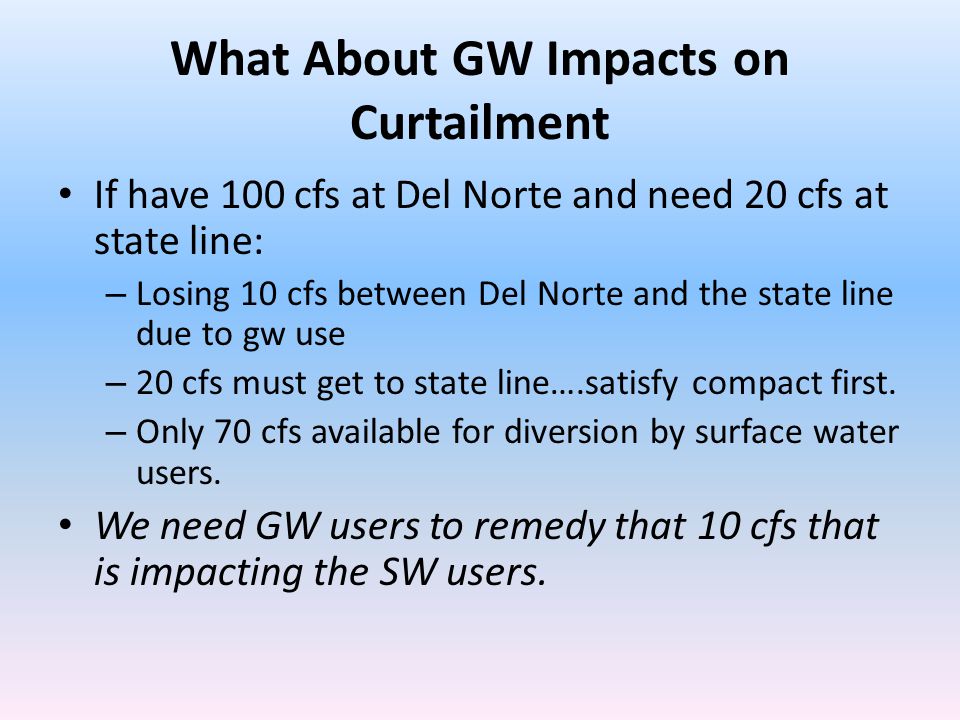

10. What About GW Impacts on Curtailment If have 100 cfs at Del Norte and need 20 cfs at state line: – Losing 10 cfs between Del Norte and the state line due to gw use – 20 cfs must get to state line….satisfy compact first. – Only 70 cfs available for diversion by surface water users. We need GW users to remedy that 10 cfs that is impacting the SW users.

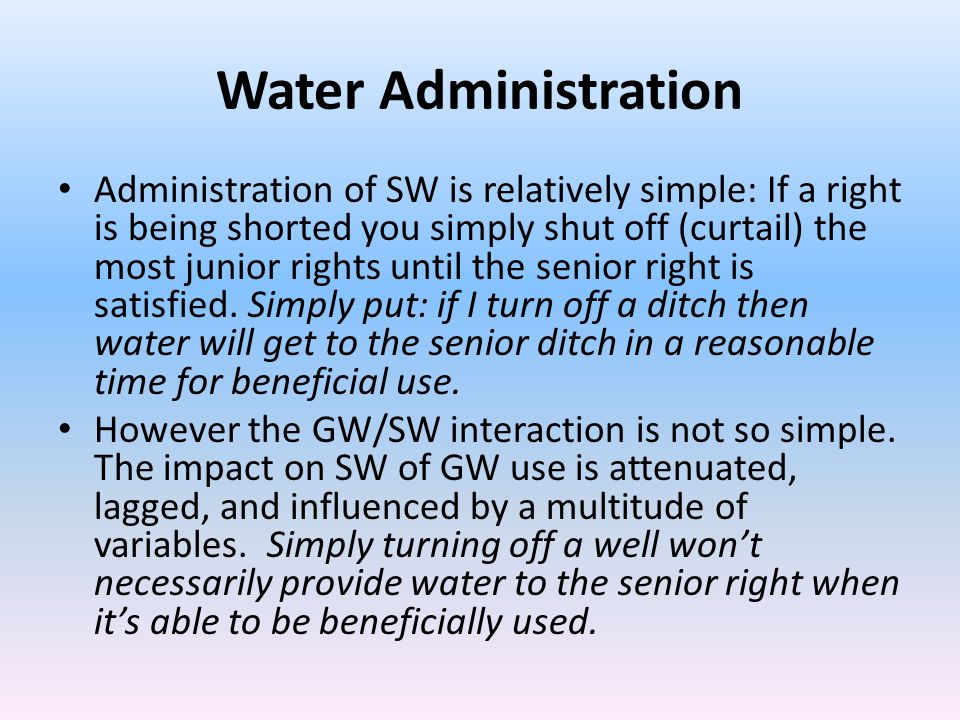

11. Water Administration Administration of SW is relatively simple: If a right is being shorted you simply shut off (curtail) the most junior rights until the senior right is satisfied. Simply put: if I turn off a ditch then water will get to the senior ditch in a reasonable time for beneficial use. However the GW/SW interaction is not so simple. The impact on SW of GW use is attenuated, lagged, and influenced by a multitude of variables. Simply turning off a well won’t necessarily provide water to the senior right when it’s able to be beneficially used.

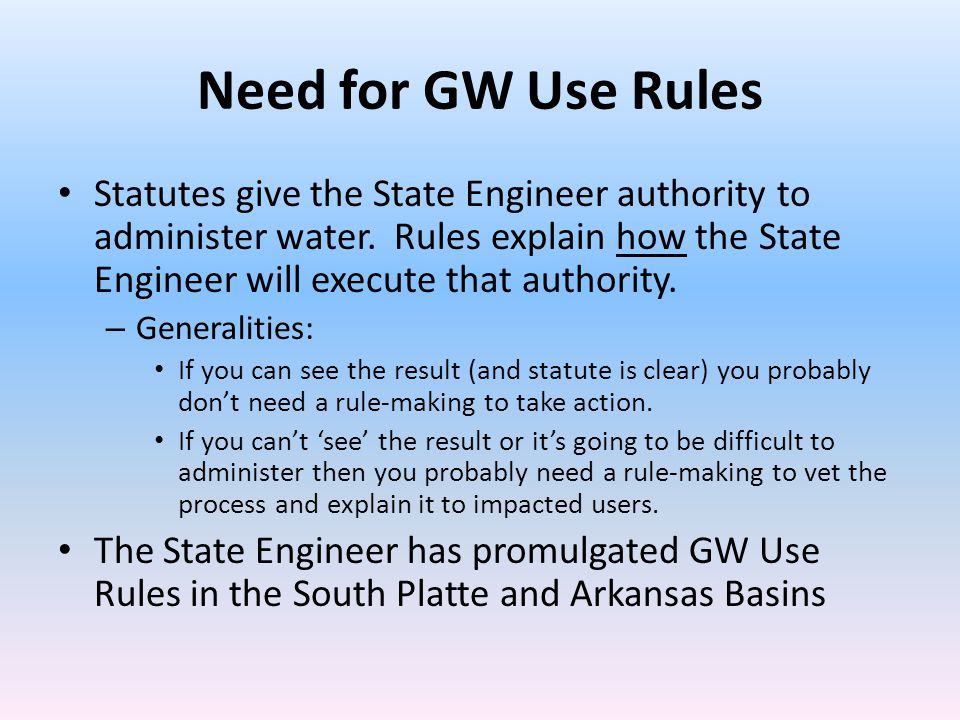

12. Need for GW Use Rules Statutes give the State Engineer authority to administer water. Rules explain how the State Engineer will execute that authority. – Generalities: If you can see the result (and statute is clear) you probably don’t need a rule-making to take action. If you can’t ‘see’ the result or it’s going to be difficult to administer then you probably need a rule-making to vet the process and explain it to impacted users. The State Engineer has promulgated GW Use Rules in the South Platte and Arkansas Basins

13. Need for GW Use Rules In Division 3 Colorado law requires that we only curtail GW use to the minimum amount necessary to satisfy SW needs. Thus we can’t simply ‘turn-off’ all GW use without infringing on the rights of those users. To make the system equitable we need rules to require GW users to replace that injurious depletion (no more and no less) to the surface water stream. Difficulty: This is not a simple thin stream/alluvial system.

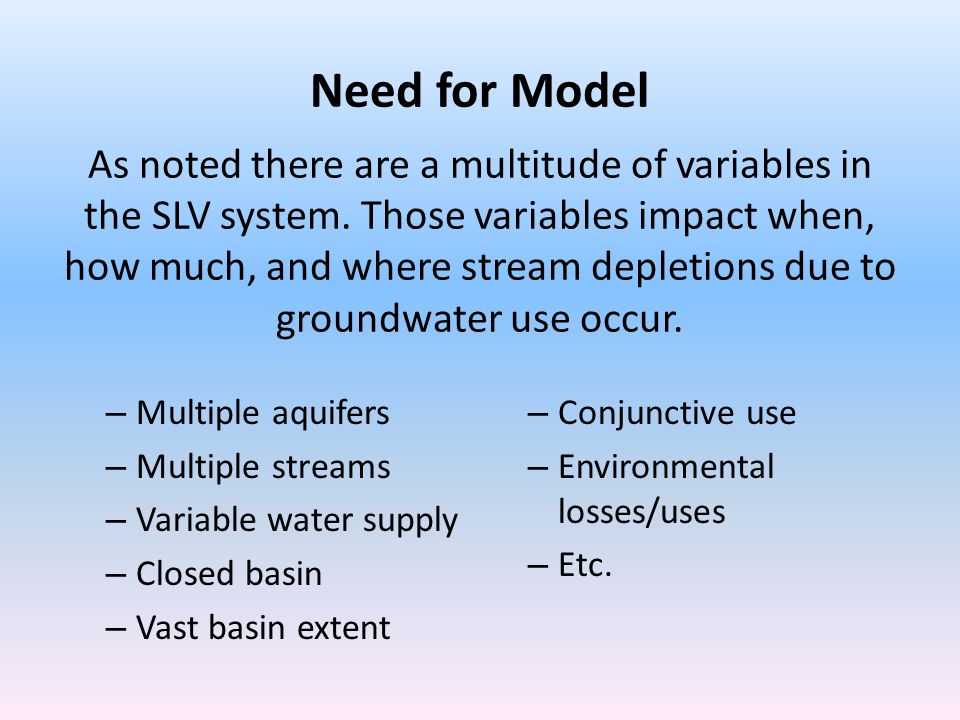

14. As noted there are a multitude of variables in the SLV system. Those variables impact when, how much, and where stream depletions due to groundwater use occur. – Multiple aquifers – Multiple streams – Variable water supply – Closed basin – Vast basin extent – Conjunctive use – Environmental losses/uses – Etc. Need for Model

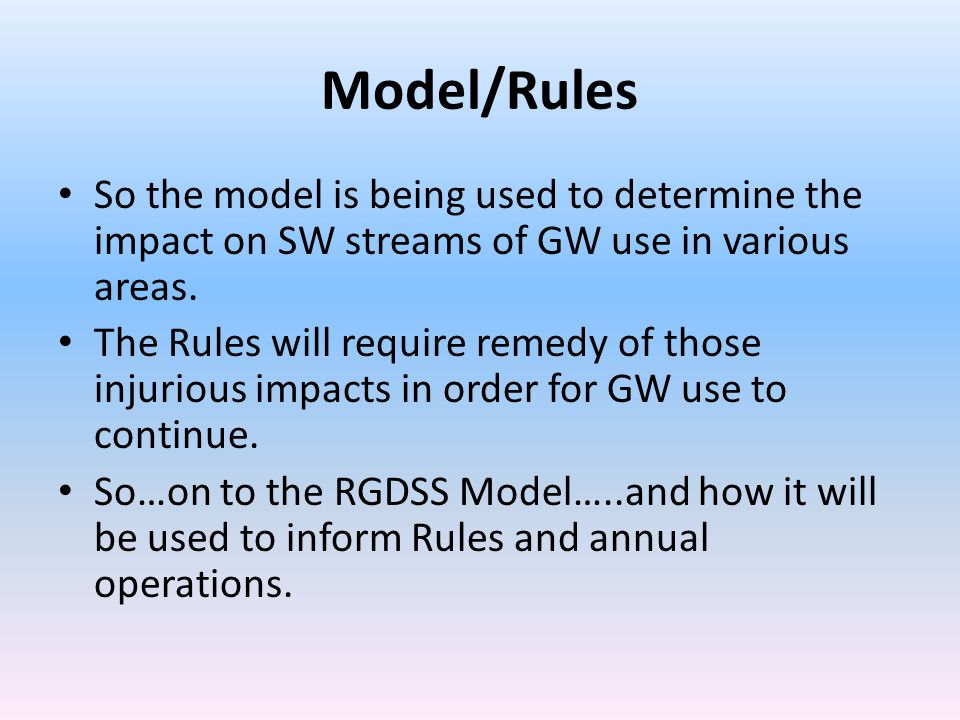

15. Model/Rules So the model is being used to determine the impact on SW streams of GW use in various areas. The Rules will require remedy of those injurious impacts in order for GW use to continue. So…on to the RGDSS Model…..and how it will be used to inform Rules and annual operations.

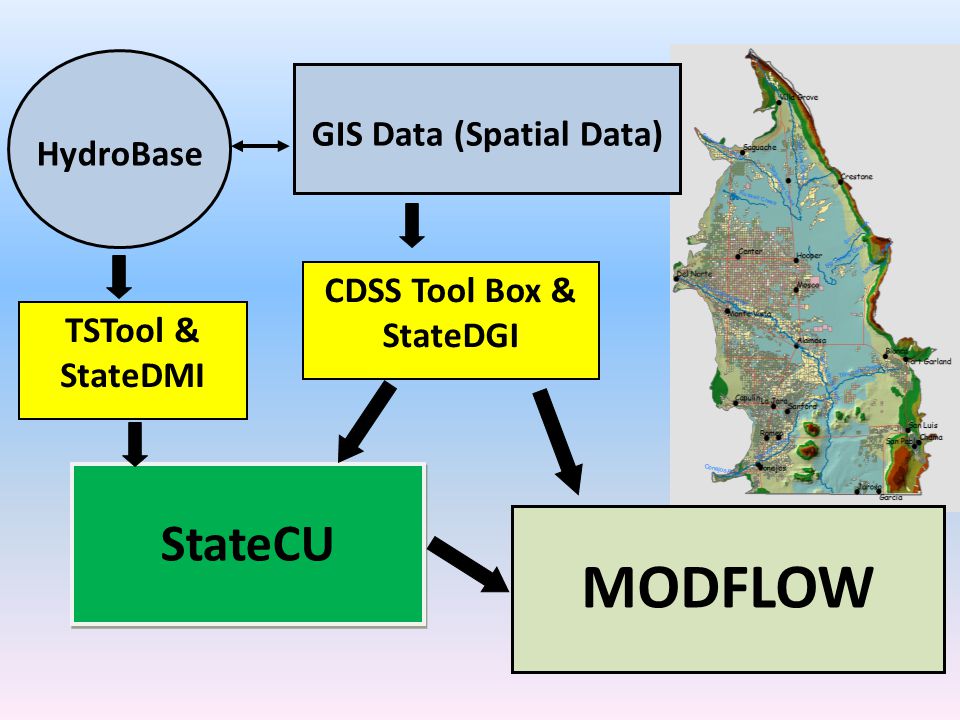

17. HydroBase MODFLOW GIS Data (Spatial Data) TSTool & StateDMI CDSS Tool Box & StateDGI StateCU

18. Background San Luis Valley’s complex hydrogeology – We are continually learning

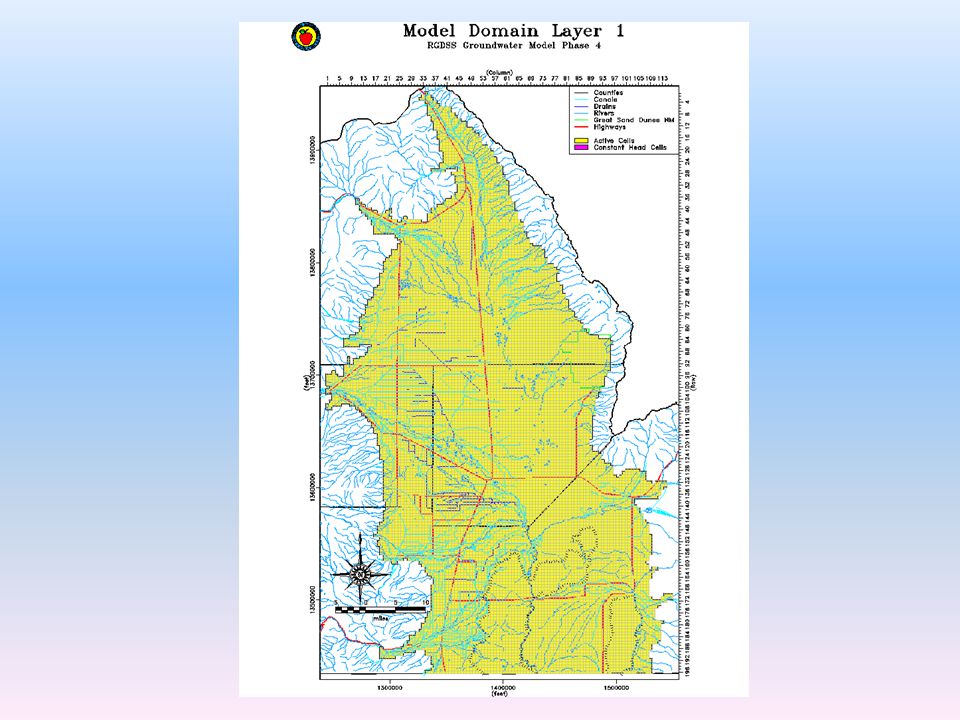

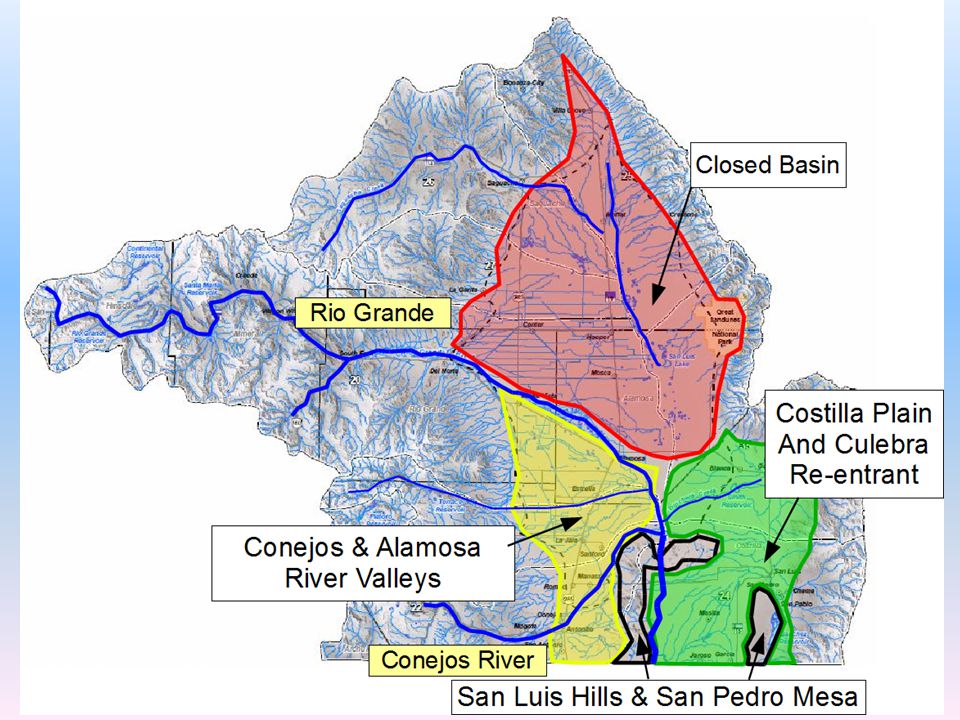

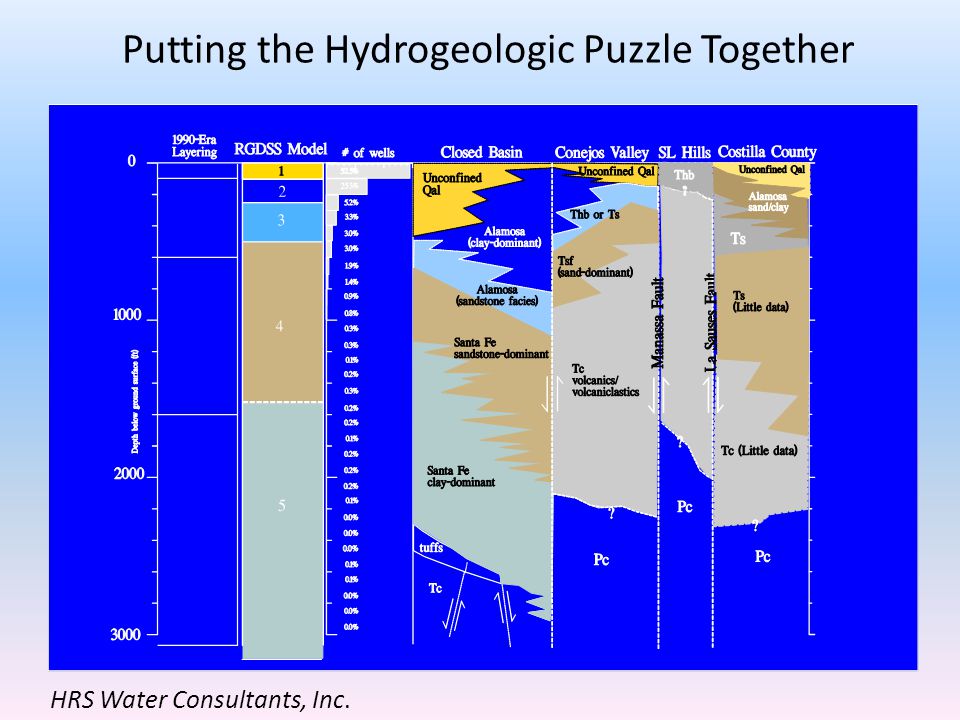

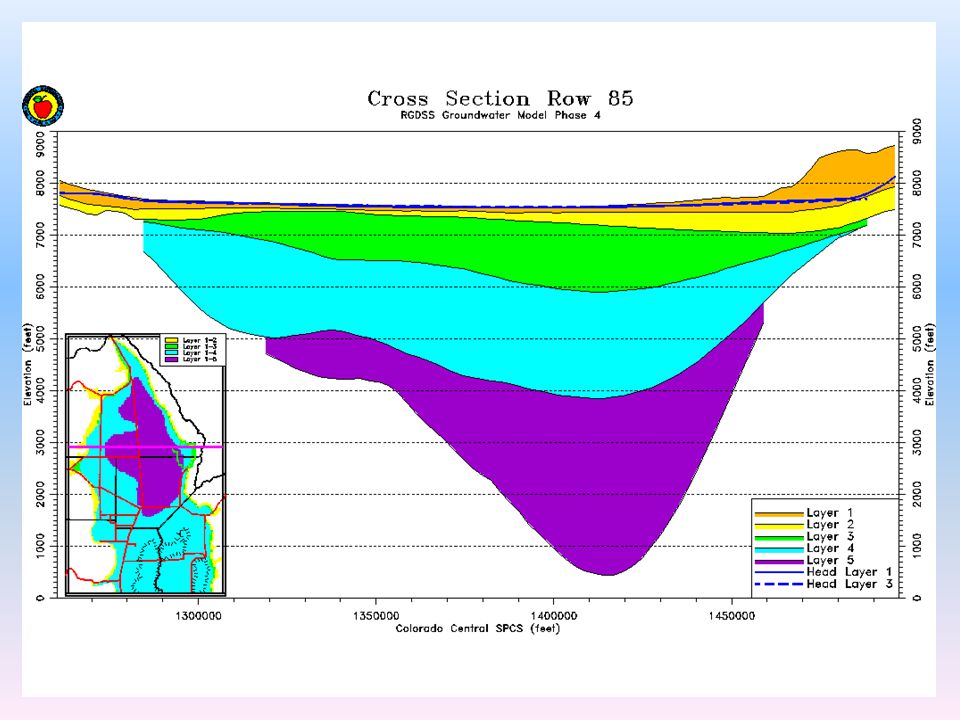

22. Putting the Hydrogeologic Puzzle Together HRS Water Consultants, Inc.

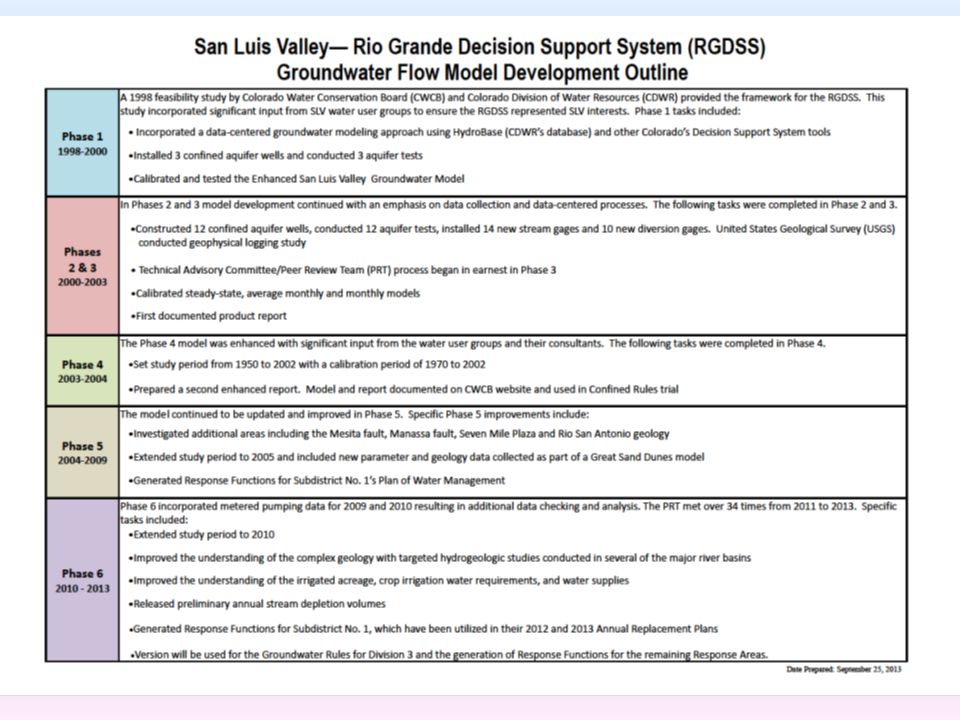

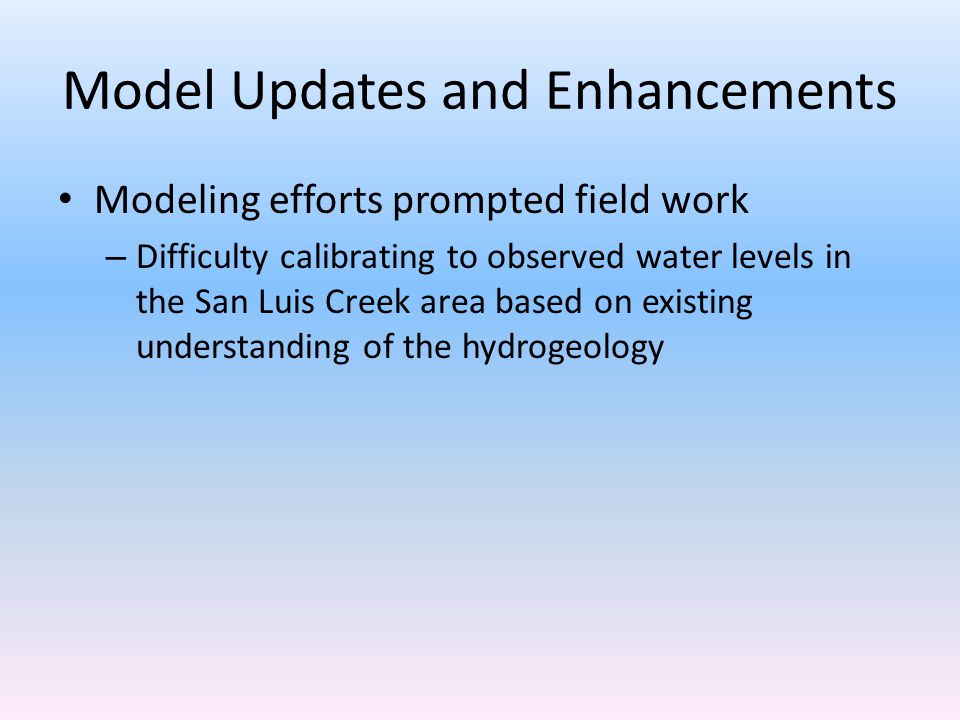

23. Model Updates and Enhancements Modeling efforts prompted field work – Difficulty calibrating to observed water levels in the San Luis Creek area based on existing understanding of the hydrogeology

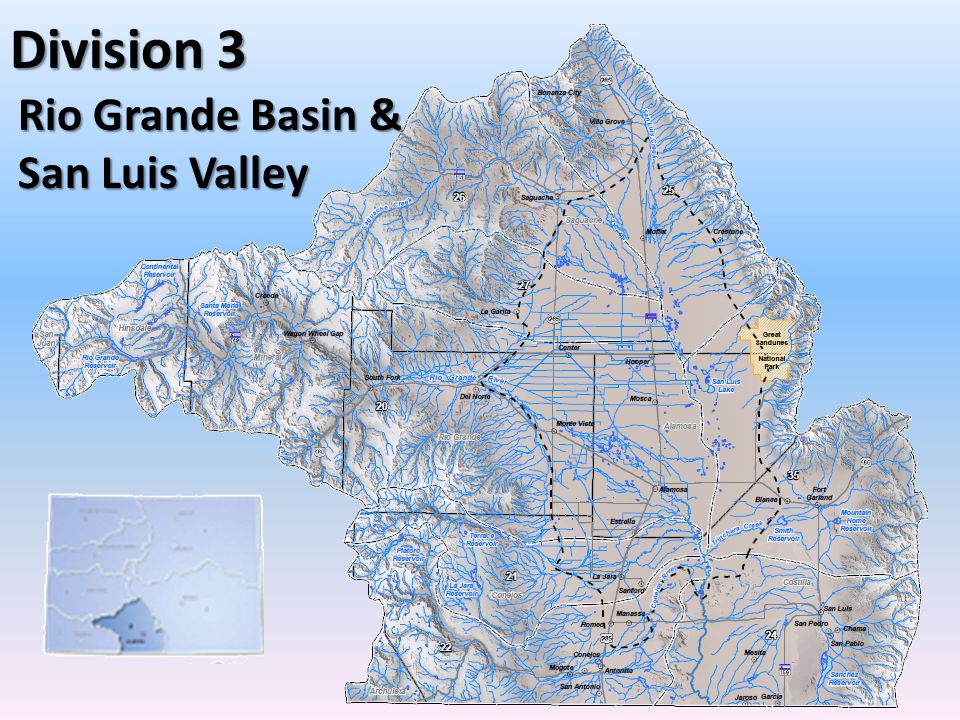

24. Division 3 Rio Grande Basin & San Luis Valley

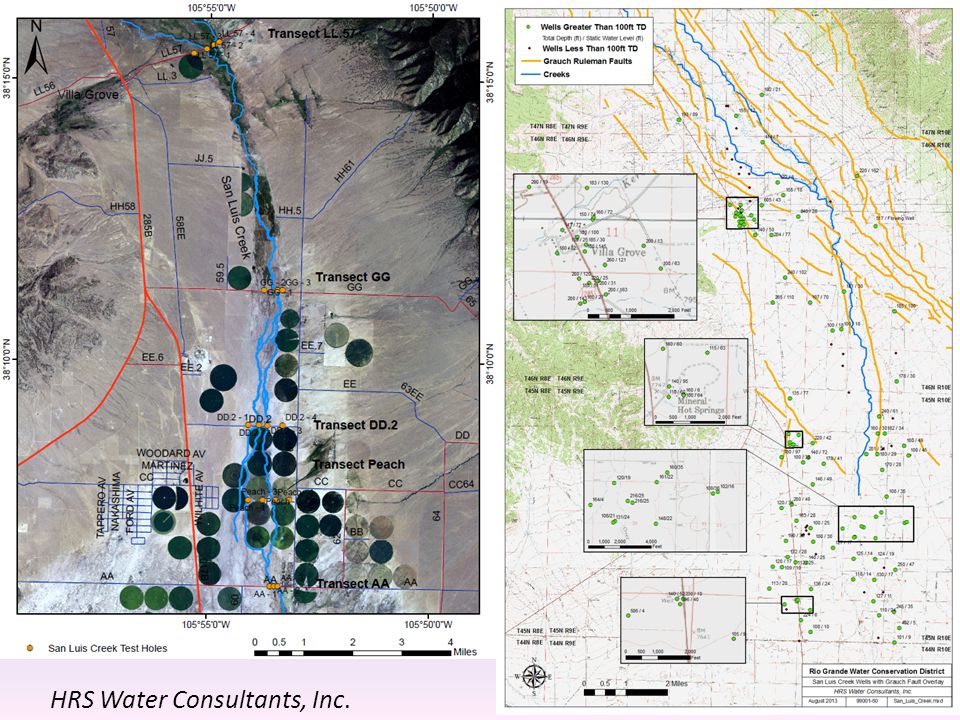

25. HRS Water Consultants, Inc.

26. Model Updates and Enhancements Metered pumping data – New data available starting in 2009

27. HydroBase MODFLOW GIS Data (Spatial Data) TSTool & StateDMI CDSS Tool Box & StateDGI StateCU

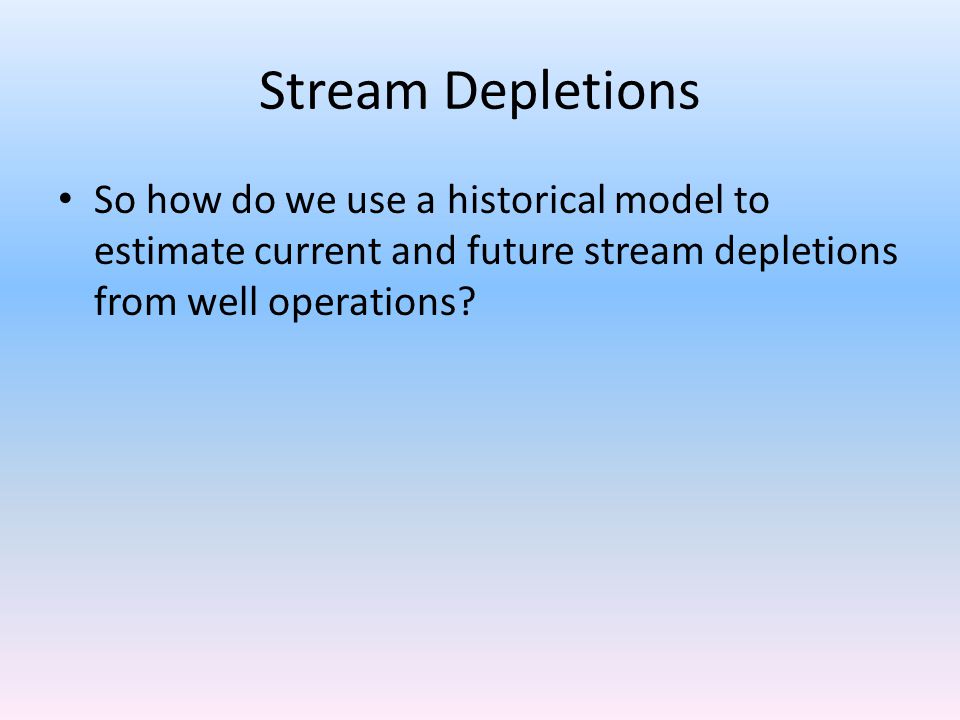

28. Stream Depletions So how do we use a historical model to estimate current and future stream depletions from well operations?

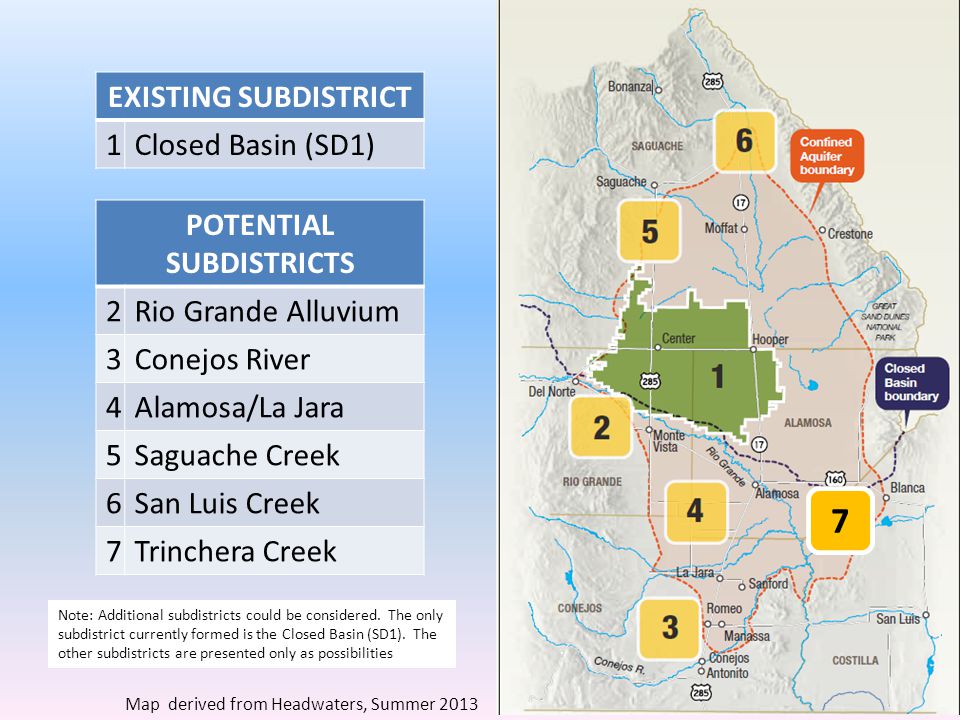

29. Map derived from Headwaters, Summer 2013 Note: Additional subdistricts could be considered. The only subdistrict currently formed is the Closed Basin (SD1). The other subdistricts are presented only as possibilities 7 POTENTIAL SUBDISTRICTS 2Rio Grande Alluvium 3Conejos River 4Alamosa/La Jara 5Saguache Creek 6San Luis Creek 7Trinchera Creek EXISTING SUBDISTRICT 1Closed Basin (SD1)

30. Response Functions Objectives of the Response Functions: – Simplified way to relate the operations of the wells to Stream Depletions – Captures the essential behaviors of the RGDSS Ground Water Model – Able to be operated by RGWCD staff, DWR staff, and other non-modelers

31. Response Functions A.K.A. depletion factors Calculating the response function – Run model for base condition – Run model for impact condition – Difference model runs – Express stream depletion as a fraction of increase in consumptive use Applying the response function – Calculate increase in consumptive use – Multiply by response function to get stream depletion

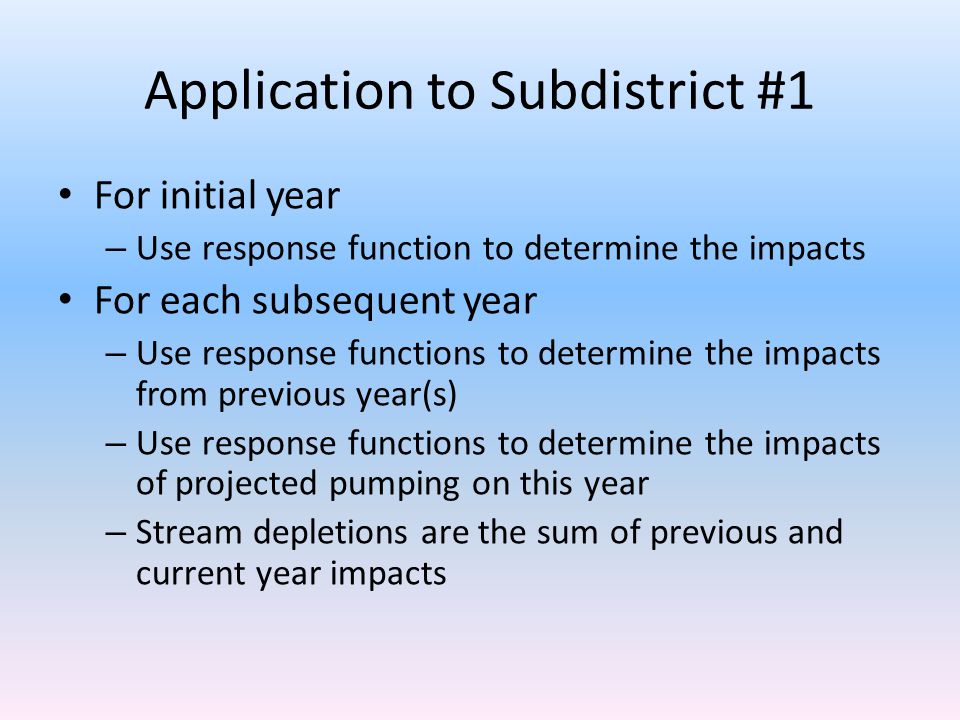

33. Application to Subdistrict #1 For initial year – Use response function to determine the impacts For each subsequent year – Use response functions to determine the impacts from previous year(s)‏ – Use response functions to determine the impacts of projected pumping on this year – Stream depletions are the sum of previous and current year impacts

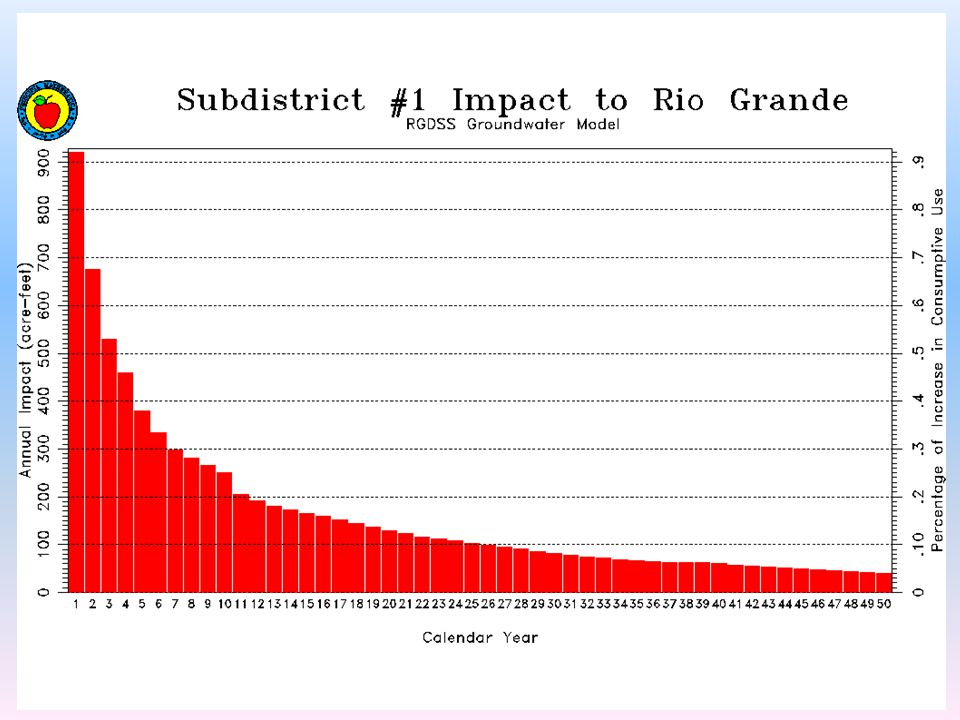

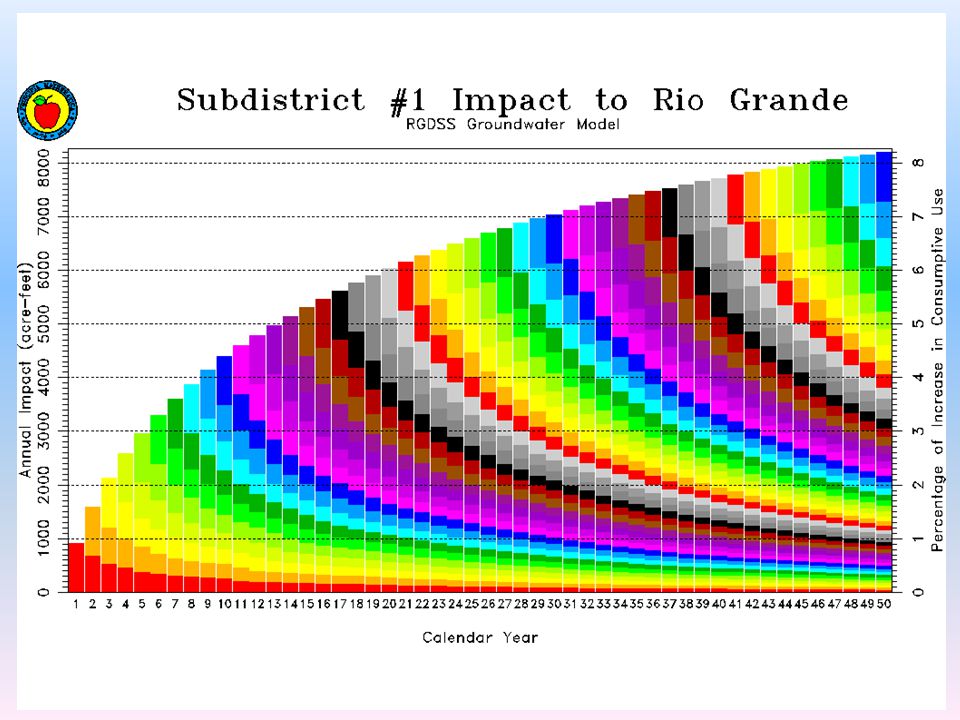

35. Response Function Example Subdistrict No. 1 ARP 2012 Submittal

36. Response Function Example What if the 2012 estimate was 50,000 af?

37. Response Function Example What if the 2012 estimate was 500,000 af?

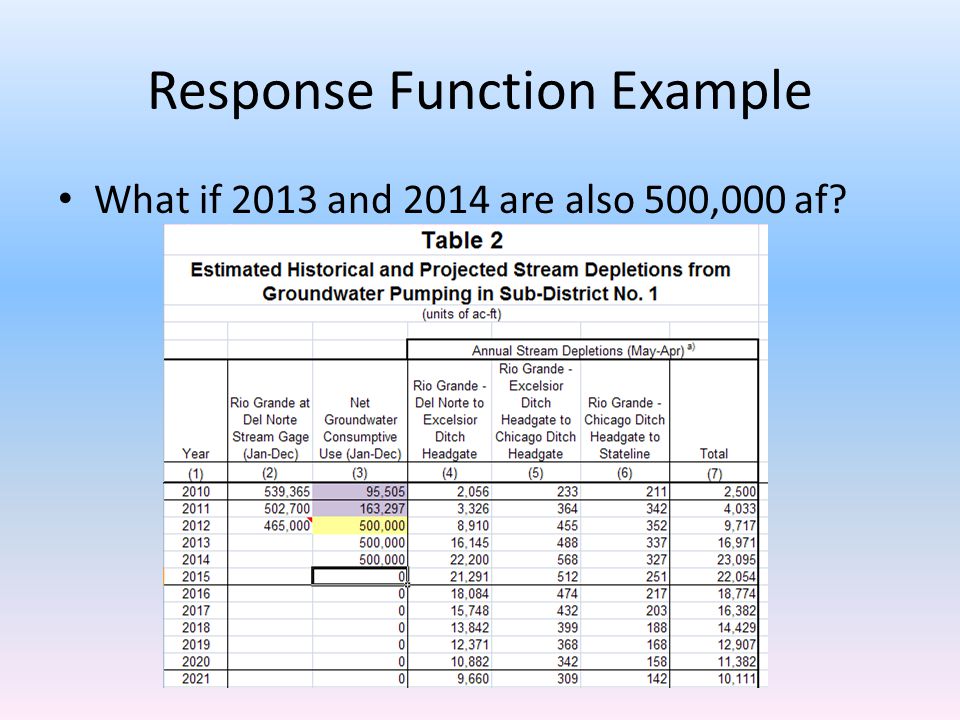

38. Response Function Example What if 2013 and 2014 are also 500,000 af?

39. Map derived from Headwaters, Summer 2013 Note: Additional subdistricts could be considered. The only subdistrict currently formed is the Closed Basin (SD1). The other subdistricts are presented only as possibilities 7 POTENTIAL SUBDISTRICTS 2Rio Grande Alluvium 3Conejos River 4Alamosa/La Jara 5Saguache Creek 6San Luis Creek 7Trinchera Creek EXISTING SUBDISTRICT 1Closed Basin (SD1)

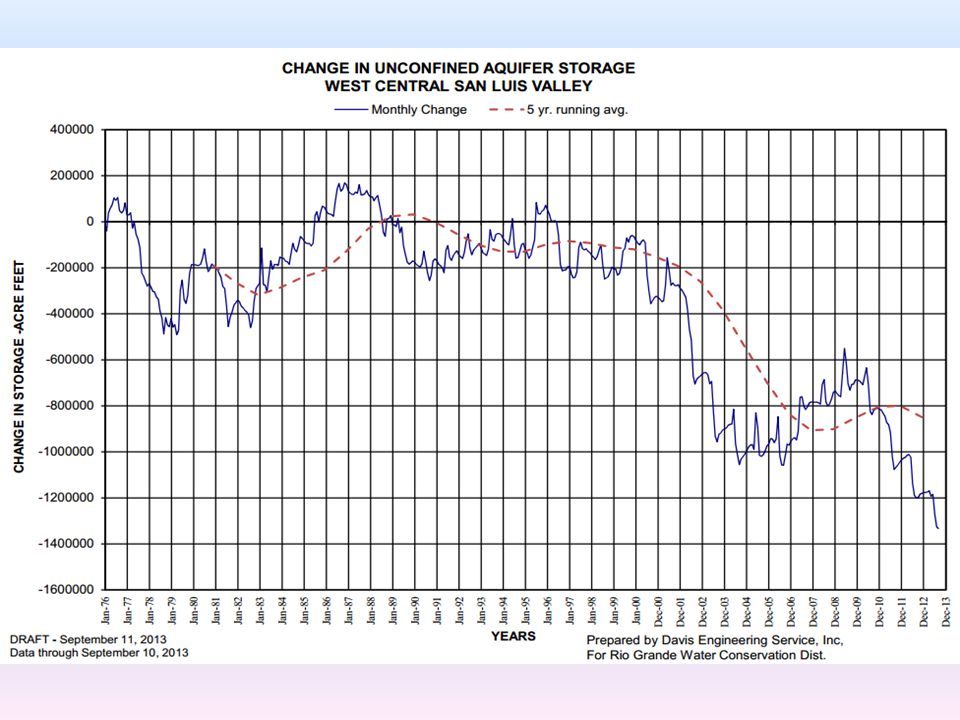

41. QUESTIONS? Photo from Kelley Thompson

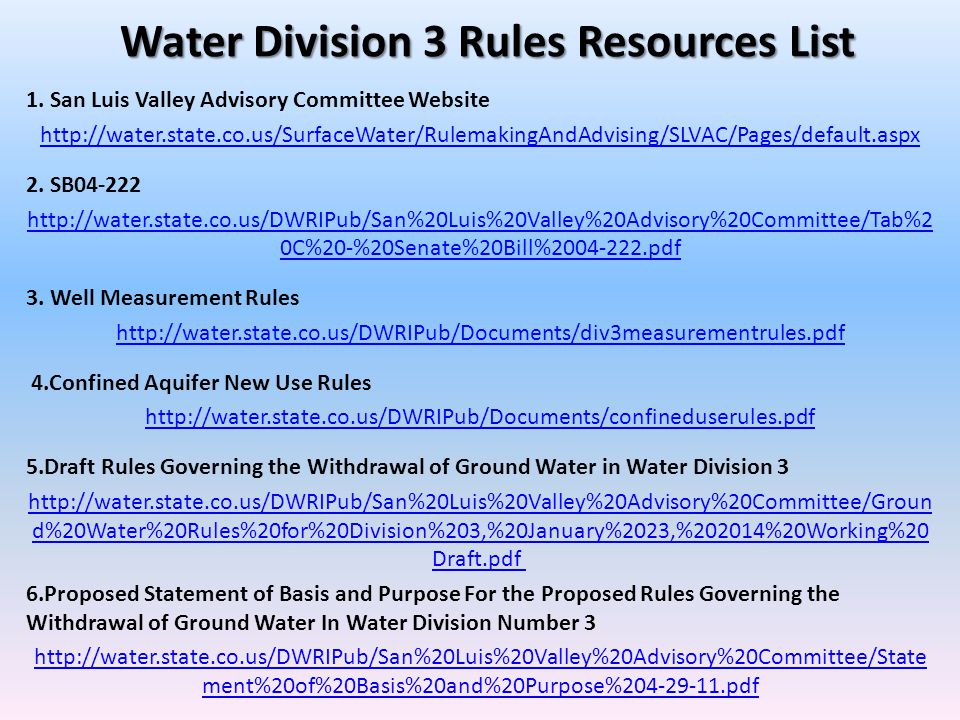

42. Water Division 3 Rules Resources List 1. San Luis Valley Advisory Committee Website http://water.state.co.us/SurfaceWater/RulemakingAndAdvising/SLVAC/Pages/default.aspx 2. SB04-222 http://water.state.co.us/DWRIPub/San%20Luis%20Valley%20Advisory%20Committee/Tab%2 0C%20-%20Senate%20Bill%2004-222.pdf 3. Well Measurement Rules http://water.state.co.us/DWRIPub/Documents/div3measurementrules.pdf 4.Confined Aquifer New Use Rules http://water.state.co.us/DWRIPub/Documents/confineduserules.pdf 5.Draft Rules Governing the Withdrawal of Ground Water in Water Division 3 http://water.state.co.us/DWRIPub/San%20Luis%20Valley%20Advisory%20Committee/Groun d%20Water%20Rules%20for%20Division%203,%20January%2023,%202014%20Working%20 Draft.pdf http://water.state.co.us/DWRIPub/San%20Luis%20Valley%20Advisory%20Committee/Groun d%20Water%20Rules%20for%20Division%203,%20January%2023,%202014%20Working%20 Draft.pdf 6.Proposed Statement of Basis and Purpose For the Proposed Rules Governing the Withdrawal of Ground Water In Water Division Number 3 http://water.state.co.us/DWRIPub/San%20Luis%20Valley%20Advisory%20Committee/State ment%20of%20Basis%20and%20Purpose%204-29-11.pdf
