1. Artificial Intelligence Lecture No. 10 Dr. Asad Ali Safi ​ Assistant Professor, Department of Computer Science, COMSATS Institute of Information Technology (CIIT) Islamabad, Pakistan.

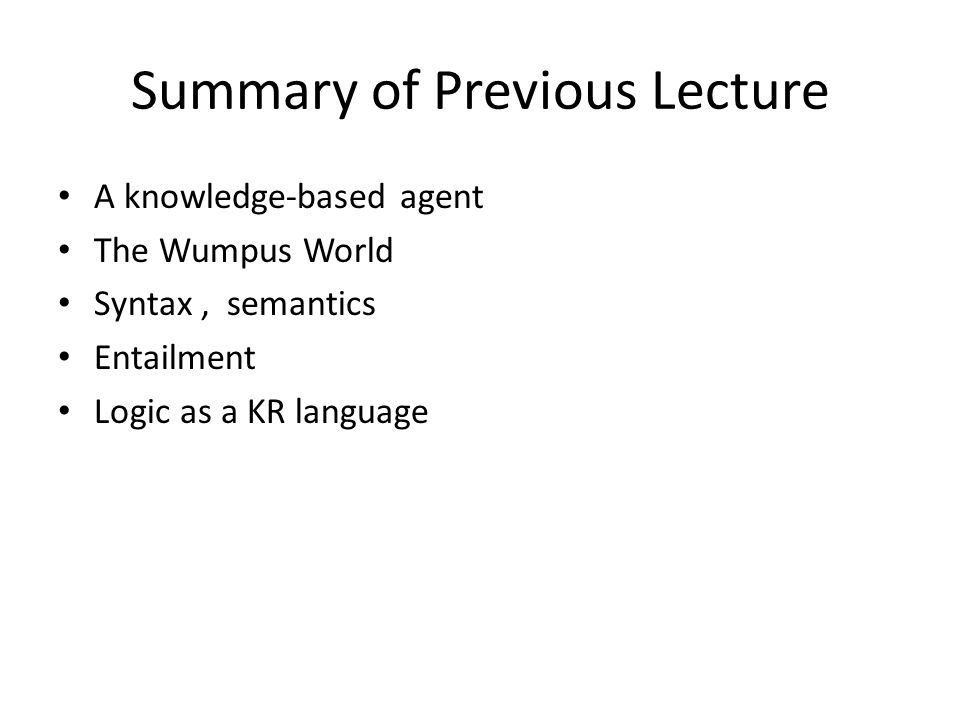

2. Summary of Previous Lecture A knowledge-based agent The Wumpus World Syntax, semantics Entailment Logic as a KR language

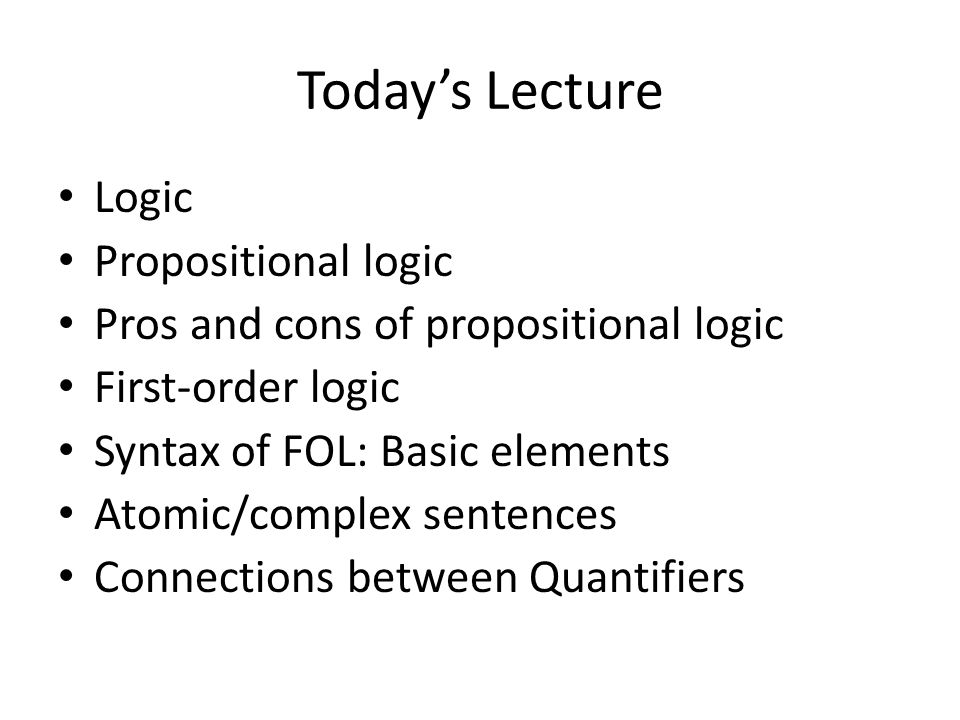

3. Today’s Lecture Logic Propositional logic Pros and cons of propositional logic First-order logic Syntax of FOL: Basic elements Atomic/complex sentences Connections between Quantifiers

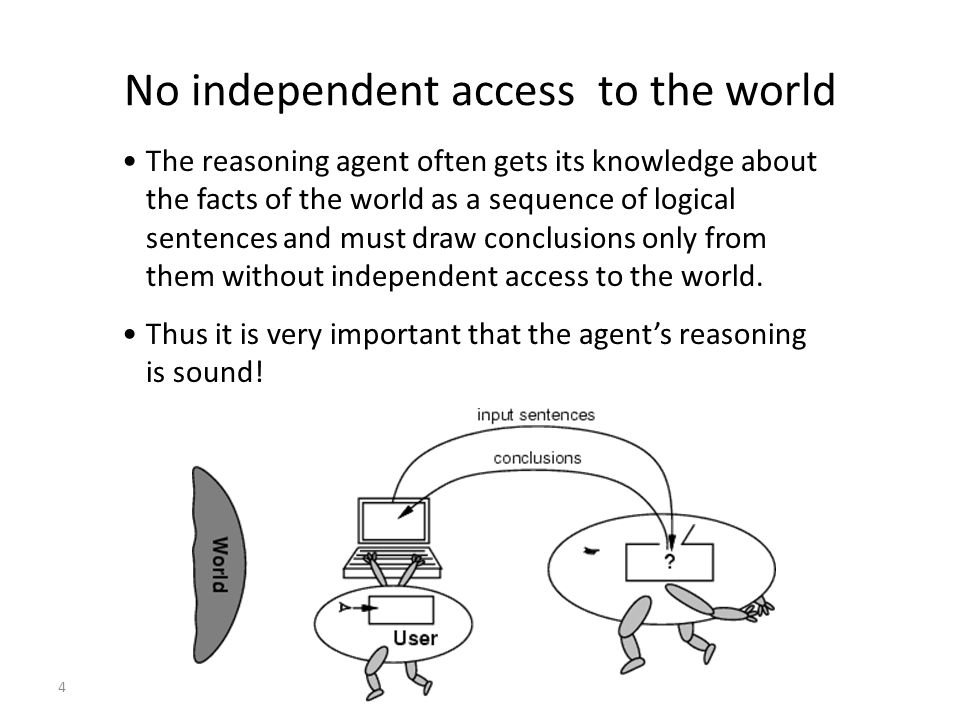

4. 4 No independent access to the world The reasoning agent often gets its knowledge about the facts of the world as a sequence of logical sentences and must draw conclusions only from them without independent access to the world. Thus it is very important that the agent’s reasoning is sound!

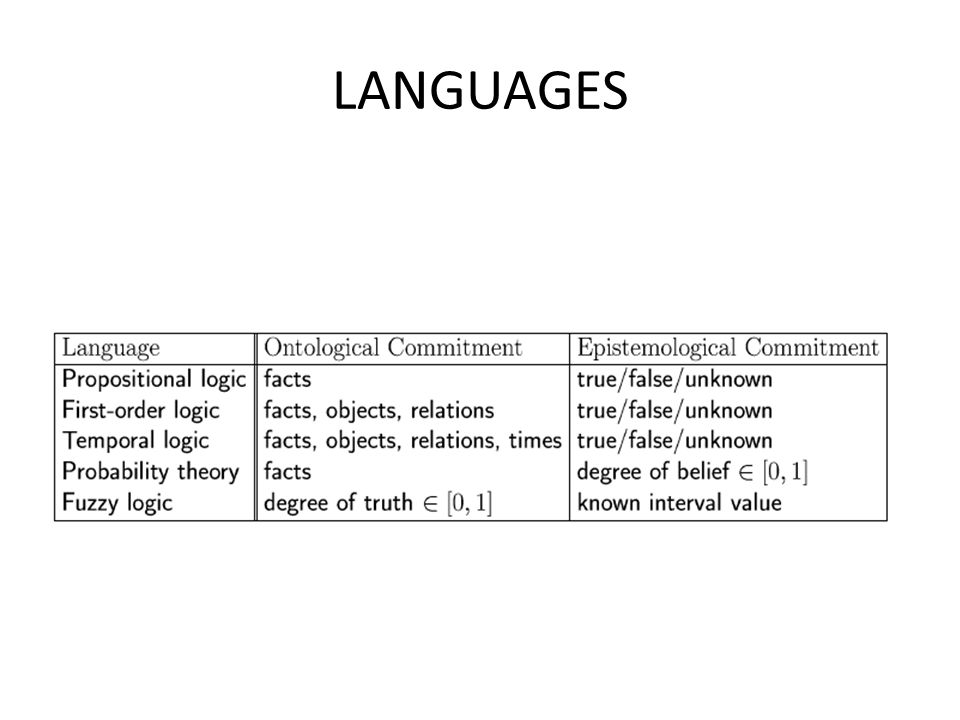

5. LANGUAGES

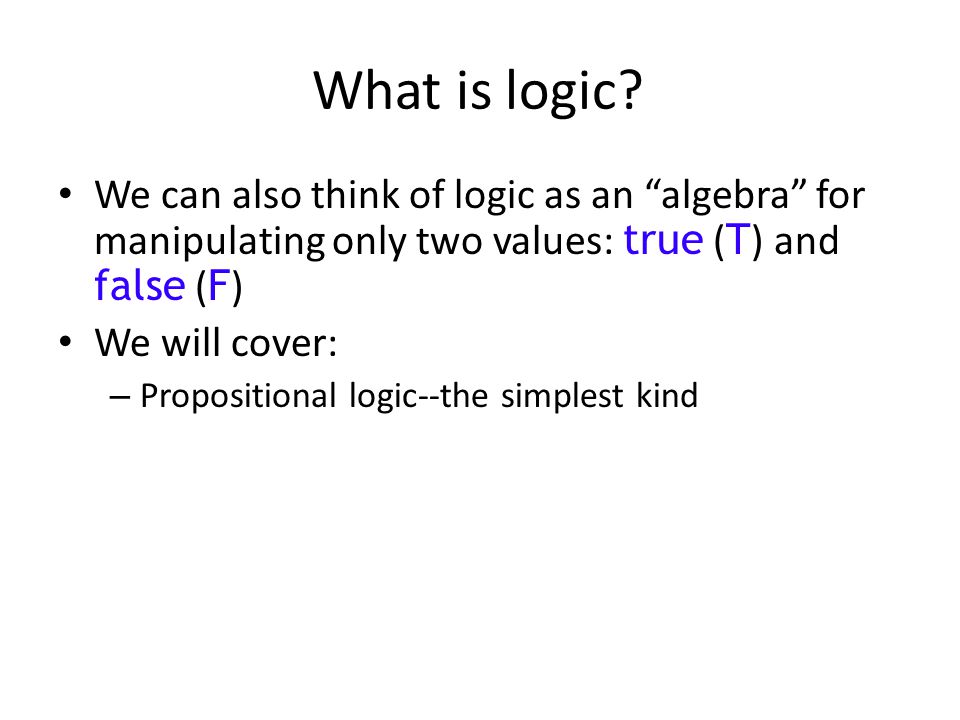

6. What is logic? We can also think of logic as an “algebra” for manipulating only two values: true ( T ) and false ( F ) We will cover: – Propositional logic--the simplest kind

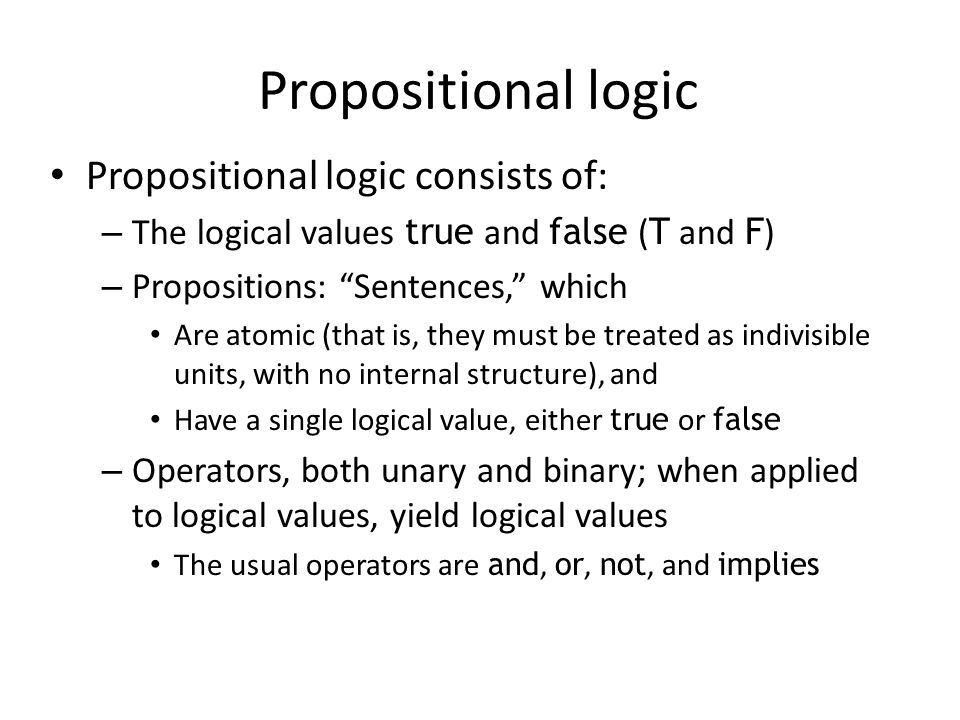

7. Propositional logic Propositional logic consists of: – The logical values true and false ( T and F ) – Propositions: “Sentences,” which Are atomic (that is, they must be treated as indivisible units, with no internal structure), and Have a single logical value, either true or false – Operators, both unary and binary; when applied to logical values, yield logical values The usual operators are and, or, not, and implies

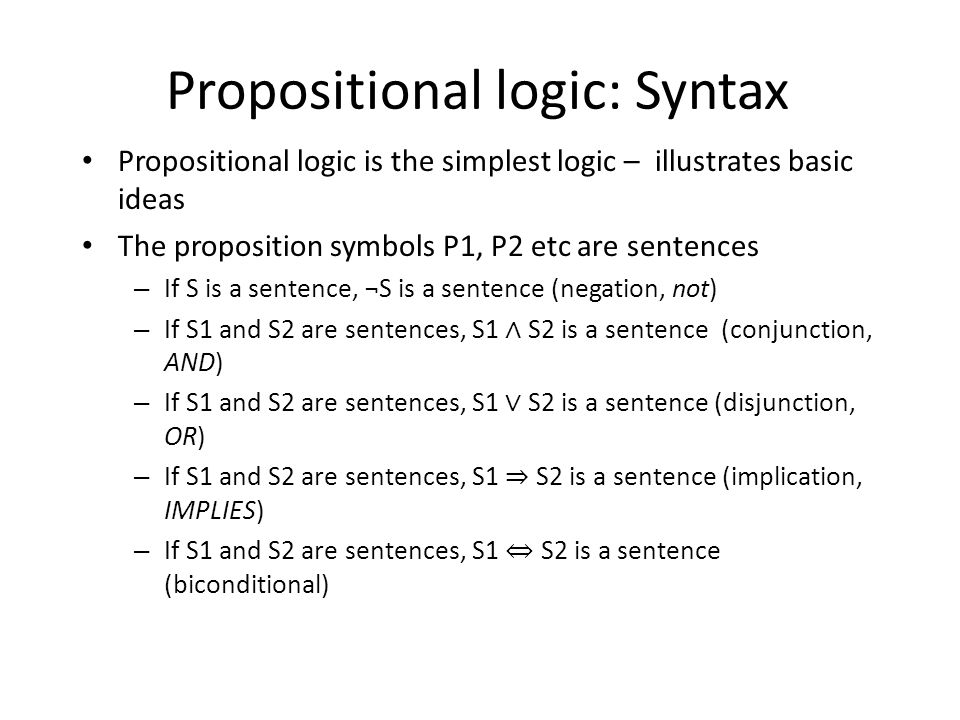

8. Propositional logic: Syntax Propositional logic is the simplest logic – illustrates basic ideas The proposition symbols P1, P2 etc are sentences – If S is a sentence, ¬S is a sentence (negation, not) – If S1 and S2 are sentences, S1 ∧ S2 is a sentence (conjunction, AND) – If S1 and S2 are sentences, S1 ∨ S2 is a sentence (disjunction, OR) – If S1 and S2 are sentences, S1 ⇒ S2 is a sentence (implication, IMPLIES) – If S1 and S2 are sentences, S1 ⇔ S2 is a sentence (biconditional)

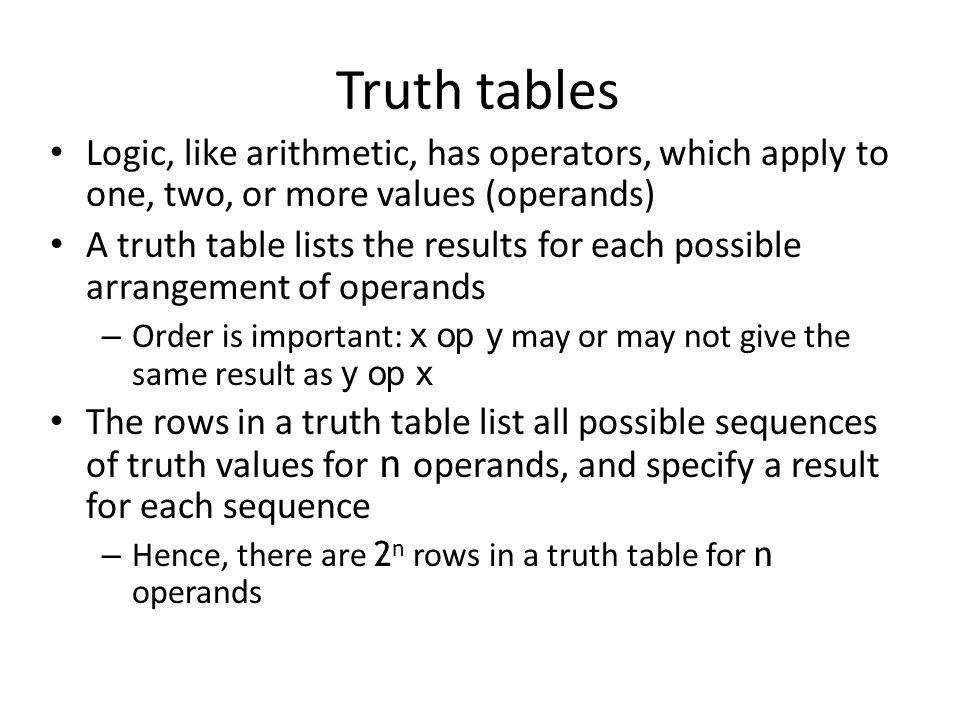

9. Truth tables Logic, like arithmetic, has operators, which apply to one, two, or more values (operands) A truth table lists the results for each possible arrangement of operands – Order is important: x op y may or may not give the same result as y op x The rows in a truth table list all possible sequences of truth values for n operands, and specify a result for each sequence – Hence, there are 2 n rows in a truth table for n operands

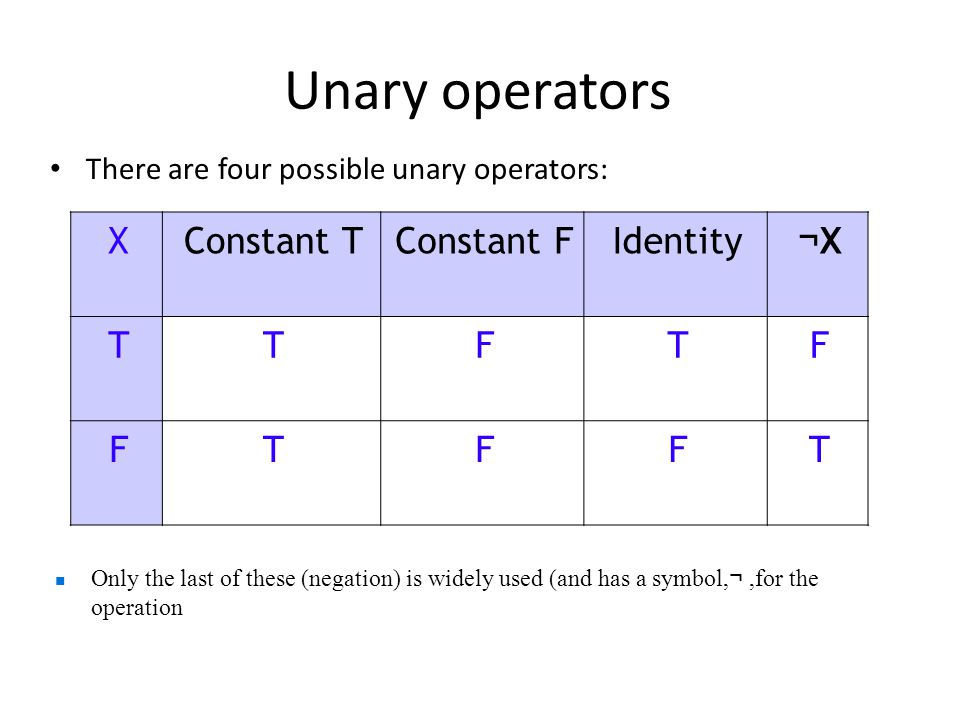

10. Unary operators There are four possible unary operators: Only the last of these (negation) is widely used (and has a symbol, ¬,for the operation XConstant TConstant FIdentity ¬X¬X TTFTF FTFFT

11. Useful binary operators Here are the binary operators that are traditionally used: Notice in particular that material implication (  ) only approximately means the same as the English word “implies” Any other binary operators can be constructed from a combination of these (along with unary not, ¬ ) XY AND X  Y OR X  Y IMPLIES X  Y BICONDITIONAL X  Y TTTTTT TFFTFF FTFTTF FFFFTT

12. Logical expressions All logical expressions can be computed with some combination of and (  ), or (  ), and not (  ) operators For example, logical implication can be computed this way: Notice that  X  Y is equivalent to X  Y XY XX  X  YX  Y TTFTT TFFFF FTTTT FFTTT

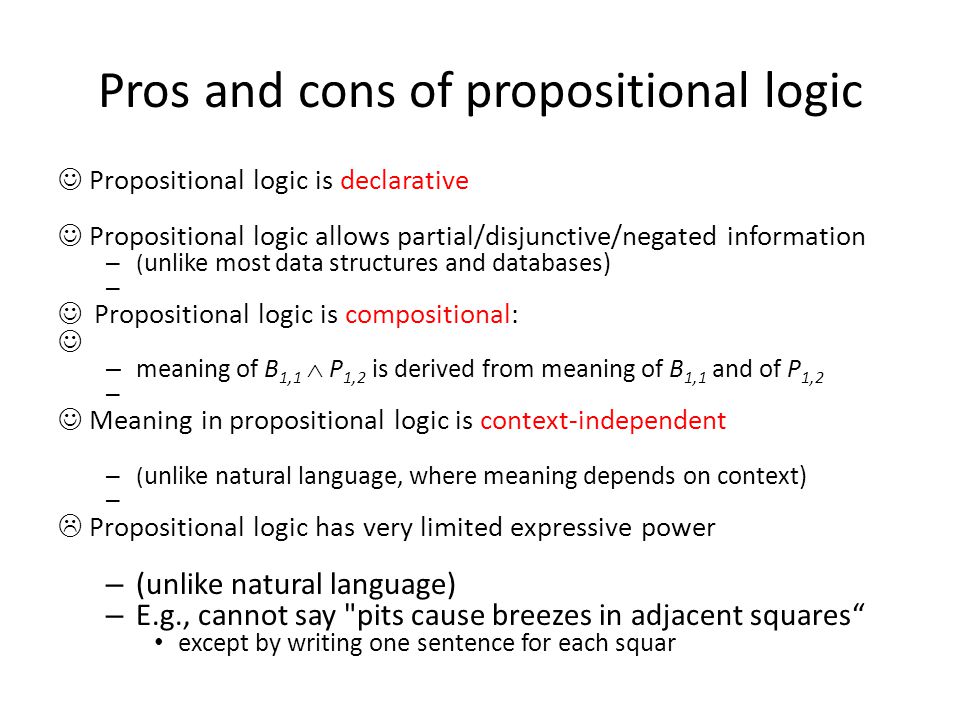

13. Pros and cons of propositional logic Propositional logic is declarative Propositional logic allows partial/disjunctive/negated information – ( unlike most data structures and databases) Propositional logic is compositional: – meaning of B 1,1  P 1,2 is derived from meaning of B 1,1 and of P 1,2 Meaning in propositional logic is context-independent – ( unlike natural language, where meaning depends on context)  Propositional logic has very limited expressive power – (unlike natural language) – E.g., cannot say "pits cause breezes in adjacent squares“ except by writing one sentence for each squar

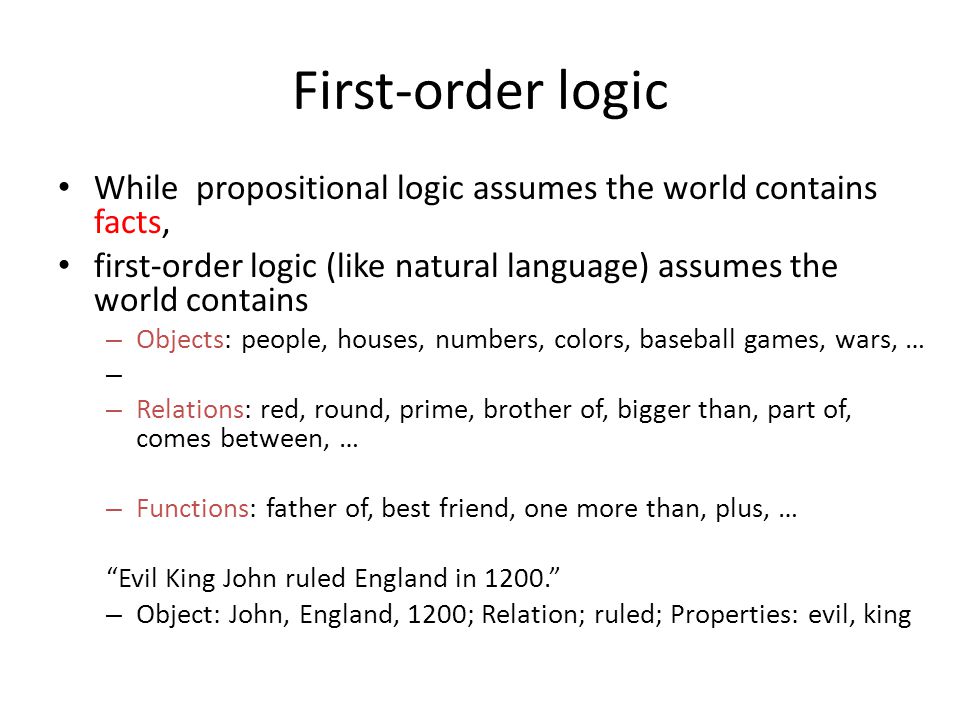

14. First-order logic While propositional logic assumes the world contains facts, first-order logic (like natural language) assumes the world contains – Objects: people, houses, numbers, colors, baseball games, wars, … – Relations: red, round, prime, brother of, bigger than, part of, comes between, … – Functions: father of, best friend, one more than, plus, … “Evil King John ruled England in 1200.” – Object: John, England, 1200; Relation; ruled; Properties: evil, king

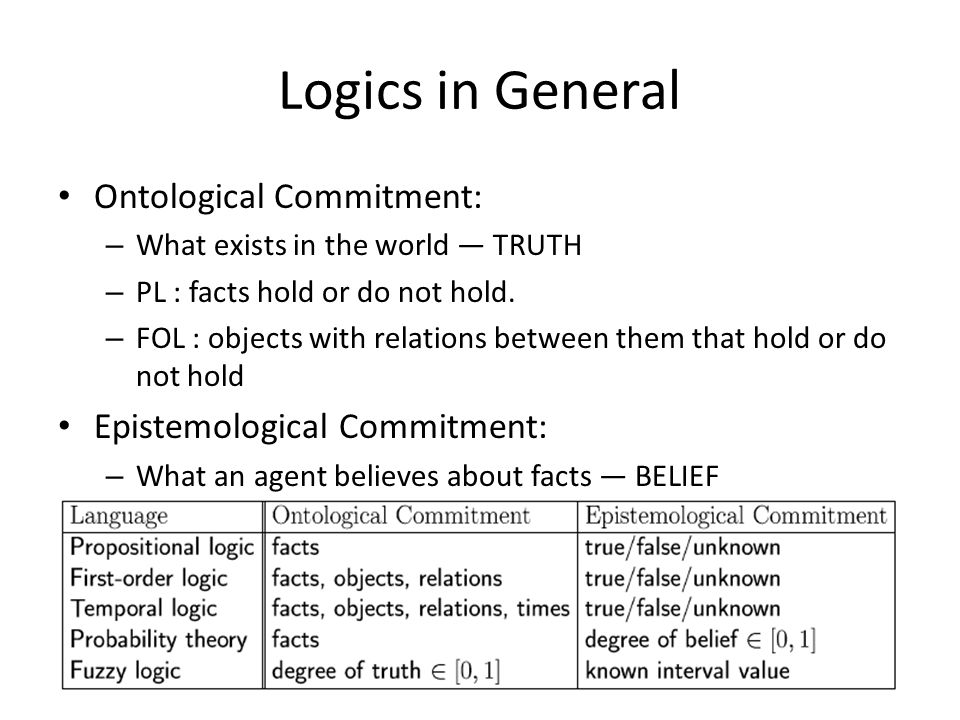

15. Logics in General Ontological Commitment: – What exists in the world — TRUTH – PL : facts hold or do not hold. – FOL : objects with relations between them that hold or do not hold Epistemological Commitment: – What an agent believes about facts — BELIEF

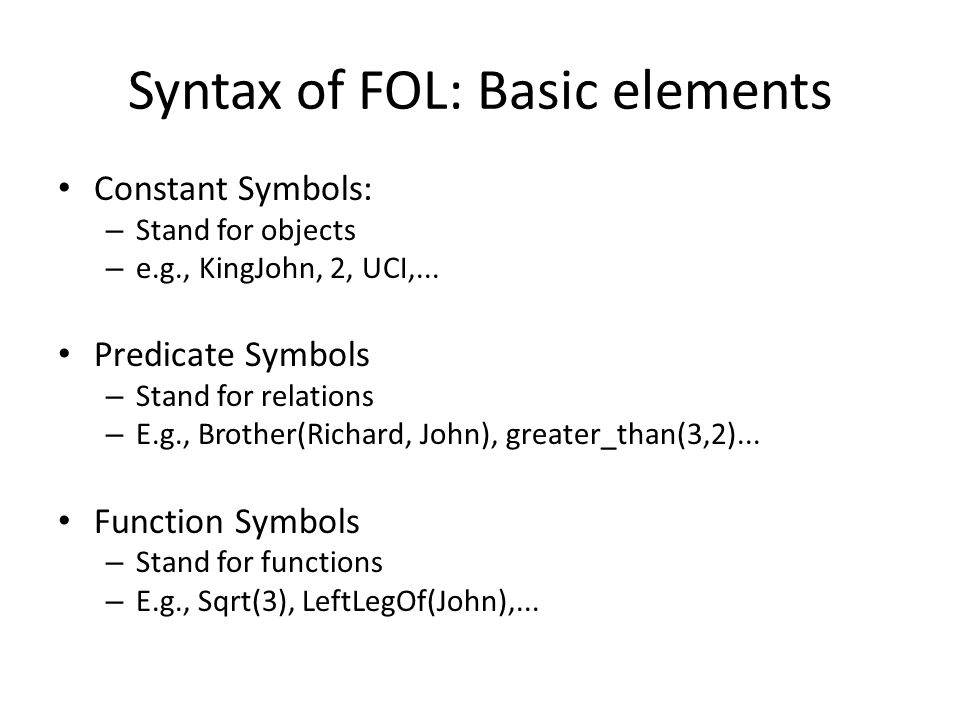

16. Syntax of FOL: Basic elements Constant Symbols: – Stand for objects – e.g., KingJohn, 2, UCI,... Predicate Symbols – Stand for relations – E.g., Brother(Richard, John), greater_than(3,2)... Function Symbols – Stand for functions – E.g., Sqrt(3), LeftLegOf(John),...

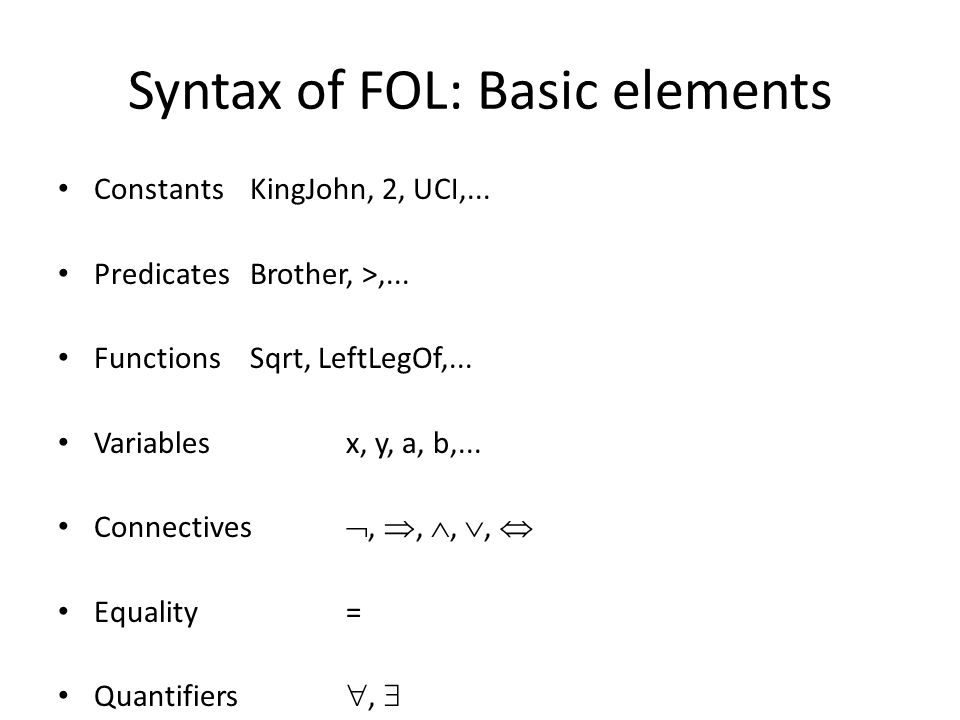

17. Syntax of FOL: Basic elements ConstantsKingJohn, 2, UCI,... PredicatesBrother, >,... FunctionsSqrt, LeftLegOf,... Variablesx, y, a, b,... Connectives , , , ,  Equality= Quantifiers , 

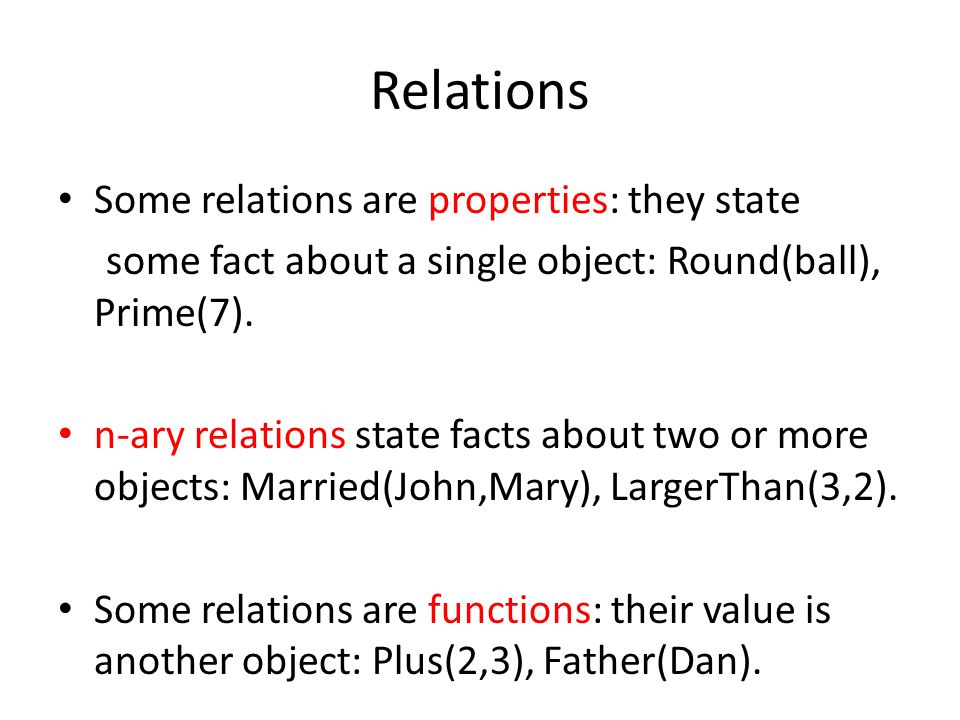

18. Relations Some relations are properties: they state some fact about a single object: Round(ball), Prime(7). n-ary relations state facts about two or more objects: Married(John,Mary), LargerThan(3,2). Some relations are functions: their value is another object: Plus(2,3), Father(Dan).

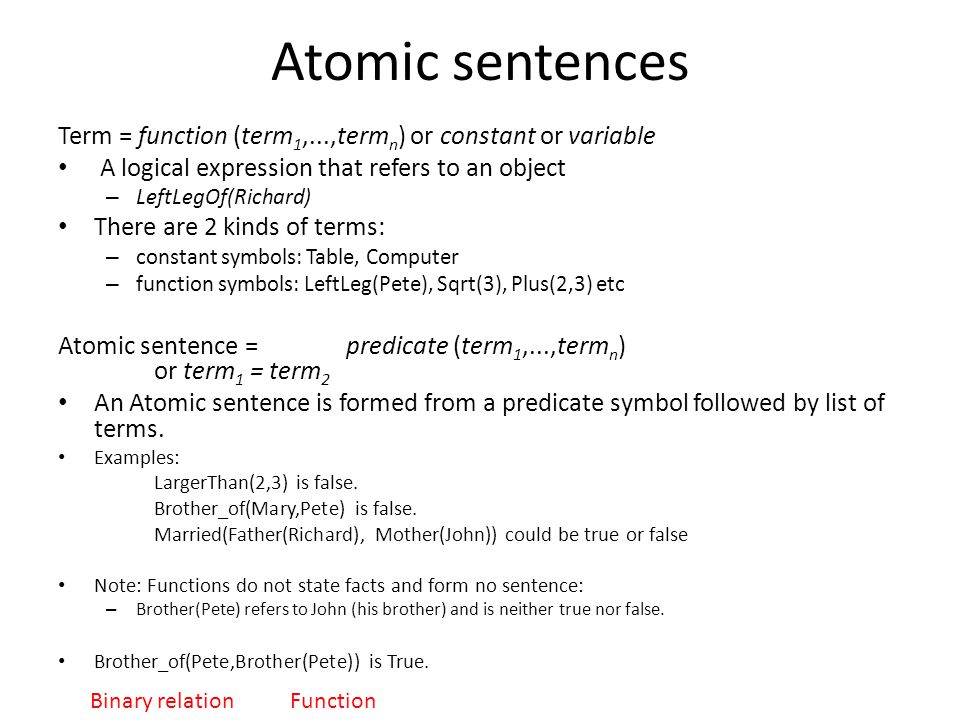

19. Atomic sentences Term = function (term 1,...,term n ) or constant or variable A logical expression that refers to an object – LeftLegOf(Richard) There are 2 kinds of terms: – constant symbols: Table, Computer – function symbols: LeftLeg(Pete), Sqrt(3), Plus(2,3) etc Atomic sentence =predicate (term 1,...,term n ) or term 1 = term 2 An Atomic sentence is formed from a predicate symbol followed by list of terms. Examples: LargerThan(2,3) is false. Brother_of(Mary,Pete) is false. Married(Father(Richard), Mother(John)) could be true or false Note: Functions do not state facts and form no sentence: – Brother(Pete) refers to John (his brother) and is neither true nor false. Brother_of(Pete,Brother(Pete)) is True. Binary relationFunction

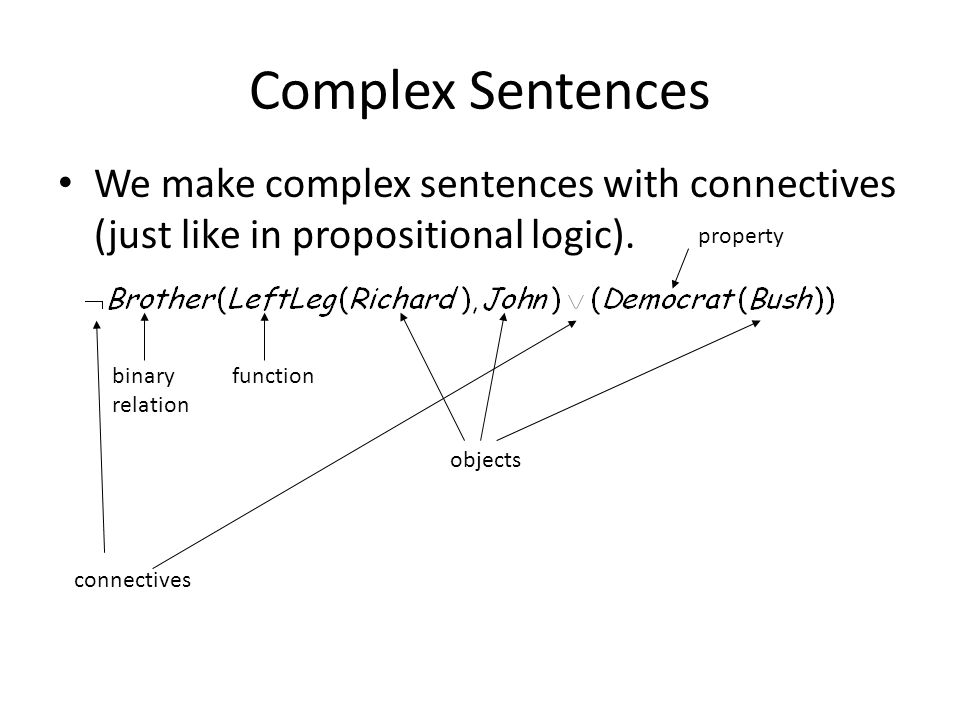

20. Complex Sentences We make complex sentences with connectives (just like in propositional logic). binary relation function property objects connectives

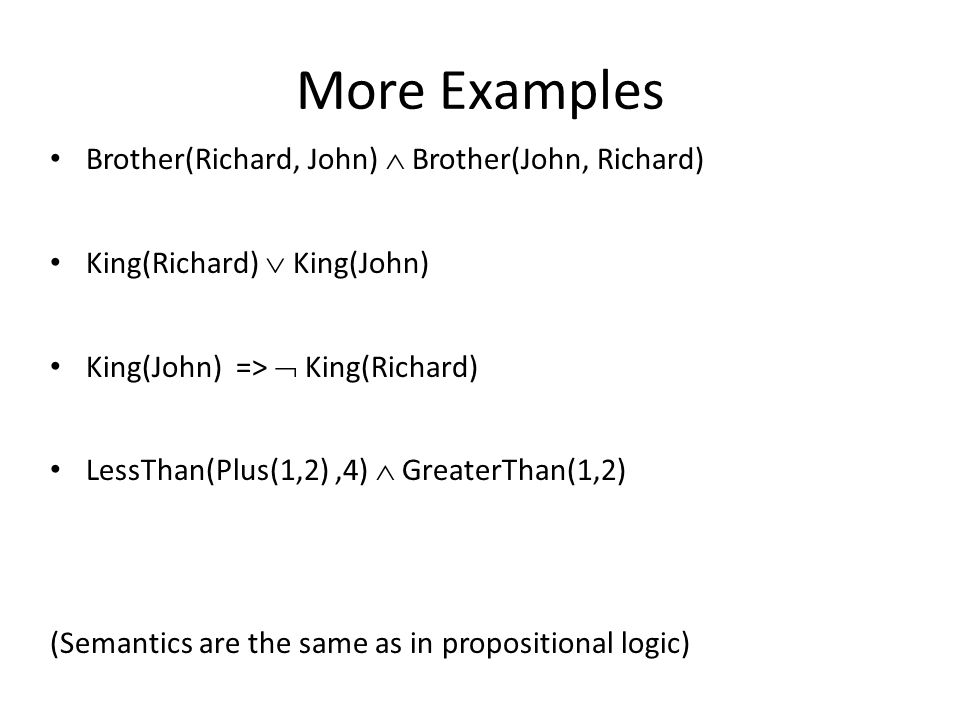

21. More Examples Brother(Richard, John)  Brother(John, Richard) King(Richard)  King(John) King(John) =>  King(Richard) LessThan(Plus(1,2),4)  GreaterThan(1,2) (Semantics are the same as in propositional logic)

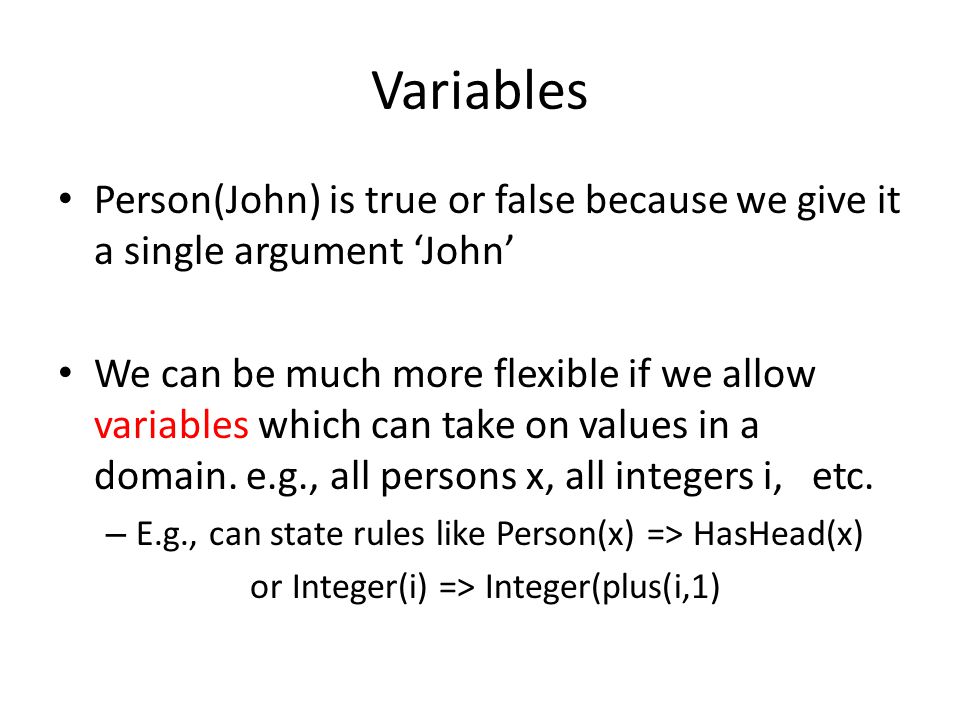

22. Variables Person(John) is true or false because we give it a single argument ‘John’ We can be much more flexible if we allow variables which can take on values in a domain. e.g., all persons x, all integers i, etc. – E.g., can state rules like Person(x) => HasHead(x) or Integer(i) => Integer(plus(i,1)

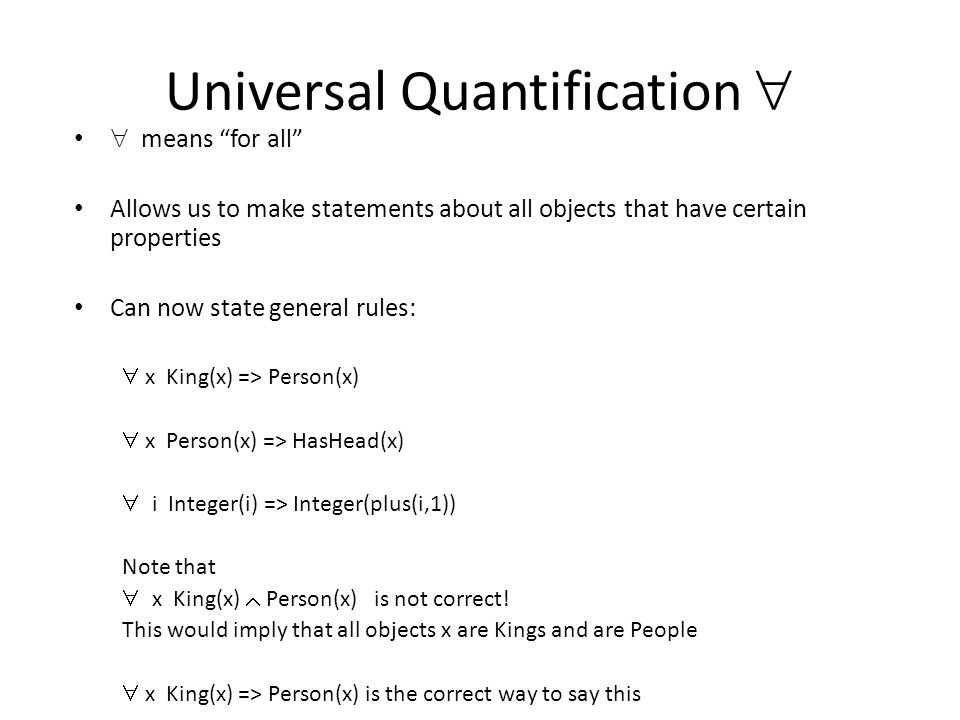

23. Universal Quantification   means “for all” Allows us to make statements about all objects that have certain properties Can now state general rules:  x King(x) => Person(x)  x Person(x) => HasHead(x)  i Integer(i) => Integer(plus(i,1)) Note that  x King(x)  Person(x) is not correct! This would imply that all objects x are Kings and are People  x King(x) => Person(x) is the correct way to say this

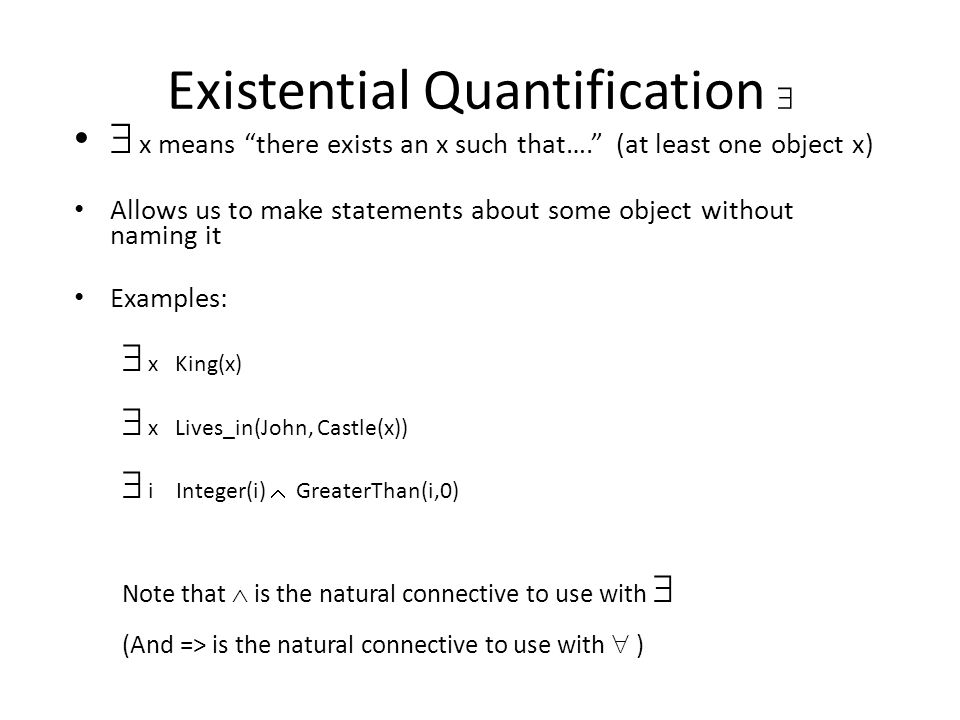

24. Existential Quantification   x means “there exists an x such that….” (at least one object x) Allows us to make statements about some object without naming it Examples:  x King(x)  x Lives_in(John, Castle(x))  i Integer(i)  GreaterThan(i,0) Note that  is the natural connective to use with  (And => is the natural connective to use with  )

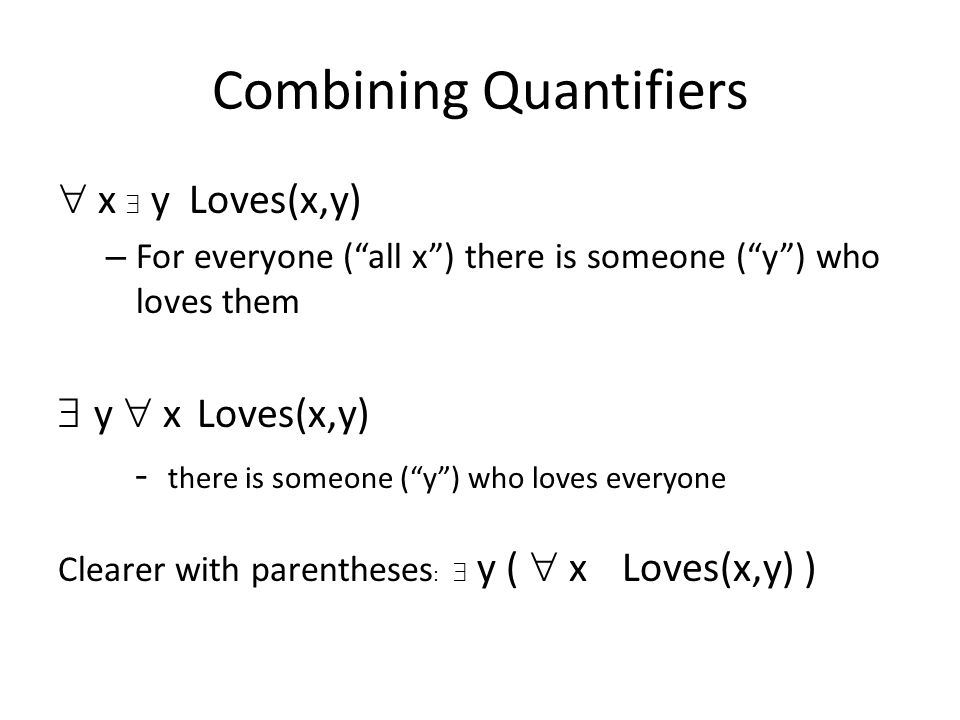

25. Combining Quantifiers  x  y Loves(x,y) – For everyone (“all x”) there is someone (“y”) who loves them  y  x Loves(x,y) - there is someone (“y”) who loves everyone Clearer with parentheses :  y (  x Loves(x,y) )

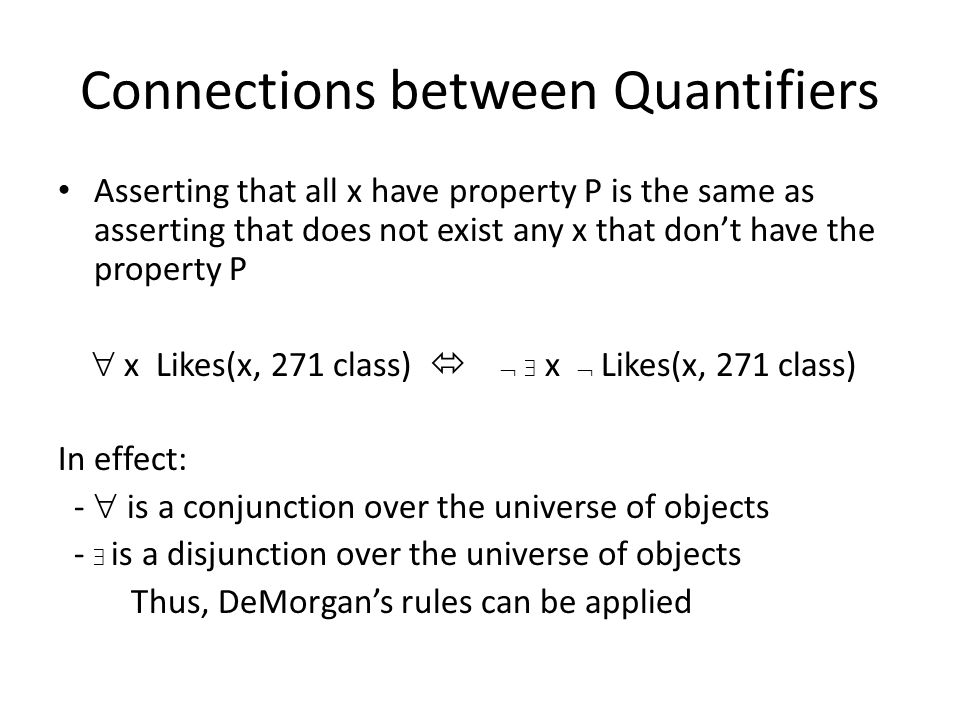

26. Connections between Quantifiers Asserting that all x have property P is the same as asserting that does not exist any x that don’t have the property P  x Likes(x, 271 class)    x  Likes(x, 271 class) In effect: -  is a conjunction over the universe of objects -  is a disjunction over the universe of objects Thus, DeMorgan’s rules can be applied

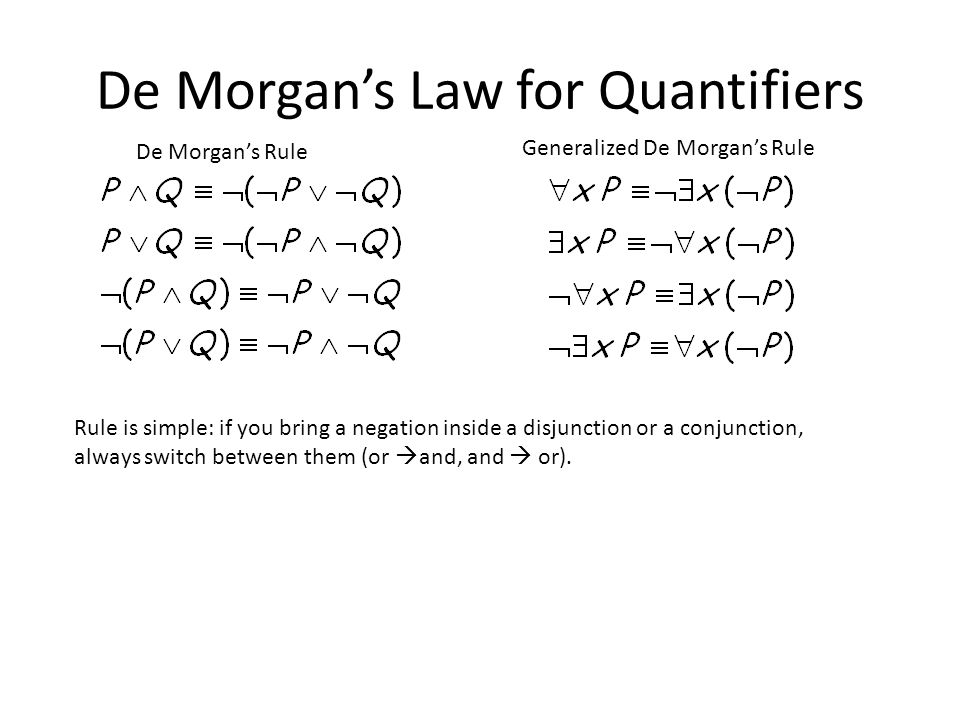

27. De Morgan’s Law for Quantifiers De Morgan’s Rule Generalized De Morgan’s Rule Rule is simple: if you bring a negation inside a disjunction or a conjunction, always switch between them (or  and, and  or).

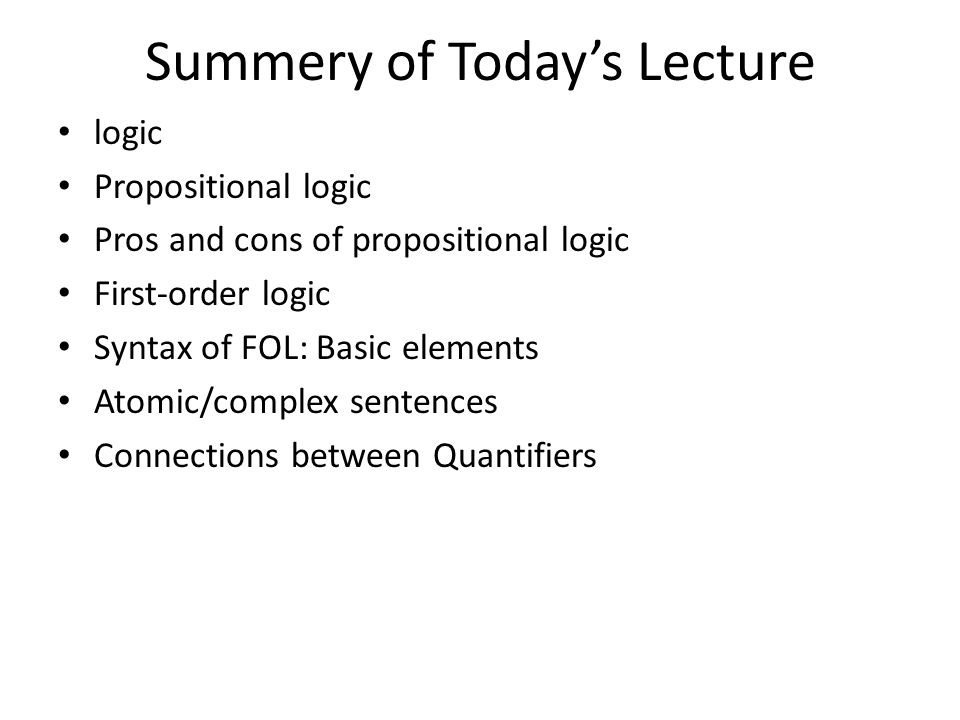

28. Summery of Today’s Lecture logic Propositional logic Pros and cons of propositional logic First-order logic Syntax of FOL: Basic elements Atomic/complex sentences Connections between Quantifiers
