1. Mesh Representation, part II based on: Data Structures for Graphics, chapter 12 in Fundamentals of Computer Graphics, 3 rd ed. (Shirley & Marschner) Slides by Marc van Kreveld 1

2. 3D objects facets edges vertices 2

3. 3D objects We typically represent the boundary; the interior is implied to be the bounded subspace We will assume linear boundaries here, so we have facets, edges, and vertices (and the interior) 3

4. Triangle meshes Many freeform shapes consist of (many) triangles 4

5. Triangle meshes How are triangles, edges, and vertices allowed to connect? How do we represent (store) triangle meshes? How efficient are such schemes? Separate triangle mesh Indexed triangle mesh Triangle neighbor structure Winged-edge structure 5

6. Winged-edge structure Stores connectivity at edges instead of vertices For one edge, say, e 1 : – Two vertices are important: v 4 and v 6 – Two triangles are important: T 5 and T 6 – Four edges are important: e 2, e 14, e 5, and e 8 T6T6 T5T5 T4T4 T3T3 T2T2 T1T1 T7T7 v7v7 v6v6 v5v5 v4v4 v3v3 v2v2 v1v1 v8v8 e7e7 e6e6 e5e5 e4e4 e3e3 e2e2 e1e1 e8e8 e 12 e 11 e 10 e9e9 e 13 e 14 6

7. Winged-edge structure Give e 1 a direction, then – v 4 is the tail and v 6 is the head – T 5 is to the left and T 6 is to the right – e 2 is previous on the left side, e 14 is next on the left side, e 5 is previous on the right side, and e 8 is next on the right side T6T6 T5T5 T4T4 T3T3 T2T2 T1T1 T7T7 v7v7 v6v6 v5v5 v4v4 v3v3 v2v2 v1v1 v8v8 e7e7 e6e6 e5e5 e4e4 e3e3 e2e2 e1e1 e8e8 e 12 e 11 e 10 e9e9 e 13 e 14 7

8. Winged-edge structure Give e 1 a direction, then – v 4 is the tail and v 6 is the head – T 5 is to the left and T 6 is to the right – e 2 is previous on the left side, e 14 is next on the left side, e 5 is previous on the right side, and e 8 is next on the right side T6T6 T5T5 v6v6 v4v4 e5e5 e2e2 e1e1 e8e8 e 14 lnext left head tail right lprev rnext rprev 8

9. Winged-edge structure lnext left head tail right lprev rnext rprev Edge { Edge lprev, lnext, rprev, rnext; Vertex head, tail; Triangle left, right } Vertex { double x, y, z; Edge e; // any incident } Triangle { Edge e; // any incident } 9

10. Winged-edge structure Also works for meshes that do not only use triangles – There is still one head and one tail – There is still one left face and one right face – There are still previous and next edges in the left face and in the right face: e 13, e 7, e 6, and e 8 e7e7 e6e6 e4e4 e3e3 e1e1 e8e8 e 12 e 11 e 10 e 13 Note: The triangle neighbor structure does not generalize 10

11. Winged-edge structure It also works for planar subdivisions like country maps 11

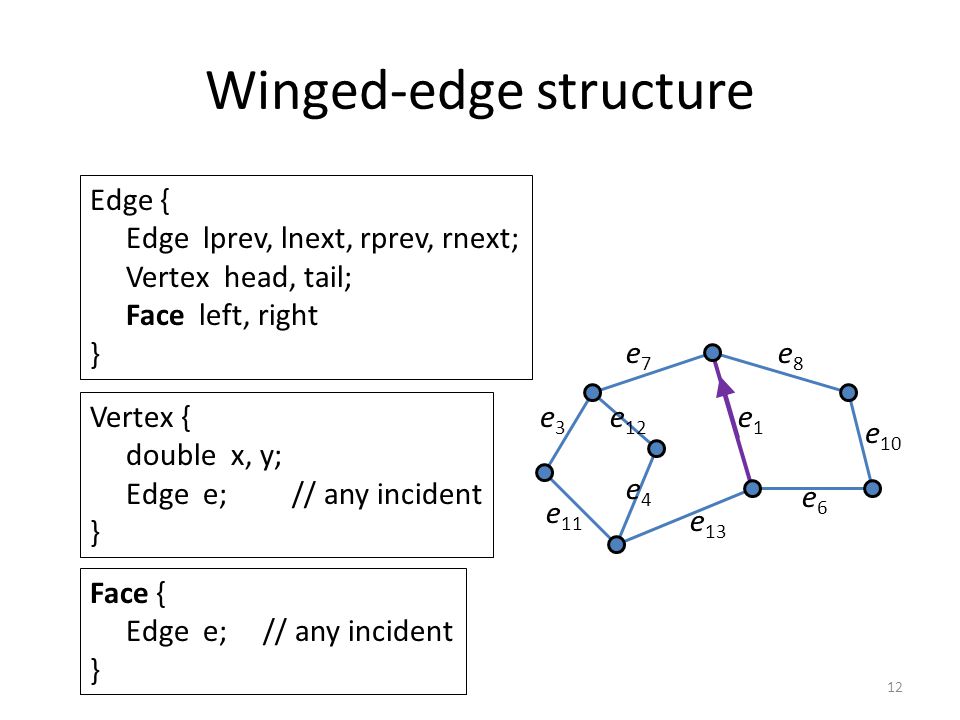

12. Winged-edge structure Edge { Edge lprev, lnext, rprev, rnext; Vertex head, tail; Face left, right } Vertex { double x, y; Edge e; // any incident } Face { Edge e; // any incident } e7e7 e6e6 e4e4 e3e3 e1e1 e8e8 e 12 e 11 e 10 e 13 12

13. Winged-edge structure, storage A triangular mesh with nv vertices has  3nv edges and  2nv triangles A vertex needs 3(4) units of storage (with z coord.) An edge needs 8 units of storage A triangle needs 1 unit of storage  3(4) + 3  8 + 2  1 = 29(30) nv units of storage 13

14. Winged-edge structure However, the arbitrary orientation of edges makes traversal of the boundary of a face awkward e7e7 e6e6 e4e4 e3e3 e1e1 e8e8 e 12 e 11 e 10 e 13 e2e2 e5e5 F5F5 With consistent orientations, we could report the vertices of a face iteratively: while ( e  e start ) { e = e.lnext; report e.tail.coordinates; } But consistent orientations usually do not exist x 14

15. Winged-edge structure while ( e  e start ) { if (forward) { report e.tail.coordinates; enew = e.lnext; if (enew.head == e.head) forward = false; } else { report e.head.coordinates; enew = e.rprev; if (enew.tail == e.tail) forward = true; } e = enew; } e face enew e face enew 15

16. Half-edge structure A.k.a. doubly-connected edge list, DCEL Allows the purely forward traversal of the boundary of a face Every edge is represented as two half-edges (split lengthwise!) 16

17. Half-edge structure A consistent orientation around every face now works! Every half-edge is incident only to the face to its left (by convention)  then every face has its half-edges oriented counterclockwise 17

18. Half-edge structure HEdge { HEdge next, pair; Vertex head; Face f; } Vertex { double x, y; HEdge h; // any incident half-edge // pointing to this vertex } Face { HEdge h; // any incident half-edge in its boundary } next f head pair 18

19. Half-edge structure A half-edge h can find its tail as h.pair.head A half-edge h can find the other face incident to the edge it is part of as h.pair.f A half-edge cannot find its prev easily (prev is the opposite of next); it is a design choice to include an extra prev in HEdge or not next f head pair 19

20. Half-edge structure, storage A triangular mesh with nv vertices has  3nv edges and  2nv triangles A vertex needs 3(4) units of storage (with z coord.) A half-edge needs 4 units of storage A triangle needs 1 unit of storage  3(4) + 3  2  4 + 2  1 = 29(30) nv units of storage 20

21. Half-edge structure, storage A half-edge needs 5 units of storage when prev is also stored  3(4) + 3  2  5 + 2  1 = 35(36) nv units of storage 21

22. Half-edge structure, storage For country maps instead of triangular meshes, a map with nv vertices has  nv edges and << nv faces  3 + 2  4 = 11 nv units of storage 22

23. Half-chain structure For country maps instead of triangular meshes, a map with nv vertices has  nv edges and << nv faces In GIS, the long sequences of degree-2 vertices (chains) defining the shape of a border are stored differently, with the vertices in an array, so next and prev are not needed We can define half-chains The whole half-chain has the same left face Each half-chain has a next half-chain, a prev half-chain, and a pair half-chain 23

24. 24 Half-chain structure Chains are made by splitting the subdivision at all vertices of degree at least 3 or exactly 1; only these vertices are objects in the half-chain structure All vertices in between two such vertices have degree 2 A chain always starts and ends at a vertex of degree 1 or at least 3, and has zero or more degree 2 vertices Half-chains are the two “sides” of a chain, splitting length-wise

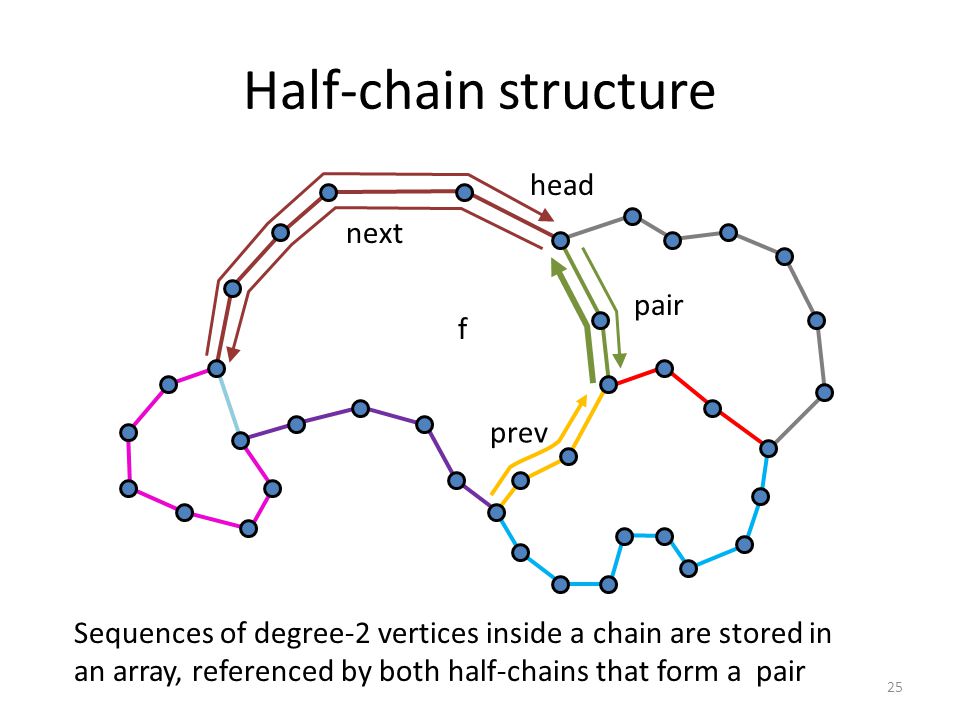

25. Half-chain structure 25 next pair head f Sequences of degree-2 vertices inside a chain are stored in an array, referenced by both half-chains that form a pair prev

26. Half-chain structure, storage Assume nv vertices of which nw are of degree 1 or at least 3 (so only nw vertex objects) If nw << nv, then we have  nv edges, < 3nw chains, and < 2nw faces The total storage requirements are just 2nv + 29nw units (much better than the 11nv units for the half- edge structure!) For example, a part of Europe with 20 three-country points and 100,000 vertices (for the shape of borders) requires less than 200,600 units 26

27. Half-edge structure, disconnected 27 Subdivisions have loose components like island

28. Half-edge structure, disconnected 28 Internal holes can also exist

29. Half-edge structure Planar subdivisions may have “islands/holes” in faces: faces from which pieces are excluded In this case the graph of vertices and edges is not a connected graph f 29

30. Half-edge structure Faces with holes are common in 3D CAD/CAM models too 30

31. Half-edge structure for subdivisions with holes HEdge { HEdge next, pair; Vertex head; Face f; } Vertex { double x, y, x; HEdge h; // any incident half-edge // pointing to this vertex } Face { HEdge h; // any incident half-edge in its boundary HEdge inner[k]; // for each hole, any incident half-edge; // allows up to k holes in the face } 31

32. Half-edge structure for subdivisions with holes f f.h f.inner[0] f.inner[1] 32

33. Half-edge structure for subdivisions with holes Every bounded face has exactly one counterclockwise cycle of half-edges bounding it from the outside, and zero or more clockwise cycles of half-edges bounding that face from the inside (holes) The structure also works for any planar straight-line graph (PSLG), with possibly: – dangling edges or other dangling structures – loose edges 33

34. Planar versus non-planar None of the structures allow edge-crossings, as faces would not be well-defined, and points can lie in multiple faces at once 34

35. 3D meshes So far, we can represent 2D subdivisions and boundaries of 3D solids, but not 3D subdivisions 35

36. 3D tetrahedral meshes The 3D version of a triangle is a tetrahedron The 3D version of a triangular mesh is a tetrahedral mesh (and triangulation vs. tetrahedralization) 36

37. 3D tetrahedral meshes A 3D tetrahedral mesh has the following features: – vertices (0-dimensional) – edges (1-dimensional) – triangles (2-dimensional) – tetrahedra (3-dimensional) 37

38. 3D tetrahedral meshes In a proper 3D tetrahedral mesh: – Every vertex is endpoint of some edge – For every edge, both endpoints are vertices of the mesh – Every edge is a side of some triangle – For every triangle, its three sides are edges of the mesh – Every triangle is a facet of some tetrahedron – For every tetrahedron, its four facets are triangles of the mesh – If edges, triangles, and tetrahedra are considered to be open, then no two features of the mesh intersect 38

39. 3D tetrahedral meshes Every polygon can be converted into a triangular mesh without needing extra vertices, but polyhedra exist that cannot be converted into a tetrahedral mesh without extra edges and vertices Schönhardt polyhedron 39

40. 3D tetrahedral meshes Representation of 3D tetrahedral meshes: – Indexed tetrahedron mesh: classes for vertex and tetrahedron; a tetrahedron can access its four vertices – Tetrahedron neighbor structure: classes for vertex and tetrahedron; a tetrahedron can access its four vertices and its (up to) four neighbor tetrahedra – Simplices structure (described next; for any dimension): classes for vertex, edge, triangle, and tetrahedron 40

41. Simplices structure A k-simplex is the convex hull defined by k+1 points that do not lie in any single (k-1)-dim. linear variety Equivalent: the k+1 points p 0,..., p k are such that the vectors p 0 p 1, p 0 p 2,..., p 0 p k are linearly independent – 0-simplex: point / vertex – 1-simplex: line segment / edge – 2-simplex: triangle – 3-simplex: tetrahedron – 4-simplex: convex hull of 5 non-co-hyperplanar points in 4-space 41

42. Simplices structure A vertex has access to one incident edge An edge has access to its vertices and one incident triangle A triangle has access to its three edges and both incident tetrahedra A tetrahedron has access to its four triangles vertex edge triangle tetrahedron some bothall 4 all 3 both 42

43. Simplices structure Can also be used for 4D and even higher-D 4D can be space-time for changing objects Higher-D can be the space of location and orientation of a rigid 3D object (6D) 43

44. Simplices structure Always: k-simplices have access to (k-1)-simplices and (k+1)-simplices 0-dim 1-dim (d-1)-dim d-dim some bothall d+1 all 3 both someall d 44

45. Quadrilateral meshes 45

46. Quadrilateral meshes 46

47. Not every subdivision with triangular faces is a triangular mesh 47

48. Meshes have multi-resolution possibilities 48

49. Representation of 3D models: summary Boundary or solid model representation Triangle mesh, quadrilateral mesh, general faces (good for maps) Meshes that store incidence/adjacency of features allow efficient traversal on the mesh  faster (local) operations Triangle strips may be useful for transmitting meshes Higher-dimensional mesh representations exist as well 49

50. Questions 1.Write code to report all vertices adjacent to a given vertex v in a half-edge structure for a triangular mesh. Is your solution clockwise or counter-clockwise? Now do it the other way around 2.Do the same for general subdivisions, clockwise and counter- clockwise 3.Write code to report all vertices in the boundary of a face that may have holes and is given in a half-edge structure 4.How do you access the four 3-simplices adjacent to a given 3-simplex in a simplices structure in 3D? 5.How many units of storage are needed in the different structures for representing tetrahedrilizations? 50
