Prisms Lesson 9-2

2
**2 Truths and a fib! A cylinder is not a polyhedron.**

2. A cube is a type of pyramid. 3. A square pyramid has 5 faces.

3

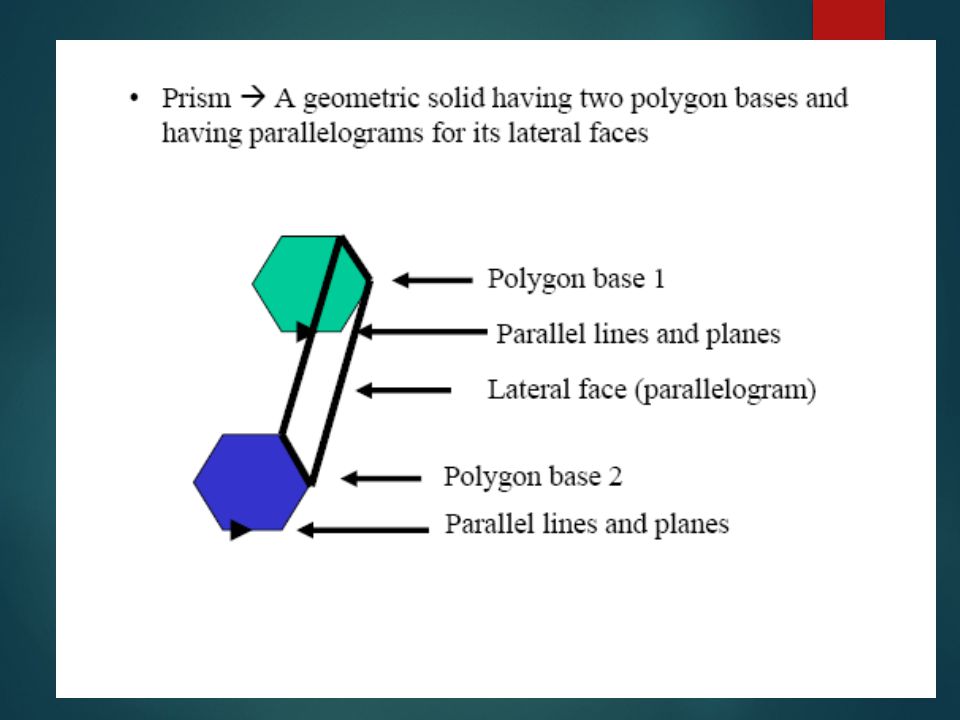

**What is a prism? A prism is a 3D figure with parallel bases**

that are polygons. The other faces of a prism are parallelograms, most often rectangles. The name of a prism tells what the base should be shaped like: – Triangular prism – triangle bases – Rectangular prism – rectangle bases – Cube – square bases – Pentagonal prism – pentagon bases

4
**The base has sides. 4 Vertices (points) 8 Edges (lines) 12**

Rectangular Prism The base has sides. 4 Vertices (points) 8 Edges (lines) 12 Faces (planes) 6

5
**Vertices (points) 6 Edges (lines) 9 Faces (planes) 5 Triangular Prism**

The base has 3 sides. 5

6
**The base has sides. 6 Vertices (points) 12 Edges (lines) 18**

Hexagonal Prism The base has sides. 6 Vertices (points) 12 Edges (lines) 18 Faces (planes) 8

7
**5 The base has sides. Vertices (points) 10 Edges (lines) 15**

Pentagonal Prism The base has sides. 5 Vertices (points) 10 Edges (lines) 15 Faces (planes) 7

8
**Name Picture Base Vertices Edges Faces**

Triangular Prism Rectangular Prism Pentagonal Prism Hexagonal Prism Heptagonal Prism Octagonal Prism 3 6 9 5 4 8 12 6 5 10 15 7 6 12 18 8 Draw it 7 14 21 9 8 16 24 10 No picture Any Prism n 2n 3n n+2

10
**Volume of a Prism = Bh where B = Area of the Base and h = Height of the Prism**

Remember: the bases are the parallel sides and the height is the distance between the bases!!! Height of the prism Base

11
Volume of a Cube Volume= area of base x height V = Bh (B= AREA of the base) Side length is 5 inches Area of the base=? Height=? Volume= ? Area of the base=5(5) =25 Height=5 Volume= 125 cubic inches

12
**Volume of a Rectangular Prism**

V = area of base x height V = Bh (B= AREA of the base) 5 4 8 Area of base =? Height = ? Volume = ? Area of base =5 x 4 = 20 H = 8 V = 20 x 8 = 160

13
**Triangular Prism Volume**

6 8 5 10 4 Volume = Bh Volume = area of base x height Area of the base=? Triangle ½(6)(4) =12 Height of prism= ? Height of prism= 10 Volume= (12)10=120 cubic units

14
**Go to the Notes to see another example**

Go to the Notes to see another example! What do you say when you see an empty parrot cage? Poly-gon
