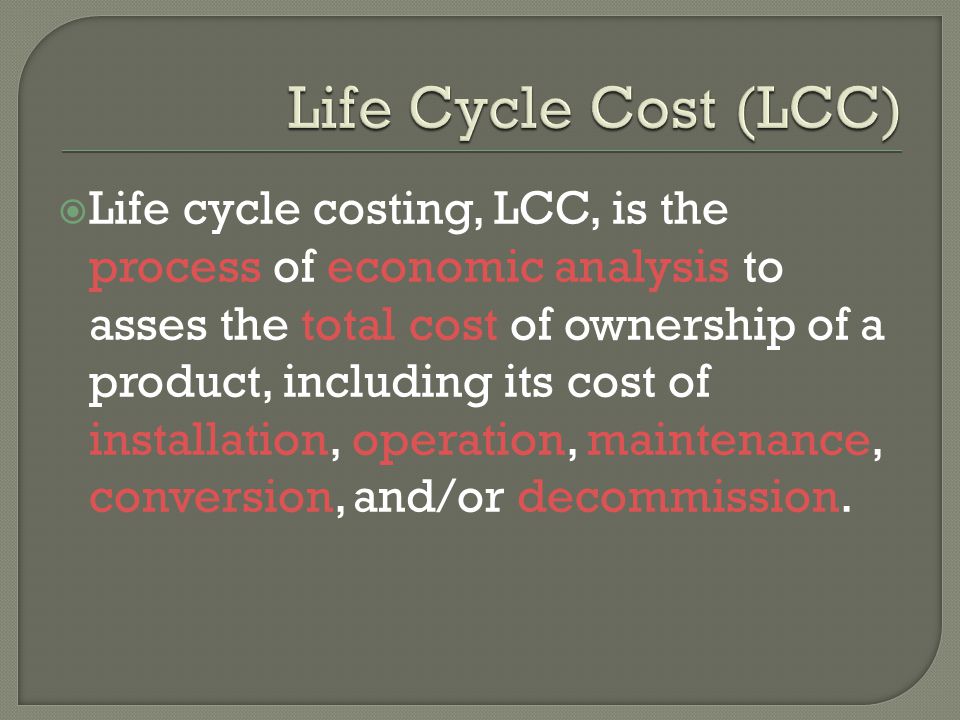

2.  Life cycle costing, LCC, is the process of economic analysis to asses the total cost of ownership of a product, including its cost of installation, operation, maintenance, conversion, and/or decommission.

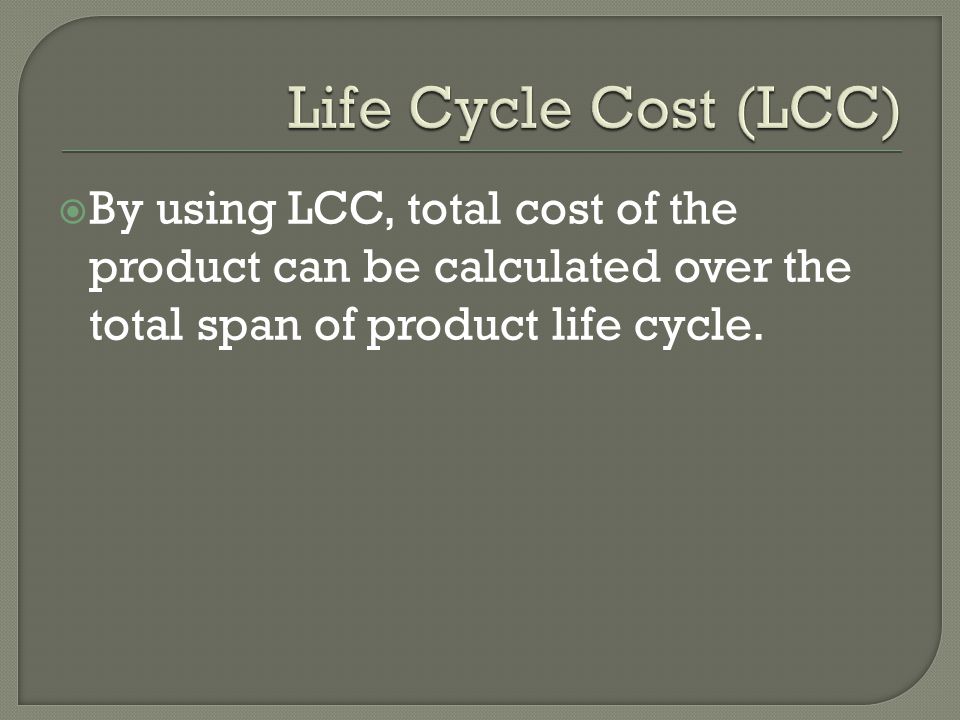

3.  By using LCC, total cost of the product can be calculated over the total span of product life cycle.

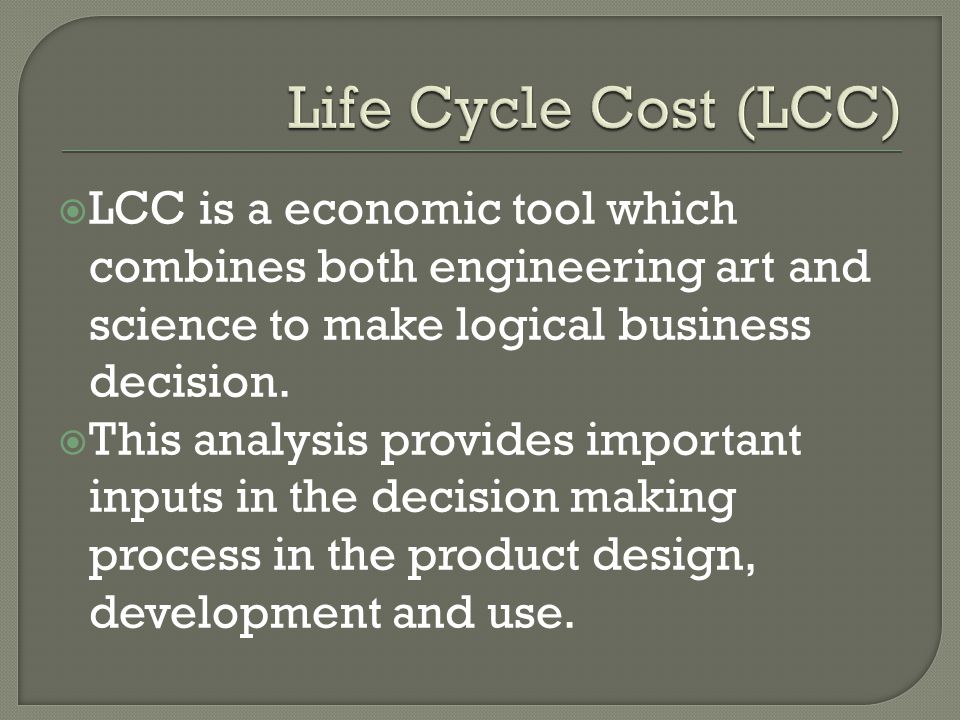

4.  LCC is a economic tool which combines both engineering art and science to make logical business decision.  This analysis provides important inputs in the decision making process in the product design, development and use.

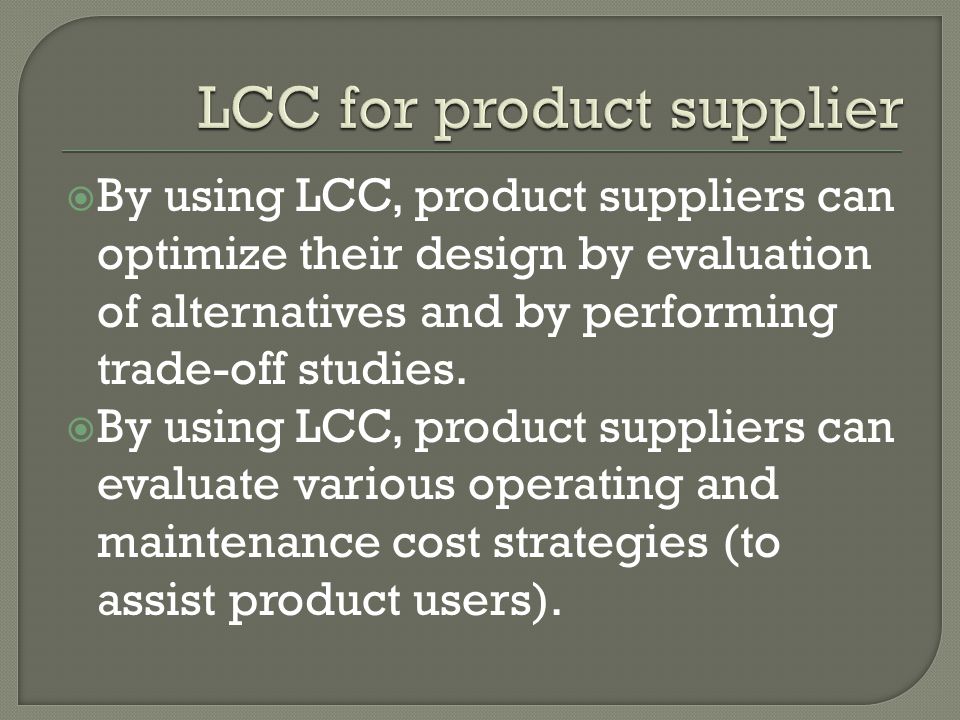

5.  By using LCC, product suppliers can optimize their design by evaluation of alternatives and by performing trade-off studies.  By using LCC, product suppliers can evaluate various operating and maintenance cost strategies (to assist product users).

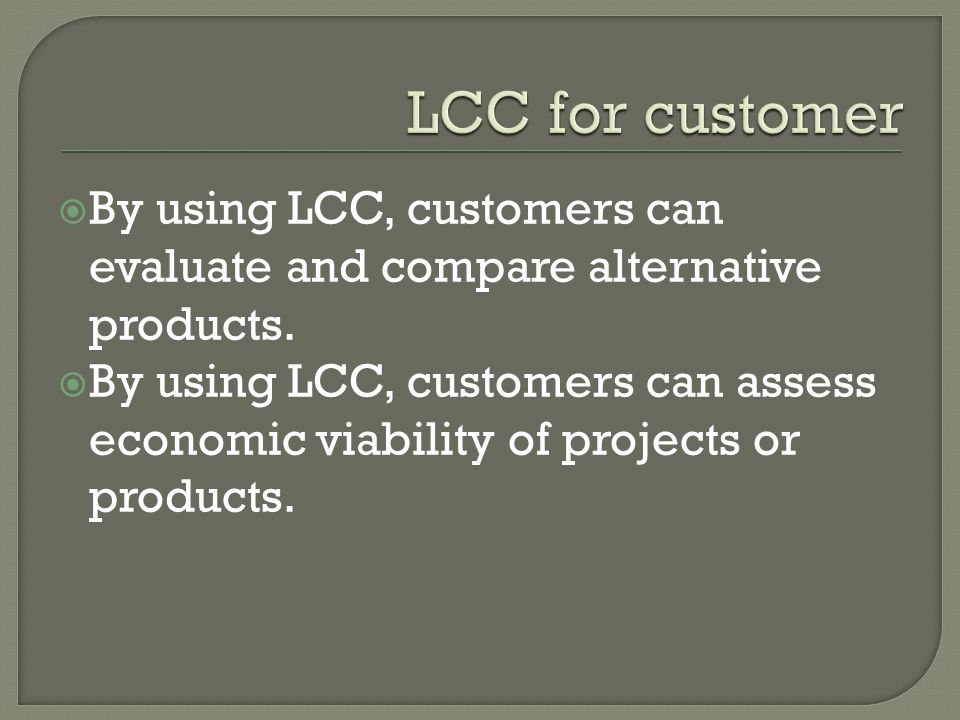

6.  By using LCC, customers can evaluate and compare alternative products.  By using LCC, customers can assess economic viability of projects or products.

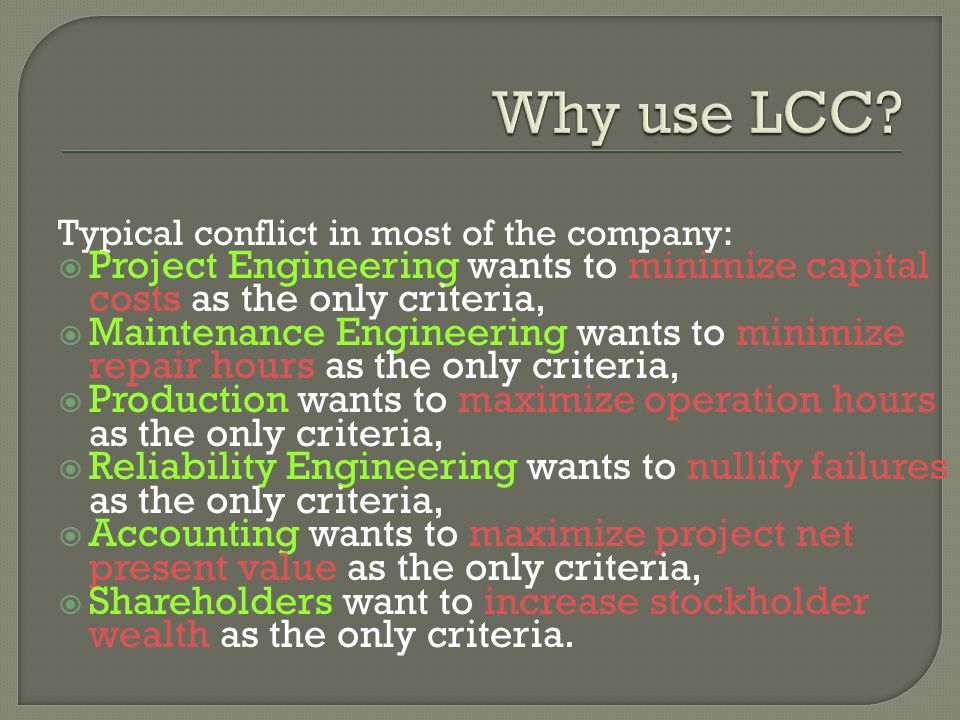

7. Typical conflict in most of the company:  Project Engineering wants to minimize capital costs as the only criteria,  Maintenance Engineering wants to minimize repair hours as the only criteria,  Production wants to maximize operation hours as the only criteria,  Reliability Engineering wants to nullify failures as the only criteria,  Accounting wants to maximize project net present value as the only criteria,  Shareholders want to increase stockholder wealth as the only criteria.

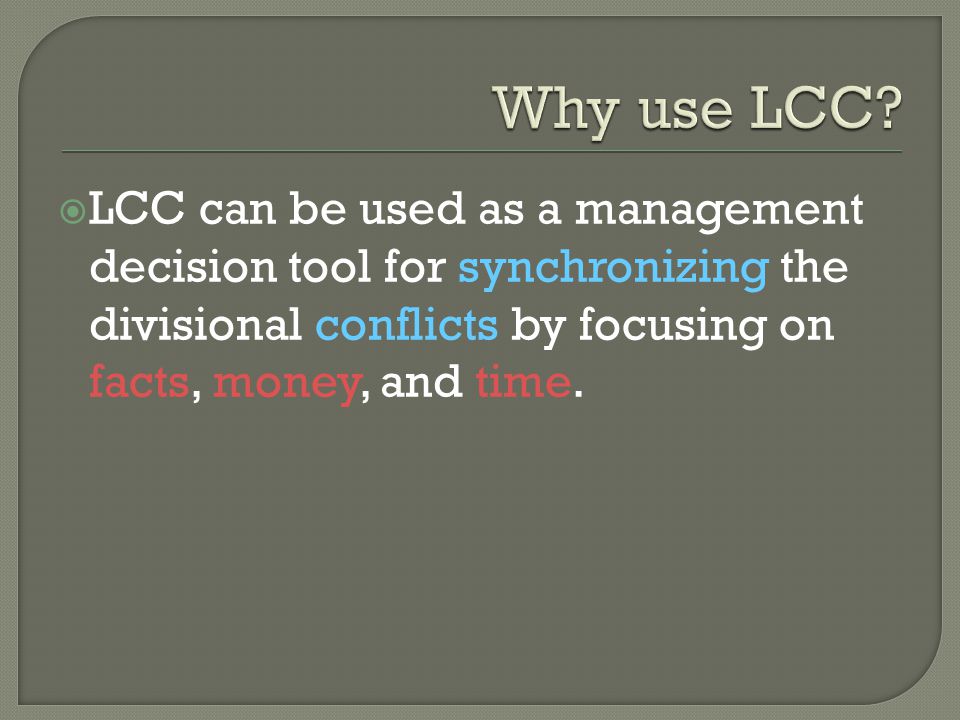

8.  LCC can be used as a management decision tool for synchronizing the divisional conflicts by focusing on facts, money, and time.

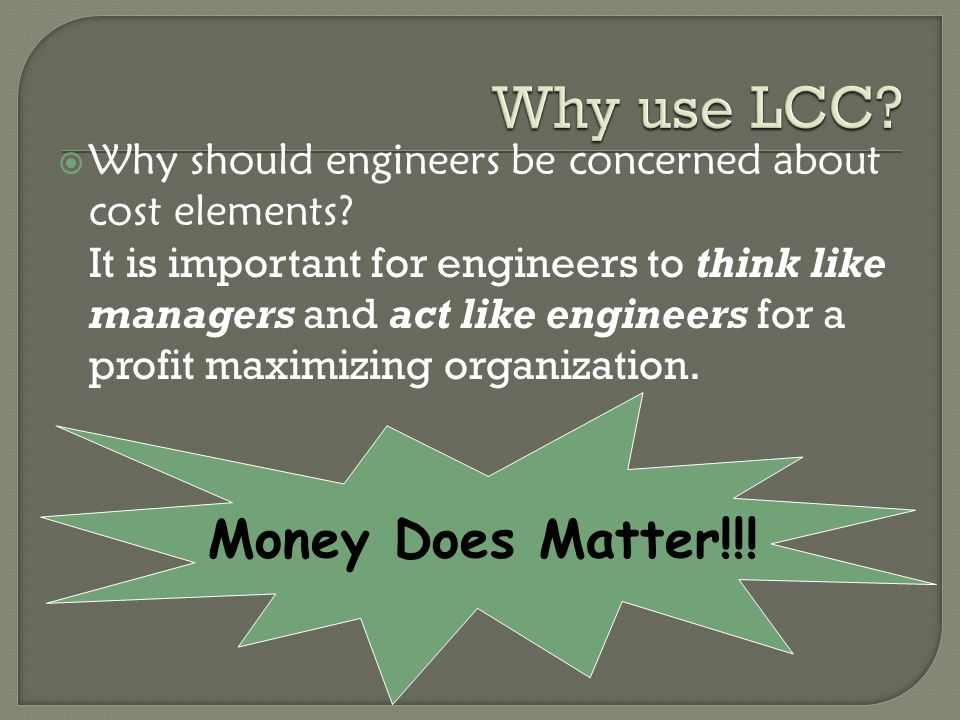

9.  Why should engineers be concerned about cost elements? It is important for engineers to think like managers and act like engineers for a profit maximizing organization. Money Does Matter!!!

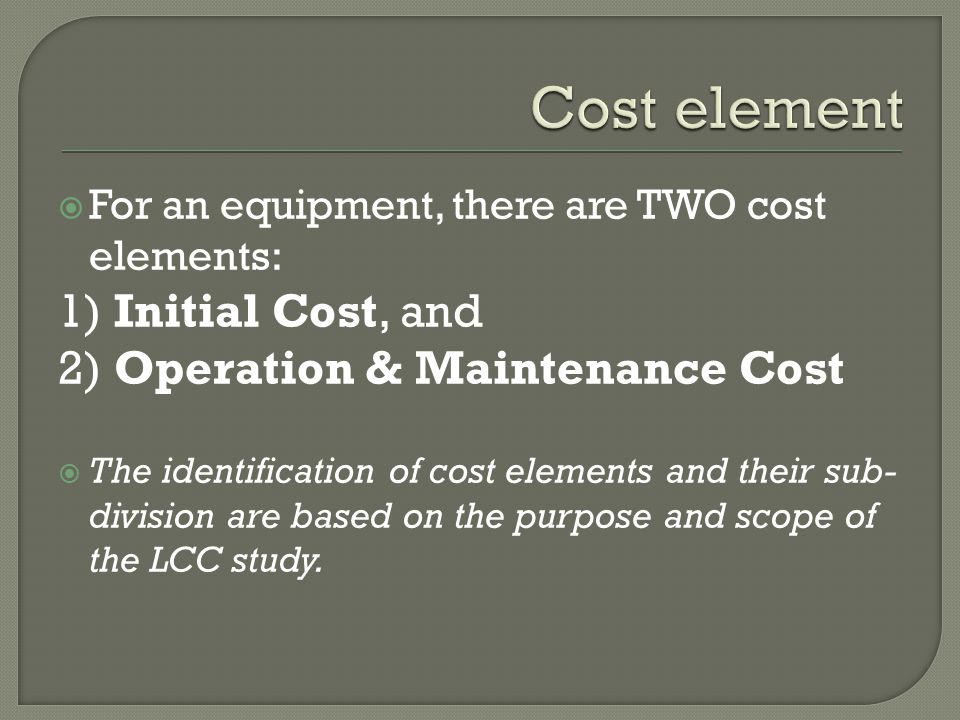

10.  For an equipment, there are TWO cost elements: 1) Initial Cost, and 2) Operation & Maintenance Cost  The identification of cost elements and their sub- division are based on the purpose and scope of the LCC study.

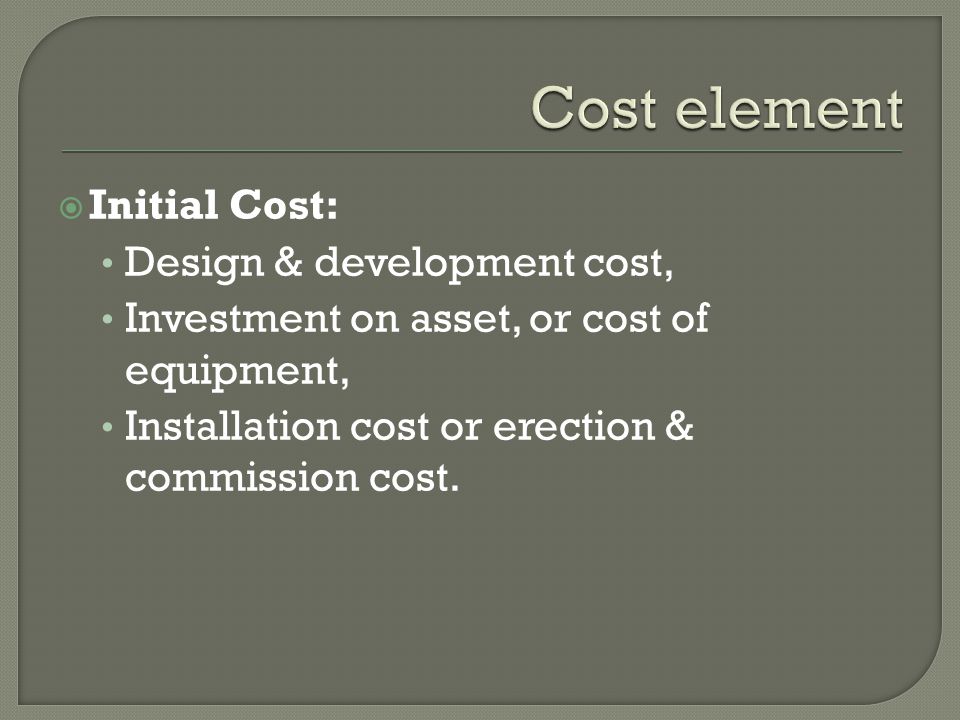

11.  Initial Cost: Design & development cost, Investment on asset, or cost of equipment, Installation cost or erection & commission cost.

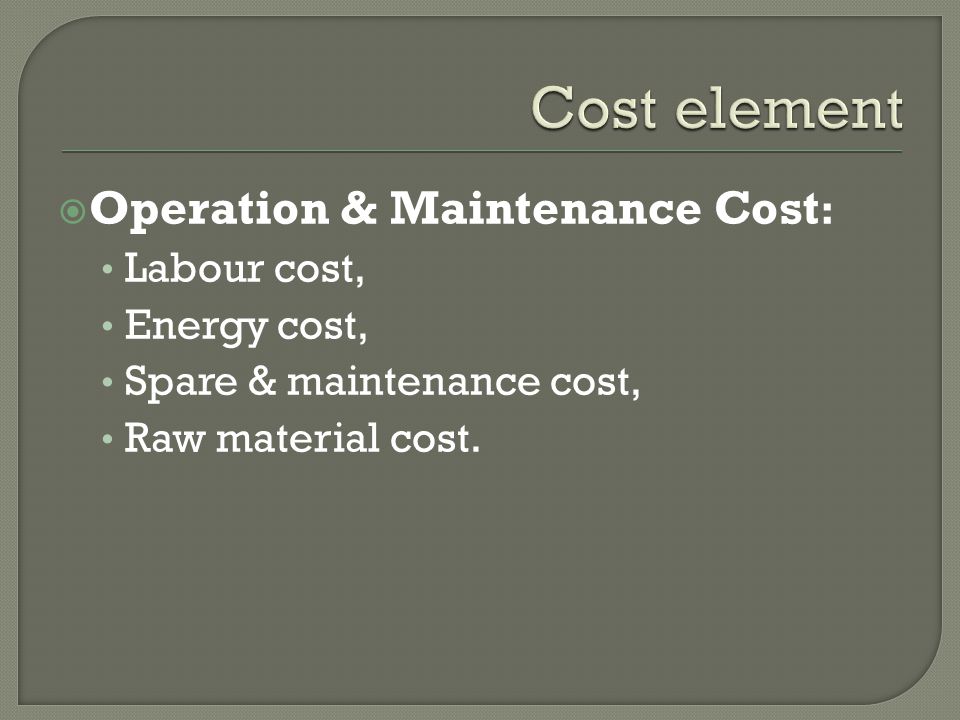

12.  Operation & Maintenance Cost : Labour cost, Energy cost, Spare & maintenance cost, Raw material cost.

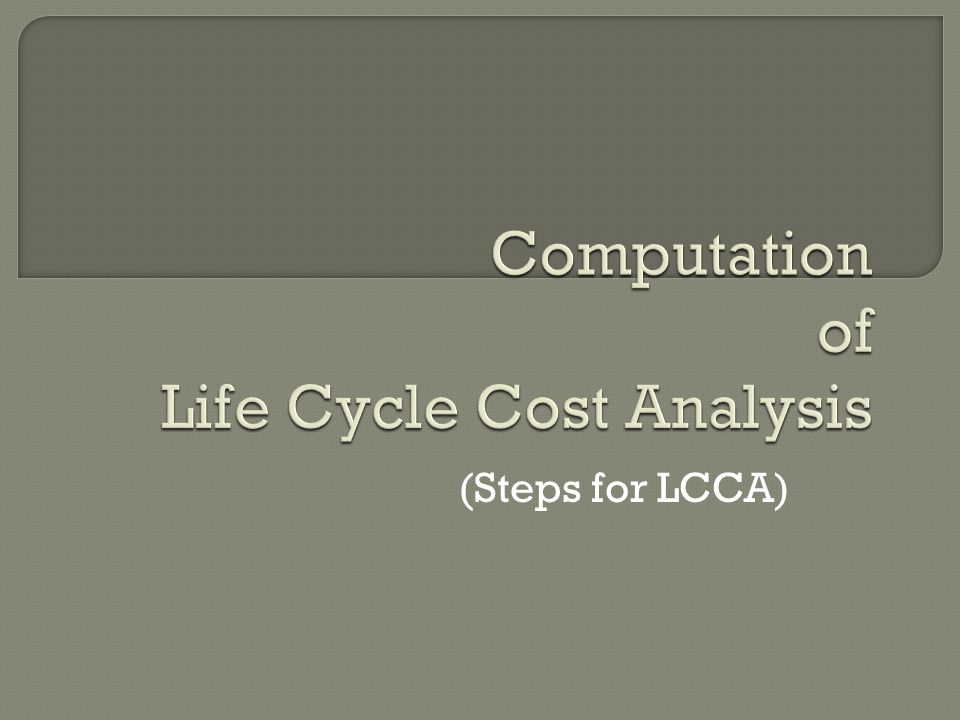

13. (Steps for LCCA)

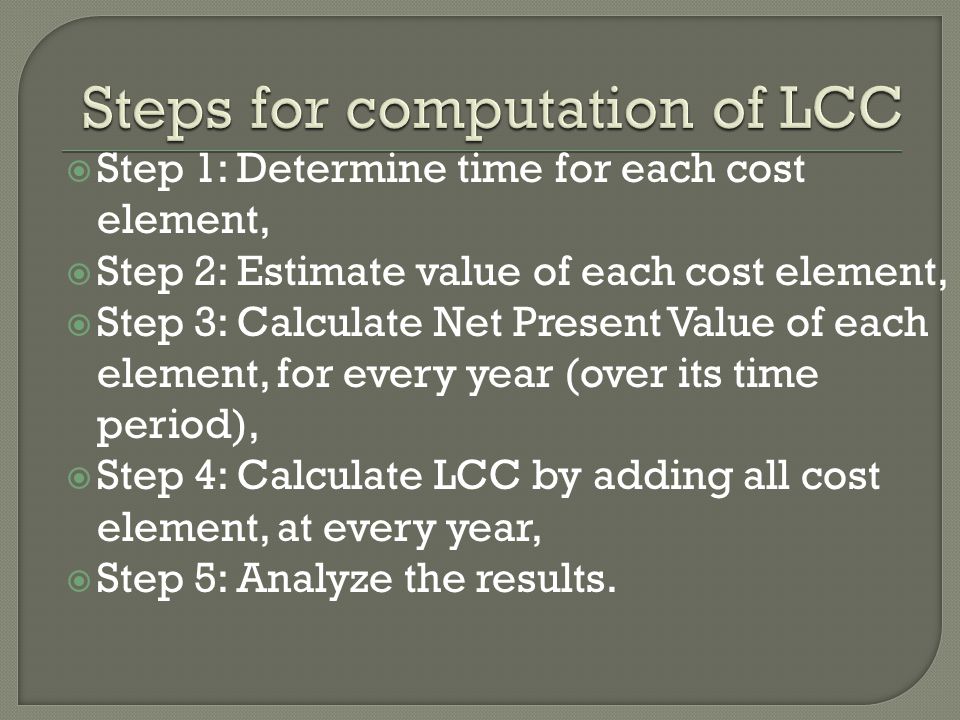

14.  Step 1: Determine time for each cost element,  Step 2: Estimate value of each cost element,  Step 3: Calculate Net Present Value of each element, for every year (over its time period),  Step 4: Calculate LCC by adding all cost element, at every year,  Step 5: Analyze the results.

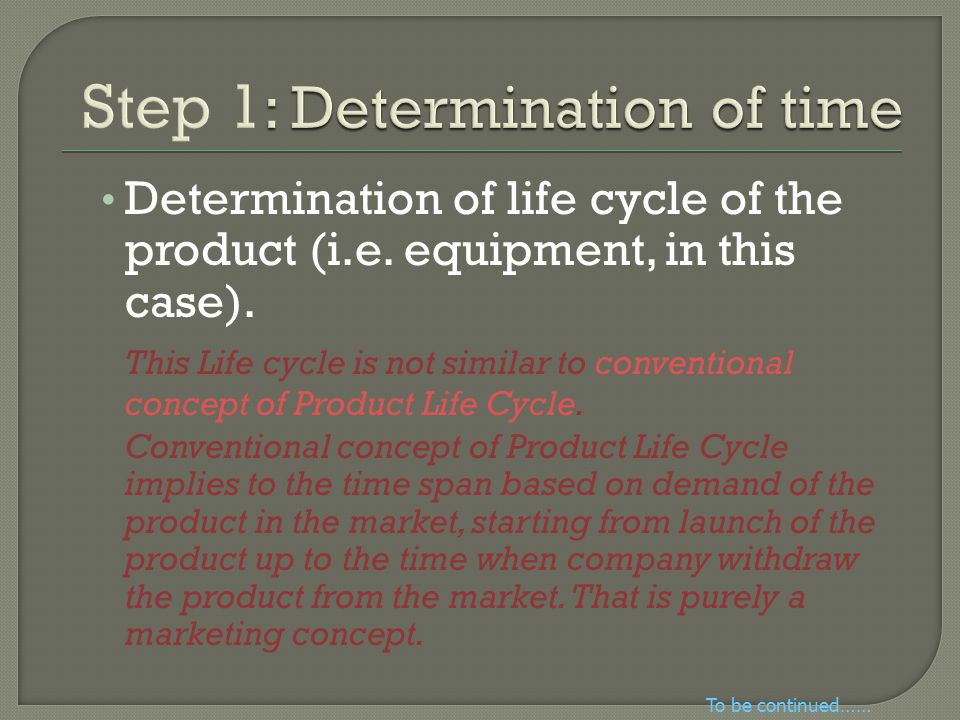

15. Determination of life cycle of the product (i.e. equipment, in this case). This Life cycle is not similar to conventional concept of Product Life Cycle. Conventional concept of Product Life Cycle implies to the time span based on demand of the product in the market, starting from launch of the product up to the time when company withdraw the product from the market. That is purely a marketing concept. To be continued……

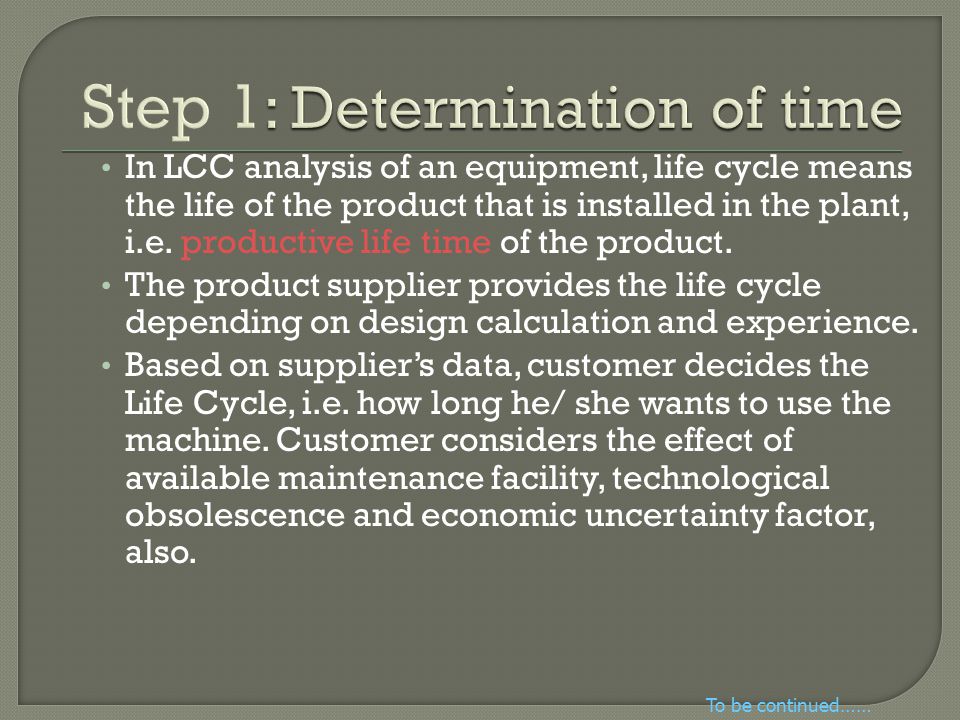

16. In LCC analysis of an equipment, life cycle means the life of the product that is installed in the plant, i.e. productive life time of the product. The product supplier provides the life cycle depending on design calculation and experience. Based on supplier’s data, customer decides the Life Cycle, i.e. how long he/ she wants to use the machine. Customer considers the effect of available maintenance facility, technological obsolescence and economic uncertainty factor, also. To be continued……

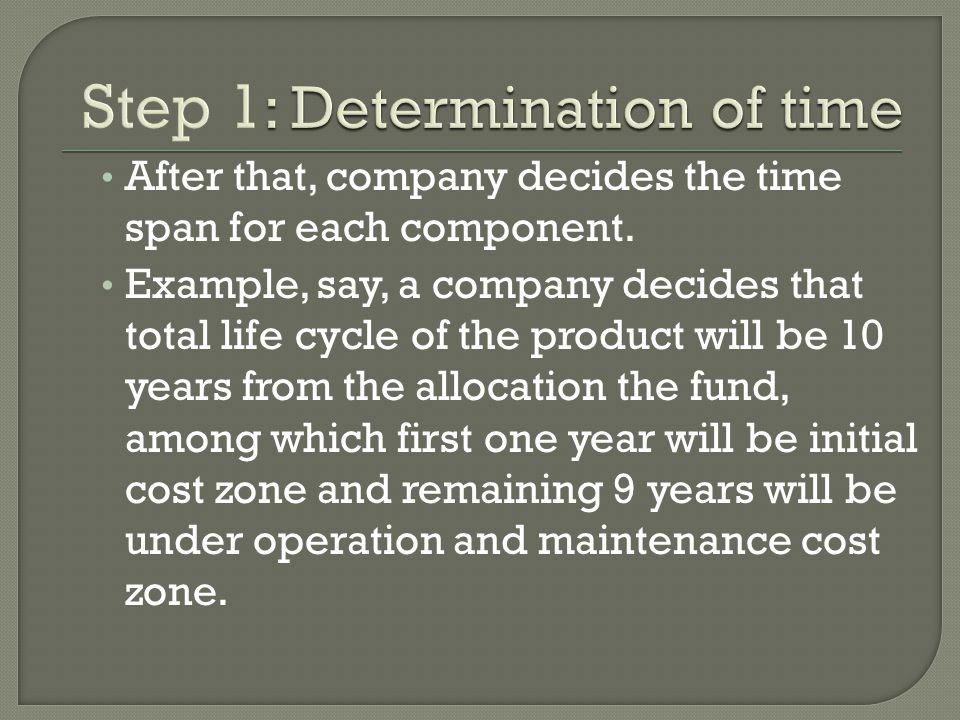

17. After that, company decides the time span for each component. Example, say, a company decides that total life cycle of the product will be 10 years from the allocation the fund, among which first one year will be initial cost zone and remaining 9 years will be under operation and maintenance cost zone.

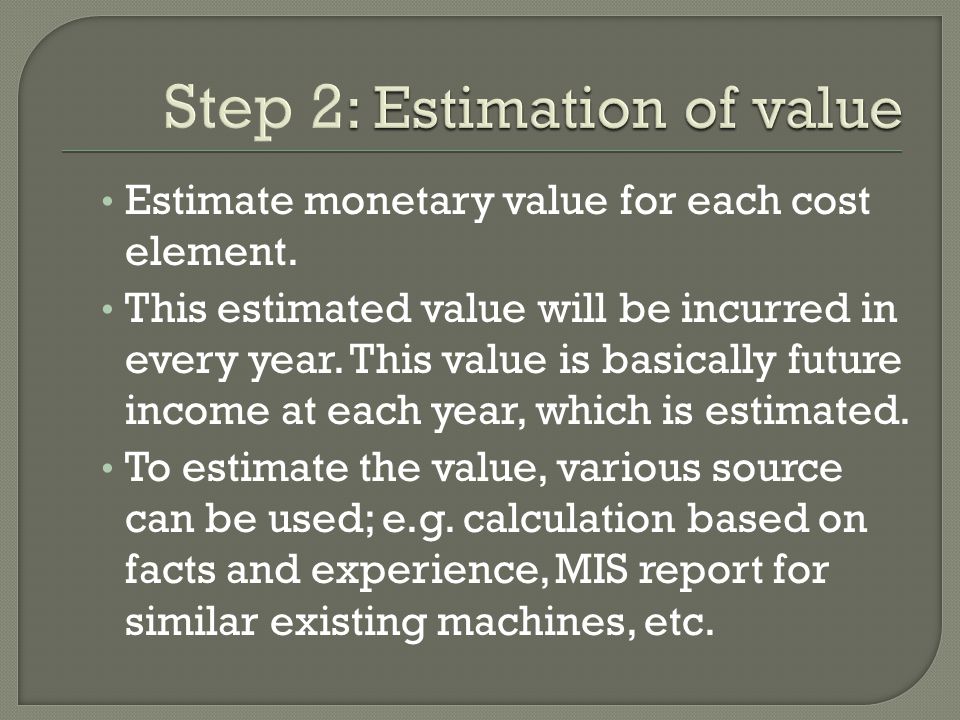

18. Estimate monetary value for each cost element. This estimated value will be incurred in every year. This value is basically future income at each year, which is estimated. To estimate the value, various source can be used; e.g. calculation based on facts and experience, MIS report for similar existing machines, etc.

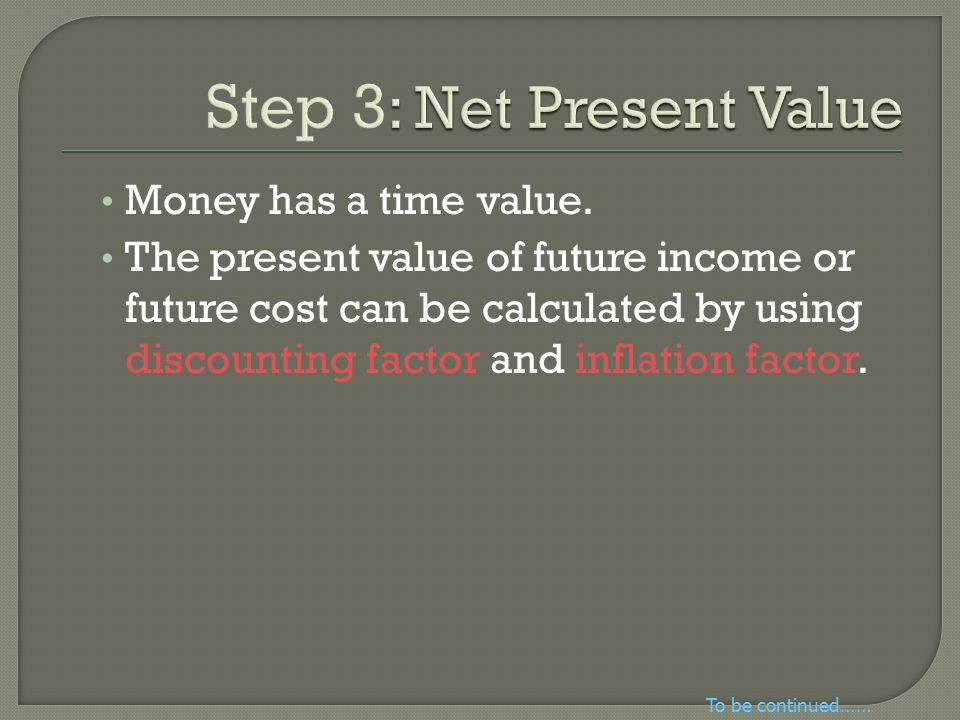

19. Money has a time value. The present value of future income or future cost can be calculated by using discounting factor and inflation factor. To be continued……

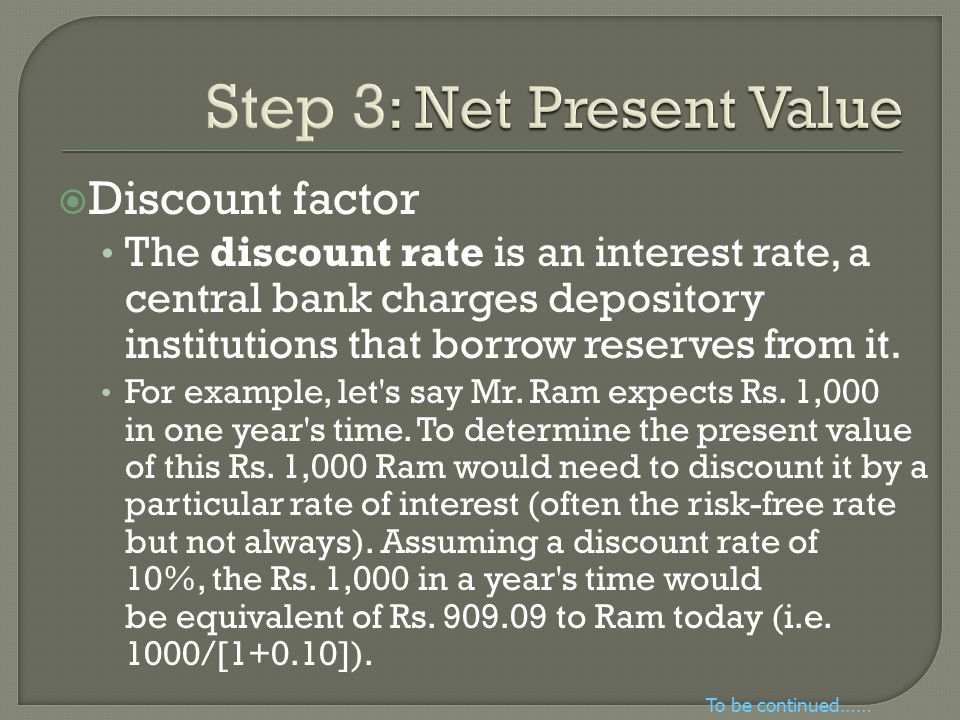

20.  Discount factor The discount rate is an interest rate, a central bank charges depository institutions that borrow reserves from it. For example, let's say Mr. Ram expects Rs. 1,000 in one year's time. To determine the present value of this Rs. 1,000 Ram would need to discount it by a particular rate of interest (often the risk-free rate but not always). Assuming a discount rate of 10%, the Rs. 1,000 in a year's time would be equivalent of Rs. 909.09 to Ram today (i.e. 1000/[1+0.10]). To be continued……

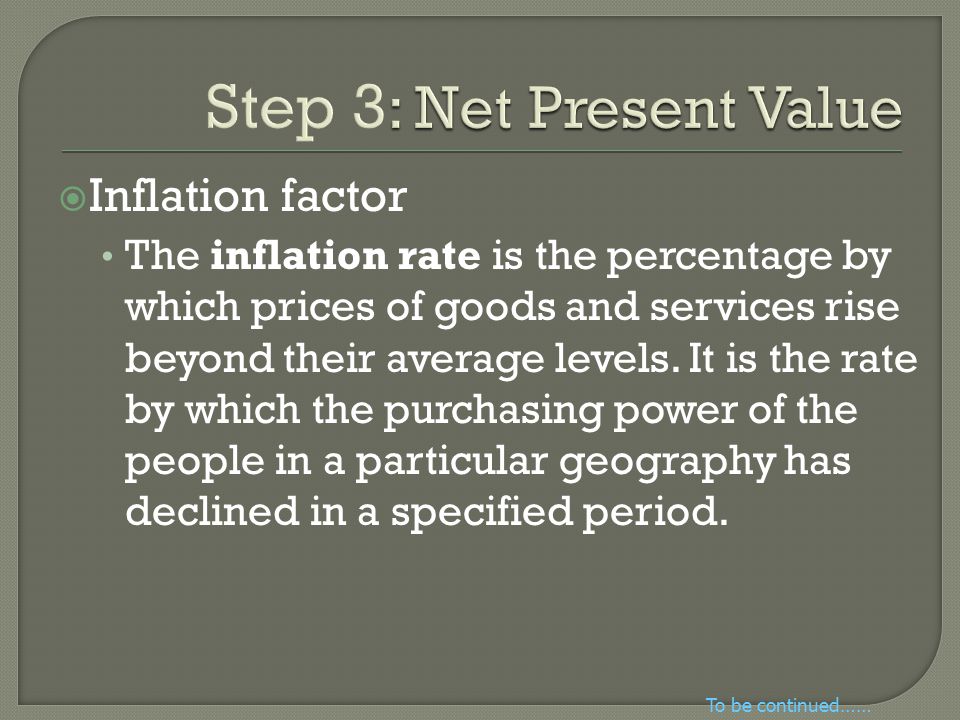

21.  Inflation factor The inflation rate is the percentage by which prices of goods and services rise beyond their average levels. It is the rate by which the purchasing power of the people in a particular geography has declined in a specified period. To be continued……

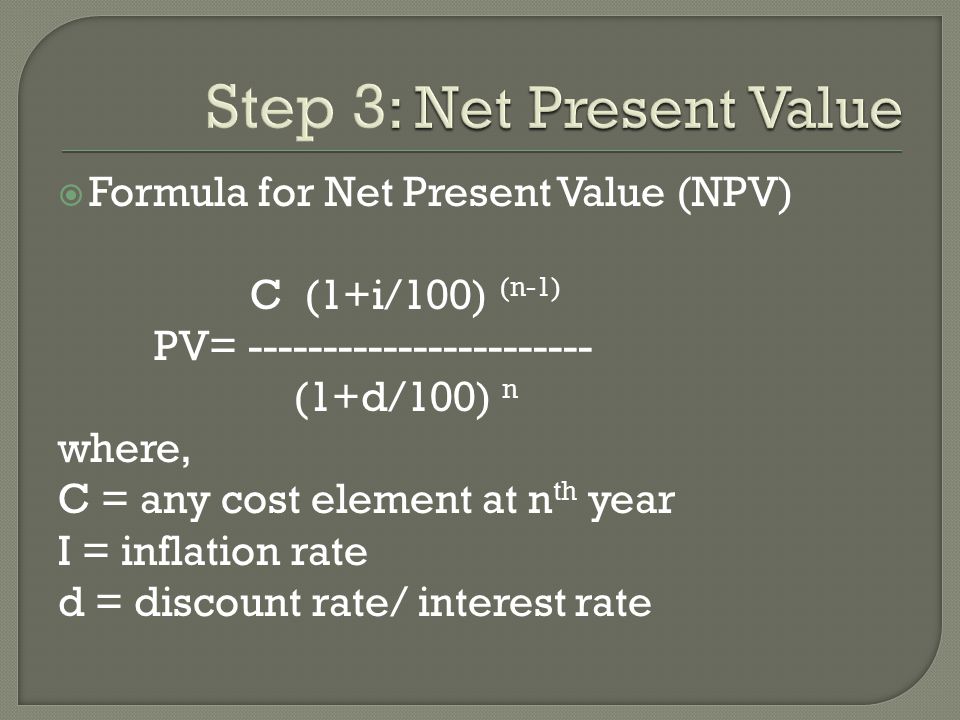

22.  Formula for Net Present Value (NPV) C (1+i/100) (n-1) PV= ----------------------- (1+d/100) n where, C = any cost element at n th year I = inflation rate d = discount rate/ interest rate

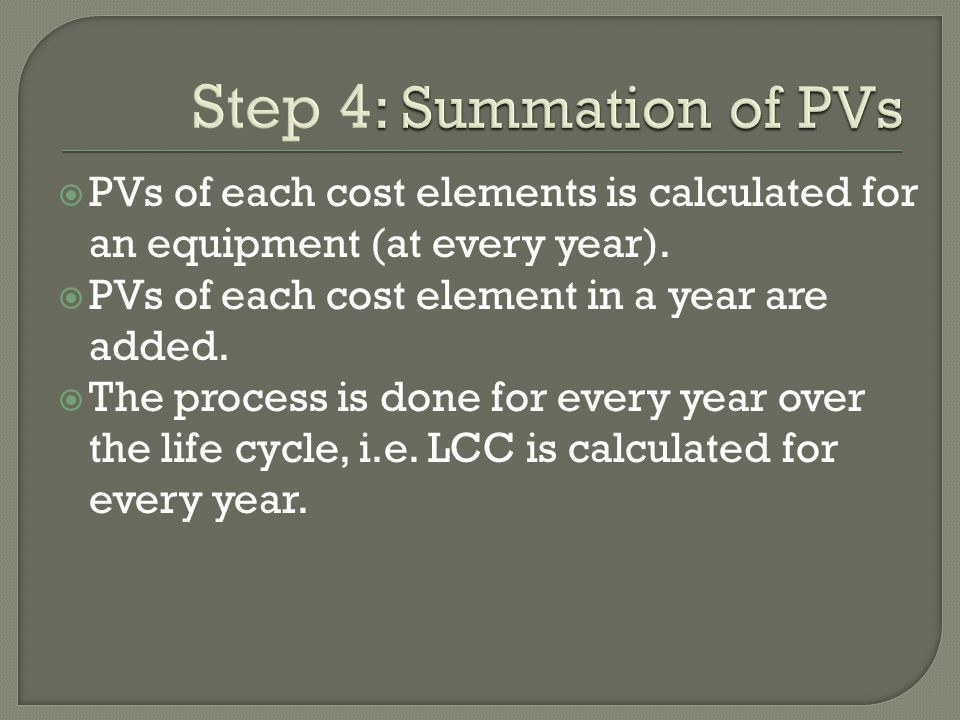

23.  PVs of each cost elements is calculated for an equipment (at every year).  PVs of each cost element in a year are added.  The process is done for every year over the life cycle, i.e. LCC is calculated for every year.

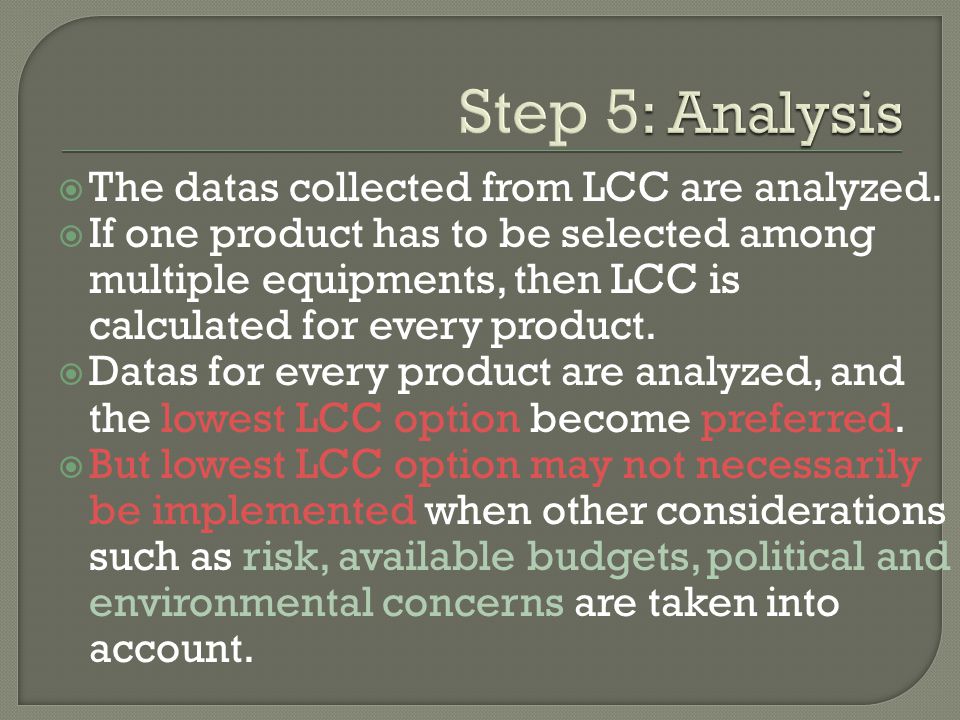

24.  The datas collected from LCC are analyzed.  If one product has to be selected among multiple equipments, then LCC is calculated for every product.  Datas for every product are analyzed, and the lowest LCC option become preferred.  But lowest LCC option may not necessarily be implemented when other considerations such as risk, available budgets, political and environmental concerns are taken into account.

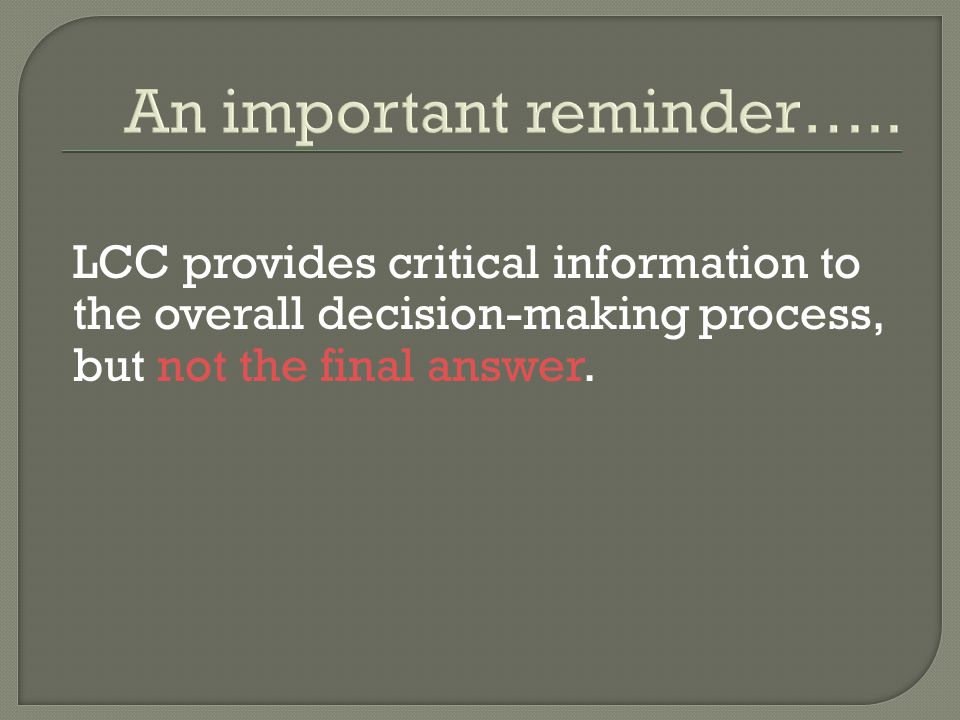

25. LCC provides critical information to the overall decision-making process, but not the final answer.

26. With a typical case study!

27.  A highly productive foundry shop has one sophisticated robot operated core making machine (made in Italy).  Due to increase of demand for its casting, the foundry shop wants to install one new core making machine.  For new machine, there are two options: 1. Similar sophisticated robotic machine, or 2. Semi-automated machine.

28.  Initial cost Sl. No. Cost Element Value (in INR, million)/ year Time phase Remarks1 Design & development (D) -- Bought out item 2 Investment on asset (A) 59.4 0-1 year 3 Installation (I) 0.6 0-1 year 1% of asset cost

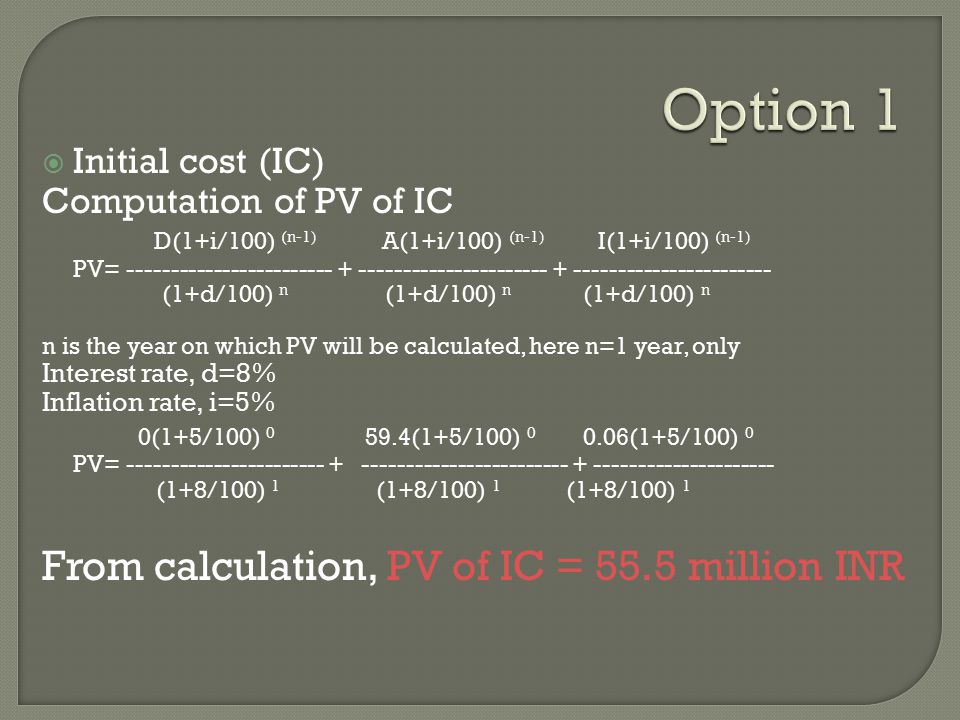

29.  Initial cost (IC) Computation of PV of IC D(1+i/100) (n-1) A(1+i/100) (n-1) I(1+i/100) (n-1) PV= ------------------------ + ---------------------- + ----------------------- (1+d/100) n (1+d/100) n (1+d/100) n n is the year on which PV will be calculated, here n=1 year, only Interest rate, d=8% Inflation rate, i=5% 0(1+5/100) 0 59.4(1+5/100) 0 0.06(1+5/100) 0 PV= ----------------------- + ------------------------ + --------------------- (1+8/100) 1 (1+8/100) 1 (1+8/100) 1 From calculation, PV of IC = 55.5 million INR

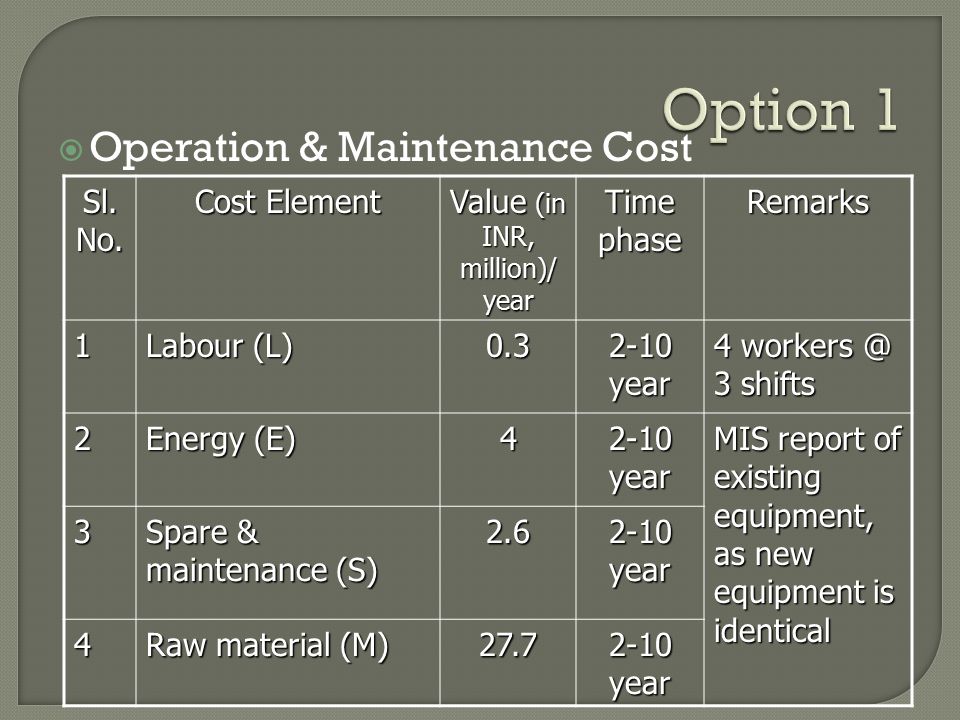

30.  Operation & Maintenance Cost Sl. No. Cost Element Value (in INR, million)/ year Time phase Remarks1 Labour (L) 0.3 2-10 year 4 workers @ 3 shifts 2 Energy (E) 4 2-10 year MIS report of existing equipment, as new equipment is identical 3 Spare & maintenance (S) 2.6 2-10 year 4 Raw material (M) 27.7 2-10 year

31.  Operation & Maintenance cost (OC) Computation of PV of OC Total OC= L+E+S+M=34.6 Million INR PV of OC at n th year, OC(1+i/100) (n-1) PV= ------------------------ (1+d/100) n Cumulative value of OC after n th year (in terms of PV) OC(1+i/100) (n-1) = Ʃ ------------------------ (1+d/100) n PV of OC and cumulative OC at different year to be calculated by using this formula.

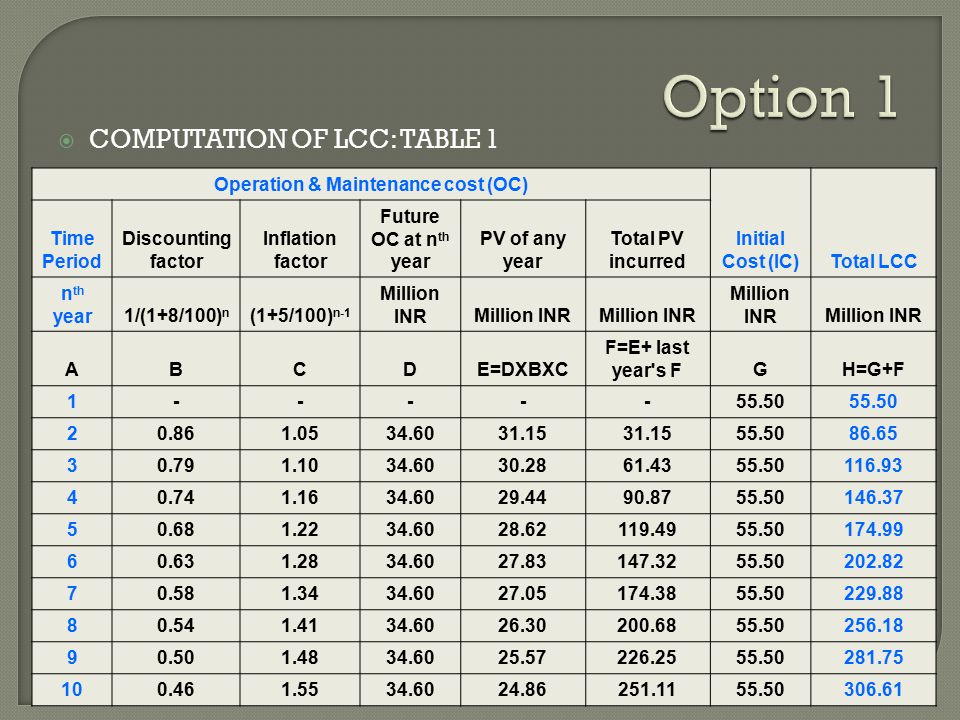

32.  COMPUTATION OF LCC: TABLE 1 Operation & Maintenance cost (OC) Initial Cost (IC)Total LCC Time Period Discounting factor Inflation factor Future OC at n th year PV of any year Total PV incurred n th year1/(1+8/100) n (1+5/100) n-1 Million INR ABCDE=DXBXC F=E+ last year's FGH=G+F 1-----55.50 20.861.0534.6031.15 55.5086.65 30.791.1034.6030.2861.4355.50116.93 40.741.1634.6029.4490.8755.50146.37 50.681.2234.6028.62119.4955.50174.99 60.631.2834.6027.83147.3255.50202.82 70.581.3434.6027.05174.3855.50229.88 80.541.4134.6026.30200.6855.50256.18 90.501.4834.6025.57226.2555.50281.75 100.461.5534.6024.86251.1155.50306.61

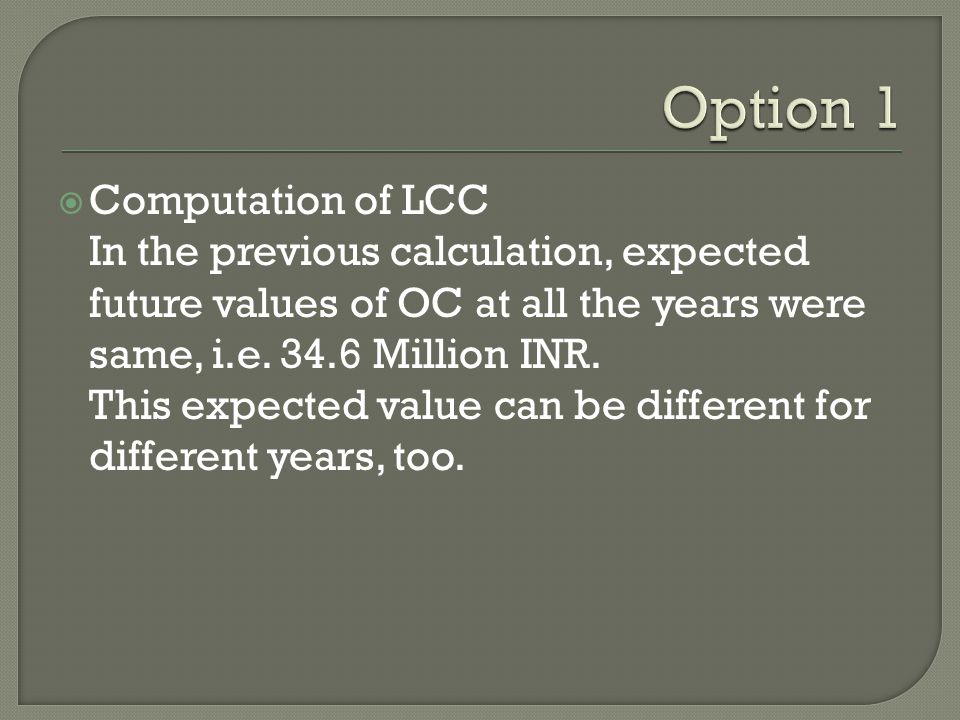

33.  Computation of LCC In the previous calculation, expected future values of OC at all the years were same, i.e. 34.6 Million INR. This expected value can be different for different years, too.

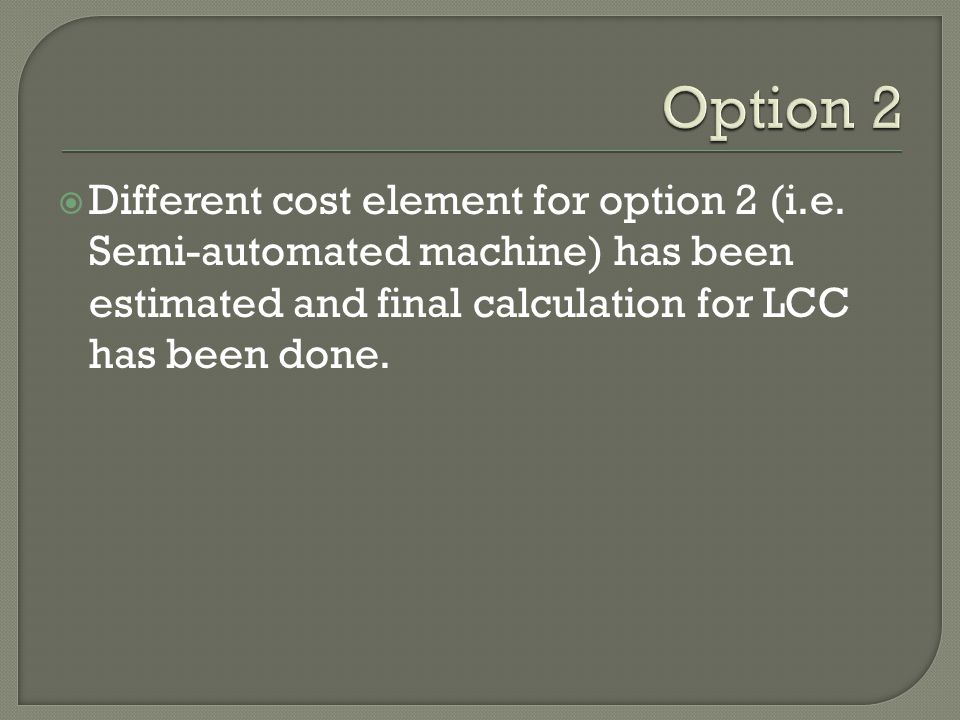

34.  Different cost element for option 2 (i.e. Semi-automated machine) has been estimated and final calculation for LCC has been done.

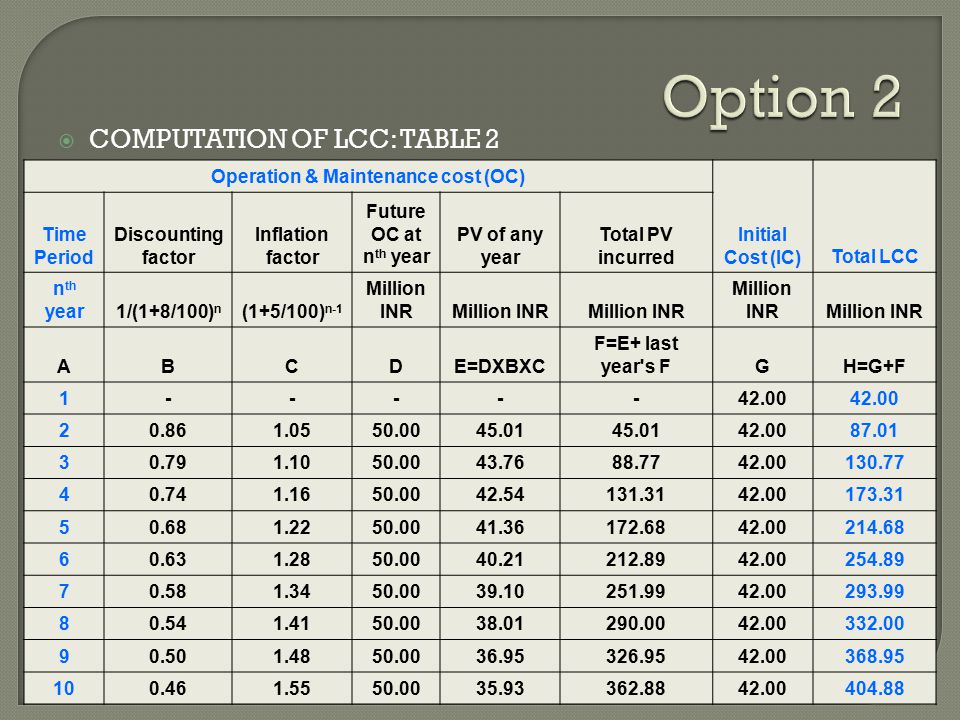

35.  COMPUTATION OF LCC: TABLE 2 Operation & Maintenance cost (OC) Initial Cost (IC)Total LCC Time Period Discounting factor Inflation factor Future OC at n th year PV of any year Total PV incurred n th year1/(1+8/100) n (1+5/100) n-1 Million INR ABCDE=DXBXC F=E+ last year's FGH=G+F 1-----42.00 20.861.0550.0045.01 42.0087.01 30.791.1050.0043.7688.7742.00130.77 40.741.1650.0042.54131.3142.00173.31 50.681.2250.0041.36172.6842.00214.68 60.631.2850.0040.21212.8942.00254.89 70.581.3450.0039.10251.9942.00293.99 80.541.4150.0038.01290.0042.00332.00 90.501.4850.0036.95326.9542.00368.95 100.461.5550.0035.93362.8842.00404.88

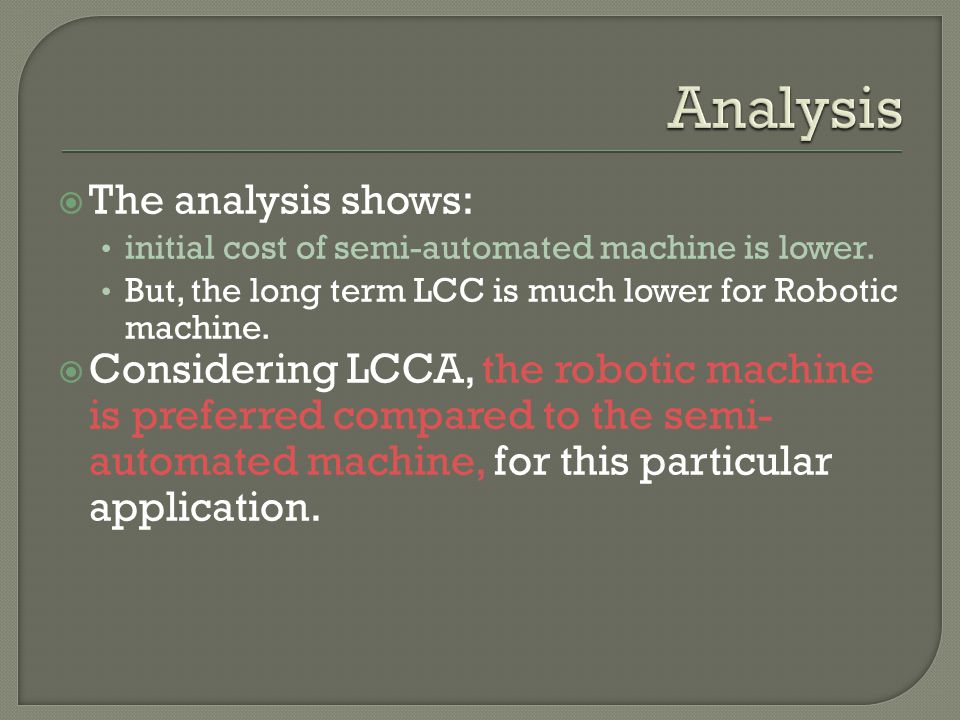

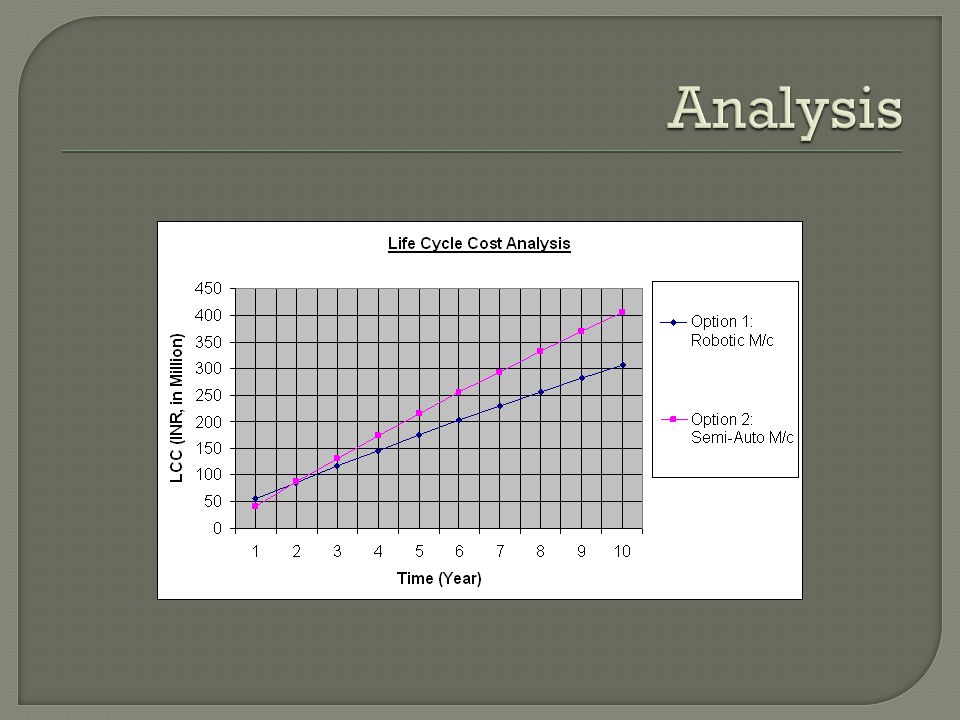

37.  The analysis shows: initial cost of semi-automated machine is lower. But, the long term LCC is much lower for Robotic machine.  Considering LCCA, the robotic machine is preferred compared to the semi- automated machine, for this particular application.

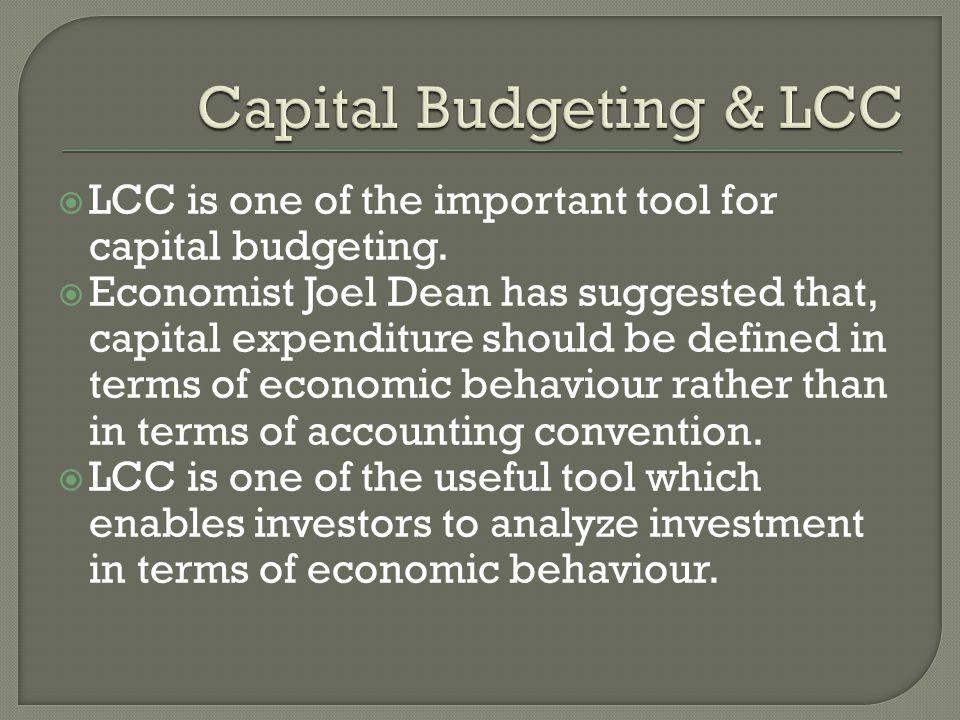

38.  LCC is one of the important tool for capital budgeting.  Economist Joel Dean has suggested that, capital expenditure should be defined in terms of economic behaviour rather than in terms of accounting convention.  LCC is one of the useful tool which enables investors to analyze investment in terms of economic behaviour.
