1. UPV / EHU Efficient Eventual Leader Election in Crash-Recovery Systems Mikel Larrea, Cristian Martín, Iratxe Soraluze University of the Basque Country, UPV/EHU

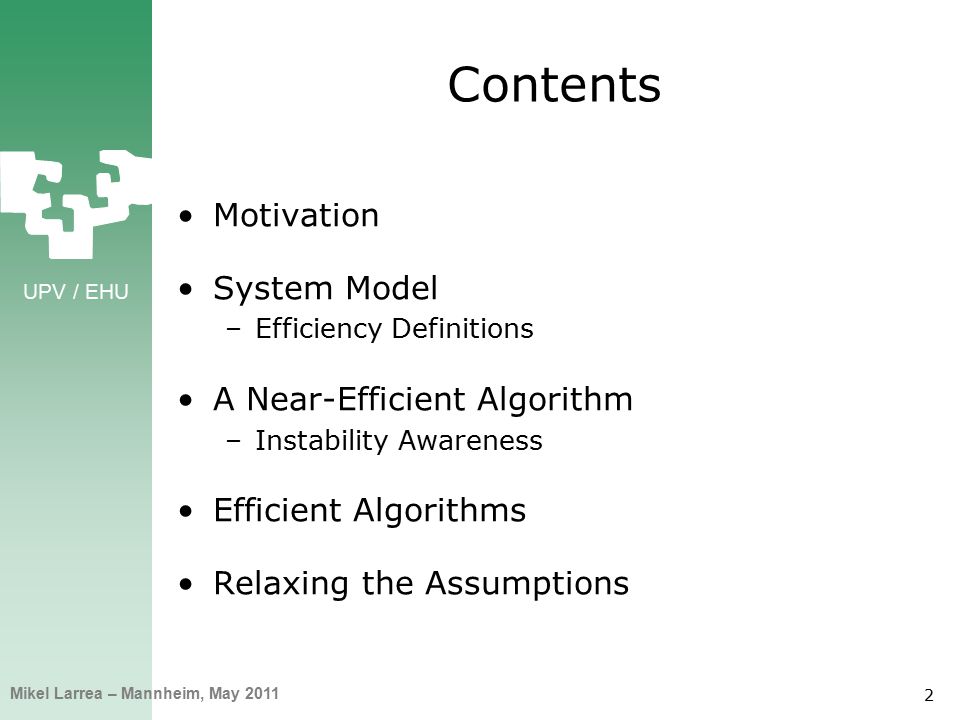

2. UPV / EHU 2 Mikel Larrea – Mannheim, May 2011 Contents Motivation System Model –Efficiency Definitions A Near-Efficient Algorithm –Instability Awareness Efficient Algorithms Relaxing the Assumptions

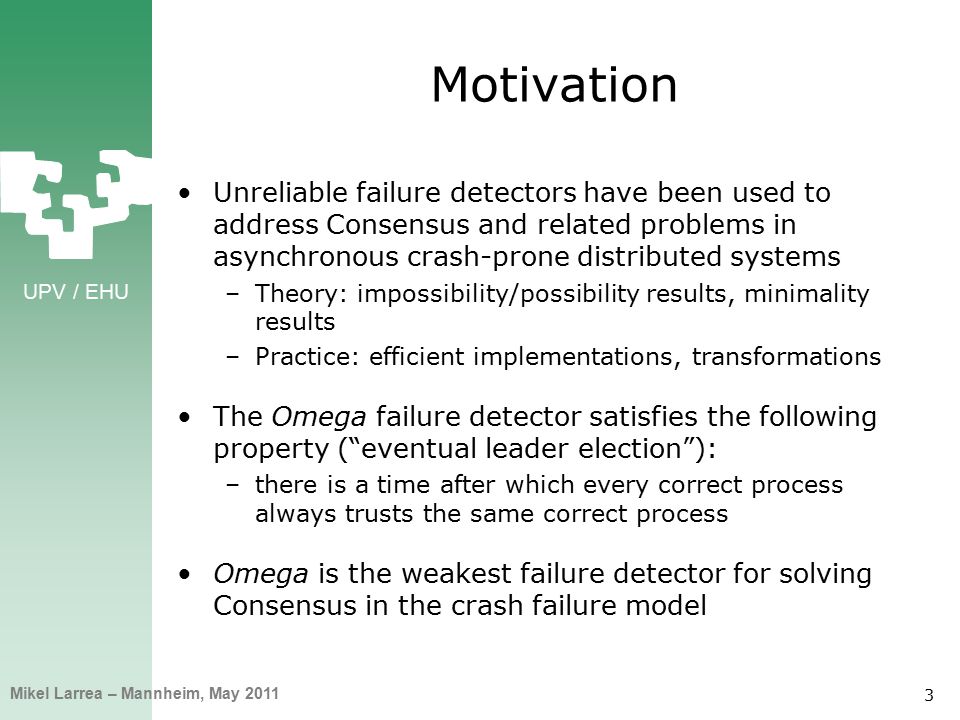

3. UPV / EHU 3 Mikel Larrea – Mannheim, May 2011 Motivation Unreliable failure detectors have been used to address Consensus and related problems in asynchronous crash-prone distributed systems –Theory: impossibility/possibility results, minimality results –Practice: efficient implementations, transformations The Omega failure detector satisfies the following property (“eventual leader election”): –there is a time after which every correct process always trusts the same correct process Omega is the weakest failure detector for solving Consensus in the crash failure model

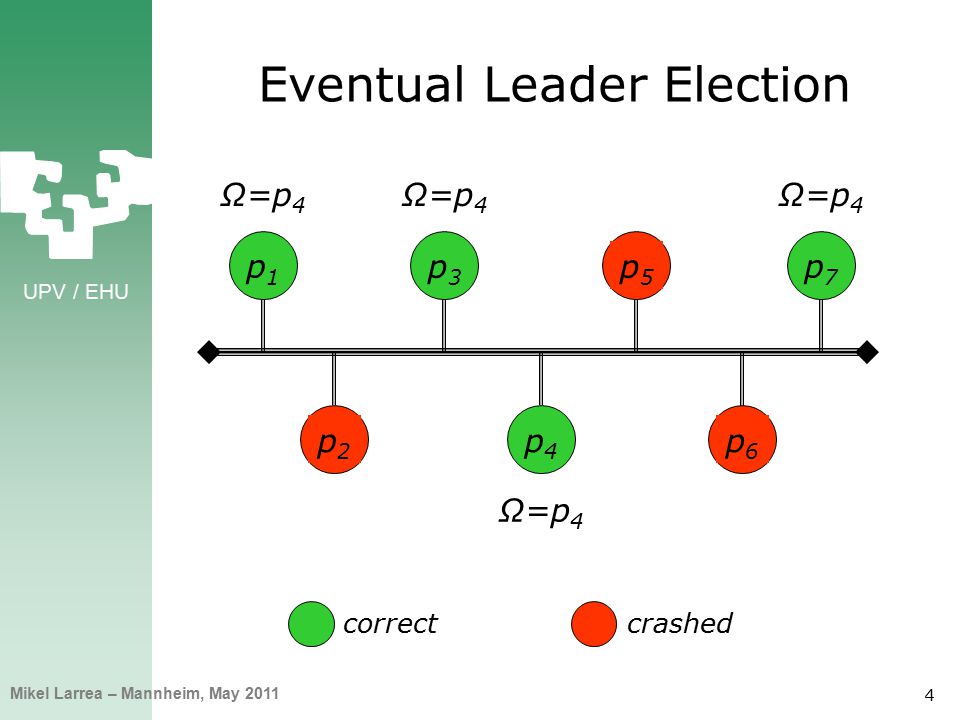

4. UPV / EHU 4 Mikel Larrea – Mannheim, May 2011 Eventual Leader Election p2p2 p1p1 p3p3 p4p4 p5p5 p6p6 p7p7 Ω=p 4 crashedcorrect Ω=p 4

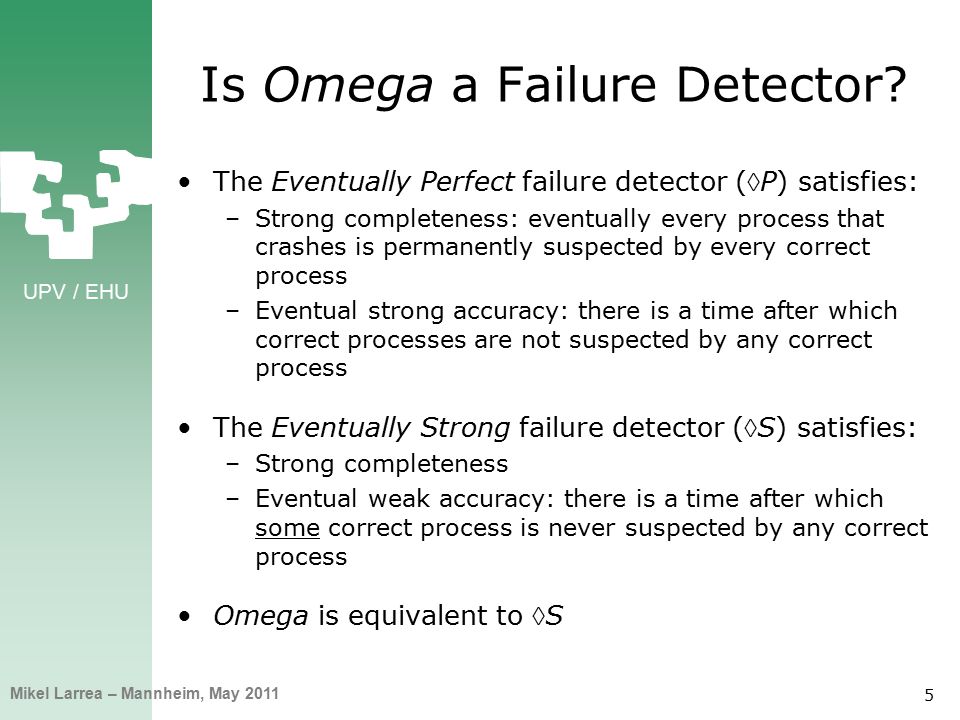

5. UPV / EHU 5 Mikel Larrea – Mannheim, May 2011 Is Omega a Failure Detector? The Eventually Perfect failure detector (P) satisfies: –Strong completeness: eventually every process that crashes is permanently suspected by every correct process –Eventual strong accuracy: there is a time after which correct processes are not suspected by any correct process The Eventually Strong failure detector (S) satisfies: –Strong completeness –Eventual weak accuracy: there is a time after which some correct process is never suspected by any correct process Omega is equivalent to S

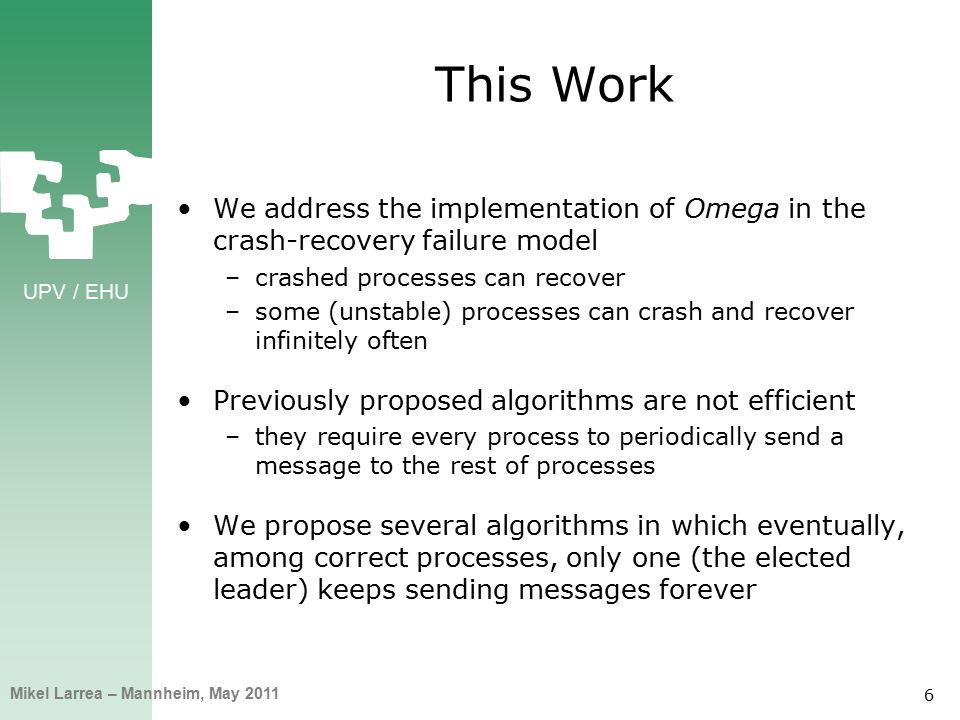

6. UPV / EHU 6 Mikel Larrea – Mannheim, May 2011 This Work We address the implementation of Omega in the crash-recovery failure model –crashed processes can recover –some (unstable) processes can crash and recover infinitely often Previously proposed algorithms are not efficient –they require every process to periodically send a message to the rest of processes We propose several algorithms in which eventually, among correct processes, only one (the elected leader) keeps sending messages forever

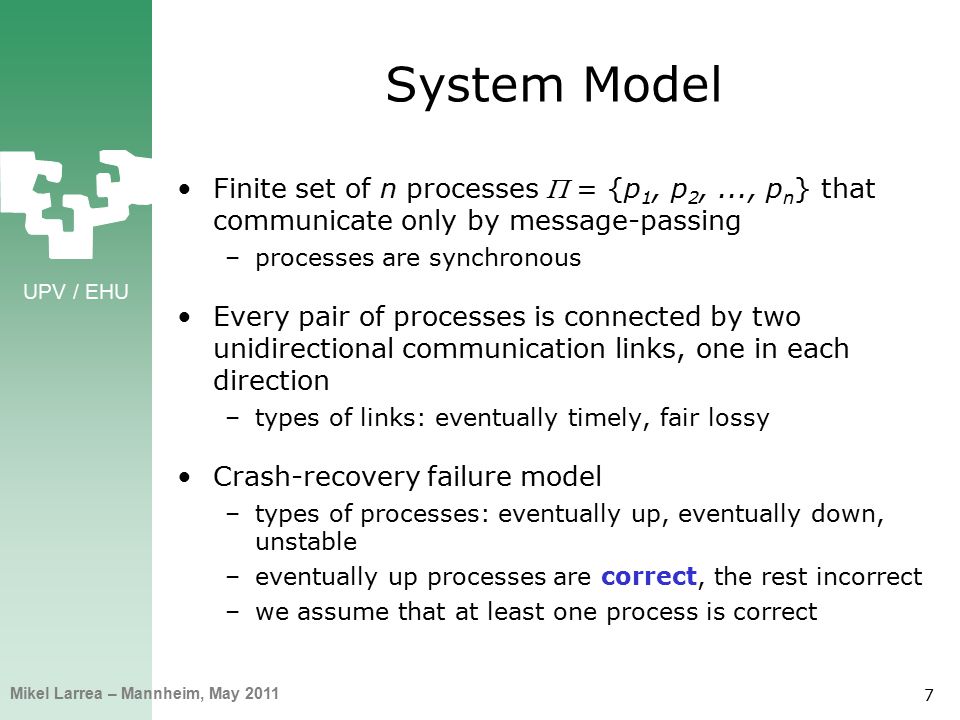

7. UPV / EHU 7 Mikel Larrea – Mannheim, May 2011 System Model Finite set of n processes  = {p 1, p 2,..., p n } that communicate only by message-passing –processes are synchronous Every pair of processes is connected by two unidirectional communication links, one in each direction –types of links: eventually timely, fair lossy Crash-recovery failure model –types of processes: eventually up, eventually down, unstable –eventually up processes are correct, the rest incorrect –we assume that at least one process is correct

8. UPV / EHU 8 Mikel Larrea – Mannheim, May 2011 Efficiency Definitions An algorithm implementing Omega in the crash- recovery failure model is efficient if there is a time after which only one process sends messages forever An algorithm implementing Omega in the crash- recovery failure model is near-efficient if there is a time after which, among correct processes, only one sends messages forever Since the leader must send messages forever, an efficient algorithm is also near-efficient In a near-efficient algorithm, besides the leader, unstable processes can send messages forever

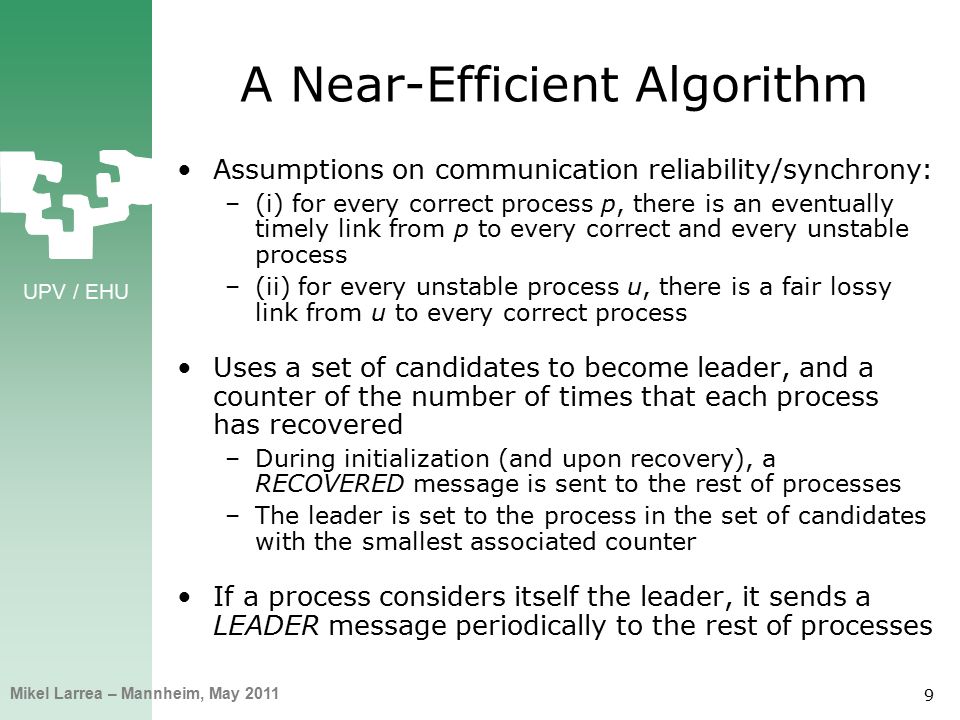

9. UPV / EHU 9 Mikel Larrea – Mannheim, May 2011 A Near-Efficient Algorithm Assumptions on communication reliability/synchrony: –(i) for every correct process p, there is an eventually timely link from p to every correct and every unstable process –(ii) for every unstable process u, there is a fair lossy link from u to every correct process Uses a set of candidates to become leader, and a counter of the number of times that each process has recovered –During initialization (and upon recovery), a RECOVERED message is sent to the rest of processes –The leader is set to the process in the set of candidates with the smallest associated counter If a process considers itself the leader, it sends a LEADER message periodically to the rest of processes

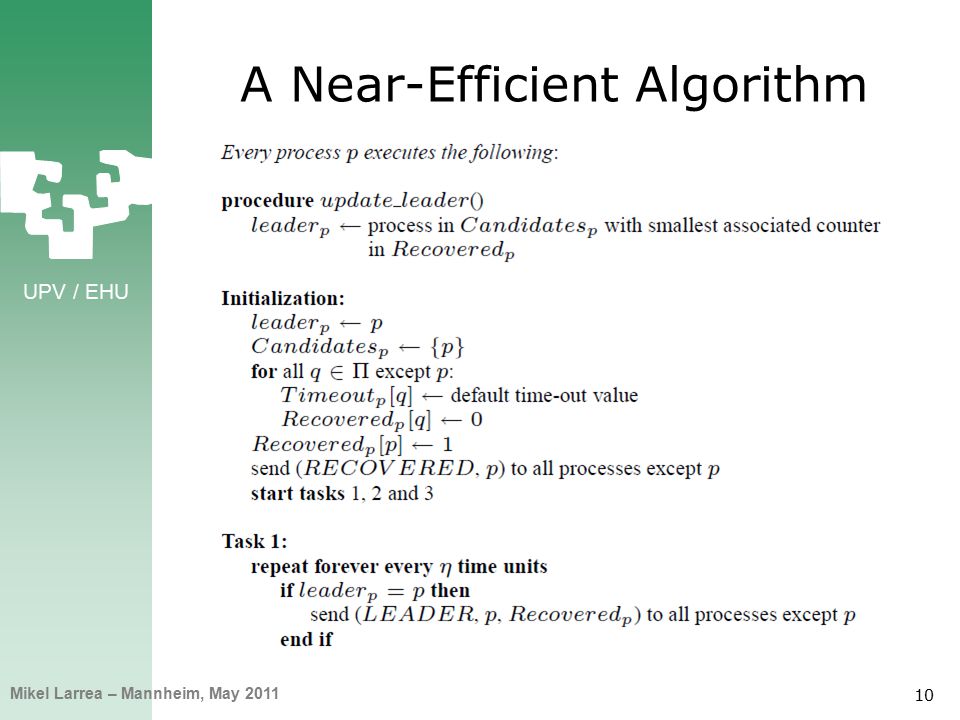

10. UPV / EHU 10 Mikel Larrea – Mannheim, May 2011 A Near-Efficient Algorithm

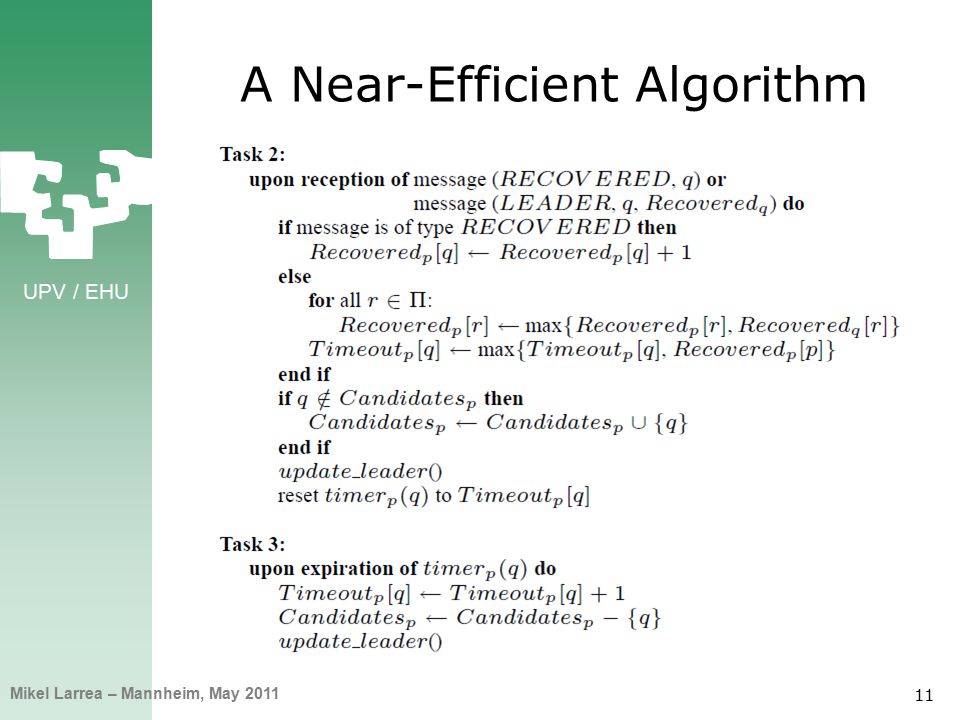

11. UPV / EHU 11 Mikel Larrea – Mannheim, May 2011 A Near-Efficient Algorithm

12. UPV / EHU 12 Mikel Larrea – Mannheim, May 2011 Unstable Processes Disagree With this algorithm, eventually every correct process always trusts the same correct process l. Consequently, eventually among correct processes, only one keeps sending LEADER messages ( ) Concerning the behavior of unstable processes: –(1) upon recovery, they send a RECOVERED message to the rest of processes –(2) initially they trust themselves, and they can trust other unstable processes before trusting process l (  ) We propose an adaptation that avoids (2) –initially they do not trust any process, and —if they remain up for sufficiently long— then l until they crash –the adaptation assumes a majority of correct processes

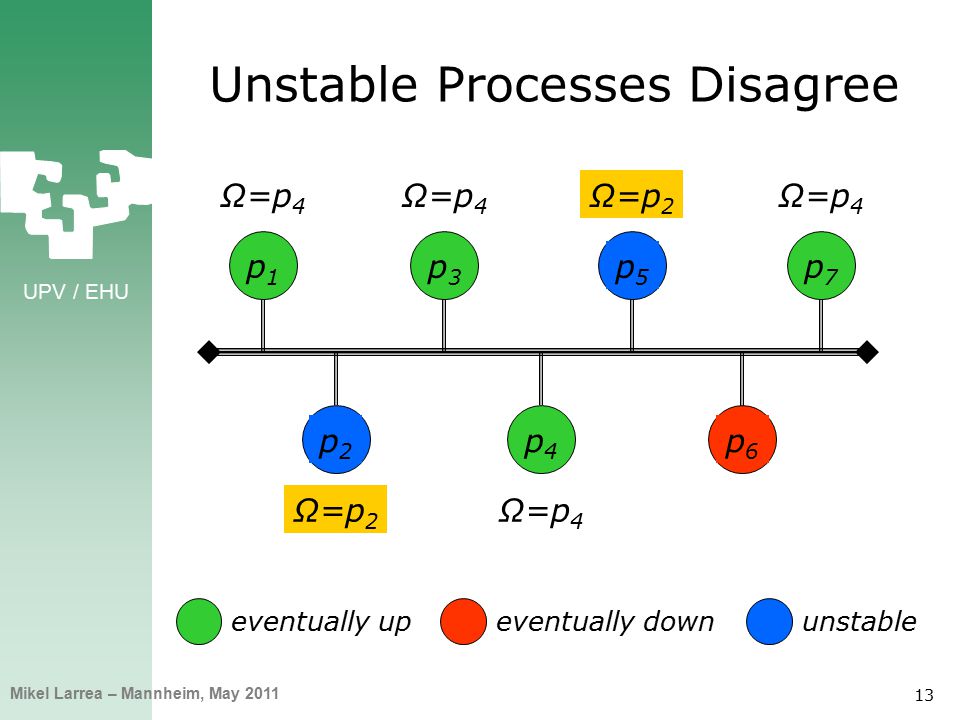

13. UPV / EHU 13 Mikel Larrea – Mannheim, May 2011 Unstable Processes Disagree p2p2 p1p1 p3p3 p4p4 p5p5 p6p6 p7p7 Ω=p 4 eventually downeventually up Ω=p 4 Ω=p 2 unstable

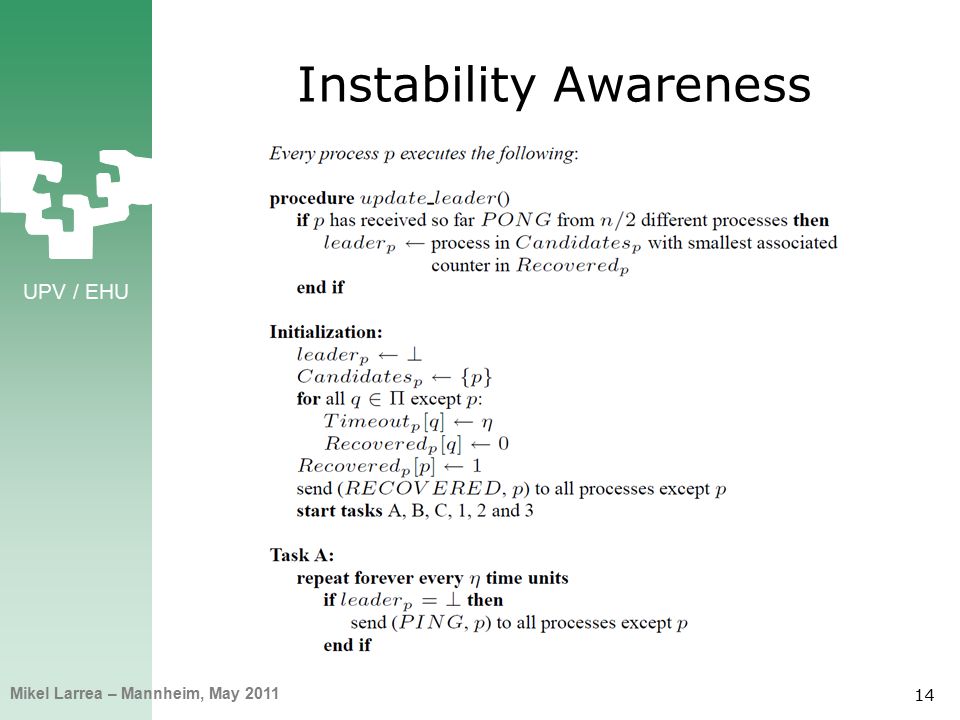

14. UPV / EHU 14 Mikel Larrea – Mannheim, May 2011 Instability Awareness

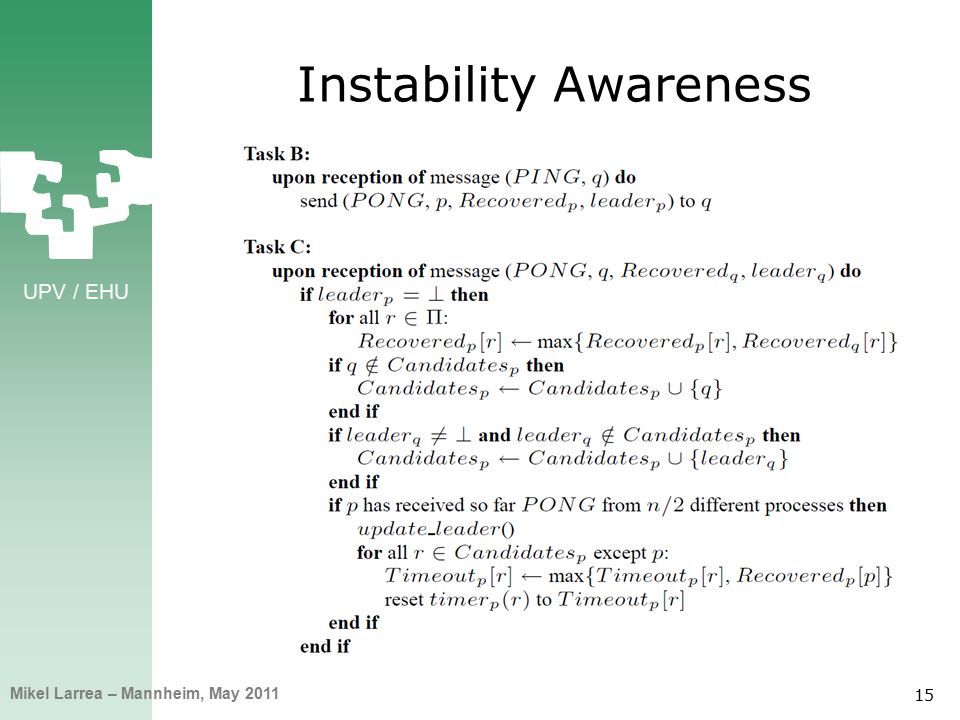

15. UPV / EHU 15 Mikel Larrea – Mannheim, May 2011 Instability Awareness

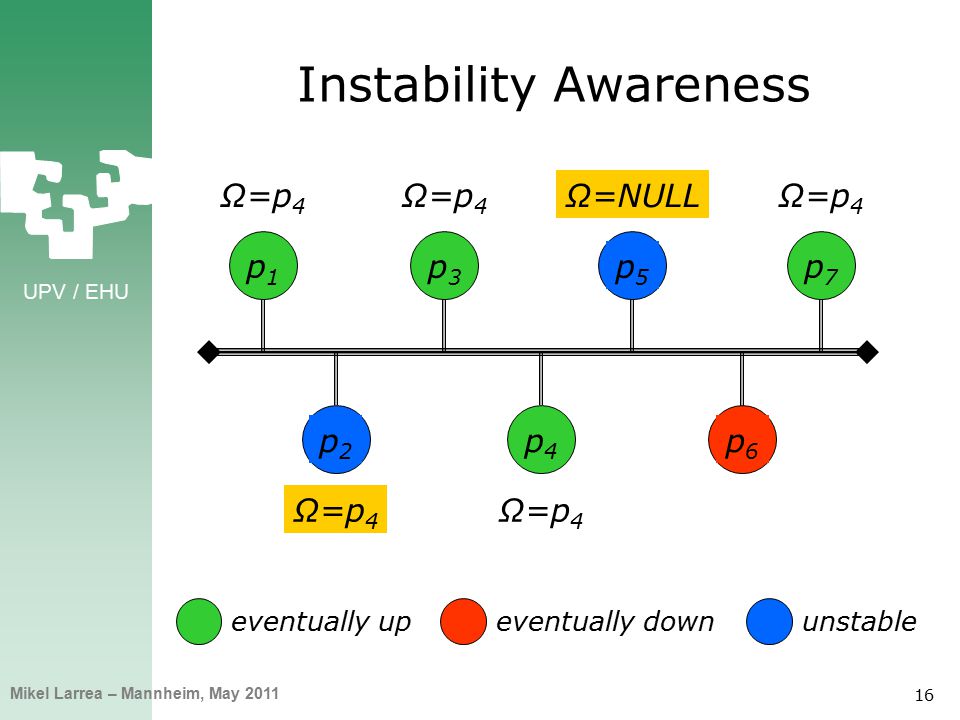

16. UPV / EHU 16 Mikel Larrea – Mannheim, May 2011 Instability Awareness p2p2 p1p1 p3p3 p4p4 p5p5 p6p6 p7p7 Ω=p 4 eventually downeventually up Ω=p 4 Ω=NULL unstable

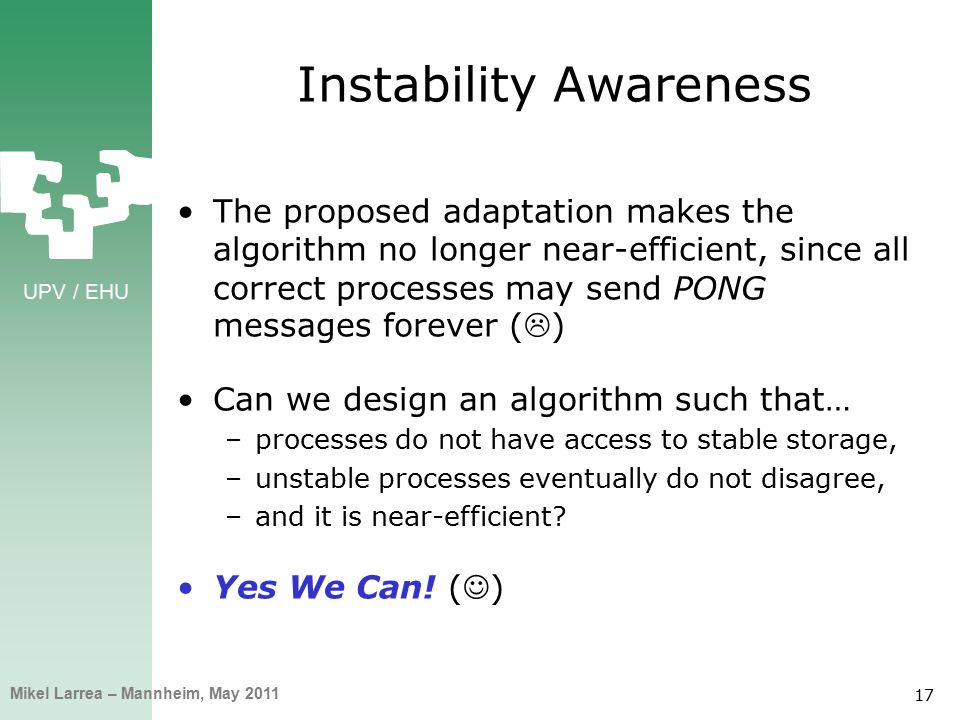

17. UPV / EHU 17 Mikel Larrea – Mannheim, May 2011 Instability Awareness The proposed adaptation makes the algorithm no longer near-efficient, since all correct processes may send PONG messages forever (  ) Can we design an algorithm such that… –processes do not have access to stable storage, –unstable processes eventually do not disagree, –and it is near-efficient? Yes We Can! ( )

18. UPV / EHU 18 Mikel Larrea – Mannheim, May 2011 A Near-Efficient++ Algorithm

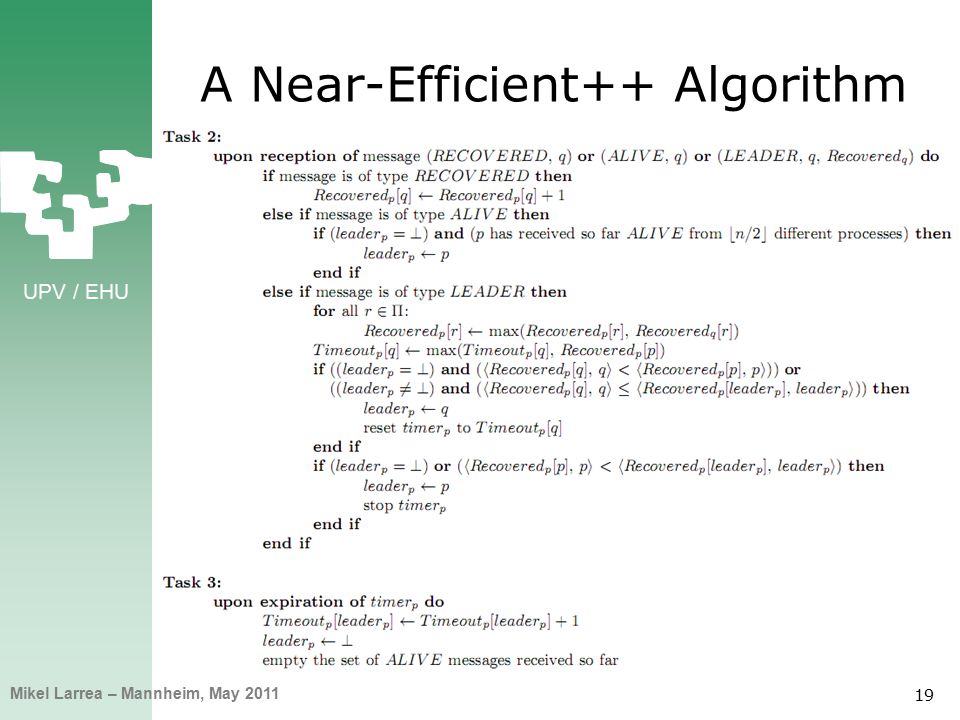

19. UPV / EHU 19 Mikel Larrea – Mannheim, May 2011 A Near-Efficient++ Algorithm

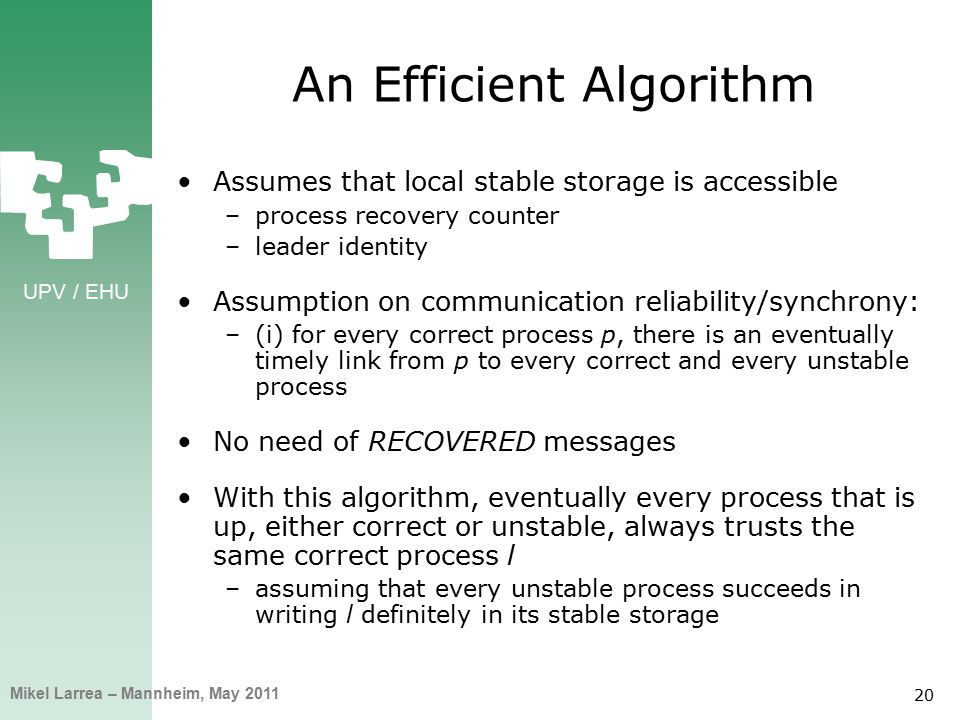

20. UPV / EHU 20 Mikel Larrea – Mannheim, May 2011 An Efficient Algorithm Assumes that local stable storage is accessible –process recovery counter –leader identity Assumption on communication reliability/synchrony: –(i) for every correct process p, there is an eventually timely link from p to every correct and every unstable process No need of RECOVERED messages With this algorithm, eventually every process that is up, either correct or unstable, always trusts the same correct process l –assuming that every unstable process succeeds in writing l definitely in its stable storage

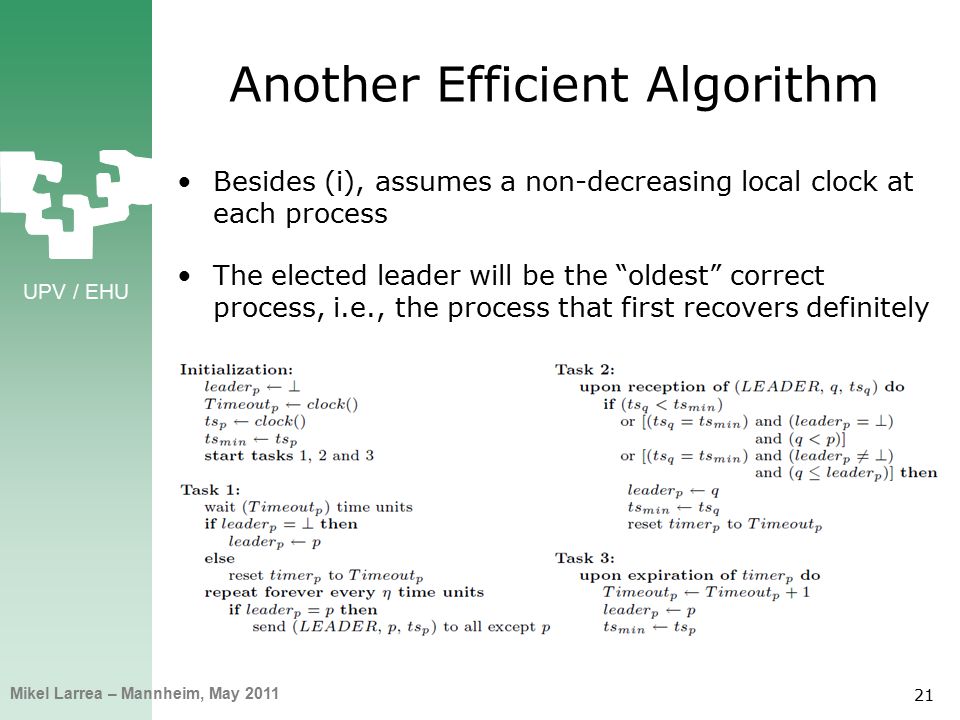

21. UPV / EHU 21 Mikel Larrea – Mannheim, May 2011 Another Efficient Algorithm Besides (i), assumes a non-decreasing local clock at each process The elected leader will be the “oldest” correct process, i.e., the process that first recovers definitely

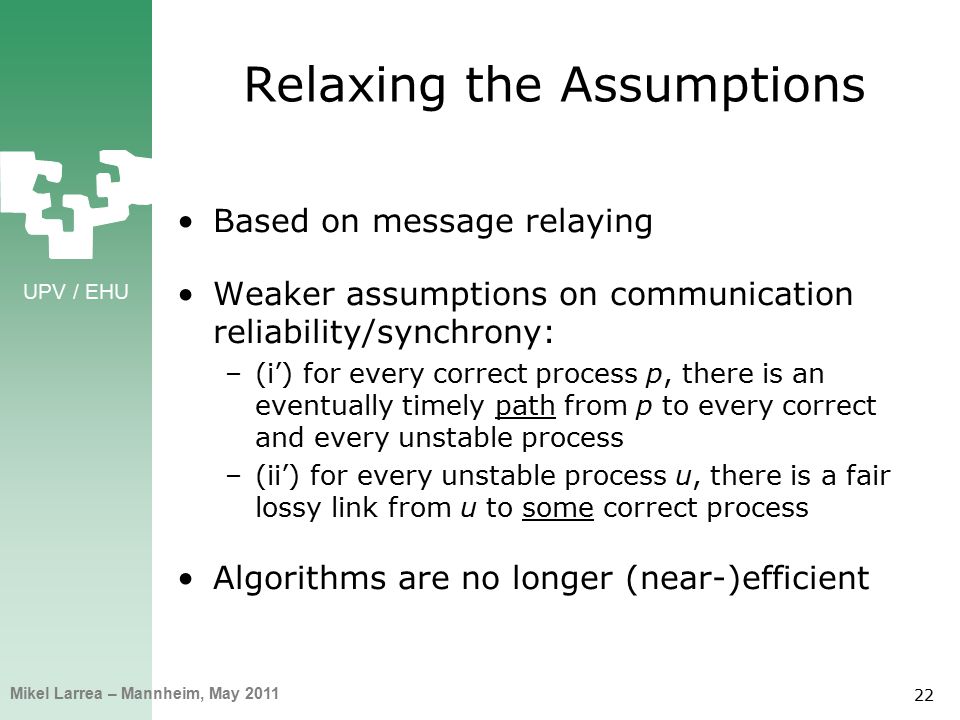

22. UPV / EHU 22 Mikel Larrea – Mannheim, May 2011 Relaxing the Assumptions Based on message relaying Weaker assumptions on communication reliability/synchrony: –(i’) for every correct process p, there is an eventually timely path from p to every correct and every unstable process –(ii’) for every unstable process u, there is a fair lossy link from u to some correct process Algorithms are no longer (near-)efficient

23. UPV / EHU 23 Mikel Larrea – Mannheim, May 2011 The One Slide to Remember The Omega failure detector provides an eventual leader election functionality in a distributed system –Theory: weakest failure detector for solving Consensus –Practice: used by several real fault-tolerant protocols It is interesting to design efficient algorithms implementing Omega In the crash-recovery failure model, we have to cope with unstable processes –to avoid them to send messages forever –to avoid disagreement with correct processes Stable storage, if available, makes things easier

24. UPV / EHU 24 Mikel Larrea – Mannheim, May 2011 An Example: Paxos Leslie Lamport. The Part-Time Parliament. ACM Transactions on Computer Systems, 1998. First submitted in 1990! Leader-based Consensus algorithms –Could benefit from efficient leader election Production use of Paxos (from wikipedia): –Google Chubby distributed lock service –IBM SAN Volume Controller –Microsoft Autopilot cluster management service –WANdisco Distributed Coordination Engine –Scalien Keyspace
