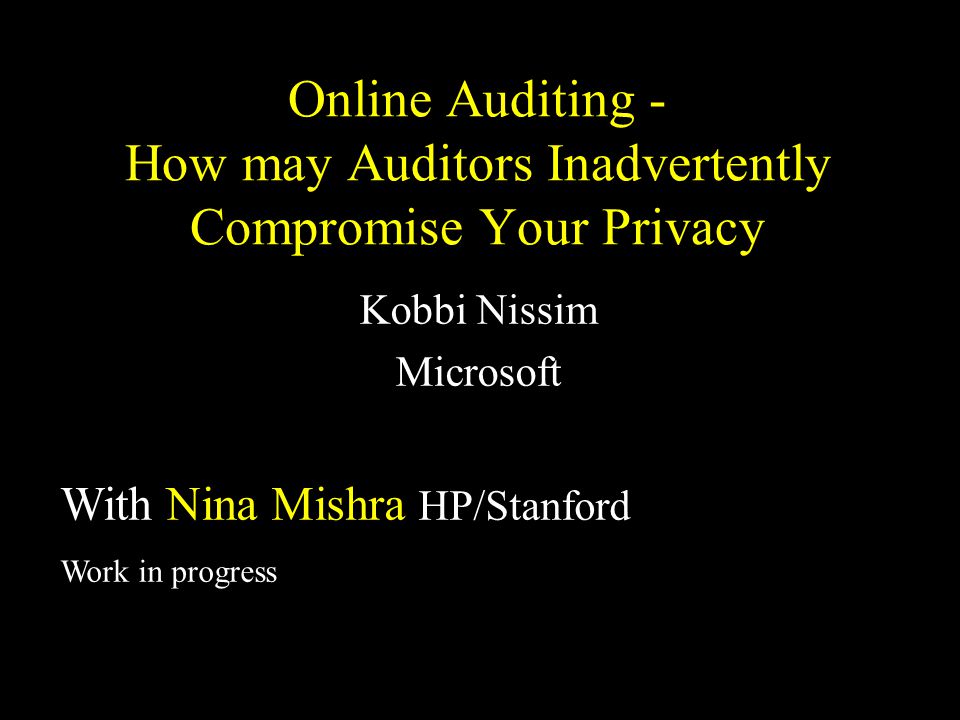

1. Online Auditing - How may Auditors Inadvertently Compromise Your Privacy Kobbi Nissim Microsoft With Nina Mishra HP/Stanford Work in progress

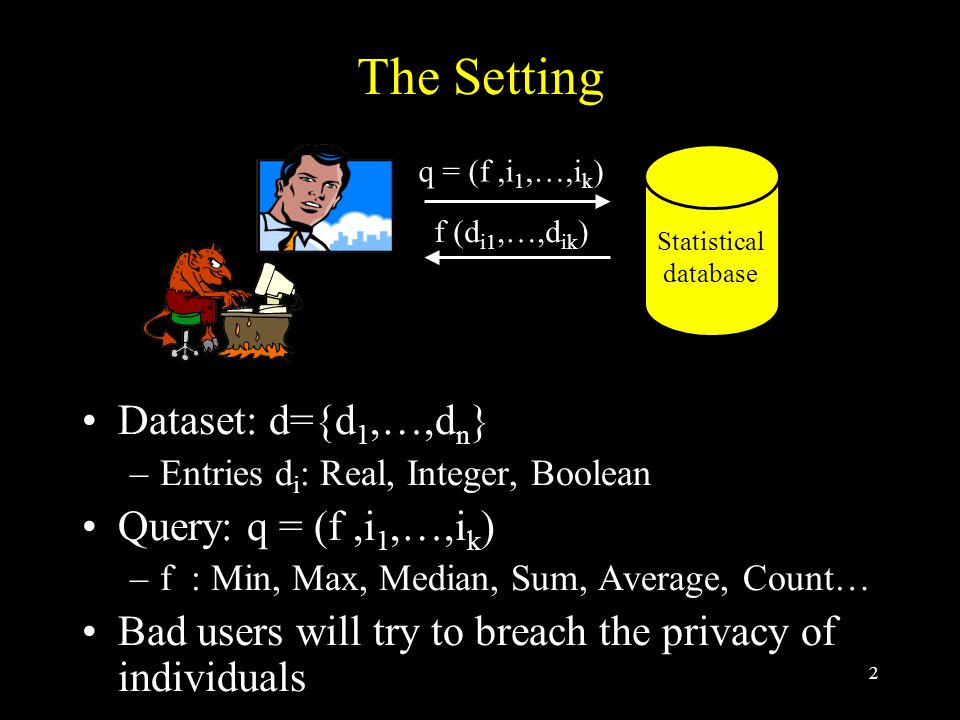

2. 2 The Setting Dataset: d={d 1,…,d n } –Entries d i : Real, Integer, Boolean Query: q = (f,i 1,…,i k ) –f : Min, Max, Median, Sum, Average, Count… Bad users will try to breach the privacy of individuals Statistical database f (d i1,…,d ik ) q = (f,i 1,…,i k )

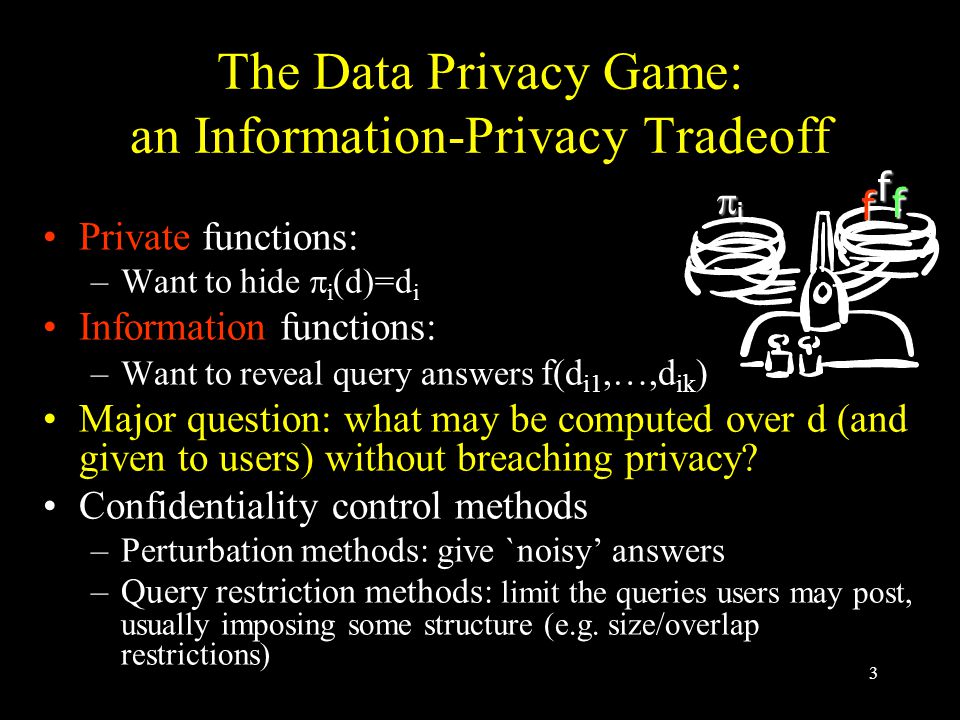

3. 3 f f The Data Privacy Game: an Information-Privacy Tradeoff Private functions: –Want to hide  i (d)=d i Information functions: –Want to reveal query answers f(d i1,…,d ik ) Major question: what may be computed over d (and given to users) without breaching privacy? Confidentiality control methods –Perturbation methods: give `noisy’ answers –Query restriction methods: limit the queries users may post, usually imposing some structure (e.g. size/overlap restrictions) iiii f

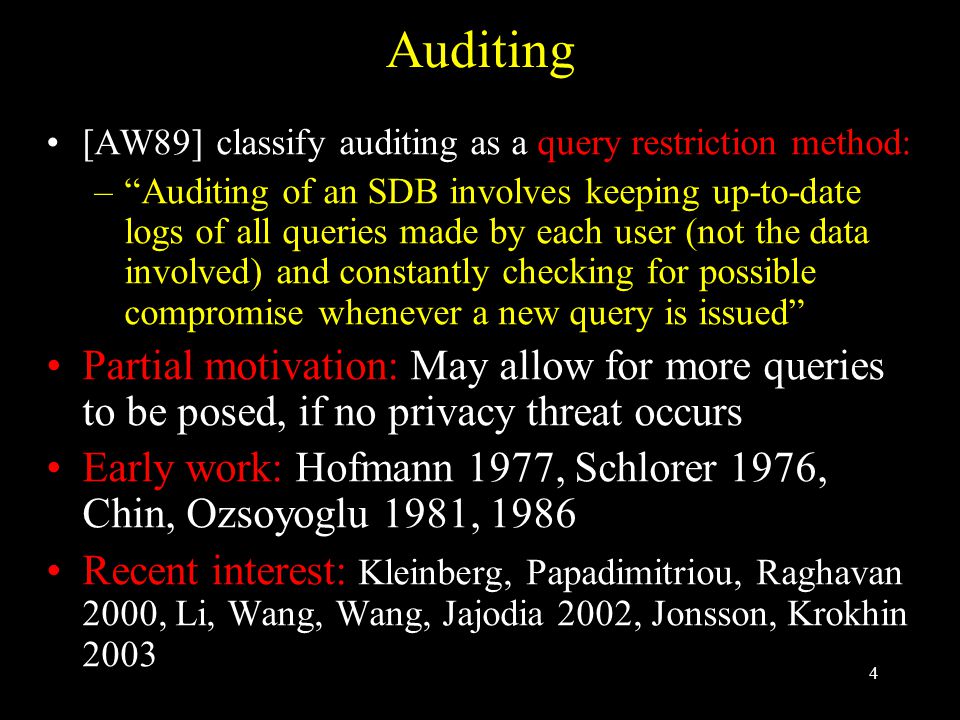

4. 4 Auditing [AW89] classify auditing as a query restriction method: –“Auditing of an SDB involves keeping up-to-date logs of all queries made by each user (not the data involved) and constantly checking for possible compromise whenever a new query is issued” Partial motivation: May allow for more queries to be posed, if no privacy threat occurs Early work: Hofmann 1977, Schlorer 1976, Chin, Ozsoyoglu 1981, 1986 Recent interest: Kleinberg, Papadimitriou, Raghavan 2000, Li, Wang, Wang, Jajodia 2002, Jonsson, Krokhin 2003

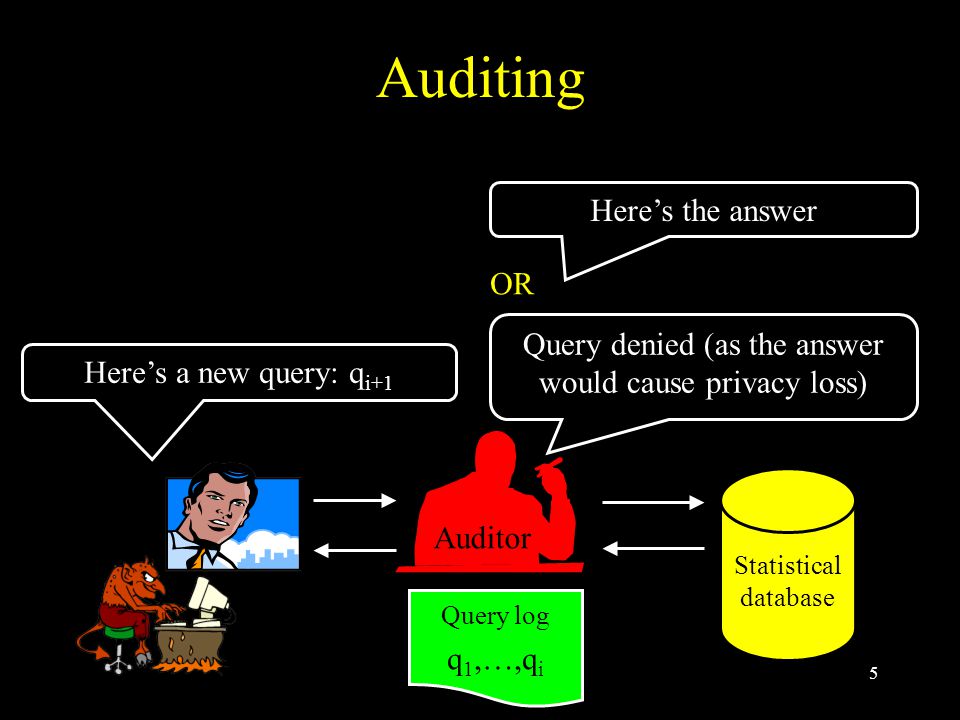

5. 5 Auditing Statistical database Query log q 1,…,q i Here’s a new query: q i+1 Here’s the answer Query denied (as the answer would cause privacy loss) OR Auditor

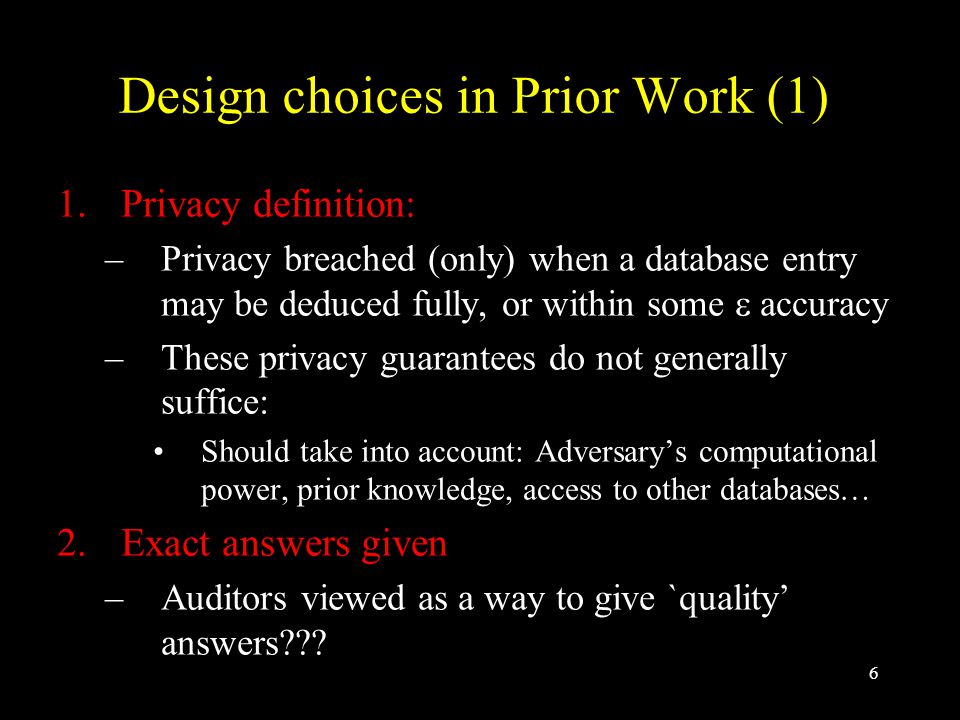

6. 6 Design choices in Prior Work (1) 1.Privacy definition: –Privacy breached (only) when a database entry may be deduced fully, or within some  accuracy –These privacy guarantees do not generally suffice: Should take into account: Adversary’s computational power, prior knowledge, access to other databases… 2.Exact answers given –Auditors viewed as a way to give `quality’ answers???

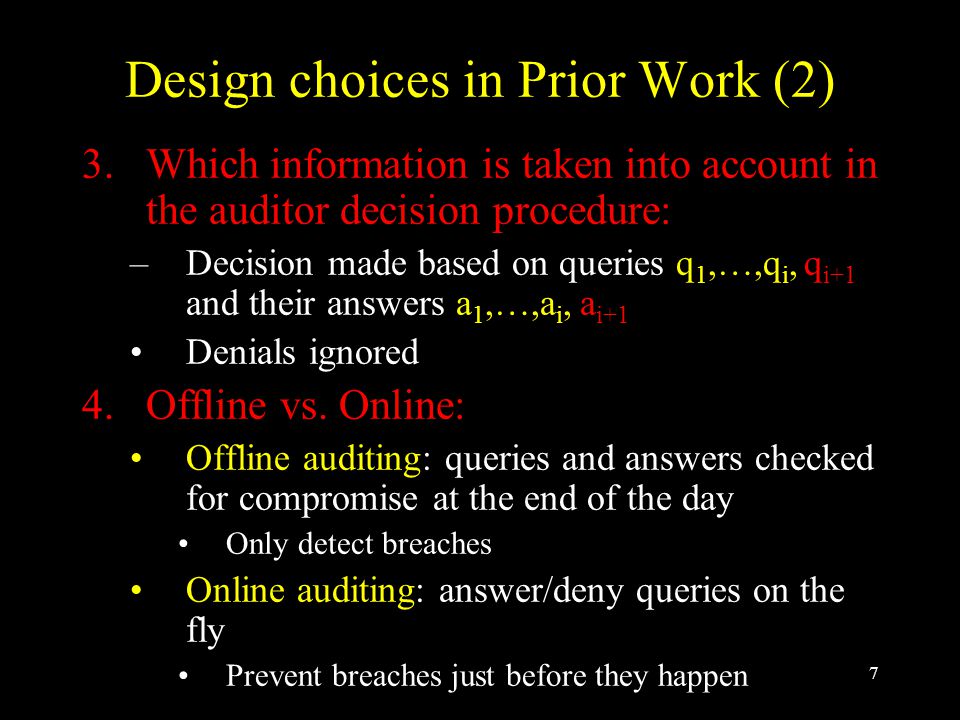

7. 7 Design choices in Prior Work (2) 3.Which information is taken into account in the auditor decision procedure: –Decision made based on queries q 1,…,q i, q i+1 and their answers a 1,…,a i, a i+1 Denials ignored 4.Offline vs. Online: Offline auditing: queries and answers checked for compromise at the end of the day Only detect breaches Online auditing: answer/deny queries on the fly Prevent breaches just before they happen

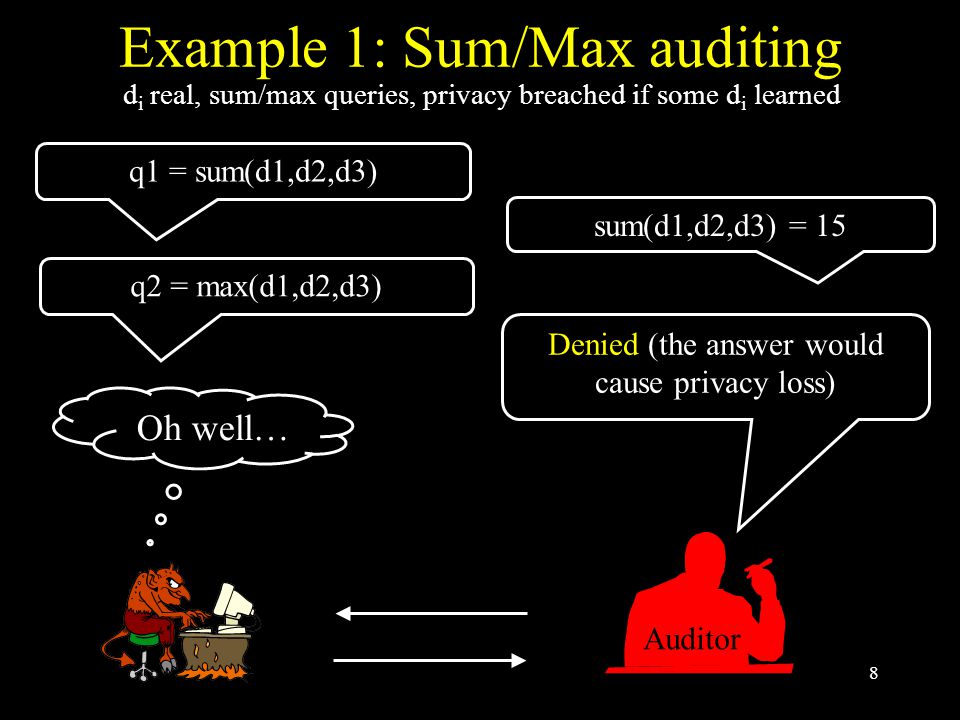

8. 8 Example 1: Sum/Max auditing Oh well… q1 = sum(d1,d2,d3) sum(d1,d2,d3) = 15 q2 = max(d1,d2,d3) Denied (the answer would cause privacy loss) d i real, sum/max queries, privacy breached if some d i learned Auditor

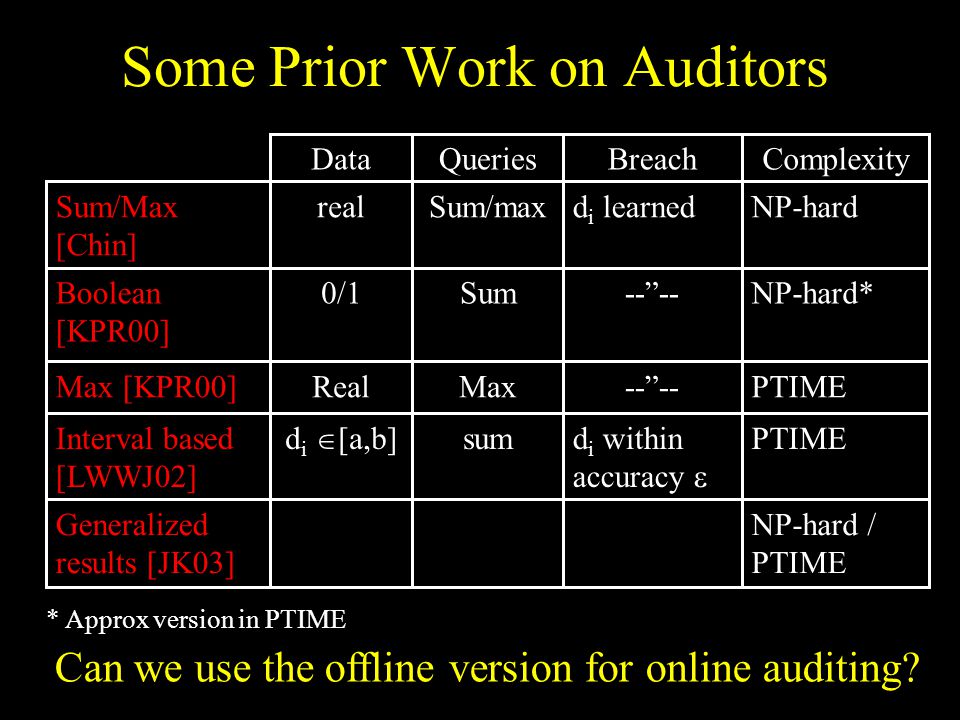

9. 9 Some Prior Work on Auditors NP-hard / PTIME Generalized results [JK03] PTIMEd i within accuracy  sum d i  [a,b] Interval based [LWWJ02] PTIME--”--MaxRealMax [KPR00]NP-hard*--”--Sum0/1Boolean [KPR00] NP-hardd i learnedSum/maxrealSum/Max [Chin] ComplexityBreachQueriesData * Approx version in PTIME Can we use the offline version for online auditing?

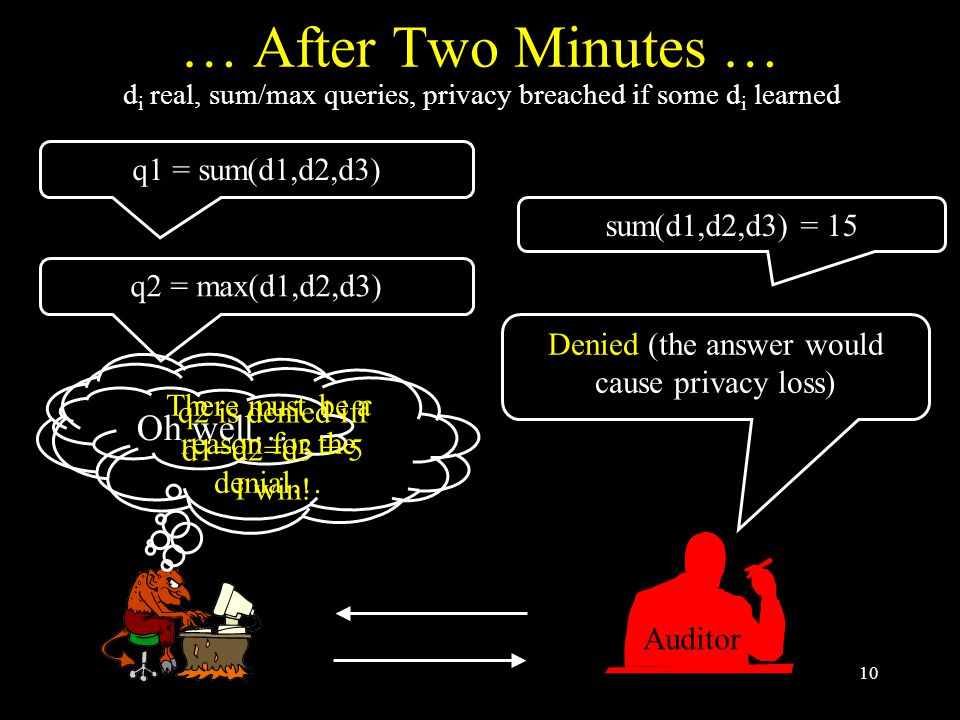

10. 10 … After Two Minutes … Oh well… q1 = sum(d1,d2,d3) sum(d1,d2,d3) = 15 q2 = max(d1,d2,d3) Denied (the answer would cause privacy loss) q2 is denied iff d1=d2=d3 = 5 I win! Auditor d i real, sum/max queries, privacy breached if some d i learned There must be a reason for the denial…

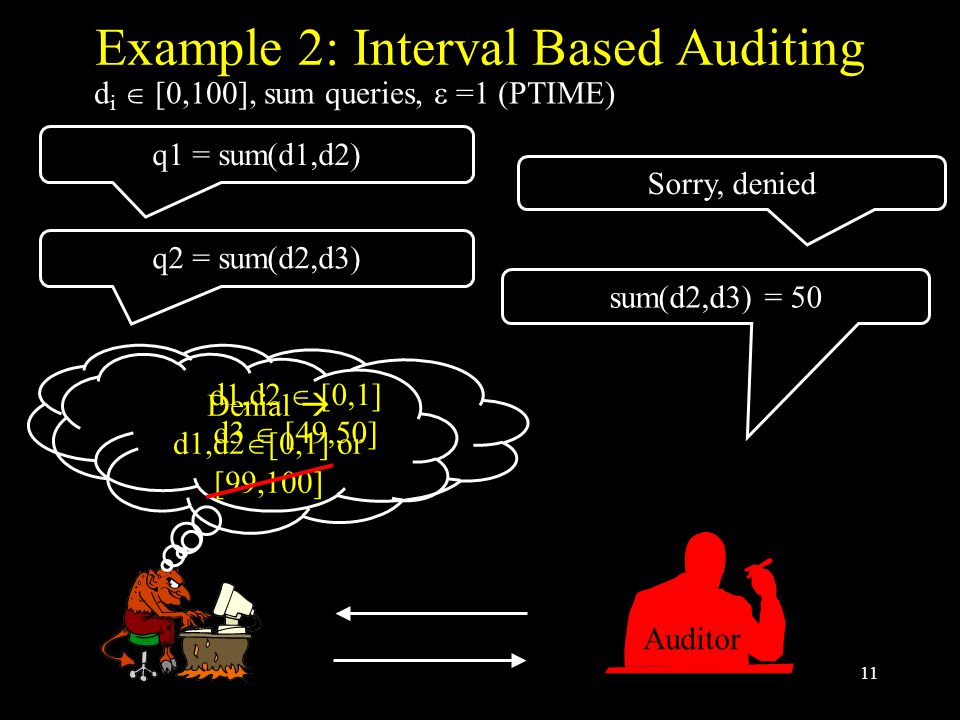

11. 11 Example 2: Interval Based Auditing q1 = sum(d1,d2) Sorry, denied q2 = sum(d2,d3) sum(d2,d3) = 50 d1,d2  [0,1] d3  [49,50] d i  [0,100], sum queries,  =1 (PTIME) Auditor Denial  d1,d2  [0,1] or [99,100]

12. 12 Sounds Familiar? On the advice of my counsel I respectfully and regretfully decline to answer the question based on my constitutional rights. Colonel Oliver North, on the Iran-Contra Arms Deal: Mr. Chairman, I would like to answer the committee's questions, but on the advice of my counsel I respectfully decline to answer the question based on the protection afforded me under the Constitution of the United States. David Duncan, Former auditor for Enron and partner in Andersen:

13. 13 Max Auditing q1 = max(d1,d2,d3,d4) M 1234 d i real M 123 / denied If denied: d4=M 1234 M 12 / denied If denied: d3=M 123 Auditor q2 = max(d1,d2,d3) q2 = max(d1,d2) d1d2d4d6d3d5d7d8…dndn d n-1

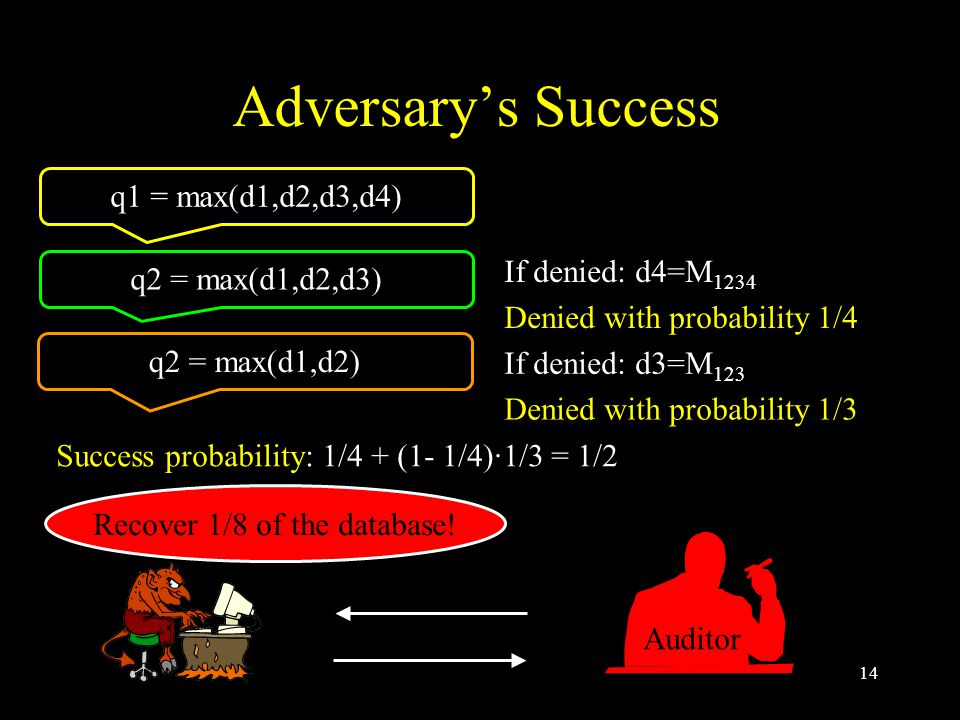

14. 14 Adversary’s Success q1 = max(d1,d2,d3,d4) q2 = max(d1,d2,d3) q2 = max(d1,d2) If denied: d4=M 1234 If denied: d3=M 123 Recover 1/8 of the database! Auditor Denied with probability 1/4 Denied with probability 1/3 Success probability: 1/4 + (1- 1/4)·1/3 = 1/2

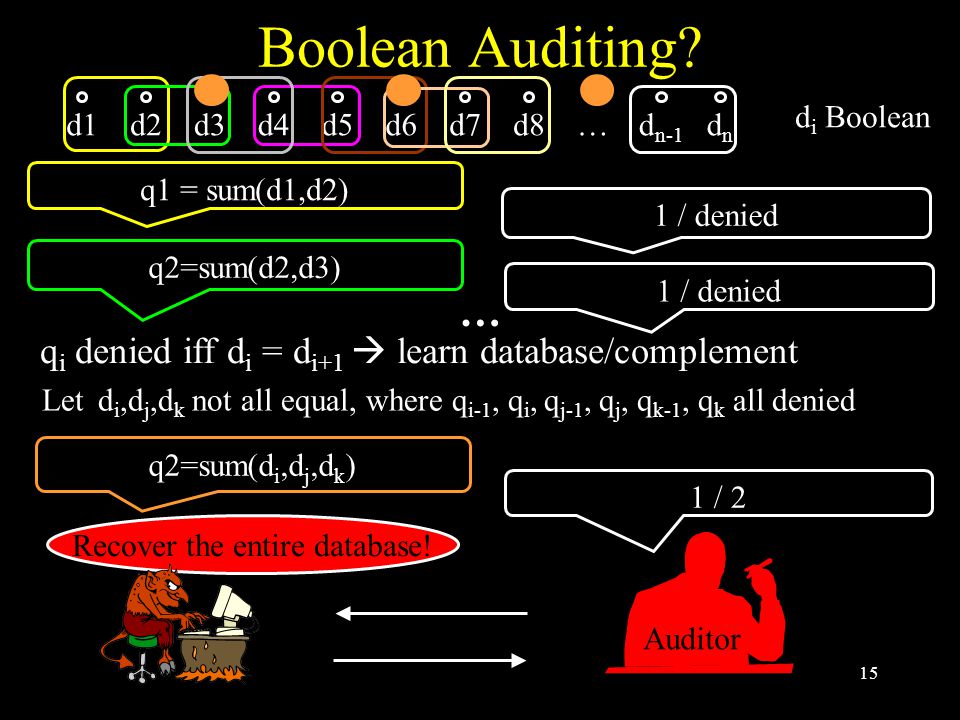

15. 15 Boolean Auditing? 1 / denied q i denied iff d i = d i+1  learn database/complement Auditor … 1 / 2 Recover the entire database! Let d i,d j,d k not all equal, where q i-1, q i, q j-1, q j, q k-1, q k all denied d i Boolean d1d2d4d6d3d5d7d8…dndn d n-1 q1 = sum(d1,d2) q2=sum(d2,d3) q2=sum(d i,d j,d k )

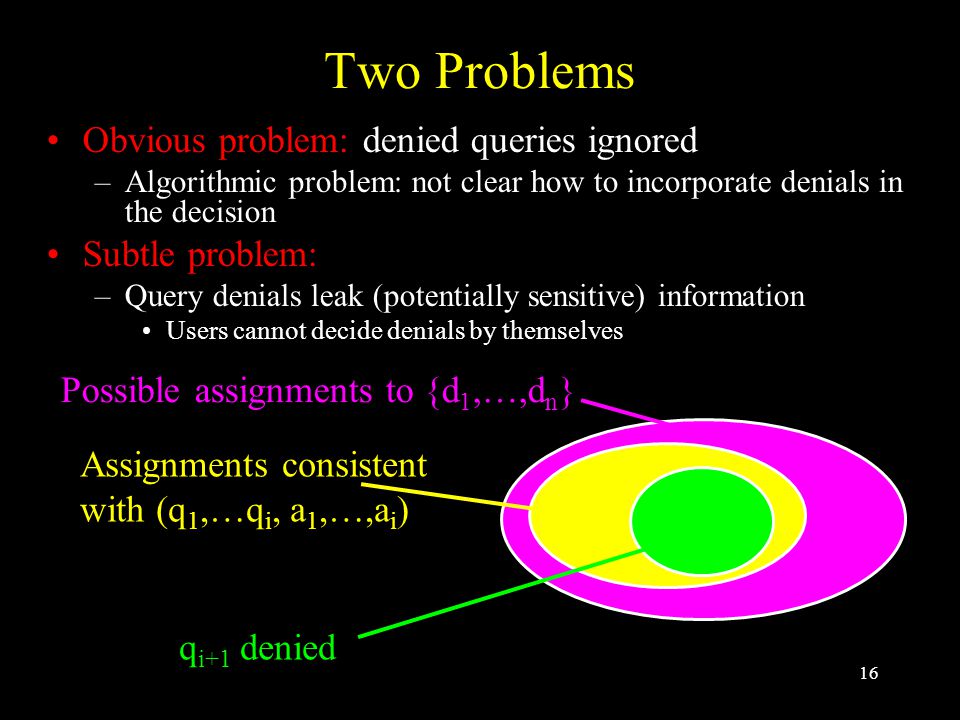

16. 16 Two Problems Obvious problem: denied queries ignored –Algorithmic problem: not clear how to incorporate denials in the decision Subtle problem: –Query denials leak (potentially sensitive) information Users cannot decide denials by themselves Possible assignments to {d 1,…,d n } Assignments consistent with (q 1,…q i, a 1,…,a i ) q i+1 denied

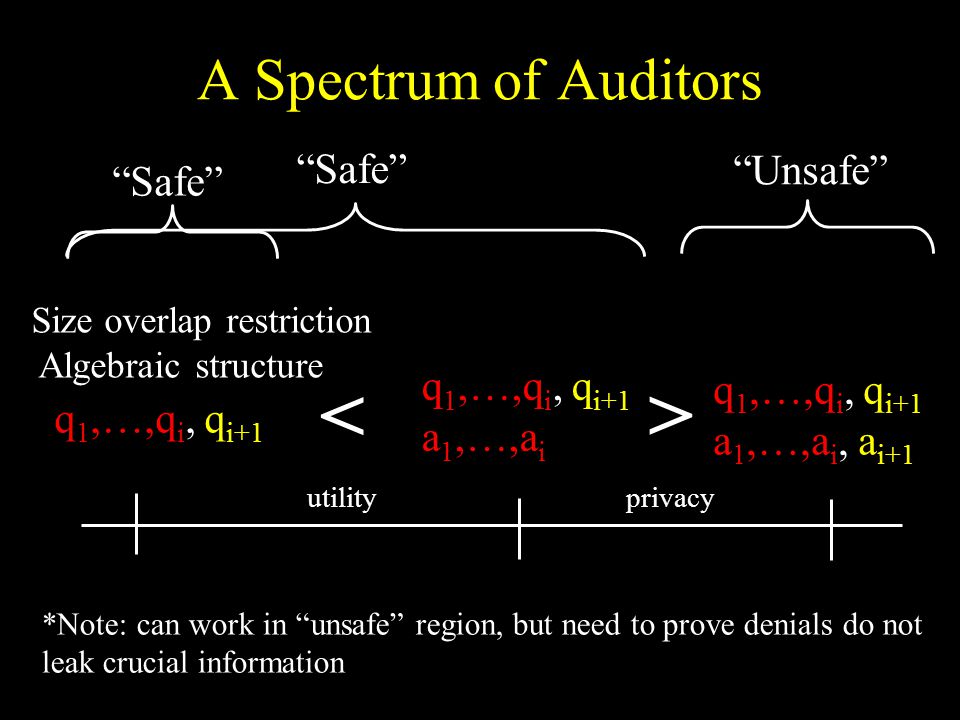

17. 17 A Spectrum of Auditors q 1,…,q i, q i+1 a 1,…,a i, a i+1 q 1,…,q i, q i+1 a 1,…,a i *Note: can work in “unsafe” region, but need to prove denials do not leak crucial information Size overlap restriction Algebraic structure “Safe” “Unsafe” < utility > privacy “Safe”

18. 18 Simulatable Auditing* An auditor is simulatable if a simulator exists s.t.: Auditor q i+1  Deny/answer Simulator Simulation  denials do not leak information * `self auditors’ in [DN03] q 1,…,q i a 1,…,a i Statistical database q 1,…,q i

19. 19 Why Simulatable Auditors do not Leak Information? Possible assignments to {d 1,…,d n } Assignments consistent with (q 1,…q i, a 1,…,a i ) q i+1 denied/allowed

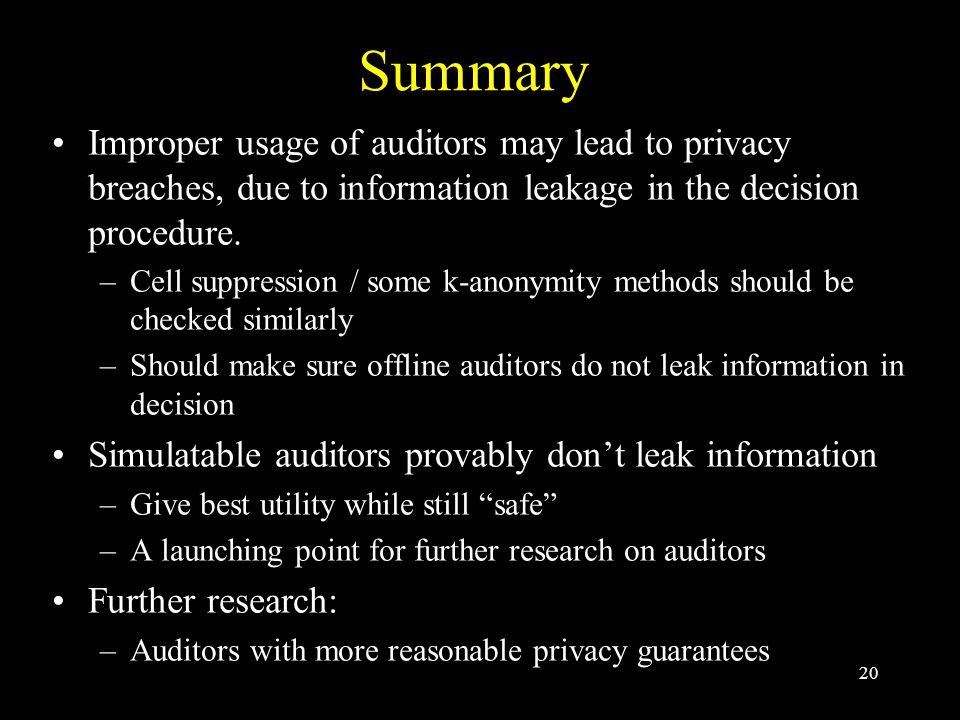

20. 20 Summary Improper usage of auditors may lead to privacy breaches, due to information leakage in the decision procedure. –Cell suppression / some k-anonymity methods should be checked similarly –Should make sure offline auditors do not leak information in decision Simulatable auditors provably don’t leak information –Give best utility while still “safe” –A launching point for further research on auditors Further research: –Auditors with more reasonable privacy guarantees
