1 © 2012 Delmar, Cengage Learning Diagnosing Engine Mechanical Problems Chapter 49

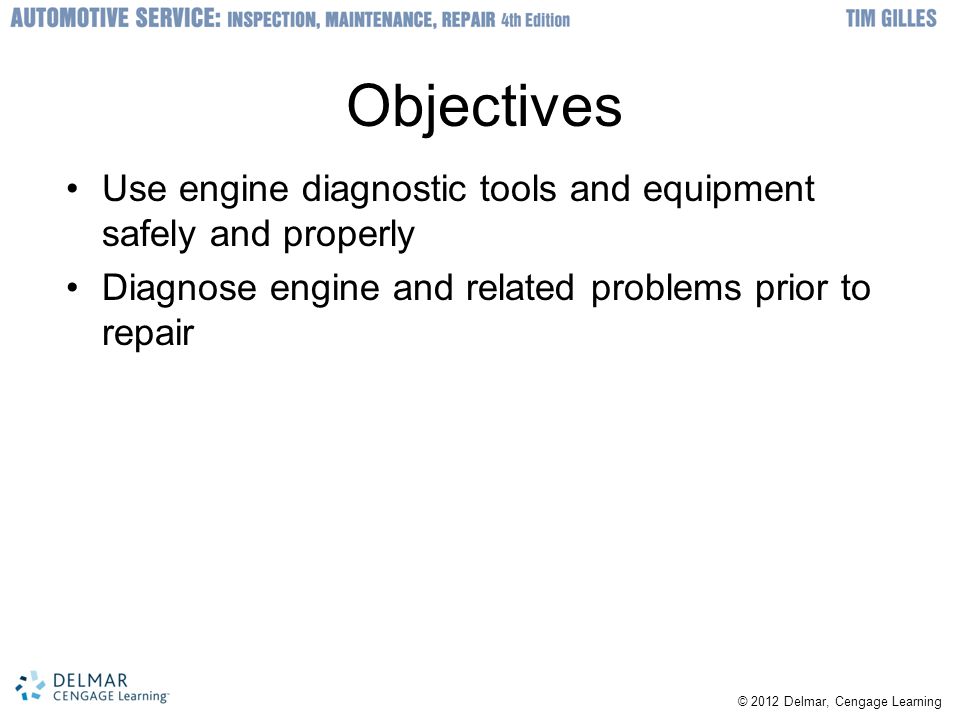

2 © 2012 Delmar, Cengage Learning Objectives Use engine diagnostic tools and equipment safely and properly Diagnose engine and related problems prior to repair

3 © 2012 Delmar, Cengage Learning Introduction Major diagnosis areas –Oil consumption –Engine noises –Oil pressure problems –Cooling system problems Causes of engine problems –Normal wear –Lack of maintenance –Previous work –Problems in other areas

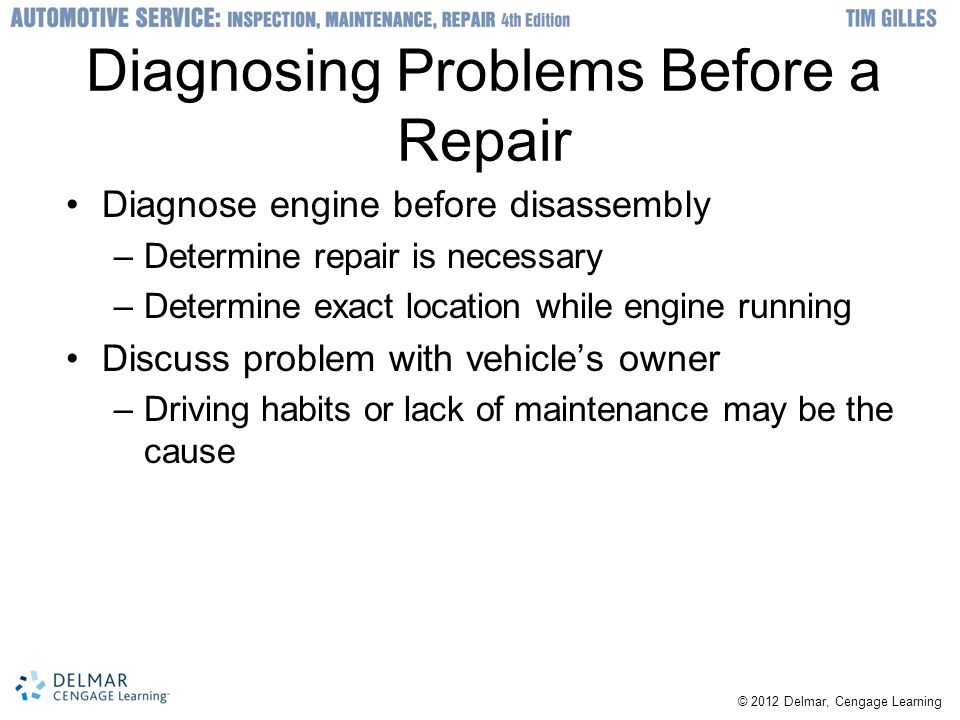

4 © 2012 Delmar, Cengage Learning Diagnosing Problems Before a Repair Diagnose engine before disassembly –Determine repair is necessary –Determine exact location while engine running Discuss problem with vehicle’s owner –Driving habits or lack of maintenance may be the cause

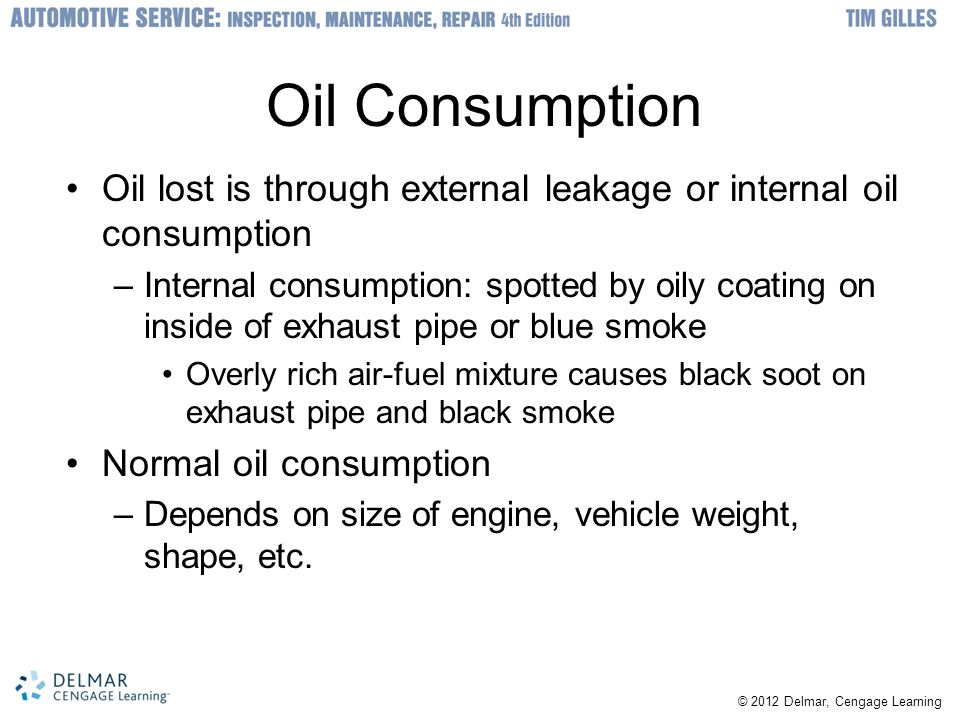

5 © 2012 Delmar, Cengage Learning Oil Consumption Oil lost is through external leakage or internal oil consumption –Internal consumption: spotted by oily coating on inside of exhaust pipe or blue smoke Overly rich air-fuel mixture causes black soot on exhaust pipe and black smoke Normal oil consumption –Depends on size of engine, vehicle weight, shape, etc.

6 © 2012 Delmar, Cengage Learning Causes of Oil Consumption Bad valve guides or seals –Smoke visible from exhaust during deceleration Worn compression rings –Frequent cause: poor maintenance Increased consumption after a valve job –Consider entire engine Excessive rod bearing clearance –Engines with high mileage Vacuum modulator –Older automatic transmissions

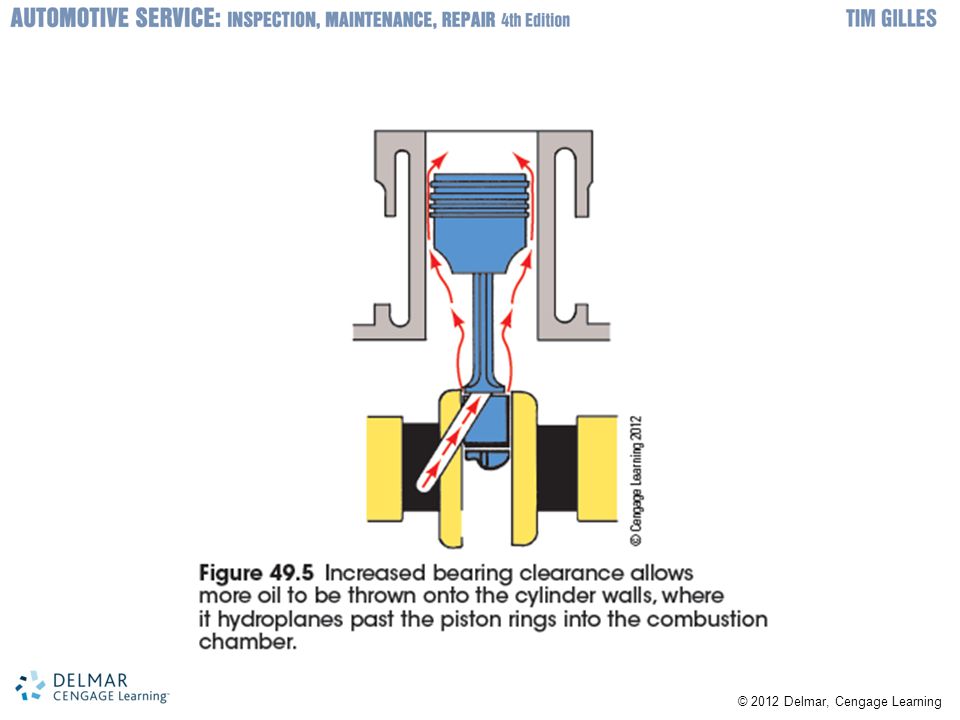

7 © 2012 Delmar, Cengage Learning

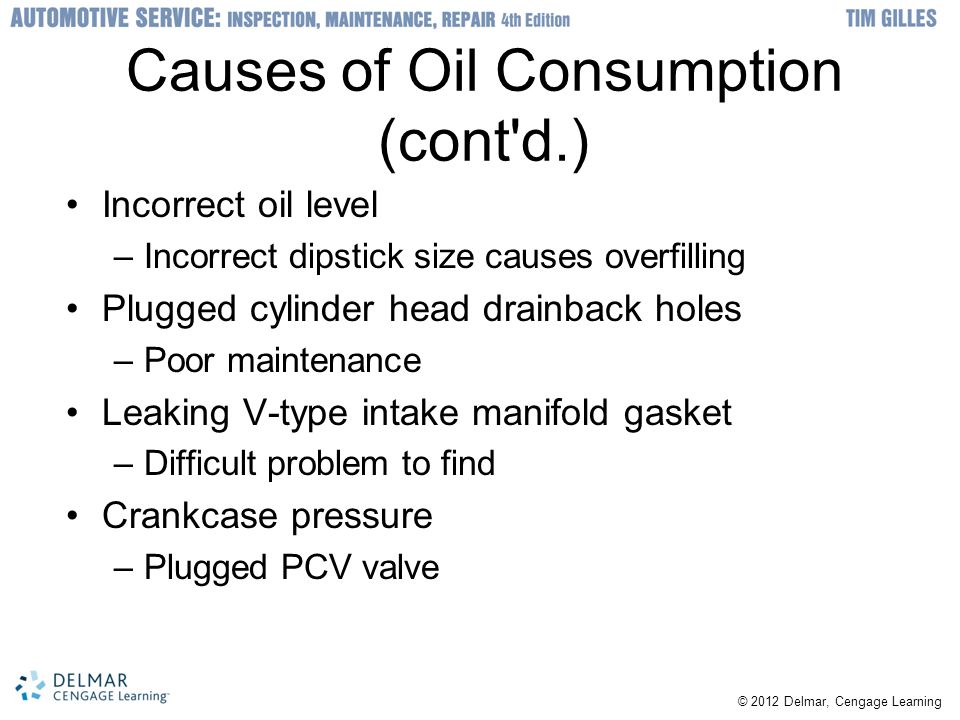

8 Causes of Oil Consumption (cont'd.) Incorrect oil level –Incorrect dipstick size causes overfilling Plugged cylinder head drainback holes –Poor maintenance Leaking V-type intake manifold gasket –Difficult problem to find Crankcase pressure –Plugged PCV valve

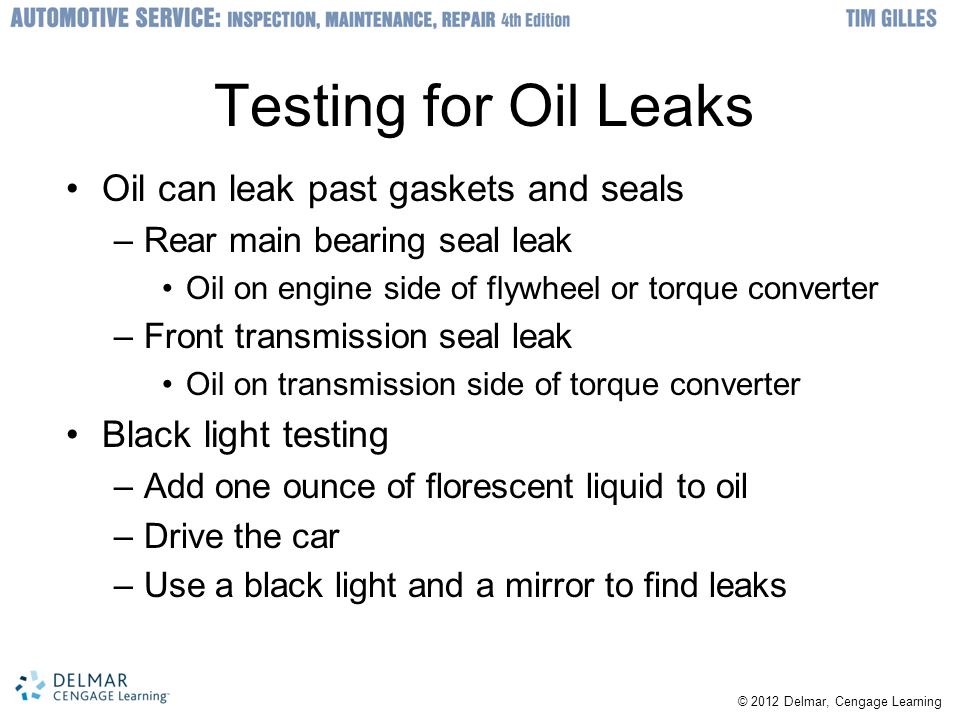

9 © 2012 Delmar, Cengage Learning Testing for Oil Leaks Oil can leak past gaskets and seals –Rear main bearing seal leak Oil on engine side of flywheel or torque converter –Front transmission seal leak Oil on transmission side of torque converter Black light testing –Add one ounce of florescent liquid to oil –Drive the car –Use a black light and a mirror to find leaks

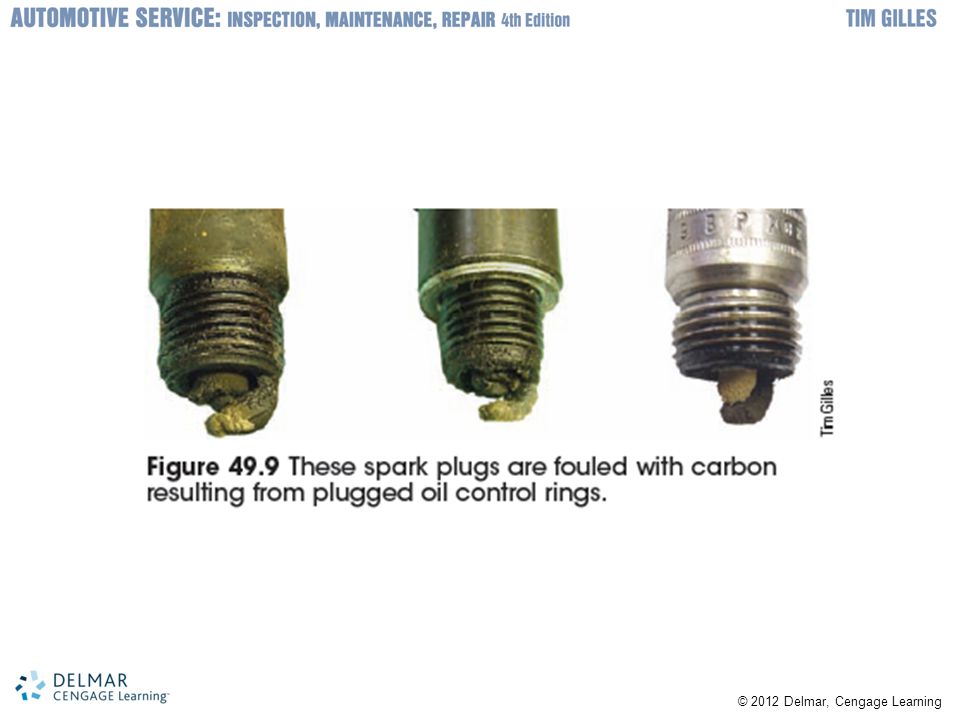

10 © 2012 Delmar, Cengage Learning

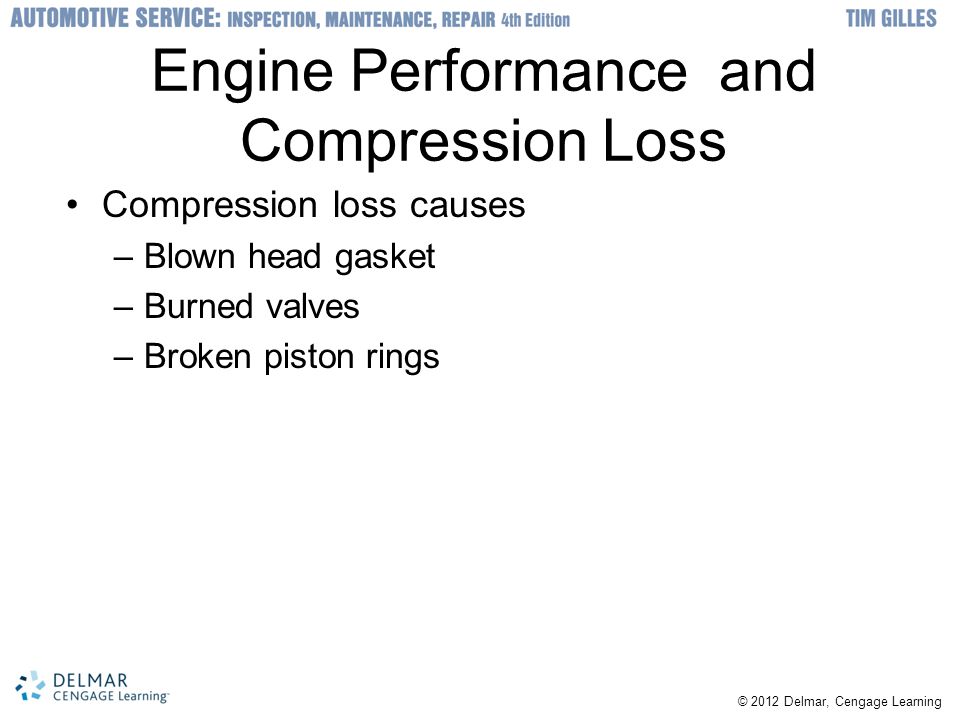

11 Engine Performance and Compression Loss Compression loss causes –Blown head gasket –Burned valves –Broken piston rings

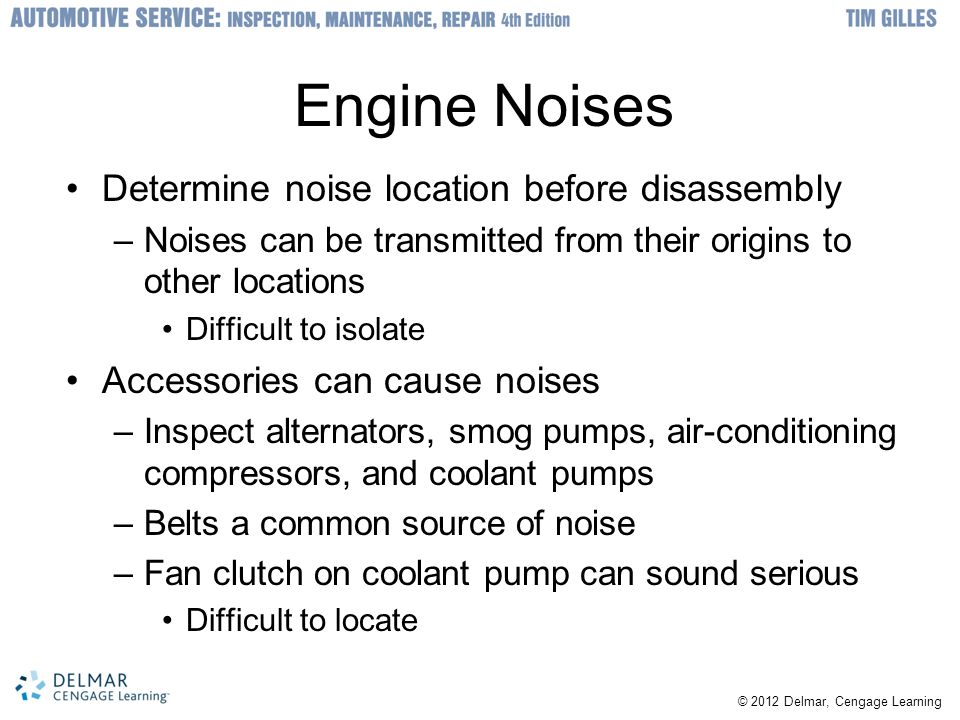

12 © 2012 Delmar, Cengage Learning Engine Noises Determine noise location before disassembly –Noises can be transmitted from their origins to other locations Difficult to isolate Accessories can cause noises –Inspect alternators, smog pumps, air-conditioning compressors, and coolant pumps –Belts a common source of noise –Fan clutch on coolant pump can sound serious Difficult to locate

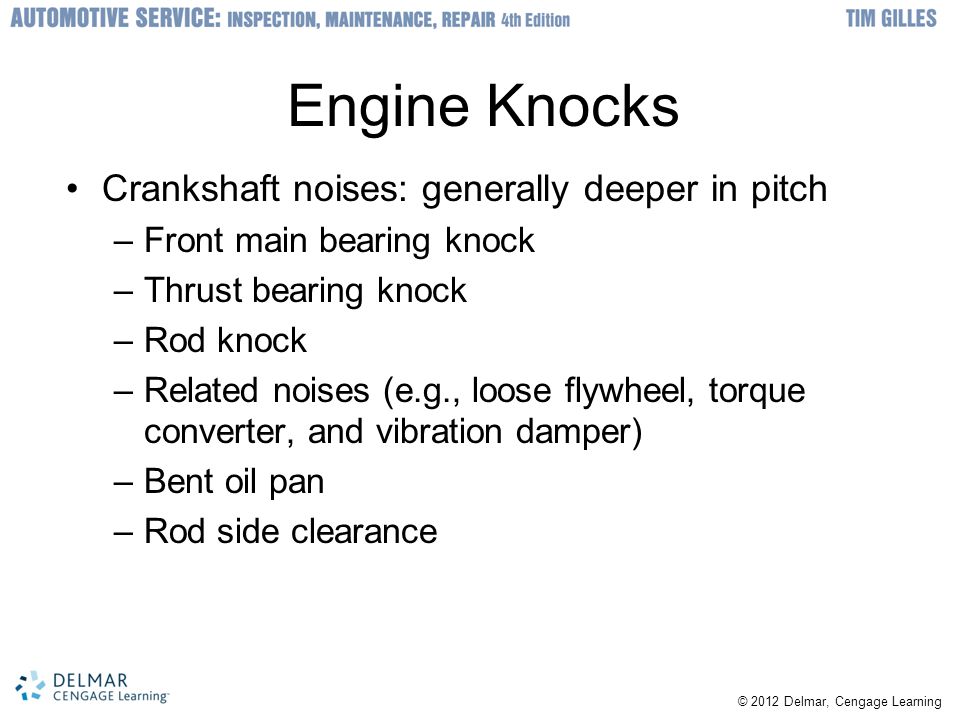

13 © 2012 Delmar, Cengage Learning Engine Knocks Crankshaft noises: generally deeper in pitch –Front main bearing knock –Thrust bearing knock –Rod knock –Related noises (e.g., loose flywheel, torque converter, and vibration damper) –Bent oil pan –Rod side clearance

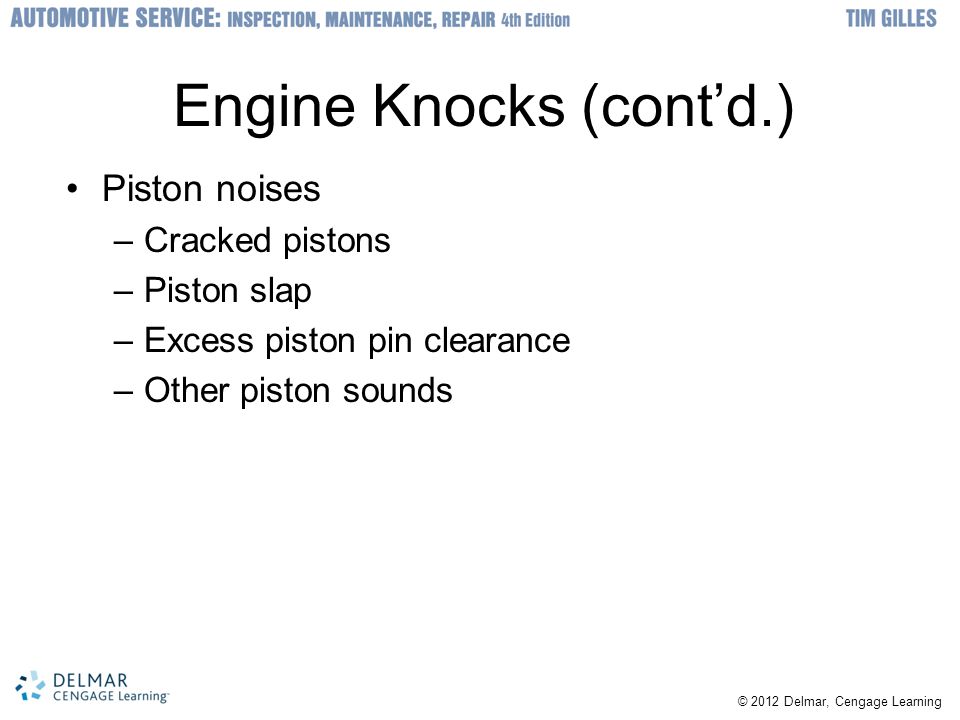

14 © 2012 Delmar, Cengage Learning Engine Knocks (cont’d.) Piston noises –Cracked pistons –Piston slap –Excess piston pin clearance –Other piston sounds

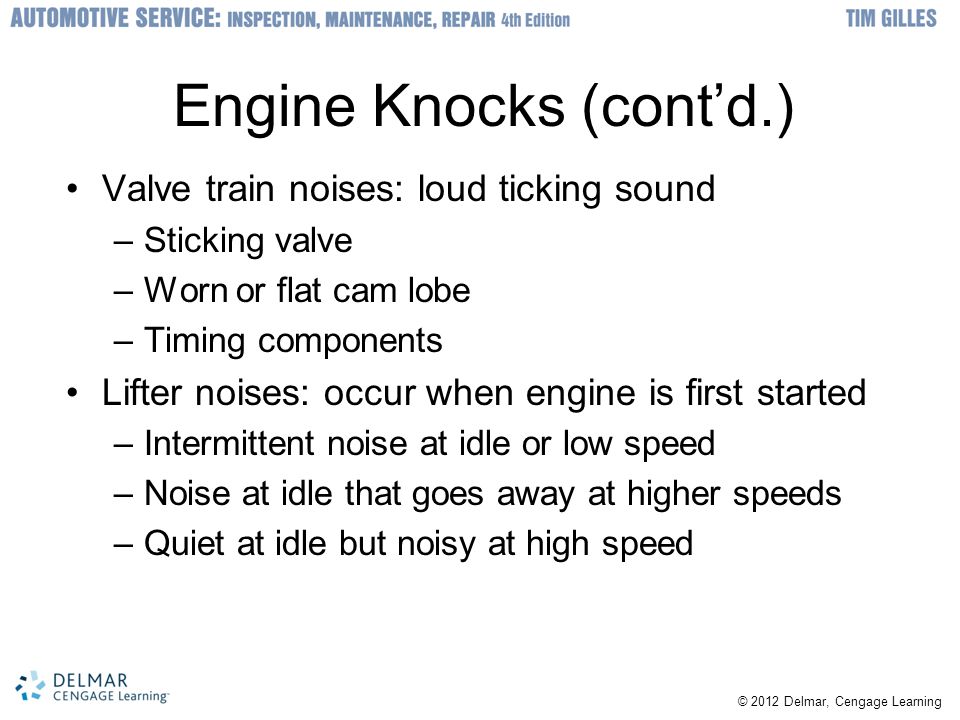

15 © 2012 Delmar, Cengage Learning Engine Knocks (cont’d.) Valve train noises: loud ticking sound –Sticking valve –Worn or flat cam lobe –Timing components Lifter noises: occur when engine is first started –Intermittent noise at idle or low speed –Noise at idle that goes away at higher speeds –Quiet at idle but noisy at high speed

16 © 2012 Delmar, Cengage Learning Engine Knocks (cont’d.) Lifter noise at all engine speeds –Dirt or varnish buildup –Worn parts or insufficient oil supply –Oil is too thin or pressure is too low Spark knock noise –Several causes –Excessive carbon buildup Broken motor mount –Check for engine lift when transmission is in forward and reverse ranges with brakes applied

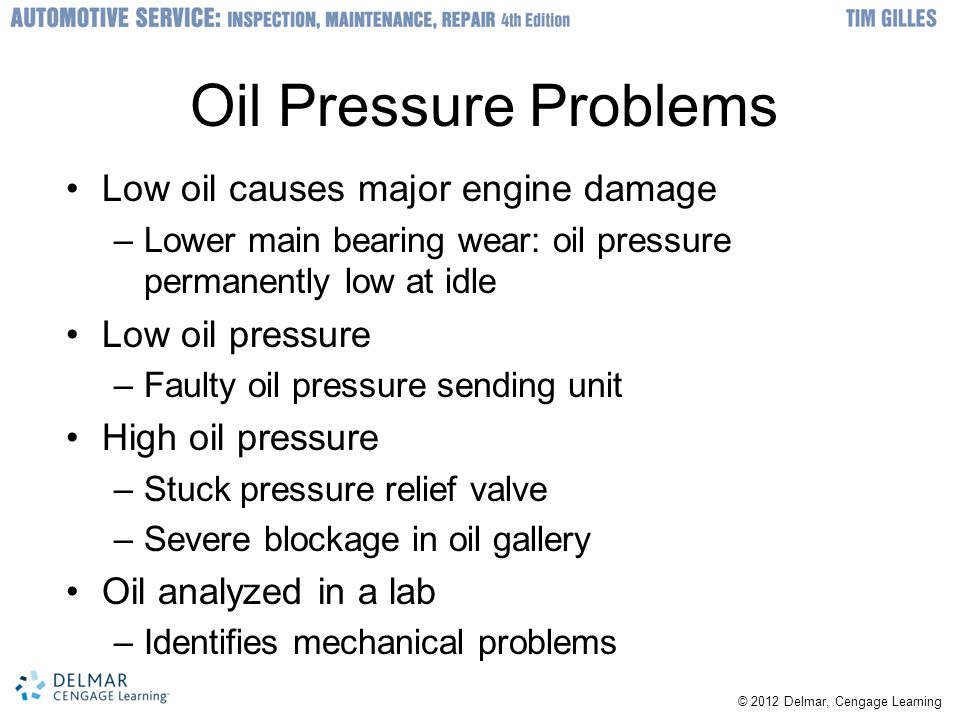

17 © 2012 Delmar, Cengage Learning Oil Pressure Problems Low oil causes major engine damage –Lower main bearing wear: oil pressure permanently low at idle Low oil pressure –Faulty oil pressure sending unit High oil pressure –Stuck pressure relief valve –Severe blockage in oil gallery Oil analyzed in a lab –Identifies mechanical problems

18 © 2012 Delmar, Cengage Learning

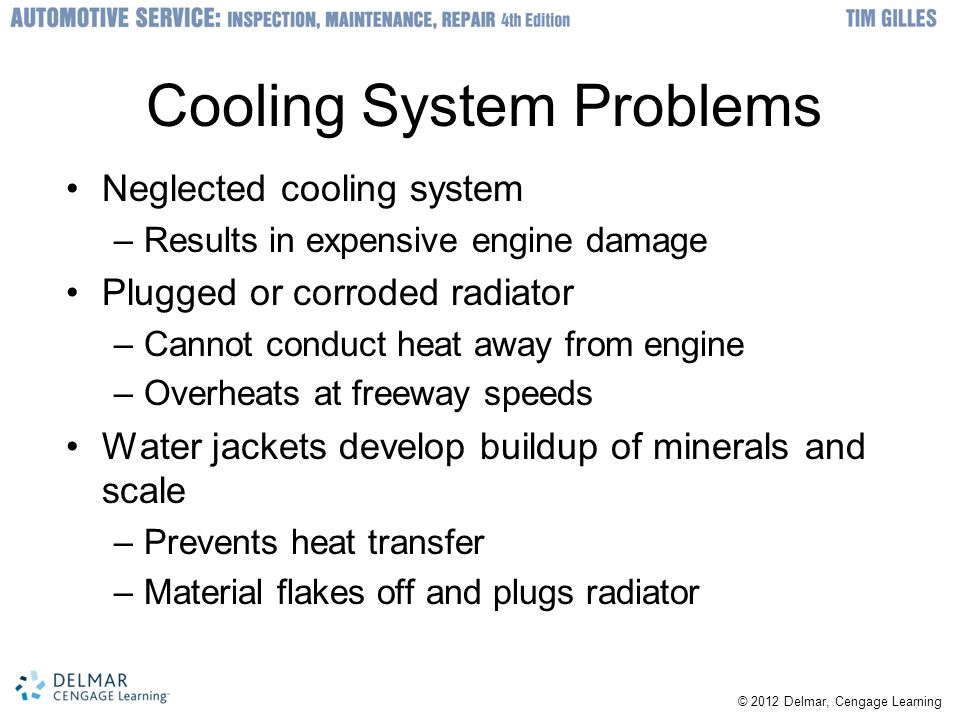

19 Cooling System Problems Neglected cooling system –Results in expensive engine damage Plugged or corroded radiator –Cannot conduct heat away from engine –Overheats at freeway speeds Water jackets develop buildup of minerals and scale –Prevents heat transfer –Material flakes off and plugs radiator

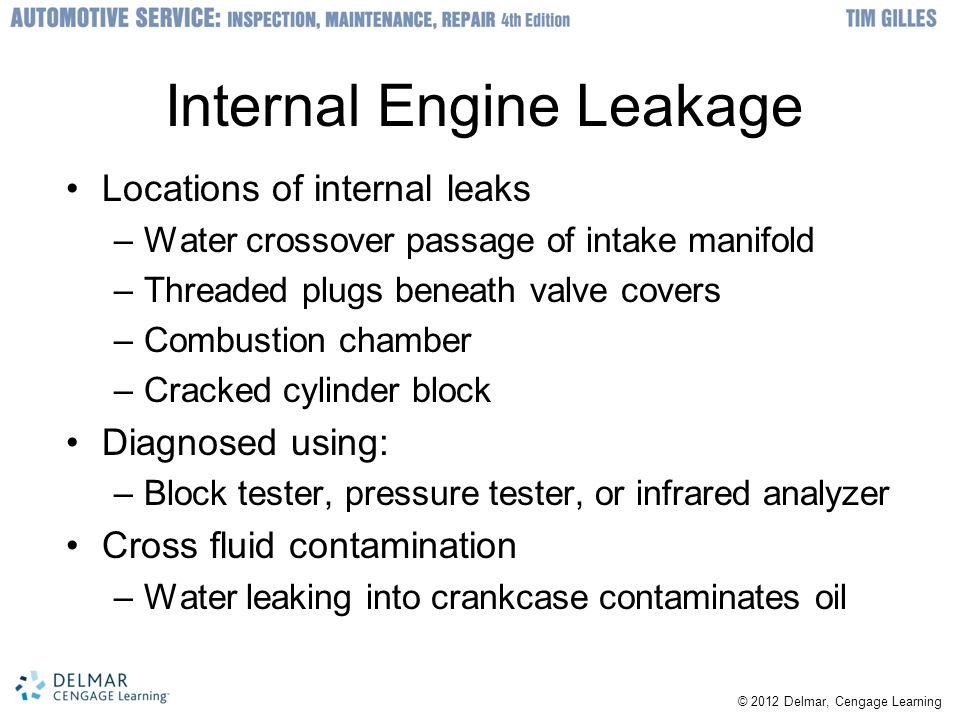

20 © 2012 Delmar, Cengage Learning Internal Engine Leakage Locations of internal leaks –Water crossover passage of intake manifold –Threaded plugs beneath valve covers –Combustion chamber –Cracked cylinder block Diagnosed using: –Block tester, pressure tester, or infrared analyzer Cross fluid contamination –Water leaking into crankcase contaminates oil

21 © 2012 Delmar, Cengage Learning Internal Engine Leakage (cont'd.) Internal oil to coolant leaks –Leak between oil and water passageway causes pressurized oil to leak into cooling system Spotted by installing pressure tester on radiator filler neck –Leaking head gasket may not show up on a pressure test Block check tester or infrared exhaust analyzer checks for exhaust gas in coolant Bubbles in coolant indicate a leak

22 © 2012 Delmar, Cengage Learning

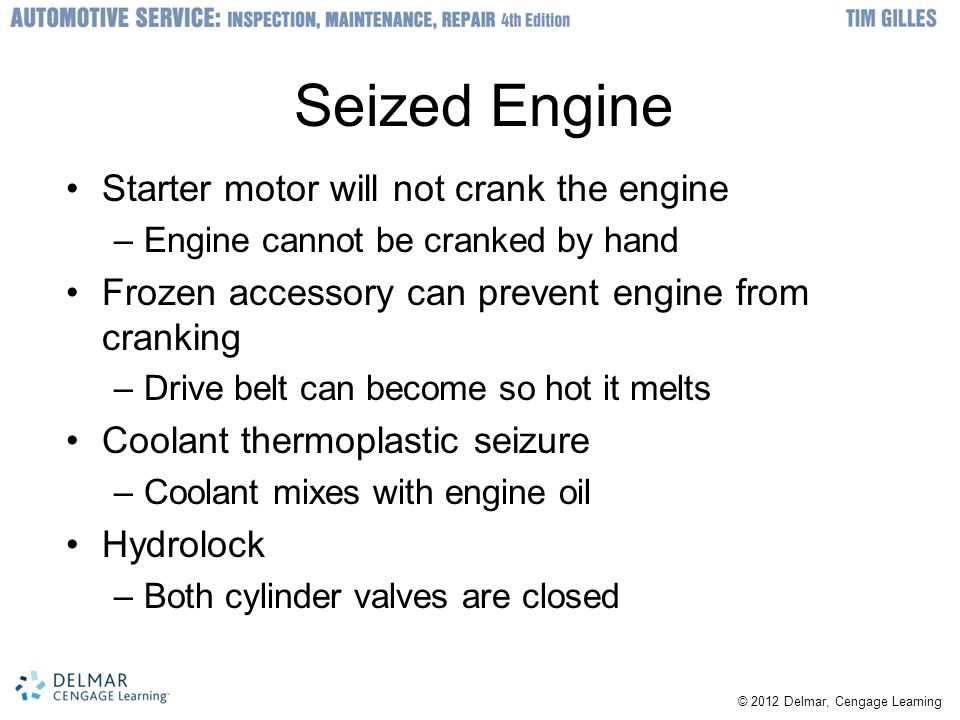

23 Seized Engine Starter motor will not crank the engine –Engine cannot be cranked by hand Frozen accessory can prevent engine from cranking –Drive belt can become so hot it melts Coolant thermoplastic seizure –Coolant mixes with engine oil Hydrolock –Both cylinder valves are closed

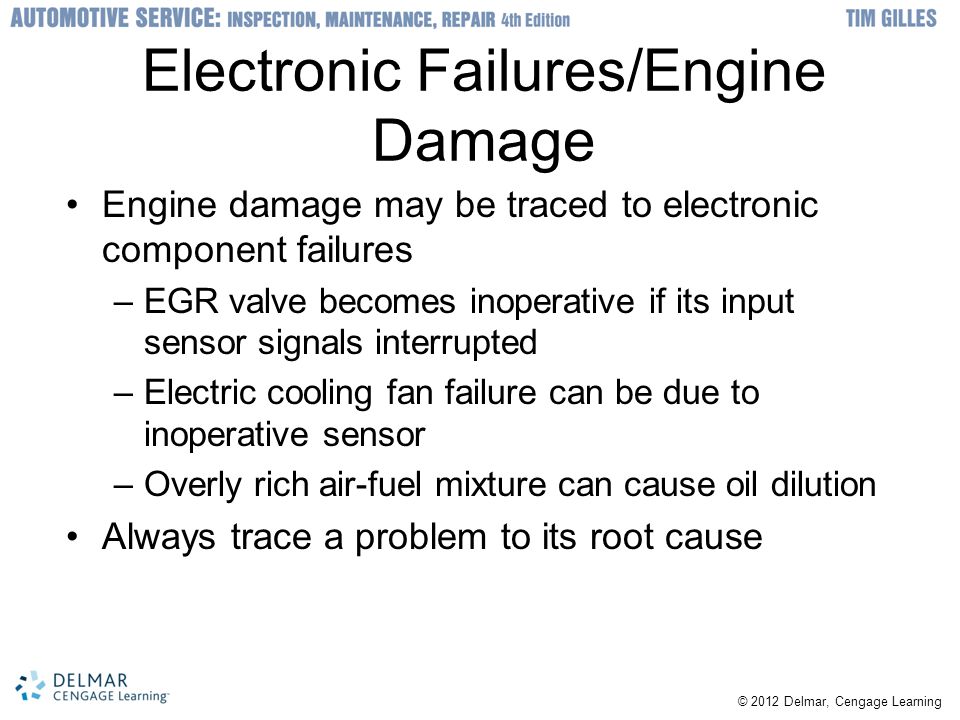

24 © 2012 Delmar, Cengage Learning Electronic Failures/Engine Damage Engine damage may be traced to electronic component failures –EGR valve becomes inoperative if its input sensor signals interrupted –Electric cooling fan failure can be due to inoperative sensor –Overly rich air-fuel mixture can cause oil dilution Always trace a problem to its root cause

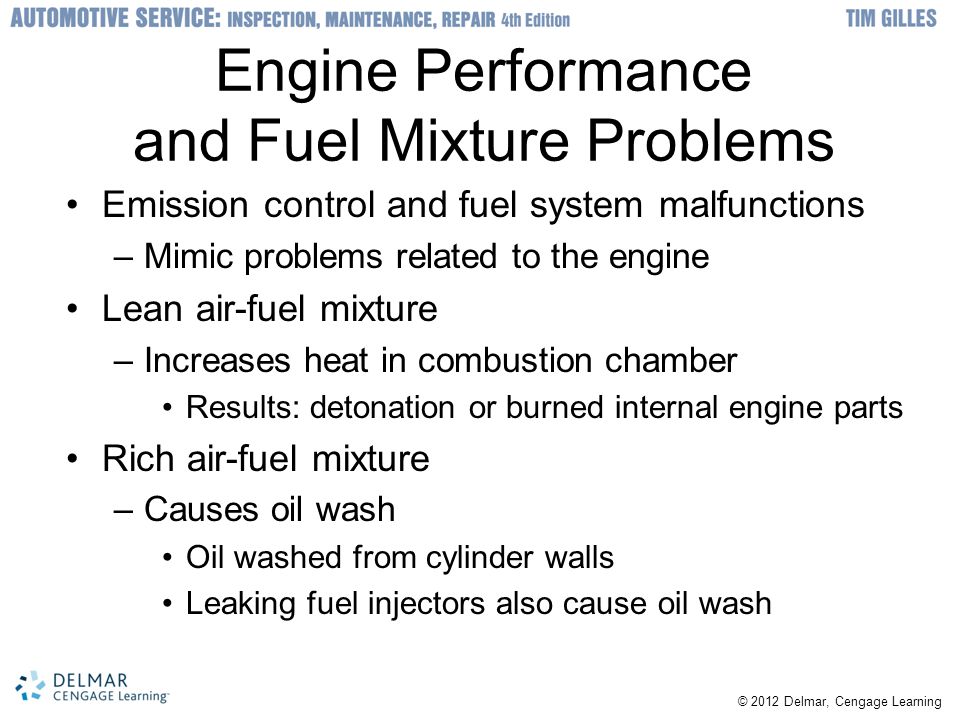

25 © 2012 Delmar, Cengage Learning Engine Performance and Fuel Mixture Problems Emission control and fuel system malfunctions –Mimic problems related to the engine Lean air-fuel mixture –Increases heat in combustion chamber Results: detonation or burned internal engine parts Rich air-fuel mixture –Causes oil wash Oil washed from cylinder walls Leaking fuel injectors also cause oil wash
