1. A Recursive Algorithm for Calculating the Relative Convex Hull Gisela Klette AUT University Computing & Mathematical Sciences Auckland, New Zealand

2. Motivation The calculation of relative convex hulls of simple polygons is –a special subject in computational geometry (shortest paths), –in image analysis (MLP: calculation of features), –in robotics (shortest path of a robot in a constrained environment),...

3. Motivation: Image Analysis MLP is a digital length estimator of the circumference of a digital object that is multigrid convergent MLP is characteristic for the digital convexity of the shape MLP is a tangent estimator

4. Motivation: Robotics Path Planning Informally: The relative convex hull of A relative to B is the shortest path between A and B. A B

5. Definition 1 A subset S in R 2 of points is convex iff S is equal to the intersection of all half planes containing S. The convex hull CH(S) of a set of points S is the smallest (by area) convex polygon P that contains S. S CH(S)

6. A cavity of a polygon A is the topological closure of any connected component of CH(A) \ A. Definition 2 Polygon with 4 cavities CAV 1 CAV 2 CAV 3 CAV 4

7. Definition 3 A cover is a straight line segment in the frontier of CH(A) that is not part of the frontier of A. cover 4

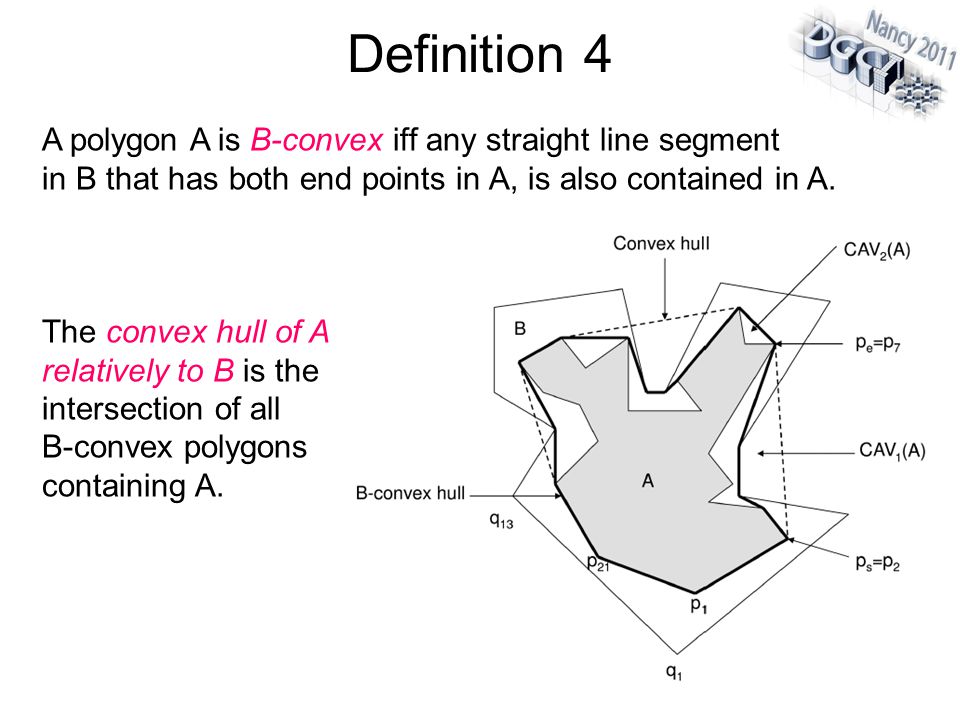

8. Definition 4 A polygon A is B-convex iff any straight line segment in B that has both end points in A, is also contained in A. The convex hull of A relatively to B is the intersection of all B-convex polygons containing A.

9. Definition 5 The minimum length polygon (MLP) of a 2D digital object coincides with the relative convex hull of an inner grid polygon relatively to an outer grid polygon, normally defined in a way like simulating an inner and outer Jordan digitization.

10. Properties of MLP - The inner and the outer polygon of a Jordan digitization have the constraint that they are at Hausdorff distance 1. -Mappings exist between vertices and between cavities in A and in B. -Convex vertices of the inner polygon and concave vertices of the outer polygon are candidates for the MLP. -MLP is uniquely defined for a given digitized object

11. p Algorithm, general case [Toussaint, G.T.: An optimal algorithm for computing the relative convex hull of a set of points in a polygon. In: EURASIP, Signal processing lll: Theories and Applications, Part 2, pages 853–856, North-Holland, 1986.] 1.Find an extreme vertex p in A 2.Construct a polygon B\A with one newly created double-oriented edge between A and B 3.Triangulate the new polygon 4.Find the shortest path from p to p Time Complexity: O(n log log n) Computation of the relative convex hull:

12. Algorithm, MLP [Klette, R., Kovalevsky, V.V., Yip., B.: Length estimation of digital curves. In: Vision Geometry, SPIE 3811, pages 117–129, 1999.] [Klette, R., Rosenfeld, A.: Digital Geometry. Morgan Kaufmann, San Francisco, 2004.] 1.Trace frontier of A and include concave vertices of B 2.Start at extreme vertex 3.Compute positive and negative sides 4.As long as next vertex is between positive and negative sides update the sides 5.Otherwise a new vertex for CH B (A) has been found Time Complexity: O(n) Computation of MLP:

13. Tangential cover Convex hull of one zone Arithmetic MLP (AMLP) [Provencal, X., Lachaud, J.-O.: Two linear-time algorithms for computing the minimum length polygon of a digital contour. In: DGCI 2009, LNCS 5810, pages 104–117, Springer, Heidelberg, 2009.] 1.Input: contour words (Freeman code) 2.Compute tangential cover 3.Decompose into zones (convex, concave, inflexion) 4.Compute convex hull for each polyline per zone Time Complexity: O(n), only for polyominos Computation of MLP:

14. [Provencal, X., Lachaud, J.-O.: Two linear-time algorithms for computing the minimum length polygon of a digital contour. In: DGCI 2009, LNCS 5810, pages 104–117, Springer, Heidelberg, 2009.] Combinatorial MLP (CMLP) CMLP Digital contour Time Complexity: O(n), only for polyominos

15. Result 1 The B-convex hull of a simple polygon A is equal to the convex hull of A iff the convex hull of A is completely contained in B. A B A B B is concave B is convex

16. Result 2 All vertices of the convex hull of a simple polygon A inside a simple polygon B are vertices of the B-convex hull of A.

17. Result 3 All the vertices of the convex hull of I new belong to the relative convex hull of A between p s and p e. I new = {p s, q 3, q 4,…q 11, p e }

18. New algorithm The relative convex hull CHB(A) for simple polygons A and B is only different from CH(A) if there is at least one cavity in A and one in B such that the intersection of those cavities is not empty.

19. New recursive algorithm 1.Compute the convex hulls for the inner and the outer polygon (Melkman algorithm for example) 2.Copy vertices of the inner polygon one by one to the CH B (A) until it finds a cavity 3.Check the outer polygon for a cavity 4.Construct the new polygons and find the convex hulls 5.Copy all vertices of the inner polygon to the CH B (A) 6.Stop if the base case of the recursion is reached.

20. New recursive algorithm Relative convex hull Covers First cavity Second cavity

21. Discussion 1.Recursive algorithm works for arbitrary simple polygons A and B in O(n 2 ), worst case. 2.It is a recursive procedure that is very simple and of low time complexity. 3.The algorithm runs in linear time if the maximum depth of stacked cavities of A is limited by a constant. We continue to study the expected time complexity of the algorithm under some general assumptions of variations (i.e., distribution) for possible input polygons A and B. 4.The depth of stacked cavities could be used as a shape descriptor.
