1. Introduction to Data Mining
Univ.-Prof. Dr. Peter Brezany
Institute of Scientific Computing
Faculty for Information Science
University of Vienna
WWW:

2. Introduction
This lecture topic is about the theme which has come to be known as data mining and knowledge discovery in large databases, data warehouses, and other massive information repositories.
Data mining emerged during the late 1980s; has made great strides during the late 1990s, and is expected to continue to flourish into the new millennium.
The implementation methods discussed are particularly oriented towards the development of scalable and efficient data mining tools.
We introduce interesting data mining techniques and systems, and discuss applications and research directions.

3. What Motivated Data Mining? Why Is It Important?
There is the wide availability of huge amounts of data and the imminent need for turning such data into useful information and knowledge.
Applications ranging from business management, production control, and market analysis, to engineering design and medical and science exploration.
Data mining can be viewed as a result of the natural evolution of information technology - including database technology, artificial intelligence, machine learning, neural networks, statistics, pattern-recognition, knowledge-based systems, high-performance computing, and data visualization.

4. Motivation Data repositories (files, databases, data warehouses)
Business
Medicine
Scientific
experiments
Data repositories
(files, databases, data warehouses)
Simulations
Earth observations

5. Motivation (another view)
Satellites
Laboratories
(microscopes,
MRI/CT scanners, ...)
Data Re-
positories
Business
Analysis
Experiments
(high energy physics,...)
Computer simulations

6. The Evolution of Database Technology
Data Collection and Database Creation (1960s and earlier)
- Primitive file processing
Database Management Systems (1970s-early 1980s)
- Hierarchical, network and relational DB systems
- Query languages (SQL, etc), query optimization
- Transaction management, concurrency control, recovery
- Data modeling tools
Web-based Database Systems
(1990s-present)
- XML-based DB systems,
- Web mining
Advanced Database Systems
(mid-1980s-present)
object-oriented, object-relational,
spatial, temporal, multimedia
Data Warehousing and Data Mining (late 1980s-present)
- Data warehouse and OLAP technology
- Data mining and knowledge discovery

7. Database Querying and Data Mining
Database query languages like SQL are standardized and powerful, but for not skilled
users are they too difficult.
OLAP is used for interactive analysis of data stored in a data warehouse. Its applica-tions require viewing the data from many perspectives (dimensions).
OLAP Tools allow flexible multidimensional queries. Their methods are query-centric.
The user can selelect and query any subset of dimensions for processing and perform
aggregations along the dimensions.
Data mining goes far beyond OLAP
summarization style analytical
processing by incorporating more
advanced analysis techniques.
Data Warehouse
Query languages like SQL
OLAP Tools
Data Mining Tools

8. We Are Data Rich, But Information Poor

9. So, What Is Data Mining?
Data mining – searching for knowledge (interesting patterns)
in your data.

10. Data Mining As a Step in the Process of Knowledge Discovery
Many people treat data mining as a synonym for the term Knowledge Discovery in Databases, or KDD.
Alternative view: data mining as an step in KDD:
1, Data cleaning (to remove noise and inconsistent data)
2. Data integration (where multiple data sources may be combined)
3. Data selection (where data relevant to the analysis task are retrieved from the database)
4. Data transformation (where data are transformed or consolidated into forms appropriate for mining by performing summary or aggregation operations, for instance)
5. Data mining (an essential process where intelligent methods are applied in order to extract patterns)
6. Pattern evaluation (to identify the truly interesting patterns representing knowledge based on some interestingness measures)
7. Knowledge presentation to the user

11. Data Mining in Knowledge Discovery

12. Architecture of a Data Mining System
Graphical user interface
Pattern evaluation
Knowledge
base
Data mining engine
Database or
data warehouse server
Data cleaning, data integration
Filtering
Database
Data
warehouse

13. Architecture of a Data Mining System (2)
Database, data warehouse, or other information repository:
One or a set of databases, data warehouses, spreadsheets, etc.
Database or data warehouse server: responsible for fetching
the relevant data, based on the user’s data mining request.
Knowledge base: domain knowledge that is used to guide the
search, or evaluate the interestingness of resulting patterns.
Such knowledge can include concept hierarchies, used to organi-
ze attribute values into different levels of abstraction.
Data mining engine: essential to the data mining system; ideally
consists of a set of functional modules for tasks such as associa-
tion, classification, cluster analysis, and evolution and
deviation analysis.

14. Architecture of a Data Mining System (3)
Pattern evaluation module: This component typically employs
interestingness measures and interacts with the data mining so
as to focus the search towards interesting patterns. It may use
interestingness thresholds to filter out discovered patterns.
Graphical user interface: This module communicates between
users and the data mining system allowing the user
to specify a data mining query or task
provide information to help focus the search
perform exploratory data mining based on the intermediate
data mining results
browse database and data warehouse schemas or data structures
evaluate mined patterns
visualize the patterns in different forms.

15. Data Mining vs. Other Disciplines
From a data warehouse perspective, data mining can be
viewed as an advance stage of on-line analytical processing
(OLAP). However, data mining goes far beyond OLAP.
There may be many “data mining systems” on the market -
not all of them can perform true data mining.
Data mining integrates techniques from multiple disciplines:
database technology, statistics, machine learning, high-perfor-
mance computing, neural networks, pattern recognition,
visualization.

16. Data Mining - On What Kind of Data?
Relational Databases
Data Warehouses
Transactional Databases
Advanced Database Systems and Advanced Database Applications
Object-oriented databases
Object-relational databases
Spatial databases
Text databases and multimedia databases
The World Wide Web
. . .

17. Relational Database - An Example
A database system, also called a database management system (DBMS), consists of a collection of interrelated data, known as a database, and a set of software programs to manage and access the data.
A relational database is a collection of tables, each of which is assigned a unique name. Each table consists of a set of attributes (columns or fields) and usually stores a large set of tuples (records or rows). Each tuple represents an object identified by a unique key.
Relational data can be accessed by database queries written in a relational query language, such as SQL.
Using data mining, one can search for trends or data patterns in relational databases.

18. Relational Databases - Example
The AllElectronics company is described by the following
table: customer, item, employee, and branch. Fragments of
these tables are shown on the next slide; the attribute that
represents the key or composite key component is underlined.
The relation customer consists of a set of attributes, inclu-
ding a unique customer identity number (cust_ID), and so on.
Tables can also be used to represent the relationships bet-
ween or among multiple relational tables. E.g., these include
purchases (customer purchases items, creating a sales tran-
saction that is handled by an employee), items_sold (lists the
items sold in the given transaction), and works_at (employee
works at a branch of AllElectronics).

19. Fragments of Relations from AllElectronics DB

20. Data Warehouses
A data warehouse is a repository of information collected from
multiple sources, stored under a unified schema, and which
usually resides at a single site.
Data warehouses are constructed via a process of data cleaning,
data transformation, data integration, data loading and periodic
data refreshing.
Figure on the next slide shows the basic architecture of a data
warehouse for AllElectronics.
In order to facilitate decision making, the data in a data ware-
house are organized around major subjects, such as customer,
item, supplier, and activity. The data are stored from a histori-
cal perspective and are typically summarized.

21. Architecture of a Data Warehouse
Client
Data source in Ch.
Clean
Transform
Integrate
Load
Query and
analysis tools
Data
warehouse
Data source in NY
Client
Data source in T.
Data source in Vancouver
Remarks: Ch - Chicago, NY - New York, T - Toronto

22. Modeling a Data Warehouse
A data warehouse is usually modeled by a multidimensional
database structure, where each dimension corresponds to an
attribute in the schema, each cell stores the value of some
aggregate measure, such as count or sales_amount.
The actual physical structure of a data warehouse may be a
relational data store or a multidimensional data cube. It
provides a multidimensional view of data and allows the
precomputation and fast accessing of summarized data.
Example: A data cube for summarized sales data of
AllElectronics is presented in the next slide.

23. A Multidimensional Data Cube

24. Modeling a Data Warehouse (2)
Data warehouse vs. Data mart: A data warehouse collects
information about subjects and span an entire organization,
and thus its scope is enterprise wide. A data mart is
a department-wide.
Data warehouse systems are well suited for On-Line Analytical
processing, or OLAP.
OLAP operations allow the presentation of data at different
levels of abstractions.
Examples of OLAP operations include drill-down and roll-up,
which allow the user to view the data at different degrees of
summarization as illustrated in the previous slide.

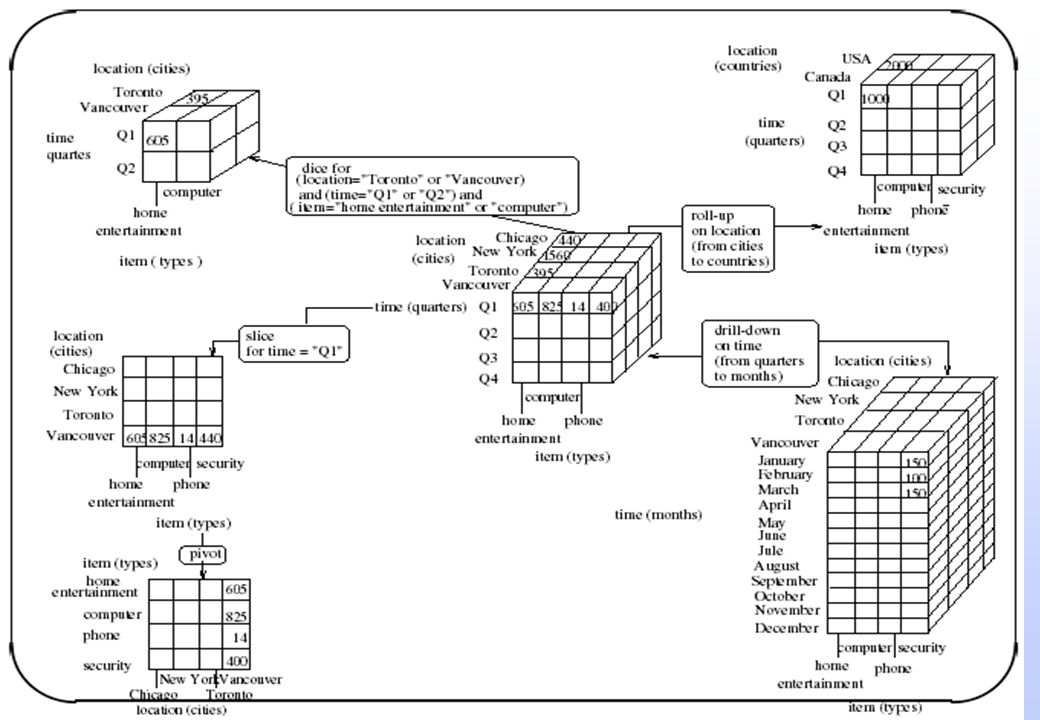

25. Illustration of Some Other OLAP Operations

27. Transactional Databases
A transactional database consists of a file where each record
represents a transaction.
A transaction includes a unique transaction identity number
(trans_id), and a list of the items making up the transaction
(such as items purchased in a store).
The transactional database may have additional tables associated
with it, which contain other information regarding the sale, such
as the date of the transaction, the custommer ID number, the ID
number of the sales person, etc.
Example: Transactions can be stored in a table, with one
record per transaction. A fragment of a transactional database
for AllElectronics is shown in the next slide.

28. Transactional Databases (2)
Trans_id list of item_Ids
T I1, I3, I8, I16
The transactional database is usually either stored in a flat file
in a format similar to that of the above table, or unfolded into
a standard relation in a format similar to that of the
items_sold table in slide no. 42.
A regular data retrieval system is not able to answer queries
like “Which items sold well together?”

29. Advanced Database Systems and Database Applications
Relational DB systems have been widely used in business app-
lications.
The new database applications include handling
spatial data (e.g. maps)
engineering design data (e.g., the design of buildings or
integrated circuits)
hypertext and multimedia data (text, image, video, audio data)
time-related data (e.g. stock exchange data)
World Wide Web (a huge, widely distributed information repo-
sitory made available by the Internet)

30. Data Mining Functionalities - What Kinds of Patterns Can be Minded?
Data mining functionalities are used to specify the kind of patterns that can be found in data mining tasks.
Data mining tasks can be classified into 2 categories:
Descriptive - they characterize the general properties of the data in the database.
Prescriptive - they perform inference on the current data in order to make predictions.
In some cases, users may have no idea which kinds of patterns may be interesting => searching for several different kinds of patterns in parallel.
Data mining systems should be able to discover patterns at various granularities (abstraction levels).
Specifying hints to guide or focus the search.

31. Association Analysis
Association analysis is the discovery of association rules showing attribute-value conditions that occur frequently in a given set of data.
The association rule X => Y is interpreted as “database tuples that satisfy the conditions in X are also likely to satisfy the conditions in Y.”
Example A data mining system may find in AllElectronics: age(X, “20..29”) and income(X, “20K..29K”) => buys(X,”CD player”) [support = 2%, confidence = 60%]
X is a variable representing a customer. The rule indicates that of the customers under study, 2% are 20 to 29 years of age with an income of 20K to 29K and have purchased a CD player. There is a 60% probability that a customer in this age and incomegroup will purchase a CD player.

32. Association Analysis (Cont.)
We would like to determine which items are frequently purchased together within the same transactions. E.g., contains(T, “computer”) => contains(T, “software”) [support = 1%, confidence = 50%]
Explanation: if a transaction, T, contains “computer”, there is a 50% chance that it contains “software” as well, and 1% of all of the transactions contain both.
This rule involves a single attribute or predicate (i.e. contains) => single-dimensional association rule. It can be written simpy as “computer => software {1%,50%]” Remark: On the last slide, we have: multi-dimensional assoc. rule.

33. Classification and Prediction
Classification is the process of finding a set of models (or functions) that describe and distinguish data classes or concepts, for the purpose of being able to use the model to predict the class of objects whose class label is unknown. The derived model is based on the analysis of a training data (i.e., data objects whose class label is known),
“How is the derived model presented?”
Classification (IF-THEN) rules
Mathematical formulae
Decision tree - it is a flow-chart-like tree structure, where each node denotes a test on an attribute value, each branch represents an outcome of the test, and the tree leaves represent classes or class distributions.
Neural networks - a collection of neuron-like processing units with weighted connections between the units.

34. Classification and Prediction (Cont.)
Prediction - in many applications, users may wish to predict some missing or unavailable data values rather then class labels. The predicted values are usually numerical data.
Classification and prediction may need to be preceded by relevance analysis, which attempts to identify attributes that do not contribute to the classification or prediction process. These attributes can then be excluded.

35. Cluster Analysis
Clustering analyzes data objects without consulting a known class label.
Clustering can be used to generate such labels.
The objects are clustered or grouped based on the principle of maximizing the intraclass similarity and minimizing the interclass similarity.
Each cluster can be viewed as a class of objects, from which rules can be derived.
Example Cluster analysis can be performed on AllElec-tronics customer data in order to identify homoge-neous subpopulations of customers. These clusters may represent individual target groups for marketing. (Figure on the next slide shows a 2-D plot of customers with respect to customer locations in a city).

36. Cluster Analysis - Example
A 2-D plot of customer data with respect to customer locations
in a city, showing 3 data clusters. Each cluster „center“ is marked with a „+“.

37. Outlier Analysis
A database may contain data objects that do not comply with the general behaviour or model of the data. These data objects are outliers,
Most data mining methods discard outliers as noise or exceptions.
In some applications such as fraud detection, the rare events can be more interesting than the more regularly occuring ones,
Example Outlier analysis may uncover fraudulent usage of credit cards by detecting purchases of extreemly large amounts for a given account number in comparison to regular charges incurred by the same account.

38. Evolution Analysis
It describes and models regularities or trends for objects whose behavior changes over time.
It includes time-series data analysis.
Example Suppose that we have the major stock market (time-series) data of the last several years available from the New York Stock Exchange and we would like to invest in shares of high-tech industrial companies. A data mining study of stock exchange data may identify stock evolution regularities for overall stocks and for the stocks of particular companies, Such regularities may help predict future trends in stock market prices.

39. Are All of the Patterns Interesting?
A data mining system has the potential to generate thousands or even millions of patterns, or rules.
Only a small fraction of the patterns potentially generated would actually be of interest to any given user.
Questions: What makes a pattern interesting? Can a data mining system generate all of the interesting patterns? Can a data mining system generate only interesting patterns?
A pattern is interesting if
(1) it is easily understood by humans,
(2) valid on new or test data with some degree of certainty.
(3) potentially useful , and
(4) novel

40. Interestingness of Patterns (Cont.)
A pattern is also interesting if it validates a hypothesis that the user sought to confirm.
An interesting pattern represents knowledge.
Objective measures of pattern interestingness - these are based on the structure of discovered patterns and the statistics underlying them.
An objective measure for association rules X => Y is rule support,representing the percentage of transactions from a transac-tion base that the given rule satisfies. This is taken to be the proba-bility P(X U Y), where X U Y indicates that a transaction contains both X and Y, that is, the union of item sets X and Y.
Another objective measure for association rules is confidence, which assesses the degree of certainty of the detected association. This is taken to be the conditional probability P(X | Y), that is, the probability that a transaction containing X also contains Y.

41. Interestingness of Patterns (Cont.)
Each interestingness measure is associated with a threshold, which can be controlled by the user.
For example, rules that do not satisfy a confidence threshold of, say, 50% can be considered uninteresting. Rules below the threshold likely reflect noise, exceptions, or minority cases and are probably of less value.
Objective measures are insufficient unless combined with subjective measures which reflect the needs and interests of a particular user.
Many patterns that are interesting by objective stan-dards may represent common knowledge and, therefo-re, are actually uninteresting.

42. Interestingness of Patterns (Cont.)
Subjective interestingness measures are based on user beliefs in the data. These measures find patterns interesting if they are unexpected or offer strategic information on which the user can act.
Patterns that are expected can be interesting if they confirm a hypothesis that the user wished to validate.

43. Completeness And Optimization of Data Mining Algorithm
Can a data mining system generate all of the interes-ting patterns? - this question refers to the complete-ness of a data mining algorithm.
It is often unrealistic and inefficient to generate all of the possible patterns. Instead, user-provided constraints and interestingness measures should be used to focus the search.
Can a data mining system generate only interesting patterns? This is an optimization problem in data mining - a challenging issue.
