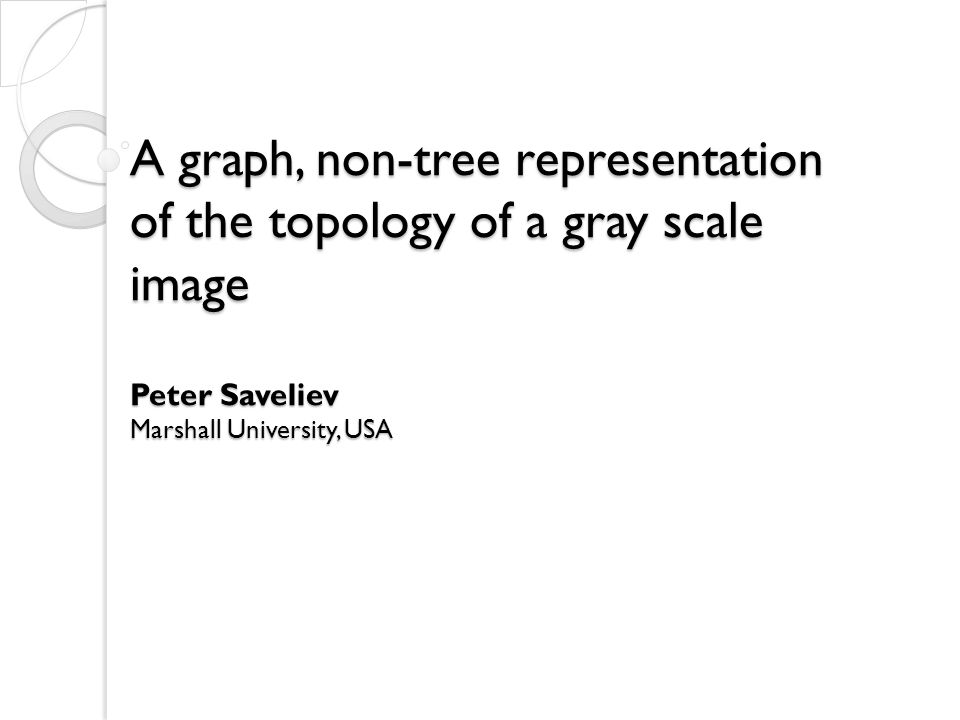

1. A graph, non-tree representation of the topology of a gray scale image Peter Saveliev Marshall University, USA

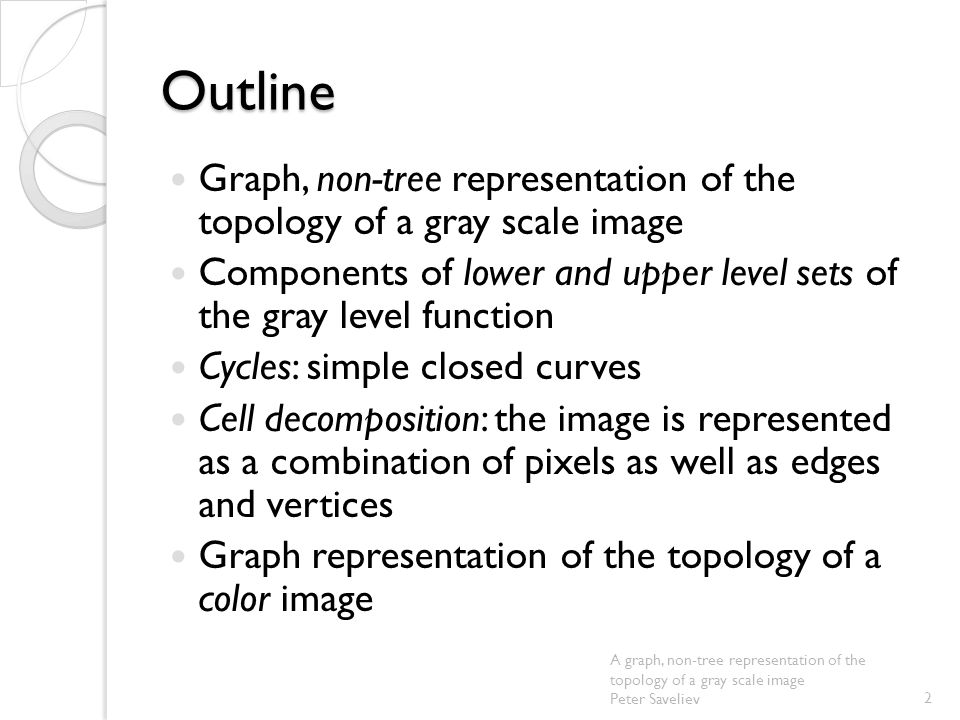

2. Outline Graph, non-tree representation of the topology of a gray scale image Components of lower and upper level sets of the gray level function Cycles: simple closed curves Cell decomposition: the image is represented as a combination of pixels as well as edges and vertices Graph representation of the topology of a color image 2 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

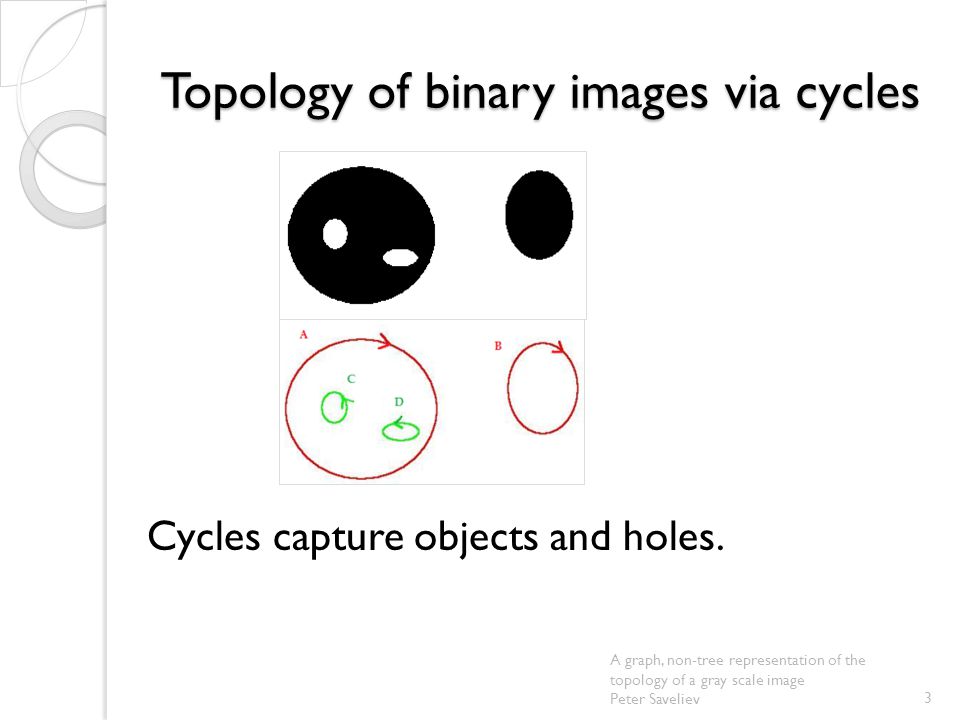

3. Topology of binary images via cycles Cycles capture objects and holes. 3 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

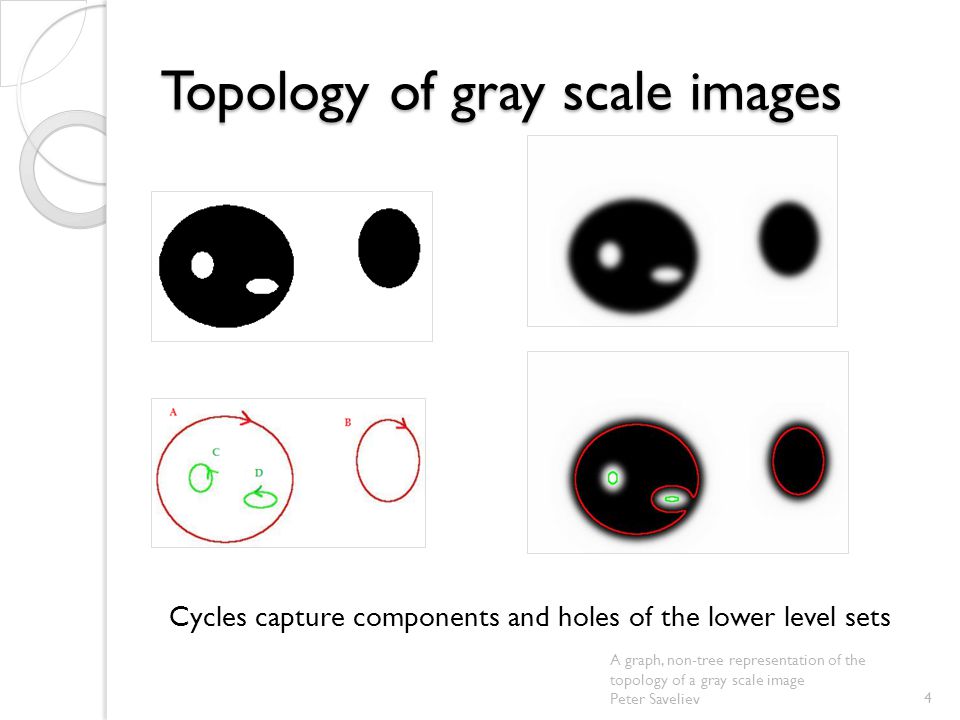

4. Topology of gray scale images Cycles capture components and holes of the lower level sets 4 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

5. Possible topologies of the gray scale image A graph, non-tree representation of the topology of a gray scale image Peter Saveliev5

6. Gray scale function The connected components of upper level sets are the “holes”. 6 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev The connected components of the lower level sets are the “objects”.

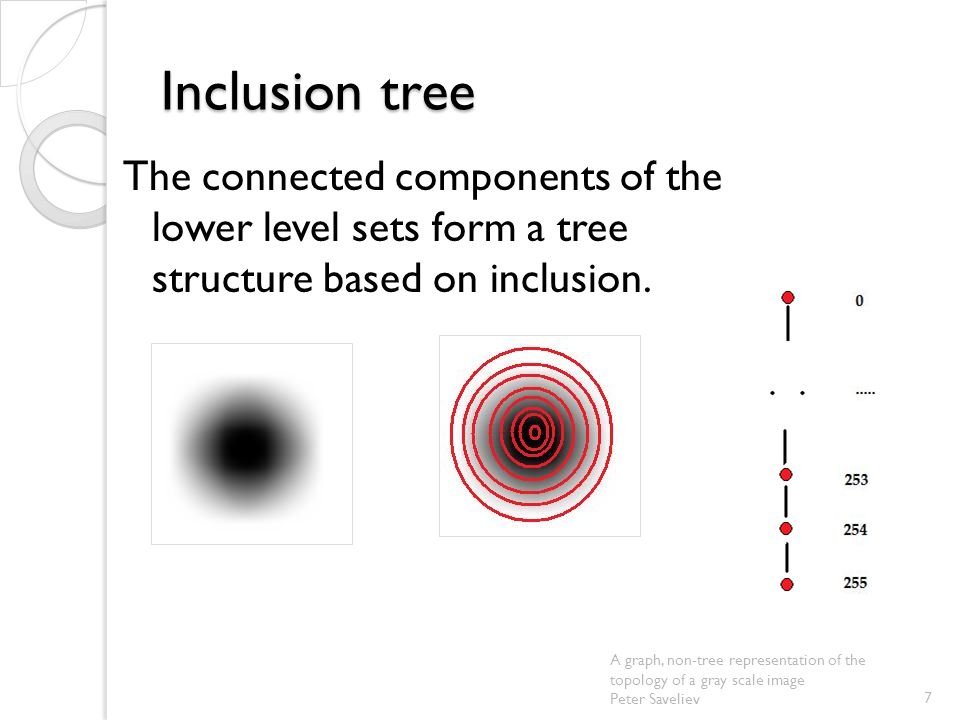

7. Inclusion tree The connected components of the lower level sets form a tree structure based on inclusion. 7 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

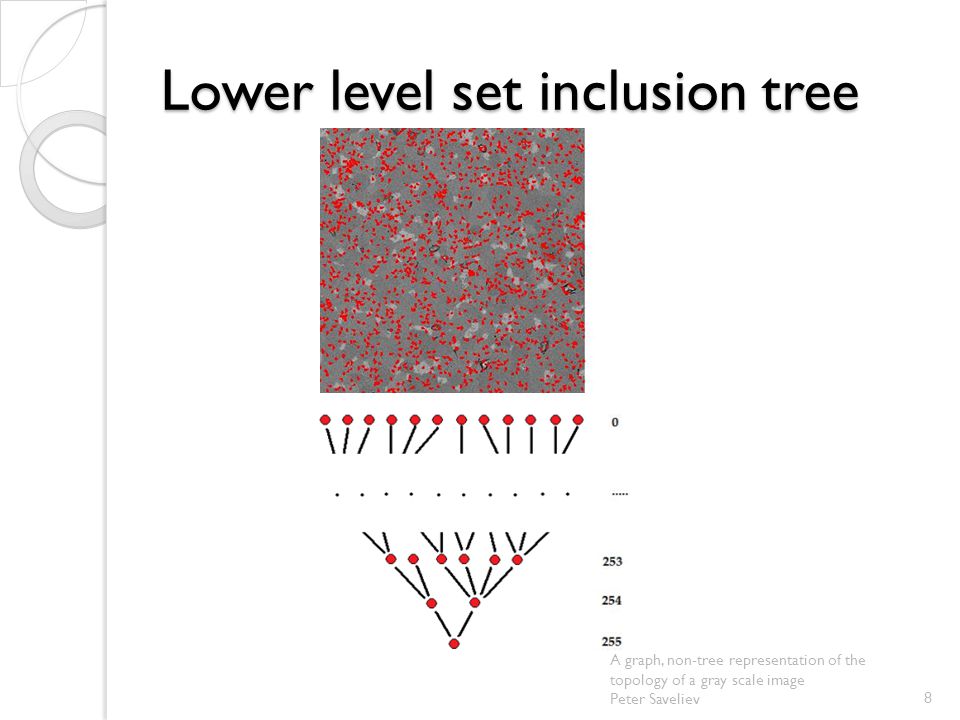

8. Lower level set inclusion tree 8 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

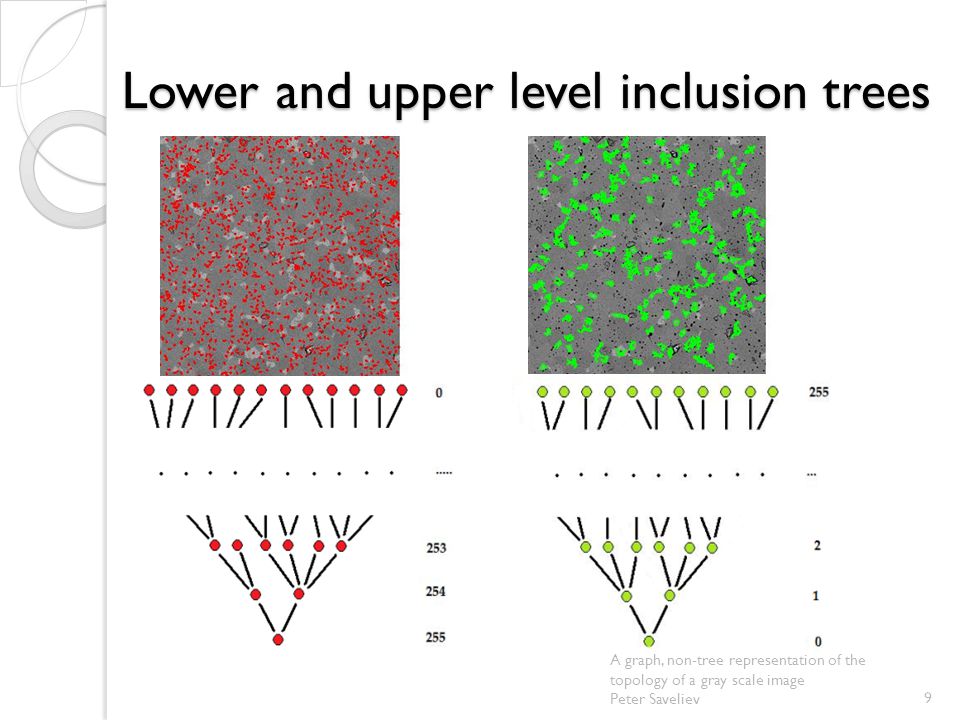

9. Lower and upper level inclusion trees. 9 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

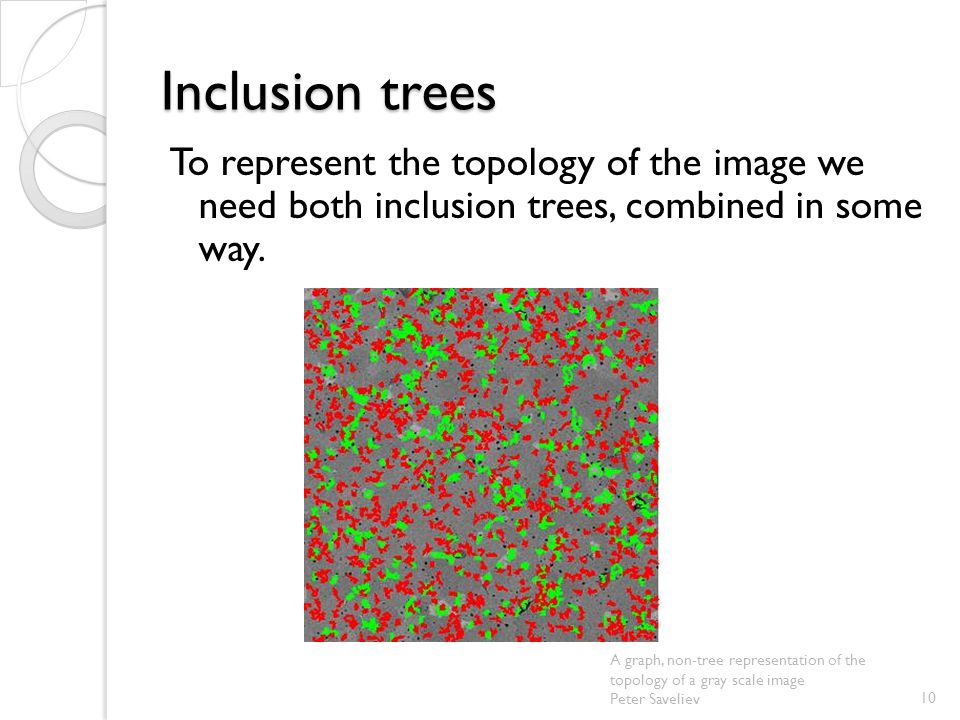

10. Inclusion trees To represent the topology of the image we need both inclusion trees, combined in some way. 10 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

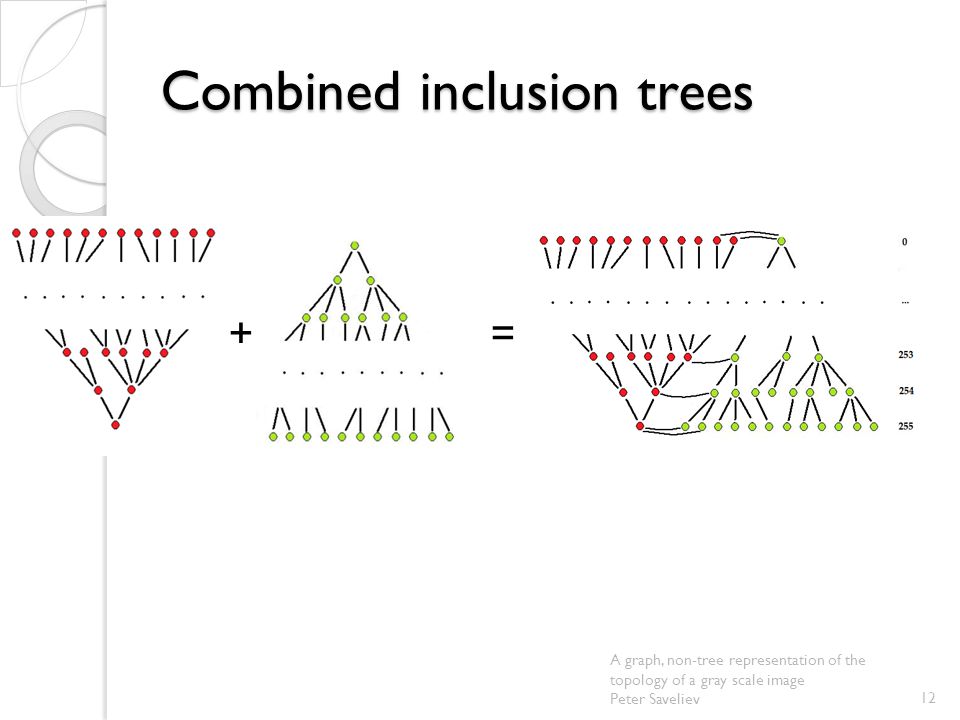

11. Combined inclusion trees As a new tree, based on inclusion of the contours. + =  The lower level sets are mixed with the upper level sets.  The gray levels are also mixed. 11 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

12. Combined inclusion trees + 12 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev + =

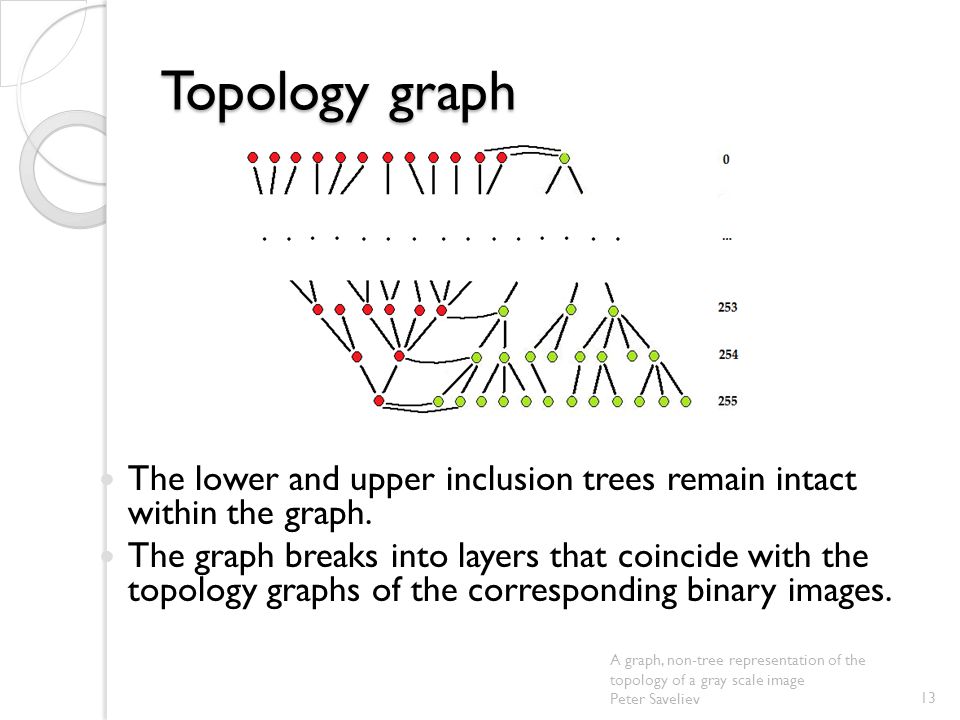

13. Topology graph The lower and upper inclusion trees remain intact within the graph. The graph breaks into layers that coincide with the topology graphs of the corresponding binary images. 13 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

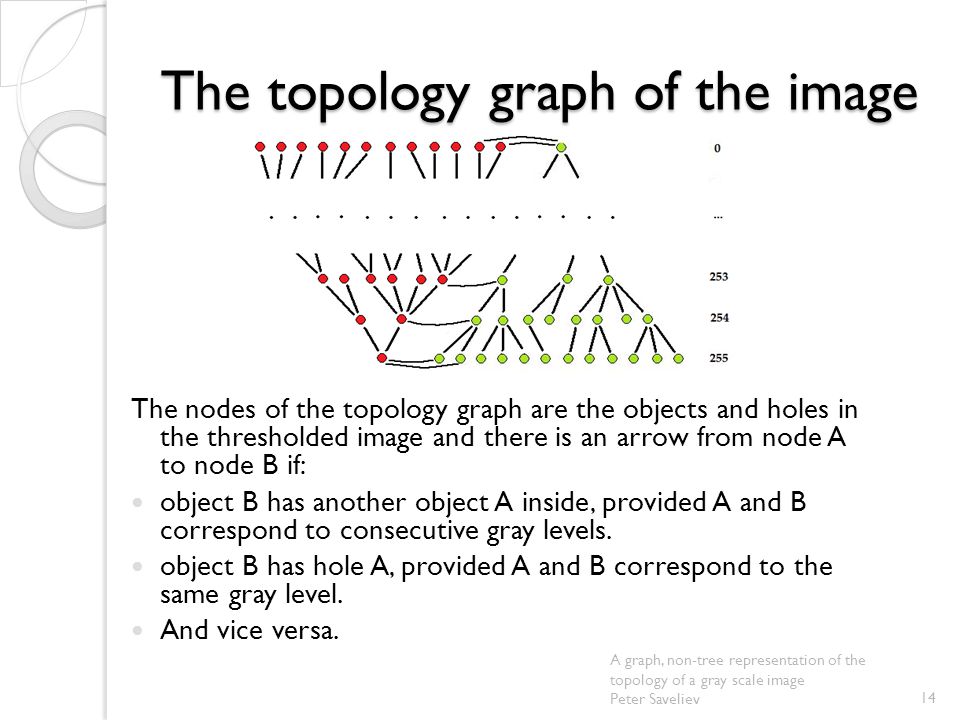

14. The topology graph of the image The nodes of the topology graph are the objects and holes in the thresholded image and there is an arrow from node A to node B if: object B has another object A inside, provided A and B correspond to consecutive gray levels. object B has hole A, provided A and B correspond to the same gray level. And vice versa. 14 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

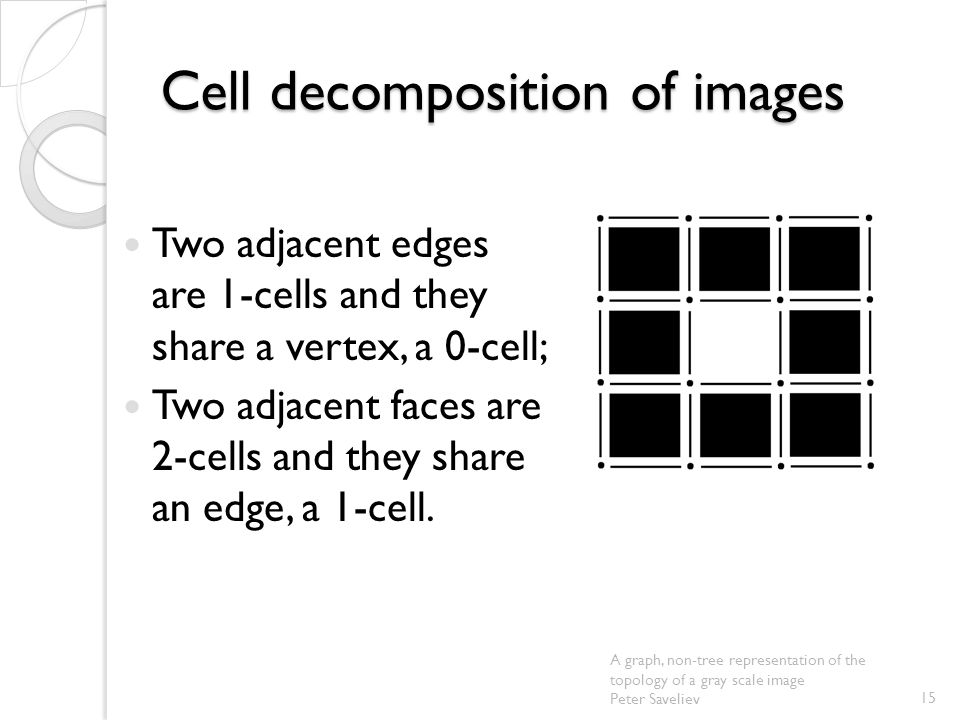

15. Cell decomposition of images Two adjacent edges are 1-cells and they share a vertex, a 0-cell; Two adjacent faces are 2-cells and they share an edge, a 1-cell. 15 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

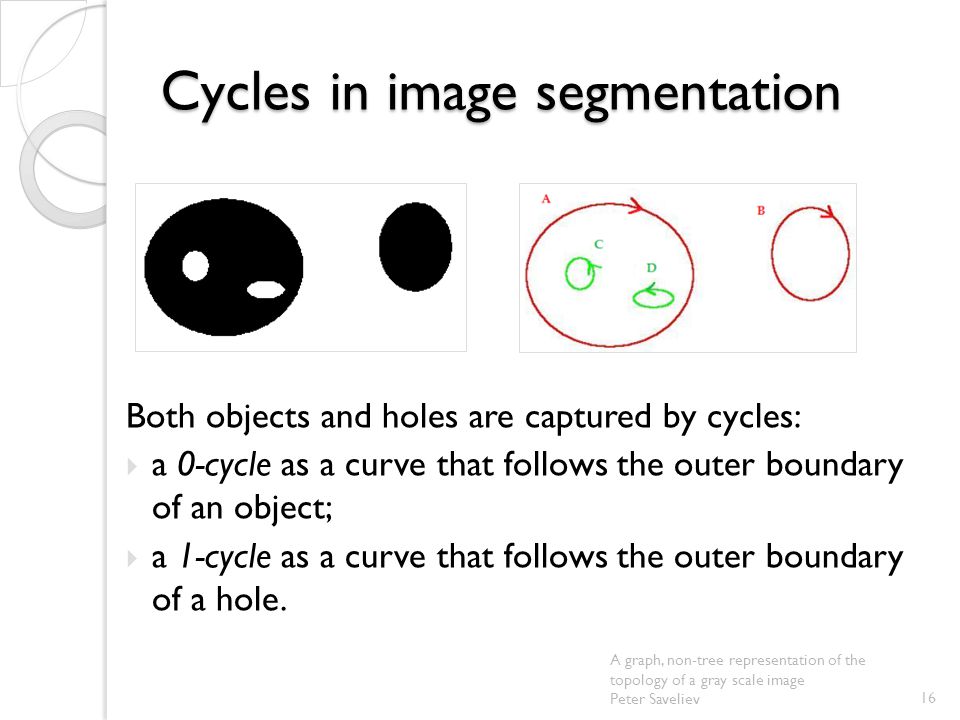

16. Cycles in image segmentation Both objects and holes are captured by cycles:  a 0-cycle as a curve that follows the outer boundary of an object;  a 1-cycle as a curve that follows the outer boundary of a hole. 16 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

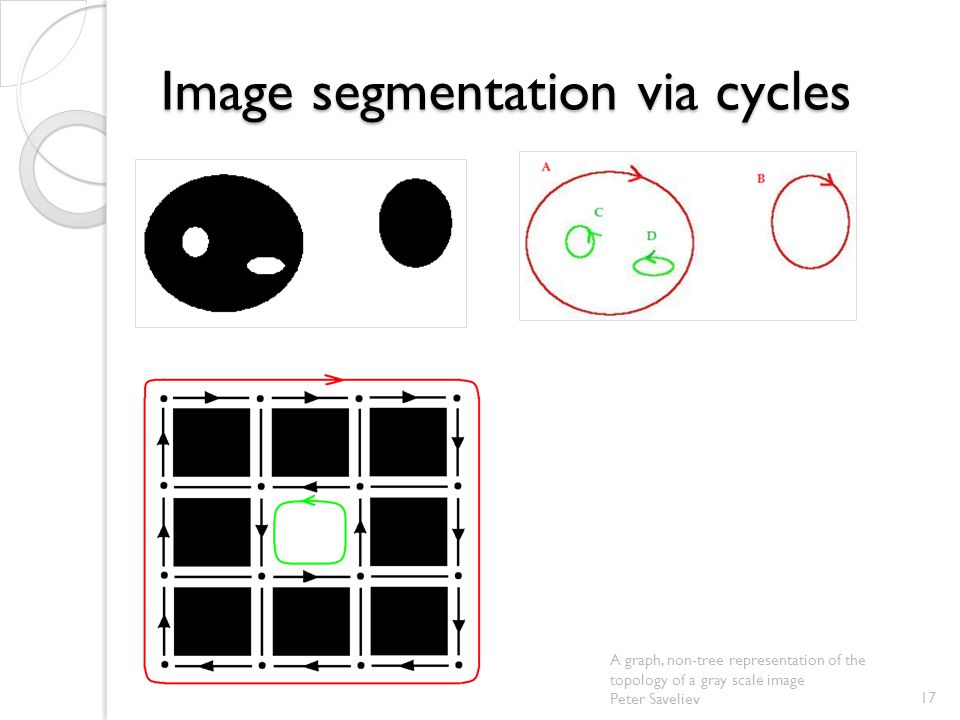

17. Image segmentation via cycles 17 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

18. Outline of the algorithm All pixels in the image are ordered according to the gray level. Following this order, each pixel is processed: A.add its vertices, except for those already present as parts of other pixels; B.add its edges, except for those already present as parts of other pixels; C.add the face of the pixel. At every step, the graph is given a new node and arrows to represent the merging and the splitting of the cycles: A.adding a new vertex creates a new object; B.adding a new edge may connect two objects, or create, or split a hole; C.adding the face eliminates the hole. 18 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

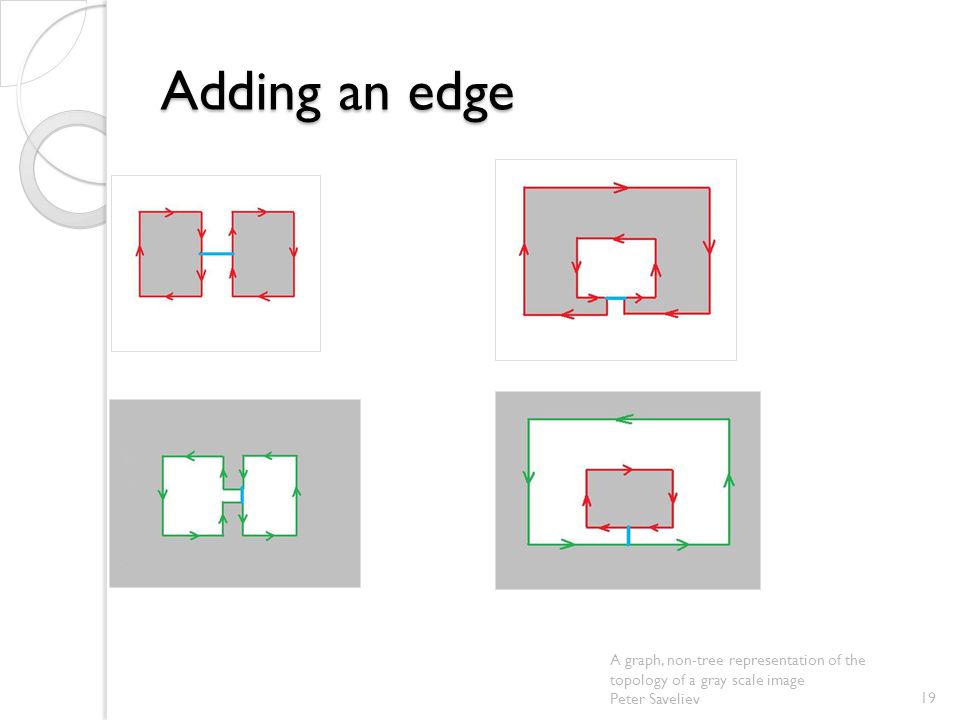

19. Adding an edge 19 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

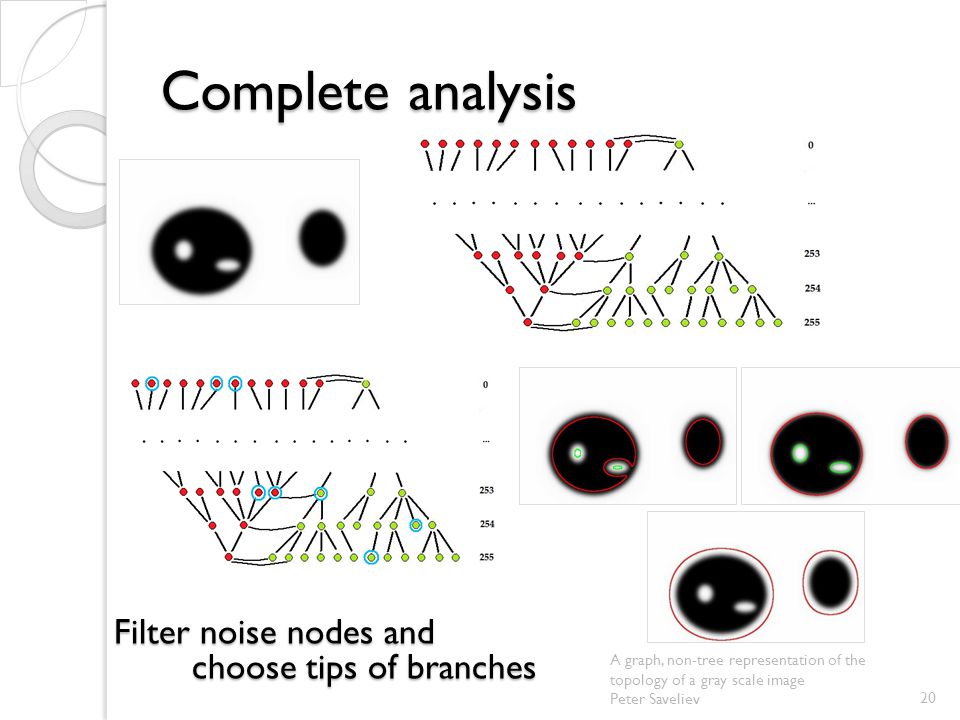

20. Complete analysis 20 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev Filter noise nodes and choose tips of branches

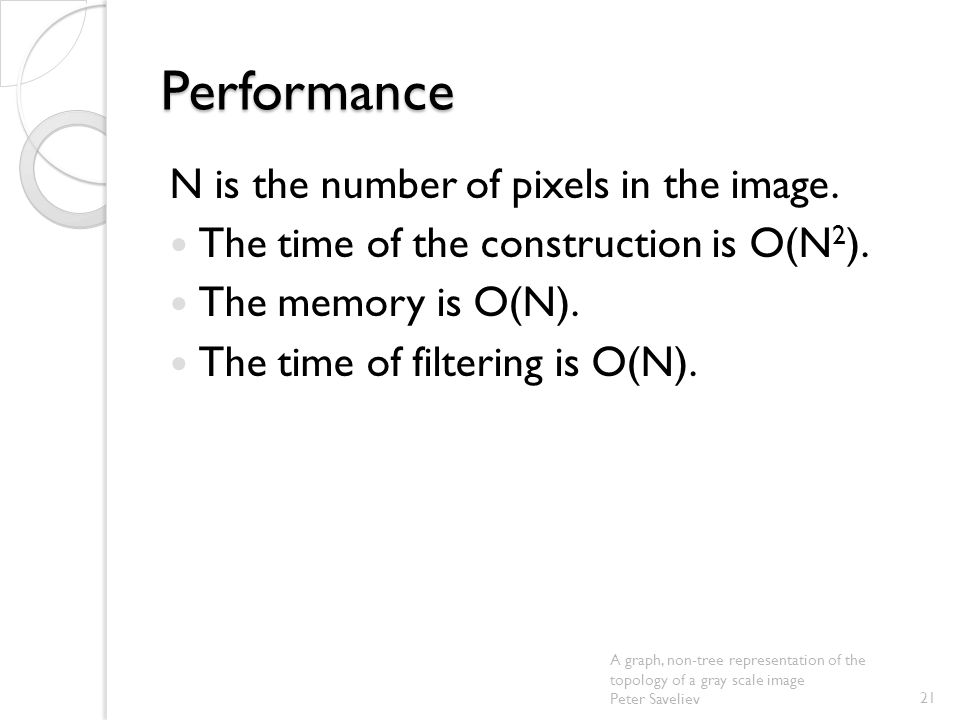

21. Performance N is the number of pixels in the image. The time of the construction is O(N 2 ). The memory is O(N). The time of filtering is O(N). 21 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

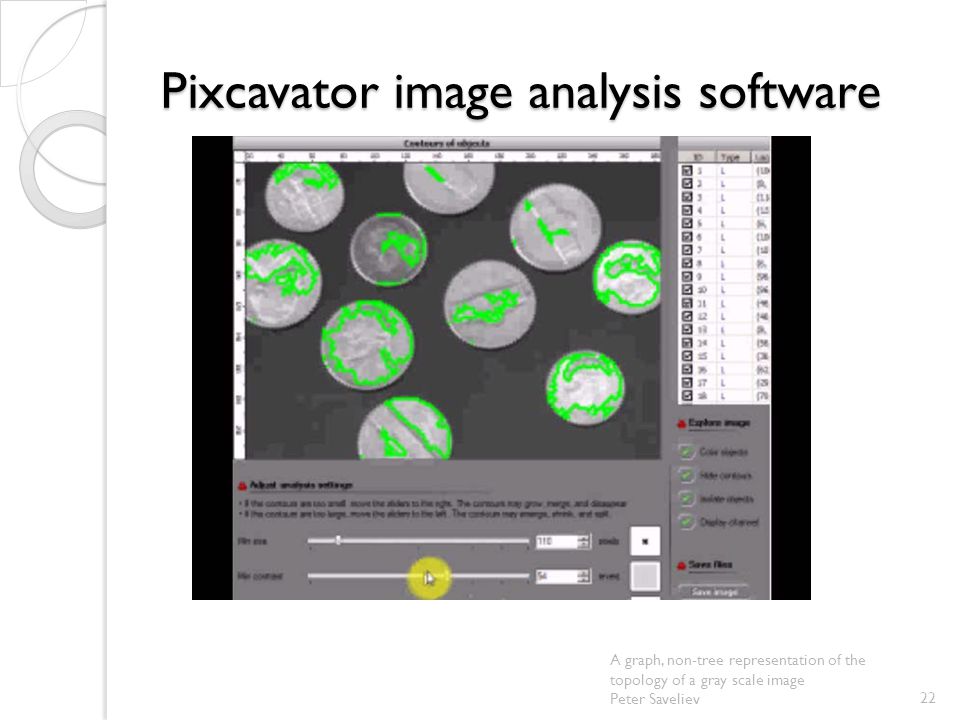

22. Pixcavator image analysis software 22 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

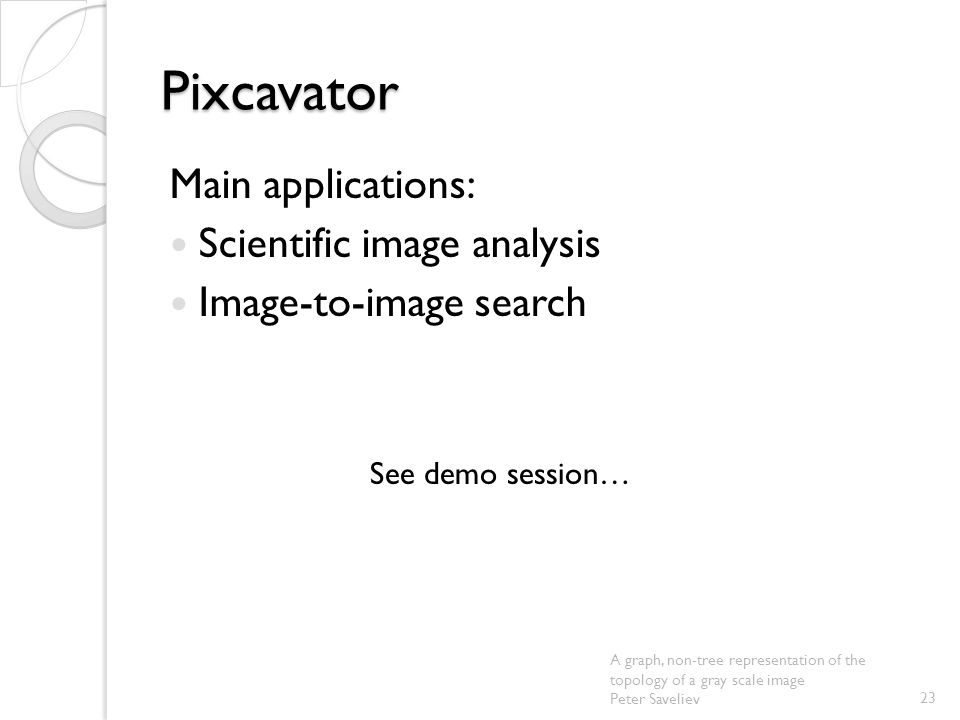

23. Pixcavator 23 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev See demo session… Main applications: Scientific image analysis Image-to-image search

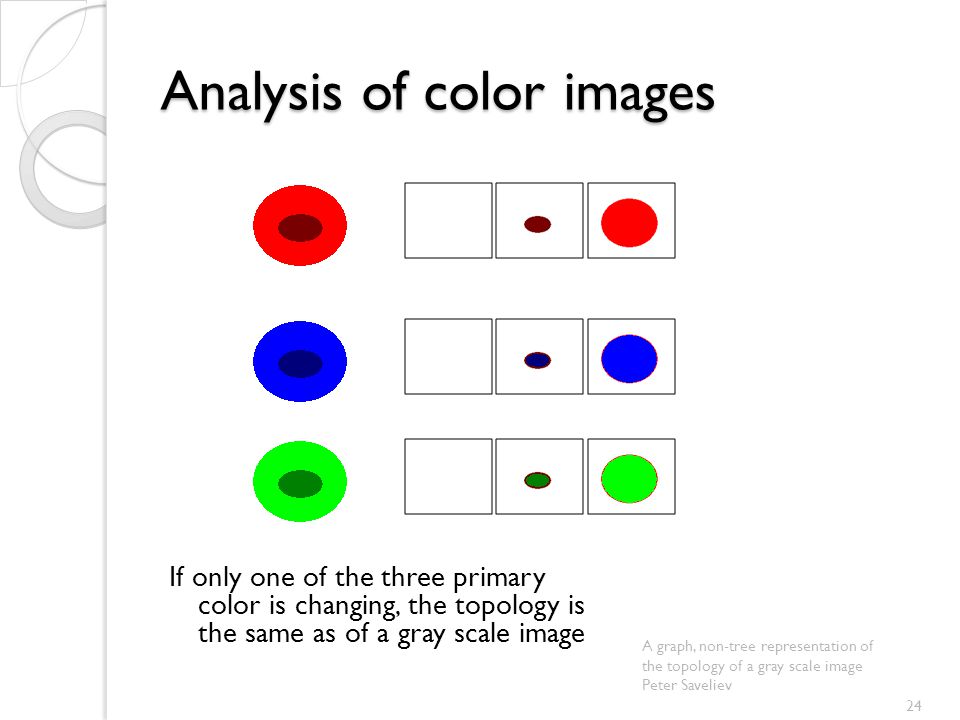

24. A graph, non-tree representation of the topology of a gray scale image Peter Saveliev 24 Analysis of color images If only one of the three primary color is changing, the topology is the same as of a gray scale image

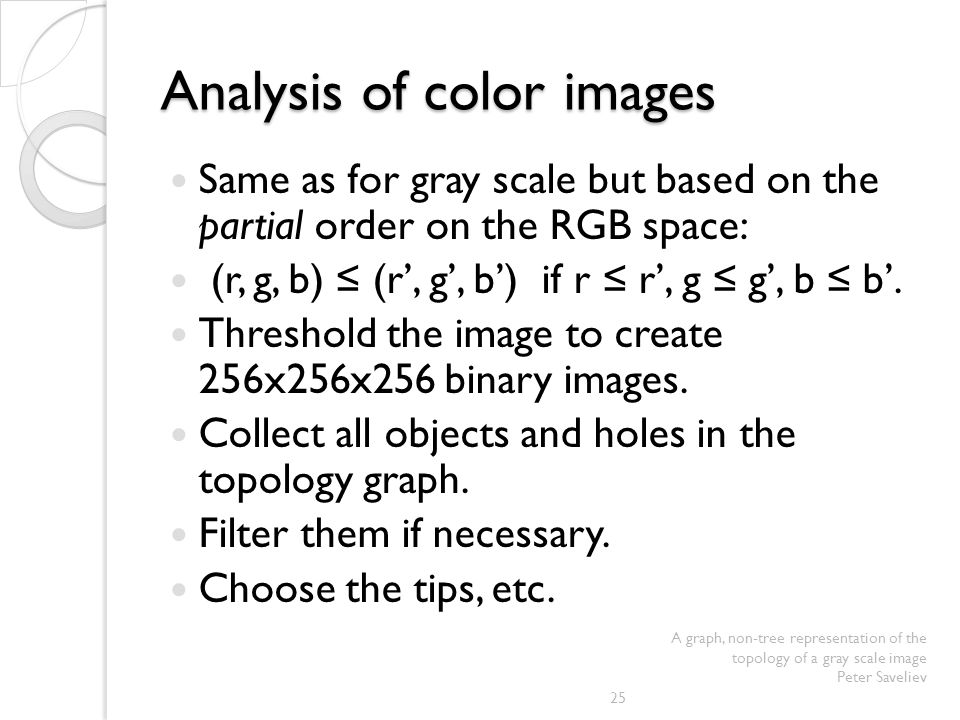

25. A graph, non-tree representation of the topology of a gray scale image Peter Saveliev 25 Analysis of color images Same as for gray scale but based on the partial order on the RGB space: (r, g, b) ≤ (r’, g’, b’) if r ≤ r’, g ≤ g’, b ≤ b’. Threshold the image to create 256x256x256 binary images. Collect all objects and holes in the topology graph. Filter them if necessary. Choose the tips, etc.

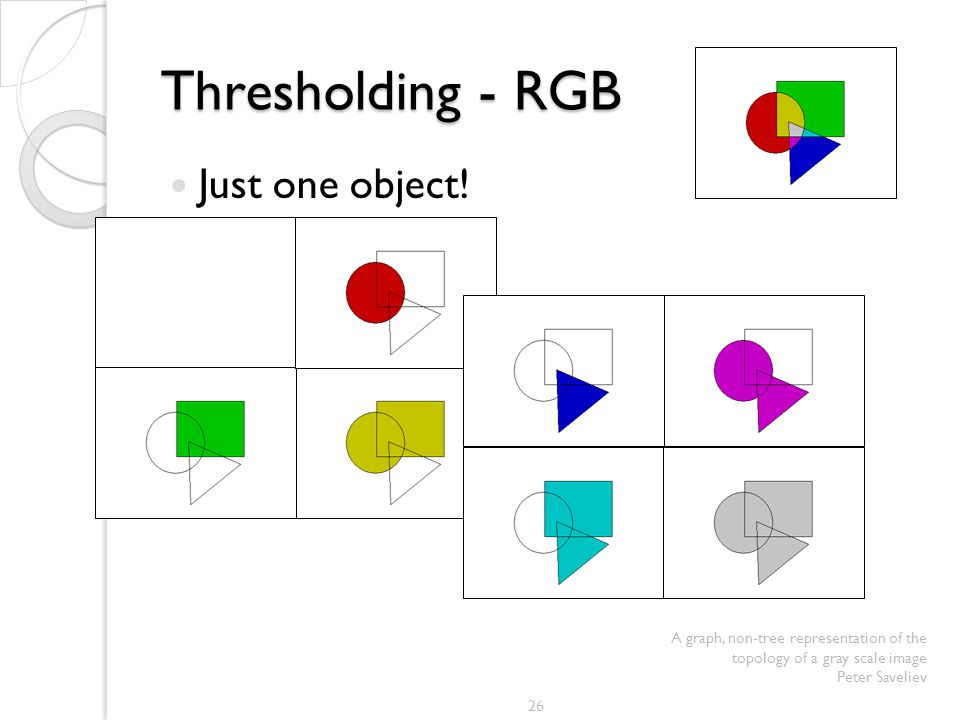

26. Thresholding - RGB Just one object! 26 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

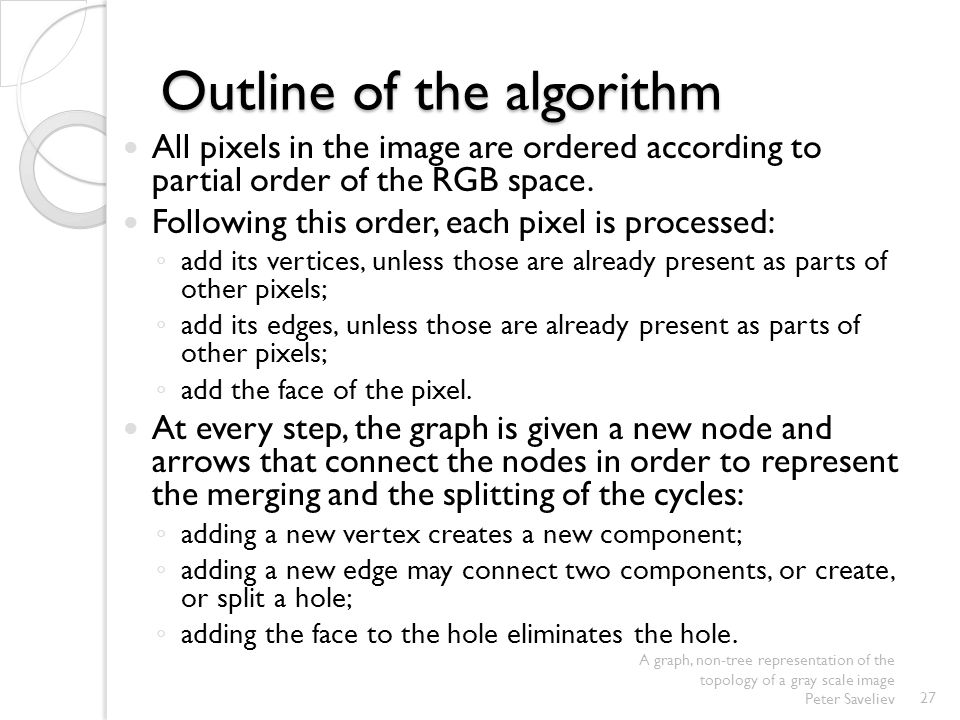

27. Outline of the algorithm All pixels in the image are ordered according to partial order of the RGB space. Following this order, each pixel is processed: ◦ add its vertices, unless those are already present as parts of other pixels; ◦ add its edges, unless those are already present as parts of other pixels; ◦ add the face of the pixel. At every step, the graph is given a new node and arrows that connect the nodes in order to represent the merging and the splitting of the cycles: ◦ adding a new vertex creates a new component; ◦ adding a new edge may connect two components, or create, or split a hole; ◦ adding the face to the hole eliminates the hole. 27 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

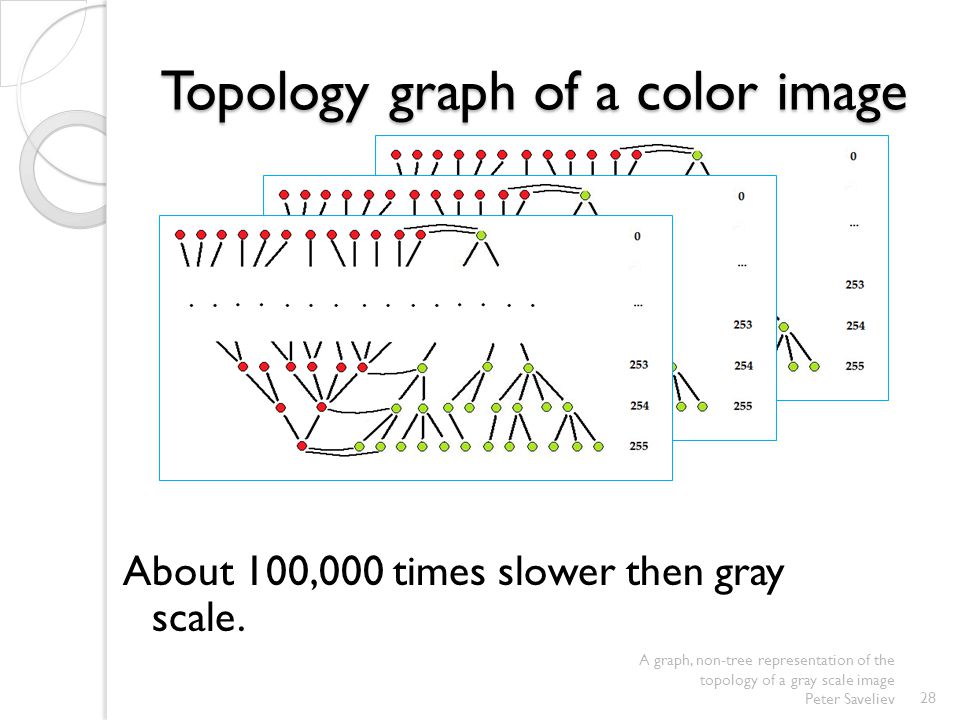

28. Topology graph of a color image About 100,000 times slower then gray scale. 28 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

29. Topology graph of a color image The nodes of the topology graph are the objects and holes in the thresholded image and there is an arrow from node A to node B if: object B has hole A, provided A and B correspond to consecutive colors. object B has hole A, provided A and B correspond to the same color. And vice versa. 29 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

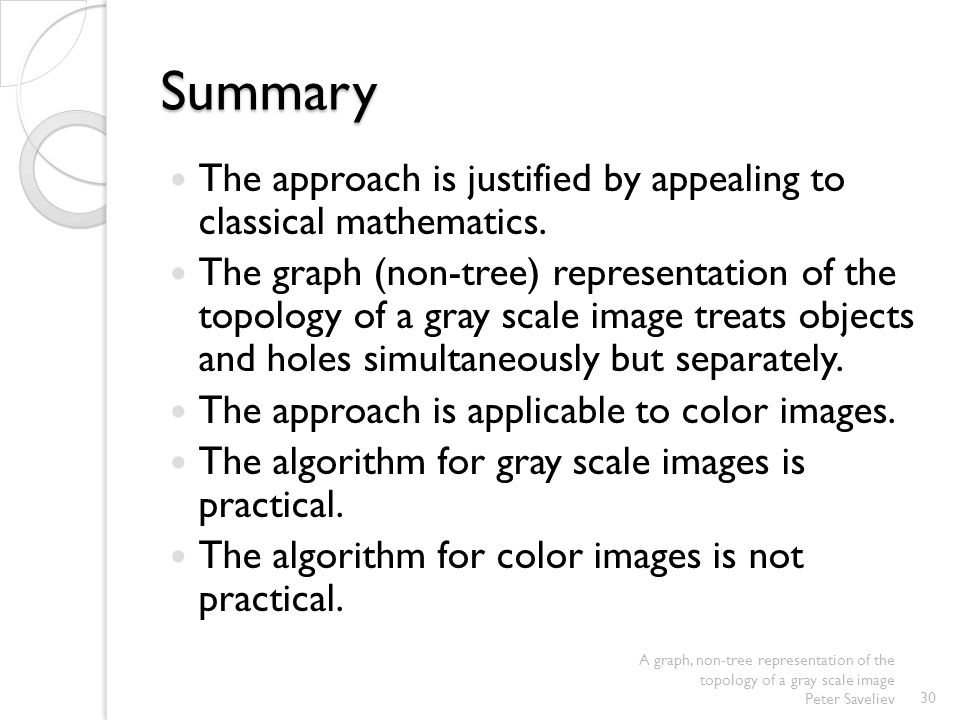

30. Summary The approach is justified by appealing to classical mathematics. The graph (non-tree) representation of the topology of a gray scale image treats objects and holes simultaneously but separately. The approach is applicable to color images. The algorithm for gray scale images is practical. The algorithm for color images is not practical. 30 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev

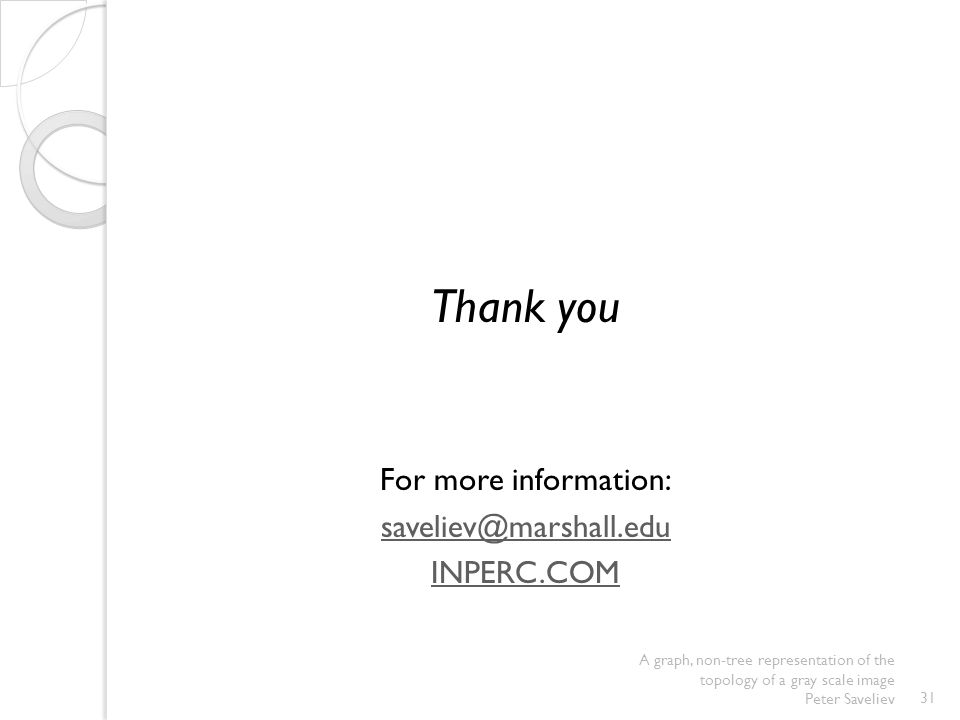

31. Thank you For more information: saveliev@marshall.edu INPERC.COM 31 A graph, non-tree representation of the topology of a gray scale image Peter Saveliev
