1. Renumbering of the Entire system model! TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004 1

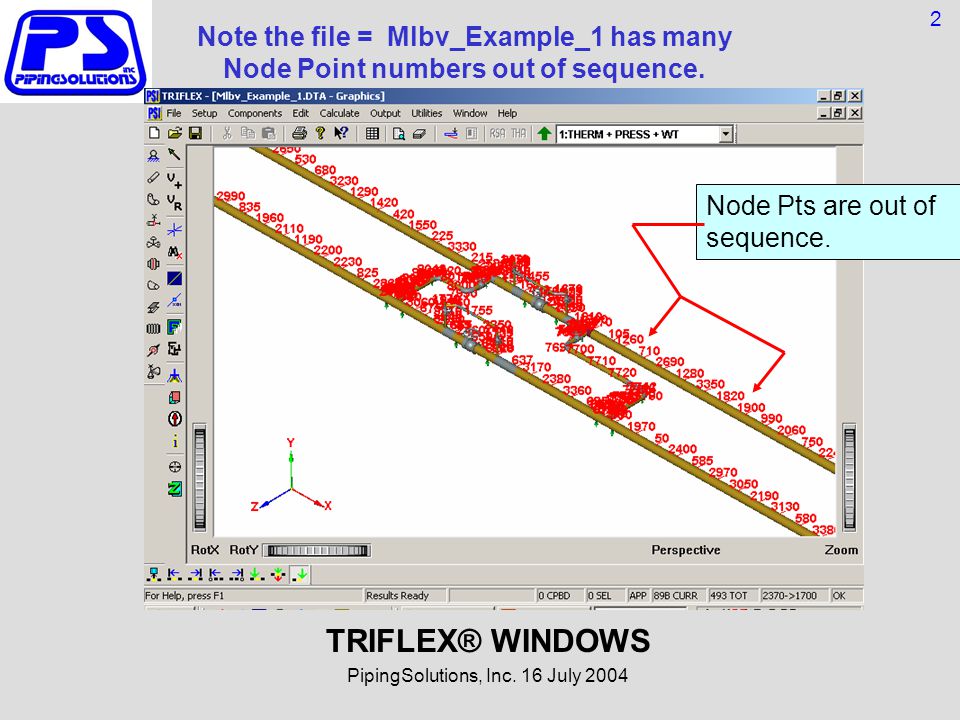

2. Note the file = Mlbv_Example_1 has many Node Point numbers out of sequence. 2 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004 Node Pts are out of sequence.

3. Select the entire system. Since you want to renumber the entire model. 3 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004 Whatever you select will be Renumbered.

4. Follow the steps. 4 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004 Edit Renumber Selection

5. Settings for Renumbering. 5 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004 Supply Start Node Number Supply Node Increment

6. Note the highlighted Node Points are now renumbered. 6 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004

7. Note the entire model is renumbered as you requested. 7 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004

8. Note the entire model is renumbered as you requested. 8 TRIFLEX® WINDOWS PipingSolutions, Inc. 16 July 2004
