I-696 Integrated Corridor Management (ICM) Operations Traffic Incident Management Best Practices resulting from Good Government in Action
How does MDOT work? TOC Cameras Message Boards RWIS Mi Drive Freeway Courtesy Patrol Collect and disseminate weather and traffic data Co-located with MSP TSC Salting Removal of Debris Traffic Control Devices Engineering Support

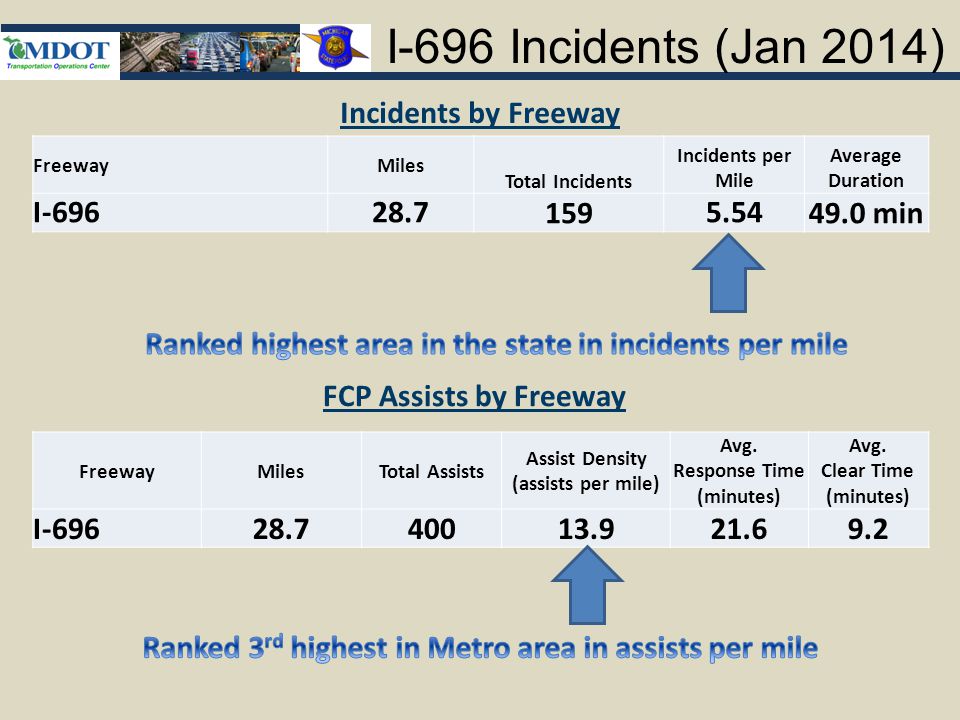

I-696 Incidents (Jan 2014) Incidents by Freeway FCP Assists by Freeway FreewayMilesTotal Assists Assist Density (assists per mile) Avg. Response Time (minutes) Avg. Clear Time (minutes) I-69628.740013.921.69.2 FreewayMiles Total Incidents Incidents per Mile Average Duration I-69628.71595.5449.0 min

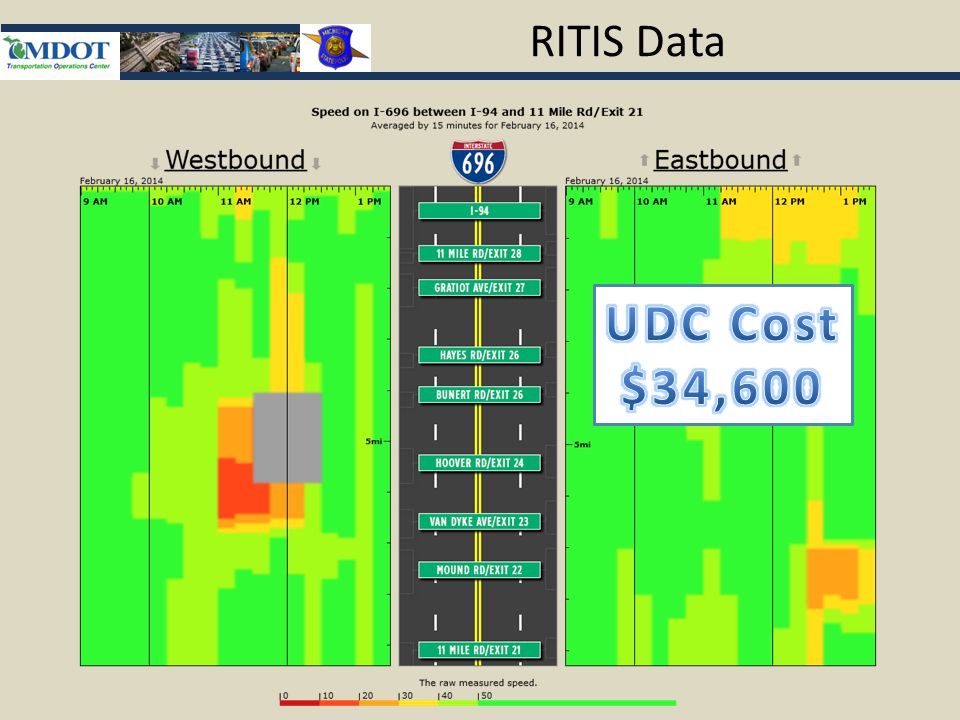

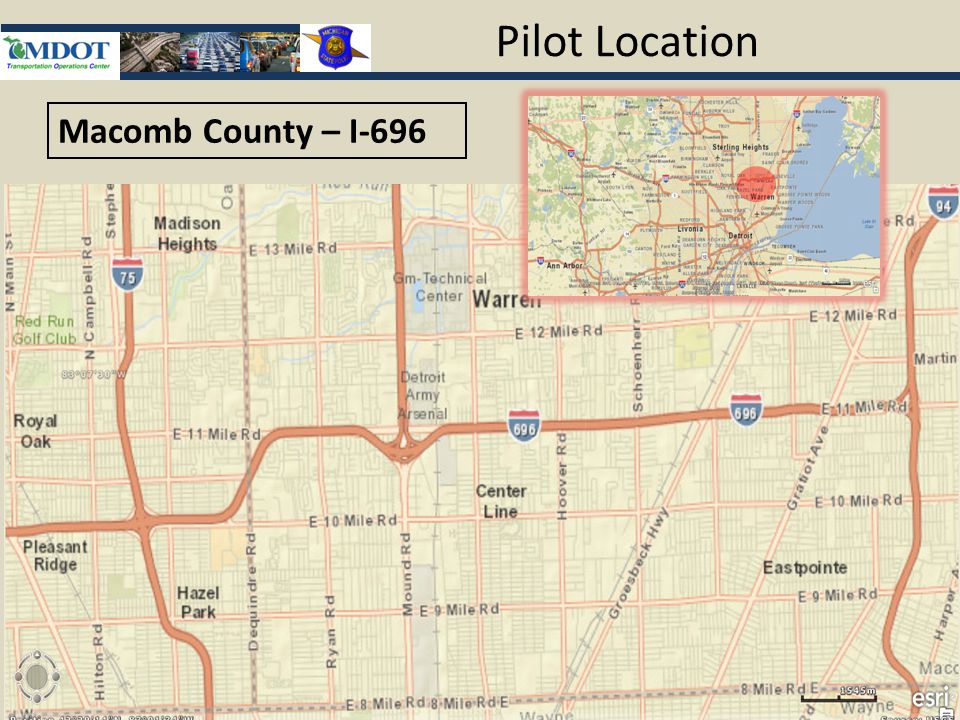

I-696 @ Van Dyke (Pilot Area) Westbound I-696 at Hoover High Impact: Start Time 11:22, End Time 12:33, February 16, 2014 11:22 - While monitoring the MiDrive SEMTOC operators notice indicators were displaying black (indicates no movement at all on the roadway) Westbound I-696 at Van Dyke. SEMTOC discovered on camera multiple tow trucks responding to about 10-16 vehicles that were involved in accidents. 11:25 - High Impact was initiated and Marlon Spinks (Macomb TSC) was notified by phone 12:33 Fire and Police cleared the scene MCRC blade and salted the area thoroughly. High Impact was taken down freeway re-open. Place Holder – Video Clip 1:30

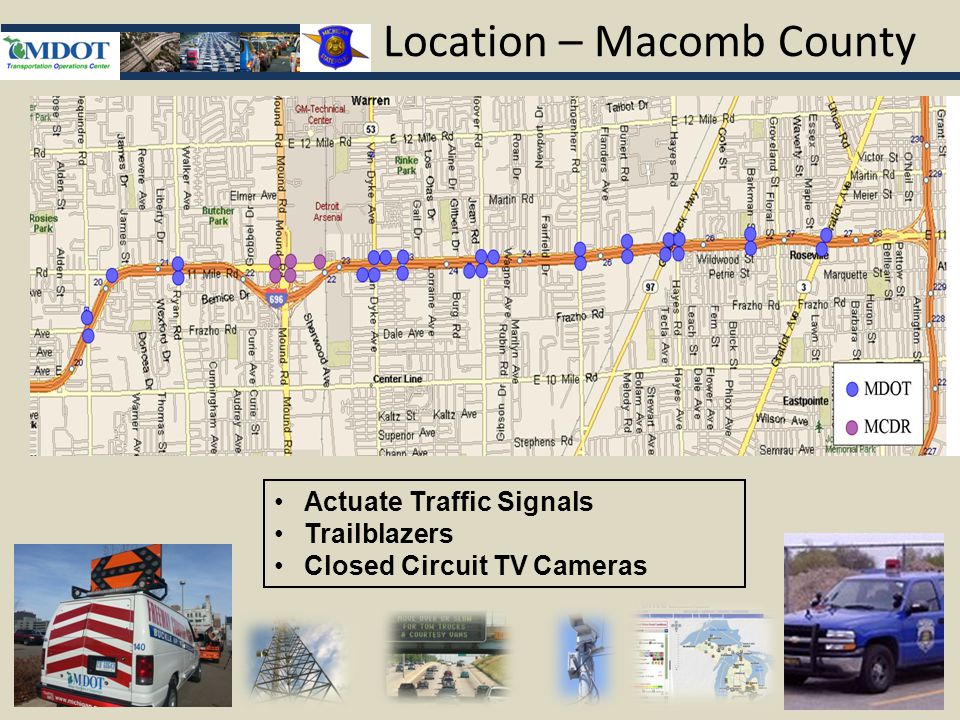

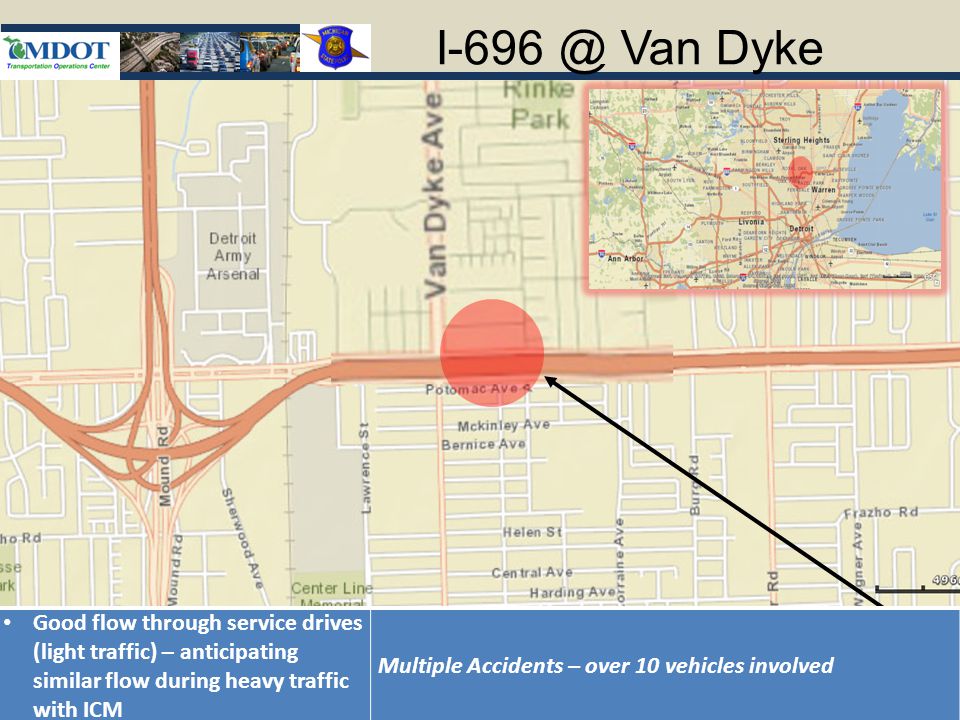

I-696 @ Van Dyke Good flow through service drives (light traffic) – anticipating similar flow during heavy traffic with ICM Multiple Accidents – over 10 vehicles involved

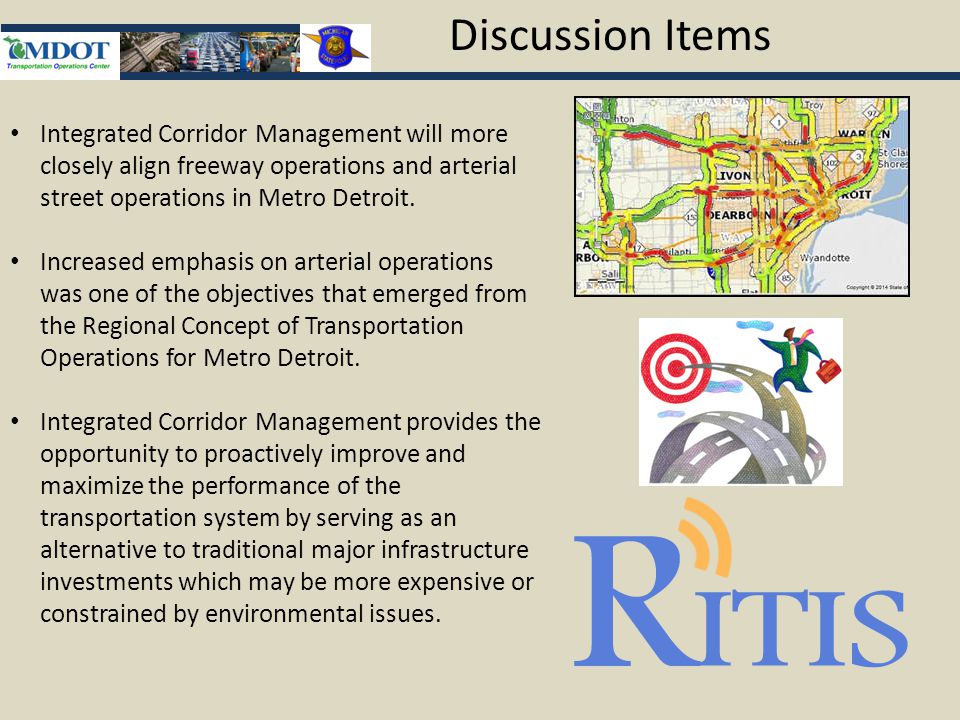

Discussion Items Integrated Corridor Management will more closely align freeway operations and arterial street operations in Metro Detroit. Increased emphasis on arterial operations was one of the objectives that emerged from the Regional Concept of Transportation Operations for Metro Detroit. Integrated Corridor Management provides the opportunity to proactively improve and maximize the performance of the transportation system by serving as an alternative to traditional major infrastructure investments which may be more expensive or constrained by environmental issues.
