1. WELCOME FROM Ireland

2. The History of Evaporative Cooling Evaporative cooling is the oldest form of air conditioning ever used The ancient Greeks used to fill terracotta pots full of water and leave them by doors and windows to benefit from evaporative cooling The Arabs hung wet blankets over doors and windows to achieve the same effect

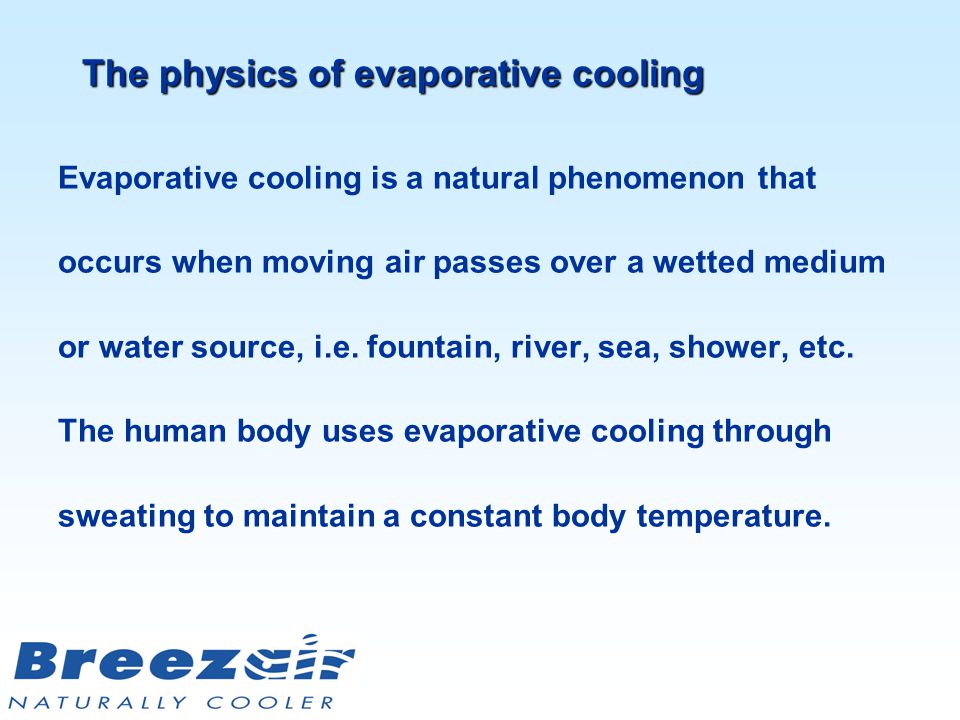

3. The physics of evaporative cooling Evaporative cooling is a natural phenomenon that occurs when moving air passes over a wetted medium or water source, i.e. fountain, river, sea, shower, etc. The human body uses evaporative cooling through sweating to maintain a constant body temperature.

4. The physics of evaporative cooling Warm dry air when passing over water liberates some of the water in the form of an evaporate. This adiabatic process converts sensible heat (that which can be measured by a thermometer) into latent heat.

5. The physics of evaporative cooling The net result is air which has measurably lower temperatures than ambient air (approximately 6-7 o C for typical Irish summer temperatures) but has increased levels of relative humidity

6. The mechanics of evaporative cooling

7. Water reservoir The mechanics of evaporative cooling

8. Water inlet Water reservoir The mechanics of evaporative cooling

9. Water reservoir Water inlet Recirculation pump The mechanics of evaporative cooling

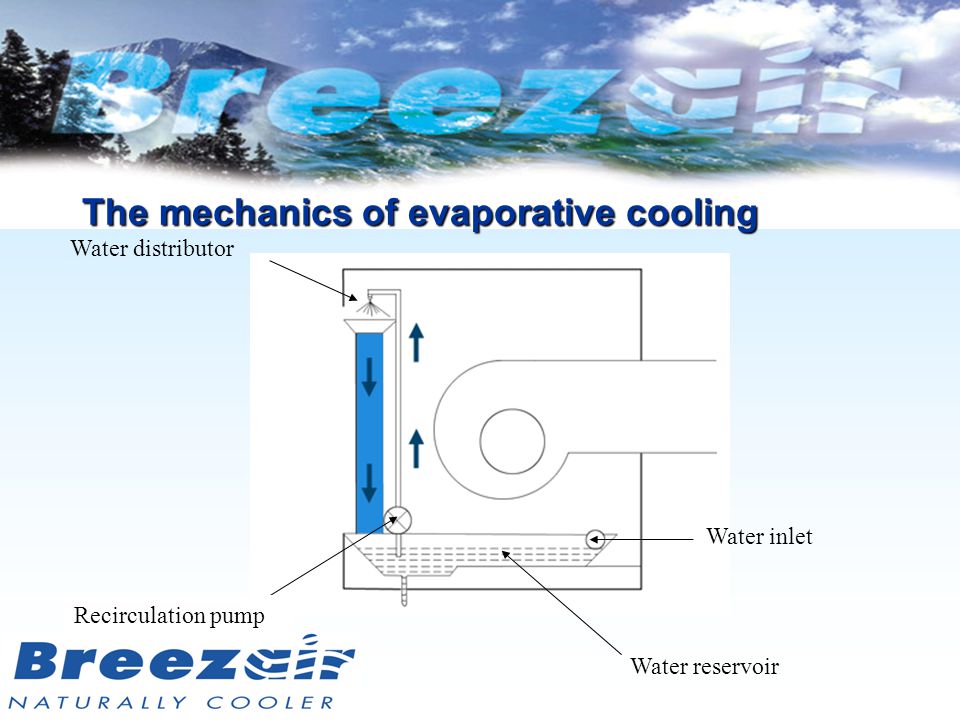

10. Water reservoir Water inlet Water distributor Recirculation pump The mechanics of evaporative cooling

11. Water reservoir Water inlet Water spreader Recirculation pump Water distributor The mechanics of evaporative cooling

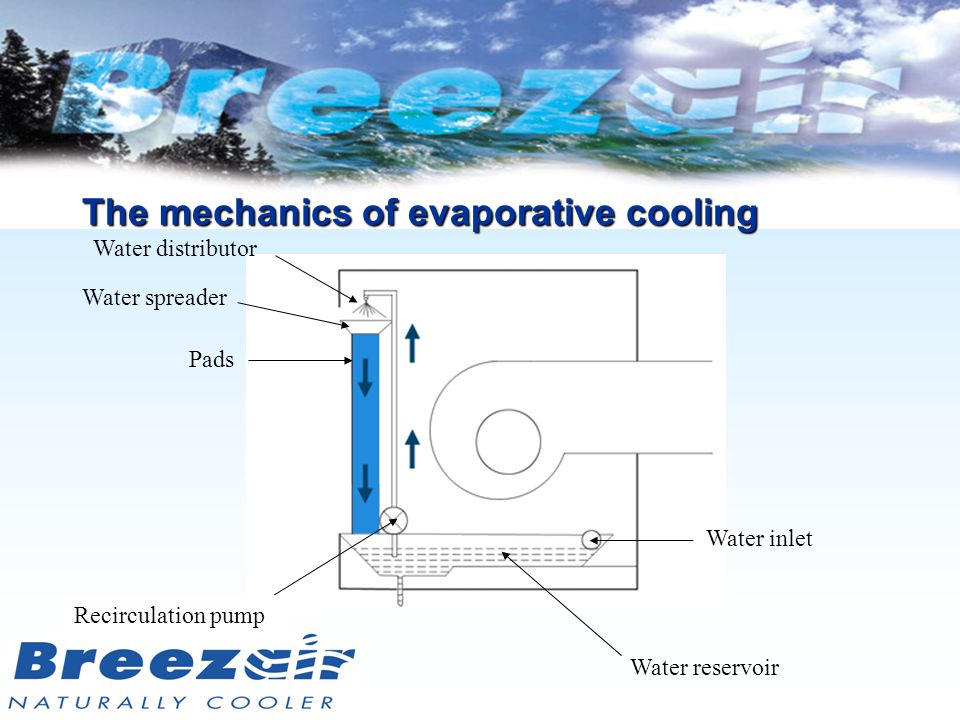

12. Water reservoir Water inlet Water spreader Recirculation pump Water distributor Pads The mechanics of evaporative cooling

13. Water reservoir Water inlet Water spreader Water drain Fan External air Recirculation pump Water distributor Pads The mechanics of evaporative cooling

14. Water reservoir Water inlet Water spreader Pads Water drain Fan Cooled air External air Recirculation pump Water distributor The mechanics of evaporative cooling

15. Sensible Latent Sensible Latent Adiabatic Saturation

17. External – Roof Mounted External – Ducted Internal - SuspendedInternal - Mobile

18. External – Roof Mounted Celtic LInen

19. Waterford Crystal External – Ducted

21. Internal - Suspended

23. All services from above Light weight easily supported Low services requirement Multi directional air flow All plastic and Stainless steel Construction Modular installation Easily Relocated

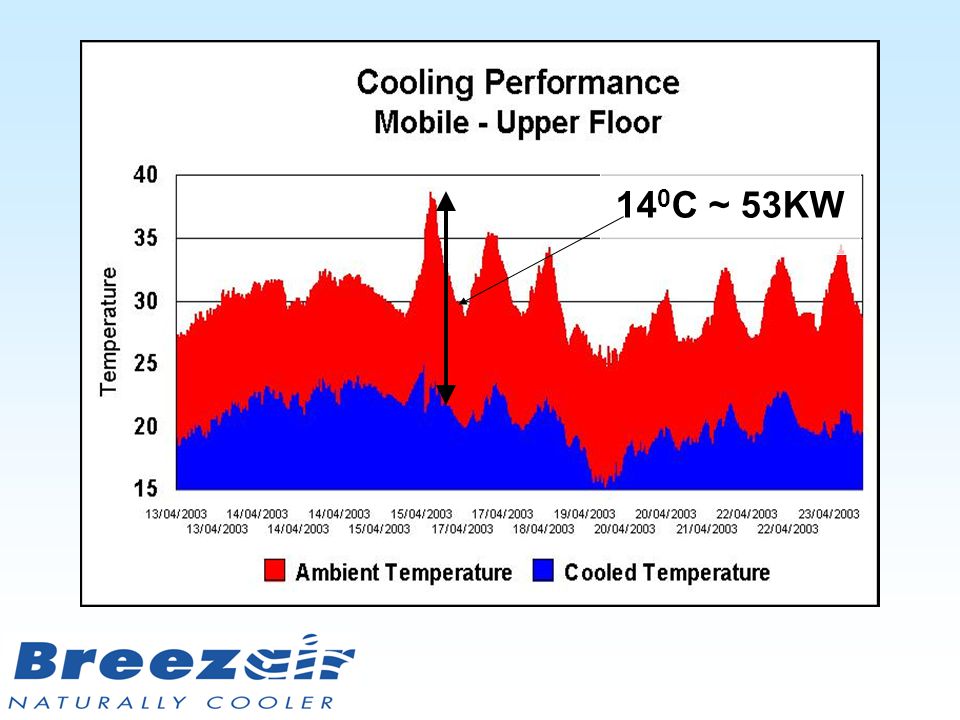

24. 14 0 C ~ 53KW

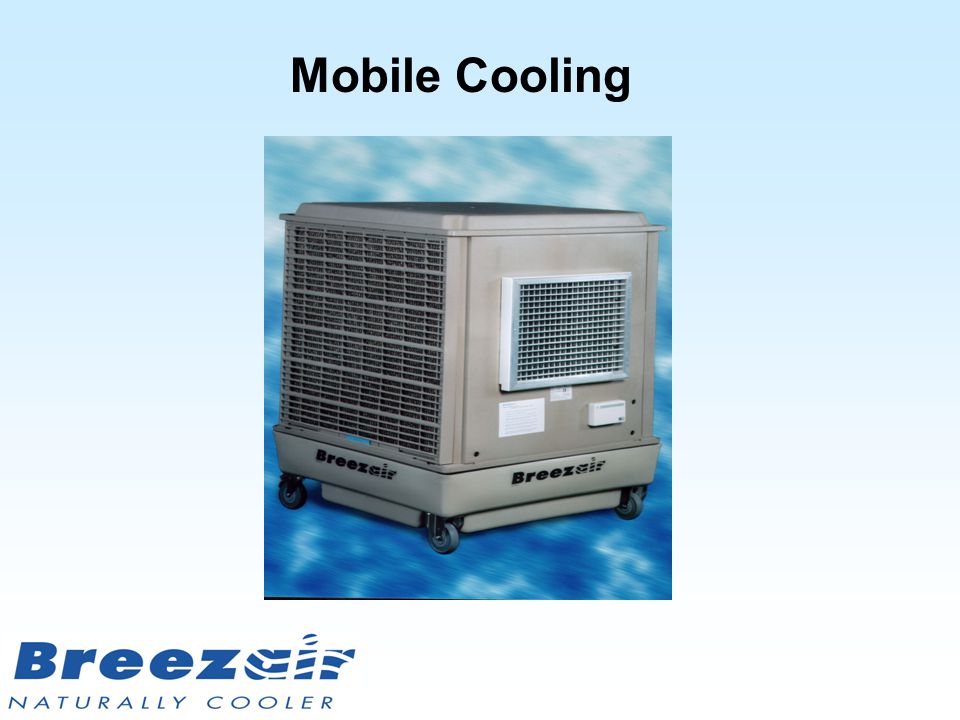

26. Mobile Cooling
