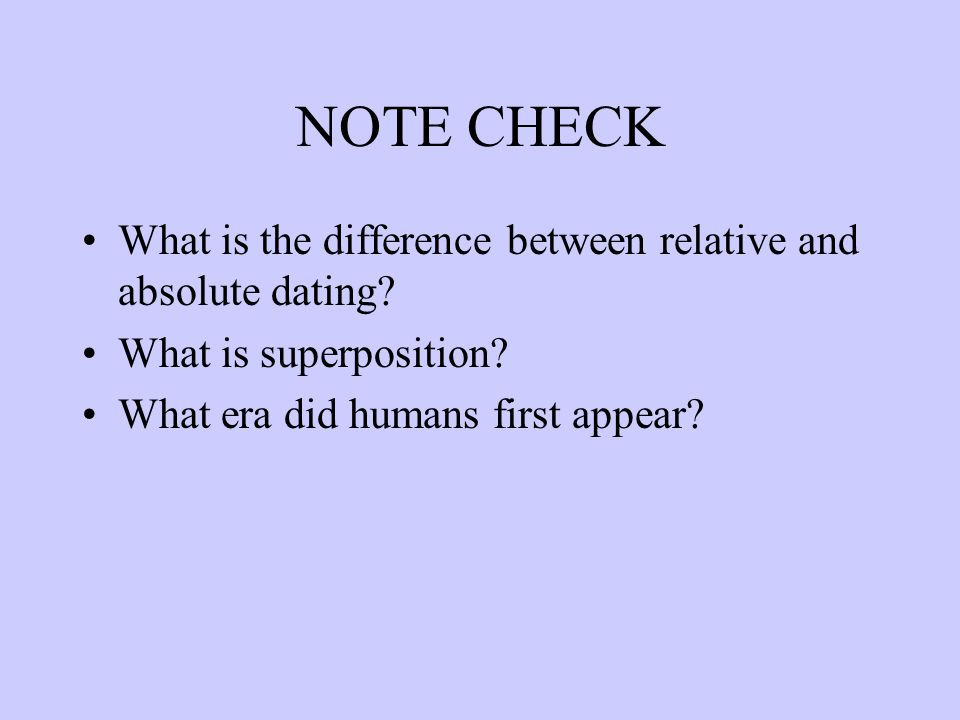

1. NOTE CHECK What is the difference between relative and absolute dating? What is superposition? What era did humans first appear?

2. Fossils & The Geologic Time Scale

3. Exploring Geologic Time Geologic time notes - page 23

4. Exploring Geologic Time (geologic time notes page 29) 1

5. Geologic Time Scale The geologic time scale – a “calendar” of Earth history Subdivides geologic history into units Originally created using relative dates Structure of the geologic time scale Eon – the greatest expanse of time Era – an eon is divided into eras 2

6. Geologic Time Chapter 8 3

7. The 4.6 billion years of Earth’s history can be divided into major time segments called eons.  Earth = 4.6 billion years  PreCambrian Eon  4600 to 542 mya  This boundary continually changes as older soft bodied fossils are recognized  Phanerozoic Eon  543 mya to present mya means million of years ago 4

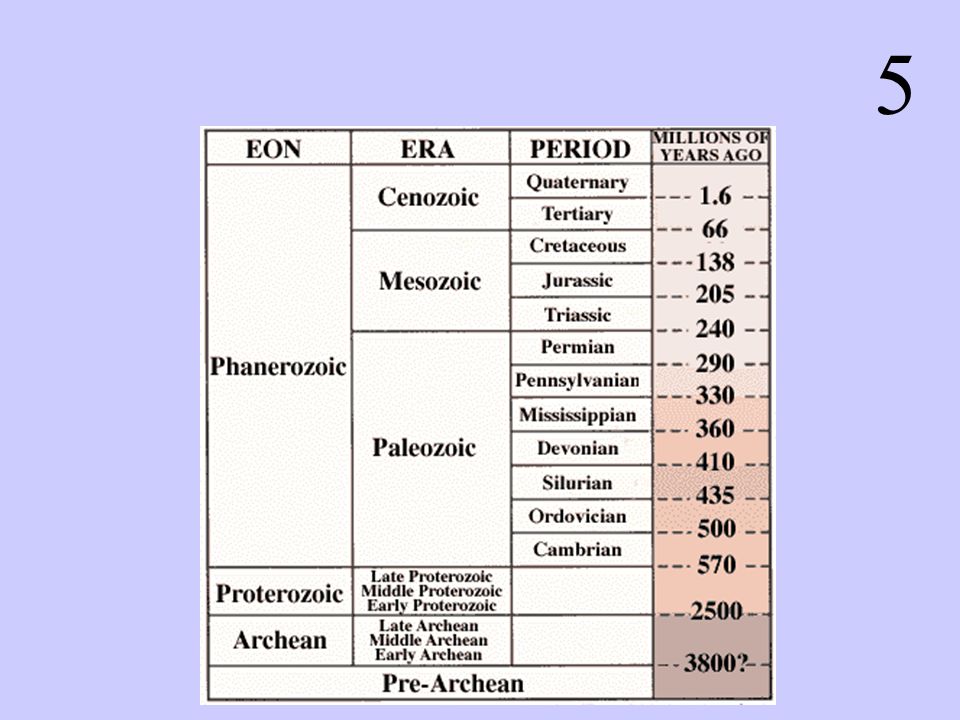

8. 5

9. An Eon is divided into eras. Then each era can be subdivided into periods. Periods can be subdivided into epochs. EON to ERA to PERIOD TO EPOCH BIGGEST ………………………..SMALLEST 6

10. How do scientists pick when to start a new time segment? Each time segment is characterized by changes in landforms (tectonics changes), climate, and in life forms. 7

11. Precambrian Eon is when Earth Formed  85% of Earth’s history  Intense volcanic activity; oceans form; meteorite bombardment  Atmosphere develops  (blue-green algae and bacteria) andLife begins with one cell organisms evolves to multi-cell organisms like worms  Few fossils exist because most did not have hard parts 8

12. The Phanerozoic Eon began when life developed hard bodies. The Phanerozoic Eon is divided into time segments called eras.  Paleozoic542 Mya to 251 Mya  Mesozoic251 Mya to 65 Mya  Cenozoic65 Mya to present 9

13. The Paleozoic Era- Age of Ancient Plants and Animals  The formation of Pangaea  Six periods are marked by significant differences in lifeforms  Appearance of fish, insects, amphibians, and some reptiles 10

14. The Mesozoic Era Age of Dinosaurs  Known as age of reptiles; dinosaurs are prominent life forms  Last part of this period (Cretaceous) witnesses large-scale extinction of marine and flying reptiles as well as dinosaurs; extinction may be due to massive asteroid collision with Earth and massive volcanic eruptions  Pangaea breaks up 11

15. The Cenozoic Era Age of Mammals and Flowering Plants  Age of mammals and flowering plants  Climates cool generating widespread glaciation  Humans evolve  High level of tectonic activity as plates separate and evolve 12

17. What is a fossil? Fossils give clues about organisms that lived long ago. They help to show that evolution has occurred. They also provide evidence about how Earth’s surface has changed over time. Fossils help scientists understand what past environments may have been like. A fossil is the preserved remains of a once- living organism. What do fossils tell us? 13

18. HOW IS A FOSSIL FORMED? 1. Sediment An animal is buried by sediment, such as volcanic ash or silt, shortly after it dies. Its bones are protected from rotting by the layer of sediment. 4. Erosion Erosion from rain, rivers, and wind wears away the remaining rock layers. Eventually, erosion or people digging for fossils will expose the preserved remains. 2. Layers More sediment layers accumulate above the animal’s remains, and minerals, such as silica (a compound of silicon and oxygen), slowly replace the calcium phosphate in the bones. 3. Movement Movement of tectonic plates, or giant rock slabs that make up Earth’s surface, lifts up the sediments and pushes the fossil closer to the surface. 14

19. FIVE MAIN TYPES OF FOSSILS Petrified Fossils Molds and Casts Carbon Films Trace Fossils Preserved Remains 15

20. The word “petrified” means “turning into stone.” Petrified fossils form when minerals replace all or part of an organism. Water is full of dissolved minerals. It seeps through the layers of sediment to reach the dead organism. When the water evaporates, only the hardened minerals are left behind. PETRIFIED FOSSILS PETRIFIED FOSSIL The Field Museum in Chicago displays a fossil of a Tyrannosaurus rex. 16

21. MOLDS AND CASTS A mold forms when hard parts of an organism are buried in sediment, such as sand, silt, or clay. The hard parts completely dissolve over time, leaving behind a hollow area with the organism’s shape. MOLD FOSSIL This mold, or imprint, is of an extinct mollusk called an ammonite. A cast forms as the result of a mold. Water with dissolved minerals and sediment fills the mold’s empty spaces. Minerals and sediment that are left in the mold make a cast. A cast is the opposite of its mold. CAST FOSSIL This ammonite cast was discovered in the United Kingdom. 17

22. All living things contain an element called carbon. When an organism dies and is buried in sediment, the materials that make up the organism break down. Eventually, only carbon remains. The thin layer of carbon left behind can show an organism’s delicate parts, like leaves on a plant. CARBON FILMS FERN FOSSIL This carbon-film fossil of a fern is more than 300 million years old. 18

23. Relative Dating Relative dating: looks at where the fossil is located to determine its age relative to other fossils. This only works if the area has been undisturbed. 19

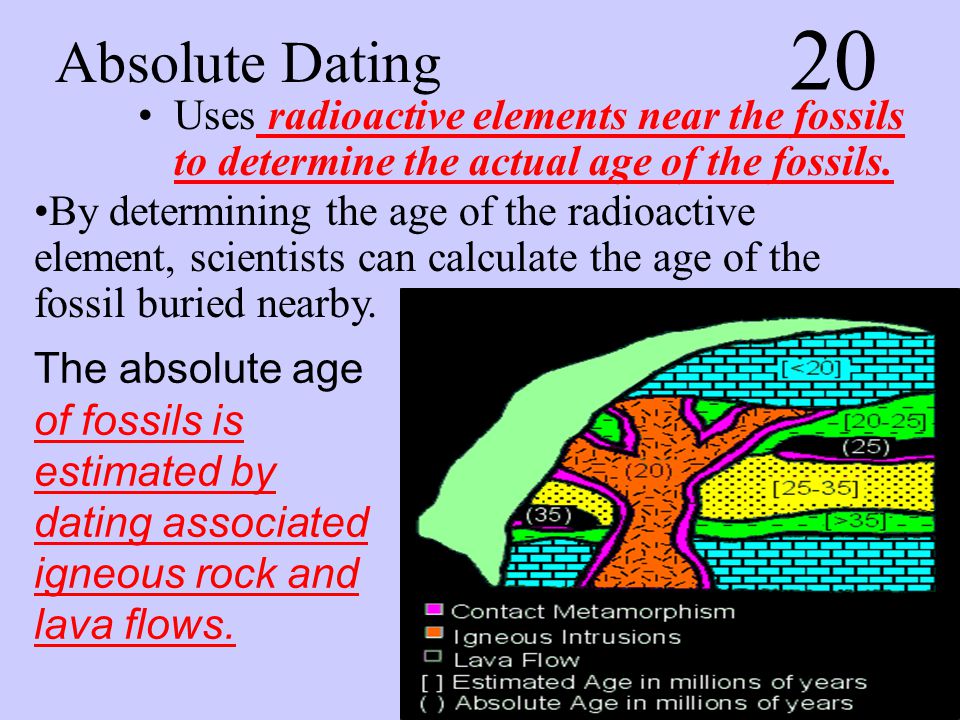

24. Absolute Dating Uses radioactive elements near the fossils to determine the actual age of the fossils. By determining the age of the radioactive element, scientists can calculate the age of the fossil buried nearby. The absolute age of fossils is estimated by dating associated igneous rock and lava flows. 20

25. TRACE FOSSILS Trace fossils show the activities of organisms. An animal makes a footprint when it steps in sand or mud. Over time the footprint is buried in layers of sediment. Then, the sediment becomes solid rock. FANCY FOOTWORK This dinosaur footprint was found in Namibia, Africa. 21

26. Some organisms get preserved in or close to their original states. Here are some ways that can happen. PRESERVED REMAINS Amber An organism, such as an insect, is trapped in a tree’s sticky resin and dies. More resin covers it, sealing the insect inside. It hardens into amber. Tar An organism, such as a mammoth, is trapped in a tar pit and dies. The tar soaks into its bones and stops the bones from decaying. Ice An organism, such as a woolly mammoth, dies in a very cold region. Its body is frozen in ice, which preserves the organism—even its hair! 22

27. 27 Index Fossils Organisms are constantly changing or evolving. Some die out. Some fossils remain unchanged for only a specific, short period of time. These organisms produce the index fossils. 23

28. 28 Four features of an index fossil. Existed for short period of time Abundant Widespread geographically Easily recognizable 24

29. What is the index fossil of the Paleozoic Era? Trilobite 25

30. Superposition The idea that younger rock lies above older rock. 26

31. ASSIGNMENT Read back through the notes you have just taken. Design 4 multiple choice questions about the content. Design one question which asks for a description or explanation with details.
