1. Taverna and myExperiment: Designing, Exchanging and Sharing of Scientific Workflows Katy Wolstencroft University of Manchester

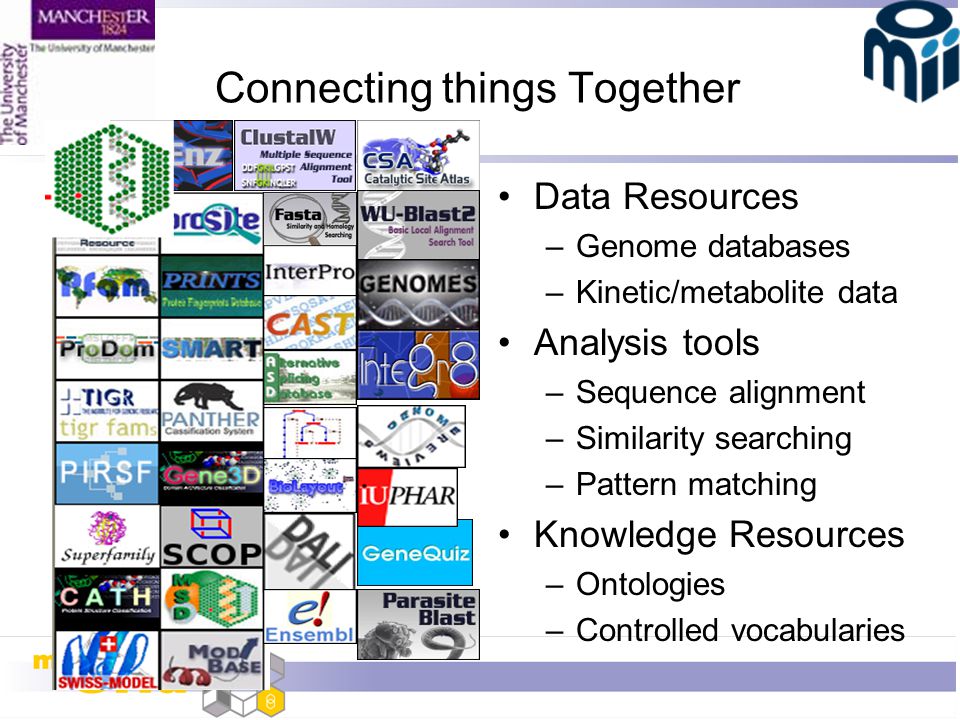

2. Connecting things Together Data Resources –Genome databases –Kinetic/metabolite data Analysis tools –Sequence alignment –Similarity searching –Pattern matching Knowledge Resources –Ontologies –Controlled vocabularies

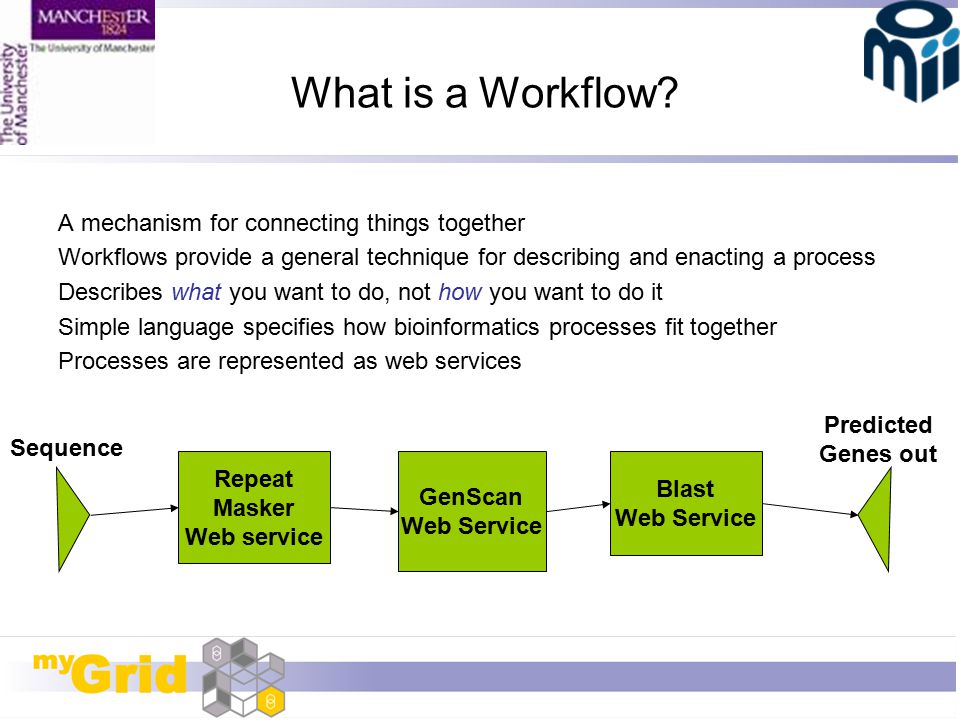

3. What is a Workflow? A mechanism for connecting things together Workflows provide a general technique for describing and enacting a process Describes what you want to do, not how you want to do it Simple language specifies how bioinformatics processes fit together Processes are represented as web services Repeat Masker Web service GenScan Web Service Blast Web Service Sequence Predicted Genes out

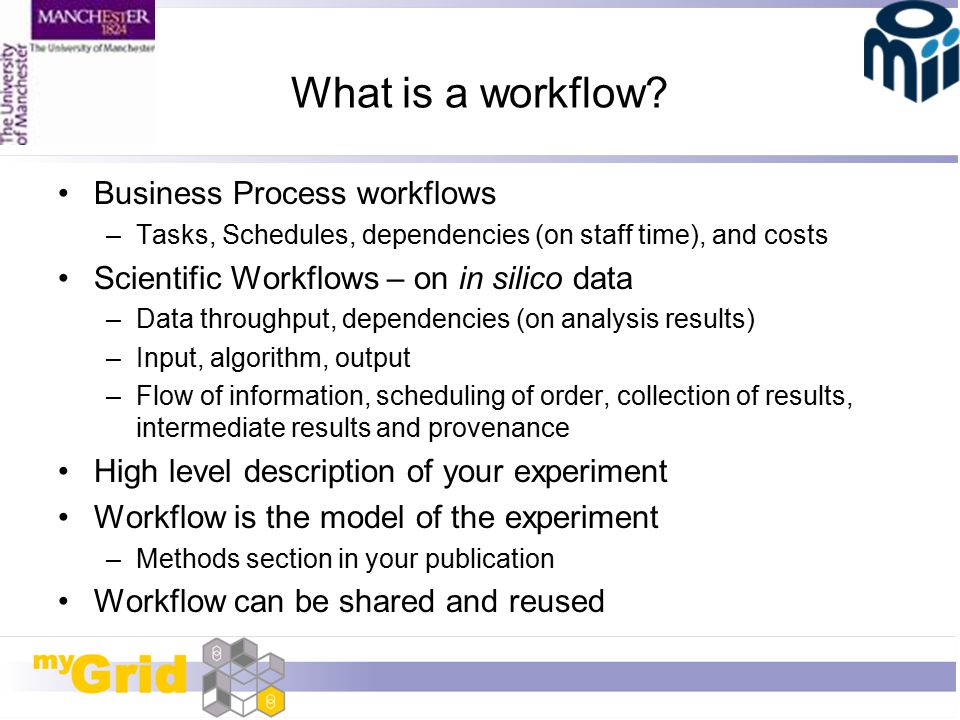

4. What is a workflow? Business Process workflows –Tasks, Schedules, dependencies (on staff time), and costs Scientific Workflows – on in silico data –Data throughput, dependencies (on analysis results) –Input, algorithm, output –Flow of information, scheduling of order, collection of results, intermediate results and provenance High level description of your experiment Workflow is the model of the experiment –Methods section in your publication Workflow can be shared and reused

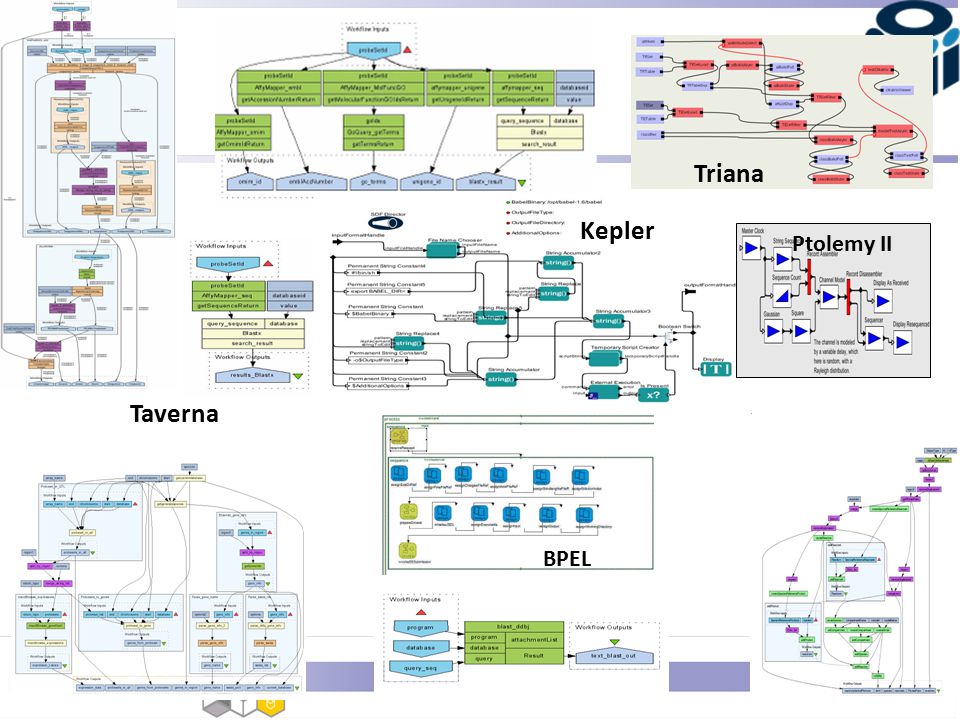

5. Kepler Triana BPEL Ptolemy II Taverna

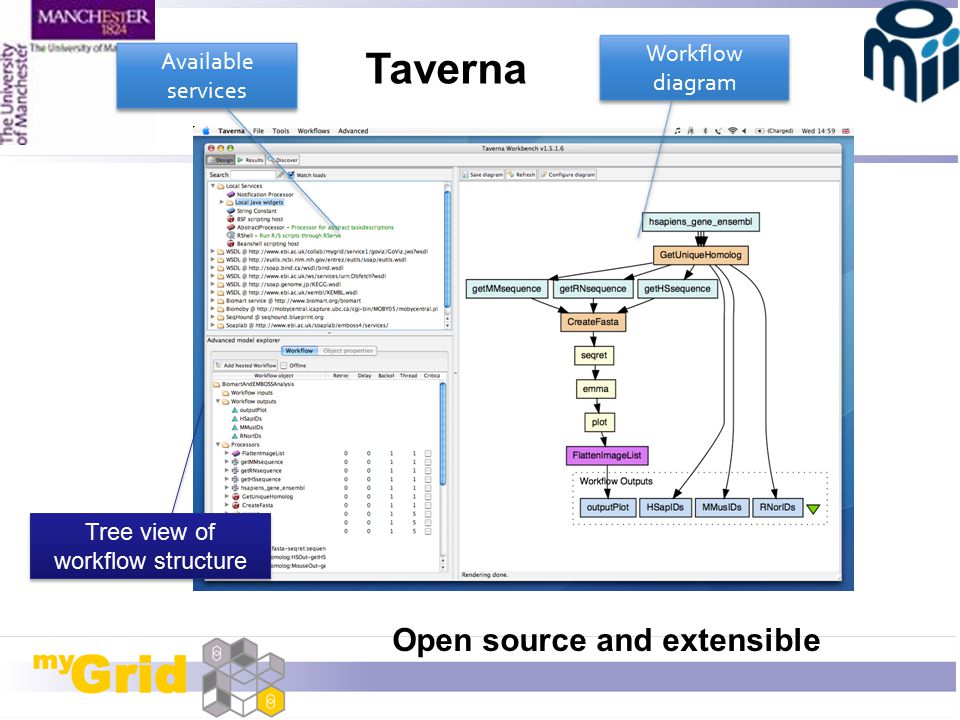

6. Workflow diagram Tree view of workflow structure Available services Taverna Open source and extensible

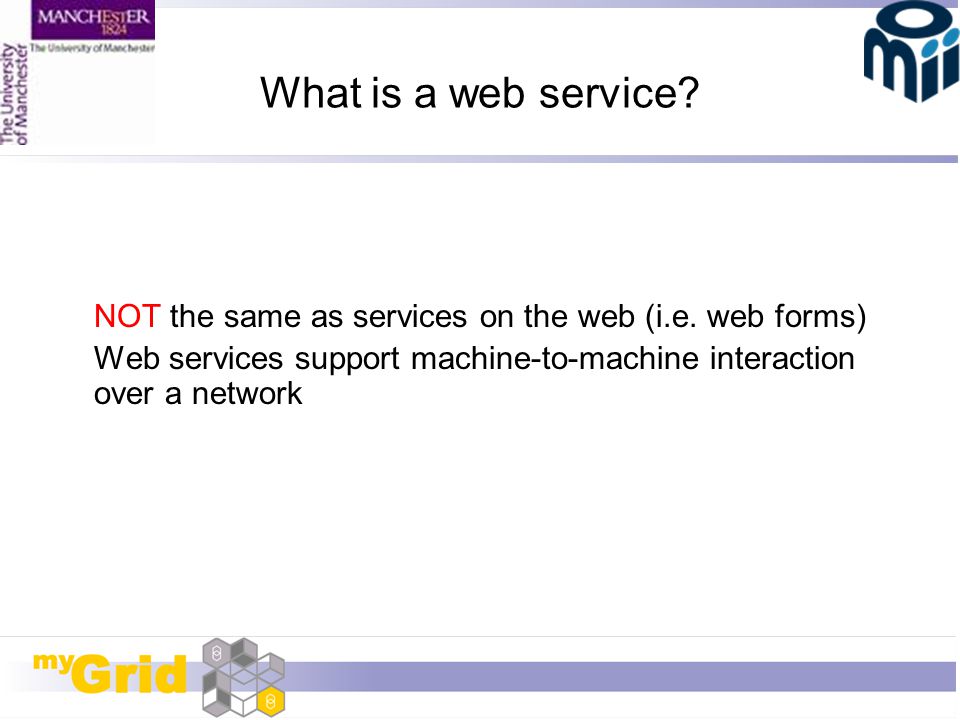

7. What is a web service? NOT the same as services on the web (i.e. web forms) Web services support machine-to-machine interaction over a network

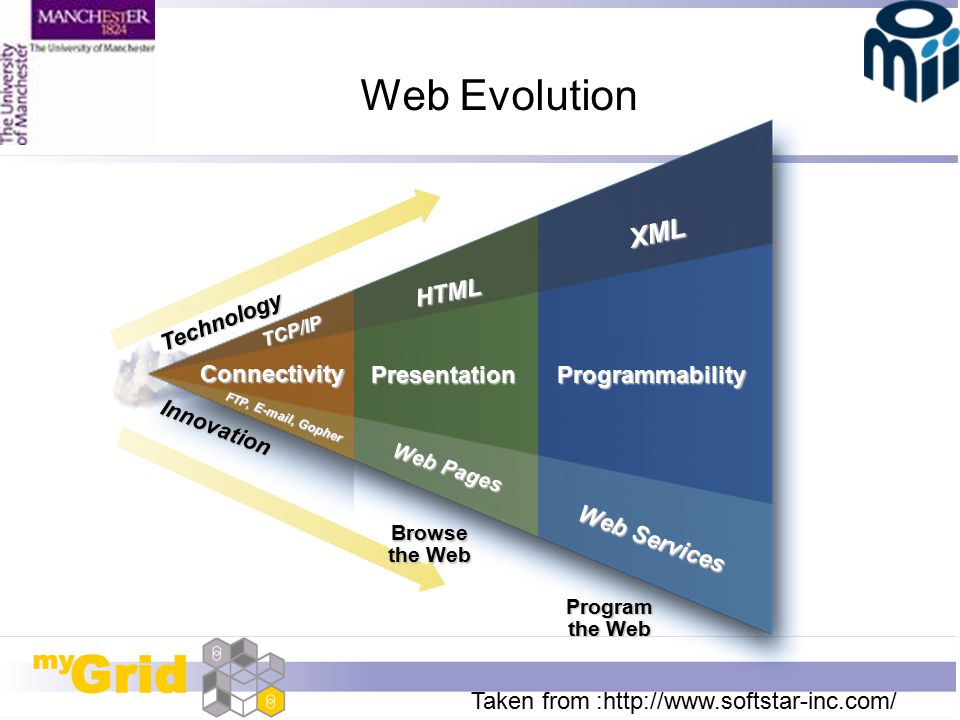

8. Web Evolution XML Programmability Connectivity HTML Presentation TCP/IP Technology Innovation FTP, E-mail, Gopher Web Pages Browse the Web Program the Web Web Services Taken from :http://www.softstar-inc.com/

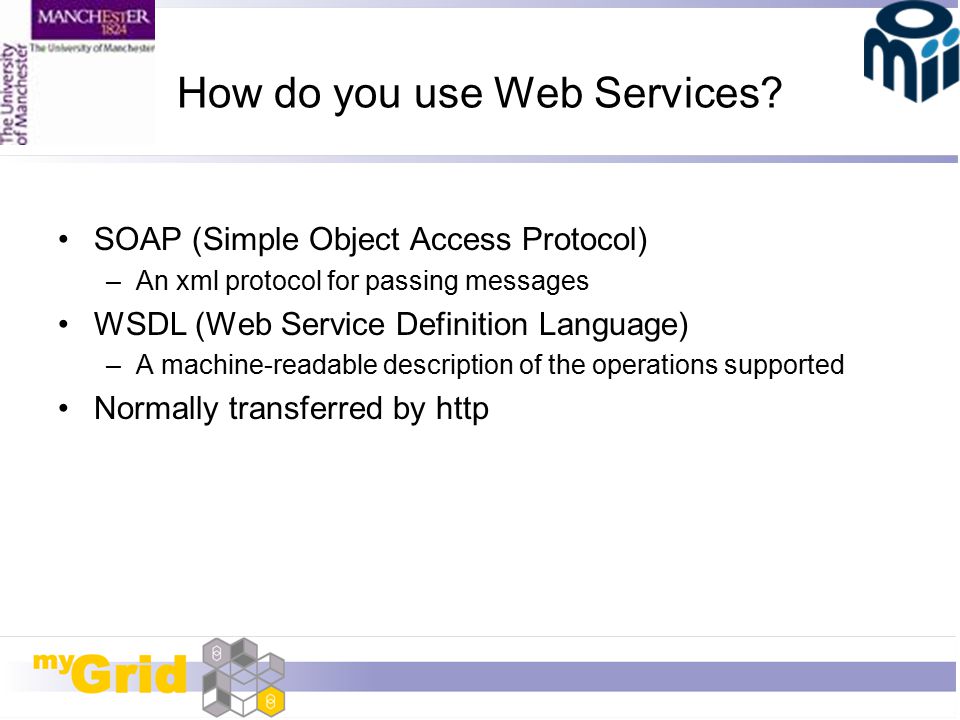

9. How do you use Web Services? SOAP (Simple Object Access Protocol) –An xml protocol for passing messages WSDL (Web Service Definition Language) –A machine-readable description of the operations supported Normally transferred by http

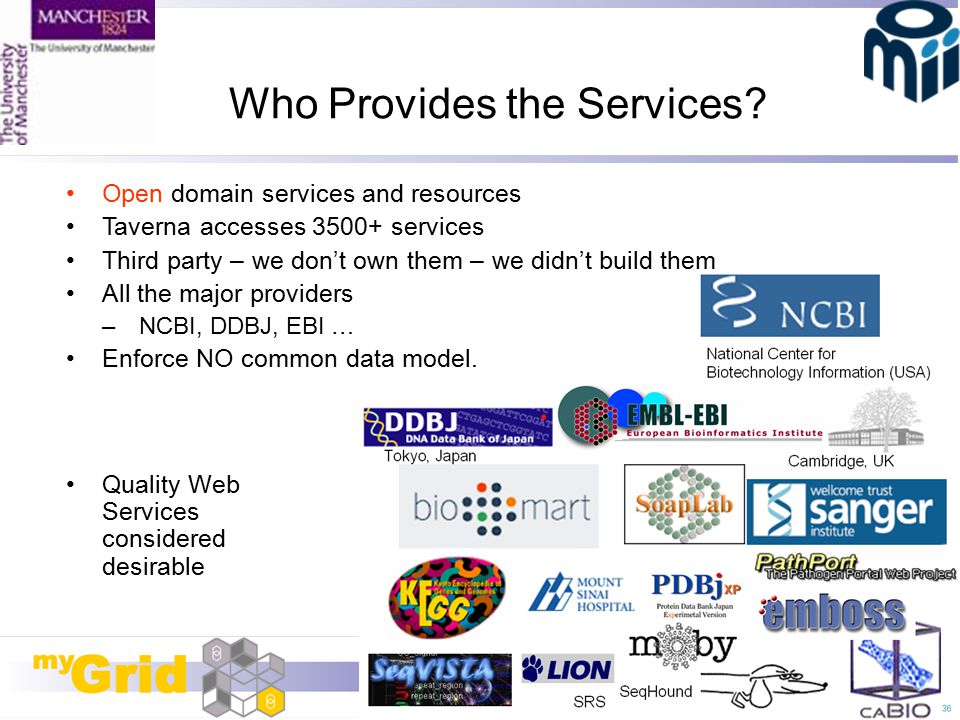

10. Who Provides the Services? Open domain services and resources Taverna accesses 3500+ services Third party – we don’t own them – we didn’t build them All the major providers –NCBI, DDBJ, EBI … Enforce NO common data model. Quality Web Services considered desirable

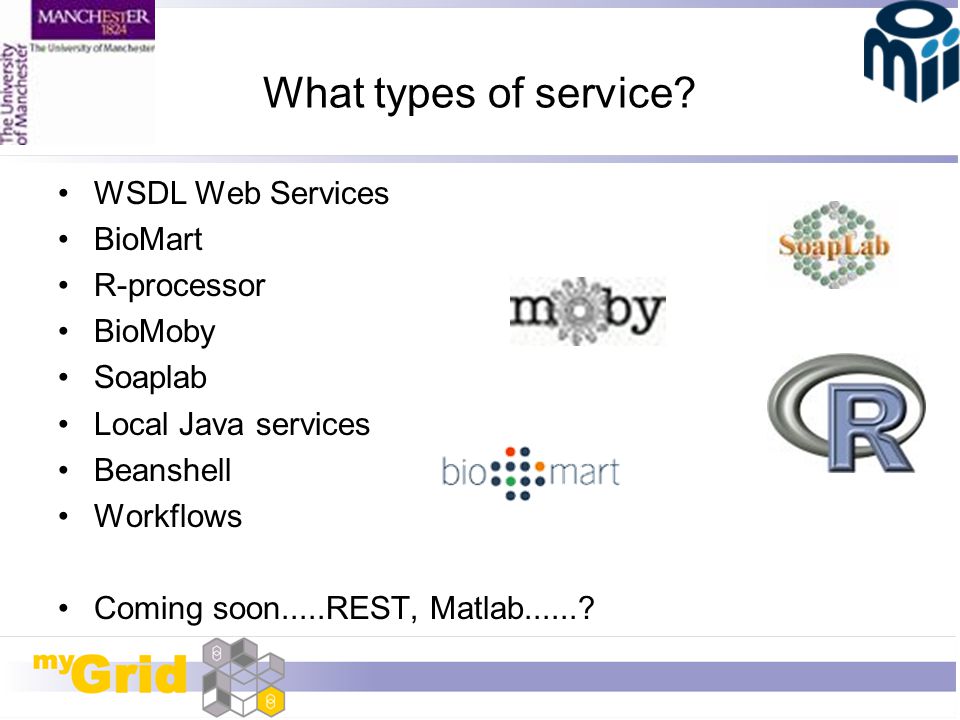

11. What types of service? WSDL Web Services BioMart R-processor BioMoby Soaplab Local Java services Beanshell Workflows Coming soon.....REST, Matlab......?

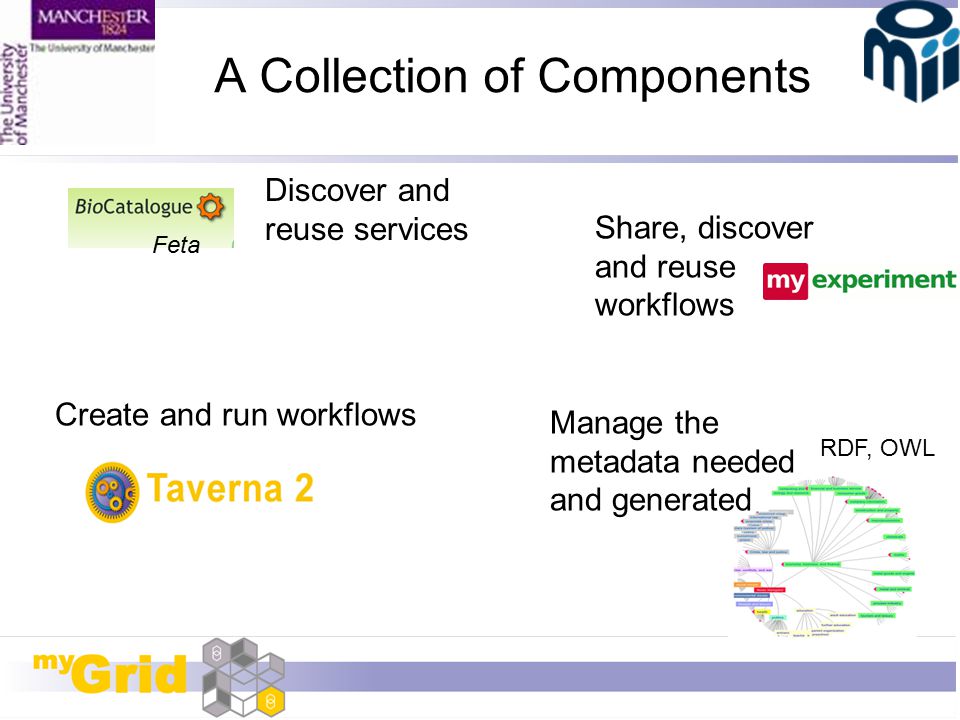

12. Create and run workflows Share, discover and reuse workflows Manage the metadata needed and generated RDF, OWL Discover and reuse services Feta A Collection of Components

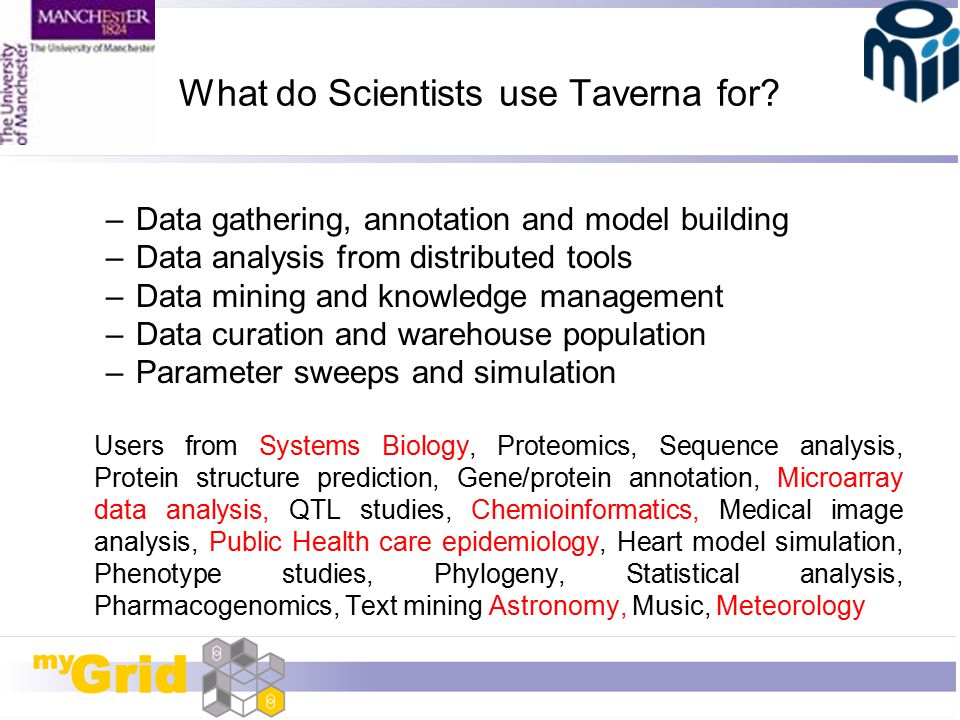

13. What do Scientists use Taverna for? –Data gathering, annotation and model building –Data analysis from distributed tools –Data mining and knowledge management –Data curation and warehouse population –Parameter sweeps and simulation Users from Systems Biology, Proteomics, Sequence analysis, Protein structure prediction, Gene/protein annotation, Microarray data analysis, QTL studies, Chemioinformatics, Medical image analysis, Public Health care epidemiology, Heart model simulation, Phenotype studies, Phylogeny, Statistical analysis, Pharmacogenomics, Text mining Astronomy, Music, Meteorology

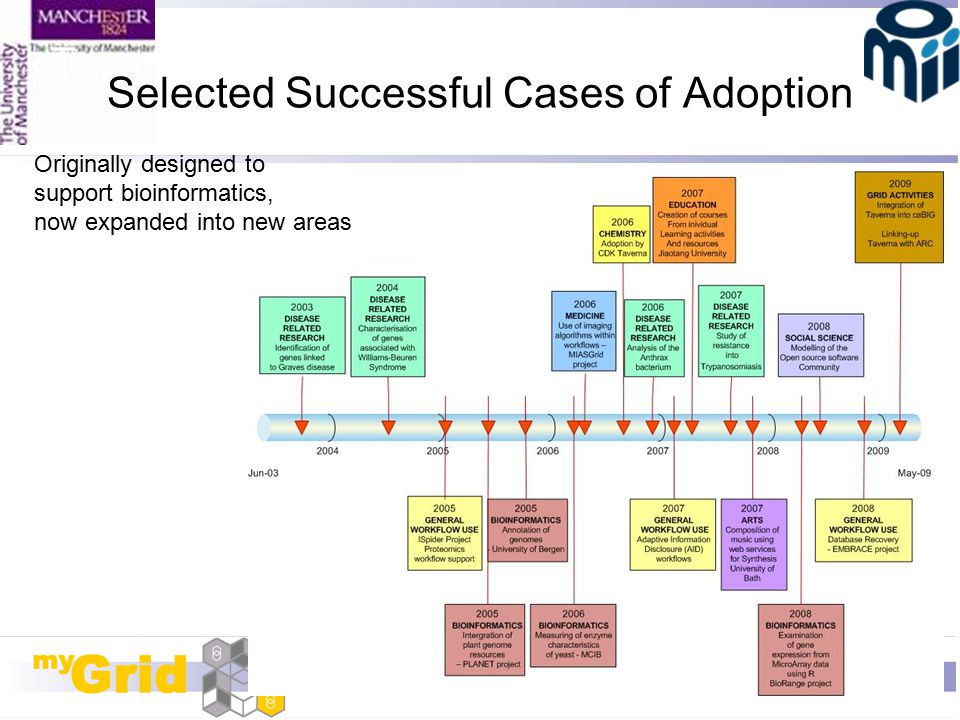

14. Taverna - Successful cases of adoption Selected Successful Cases of Adoption Originally designed to support bioinformatics, now expanded into new areas

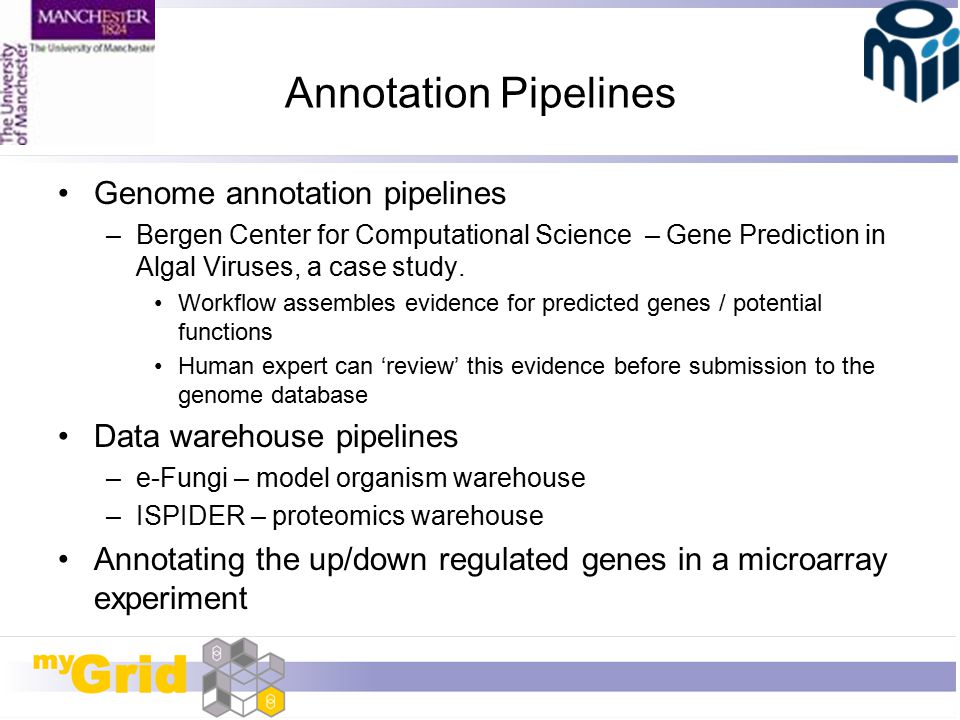

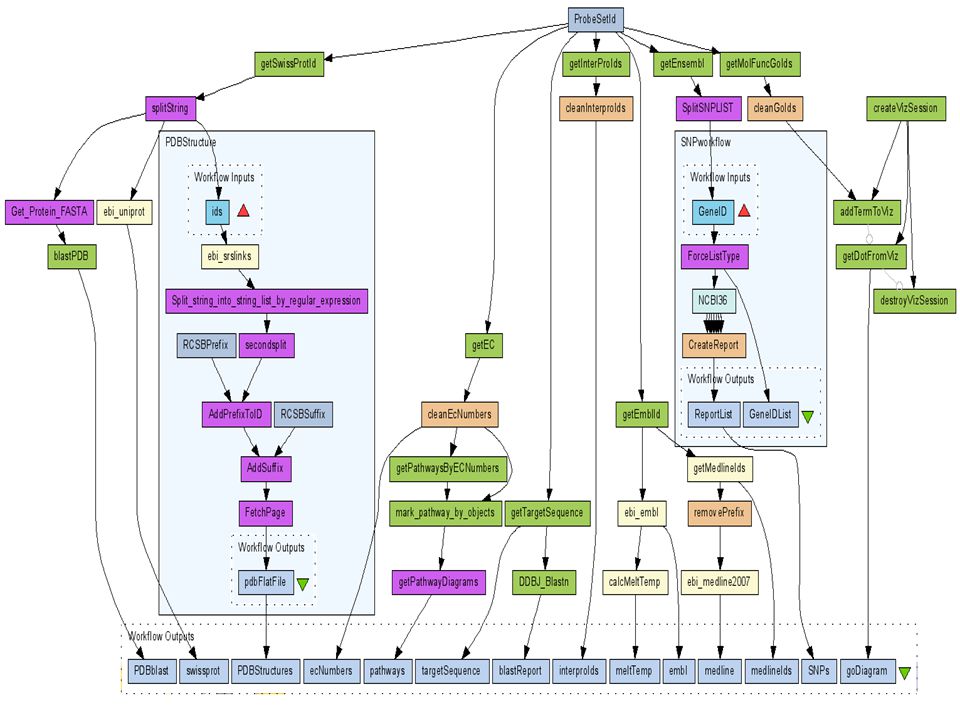

15. Annotation Pipelines Genome annotation pipelines –Bergen Center for Computational Science – Gene Prediction in Algal Viruses, a case study. Workflow assembles evidence for predicted genes / potential functions Human expert can ‘review’ this evidence before submission to the genome database Data warehouse pipelines –e-Fungi – model organism warehouse –ISPIDER – proteomics warehouse Annotating the up/down regulated genes in a microarray experiment

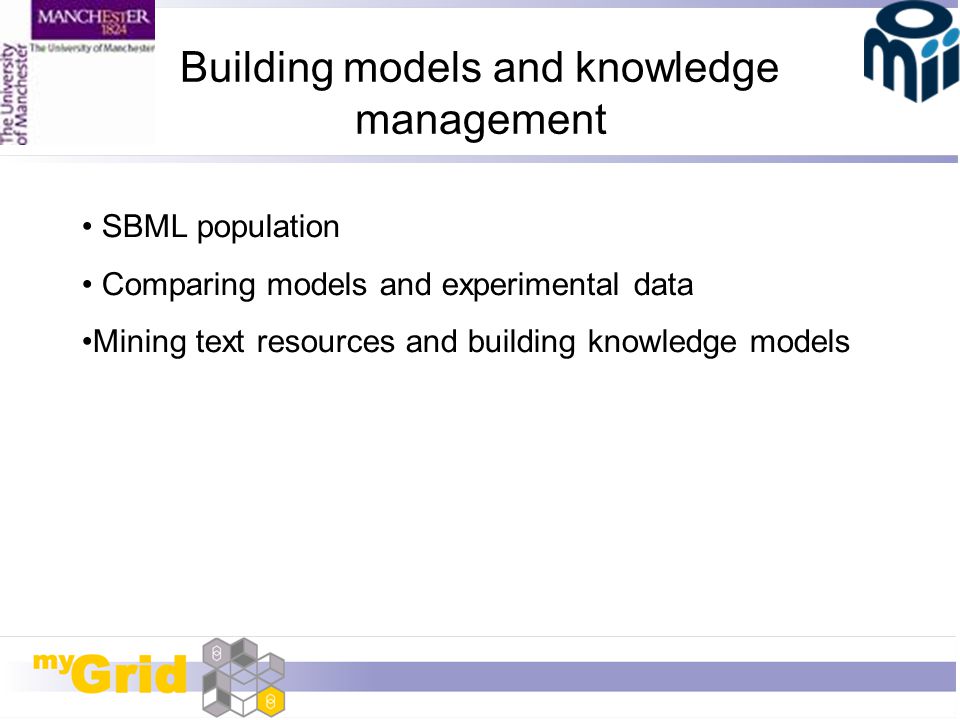

17. Building models and knowledge management SBML population Comparing models and experimental data Mining text resources and building knowledge models

18. [Peter Li, Doug Kell] Systems Biology Model Construction Automatic reconstruction of genome-scale yeast metabolism from distributed data in the life sciences to create and manipulate Systems Biology Markup Models.

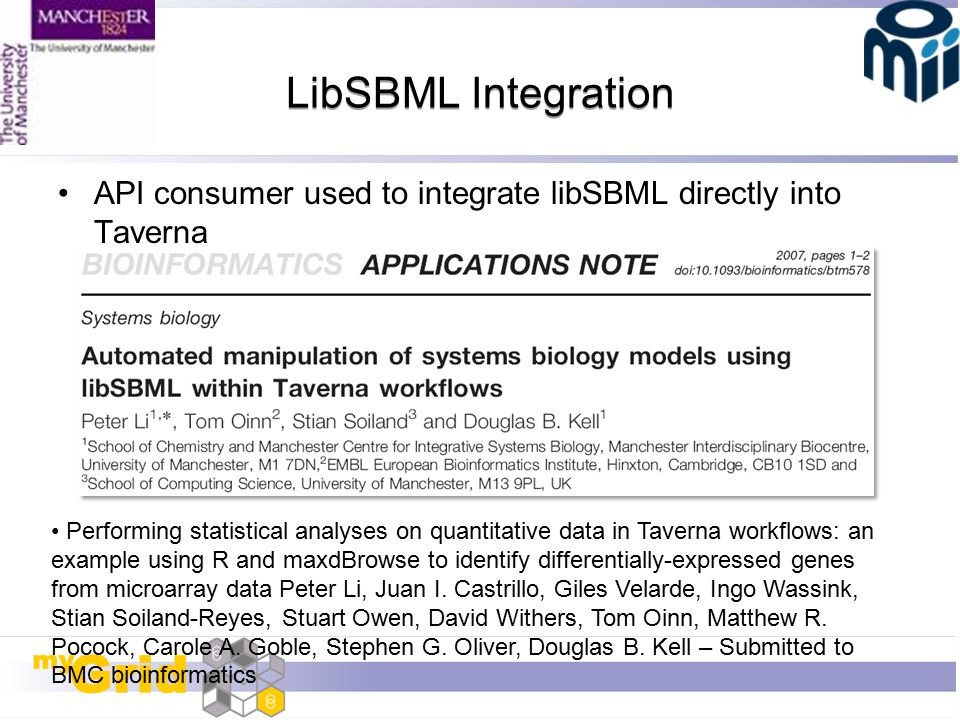

19. LibSBML Integration API consumer used to integrate libSBML directly into Taverna Performing statistical analyses on quantitative data in Taverna workflows: an example using R and maxdBrowse to identify differentially-expressed genes from microarray data Peter Li, Juan I. Castrillo, Giles Velarde, Ingo Wassink, Stian Soiland-Reyes, Stuart Owen, David Withers, Tom Oinn, Matthew R. Pocock, Carole A. Goble, Stephen G. Oliver, Douglas B. Kell – Submitted to BMC bioinformatics

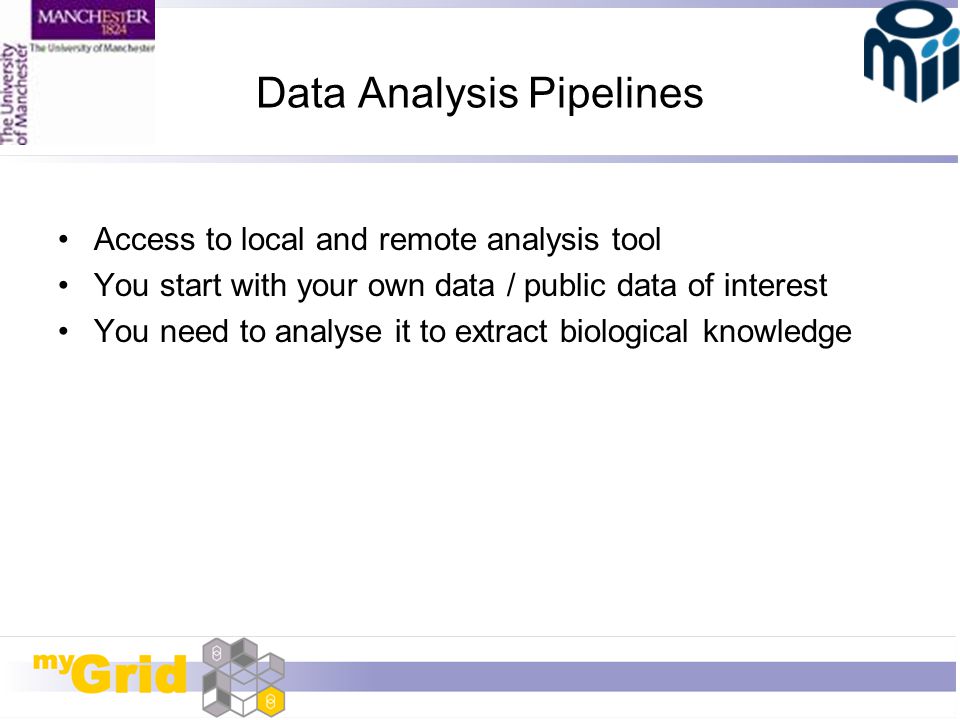

20. Data Analysis Pipelines Access to local and remote analysis tool You start with your own data / public data of interest You need to analyse it to extract biological knowledge

21. Trichuris muris Mouse whipworm infection - parasite model of the human parasite - Trichuris trichuria Understanding Phenotype Comparing resistant vs susceptible strains – Microarrays Understanding Genotype Mapping quantitative traits – Classical genetics QTL Joanne Pennock, Richard Grencis University of Manchester

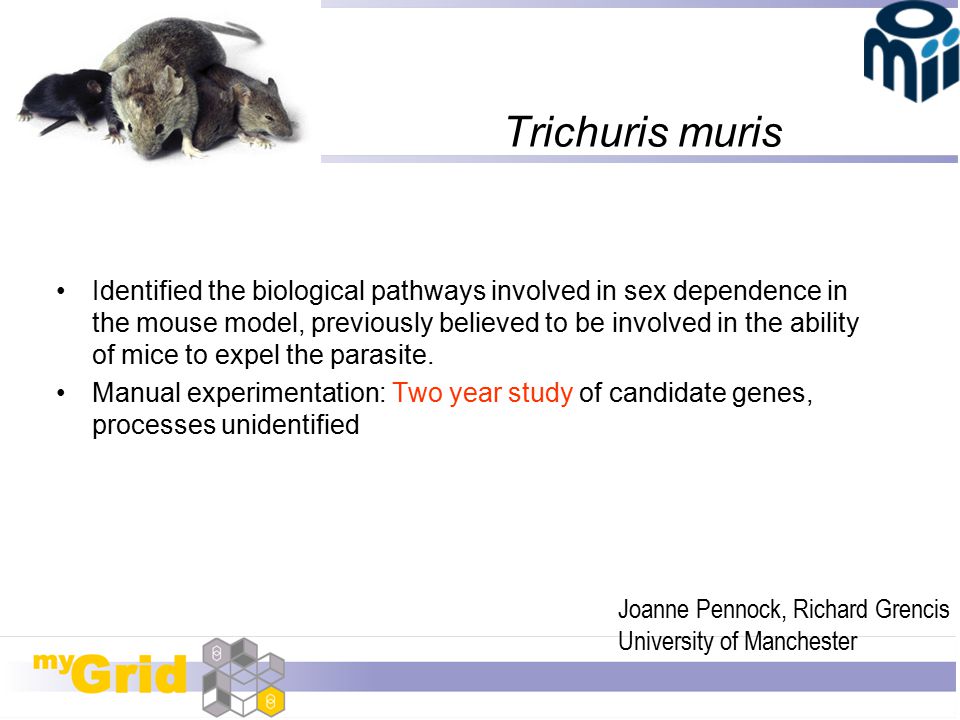

22. Trichuris muris Identified the biological pathways involved in sex dependence in the mouse model, previously believed to be involved in the ability of mice to expel the parasite. Manual experimentation: Two year study of candidate genes, processes unidentified Joanne Pennock, Richard Grencis University of Manchester

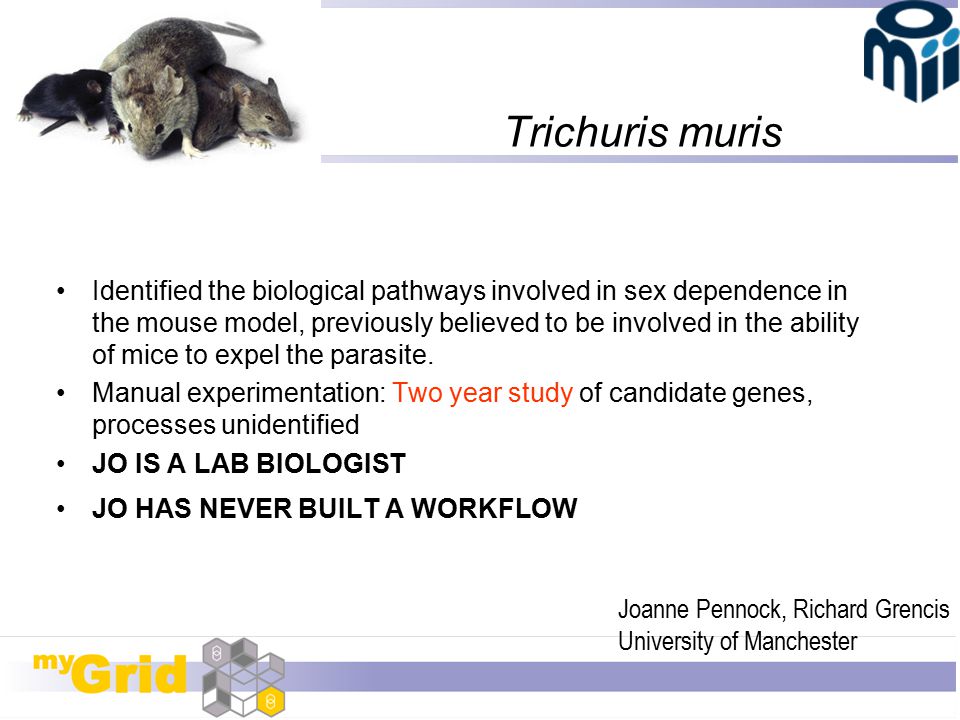

23. Trichuris muris Identified the biological pathways involved in sex dependence in the mouse model, previously believed to be involved in the ability of mice to expel the parasite. Manual experimentation: Two year study of candidate genes, processes unidentified JO IS A LAB BIOLOGIST JO HAS NEVER BUILT A WORKFLOW Joanne Pennock, Richard Grencis University of Manchester

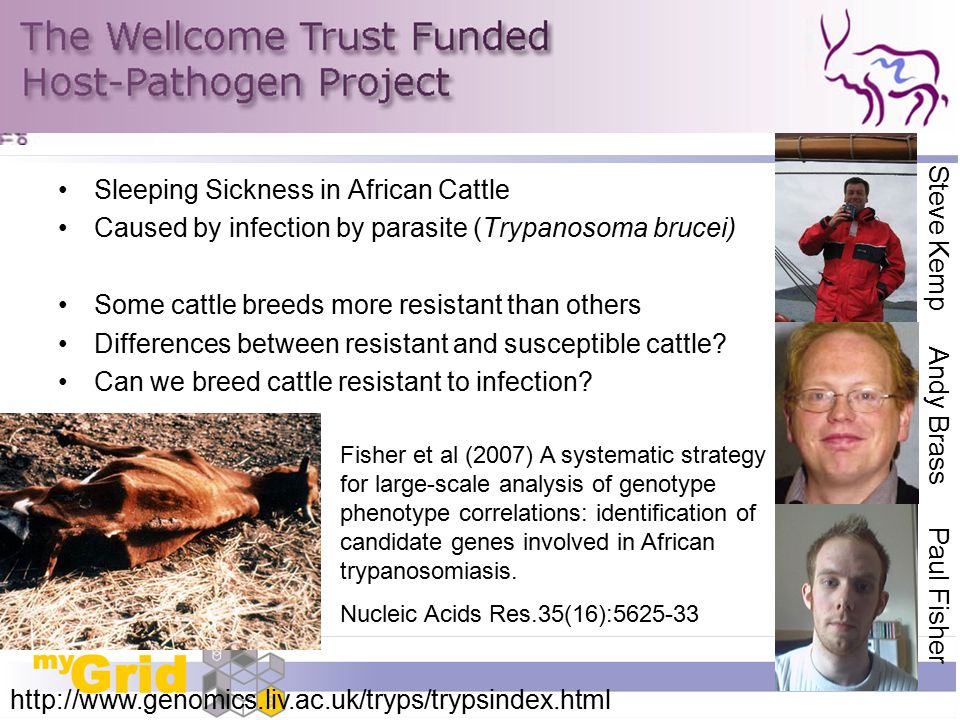

24. http://www.genomics.liv.ac.uk/tryps/trypsindex.html Andy Brass Steve Kemp Paul Fisher Sleeping Sickness in African Cattle Caused by infection by parasite (Trypanosoma brucei) Some cattle breeds more resistant than others Differences between resistant and susceptible cattle? Can we breed cattle resistant to infection? Fisher et al (2007) A systematic strategy for large-scale analysis of genotype phenotype correlations: identification of candidate genes involved in African trypanosomiasis. Nucleic Acids Res.35(16):5625-33

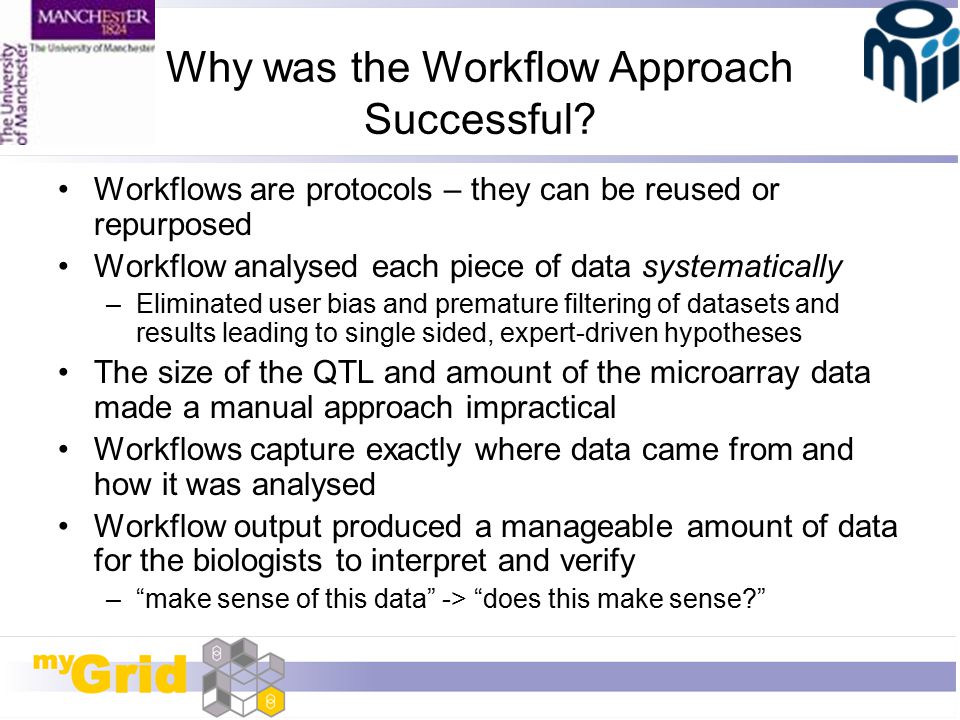

25. Why was the Workflow Approach Successful? Workflows are protocols – they can be reused or repurposed Workflow analysed each piece of data systematically –Eliminated user bias and premature filtering of datasets and results leading to single sided, expert-driven hypotheses The size of the QTL and amount of the microarray data made a manual approach impractical Workflows capture exactly where data came from and how it was analysed Workflow output produced a manageable amount of data for the biologists to interpret and verify –“make sense of this data” -> “does this make sense?”

26. Sharing Experiments Taverna supports the in silico experimental process for individual scientists How do you share your results/experiments/experiences with your –Research group –Collaborators –Scientific community

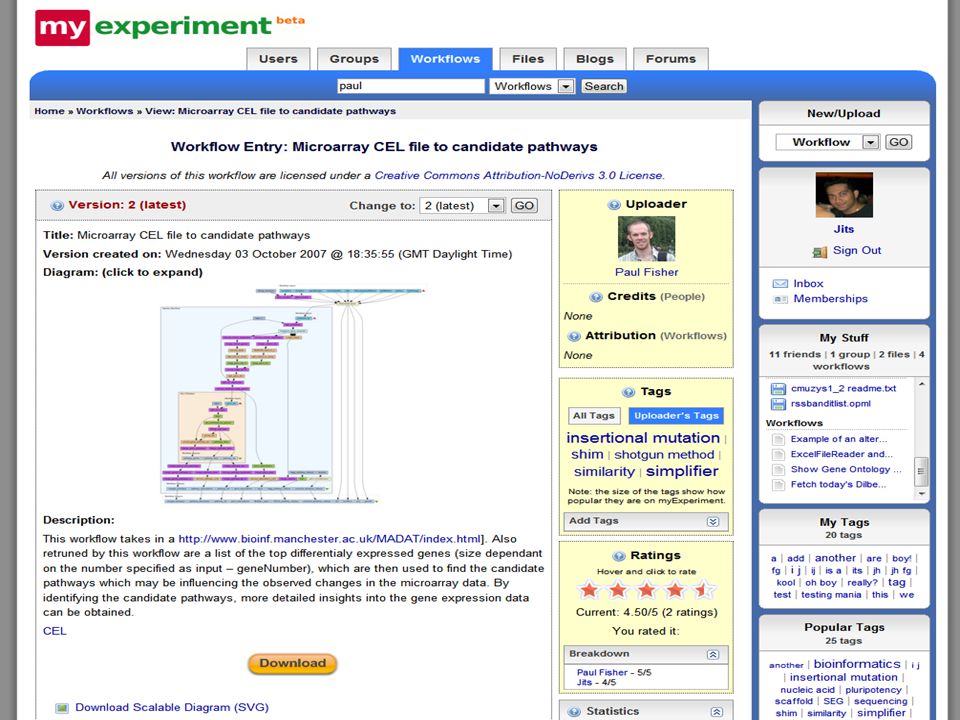

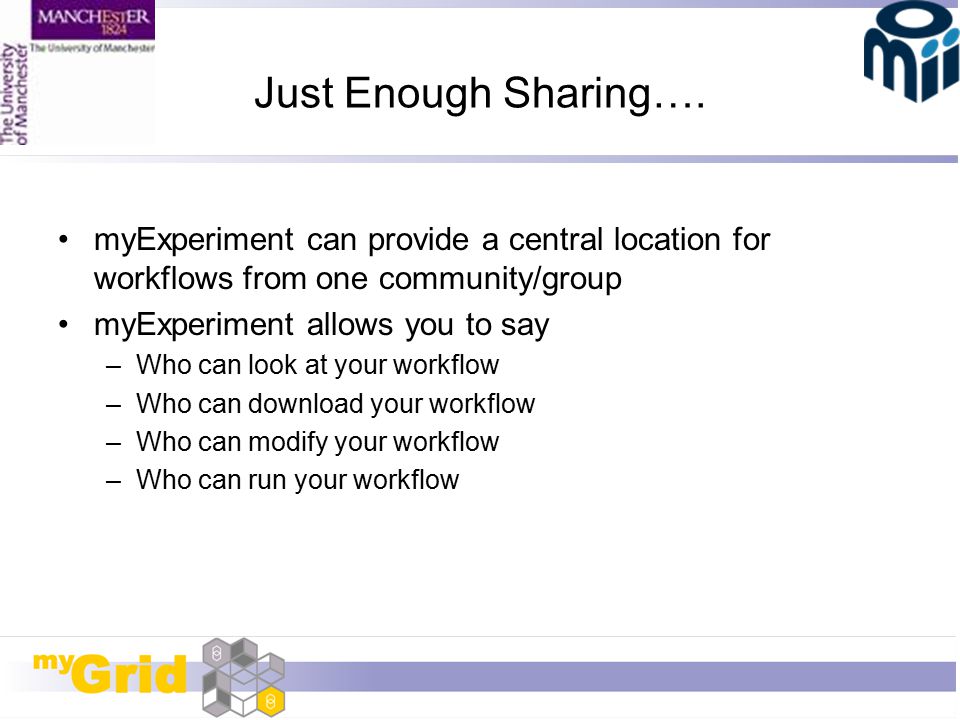

28. Just Enough Sharing…. myExperiment can provide a central location for workflows from one community/group myExperiment allows you to say –Who can look at your workflow –Who can download your workflow –Who can modify your workflow –Who can run your workflow

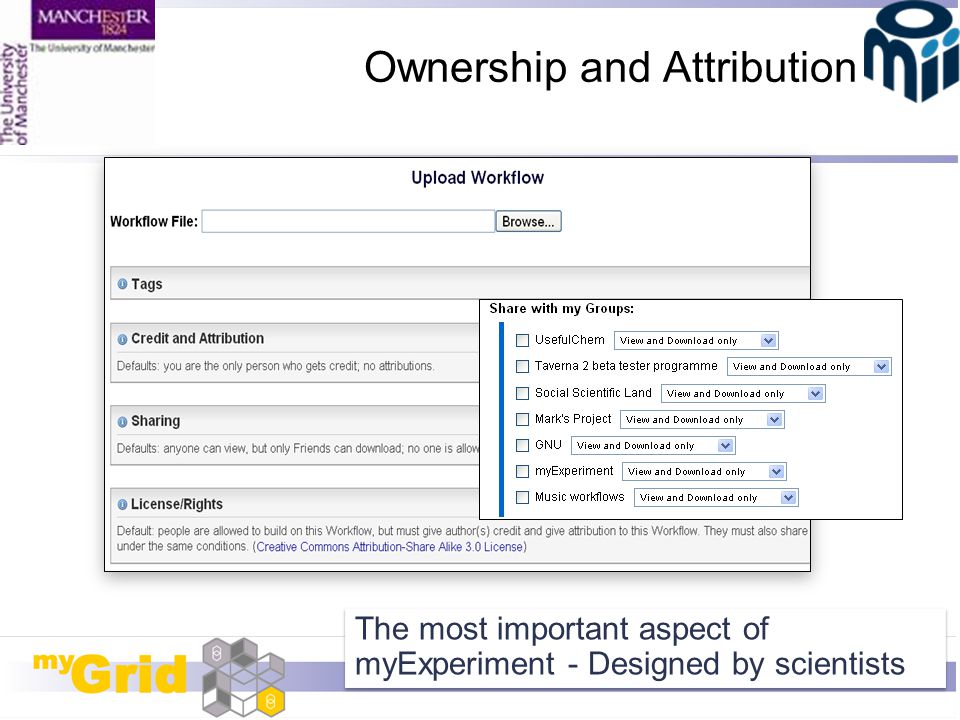

29. The most important aspect of myExperiment - Designed by scientists Ownership and Attribution

30. Packs allow you to collect different items together, like you might with a "wish list" or "shopping basket" You can collect internal things (such as workflows, files and even other packs) as well as link to things outside myExperiment Your packs can then be shared, tagged, discovered and discussed easily on myExperiment Packs

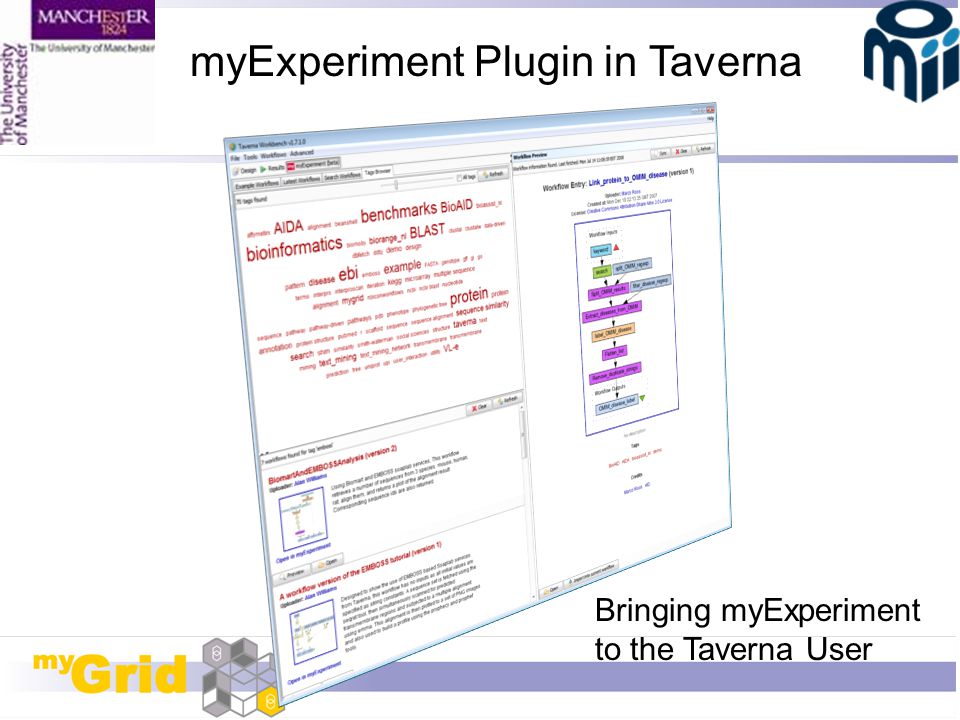

31. Bringing myExperiment to the Taverna User myExperiment Plugin in Taverna

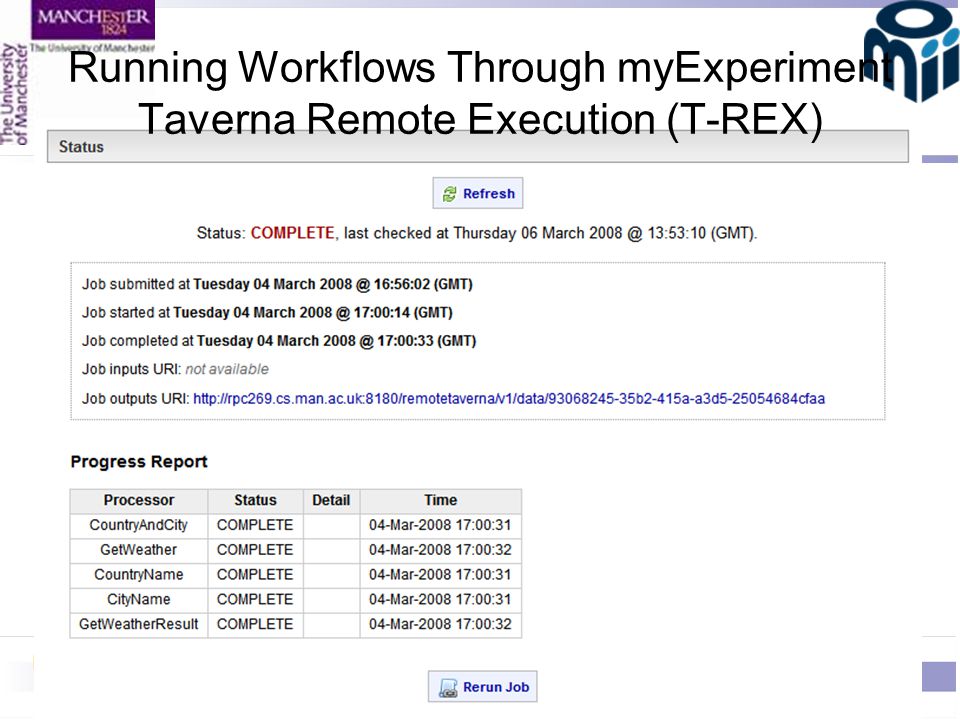

32. Running Workflows Through myExperiment Taverna Remote Execution (T-REX)

33. PREFIX rdf: PREFIX myexp: PREFIX sioc: select ?friend1 ?friend2 ?acceptedat where {?z rdf:type. ?z myexp:has-requester ?x. ?x sioc:name ?friend1. ?z myexp:has-accepter ?y. ?y sioc:name ?friend2. ?z myexp:accepted-at ?acceptedat } All accepted Friendships including accepted-at time Semantically-Interlinked Online Communities

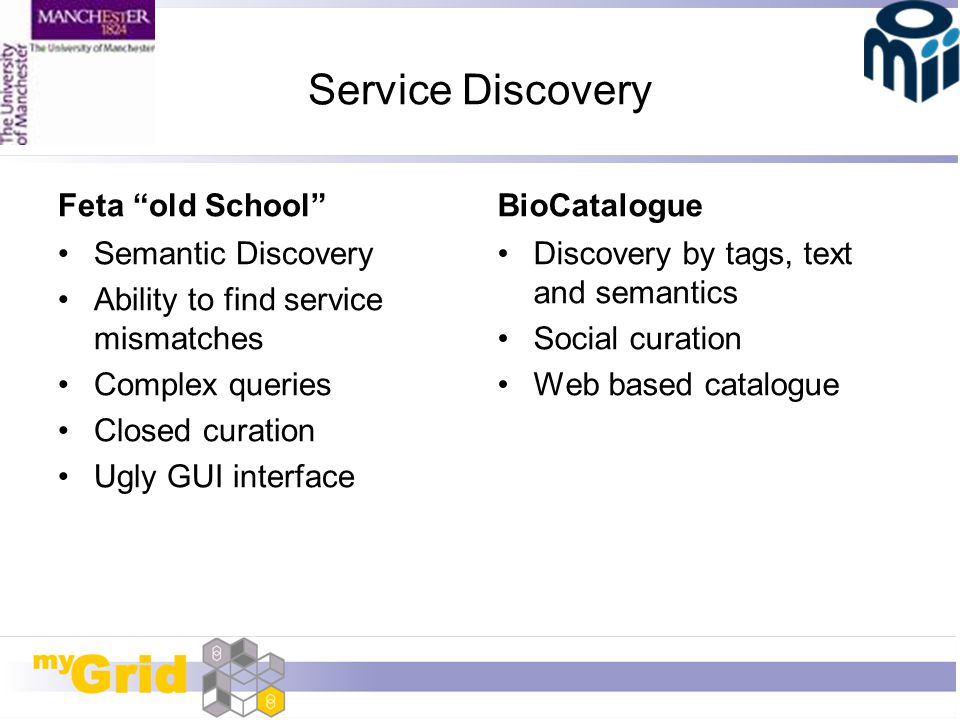

34. Service Discovery Feta “old School” Semantic Discovery Ability to find service mismatches Complex queries Closed curation Ugly GUI interface BioCatalogue Discovery by tags, text and semantics Social curation Web based catalogue

35. Finding Services There are over 3500 distributed services. How do we find an appropriate one? We need to annotate services by their functions (and not their names!) The services might be distributed, but a registry of service descriptions can be central and queried Annotated with terms from the my Grid ontology Questions we can ask: Find me all the services that perform a multiple sequence alignment and accept protein sequences in FASTA format as input

36. my Grid Ontology Logically separated into two parts: Service ontology Physical and operational features of web services Domain ontology Vocabulary for core bioinformatics data, data types and their relationships Ontology developed in OWL

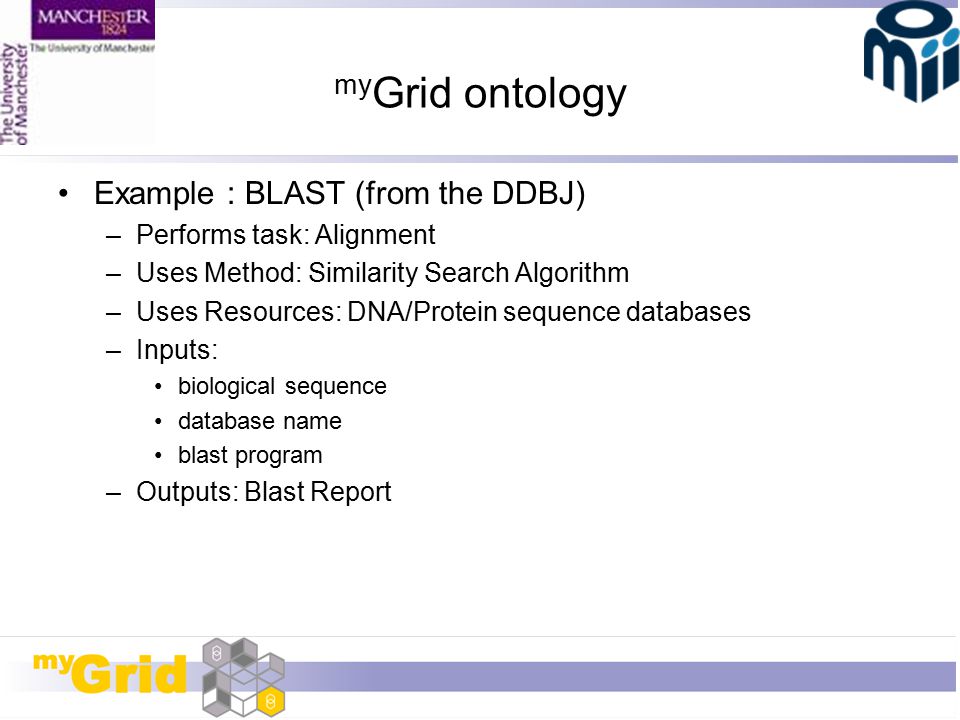

37. my Grid ontology Example : BLAST (from the DDBJ) –Performs task: Alignment –Uses Method: Similarity Search Algorithm –Uses Resources: DNA/Protein sequence databases –Inputs: biological sequence database name blast program –Outputs: Blast Report

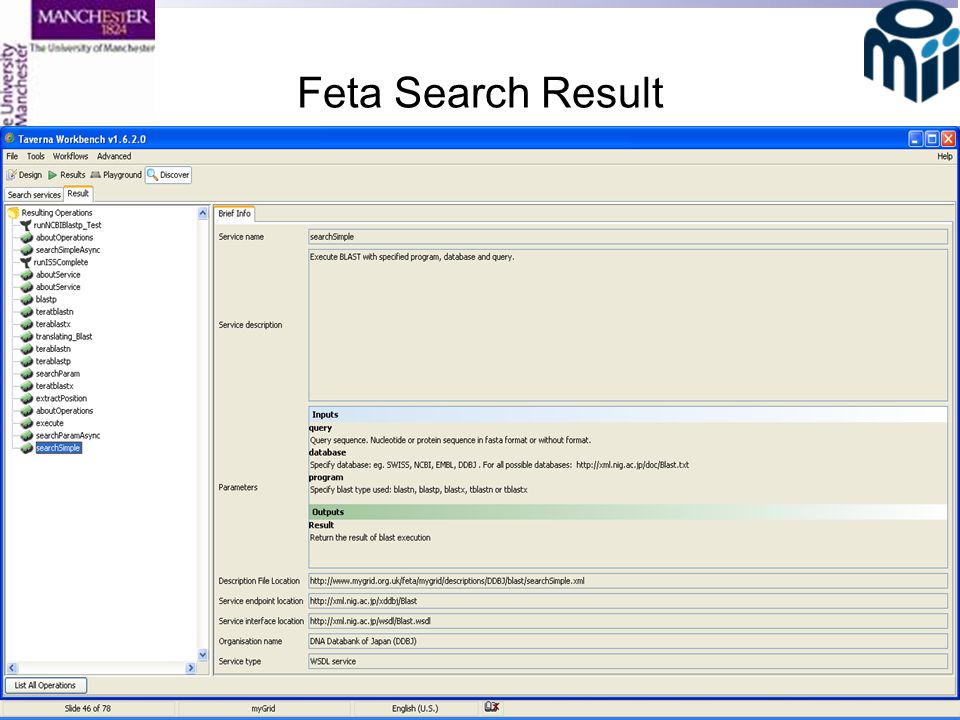

38. Feta Search Result

39. Limitations of the Current Model Feta discovery tool is only accessible from the Taverna Workbench Only pertinent to Taverna users – other people need to find and use web services Focuses on finding services, but not workflows. For reuse, we need to do both Closed annotation system - myGrid curator provides service descriptions

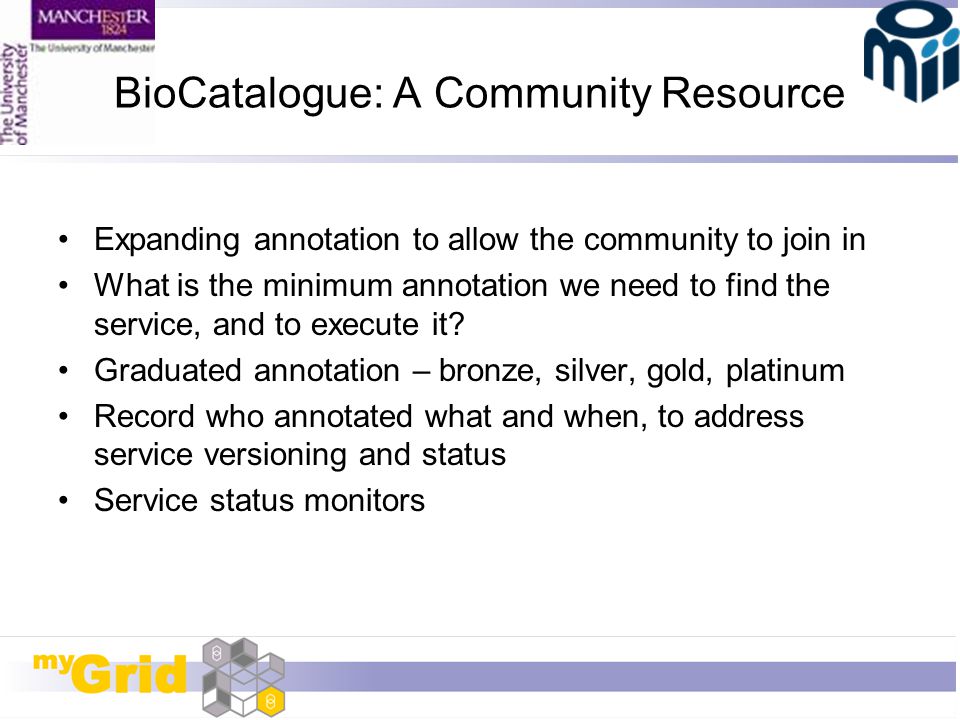

40. BioCatalogue: A Community Resource Expanding annotation to allow the community to join in What is the minimum annotation we need to find the service, and to execute it? Graduated annotation – bronze, silver, gold, platinum Record who annotated what and when, to address service versioning and status Service status monitors

41. Curation by Experts Curation by the Community Automated Curation refine validate refine validate Curation by Developers seed refine validate seed BioCatalogue Joint Manchester-EBI Launch ISMB 2009

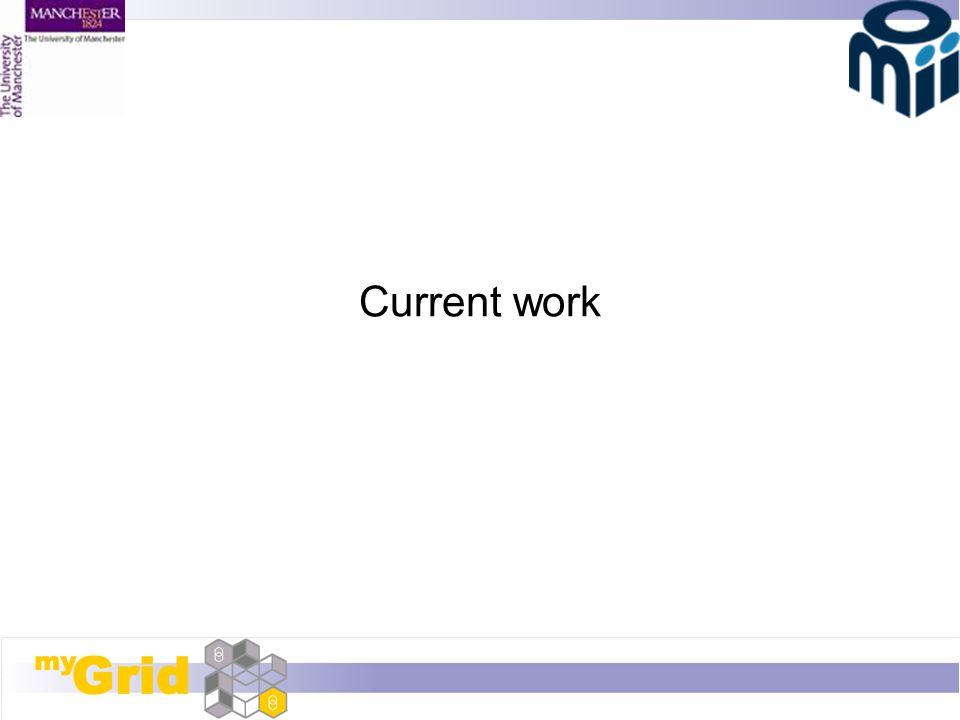

42. Current work

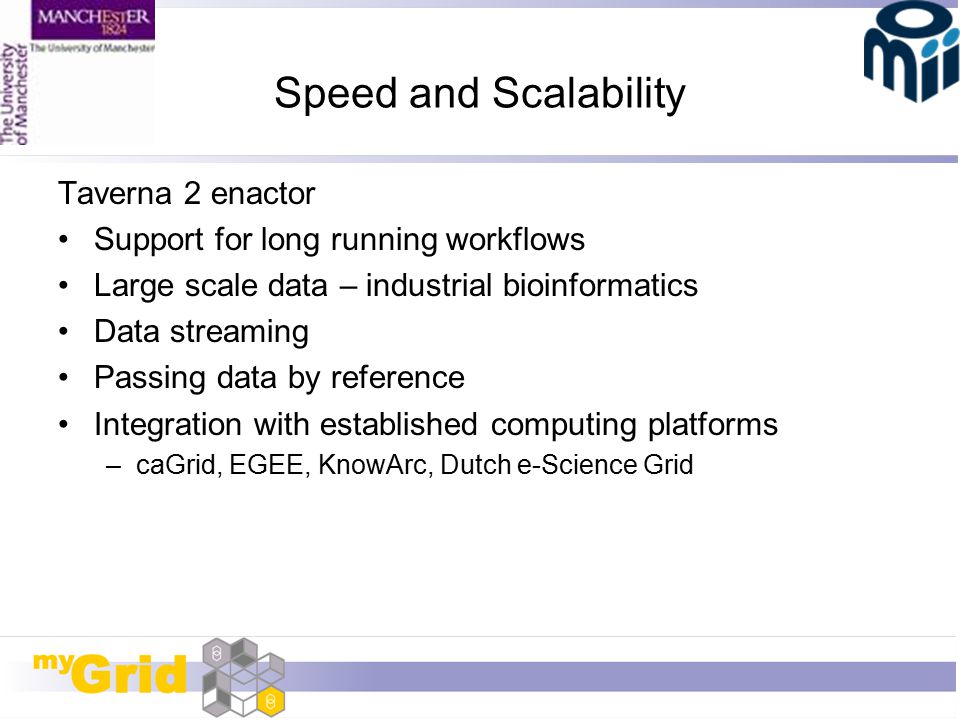

43. Speed and Scalability Taverna 2 enactor Support for long running workflows Large scale data – industrial bioinformatics Data streaming Passing data by reference Integration with established computing platforms –caGrid, EGEE, KnowArc, Dutch e-Science Grid

44. caGrid Plugin for Taverna Enables discovery of services in caGrid service registry Taverna support for GAARDS- secured caGrid services Lymphoma type prediction workflow

45. Extensibility and ease of use Drag and drop workflow building More content –greater pool of workflows from myExperiment More components –Gathering together commonly used sets of services Service and workflow annotation checking Shim libraries – for connecting incompatible services

46. Remote Execution Taverna Remote Execution Service (T-REX) Running workflows on a server Running workflows inside other applications Taverna is for informatics people (bioinformaticians, cheminformaticians etc). We need other interfaces for uptake by laboratory scientists and health workers

47. Toolkits “Taverna Inside” Workflows under the hood e-Laboratories (portals) –Systems Biology, e-Health Web based execution –Running workflows over the web through myExperiment Visualisation clients that call workflows in the background

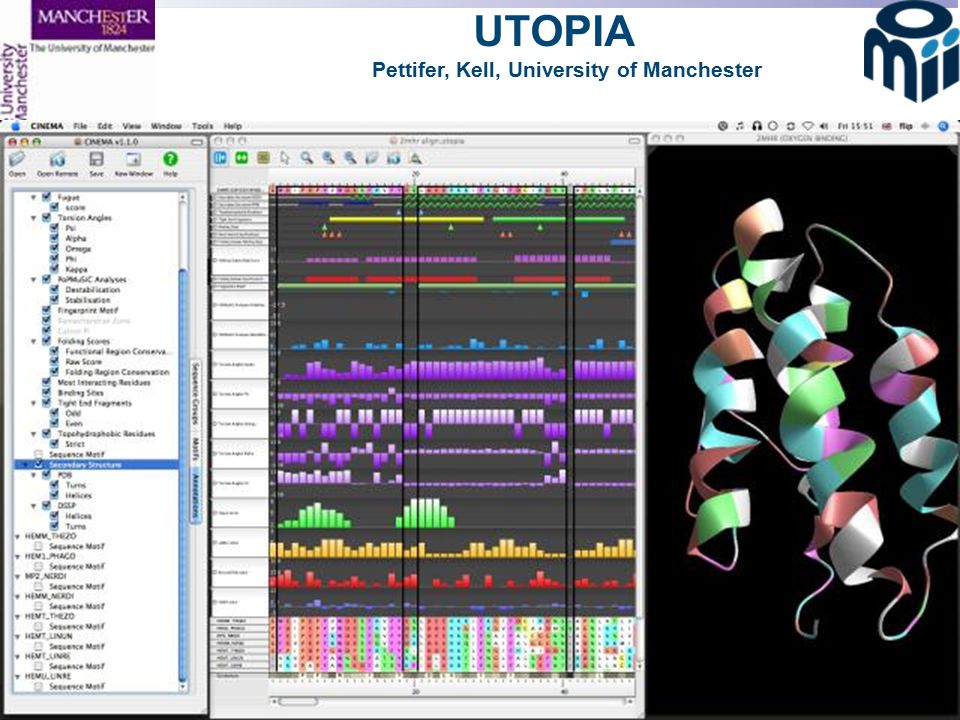

48. UTOPIA Pettifer, Kell, University of Manchester

49. Toolkits “Taverna Inside” Workflow development pipeline Workflows developed by bioinformaticians Enacted locally E-Labs and 3 rd party clients Social support for bioinformaticians to find and reuse workflows and expertise Access to ready made workflows for biologists Workflows enacted locally Taverna remote execution service (T-Rex) Social support to find and reuse workflows and expertise CONFIGURABLE access to ready made workflows for biologists Workflows embedded in applications and combined with data management systems

50. myGrid Team

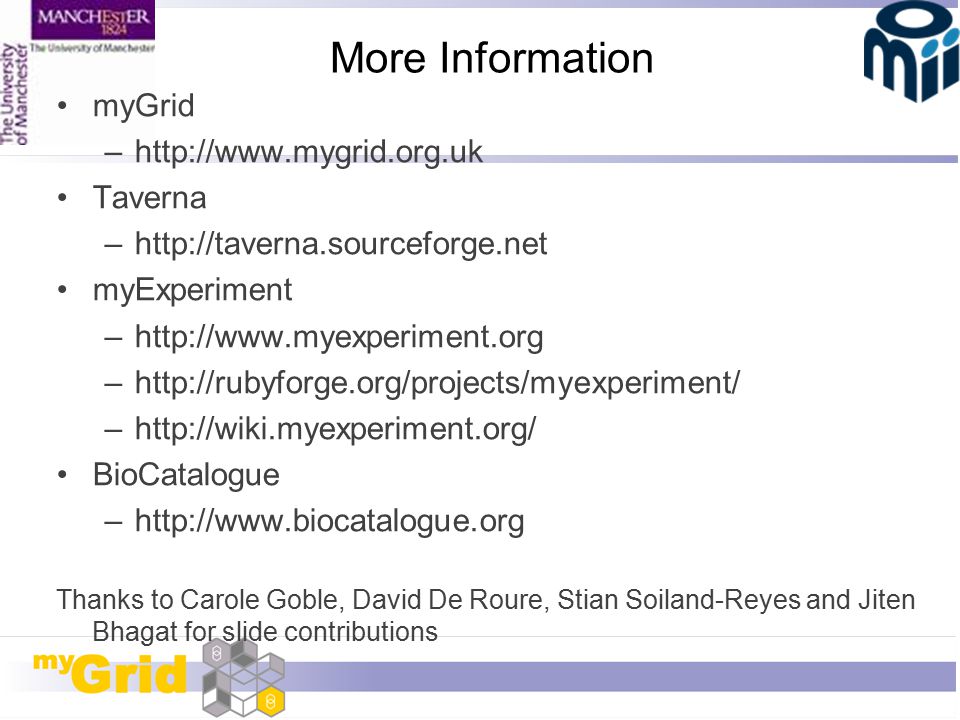

51. More Information myGrid –http://www.mygrid.org.uk Taverna –http://taverna.sourceforge.net myExperiment –http://www.myexperiment.org –http://rubyforge.org/projects/myexperiment/ –http://wiki.myexperiment.org/ BioCatalogue –http://www.biocatalogue.org Thanks to Carole Goble, David De Roure, Stian Soiland-Reyes and Jiten Bhagat for slide contributions
