1 CS1502 Formal Methods in Computer Science Lecture Notes 4 Tautologies and Logical Truth

2
2 Constructing a Truth Table Write down sentence Create the reference columns Until you are done: –Pick the next connective to work on –Identify the columns to consider –Fill in truth values in the column EG: ~(A ^ (~A v (B ^ C))) v B (in Boole and on board)

3

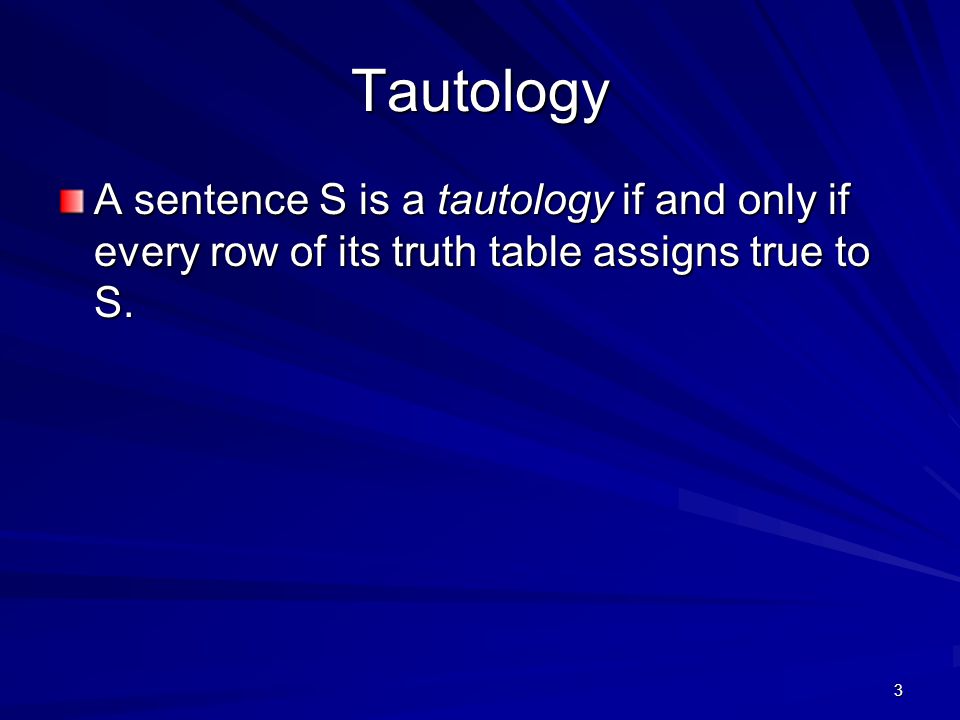

3 Tautology A sentence S is a tautology if and only if every row of its truth table assigns true to S.

4

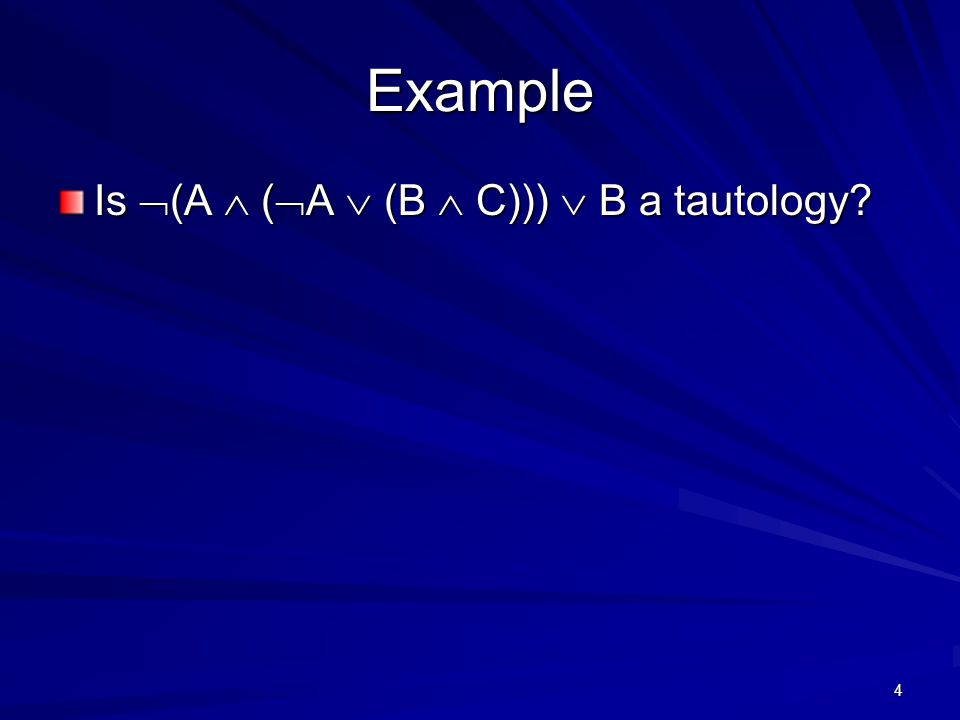

4 Example Is (A ( A (B C))) B a tautology?

5
5 Example

6

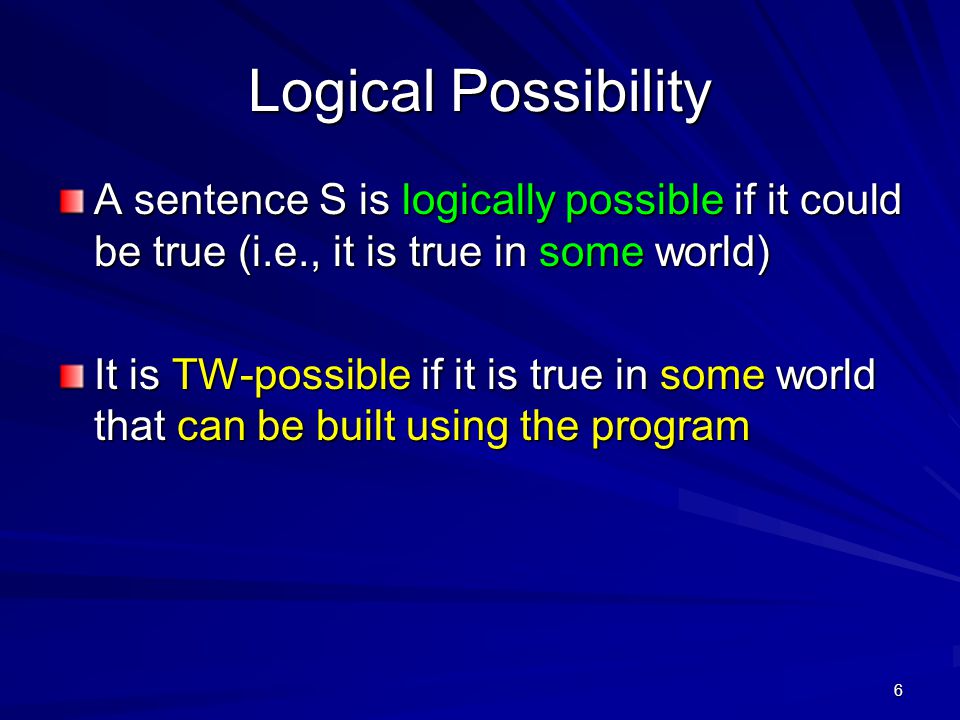

6 Logical Possibility A sentence S is logically possible if it could be true (i.e., it is true in some world) It is TW-possible if it is true in some world that can be built using the program

7
7 Examples Cube(b) Large(b) (Tet(c) Cube(c) Dodec(c)) e e Logically possibleTW-possible Not TW-possibleLogically possible Not Logically possible

8
8 Spurious Rows A spurious row in a truth table is a row whose reference columns describe a situation or circumstance that is impossible to realize on logical grounds.

9

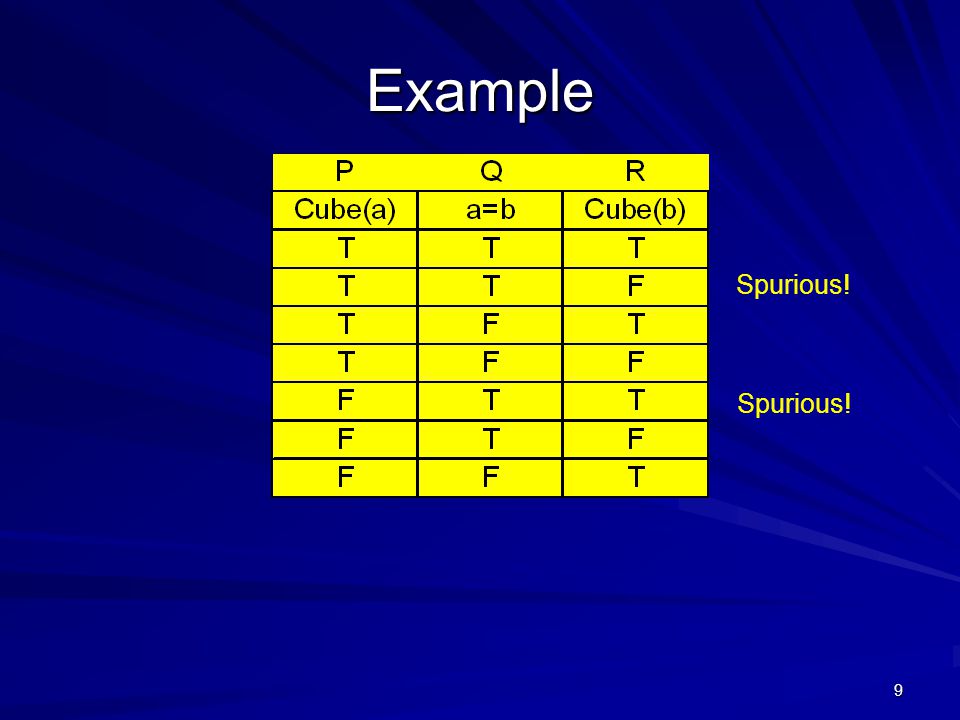

9 Example Spurious!

10

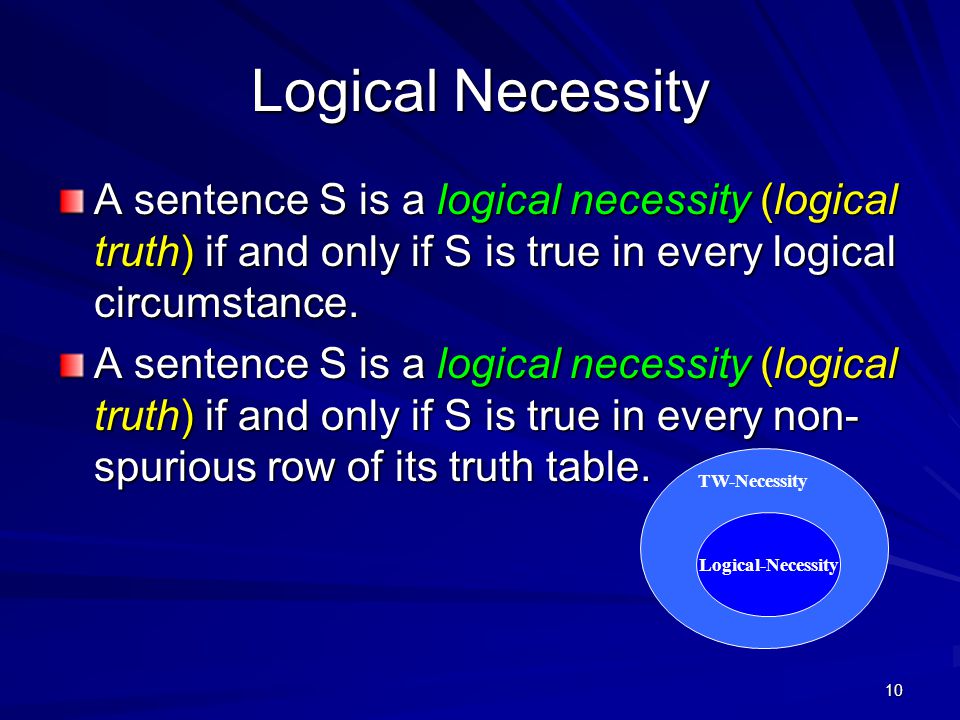

10 Logical Necessity A sentence S is a logical necessity (logical truth) if and only if S is true in every logical circumstance. A sentence S is a logical necessity (logical truth) if and only if S is true in every non- spurious row of its truth table. Logical-Necessity TW-Necessity

11

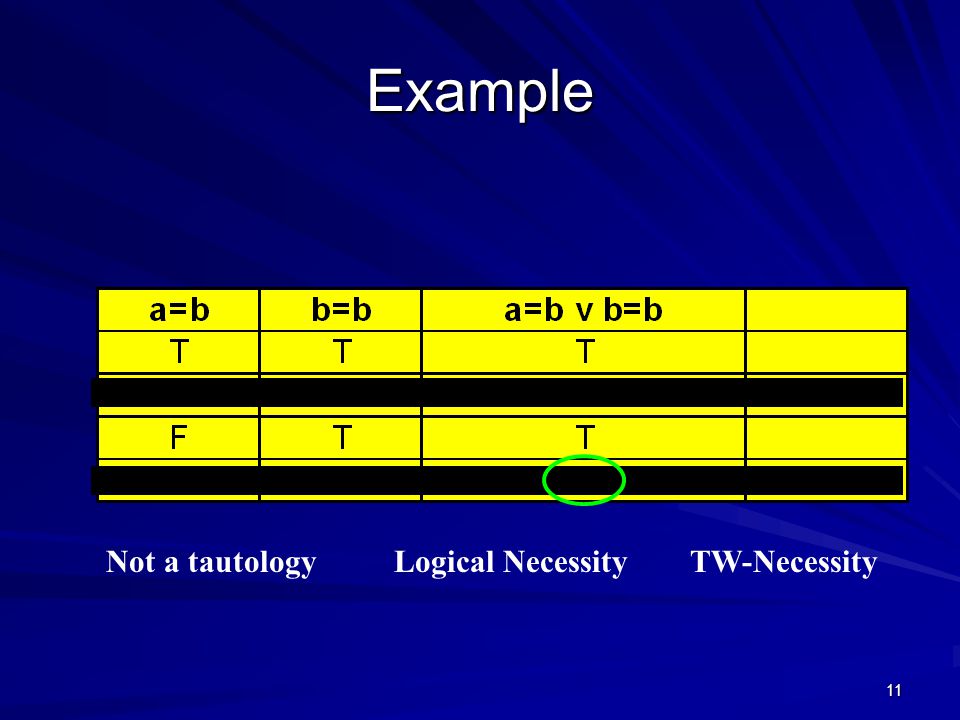

11 Example Logical NecessityTW-NecessityNot a tautology

12

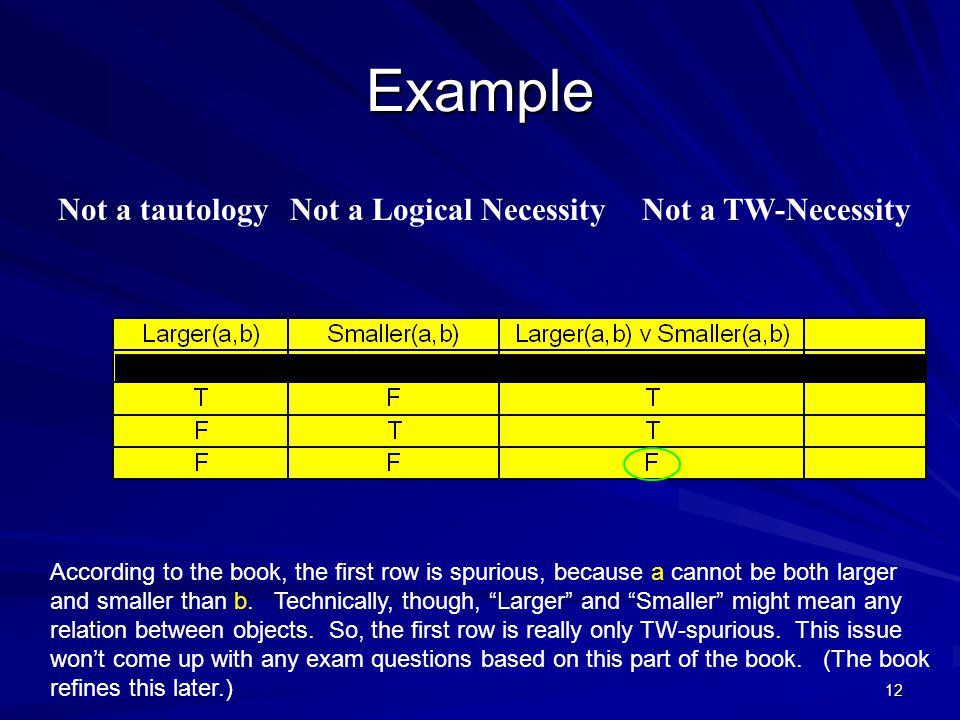

12 Example Not a TW-NecessityNot a Logical NecessityNot a tautology According to the book, the first row is spurious, because a cannot be both larger and smaller than b. Technically, though, “Larger” and “Smaller” might mean any relation between objects. So, the first row is really only TW-spurious. This issue won’t come up with any exam questions based on this part of the book. (The book refines this later.)

13
13 Tet(b) Tet(b) a=a Tet(b) Cube(b) Dodec(b) Cube(a) Small(a) Cube(a) v Cube(b)

14
14 Tautological Equivalence Two sentences S and S’ are tautologically equivalent if and only if every row of their joint truth table assigns the same values to S and S’.

15
15 Example S and S’ are Tautologically Equivalent SS’

16

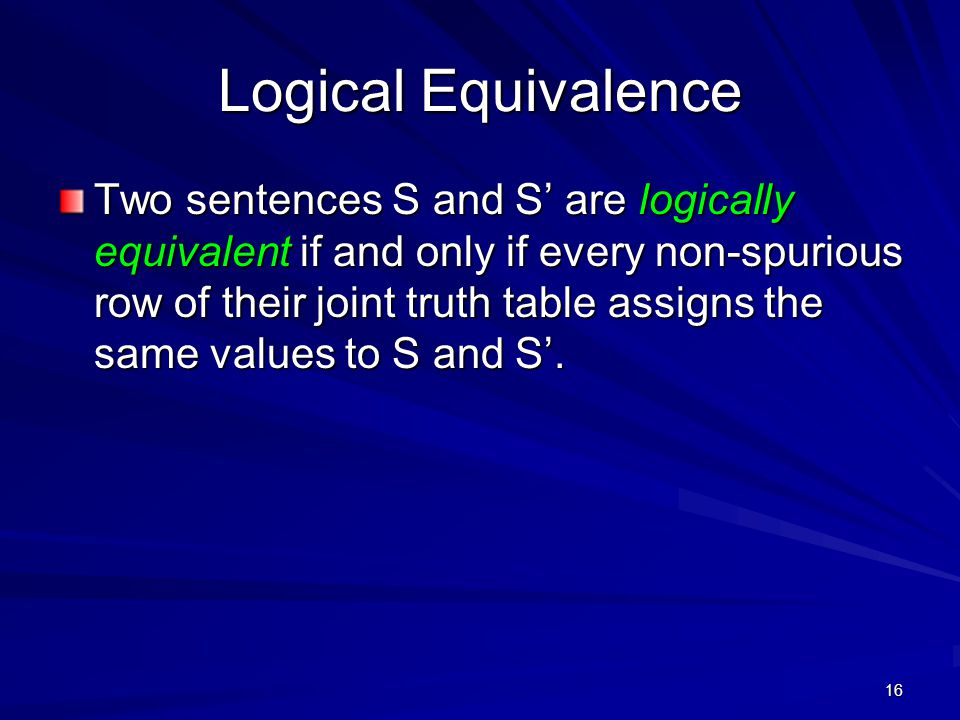

16 Logical Equivalence Two sentences S and S’ are logically equivalent if and only if every non-spurious row of their joint truth table assigns the same values to S and S’.

17
17 Example Not Tautologically equivalentLogically Equivalent SS’

18
18 Tautological Consequence Sentence Q is a tautological consequence of P 1, P 2, …, P n if and only if every row that assigns true to all of the premises also assigns true to Q. Remind you of anything? P1,P2,…,Pn | Q is also a valid argument! A Con Rule: Tautological Consequence

19
19 Example Tautological consequence premisesconclusion

20
20 Logical Consequence Sentence Q is a logical consequence of P 1, P 2, …, P n if and only if every non- spurious row that assigns true to all of the premises also assigns true to Q.

21
21 Not a tautological consequence Is a logical consequence premiseconclusion

22
22 Summary Necessary S is always true Possible S could be true Equivalence S and S’ always have the same truth values Consequence Whenever P1…Pn are true, Q is also true Tautological All rows in truth table S is a tautology S is Tautologically possible S and S’ are Tautologically equivalent Q is a tautological consequence of P1…Pn Logical All non-spurious rows S is logically necessary (logical truth) S is logically possible S and S’ are logically equivalent Q is a logical consequence of P1…Pn TW Logic + Tarski’s World S is TW necessary S is TW possible S and S’ are TW equivalent Q is a TW- consequence of P1…Pn

23

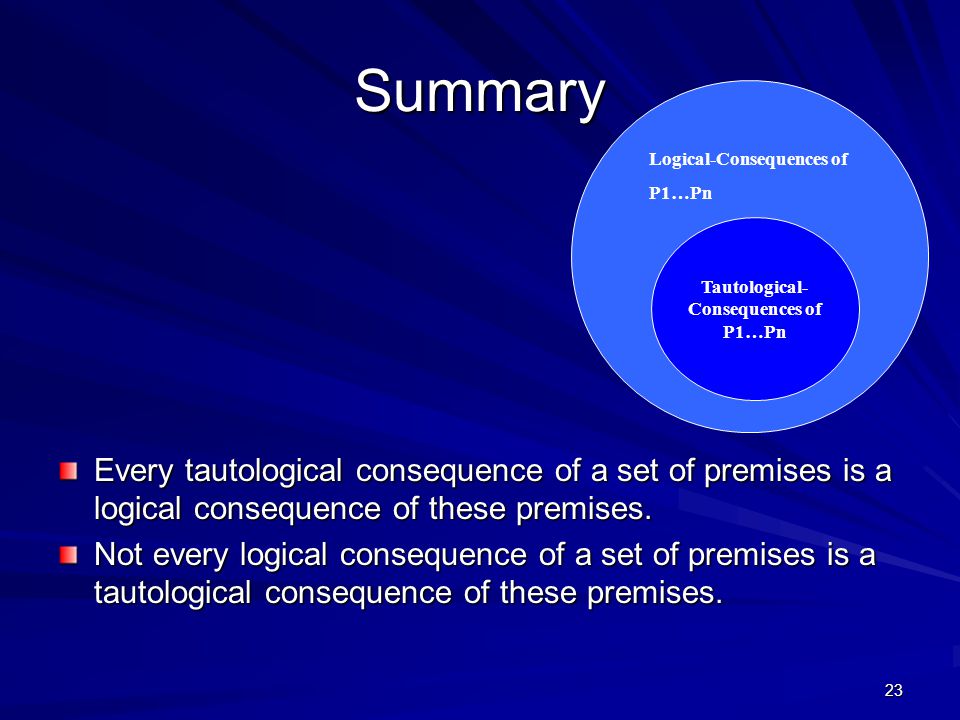

23 Summary Every tautological consequence of a set of premises is a logical consequence of these premises. Not every logical consequence of a set of premises is a tautological consequence of these premises. Tautological- Consequences of P1…Pn Logical-Consequences of P1…Pn

24

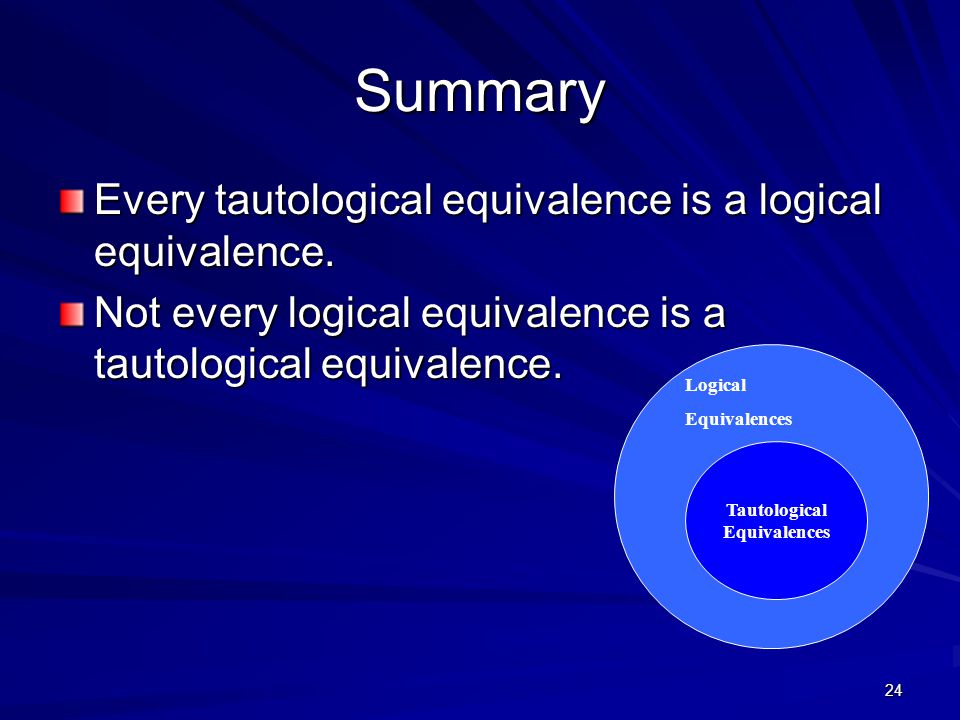

24 Summary Every tautological equivalence is a logical equivalence. Not every logical equivalence is a tautological equivalence. Tautological Equivalences Logical Equivalences

25

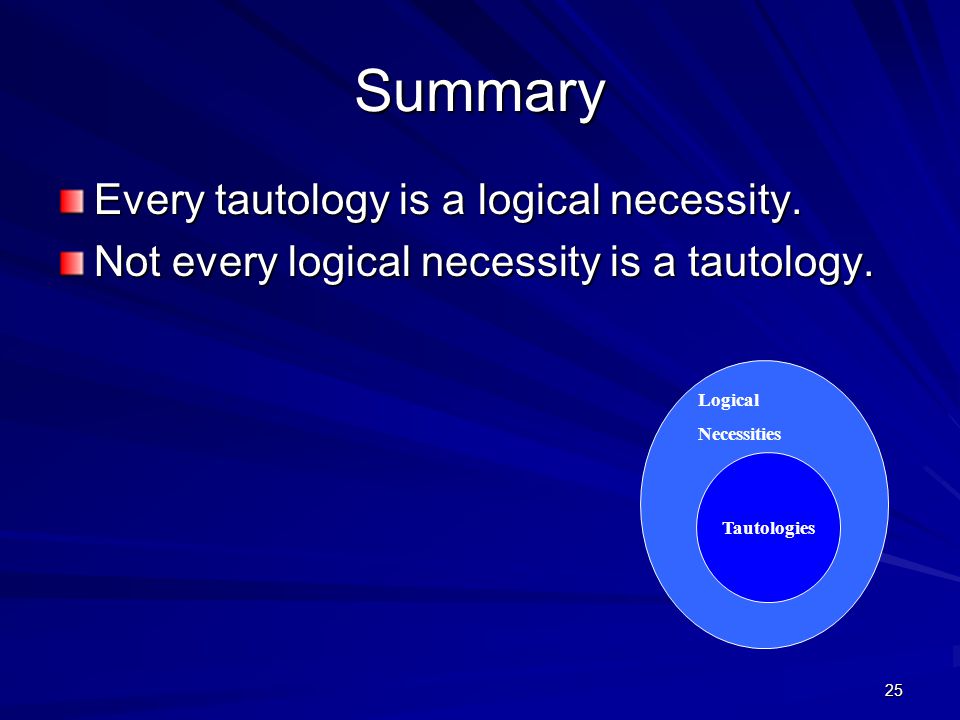

25 Summary Every tautology is a logical necessity. Not every logical necessity is a tautology. Tautologies Logical Necessities
