1

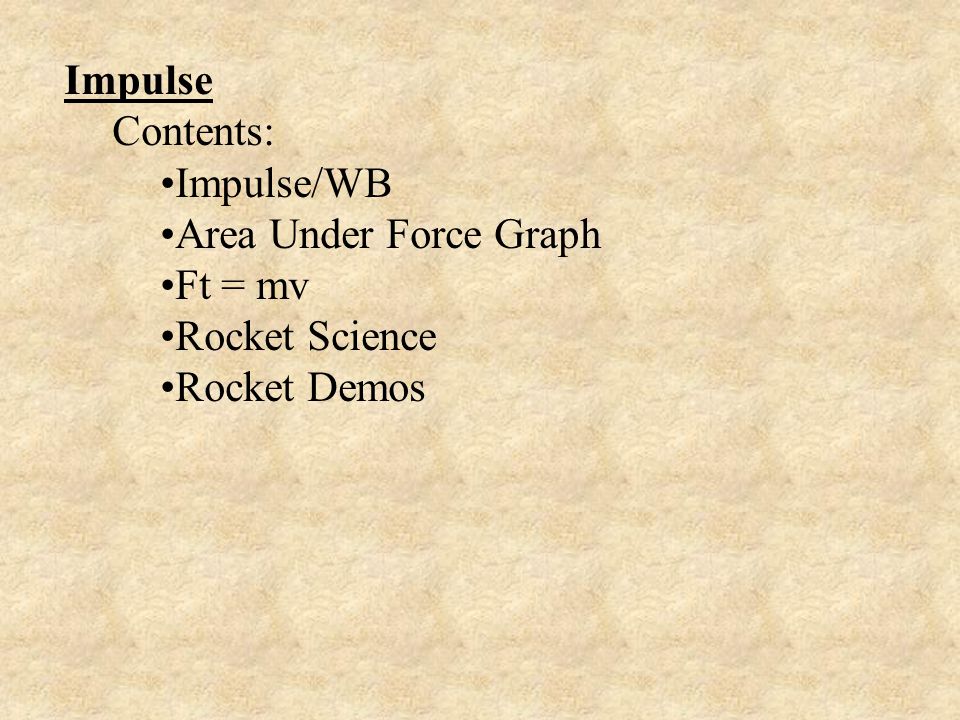

Impulse Contents: Impulse/WB Area Under Force Graph Ft = mv Rocket Science Rocket Demos

2

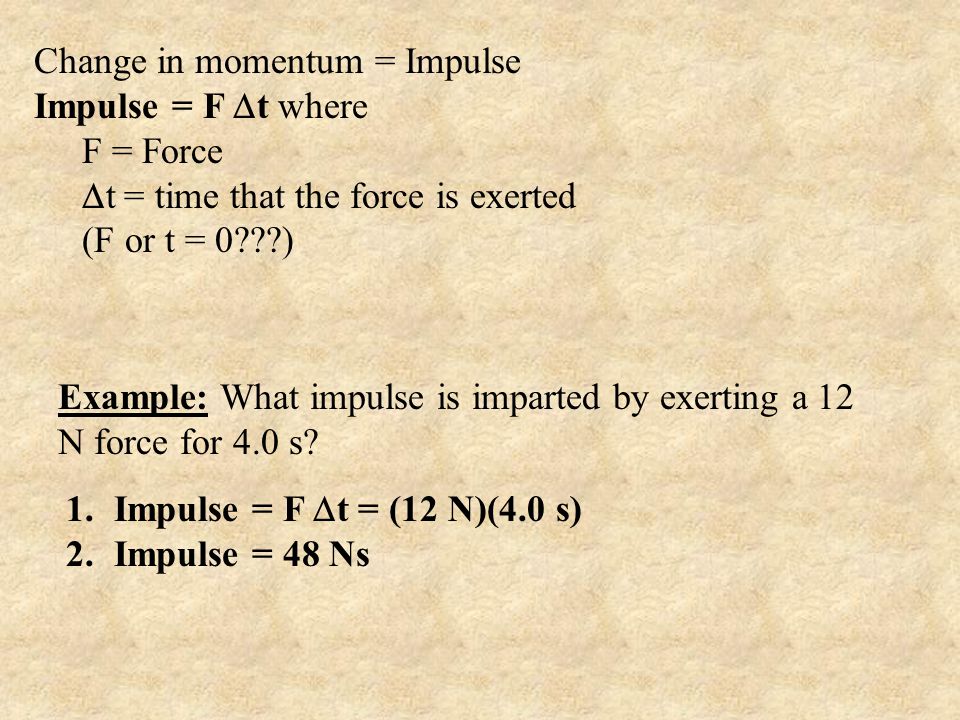

Change in momentum = Impulse Impulse = F t where F = Force t = time that the force is exerted (F or t = 0???) Example: What impulse is imparted by exerting a 12 N force for 4.0 s? 1.Impulse = F t = (12 N)(4.0 s) 2.Impulse = 48 Ns

3

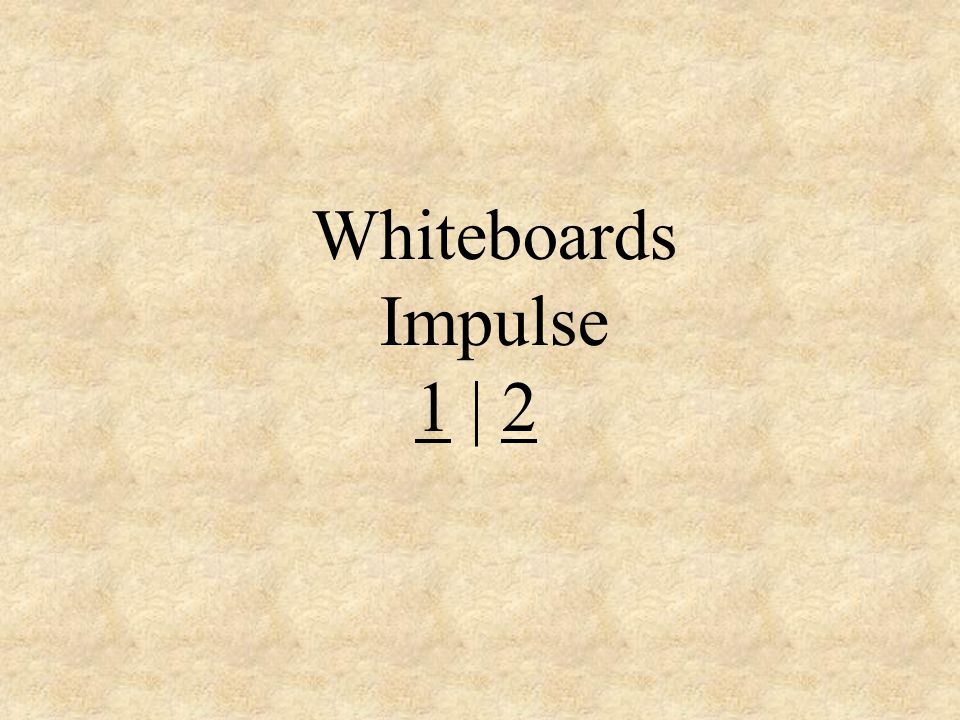

Whiteboards Impulse 11 | 22

4
What is the impulse of a 6.12 N force acting for 2.3 seconds? 14 Ns Impulse = F t Impulse = ( 6.12 N )( 2.3 s)=14 Ns W

5

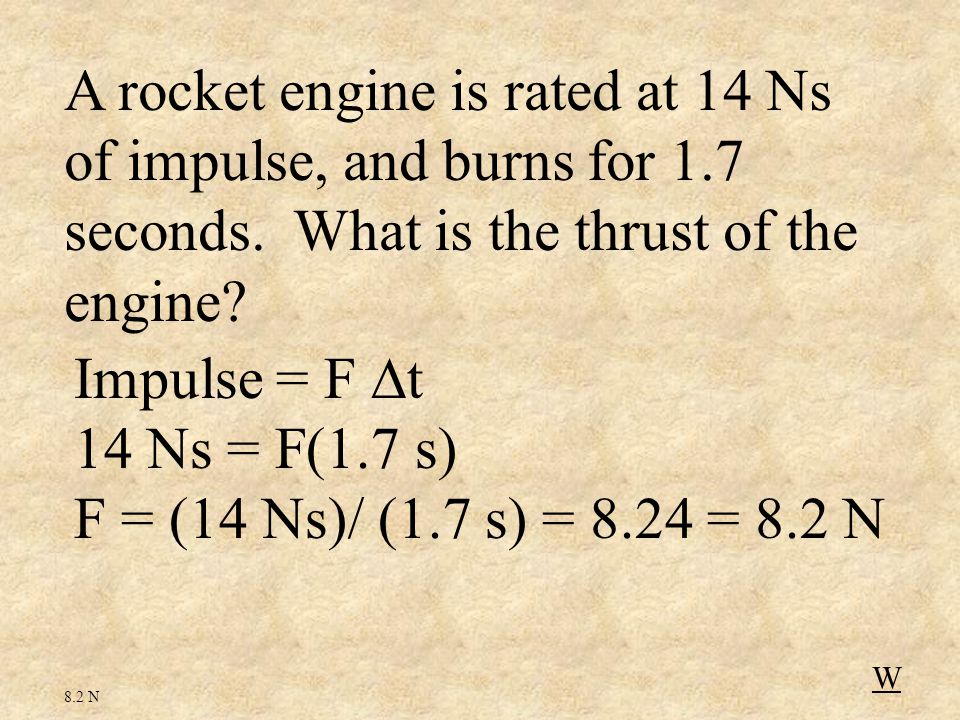

A rocket engine is rated at 14 Ns of impulse, and burns for 1.7 seconds. What is the thrust of the engine? 8.2 N Impulse = F t 14 Ns = F(1.7 s) F = (14 Ns)/ (1.7 s) = 8.24 = 8.2 N W

6

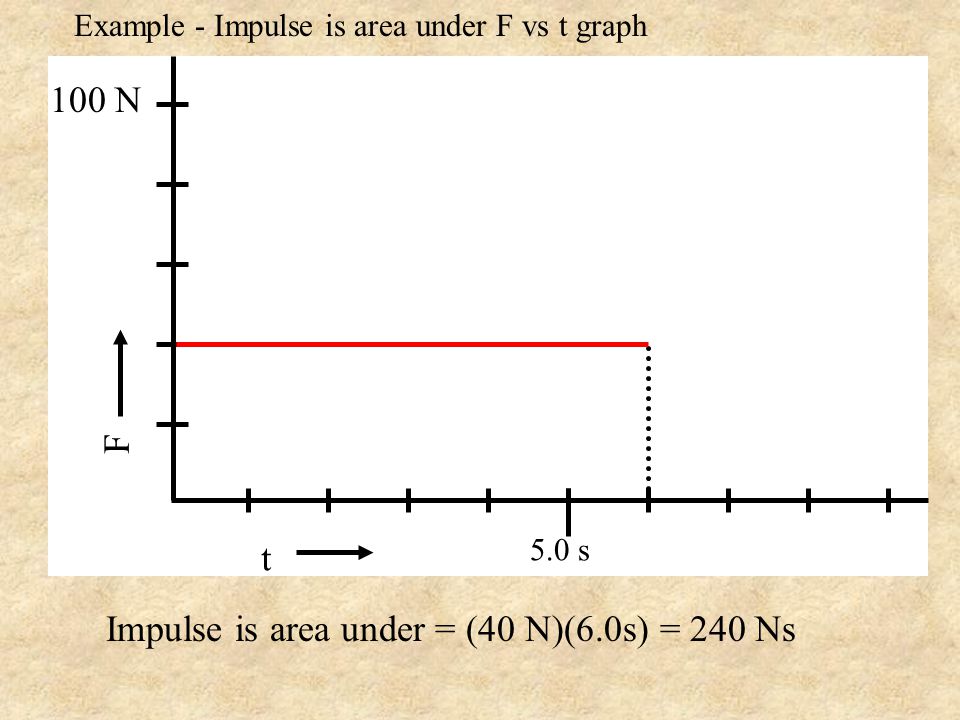

Impulse is area under = (40 N)(6.0s) = 240 Ns t F 100 N 5.0 s Example - Impulse is area under F vs t graph

7

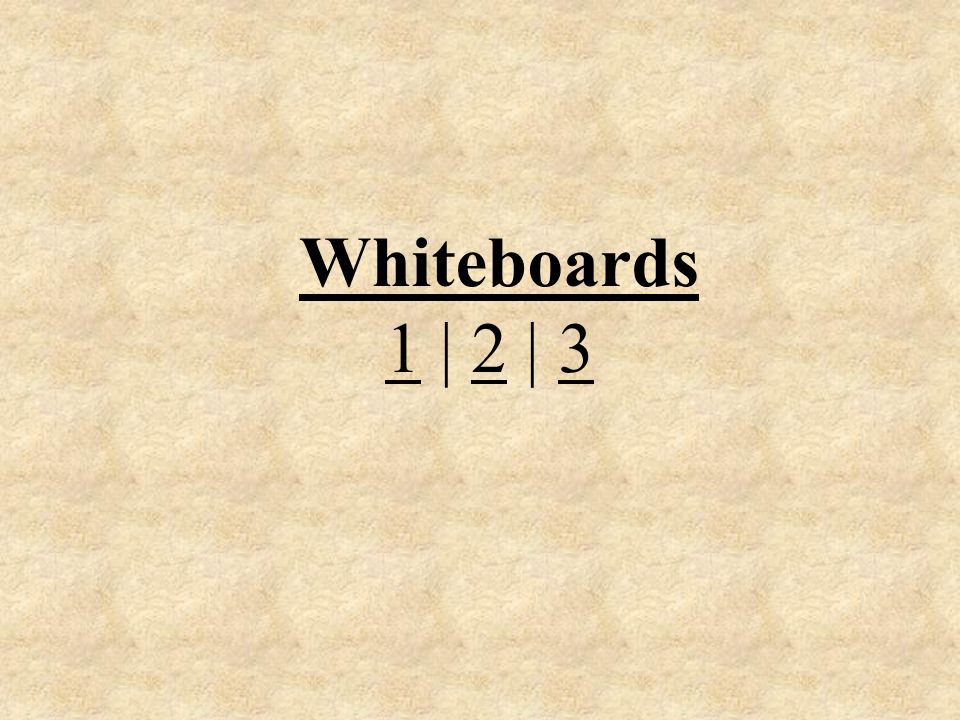

Whiteboards 11 | 2 | 323

8
Average F = 70 N, t = 8.0 s, Impulse = (70 N)(8.0 s) = 560 Ns What is the impulse? W 560 Ns t F 100 N 5.0 s

9

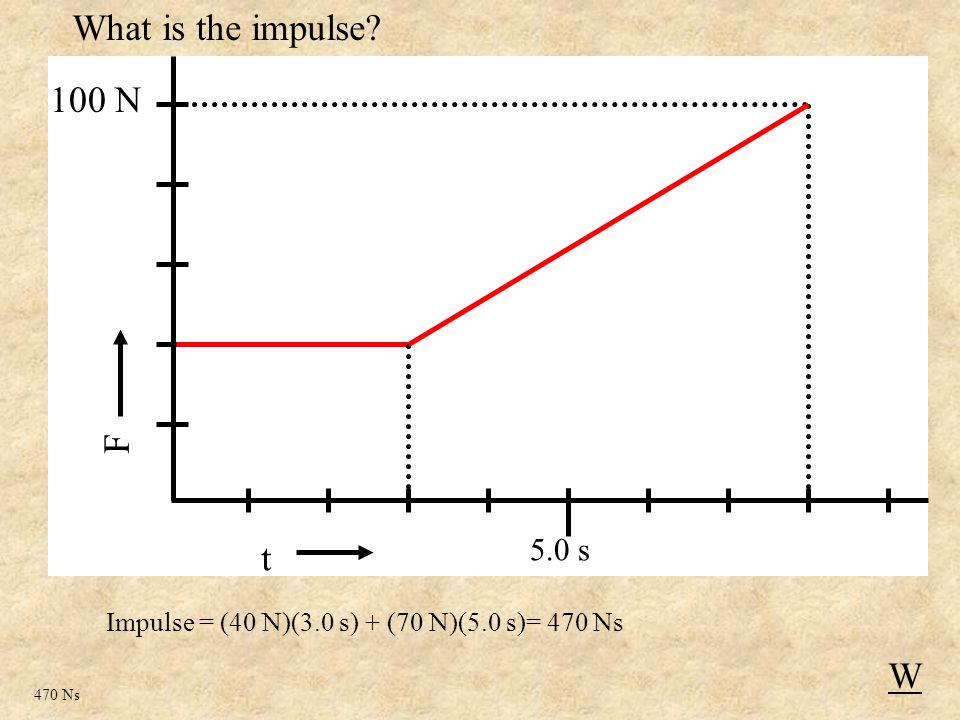

Impulse = (40 N)(3.0 s) + (70 N)(5.0 s)= 470 Ns What is the impulse? W 470 Ns t F 100 N 5.0 s

10

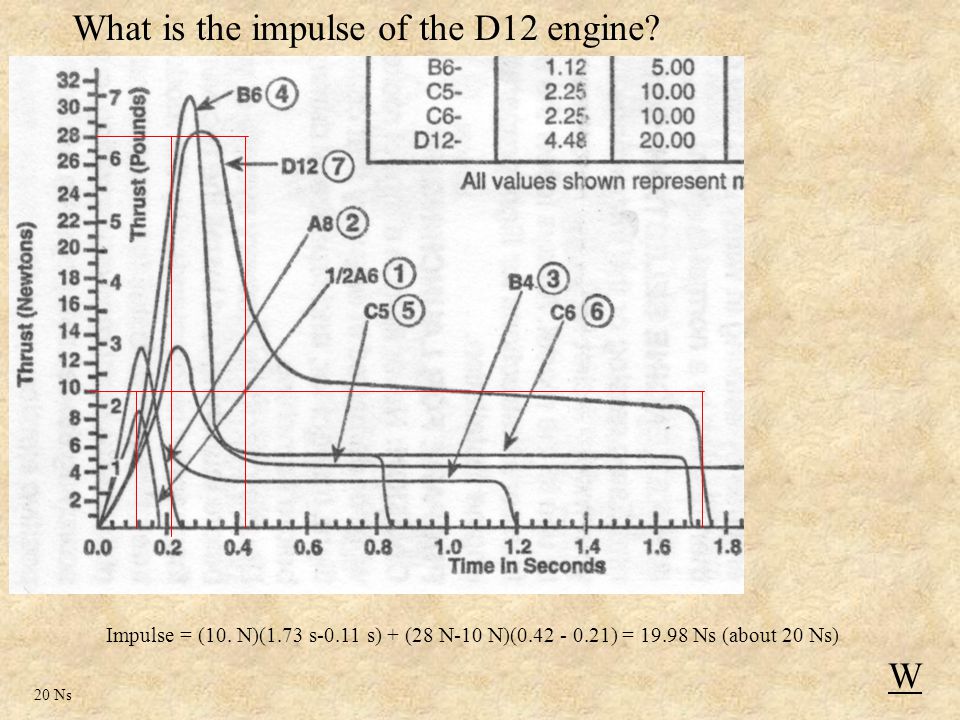

Impulse = (10. N)(1.73 s-0.11 s) + (28 N-10 N)(0.42 - 0.21) = 19.98 Ns (about 20 Ns) What is the impulse of the D12 engine? W 20 Ns

11
Impulse = F t = m v F = Force (N) t = Elapsed time (s) m = Mass (kg) v = Change in velocity (m/s) Force, time, mass, and velocity Example: A pitcher pitches a 0.145 kg baseball at 40. m/s, and the batter hits it directly back at 50. m/s to the outfield. What is the average force exerted by the bat if the collision lasted.013 s? 1.F t = m v 2.(F )(.013 s) = (0.145 kg)(-90 m/s) 3.F = (0.145 kg)(-90 m/s)/(.013 s) 4.F = -1003.8 N ≈ -1.0x10 3 N (units/sign)

12
Whiteboards Ft = mv 11 | 2 | 323

13

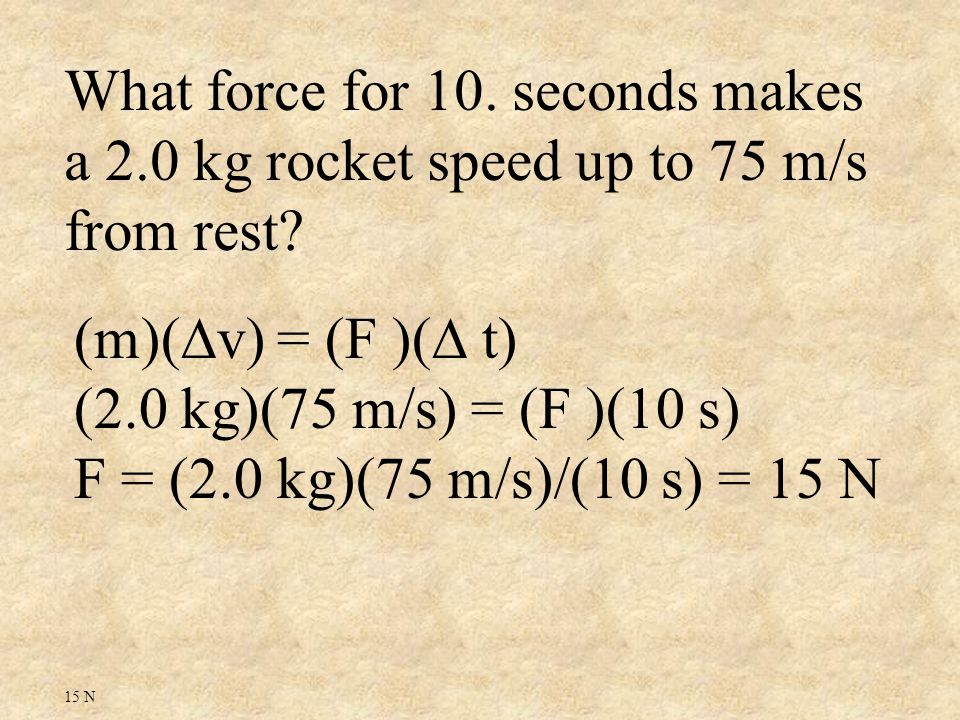

What force for 10. seconds makes a 2.0 kg rocket speed up to 75 m/s from rest? 15 N (m)( v) = (F )( t) (2.0 kg)(75 m/s) = (F )(10 s) F = (2.0 kg)(75 m/s)/(10 s) = 15 N

14
A baseball bat exerts a force of 200. N on a.50 kg ball for.10 seconds. What is the ball’s change in velocity? 40. m/s (m)( v) = (F )( t) (.50 kg)( v) = (200. N )(.10 s) v = (200. N )(.10 s)/(.50 kg) = 40. m/s

15
Jolene exerts a 50. N force for 3.0 seconds on a stage set. It speeds up from rest to.25 m/s. What is the mass of the set? 6.0 x 10 2 kg (m)( v) = (F )( t) (m)(.25 m/s) = (50. N )(3.0 s) m = (50. N )(3.0 s)/(.25 m/s) = 600 kg = 6.0 x 10 2 kg

16

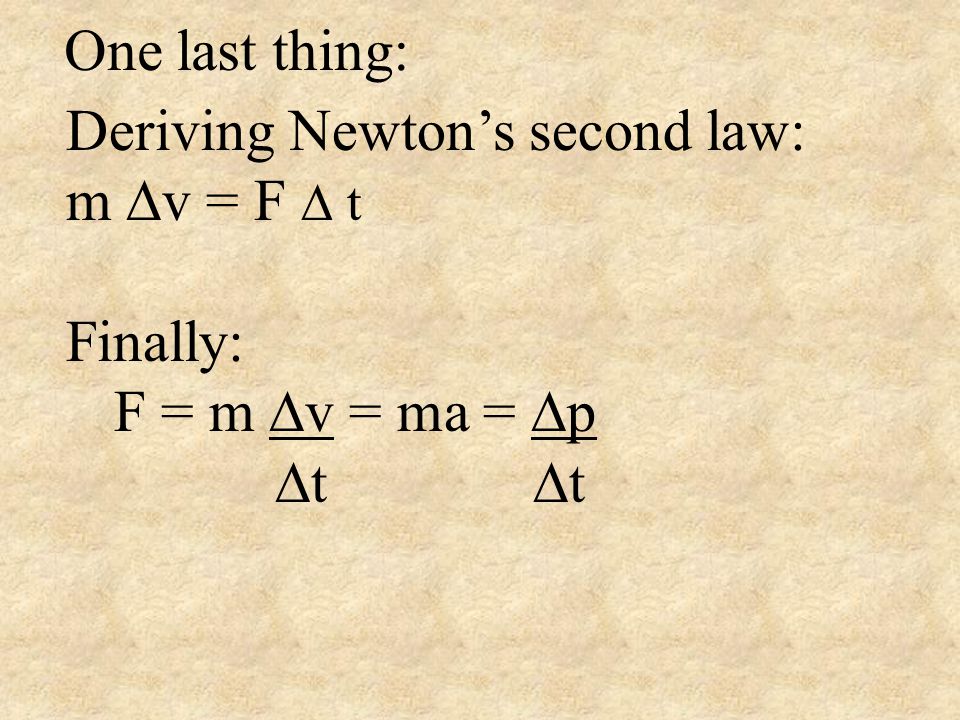

One last thing: Deriving Newton’s second law: m v = F t Finally: F = m v = ma = p t t

17

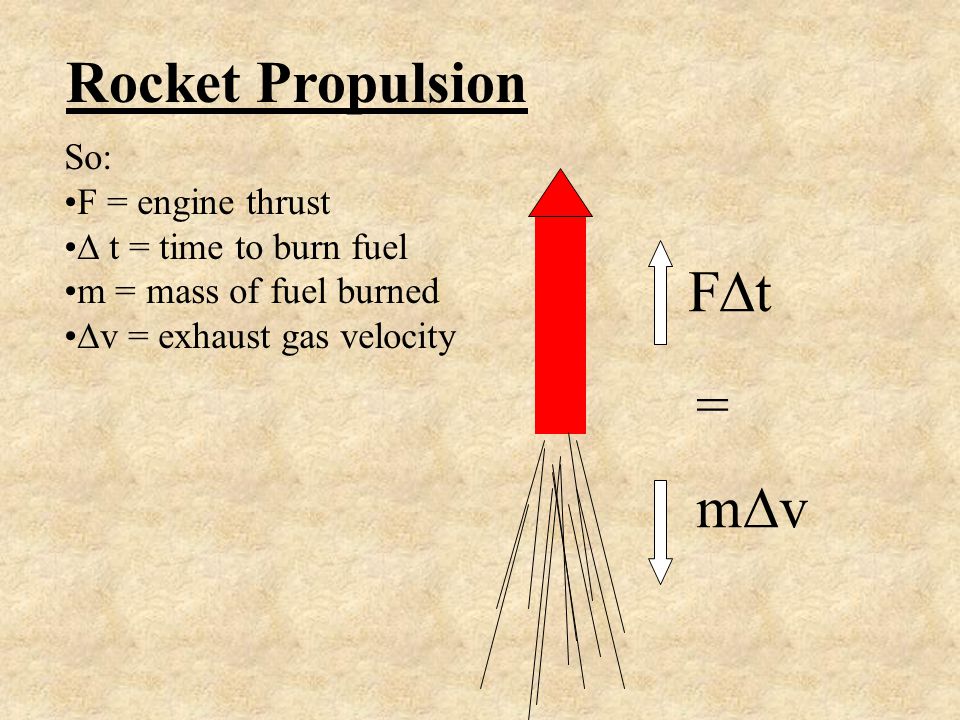

Rocket Propulsion FtFt = mvmv So: F = engine thrust t = time to burn fuel m = mass of fuel burned v = exhaust gas velocity

18
Rocket Propulsion Example 1: A rocket burns fuel at a rate of 1.2 kg/s, with an exhaust velocity of 1250 m/s. What thrust does it develop? F t = m v v = 1250 m/s m = 1.2 kg t = 1 s (F)(1 s) = (1.2 kg)(1250 m/s), F = 1500 N

19
Rocket Propulsion Example 2: A model rocket engine develops 12 N of thrust with an exhaust velocity of 718 m/s. What is its fuel burn rate? F t = m v F = 12 N v = 718 m/s m = ? kg t = 1 s (12 N)(1 s) = m(718 m/s), m =.0167 kg Burn rate =.0167 kg/s

20
Whiteboards 11 | 2 | 323

21

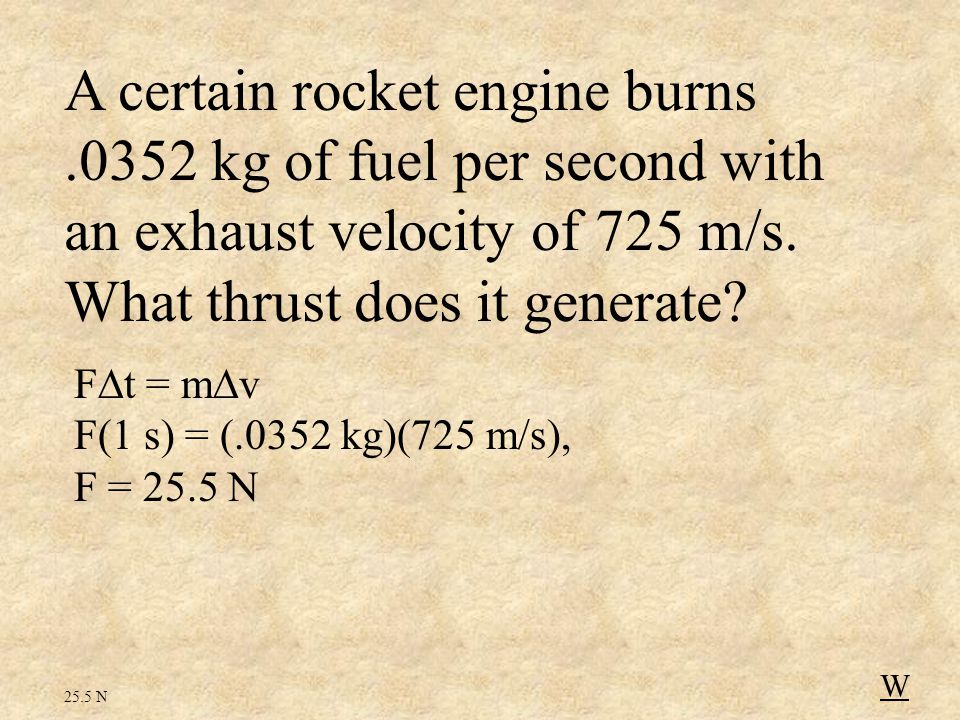

A certain rocket engine burns.0352 kg of fuel per second with an exhaust velocity of 725 m/s. What thrust does it generate? 25.5 N F t = m v F(1 s) = (.0352 kg)(725 m/s), F = 25.5 N W

22

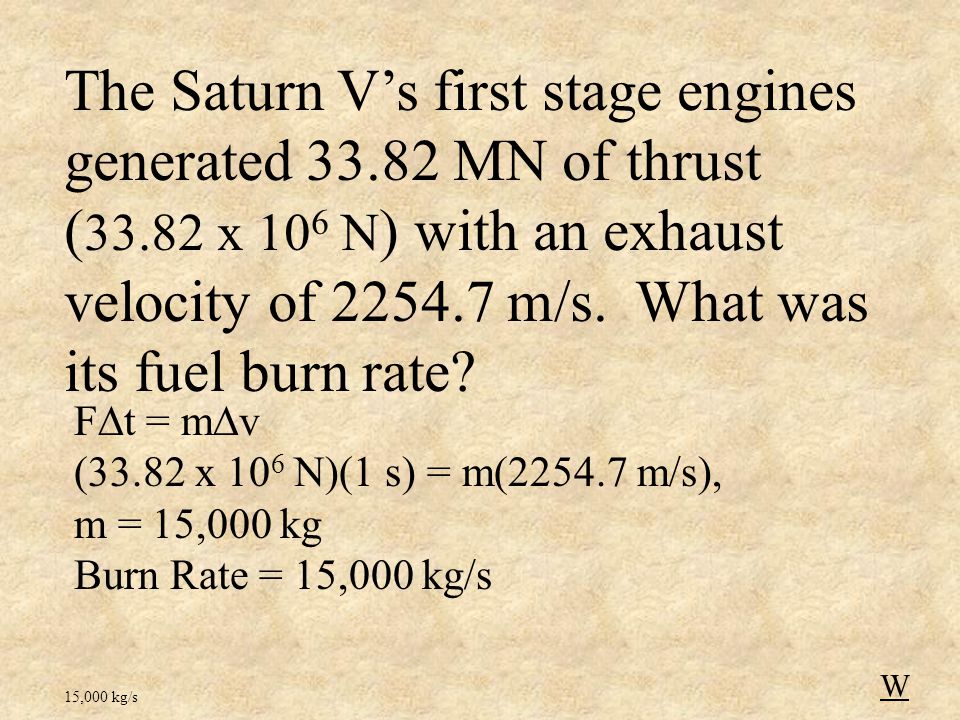

The Saturn V’s first stage engines generated 33.82 MN of thrust ( 33.82 x 10 6 N ) with an exhaust velocity of 2254.7 m/s. What was its fuel burn rate? 15,000 kg/s F t = m v (33.82 x 10 6 N)(1 s) = m(2254.7 m/s), m = 15,000 kg Burn Rate = 15,000 kg/s W

23

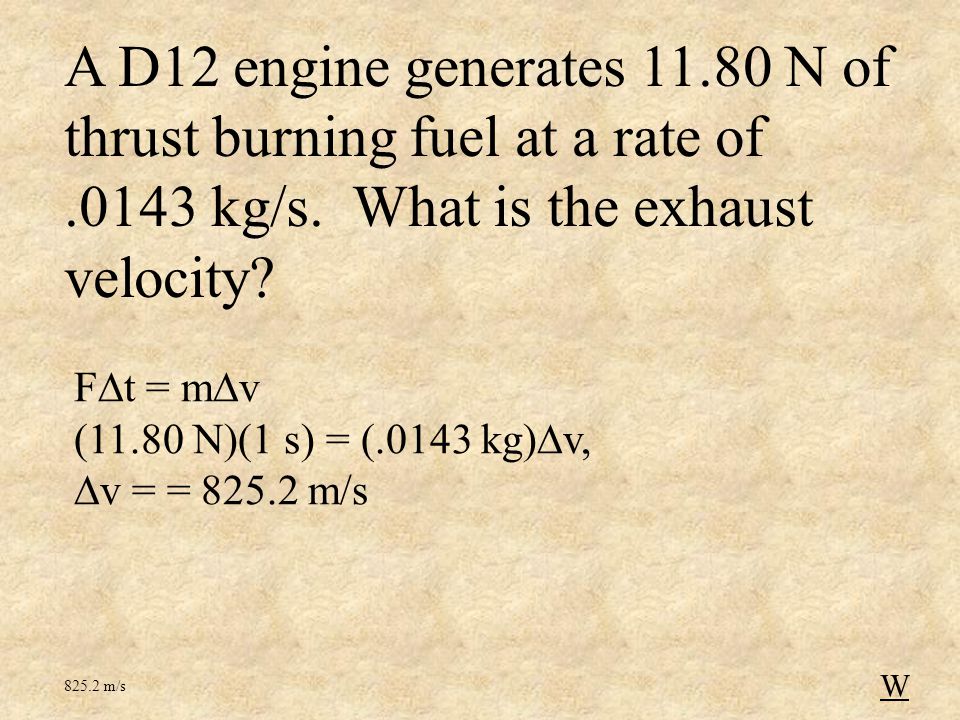

A D12 engine generates 11.80 N of thrust burning fuel at a rate of.0143 kg/s. What is the exhaust velocity? 825.2 m/s F t = m v (11.80 N)(1 s) = (.0143 kg) v, v = = 825.2 m/s W

24
Which Rocket Accelerates faster? A B Demo – F14

27

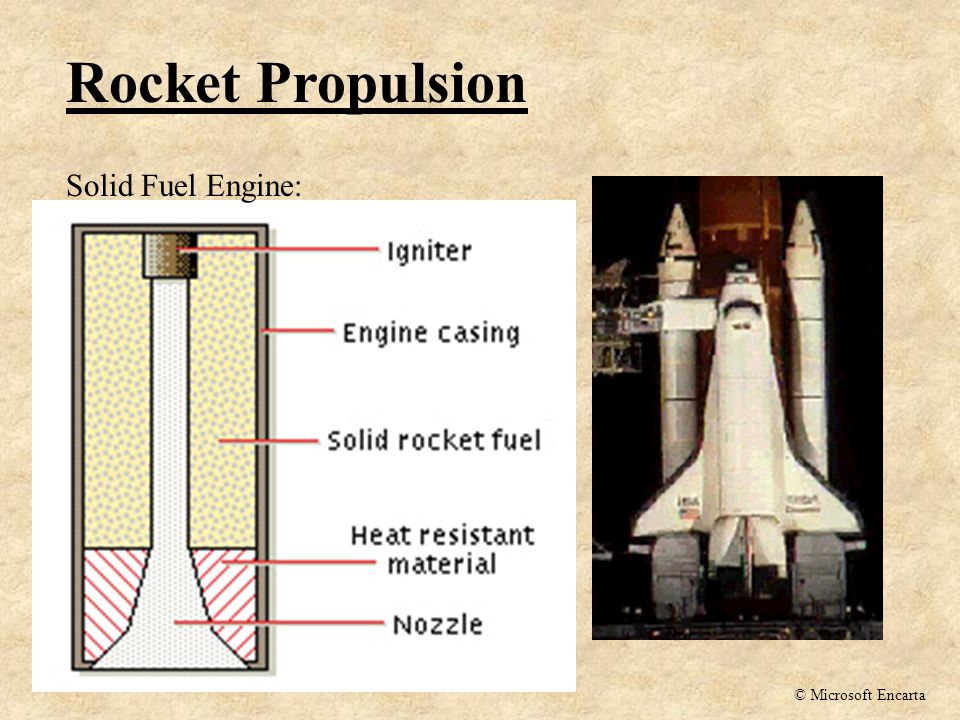

Rocket Propulsion © Microsoft Encarta Solid Fuel Engine:

28

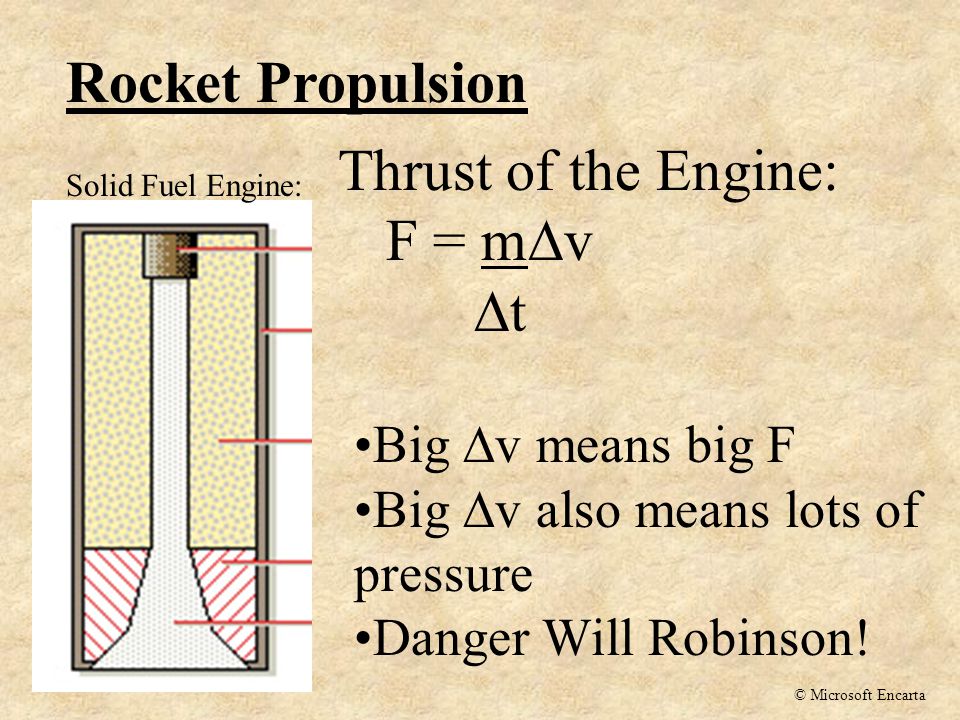

Rocket Propulsion © Microsoft Encarta Solid Fuel Engine: Thrust of the Engine: F = m v t Big v means big F Big v also means lots of pressure Danger Will Robinson!

29

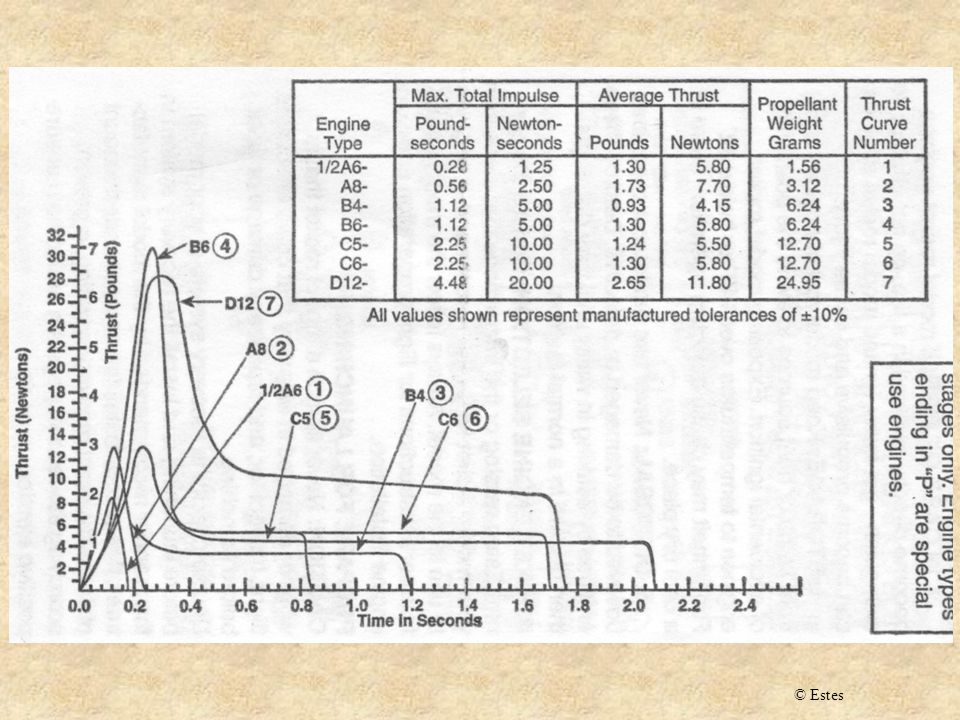

© Estes

30
Lookout! m =.5 kg, F t = 20 Ns F t = m v 20 Ns =.5kg v v = ? (x 2.237 for mph) © Estes

31
Rocket Propulsion © Microsoft Encarta Liquid Fuel Engine: How do you keep it from tipping? Why the “steam” coming off?

32

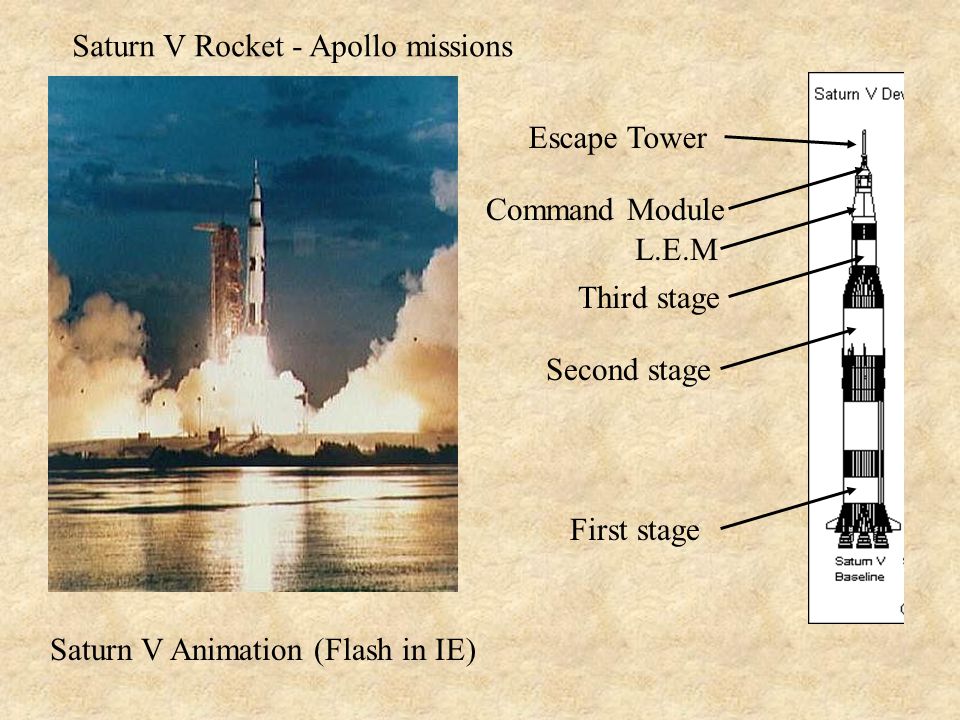

Saturn V Animation (Flash in IE) Saturn V Rocket - Apollo missions First stageSecond stageThird stageL.E.MCommand Module Escape Tower

33

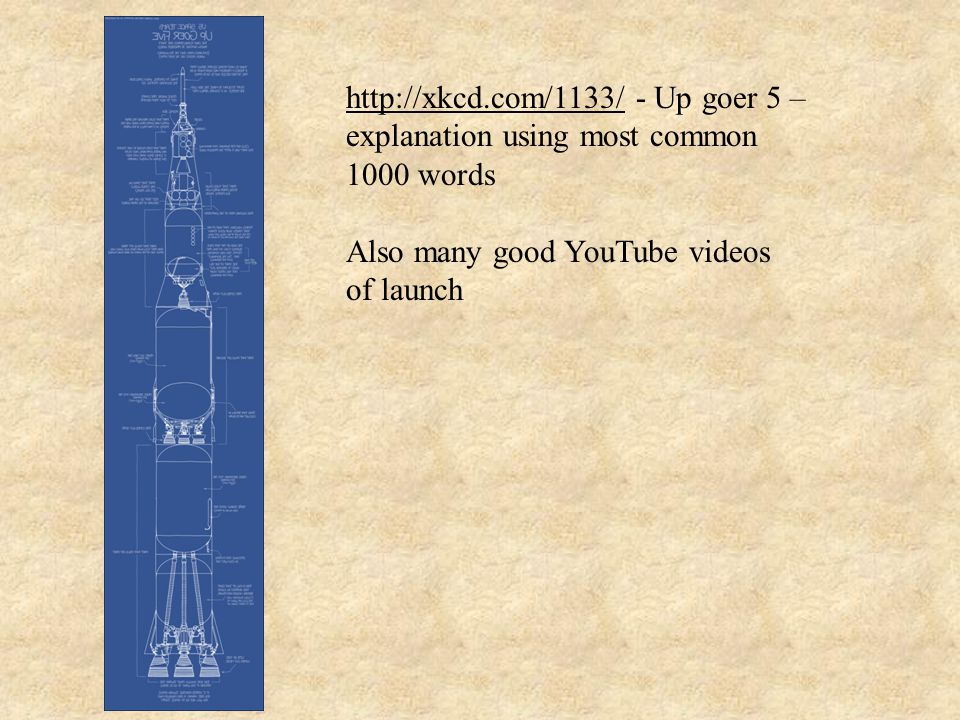

http://xkcd.com/1133/http://xkcd.com/1133/ - Up goer 5 – explanation using most common 1000 words Also many good YouTube videos of launch

34
Ion Propulsion systems Low thrust/high Δv 20-50 km/s exhaust velocity Dawn

35
Gridded Xenon ion drive (Like Dawn has) where’s the power come from?

36

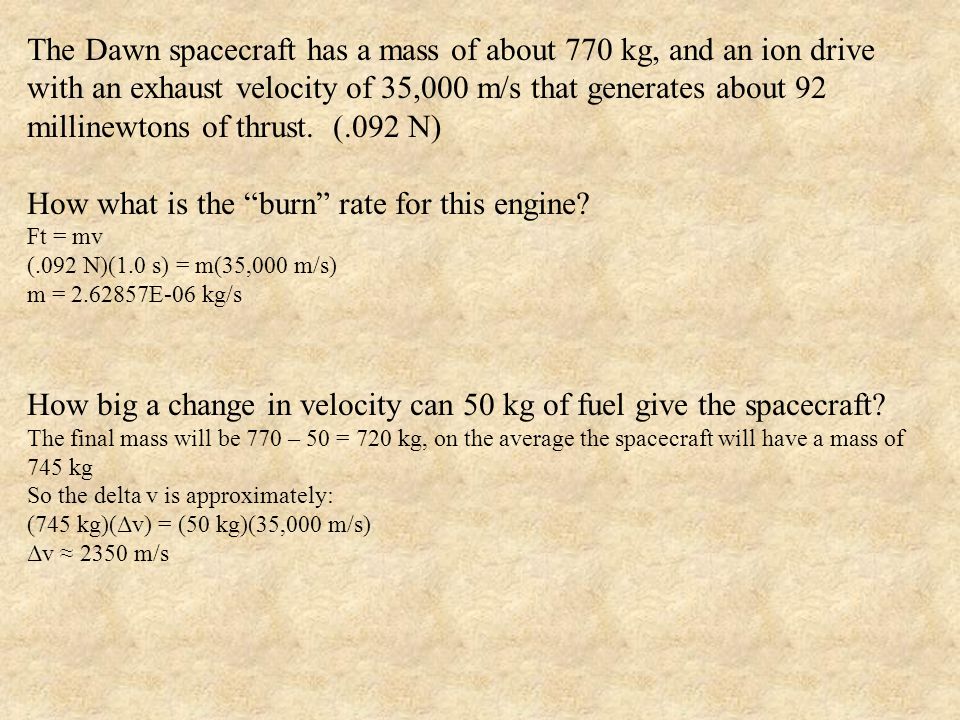

The Dawn spacecraft has a mass of about 770 kg, and an ion drive with an exhaust velocity of 35,000 m/s that generates about 92 millinewtons of thrust. (.092 N) How what is the “burn” rate for this engine? Ft = mv (.092 N)(1.0 s) = m(35,000 m/s) m = 2.62857E-06 kg/s How big a change in velocity can 50 kg of fuel give the spacecraft? The final mass will be 770 – 50 = 720 kg, on the average the spacecraft will have a mass of 745 kg So the delta v is approximately: (745 kg)(Δv) = (50 kg)(35,000 m/s) Δv ≈ 2350 m/s
