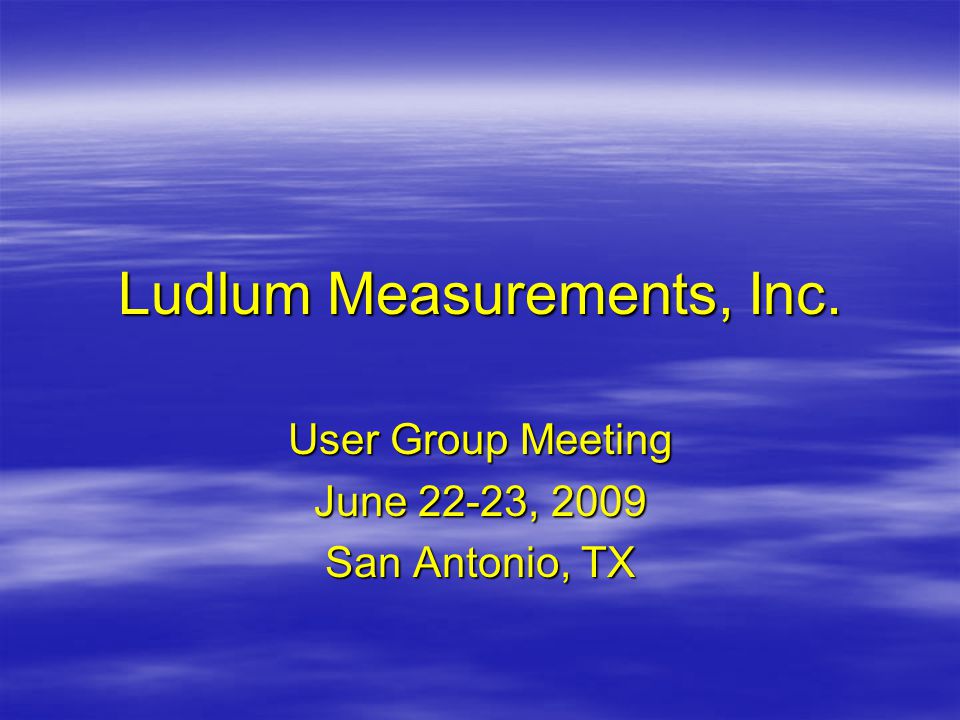

Ludlum Measurements, Inc. User Group Meeting June 22-23, 2009 San Antonio, TX

2
Counting Statistics James K. Hesch Santa Fe, NM

3

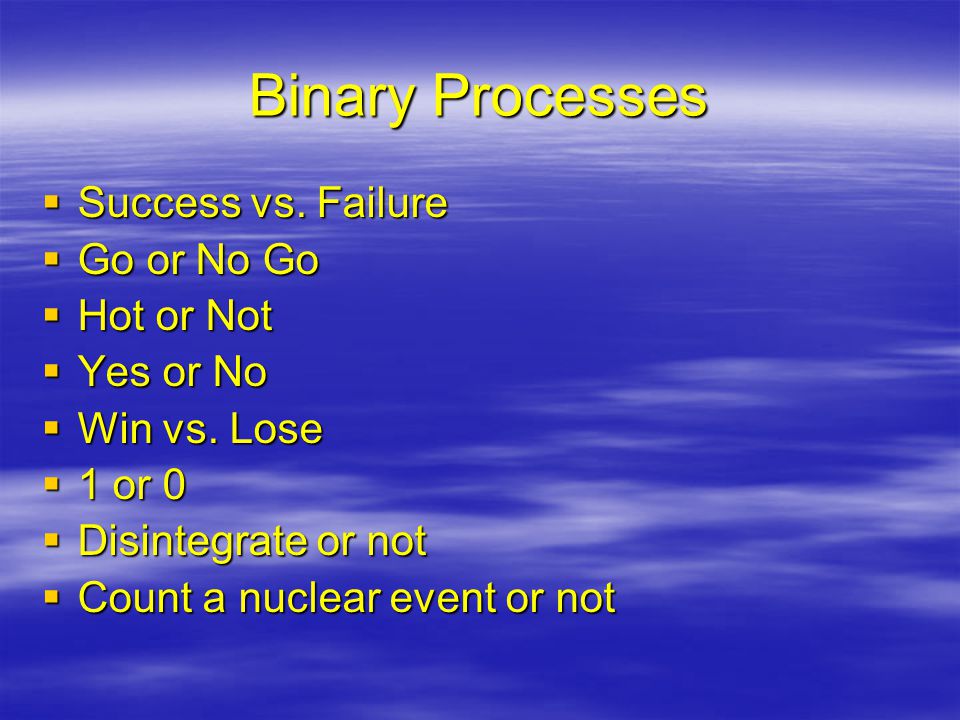

Binary Processes Success vs. Failure Go or No Go Hot or Not Yes or No Win vs. Lose 1 or 0 Disintegrate or not Count a nuclear event or not

4
Uncertainty Shades of gray – neither black nor white How gray is gray? More black than white, or more white than black?

5
Some Familiar Real World Applications

6
What is the probability of drawing a Royal Flush in five cards drawn randomly from a deck of 52 cards?

7

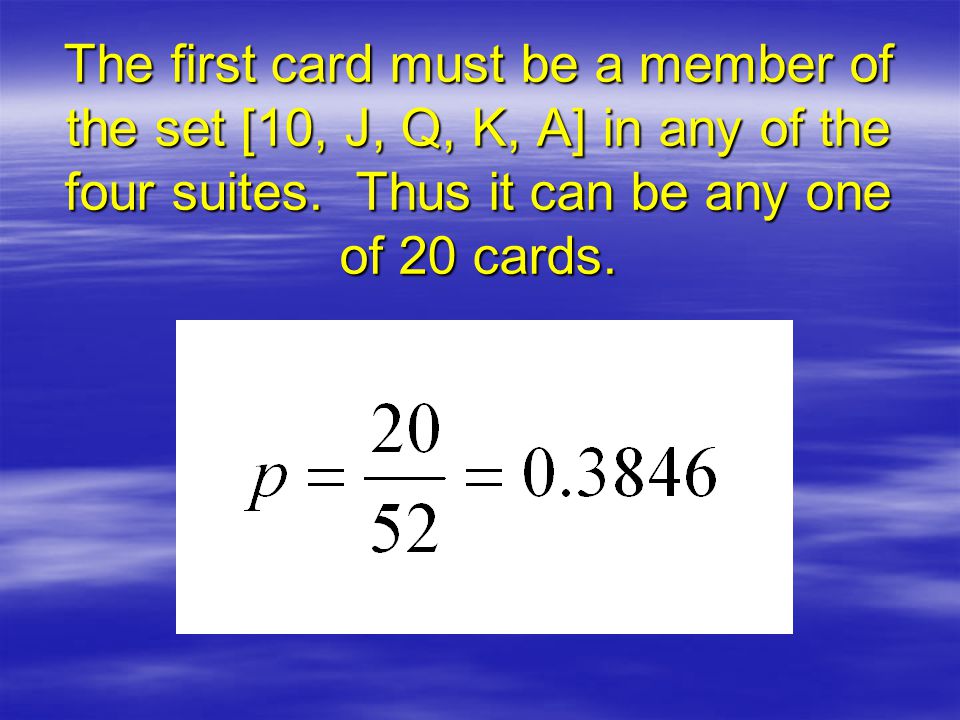

The first card must be a member of the set [10, J, Q, K, A] in any of the four suites. Thus it can be any one of 20 cards.

8

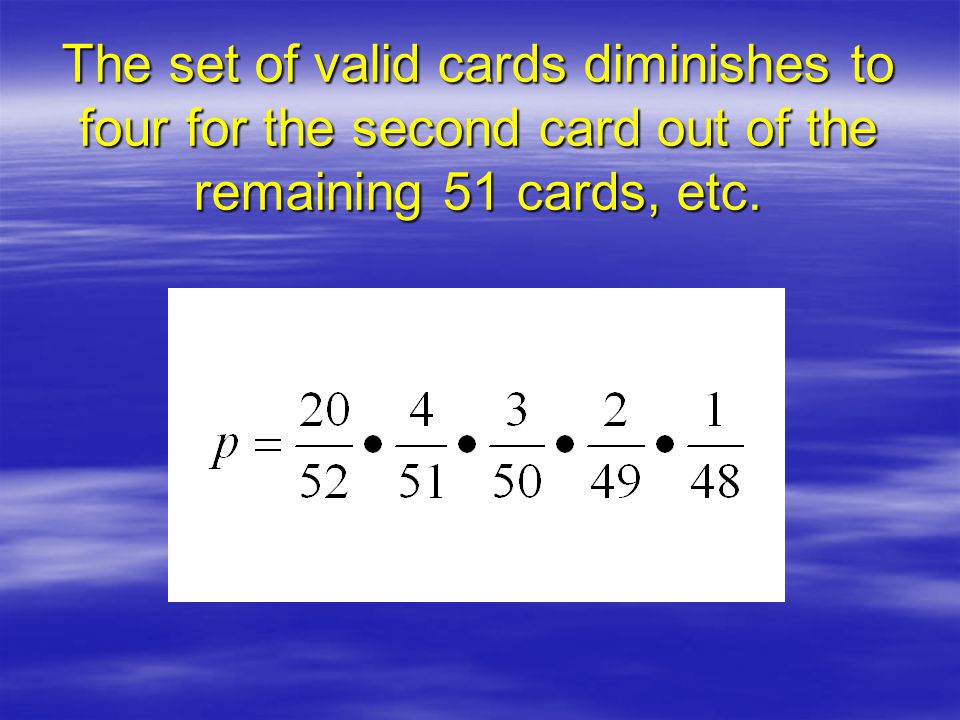

The set of valid cards diminishes to four for the second card out of the remaining 51 cards, etc.

9
Probability 1 : 649740

10

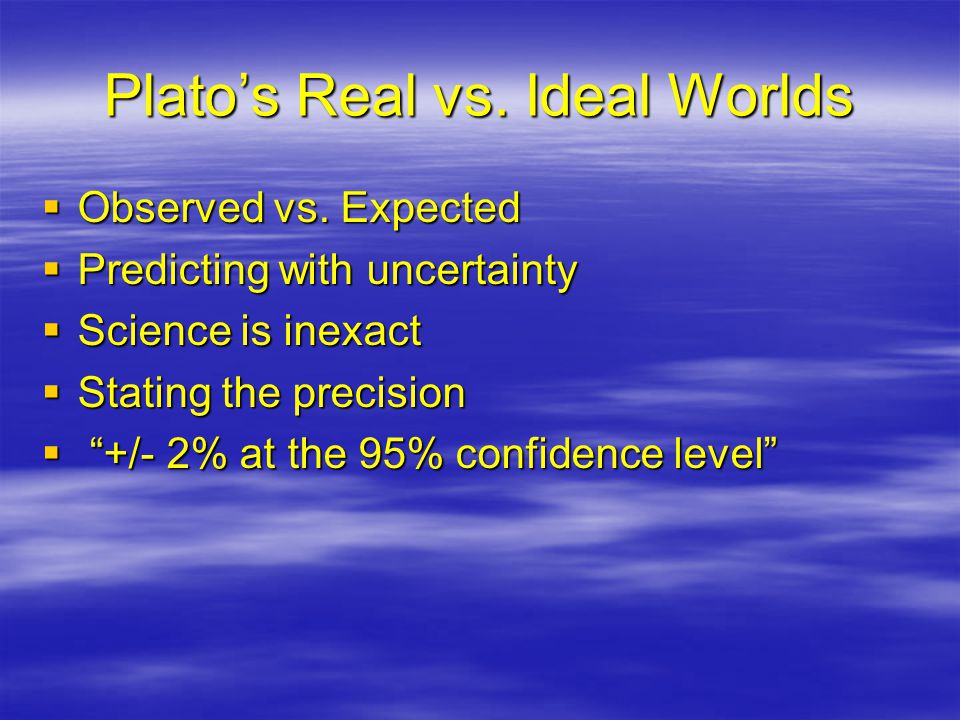

Plato’s Real vs. Ideal Worlds Observed vs. Expected Predicting with uncertainty Science is inexact Stating the precision “+/- 2% at the 95% confidence level”

11

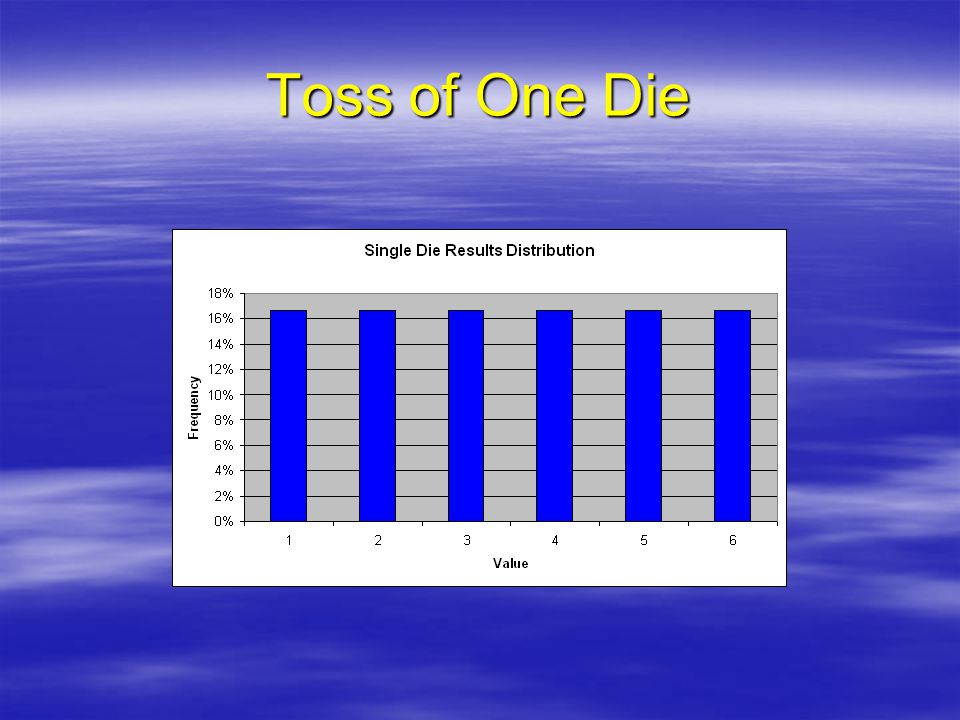

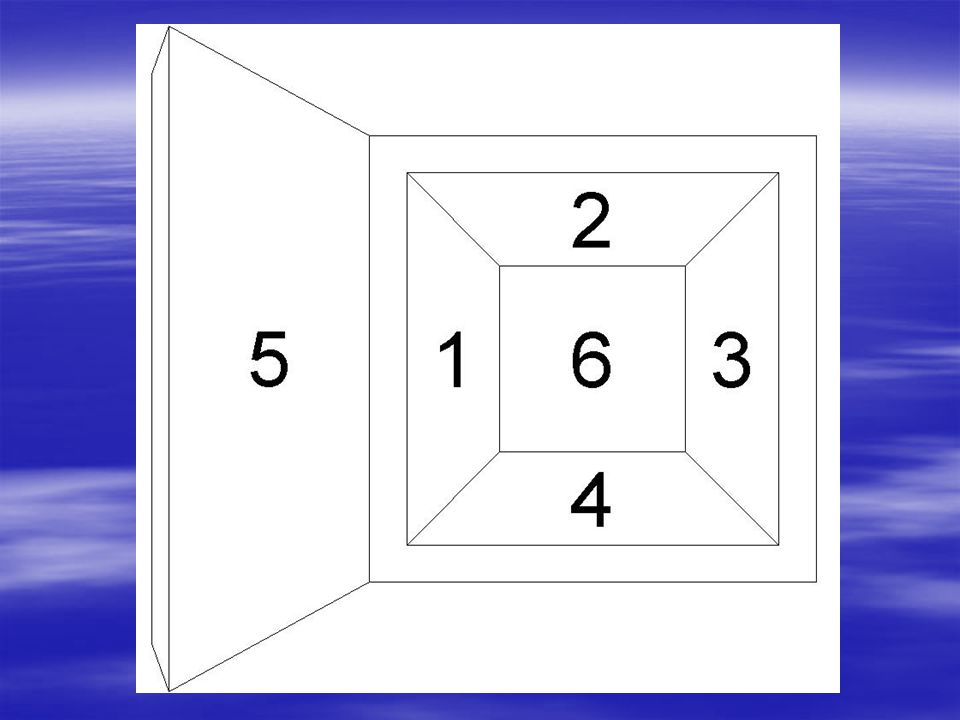

Toss of One Die

12

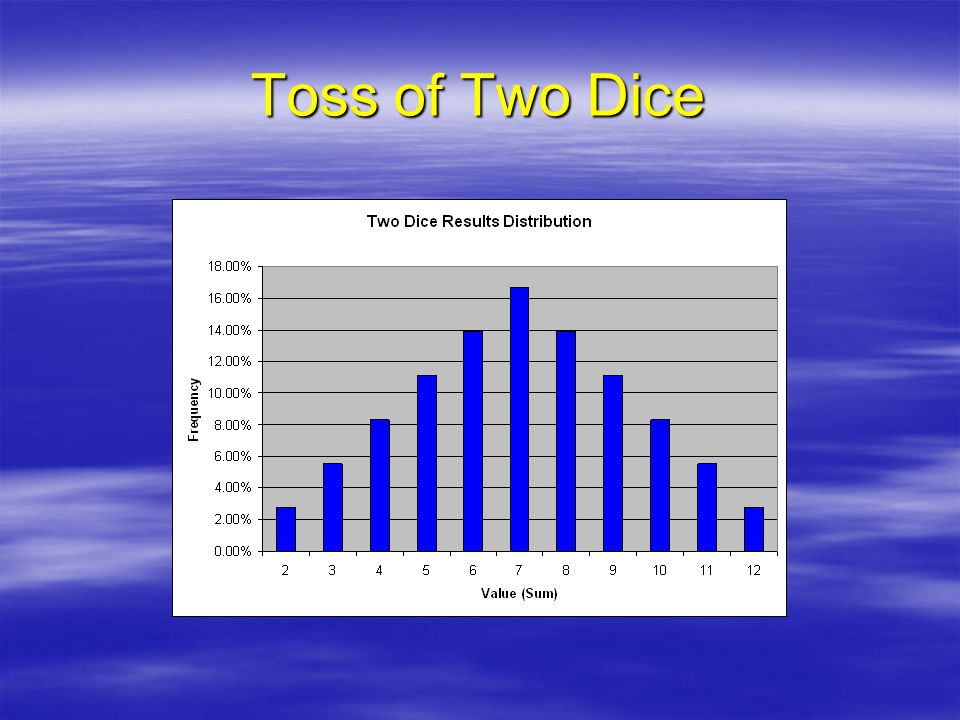

Toss of Two Dice

13

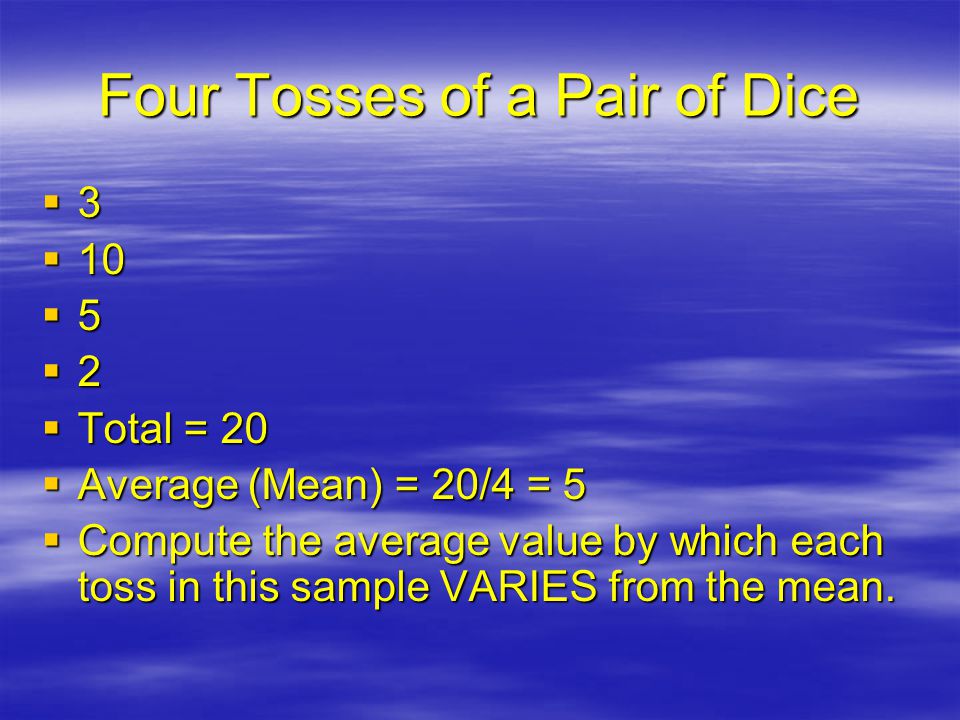

Four Tosses of a Pair of Dice 3333 10 5555 2222 Total = 20 Average (Mean) = 20/4 = 5 Compute the average value by which each toss in this sample VARIES from the mean.

14

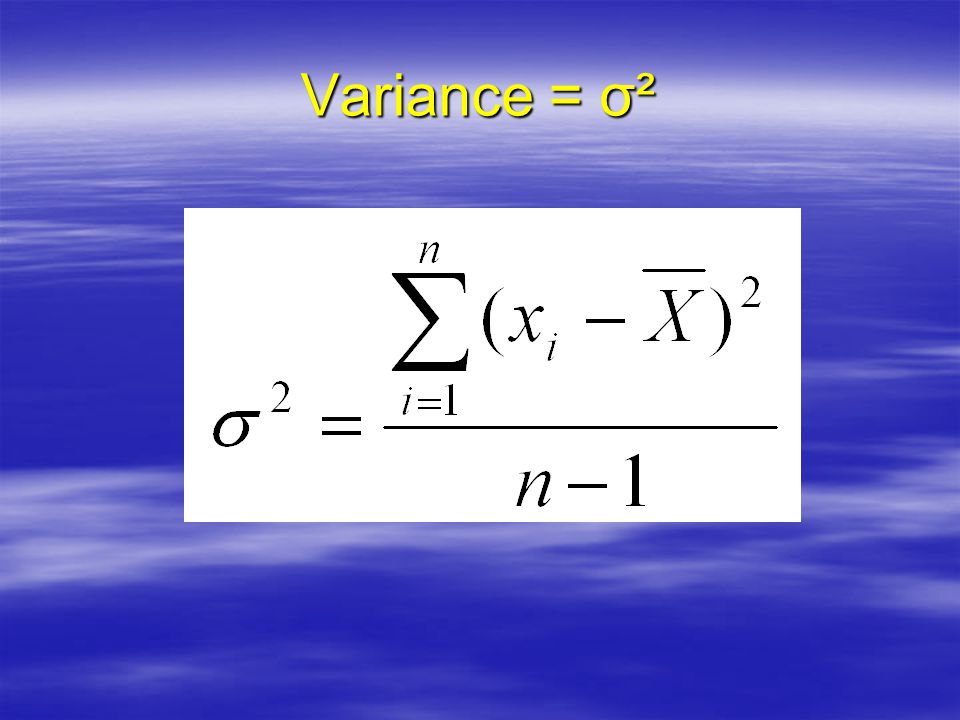

Variance = σ²

15

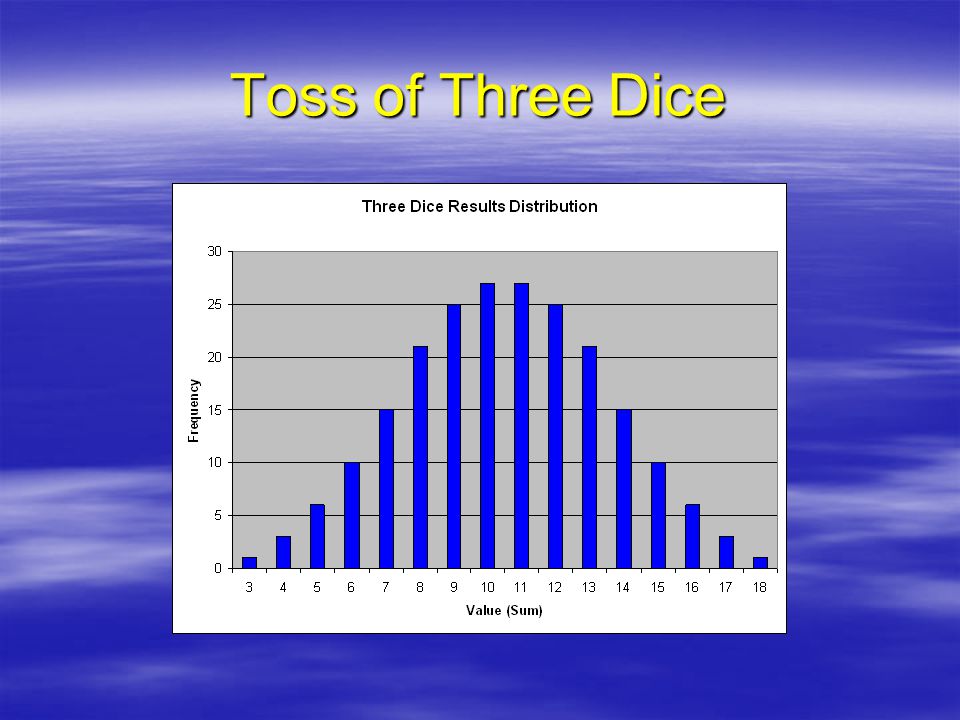

Toss of Three Dice

16

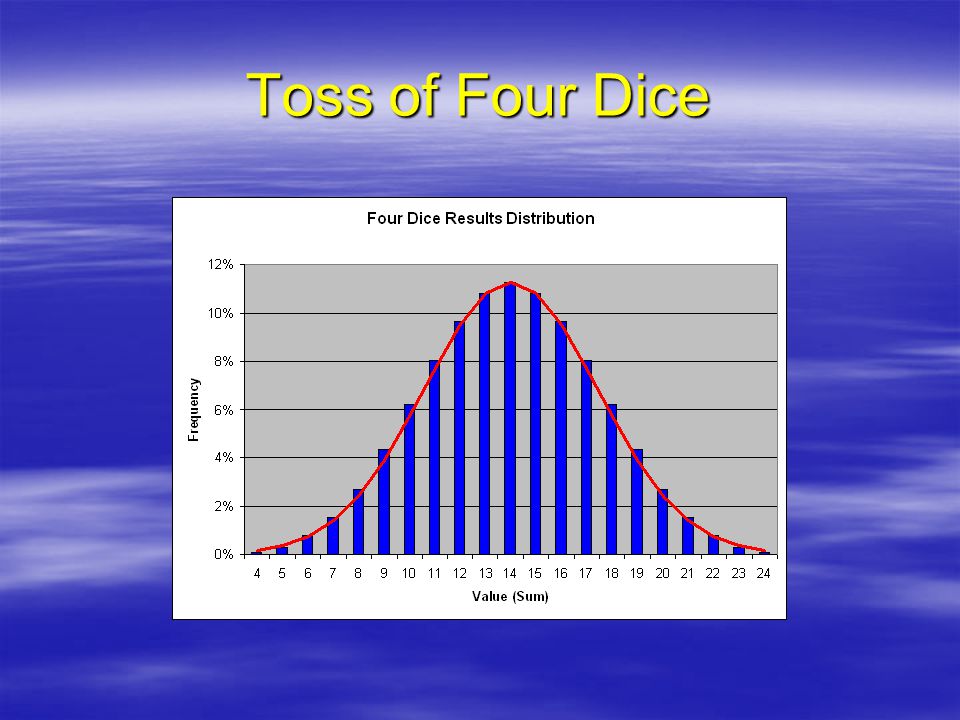

Toss of Four Dice

17

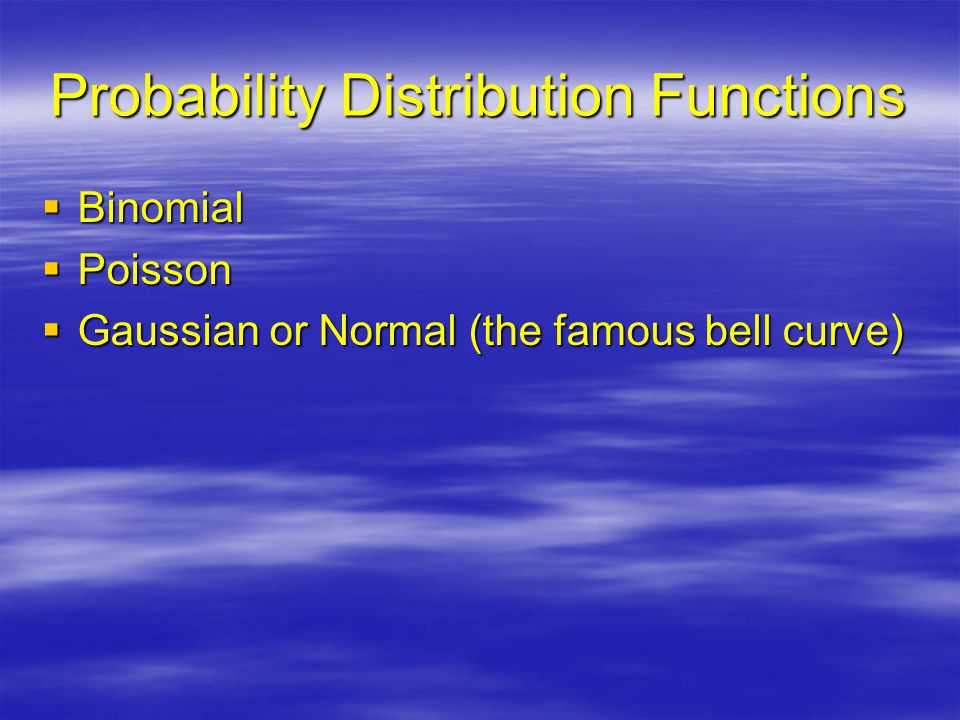

Probability Distribution Functions Binomial Poisson Gaussian or Normal (the famous bell curve)

18

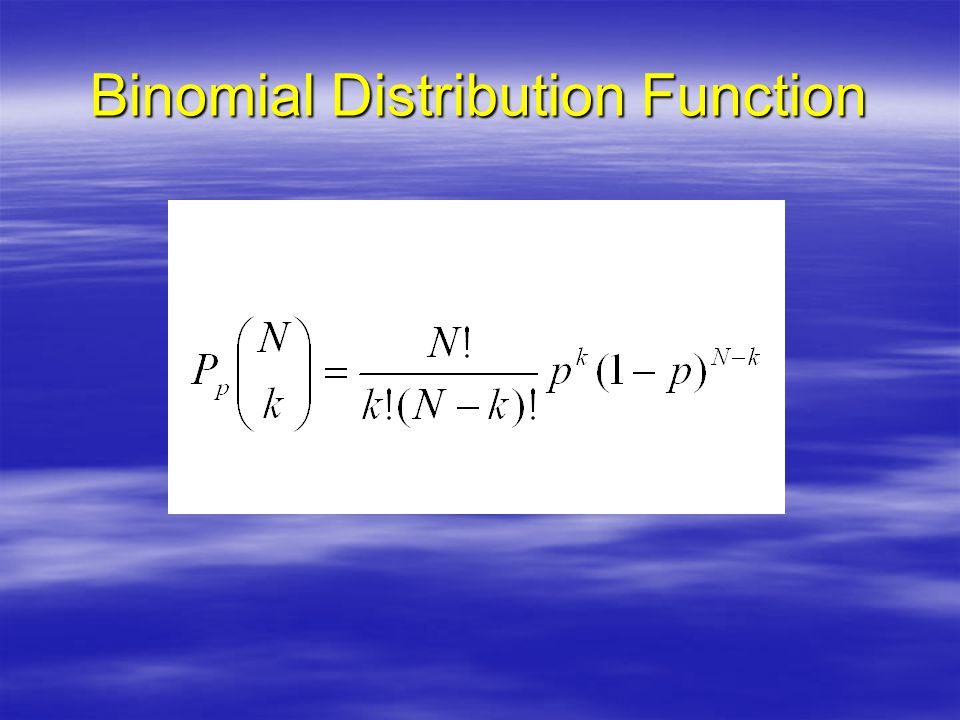

Binomial Distribution Function

19

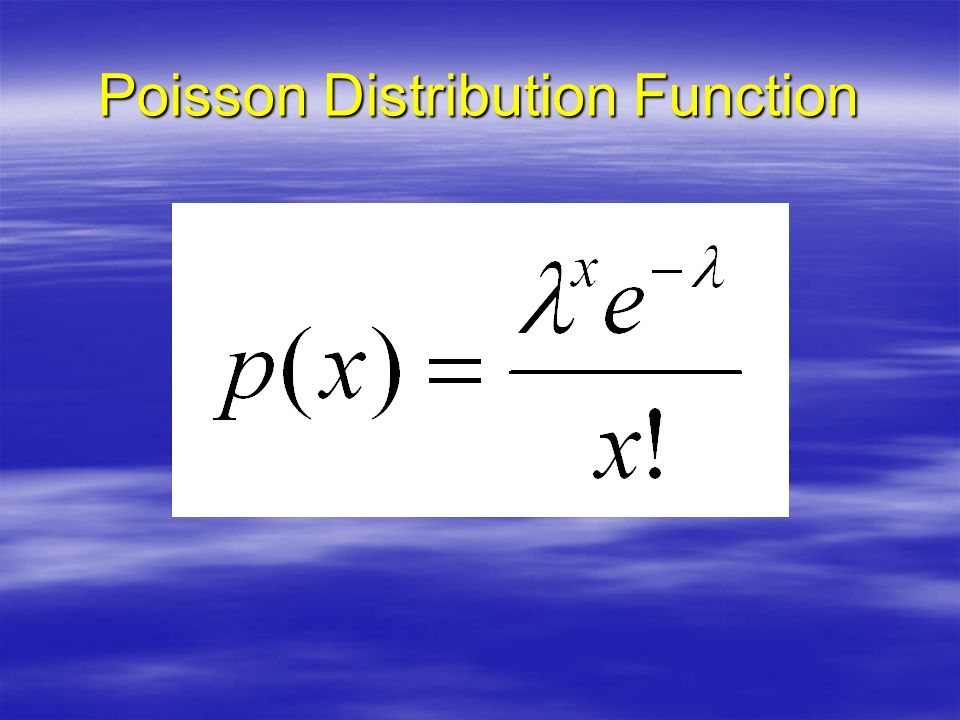

Poisson Distribution Function

20

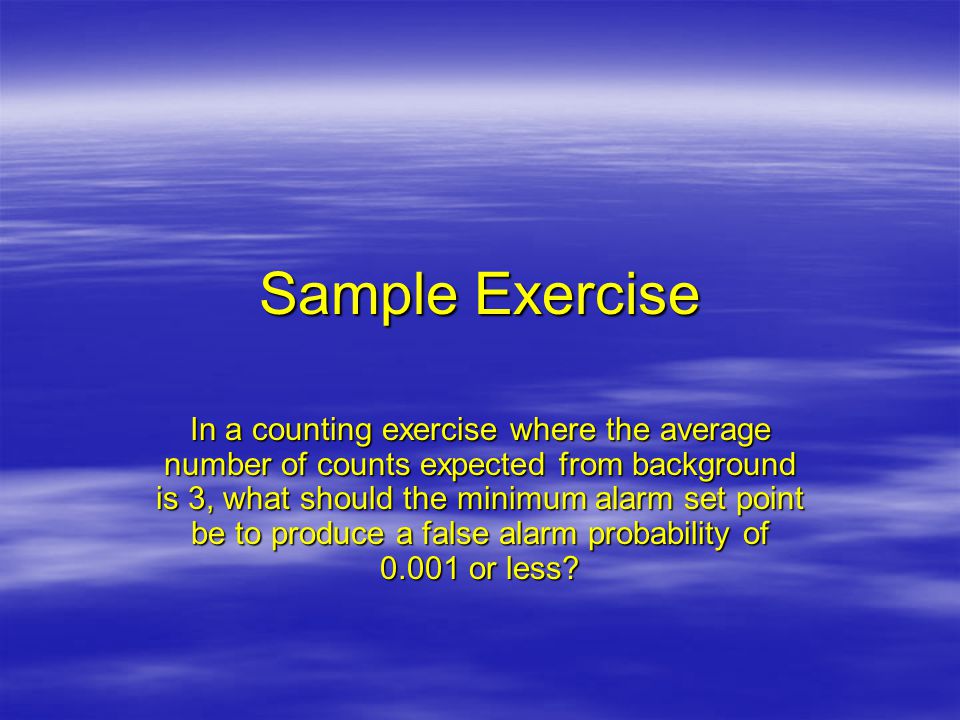

Sample Exercise In a counting exercise where the average number of counts expected from background is 3, what should the minimum alarm set point be to produce a false alarm probability of 0.001 or less?

21

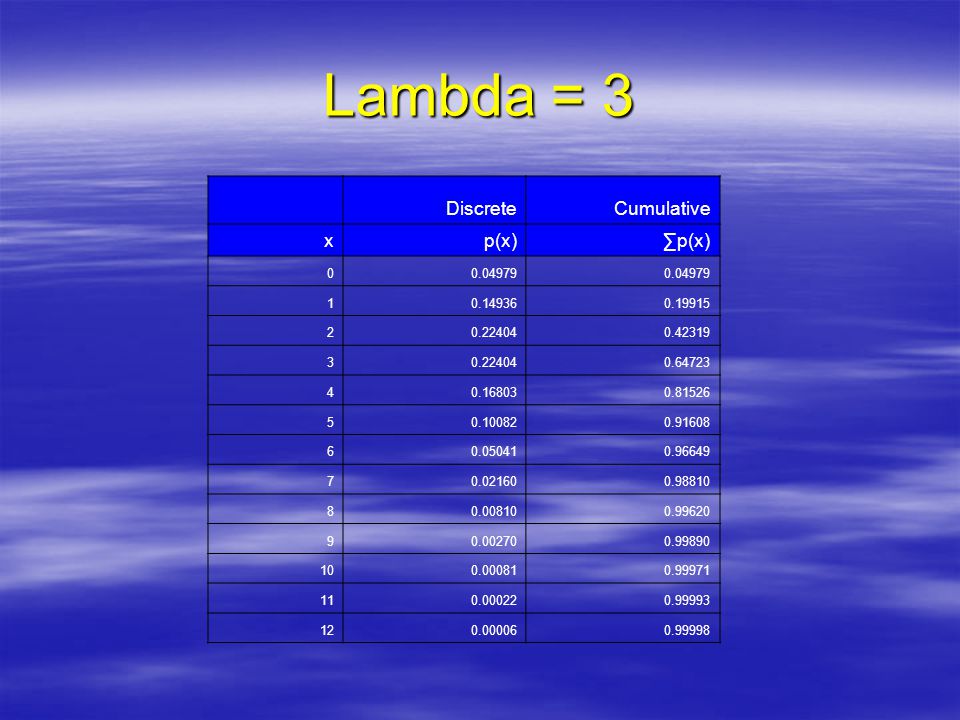

Lambda = 3 DiscreteCumulative xp(x) ∑p(x) 00.04979 10.149360.19915 20.224040.42319 30.224040.64723 40.168030.81526 50.100820.91608 60.050410.96649 70.021600.98810 80.008100.99620 90.002700.99890 100.000810.99971 110.000220.99993 120.000060.99998

22
Poisson Distribution, Lambda = 3

23

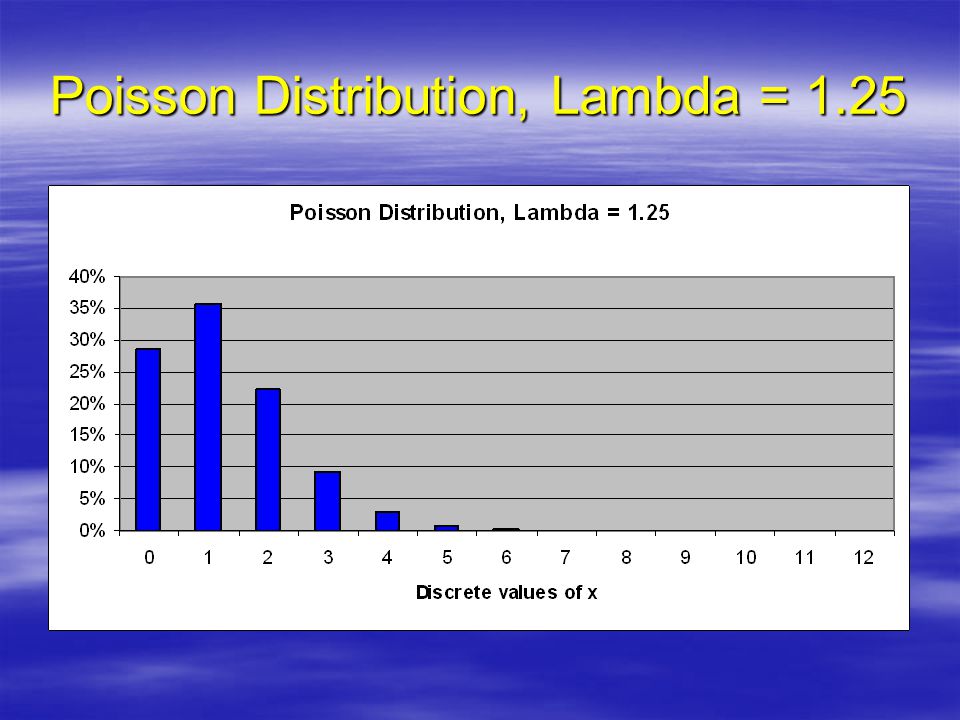

Poisson Distribution, Lambda = 1.25

24

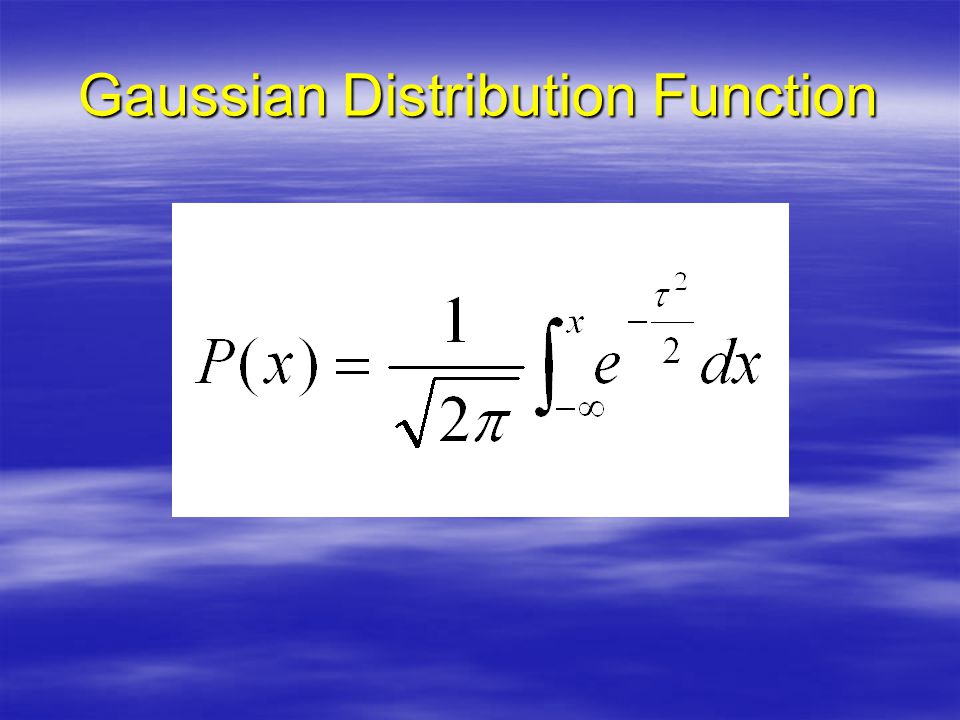

Gaussian Distribution Function

25

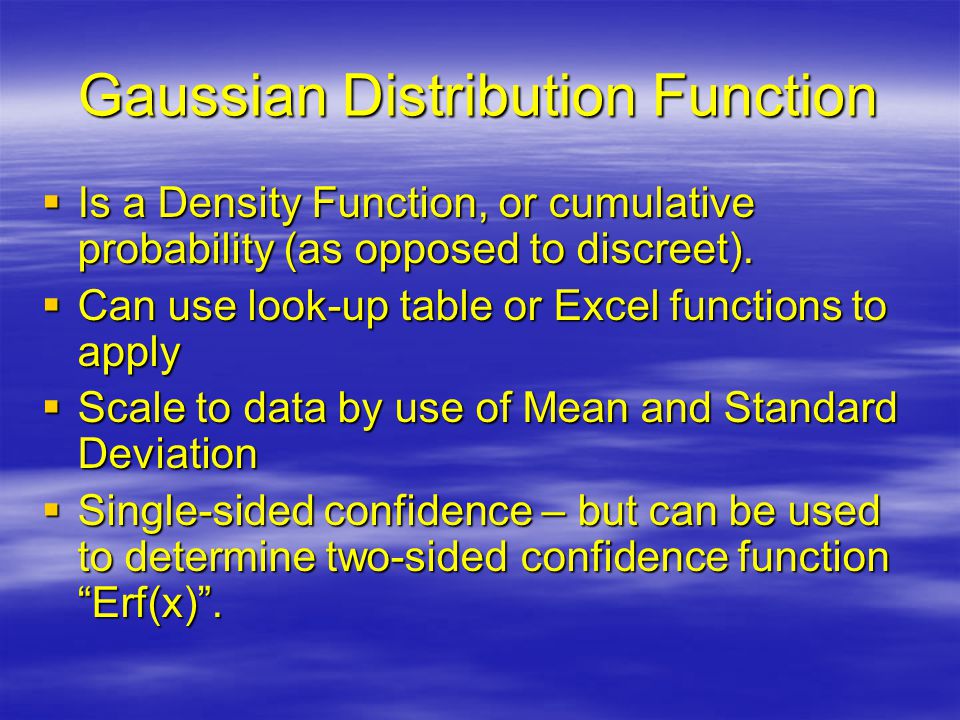

Is a Density Function, or cumulative probability (as opposed to discreet). Can use look-up table or Excel functions to apply Scale to data by use of Mean and Standard Deviation Single-sided confidence – but can be used to determine two-sided confidence function “Erf(x)”.

27
Excel Function F(2) = NORMDIST(2, 0, 1, TRUE) = 0.97725 2 StdDev Mean = 0 StdDev of Data = 1 Cumulative = True

28

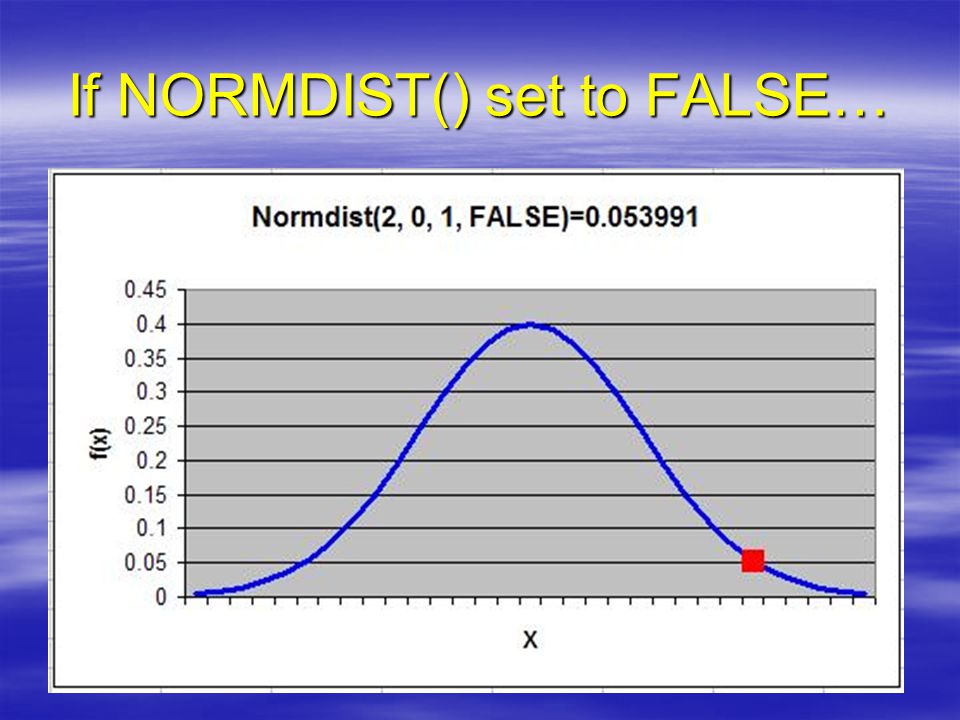

If NORMDIST() set to FALSE…

29

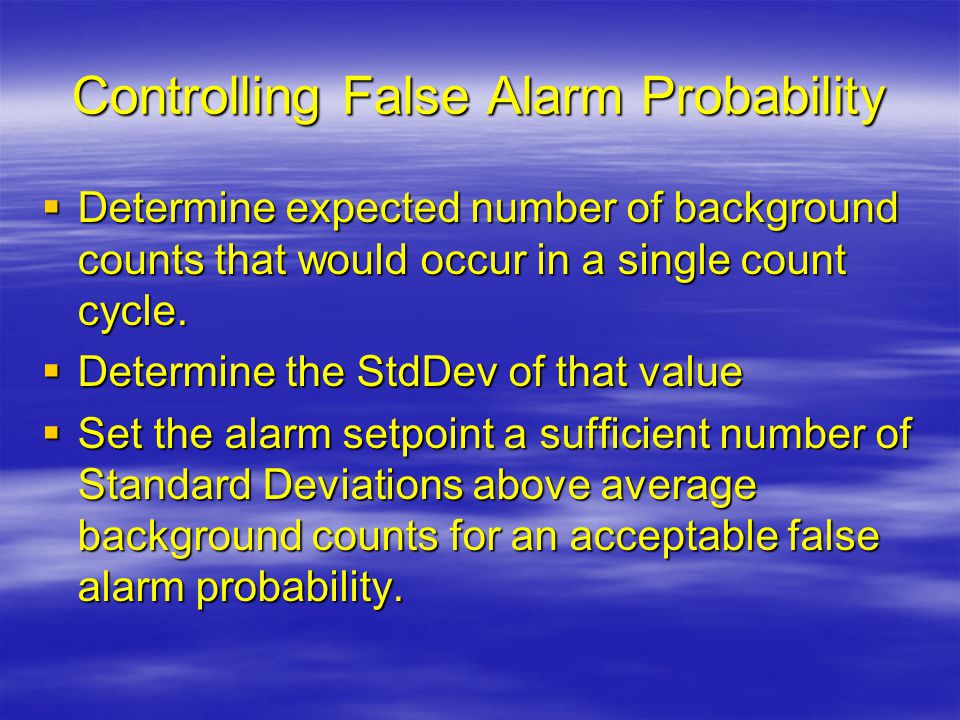

Controlling False Alarm Probability Determine expected number of background counts that would occur in a single count cycle. Determine the StdDev of that value Set the alarm setpoint a sufficient number of Standard Deviations above average background counts for an acceptable false alarm probability.

30
False Alarm Probability

31

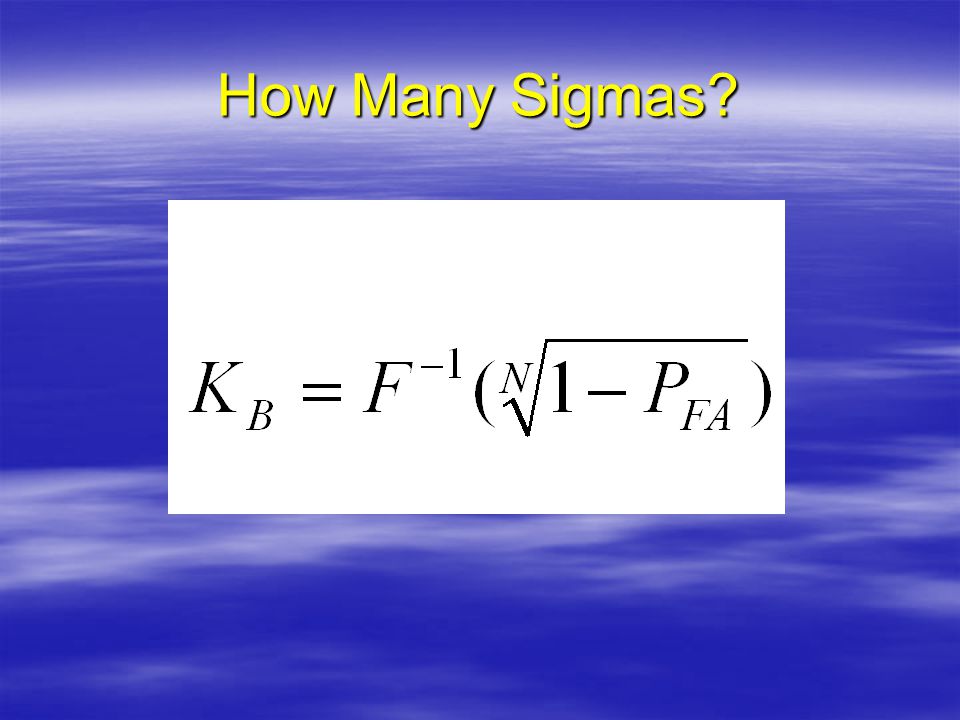

How Many Sigmas?

32

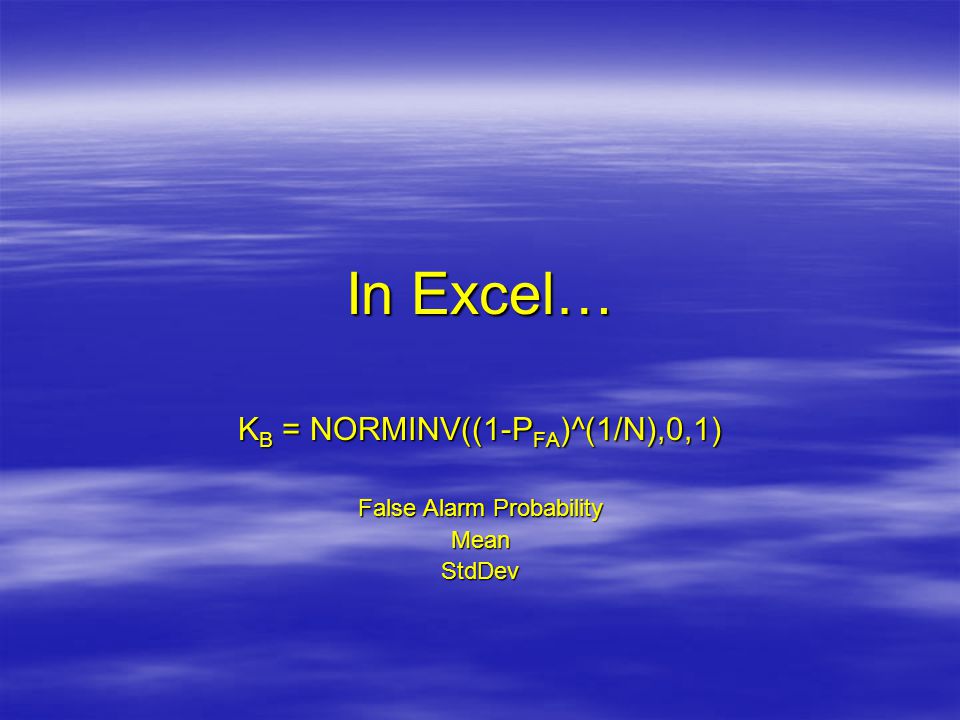

In Excel… K B = NORMINV((1-P FA )^(1/N),0,1) False Alarm Probability MeanStdDev

35

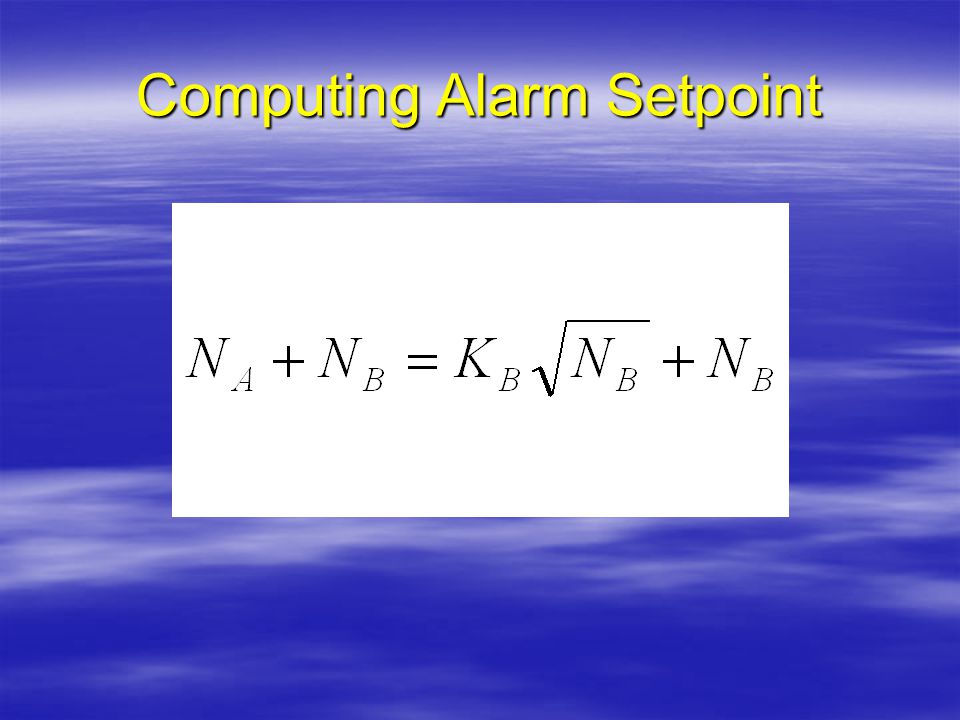

Computing Alarm Setpoint

36

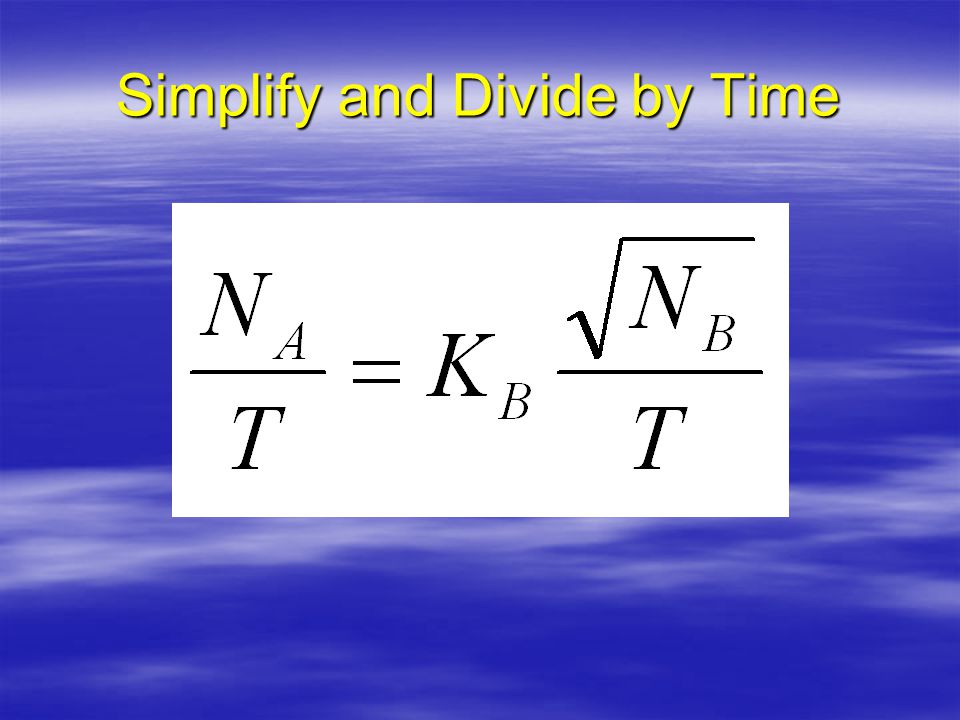

Simplify and Divide by Time

37
…almost!

38
Final Form:

39

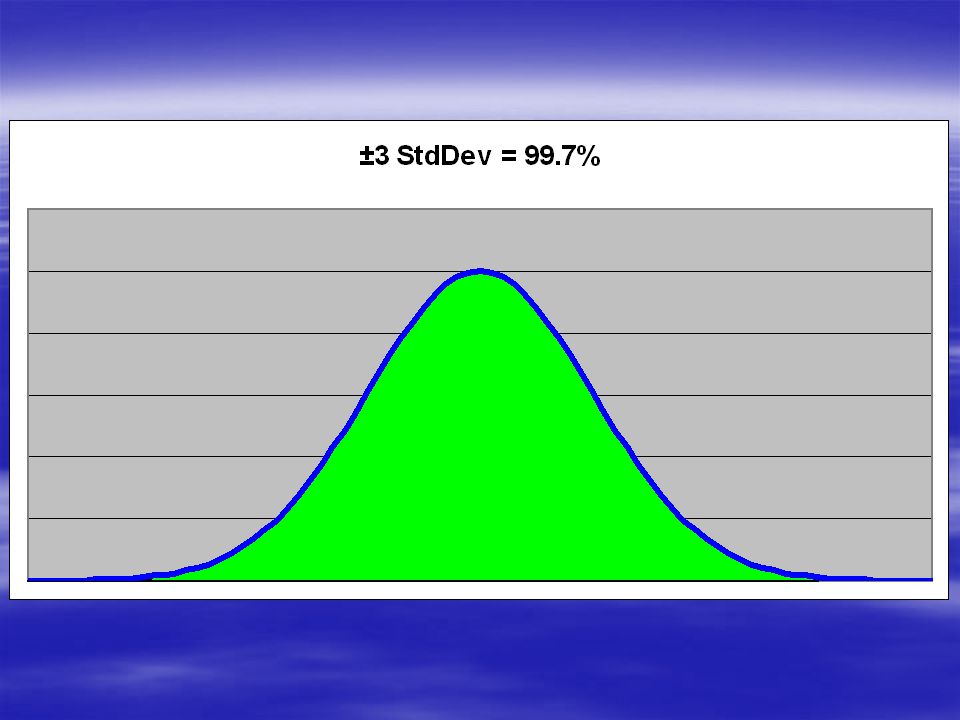

Slight detour … 2-sided distribution

43

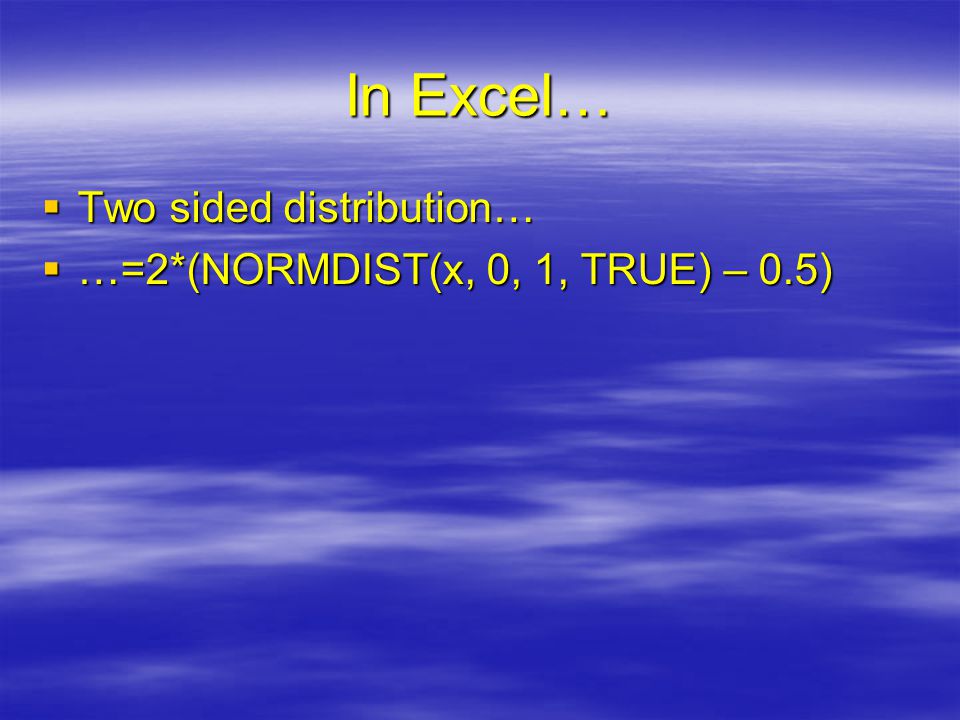

In Excel… Two sided distribution… …=2*(NORMDIST(x, 0, 1, TRUE) – 0.5)

44

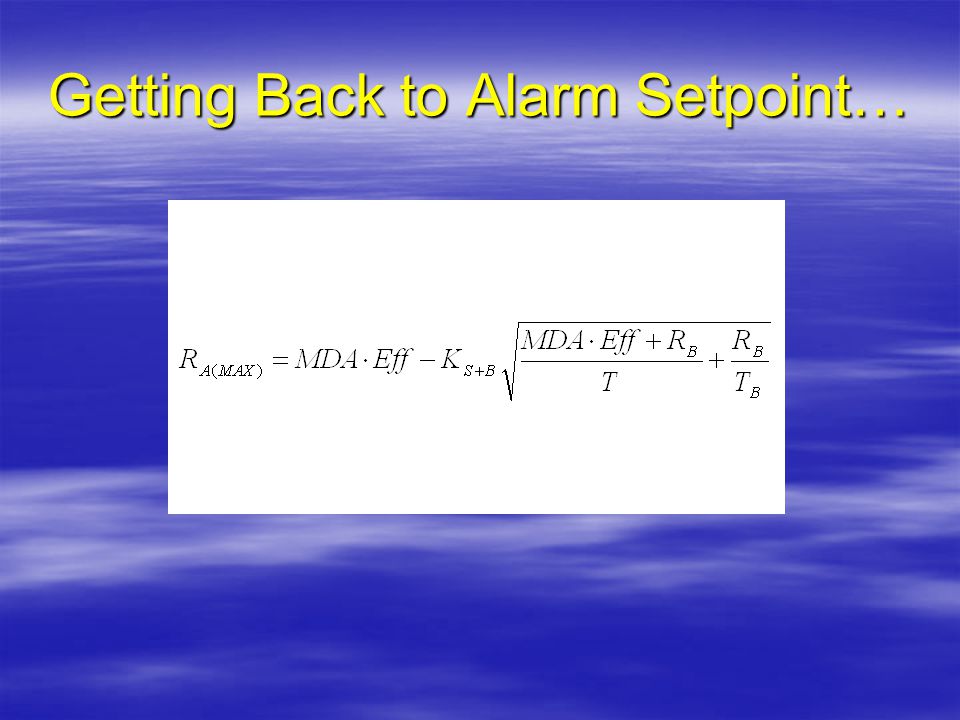

Getting Back to Alarm Setpoint…

45

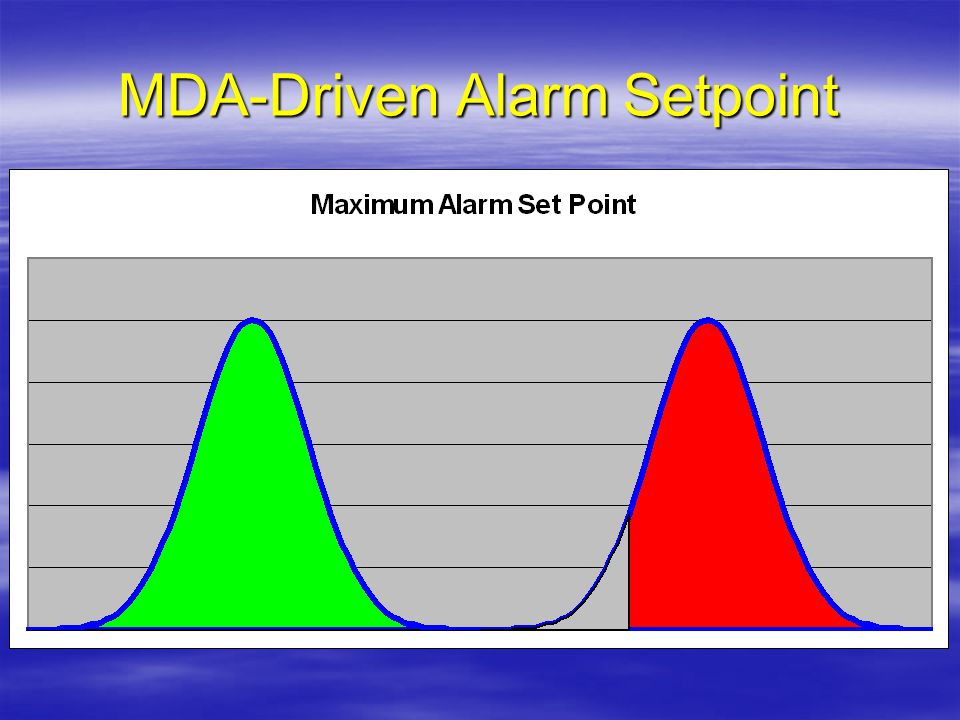

MDA-Driven Alarm Setpoint

46

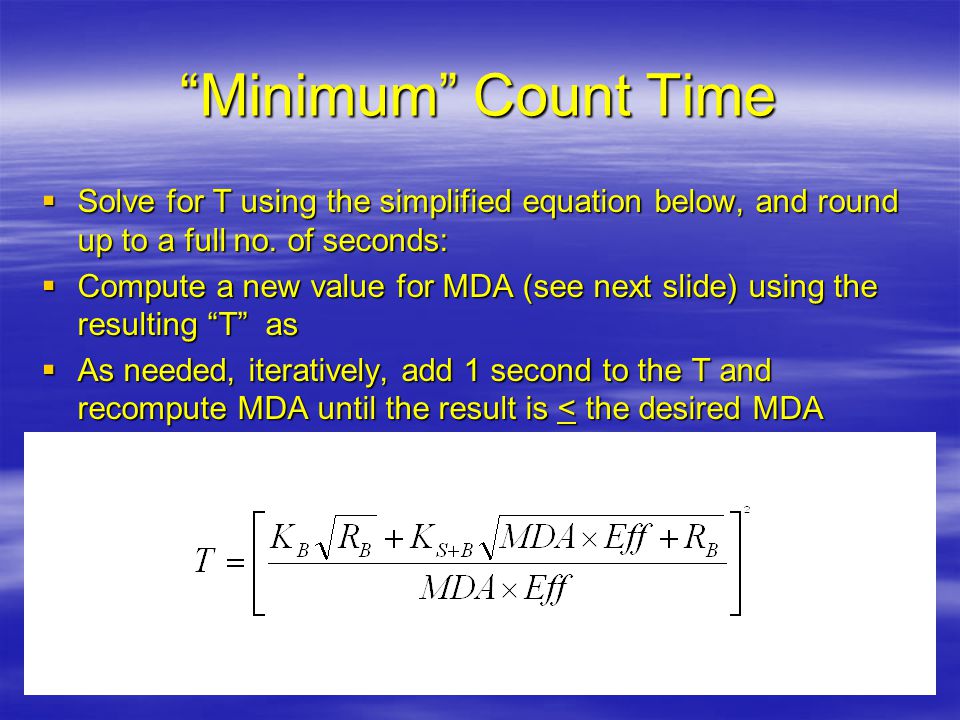

“Minimum” Count Time Solve for T using the simplified equation below, and round up to a full no. of seconds: Compute a new value for MDA (see next slide) using the resulting “T” as As needed, iteratively, add 1 second to the T and recompute MDA until the result is < the desired MDA

47
Computing MDA Start with MDA=1 for the right side of the following equation, and compute a new value for MDA Substitute the new value on the right hand side and repeat. Continue with the substitution/computation until the value for MDA is sufficiently close to the previous value.

48

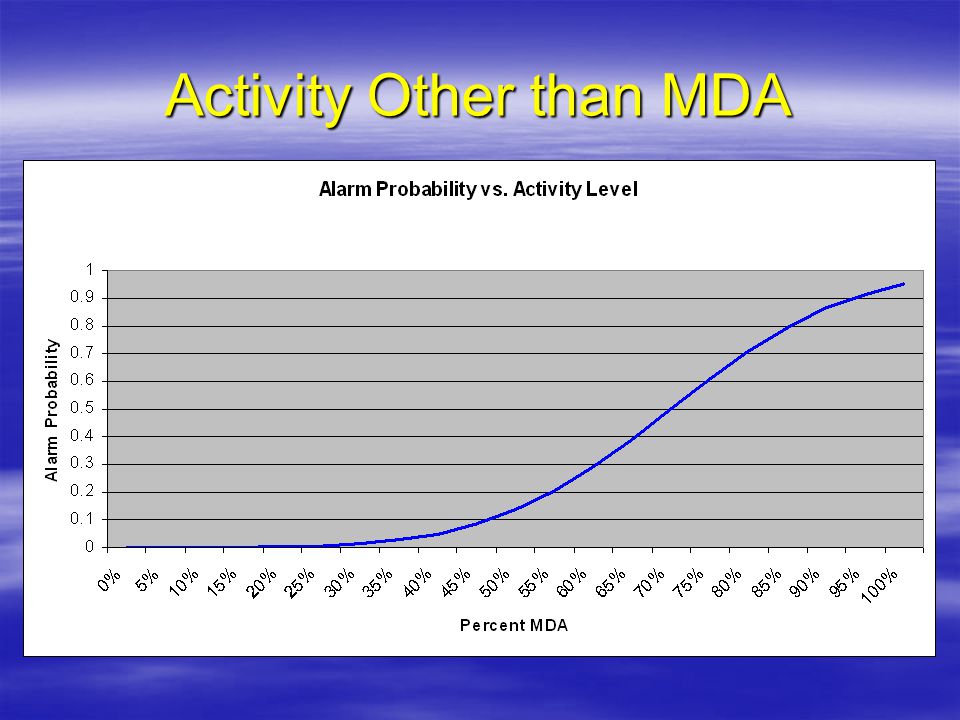

Activity Other than MDA

49

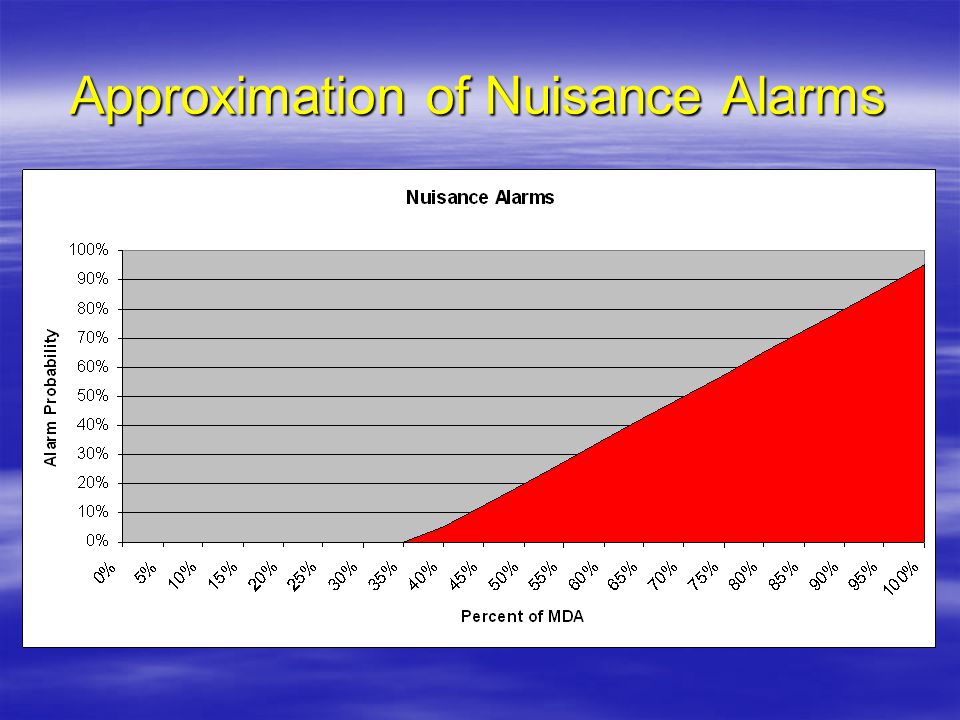

Approximation of Nuisance Alarms

50
With Extended Count Time

51

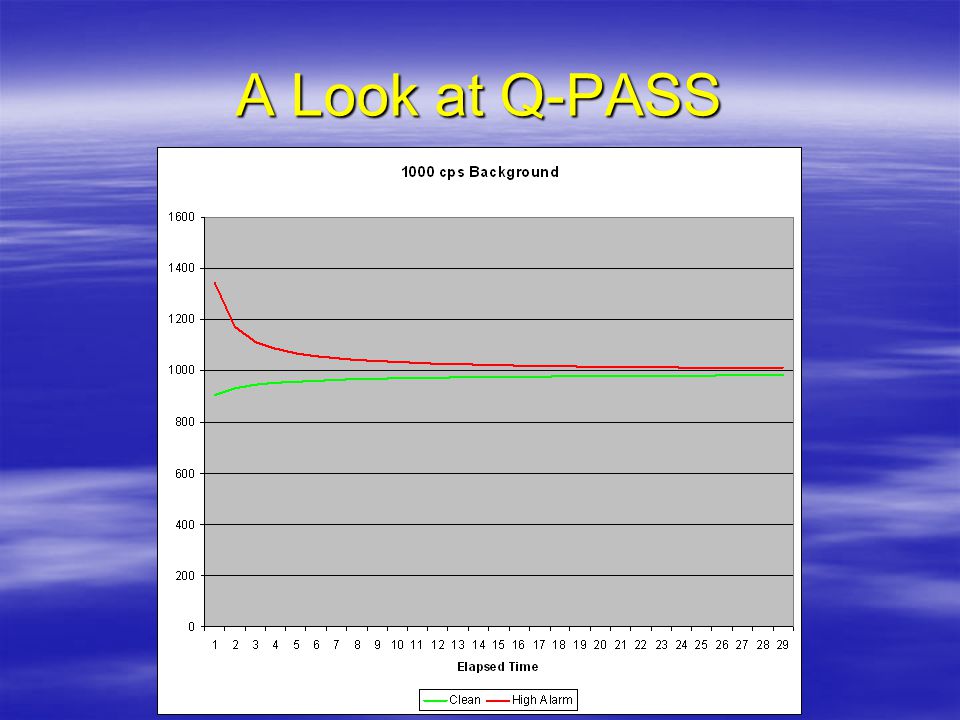

A Look at Q-PASS
