Presentation on theme: "Beads are good for you and for genotyping Fan et al. 2005. Biotechniques 39, 583 (Illumina) Chen et al. 2000. Genome Res 10, 549 (Luminex)"— Presentation transcript:

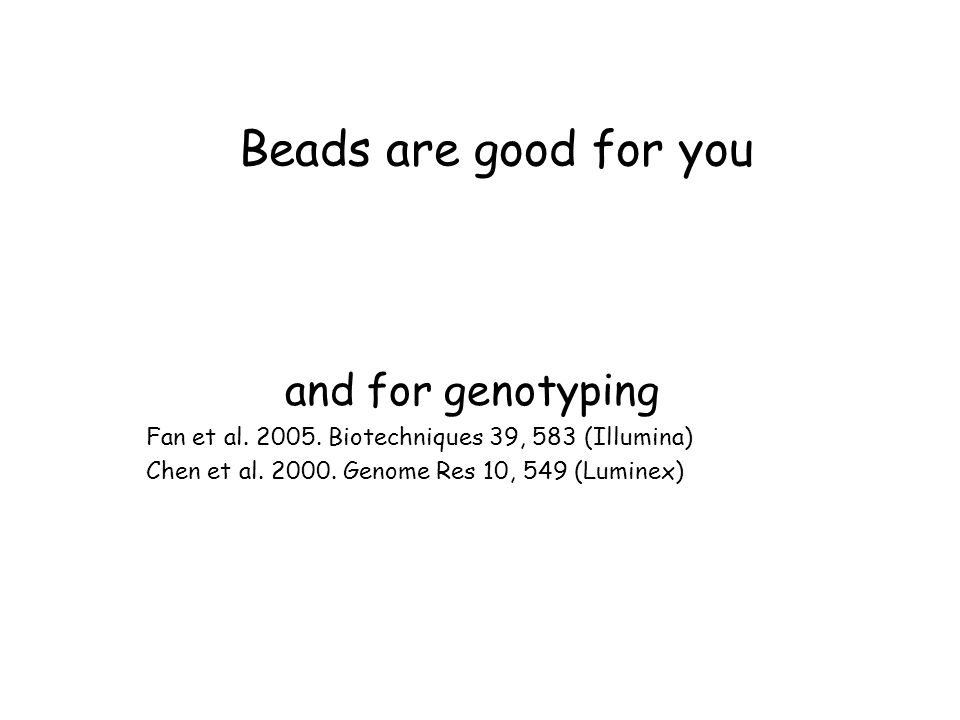

Beads are good for you and for genotyping Fan et al. 2005. Biotechniques 39, 583 (Illumina) Chen et al. 2000. Genome Res 10, 549 (Luminex)

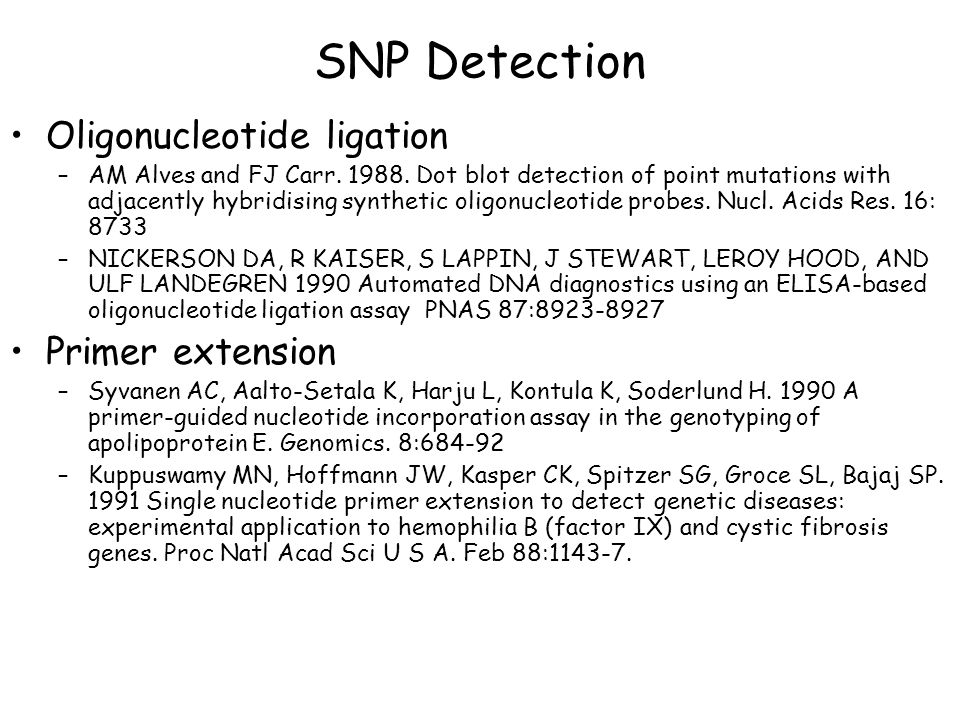

SNP Detection Oligonucleotide ligation –AM Alves and FJ Carr. 1988. Dot blot detection of point mutations with adjacently hybridising synthetic oligonucleotide probes. Nucl. Acids Res. 16: 8733 –NICKERSON DA, R KAISER, S LAPPIN, J STEWART, LEROY HOOD, AND ULF LANDEGREN 1990 Automated DNA diagnostics using an ELISA-based oligonucleotide ligation assay PNAS 87:8923-8927 Primer extension –Syvanen AC, Aalto-Setala K, Harju L, Kontula K, Soderlund H. 1990 A primer-guided nucleotide incorporation assay in the genotyping of apolipoprotein E. Genomics. 8:684-92 –Kuppuswamy MN, Hoffmann JW, Kasper CK, Spitzer SG, Groce SL, Bajaj SP. 1991 Single nucleotide primer extension to detect genetic diseases: experimental application to hemophilia B (factor IX) and cystic fibrosis genes. Proc Natl Acad Sci U S A. Feb 88:1143-7.

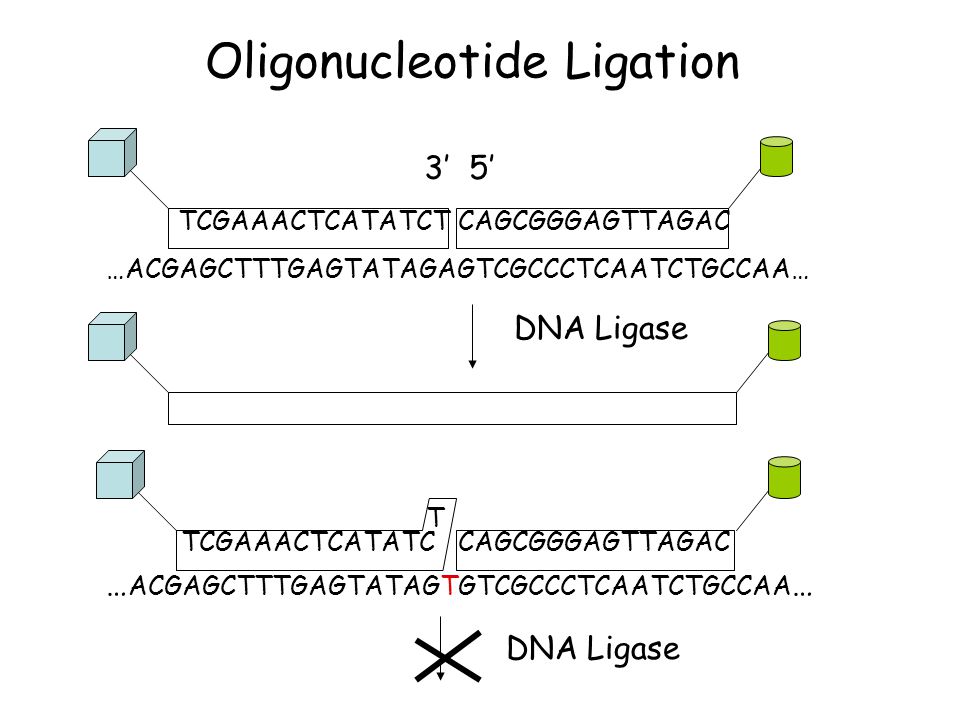

Oligonucleotide Ligation …ACGAGCTTTGAGTATAGAGTCGCCCTCAATCTGCCAA… TCGAAACTCATATCTCAGCGGGAGTTAGAC DNA Ligase 3’ 5’ … ACGAGCTTTGAGTATAGTGTCGCCCTCAATCTGCCAA … TCGAAACTCATATCCAGCGGGAGTTAGAC T DNA Ligase

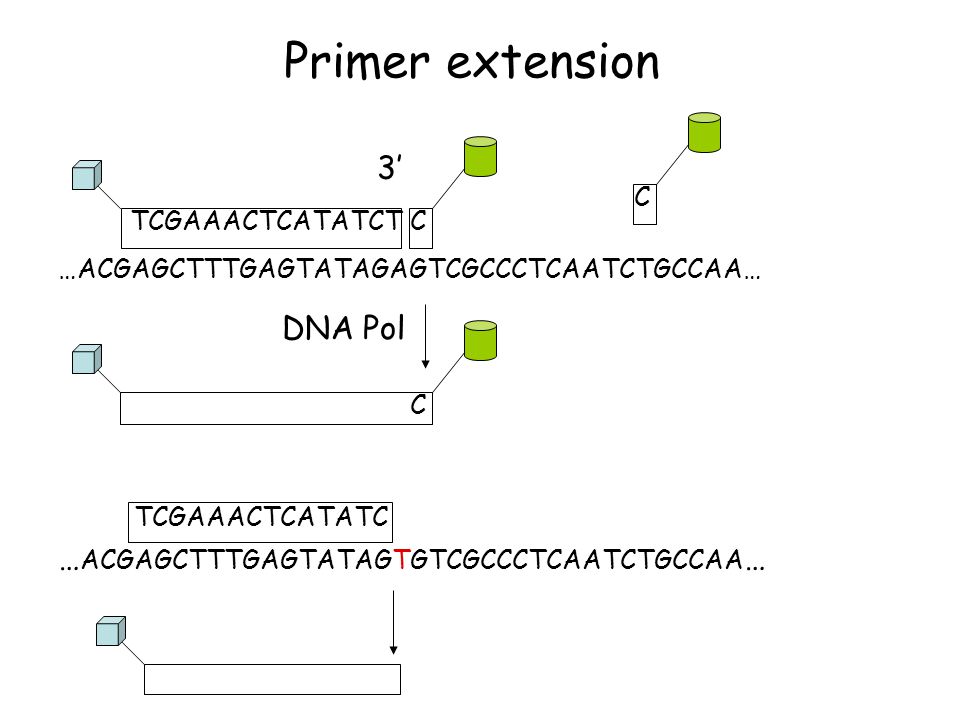

Primer extension TCGAAACTCATATCTC DNA Pol 3’ … ACGAGCTTTGAGTATAGTGTCGCCCTCAATCTGCCAA … TCGAAACTCATATC …ACGAGCTTTGAGTATAGAGTCGCCCTCAATCTGCCAA… C C

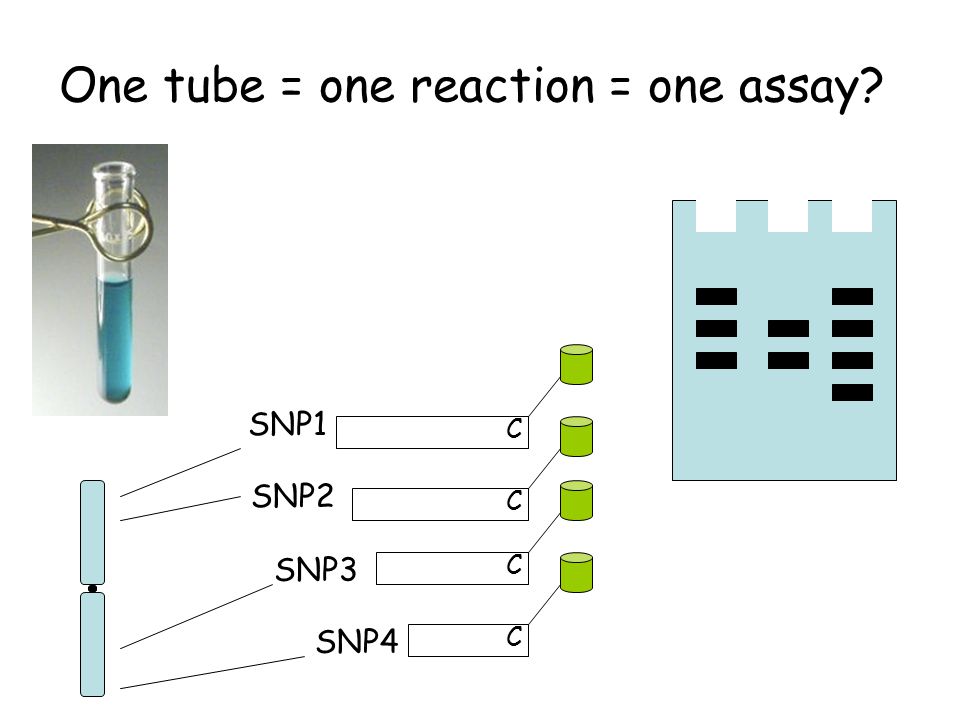

One tube = one reaction = one assay? C C C C SNP1 SNP2 SNP3 SNP4
Bead types rosary beads = “test tube” bead 5 uM 1 cM
Beads can be marked 5.6 um, polystyrene Luminex beads R. J. Fulton et al., Clin. Chem. 443, 1749 (1997) 3 um, silica Illumina beads Lee M, Walt DR. 2000 Anal Biochem.282:142-6. 100 color- coded types 1500 color- coded types

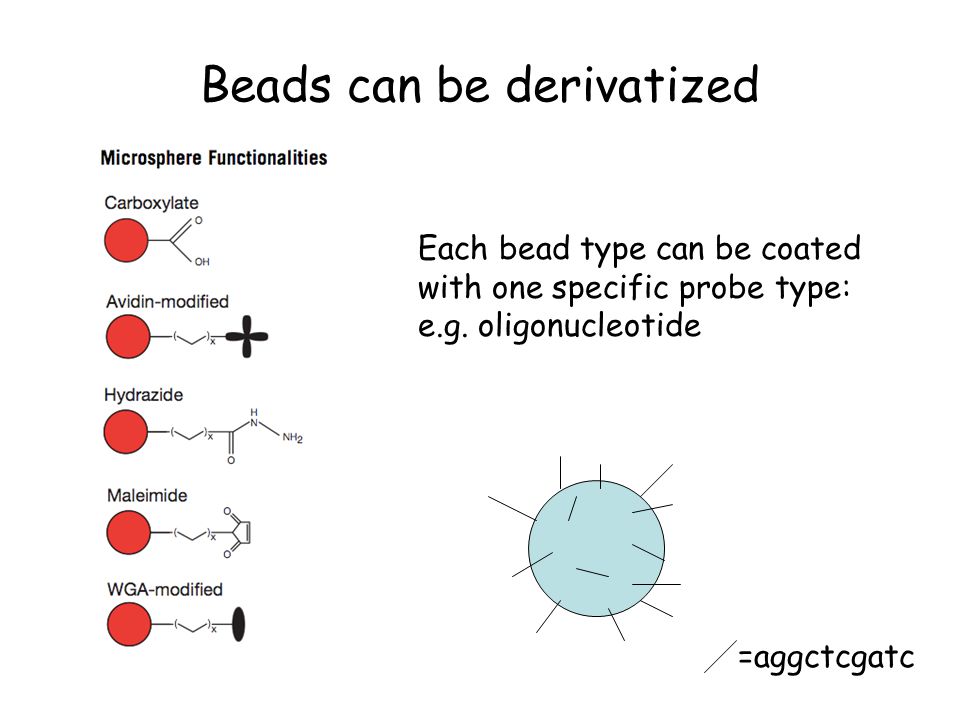

Beads can be derivatized Each bead type can be coated with one specific probe type: e.g. oligonucleotide =aggctcgatc
Luminex beads are analyzed by flow cytometry one well=100 different beads=100 reactions Luminex 100

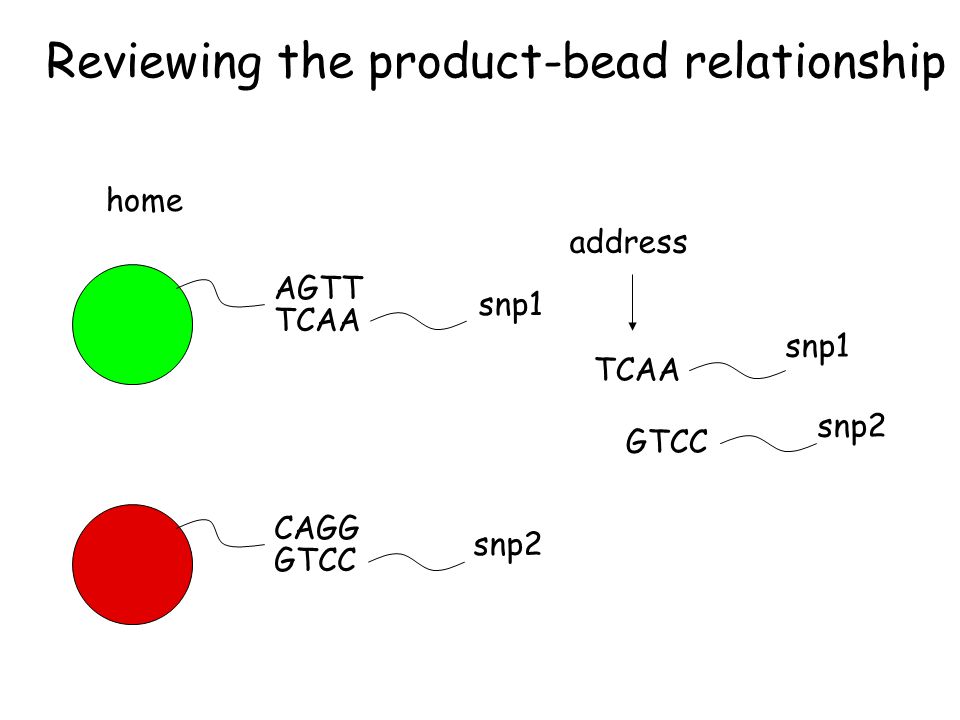

Reviewing the product-bead relationship AGTT CAGG home TCAA GTCC address TCAA GTCC snp1 snp2 snp1 snp2

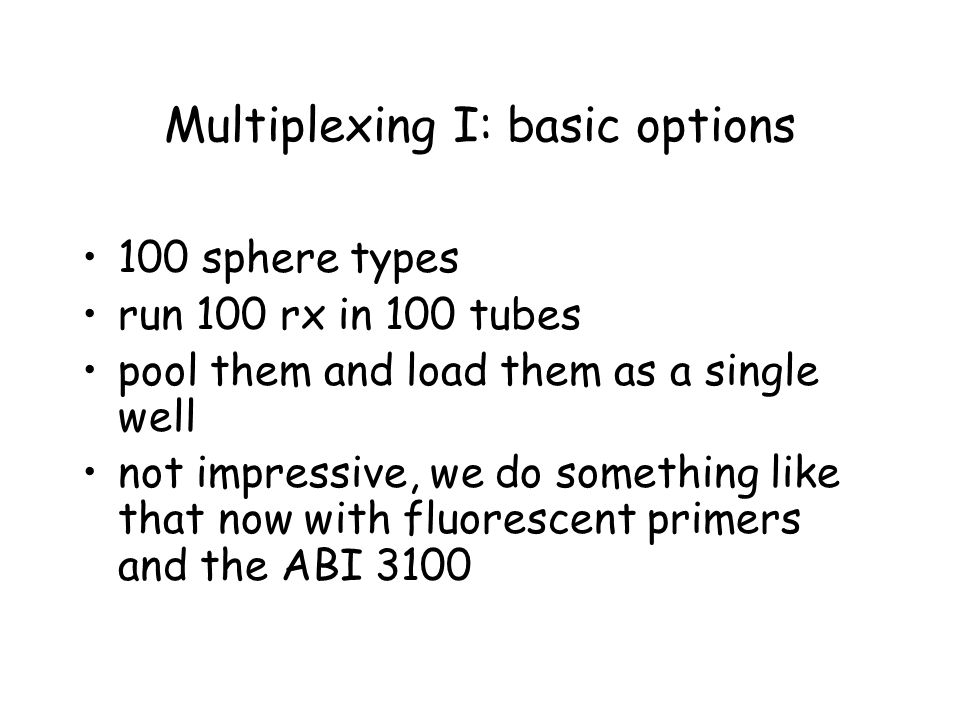

Multiplexing I: basic options 100 sphere types run 100 rx in 100 tubes pool them and load them as a single well not impressive, we do something like that now with fluorescent primers and the ABI 3100
Multiplexing II: advanced Run 100 genotyping rx in a single tube Sort each to the assigned sphere color by a zip code
Multiplexing III, more advanced oops, the scheme below does not work because different fluors will label the same ball…….
Factoids LuminexIllumina Sphere types1001,500 Cost per snp0.30.03 to 0.4 Genotypes/8 hrs10K? Mx Th. Gen/day120K300K templ. amplif.locus PCRwhole genome multiplex12-5050-1000
