0 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For petrol engines: Bosal nr = 099-870 Design = oval Engines up to 5.9L Total length (mm) = 419 Profile.

Similar presentations


Presentation on theme: "0 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For petrol engines: Bosal nr = 099-870 Design = oval Engines up to 5.9L Total length (mm) = 419 Profile."— Presentation transcript:

1 0 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For petrol engines: Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 419 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = 76.2; Outlet Ø (mm) = 76.2 Bosal nr = Design = round Engines up to 5.9L Total length (mm) = 781 Profile (width x height) (mm) = 127 x 108 Inlet Ø (mm) = 44.45; Outlet Ø (mm) = Bosal nr = Design = round Engines up to 5.9L Total length (mm) = 781 Profile (width x height) (mm) = 127 x 108 Inlet Ø (mm) = 50.8; Outlet Ø (mm) = 50.8 Bosal nr = Design = round Engines up to 5.9L Total length (mm) = 781 Profile (width x height) (mm) = 127 x 108 Inlet Ø (mm) = 57.15; Outlet Ø (mm) = Bosal offers a range of 18 universal catalytic converters for both diesel and petrol engines, in oval, round and square design. All catalytic converters are stainless steel and consist of highly coated ceramic or metallic substrates, wrapped in an insulating mat and protected with a heat shield. Bosal nr = Design = round Engines up to 5.9L Total length (mm) = 781 Profile (width x height) (mm) = 127 x 108 Inlet Ø (mm) = 63.5; Outlet Ø (mm) = 63.5

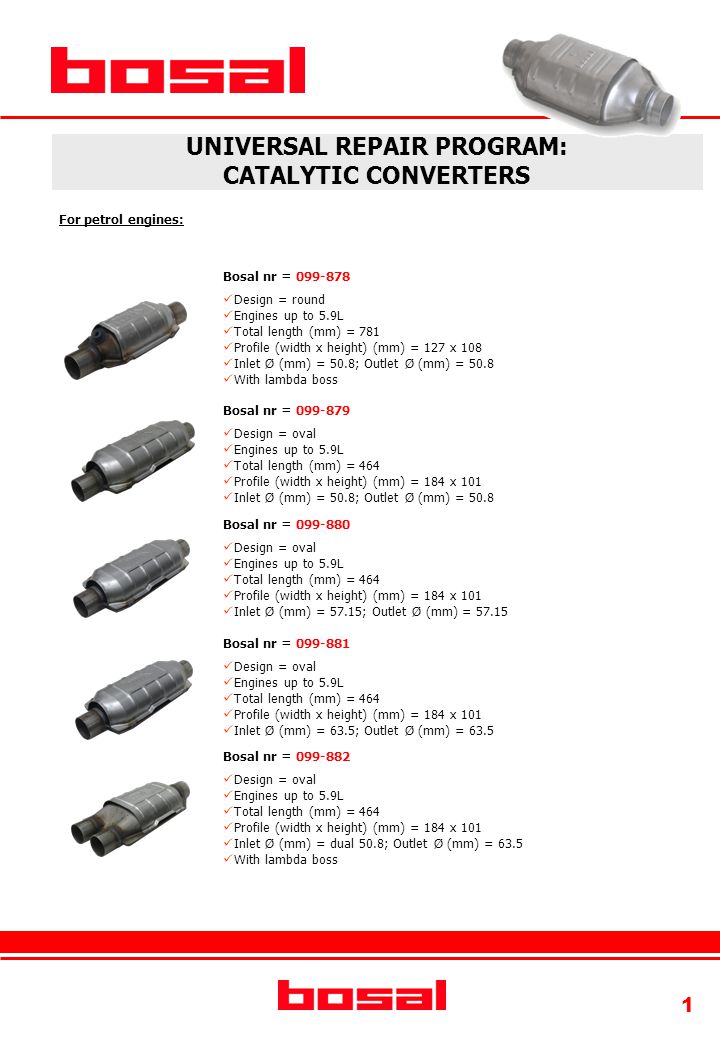

2 1 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For petrol engines: Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 464 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = 50.8; Outlet Ø (mm) = 50.8 Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 464 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = 57.15; Outlet Ø (mm) = Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 464 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = 63.5; Outlet Ø (mm) = 63.5 Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 464 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = dual 50.8; Outlet Ø (mm) = 63.5 With lambda boss Bosal nr = Design = round Engines up to 5.9L Total length (mm) = 781 Profile (width x height) (mm) = 127 x 108 Inlet Ø (mm) = 50.8; Outlet Ø (mm) = 50.8 With lambda boss

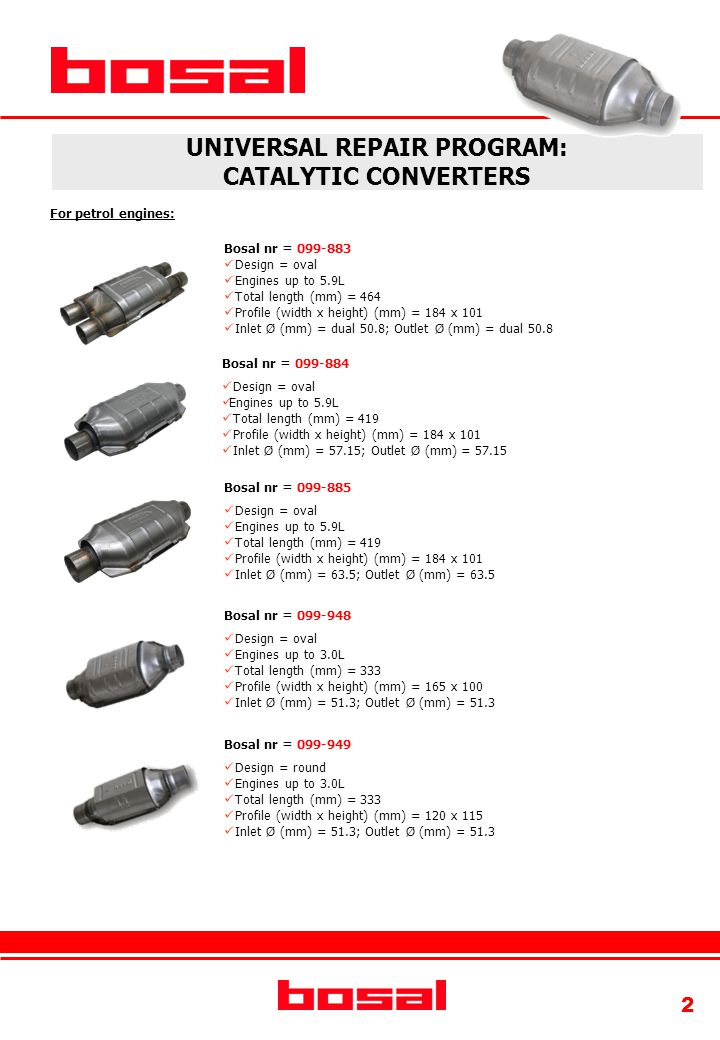

3 2 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For petrol engines: Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 419 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = 63.5; Outlet Ø (mm) = 63.5 Bosal nr = Design = oval Engines up to 3.0L Total length (mm) = 333 Profile (width x height) (mm) = 165 x 100 Inlet Ø (mm) = 51.3; Outlet Ø (mm) = 51.3 Bosal nr = Design = round Engines up to 3.0L Total length (mm) = 333 Profile (width x height) (mm) = 120 x 115 Inlet Ø (mm) = 51.3; Outlet Ø (mm) = 51.3 Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 464 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = dual 50.8; Outlet Ø (mm) = dual 50.8 Bosal nr = Design = oval Engines up to 5.9L Total length (mm) = 419 Profile (width x height) (mm) = 184 x 101 Inlet Ø (mm) = 57.15; Outlet Ø (mm) = 57.15

4 3 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For diesel engines: Bosal nr = Design = oval Engines up to 4.2L Total length (mm) = 320 Profile (width x height) (mm) = 160 x 100 Inlet Ø (mm) = 52; Outlet Ø (mm) = 52 Bosal nr = Design = oval Engines up to 7.5L Total length (mm) = 450 Profile (width x height) (mm) = 175 x 100 Inlet Ø (mm) = 65; Outlet Ø (mm) = 65 Bosal nr = Design = square Engines up to 3.0L Total length (mm) = 265 Profile (width x height) (mm) = 95 x 95 Inlet Ø (mm) = 50; Outlet Ø (mm) = 50 With metallic substrate For petrol & diesel engines:


Download ppt "0 UNIVERSAL REPAIR PROGRAM: CATALYTIC CONVERTERS For petrol engines: Bosal nr = 099-870 Design = oval Engines up to 5.9L Total length (mm) = 419 Profile."
